0°壁面角度约束下超声速射流偏转控制研究

周宇航; 顾蕴松; 李琳恺

doi:10.13224/j.cnki.jasp.20240659

0°壁面角度约束下超声速射流偏转控制研究

doi: 10.13224/j.cnki.jasp.20240659

南京航空航天大学航空学院非定常空气动力学与流动控制工信部重点实验室，南京 210016

基金项目: 国家自然基金面上项目（12472274）

详细信息

作者简介:
周宇航（1997-），男，博士，研究方向为流体推力矢量技术。E-mail：zhouyuhang@nuaa.edu.cn

通讯作者:
顾蕴松（1971-），男，教授，博士，研究方向为主动流动控制和新概念飞行器设计。E-mail：yunsonggu@nuaa.edu.cn

中图分类号: V231.3
计量
- 文章访问数: 73
- HTML浏览量: 45
- PDF量: 20
- 被引次数: 0
出版历程
- 收稿日期: 2024-09-25
- 网络出版日期: 2026-03-30

Research on deflection control of supersonic jet under the constraint of 0° wall angle

Laboratory of Unsteady Aerodynamics and Flow Control，Ministry of Industry and Information Technology，College of Aerospace Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China

摘要

摘要:
流体推力矢量喷管因其结构简单、质量轻、响应快以及隐身性好成为低可探测飞行器的关键部件之一。目前射流的矢量控制往往依赖于喷管扩张段或弯曲型面，而额外的型面结构势必会带来飞行器结构增重以及后体阻力，同时降低了飞行器的隐身性。因此本文立足于0°壁面角度约束下的被动式流体推力矢量喷管，通过实验研究方法探究了有限固壁约束下超声速射流在有无控制下的波系结构特征及演化规律。研究表明：在壁面角度为0°约束条件下，压比为2.0的主射流表现为多级马赫杆的类激波串波系结构，施加控制后可以实现3°的流动矢量角；当主流压比为2.5时，施加控制后射流边界的非对称膨胀导致射流在壁面发生非对称分离，最终驱动射流达到3.5°的矢量偏转角。研究结果有助于明晰壁面角度约束对超声速射流波系结构的影响规律，可为隐身飞翼布局飞行器提供矢量辅助增稳控制新方法。
- 流体式推力矢量 /
- 射流控制 /
- 诱导激波 /
- 分离激波 /
- 固壁约束
Abstract:
The fluidic thrust vectoring nozzle, with its simple structure, light weight, fast response, and good stealth, has become one of the key components for low detectable aircraft. The vectoring control of the jet is often dependent on the expansion section or curved surface of the nozzle, which inevitably leads to additional structural weight and drag on the aircraft, as well as a decrease in stealth. Therefore, this study focuses on the passive fluidic thrust vectoring nozzle with the angle of the surface equal to 0°, and explores the evolution laws of the wave structure under the confined solid wall constraint through experimental method. The study shows that under the constraint of the surface angle equal to 0°, the primary jet under nozzle pressure ratio 2.0 exhibits a multi Mach stem as shock wave string structure. When the jet is controlled, the jet can be deflected to 3°. When the nozzle pressure ratio is 2.5, the asymmetric expansion of the jet boundary appeared under controlled, which leads to the asymmetric separation of the jet on the upper and down walls. The jet can be achieved to 3.5° deflection angle. The research results help clarify the influence of the surface angle constraint on the wave structure of the supersonic jet and can provide a new method of vector assisted stabilization control for stealth wing layout aircraft.
- fluidic thrust vector /
- jet control /
- induced shock wave /
- separation shock wave /
- wall constraint

HTML

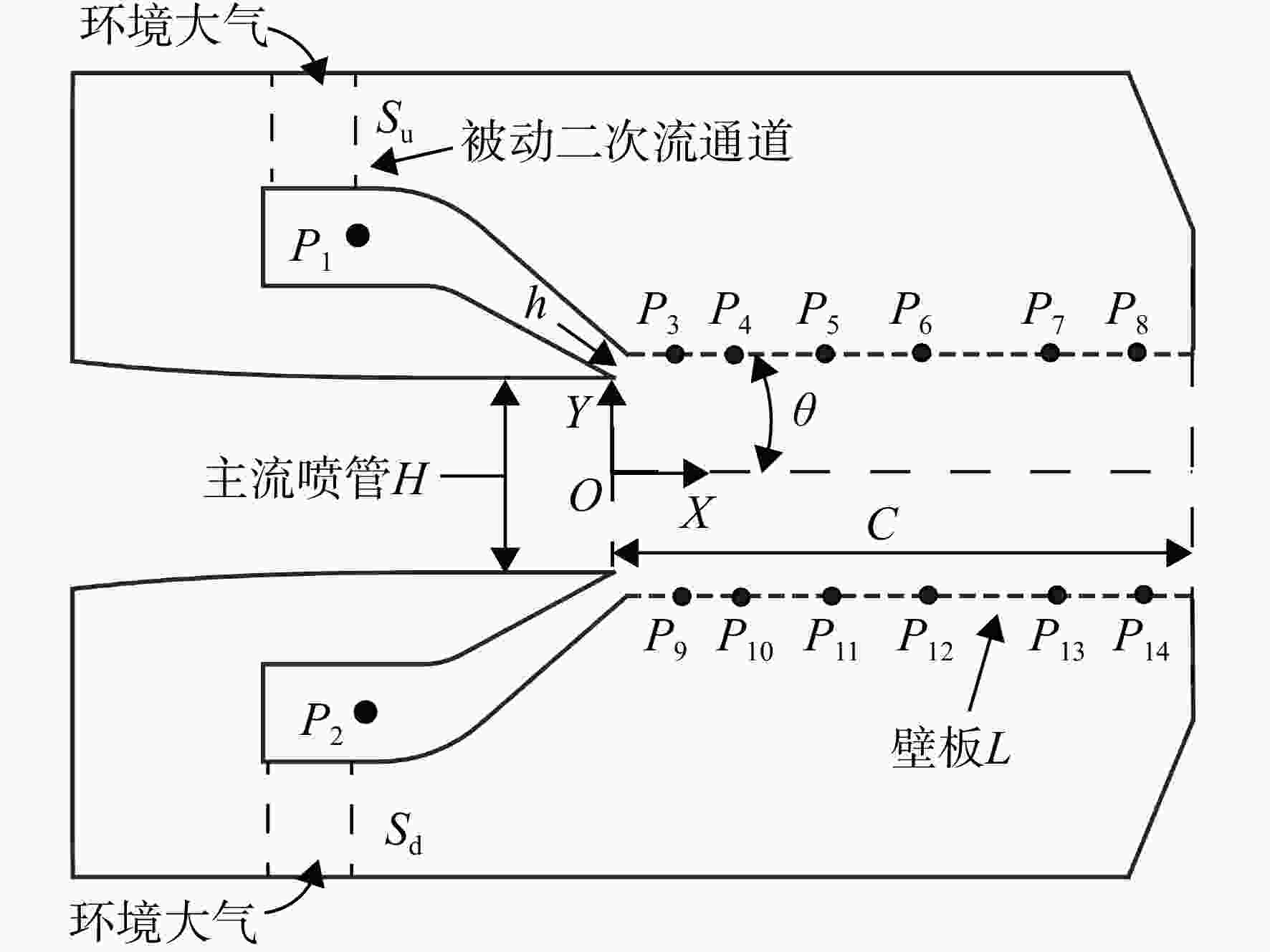

图 1 被动流体式推力矢量喷管模型示意图（单位：mm）

Figure 1. Schematic diagram of passive fluidic thrust vectoring nozzle model （unit：mm）

下载: 全尺寸图片幻灯片

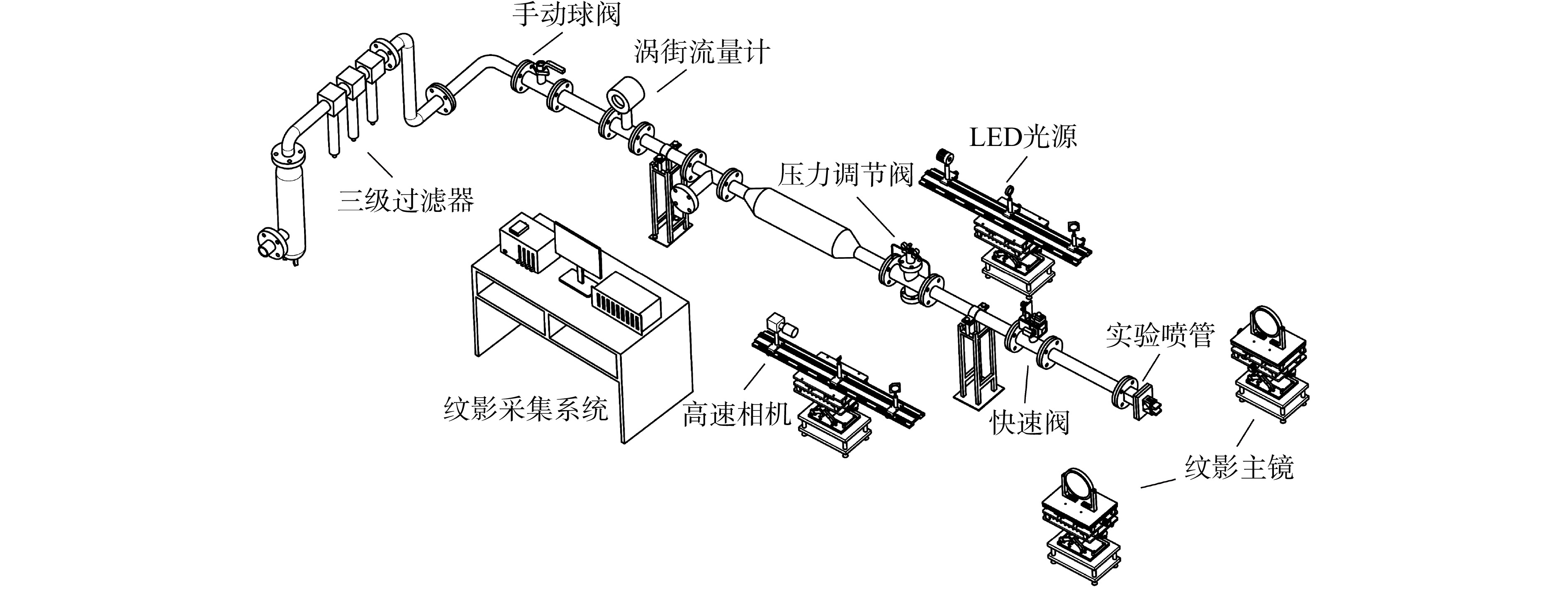

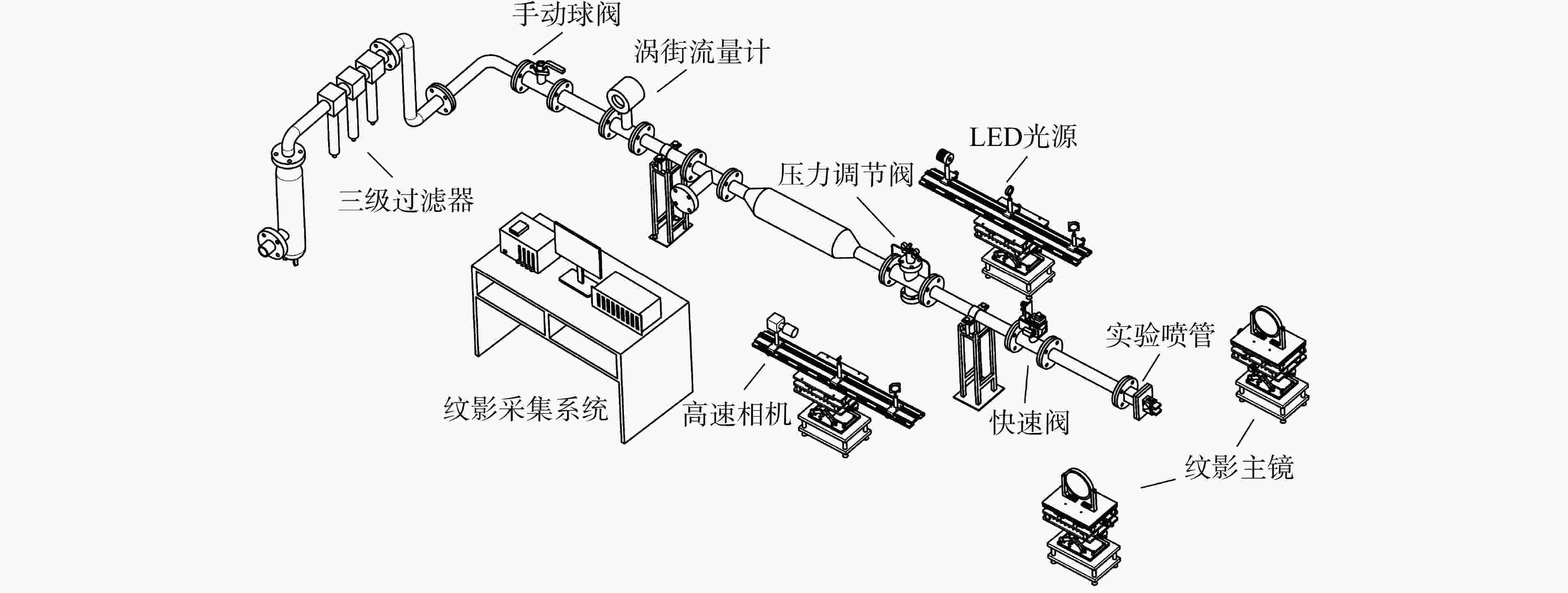

图 2 0°壁面角度约束下流体推力矢量喷管实验台（纹影采集系统）

Figure 2. Fluidic thrust vectoring nozzle experimental platform under 0° wall constraints （schlieren visualization system）

下载: 全尺寸图片幻灯片

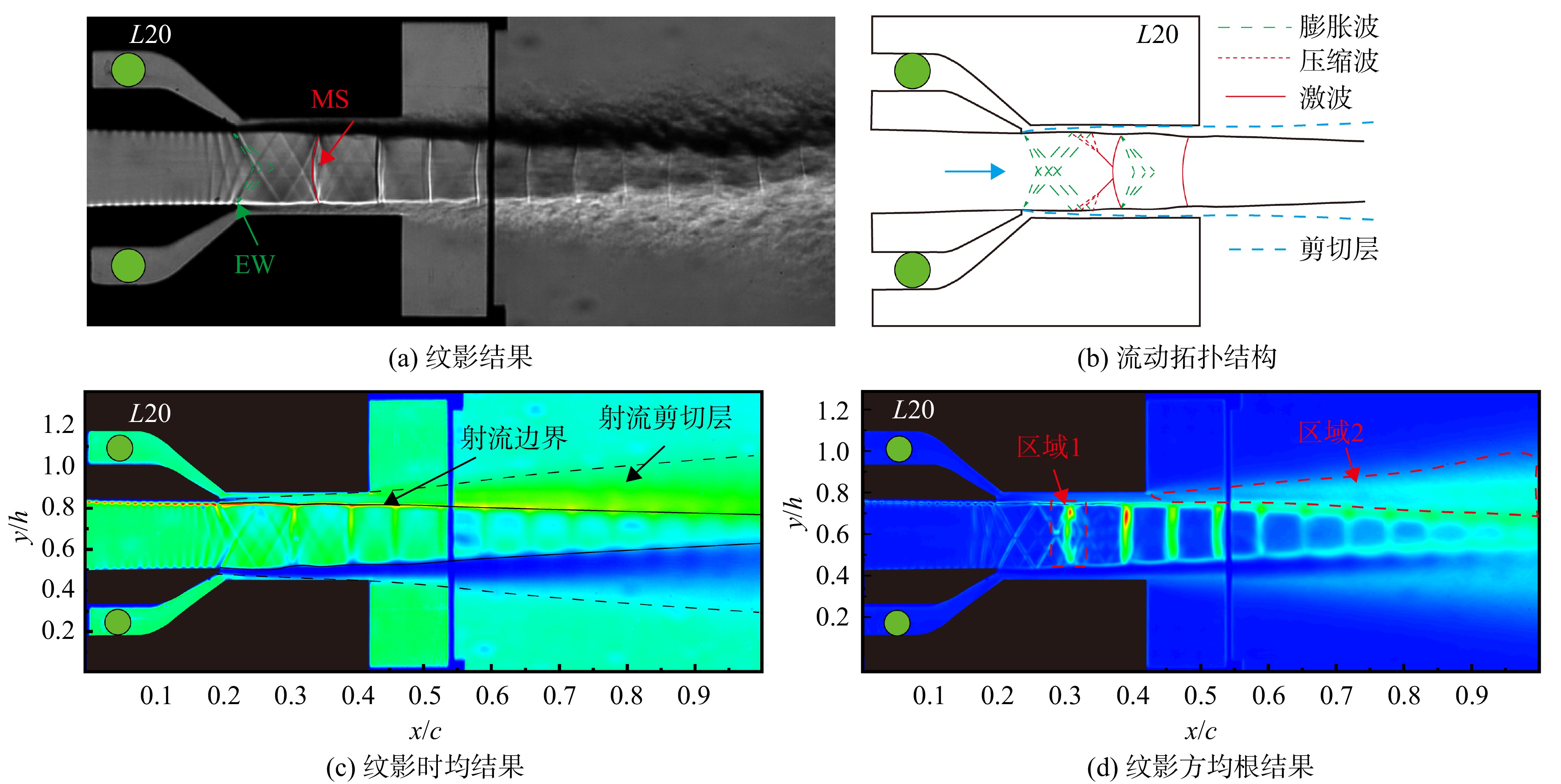

图 3 0°壁面角度约束下R_NPR=2.0无控制超声速射流流动结构

Figure 3. Flow structure of uncontrolled supersonic jet of 0° wall constraints under R_NPR=2.0

下载: 全尺寸图片幻灯片

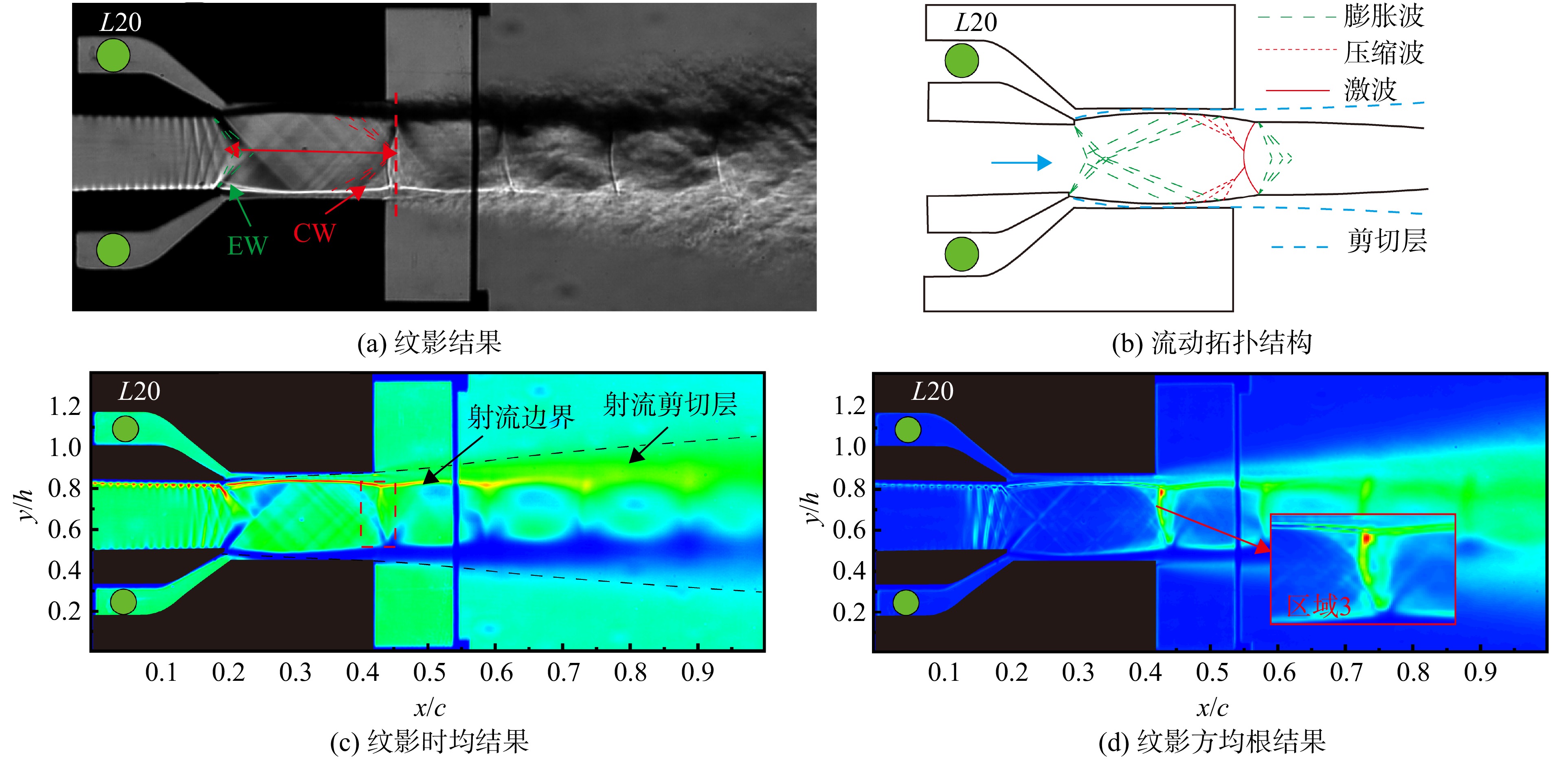

图 4 0°壁角约束下R_NPR=2.5无控制超声速射流流动结构

Figure 4. Flow structure of uncontrolled supersonic jet of 0° wall constraints under R_NPR=2.5

下载: 全尺寸图片幻灯片

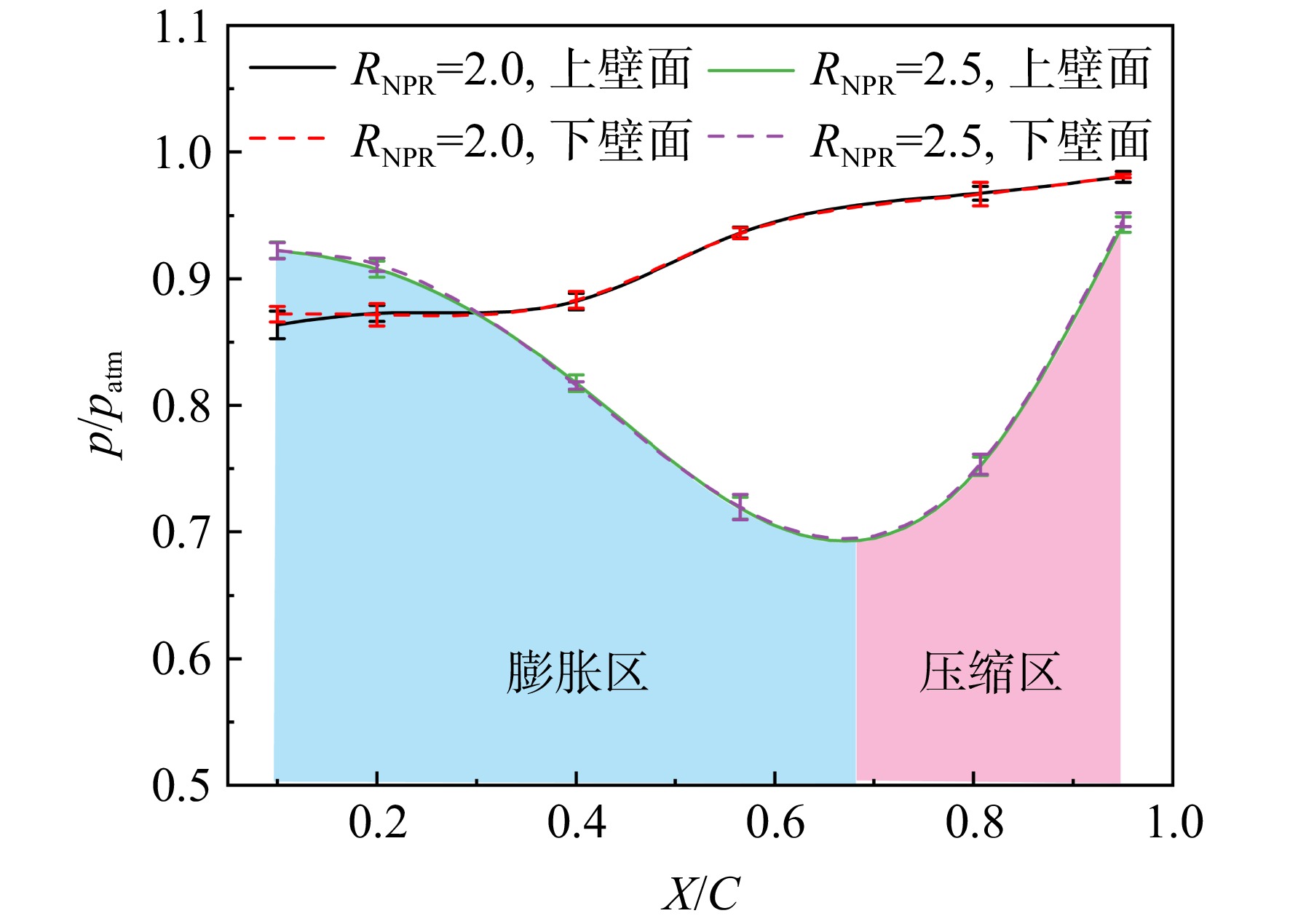

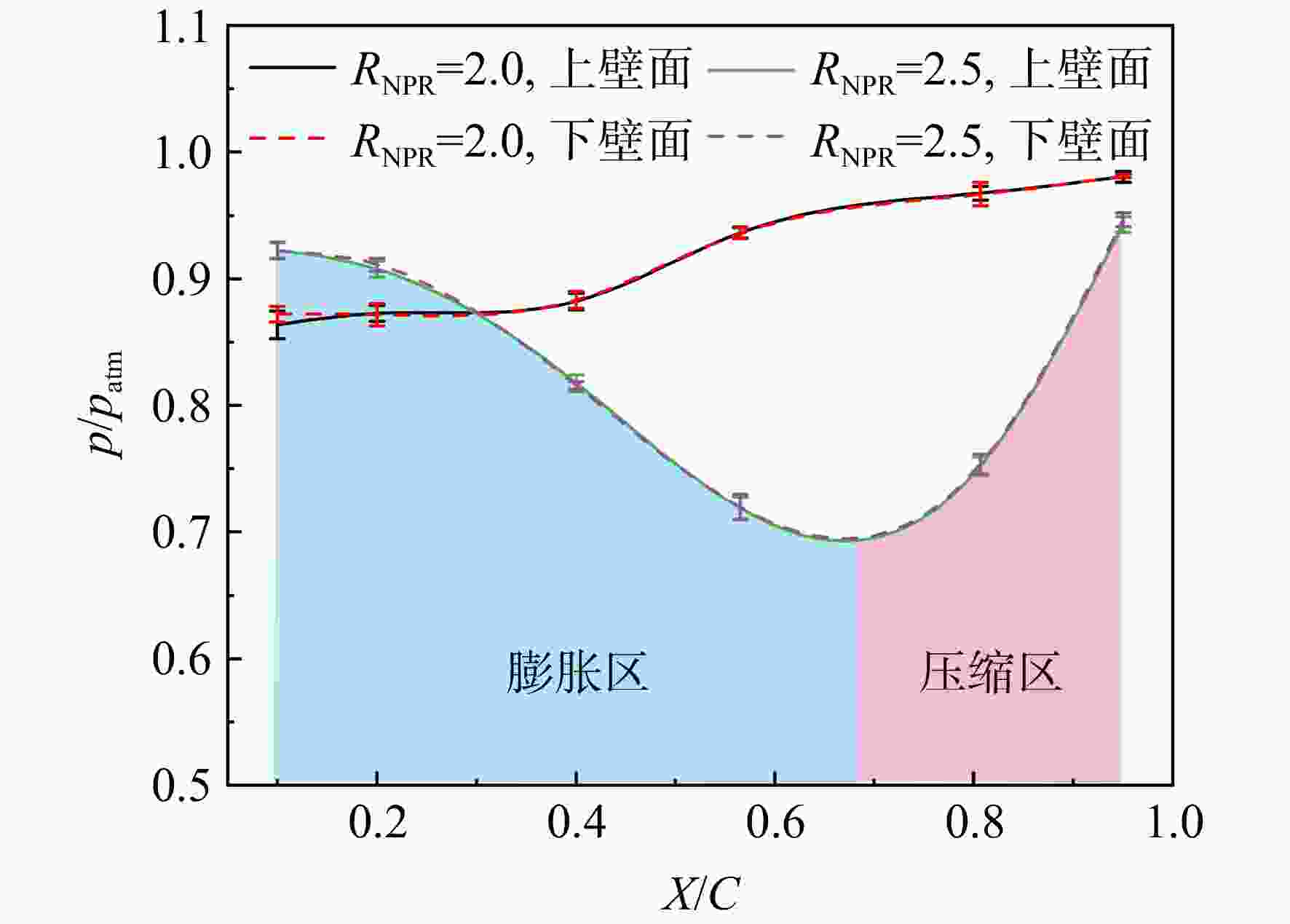

图 5 不同压比无控制情况下壁面压力分布

Figure 5. Pressure distribution of the wall with different R_NPR of uncontrolled station

下载: 全尺寸图片幻灯片

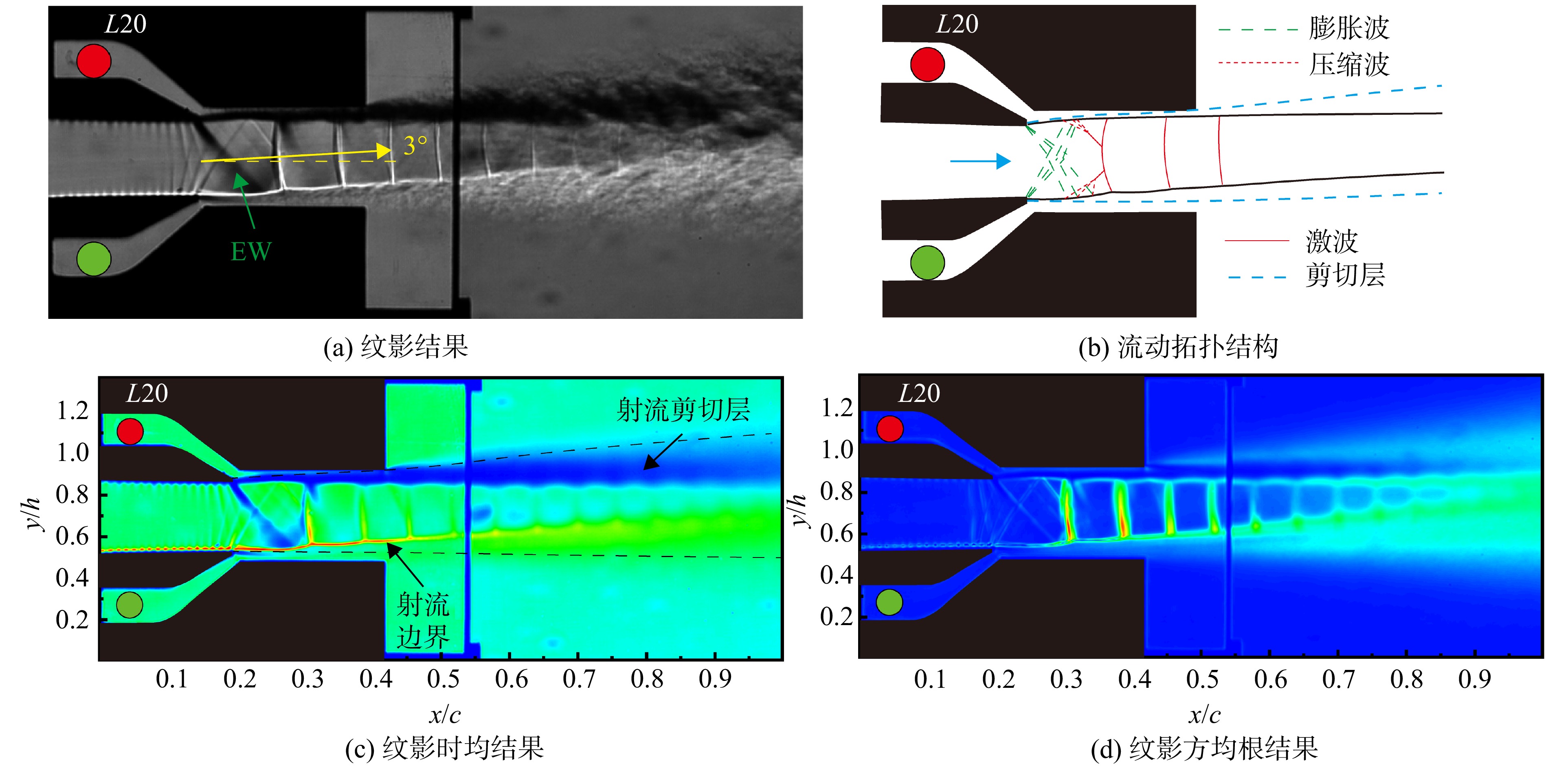

图 6 0°壁面角度约束下R_NPR=2.0控制下超声速射流流动结构

Figure 6. Flow structure of controlled supersonic jet of 0° wall constraints under R_NPR=2.0

下载: 全尺寸图片幻灯片

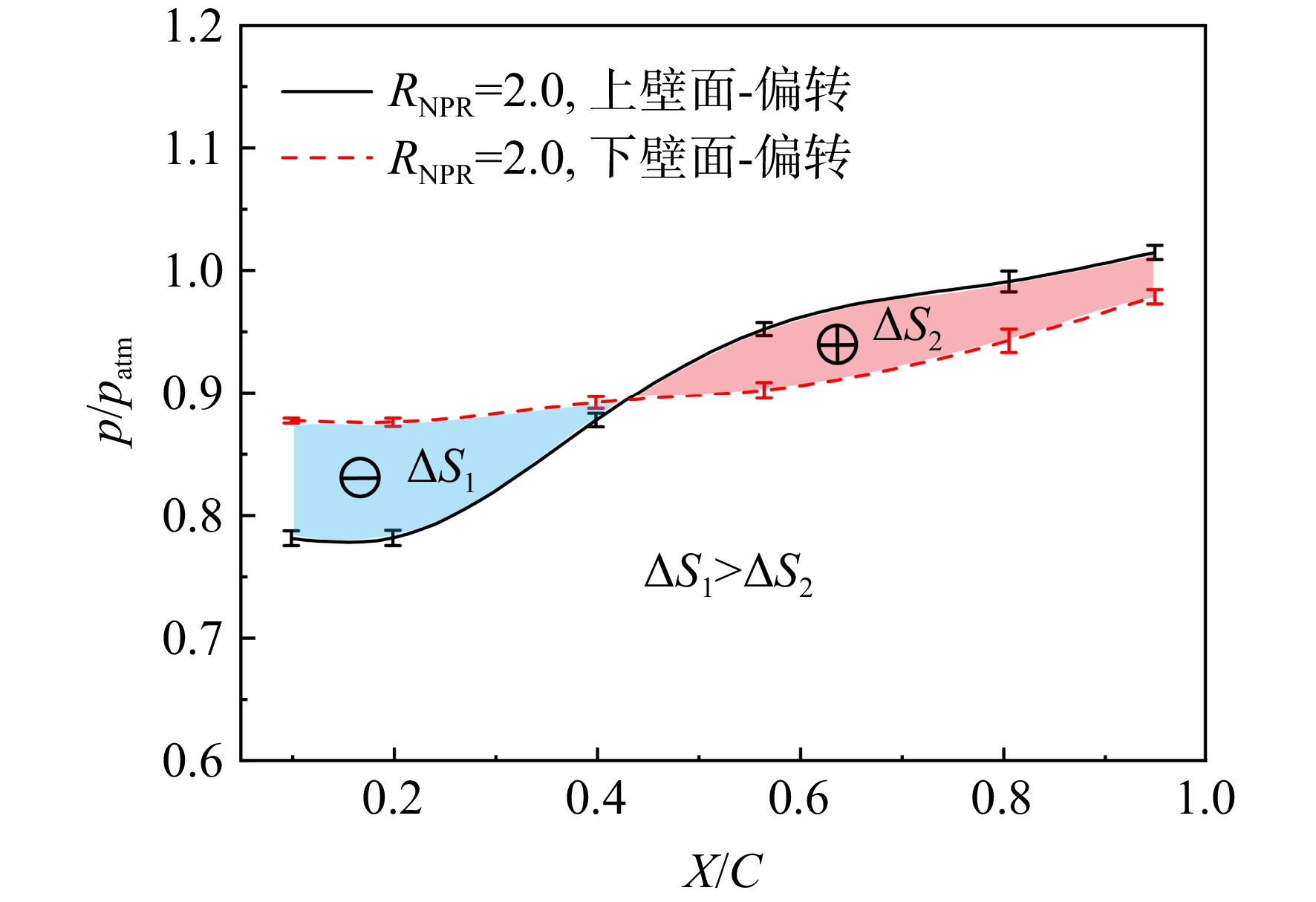

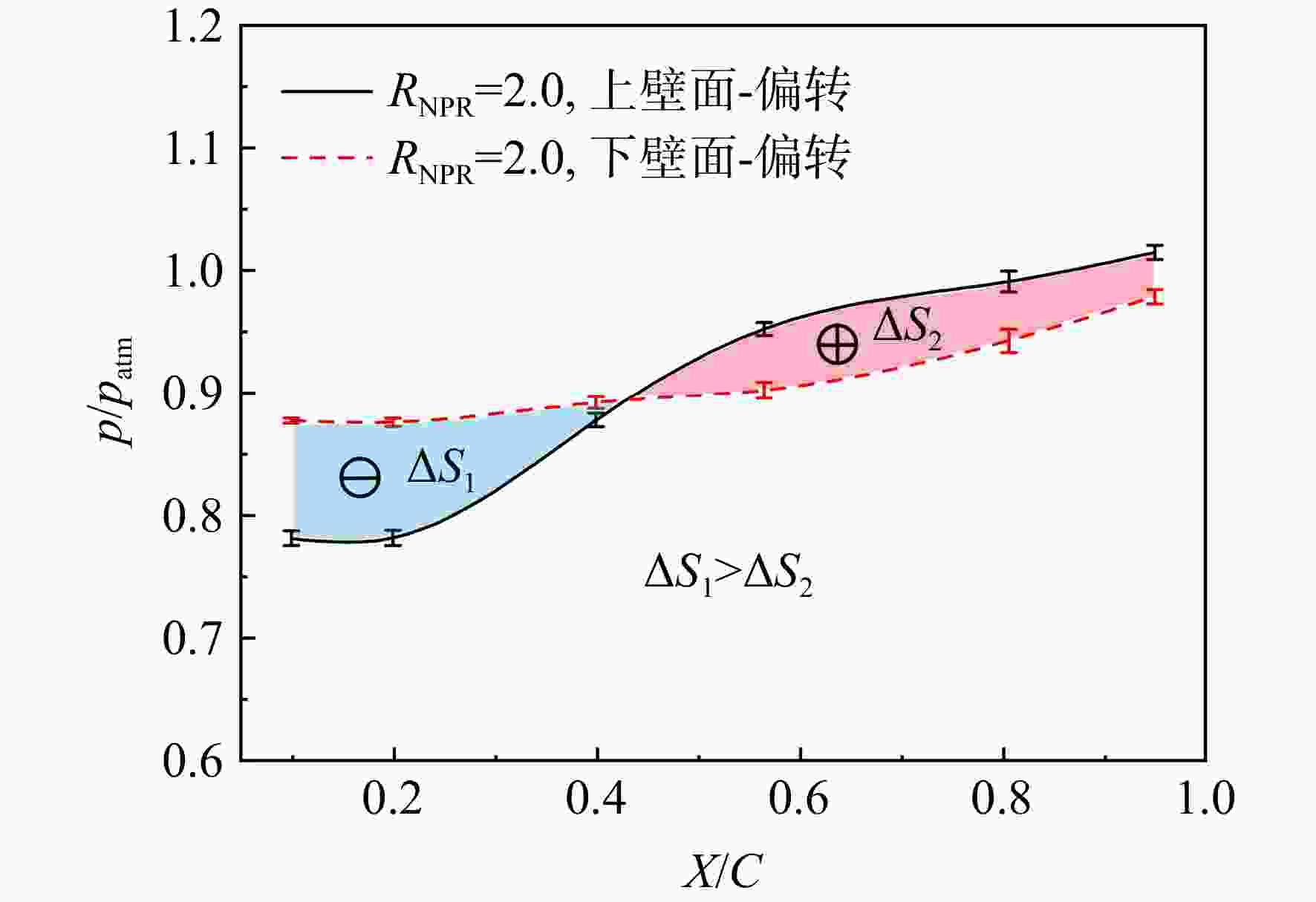

图 7 R_NPR=2.0控制情况下壁面压力分布

Figure 7. Pressure distribution of the wall with R_NPR=2.0 of controlled condition

下载: 全尺寸图片幻灯片

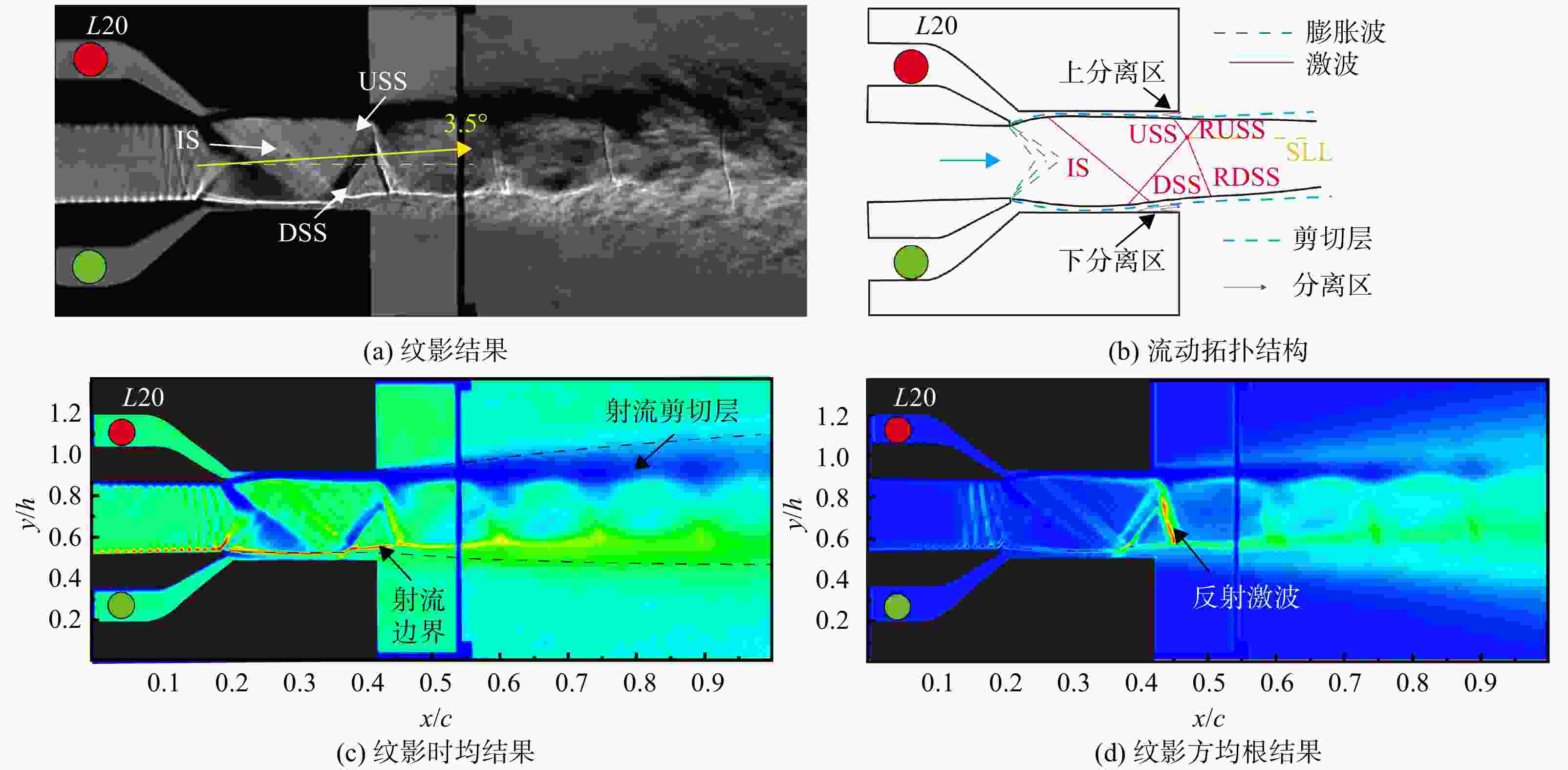

图 8 0°壁面角度约束下R_NPR=2.5控制超声速射流流动结构

Figure 8. Flow structure of controlled supersonic jet of 0° wall constraints under R_NPR=2.5

下载: 全尺寸图片幻灯片

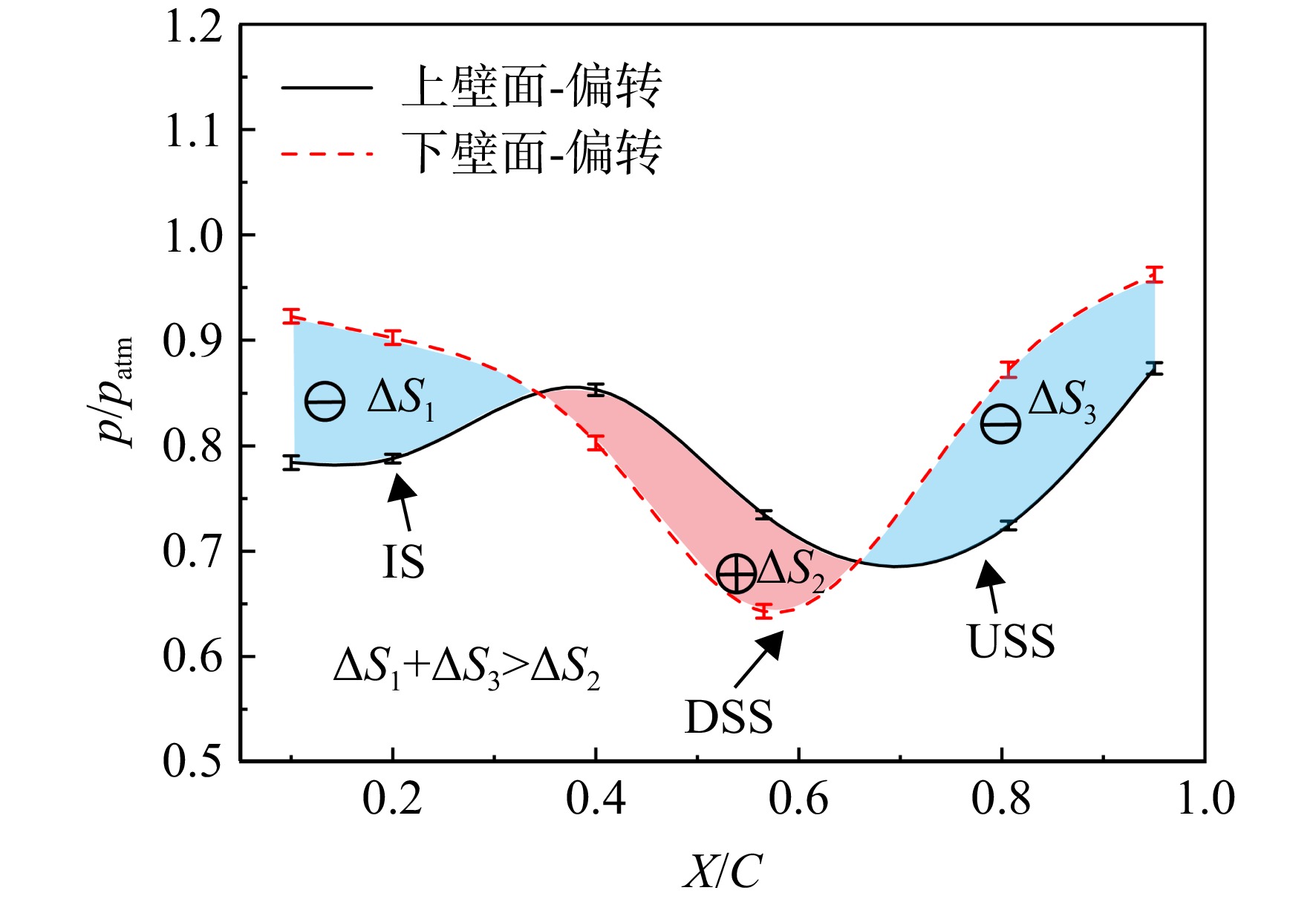

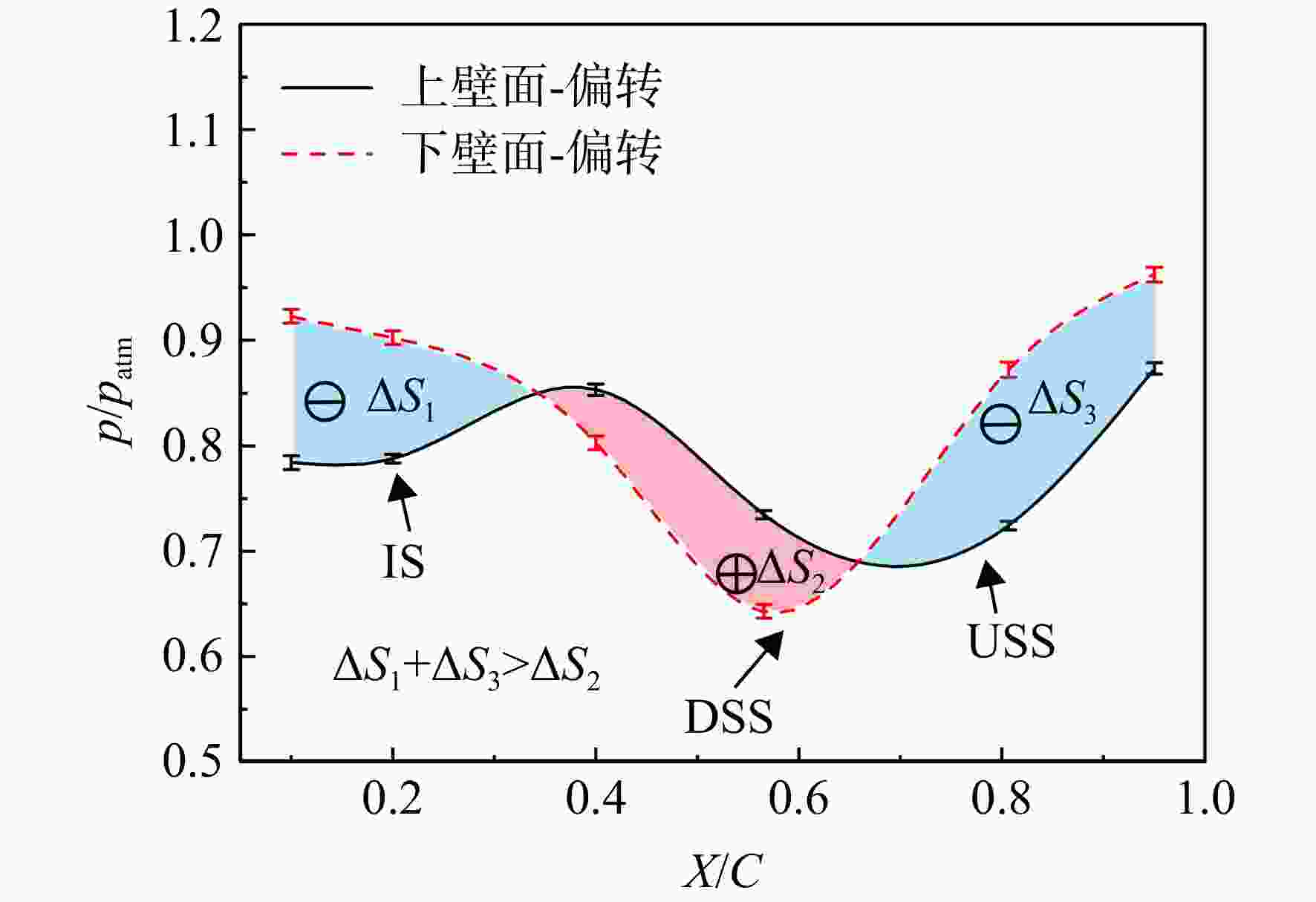

图 9 R_NPR=2.5控制情况下壁面压力分布

Figure 9. Pressure distribution of the wall with R_NPR=2.5 of controlled condition

下载: 全尺寸图片幻灯片

表 1 喷管结构参数表

Table 1. Table of the nozzle structure parameter

参数数值

主喷流喷管高度H/mm 10

主喷流喷管宽度W/mm 40

控制缝h/mm 1.4

壁板长度L/mm 20

壁板倾角θ/（°） 0

下载: 导出CSV

参考文献(28)

[1]	BURSEY R, DICKINSON R. Flight test results of the F-15 SMTD thrust vectoring/thrust reversing exhaust nozzle: AIAA-1990-1906[R]. Reston, US: 26th Joint Propulsion Conference, 1990.
[2]	CLOUGH B. Short take-off and landing maneuver technology demonstrator (STOL/MTD) lessons learned-integrated flight/propulsion control (IFPC): AIAA 1990-3307 [R]. Reston, US: Aircraft Design, Systems and Operations Conference, 1990.
[3]	FRANCIS M S. Air vehicle management with integrated thrust-vector control[J]. AIAA Journal, 2018, 56(12): 4741-4751. doi: 10.2514/1.J056768
[4]	F-15 STOL and Maneuver Technology Demonstrator flight test progress report: AIAA-1990-1269 [R]. Reston, US: Orbital Debris Conference: Technical Issues andFuture Directions, 1990.
[5]	Fluidic thrust vectoring and throat control exhaust nozzle: AIAA-2002-4060[R]. Reston, VA38thAIAA/ASME/SAE/ASEE Joint Propulsion Conference & Exhibit, 2002.
[6]	史经纬. 固定几何气动矢量喷管流动机理及性能评估技术研究[D]. 西安: 西北工业大学, 2015. SHI Jingwei. Study on flow mechanism and performance evaluation technology of fixed geometry aerodynamic vector nozzle[D]. Xi’an: Northwestern Polytechnical University, 2015. (in Chinese SHI Jingwei. Study on flow mechanism and performance evaluation technology of fixed geometry aerodynamic vector nozzle[D]. Xi’an: Northwestern Polytechnical University, 2015. (in Chinese)
[7]	王占学, 王玉男, 李志杰, 等. 基于激波控制的流体推力矢量喷管试验[J]. 推进技术, 2010, 31(6): 751-756. WANG Zhanxue, WANG Yunan, LI Zhijie, et al. Experiment on fluidic thrust-vectoring nozzle based on shock control concept[J]. Journal of Propulsion Technology, 2010, 31(6): 751-756. (in Chinese doi: 10.13675/j.cnki.tjjs.2010.06.003 WANG Zhanxue, WANG Yunan, LI Zhijie, et al. Experiment on fluidic thrust-vectoring nozzle based on shock control concept[J]. Journal of Propulsion Technology, 2010, 31(6): 751-756. (in Chinese) doi: 10.13675/j.cnki.tjjs.2010.06.003
[8]	MILLER D, CATT J. Conceptual development of fixed-geometry nozzles using fluidic injection for throat area control: AIAA-1995-2603[R]. Reston, US: 31st Joint Propulsion Conference and Exhibit, 1995.
[9]	WANG Yangsheng, XU Jinglei, HUANG Shuai, et al. Design and preliminary analysis of the variable axisymmetric divergent bypass dual throat nozzle[J]. Journal of Fluids Engineering, 2020, 142(6): 061204. doi: 10.1115/1.4045996
[10]	蒋晶晶, 徐惊雷, 黄帅, 等. 平行四边形截面的旁路式双喉道气动矢量喷管数值研究[J]. 航空动力学报, 2020, 35(4): 805-814. JIANG Jingjing, XU Jinglei, HUANG Shuai, et al. Numerical study of bypass dual throat nozzle with parallelogram cross-section[J]. Journal of Aerospace Power, 2020, 35(4): 805-814. (in Chinese doi: 10.13224/j.cnki.jasp.2020.04.014 JIANG Jingjing, XU Jinglei, HUANG Shuai, et al. Numerical study of bypass dual throat nozzle with parallelogram cross-section[J]. Journal of Aerospace Power, 2020, 35(4): 805-814. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.04.014
[11]	STRYKOWSKI P, WILCOXON R. Self-excitation and mixing in axisymmetric jets with counterflow: AIAA 1992-538 [R]. Reston, US: 30th Aerospace Sciences Meeting and Exhibit, 1992.
[12]	DORES D, MADRUGA SANTOS M, KROTHAPALLI A, et al. Characterization of a counterflow thrust vectoring scheme on a gas turbine engine exhaust jet: AIAA-2006-3516 [R]. Reston, US: 3rd AIAA Flow Control Conference, 2006.
[13]	MASON M, CROWTHER W. Fluidic thrust vectoring for low observable air vehicles: AIAA-2004-2210 [R]. Reston, US: 2nd AIAA flow control conference, 2004.
[14]	王全, 王强. 激波诱导二元矢量喷管内流特性数值研究[J]. 航空动力学报, 2006, 21(4): 681-685. WANG Quan, WANG Qiang. Computational analysis on static internal flow field of shock vector controlled vectoring exhaust nozzles[J]. Journal of Aerospace Power, 2006, 21(4): 681-685. (in Chinese doi: 10.3969/j.issn.1000-8055.2006.04.012 WANG Quan, WANG Qiang. Computational analysis on static internal flow field of shock vector controlled vectoring exhaust nozzles[J]. Journal of Aerospace Power, 2006, 21(4): 681-685. (in Chinese) doi: 10.3969/j.issn.1000-8055.2006.04.012
[15]	吴盟, 额日其太. 激波控制量喷管流动与工作特性研究[J]. 燃气涡轮试验与研究, 2012, 25(1): 29-34, 8. WU Meng, Eriqitai. Research on structure and performance of shock wave control vector nozzle flow field[J]. Gas Turbine Experiment and Research, 2012, 25(1): 29-34, 8. (in Chinese doi: 10.3969/j.issn.1672-2620.2012.01.009 WU Meng, Eriqitai. Research on structure and performance of shock wave control vector nozzle flow field[J]. Gas Turbine Experiment and Research, 2012, 25(1): 29-34, 8. (in Chinese) doi: 10.3969/j.issn.1672-2620.2012.01.009
[16]	DEERE K. PAB3D simulations of a nozzle with fluidic injection for yaw thrust-vector control: AIAA 1998-3254 [R]. Reston, US: 34th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit, 1998.
[17]	GU Rui, XU Jinglei, GUO Shuai. Experimental and numerical investigations of a bypass dual throat nozzle[J]. Journal of Engineering for Gas Turbines and Power, 2014, 136(8): 084501. doi: 10.1115/1.4026943
[18]	WANG Yangsheng, XU Jinglei, HUANG Shuai, et al. Experimental and numerical investigation of an axisymmetric divergent dual throat nozzle[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2020, 234(3): 563-572. doi: 10.1177/0954410019872089
[19]	汪明生, 杨建军. 逆流矢量喷管流动自身导致的非定常现象[J]. 航空学报, 2009, 30(4): 630-636. WANG Mingsheng, YANG Jianjun. Flow-induced unsteady phenomena in counterflow vectoring nozzles[J]. Acta Aeronautica et Astronautica Sinica, 2009, 30(4): 630-636. (in Chinese doi: 10.3321/j.issn:1000-6893.2009.04.009 WANG Mingsheng, YANG Jianjun. Flow-induced unsteady phenomena in counterflow vectoring nozzles[J]. Acta Aeronautica et Astronautica Sinica, 2009, 30(4): 630-636. (in Chinese) doi: 10.3321/j.issn:1000-6893.2009.04.009
[20]	杨建军, 汪明生. 逆流推力矢量喷管基本流动特征的数值研究[J]. 航空学报, 2008, 29(4): 769-775. YANG Jianjun, WANG Mingsheng. Numerical research on basic flow characteristics of counterflow thrust vectoring nozzle[J]. Acta Aeronautica et Astronautica Sinica, 2008, 29(4): 769-775. (in Chinese doi: 10.3321/j.issn:1000-6893.2008.04.001 YANG Jianjun, WANG Mingsheng. Numerical research on basic flow characteristics of counterflow thrust vectoring nozzle[J]. Acta Aeronautica et Astronautica Sinica, 2008, 29(4): 769-775. (in Chinese) doi: 10.3321/j.issn:1000-6893.2008.04.001
[21]	CHIPPINDALL J M. Coflow fluidic thrust vectoring of supersonic jets with a fixed geometry convergent divergent nozzle[D]. Manchester, UK: University of Manchester, 2009.
[22]	BANAZADEH A, SAGHAFI F, GHOREYSHI M, et al. Experimental and computationalinvestigation into the use of co-flow fluidic thrustvectoring on a small gas turbine[J]. The Aeronautical Journal, 2008, 112(1127): 17-25. doi: 10.1017/S0001924000001950
[23]	肖中云, 顾蕴松, 江雄, 等. 一种基于引射效应的流体推力矢量新技术[J]. 航空学报, 2012, 33(11): 1967-1974. XIAO Zhongyun, GU Yunsong, JIANG Xiong, et al. A new fluidic thrust vectoring technique based on ejecting mixing effects[J]. Acta Aeronautica et Astronautica Sinica, 2012, 33(11): 1967-1974. (in Chinese XIAO Zhongyun, GU Yunsong, JIANG Xiong, et al. A new fluidic thrust vectoring technique based on ejecting mixing effects[J]. Acta Aeronautica et Astronautica Sinica, 2012, 33(11): 1967-1974. (in Chinese)
[24]	曹永飞, 顾蕴松, 程克明, 等. 基于被动二次流的射流偏转比例控制[J]. 航空学报, 2015, 36(3): 757-763. CAO Yongfei, GU Yunsong, CHENG Keming, et al. Proportional control of jet deflection with passive secondary flow[J]. Acta Aeronautica et Astronautica Sinica, 2015, 36(3): 757-763. (in Chinese doi: 10.7527/S1000-6893.2014.0116 CAO Yongfei, GU Yunsong, CHENG Keming, et al. Proportional control of jet deflection with passive secondary flow[J]. Acta Aeronautica et Astronautica Sinica, 2015, 36(3): 757-763. (in Chinese) doi: 10.7527/S1000-6893.2014.0116
[25]	龚东升, 顾蕴松, 周宇航, 等. 基于微型涡喷发动机热喷流的无源流体推力矢量喷管的控制规律[J]. 航空学报, 2020, 41(10): 101-112. GONG Dongsheng, GU Yunsong, ZHOU Yuhang, et al. Control law of passive fluid thrust vector nozzle based on thermal jet of micro turbojet engine[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41(10): 101-112. (in Chinese GONG Dongsheng, GU Yunsong, ZHOU Yuhang, et al. Control law of passive fluid thrust vector nozzle based on thermal jet of micro turbojet engine[J]. Acta Aeronautica et Astronautica Sinica, 2020, 41(10): 101-112. (in Chinese)
[26]	SHI Nanxing, GU Yunsong, ZHOU Yuhang, et al. Experimental investigation on the transient process of jet deflection controlled by passive secondary flow[J]. Journal of Visualization, 2022, 25(5): 967-981. doi: 10.1007/s12650-022-00841-y
[27]	SHI Nanxing, GU Yunsong, ZHOU Yuhang, et al. Mechanism of hysteresis and uncontrolled deflection in jet vectoring control based on Coanda effect[J]. Physics of Fluids, 2022, 34(8): 084107. doi: 10.1063/5.0101994
[28]	ZHOU Yuhang, GU Yunsong, XUE Longsheng, et al. Research on the control of supersonic jet under different boundary conditions[J]. Journal of Visualization, 2024, 27(1): 19-32. doi: 10.1007/s12650-023-00948-w
