| Citation: | LIU Yunfeng, HUANG Yong, WANG Xiwei, et al. Large eddy simulation on influence of swirler structure on ignition performance[J]. Journal of Aerospace Power, 2022, 37（10）：2286-2294 doi: 10.13224/j.cnki.jasp.20220233
|

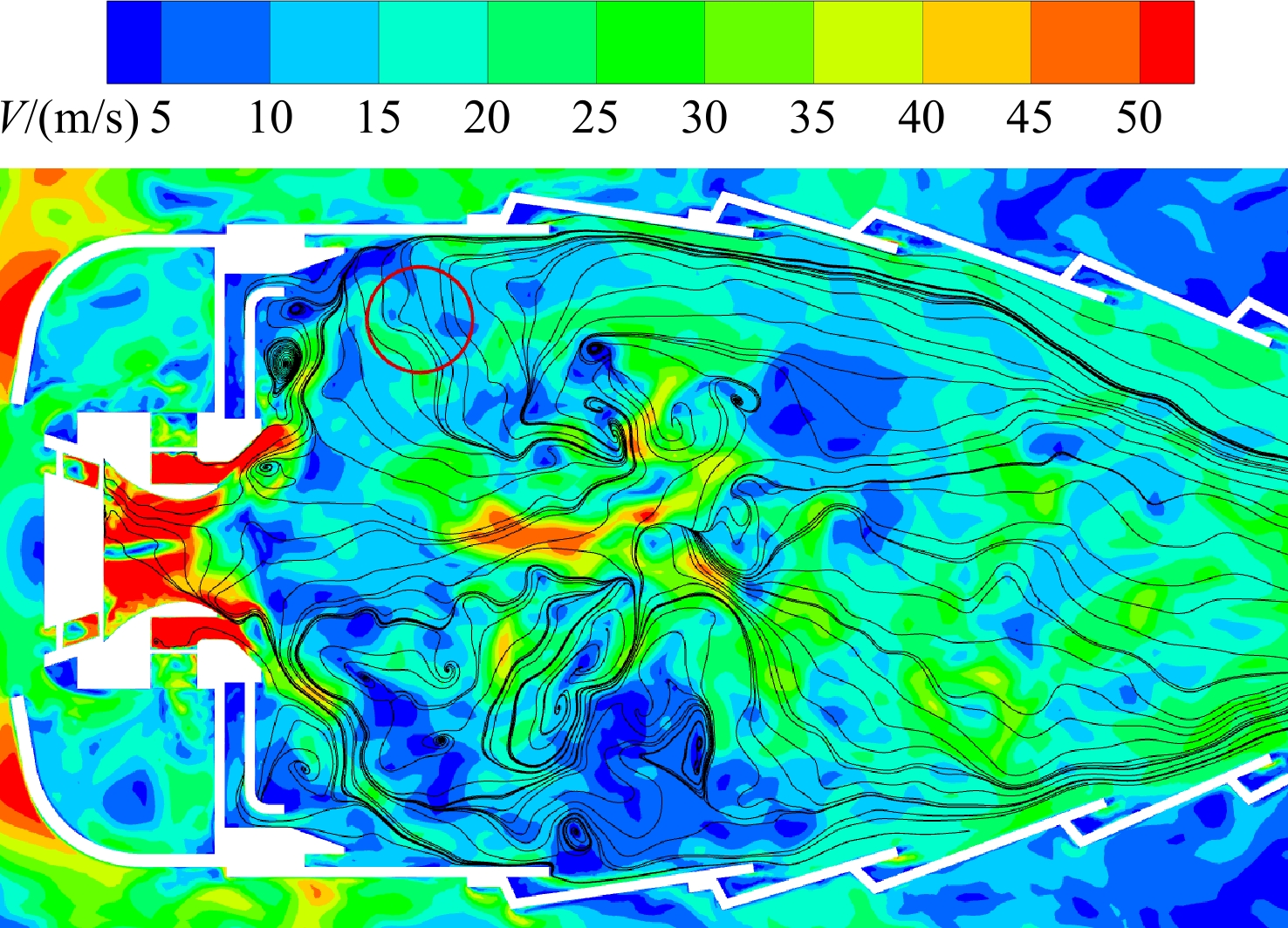

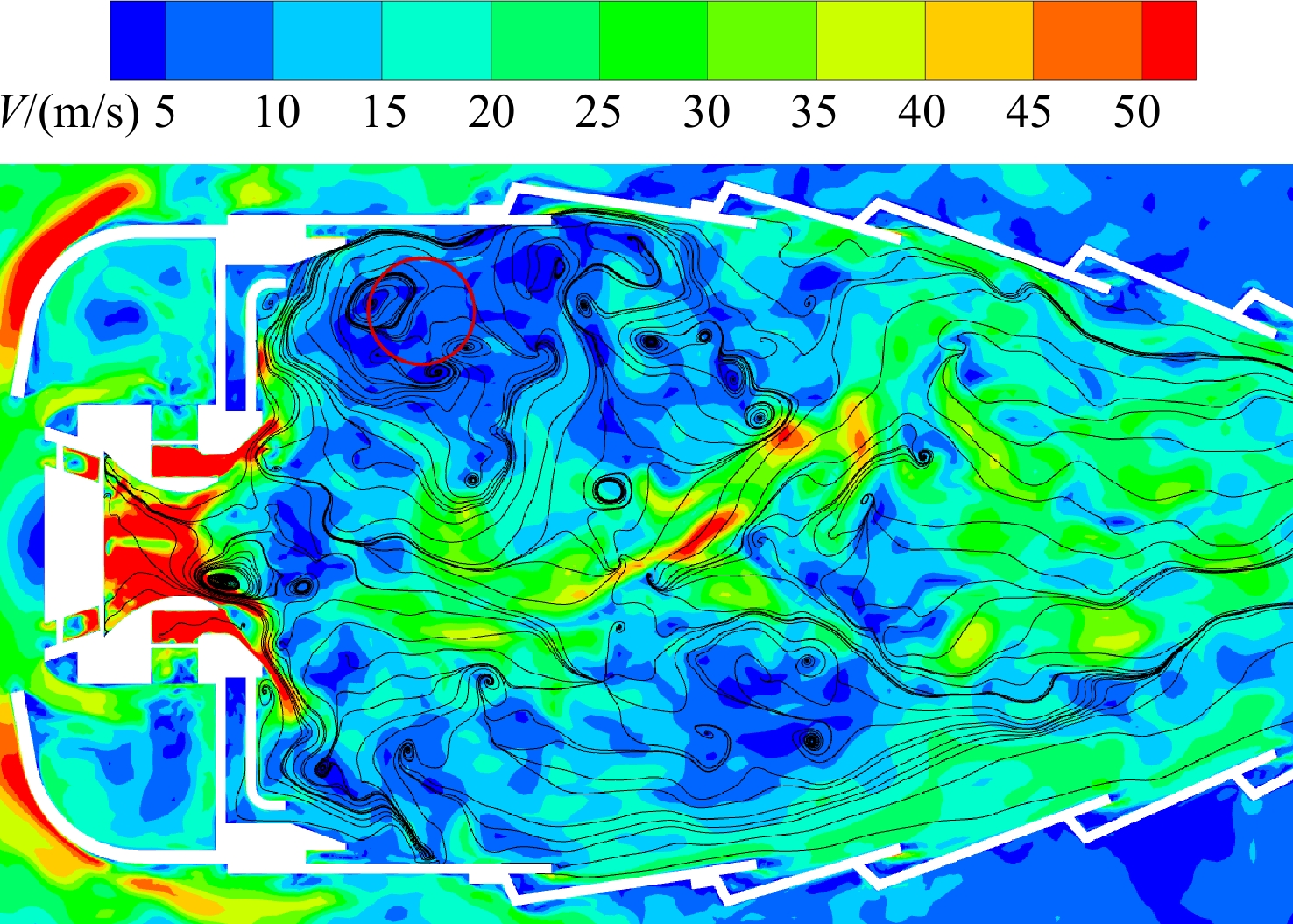

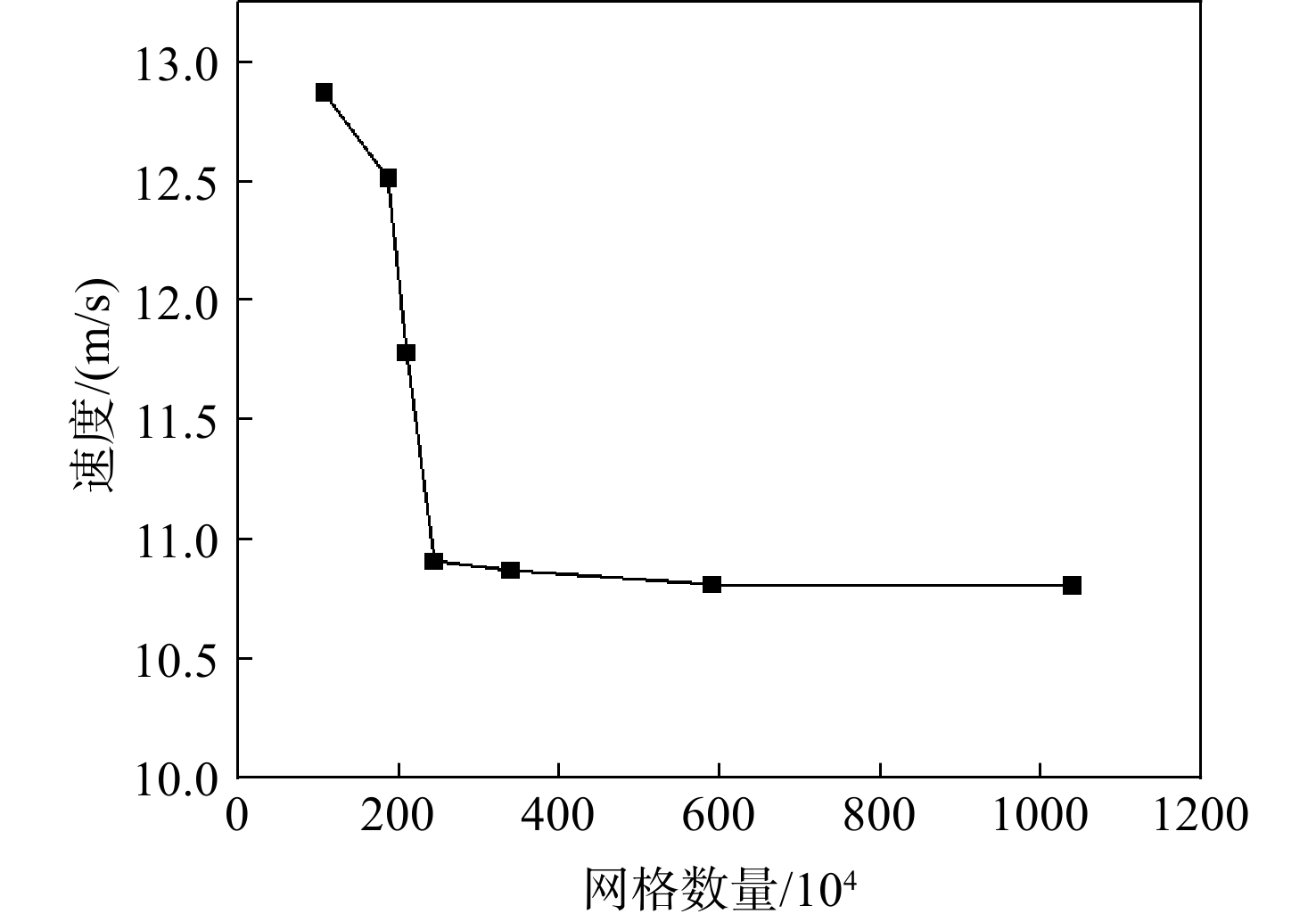

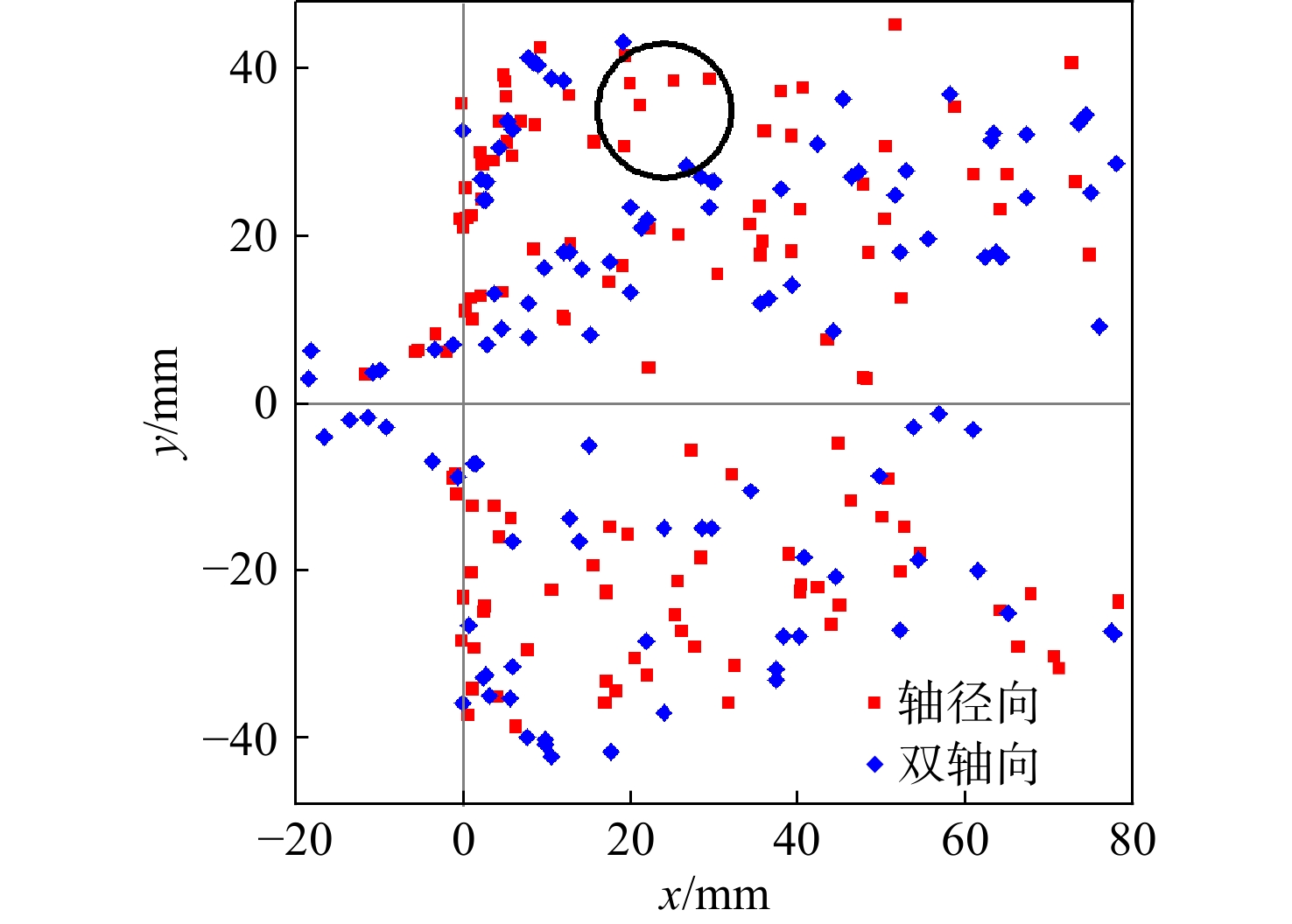

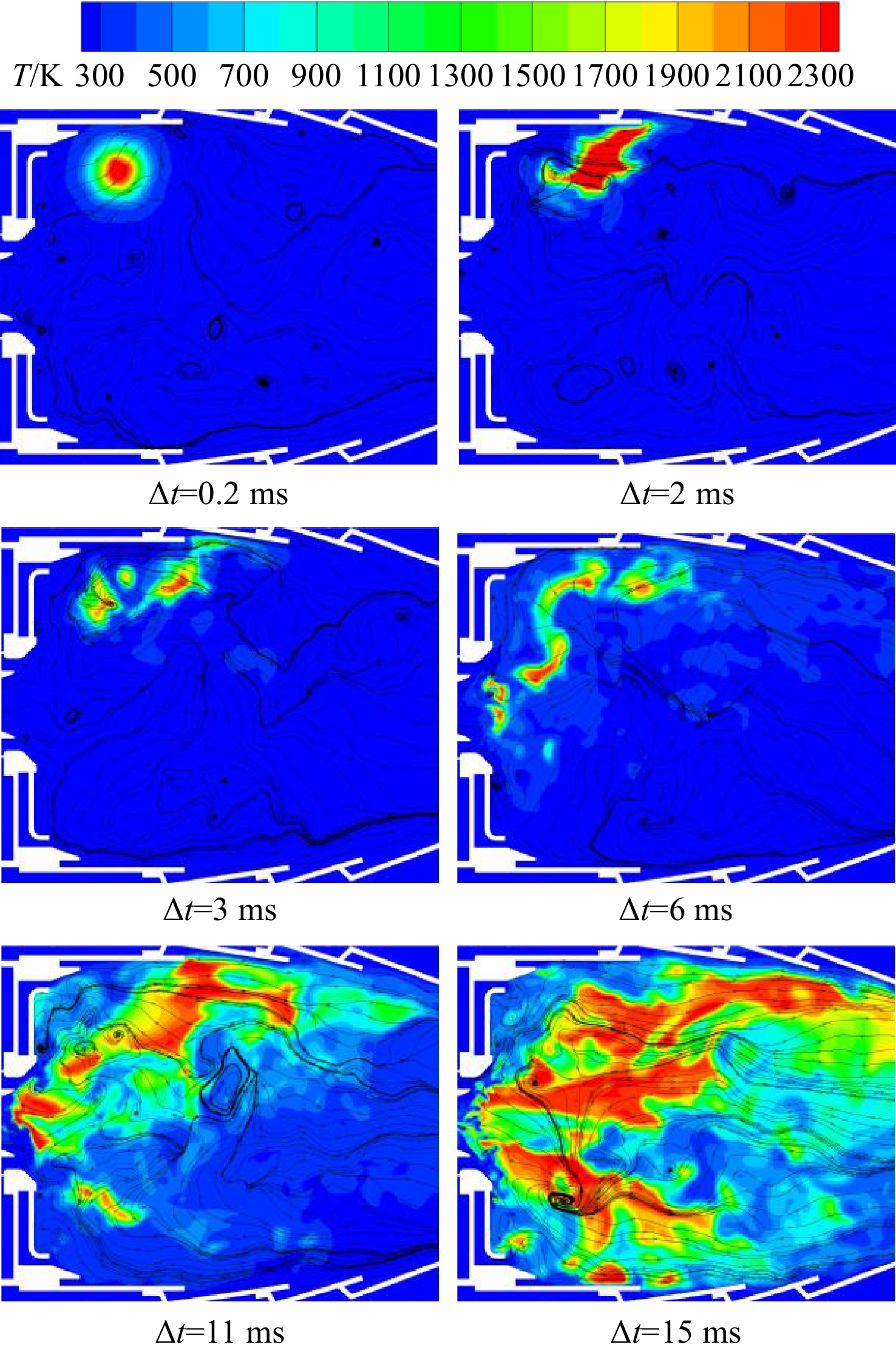

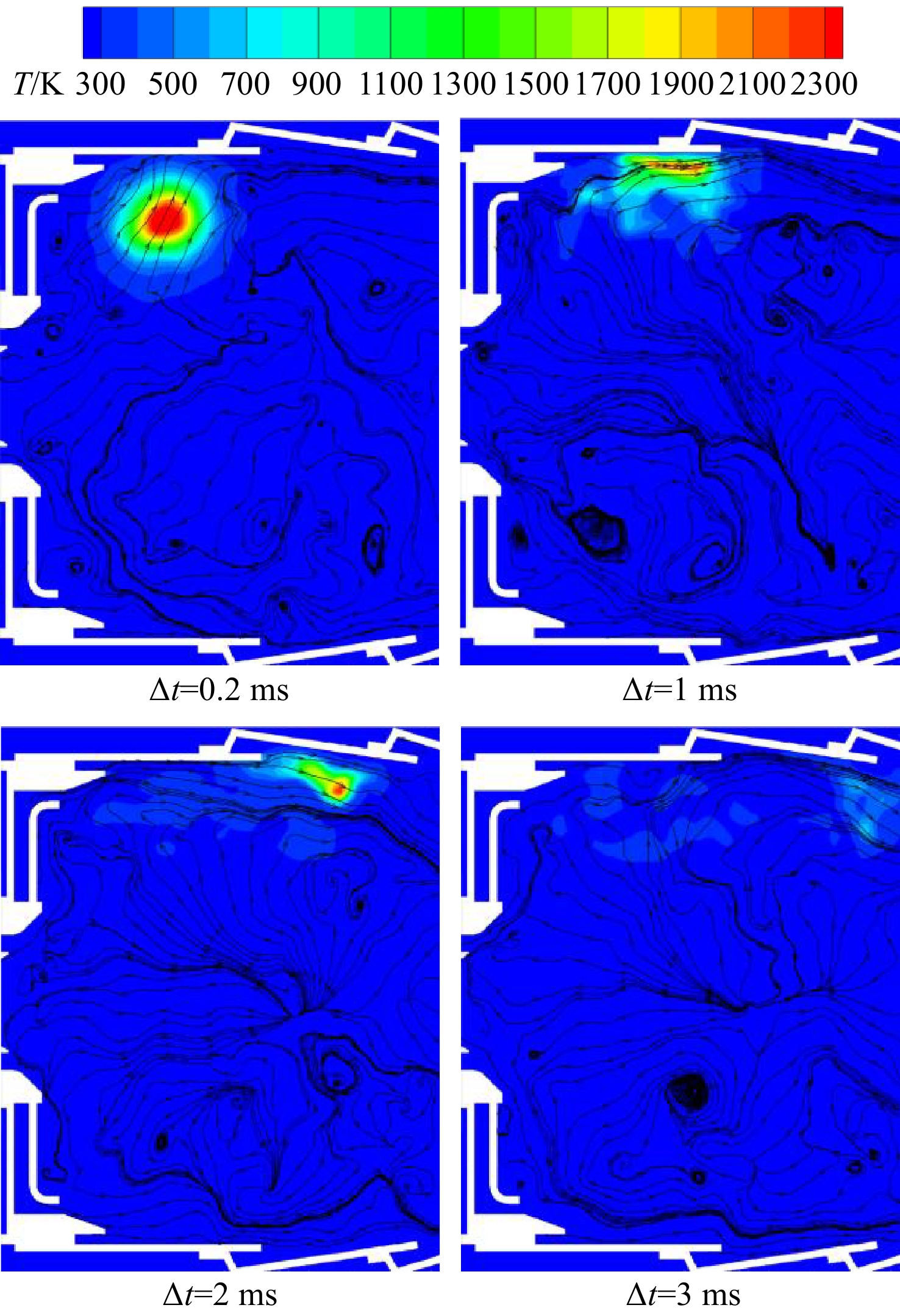

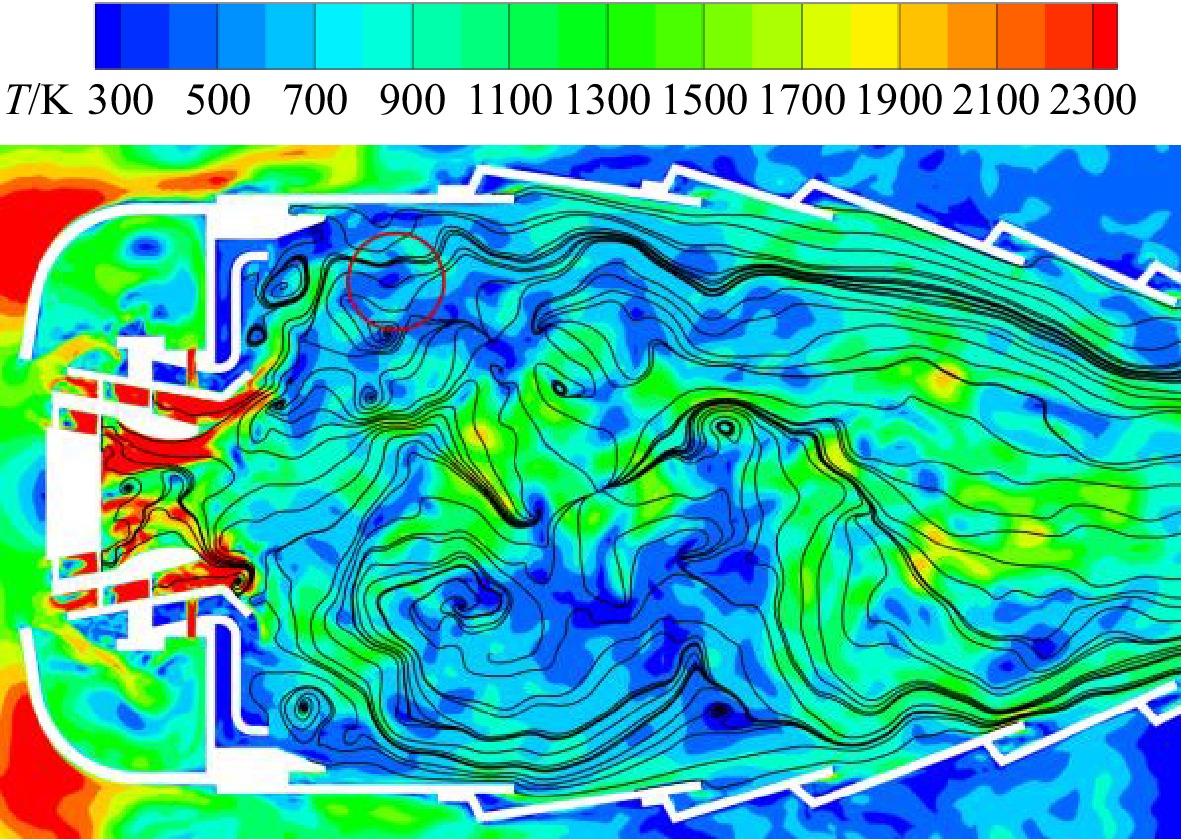

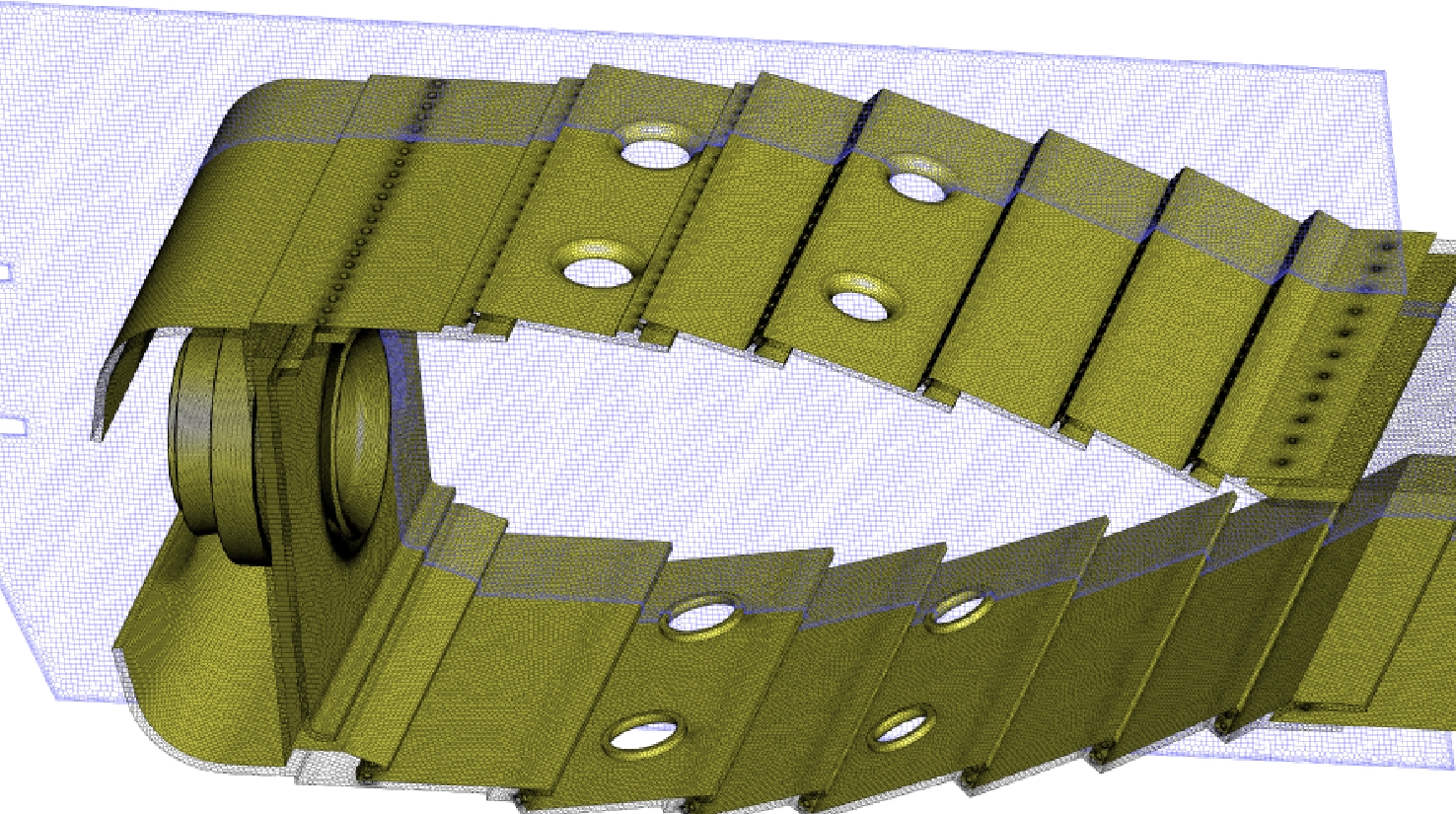

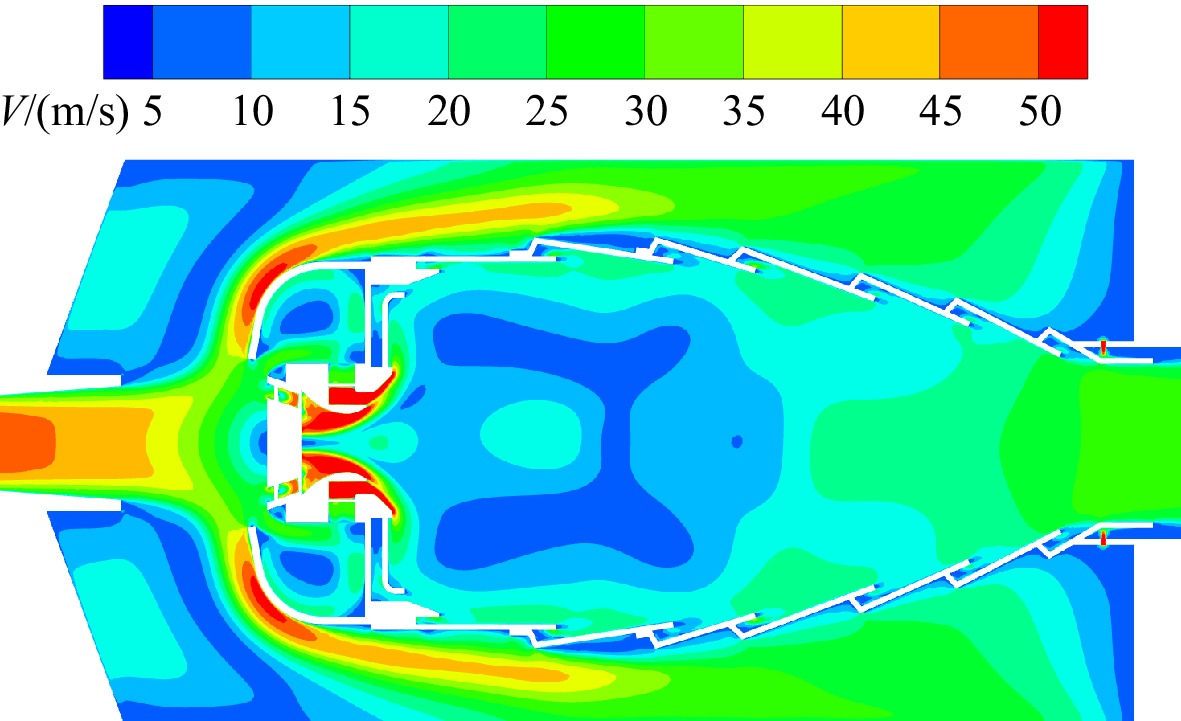

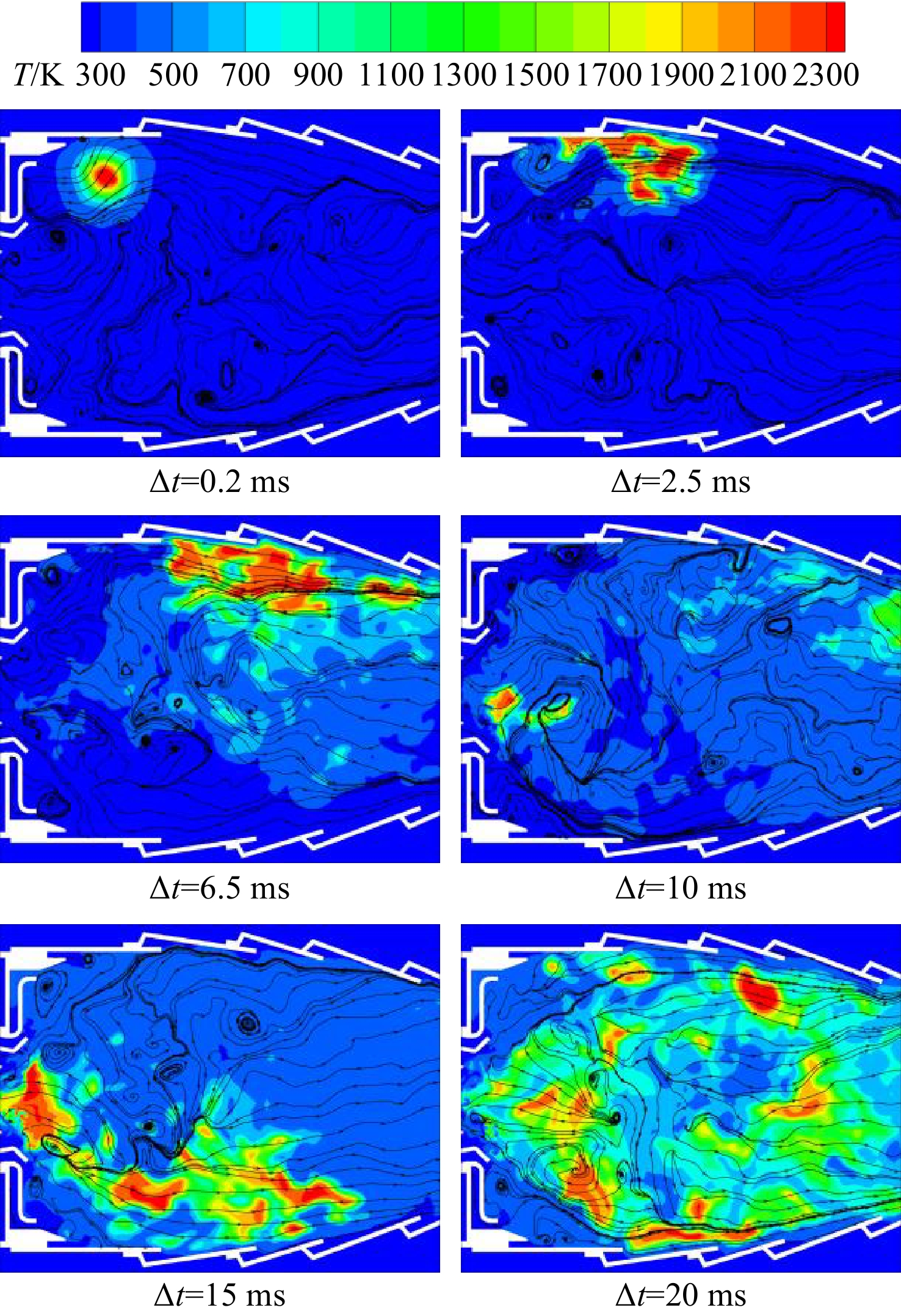

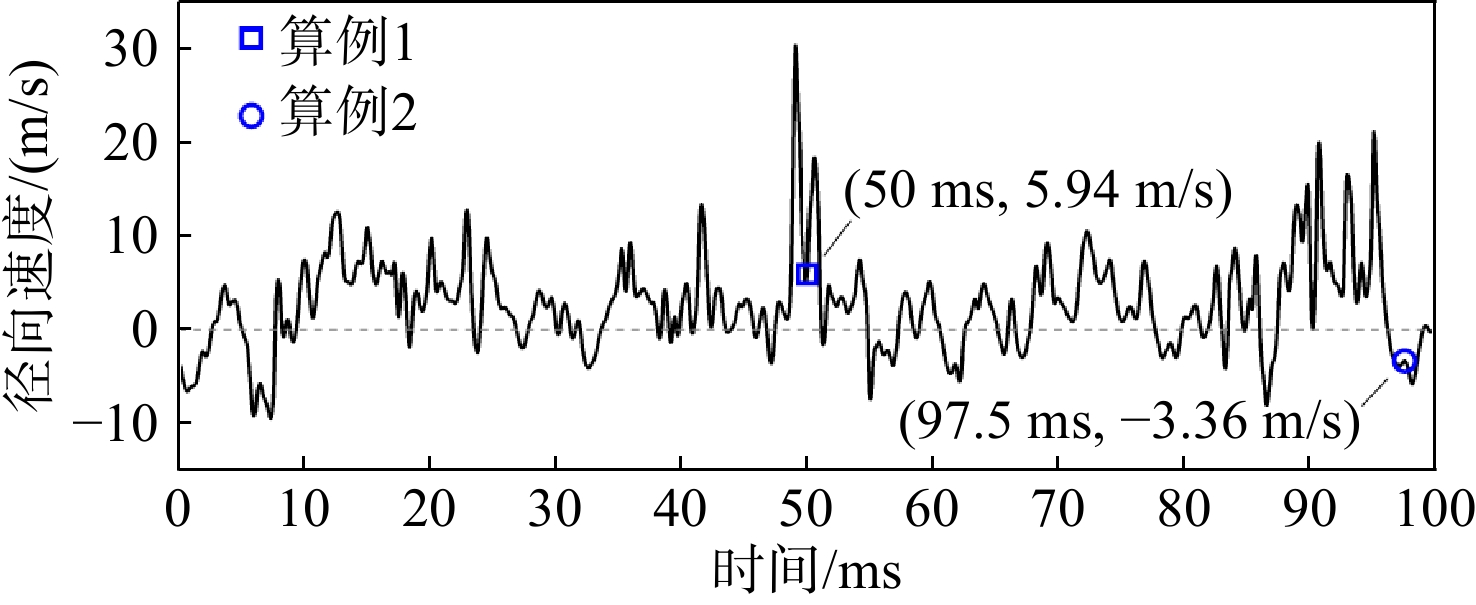

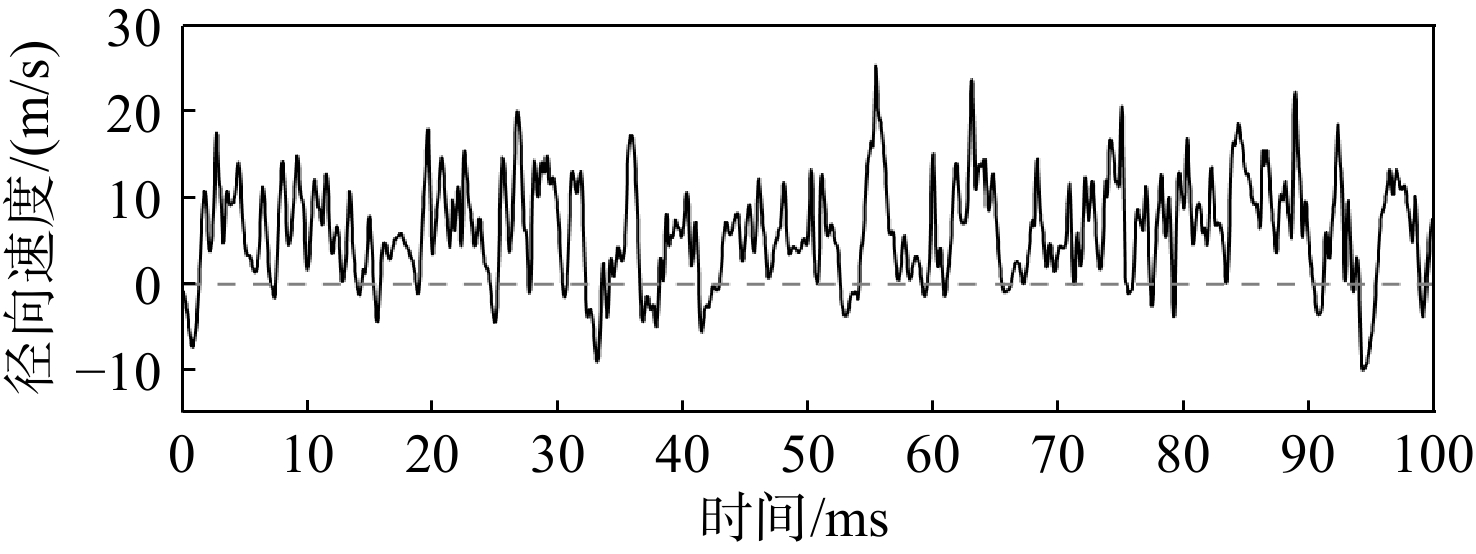

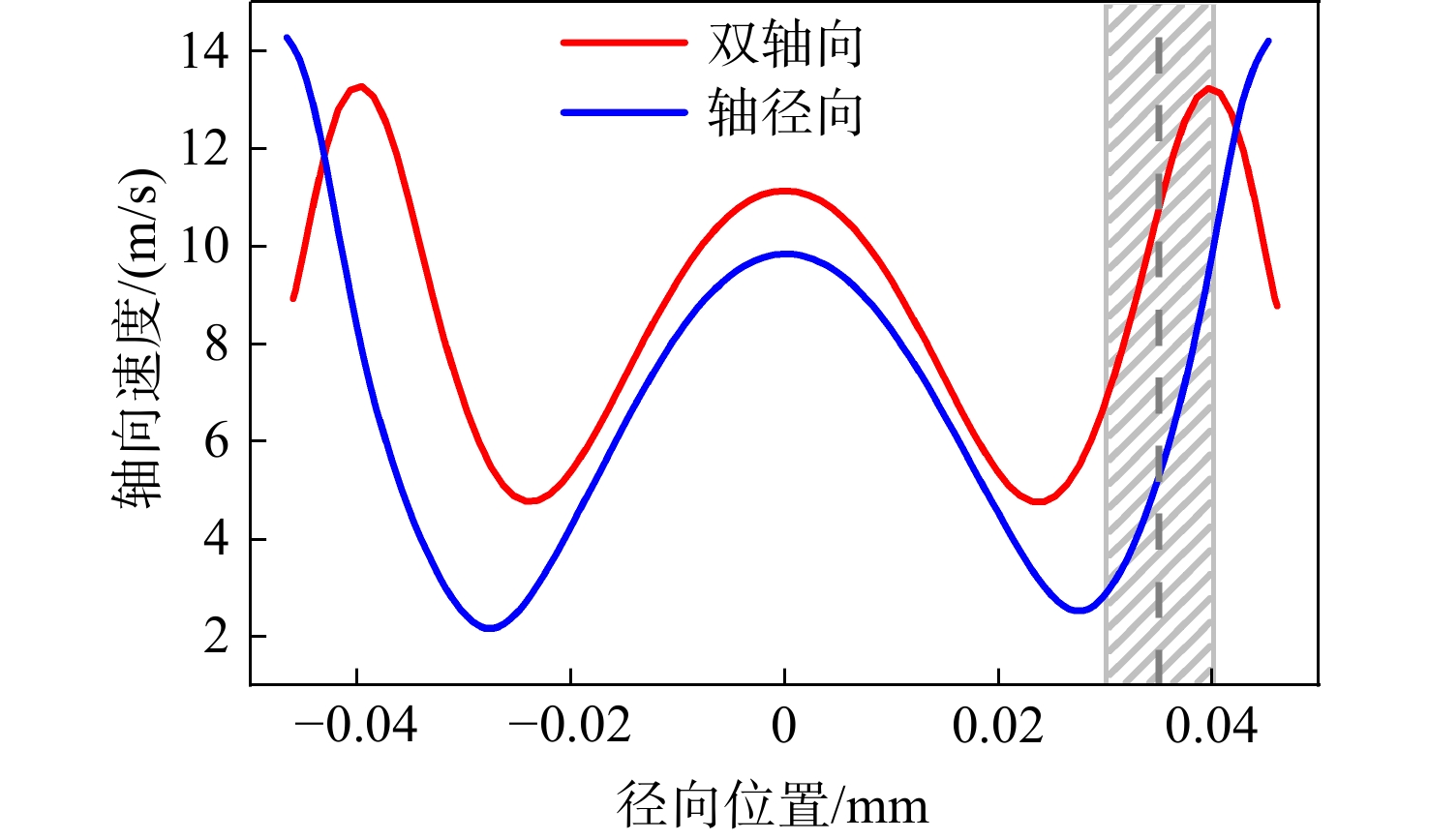

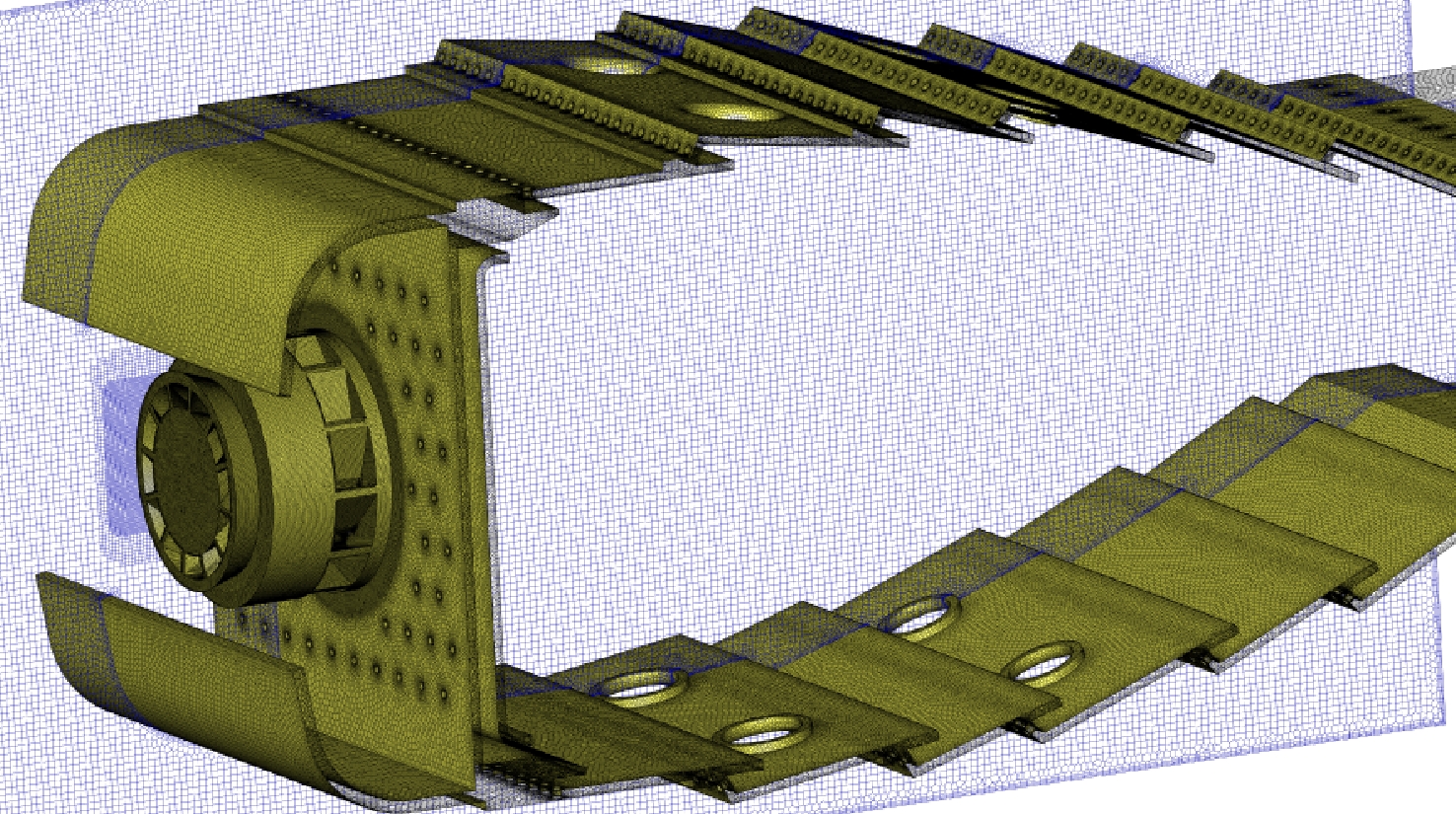

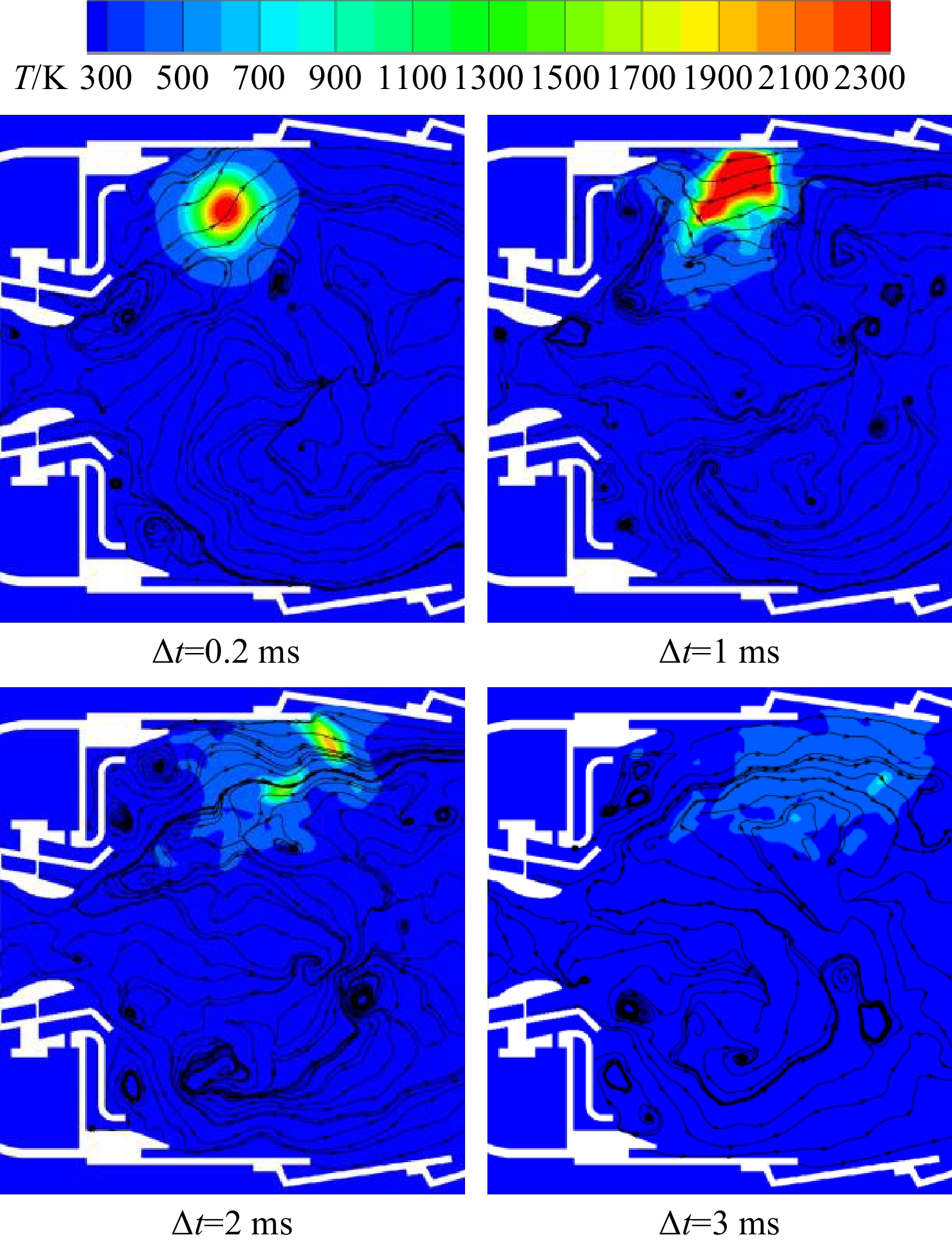

To investigate the influences of swirler structures on the ignition performance of aero-engine combustors, the large eddy simulation combined with the wall-adapting local eddy-viscosity （WALE） sub-grid model, the dynamic thickened flame model, and a single spark was used to simulate the ignition processes of an axial-radial swirler combustor and a dual-axial swirler combustor. Results indicated that the flow fields at the ignition position changed over time due to the turbulent fluctuation under the same structures and conditions, so the ignition time affected the simulation result. To avoid the use of a single spark in simulations against the ignition results on the condition that the combustor can be ignited successfully in experiments, the spark should be started when the instantaneous velocity pointed to the recirculation zone and the velocity magnitude was smaller than the average value. Comparing the dynamic evolution process of the flow field of the axial-radial swirler combustor with the dual-radial swirler combustor, it was found that the ignition position of the dual-axial swirler combustor was directly opposite to the swirler jet, and the probability of the velocity pointing towards the recirculation zone was lower. The flame was prone to propagate downstream rather than to the recirculation zone. Therefore, the ignition performance of the double-axial swirler combustor was worse than the axial-radial swirler combustor.
| [1] |
MASTORAKOS E. Forced ignition of turbulent spray flames[J]. Proceedings of the Combustion Institute,2017,36(2): 2367-2383. doi: 10.1016/j.proci.2016.08.044
|
| [2] |
李明磊,吴宁,侯凌云,等. 强湍流下点火及火焰传播机理研究进展[J]. 实验流体力学,2015,29(4): 1-11. doi: 10.11729/syltlx20150060
LI Minglei,WU Ning,HOU Lingyun,et al. Research progress on ignition and flame propagation in highly turbulent flows[J]. Journal of Experiments in Fluid Mechanics,2015,29(4): 1-11. (in Chinese) doi: 10.11729/syltlx20150060
|
| [3] |
TEETS R E,SELL J A. Calorimetry of ignition sparks[J]. SAE Transactions Journal of Engines,1988,97(6): 371-383.
|
| [4] |
ESCLAPEZ L,COLLIN-BASTIANI F,RIBER E,et al. A statistical model to predict ignition probability[J]. Combustion and Flame,2021,225(3): 180-195.
|
| [5] |
READ R W,ROGERSON J W,HOCHGREB S. Flame imaging of gas-turbine relight[J]. AIAA Journal,2010,48(9): 1916-1927. doi: 10.2514/1.J050105
|
| [6] |
刘桂桂,林宇震,胡好生,等. 旋流杯一级旋流数变化对点火性能的影响[J]. 北京航空航天大学学报,2015,41(6): 1117-1121.
LIU Guigui,LIN Yuzhen,HU Haosheng,et al. Effect of swirl cup's primary swirl number on ignition performance[J]. Journal of Beijing University of Aeronautics and Astronautics,2015,41(6): 1117-1121. (in Chinese)
|
| [7] |
代威,林宇震,张弛. 第2级径向旋流器旋流数对燃烧室点火和贫油熄火性能的影响[J]. 航空动力学报,2015,30(5): 1092-1098.
DAI Wei,LIN Yuzhen,ZHANG Chi. Effects of swirl number of second stage radial swirler on combustor ignition and lean blow-out performances[J]. Journal of Aerospace Power,2015,30(5): 1092-1098. (in Chinese)
|
| [8] |
康尧,林宇震,蒋尧,等. 旋流杯套筒混合段长度对点火特性的影响[J]. 航空动力学报,2016,31(9): 2095-2103.
KANG Yao,LIN Yuzhen,JIANG Yao,et al. Effects of sleeve mixing length of swirl cup on the ignition characteristics[J]. Journal of Aerospace Power,2016,31(9): 2095-2103. (in Chinese)
|
| [9] |
罗国良,宋双文,胡好生,等. 旋流杯空气雾化喷嘴套筒出口形状对小型燃烧室点火性能的影响[J]. 航空动力学报,2011,26(8): 1708-1712.
LUO Guoliang,SONG Shuangwen,HU Haosheng,et al. Influences of the swirl cup flares design on the small combustor ignition performances[J]. Journal of Aerospace Power,2011,26(8): 1708-1712. (in Chinese)
|
| [10] |
莫妲,万斌,王新竹,等. 三旋流燃烧室点火阶段燃烧性能[J]. 航空动力学报,2020,35(8): 1594-1600.
MO Da,WAN Bin,WANG Xinzhu,et al. Combustion performance of triple swirler combustor in ignition stage[J]. Journal of Aerospace Power,2020,35(8): 1594-1600. (in Chinese)
|
| [11] |
BOILEAU M,STAFFELBACH G,CUENOT B,et al. LES of an ignition sequence in a gas turbine engine[J]. Combustion and Flame,2008,154(1/2): 2-22.
|
| [12] |
夏一帆. 面向航空发动机燃烧室点火问题的数值计算方法研究[D]. 杭州:浙江大学,2019.
XIA Yifan. A study of numerical methods for the ignition process in aeroengine combustors[D]. Hangzhou:Zhejiang University,2019. (in Chinese)
|
| [13] |
夏一帆,赵冬梅,葛海文,等. 环形燃烧室点火过程的实验与数值研究[J]. 浙江大学学报(工学版),2020,54(2): 416-424. doi: 10.3785/j.issn.1008-973X.2020.02.024
XIA Yifan,ZHAO Dongmei,GE Haiwen,et al. Experimental and numerical investigations of ignition process in annular combustor[J]. Journal of Zhejiang University (Engineering Science),2020,54(2): 416-424. (in Chinese) doi: 10.3785/j.issn.1008-973X.2020.02.024
|
| [14] |
MARCHIONE T,AHMED S F,MASTORAKOS E. Ignition of turbulent swirling n-heptane spray flames using single and multiple sparks[J]. Combustion and Flame,2009,156(1): 166-180. doi: 10.1016/j.combustflame.2008.10.003
|
| [15] |
江洋. 燃烧室点火过程大涡数值模拟方法研究[D]. 南京:南京航空航天大学,2017.
JIANG Yang. Research on large eddy simulation of ignition sequence of combustor[D]. Nanjing:Nanjing University of Aeronautics and Astronautics,2017.(in Chinese)
|
| [16] |
JONES W P,TYLISZCZAK A. Large eddy simulation of spark ignition in a gas turbine combustor[J]. Flow Turbulence and Combustion,2010,85(3/4): 711-734.
|
| [17] |
王凯兴,刘富强,范雄杰,等. 点火位置对中心分级燃烧室点火过程影响的研究[J/OL]. [2022-04-20]. https://doi.org/10.13675/j.cnki.tjjs.200699.
|
| [18] |
李承钰. 双级旋流器燃烧室点火及熄火特性研究[D]. 西安:西北工业大学,2019.
LI Chengyu. Research on performance of flame ignition and flameout of two-stage cyclone combustor[D]. Xi’an: Northwestern Polytechnical University,2019. (in Chinese)
|
| [19] |
高昭,刘玉英,顾鹏程. 旋流杯近场液雾SMD的空间分布模型[J]. 航空动力学报,2020,35(9): 1812-1821. doi: 10.13224/j.cnki.jasp.2020.09.003
GAO Zhao,LIU Yuying,GU Pengcheng. Model of spatial SMD distribution of spray at the near-field of swirl cup[J]. Journal of Aerospace Power,2020,35(9): 1812-1821. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.09.003
|
| [20] |
COLIN O,DUCROS F,VEYNANTE D,et al. A thickened flame model for large eddy simulations of turbulent premixed combustion[J]. Physics of Fluids,2000,12(7): 1843-1863. doi: 10.1063/1.870436
|
| [21] |
FRANZELLI B,RIBER E,SANJOS M,et al. A two-step chemical scheme for kerosene-air premixed flames[J]. Combustion and Flame,2010,157(7): 1364-1373. doi: 10.1016/j.combustflame.2010.03.014
|
| [22] |
WERNER H,WENGLE H. Large-eddy simulation of turbulent flow over and around a cube in a plate channel[C]//Proceedings of the Turbulent Shear Flows 8,Berlin:Springer,1993:155-168.
|
| [23] |
LACAZE G,RICHARDSON E,POINSOT T. Large eddy simulation of spark ignition in a turbulent methane jet[J]. Combustion and Flame,2009,156(10): 1993-2009. doi: 10.1016/j.combustflame.2009.05.006
|
| [24] |
YANG Siheng,ZHANG Chi,LIN Yuzhen,et al. Experimental investigation of the ignition process in a separated dual-swirl spray flame[J].Combustion and Flame,2020,219(9):161-177.
|
