| Citation: | WANG Hongyan, HUANG Yong, LIU Yunfeng, et al. Large eddy simulation on effect of spark phases on ignition reliability[J]. Journal of Aerospace Power, 2022, 37（10）：2344-2351 doi: 10.13224/j.cnki.jasp.20220237
|

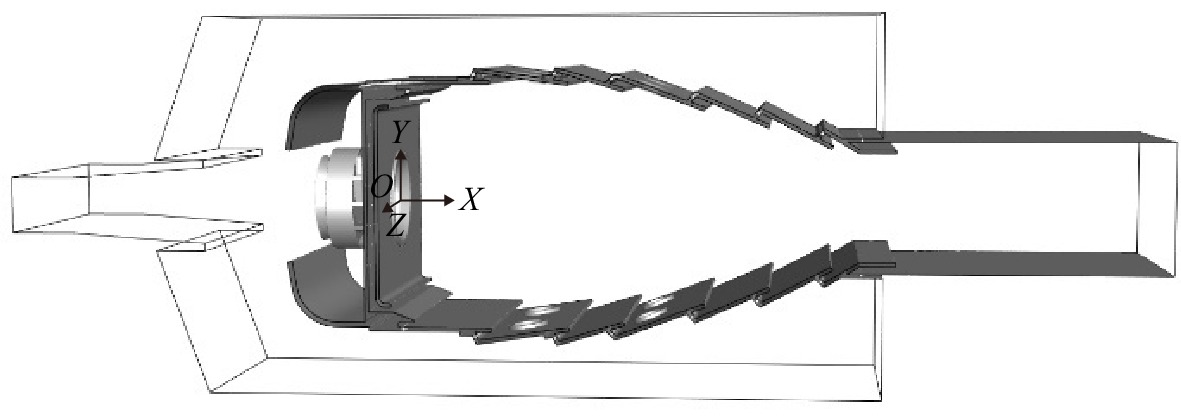

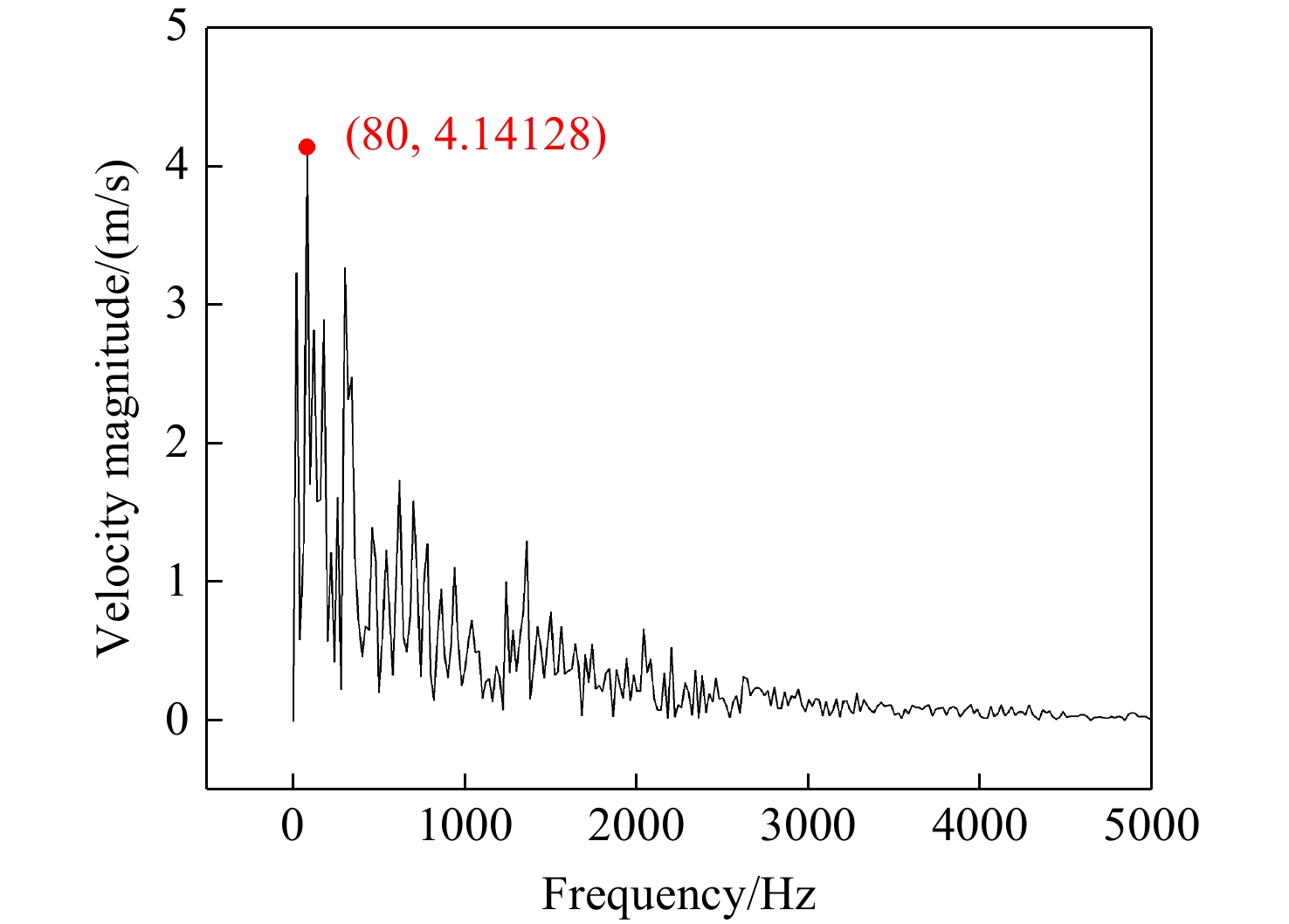

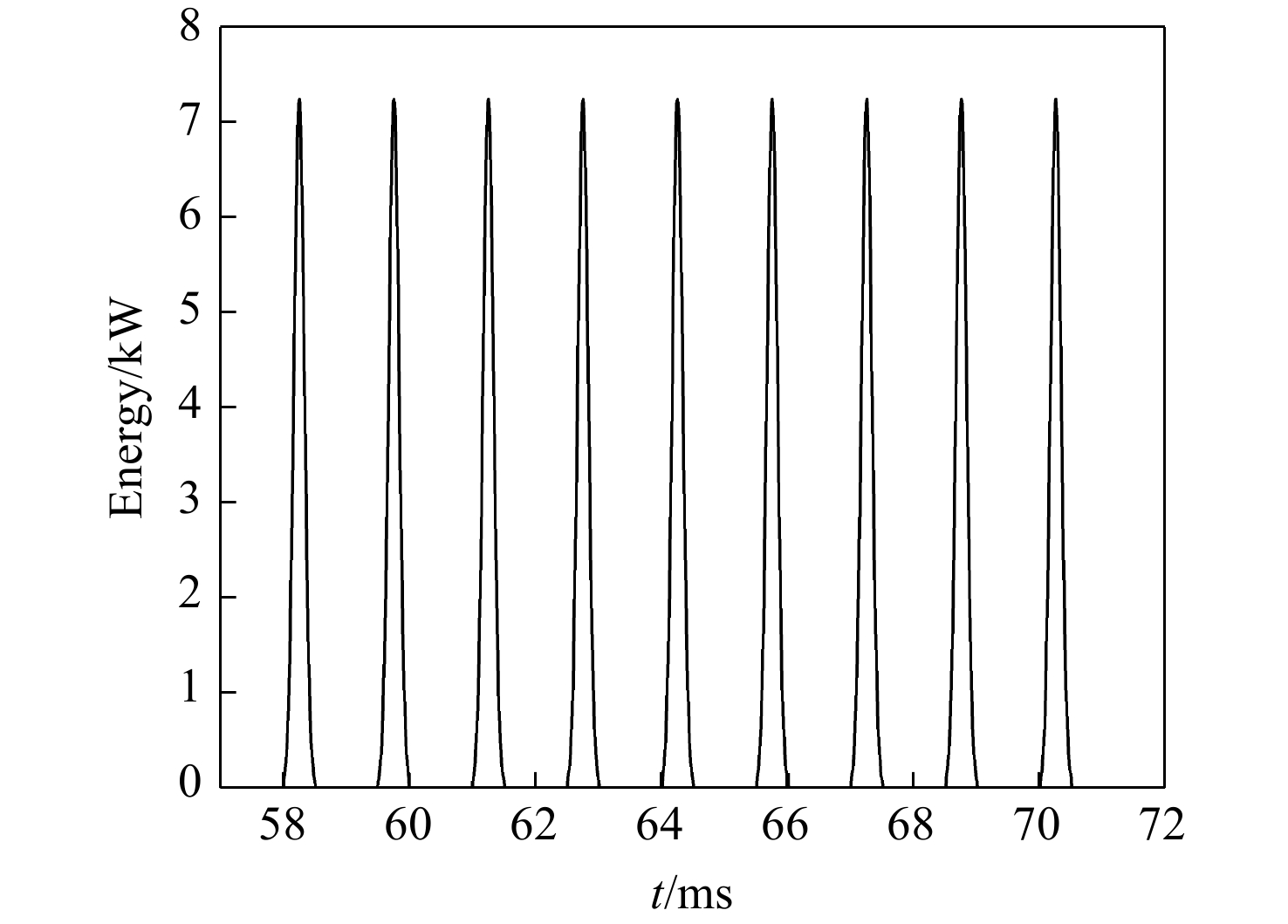

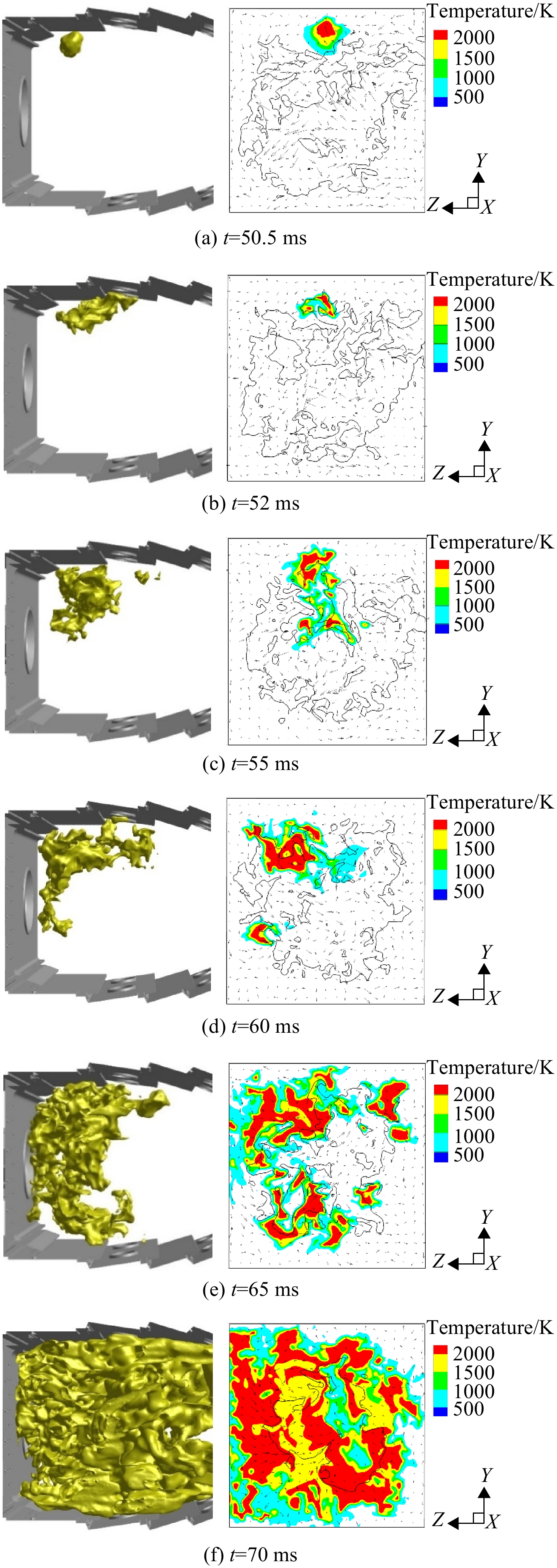

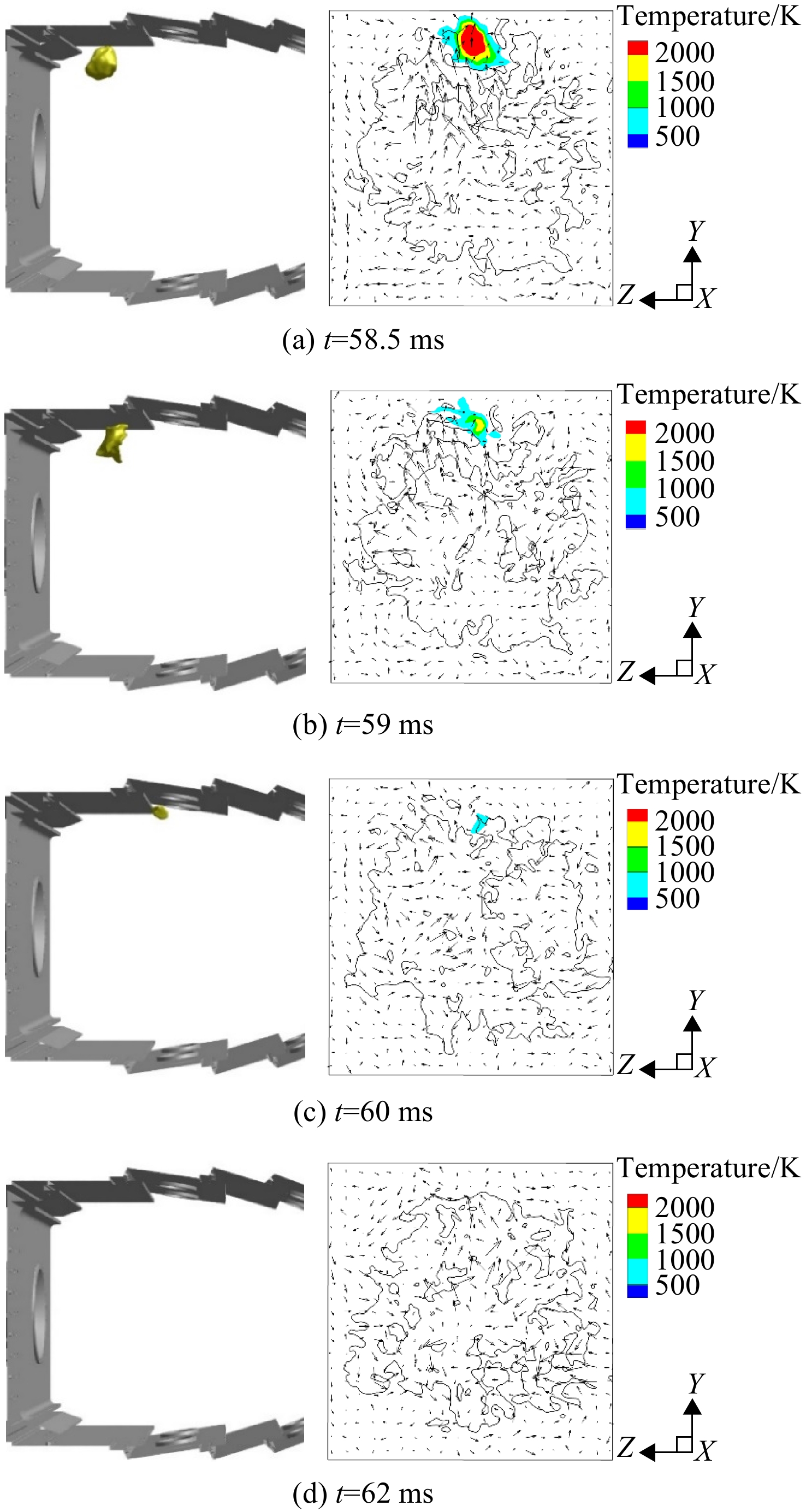

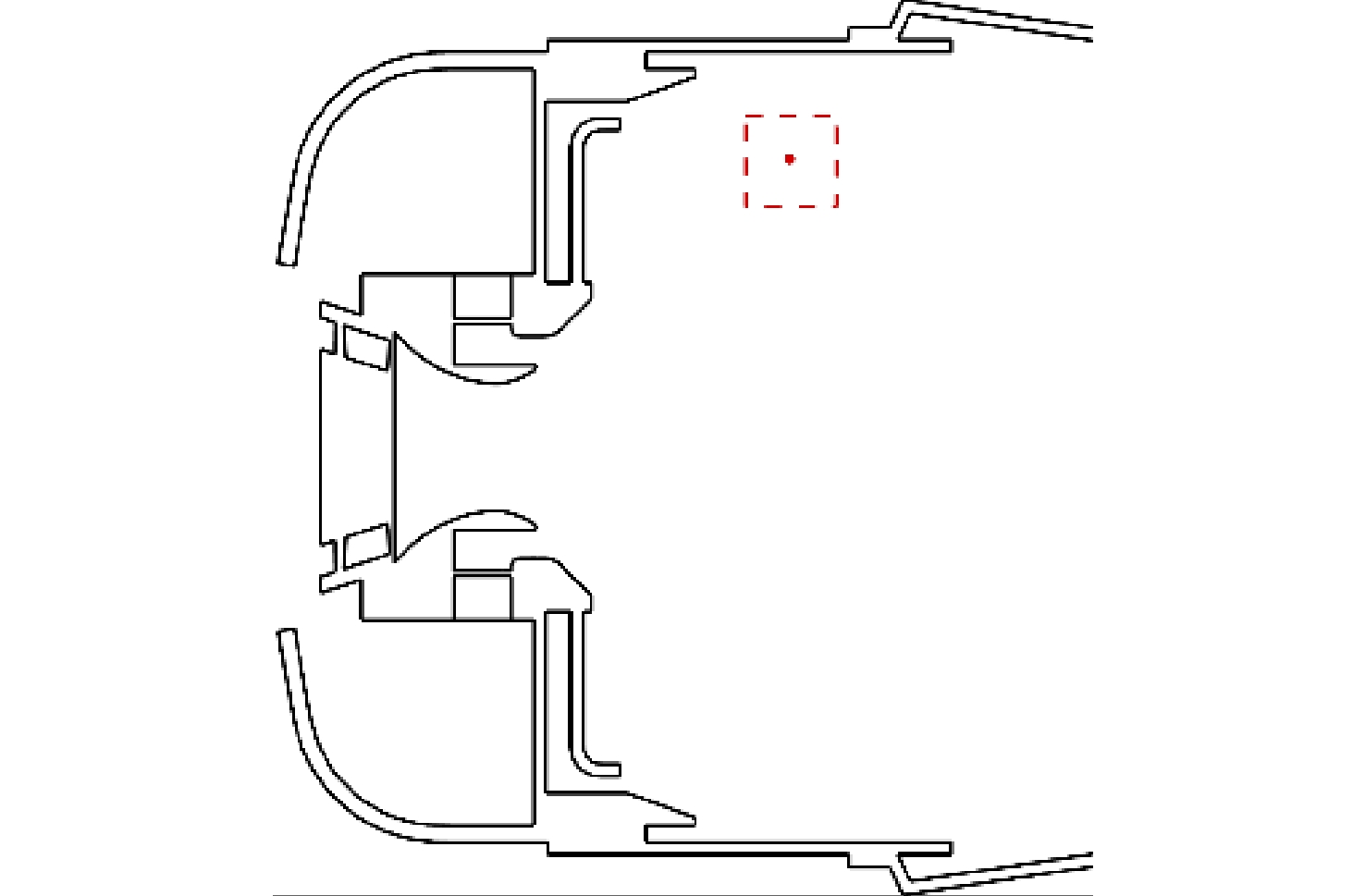

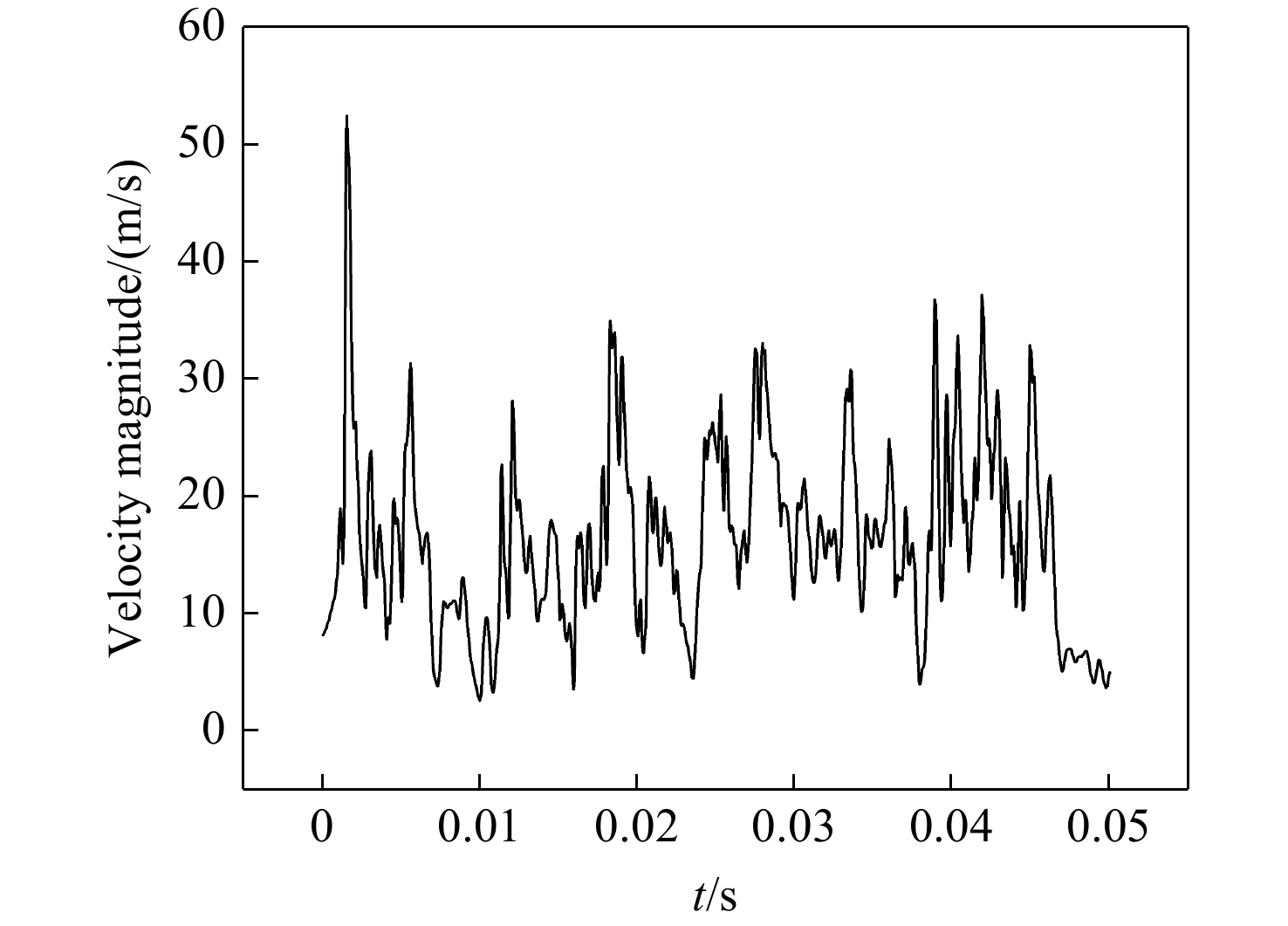

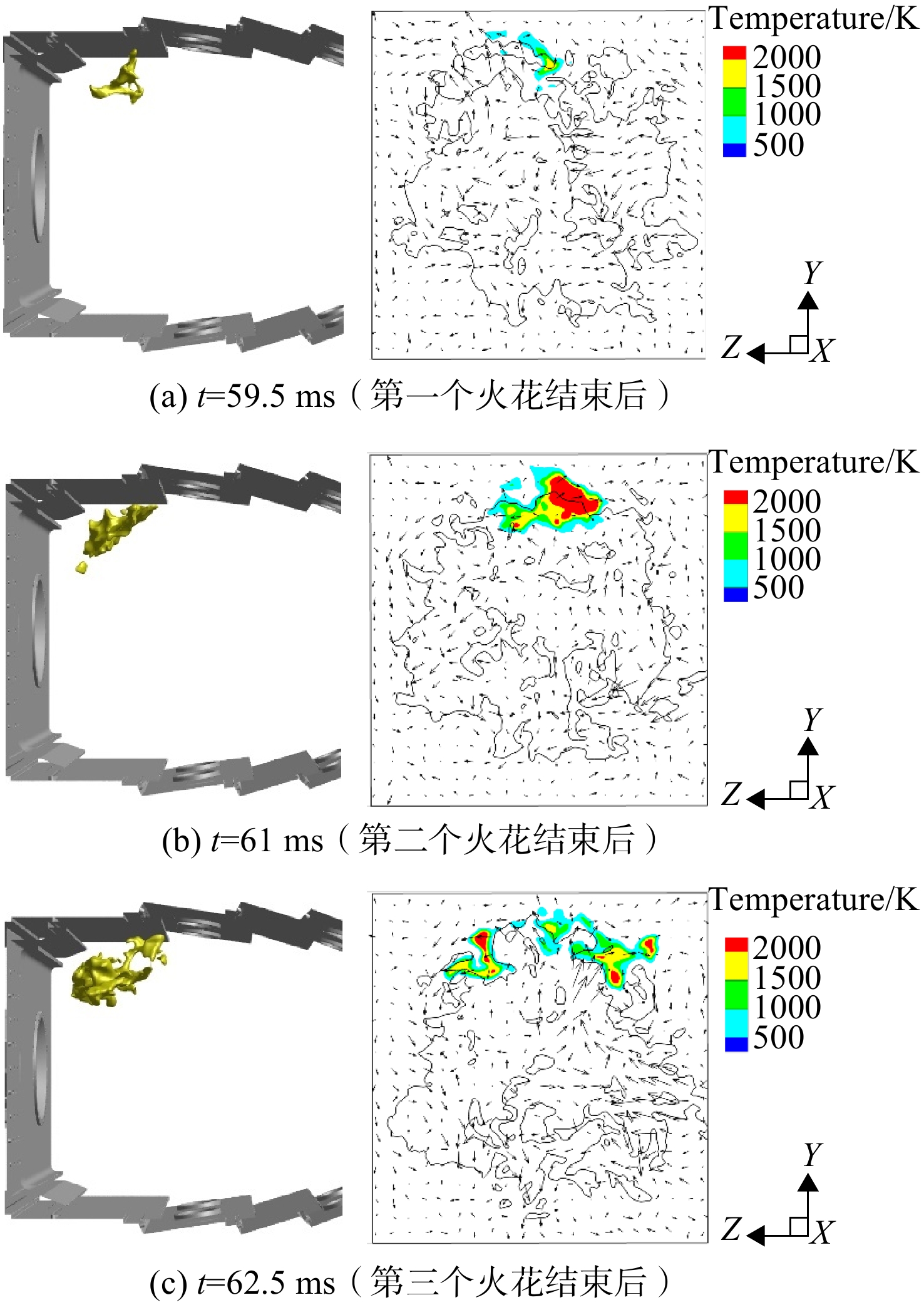

For the model combustor with a single dome, large eddy simulation was carried out to simulate the dynamic propagation process of flames at different ignition timing. In a pulsation cycle of the flow field, the effect of spark phases on ignition reliability was studied. The simulation results revealed that for the pulsating flow field in the model combustor, even within the range of ignition limits, the single spark pulse can not cause successful ignition at any spark phase. By comparing the frequency of the flow field with the characteristics of the single spark pulse, it was found that the duration of the single spark pulse was much shorter than the pulsation period of the flow field. This is the fundamental reason why spark phases seriously affect the ignition reliability. In order to eliminate the effect of spark phases on ignition reliability, it is suggested that a single spark pulse should be replaced by a series of spark pulses when using large eddy simulation to study ignition problems. And the duration of spark pulses should cover at least one complete pulsation cycle of the flow field.
| [1] |
RANKIN D D. Lean combustion:technology and control[M]. London:Academic Press,2011.
|
| [2] |
GICQUEL L Y M,STAFFELBACH G,POINSOT T. Large eddy simulations of gaseous flames in gas turbine combustion chambers[J]. Progress in Energy and Combustion Science,2012,38(6): 782-817. doi: 10.1016/j.pecs.2012.04.004
|
| [3] |
ZHAO Dongmei,XIA Yifan,GE Haiwen,et al. Simulations of flame propagation during the ignition process in an annular multiple-injector combustor[J]. International Journal of Numerical Methods for Heat and Fluid Flow,2019,29(6): 1947-1964. doi: 10.1108/HFF-08-2018-0432
|
| [4] |
张腾. 基于大涡模拟的多旋流燃烧室两相燃烧研究[D]. 南京:南京航空航天大学,2018.
ZHANG Teng. Large eddy simulation of the two-phase combustion in a multi-swirling combustor[D]. Nanjing:Nanjing University of Aeronautics and Astronautics,2018.(in Chinese)
|
| [5] |
JONES W P,LYRA S,NAVARRO-MARTINEZ S. Numerical investigation of swirling kerosene spray flames using large eddy simulation[J]. Combustion and Flame,2012,159(4): 1539-1561. doi: 10.1016/j.combustflame.2011.10.025
|
| [6] |
HERVO L,SENONER J M,BIANCHERIN A,et al. Large-eddy simulation of kerosene spray ignition in a simplified aeronautic combustor[J]. Flow Turbulence Combust,2018,101(2): 603-625. doi: 10.1007/s10494-018-9924-4
|
| [7] |
ECKEL G,GROHMANN J,CANTU L,et al. LES of a swirl-stabilized kerosene spray flame with a multi-component vaporization model and detailed chemistry[J]. Combustion and Flame,2019,207: 134-152. doi: 10.1016/j.combustflame.2019.05.011
|
| [8] |
JONES W P,TYLISZCZAK A. Large eddy simulation of spark ignition in a gas turbine combustor[J]. Flow,Turbulence and Combustion,2010,85(3): 711-734.
|
| [9] |
QIAO Yingjie,MAO Ronghai,LIN Yuzhen. Large eddy simulation of the ignition performance in a lean burn combustor[R].ASME Paper GT2015-43872,2015.
|
| [10] |
颜应文,赵坚行,张靖周,等. 环形燃烧室两相喷雾燃烧的大涡模拟[J]. 航空动力学报,2006,21(5): 824-830. doi: 10.3969/j.issn.1000-8055.2006.05.008
YAN Yingwen,ZHAO Jianxing,ZHANG Jingzhou,et al. Large-eddy simulation of turbulent spray combustion in an annular combustor[J]. Journal of Aerospace Power,2006,21(5): 824-830. (in Chinese) doi: 10.3969/j.issn.1000-8055.2006.05.008
|
| [11] |
杨洪磊,李雅军,杨仁,等. 燃气轮机燃烧室点火特性[J]. 舰船科学技术,2015,37(1): 60-63. doi: 10.3404/j.issn.1672-7649.2015.01.012
YANG Honglei,LI Yajun,YANG Ren,et al. Research on performance of gas turbine combustor ignition[J]. Ship Science and Technology,2015,37(1): 60-63. (in Chinese) doi: 10.3404/j.issn.1672-7649.2015.01.012
|
| [12] |
周瑜,黄渊,陈伟强,等. 高空来流条件下航空发动机双旋流燃烧室点火特性数值模拟[EB/OL]. [2022-04-17]. http://kns.cnki.net/kcms/detail/11.1813.V.20220222.1627.010.html.
|
| [13] |
FRANZELLI B,RIBER E,SANJOSÉ M,et al. A two-step chemical scheme for kerosene-air premixed flames[J]. Combustion and Flame,2010,157(7): 1364-1373. doi: 10.1016/j.combustflame.2010.03.014
|
| [14] |
LACAZE G,CUENOT B,POINSOT T,et al. Large eddy simulation of laser ignition and compressible flow in a rocket-like configuration[J]. Combust and Flame,2009,156(6): 1166-1180. doi: 10.1016/j.combustflame.2009.01.004
|
| [15] |
夏一帆. 面向航空发动机燃烧室点火问题的数值计算方法研究[D]. 杭州:浙江大学,2019.
XIA Yifan. A study of numerical methods for the ignition process in aeroengine combustors[D]. Hangzhou:Zhejiang University,2019.(in Chinese)
|
| [16] |
COLIN O,DUCROS F,VEYNANTE D,et al. A thickened flame model for large eddy simulations of turbulent premixed combustion[J]. Physics of Fluids,2000,12(7): 1843-1863. doi: 10.1063/1.870436
|
| [17] |
ANGELBERGER C,EGOLFOPOULOS F,VEYNANTE D. Large eddy simulations of chemical and acoustic effects on combu-stion instabilities[J]. Flow,Turbulence and Combustion,2000,65(2): 205-222. doi: 10.1023/A:1011477030619
|
| [18] |
LEGIER J P,POINSOT T,VEYNANTE D. Dynamically thickened flame LES model for premixed and non-premixed turbulent combustion [C]//Proceedings of the Summer Program. Stanford,California:Stanford University,2000:157-168.
|
| [19] |
LACAZE G,RICHARDSON E,POINSOT T. Large eddy simulation of spark ignition in a turbulent methane jet[J]. Combustion and Flame,2009,156(10): 1993-2009. doi: 10.1016/j.combustflame.2009.05.006
|
| [20] |
BOILEAU M,STAFFELBACH G,CUENOT B,et al. LES of an ignition sequence in a gas turbine engine[J]. Combustion and Flame,2008,154(1/2): 2-22.
|
| [21] |
王凯兴,刘富强,范雄杰,等. 点火位置对中心分级燃烧室点火过程影响的研究[EB/OL]. [2022-04-17]. http://kns.cnki.net/kcms/detail/11.1813.V.20220222.1627.010.html.
|
| [22] |
BRANDT D E,WESORICK R R. GE gas turbine design philosophy[R]. Schenectady,US:GE Power Systems,1994.
|
