| Citation: | TAO Qiannan, WANG Yanrong, YANG Shun. Analysis of local stress at hole edge of air-cooled blade with thermal barrier coatings[J]. Journal of Aerospace Power, 2022, 37（10）：2188-2200 doi: 10.13224/j.cnki.jasp.20220257
|

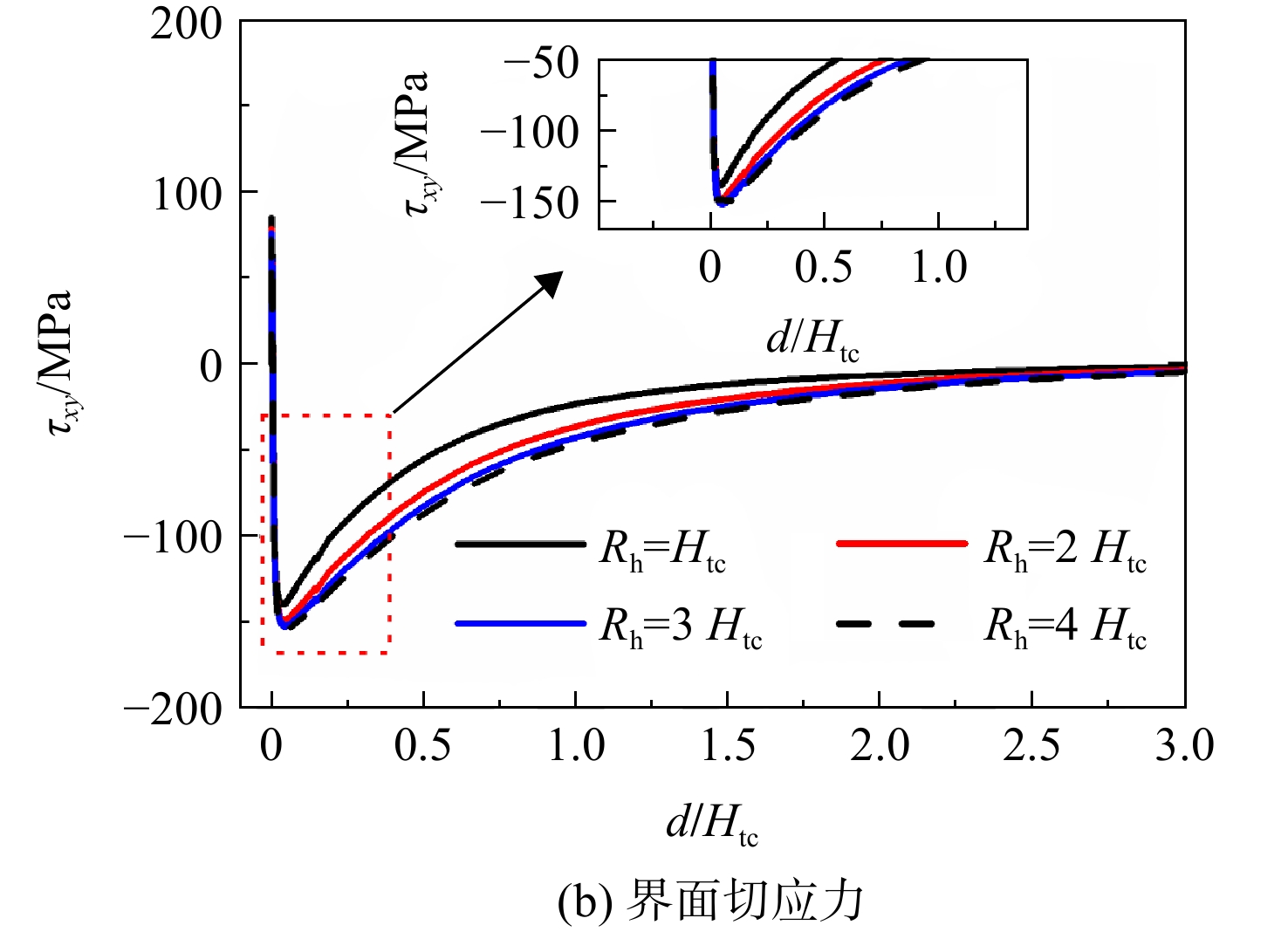

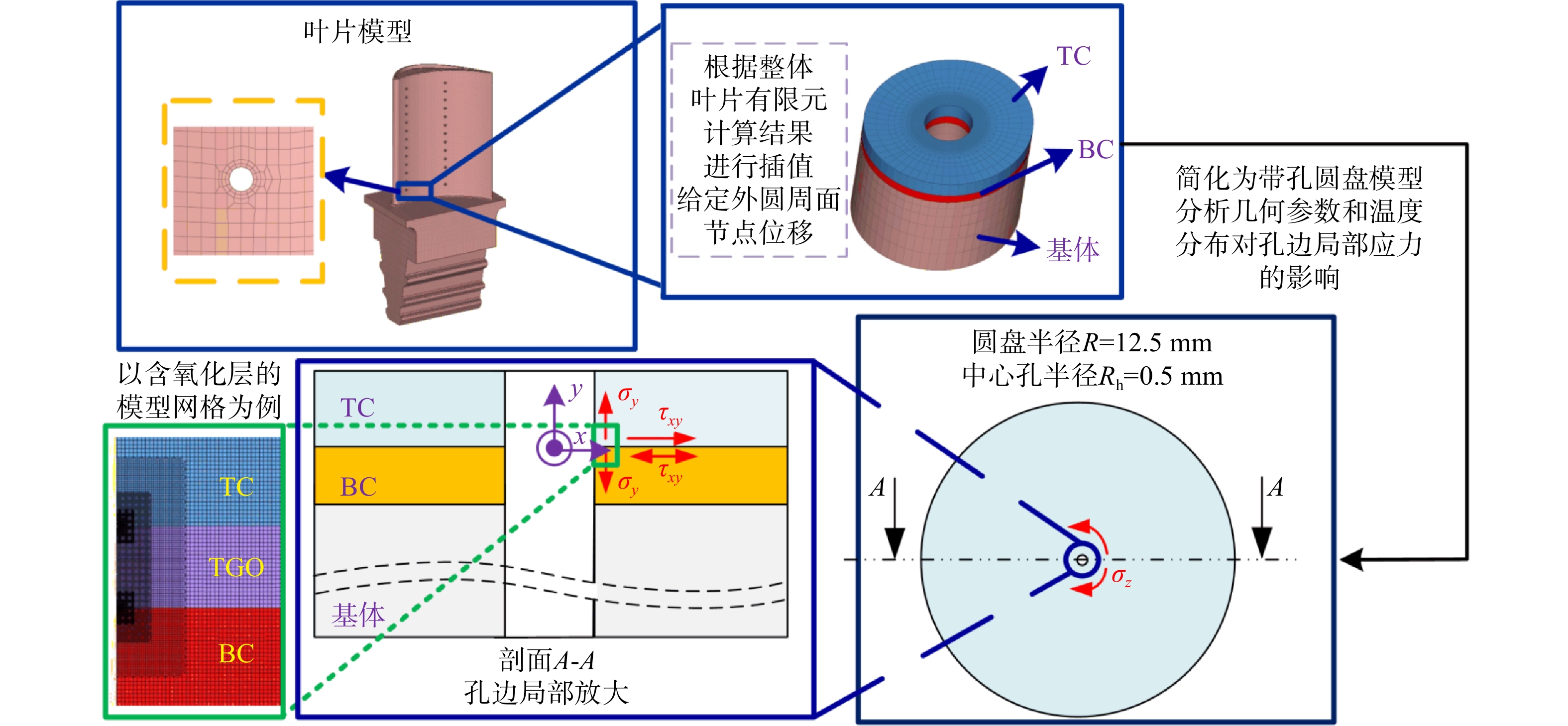

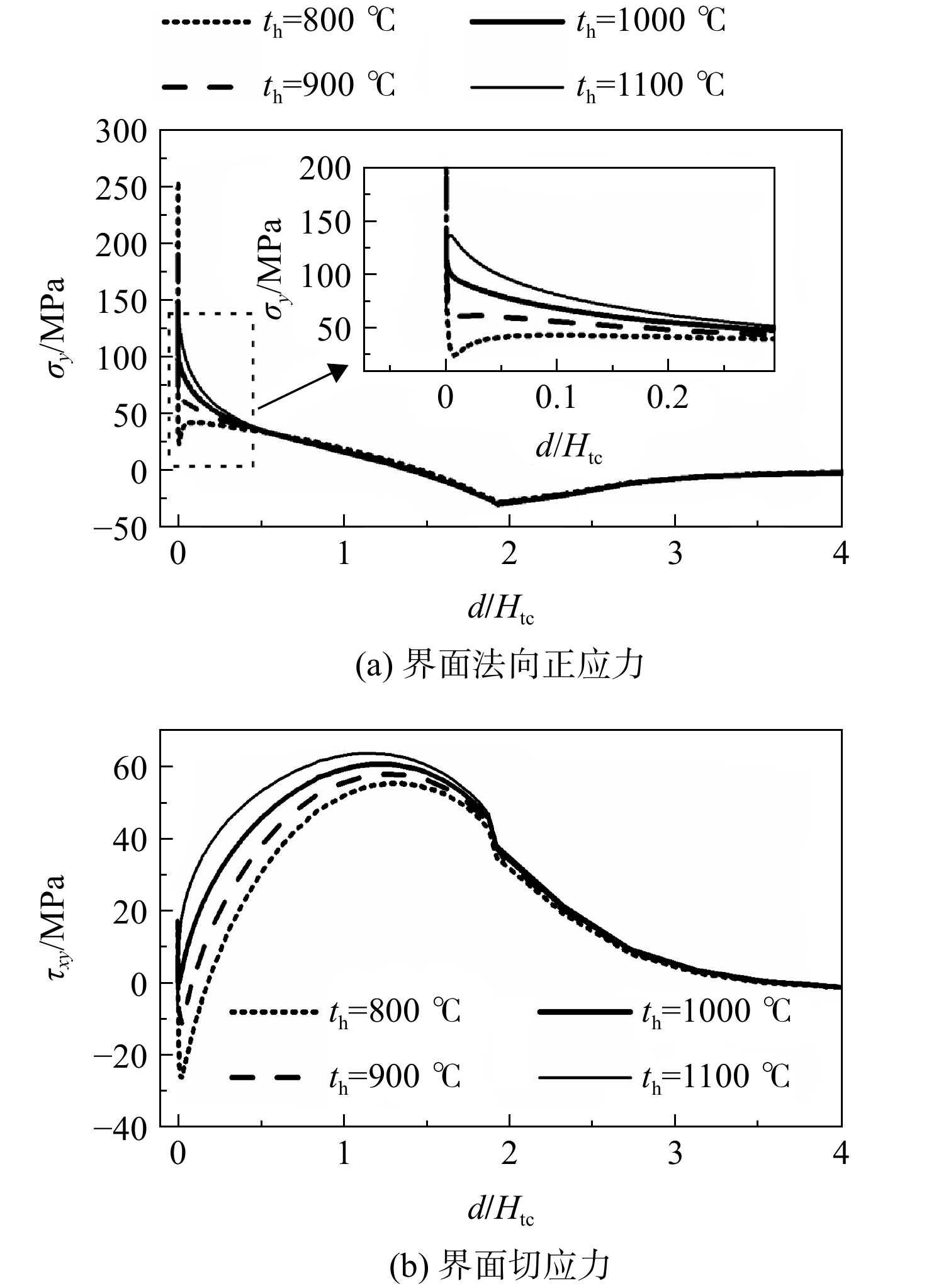

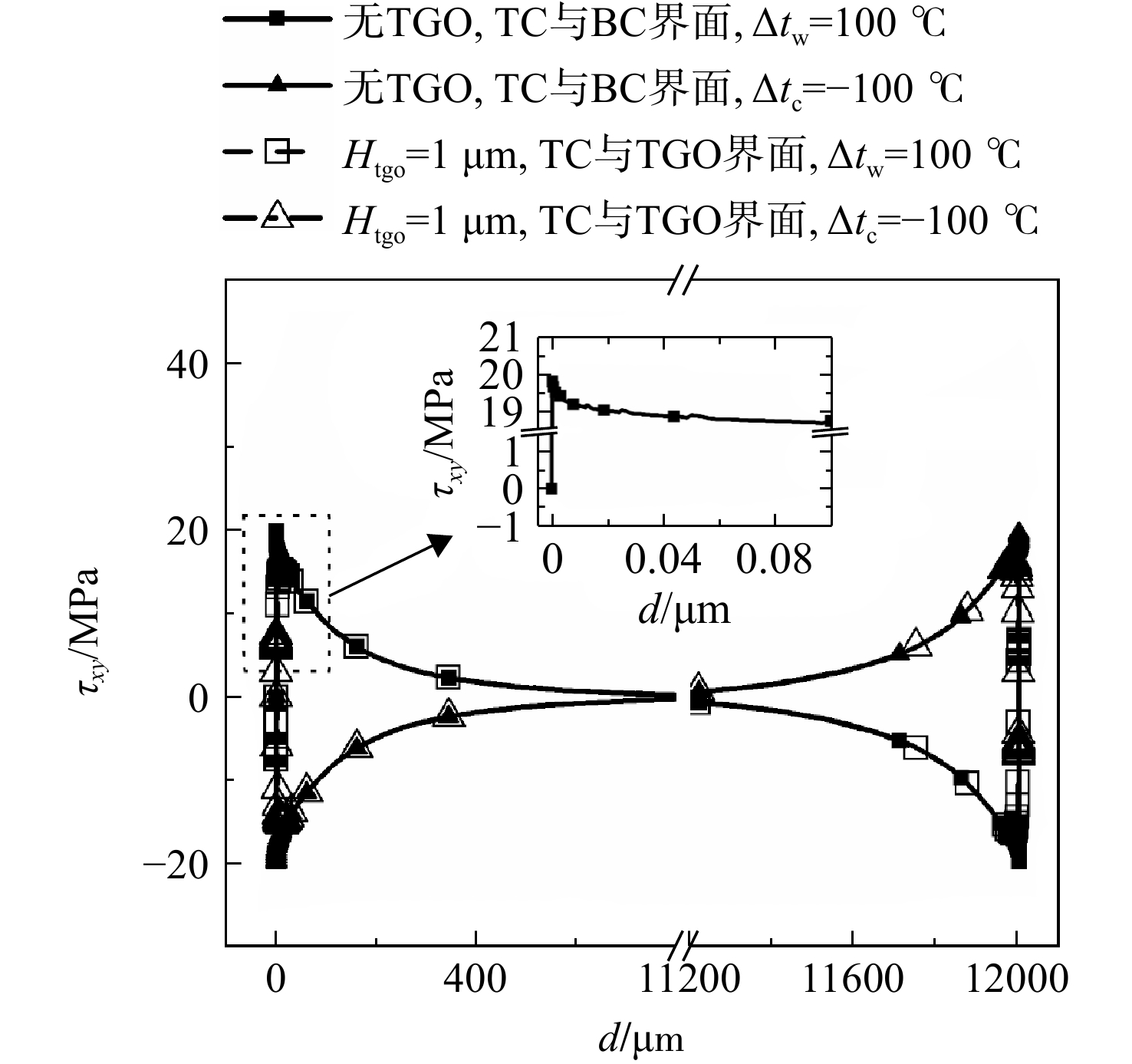

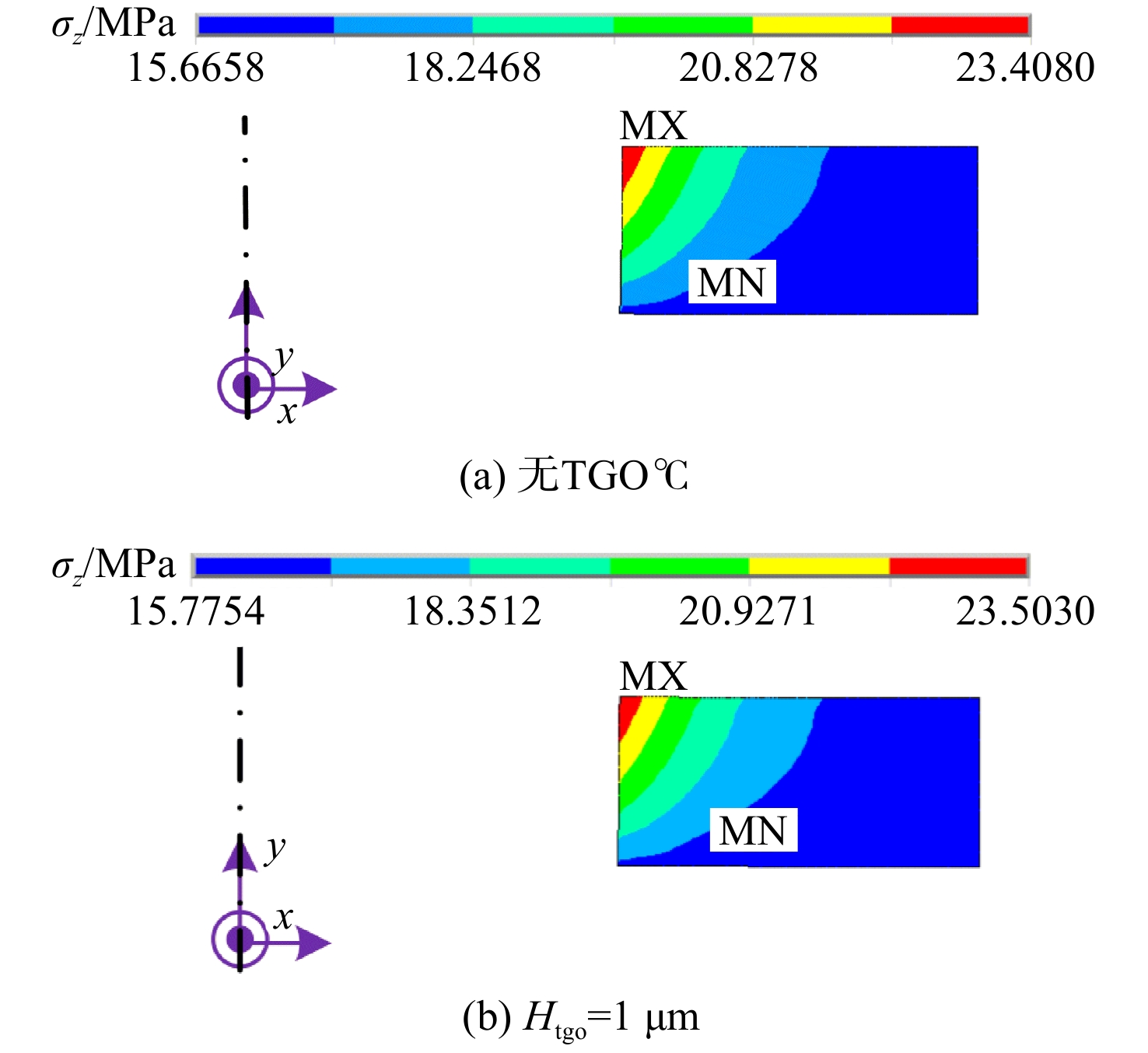

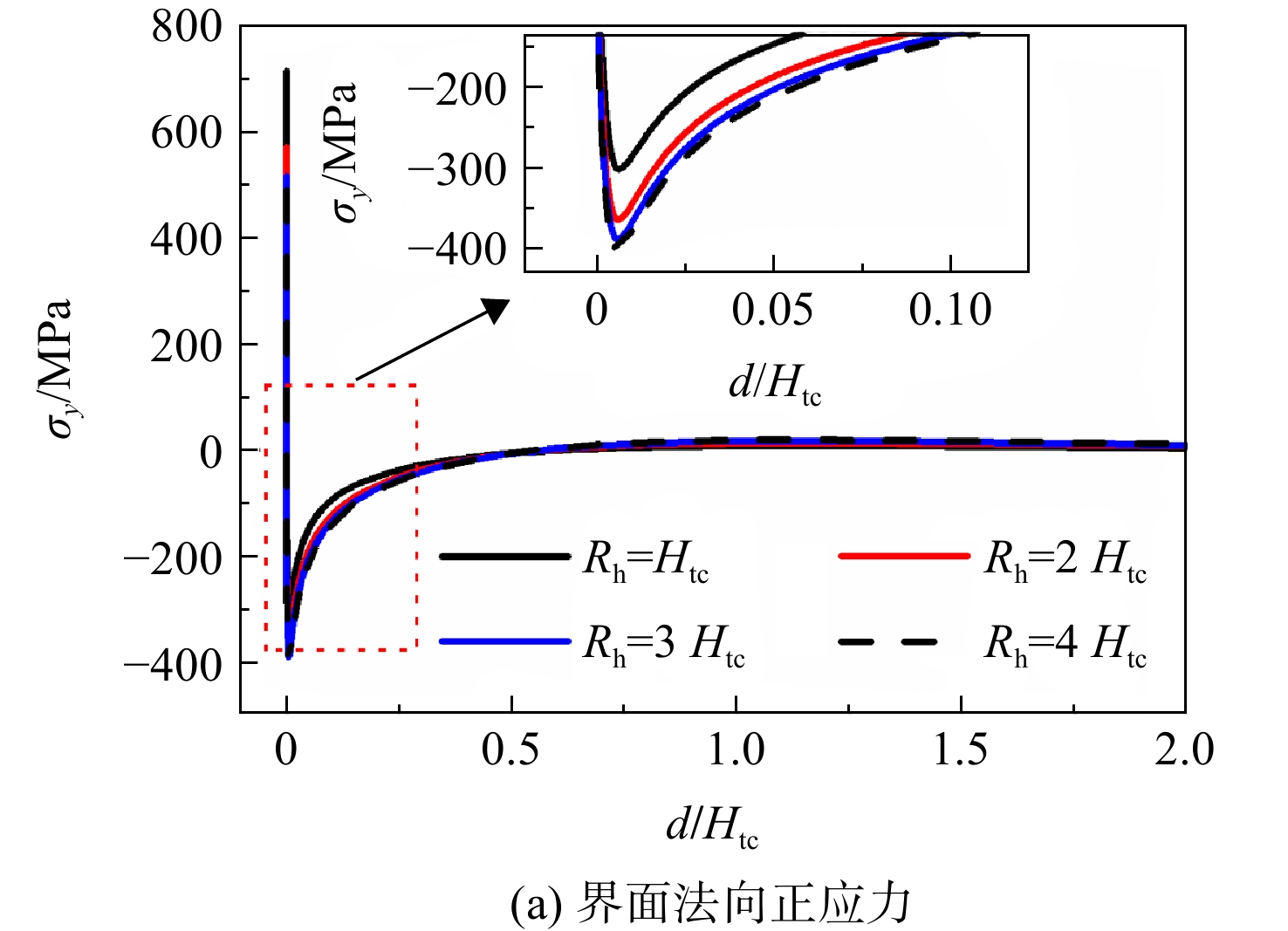

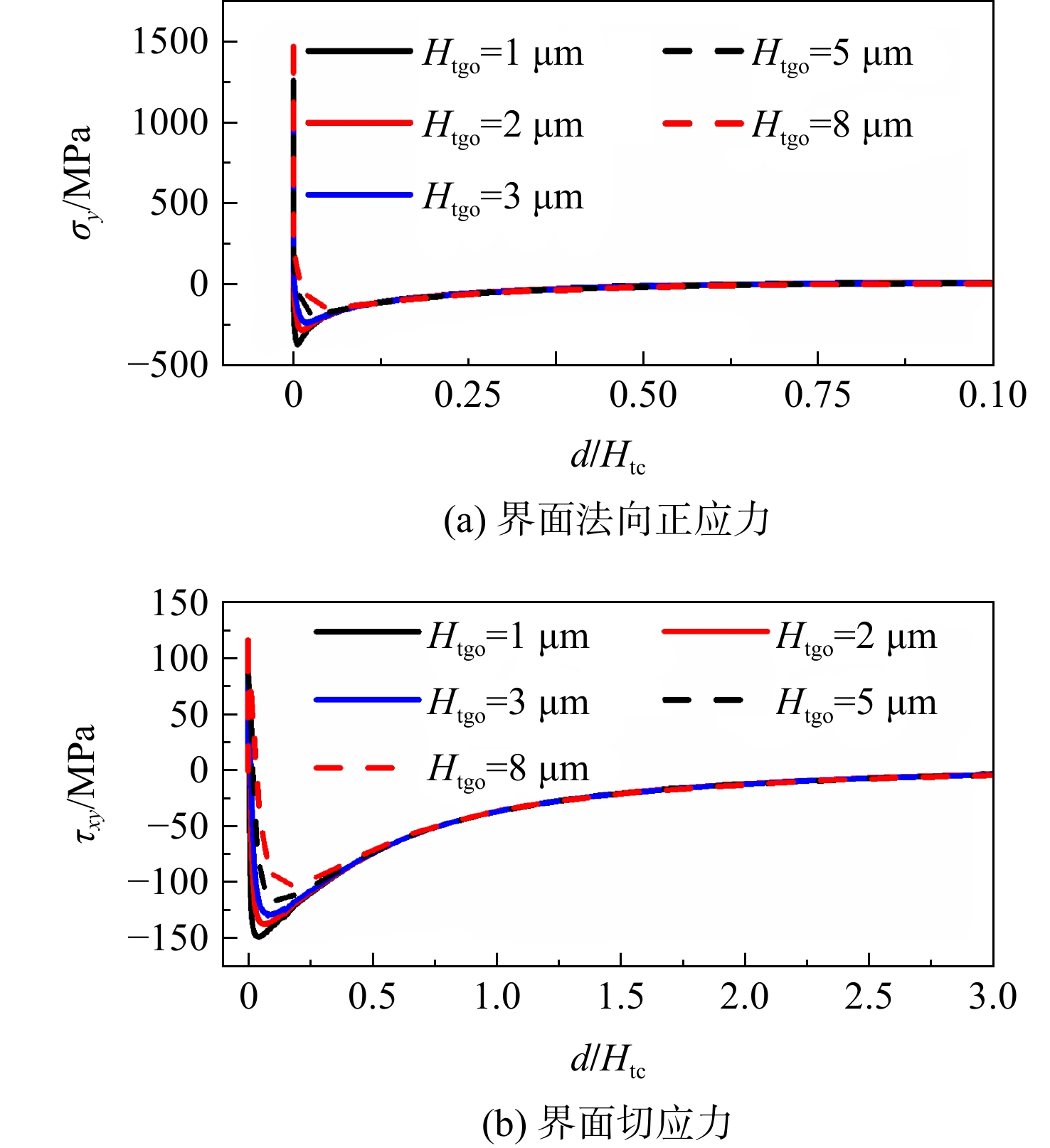

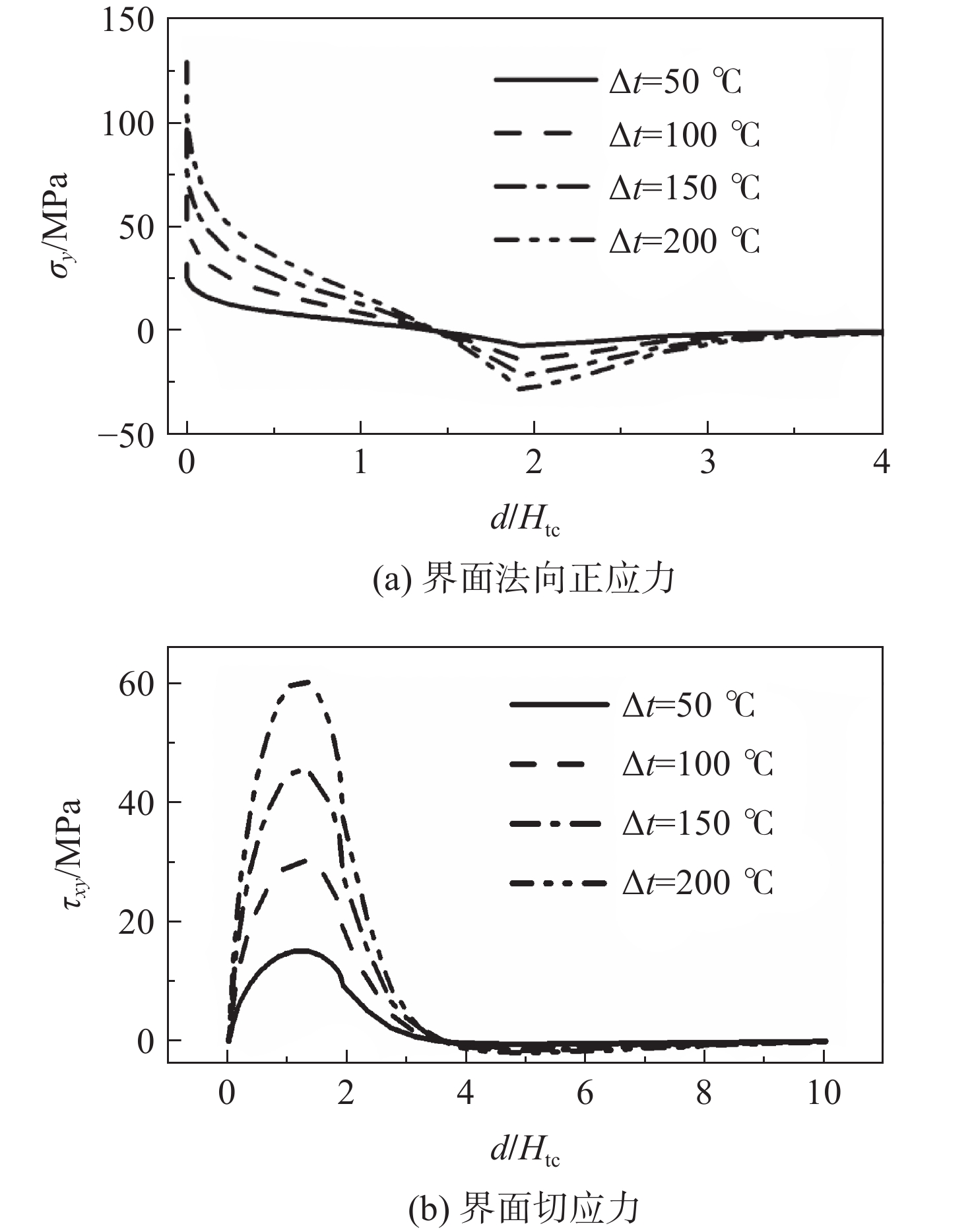

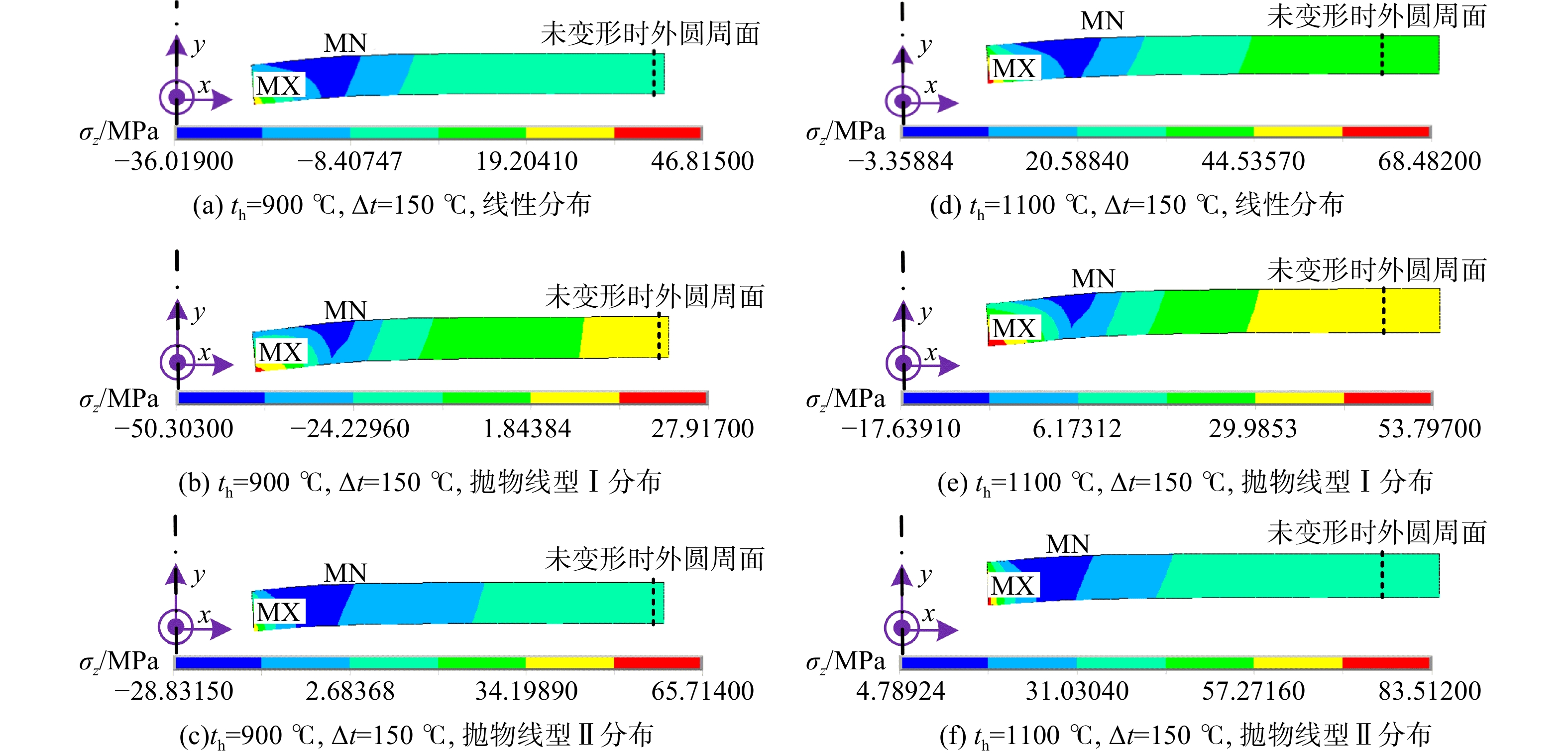

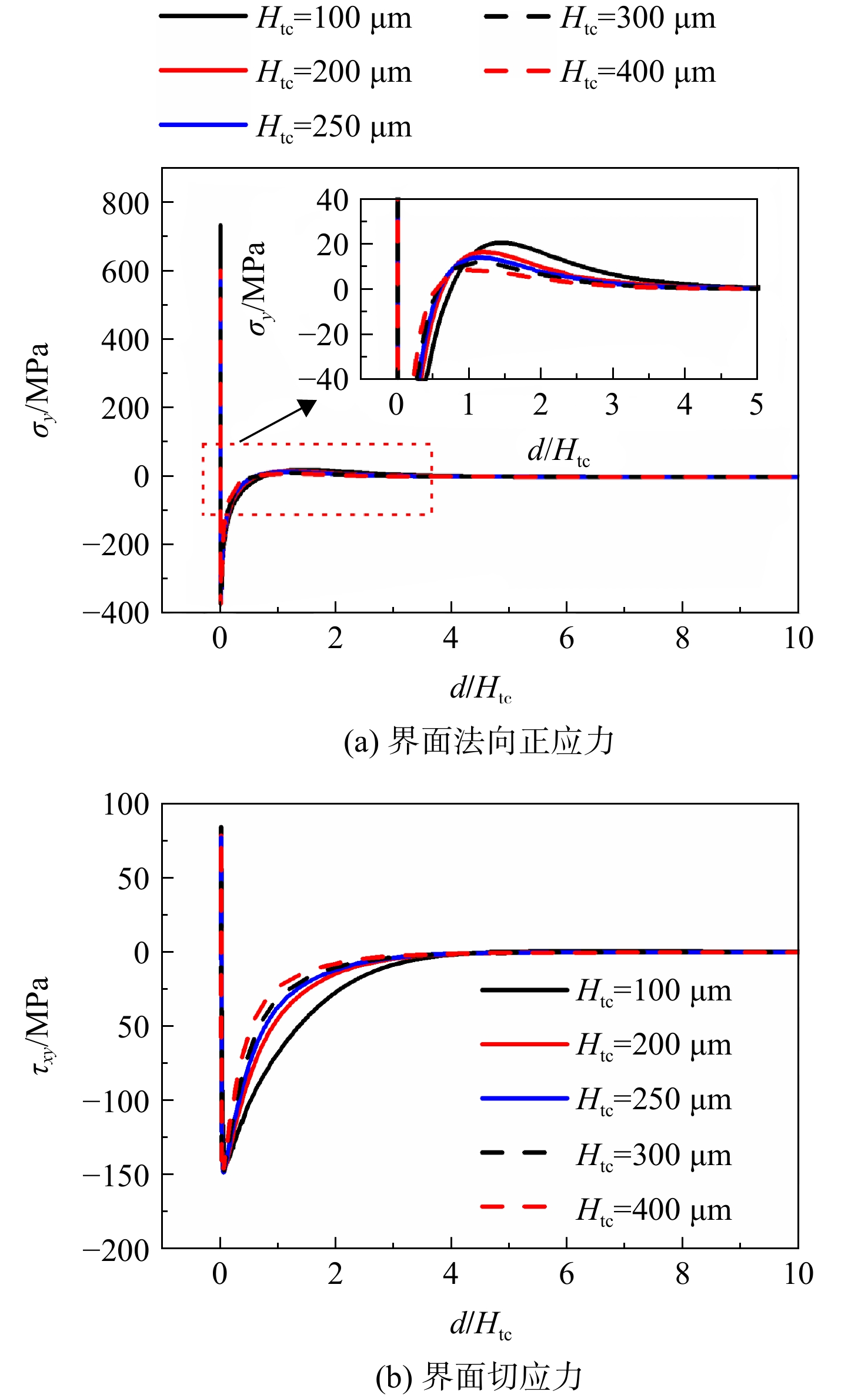

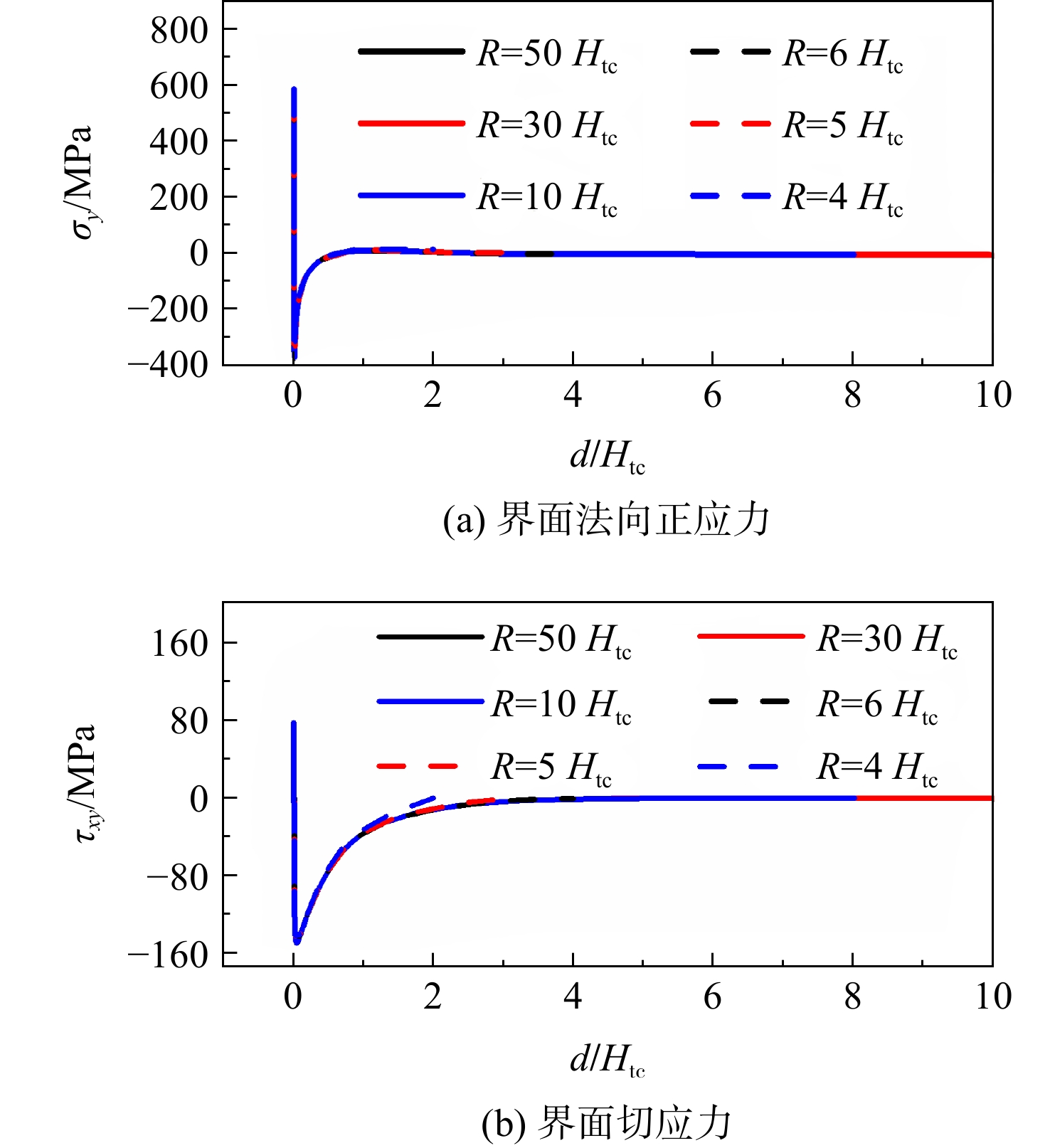

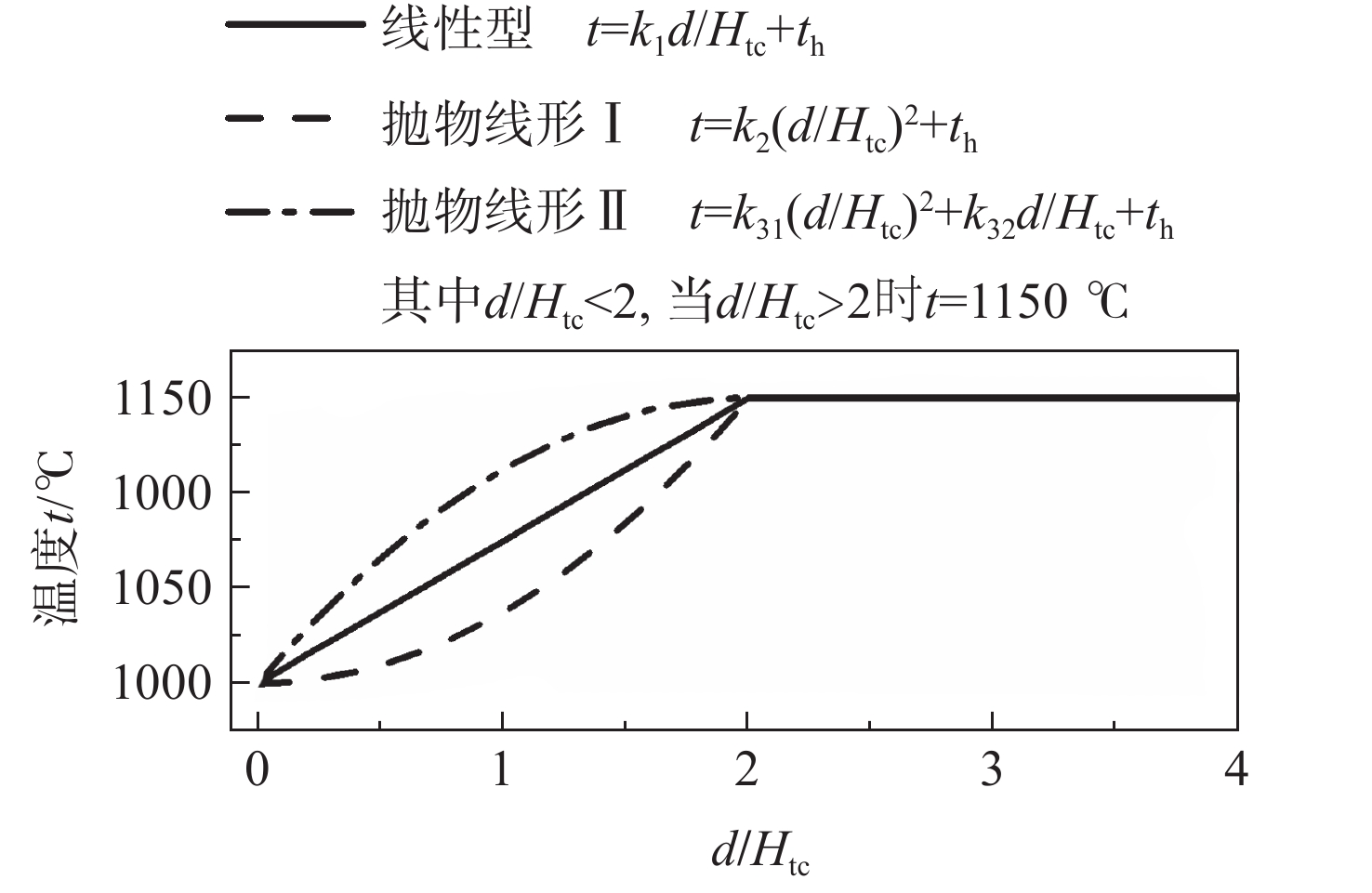

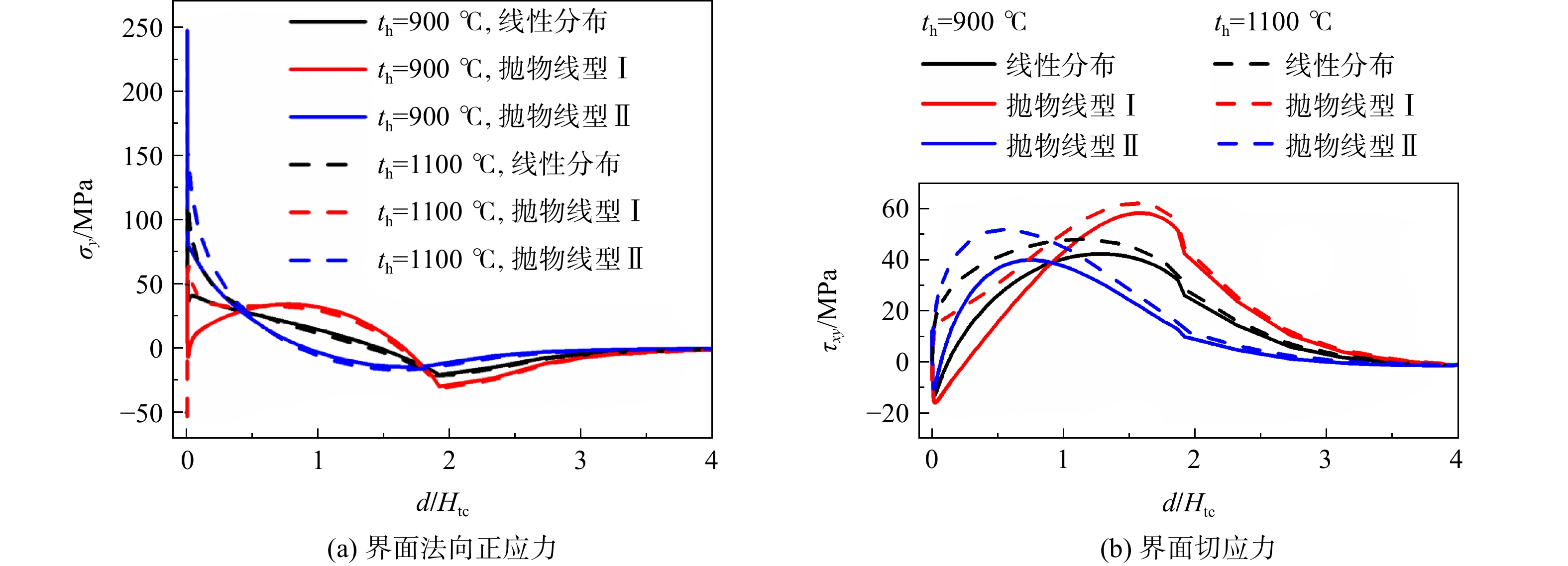

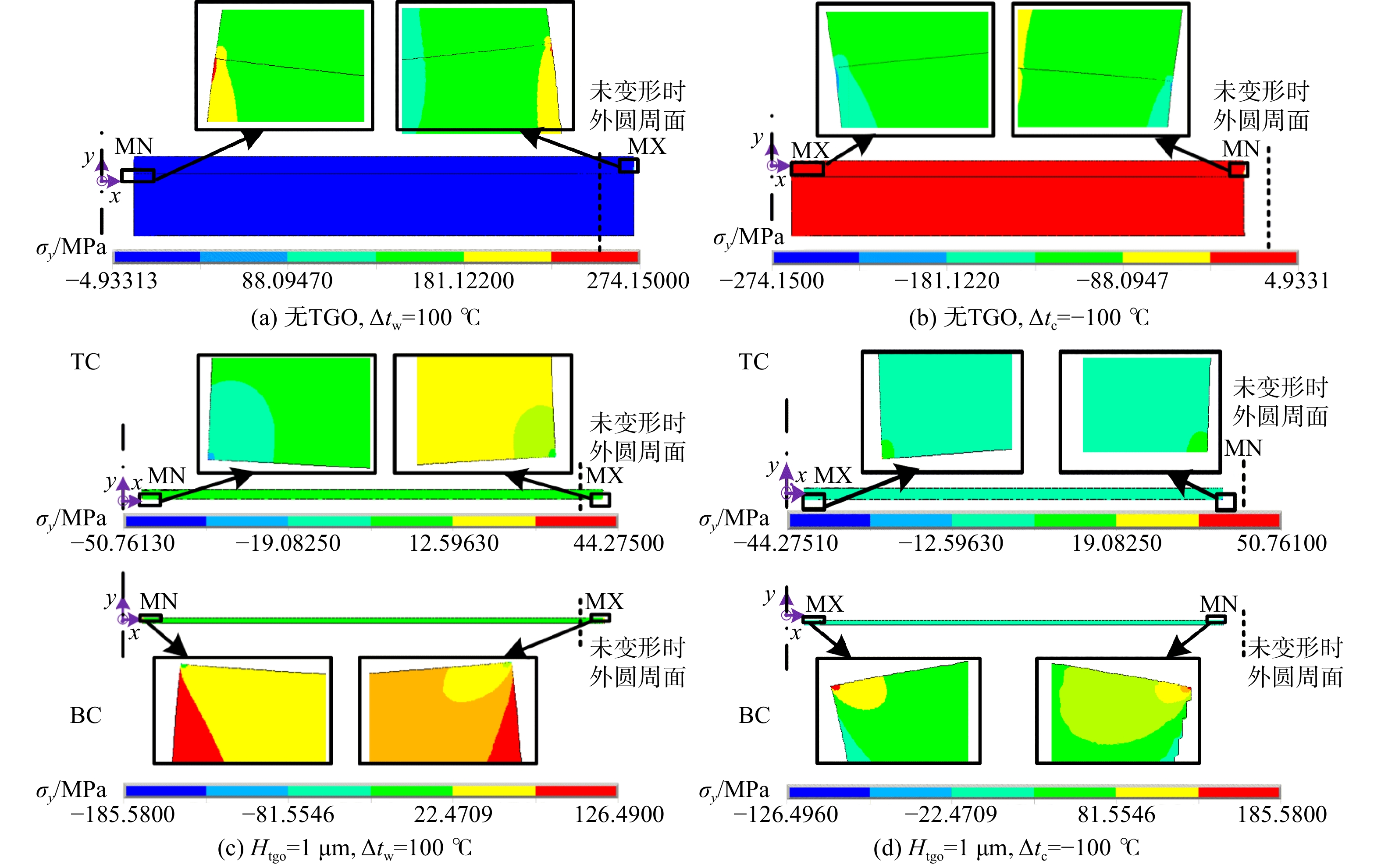

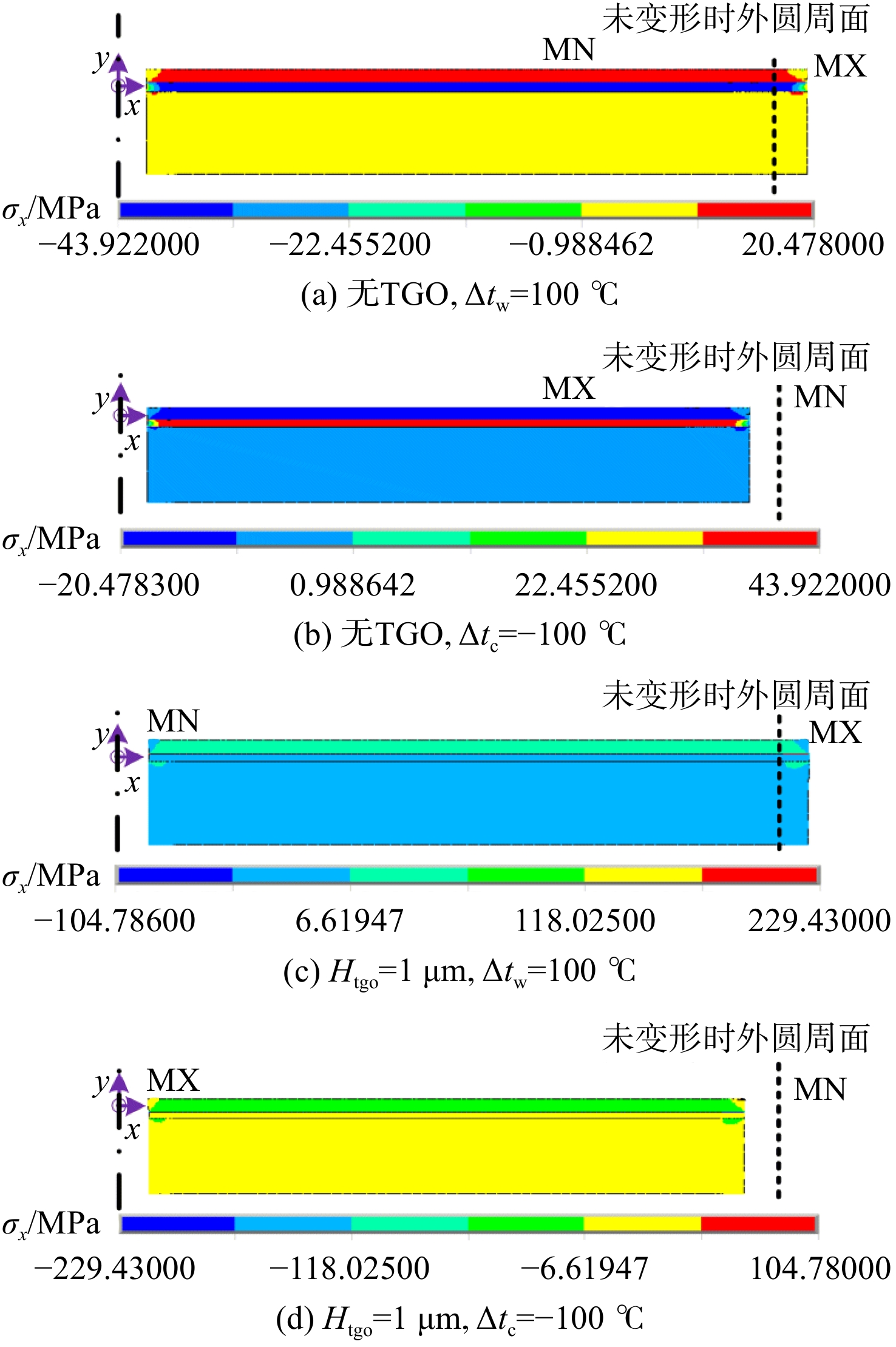

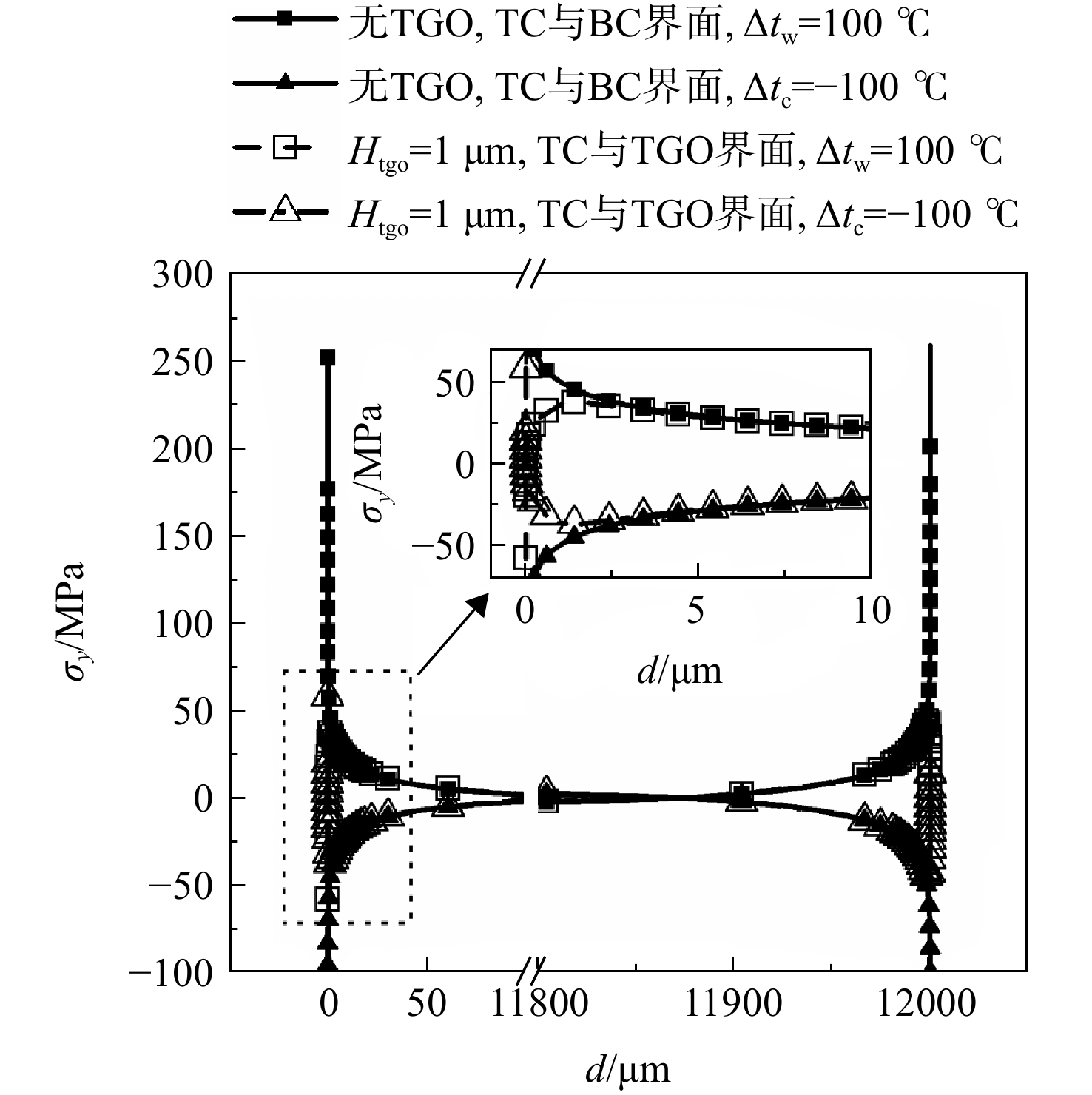

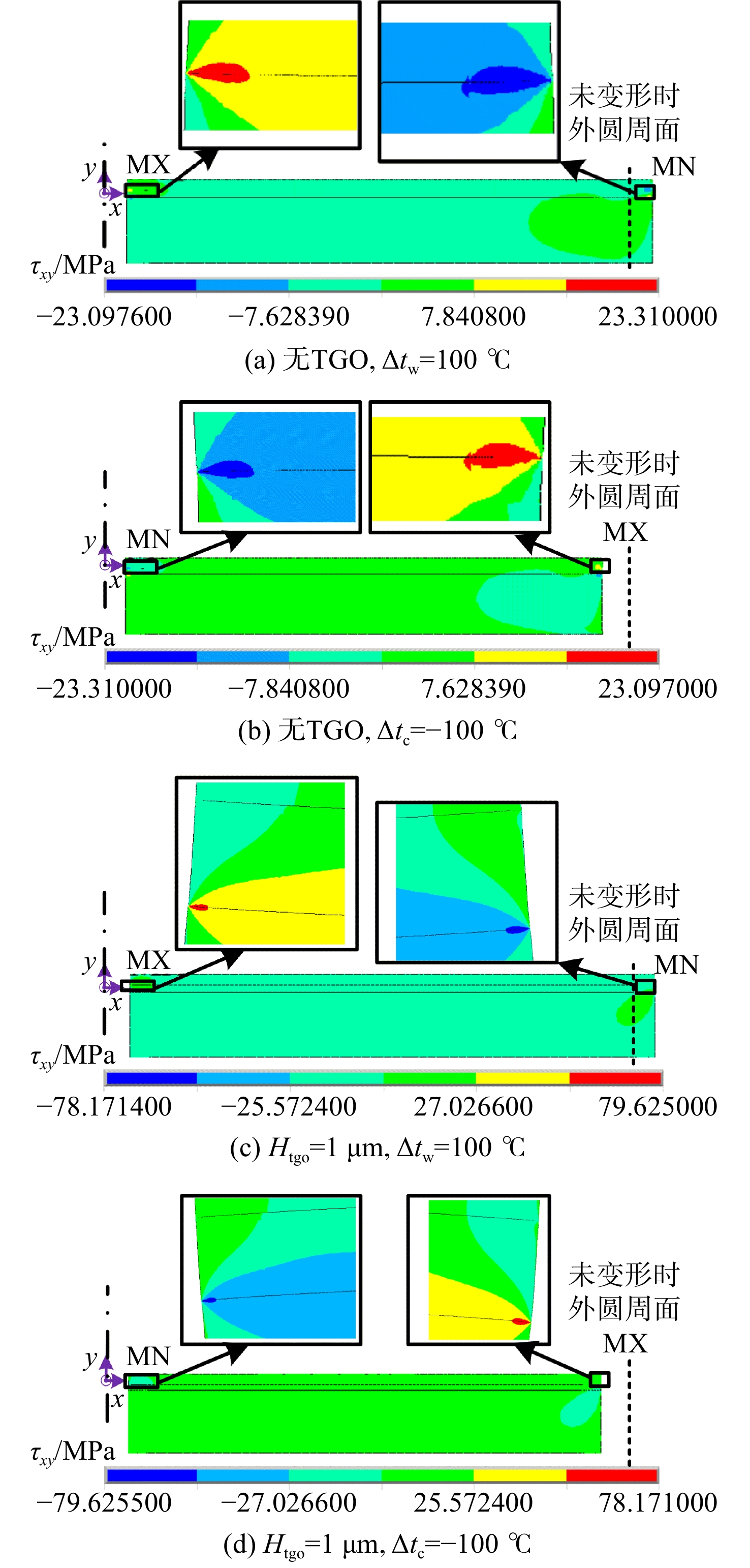

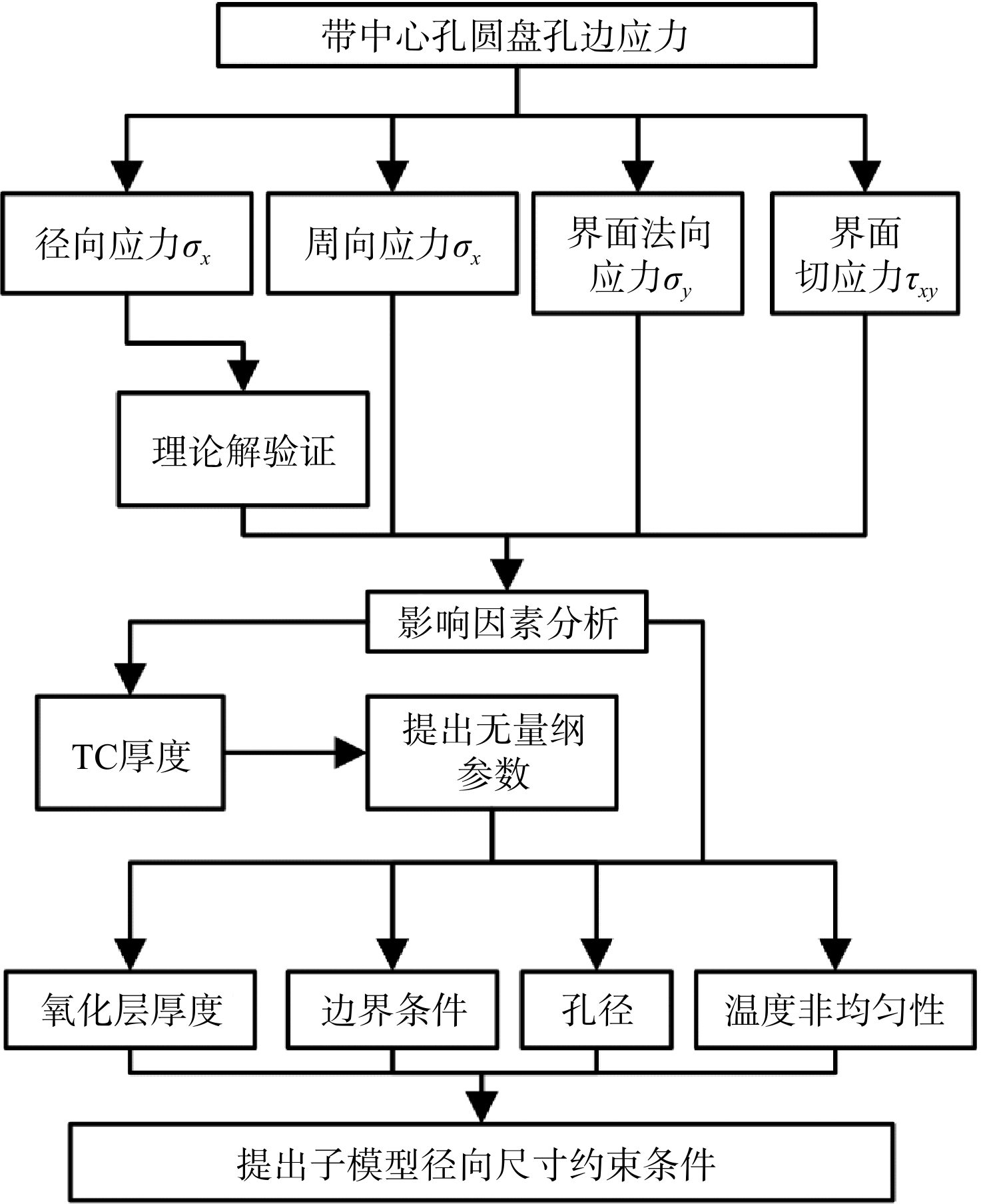

The stress distributions of the thermal barrier coating-substrate system with a hole under thermal mismatch were calculated using finite element method. Calculation results indicated that the interfacial normal/shear stress concentration occurred at the edge of the film hole, and higher circumferential stress existed near the edge of the hole. The coating near the hole edge was prone to cracking and spalling. The effects of the thickness of the ceramic layer, the outer diameter of the model, the thickness of the oxide layer, the hole diameter, and the temperature distribution on the local stress near the hole edge were calculated and analyzed. Results revealed that the region with interfacial normal and shear stress became larger while the thickness of the ceramic layer increased. The outer diameter of the sub-model, which was used to calculate the stress near the edge of the film hole, should be greater than the sum of four times of the ceramic layer’s thickness plus half of the diameter of the hole. Under the cooling condition, the interfacial normal and shear stress increased with the thickness of the oxide layer. At high temperature, the circumferential stress at the edge of the ceramic layer near the hole decreased with the diameter of the hole. The interfacial stress and circumferential stress near the hole edge increased in the case of non-uniform temperature distribution.
| [1] |
邢宇明,谢刚,周志宇,等. 旋转条件下动叶前缘气膜孔排布局数值研究[EB/OL]. [2022-04-19]. https://kns.cnki.net/kcms/detail/11.2297.v.20220328.1247.002.html.
|
| [2] |
MENSCH A,THOLE K A,CRAVEN B A. Conjugate heat transfer measurements and predictions of a blade end wall with a thermal barrier coating[J]. Journal of Turbomachinery,2014,136(12): 1-11.
|
| [3] |
HARDWICKE C U,LAU Y C. Advances in thermal spray coatings for gas turbines and energy generation: a review[J]. Journal of Thermal Spray Technology,2013,22(5): 564-576. doi: 10.1007/s11666-013-9904-0
|
| [4] |
张子凡,韩彦冬,王炜哲,等. CMAS渗透下热障涂层界面失效分析[J]. 航空动力学报,2021,36(8): 1702-1711. doi: 10.13224/j.cnki.jasp.20200374
ZHANG Zifan,HAN Yandong,WANG Weizhe,et al. Interface failure analysis of thermal barrier coatings under CMAS penetration[J]. Journal of Aerospace Power,2021,36(8): 1702-1711. (in Chinese) doi: 10.13224/j.cnki.jasp.20200374
|
| [5] |
刘志远,肖杰,杨丽,等. 涡轮叶片热障涂层隔热性能和应力数值模拟[J]. 湘潭大学学报(自然科学版),2020,42(3): 107-115.
LIU Zhiyuan,XIAO Jie,YANG Li,et al. Numerical simulation of thermal insulation performance and stress of thermal barrier coatings on turbine blades[J]. Journal of Xiangtan University (Natural Science Edition),2020,42(3): 107-115. (in Chinese)
|
| [6] |
王力,王海斗,底月兰,等. 热障涂层应力产生机制及分布特征[J]. 材料导报,2021,35(17): 17143-17149. doi: 10.11896/cldb.20050158
WANG Li,WANG Haidou,DI Yuelan,et al. Stress generation mechanism and distribution characteristics in thermal barrier coatings[J]. Materials Reports,2021,35(17): 17143-17149. (in Chinese) doi: 10.11896/cldb.20050158
|
| [7] |
SUHIR E. An approximate analysis of stresses in multilayered elastic thin films[J]. Journal of Applied Mechanics,1988,55(1): 143-148. doi: 10.1115/1.3173620
|
| [8] |
SUHIR E. Predicted thermally induced stresses in, and the bow of, a circular substrate/thin-film structure[J]. Journal of Applied Physics,2000,88(5): 2363-2370. doi: 10.1063/1.1286096
|
| [9] |
JIANG Jishen,MA Xianfeng,WANG Biao. Stress analysis of the thermal barrier coating system near a cooling hole considering the free-edge effect[J]. Ceramics International,2020,46(1): 331-342. doi: 10.1016/j.ceramint.2019.08.267
|
| [10] |
MENG Zewei,LIU Yongbao,LI Yujie,et al. An analytical model for predicting residual stress in TBC-film cooling system considering non-uniform temperature field[J]. Journal of Applied Physics,2021,129(13): 1-13.
|
| [11] |
JIANG Jishen,WU Di,WANG Weizhe,et al. Fracture behavior of TBCs with cooling hole structure under cyclic thermal loadings[J]. Ceramics International,2020,46(3): 3644-3654. doi: 10.1016/j.ceramint.2019.10.084
|
| [12] |
ROSLER J,BAKER M,AUFZUG K. A parametric study of the stress state of thermal barrier coatings: Part Ⅰ creep relaxation[J]. Acta Materialia,2004,52(16): 4809-4817.
|
| [13] |
王铁军,范学领. 热障涂层强度理论与检测技术[M]. 西安:西安交通大学出版社,2016.
|
| [14] |
杨晓光,耿瑞,熊昌炳. 一种简便的隔热涂层残余应力分析方法及结果讨论[J]. 航空动力学报,1997,12(3): 239-242. doi: 10.13224/j.cnki.jasp.1997.03.004
YANG Xiaoguang,GENG Rui,XIONG Changbing. A simple method for calculation of residual stress in thermal barrier coating[J]. Journal of Aerospace Power,1997,12(3): 239-242. (in Chinese) doi: 10.13224/j.cnki.jasp.1997.03.004
|
| [15] |
ALI M Y,CHEN X,NEWAZ G M. Oxide layer development under thermal cycling and its role on damage evolution and spallation in TBC system[J]. Journal of Materials Science,2001,36(18): 4535-4542. doi: 10.1023/A:1017959509216
|
| [16] |
HSUEH C H,LUTTRELL C R,LEE S,et al. Interfacial peeling moments and shear forces at free edges of multilayers subjected to thermal stresses[J]. Journal of the American Ceramic Society,2006,89(5): 1632-1638. doi: 10.1111/j.1551-2916.2006.00924.x
|
| [17] |
董会. 等离子喷涂热障涂层的服役性能[M]. 北京:中国石化出版社,2018.
|
| [18] |
WEE S,DO J,KIM K,et al. Review on mechanical thermal properties of superalloys and thermal barrier coating used in gas turbines[J]. Applied Sciences-Basel,2020,10(16): 1-24.
|
| [19] |
LU Z,MYOUNG S W,KIM E H,et al. Microstructure evolution and thermal durability with coating thickness in APS thermal barrier coatings[J]. Materials Today:Proceedings,2014,1: 35-43. doi: 10.1016/j.matpr.2014.09.009
|
| [20] |
NAYEBPASHAEE N,SEYEDEIN S H,ABOUTALEBI M R,et al. Finite element simulation of residual stress and failure mechanism in plasma sprayed thermal barrier coatings using actual microstructure as the representative volume[J]. Surface and Coatings Technology,2016,291: 103-114. doi: 10.1016/j.surfcoat.2016.02.028
|
| [21] |
RABIEI A,EVANS A G. Failure mechanisms associated with the thermally grown oxide in plasma-sprayed thermal barrier coatings[J]. Acta Materialia,2000,48(15): 3963-3976. doi: 10.1016/S1359-6454(00)00171-3
|
| [22] |
GUPTA M,SKOGSBERG K,NYLEN P. Influence of topcoat-bondcoat interface roughness on stresses and lifetime in thermal barrier coatings[J]. Journal of Thermal Spray Technology,2014,23(1/2): 170-181.
|
