| Citation: | FANG Mingchang, WANG Yanrong. Forced response analysis of mistuned bladed disk with aerodynamic damping[J]. Journal of Aerospace Power, 2022, 37（10）：2224-2232 doi: 10.13224/j.cnki.jasp.20220266
|

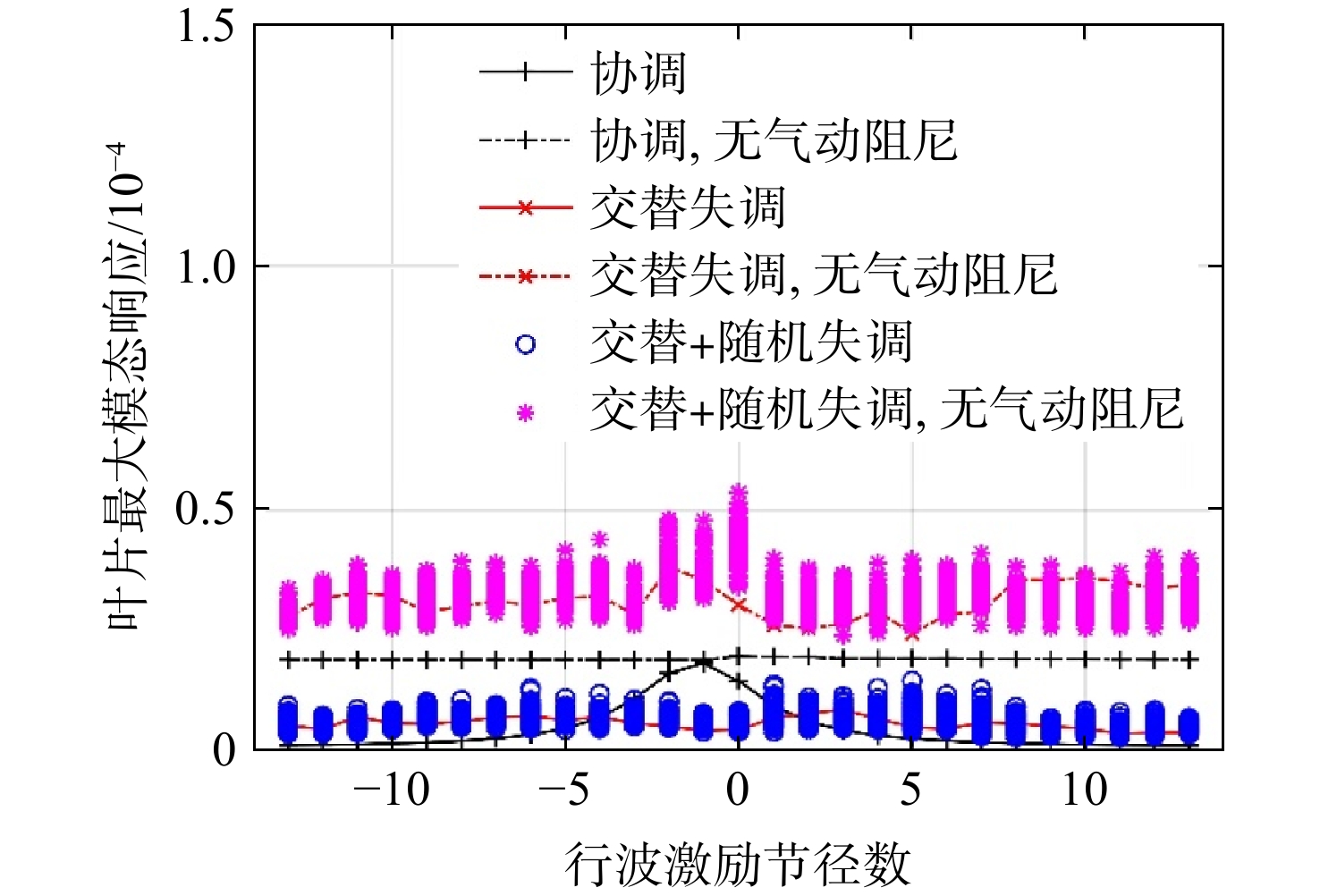

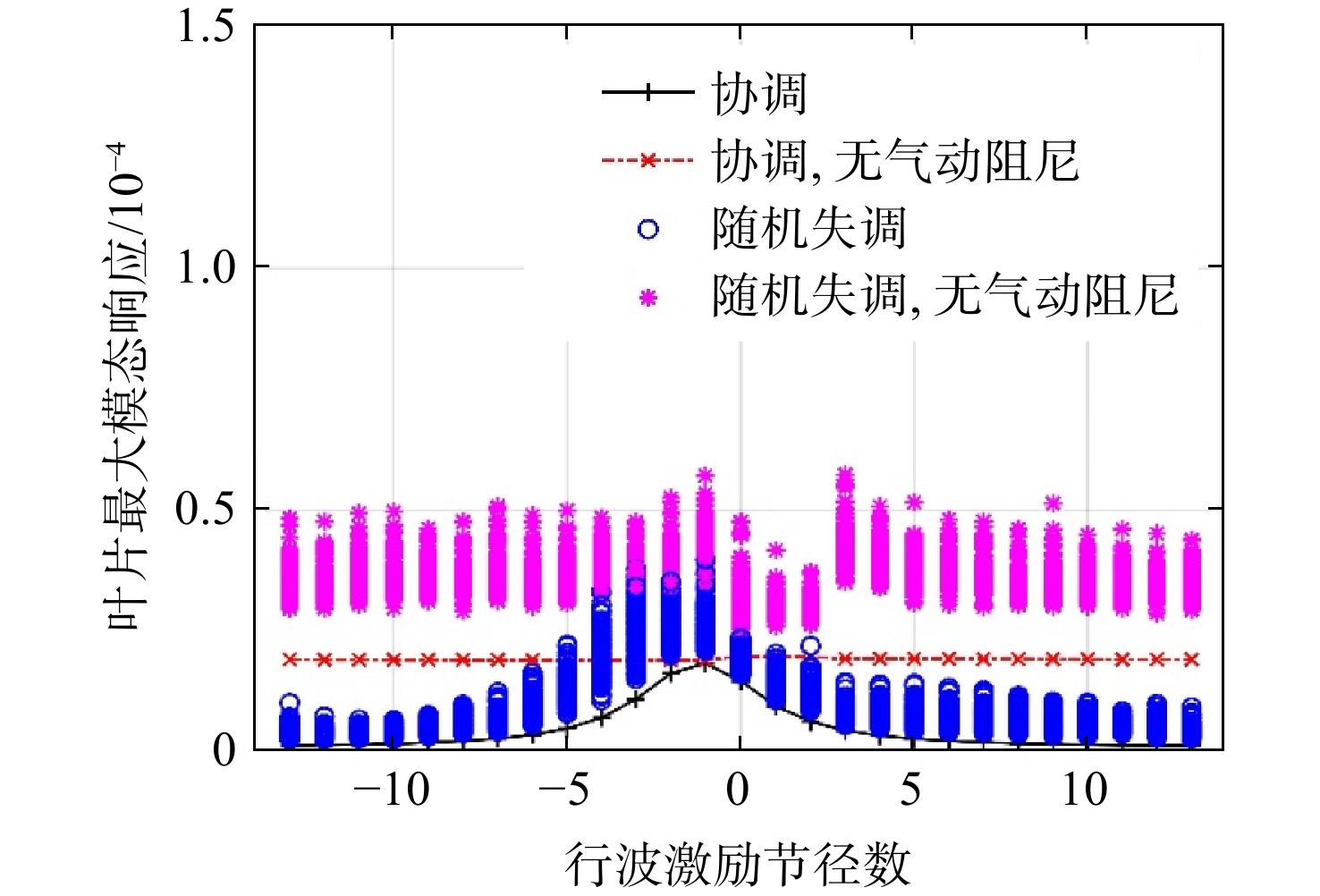

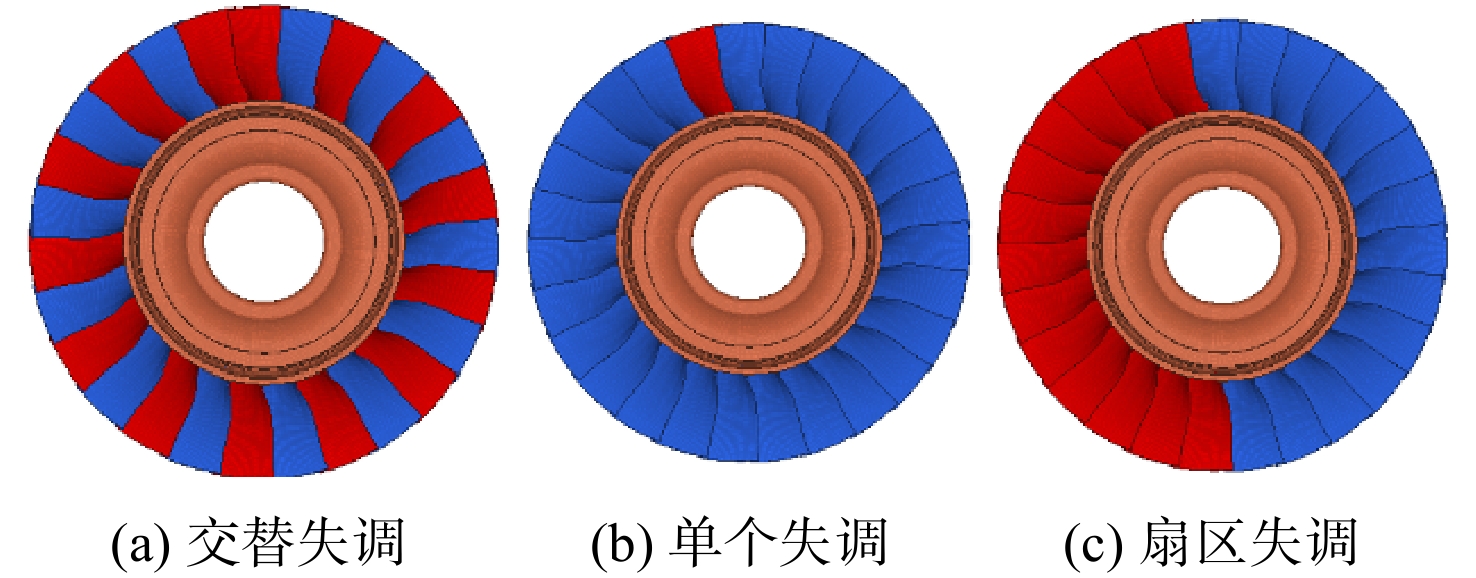

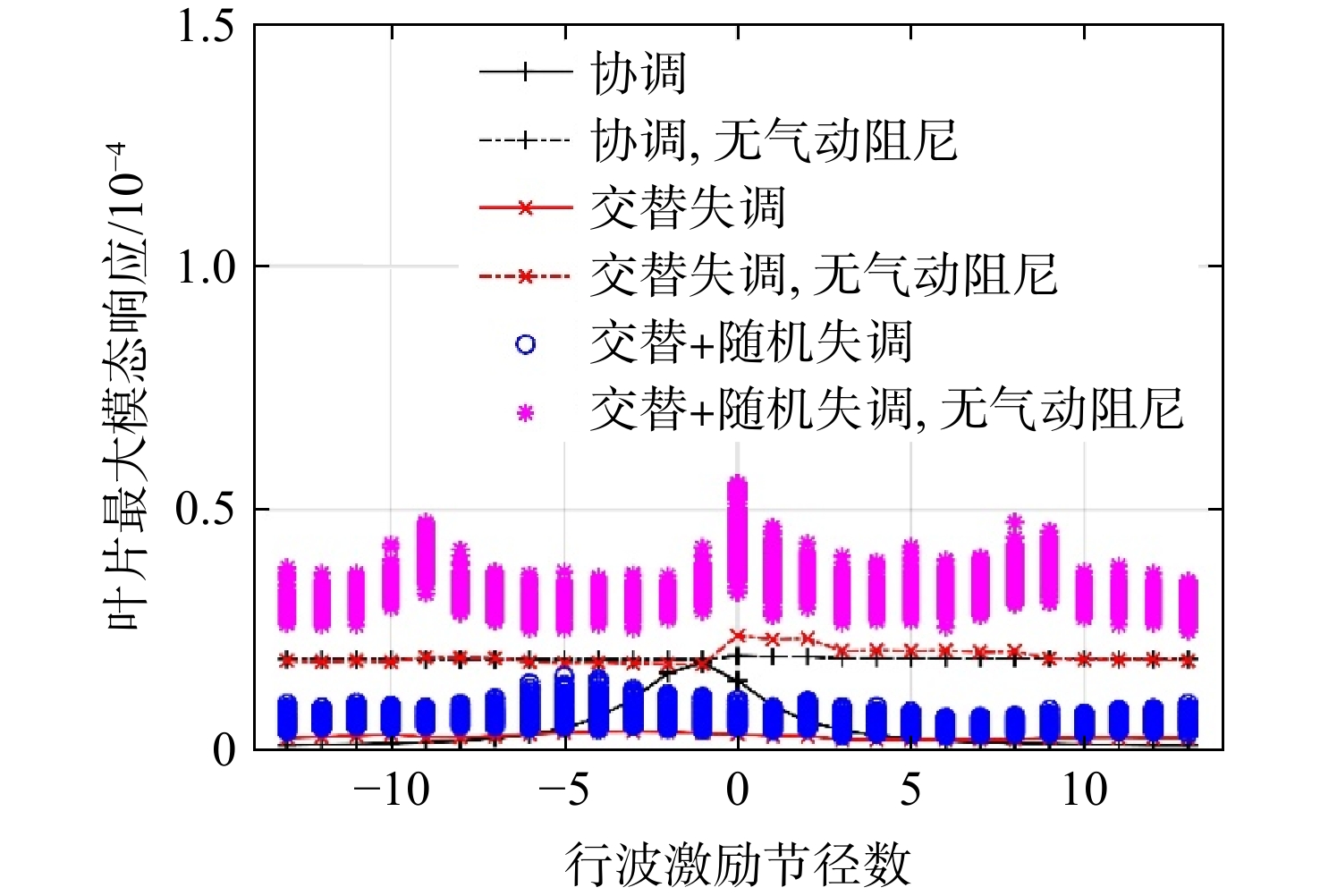

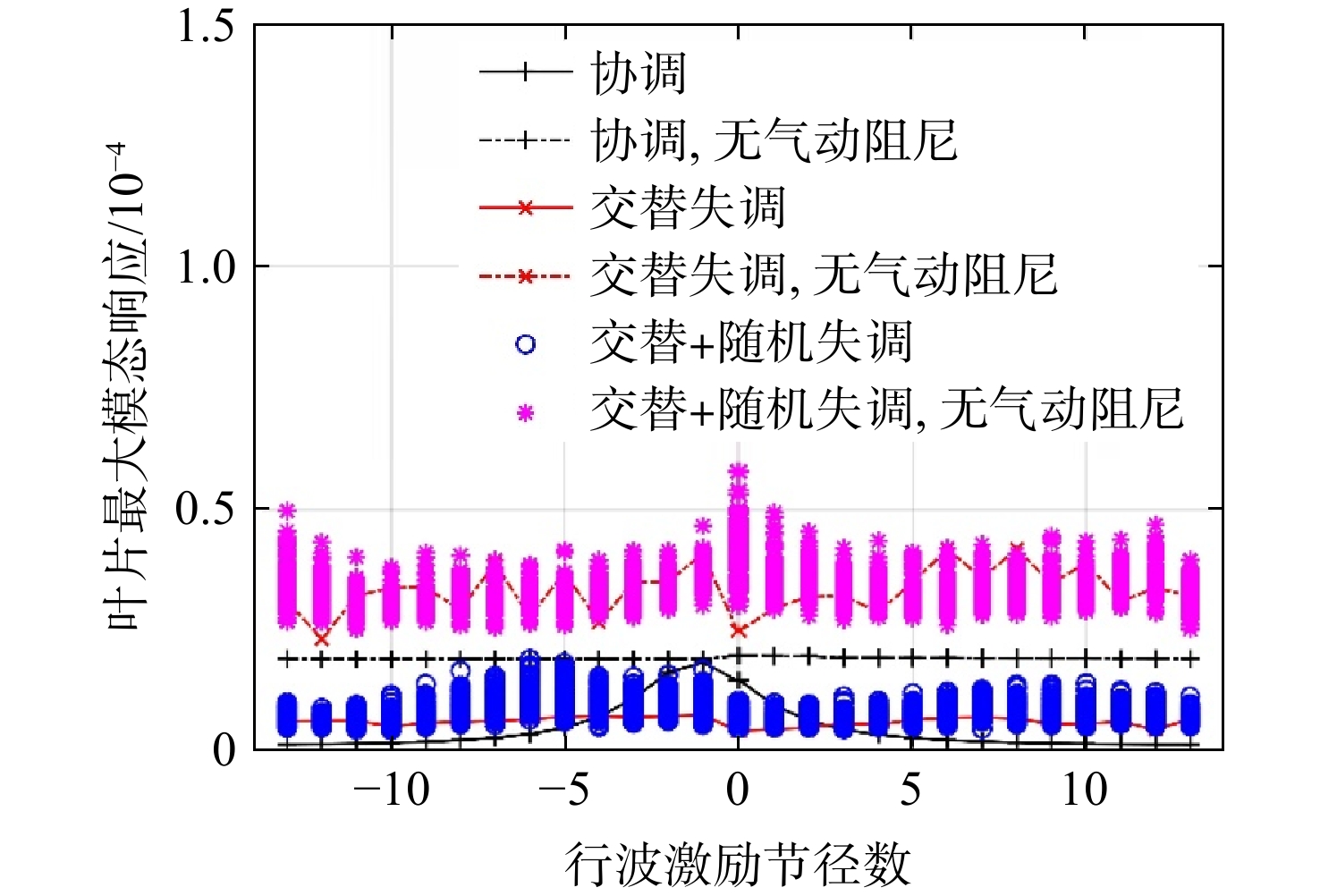

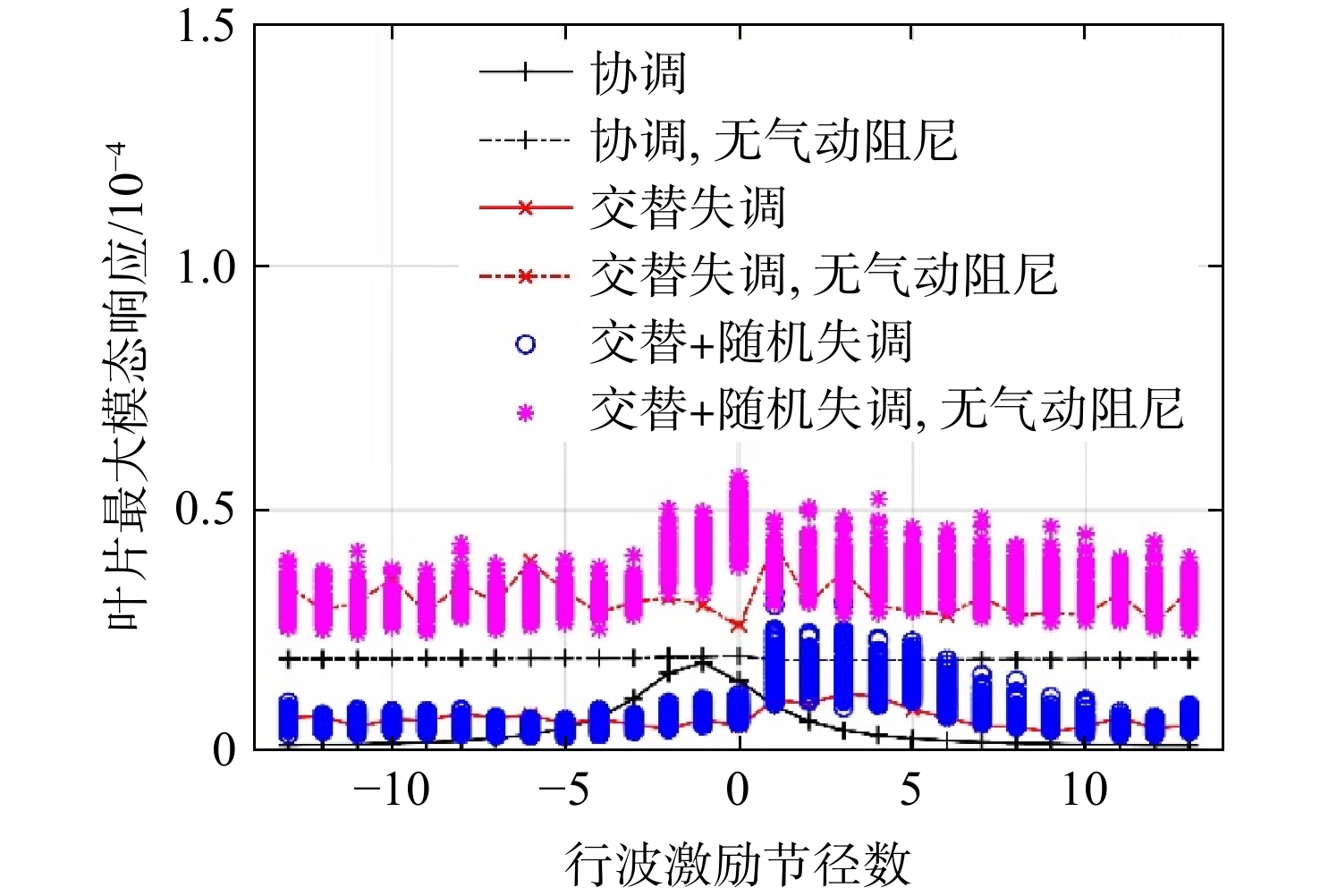

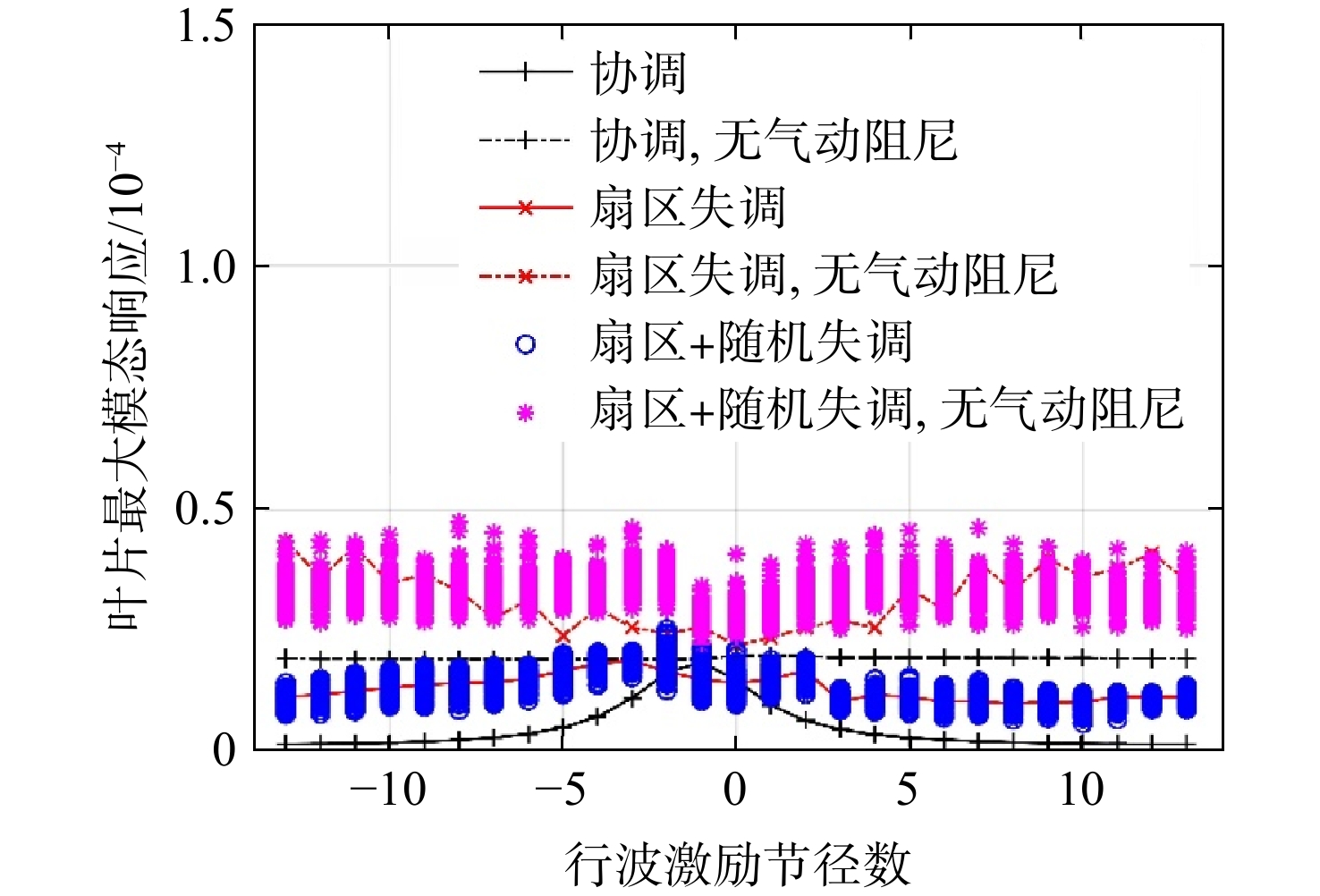

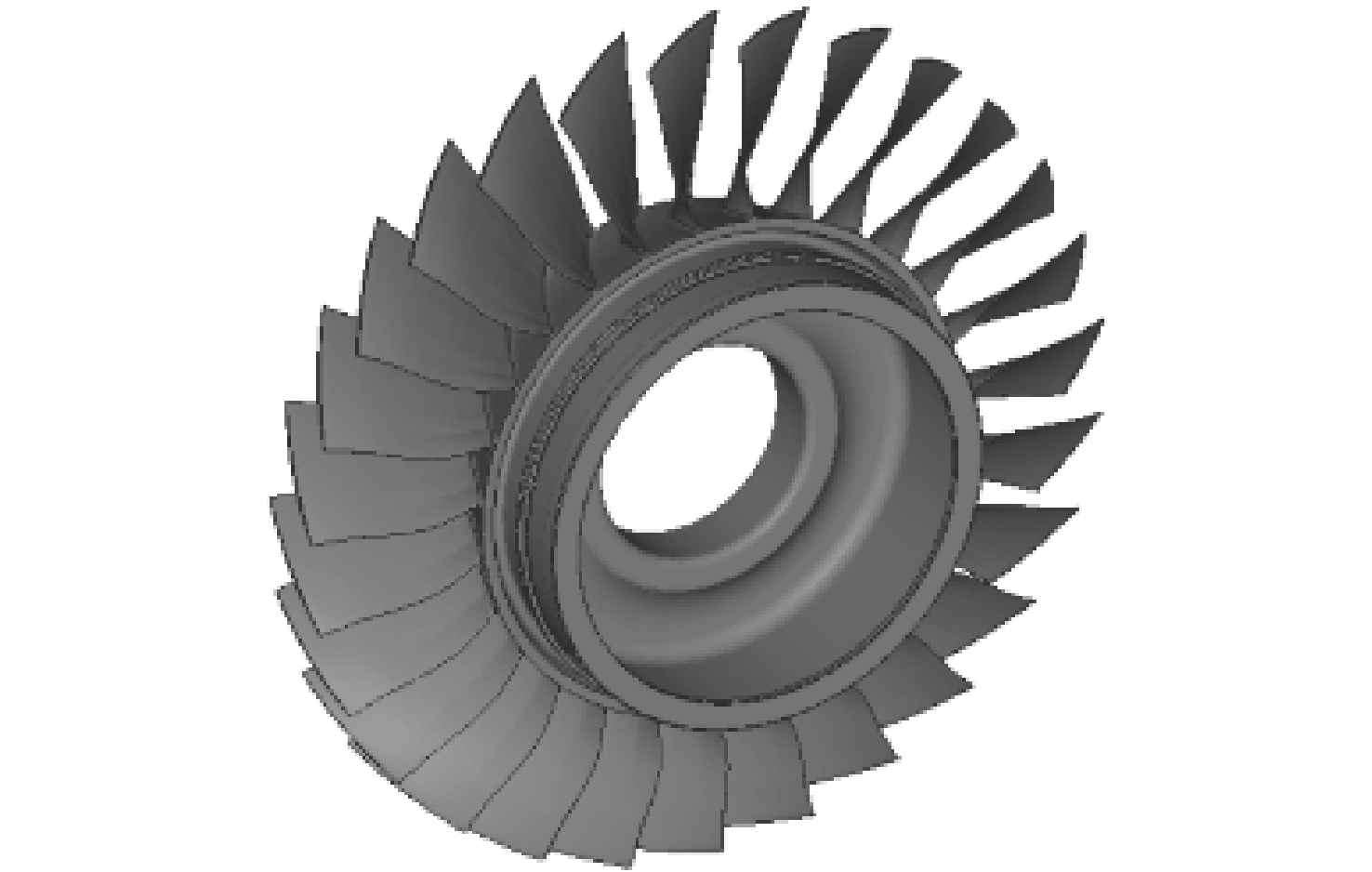

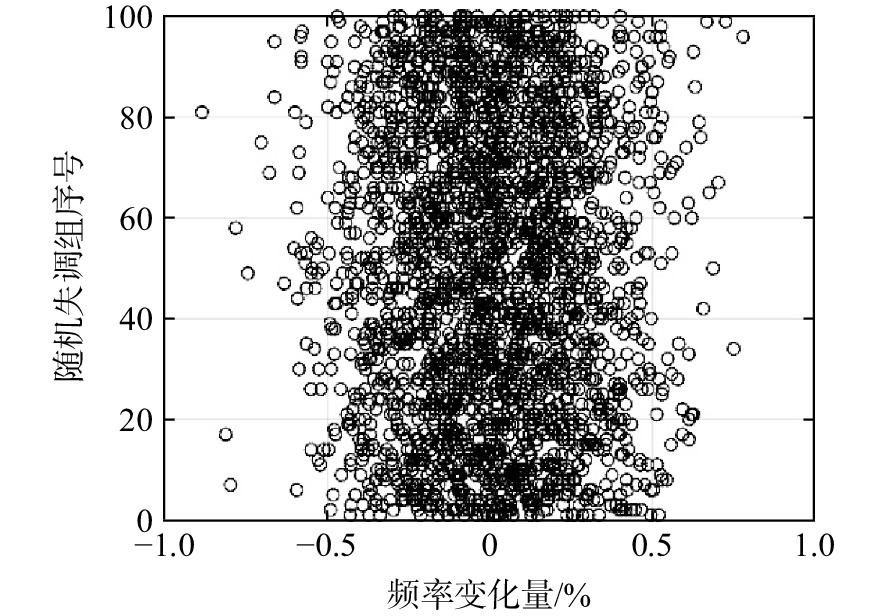

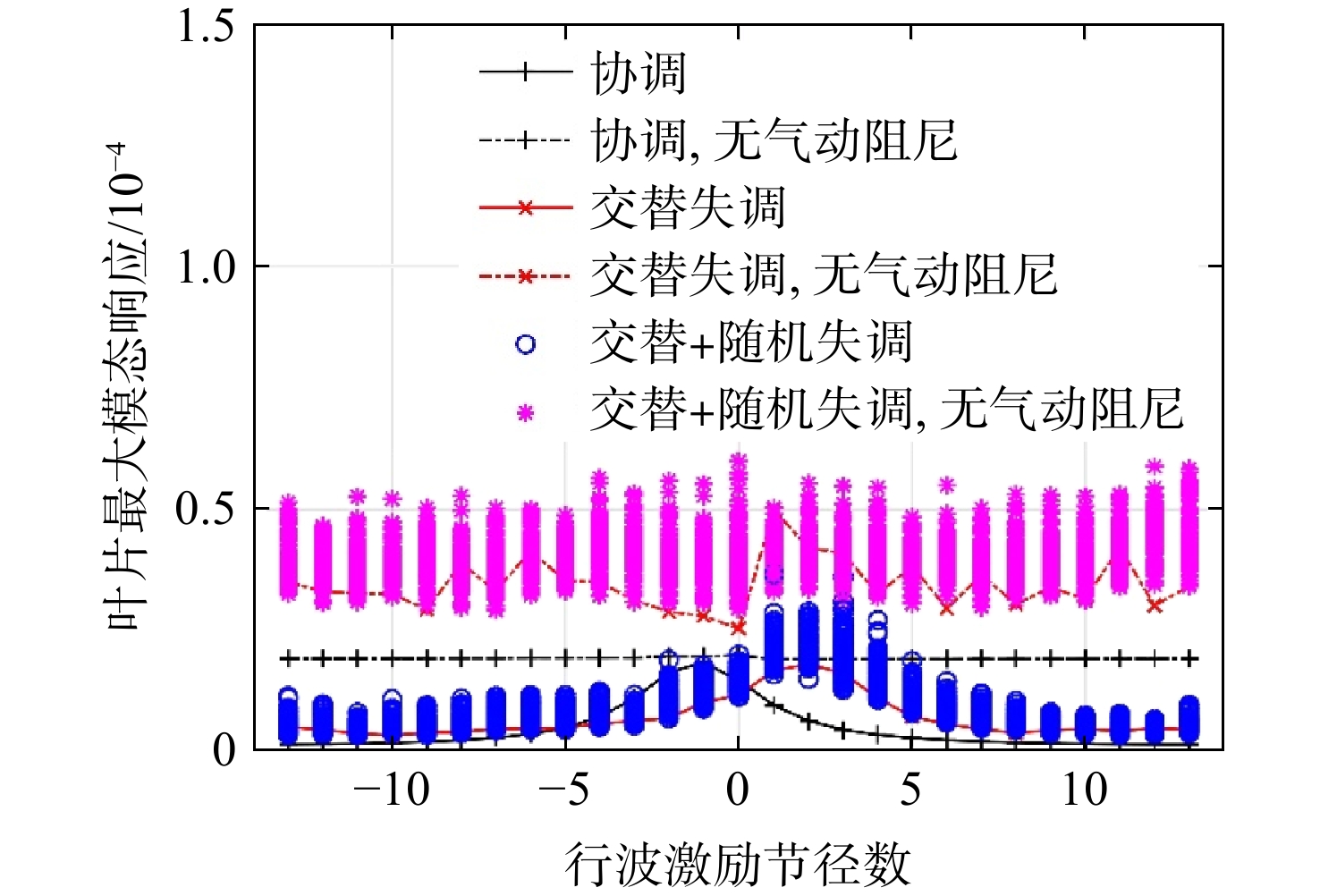

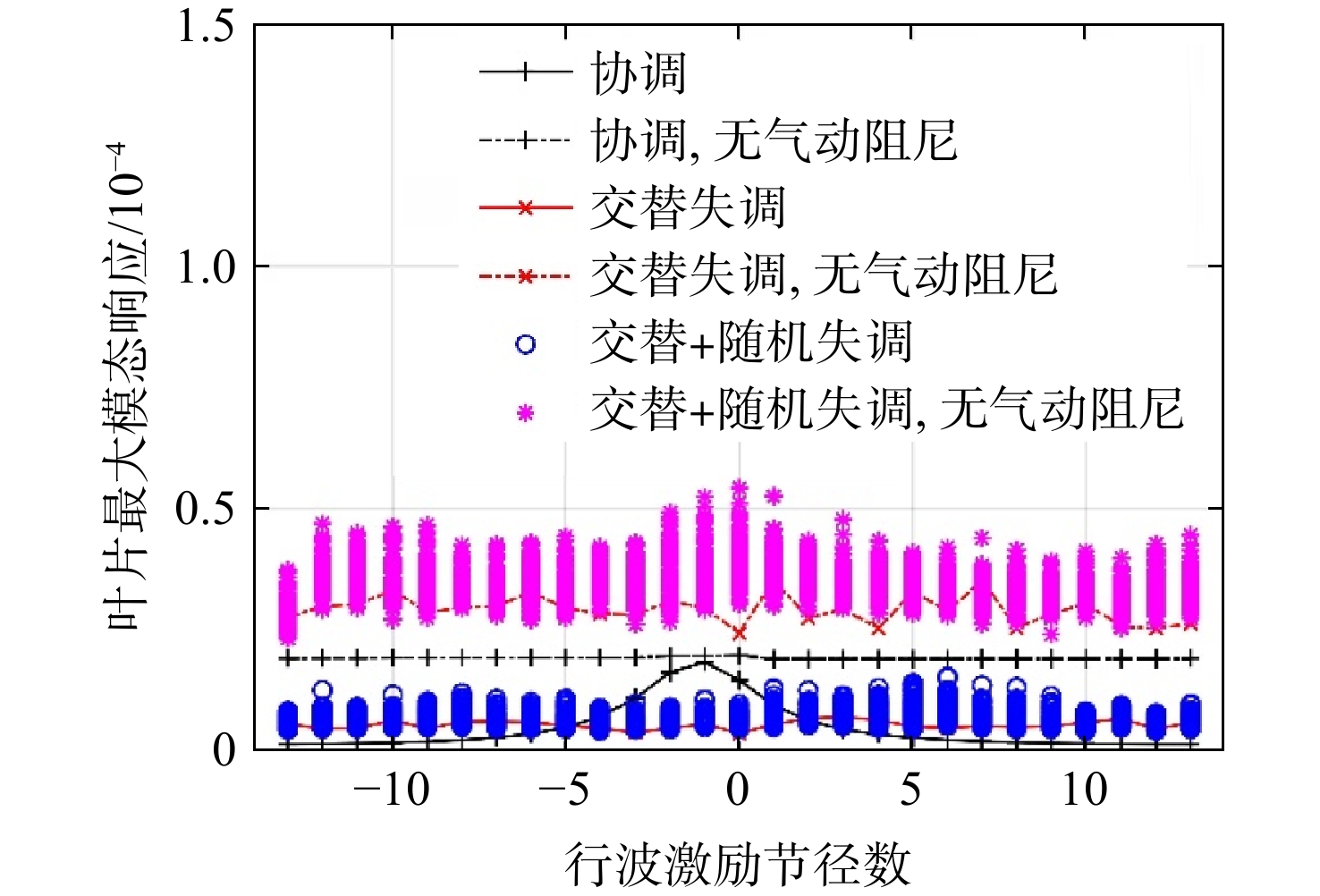

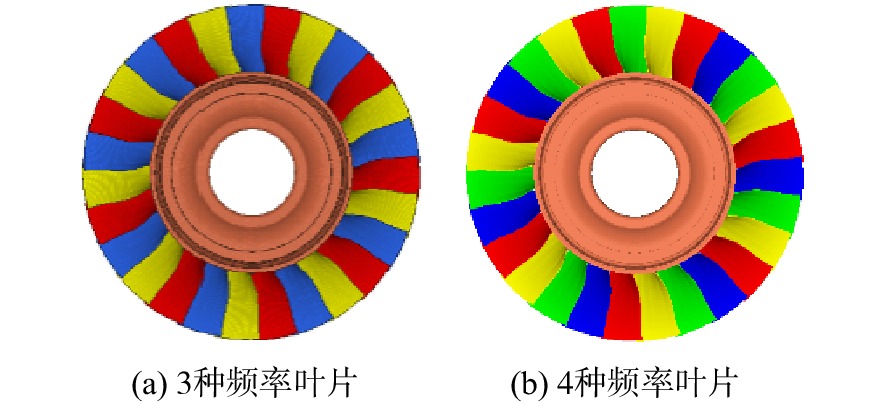

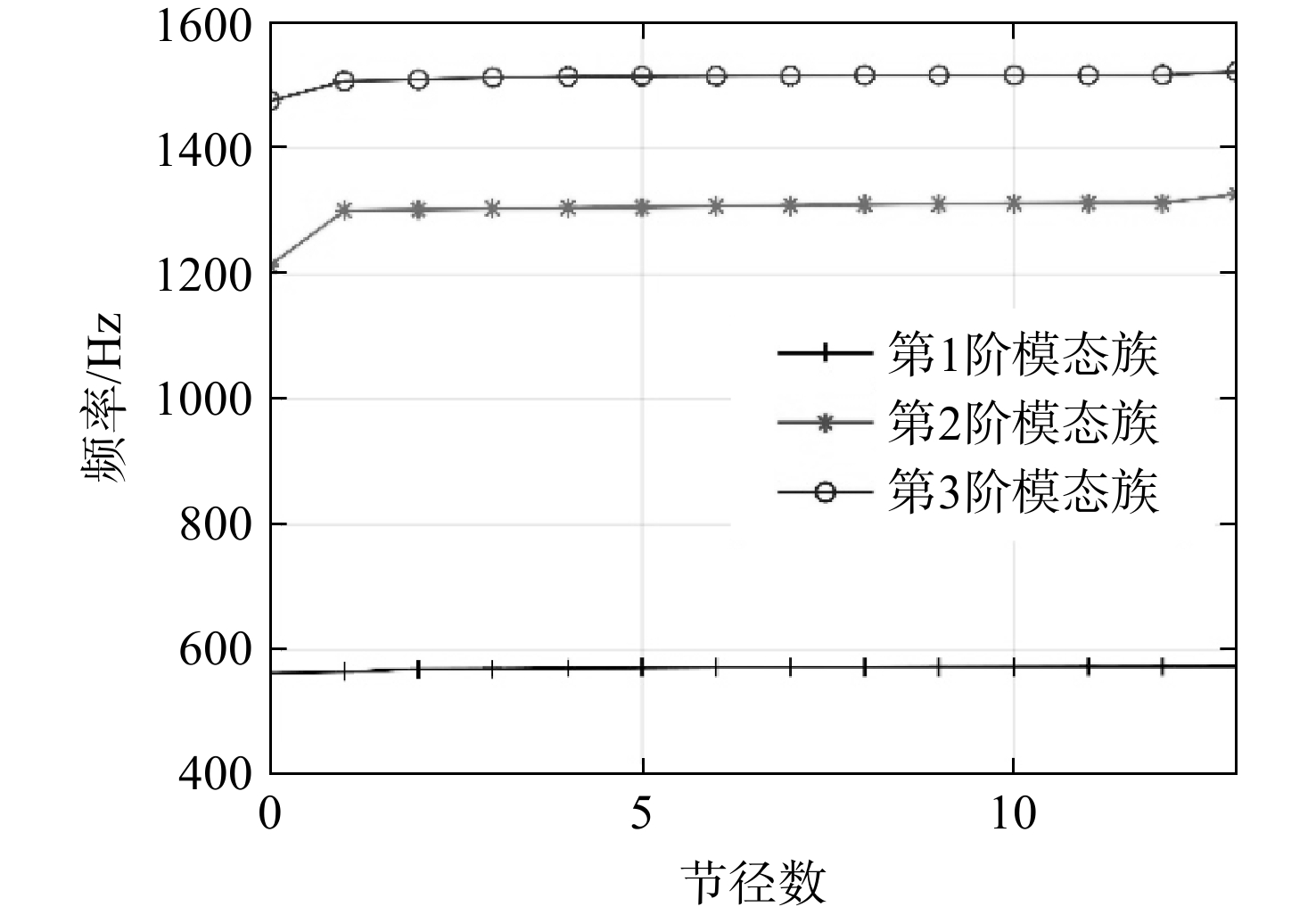

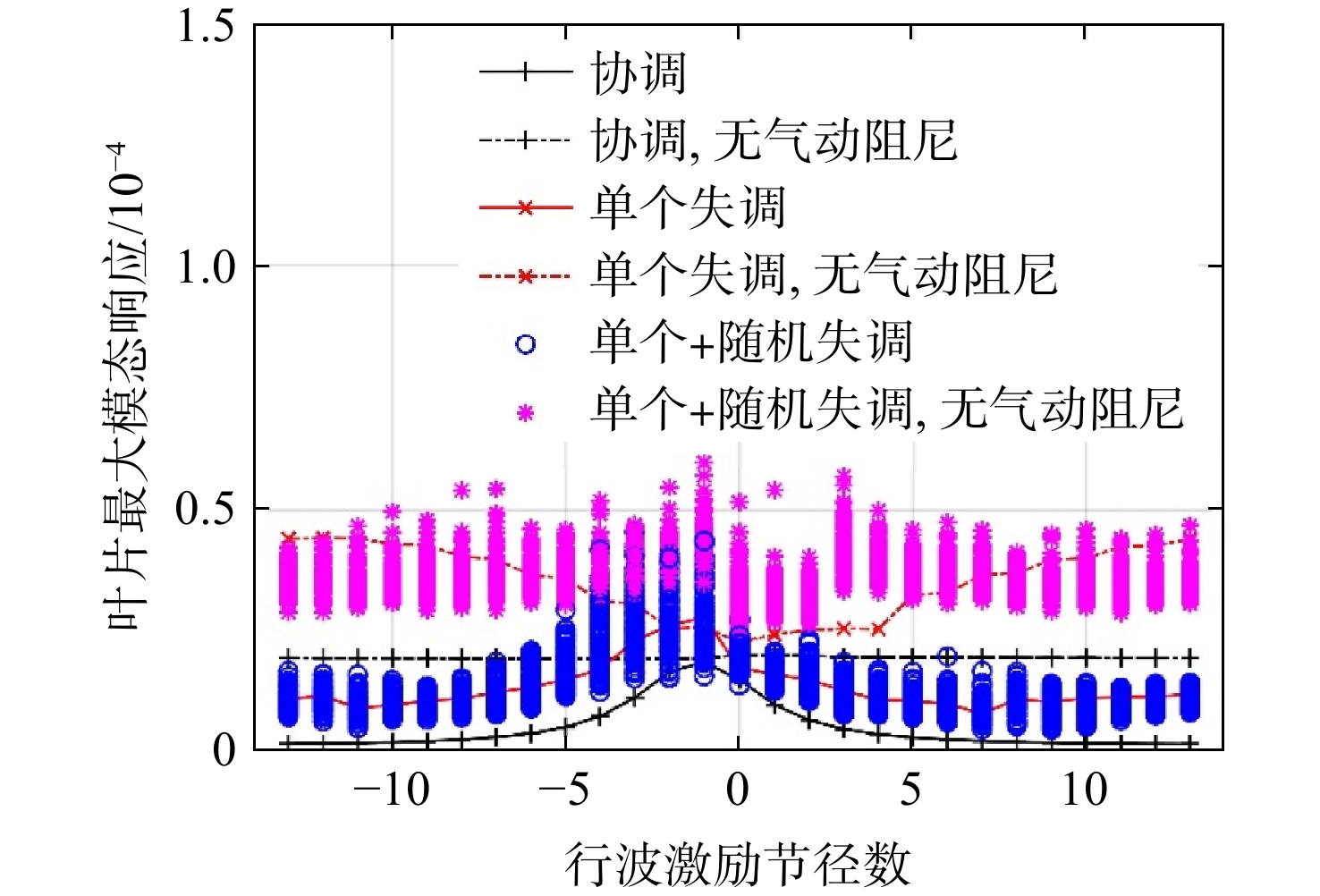

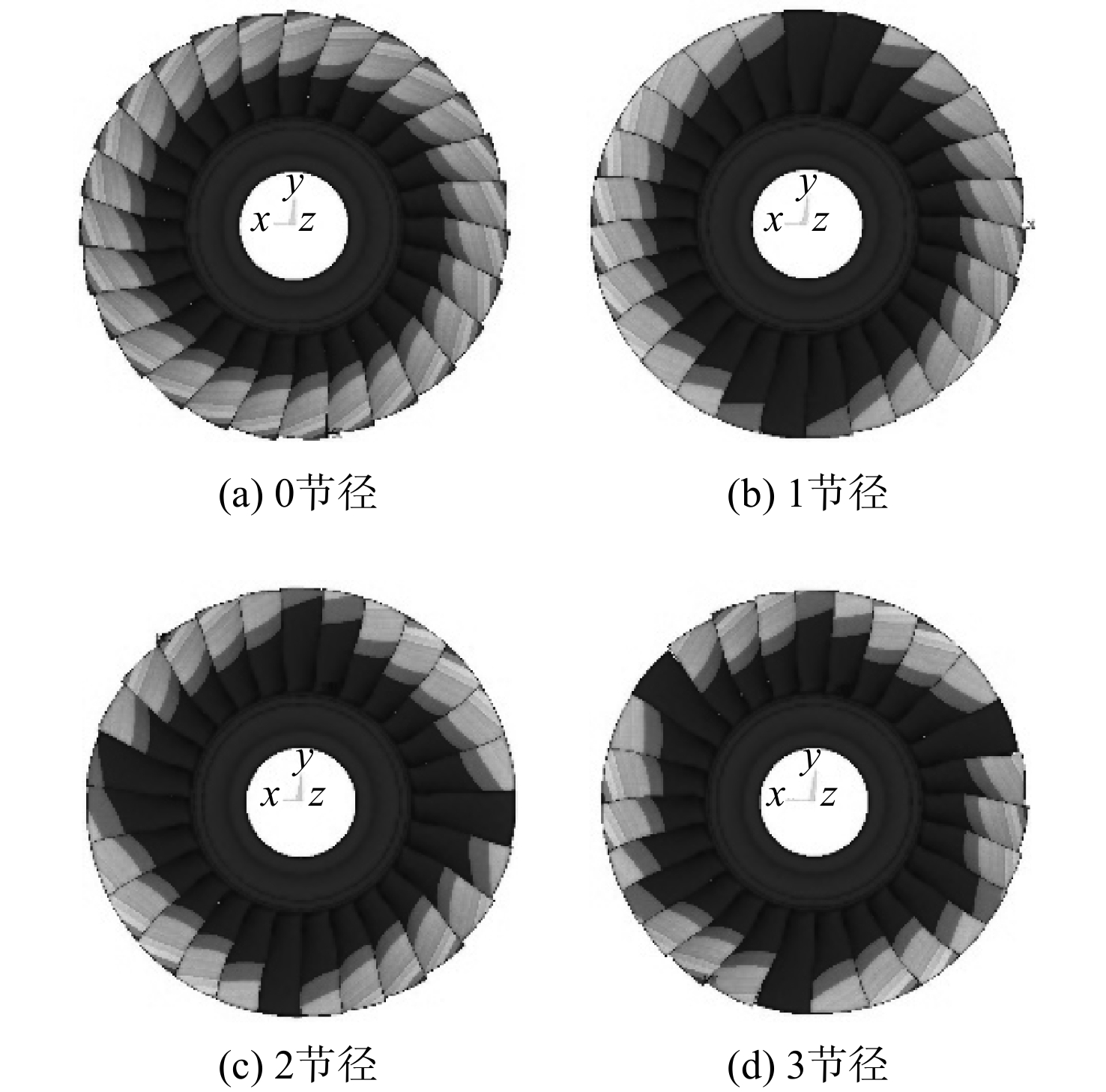

The forced response of the mistuned bladed disk was analyzed by use of the fundamental mistuning model (FMM) combined with the influence coefficient method. The finite element method and computational fluid dynamics method were used to obtain the modal results and aerodynamic influence coefficients of the tuned bladed disk, and then the FMM considering aerodynamic damping was constructed. The modal frequency, mode shape and damping ratio of the mistuned bladed disk were obtained by solving the matrix eigenvalues, and then the modal superposition method was used to calculate the forced response of the mistuned bladed disk under traveling wave excitation. The above method was used to calculate the forced responses of various intentional mistuned bladed disks before and after the superposition of random mistuning. Results indicated that the forced response of the mistuned bladed disk decreased significantly after considering aerodynamic damping. Taking the alternating mistuned bladed disk as an example, the forced response can be reduced by increasing the mistuning value within an appropriate range. The frequency difference between adjacent blades of the model should be 6%, and the corresponding mistuning value was 4.32. In addition, increasing the frequency difference between adjacent blades with an interval of one blade can further reduce the forced response.
| [1] |
白斌,白广忱,童晓晨,等. 整体叶盘结构失谐振动的国内外研究状况[J]. 航空动力学报,2014,29(1): 91-103. doi: 10.13224/j.cnki.jasp.2014.01.012
BAI Bin,BAI Guangchen,TONG Xiaochen,et al. Research on vibration problem of integral mistuned bladed disk assemblies at home and abroad[J]. Journal of Aerospace Power,2014,29(1): 91-103. (in Chinese) doi: 10.13224/j.cnki.jasp.2014.01.012
|
| [2] |
WHITEHEAD D S. Effect of mistuning on the vibration of turbomachinery blades induced by wake[J]. Journal of Mechanical Engineering Science,1966,8(1): 15-21. doi: 10.1243/JMES_JOUR_1966_008_004_02
|
| [3] |
GRIFFIN J H,HOOSAC T M. Model development and statistical investigation of turbine blade mistuning[J]. Journal of Vibration, Acoustics, Stress and Reliability in Design,1984,106(2): 204-210. doi: 10.1115/1.3269170
|
| [4] |
CASTANIER M P,PIERRE C. Investigation of the combined effects of intentional and random mistuning on the forced response of bladed disks[R]. Cleveland,US: the 34th AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit,1998.
|
| [5] |
CASTANIER M P,PIERRE C. Using intentional mistuning in the design of turbomachinery rotors[J]. AIAA Journal,2002,40(10): 2077-2086. doi: 10.2514/2.1542
|
| [6] |
郑赟,王静. 错频对叶片的气动弹性稳定性影响[J]. 航空动力学报,2013,28(5): 1029-1036. doi: 10.13224/j.cnki.jasp.2013.05.012
ZHENH Yun,WANG Jing. Influence of frequency mistuning on aeroelastic stability of blade[J]. Journal of Aerospace Power,2013,28(5): 1029-1036. (in Chinese) doi: 10.13224/j.cnki.jasp.2013.05.012
|
| [7] |
FEINER D M,GRIFFIN J H. A Fundamental model of mistuning for a single family of modes[J]. Journal of Turbomachinery,2002,124(10): 597-605.
|
| [8] |
FEINER D M,GRIFFIN J H. Mistuning identification of bladed disk using a fundamental mistuning model: Part Ⅰ theory[J]. Journal of Turbomachinery,2004,126(1): 150-158. doi: 10.1115/1.1643913
|
| [9] |
FEINER D M,GRIFFIN J H. Mistuning identification of bladed disk using a fundamental mistuning model: Part Ⅱ application[J]. Journal of Turbomachinery,2004,126(1): 159-165. doi: 10.1115/1.1643914
|
| [10] |
WANG Y R,FU Z Z,JIANG X H,et al. A. Mistuning effects on aero-elastic stability of axial compressor rotor blades[J]. Journal of Engineering for Gas Turbines and Power,2015,137(10): 102504.1-102504.12.
|
| [11] |
FU Z Z,WANG Y R. Mistuning and structural coupling effects on flutter of turbomachinery blades[R]. Zhuhai,Guangdong:International Conference on Structural Engineering,Vibration and Aerospace Engineering,2013.
|
| [12] |
CRAWLEY E F,HALL K C. Optimization and mechanisms of mistuning in cascades[J]. Journal of Engineering for Gas Turbines and Power,1985,107(2): 418-426. doi: 10.1115/1.3239742
|
| [13] |
CASTANIER M P,PIERRE C. Modeling and analysis of mistuned bladed disk vibration: status and emerging directions[J]. Journal of Propulsion and Power,2006,22(3): 384-396.
|
| [14] |
YANG M T,GRIFFIN J H. A reduced-order model of mistuning using a subset of nominal system modes[J]. Journal of Engineering for Gas Turbines and Power,2001,123(10): 893-900.
|
| [15] |
BEIROW B,KÜHHORN A,FIGASCHEWSKY F,et al. Forced response reduction of a bladed disk by means of intentional mistuning[J]. Journal of Engineering for Gas Turbines and Power,2002,124(7): 586-597.
|
| [16] |
KÜHHORN A,FIGASCHEWSKY F,BEIROW B,et al. Design and analysis of an intentional mistuning experiment reducing flutter susceptibility and minimizing forced response of a jet engine fan[R]. Charlotte,Canada:ASME Turbo Expo:Turbomachinery Technical Conference and Exposition,2017.
|
| [17] |
BEIROW B,KÜHHORN A,FIGASCHEWSKY F,et al. Vibration analysis of a mistuned axial turbine bladed disk[R]. Phoenix,US:ASME Turbo Expo:Turbomachinery Technical Conference and Exposition,2019.
|
| [18] |
MARTEL C,CORRAL R. Asymptotic description of maximum mistuning amplification of bladed disk forced response[J]. Journal of Engineering for Gas Turbines and Power,2009,131(2): 435-446.
|
| [19] |
MARTEL C,JOSÉ J. Intentional mistuning effect in the forced response of rotors with aerodynamic damping[J]. Journal of Sound and Vibration,2018,433(27): 212-229.
|
| [20] |
FANG M C,WANG Y R. Intentional mistuning effect on the blisk vibration with aerodynamic damping[J]. AIAA Journal,2022,60(6): 3884-3893. doi: 10.2514/1.J060797
|
| [21] |
HANAMURA Y,TANAKA H,YAMAGUCHI K. A simplified method to measure unsteady force acting on the vibrating blades in cascade[J]. Bulletin of Japan Society of Mechanical Engineers,1980,23(180): 880-887. doi: 10.1299/jsme1958.23.880
|
