| Citation: | ZHAO Jingchao, ZHOU Biao, CHEN Wei. Blade detuning test, mistuning identification and model verification of blisk[J]. Journal of Aerospace Power, 2024, 39（3）：20220267 doi: 10.13224/j.cnki.jasp.20220267
|

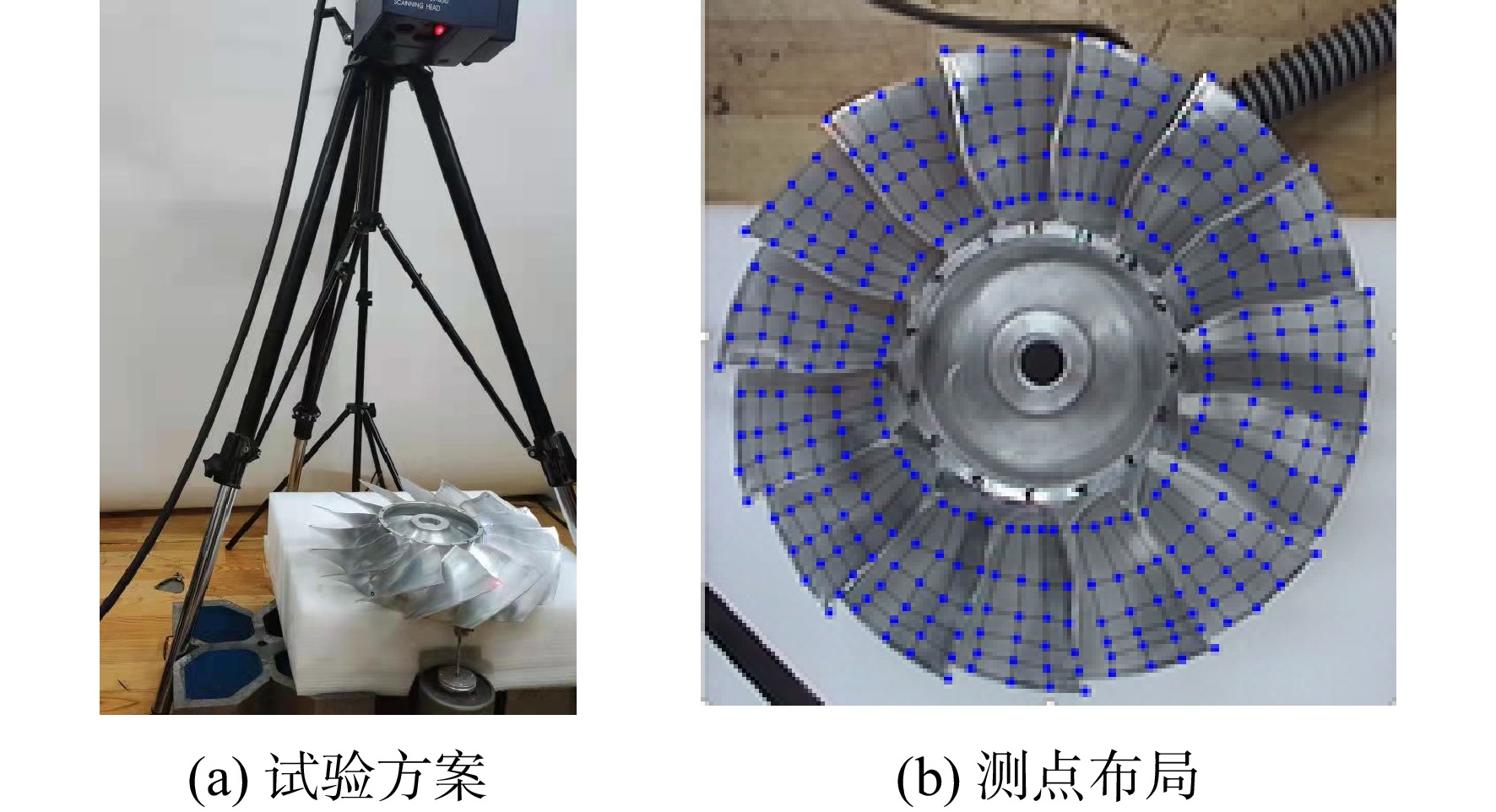

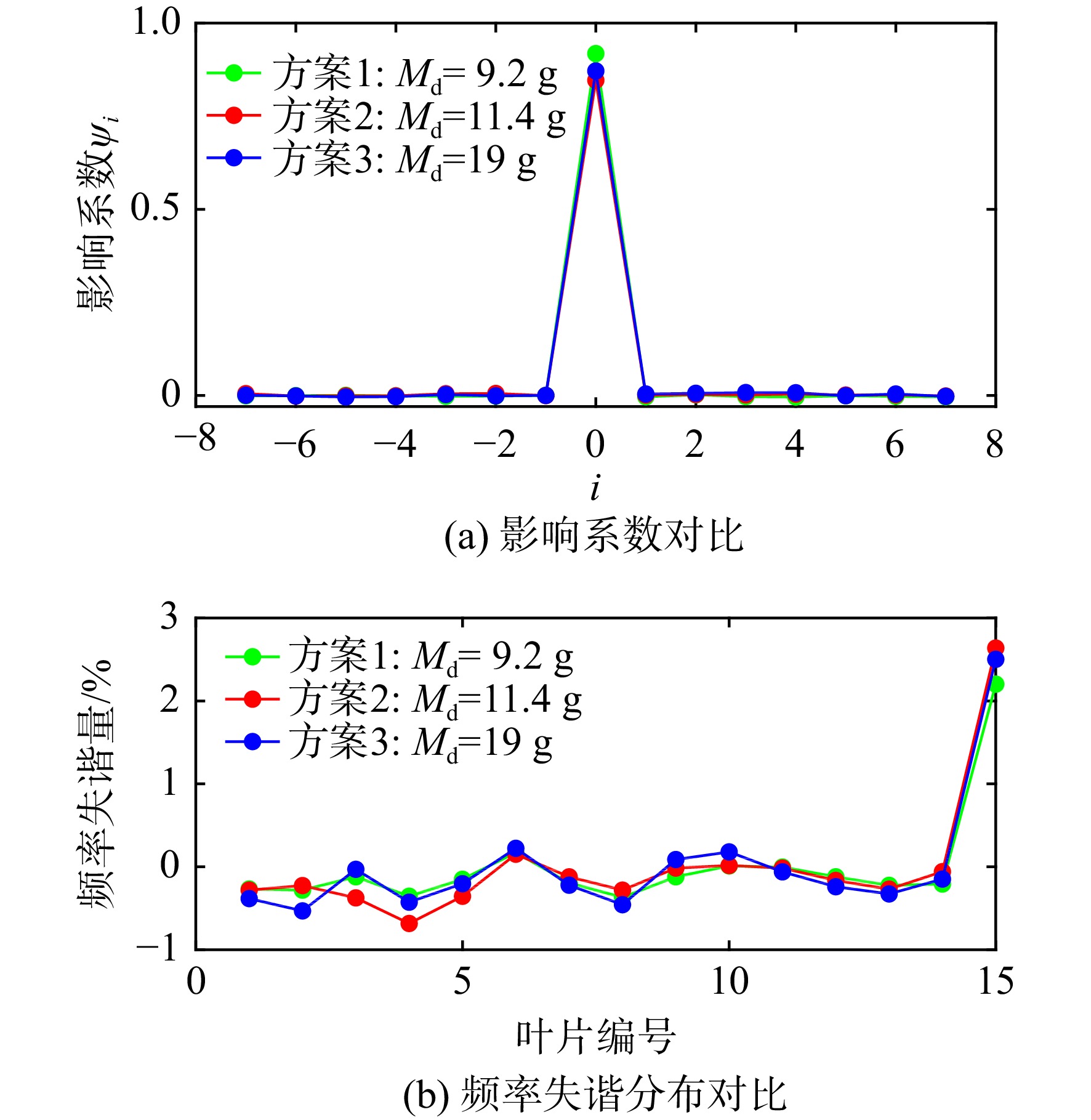

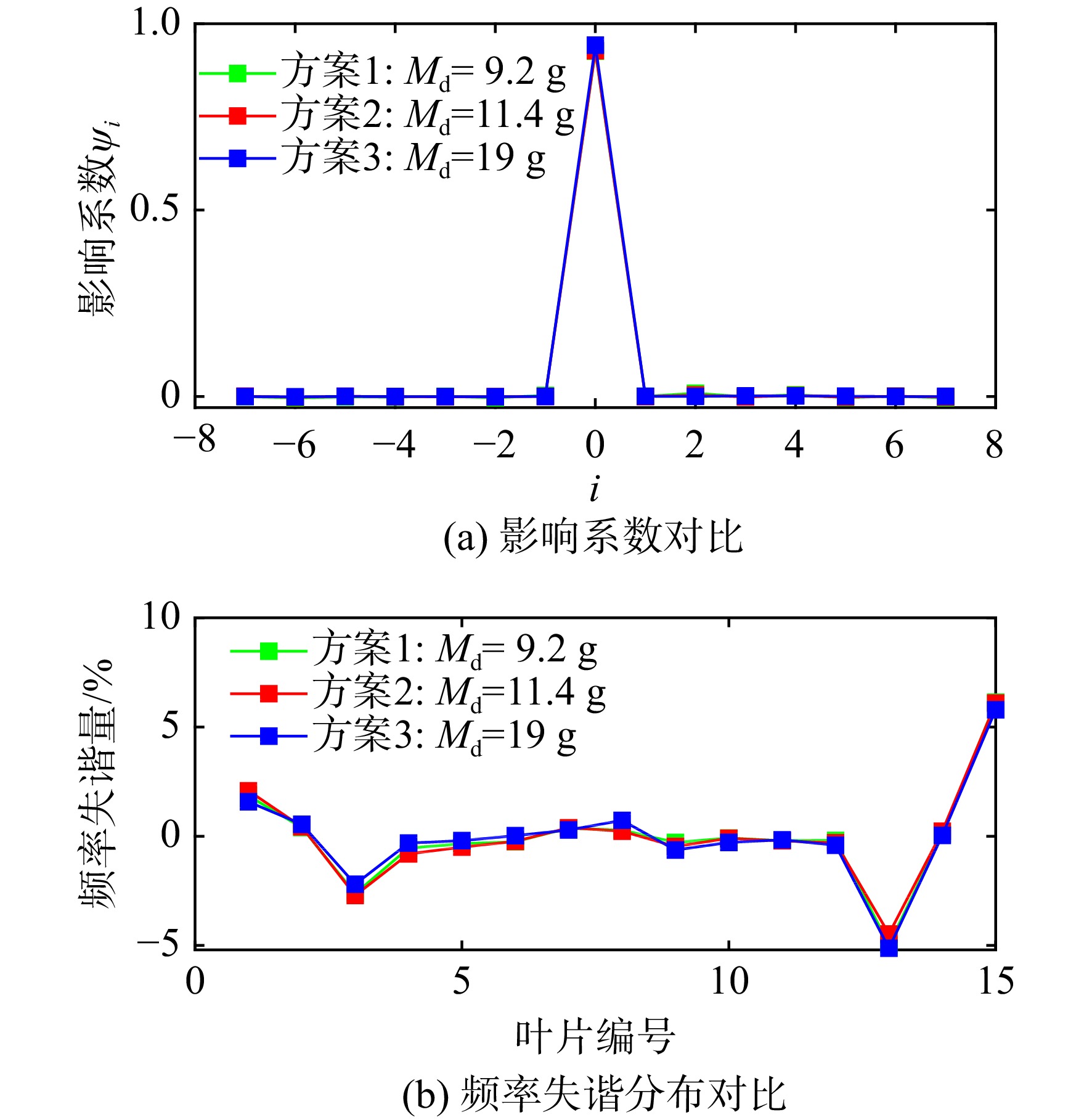

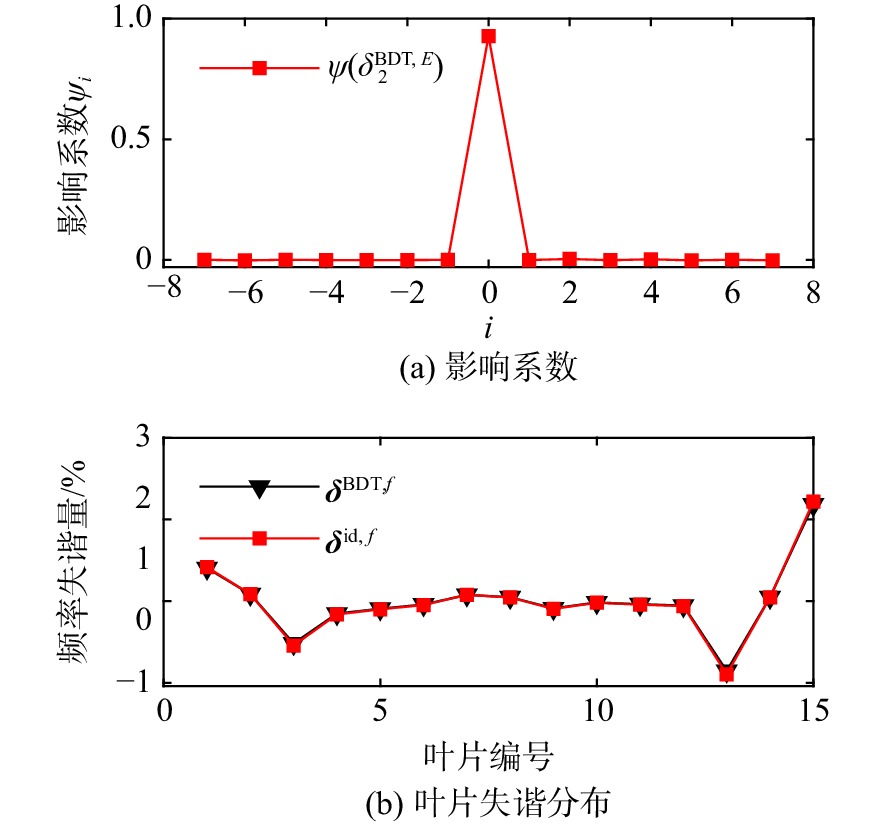

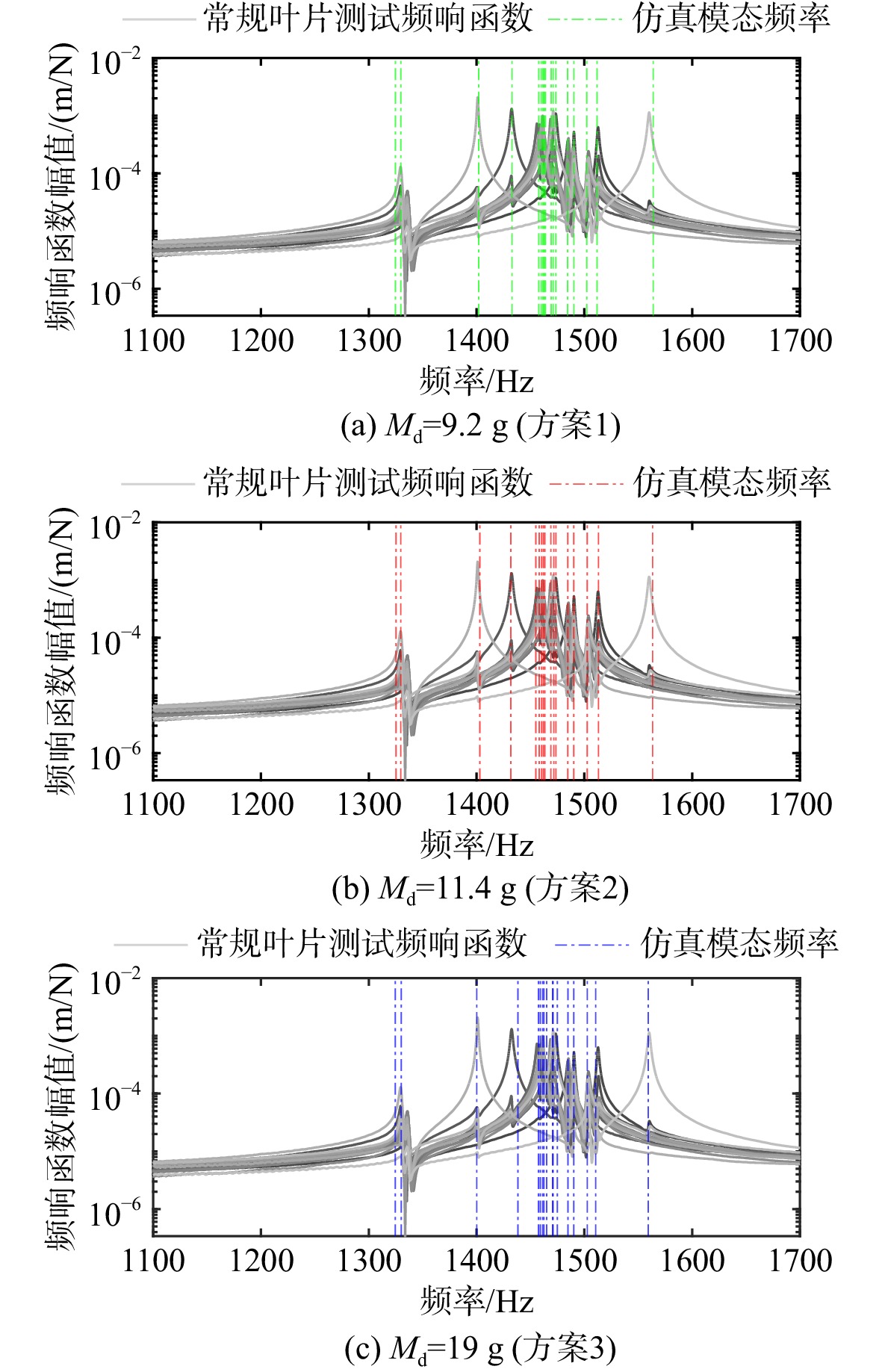

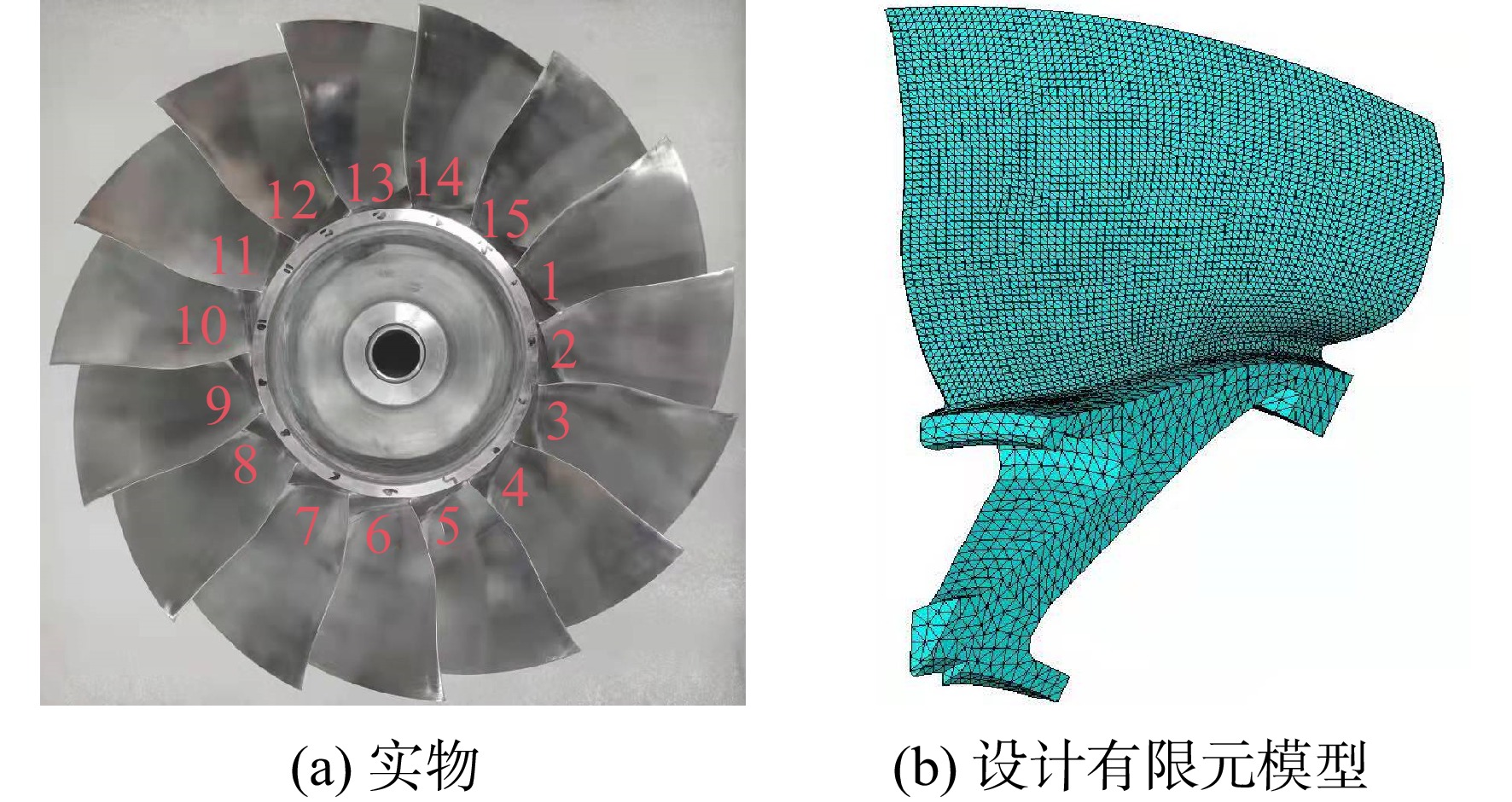

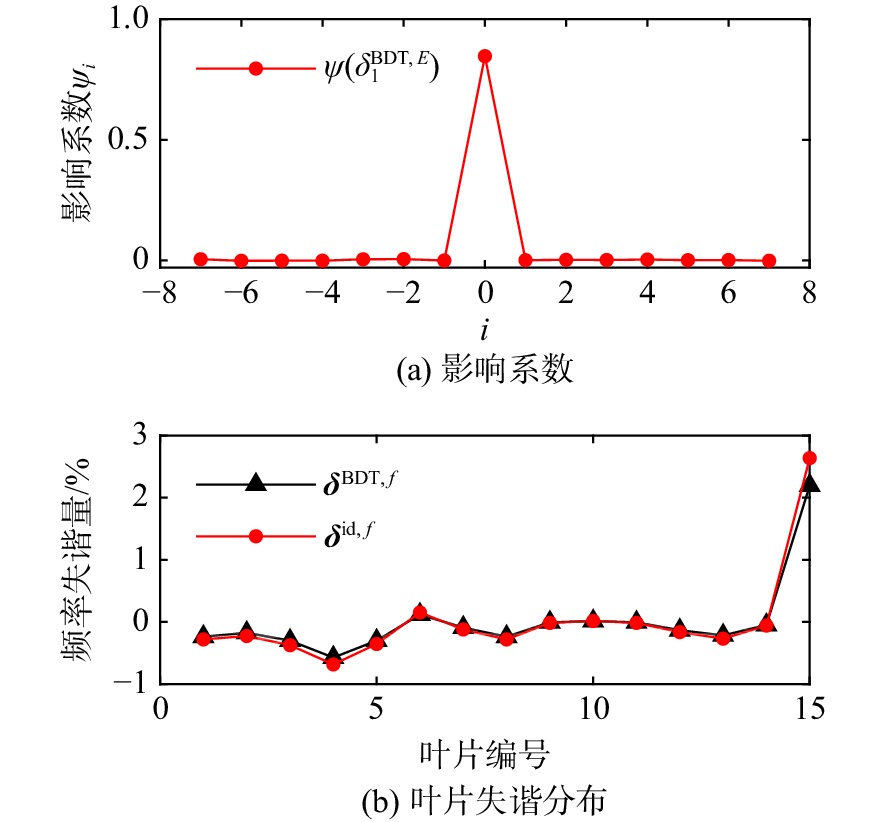

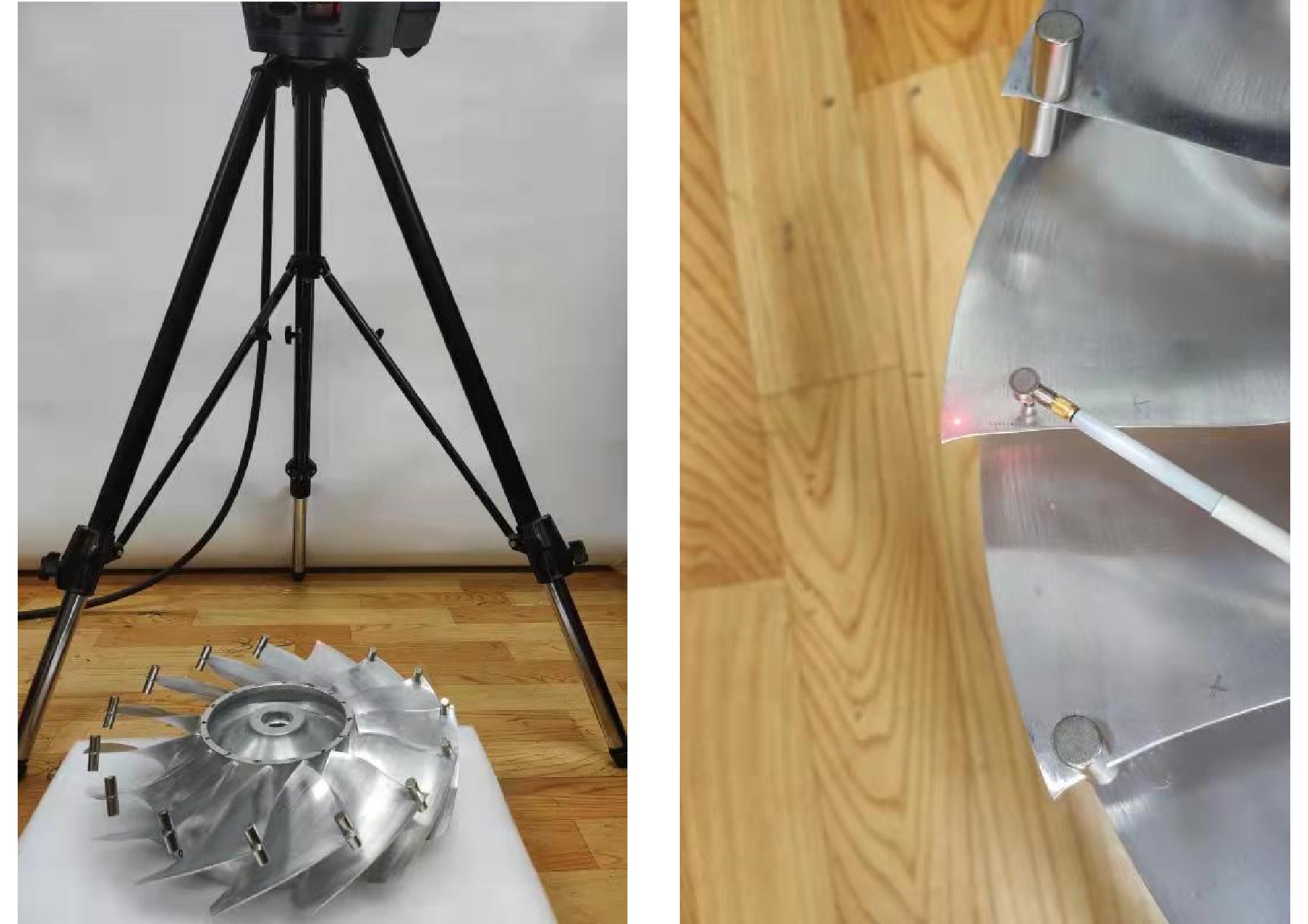

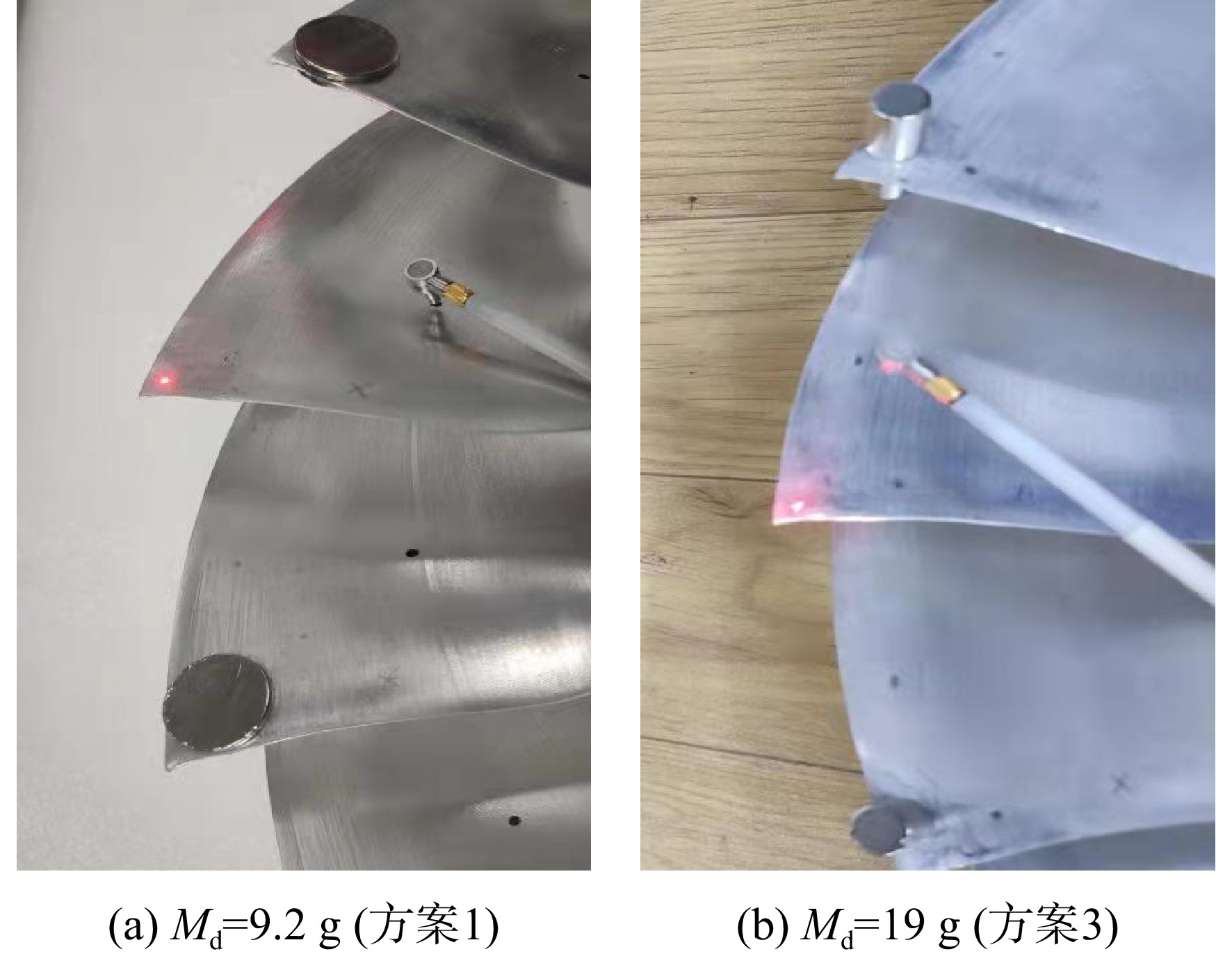

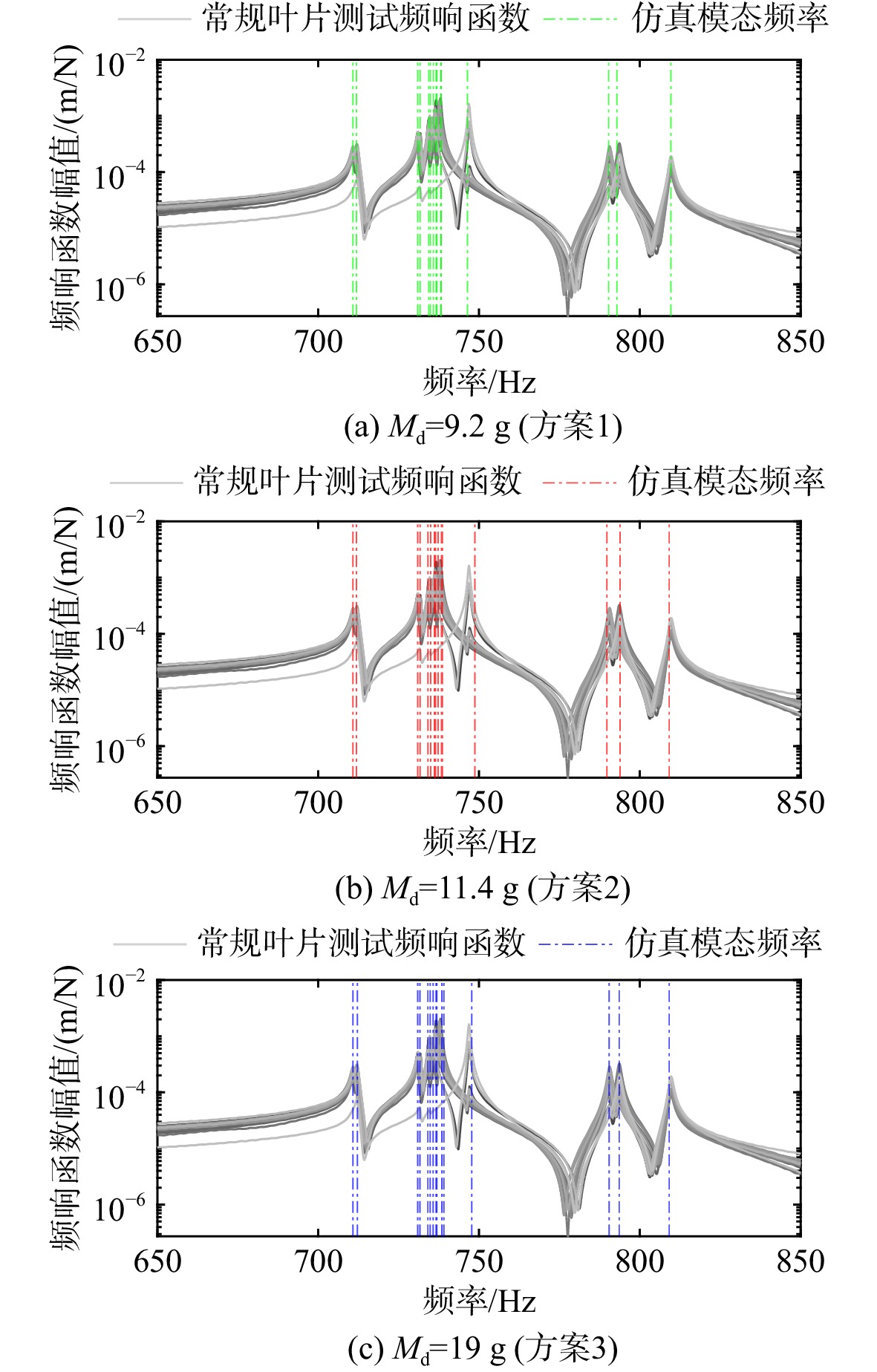

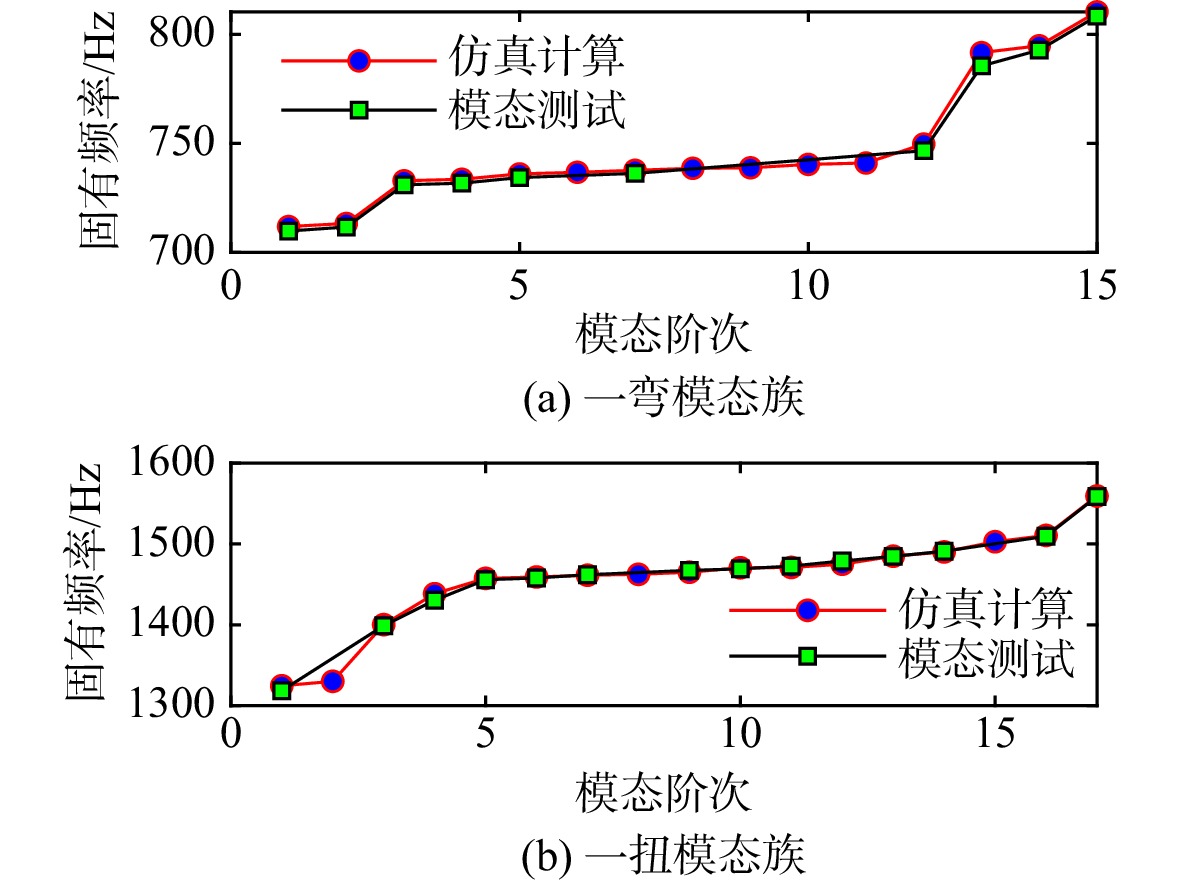

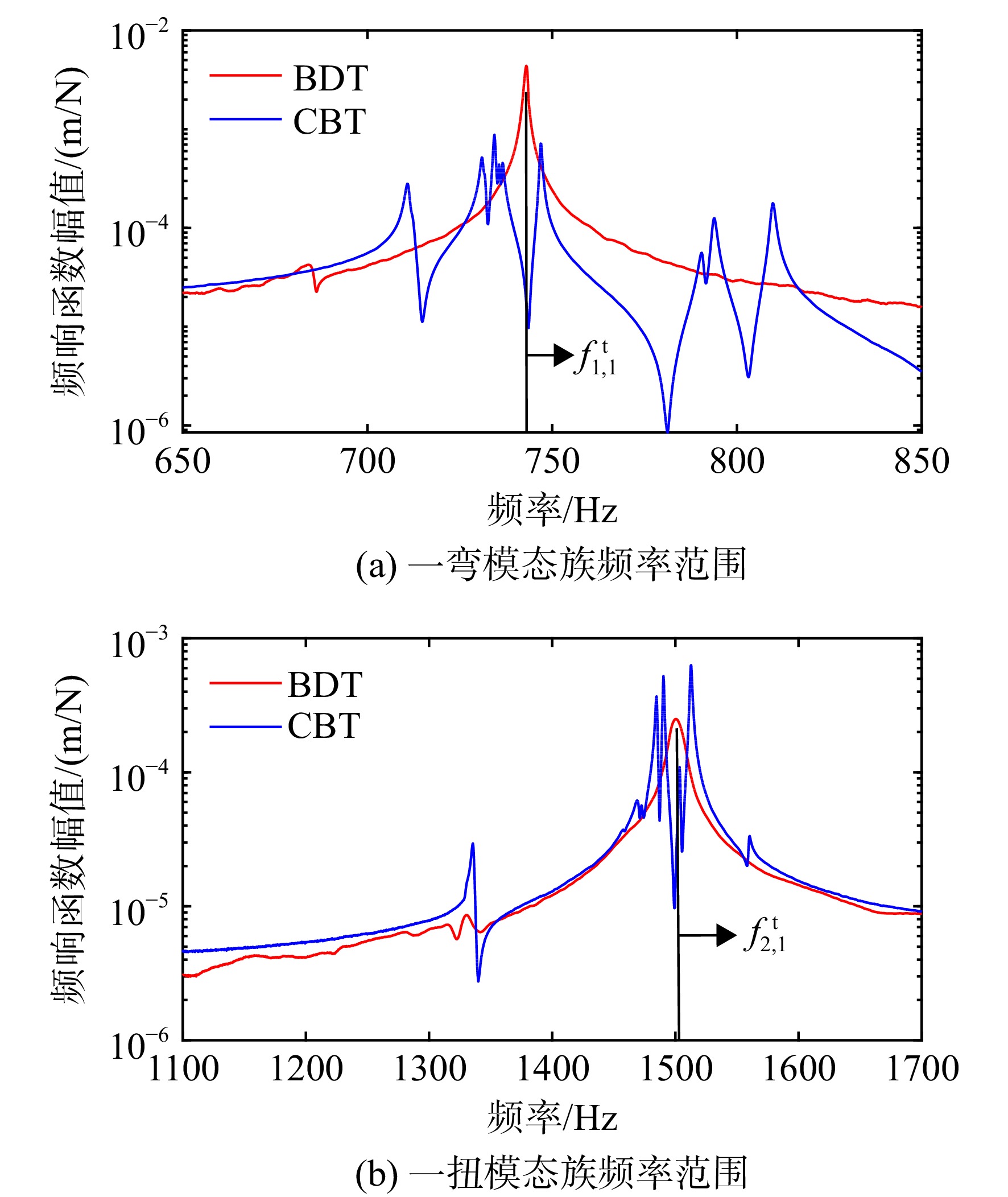

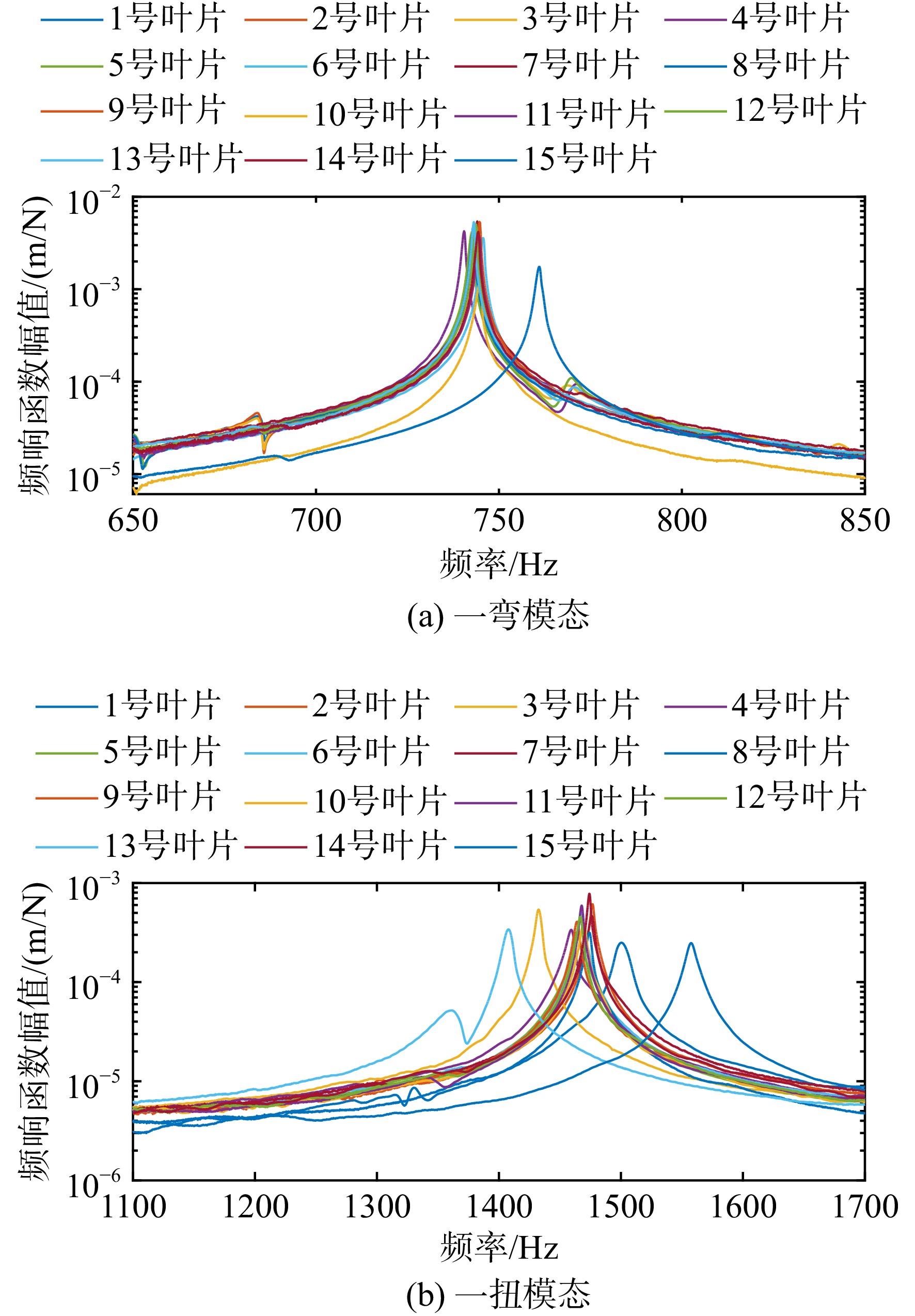

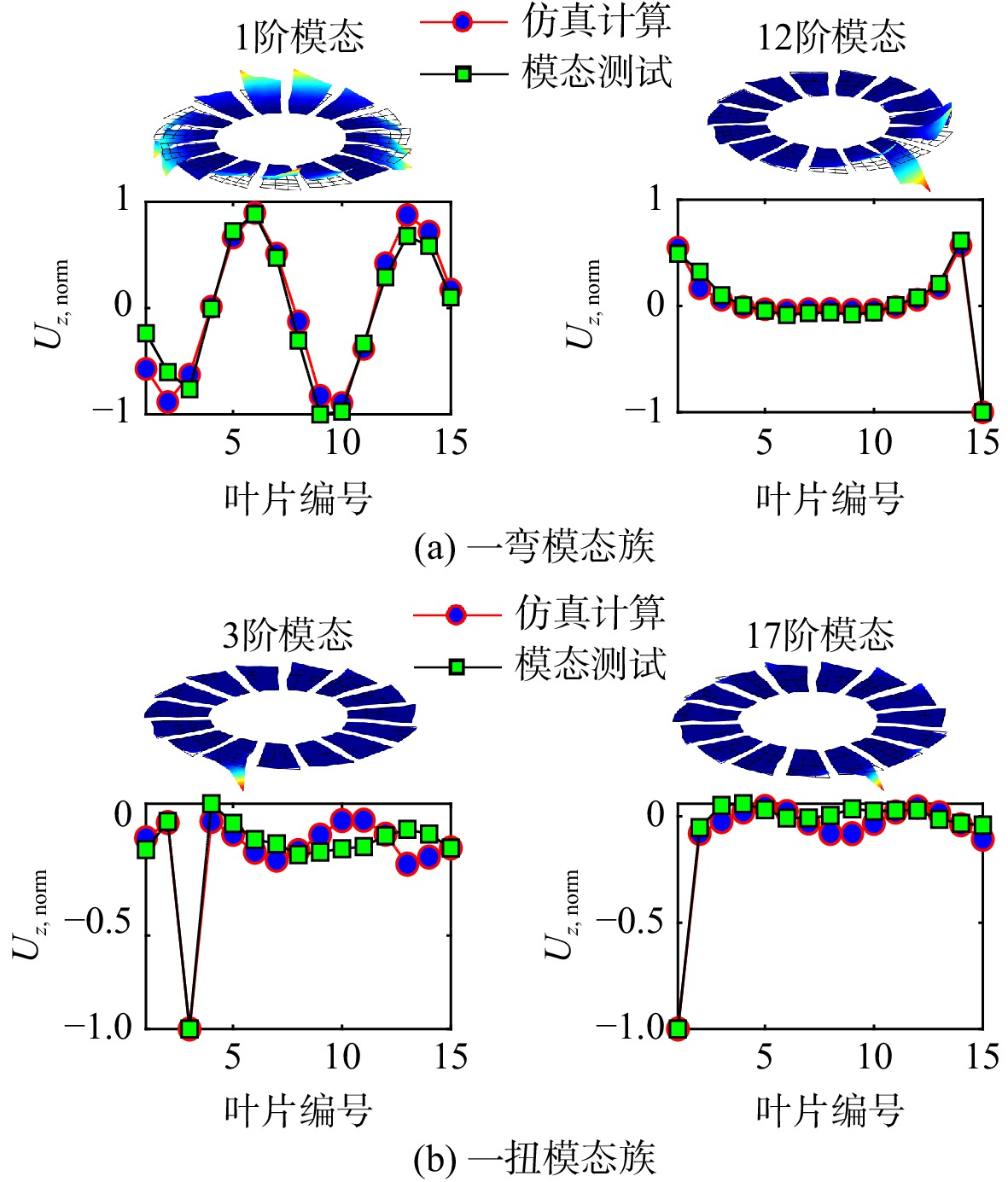

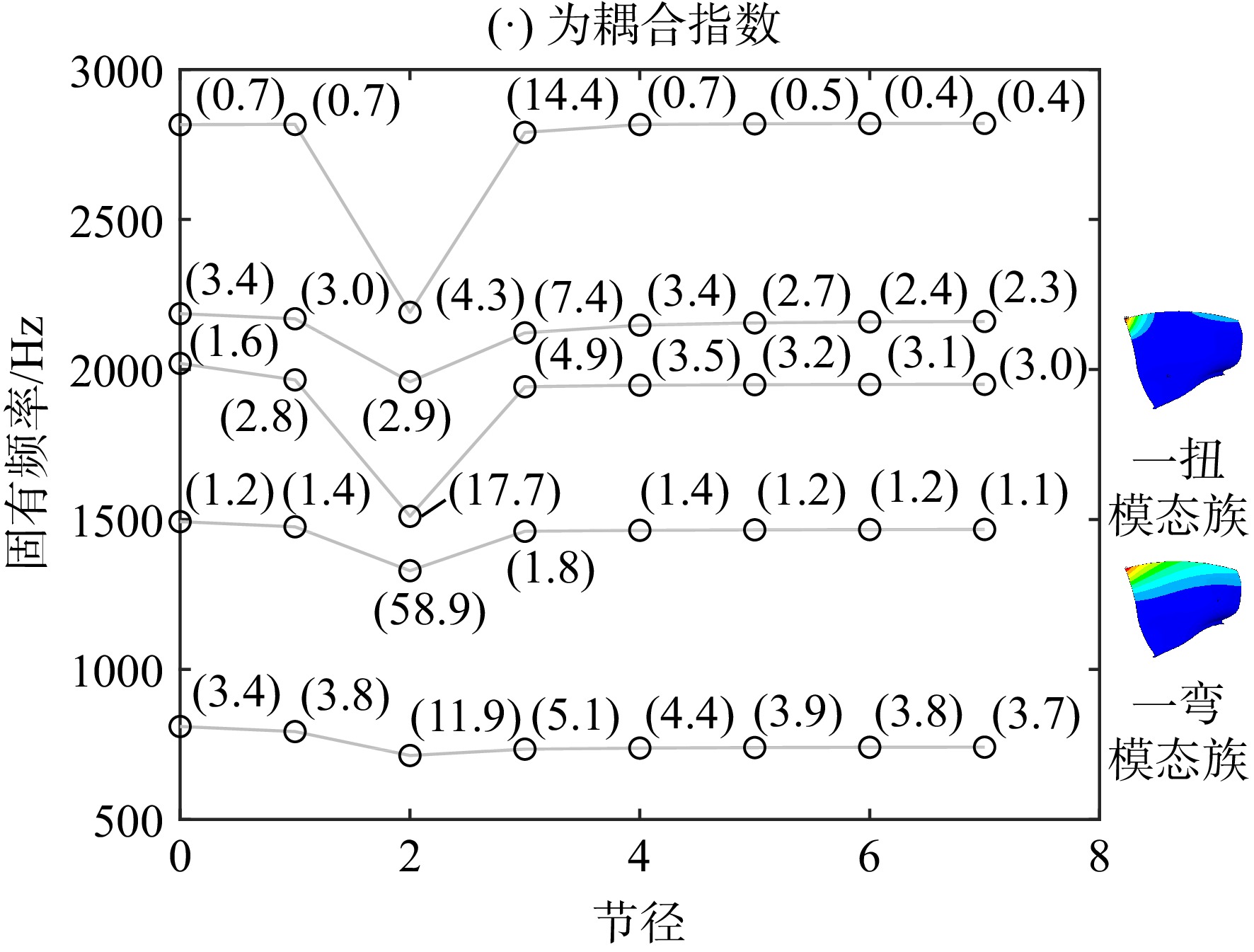

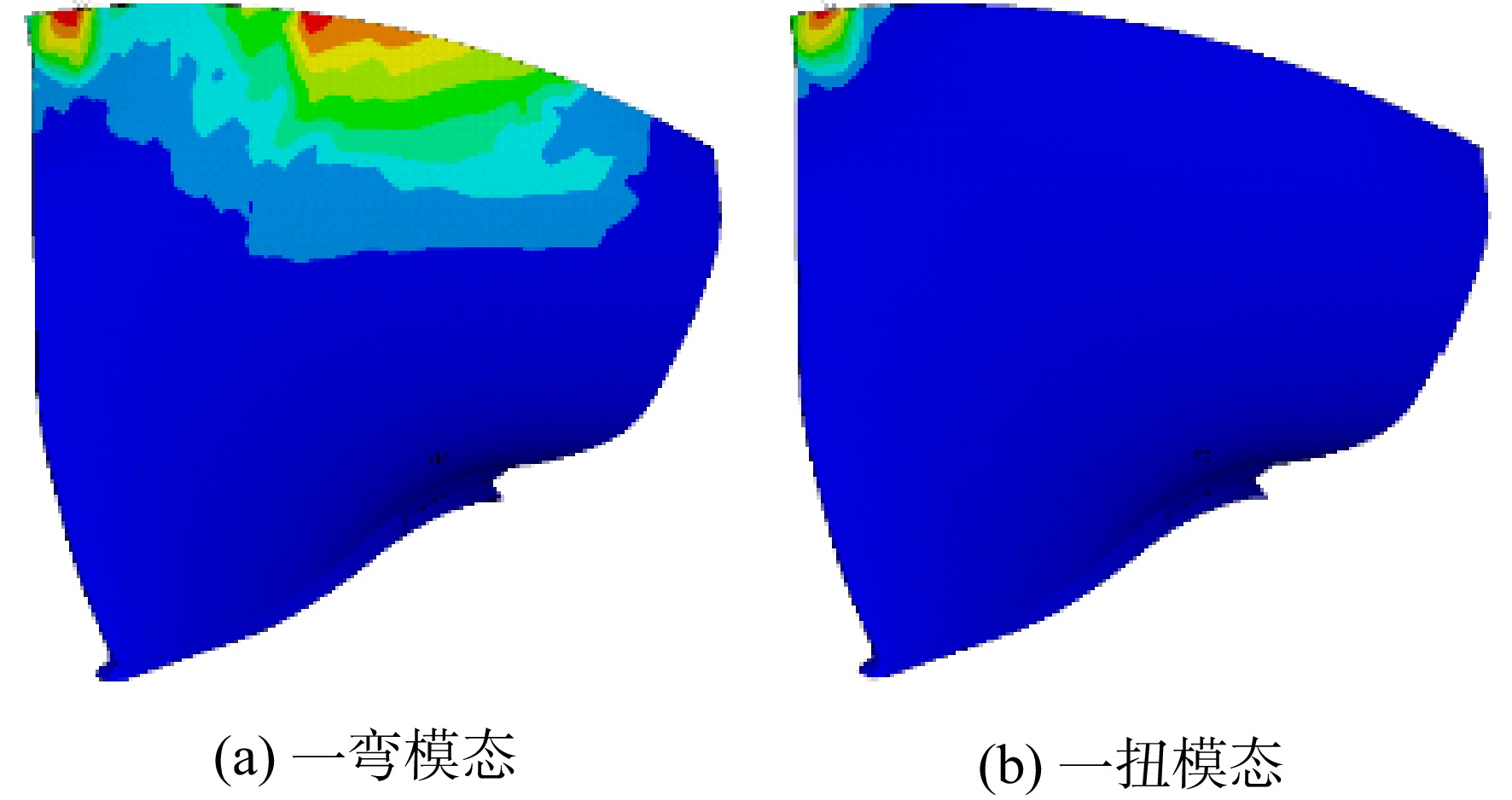

The blade mistuning identification and model validation for an academic blisk test piece based on the blade detuning tests were performed. Blade detuning tests were carried out to obtain the ‘blade-alone’ modal frequencies of each individual blade of the blisk. A guideline was proposed for determining the position of the detuning mass onto the blade. Secondly, a novel mistuning identification method was introduced to account for the residual inter-blade coupling effect due to detuning masses and yield more accurate blade mistuning identification results. The impacts of different detuning mass and positions on the blade detuning test and mistuning identification results were investigated. A mistuned blisk finite element model could be further established; the mistuned blisk model was experimentally verified by the conventional modal test. Excellent agreement was achieved between the numerically/experimentally derived natural frequencies and mode shapes of the blisk. The majority of the frequency deviations fell below 0.3%. Results showed that the novel mistuning identification method improved the accuracy of the blade mistuning patterns directly obtained from the blade detuning test results. The resultant mistuned blisk model can effectively reproduce the natural vibration characteristics of the real blisk test piece.
| [1] |
白斌,白广忱,童晓晨,等. 整体叶盘结构失谐振动的国内外研究状况[J]. 航空动力学报,2014,29(1): 91-103.
BAI Bin,BAI Guangchen,TONG Xiaochen,et al. Research on vibration problem of integral mistuned bladed disk assemblies at home and abroad[J]. Journal of Aerospace Power,2014,29(1): 91-103. (in Chinese)
|
| [2] |
姚建尧,高阳,王建军. 航空发动机失谐叶盘动态特性研究进展[J]. 航空制造技术,2016,59(21): 76-85,92.
YAO Jianyao,GAO Yang,WANG Jianjun. A review of dynamic characteristics of mistuned bladed disks[J]. Aeronautical Manufacturing Technology,2016,59(21): 76-85,92. (in Chinese)
|
| [3] |
臧朝平,兰海强. 失谐叶盘结构振动问题研究新进展[J]. 航空工程进展,2011,2(2): 133-142.
ZANG Chaoping,LAN Haiqiang. Advances in research vibration problem of mistuned blisk assemblies[J]. Advances in Aeronautical Science and Engineering,2011,2(2): 133-142. (in Chinese)
|
| [4] |
邵帅,周柏卓,王相平. 失谐叶盘结构振动模态局部化研究[J]. 航空发动机,2014,40(3): 56-59.
SHAO Shuai,ZHOU Baizhuo,WANG Xiangping. Investigation of vibration mode localization of mistuned bladed-disk assemblies[J]. Aeroengine,2014,40(3): 56-59. (in Chinese)
|
| [5] |
YUAN J,SCARPA F,ALLEGRI G,et al. Efficient computational techniques for mistuning analysis of bladed discs: a review[J]. Mechanical Systems and Signal Processing,2017,87: 71-90.
|
| [6] |
KLAUKE T,KÜHHORN A,BEIROW B,et al. Numerical investigations of localized vibrations of mistuned blade integrated disks (blisks)[J]. Journal of Turbomachinery,2009,131(3): 031002.1-031002.11.
|
| [7] |
王帅,王建军,李其汉. 一种基于响应信息的整体叶盘结构失谐识别方法[J]. 航空学报,2009,30(10): 1863-1870.
WANG Shuai,WANG Jianjun,LI Qihan. Mistuning identification for integrally bladed disk from measured response information[J]. Acta Aeronautica et Astronautica Sinica,2009,30(10): 1863-1870. (in Chinese)
|
| [8] |
王帅,王建军,李其汉. 一种基于模态减缩技术的整体叶盘结构失谐识别方法[J]. 航空动力学报,2009,24(3): 662-669.
WANG Shuai,WANG Jianjun,LI Qihan. Mistuning identification of integrally bladed disk based on the modal reduced technique[J]. Journal of Aerospace Power,2009,24(3): 662-669. (in Chinese)
|
| [9] |
BECK J A,BROWN J M,GILLAUGH D L,et al. Integrally bladed rotor mistuning identification and model updating using geometric mistuning models[J]. Journal of Engineering for Gas Turbines and Power,2021,143(12): 121012.1-121012.11.
|
| [10] |
LAXALDE D, THOUVEREZ F, SINOU J J, et al. Mistuning identification and model updating of an industrial blisk[C]//Proceedings of the 51st ASME Turbo Expo: Power for Land, Sea, and Air. New York: ASME, 2006: 855-864.
|
| [11] |
FEINER D M,GRIFFIN J H. Mistuning identification of bladed disks using a fundamental mistuning model: Part II application[J]. Journal of Turbomachinery,2004,126(1): 159-165. doi: 10.1115/1.1643914
|
| [12] |
CHAN Y J,EWINS D J. Prediction of vibration response levels of mistuned integral bladed disks (blisks): robustness studies[J]. Journal of Turbomachinery,2012,134(4): 044501.1-044501.7.
|
| [13] |
NYSSEN F,GOLINVAL J C. Identification of mistuning and model updating of an academic blisk based on geometry and vibration measurements[J]. Mechanical Systems and Signal Processing,2016,68/69: 252-264. doi: 10.1016/j.ymssp.2015.08.006
|
| [14] |
WEBER R,KÜHHORN A. Mistuning identification approach with focus on high-speed centrifugal compressors[J]. Journal of Engineering for Gas Turbines and Power,2019,141(3): 032507.1-032507.7.
|
| [15] |
JUDGE J A,PIERRE C,CECCIO S L. Experimental mistuning identification in bladed disks using a component-mode-based reduced-order model[J]. AIAA Journal,2009,47(5): 1277-1287. doi: 10.2514/1.41214
|
| [16] |
GILLAUGH D L,KASZYNSKI A A,BROWN J M,et al. Mistuning evaluation comparison via as-manufactured models, traveling wave excitation, and compressor rigs[J]. Journal of Engineering for Gas Turbines and Power,2019,141(6): 061006.1-061006.17.
|
| [17] |
HOLLKAMP J J,GORDON R W. Modal test experiences with a jet engine fan model[J]. Journal of Sound and Vibration,2001,248(1): 151-165. doi: 10.1006/jsvi.2001.3758
|
| [18] |
BEIROW B,KÜHHORN A,FIGASCHEWSKY F,et al. Model update and validation of a mistuned high-pressure compressor blisk[J]. The Aeronautical Journal,2019,123(1260): 230-247. doi: 10.1017/aer.2018.149
|
| [19] |
KUEHHORN A, BEIROW B. Method for determining blade mistuning on integrally manufactured rotor wheels: US8024137[P]. 2011-09-20.
|
| [20] |
BEIROW B, KUEHHORN A, NIPKAU J. An equivalent blisk model considering the influence of the air flow on blade vibrations of a mistuned compressor blisk[C]//Proceedings of the 10th Biennial International Conference on Vibration Problems, 2011: 549-555.
|
| [21] |
STREHLAU U, KU¨HHORN A. Experimental and numerical investigations of HPC blisks with a focus on travelling waves[C]//Proceedings of ASME Turbo Expo 2010: Power for Land, Sea, and Air. New York: ASME, 2010: 865-877.
|
| [22] |
BEIROW B,GIERSCH T,KÜHHORN A,et al. Optimization-aided forced response analysis of a mistuned compressor blisk[J]. Journal of Engineering for Gas Turbines and Power,2015,137(1): 012504.1-012504.10.
|
| [23] |
LUPINI A,SHIM J,CALLAN S,et al. Mistuning identification technique based on blisk detuning[J]. AIAA Journal,2021,59(8): 3087-3095.
|
| [24] |
ZHOU Biao,ZHAO Jingchao,BERRUTI T M. Exploration of blade detuning tests for mistuning identification of blisks[J]. Mechanical Systems and Signal Processing,2022,175: 109118.1-109118.12.
|
| [25] |
AVALOS J,MIGNOLET M P. On damping entire bladed disks through dampers on only a few blades[J]. Journal of Engineering for Gas Turbines and Power,2010,132(9): 092503.1-092503.6.
|
| [26] |
徐昆鹏,范云飞,孙伟. 基于基础失谐减缩模型的涂层整体叶盘失谐辨识[J]. 噪声与振动控制,2018,38(增刊2): 457-461. doi: 10.3969/j.issn.1006-1355.2018.Z1.098
XU Kunpeng,FAN Yunfei,SUN Wei. Mistuning identification of coated blisks based on the fundamental mistuning contracted model[J]. Noise and Vibration Control,2018,38(Suppl.2): 457-461. (in Chinese) doi: 10.3969/j.issn.1006-1355.2018.Z1.098
|
