| Citation: | ZHU Jiaju, HUI Xin, LIU Guigui, et al. Mass flow rate characteristics of sub-/supercritical multiphase kerosene fuel nozzle[J]. Journal of Aerospace Power, 2022, 37（10）：2324-2334 doi: 10.13224/j.cnki.jasp.20220271
|

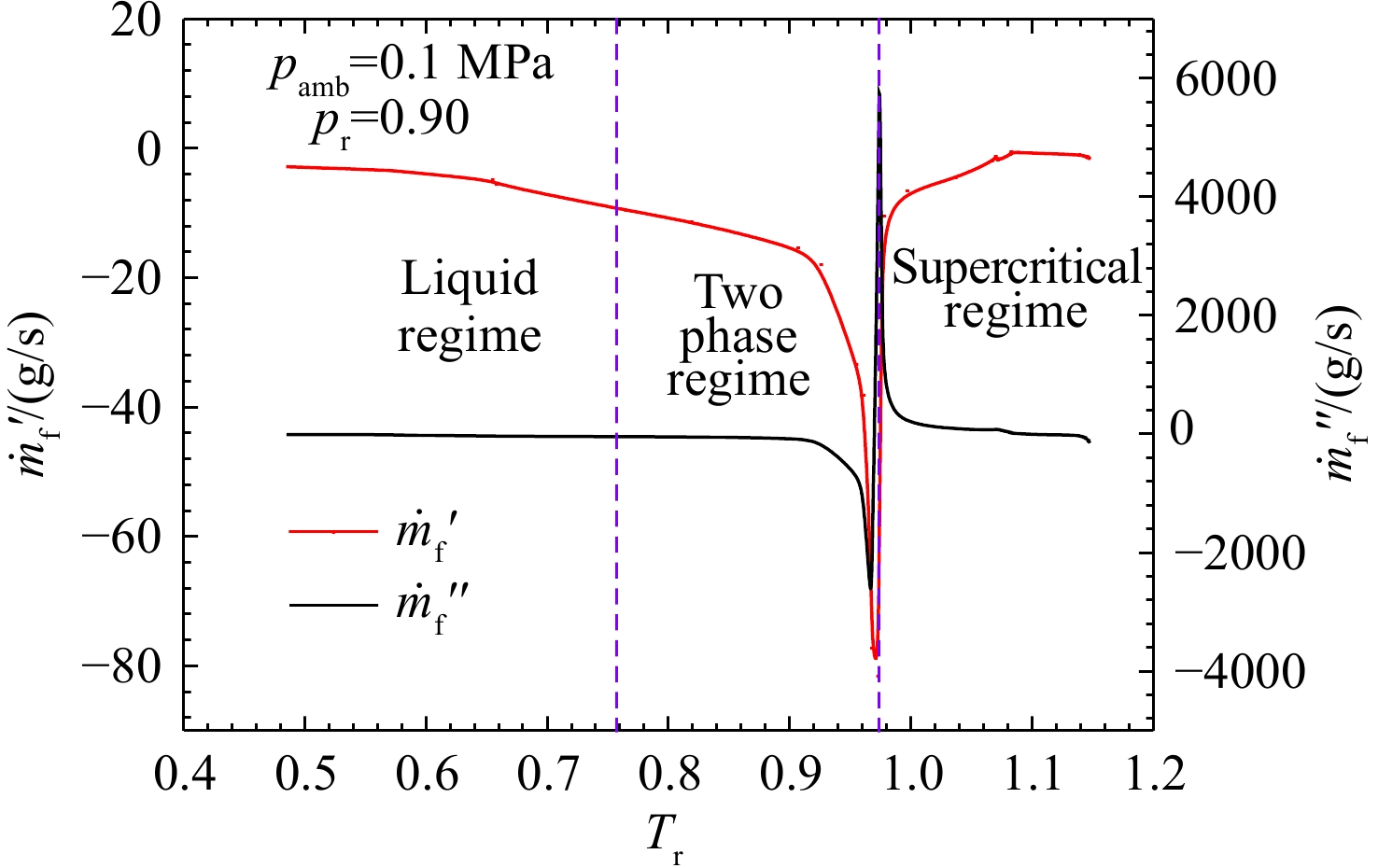

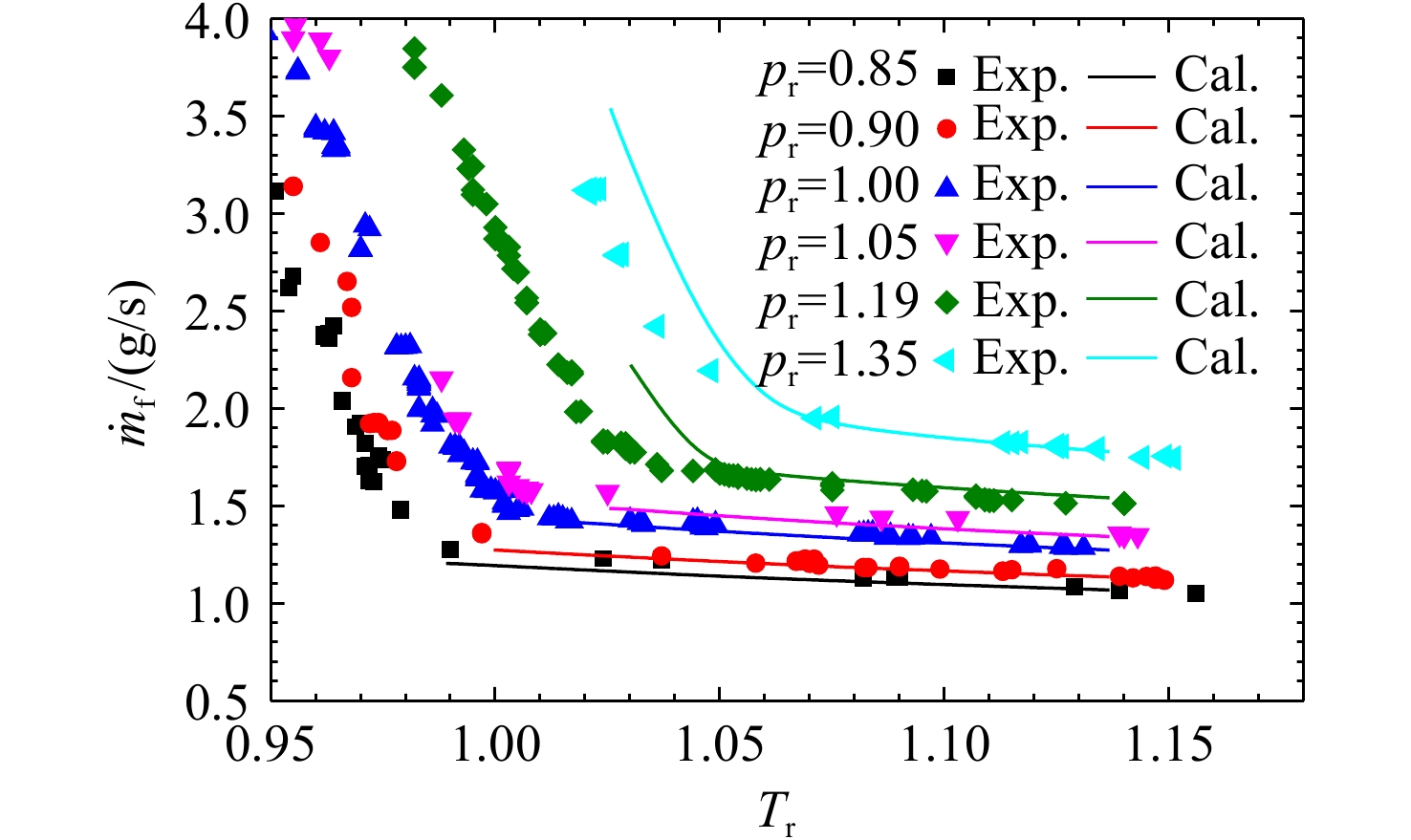

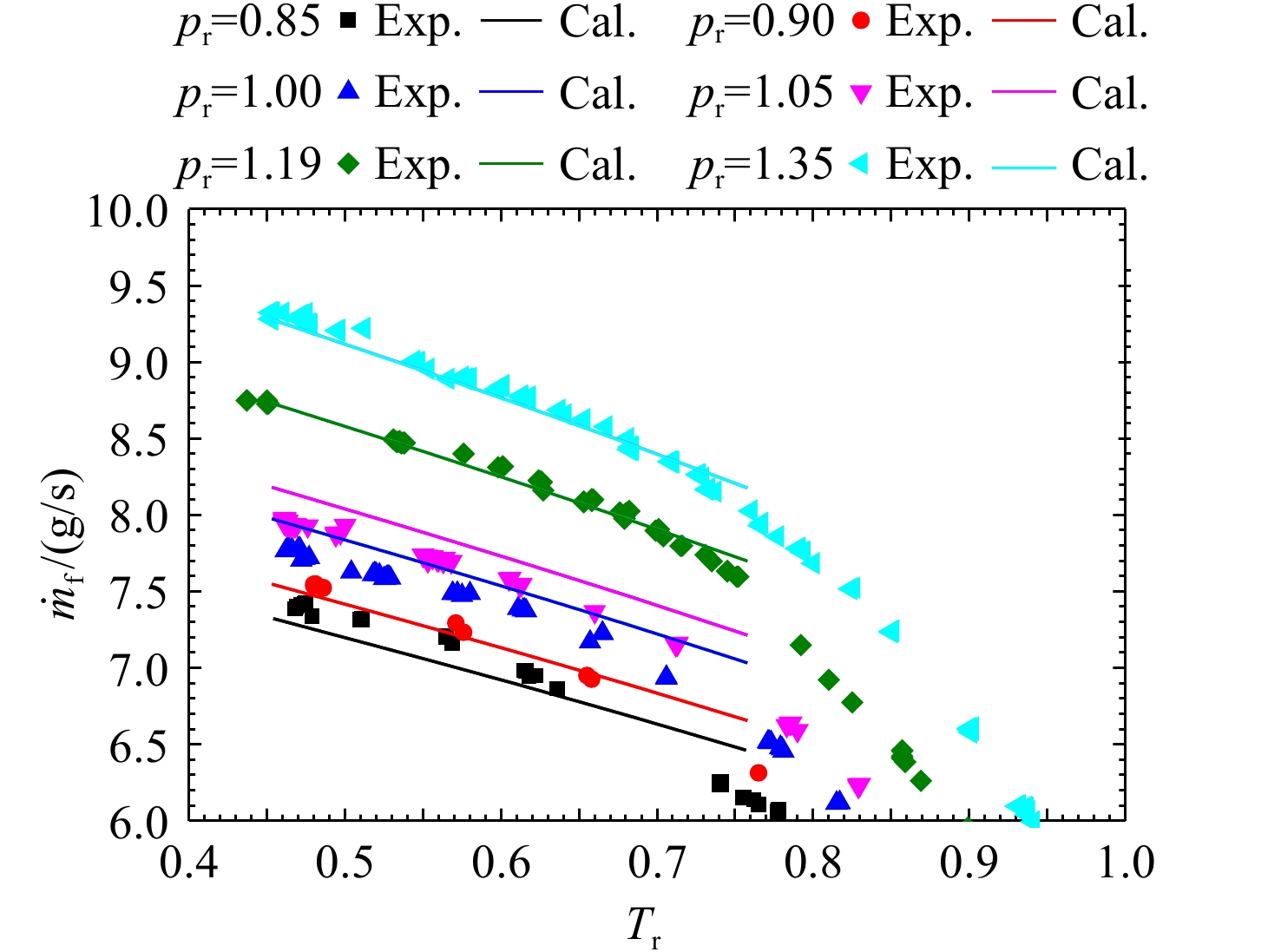

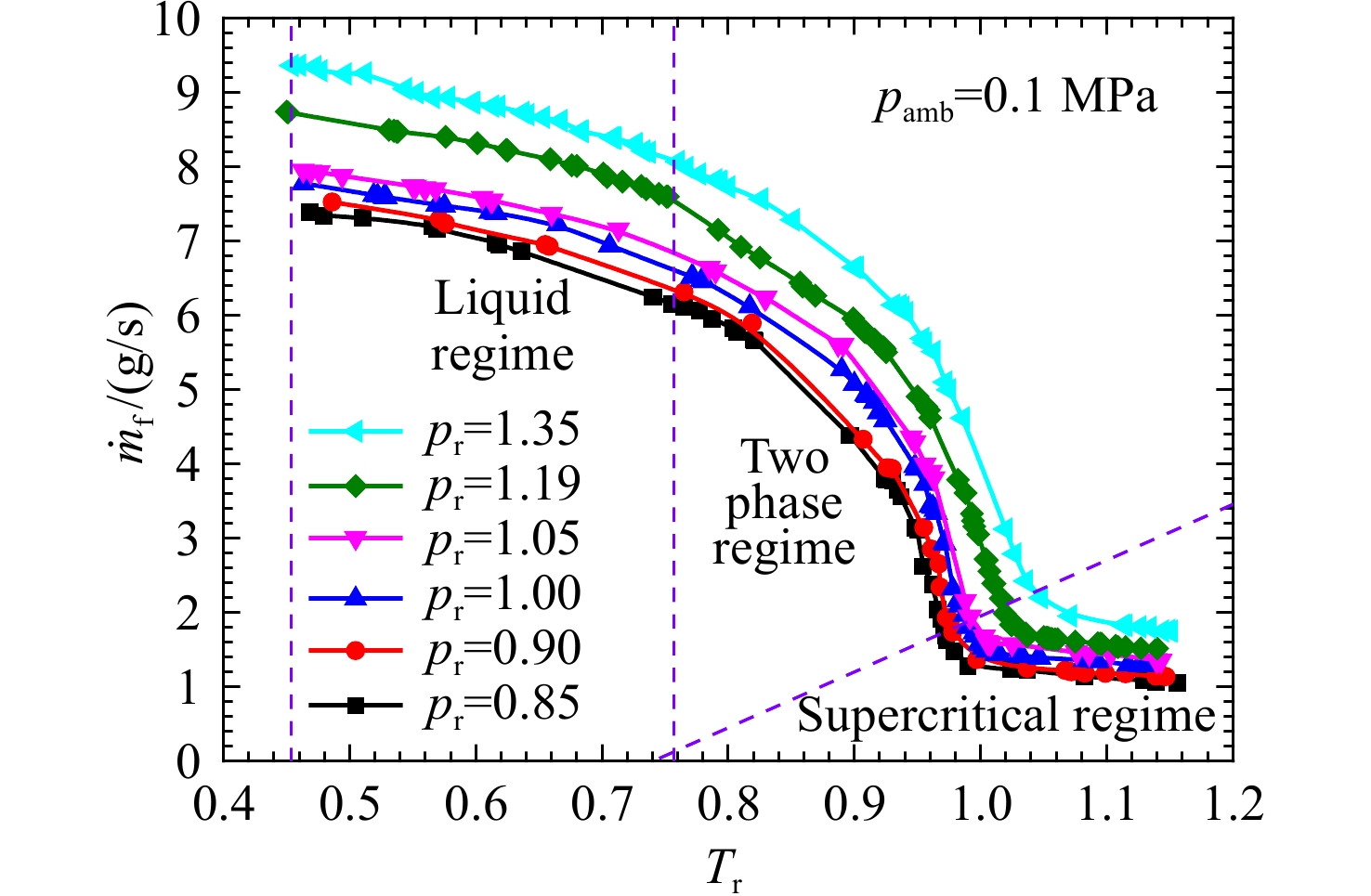

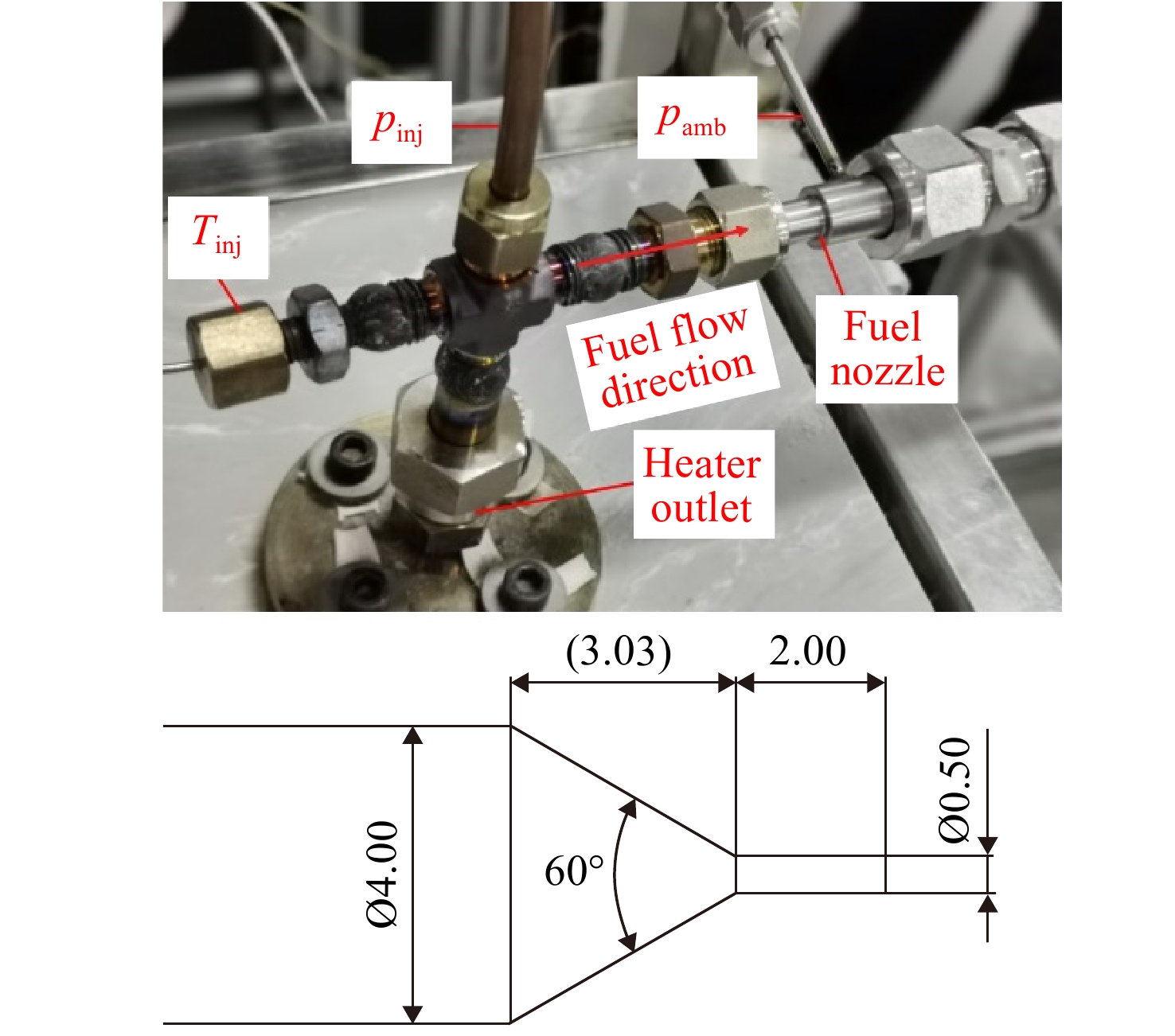

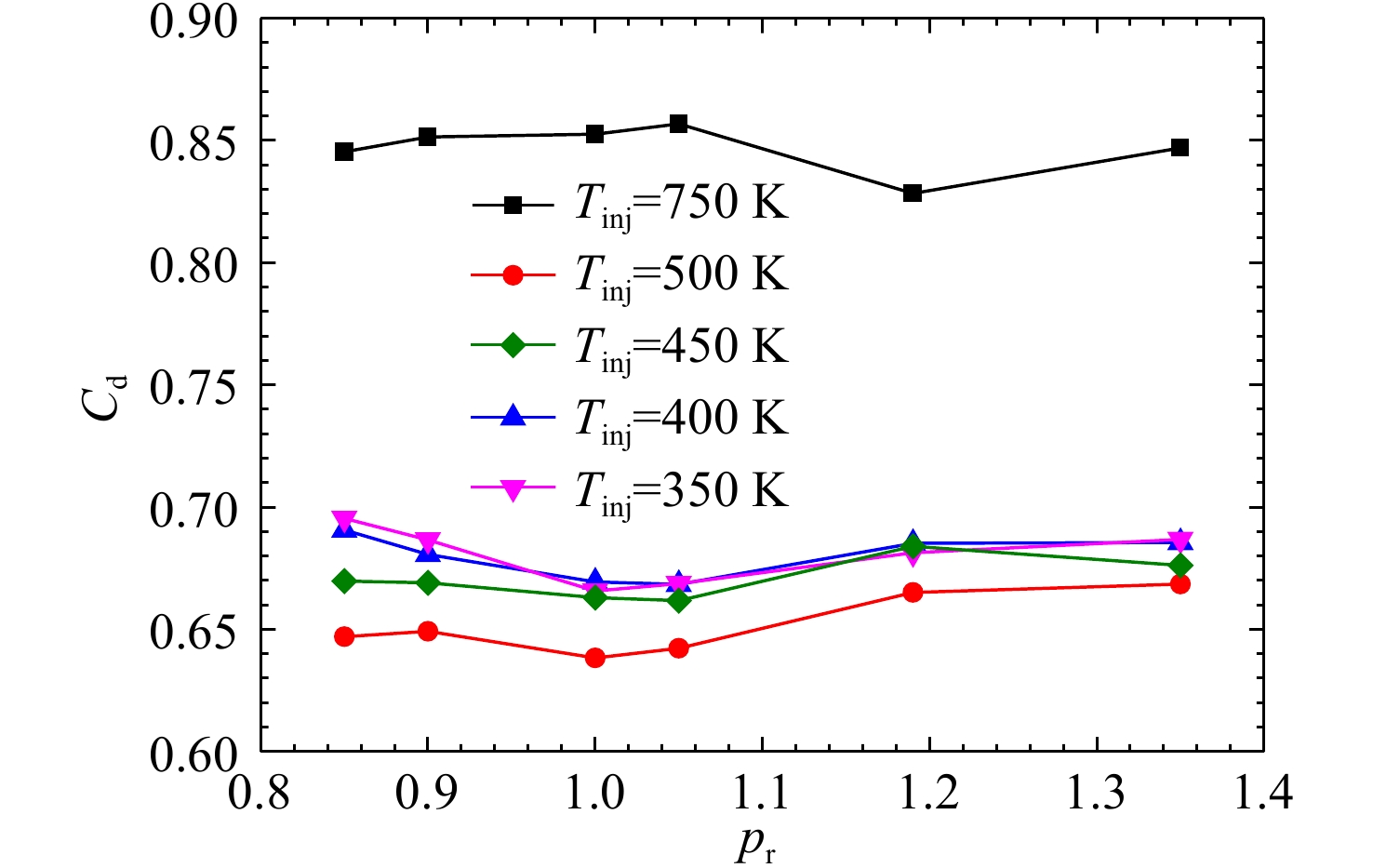

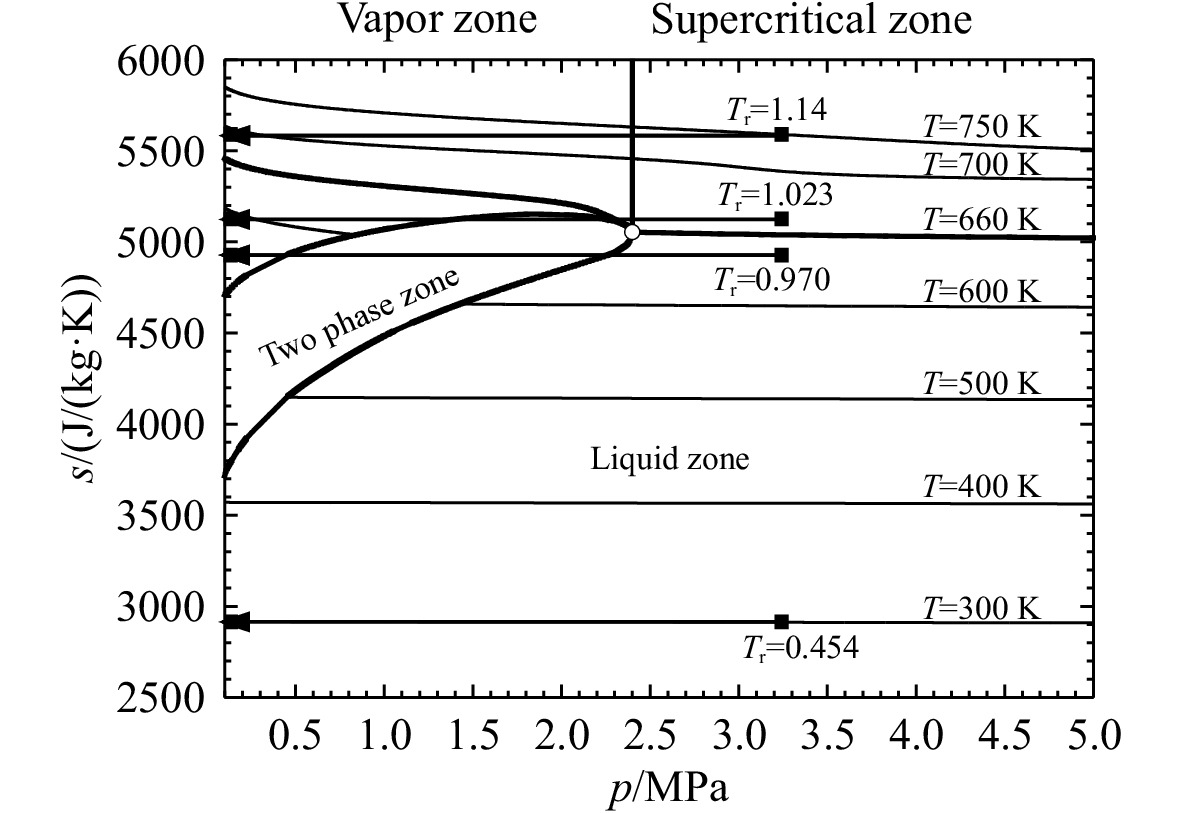

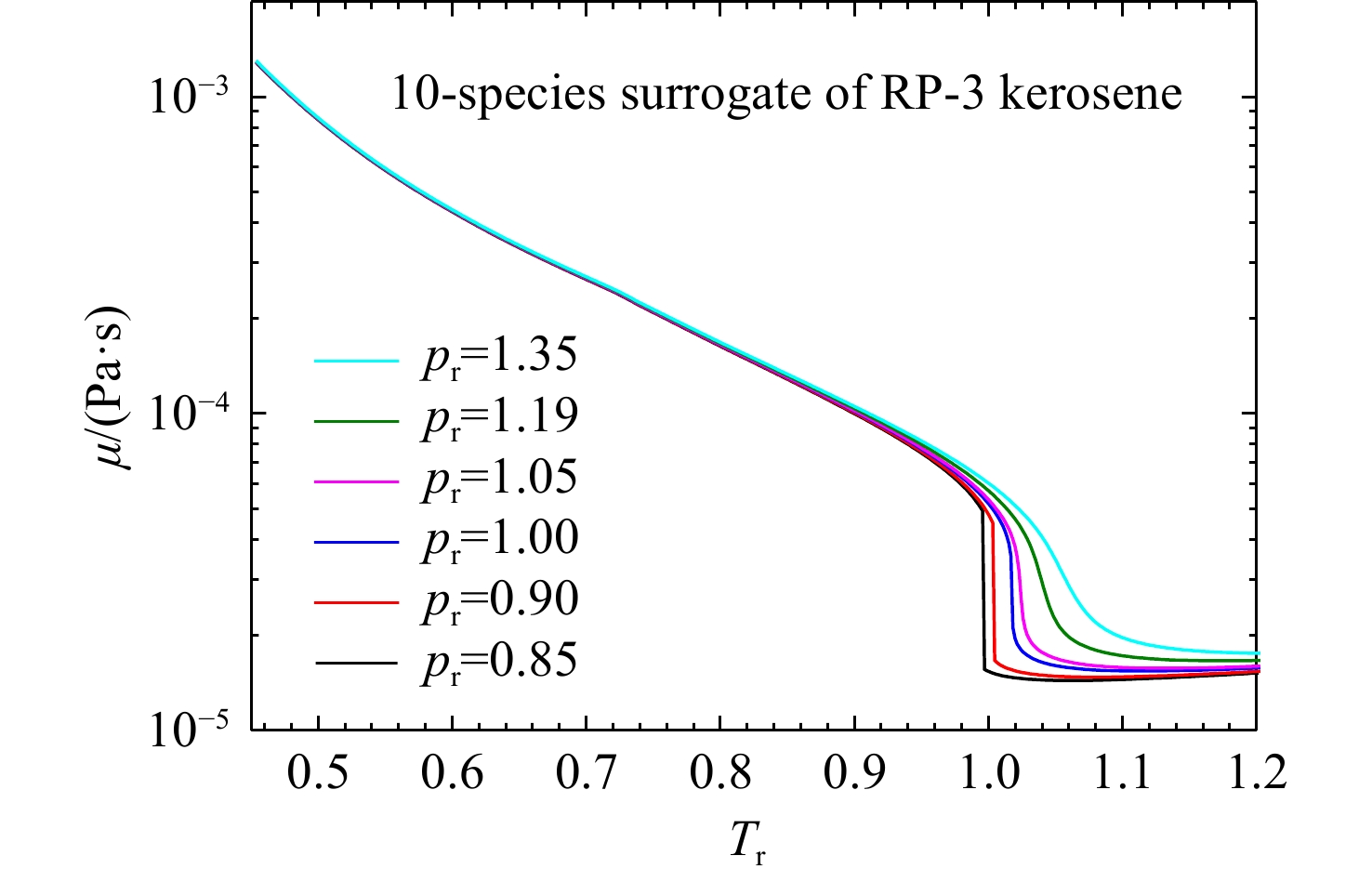

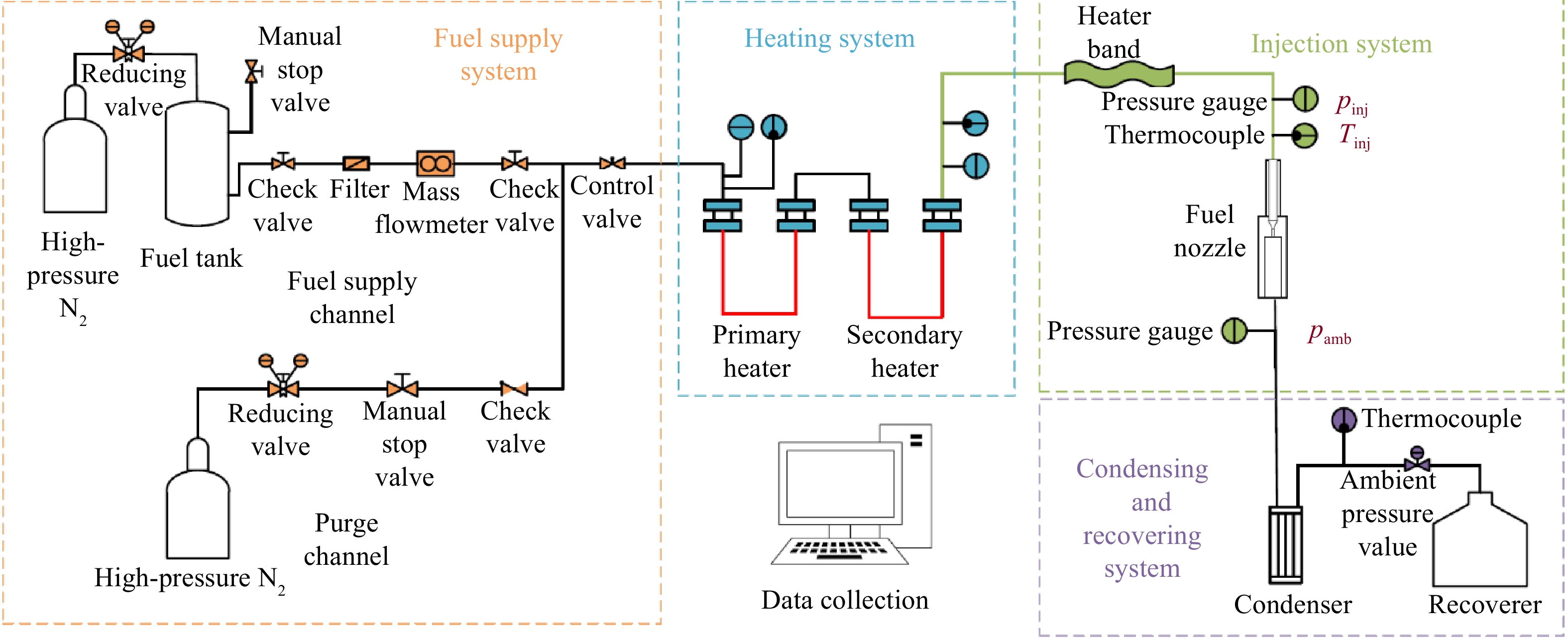

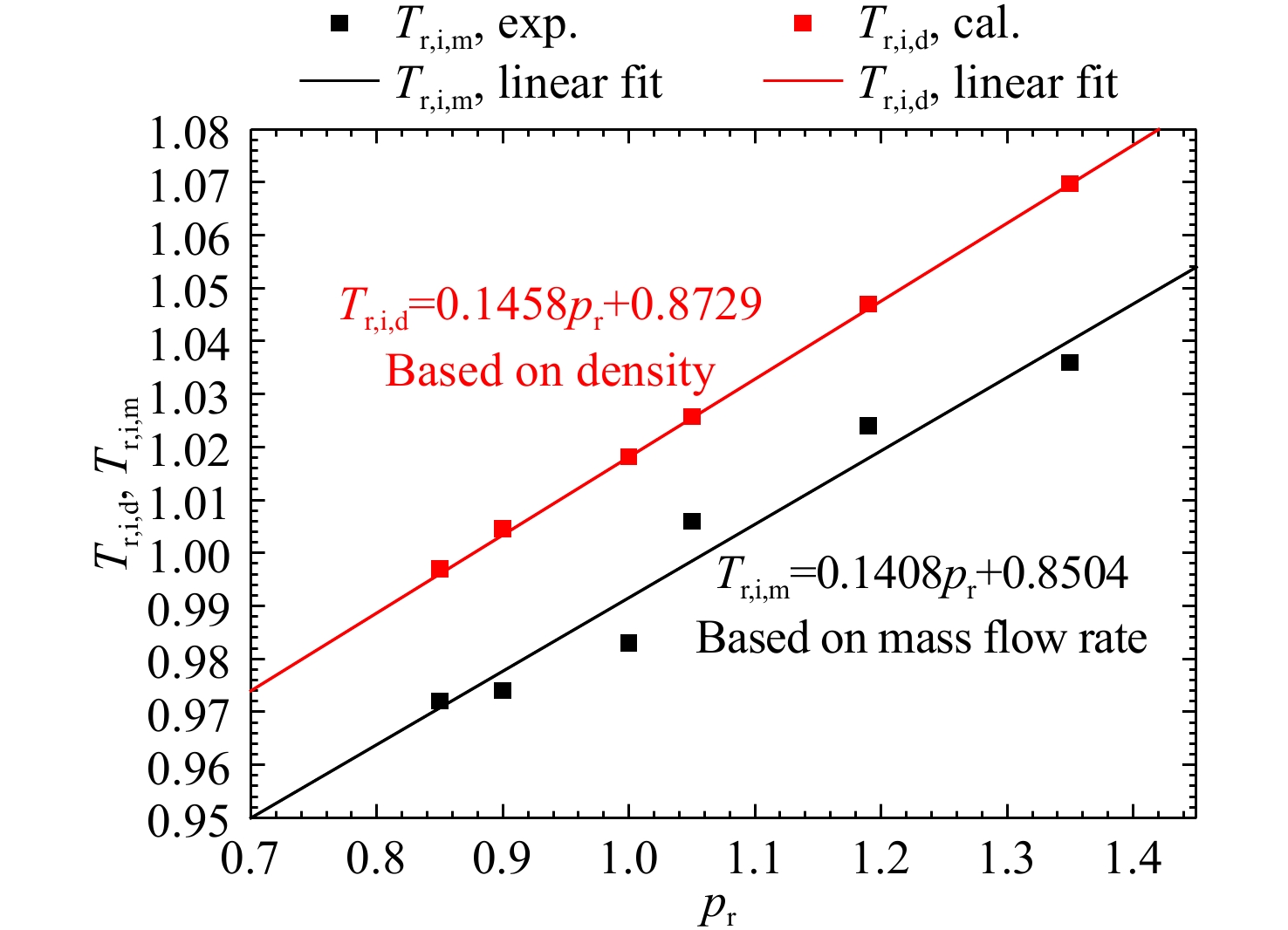

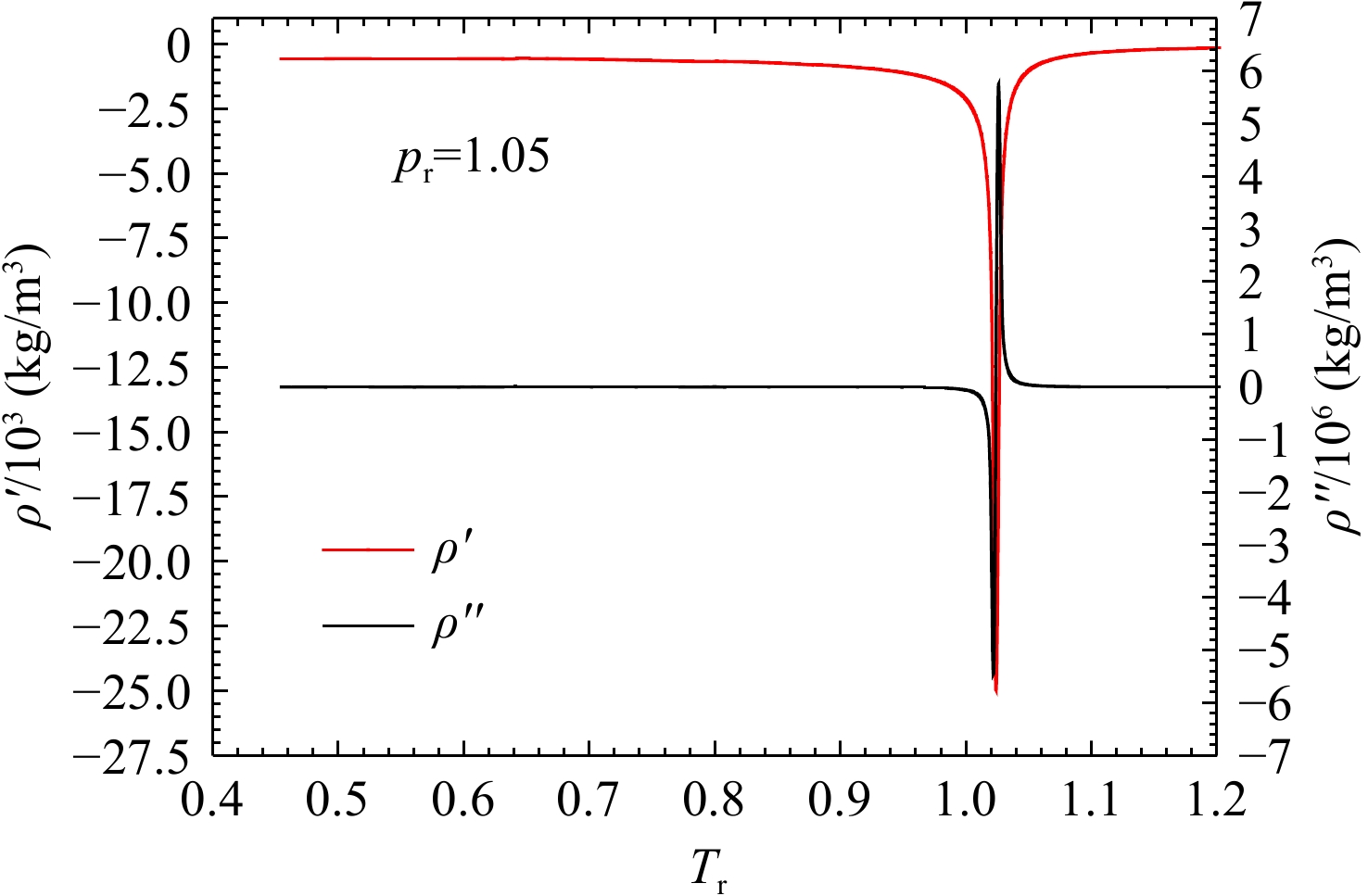

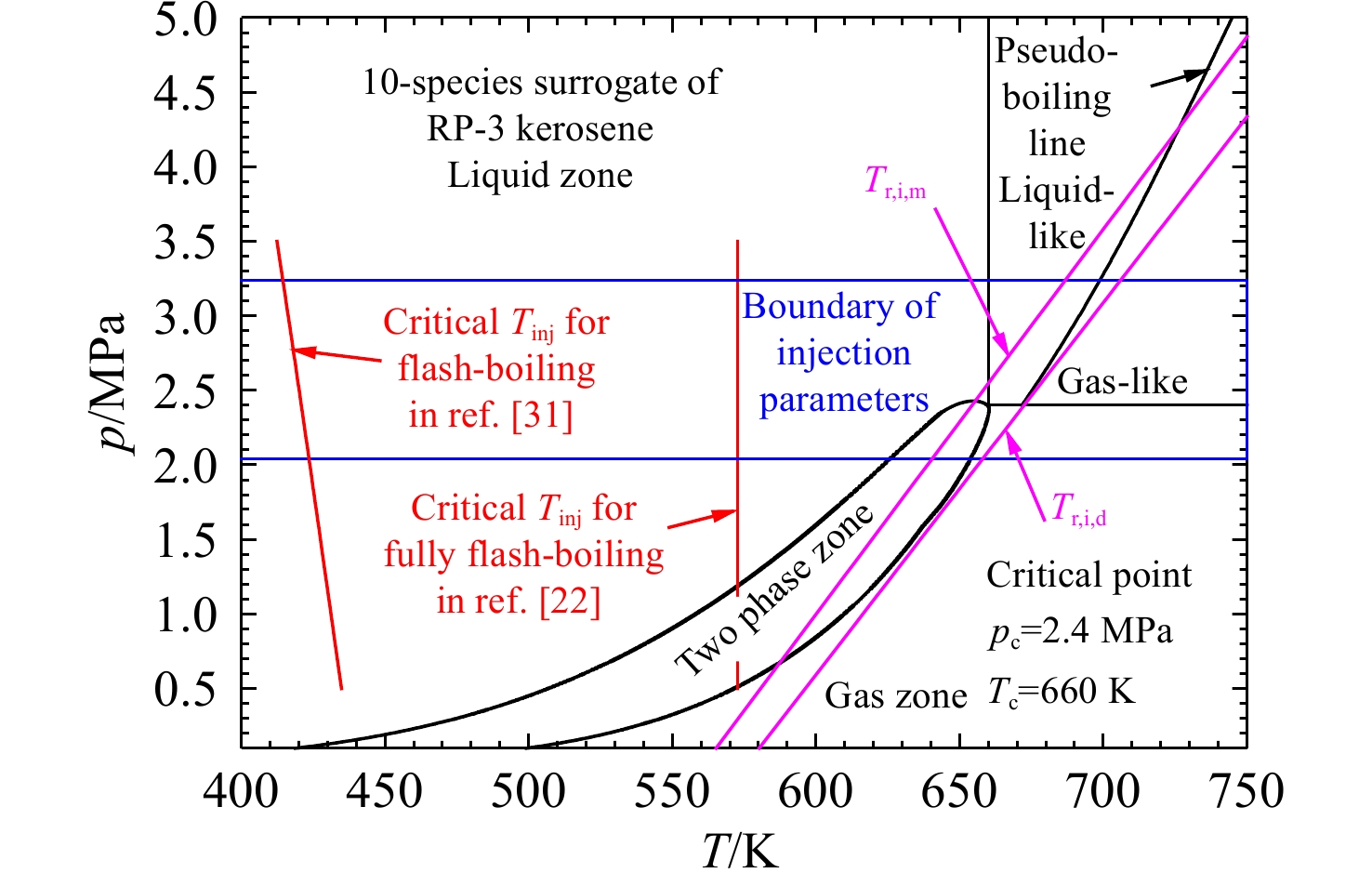

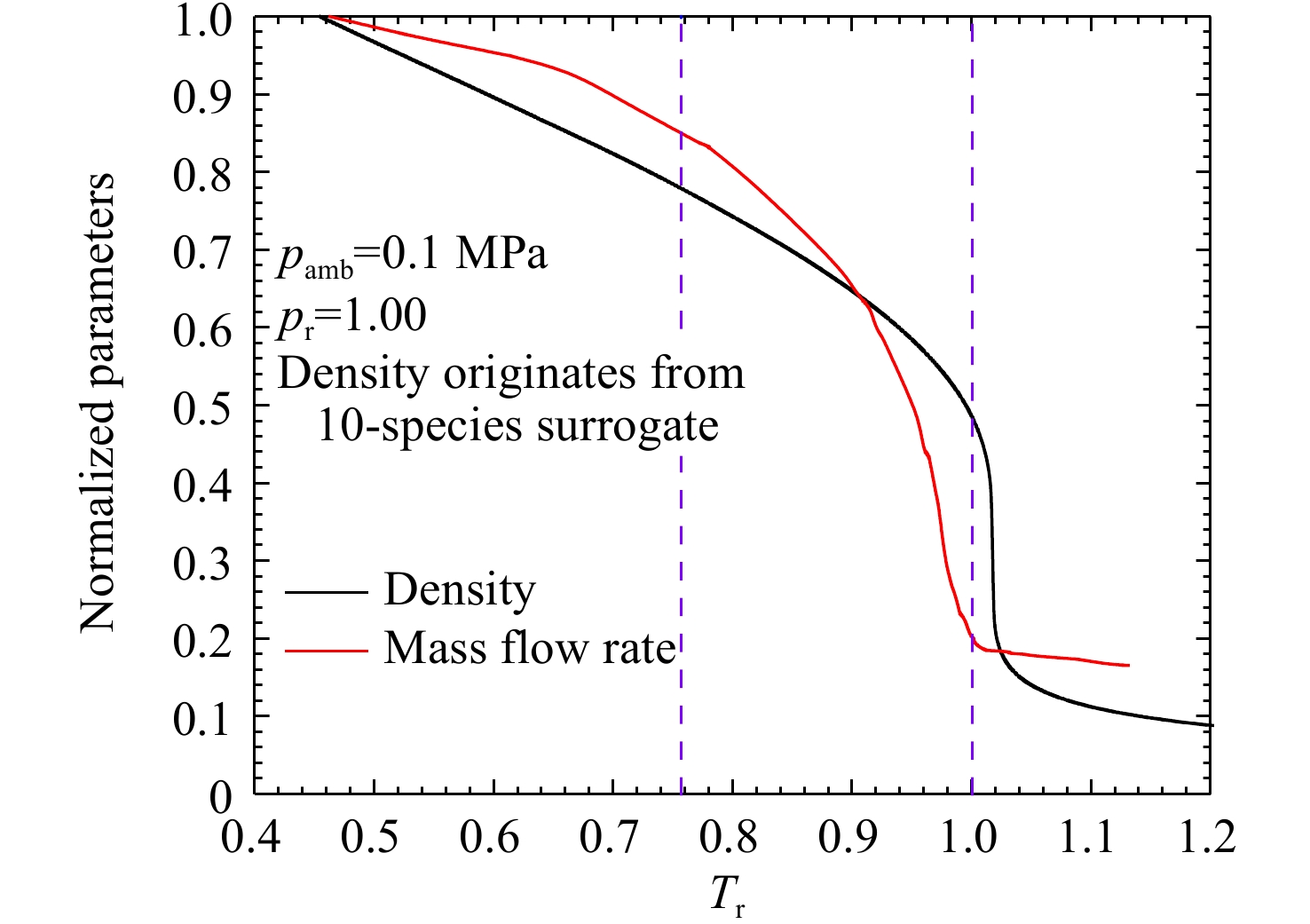

To precisely design multiphase fuel nozzles, so that they can be applied to the aero-engines with the technology of cooling the turbine cooling air, the fuel mass flow rate of sub-/supercritical kerosene in an axisymmetric model nozzle was studied. By adjusting the fuel temperature under multiple sets of fixed injection pressure, the mass flow rate change of sub-/supercritical fuel was obtained. According to the phase conditions of kerosene, the flow rate curves were divided into three phase regimes, i.e., liquid, gas-liquid, and supercritical, and the mechanisms in the process of flow rate changing with kerosene injection status under different phase conditions were discussed. The flow rate prediction methods in the liquid and the supercritical regime, as well as the fitting correlation of the discharge coefficient in the gas-liquid regime, were proposed. Results showed that, as injection temperature increased from normal temperature to 750 K, the flow rates slowly decreased in the liquid regime, sharply declined in the gas-liquid regime, and then gradually declined in the supercritical regime beyond the “inflection point” temperature. The maximum error between the calculated and experimental results was 3.8%, and the square of the correlation coefficient of the fitting correlation was 0.9478, which can serve multiphase nozzle design. Meanwhile, the acquired mass flow rate data can provide the boundary conditions for the research of injection structures downstream the nozzles, supporting advanced aero-engine design and development.
| [1] |
范珍涔,范玮. 流动参数对超临界喷射特性影响的数值模拟[J]. 航空学报,2013,34(5): 1018-1027. doi: 10.7527/S1000-6893.2013.0191
FAN Zhencen,FAN Wei. Numerical simulation on effects of flow parameters on supercritical injection characteristics[J]. Acta Aeronautica et Astronautica Sinica,2013,34(5): 1018-1027. (in Chinese) doi: 10.7527/S1000-6893.2013.0191
|
| [2] |
靳乐,范玮,范珍涔,等. 超临界喷射受环境和喷射参数影响的数值研究[J]. 航空动力学报,2014,29(6): 1323-1329. doi: 10.13224/j.cnki.jasp.2014.06.009
JIN Le,FAN Wei,FAN Zhencen,et al. Numerical investigation on effects of ambient and injection parameters on supercritical injection[J]. Journal of Aerospace Power,2014,29(6): 1323-1329. (in Chinese) doi: 10.13224/j.cnki.jasp.2014.06.009
|
| [3] |
申帅,范玮,靳乐,等. 超临界燃油喷射特性受喷嘴长径比影响的实验研究[J]. 推进技术,2018,39(10): 2363-2369. doi: 10.13675/j.cnki.tjjs.2018.10.021
SHEN Shuai,FAN Wei,JIN Le,et al. Experimental study on characteristics of supercritical fuel injection affected by nozzle length-diameter ratio[J]. Journal of Propulsion Technology,2018,39(10): 2363-2369. (in Chinese) doi: 10.13675/j.cnki.tjjs.2018.10.021
|
| [4] |
高伟. 超临界碳氢燃料在静止大气中的喷射特性研究[D]. 北京:北京航空航天大学,2010.
GAO Wei. Injection of supercritical hydrocarbon fuels into quiescent atmospheric environment[D]. Beijing:Beijing University of Aeronautics and Astronautics,2010.(in Chinese)
|
| [5] |
HOLLAND P M,EATON B E,HANLEY H A. Correlation of the viscosity and thermal conductivity data of gaseous and liquid ethylene[J]. Journal of Physical and Chemical Reference Data,1983,12(4): 917-932. doi: 10.1063/1.555701
|
| [6] |
LIN K C,COX-STOUFFER S K,JACKSON T A,et al. Structures and phase transition processes of supercritical methane/ethylene mixtures injected into a subcritical environment[J]. Combustion Science and Technology,2006,178(1/2/3): 129-160.
|
| [7] |
WU P K,SHAHNAM M,KIRKENDALL K A,et al. Expansion and mixing processes of under expanded supercritical fuel jets injected into superheated conditions[J]. Journal of Propulsion and Power,2015,15(5): 642-649.
|
| [8] |
GAO Wei,LIN Yuzhen,HUI Xin,et al. Injection characteristics of near critical and supercritical kerosene into quiescent atmospheric environment[J]. Fuel,2019,235: 775-781. doi: 10.1016/j.fuel.2018.08.048
|
| [9] |
GERBER V,BAAB S,FÖRSTER F J,et al. Fluid injection with supercritical reservoir conditions: overview on morphology and mixing[J]. The Journal of Supercritical Fluids,2021,169: 105097.1-105097.22.
|
| [10] |
DENG Hongwu,ZHANG Chunben,XU Guoqiang,et al. Density measurements of endothermic hydrocarbon fuel at sub- and supercritical conditions[J]. Journal of Chemical and Engineering Data,2011,56(6): 2980-2986. doi: 10.1021/je200258g
|
| [11] |
DENG Hongwu,ZHANG Chunben,XU Guoqiang,et al. Viscosity measurements of endothermic hydrocarbon fuel from (298 to 788)K under supercritical pressure conditions[J]. Journal of Chemical and Engineering Data,2012,57(2): 358-365. doi: 10.1021/je200901y
|
| [12] |
靳乐. RP-3航空煤油的超临界喷射,蒸发和爆震燃烧特性研究[D]. 西安:西北工业大学,2016.
JIN Le. Investigations on the supercritical injection,evaporation,and detonation characteristics of the RP-3 aviation kerosene[D]. Xi’an:Northwestern Polytechnical University,2016.(in Chinese)
|
| [13] |
杨占锋. 超临界燃油喷射及燃烧特性的数值模拟研究[D]. 重庆:重庆大学,2017.
YANG Zhanfeng. Numerical simulation of supercritical fuel injection and combustion characteristics[D]. Chongqing:Chongqing University,2017.(in Chinese)
|
| [14] |
MISER C,KING P,SCHAUER F. PDE flash vaporization system for hydrocarbon fuel using thrust tube waste heat[R]. Tucson, US:AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit,2005.
|
| [15] |
肖靖源,林宇震,刘桂桂,等. 超临界RP-3航空煤油喷嘴内部流动与相变特性研究[J]. 推进技术,2022,43(3): 200-208. doi: 10.13675/j.cnki.tjjs.200643
XIAO Jingyuan,Lin Yuzhen,Liu Guigui,et al. Flow and phase transition characteristics of supercritical RP-3 aviation kerosene in injector[J]. Journal of Propulsion Technology,2022,43(3): 200-208. (in Chinese) doi: 10.13675/j.cnki.tjjs.200643
|
| [16] |
WU P K,CHEN T H,NEJAD A S,et al. Injection of supercritical ethylene in nitrogen[J]. Journal of Propulsion and Power,1996,12(4): 770-777. doi: 10.2514/3.24100
|
| [17] |
范学军,俞刚,卢锡年,等. 超临界态航空煤油流量测量方法:CN1673692A[P]. 2005-09-28.
|
| [18] |
MANHARTSGRUBER B. Instantaneous liquid flow rate measurement utilizing the dynamic characteristics of laminar flow in circular pipes[C]//Proceedings of the ASME/JSME 2003 4th Joint Fluids Summer Engineering Conference. Honolulu,US:ASME,2003:159-164.
|
| [19] |
CHANG Fucheng,HU Zitu,LI Xi,et al. Electromagnetic-conductance measurement method for the flow rate and void fraction of gas-liquid two-phase flows[J]. Measurement:Sensors,2020,10/11/12: 100030.1-100030.7.
|
| [20] |
ADAMKOWSKI A,JANICKI W,LEWANDOWSKI M,et al. Uncertainty analysis of liquid flow rate measurement with the pressure-time method[J]. Measurement,2021,185: 109866.1-109866.23.
|
| [21] |
SHCHELCHKOV A V,FAFURIN V A,KORNEEV R A,et al. Modification of the equation for mass flow rate (mass) measurement of liquid with account of dynamic influencing factors[J]. Flow Measurement and Instrumentation,2022,83: 102117.1-102117.9.
|
| [22] |
MIKHEEV N I,MOLOCHNIKOV V M,KRATIROV D V,et al. New approach to maintaining liquid flow rate stability in national primary standard[J]. Flow Measurement and Instrumentation,2021,79: 101930.1-101930.6.
|
| [23] |
NAKAO Y,HORIGUCHI N,YOSHIDA H,et al. Measurement of flow rate of droplets and liquid film in venturi scrubber[R]. Charlotte,US:the 24th International Conference on Nuclear Engineering,2016.
|
| [24] |
BISSOR E H,YURISHCHEV A,ULLMANN A,et al. Prediction of the critical gas flow rate for avoiding liquid accumulation in natural gas pipelines[J]. International Journal of Multiphase Flow,2020,130: 103361.1-103361.19.
|
| [25] |
MORI K, ONO T,KAJI M,et al. Estimation of gas and liquid flow rates in gas-liquid two-phase flow[C]//Proceedings of the ASME International Mechanical Engineering Congress and Exposition. New Orleans,US:ASME,2002:109-113.
|
| [26] |
SHER E,BAR-KOHANY T,RASHKOVAN A. Flash-boiling atomization[J]. Progress in Energy and Combustion Science,2008,34: 417-439. doi: 10.1016/j.pecs.2007.05.001
|
| [27] |
ZHONG Fengquan,FAN Xuejun,GONG Yu,et al. Heat transfer of aviation kerosene at supercritical conditions[J]. Journal of Thermophysics and Heat Transfer,2009,23(3): 543-550. doi: 10.2514/1.41619
|
| [28] |
ELY J F,HUBER M L. NIST standard reference database 4-NIST thermophysical properties of hydrocarbon mixtures[M]. Gaithersburg, US:National Institute of Standards,1990.
|
| [29] |
孙青梅,米镇涛,张香文. 吸热型碳氢燃料RP-3仿JP-7临界性质(tc, pc)的测定[J]. 燃料化学学报,2006,34(4): 466-470. doi: 10.3969/j.issn.0253-2409.2006.04.017
SUN Qingmei,MI Zhentao,ZHANG Xiangwen. Determination of critical properties (tc, pc) of endothermic hydrocarbon fuels: RP-3 and simulated JP-7[J]. Journal of Fuel Chemistry and Technology,2006,34(4): 466-470. (in Chinese) doi: 10.3969/j.issn.0253-2409.2006.04.017
|
| [30] |
曾纬. 直喷液体射流及闪急沸腾喷雾的特性及机理研究[D]. 上海:上海交通大学,2012.
ZENG Wei. Characteristics and mechanisms of direct-injection liquid jet and flash-boiling spray[D]. Shanghai:Shanghai Jiao Tong University,2012.(in Chinese)
|
| [31] |
FAN Zhencen,FAN Wei,ZHAO Lin,et al. Experimental study on flash atomization of aviation kerosene[J]. Atomization and Sprays,2012,22(2): 163-183. doi: 10.1615/AtomizSpr.2012004932
|
| [32] |
LIU Fushui,GAO Yongli,ZHANG Zheng,et al. Study of the spray characteristics of a diesel surrogate for diesel engines under sub/supercritical states injected into atmospheric environment[J]. Fuel,2018,230: 308-318. doi: 10.1016/j.fuel.2018.05.050
|
| [33] |
林向阳. 冷却通道内碳氢燃料跨临界流场的可视化研究[D]. 哈尔滨:哈尔滨工业大学,2015.
LIN Xiangyang. Experiment study on transcritical flow visualization of endothermic hydrocarbon fuel in the cooling channel[D]. Harbin:Harbin Institute of Technology,2015.(in Chinese)
|
| [34] |
WANG Xinsheng,CHEN Bin,WANG Rui,et al. Experimental study on the relation between internal flow and flashing spray characteristics of R134a using straight tube nozzles[J]. International Journal of Heat and Mass Transfer,2017,115: 524-536. doi: 10.1016/j.ijheatmasstransfer.2017.08.040
|
