| Citation: | LIU Wei, ZHANG Yun. Sand ingestion test and performance degradation evaluation of turboshaft engine[J]. Journal of Aerospace Power, 2023, 38（1）：127-133 doi: 10.13224/j.cnki.jasp.20210283
|

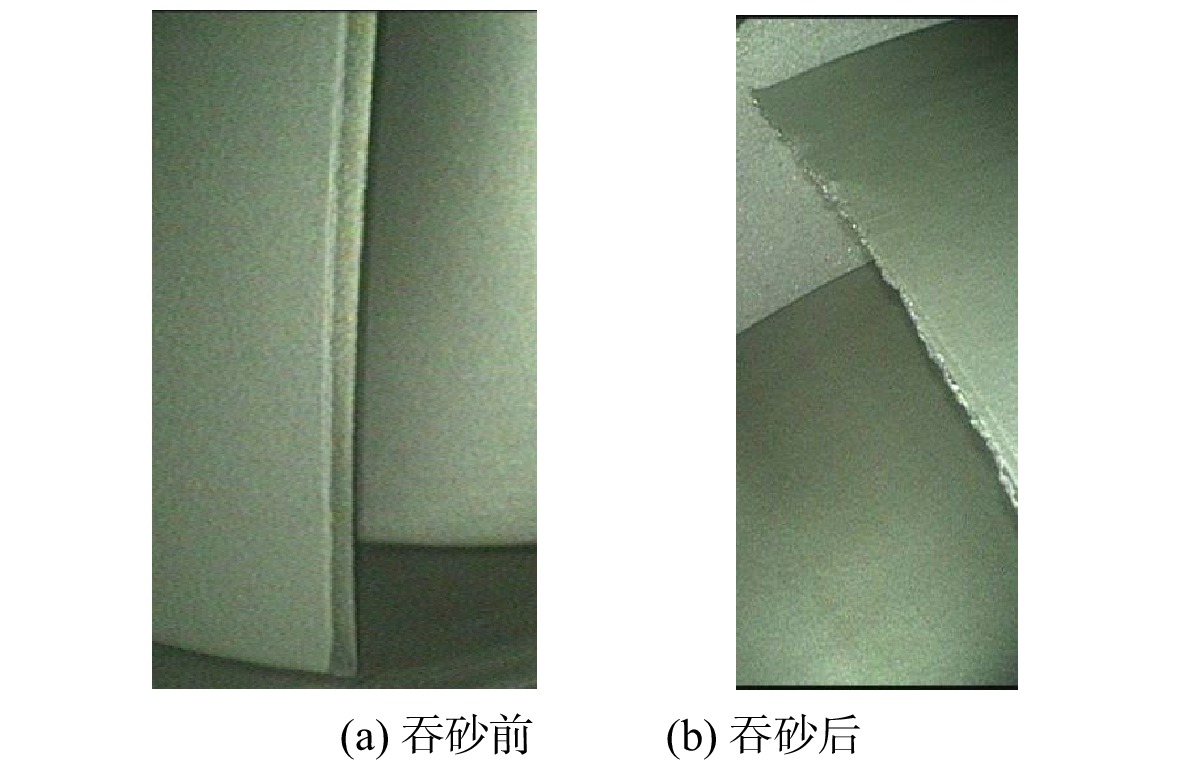

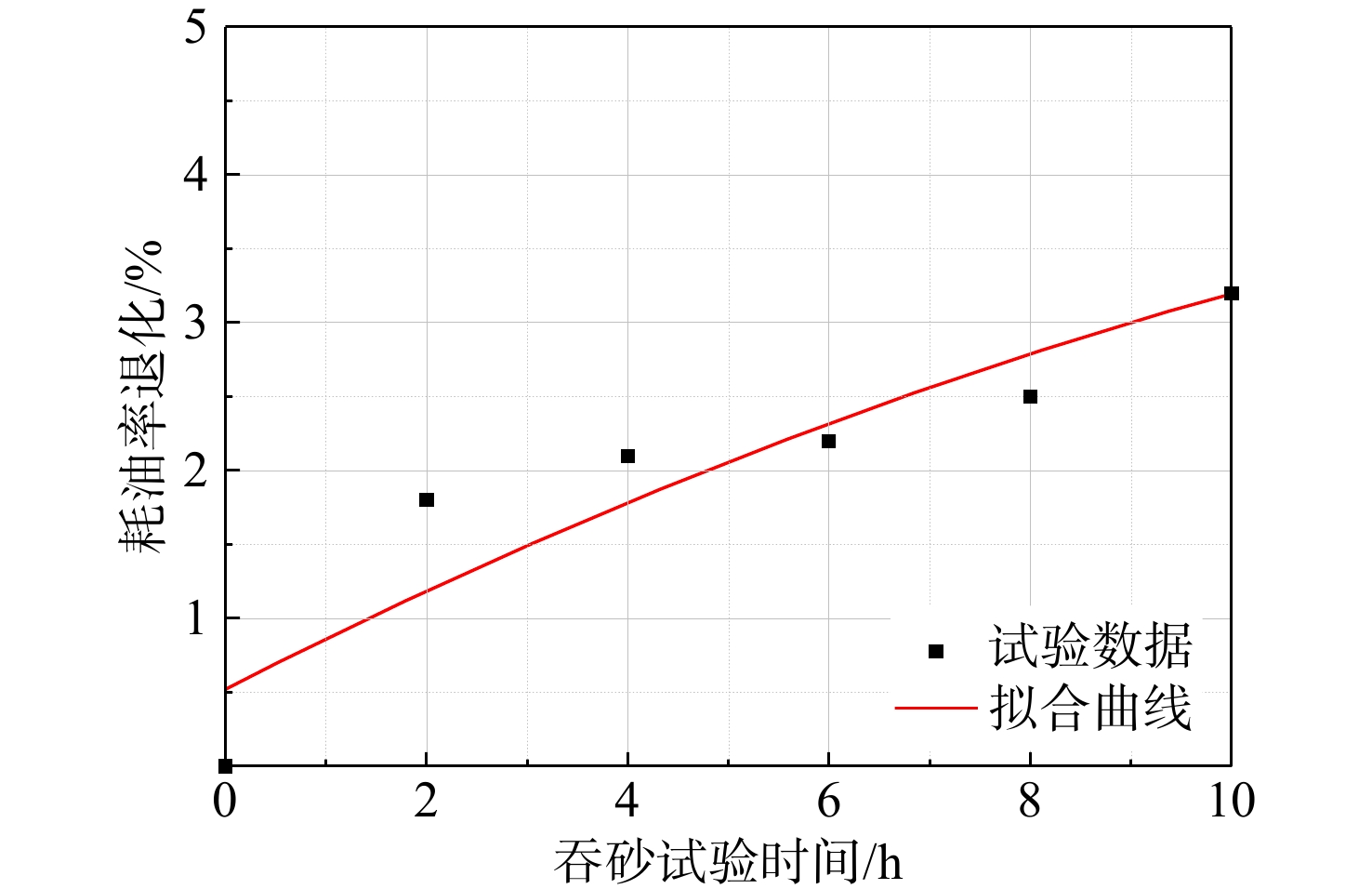

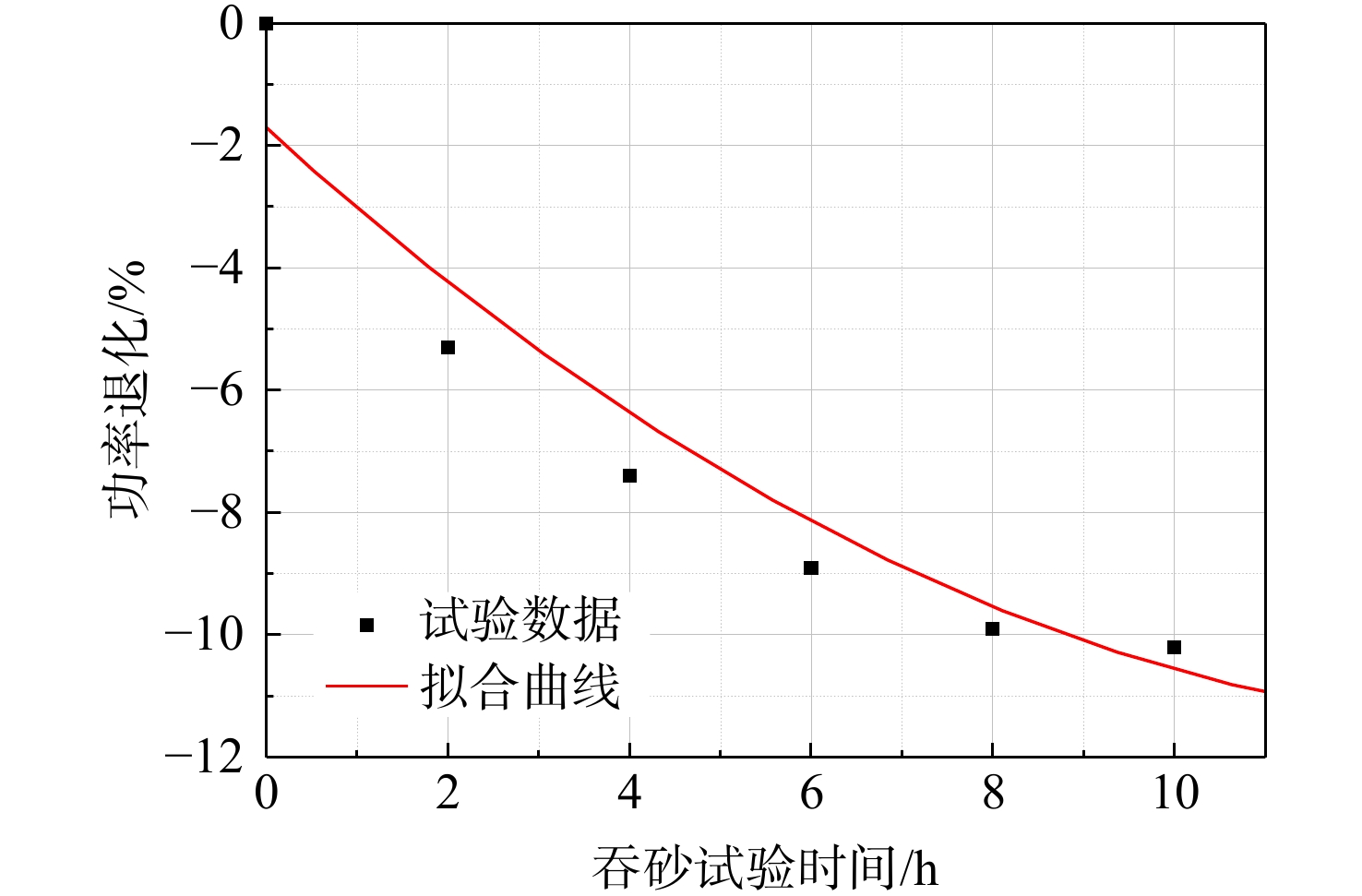

In order to grasp the effect of sand and dust erosion on the turboshaft engine, the differences and applicability of the sand ingestion test terms at home and abroad were analyzed. The sand ingestion test of a turboshaft engine was implemented and investigated. A rapid test data evaluation model of turboshaft engine was established based on the aero-thermodynamic equations and engine matching constraint. The method was used to evaluate the performance degradation of overall unit and components, which was validated using data from other references. The results indicated that the power and fuel consumption rate degradation presented a quadratic function law. The output power degradation was 10.2% and specific fuel consumption degradation was 3.2% after 10 h of sand ingestion. The chord length of the compressor first stage blade became shorter by 0.7%−3.4% and the thickness was reduced by 1.0%−3.0%, which resulted in the compressor flow rate decrease by 4.1%, the efficiency decrease by 3.1% and the pressure ratio decrease by 4.5%. The turbine cooling hole had slight blockage and ablation, the cooling air volume was reduced by 1.5%, and the gas turbine efficiency was reduced by 0.5%. The power turbine efficiency had a slight improvement due to blade smoothness.
| [1] |
HERMAN R, OWCZARZAK J, MUSALLAM Y. Early performance assessment of bradley and abrams[R]. NSIAD-92-94, 1992.
|
| [2] |
COLUCCI F. Advanced coatings protect helicopter engines from compressor erosion to save lives and money[R]. Hirschberg: The American Helicopter Society, 2004.
|
| [3] |
RAPP G C, ROSENTHAL S H. Problems and solutions for sand environment operation of helicopter gas turbines[J]. ASME Paper 68-GT-37, 1968.
|
| [4] |
BOJDO N, FILIPPONE A. Fabric filter performance for helicopter inlet barrier filters[D]. Manchester, UK: The University of Manchester, 2012.
|
| [5] |
BOJDO N, FILIPPONE A. Comparative study of helicopter engine particle separators[D]. Manchester, UK: University of Manchester, 2014.
|
| [6] |
FILIPPONE A,BOJDO N. Turboshaft engine air particle separation[J]. Progress in Aerospace Sciences,2010,46: 224-245. doi: 10.1016/j.paerosci.2010.02.001
|
| [7] |
BOJDO N, FILIPPONE A. Operational performance parameters of engine inlet barrier filtration systems for rotorcraft[R]. Manchester, UK: The University of Manchester, 2011.
|
| [8] |
RHEE D H,LIM B J,AHN I K. Effect of sand and dust ingestion on small gas turbine engines[J]. The Korean Society of Mechanical Engineers,2012,38(8): 791-796.
|
| [9] |
MURUGAN D M, GHOSHAL D A, WALOCK D M, et al. Microstructure based material sand particulate interactions and assessment of coatings for high temperature turbine blades[J]. ASME Paper 2017-GT-64051, 2017.
|
| [10] |
DUNN M G,PADOVA C,MOLLER G E. Performance deterioration of a turbofan and a turbojet engine upon exposure to a dust environment[J]. Gas Turbines Power,1987,109(3): 336-343. doi: 10.1115/1.3240045
|
| [11] |
WALSH W S. Effects of sand ingestion on the film-cooling of turbine blades[D]. Blacksburg, US: Master of Science in Mechanical Engineering, 2005.
|
| [12] |
WALSH W S, THOLE K A, JOE C. Effects of sand ingestion on the blockage of film-cooling holes[J]. ASME Paper GT2006-90067, 2006.
|
| [13] |
GHENAIET A, TAN S C, ELDER R L. Numerical simulation of the axial fan performance degradation due to sand ingestion[R]. ASME Paper GT-2002-30644, 2002.
|
| [14] |
GHENAIET A, ELDER R L, TAN S C. Particles trajectories through an axial fan and performance degradation due to sand ingestion[R]. ASME Paper 2001-GT-0497, 2001.
|
| [15] |
张鑫, 陈国智, 黄开明, 等. 两种吞砂试验条件下的涡轴发动机性能分析[C]//第十五届推进系统气动热力学专业学术交流会论文集. 杭州: 中国航空学会, 2015: 32-36.
|
| [16] |
马昌,魏海涛. 一种航空发动机吞砂试验方法[J]. 科学技术与工程,2015,15(18): 239-240. doi: 10.3969/j.issn.1671-1815.2015.18.042
MA Chang,WEI Haitao. An aero-engine sand swallow test method[J]. Science Technology and Engineering,2015,15(18): 239-240. (in Chinese) doi: 10.3969/j.issn.1671-1815.2015.18.042
|
| [17] |
何光宇,李应红,柴艳,等. 航空发动机压气机叶片砂尘冲蚀防护涂层关键问题综述[J]. 航空学报,2015,36(6): 1733-1743.
HE Guangyu,LI Yinghong,CHAI Yan,et al. Review of key issues on coating against sand erosion of aero-engine compressor blade[J]. Acta Aeronautica et Astronautica Sinica,2015,36(6): 1733-1743. (in Chinese)
|
| [18] |
中国人民解放军总装备部. 航空涡轮螺桨和涡轮轴发动机通用规范: GJB242A-2018[S]. 北京: 中国标准出版社, 2018: 90.
|
| [19] |
杨飞,田震,张浙波. 大功率涡桨发动机整机吞砂试验装置设计与研究[J]. 科学技术与工程,2020,20(21): 8573-8578. doi: 10.3969/j.issn.1671-1815.2020.21.022
YANG Fei,TIAN Zhen,ZHANG Zhebo. Design and research of sand ingestion test device for high-power turboprop whole engine[J]. Science Technology and Engineering,2020,20(21): 8573-8578. (in Chinese) doi: 10.3969/j.issn.1671-1815.2020.21.022
|
| [20] |
贾琳渊,程荣辉,张志舒,等. 研发阶段涡扇发动机模型自适应方法[J]. 推进技术,2020,41(9): 1935-1945. doi: 10.13675/j.cnki.tjjs.200204
JIA Linyuan,CHENG Ronghui,ZHANG Zhishu,et al. Adaptive modelling for turbofan engine in development stage[J]. Journal of Propulsion Technology,2020,41(9): 1935-1945. (in Chinese) doi: 10.13675/j.cnki.tjjs.200204
|
| [21] |
段辉, 杨芳, 宋敏娜, 等. 某型涡轴发动机吞砂试验性能衰减分析[R]. 沈阳: 第四届中国航空科学技术大会, 2019: 235-238.
|
