| Citation: | QIN Shengfu，LI Junwei，ZHANG Zhihui，et al.Simulation study on the influence of spin on ignition process of two⁃phase in solid rocket motor［J］.Journal of Aerospace Power，2022，37（7）：1503‑1515. doi: 10.13224/j.cnki.jasp.20210327
|

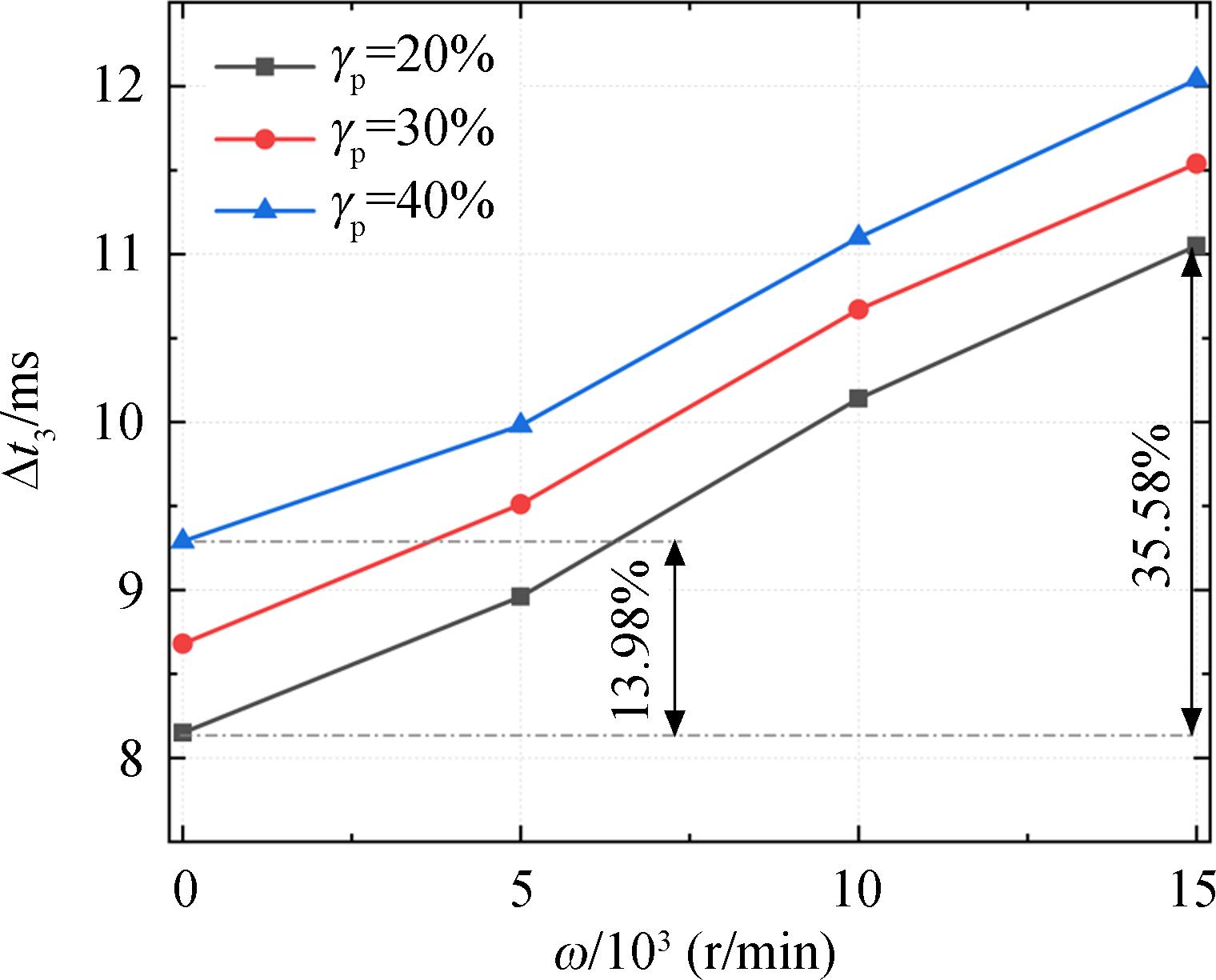

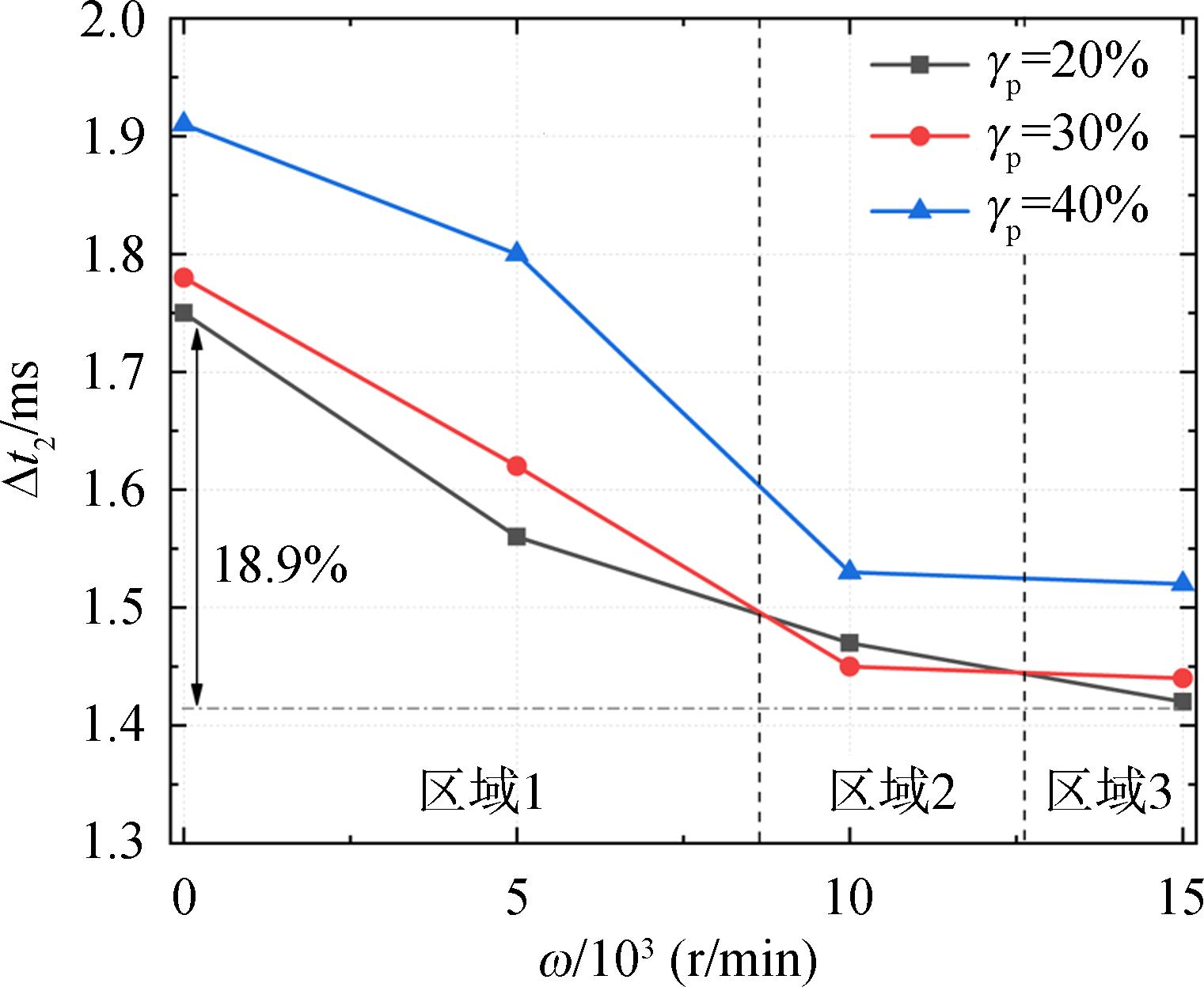

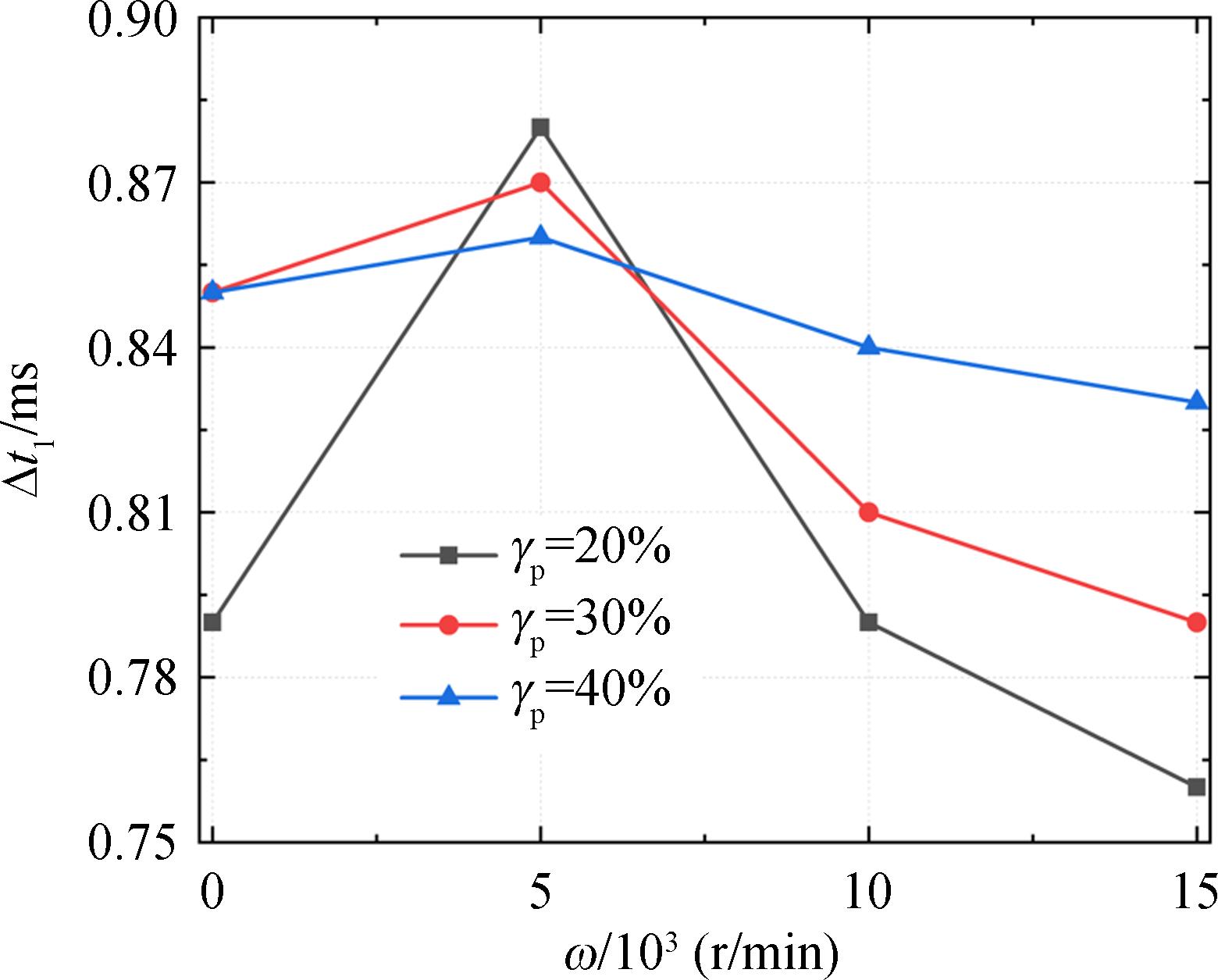

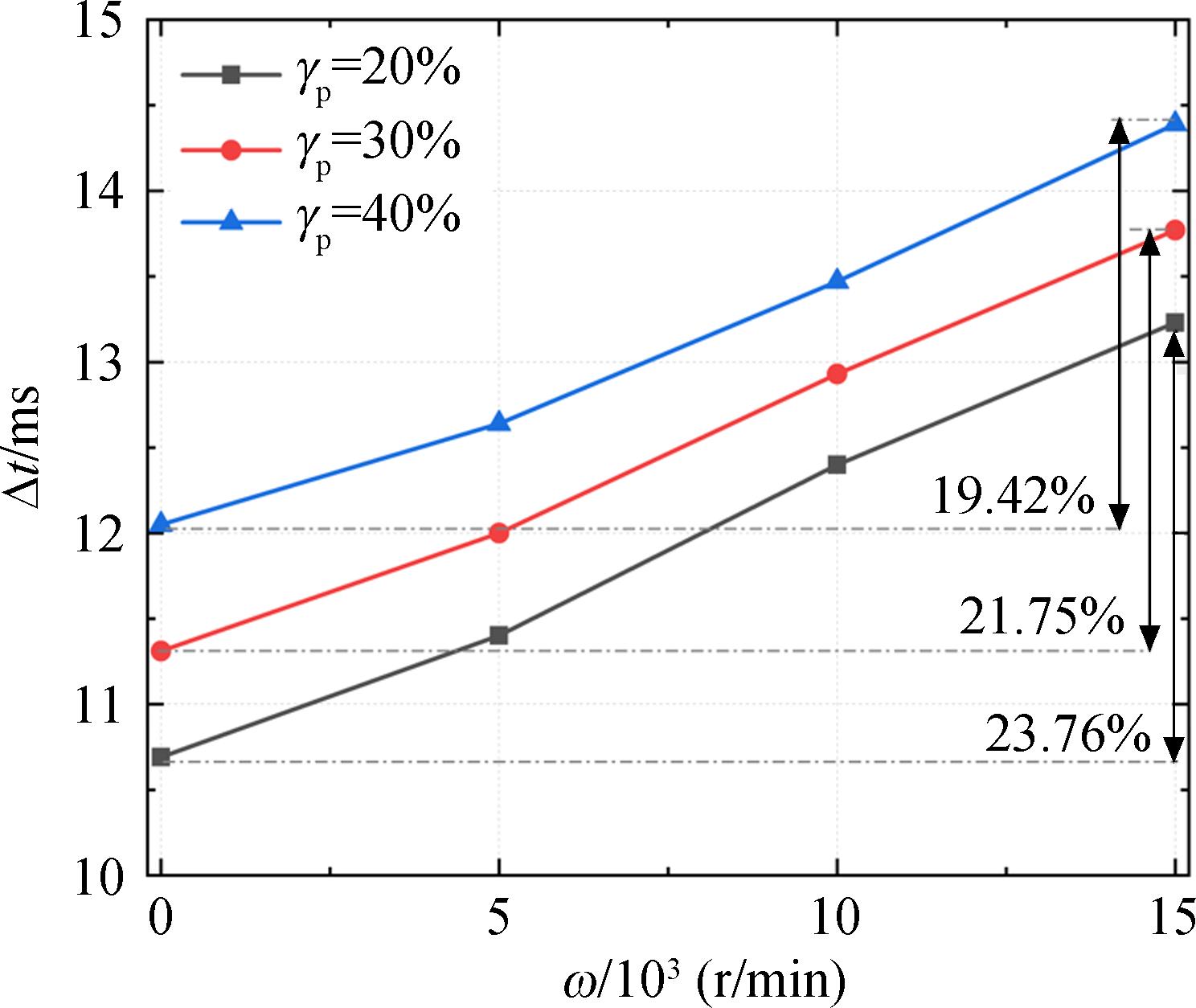

In order to study the influence law of high⁃speed spin on condensed phase ignition transient process of solid rocket motor with internal and external burning tubular propellants，the ignition model of solid rocket motor was established by the user defined function （UDF） of computational fluid dynamics （CFD） software，and the ignition process of condensed phase was simulated under the condition of spin.The correctness of the numerical model was verified by comparing the numerical results with the interior ballistics ground spin test results.The results showed that：（1） a large number of particles gathered at the front end of the combustion chamber due to the centrifugal motion of igniter gas particles，and some particles adhered to the solid rocket motor wall for a long time.（2） The particle ratio increased from 20% to 40%，and the ignition pressure peak decreased by 3.93%.The increase of solid rocket motor spin speed could lead to the increase of internal ballistic equilibrium pressure，but the ignition pressure peak gradually decreased，and the appearance time of pressure peak was delayed.When the spin speed reaching 15 000 r/min，the ignition pressure peak disappeared.（3） With the increase of spin speed，the heat transfer between ignition particles and propellant increased，the flame⁃spread period decreased，but the chamber⁃filling period and ignition delay increased.Compared with static condition the ignition delay increased by 23.76% at 15 000 r/min when the particle ratio was 20%.
| [1] |
蔡国飙,田辉.旋转对固体火箭发动机的影响[J].推进技术,1999,20（1）:12⁃16.
CAI Guobiao,TIAN Hui.Spinning effect on solid rocket motor[J].Journal of Propulsion Technology,1999,20（1）:12⁃16.（in Chinese）
|
| [2] |
BASTRESS E K.Interior ballistics of spinning solid propellant rockets[J].Journal of Spacecraft and Rocket,1965,2（3）:455⁃457.
|
| [3] |
周海清,尤政,张平.颗粒传热增强对微型脉冲推力器点火过程的影响[J].固体火箭技术,2006,29（1）:31⁃34.
ZHOU Haiqing,YOU Zheng,ZHANG Ping.Effect of particle heat transfer enhancement on ignition process of miniature impulse thruster[J].Journal of Solid Rocket Technology,2006,29（1）:31⁃34.（in Chinese）
|
| [4] |
唐金兰,樊建龙,李进贤，等.SRM点火瞬态凝相粒子对火焰传播过程的影响[J].宇航学报,2008,29（5）:142⁃146.
TANG Jinlan,FAN Jianlong，LI Jinxian,et al.Effect of transient condensed phase particles on flame propagation in SRM ignition[J].Journal of Astronautics,2008,29（5）:142⁃146.（in Chinese）
|
| [5] |
CROWE C T.A unified model for the acceleration⁃produced burning rate augmentation of metalized solid propellants[J].Combustion Science and Technology,1972,5（1）:55⁃60.
|
| [6] |
KING M K.Critical review:modeling of acceleration effects on solid propellant combustion[J].AIAA Journal,1976,14（1）:18⁃25.
|
| [7] |
FUCHS M,PERETZ A,TIMNAT Y.A parametric study of the effect of acceleration on the burning rate of metalized solid propellants[R].AIAA⁃1981⁃1584,1981.
|
| [8] |
武晓松,王栋余.高速旋转固体火箭发动机的动态燃速特性研究[J].弹道学报,2005,17（2）:5⁃11.
WU Xiaosong,WANG Dongyu.Study on dynamic burning rate characteristics of high speed rotating solid rocket motor[J].Journal of Ballistics,2005,17（2）:5⁃11.（in Chinese）
|
| [9] |
MANDA L J.Spin effects on rocket nozzle performance[J].Journal of Spacecraft and Rockets,1966,3（11）:1695⁃1696.
|
| [10] |
FARQUHAR B W,HOFFMAN J D,NORTON D J.An analytical and experimental investigation of swirling flow in nozzle[J].AIAA Journal,1969,7（10）:1992⁃2000.
|
| [11] |
MAGER A.Approximate solution of isentropic swirling flow through a nozzle[J].ARS Journal,31（8）:1140⁃1148.
|
| [12] |
王革,陈亮,郜冶,等.旋转对固体火箭发动机燃烧室燃气流动的影响[J].空气动力学学报，2008,26（2）:208⁃211.
WANG Ge,CHEN Liang,GAO Ye,et al.Effect of rotation on gas flow in solid rocket motor combustor[J].Acta Aerodynamica Sinica,2008,26（2）:208⁃211.（in Chinese）
|
| [13] |
刘平安,王革,郜冶.旋转固体火箭发动机燃烧室内流场分析解[J].固体火箭技术,2012,35（5）:597⁃601.
LIU Pingan,WANG Ge,GAO Ye.Analytical solution of combustion chamber flow field for rotating solid rocket motor[J].Journal of Solid Rocket Technology,2012,35（5）:597⁃601.（in Chinese）
|
| [14] |
张志峰,蔡体敏.旋转条件下固体火箭发动机三维内流场数值模拟[[J].固体火箭技术,2007,30（4）:302⁃305.
ZHANG Zhifeng,CAI Timin.Numerical simulation on 3D internal flow field of SRM under spinning condition[J].Journal of Solid Rocket Technology,2007,30（4）:302⁃305.（in Chinese）
|
| [15] |
冯喜平，赵胜海,曹琪.旋转固体发动机燃烧室⁃喷管两相流数值仿真[J].计算机仿真,2011,28（7）:95⁃99.
FENG Xiping,ZHAO Haisheng,CAO Qi.Numerical simulation on two⁃phase flow for spinning solid rocket motor chamber⁃nozzle[J].Journal of Computer Simulation,2011,28（7）:95⁃99.（in Chinese）
|
| [16] |
WAESCHE R,SARGENT W H,MARCHMAN I.Space Shuttle solid rocket motor aft⁃end internal flows[J].Journal of Propulsion and Power,1989,5（6）:650⁃656.
|
| [17] |
CIUCCI A,FOSTER W A.Experimental investigation of the flow field in the head⁃end star slot section of a solid rocket motor[R].AIAA⁃1992⁃3048,1992.
|
| [18] |
白涛涛,张泽远,邢国强,等.带侵蚀效应的三维双燃速装药固体火箭发动机点火过程[J].航空动力学报,2018,33（5）:241⁃247.
BAI Taotao,ZHANG Zeyuan,XING Guoqiang,et al.Ignition process of 3⁃D dual⁃burning rate solid rocket motor with erosive burning[J],Journal of Aerospace Power,2018,33（5）:241⁃247.（in Chinese）
|
| [19] |
徐学文,王连生,牟俊林.某固体火箭发动机点火启动过程三维流场一体化仿真[J].固体火箭技术,2008,31（1）:8⁃13.
XU Xuewen,WANG Liansheng,MU Junlin.Integrated simulation on 3D flow field during ignition start⁃up of SRM[J].Journal of Solid Rocket Technology,2008,31（1）:8⁃13.（in Chinese）
|
| [20] |
高双武,强洪夫,周伟,等.基于子循环⁃预测校正的三维SRM点火瞬态流固耦合数值模拟[J].计算力学学报,2011,28（4）:84⁃89.
GAO Shuangwu,QIANG Hongfu,ZHOU Wei,et al.Three dimensional transient fluid structure coupling numerical simulation of SRM ignition based on subcycle predictive correction[J] Chinese Journal of Computational Mechanics,2011,28（4）:84⁃89.（in Chinese）
|
| [21] |
LI Q,LIU P,HE G.Fluid⁃solid coupled simulation of the ignition transient of solid rocket motor[J].Acta Astronautica,2015,110:180⁃190.
|
| [22] |
EMELYANOV V N,TETERINA I V,VOLKOV K N,et al.Pressure oscillations and instability of working processes in the combustion chambers of solid rocket motors[J].Acta Astronautica,2016,135:161⁃171.
|
| [23] |
丁鸿铭,卓长飞,陈浩田,等.基于点火药颗粒的固体火箭发动机点火瞬态过程数值研究[J].北京理工大学学报,2020,40（8）:818⁃825.
DING Hongming,ZHUO Changfei,CHEN Haotian,et al.Numerical study on ignition transient process of solid rocket motor based on ignition particle[J].Transactions of Beijing Institute of Technology,2020,40（8）:818⁃825.（in Chinese）
|
| [24] |
GUAN D,LI S,SUI X,et al.Mechanism of influence of high⁃speed self⁃spin on ignition transients for a solid rocket motor:a numerical simulation[J].Propellants Explosives Pyrotechnics,2020,45（7）:1040⁃1055.
|
| [25] |
唐必顺,陈军,封锋,等.固体火箭发动机点火过程中点火具破膜过程的数值模拟[J].固体火箭技术,2013,36（6）:753⁃757.
TANG Bishun,CHEN Jun,FENG Feng,et al.Numerical simulation of diaphragm rupture process of igniter in ignition process of solid rocket motor[J].Journal of Solid Rocket Technology,2013,36（6）:753⁃757.（in Chinese）
|
| [26] |
郜治，刘平安，胡伟.长通道固体火箭发动机点火瞬态数值分析[J].哈尔滨工程大学学报,2011,32（8）:988⁃991.
GAO Ye，LIU PIngan，HU Wei.Numerical analysis of long passage SRM at ignition transient[J].Journal of Harbin Engineering University,2011,32（8）:988⁃991.（in Chinese）
|
| [27] |
孟亮飞.阶梯装药固体火箭发动机点火瞬态内流场特性研究[D].南京：南京理工大学,2011.
MENG Liangfei.Study on transient internal flow field characteristics of stepped charge solid rocket motor[D] Nanjing:Nanjing University of Science and Technology,2011.（in Chinese）
|
| [28] |
PERETZ A,KUO K K,CAVENY LH,et al.The starting transient of solid⁃propellant rocket motors with high internal gas velocities[R].AIAA⁃1972⁃1119,1972.
|
| [29] |
GREATRIX D R,GOTTLIEB J.Model for prediction of normal acceleration augmentation of composite propellant combustion[J].Mental Retardation,1987,7（2）:3⁃6.
|
| [30] |
樊超.尾部点火双推力发动机点火过程研究[D].长沙：国防科学技术大学,2010.
FAN Chao.Investigation of ignition transient in dual⁃trust rocket motors with aft⁃end igniter[D].Changsha:National Defense Science and Technology University,2010.（in Chinese）
|
| [31] |
张为华,雷碧文.固体火箭发动机点火器的工程设计和流量估算[J].推进技术,1991（5）:71⁃80.
ZHANG Weihua,LEI Biwen.The engineering design and mass flow rate estimation of igniter in SRM[J].Journal of Propulsion Technology,1991（5）:71⁃80.（in Chinese）
|
