Influence of rotor diameter‑distance ratio on performance of fuel cell gas circulating pump

doi: 10.13224/j.cnki.jasp.20210348
  • 1.

    School of Energy and Power Engineering，Lanzhou University of Technology，Lanzhou 730050，China

  • 2.

    Wenzhou Pump and Valve Engineering Research Institute，Lanzhou University of Technology，Wenzhou Zhejiiang 325100，China

  • 3.

    Beijing Spacecrafts，China Academy of Space Technology，Beijing 100094，China

Funds:

 G20190017

 20JR5RA452

  • Received Date: 2021-07-05
    Abstract

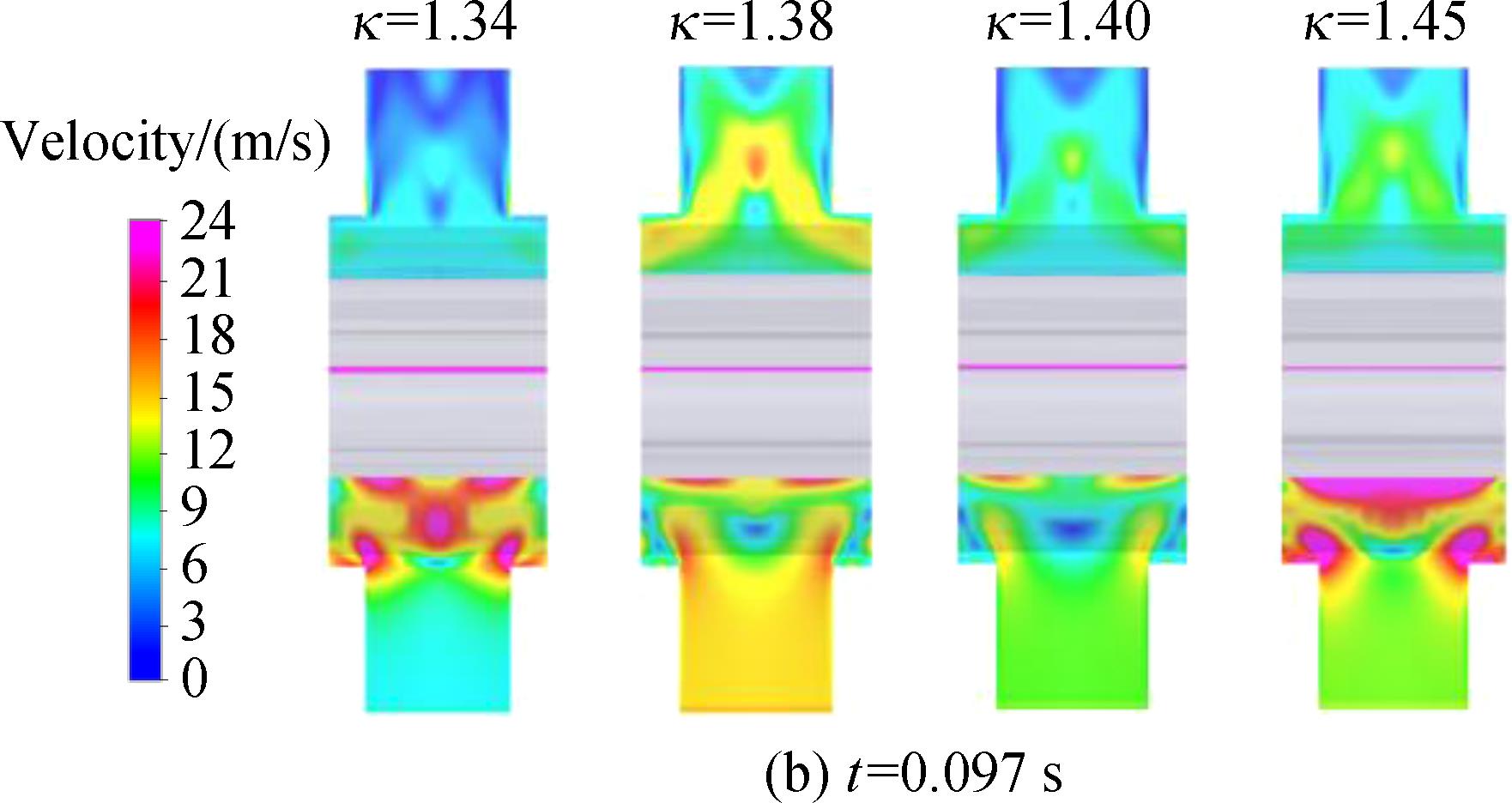

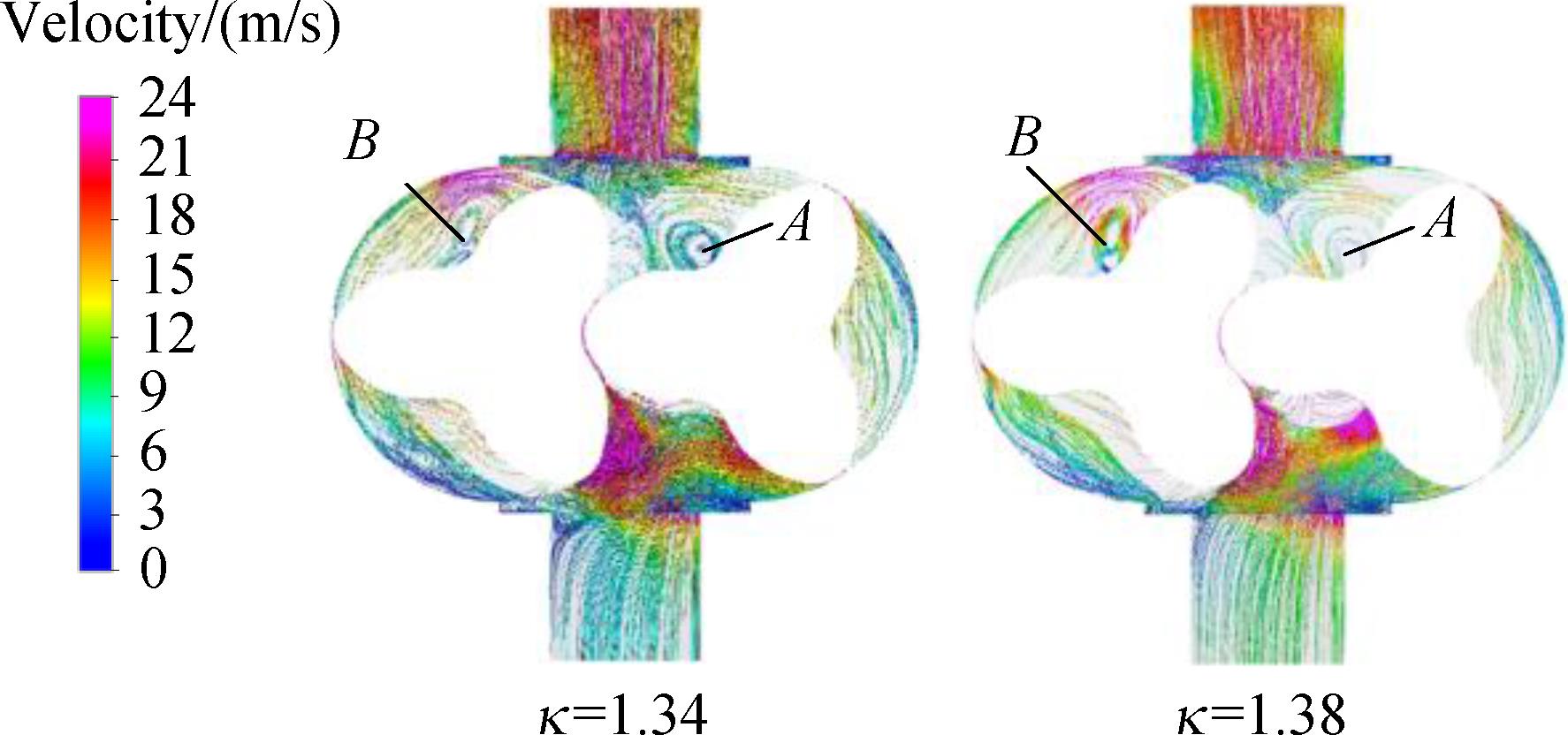

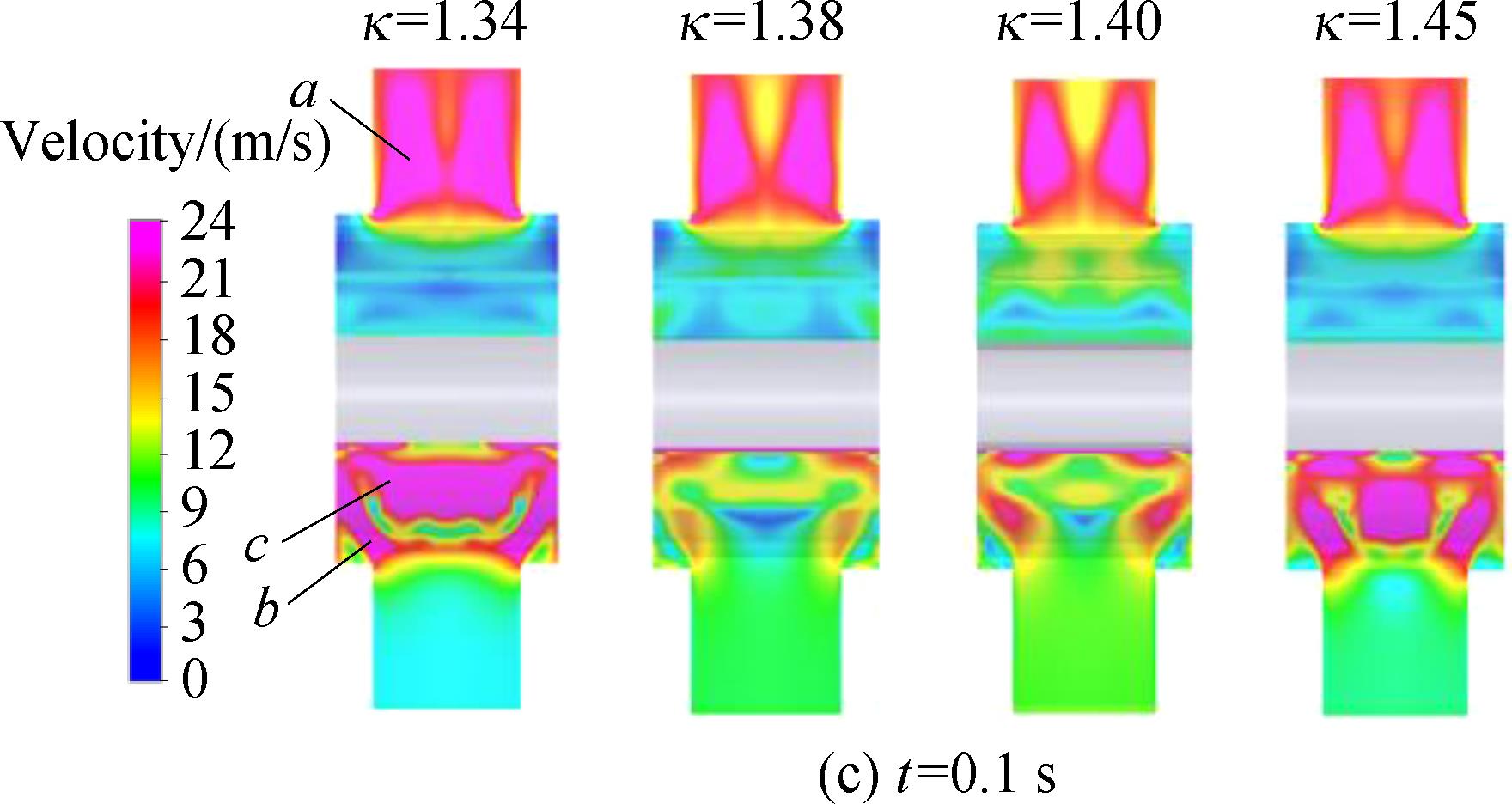

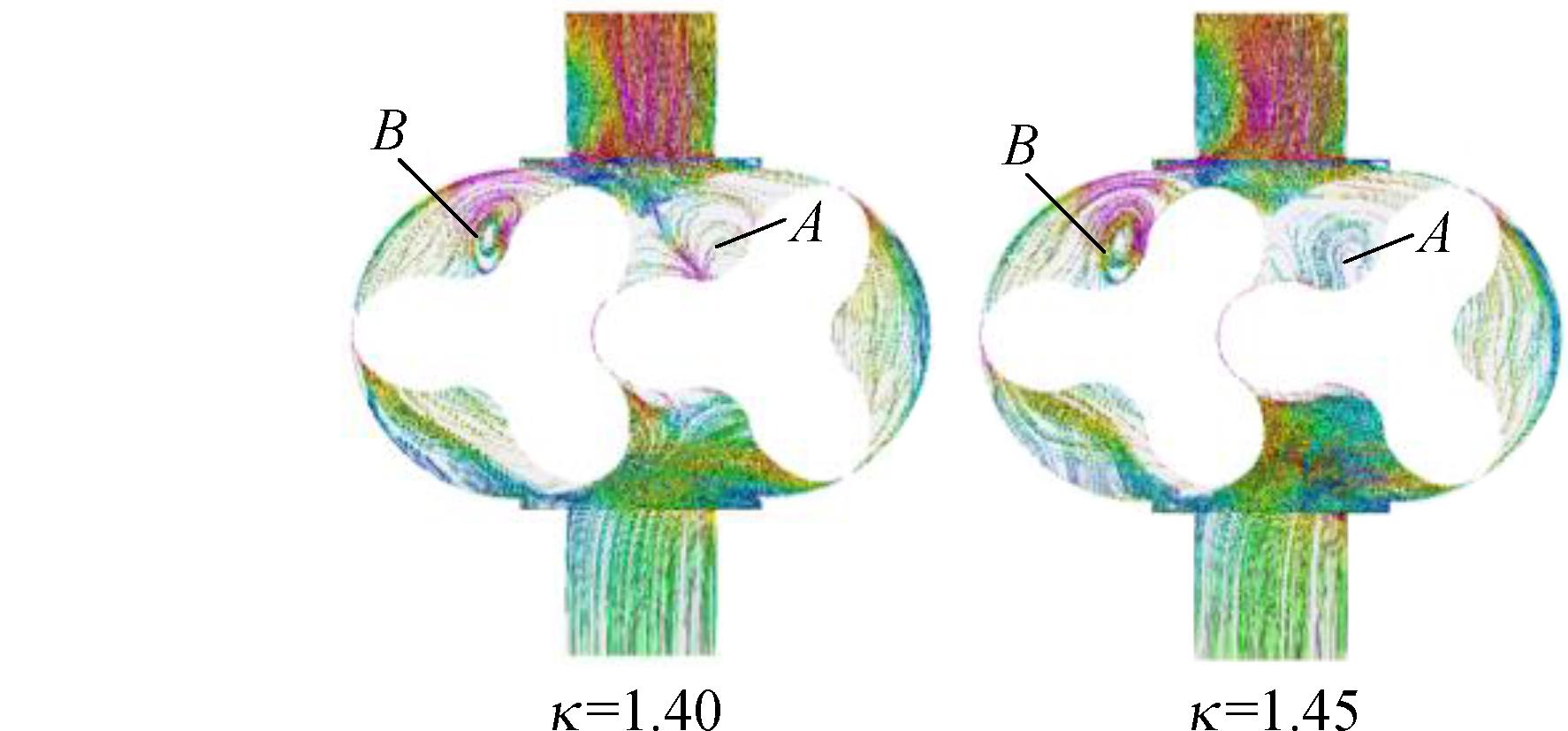

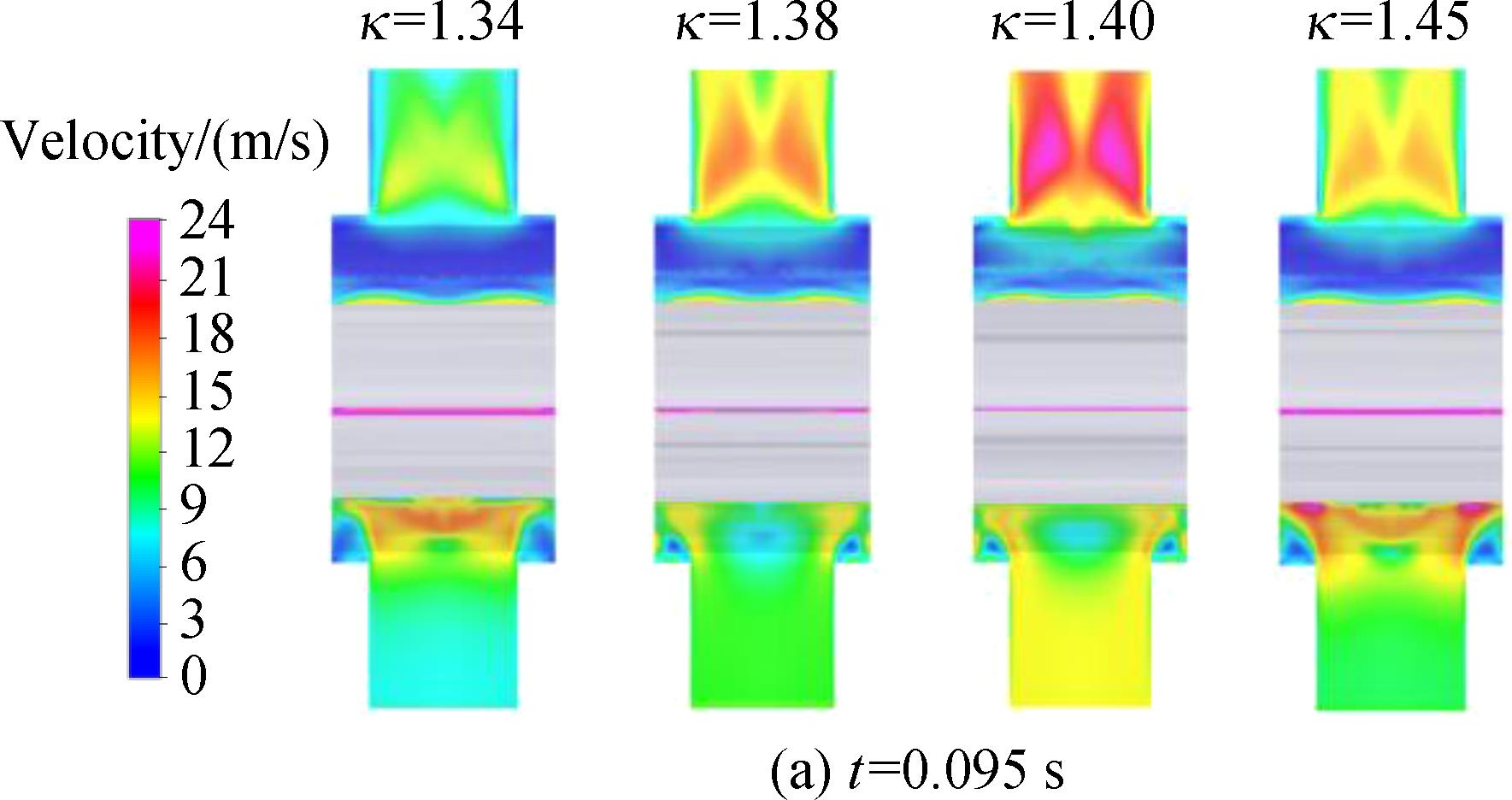

  • In order to reveal the influence of the diameter⁃distance ratio on the aerodynamic performance of the cam⁃type gas circulating pump，a three⁃lobe arc⁃involute⁃arc rotor profile equation was derived through coordinate transformation，and 6 gas circulations with different diameter ratios were established to compare and analyze the pump model.The re⁃normalization group k⁃ε （RNG k⁃ε） turbulence model was used to calculate the three⁃dimensional unsteady numerical simulation inside the rotor cavity，and in combination with the dynamic grid technology，the influence of the rotor diameter ratio on the volume flow characteristics of the gas circulating pump and the velocity distribution of the rotor cavity was analyzed，and the results were compared with the experimental results.The results showed that the rotor diameter‑distance ratio had a significant influence on the performance of the gas circulating pump.As the rotor diameter⁃distance ratio increased from 1.34 to 1.45，the average volume flow and instantaneous volume flow pulsation at the outlet of the pump showed an upward trend，and the changes were more obvious between 1.38-1.40.The average volume flow increased by 0.001 833 m3/s （15.8%）；when the rotor diameter⁃distance ratio was 1.38-1.40，the rotor received better force，the suppression of the radial excitation force component Fx of the rotor was more obvious，and the influence on the rotor radial excitation force component Fy was not significant；the vorticity distribution in the rotor cavity changed significantly with the variation of the diameter⁃distance ratio.When the rotor diameter⁃distance ratio was 1.40，the vorticity distribution in the rotor cavity was smaller，which effectively suppressed gas backflow.



    • FullText(HTML)
  • loading
    • References(19)
  • [1]
    ZHAO X，VACCA A.Numerical analysis of theoretical flow in external gear machines[J].Mechanism and Machine Theory,2017，108:41⁃56.
    [2]
    SUN S K，ZHAO B，JIA X H，et al.Three⁃dimensional numerical simulation and experimental validation of flows in working chambers and inlet/outlet pockets of Roots pump[J].Vacuum，2017，137:195⁃204.
    [3]
    刘振超，何雪明，黄海楠.NURBS曲线在罗茨泵转子型线设计中的应用[J].食品与机械.2019，35（7）:110⁃116.

    LIU Zhenchao，HE Xuemin，HUANG Hainan.Application of NURBS curve in roots pump rotor profile design[J].Food and Machinery,2019,35（7）:110⁃116.（in Chinese）
    [4]
    朱超颖，林景殿，苏中地.一种新罗茨转子型线的构成方法[J].真空科学与技术学报，2015，35（12）:1449⁃1452.

    ZHU Chaoyin，LIN Jingdian，SU Zhongdi.A novel type of roots rotor profile[J].Chinese Journal of Vacuum Science and Technology,2015,35（12）:1449⁃1452.（in Chinese）
    [5]
    李玉龙，臧勇，赵岩，等.转子泵容积利用系数的通用计算模型[J].排灌机械工程学报，2021，39（2）:116⁃121.

    LI Yulong，ZANG Yong，ZHAO Yan，et al.General calculation model of effective volume utilization coefficient for rotor pumps[J].Journal of Drainage and Irrigation Machinery Engineering，2021，39（2）:116⁃121.（in Chinese）
    [6]
    刘玉岱.圆弧⁃摆线⁃渐开线型罗茨轮型线啮合分析[J].真空,1995（6）：18⁃22

    LIU Yudai.Meshing analysis for roots rotor profile of arc⁃cycloid⁃involute type[J].Vacuum,1995（6）：18⁃22.（in Chinese）
    [7]
    杨向莙,孙付春.泵用转子共轭型线段的通用求解模型研究[J].真空科学与技术学报,2019,39（8）:667⁃671.

    YANG Xiangjun，SUN Fuchun.Universal solution to conjugated profiles of roots⁃pump rotor：a theoretical study[J].Chinese Journal of Vacuum Science and Technology，2019,39（8）:667⁃671.（in Chinese）
    [8]
    姜希彤，宋永兴，王君，等.曲爪型真空泵转子优化型线研究[J].真空，2014，51（2）：9⁃12.

    JIANG Xitong，SONG Yongxing，WANG Jun，et al.Study on the optimized profile of curved claw type vacuum pump rotor[J].Vacuum,2014,51（2）:9⁃12.（in Chinese）
    [9]
    HSIEH C F.A new curve for application to the rotor profile of rotary lobe pumps[J].Mechanism and Machine Theory，2015，87:70⁃81.
    [10]
    HSIEH C F，DENG Y C.A design method for improving the flow characteristics of a multistage roots pumps[J].Vacuum，2015，121:217⁃222.
    [11]
    HSIEH C F，ZHOU Q J.Fluid analysis of cylindrical and screw type roots vacuum pumps[J].Vacuum，2015，121:274‑282.
    [12]
    冯诗愚，周利彪,朱珍昱,等.双齿气体循环泵基本几何理论和容积计算[J].航空动力学报,2020,35（9）：1936⁃1942.

    FENG Shiyu，ZHOU Libiao，ZHU Zhenyu，et al.Basic geometric theory and volume calculation of double⁃tooth gas circulation pump[J].Journal of Aerospace Power,2020,35（9）：1936⁃1942.（in Chinese）
    [13]
    王君，刘瑞青，崔冬,等.新型椭圆弧型罗茨转子的几何理论及其性能分析[J].中国石油大学学报（自然科学版），2018，42（2）：136⁃141.

    WANG Jun，LIU Ruiqin，CUI Dong，et al.Geometric theory and performance of a novel elliptical arc roots rotor[J].Journal of China University of Petroleum（Edition of Natural Science） ，2018，42（2）：136⁃141.（in Chinese）
    [14]
    黎义斌,李龙,刘建峰,等.燃料电池气体循环泵多叶转子腔内部气动性能数值研究[J].西安交通大学学报，2021,55（3）:46⁃56.

    LI Yibin，LI Long，LIU Jianfeng，et al.Numerical study on the aerodynamic performance of multi⁃blade rotor cavity in the gas circulating pump of fuel cell[J].Journal of Xi'an Jiaotong University，2021,55（3）:46⁃56.（in Chinese）
    [15]
    JUNG S Y，HAN S M，CHO H Y，et al.Automated design system for a rotor with an ellipse lobe profile[J].Journal of Mechanical Science and Technology，2009，23（11）:2928⁃2937.
    [16]
    JUNG S Y，BAE J H，KIM M S，et al.Development of a new gerotor for oil pumps with multiple profiles[J].International Journal of Precision Engineering and Manufacturing,2011，12（5）:835⁃841.
    [17]
    HUANG Z F，LIU Z X.Numerical study of a positive displacement blower[J].Journal of Mechanical Engineering Science，2009,223（10）:2309⁃2316.
    [18]
    黄思,康文明,陈首挺,等.基于 CFD 的罗茨真空泵的瞬态流场计算与性能预测[J].重庆理工大学学报（自然科学）,2019,33（2）:62⁃66.

    HUANG Si，KANG Wenming，CHEN Shouting，et al.Transient flow simulation and performance prediction of roots vacuum pump based on CFD[J].Journal of Chongqing University of Technology （Natural Science）,2019,33（2）：62⁃66.（in Chinese）
    [19]
    王福军.流体机械旋转湍流计算模型研究进展[J].农业机械学报,2016,47（2）:1⁃14.

    WANG Fujun.Research progress of computational model for rotating turbulent flow in fluid machinery[J].Transactions of the Chinese Society for Agricultural Machinery，2016,47（2）:1⁃14.（in Chinese）
