| Citation: | CHEN Xiaosong, WU Wenqian, PAN Tianyu, et al. Influence of inlet guide vane angle on flow instability of hub instability compressor[J]. Journal of Aerospace Power, 2023, 38（1）：215-222 doi: 10.13224/j.cnki.jasp.20210355
|

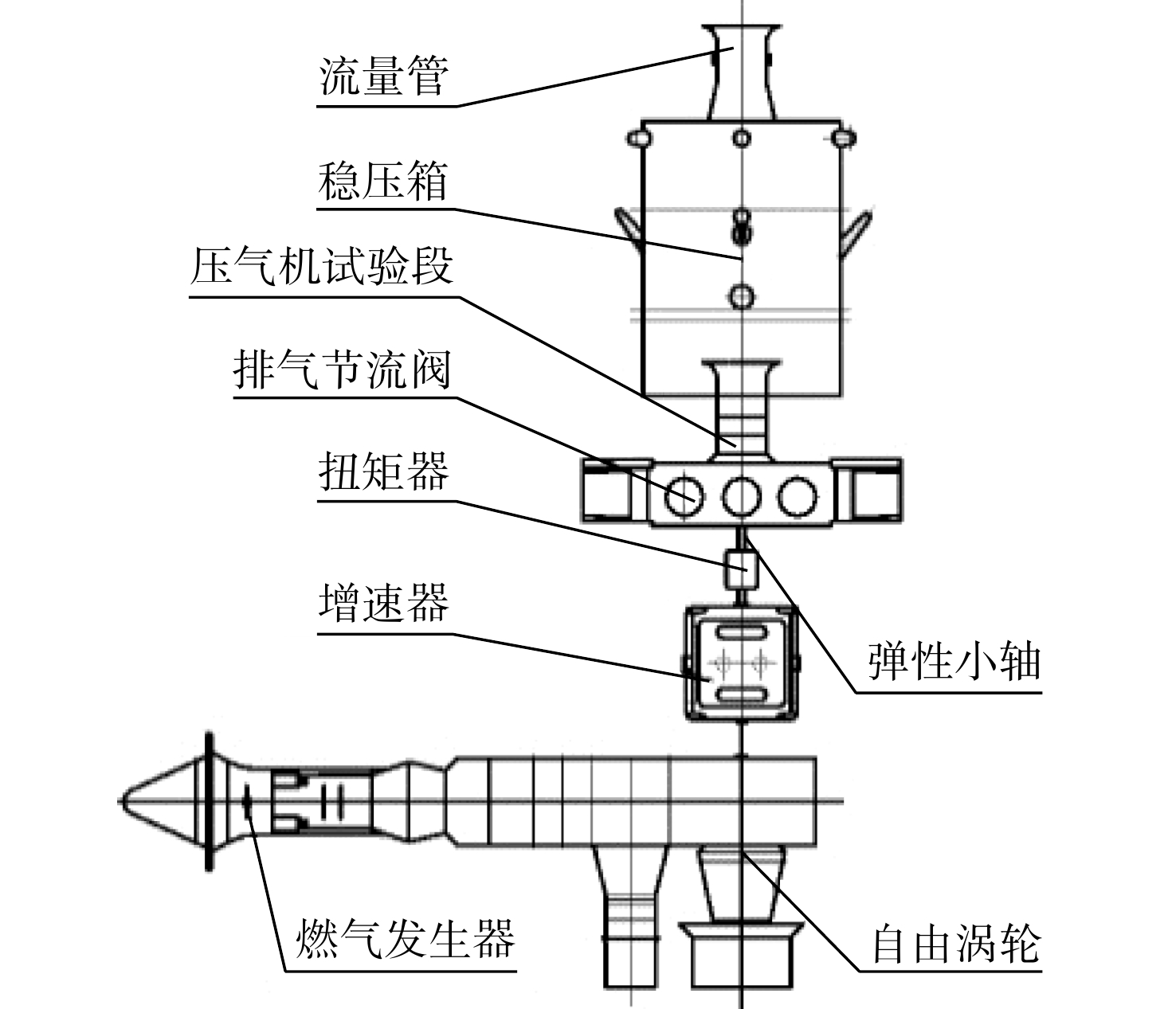

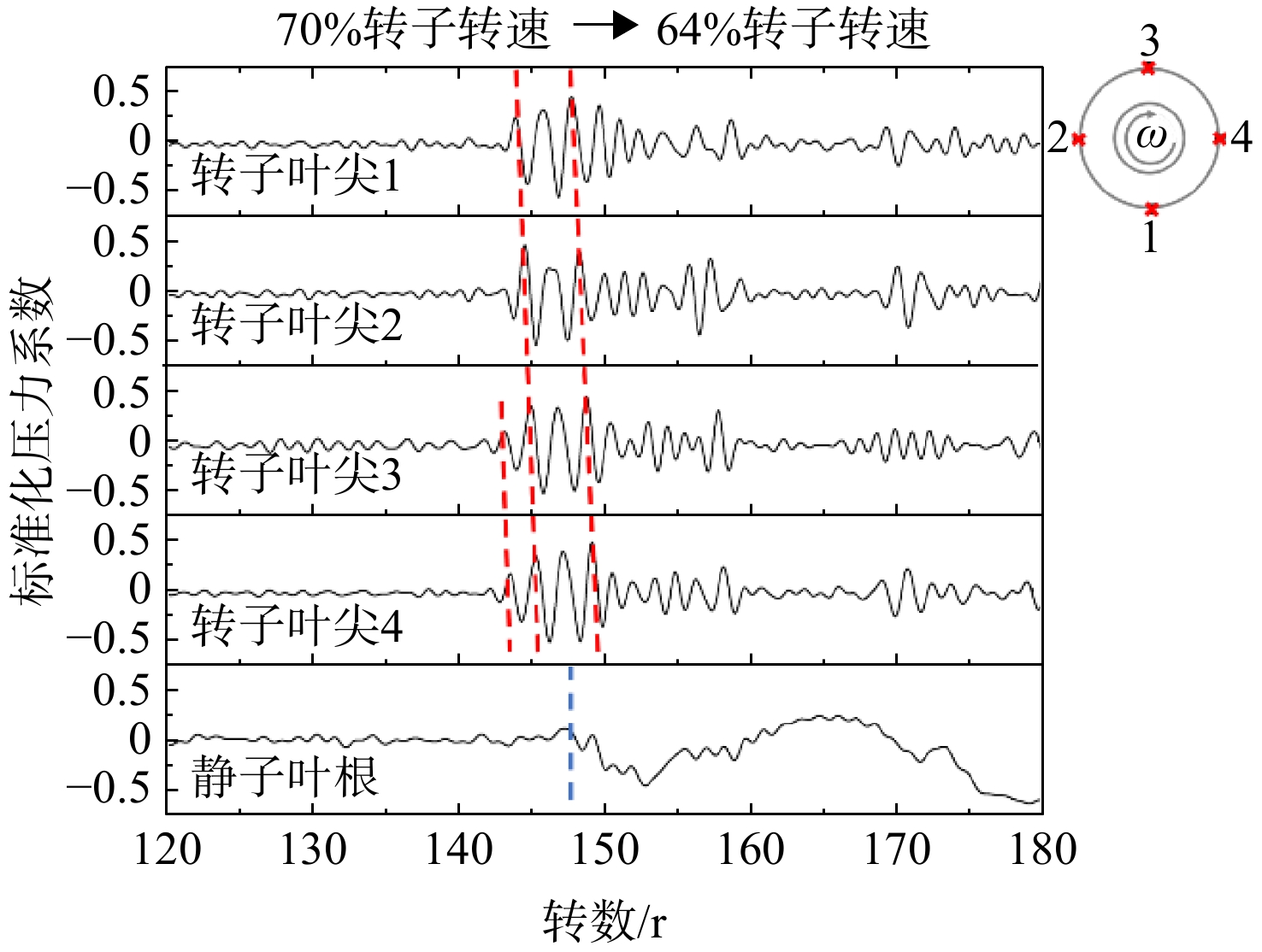

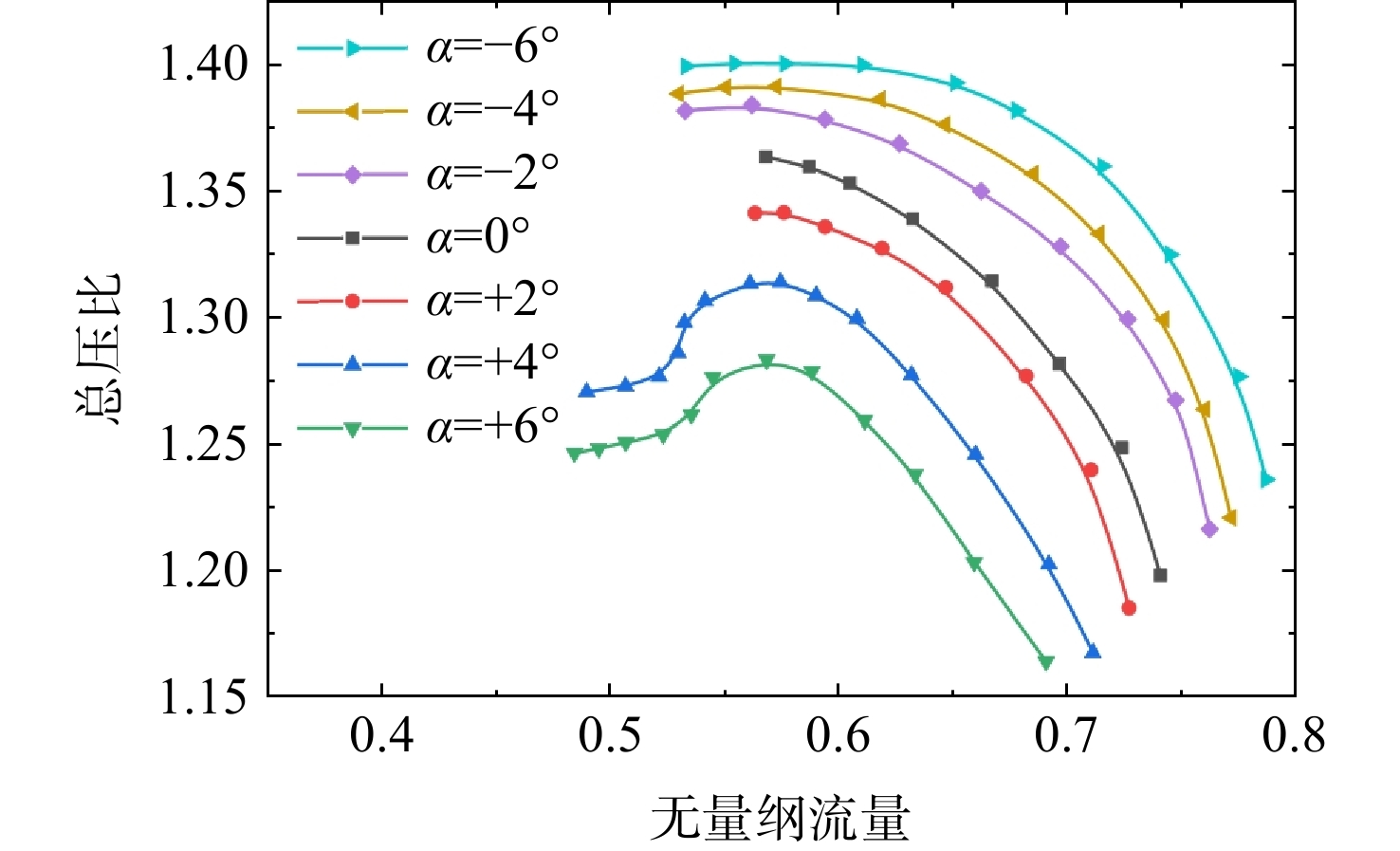

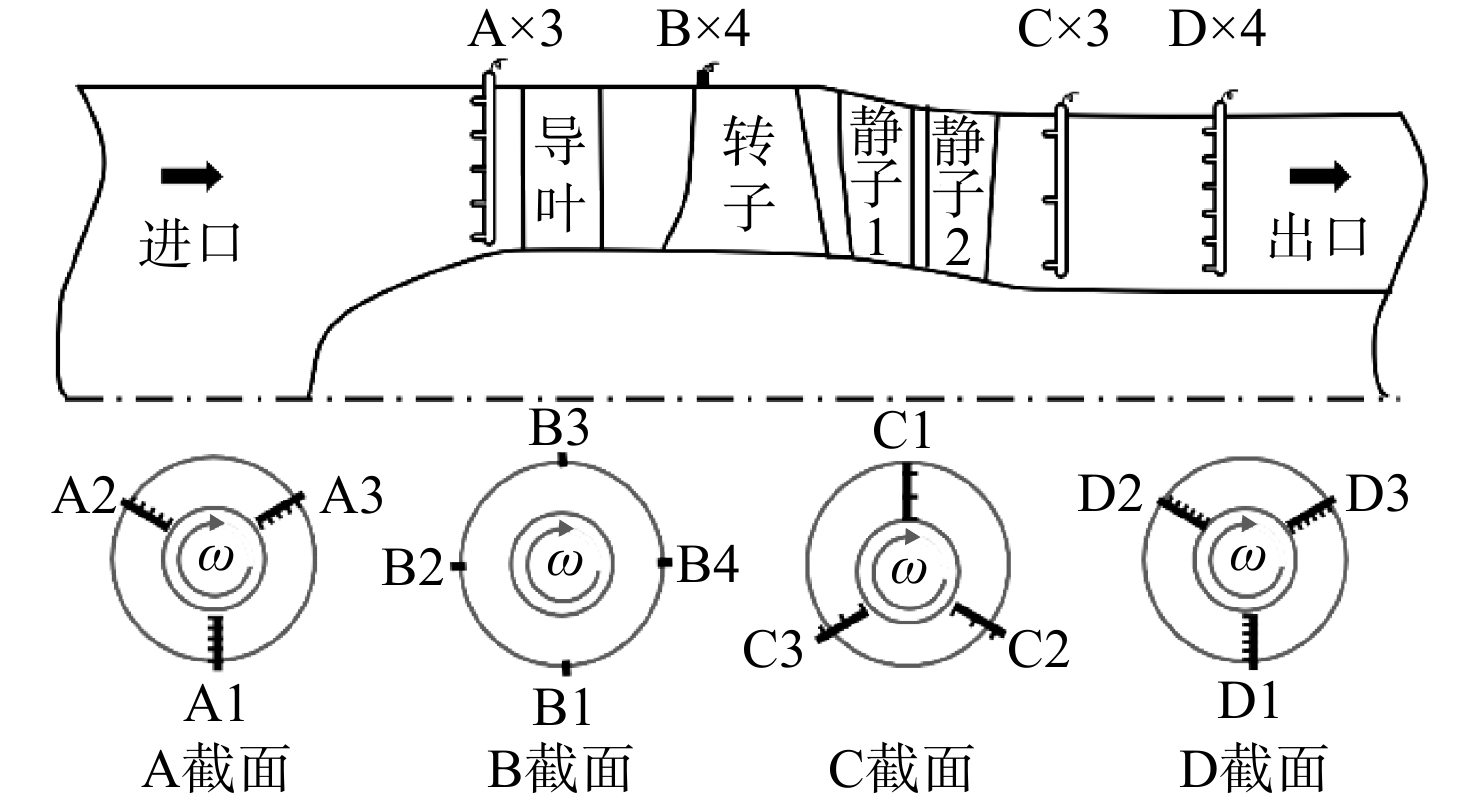

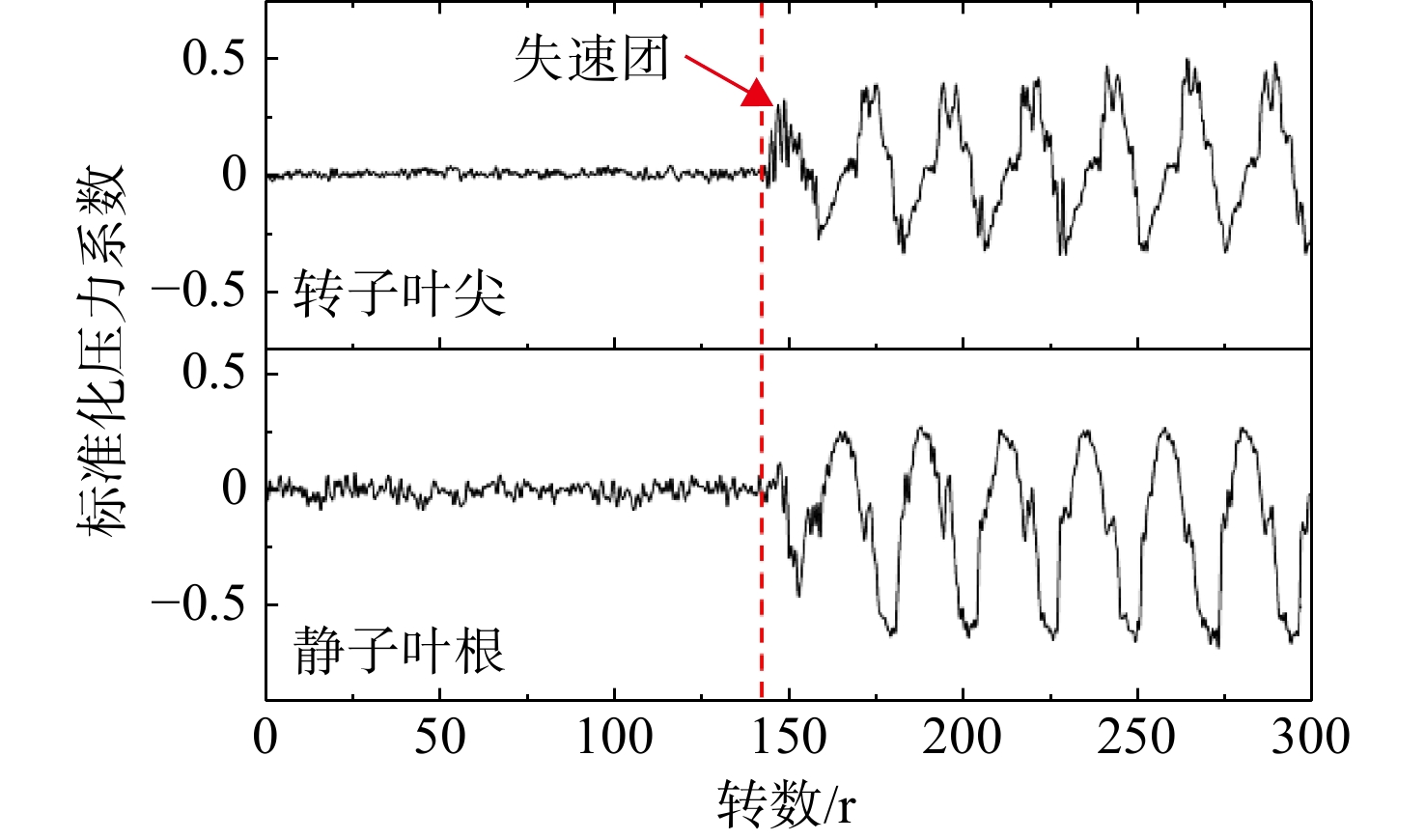

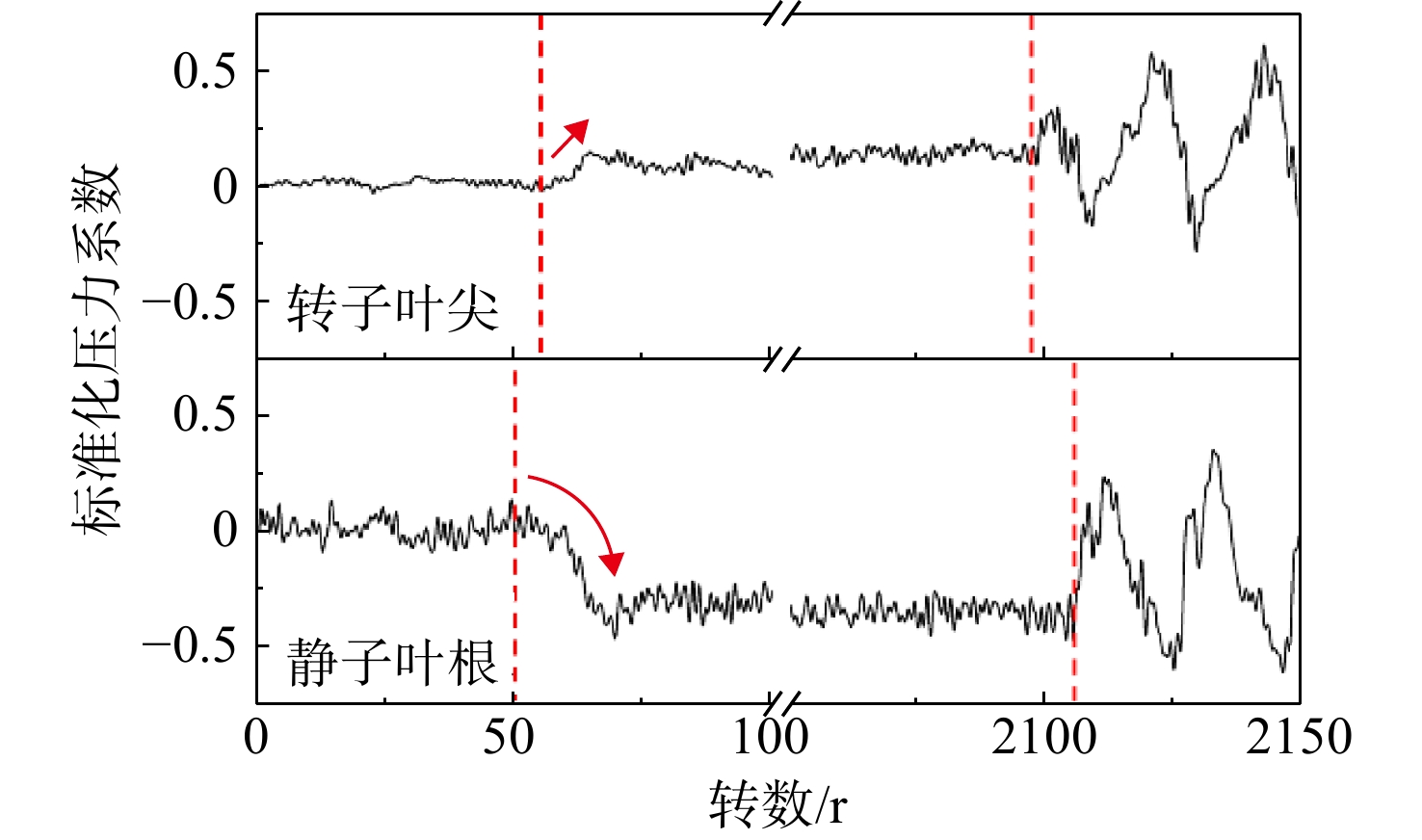

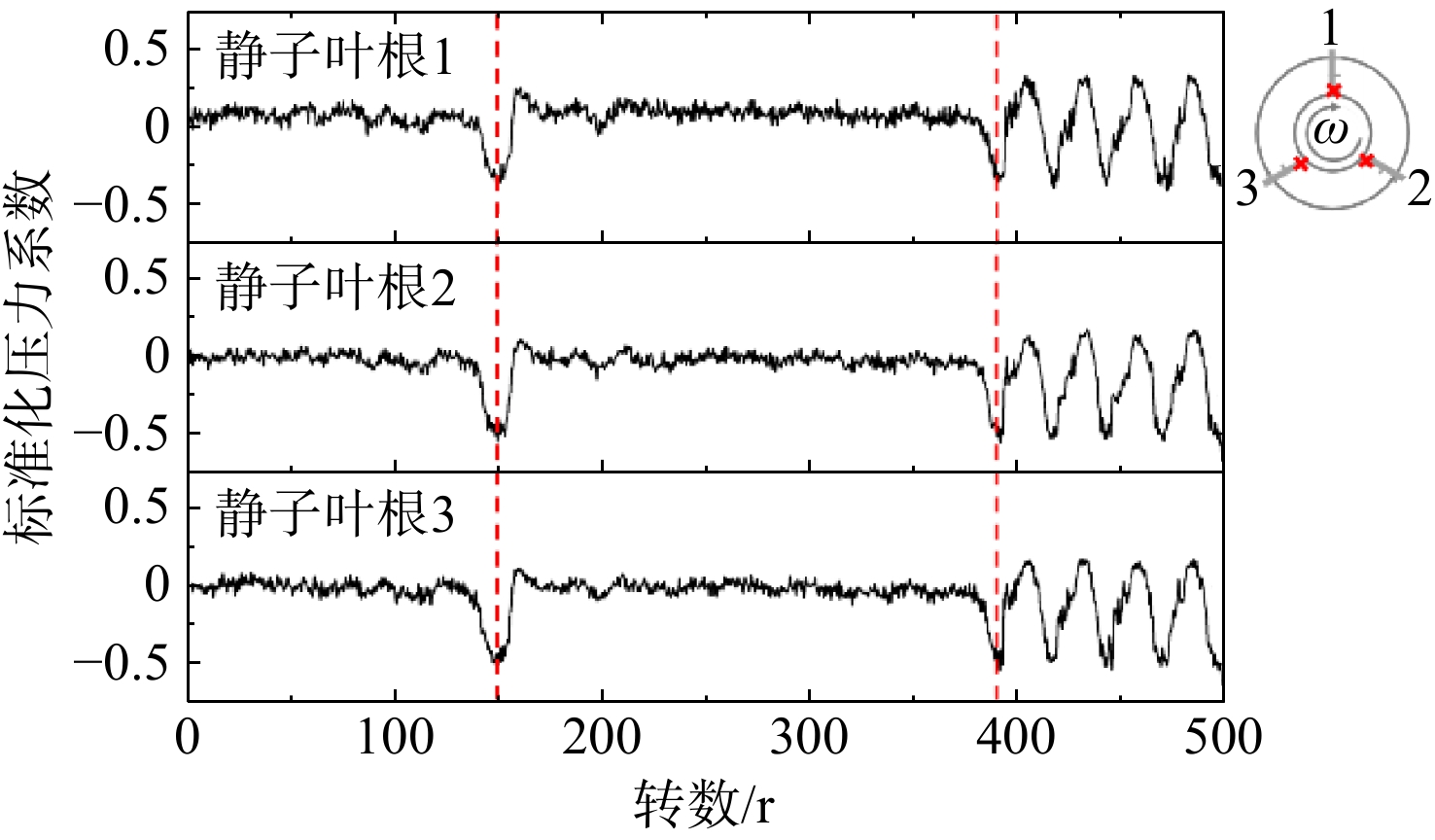

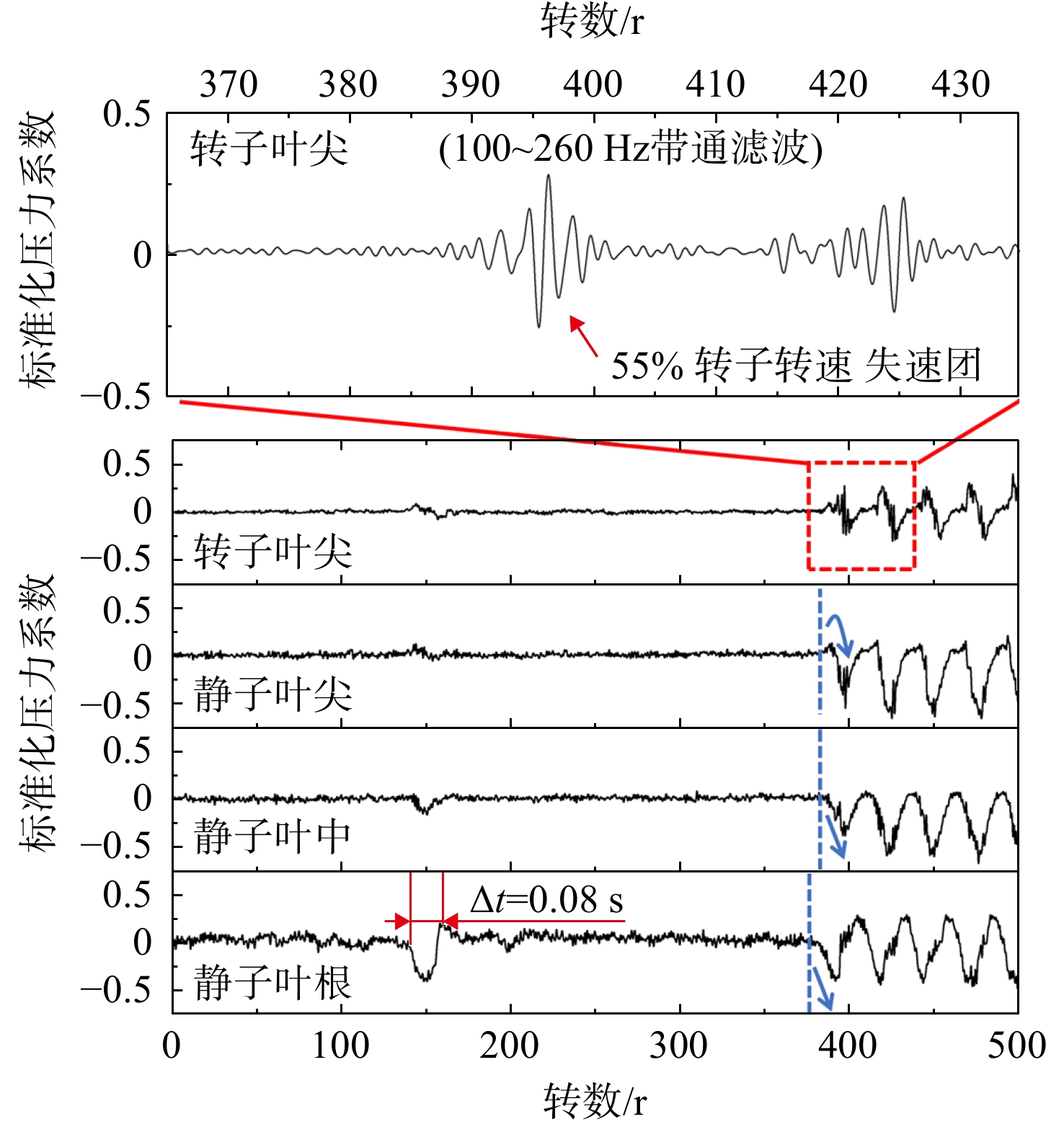

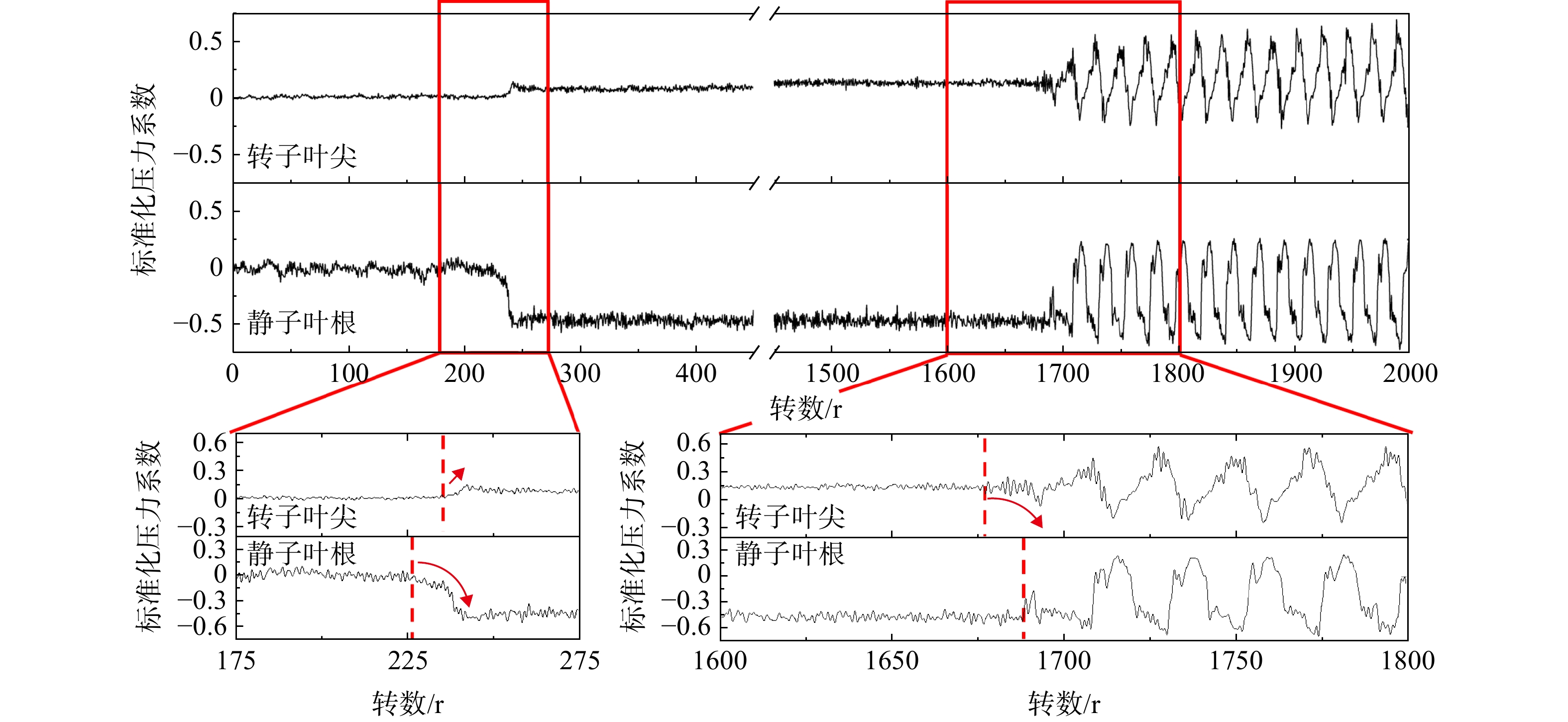

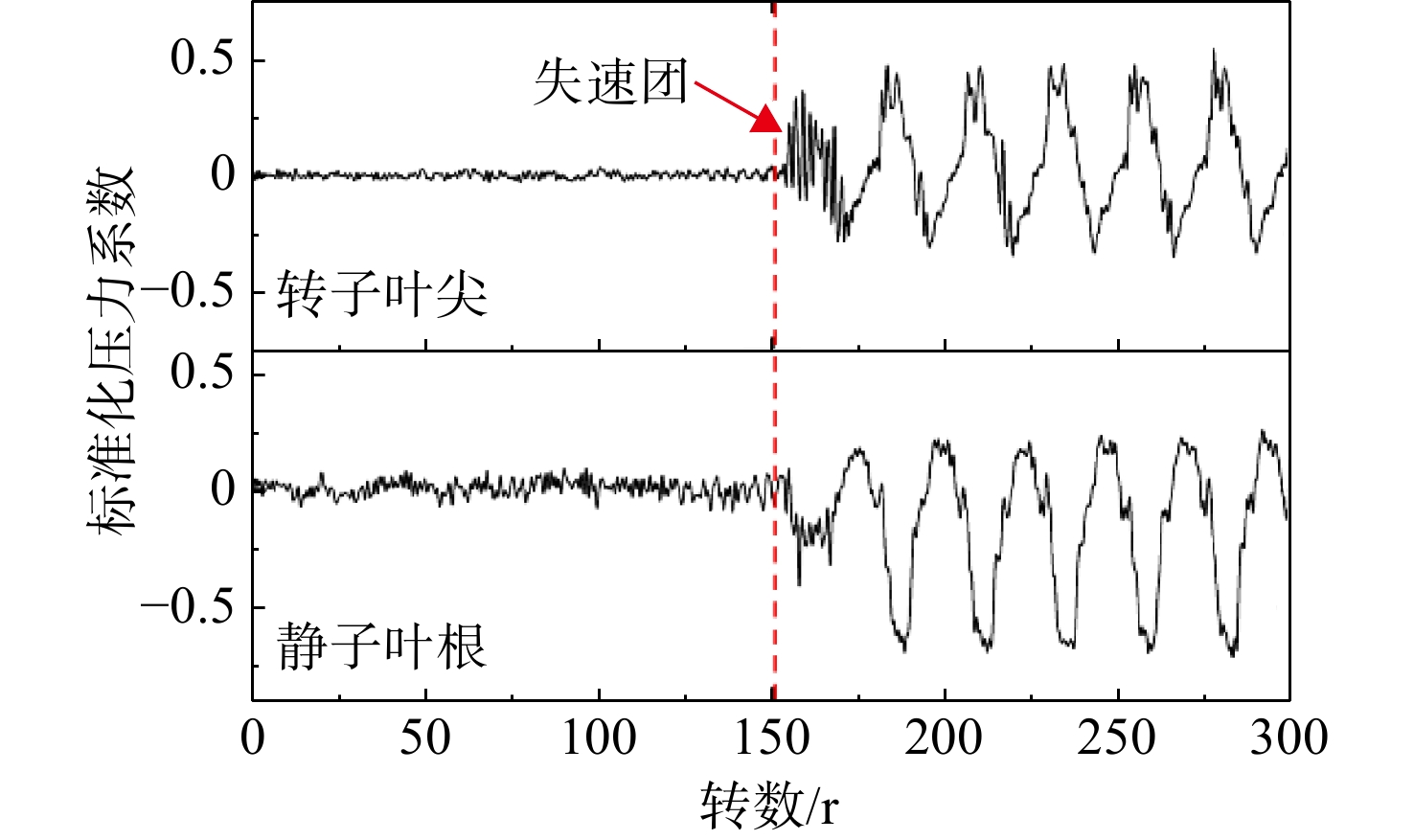

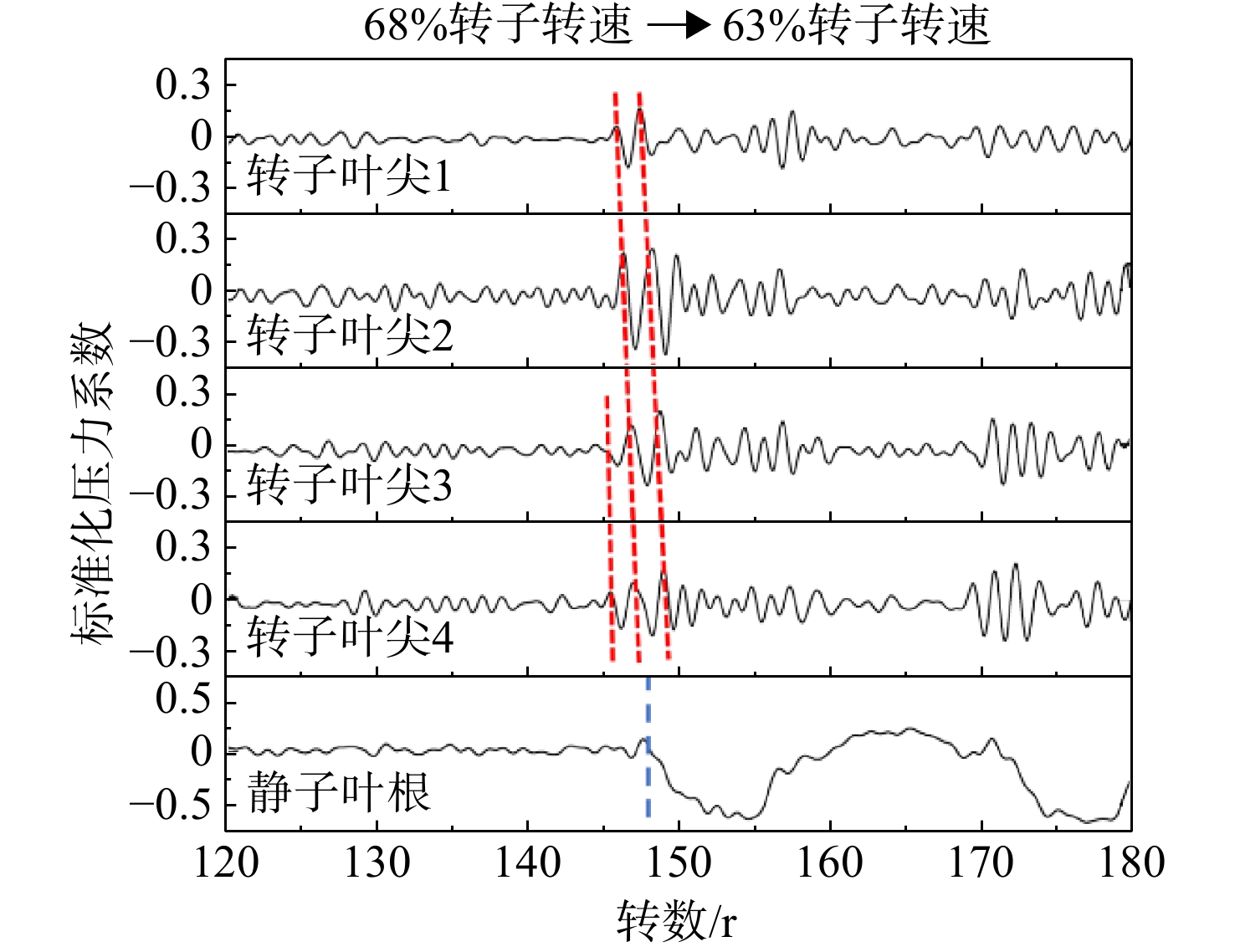

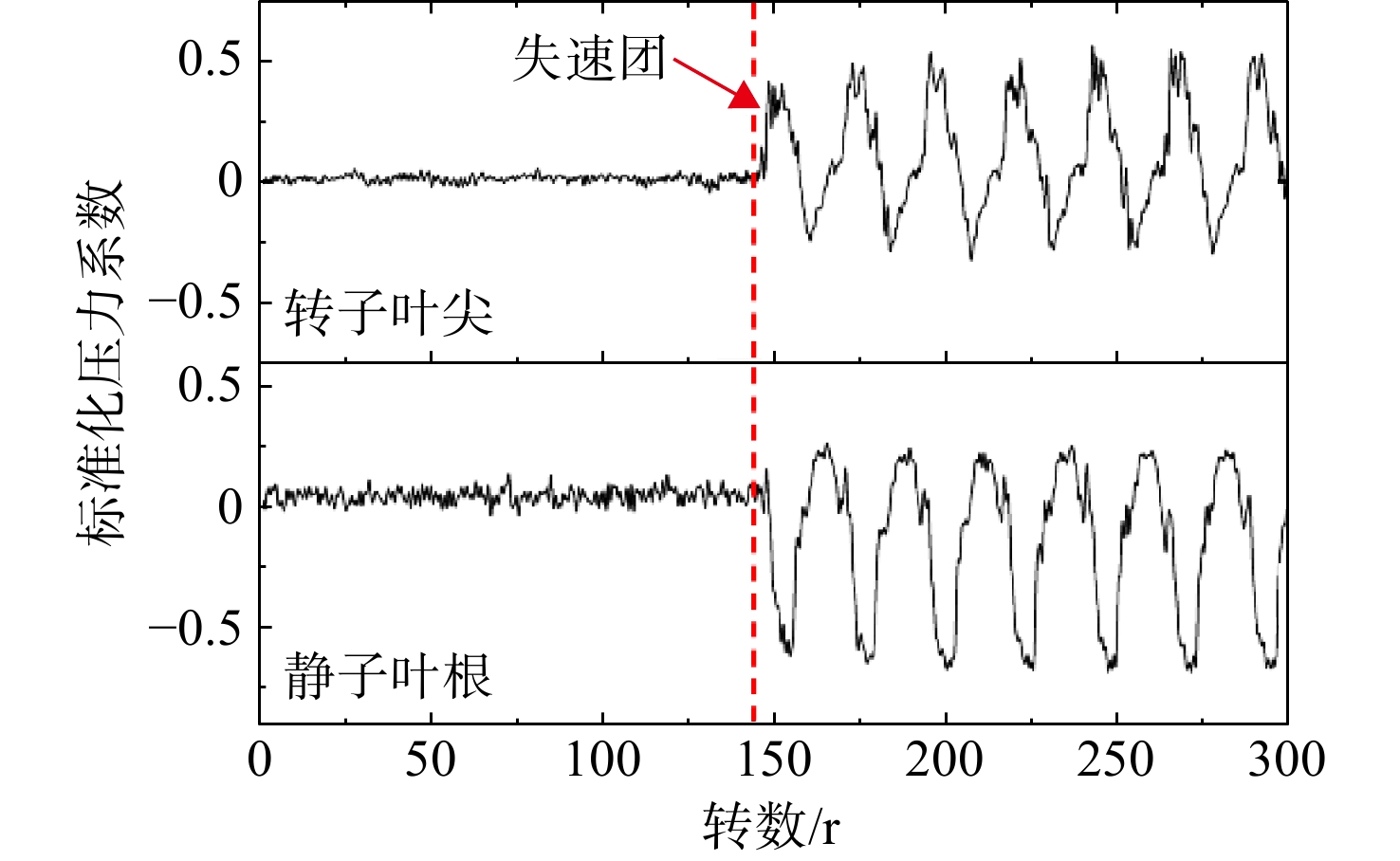

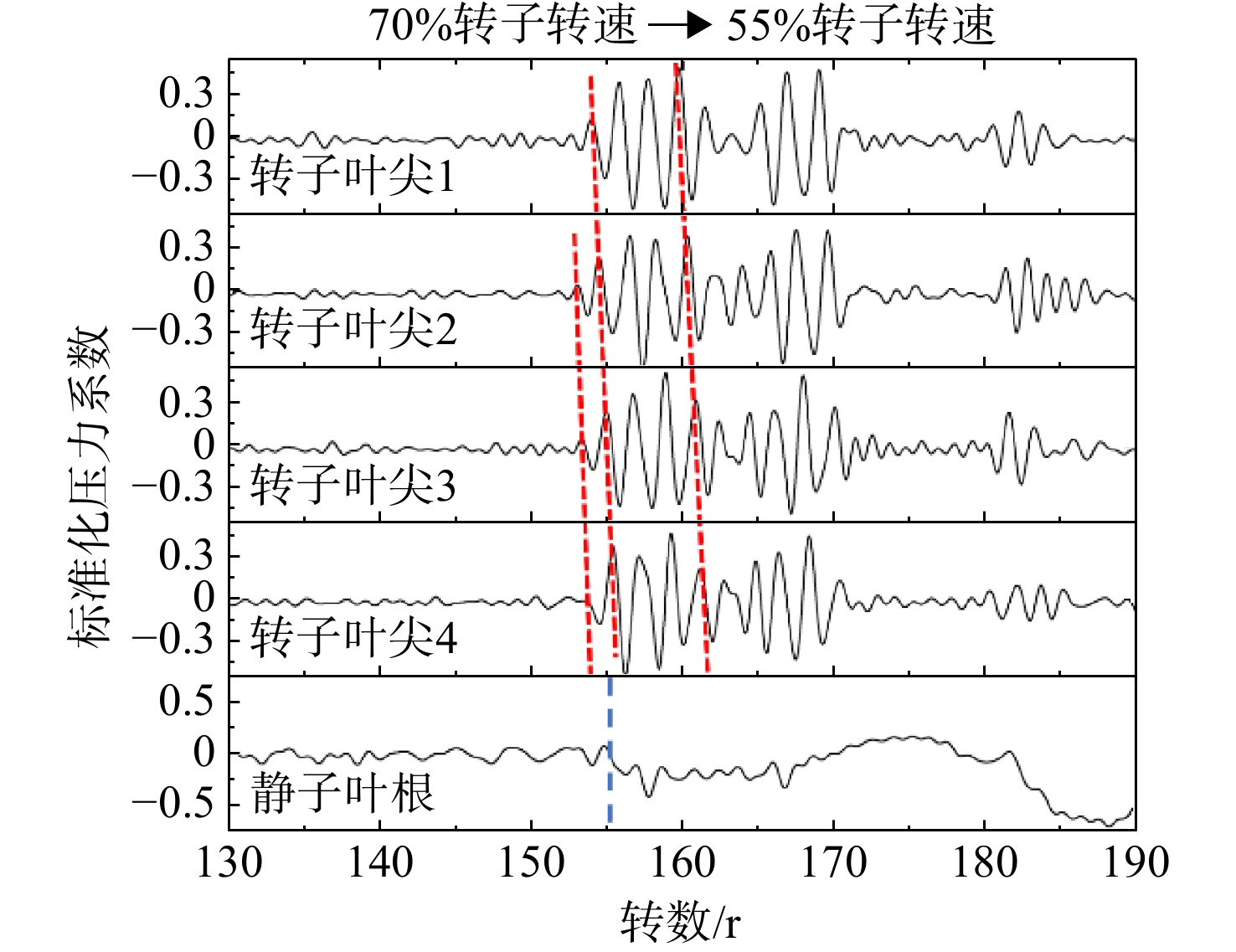

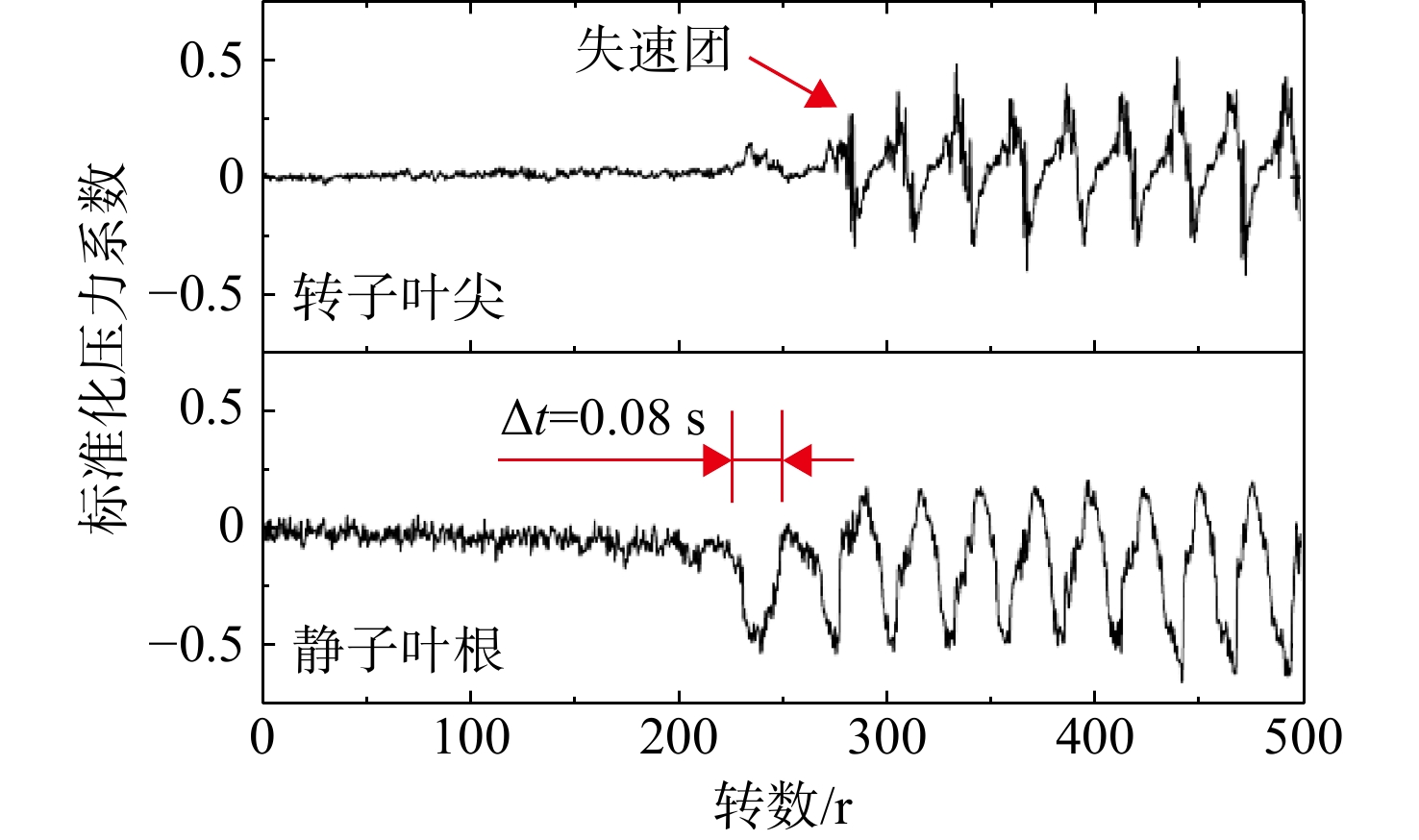

A high-speed aero-compressor with different instability precursors was taken as the research object. The inlet guide vane was installed to manipulate the compressor inlet pre-swirl angle. Several dynamic pressure transducers were arranged to measure the whole instability evolutions. The instability precursor and the evolutions were observed under different inlet guide vane angles. The results showed that at negative inlet guide vane angle, the compressor instability was caused by the spike in the rotor tip region. At zero inlet guide vane angle and small positive inlet guide vane angle, the instability was induced by the partial surge in the stator hub region. Under the condition of large positive inlet guide vane angle, local instability occurred at stator hub first in the process of throttling, and led to complete compressor instability with further throttling in form of rotating stall cells at the tip. The analysis showed that the increase of the inlet guide vane angle adjusted the load distribution between the rotor and the stator by reducing the degree of reaction, thus causing the instability precursors to change from “spike at rotor- partial surge at stator-local instability at stator” as described above.
| [1] |
EMMONS H W,PEARSON C E,GRANT H P. Compressor surge and stall propagation[J]. Transactions of the ASME,1955,77(4): 455-469.
|
| [2] |
DAY I J. Stall inception in axial flow compressors[J]. Journal of Turbomachinery,1993,115(1): 1-9. doi: 10.1115/1.2929209
|
| [3] |
DAY I J,FREEMAN C. The unstable behavior of low and high-speed compressors[J]. Journal of Turbomachinery,1994,116(2): 194-201. doi: 10.1115/1.2928353
|
| [4] |
MAILACH R,SAUER H,VOGELER K.The periodical interaction of the tip clearance flow in the blade rows of axial compressors[R].ASME Paper 2001-GT-0299,2001.
|
| [5] |
RICK D,AHMET S,PHILIP K,et al. Prediction of surge in a turbocharger compression system vs.measurements[J]. International Journal of Engines,2011,4(2): 2181-2192.
|
| [6] |
CAMP T R,DAY I J. A study of spike and modal stall phenomena in a low-speed axial compressor[J]. Journal of Turbomachinery,1998,120(3): 393-401. doi: 10.1115/1.2841730
|
| [7] |
HAH C,SCHULZE R,WAGNER S,et al.Numerical and experimental study for short wavelength stall inception in a low-speed axial compressor[R].Florence,Italy:the 14th International Symposium on Air Breathing Engines,1999.
|
| [8] |
PULLAN G,YOUNG A M,DAY I J,et al. Origins and structure of spike-type rotating stall[J]. Journal of Turbomachinery,2015,137(5): 051007.1-051007.11.
|
| [9] |
WEICHERT S,DAY I J. Detailed measurements of spike formation in an axial compressor[J]. Journal of Turbomachinery,2014,136(5): 051006.1-051006.9.
|
| [10] |
MAILACH R,LEHMAN I,VOGELER KAND. Rotating instabilities in an axial compressor originating from the fluctuating blade tip vortex[J]. Journal of Turbomachinery,2001,123(3): 453-460. doi: 10.1115/1.1370160
|
| [11] |
DODDS J,VAHDATI M. Rotating stall observations in a high speed compressor: Part ⅱ numerical study[J]. Journal of Turbomachinery,2015,137(5): 1-10.
|
| [12] |
LI Q S,PAN T Y,SUN T L,et al. Experimental investigations on instability evolution in a transonic compressor at different rotor speeds[J]. Journal of Mechanical Engineering Science,2015,229(18): 3378-3391. doi: 10.1177/0954406215573779
|
| [13] |
潘天宇,贺雷,王正鹤,等.局部喘振频率特性及估算方法[J].航空动力学报, 2015,30(11):2666-2672.
PAN Tianyu,HE Lei,WANG Zhenghe,et al. Study on the frequency of partial surge and a frequency prediction method[J].Journal of Areospace Power,2015,30(11):2666-2672.(in Chinese)
|
| [14] |
潘天宇,孙太璐,李志平,等. 局部喘振的发生机理[J]. 航空动力学报,2016,31(4): 877-885. doi: 10.13224/j.cnki.jasp.2016.04.014
PAN Tianyu,SUN Tailu,LI Zhiping,et al. Occurrence mechanism of partial surge[J]. Journal of Areospace Power,2016,31(4): 877-885. (in Chinese) doi: 10.13224/j.cnki.jasp.2016.04.014
|
| [15] |
PAN T Y,LI Q S,LI Z P,et al. Effects of radial loading distribution on partial-surge-initiated instability in a transonic axial flow compressor[J]. Journal of Turbomachinery,2017,139(10): 101010.1-101010.13.
|
| [16] |
DAY I J. Axial compressor performance during surge[J]. Journal of Propulsion and Power,1994,10(3): 329-336. doi: 10.2514/3.23760
|
| [17] |
NIE C Q,An experimental investigation on different radial loading distribution and patterns of stall inception in a single-stage low-speed axial compressor[R].ASME Paper GT2003-38090,2003.
|
