| Citation: | YIN Yu, YANG Tianwei, ZHOU Hua, et al. Efficient spray combustion simulations using the characteristic timescale model[J]. Journal of Aerospace Power, 2023, 38（1）：104-115 doi: 10.13224/j.cnki.jasp.20210366
|

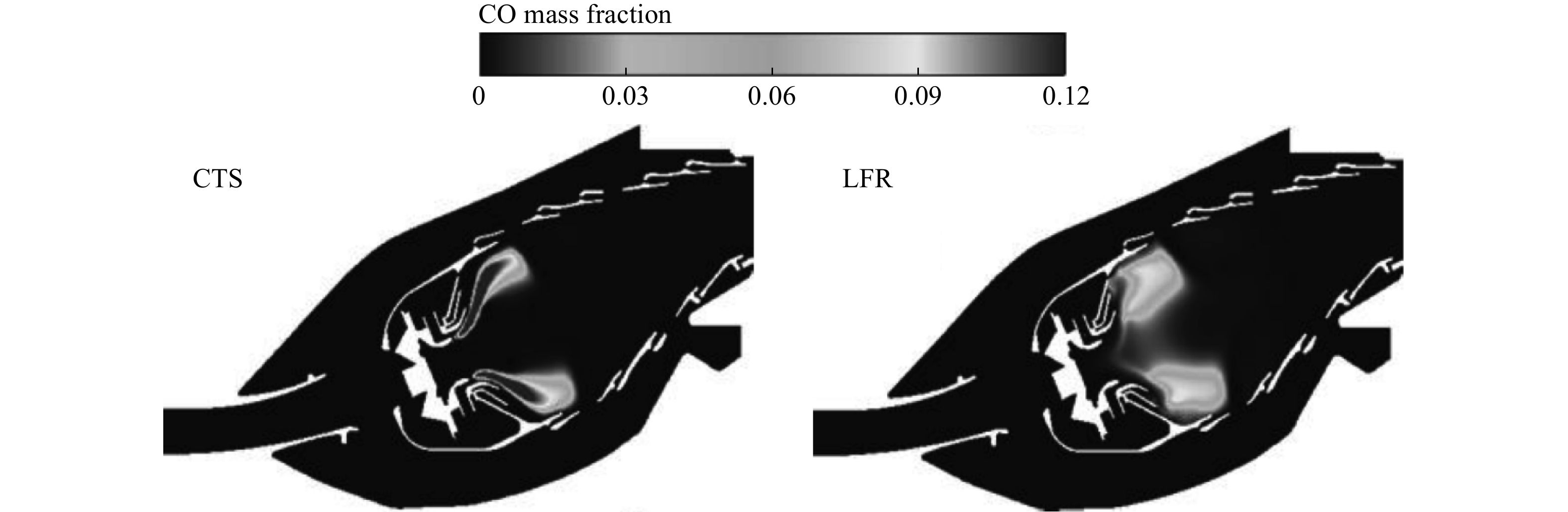

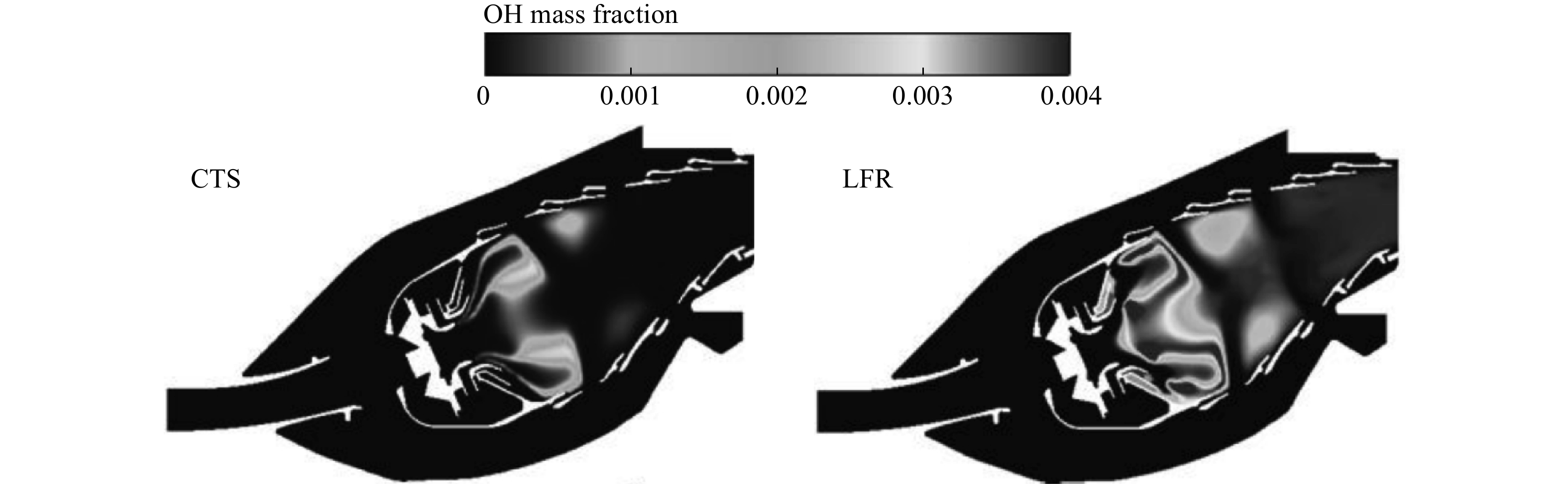

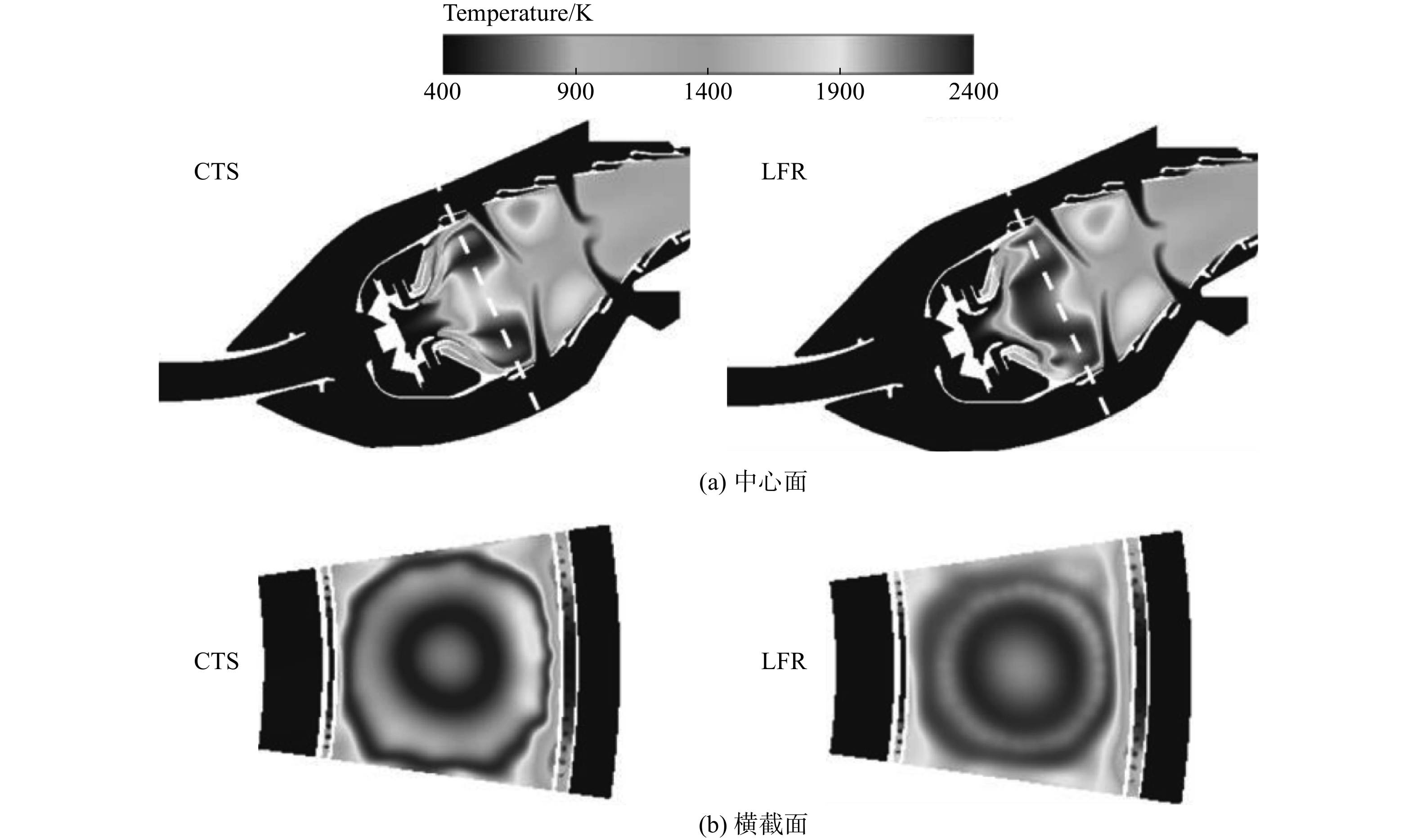

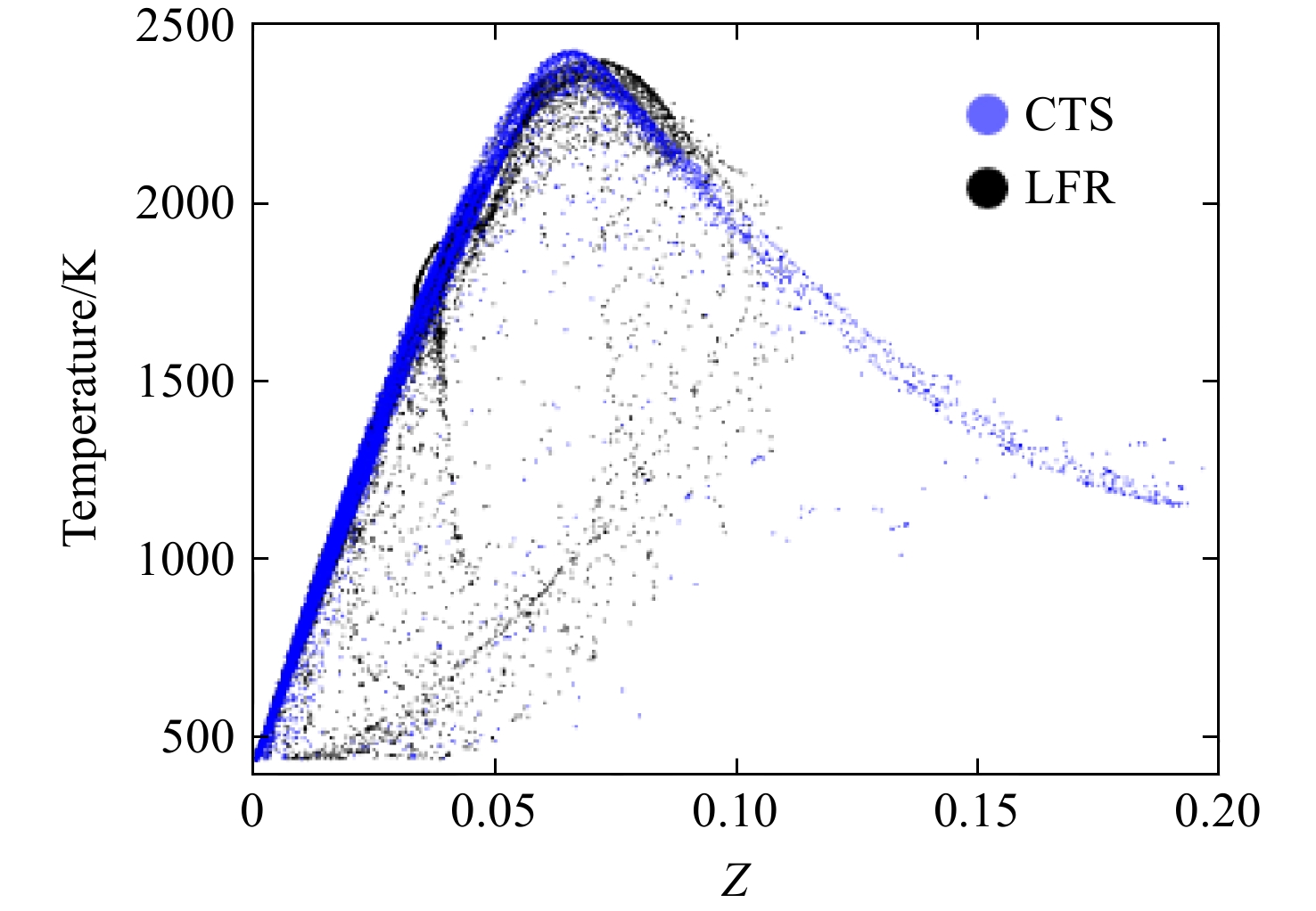

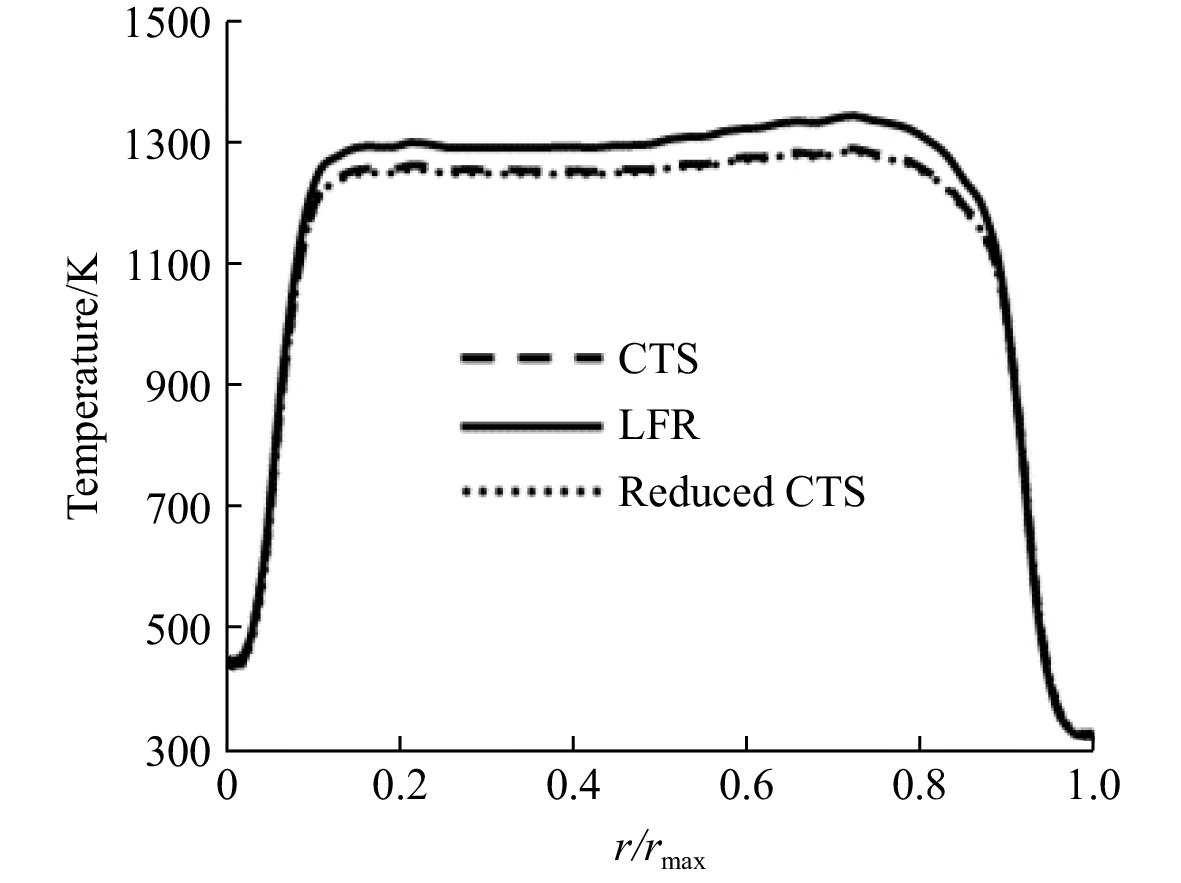

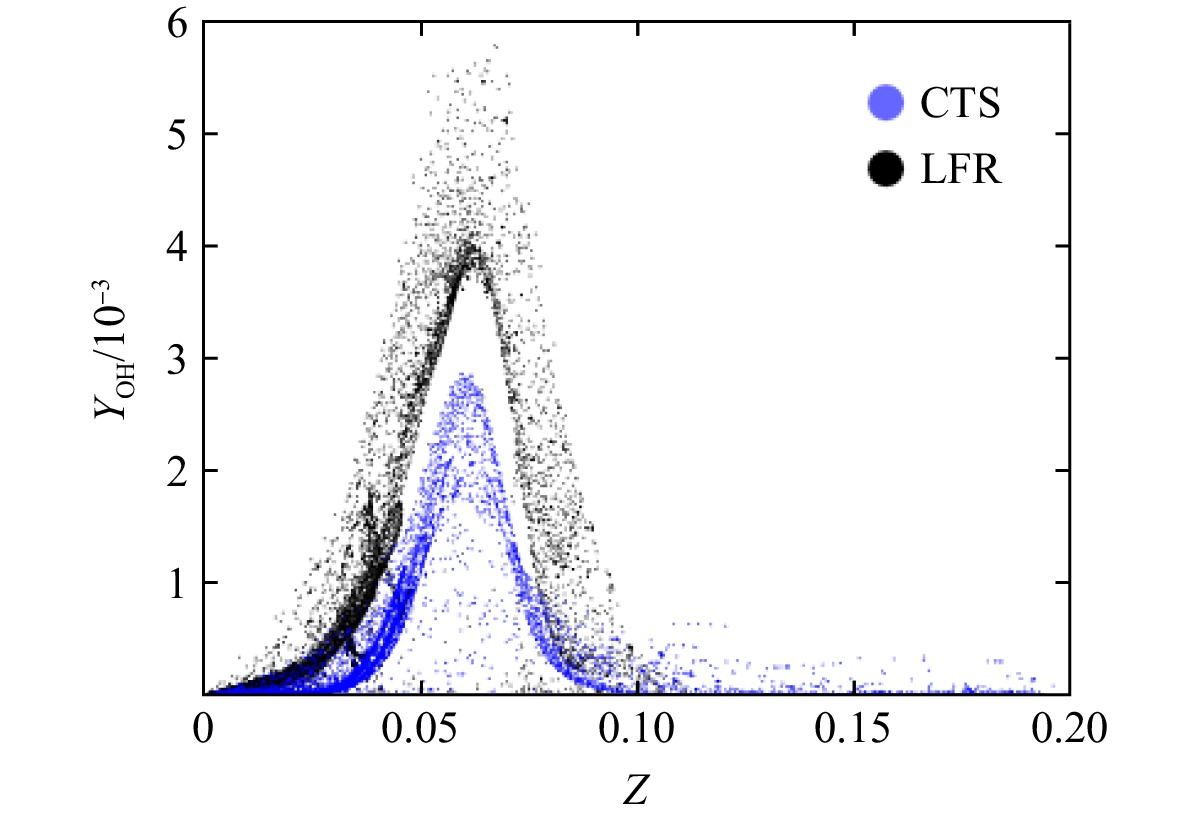

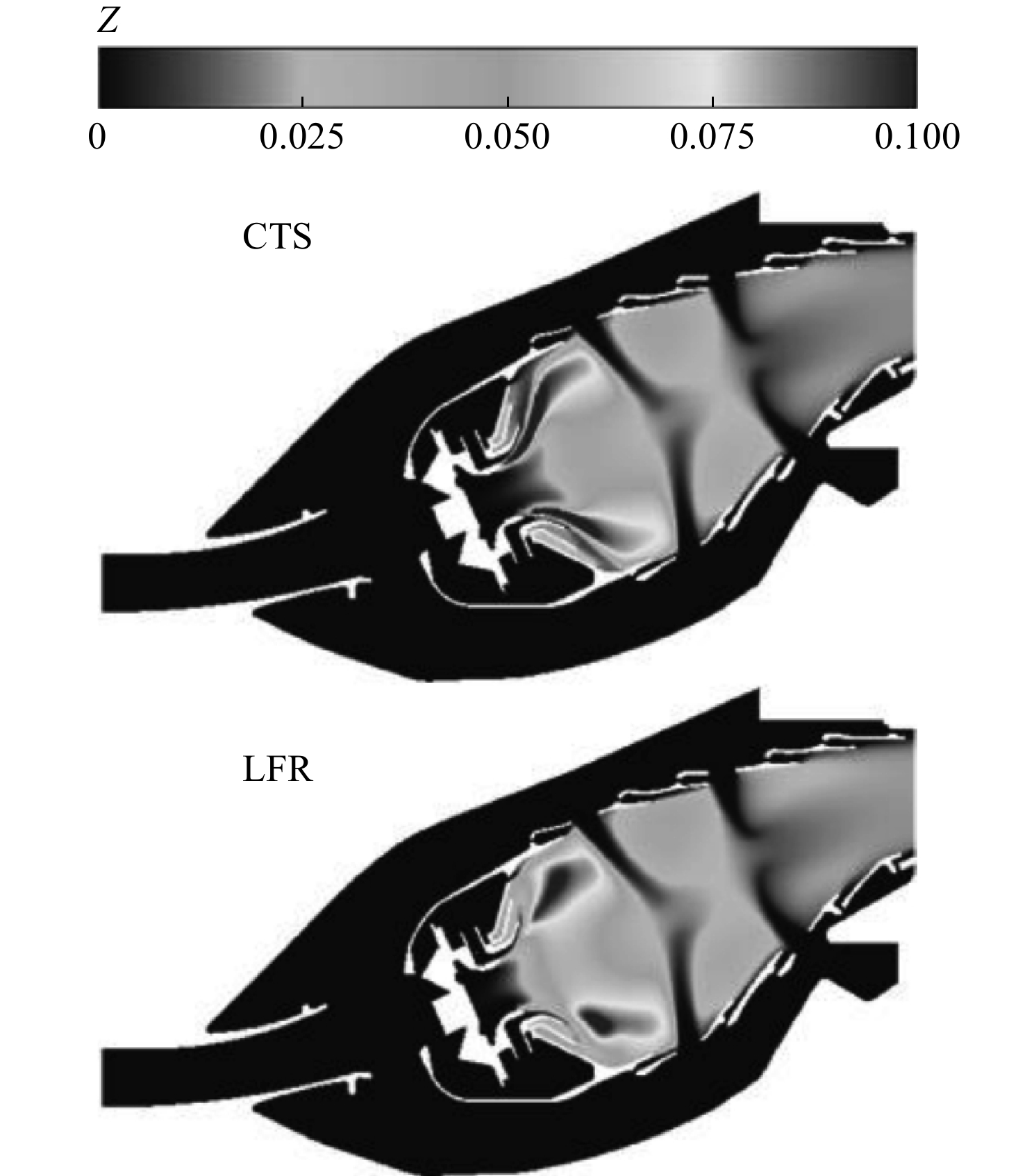

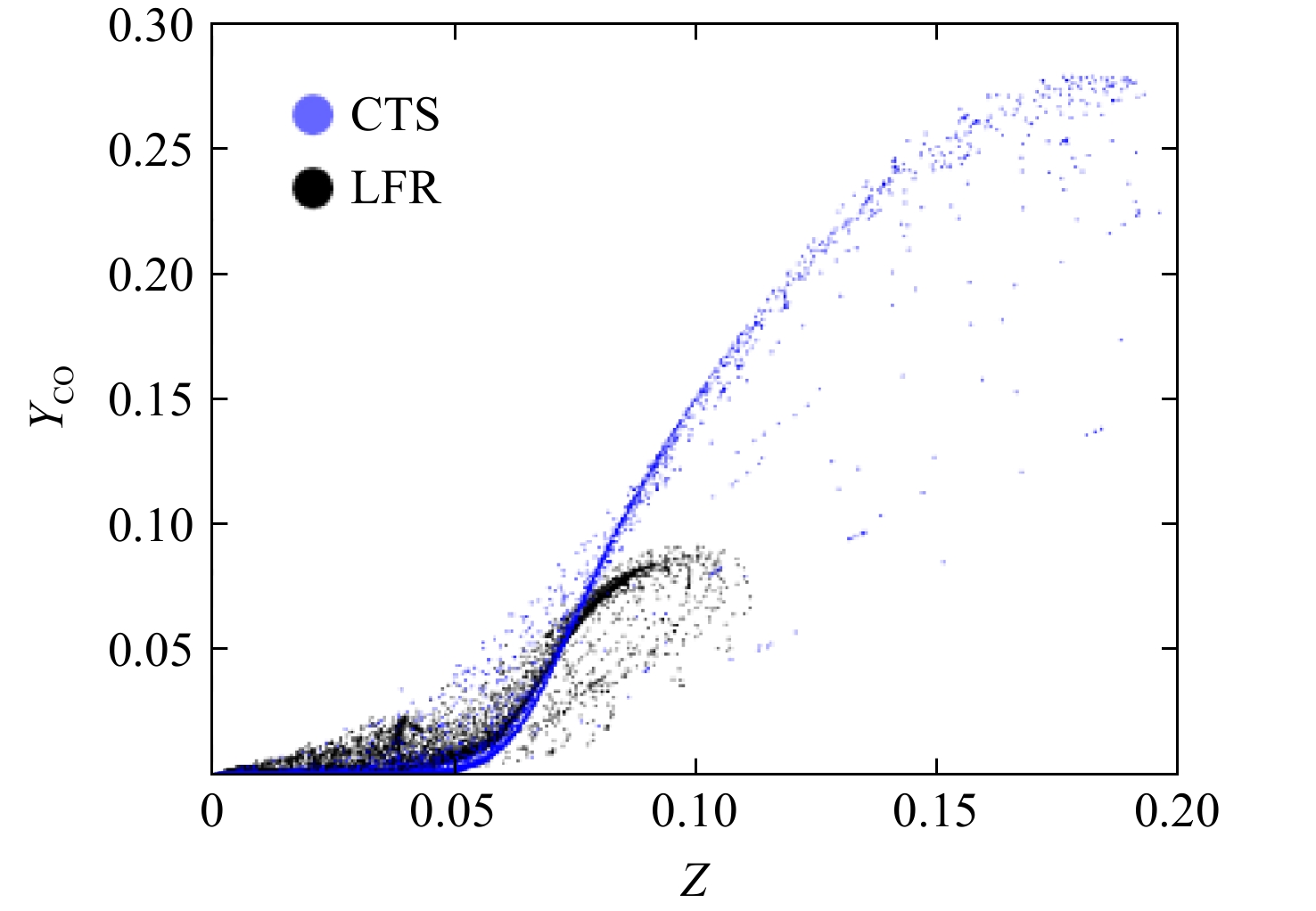

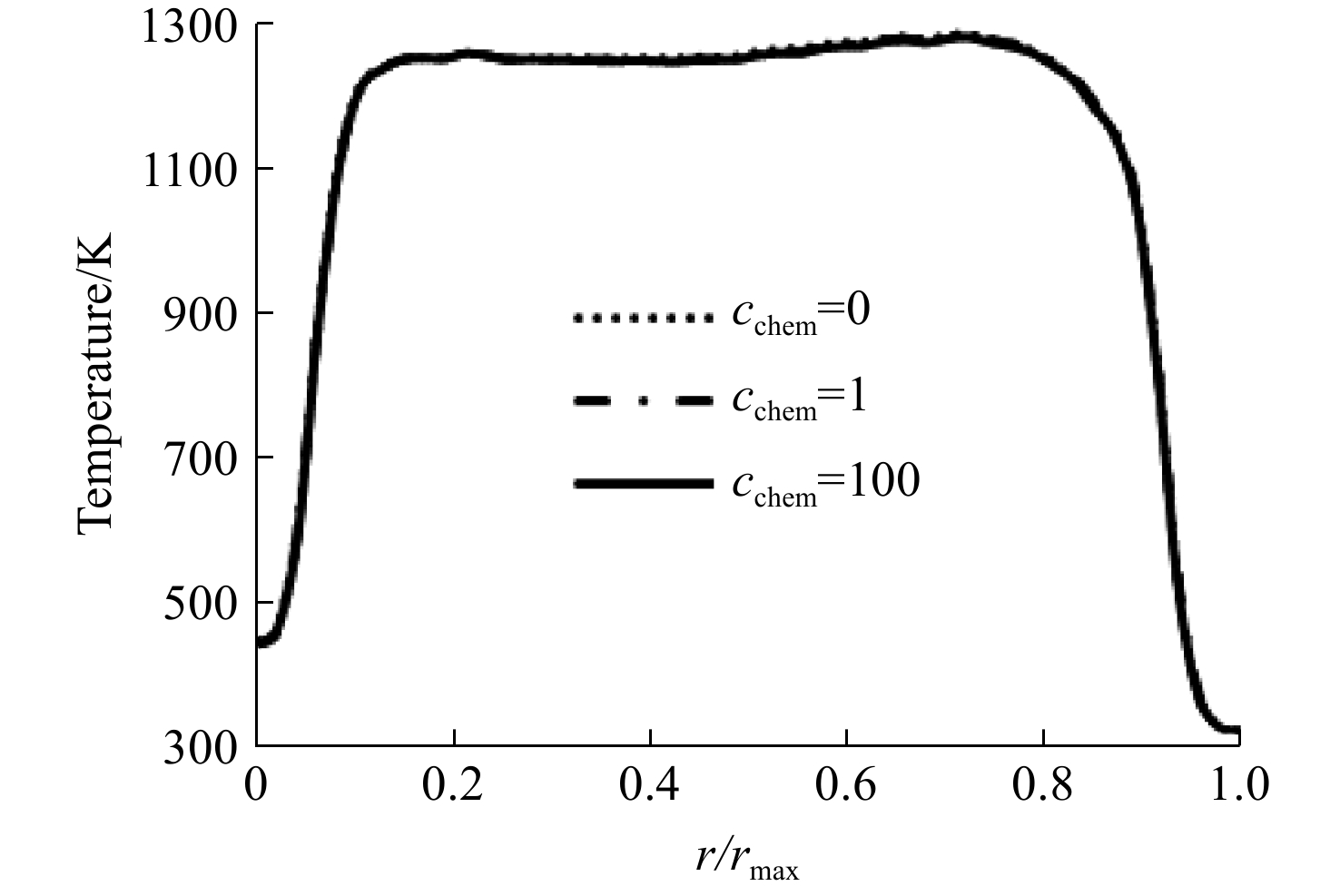

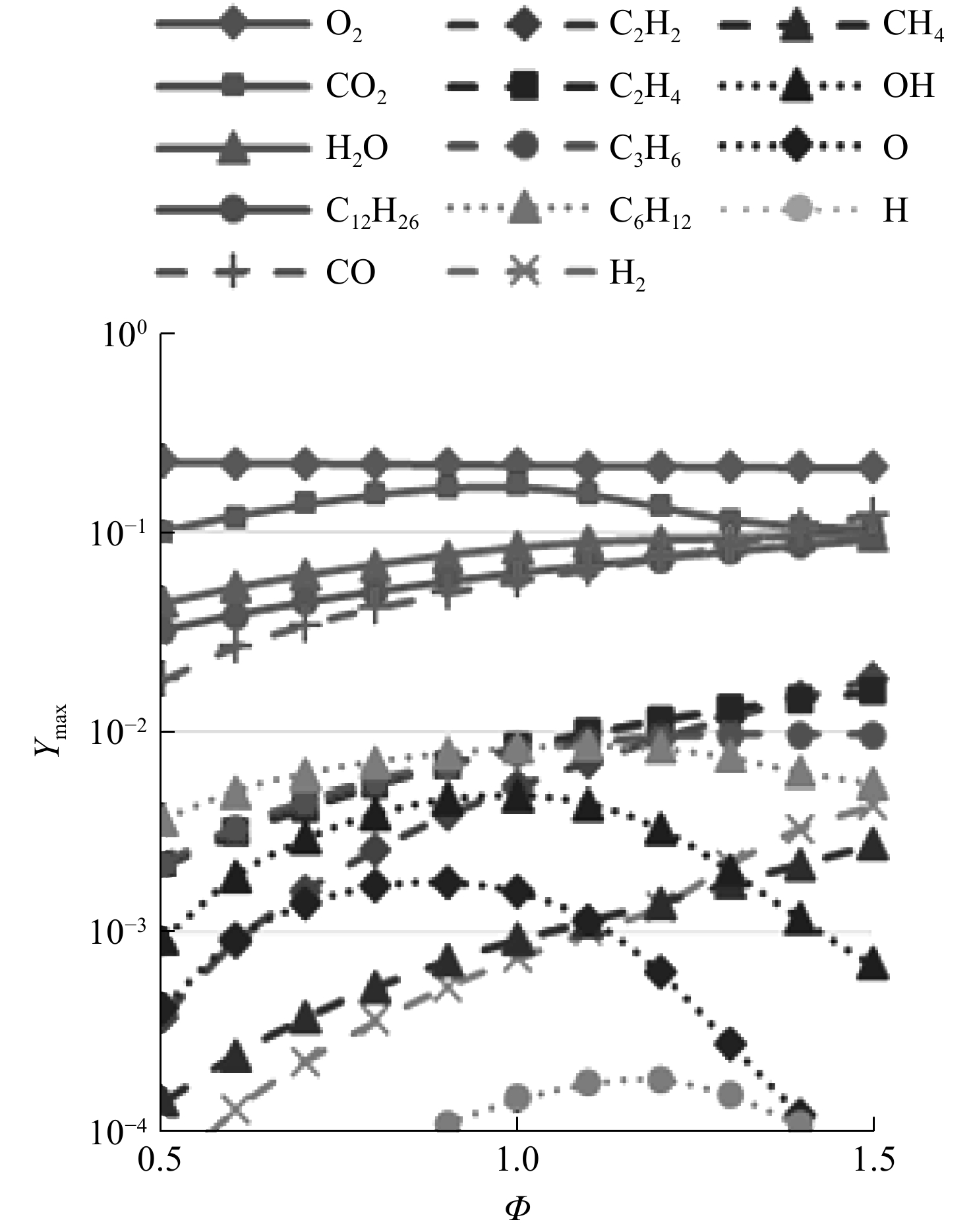

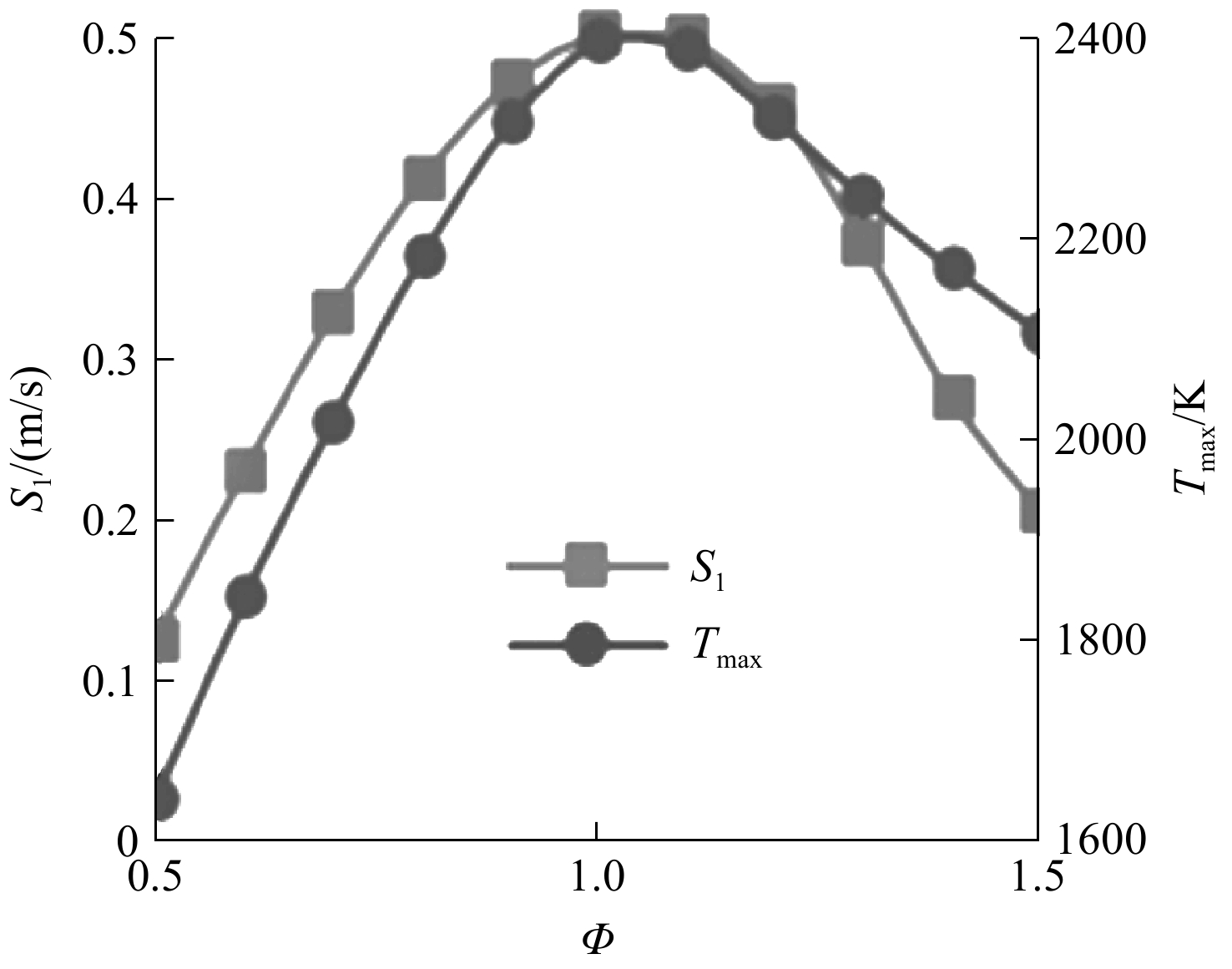

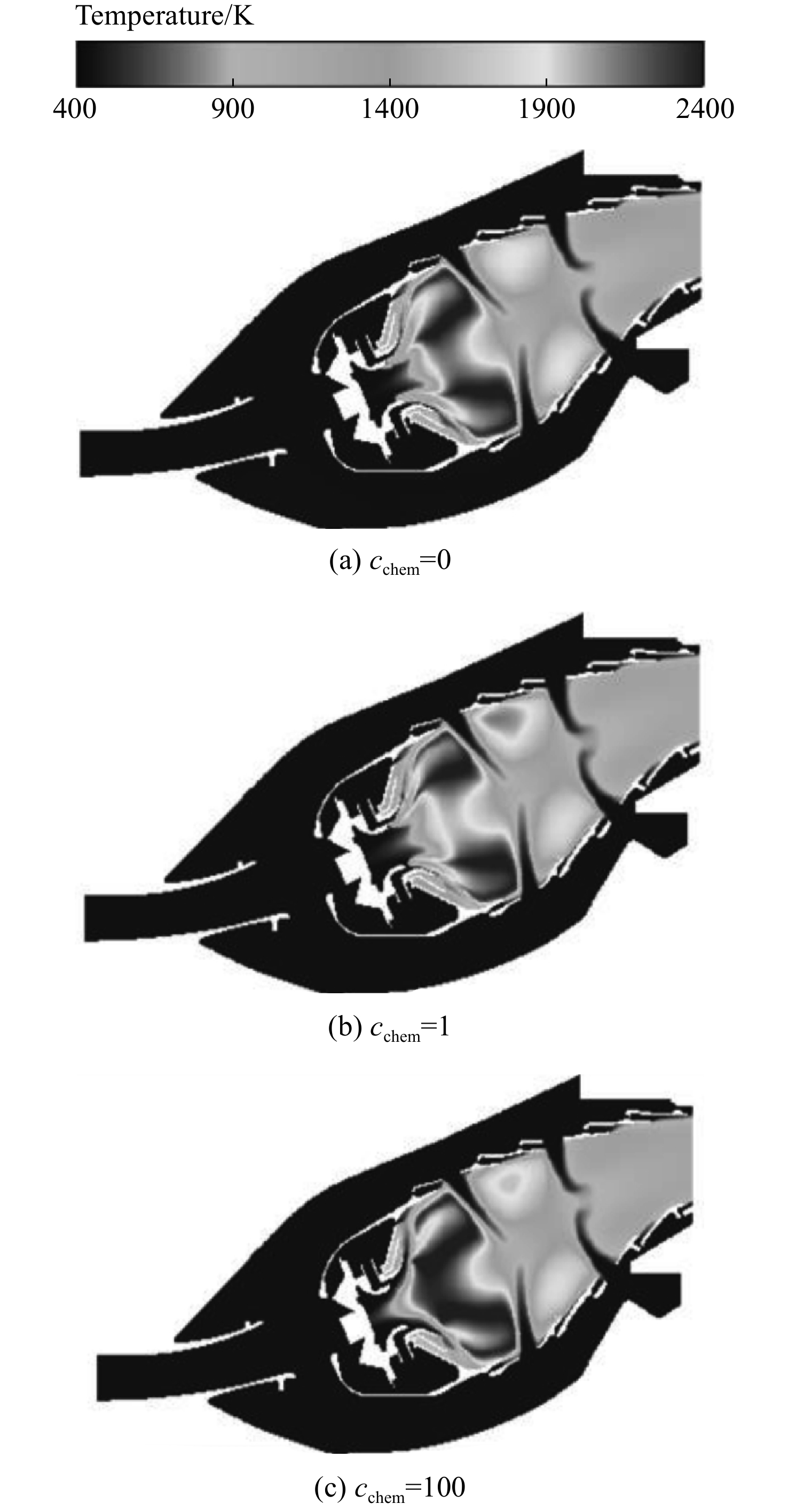

The characteristic time scale (CTS) model was investigated for efficient and robust spray combustion simulations. This model was demonstrated in steady-state simulations of spray flames in an aero-engine model combustor, and the predicted temperature and species results were compared with those from the finite-rate combustion model to verify the feasibility of the CTS model in spray combustion. Combined with a dimension reduction method, the CTS model can be used to facilitate the finite-rate based calculations with full chemical kinetics by providing good initial conditions. The accelerating effect was investigated. Results showed that for the CFM56 model combustor considered, CTS yielded a realistic flame shape and reasonably predicted species distributions. The in situ adaptive tabulation (ISAT) approach reduced the calculation time by 90%. The convergence time of steady-state simulations with initialization based on the CTS model was reduced by 35% and then reduced by 40% if combined with the dimension reduction method. Hence, the proposed characteristic timescale model was valuable in providing good initial conditions for finite-rate based combustion models and in improving the efficiency and robustness of spray combustion simulations.
| [1] |
MASRI A R. Turbulent combustion of sprays:from dilute to dense[J]. Combustion Science and Technology,2016,188(10): 1619-1639. doi: 10.1080/00102202.2016.1198788
|
| [2] |
HEYE C,RAMAN V,MASRI A R. Influence of spray/combustion interactions on auto-ignition of methanol spray flames[J]. Proceedings of the Combustion Institute,2015,35(2): 1639-1648. doi: 10.1016/j.proci.2014.06.087
|
| [3] |
JIANG X,SIAMAS G A,JAGUS K,et al. Physical modelling and advanced simulations of gas-liquid two-phase jet flows in atomization and sprays[J]. Progress in Energy and Combustion Science,2010,36(2): 131-167. doi: 10.1016/j.pecs.2009.09.002
|
| [4] |
JENNY P,ROEKAERTS D,BEISHUIZEN N. Modeling of turbulent dilute spray combustion[J]. Progress in Energy and Combustion Science,2012,38(6): 846-887. doi: 10.1016/j.pecs.2012.07.001
|
| [5] |
何跃龙,邓远灏,颜应文,等. 大涡模拟模型燃烧室燃烧性能计算[J]. 航空动力学报,2012,27(9): 1939-1947. doi: 10.13224/j.cnki.jasp.2012.09.012
HE Yuelong,DENG Yuanhao,YAN Yingwen,et al. Large-eddy simulation of two-phase reacting flows and combustion performance in model combustor[J]. Journal of Aerospace Power,2012,27(9): 1939-1947. (in Chinese) doi: 10.13224/j.cnki.jasp.2012.09.012
|
| [6] |
SPALDING D B. Development of the eddy-break-up model of turbulent combustion[J]. Symposium (International) on Combustion.Pittsburgh,1977,16(1): 1657-1663. doi: 10.1016/S0082-0784(77)80444-X
|
| [7] |
GRAN I R,MAGNUSSEN B F. A numerical study of a bluff-body stabilized diffusion flame: Part 2 influence of combustion modelling and finite-rate chemistry[J]. Combustion Science and Technology,1996,119(1/2/3/4/5/6): 191-217.
|
| [8] |
PETERS N. Laminar diffusion flamelet models in non-premixed turbulent combustion[J]. Progress in Energy and Combustion Science,1984,10(3): 319-339. doi: 10.1016/0360-1285(84)90114-X
|
| [9] |
POPE S B. PDF methods for turbulent reactive flows[J]. Progress in Energy and Combustion Science,1985,11(2): 119-192. doi: 10.1016/0360-1285(85)90002-4
|
| [10] |
WANG Q,JARAVEL T,IHME M. Assessment of spray combustion models in large-eddy simulations of a polydispersed acetone spray flame[J]. Proceedings of the Combustion Institute,2019,37(3): 3335-3344. doi: 10.1016/j.proci.2018.06.011
|
| [11] |
ECKEL G,GROHMANN J,CANTU L,et al. LES of a swirl-stabilized kerosene spray flame with a multi-component vaporization model and detailed chemistry[J]. Combustion and Flame,2019,207: 134-152. doi: 10.1016/j.combustflame.2019.05.011
|
| [12] |
颜应文,宋双文,胡好生,等. 折流燃烧室两相喷雾燃烧流场数值模拟[J]. 航空动力学报,2011,26(5): 1003-1010. doi: 10.13224/j.cnki.jasp.2011.05.016
YAN Yingwen,HE Yuelong,HU Haosheng,et al. Numerical investigations of two-phase spray combustion flow fields in slinger annular combustor[J]. Journal of Aerospace Power,2011,26(5): 1003-1010. (in Chinese) doi: 10.13224/j.cnki.jasp.2011.05.016
|
| [13] |
徐榕,李井华,赵坚行,等. 湍流燃烧模型对双旋流燃烧室喷雾燃烧的影响[J]. 推进技术,2013,34(3): 375-382. doi: 10.13675/j.cnki.tjjs.2013.03.006
XU Rong,LI Jinghua,ZHAO Jianxing,et al. Effects of turbulent combustion models on spray combustion flow of dual-stage swirler combustor[J]. Journal of Propulsion Technology,2013,34(3): 375-382. (in Chinese) doi: 10.13675/j.cnki.tjjs.2013.03.006
|
| [14] |
HEYE C,RAMAN V,MASRI A R. LES/probability density function approach for the simulation of an ethanol spray flame[J]. Proceedings of the Combustion Institute,2013,34(1): 1633-1641. doi: 10.1016/j.proci.2012.06.107
|
| [15] |
PEI Y,HAWKES E R,KOOK S. A comprehensive study of effects of mixing and chemical kinetic models on predictions of n-heptane jet ignitions with the PDF method[J]. Flow, Turbulence and Combustion,2013,91(2): 249-280. doi: 10.1007/s10494-013-9454-z
|
| [16] |
HONHAR P,HU Y,GUTHEIL E. Analysis of mixing models for use in simulations of turbulent spray combustion[J]. Flow, Turbulence and Combustion,2017,99(2): 511-530. doi: 10.1007/s10494-017-9815-0
|
| [17] |
LU T,LAW C K. Toward accommodating realistic fuel chemistry in large-scale computations[J]. Progress in Energy and Combustion Science,2009,35(2): 192-215. doi: 10.1016/j.pecs.2008.10.002
|
| [18] |
GOU X,SUN W,CHEN Z,et al. A dynamic multi-timescale method for combustion modeling with detailed and reduced chemical kinetic mechanisms[J]. Combustion and Flame,2010,157(6): 1111-1121. doi: 10.1016/j.combustflame.2010.02.020
|
| [19] |
GAO Y,LIU Y,REN Z,et al. A dynamic adaptive method for hybrid integration of stiff chemistry[J]. Combustion and Flame,2015,162(2): 287-295. doi: 10.1016/j.combustflame.2014.07.023
|
| [20] |
XU C,GAO Y,REN Z,et al. A sparse stiff chemistry solver based on dynamic adaptive integration for efficient combustion simulations[J]. Combustion and Flame,2016,172: 183-193. doi: 10.1016/j.combustflame.2016.07.009
|
| [21] |
GOLDIN G,REN Z,ZAHIROVIC S. A cell agglomeration algorithm for accelerating detailed chemistry in CFD[J]. Combustion Theory and Modelling,2009,13(4): 721-739. doi: 10.1080/13647830903154542
|
| [22] |
POPE S B,REN Z. Efficient implementation of chemistry in computational combustion[J]. Flow, Turbulence and Combustion,2008,82(4): 437-453.
|
| [23] |
KECK J C. Rate-controlled constrained-equilibrium theory of chemical reactions in complex systems[J]. Progress in Energy and Combustion Science,1990,16(2): 125-154. doi: 10.1016/0360-1285(90)90046-6
|
| [24] |
LIANG L,STEVENS J G,FARRELL J T. A dynamic adaptive chemistry scheme for reactive flow computations[J]. Proceedings of the Combustion Institute,2009,32(1): 527-534. doi: 10.1016/j.proci.2008.05.073
|
| [25] |
POPE S B. Computationally efficient implementation of combustion chemistry using in situ adaptive tabulation[J]. Combustion Theory and Modelling,1997,1(1): 41-63. doi: 10.1080/713665229
|
| [26] |
TONSE S R,MORIARTY N W,BROWN N J,et al. PRISM: piecewise reusable implementation of solution mapping. An economical strategy for chemical kinetics[J]. Israel Journal of Chemistry,1999,39(1): 97-106. doi: 10.1002/ijch.199900010
|
| [27] |
CHRISTO F C,MASRI A R,NEBOT E M,et al. An integrated PDF/neural network approach for simulating turbulent reacting systems[C]//Symposium (International) on Combustion. Naples, Italy: the Combustion Institute,1996:43-48.
|
| [28] |
REITZ R D,BRACCO F V. Global kinetics models and lack of thermodynamic equilibrium[J]. Combustion and Flame,1983,53(1/2/3): 141-144. doi: 10.1016/0010-2180(83)90013-5
|
| [29] |
KONG S C,HAN Z,REITZ R D. The development and application of a diesel ignition and combustion model for multidimensional engine simulation[R]. Detroit,US: International Congress and Exposition,1995.
|
| [30] |
RAO S,RUTLAND C. A flamelet time scale model for non-premixed combustion including chemical kinetic effects[J]. Combustion and Flame,2003,133(1/2): 189-191.
|
| [31] |
ABRAMZON B,SIRIGNANO W A. Droplet vaporization model for spray combustion calculations[J]. International Journal of Heat and Mass Transfer,1989,32(9): 1605-1618. doi: 10.1016/0017-9310(89)90043-4
|
| [32] |
HINZE J O. Turbulence: an introduction to its mechanism and theory[M].New York: McGraw-Hill Book Company,1959.
|
| [33] |
REN Z,GOLDIN G M. An efficient time scale model with tabulation of chemical equilibrium[J]. Combustion and Flame,2011,158(10): 1977-1979. doi: 10.1016/j.combustflame.2011.02.018
|
| [34] |
LU L,POPE S B. An improved algorithm for in situ adaptive tabulation[J]. Journal of Computational Physics,2009,228(2): 361-386. doi: 10.1016/j.jcp.2008.09.015
|
| [35] |
REN Z,GOLDIN G M,HIREMATH V,et al. Reduced description of reactive flows with tabulation of chemistry[J]. Combustion Theory and Modelling,2011,15(6): 827-848. doi: 10.1080/13647830.2011.574156
|
| [36] |
VIÉ A,FRANZELLI B,GAO Y,et al. Analysis of segregation and bifurcation in turbulent spray flames: a 3D counterflow configuration[J]. Proceedings of the Combustion Institute,2015,35(2): 1675-1683. doi: 10.1016/j.proci.2014.06.083
|
| [37] |
ANSYS Incorporation. ANSYS Fluent 19.0 theory guide[R].Canonsburg,US: ANSYS Incorporation,2018.
|
