| Citation: | WU Yunhui，FU Chen，GAO Yi，et al.Experiment on nonlinear response of swirling bluff⁃body flame with external acoustic forcing［J］.Journal of Aerospace Power，2022，37（9）：1872‑1885. doi: 10.13224/j.cnki.jasp.20210403
|

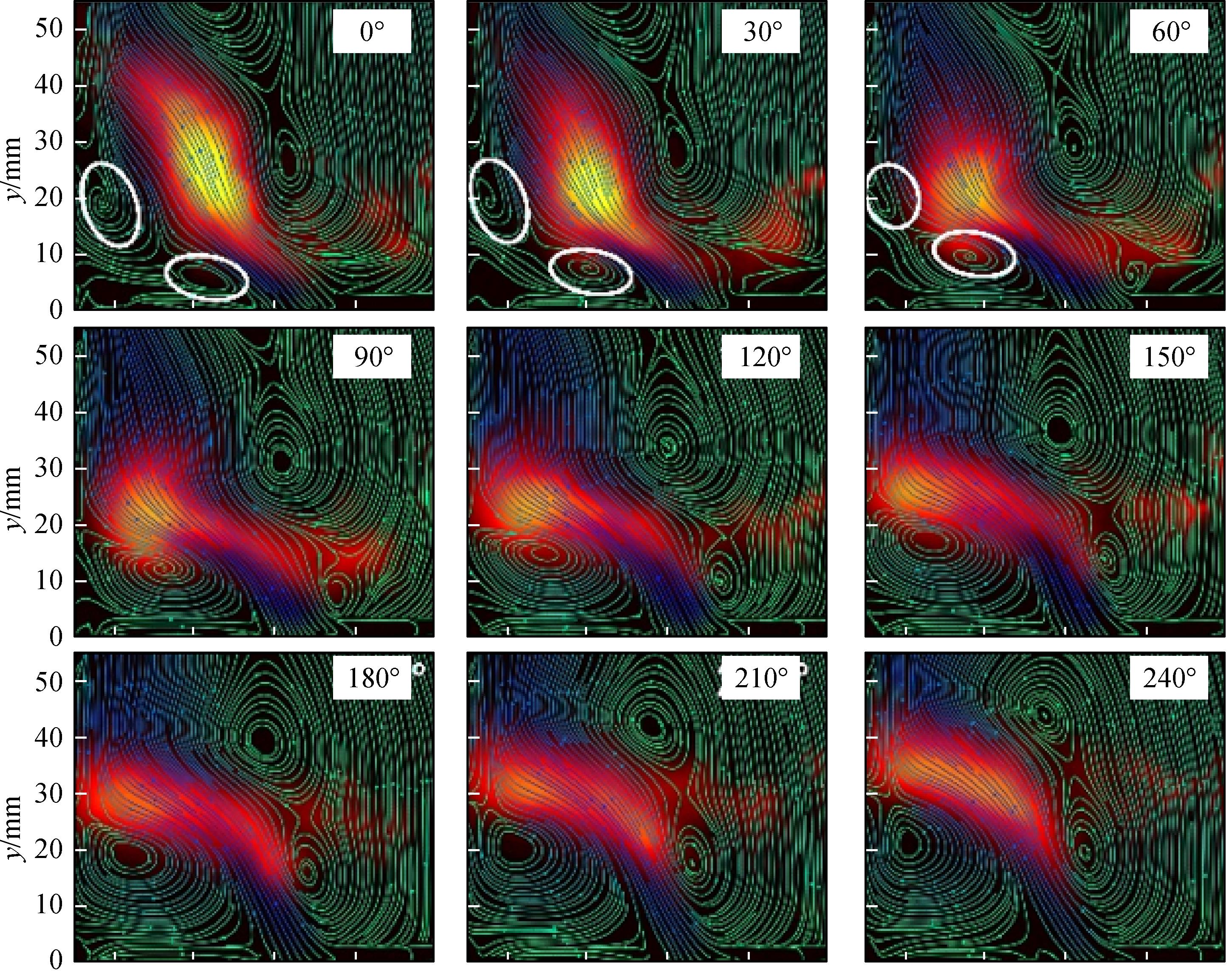

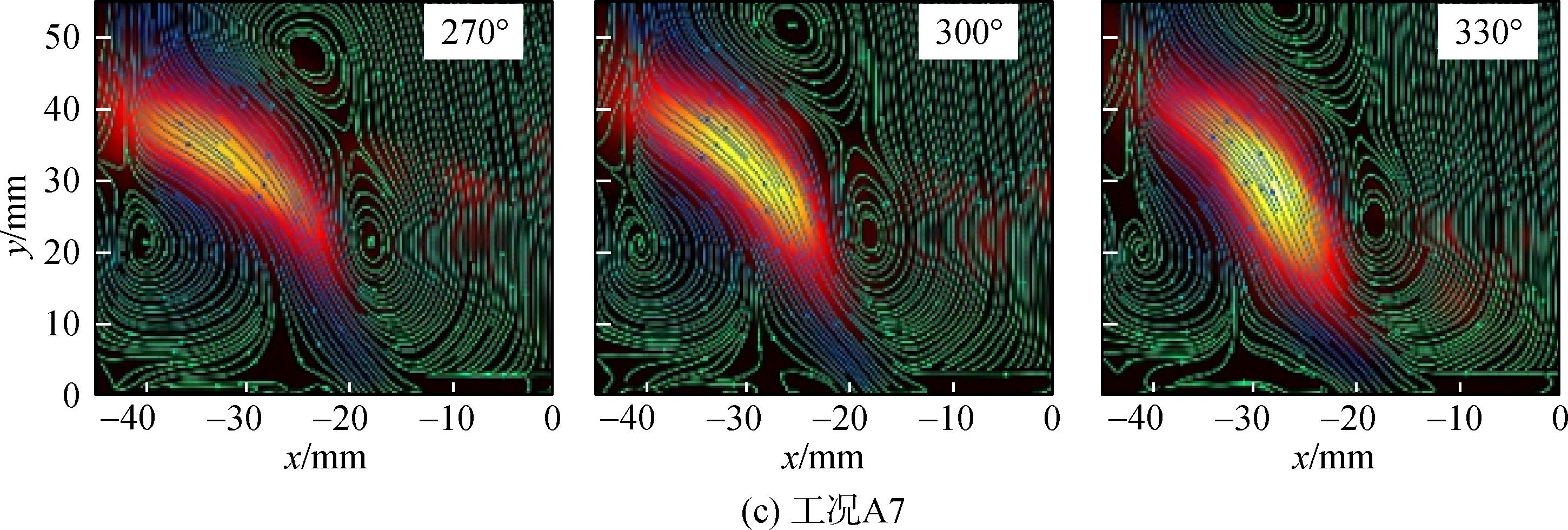

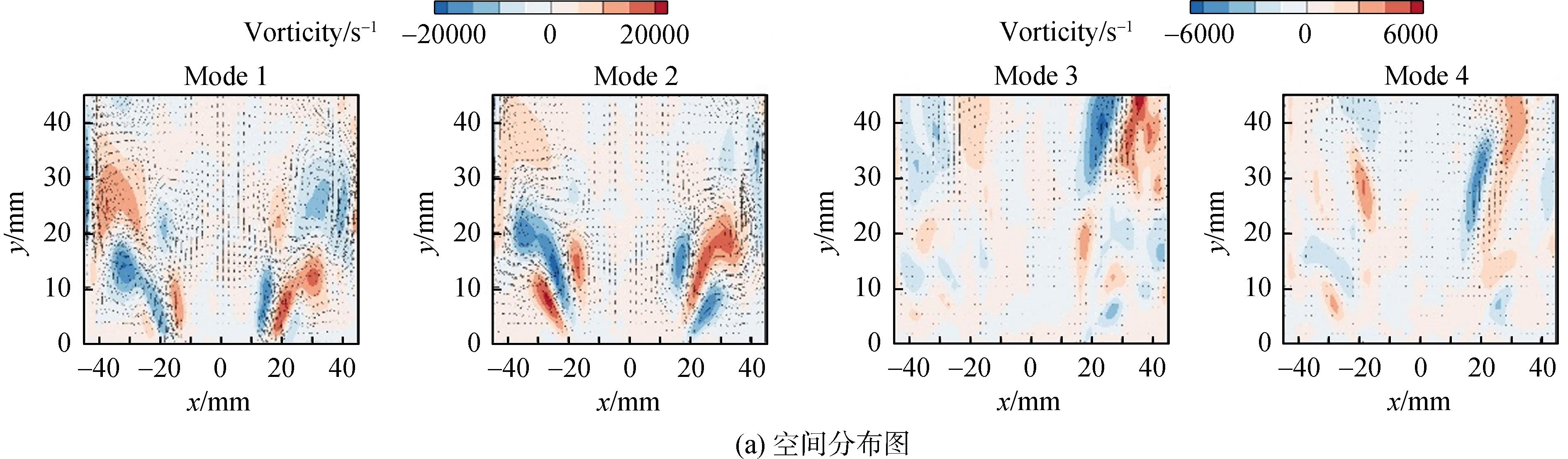

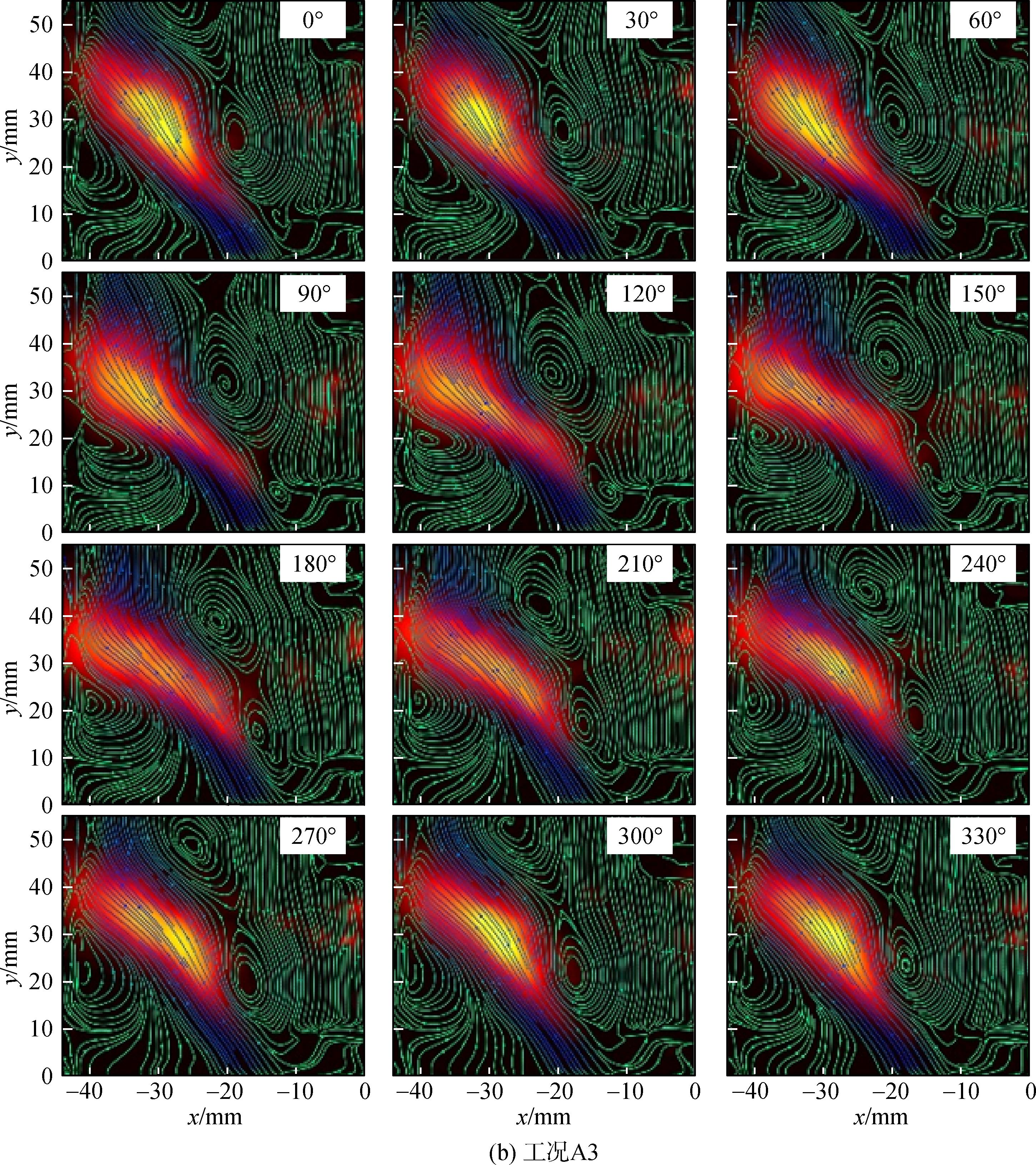

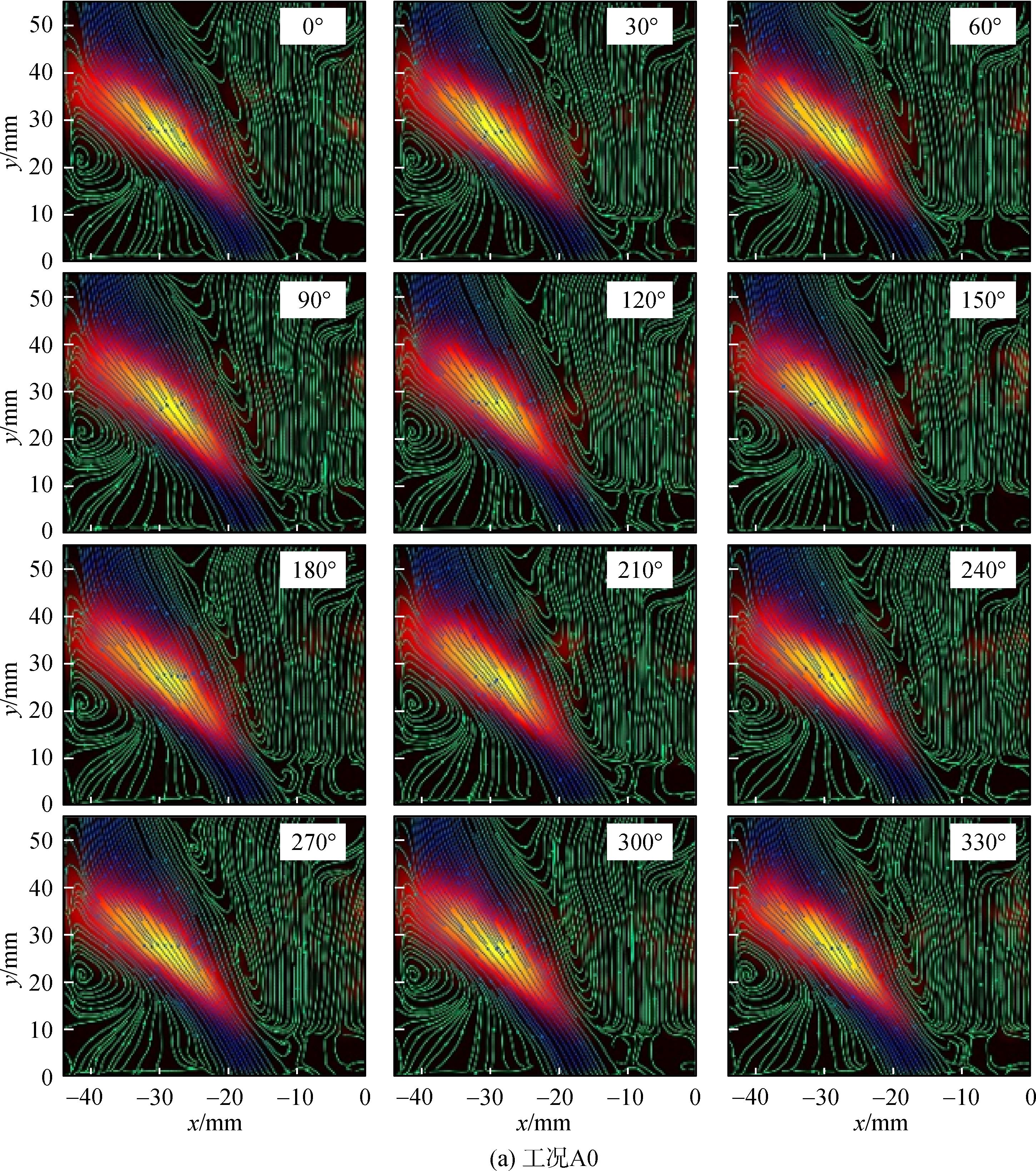

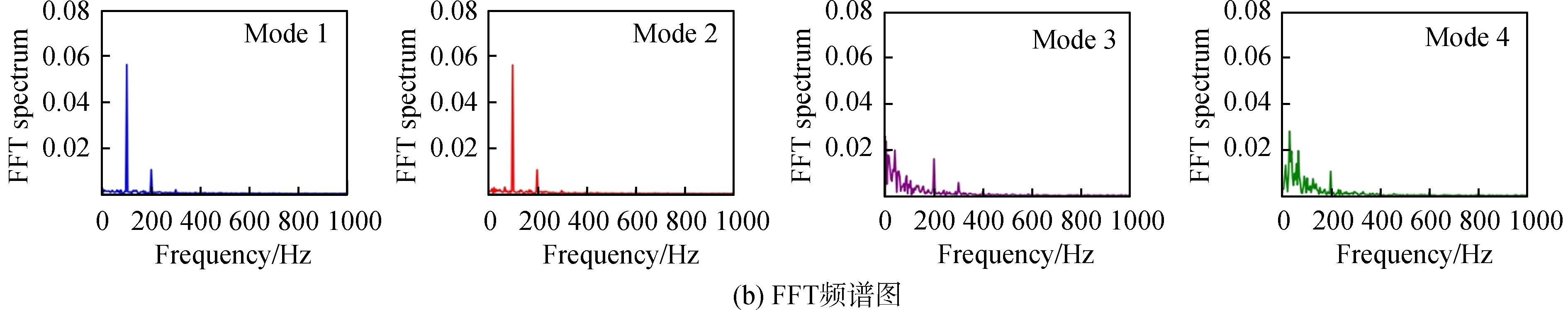

The experimental measurement of lean premixed swirling bluff‑body dimethyl ether flames excited by an external acoustic forcing at 100 Hz was carried out at atmospheric pressure.With the help of the phase‑locked high‑speed OH* chemiluminescence imaging and particle image velocimetry，the visualization of the flame dynamic characteristic of both the flame shape and the flame flow field with different pulsation amplitudes of the velocity was achieved.Based on these images，the dynamic process of the flame was analyzed by the flame describing function.It was found that the heat release rate first linearly increased as the forcing amplitudes increased，and the nonlinear flame response was recognized when the critical value of the velocity fluctuation ratio was reached.The velocity fluctuation ratio of 16% was the critical value in this experiment.Meanwhile，the difference between linear and nonlinear flame responses was analyzed by means of inverse Abel transformation and proper orthogonal decomposition.The experimental results showed that the vortex roll‑up of the flame shape and the vortex shedding of the flame flow field was enhanced in the nonlinear flame response.From the above analysis，it can be inferred that the enhancement of vortex shedding in the outer recirculation zone of the flame flow field induced the nonlinear flame response.
| [1] |
LIEUWEN T,TORRES H,JOHNSON C,et al.A mechanism of combustion instability in lean premixed gas turbine combustors[J].Journal of Engineering for Gas Turbines and Power,2001,123（1）:182⁃189.
|
| [2] |
LIEUWEN T,MCDONELL V,PETERSEN E,et al.Fuel flexibility influences on premixed combustor blowout,flashback,autoignition,and stability[J].Journal of Engineering for Gas Turbines and Power,2008,130（1）:601⁃615.
|
| [3] |
SCHIMEK S,MOECK J P,PASCHEREIT C O.An experimental investigation of the nonlinear response of an atmospheric swirl⁃stabilized premixed flame[J].Journal of Engineering for Gas Turbines and Power,2011,133（10）:665‑675.
|
| [4] |
ROY R,GUPTA A K.Experimental investigation of flame fluctuation reduction in distributed combustion[J].Experiments in Fluids,2021,62（4）:1⁃17.
|
| [5] |
吕丽君,林宇震,韩啸,等.外激作用下自激热声系统的非线性动力学响应[J].航空动力学报,2018,33（10）:2404⁃2413.
Lijun LÜ,LIN Yuzhen,HAN Xiao,et al.Nonlinear dynamic responses of a self⁃excited thermoacoustic system subjected to acoustic forcing[J].Journal of Aerospace Power,2018,33（10）:2404⁃2413.（in Chinese）
|
| [6] |
杨甫江,郭志辉,曾宇晖.贫燃预混旋流火焰热声特性研究[J].航空动力学报,2014,29（12）:2854⁃2861.
YANG Fujiang,GUO Zhihui,ZENG Yuhui.Study on thermoacoustic characteristics of lean premixed swirling flames[J].Journal of Aerospace Power,2014,29（12）:2854⁃2861.（in Chinese）
|
| [7] |
TEMME J E,ALLISON P M,DRISCOLL J F.Combustion instability of a lean premixed prevaporized gas turbine combustor studied using phase⁃averaged PIV[J].Combustion and Flame,2014,161（4）:958⁃970.
|
| [8] |
THUMULURU S K,LIEUWEN T.Characterization of acoustically forced swirl flame dynamics[J].Proceedings of the Combustion Institute,2009,32（2）:2893⁃2900.
|
| [9] |
RUAN C,CHEN F,YU T,et al.Experimental study on impacts of fuel type on thermo⁃acoustic instability in a gas turbine model combustor[J].Science China Technological Sciences,2021,64:1345‑1358.
|
| [10] |
CANDEL S.Combustion dynamics and control⁃progress and challenges[J].Proceeding of the Combustion Institute,2002,29（1）:1⁃28.
|
| [11] |
孟晟.燃烧器几何结构对于非预混旋流燃烧热声不稳定的影响及其控制研究[D].杭州:浙江大学,2019.
MENG Sheng.Study of combustor geometry effects on thermoacoustic instability of non⁃premixed swirling flame and its passive control[D].Hangzhou:Zhejiang University,2019.（in Chinese）
|
| [12] |
HUANG Y,YANG V.Dynamics and stability of lean⁃premixed swirl⁃stabilized combustion[J].Progress in Energy and Combustion Science,2009,35（4）:293⁃364.
|
| [13] |
WANG G,LIU X,XIA X,et al.Dynamics of periodically⁃excited vortices in swirling flames[J].Proceedings of the Combustion Institute,2021,38（4）:6183⁃6191.
|
| [14] |
KIM K T,SANTAVICCA D.Linear stability analysis of acoustically driven pressure oscillations in a lean premixed gas turbine combustor[J].Journal of Mechanical Science and Technology,2010,23（12）:3436⁃3447.
|
| [15] |
NOIRAY N,DUROX D,SCHULLER T,et al.A unified framework for nonlinear combustion instability analysis based on the flame describing function[J].Journal of Fluid Mechanics,2008,615:139⁃167.
|
| [16] |
DOWLING A P.Nonlinear self⁃excited oscillations of a ducted flame[J].Journal of Fluid Mechanics,1997,346:271‑290.
|
| [17] |
胡悦,谭建国,吕良.甲烷⁃空气预混火焰中OH*标识放热率的数值模拟研究[J].推进技术,2018,39（4）:835⁃842.
HU Yue,TAN Jianguo,Liang LÜ.Numerical valuation of heat release rate measurement using OH* chemiluminescence in premixed methane⁃air flames[J].Journal of Propulsion Technology,2018,39（4）:835⁃842.（in Chinese）
|
| [18] |
PALIES P,DUROX D,SCHULLER T,et al.The combined dynamics of swirler and turbulent premixed swirling flames[J].Combustion and Flame,2010,157（9）:1698⁃1717.
|
| [19] |
王俊懿,葛宏达,赵晓敏,et al.当量比对旋流燃烧室火焰形态与流场影响的激光诊断[J].实验流体力学,2019,33（4）:21⁃26.
WANG Junyi,GE Hongda,ZHAO Xiaomin,et al.measurement and diagnosis of the influence of equivalent ratio on the flame shape and flow field of a swirling combustor[J].Journal of Experiments in Fluid Mechanics,2019,33（4）:21⁃26.（in Chinese）
|
| [20] |
BELLOWS B D,BOBBA M K,FORTE A,et al.Flame transfer function saturation mechanisms in a swirl⁃stabilized combustor[J].Proceedings of the Combustion Institute,2007,31（2）:3181⁃3188.
|
| [21] |
马静,郭志辉.贫燃预混旋流火焰的模态转换燃烧不稳定特性分析[J].推进技术,2020,41（5）:1072⁃1081.
MA Jing,GUO Zhihui.Analysis of combustion instability characteristics of mode⁃switching on lean⁃premixed swirling flame[J].Journal of Propulsion Technology,2020,41（5）:1072⁃1081.（in Chinese）
|
| [22] |
张弛,王波,邹鹏飞,等.同心旋流分层火焰的外激脉动特性统计学分析[J].航空动力学报,2017,32（8）:1801⁃1808.
ZHANG Chi,WANG Bo,ZOU Pengfei,et al.Statistical analysis on the forced dynamic of internally⁃staged⁃swirling stratified flame[J].Journal of Aerospace Power,2017,32（8）:1801⁃1808.（in Chinese）
|
