| Citation: | DENG Weixin, LI Ji, ZHANG Dongqing, et al. Unsteady combustion process of ethylene flame with pilot hydrogen[J]. Journal of Aerospace Power, 2023, 38（1）：79-85 doi: 10.13224/j.cnki.jasp.20210419
|

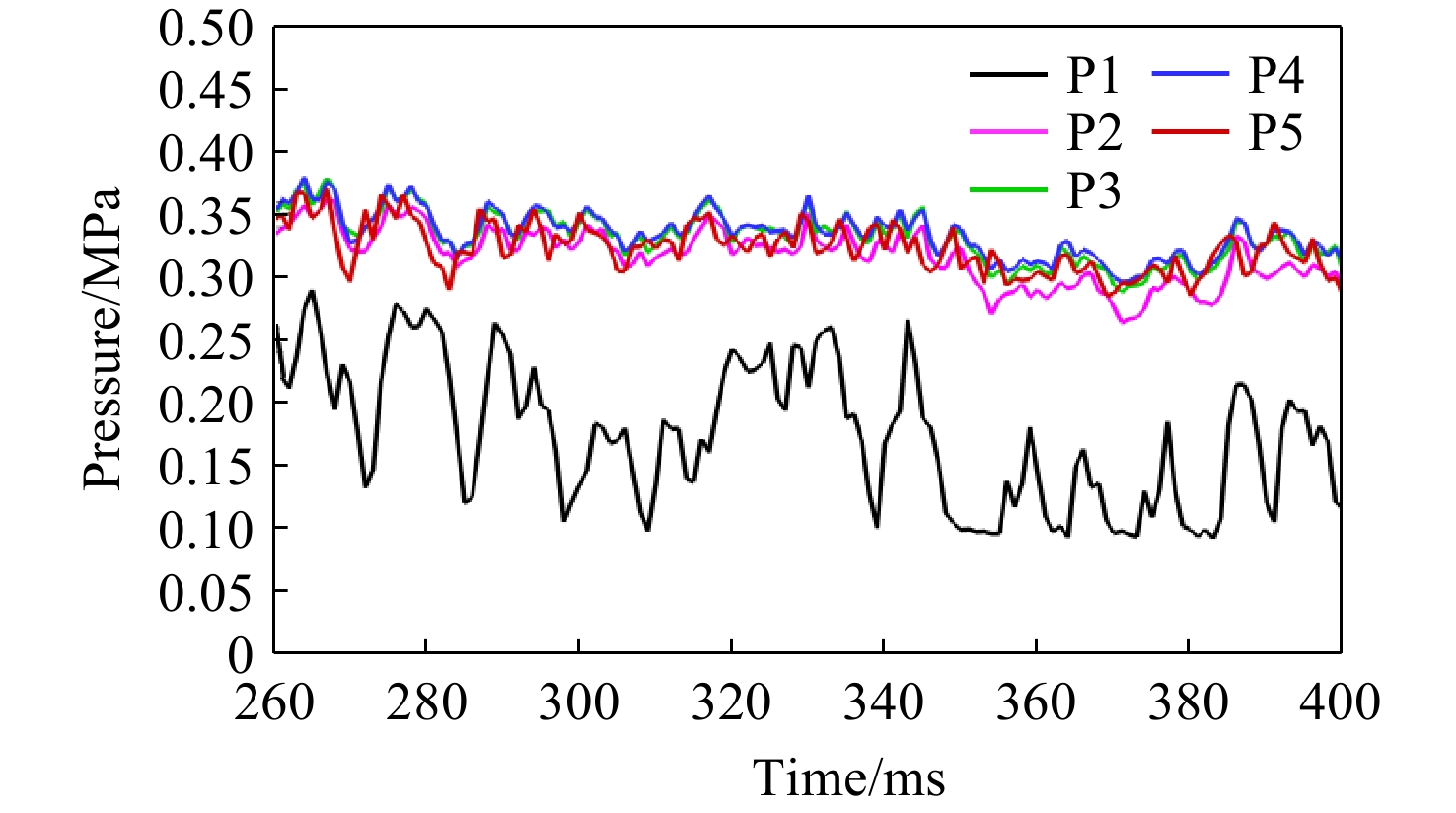

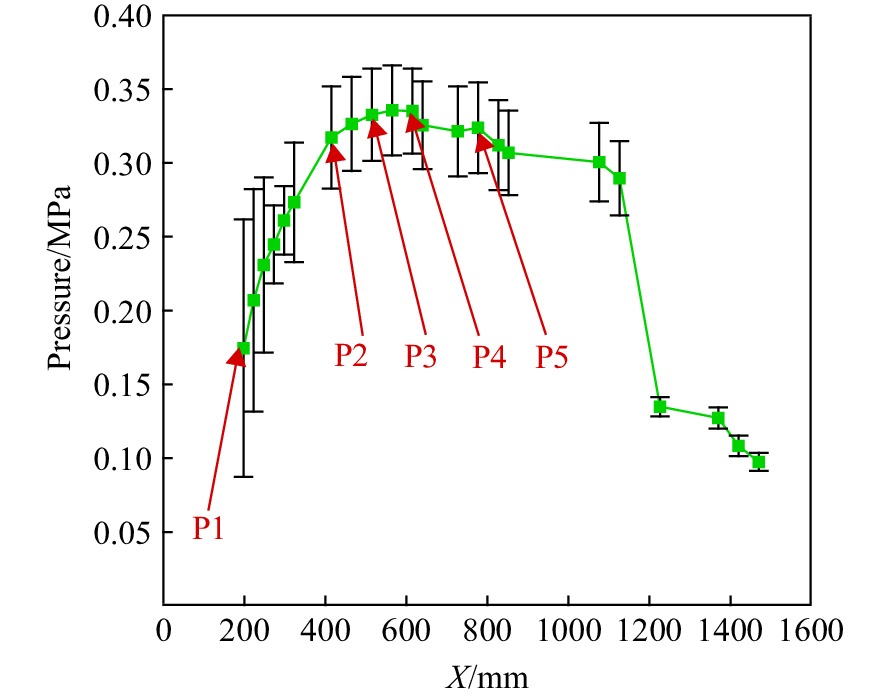

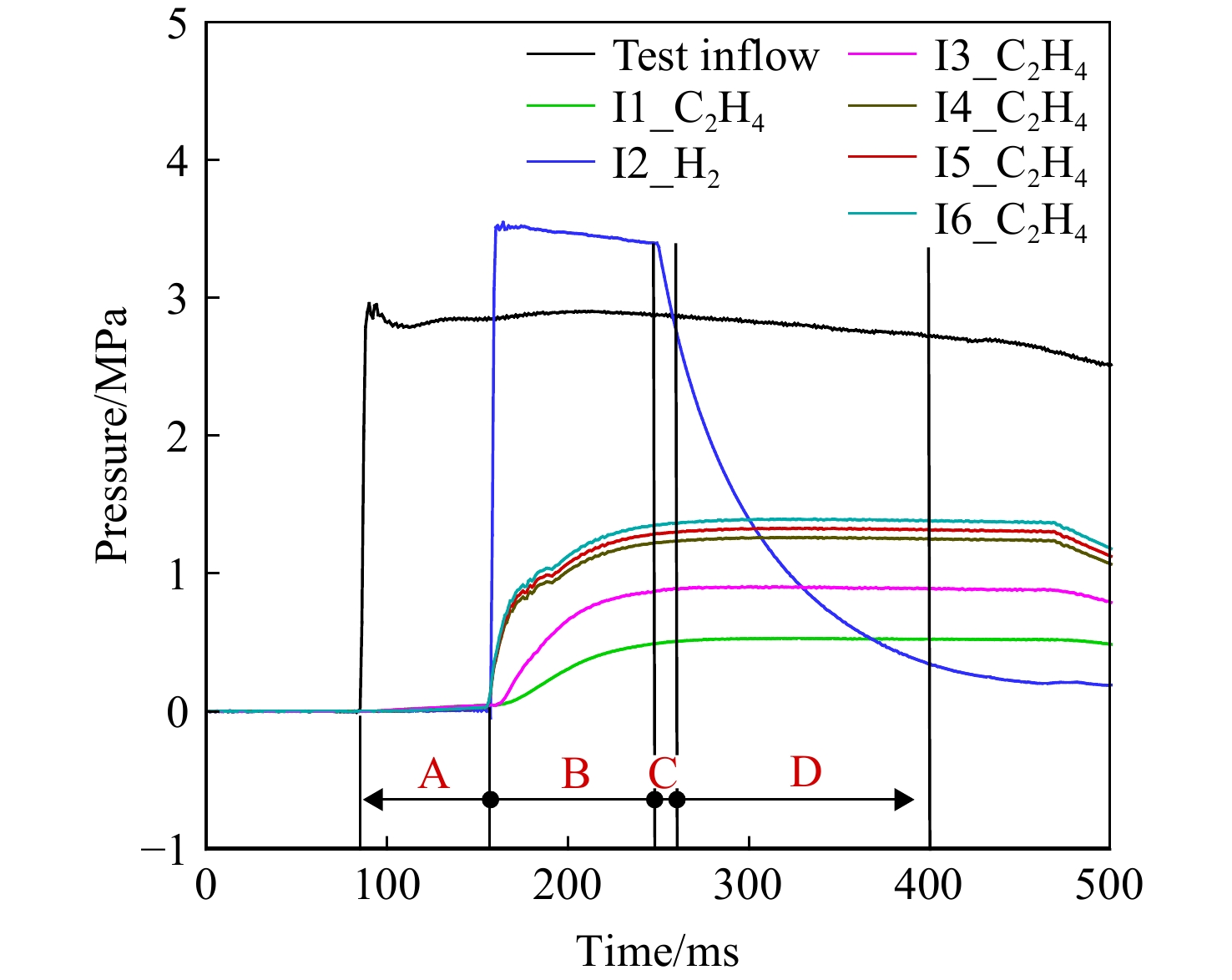

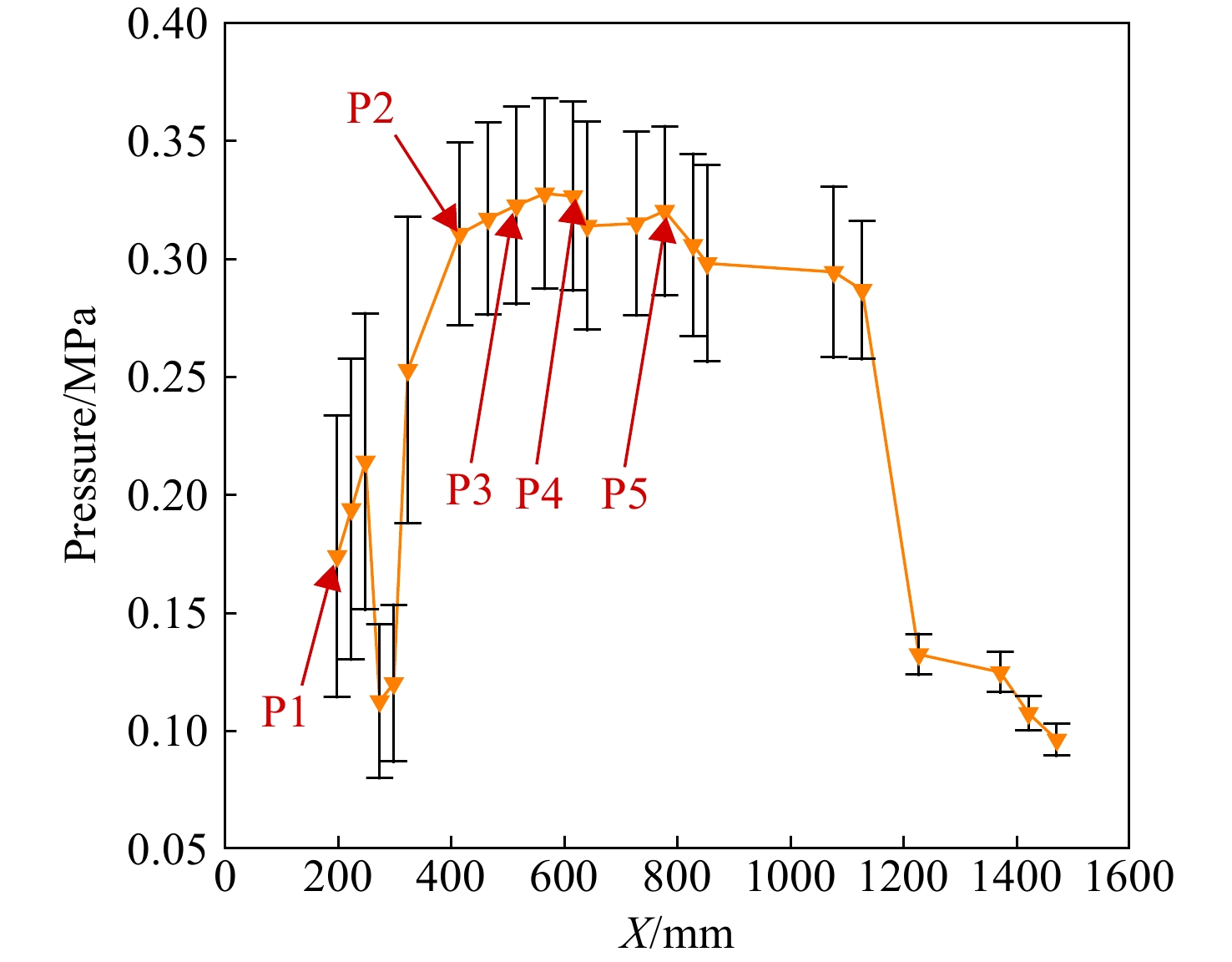

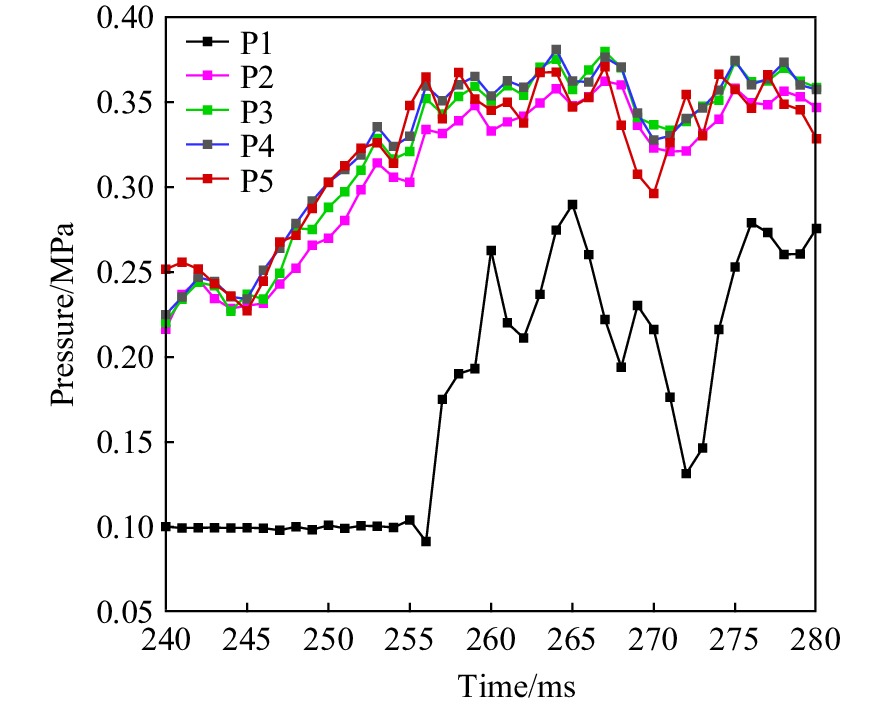

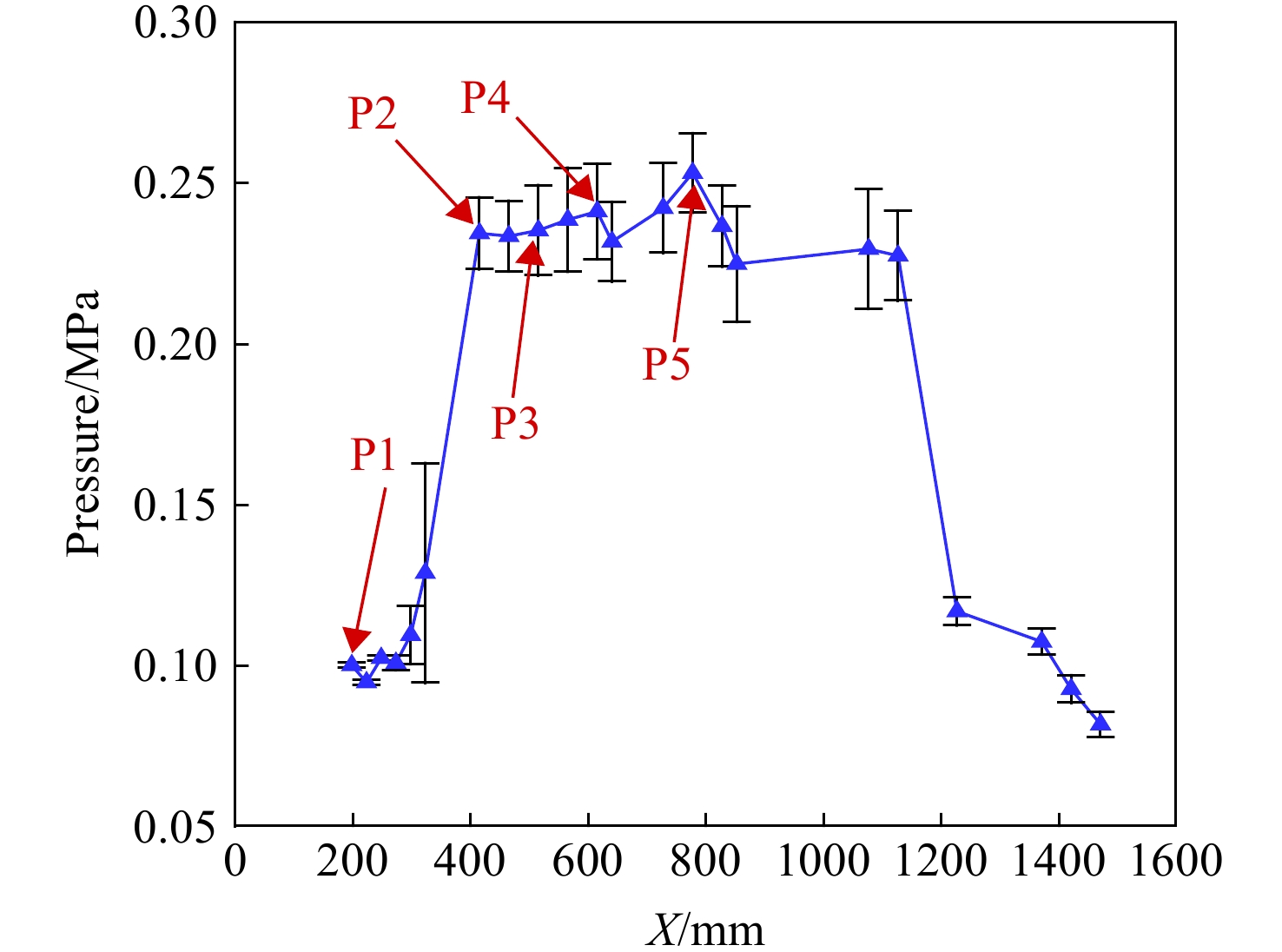

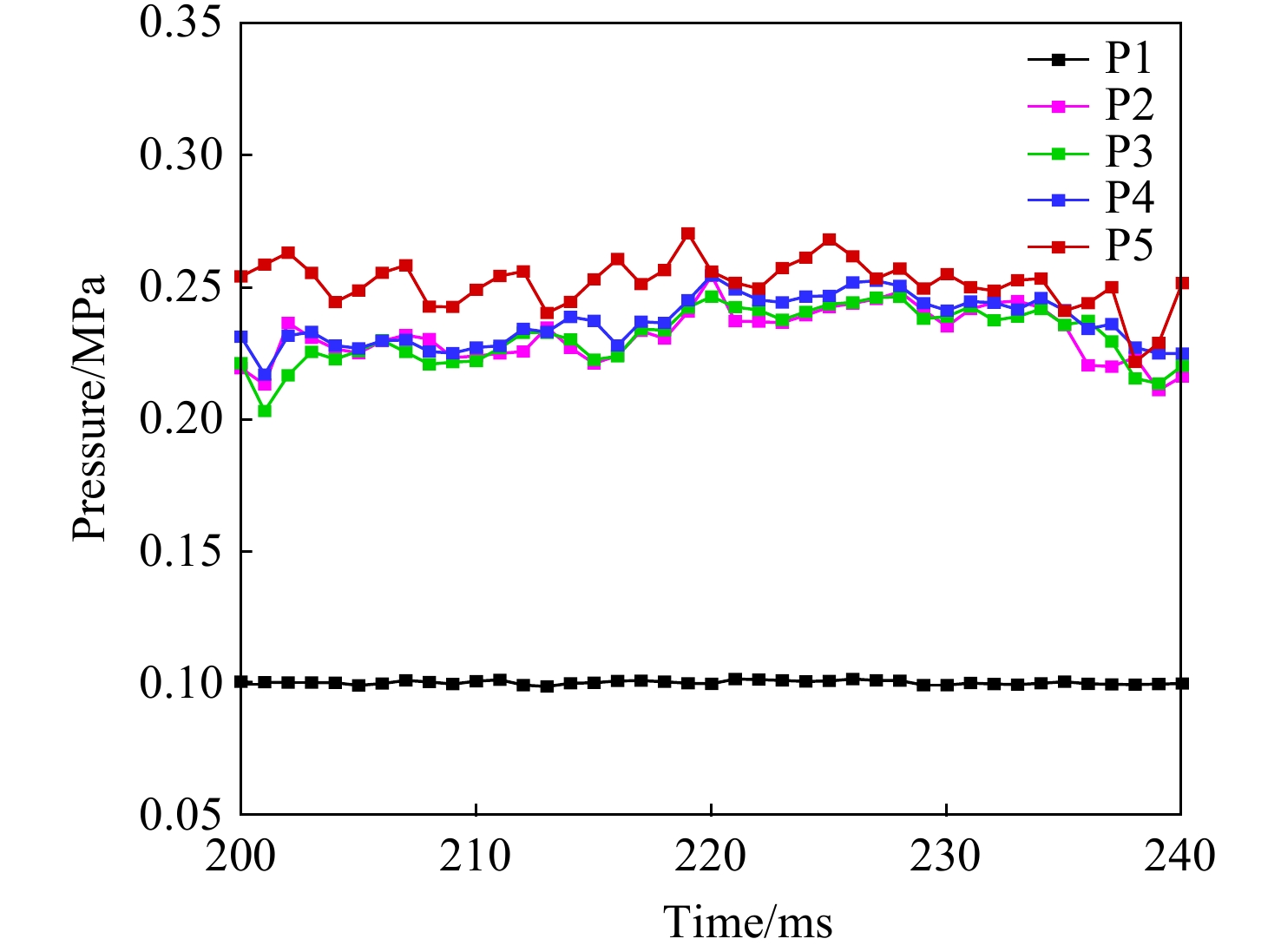

Unsteady supersonic combustion process of hydrogen piloted ethylene flame in a scramjet combustor was carried out based on a direct-connected facility. The results were obtained under the inflow conditions of Mach number 2, total temperature 950 K and total pressure 1.0 MPa respectively. Ambient ethylene was used as the main fuel and ignited by pilot hydrogen. The whole experimental process could be divided into four periods: cold flow without combustion, hydrogen combustion alone, ethylene igniting by hydrogen, ethylene combustion alone. The curves of wall pressure with time and combustion development processes at five important locations in the combustor were gained through high frequency pressure transducers and flame photographs. Some insight information, including the wall pressure average value, oscillation extent and frequency, ignition time and location, were picked out. Then the unsteady combustion characteristics in different periods were analyzed and discussed. The unsteadiness came from the change of acting intensity at cavity aft-step in period of hydrogen combustion alone. The transfer between hydrogen and ethylene produced unsteady combustion in period of ethylene igniting by hydrogen. In period of ethylene combustion alone, the unsteadiness emerged from the coupling of flow and combustion.
| [1] |
SUN Mingbo,GONG Chen,ZHANG Shunping,et al. Spark ignition process in a scramjet combustor fueled by hydorgen and equipped with multi-cavities at mach 4 flight condition[J]. Experimental Thermal and Fluid Science,2012,43: 90-96. doi: 10.1016/j.expthermflusci.2012.03.028
|
| [2] |
SUN Mingbo,LEI Jing,WU Haiyan,et al. Flow patterns and mixing characteristics of gaseous fuel multiple injections in a non-reacting supersonic combustor[J]. Heat Mass Transfer,2011,47: 1499-1516. doi: 10.1007/s00231-011-0804-x
|
| [3] |
MATHUR T,GRUBER M,JACKSON K,et al. Super combustion experiments with a cavity-based fuel injector[J]. Journal of Propulsion and Power,2001,17(6): 1305-1312. doi: 10.2514/2.5879
|
| [4] |
SUN Mingbo,WANG Hongbo,BAI Xuesong,et al. Flame stabilization in a supersonic combustor with hydrogen injection upstream of cavity flameholders: experiments and simulations[J]. Journal of Aerospace Engineering,2011,225: 1351-1365. doi: 10.1177/0954410011401498
|
| [5] |
LI Xiaopeng, LIU Weidong, PAN Yu, et al. Characterization of ignition transient processes in kerosene-fueled model scramjet engine by dual-pulse laser-induced plasma [J]. Acta Astronautica, 2018, 114: 23-29.
|
| [6] |
MA Fuhua, LI Jian, YANG V, et al. Thermoacoustic flow instability in a scramjet combustor[R]. AIAA 2005-3824, 2005.
|
| [7] |
LI Jian, MA Fuhua, YANG V, et al. A comprehensive study of combustion oscillations in a hydrocarbon-fueled scramjet engine[R]. AIAA 2007-836, 2007.
|
| [8] |
LIN Kuocheng, JACKSON K, BEHDADNIA R, et al. Acoustic characterization of an ethylene-fueled scramjet combustor with a recessed cavity flameholder[R]. AIAA 2007-5382, 2007.
|
| [9] |
LIN Kuocheng,JACKSON K,BEHDADNIA R,et al. Acoustic characterization of an ethylene-fueled scramjet combustor with a cavity flameholder[J]. Journal of Propulsion and Power,2010,26(6): 1161-1169. doi: 10.2514/1.43338
|
| [10] |
MICKA D J. Combustion stabilization, structure, and spreading in a laboratory dual-mode scramjet combustor[D]. Michigan, US: University of Michigan, 2010.
|
| [11] |
WANG Zhenguo, SUN Mingbo, WANG Hongbo, et al. Mixing-related low frequency oscillation of combustion in an ethylene-fueled supersonic combustor[EB/OL]. [2021-12-13]. http: //dx. doi.org/10.1016/j.proci.2014.09.005.
|
| [12] |
SUN Mingbo,CUI Xingda,WANG Hongbo,et al. Flame flashback in a supersonic combustor fueled by ethylene with cavity flameholder[J]. Journal of Propulsion and Power,2015,31(3): 976-980. doi: 10.2514/1.B35580
|
| [13] |
邓维鑫,乐嘉陵,杨顺华,等. 注油方式对超燃冲压发动机燃烧性能的影响[J]. 航空动力学报,2013,28(7): 1449-1457. doi: 10.13224/j.cnki.jasp.2013.07.007
DENG Weixin,LE Jialing,YANG Shunhua,et al. Effect of fueling scheme on scramjet combustion performance[J]. Journal of Aerospace Power,2013,28(7): 1449-1457. (in Chinese) doi: 10.13224/j.cnki.jasp.2013.07.007
|
| [14] |
TIAN Ye,XIAO Baoguo,ZHANG Shunping,et al. Experimental and computational study on combustion performance of a kerosene fueled dual-mode scramjet engine[J]. Aerospace Science and Technology,2015,46: 451-458. doi: 10.1016/j.ast.2015.09.002
|
| [15] |
TIAN Ye,YANG Shunhua,LE Jialing,et al. Numerical study on effect of air throttling on combustion mode formation and transition in a dual-mode scramjet combustor[J]. Aerospace Science and Technology,2016,52: 173-180. doi: 10.1016/j.ast.2016.02.027
|
| [16] |
TIAN Ye,YANG Shunhua,LE Jialing,et al. Study on flame stabilization of a hydrogen and kerosene fueled combustor[J]. Aerospace Science and Technology,2016,59: 183-188. doi: 10.1016/j.ast.2016.10.023
|
| [17] |
DENG Weixin,YANG Shunhua,LE Jialing,et al. Experimental research of air-throttling ignition for scramjet at Ma 6.5[J]. Chinese Journal of Aeronautics,2017,30(3): 932-938. doi: 10.1016/j.cja.2017.03.017
|
| [18] |
SHI Wen,TIAN Ye,ZHANG Wanzhou,et al. Experimental investigation on flame stabilization of a kerosene-fueled scramjet combustor with pilot hydrogen[J]. Journal of Zhejiang University:Science A (Applied Physics and Engineering),2020,21(8): 663-672. doi: 10.1631/jzus.A1900565
|
| [19] |
WILLIAM H H, DAVID T P, DANIEL H D, et al. Hypersonic airbreathing propulsion[M]. Washington DC: AIAA, 1994: 333-334
|
