| Citation: | WANG Daqing, TONG Fan, FENG Heying, et al. Influence of pitch diameter protruding structure on interference noise of tandem double cylinders[J]. Journal of Aerospace Power, 2023, 38（1）：160-172 doi: 10.13224/j.cnki.jasp.20210421
|

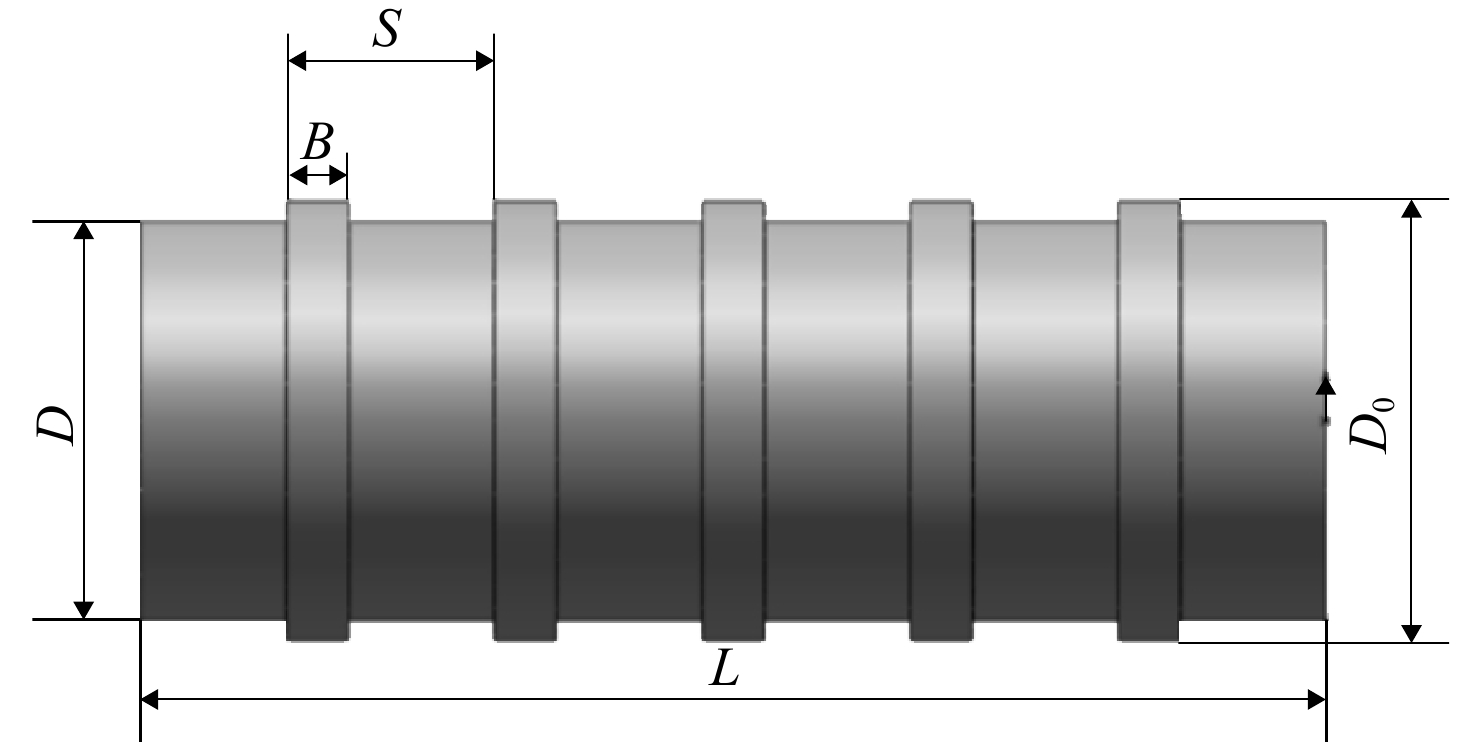

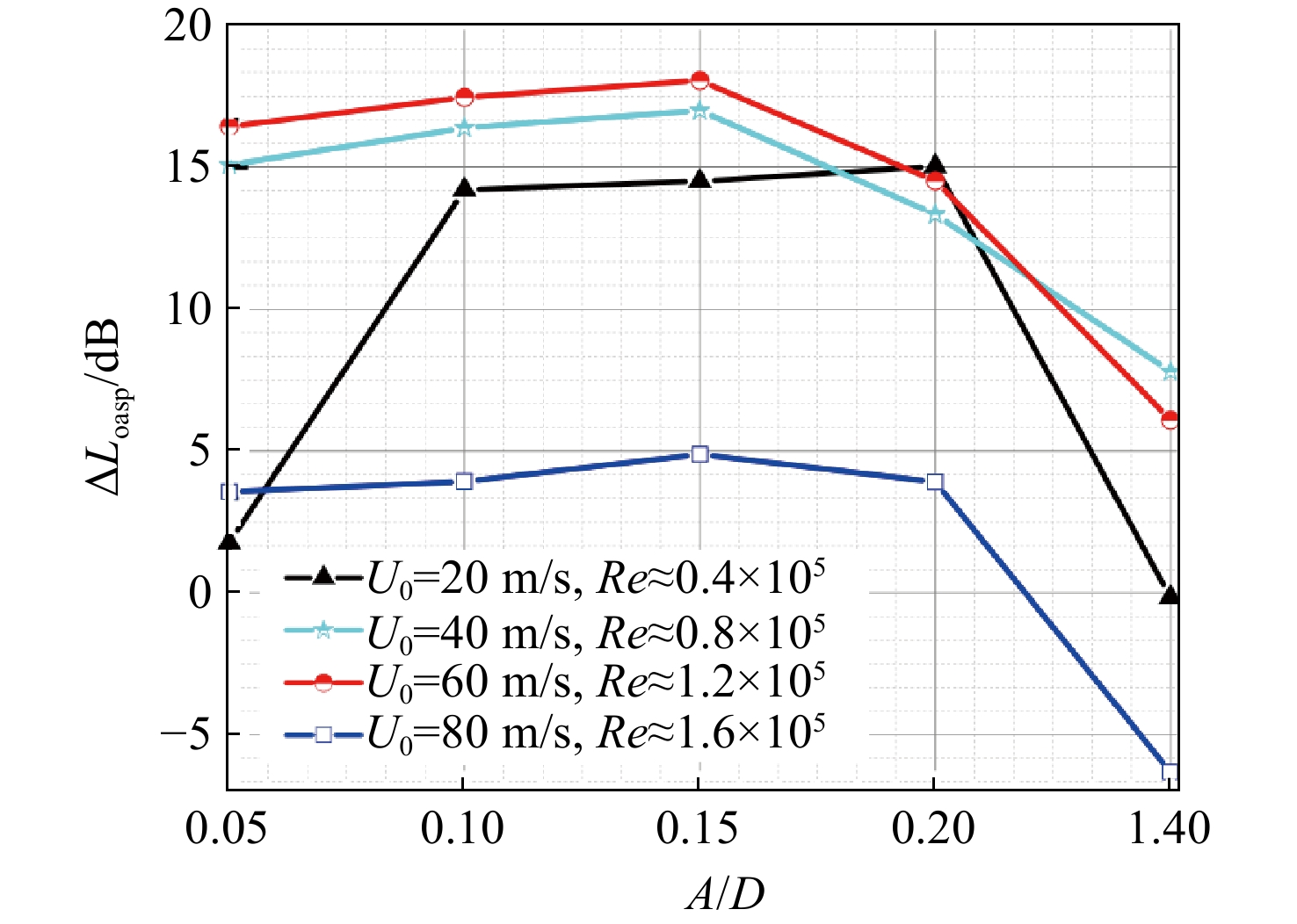

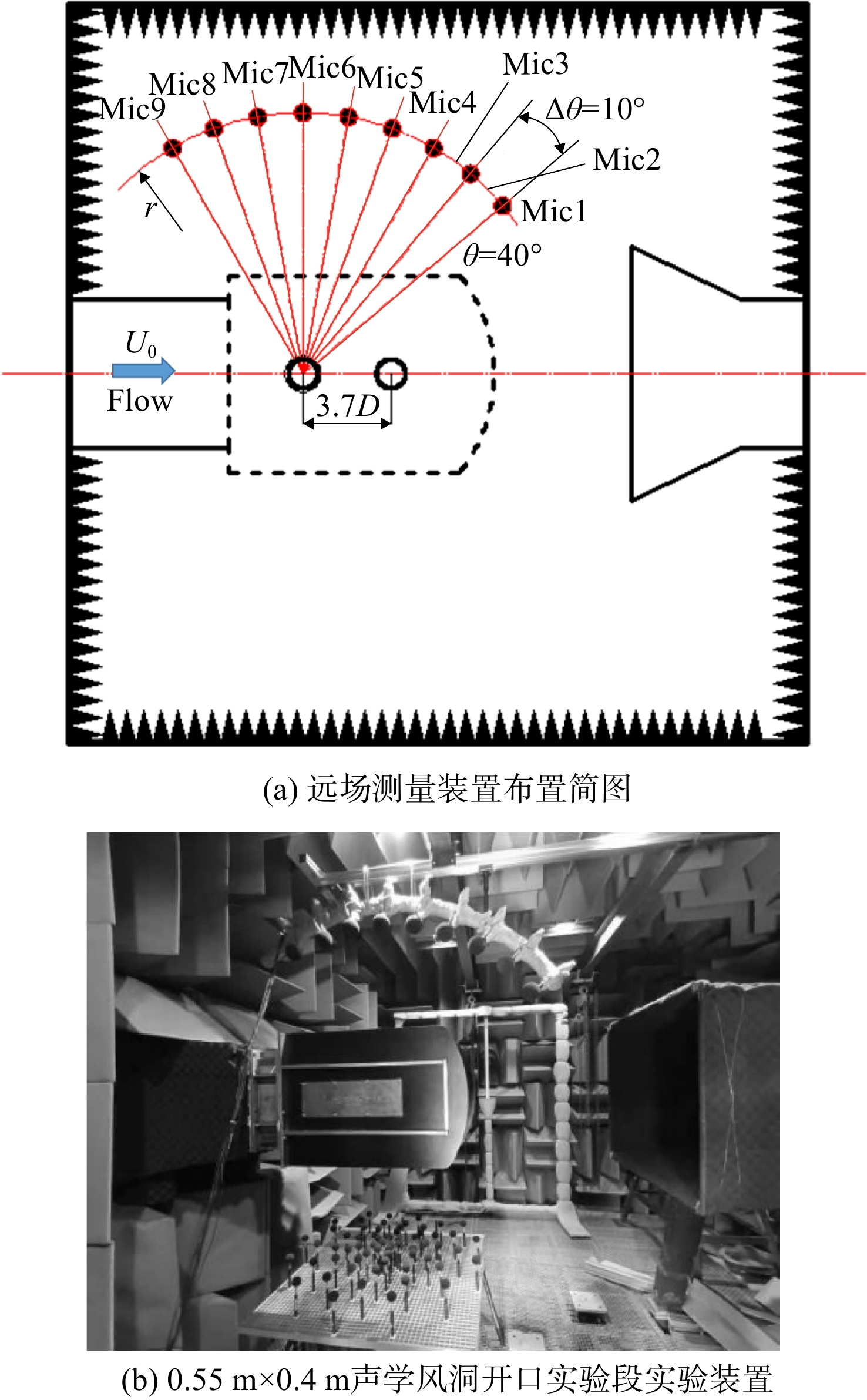

In order to explore the noise reduction effect and noise reduction law of the periodic pitch diameter protruding structure on the interference noise of the tandem double cylinders bluff body, noise reduction experiments of tandem double cylinders were carried out in the 0.55 m×0.4 m anechoic wind tunnel. Eight kinds of periodic pitch diameter protruding structures with different parameters were designed, and the noise reduction effects of pitch diameter periodic protruding structure on the interference noise of the tandem double cylinders were tested at four incoming flow velocities (Reynolds number 0.4×105−1.6×105). Experiment results showed that, the tone peak noise can be reduced or even be completely suppressed by the periodic pitch diameter protruding structure. The maximum peak noise reduction can reach nearly 30 dB, and the maximum overall sound pressure level noise reduction can reach 18.1 dB. Under different working conditions, different structures had different noise suppression capability and there was an optimal value for each working condition. Generally speaking, periodic pitch diameter protruding structure with protruding height of (0.1
| [1] |
PRASANTH T K,MITTAL S. Vortex-induced vibration of two circular cylinders at low Reynolds number[J]. Journal of Fluids and Structures,2009,25(4): 731-741.
|
| [2] |
杜晓庆,邬伟伟,赵燕,等. 低雷诺数下两类串列圆柱的涡激振动[J]. 振动工程学报,2021,34(2): 283-291. doi: 10.16385/j.cnki.issn.1004-4523.2021.02.008
DU Xiaoqing,WU Weiwei,ZHAO Yan,et al. Vortex-induced vibration of two types of tandem circular cylinders at low Reynolds number[J]. Journal of Vibration Engineering,2021,34(2): 283-291. (in Chinese) doi: 10.16385/j.cnki.issn.1004-4523.2021.02.008
|
| [3] |
赵良举,杨南奇,吴朵,等. 横掠二维串列双圆柱绕流气动噪声的数值模拟[J]. 重庆大学学报,2009,32(8): 943-949. doi: 10.11835/j.issn.1000-582X.2009.08.016
ZHAO Liangju,YANG Nanqi,WU Duo,et al. Aeroacoustics numerical simulation of flow past tow-dimensional two circular cylinders in Tandem arrangements[J]. Journal of Chongqing University,2009,32(8): 943-949. (in Chinese) doi: 10.11835/j.issn.1000-582X.2009.08.016
|
| [4] |
PAPAIOANNOU G V,YUE D K P,TRIANTAFYLLOU M S,et al. Three-dimensionality effects in flow around two tandem cylinders[J]. Journal of Fluid Mechanics,2006,558: 387-413. doi: 10.1017/S0022112006000139
|
| [5] |
刘敏,刘飞,胡亚涛,等. 三维串列双圆柱绕流气动流场及声场模拟[J]. 工程热物理学报,2008,29(3): 403-406. doi: 10.3321/j.issn:0253-231X.2008.03.011
LIU Min,LIU Fei,HU Yatao,et al. Aerodynamics and aeroacoustics numerical simulation of flow past two circular cylinders in tandem arrangements[J]. Journal of Engineering Thermophysics,2008,29(3): 403-406. (in Chinese) doi: 10.3321/j.issn:0253-231X.2008.03.011
|
| [6] |
CHEN W L,XIN D B,XU F,et al. Suppression of vortex-induced vibration of a circular cylinder using suction-based flow control[J]. Journal of Fluids and Structures,2013,42(10): 25-39.
|
| [7] |
BOWER W, KIBENS V. An overview of active flow control applications at the Boeing company[R]. AIAA-2004-2624, 2004.
|
| [8] |
PATEL M, CAIN A. Numerical simulation of flow control techniques for separation control[R]. AIAA-2002-668, 2002.
|
| [9] |
NATI G,KOTSONIS M,GHAEMI S,et al. Control of vortex shedding from a blunt trailing edge using plasma actuators[J]. Experimental Thermal and Fluid Science,2013,46: 199-210. doi: 10.1016/j.expthermflusci.2012.12.012
|
| [10] |
SILVA G P G DA,EGUEA J P,CROCE J A G,et al. Slat aerodynamic noise reduction using dielectric barrier discharge plasma actuators[J]. Aerospace Science and Technology,2020,97: 105642.1-105642.11.
|
| [11] |
FOSHAT S. Numerical investigation of the effects of plasma actuator on separated laminar flows past an incident plate under ground effect[J]. Aerospace Science and Technology,2020,98: 105646.1-105646.10.
|
| [12] |
ZHU H,HAO W,LI C,et al. Application of flow control strategy of blowing, synthetic and plasma jet actuators in vertical axis wind turbines[J]. Aerospace Science and Technology,2019,88: 468-480. doi: 10.1016/j.ast.2019.03.022
|
| [13] |
FLINOIS T L B,COLONIUS T. Optimal control of circular cylinder wakes using long control horizons[J]. Physics of Fluids,2015,27(8): 1-22.
|
| [14] |
魏峥,夏超,袁海东,等. 覆盖多孔介质的圆柱尾迹实验研究[J]. 空气动力学学报,2017,35(2): 265-270.
WEI Zheng,XIA Chao,YUAN Haidong,et al. Experimental study on the wake of a circular cylinder with porous layer coating[J]. Journal of Aerodynamics,2017,35(2): 265-270. (in Chinese)
|
| [15] |
LIU F, GUO H, HU T, et al. Experimental investigation on the aeroacoustics of circular cylinders covered with metal foam[R]. AIAA-2019-2715, 2019.
|
| [16] |
ARCONDOULIS E,LIU Y,LI Z,et al. Structured porous material design for passive flow and noise control of cylinders in uniform flow[J]. Materials,2019,12(18): 2905.1-2905.16.
|
| [17] |
BULATHSINGHALA D,WANG Z,GURSUL I. Modified near-wakes of axisymmetric cylinders with slanted base[J]. Aerospace Science and Technology,2019,86: 351-363. doi: 10.1016/j.ast.2019.01.022
|
| [18] |
BERNICKE P,AKKERMANS R A D,ANANTHAN V B,et al. A zonal noise prediction method for trailing-edge noise with a porous model[J]. International Journal of Heat and Fluid Flow,2019,80: 108469.1-108469.11. doi: 10.1016/j.ijheatfluidflow.2019.108469
|
| [19] |
ZDRAVKOVICH M M. The effects of interference be-tween circular cylinders in cross flow[J]. Journal of Fluids and Structures,1987,1(2): 239-261. doi: 10.1016/S0889-9746(87)90355-0
|
| [20] |
GEYER T F,SARRADJ E. Circular cylinders with soft porous cover for flow noise reduction[J]. Experiments in Fluids,2016,57(3): 30-45. doi: 10.1007/s00348-016-2119-7
|
| [21] |
SHI L, WANG W Q, ZHANG C C, et al. The effect of bionic v-ring surface on the aerodynamic noise of a circular cylinder[R]. Applied Mechanics and Materials, 2014, 461: 751-762.
|
| [22] |
HUTCHESON F V,BROOKS T F. Noise radiation from single and multiple rod configurations[J]. International Journal of Aeroacoustics,2012,11(3/4): 291-333.
|
| [23] |
LI L,LIU P,XING Y,et al. Experimental investigation on the noise reduction method of helical cables for a circular cylinder and tandem cylinders[J]. Applied Acoustics,2019,152: 79-87. doi: 10.1016/j.apacoust.2019.03.027
|
| [24] |
沈国辉,张扬,郑翀. 光滑圆柱风噪声的降噪措施研究[J]. 振动与冲击,2020,39(23): 52-57. doi: 10.13465/j.cnki.jvs.2020.23.008
SHEN Guohui,ZHANG Yang,ZHENG Chong. Denoising measures against aeolian noise of smooth circular cylinders[J]. Journal of Vibration and Shock,2020,39(23): 52-57. (in Chinese) doi: 10.13465/j.cnki.jvs.2020.23.008
|
| [25] |
PARUCHURI C, SUBRAMANIAN N, JOSEPH P, et al. Broadband noise reduction through leading edge serrations on realistic aero-foils[R]. AIAA-2015-2202, 2015.
|
| [26] |
ASGHAR A,PEREZ R E,JANSEN P W,et al. Application of leading-edge tubercles to enhance propeller performance[J]. AIAA Journal,2020,58(11): 4659-4671. doi: 10.2514/1.J058740
|
| [27] |
REVELL J D,PRYDZ R A,HAYS A P. Experimental study of aerodynamic noise vs drag relationships for circular cylinders[J]. AIAA Journal,1997,16(9): 889-897.
|
