| Citation: | YANG Liu, LIU Yu, WANG Junqi. Numerical simulation of ground vortex flow field of large transport aircraft[J]. Journal of Aerospace Power, 2023, 38（1）：151-159 doi: 10.13224/j.cnki.jasp.20210435
|

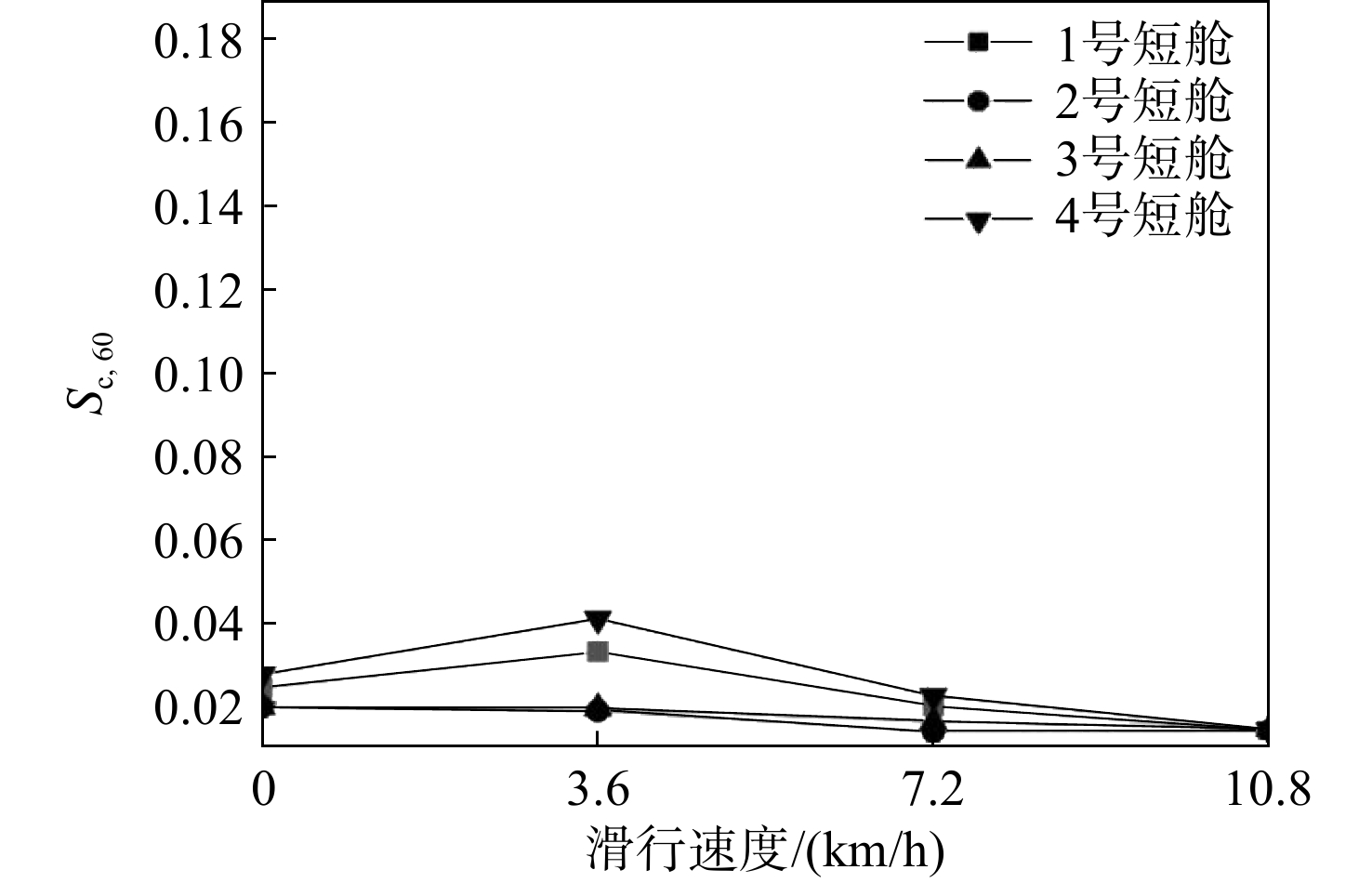

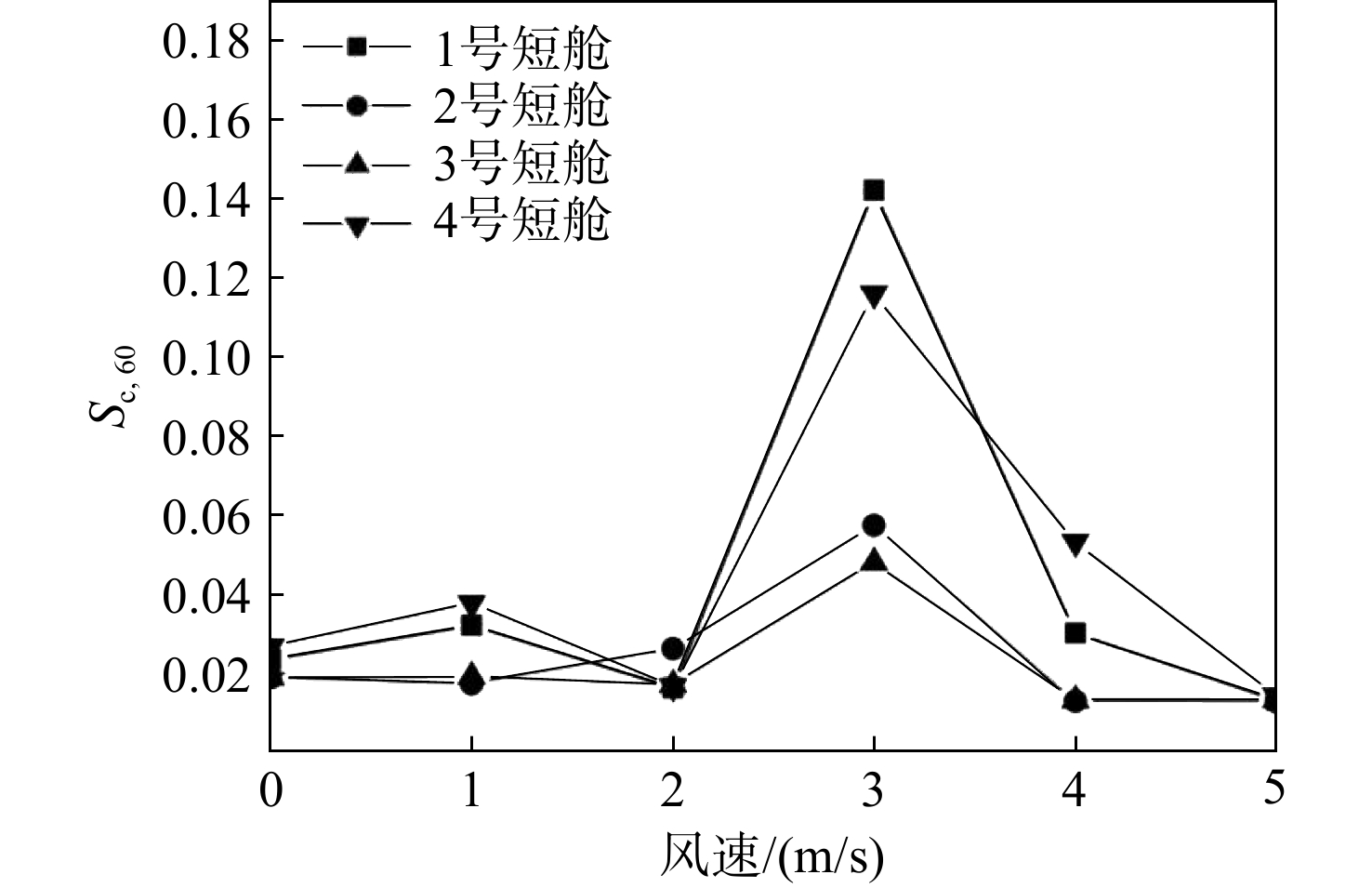

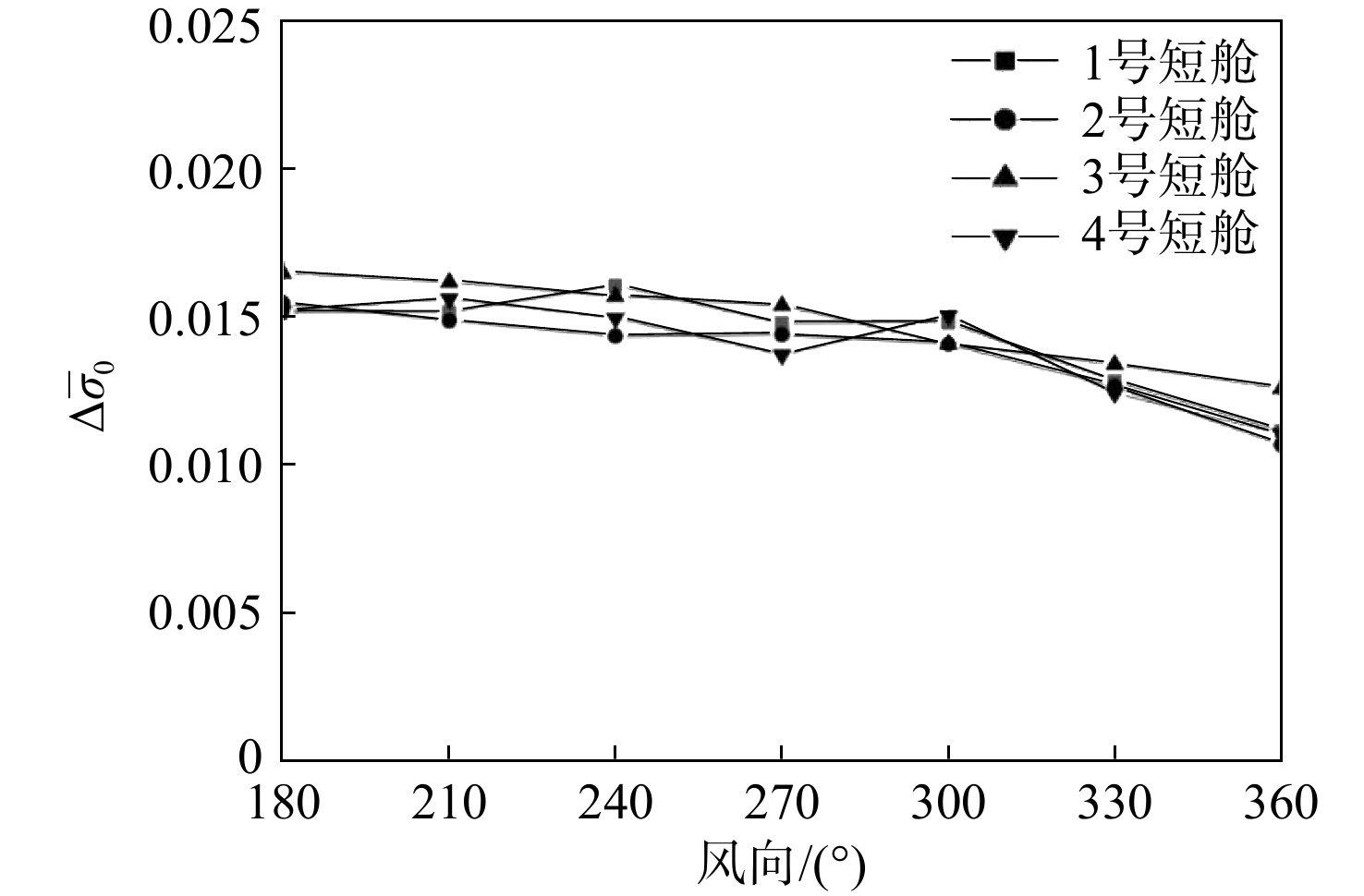

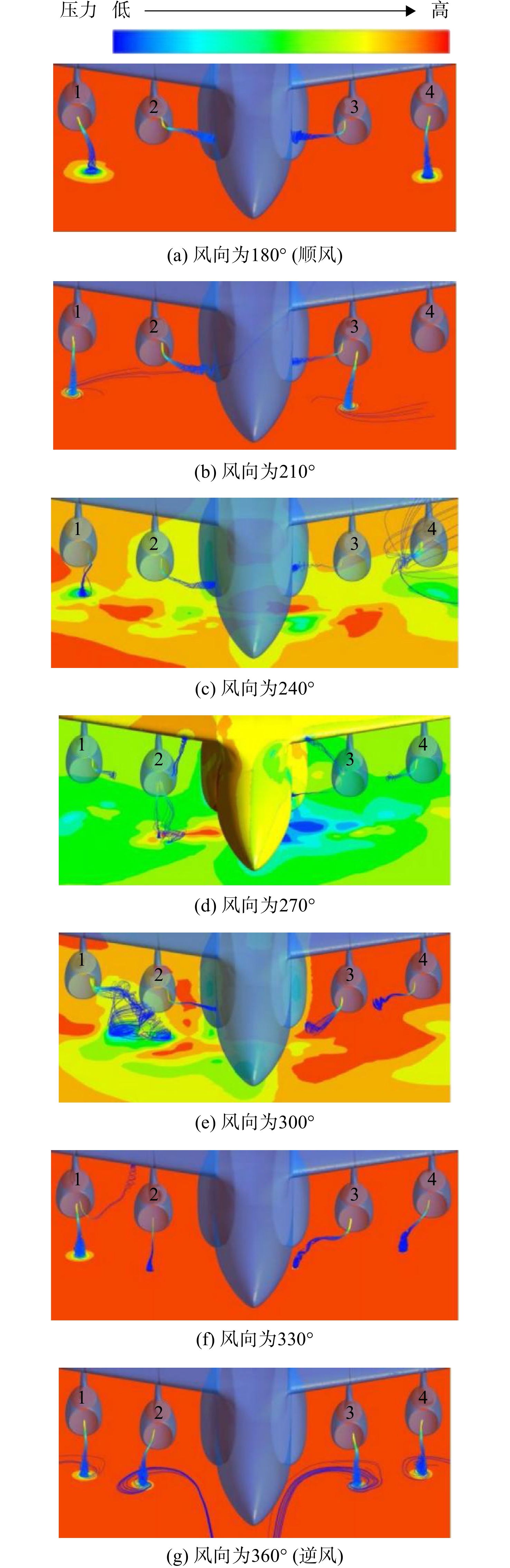

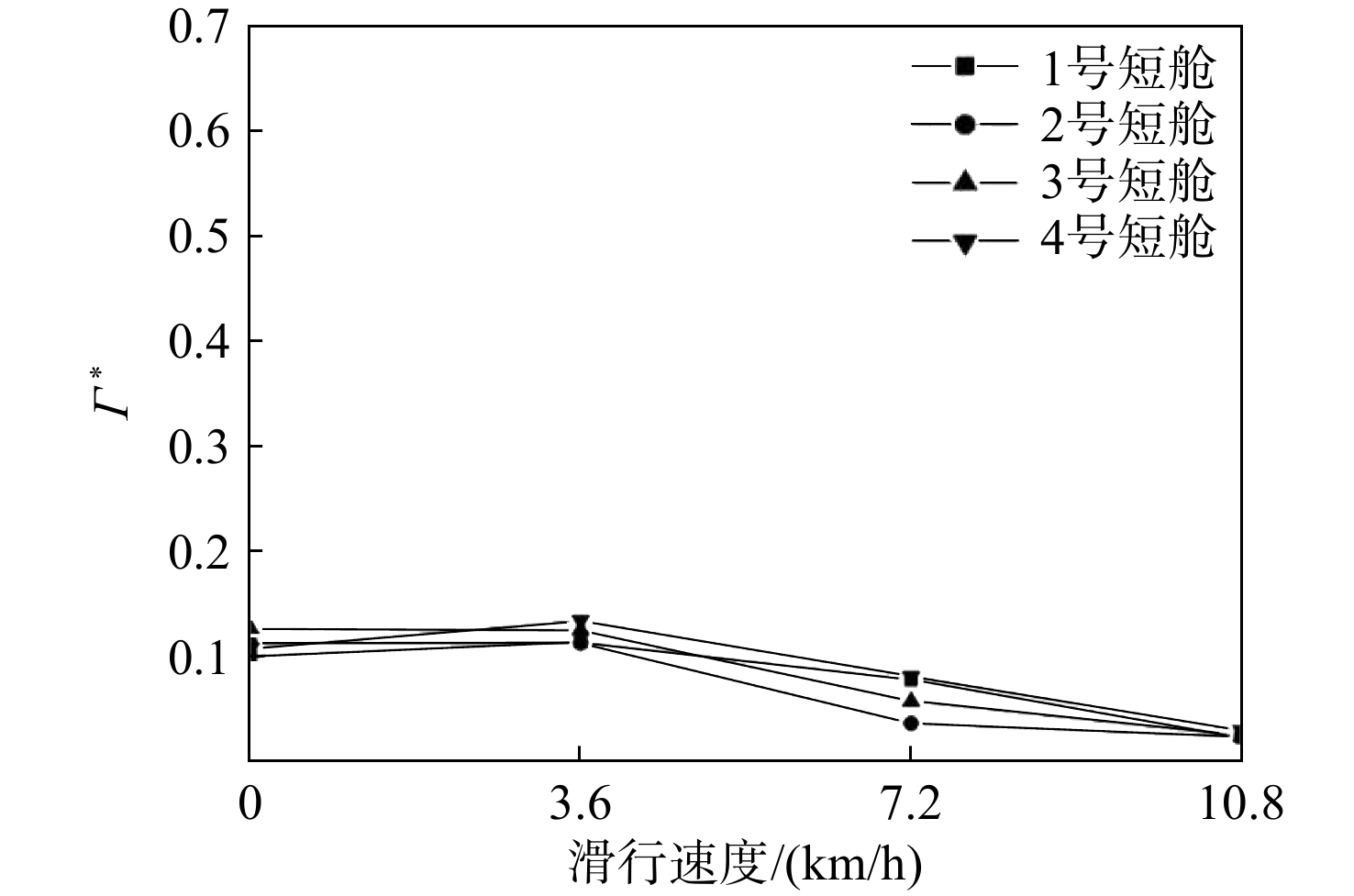

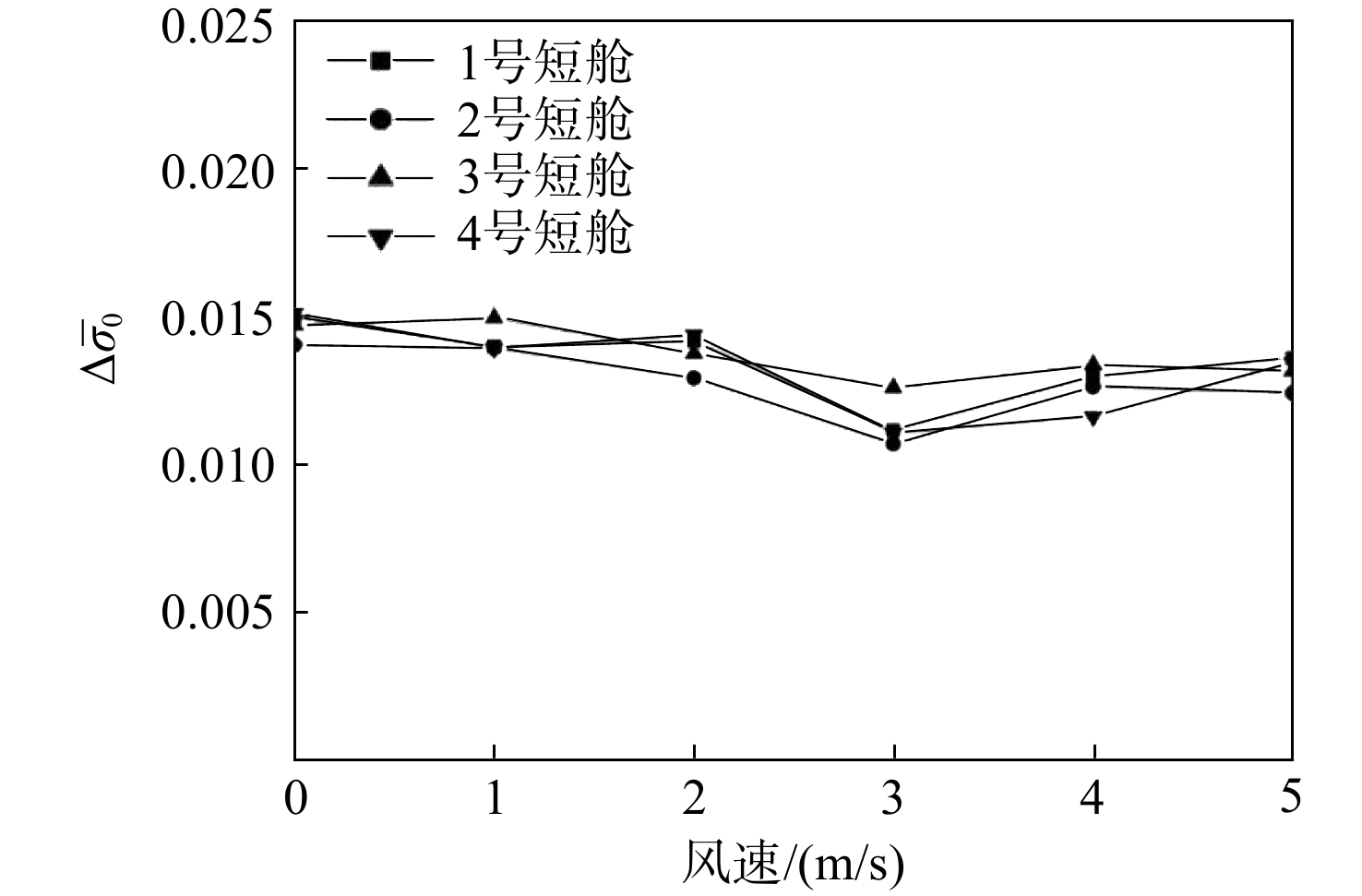

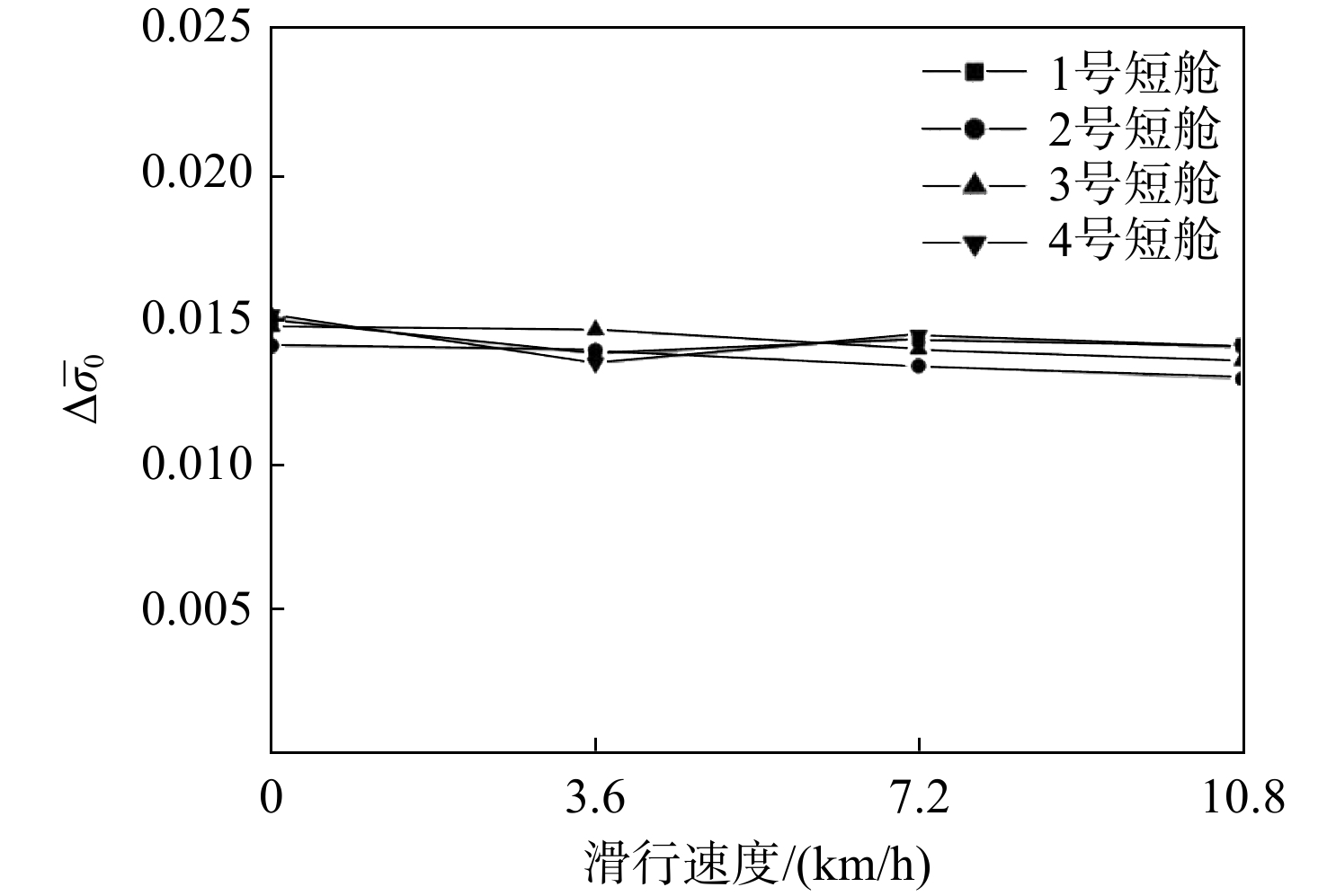

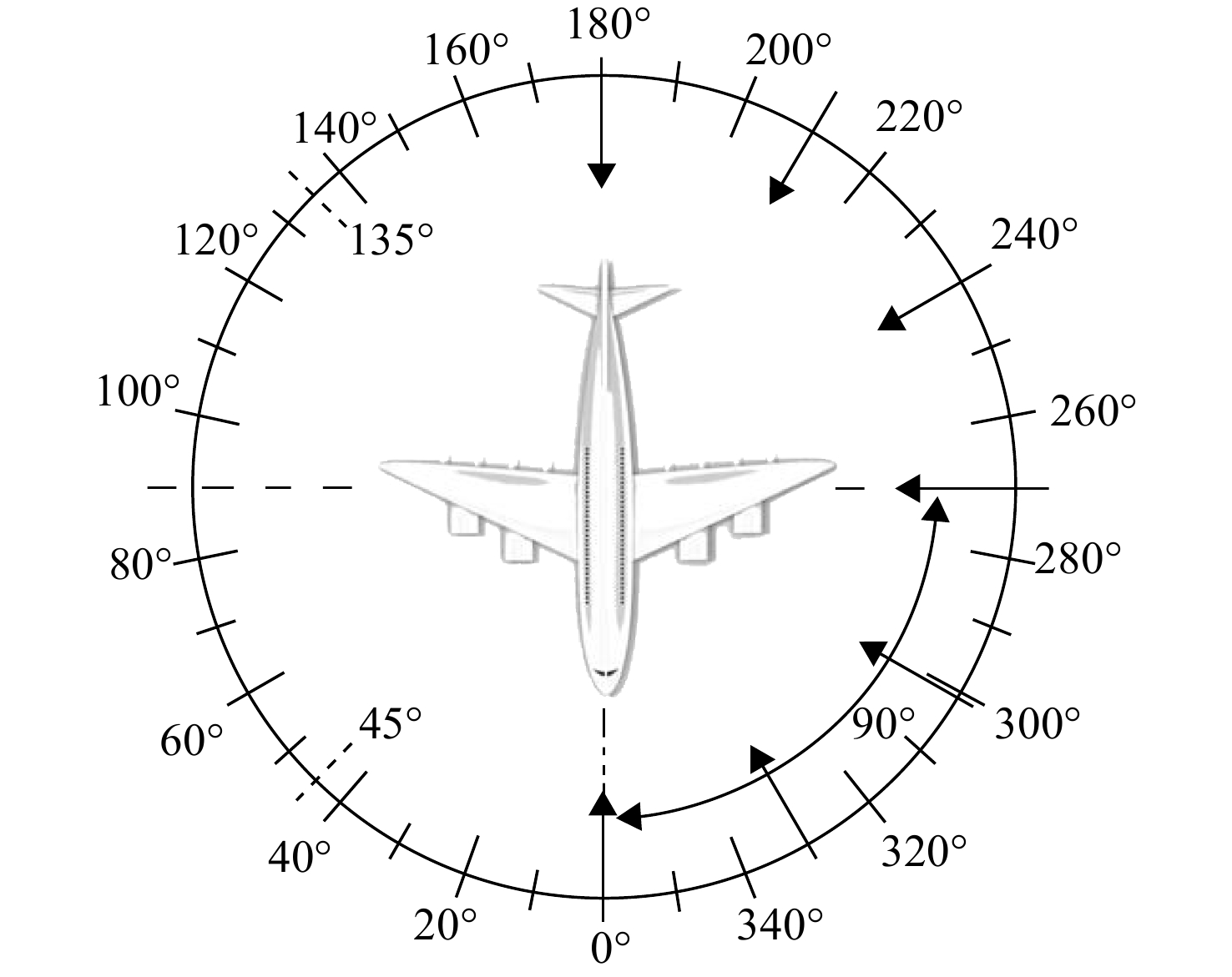

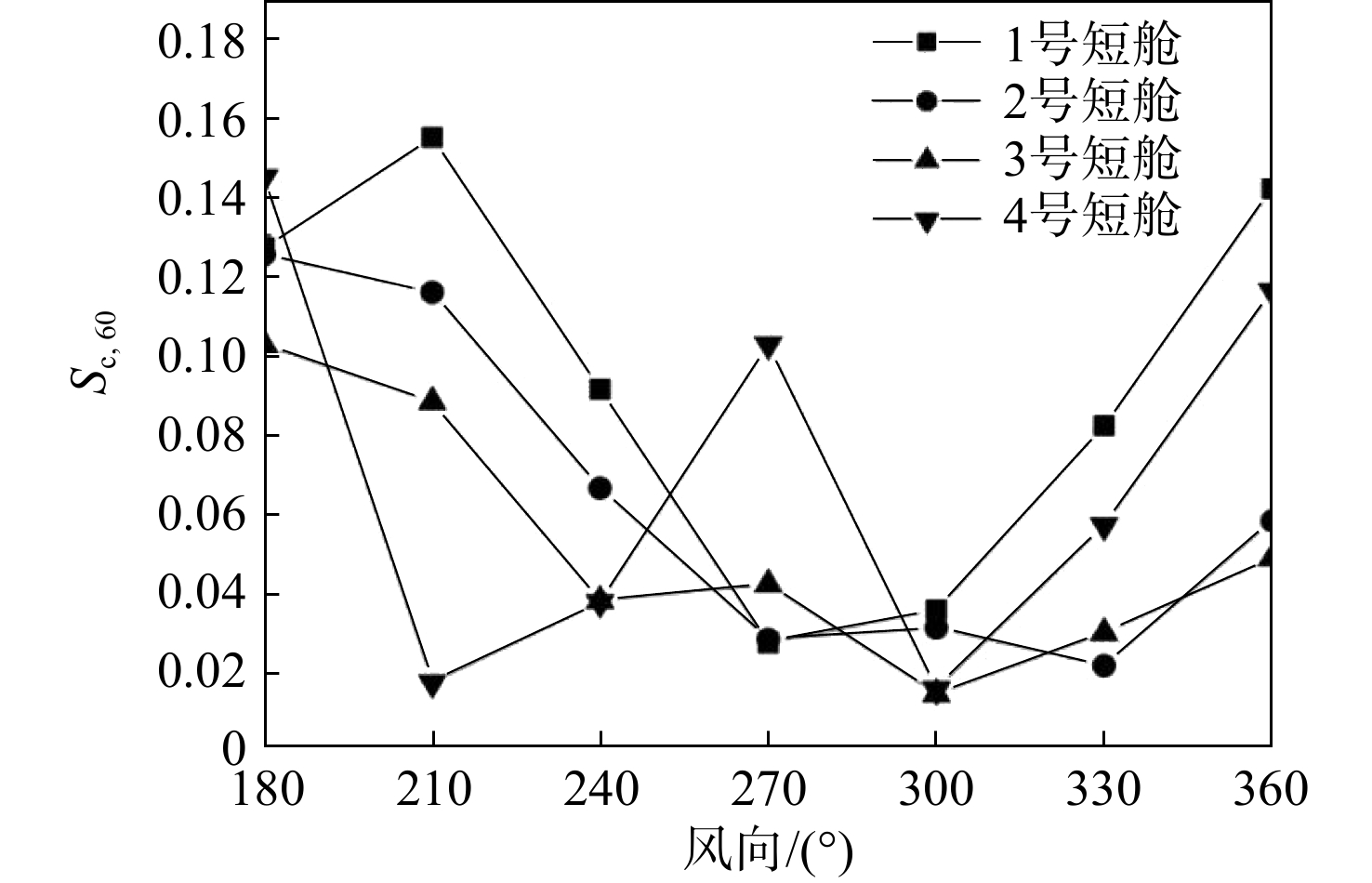

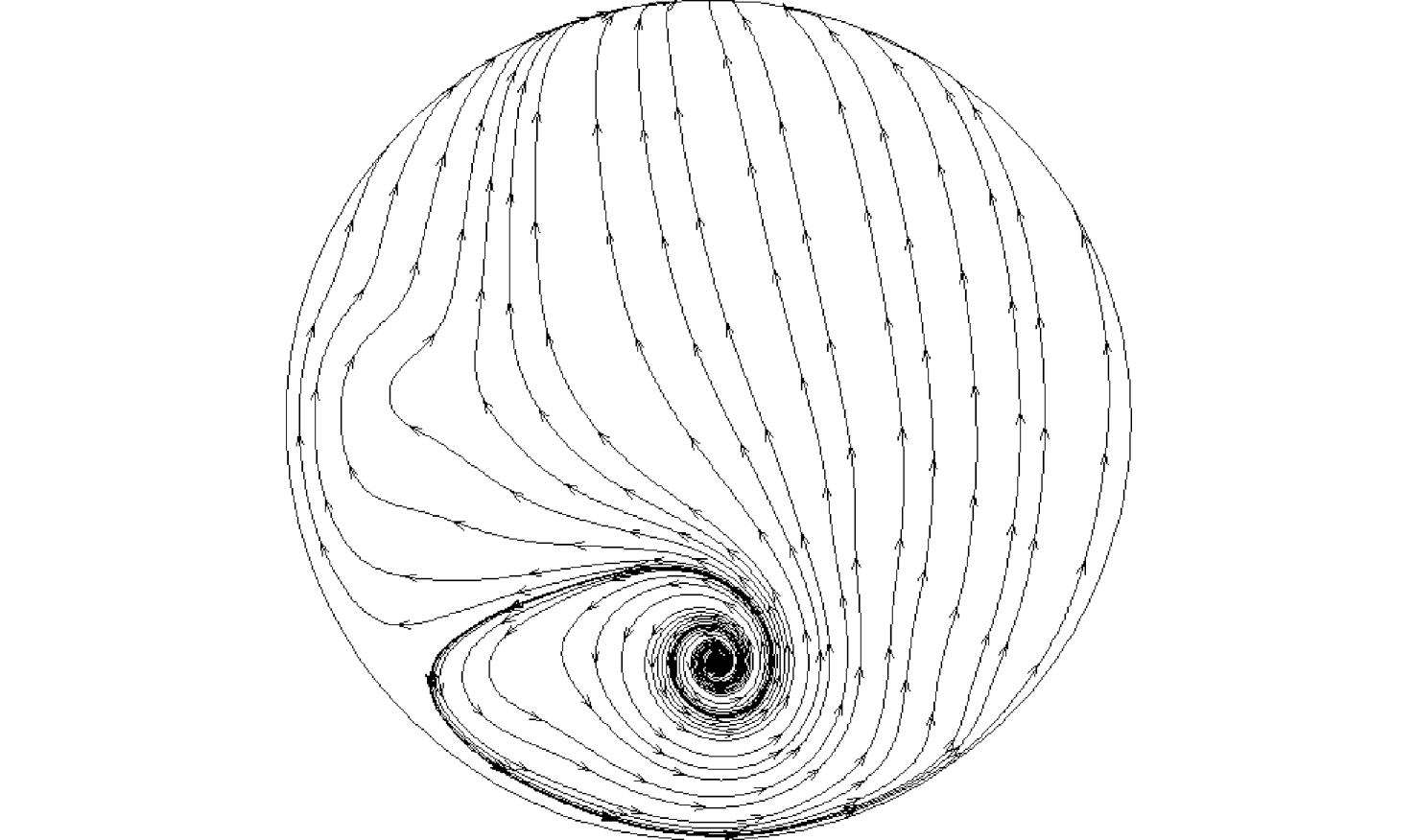

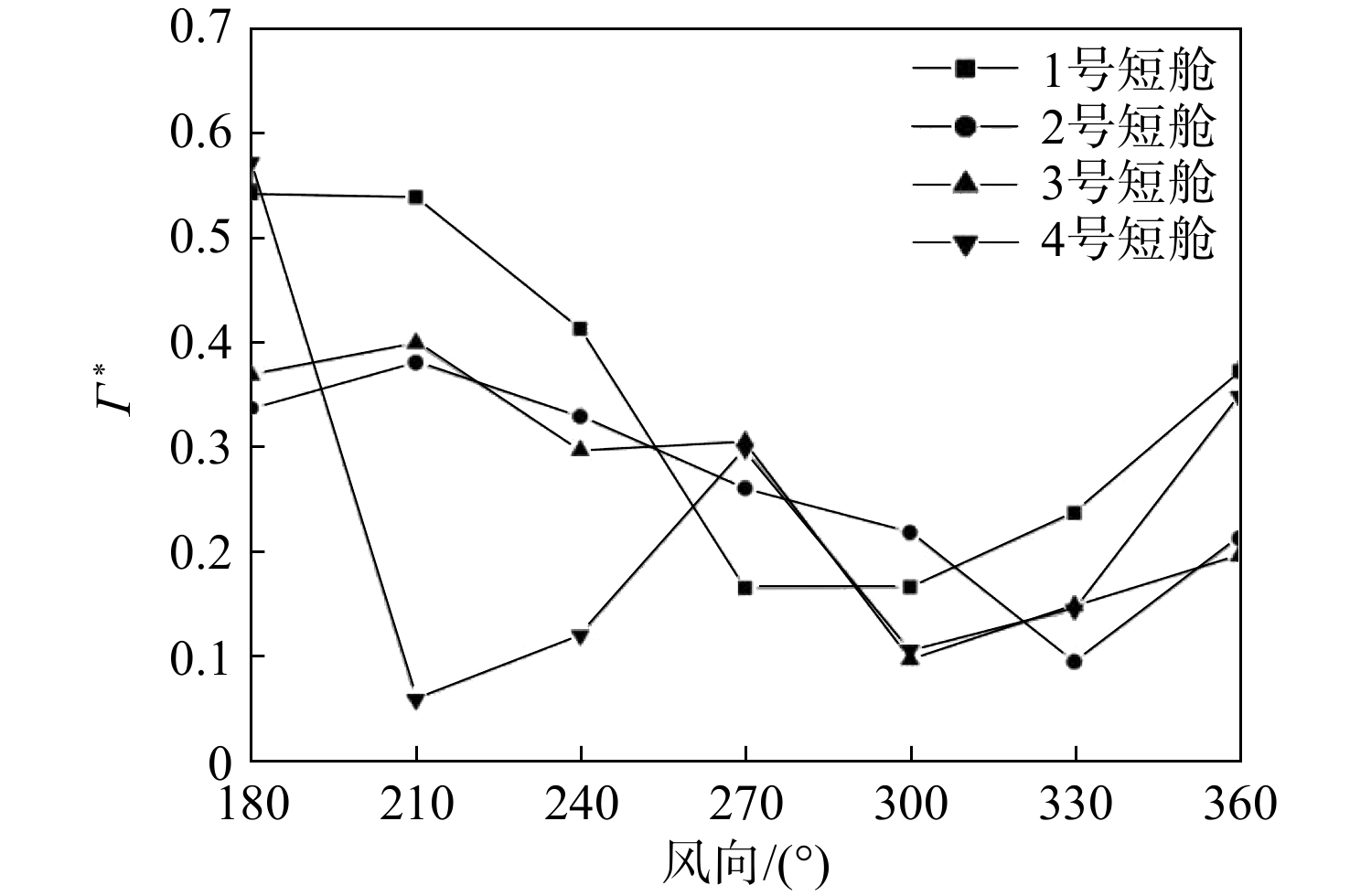

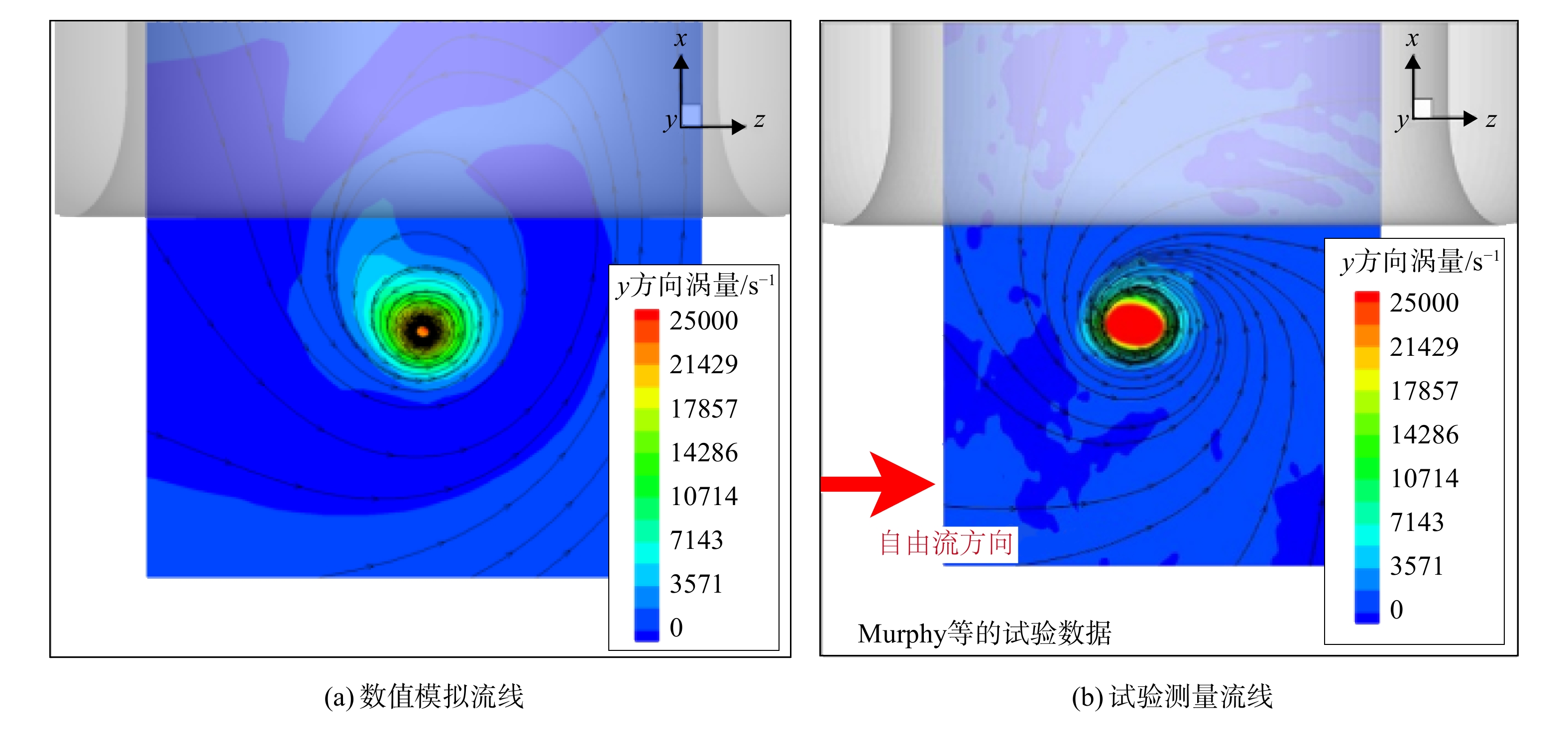

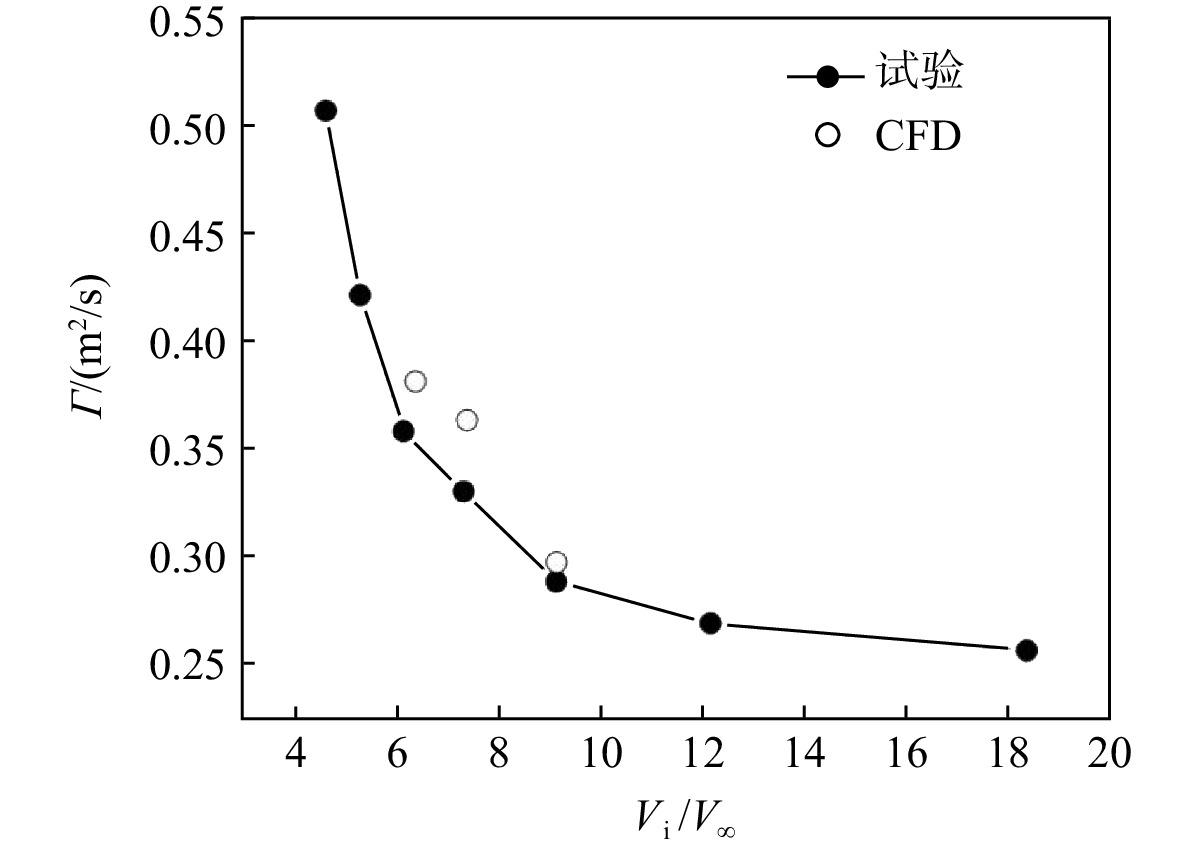

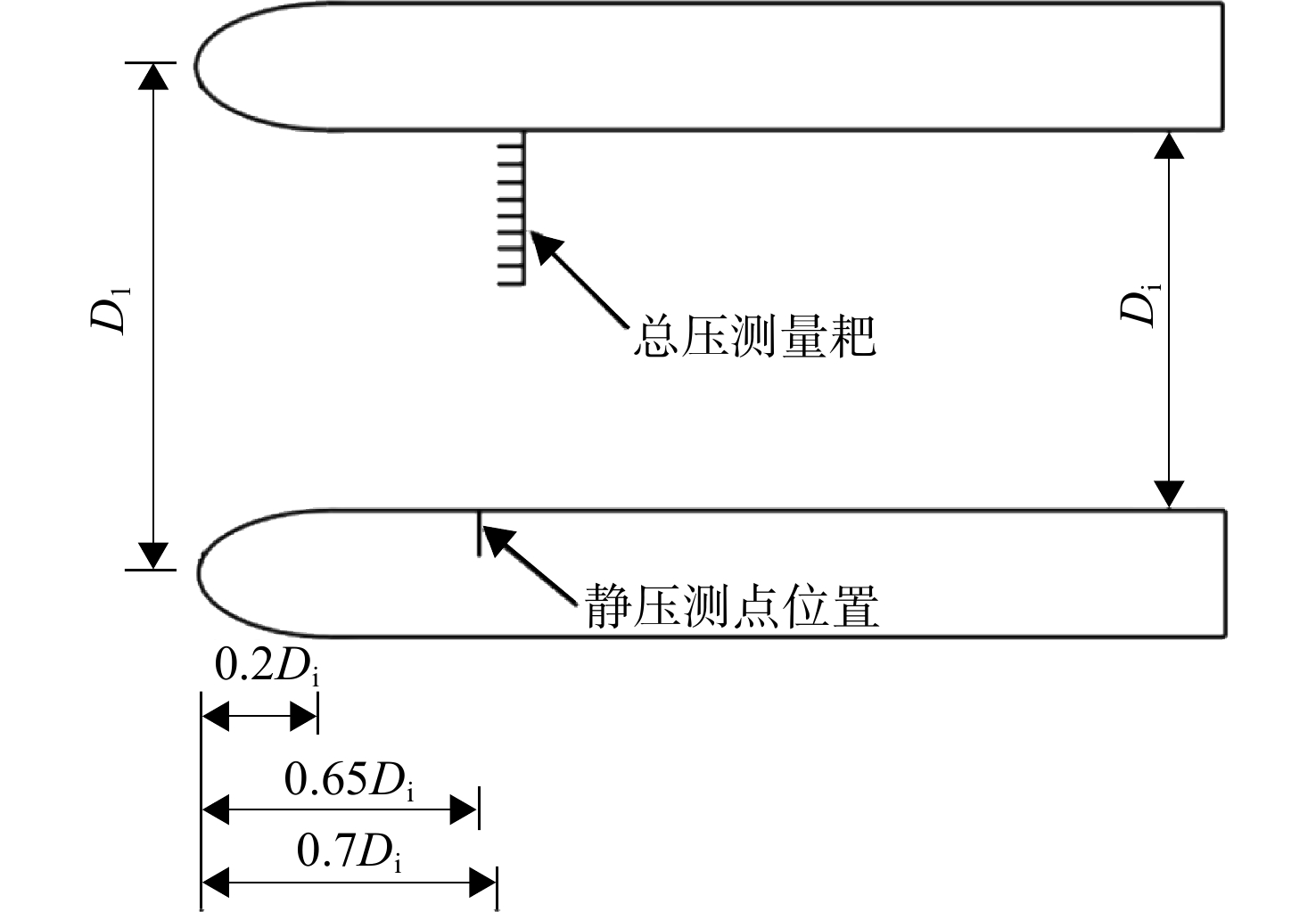

A three-dimensional model of a large transport aircraft equipped with turbofan engine was established to study the ground vortex. Numerical simulation method was used to simulate the ground vortex flow field under different wind speeds, directions and taxiing speeds. According to the results, the distribution characteristics and variation rules of the ground vortex flow field were obtained, and the matters needing attention in the aircraft operation were put forward. The results showed that, for this type of aircraft, the ground vortex mainly caused the inlet swirl flow distortion, the total inlet pressure distortion was low, and the distortion index was kept between 1.1%−1.7%. When the upwind speed was greater than 5 m/s, the ground vortex disappeared, and its intensity first increased and then decreased with the increase of wind speed. With the change of wind direction, the ground vortex structure changed constantly, and the nacelle on the downwind side was more likely to produce ground vortex. Under the taxiing condition, the intensity of ground vortex changed little, and there was no vortex suction when the taxiing speed reached 3 m/s. In practice, the working state of No.1 and No.4 engines with large swirl distortion should be observed when the engine was running on the ground. During taxiing, focus should be put on observing the foreign object damage of No.2 and No.3 engines with strong ground vortex suction capacity.
| [1] |
MOTYCKA D L. Ground vortex-limit to engine/reverser operation[J]. Journal of Engineering for Gas Turbines and Power,1976,98(2): 258-264.
|
| [2] |
BARATA J, MANETA A, SILVA A. Numerical study of a gas turbine engine ground vortex[R]. AIAA 2009-4801, 2009.
|
| [3] |
DE SIERVI F,VIGUIER H C,GREITZER E M,et al. Mechanisms of inlet-vortex formation[J]. Journal of Fluid Mechanics,1982,124: 173-207. doi: 10.1017/S0022112082002456
|
| [4] |
屈玉池, 霍建武. 大型军民用飞机飞行事故分析[M]. 西安: 中国飞行试验研究院, 2009.
|
| [5] |
KLEIN H J. Vortex inhibitor for aircraft jet engines: US2915262[P]. 1959-12-01.
|
| [6] |
赵光敏,胡宗安. 风机地面涡的生成、危害及消除[J]. 北京航空学院学报,1986,12(4): 131-134.
ZHAO Guangmin,HU Zongan. Formation, harm and elimination of fan ground vortex[J]. Journal of Beijing Institute of Aeronautics and Astronautics,1986,12(4): 131-134. (in Chinese)
|
| [7] |
马申义. 地面涡研究[J]. 航空学报,1989,10(5): 293-296. doi: 10.3321/j.issn:1000-6893.1989.05.014
MA Shenyi. Study on ground vortex[J]. Acta Aeronautica et Astronautica Sinica,1989,10(5): 293-296. (in Chinese) doi: 10.3321/j.issn:1000-6893.1989.05.014
|
| [8] |
TRAPP L G, GIRARDI R. Evaluation of engine inlet vortices using CFD[C]//Proceedings of the 50th AIAA Aerospace Sciences Meeting including the New Horizons Forum and Aerospace Exposition. Nashville: AIAA, 2012: 1-13.
|
| [9] |
YADLIN Y, SHMILOVICH A. Simulation of vortex flows for airplanes in ground operations[R]. AIAA 2006-56, 2006.
|
| [10] |
MISHRA N,MACMANUS D,MURPHY J. Intake ground vortex characteristics[J]. Journal of Aerospace Engineering,2012,226(11): 1387-1400.
|
| [11] |
REHBY L. Jet engine ground vortex studies[D]. Bedford, UK: Cranfield University, 2007.
|
| [12] |
李超东,宁方飞,贾新亮. 地面涡对进发匹配的影响[J]. 燃气涡轮试验与研究,2015,28(4): 7-10. doi: 10.3969/j.issn.1672-2620.2015.04.002
LI Chaodong,NING Fangfei,JIA Xinliang. Study on the effects of ground vortex on the inlet-engine matching[J]. Gas Turbine Experiment and Research,2015,28(4): 7-10. (in Chinese) doi: 10.3969/j.issn.1672-2620.2015.04.002
|
| [13] |
刘浩,李博,王成,等. 滑跑条件下短舱进气道地面涡数值仿真[J]. 航空动力学报,2018,33(7): 1657-1664. doi: 10.13224/j.cnki.jasp.2018.07.014
LIU Hao,LI Bo,WANG Cheng,et al. Numerical simulations on nacelle inlet ground vortex under take-off conditions[J]. Journal of Aerospace Power,2018,33(7): 1657-1664. (in Chinese) doi: 10.13224/j.cnki.jasp.2018.07.014
|
| [14] |
王成. 带有风扇叶片的短舱进气道地面涡影响研究[D]. 南京: 南京航空航天大学, 2017.
WANG Cheng. Research on the influence of ground vortex on nacelle inlet with blades[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2017. (in Chinese)
|
| [15] |
MURPHY J P,MACMANUS D G,SHEAF C T. Experimental investigation of intake ground vortices during takeoff[J]. AIAA Journal,2010,48(3): 688-701. doi: 10.2514/1.45896
|
| [16] |
MURPHY J P. Intake ground vortex aerodynamics[D]. Bedford, UK: Cranfield University, 2008.
|
| [17] |
MURPHY J P,MACMANUS D G. Inlet ground vortex aerodynamics under headwind conditions[J]. Aerospace Science and Technology,2011,15: 207-215. doi: 10.1016/j.ast.2010.12.005
|
| [18] |
MOYTCKA D L, WALTER W A, MULLER G L. An analytical and experimental study of inlet ground vortices[R]. AIAA 73-1313, 1973.
|
| [19] |
MOYTCKA D L, WALTER W A. An experimental investigation of ground vortex formation during reverse engine operation[R]. AIAA 75-1322, 1975.
|
