| Citation: | LI Shifeng, MA Husheng. Influencing factors and control methods of surface microstructure transformation of single crystal blade[J]. Journal of Aerospace Power, 2023, 38（1）：41-46 doi: 10.13224/j.cnki.jasp.20210438
|

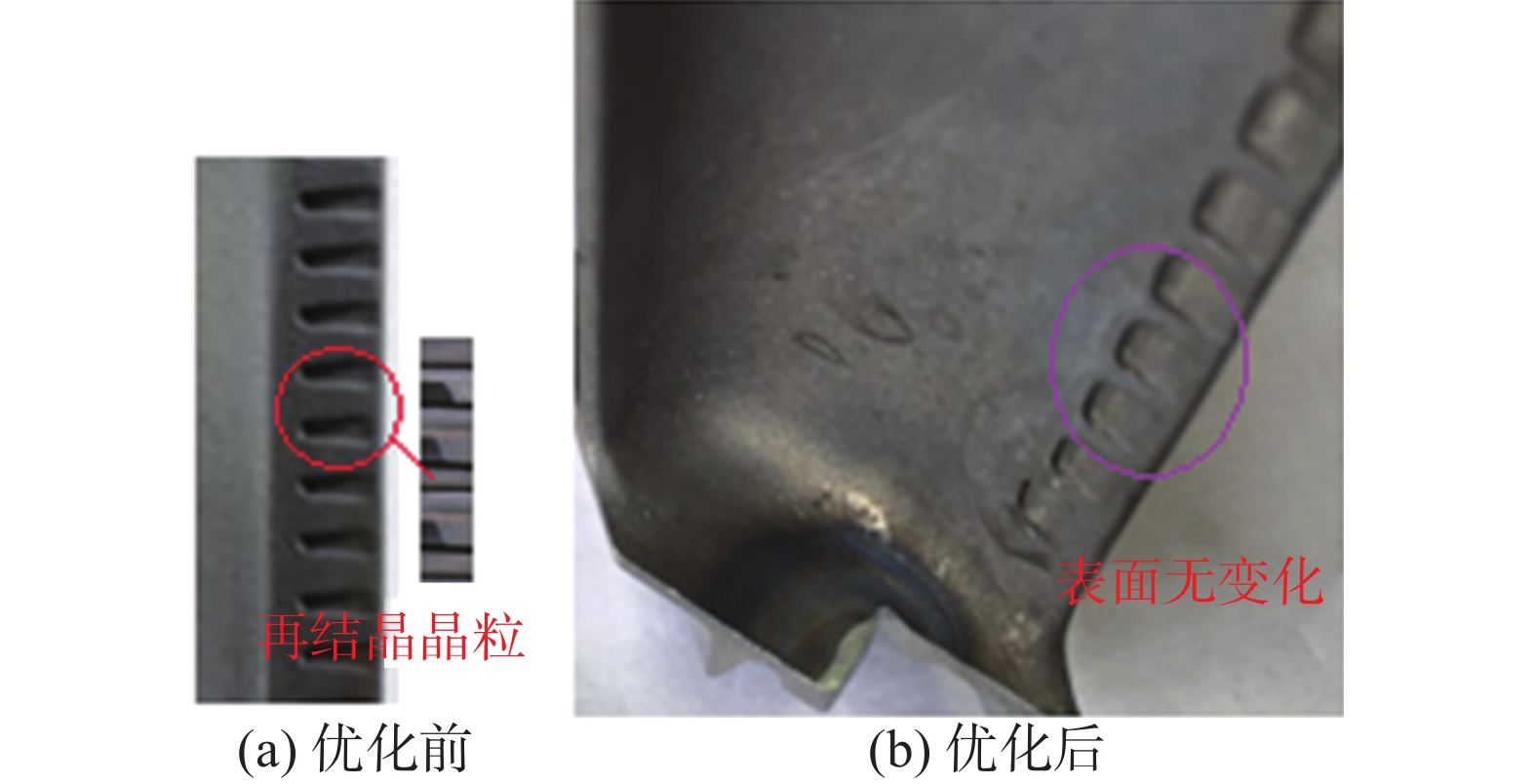

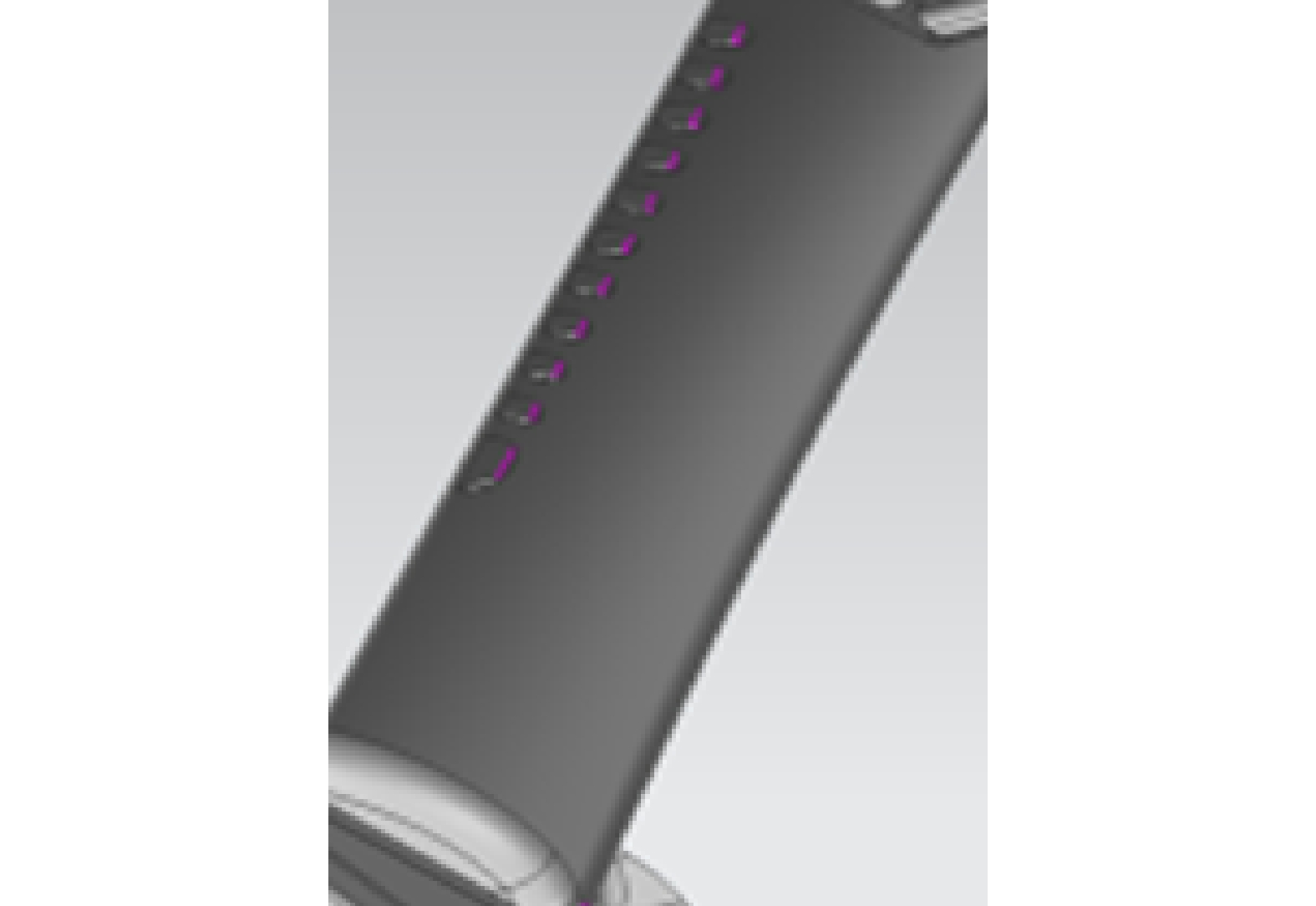

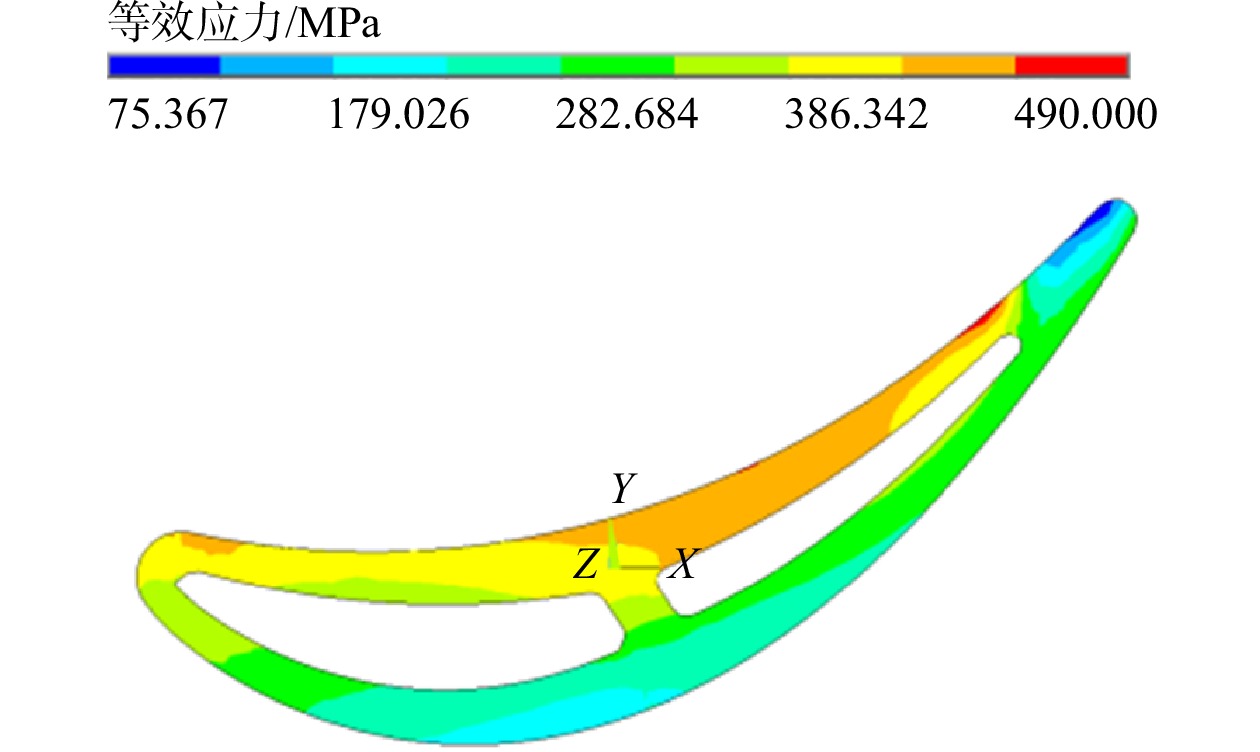

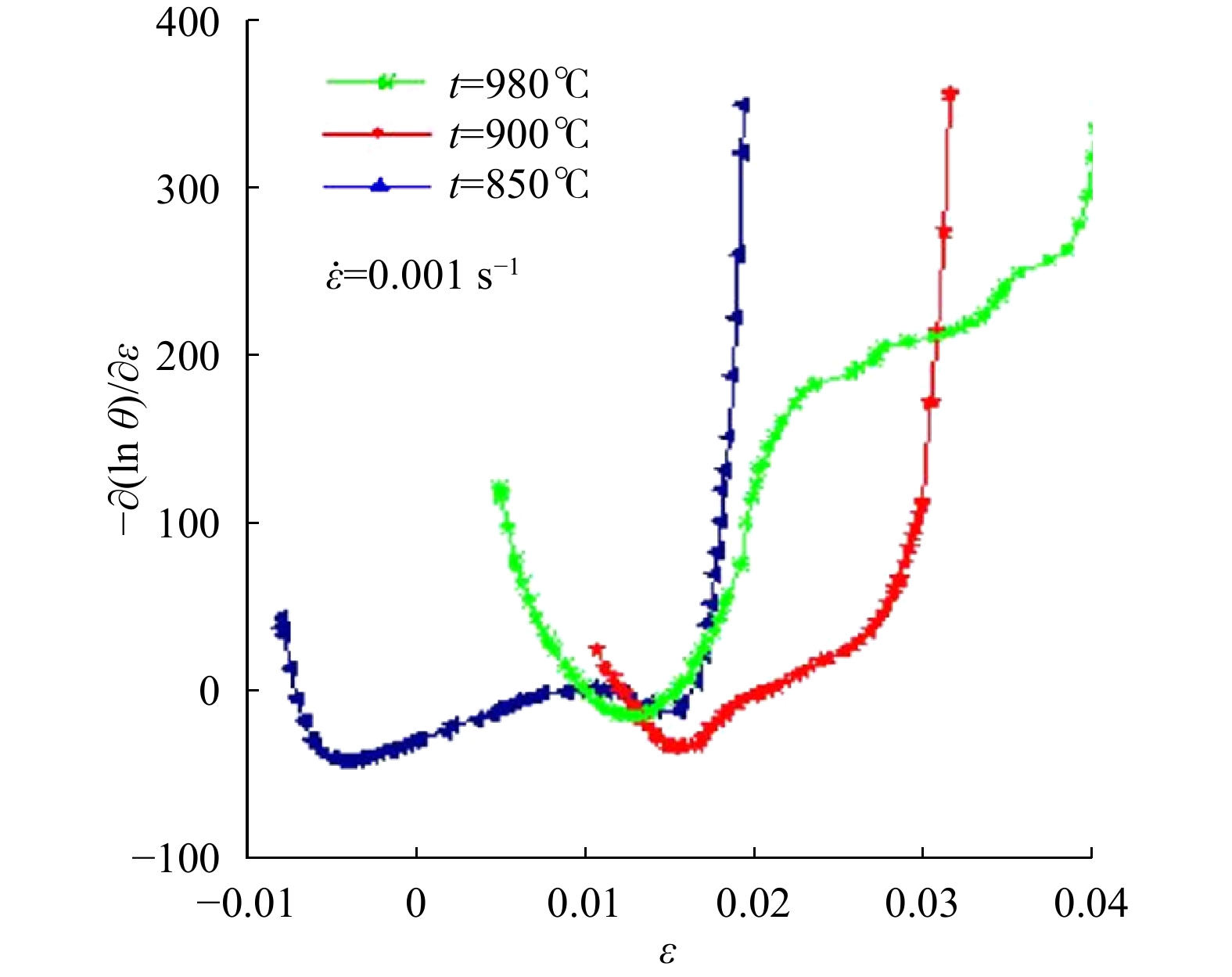

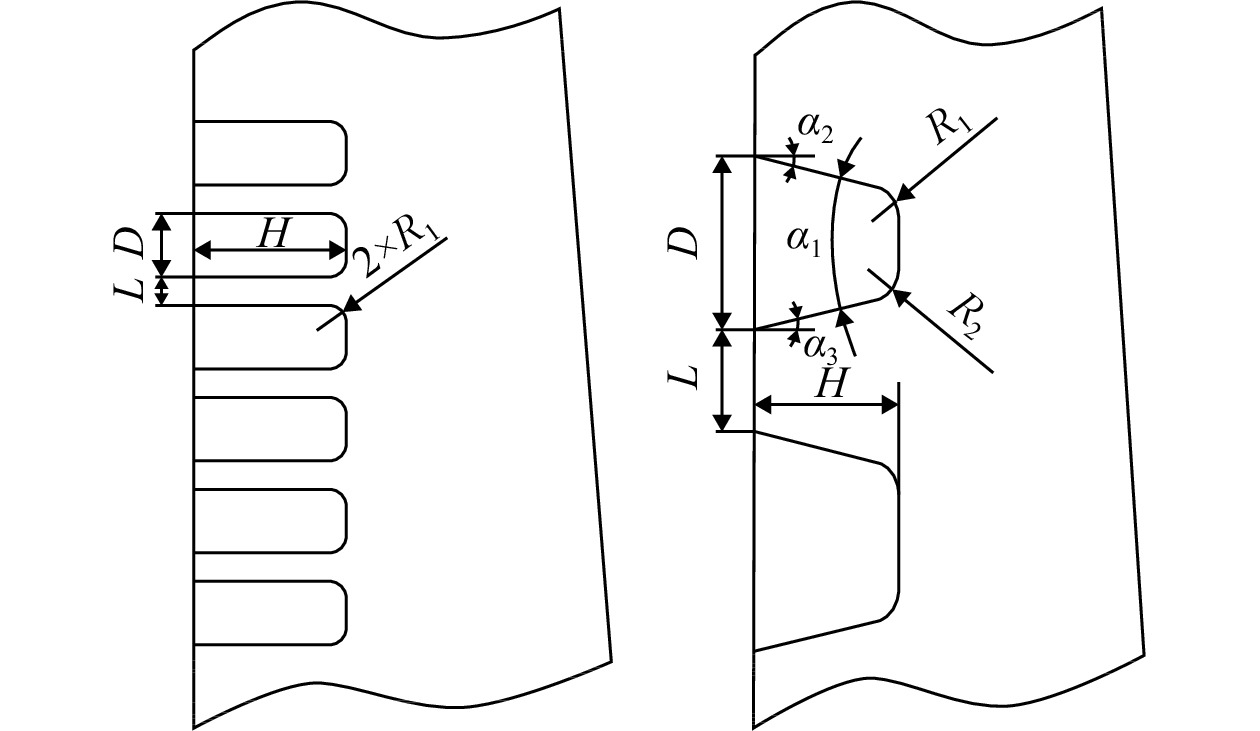

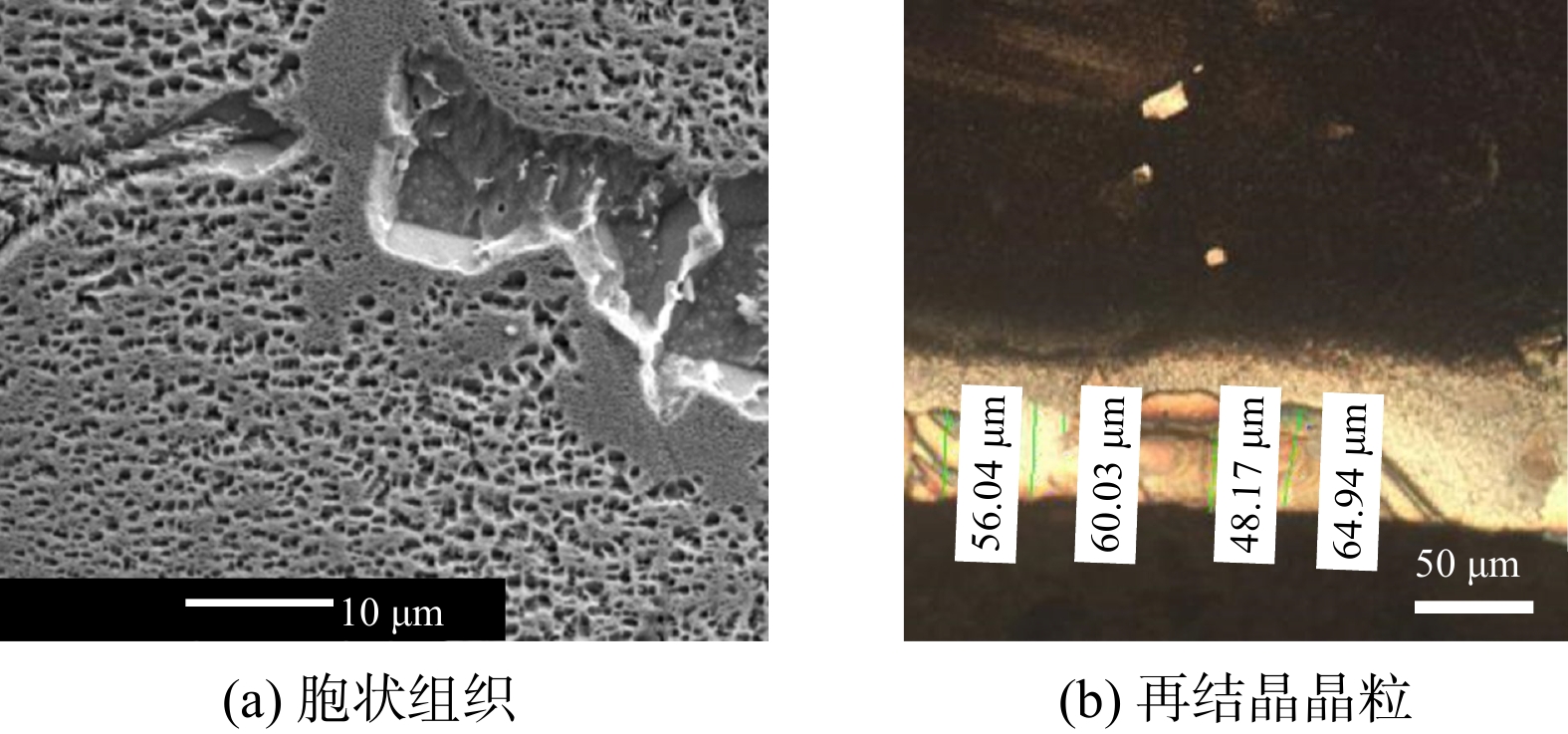

The problem of surface recrystallization was found on the structural distortion region of single crystal blade after the high temperature heat treating. To solve this problem, a method was proposed based on critical stress of recrystallization and residual stress of structure. With the help of structural optimization technology, the study showed that the critical stress happened justly under the recrystallization of the single crystal blade, and the residual stress level of structure was no more than the critical stress of recrystallization stress. Results showed that the temperature and stress concentration level were two major factors inducing structural recrystallization, and the recrystallization was originated from discontinuous cellular microstructure of the single crystal blade. Meanwhile, the critical stress of recrystallization was used to establish a relationship with the structure design parameters and the heat treatment temperature, then, the test validation work was completed for the real blade. This method is effective to restrain the structural recrystallization of single crystal blade and control the structural integrity and surface microstructure continuity.
| [1] |
赵新宝. 高梯度定向凝固单晶高温合金晶体取向研究[D]. 西安: 西北工业大学, 2010.
ZHAO Xinbao. Crystal orientation of single crystal superalloys under high thermal gradient directional solidification[D]. Xi’an: Northwest Polytechnic University, 2010. (in Chinese)
|
| [2] |
陶春虎,张卫方,李运菊,等. 定向凝固和单晶高温合金的再结晶[J]. 失效分析与预防,2006,1(4): 1-7. doi: 10.3969/j.issn.1673-6214.2006.04.001
TAO Chunhu,ZHANG Weifang,LI Yunju,et al. Recrystallization of directionally solidified and single crystal superalloy[J]. Failure Analysis and Prevention,2006,1(4): 1-7. (in Chinese) doi: 10.3969/j.issn.1673-6214.2006.04.001
|
| [3] |
GELL M, DU HL D N, GIAMEI A F. The development of single crystal superalloy turbine blades[R]. Warrendale, US: Pratt and Whitney Aircraft Group, 1980.
|
| [4] |
CORRIGAN J, VOGT R G, MIHALISIN J R, et al. Single crystal superalloy articles with reduced grain recrystallization: EP10/38982A1[P]. 2000-09-27.
|
| [5] |
COX D,ROEBUCK B. Recrystallization of single crystal super alloy CMSX24[J]. Materials Science and Technology,2003,19: 440-446. doi: 10.1179/026708303225010731
|
| [6] |
PORTER A,RALPH B. Recrystallization of a nickel-base superalloy: kinetics and microstructural development[J]. Material Science Engine,1983,59: 69-78. doi: 10.1016/0025-5416(83)90089-7
|
| [7] |
PORTER A,RALPH B. The recrystallization of nickel-base superalloys[J]. Journal of Materials Science,1981,16: 7072-7131.
|
| [8] |
TAKEO T,YOSHIHIRO T,TAKASHI M. Low stress creep of single crystals with [011] orientation[J]. Material Science Forum,2003,31: 803-808.
|
| [9] |
BOND S D,MARTIN J W. Surface recrystallization in a single crystal nickel based superalloy[J]. Journal of Materials Science,1984,19: 3867-3872. doi: 10.1007/BF00980749
|
| [10] |
WANG D L, JIN T, YANG S Q, et al. Surface recrystallization and its effect on rupture life of SRR99 single crystal superalloy[J]. Materials Science Forum, 2007, 546/547/548/549: 1229-1234
|
| [11] |
JO C Y,CHO H Y,KIM H M. Effect of recrystallization on microstructural evolution and mechanical properties of single crystal nickel base superalloy CMSX22[J]. Materials Science and Technology,2003,19: 1665-1670. doi: 10.1179/026708303225008301
|
| [12] |
KHAN T,CARON P,NAKAGAWA Y G. Mechanical behavior and processing of DS and single crystal superalloy[J]. Journal of Metals Science,1986,38(7): 16-19.
|
| [13] |
陈素玲,蒋文娟,杜娟. 镍基单晶高温合金表面再结晶控制技术的研究进展[J]. 重庆大学学报,2020,43(8): 74-78.
CHEN Suling,JIANG Wenjuan,DU Juan. Research progress of surface-recrystallization control technology of Ni-based single-crystal super alloy[J]. Journal of Chongqing University,2020,43(8): 74-78. (in Chinese)
|
| [14] |
卜昆,邱飞,王志红. 镍基单晶叶片制造技术及再结晶研究进展[J]. 航空制造技术,2016,21(8): 34-40. doi: 10.16080/j.issn1671-833x.2016.21.034
BU Kun,QIU Fei,WANG Zhihong. Development of manufacture technology and recrystallization study for nickel based single crystal hollow turbine blade[J]. Aeronautical Manufacturing Technology,2016,21(8): 34-40. (in Chinese) doi: 10.16080/j.issn1671-833x.2016.21.034
|
| [15] |
卫平,李嘉荣,钟振纲. 一种镍基单晶高温合金的表面再结晶研究[J]. 材料工程,2001, 26(10): 5-8. doi: 10.3969/j.issn.1001-4381.2001.10.002
WEI Ping,LI Jiarong,ZHONG Zhengang. Study on the surface recrystallization of a Ni-based single crystal superalloy[J]. Journal of Materials Engineering,2001, 26(10): 5-8. (in Chinese) doi: 10.3969/j.issn.1001-4381.2001.10.002
|
| [16] |
孟杰,金涛. 镍基单晶高温合金的再结晶[J]. 材料工程,2011(6): 92-98. doi: 10.3969/j.issn.1001-4381.2011.06.019
MENG Jie,JIN Tao. Recrystallization of single crystal nickel-based superalloys[J]. Journal of Materials Engineering,2011(6): 92-98. (in Chinese) doi: 10.3969/j.issn.1001-4381.2011.06.019
|
| [17] |
马健,李世峰,何爱杰. DD6单晶涡轮叶片缘板裂纹与再结晶研究[J]. 航空动力学报,2012,27(5): 1069-1073. doi: 10.13224/j.cnki.jasp.2012.05.018
MA Jian,LI Shifeng,HE Aijie. Platform crack and recrystallization of DD6 single crystal turbine blade[J]. Journal of Aerospace Power,2012,27(5): 1069-1073. (in Chinese) doi: 10.13224/j.cnki.jasp.2012.05.018
|
| [18] |
FEDELICH B. A microstructure model for the monotonic and the cyclic mechanical behavior of single crystals of super alloys at high temperatures[J]. International Journal of Plasticity,2002,18: 1-4. doi: 10.1016/S0749-6419(00)00045-0
|
