| Citation: | LIU Chongyang, XU Zhenyu, HUANG An, et al. TDLAT measurement method for outlet temperature profile of combustor based on wavelength modulation spectroscopy technology[J]. Journal of Aerospace Power, 2023, 38（1）：116-126 doi: 10.13224/j.cnki.jasp.20210451
|

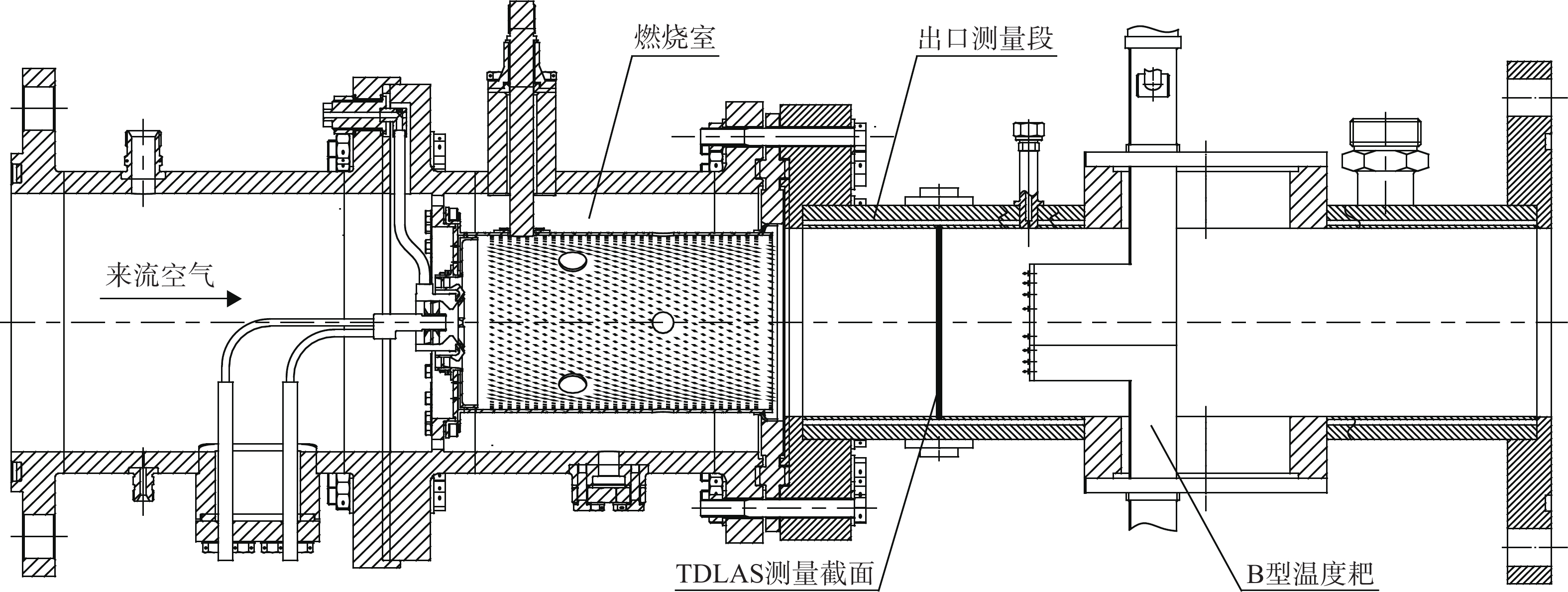

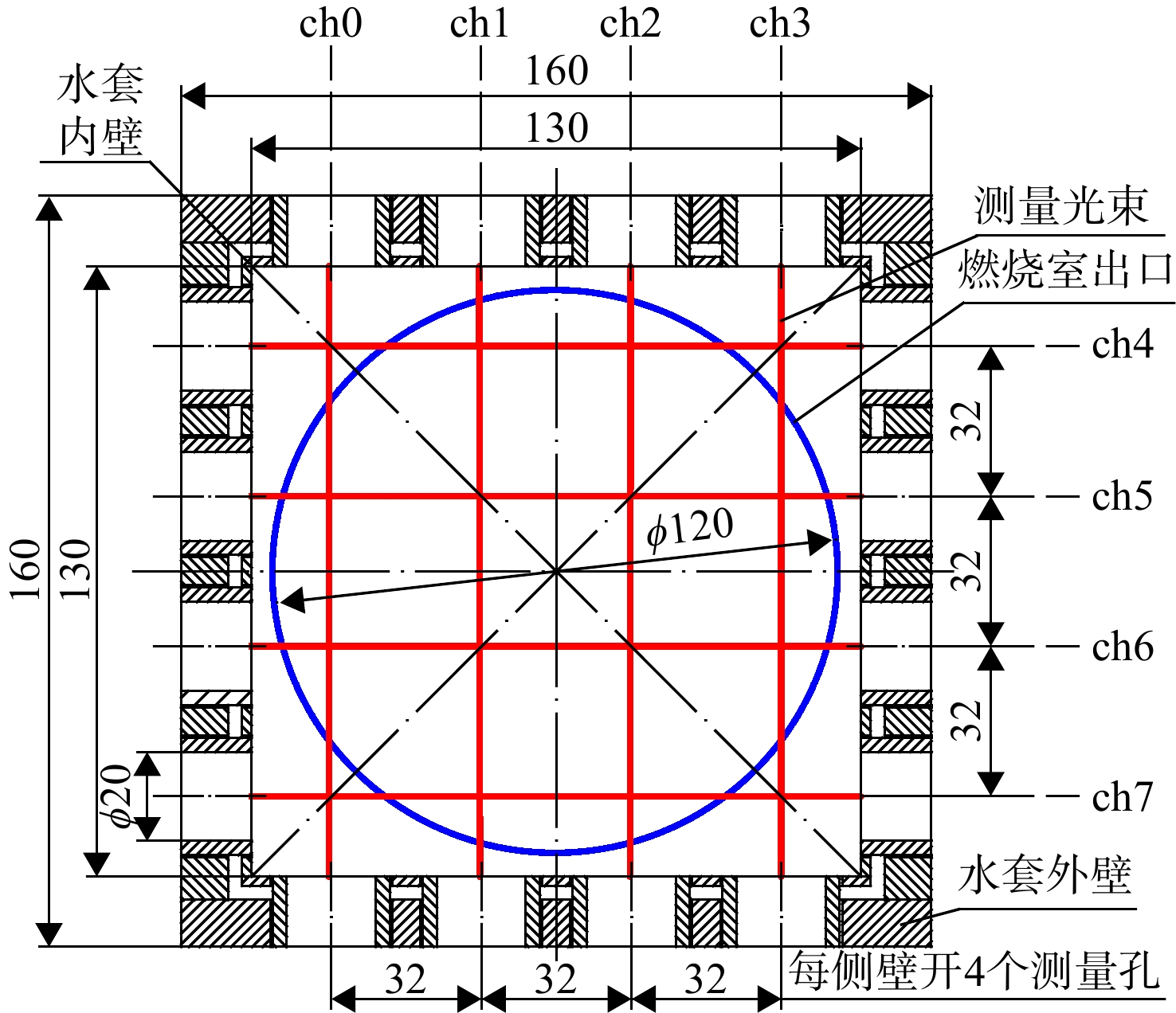

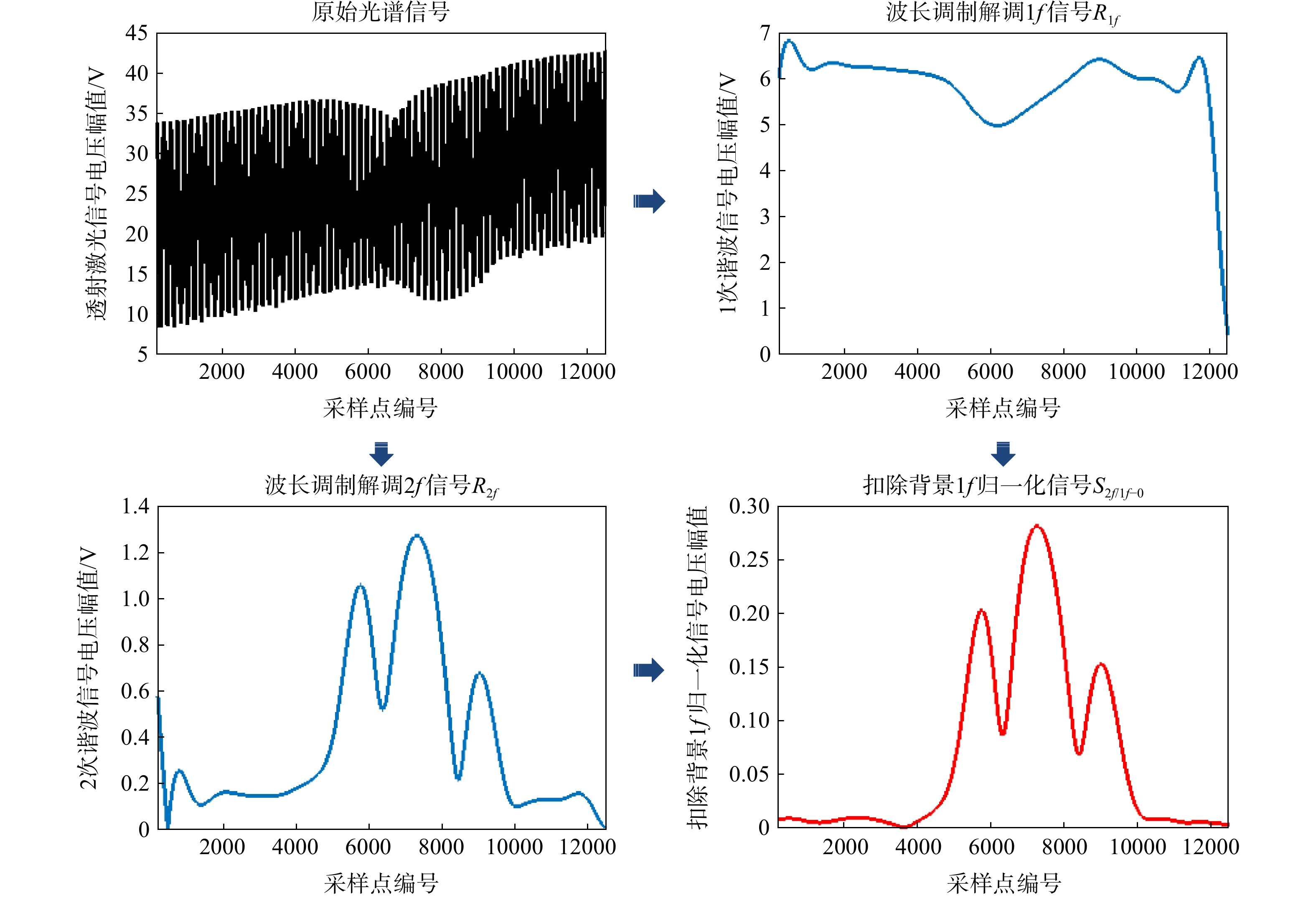

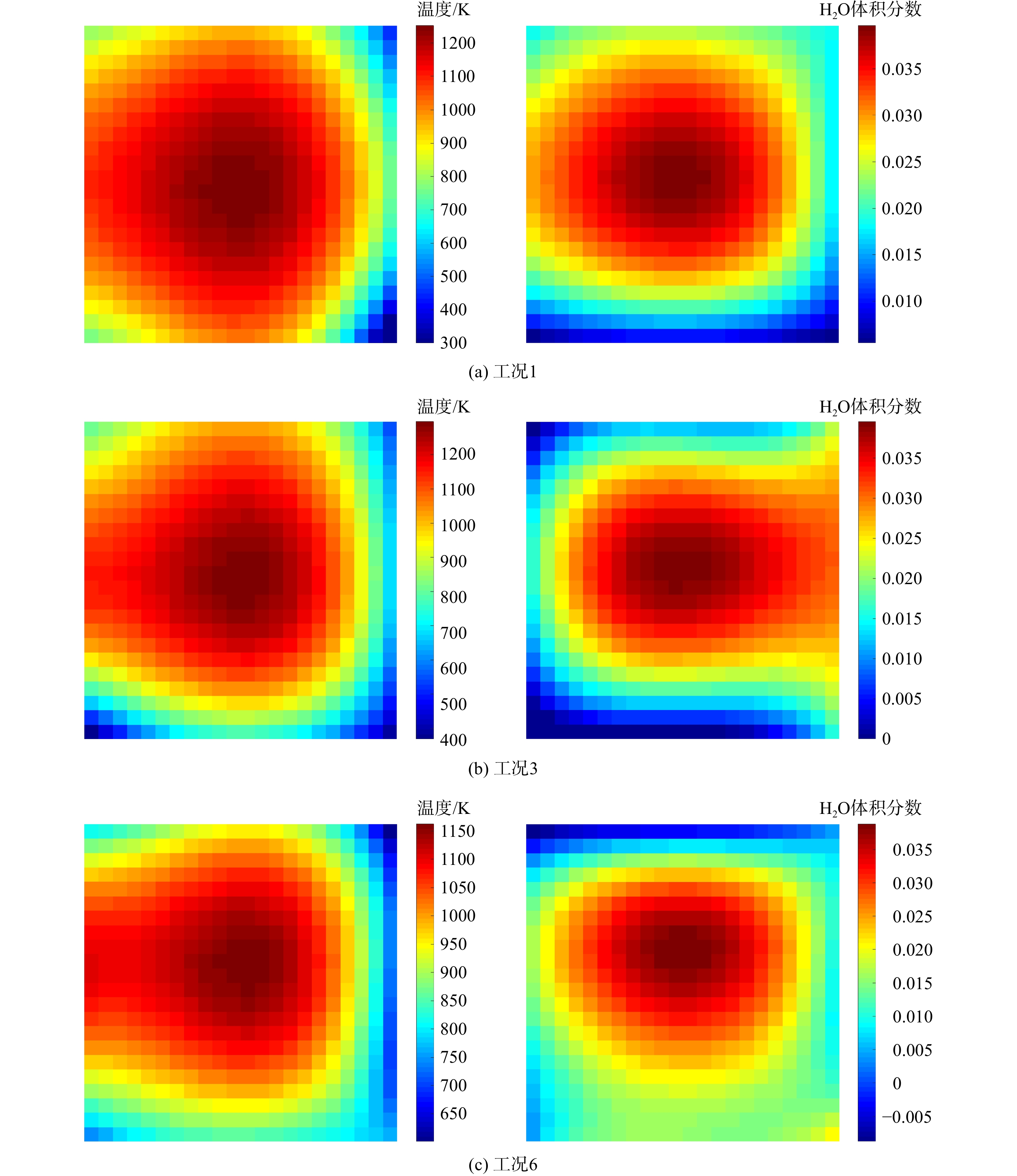

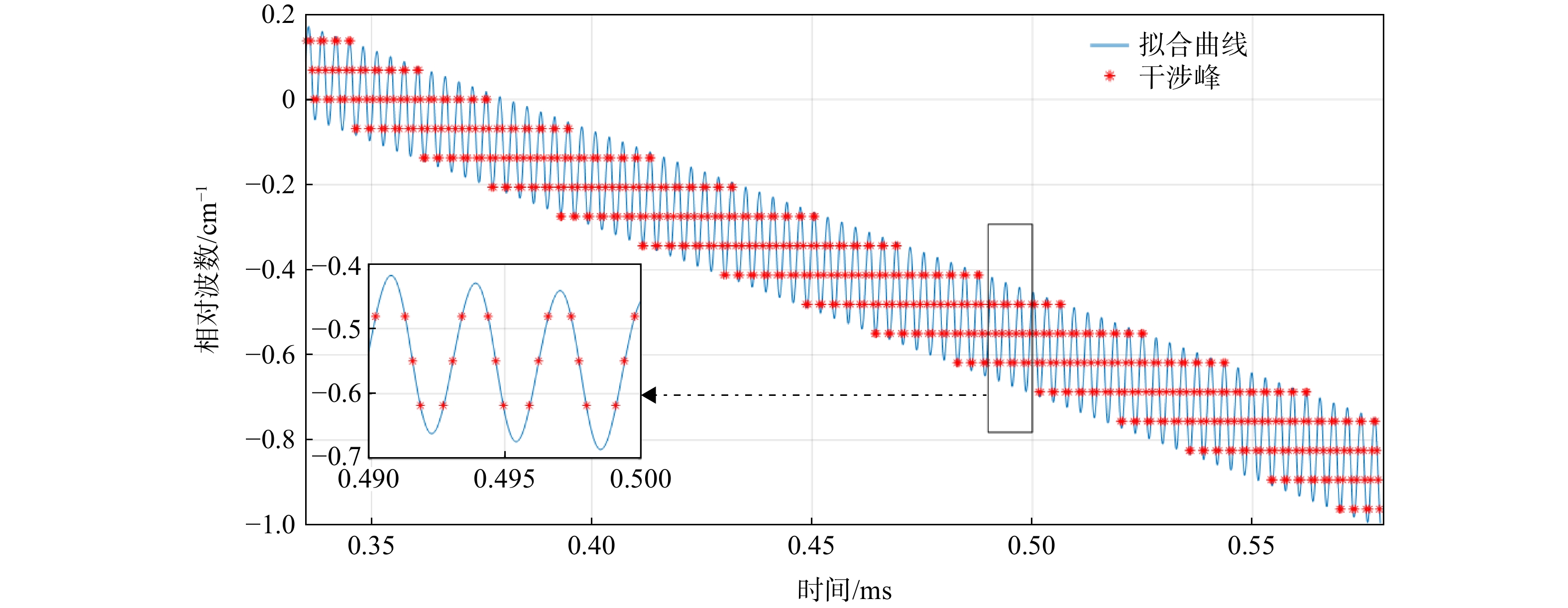

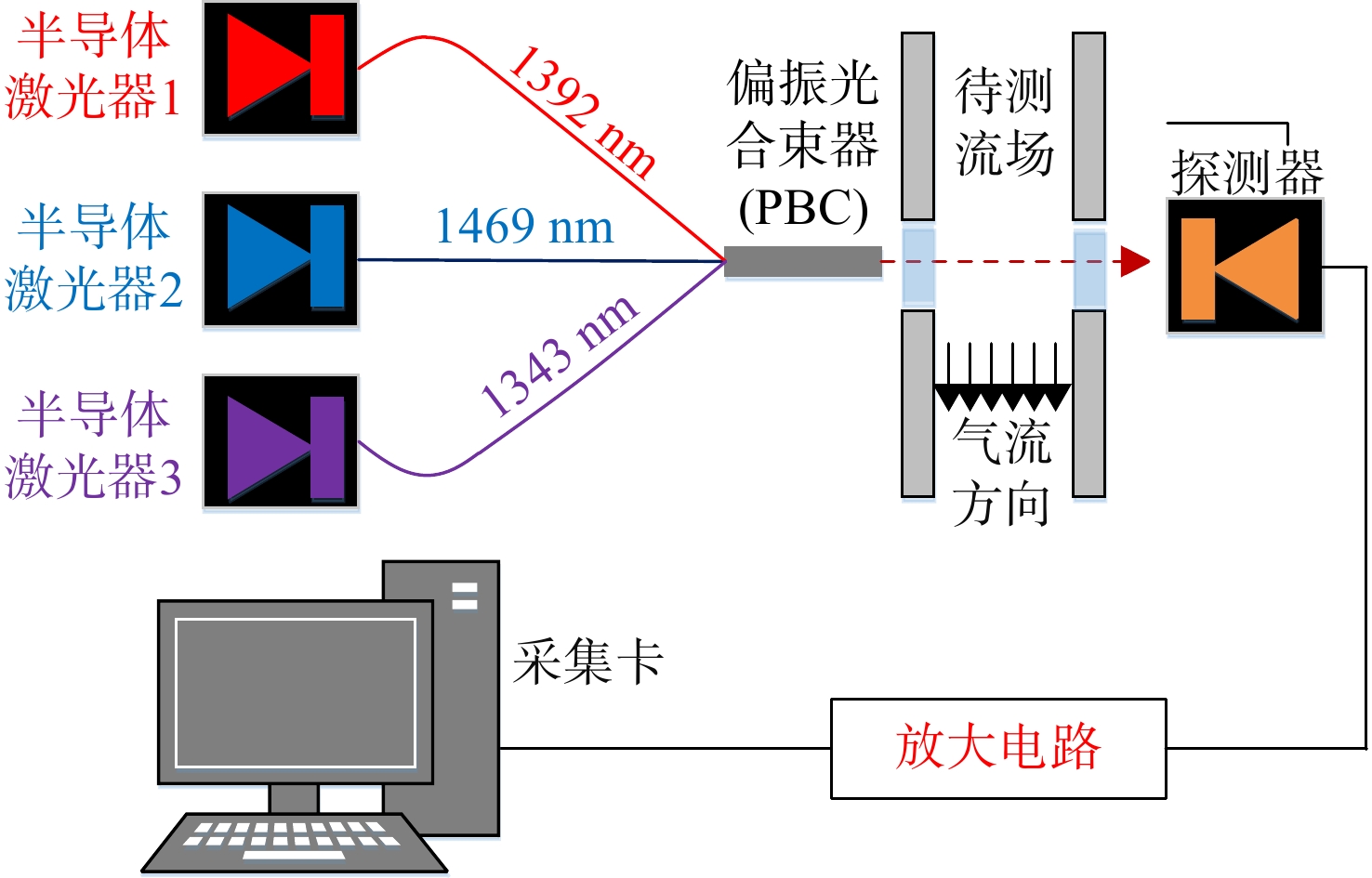

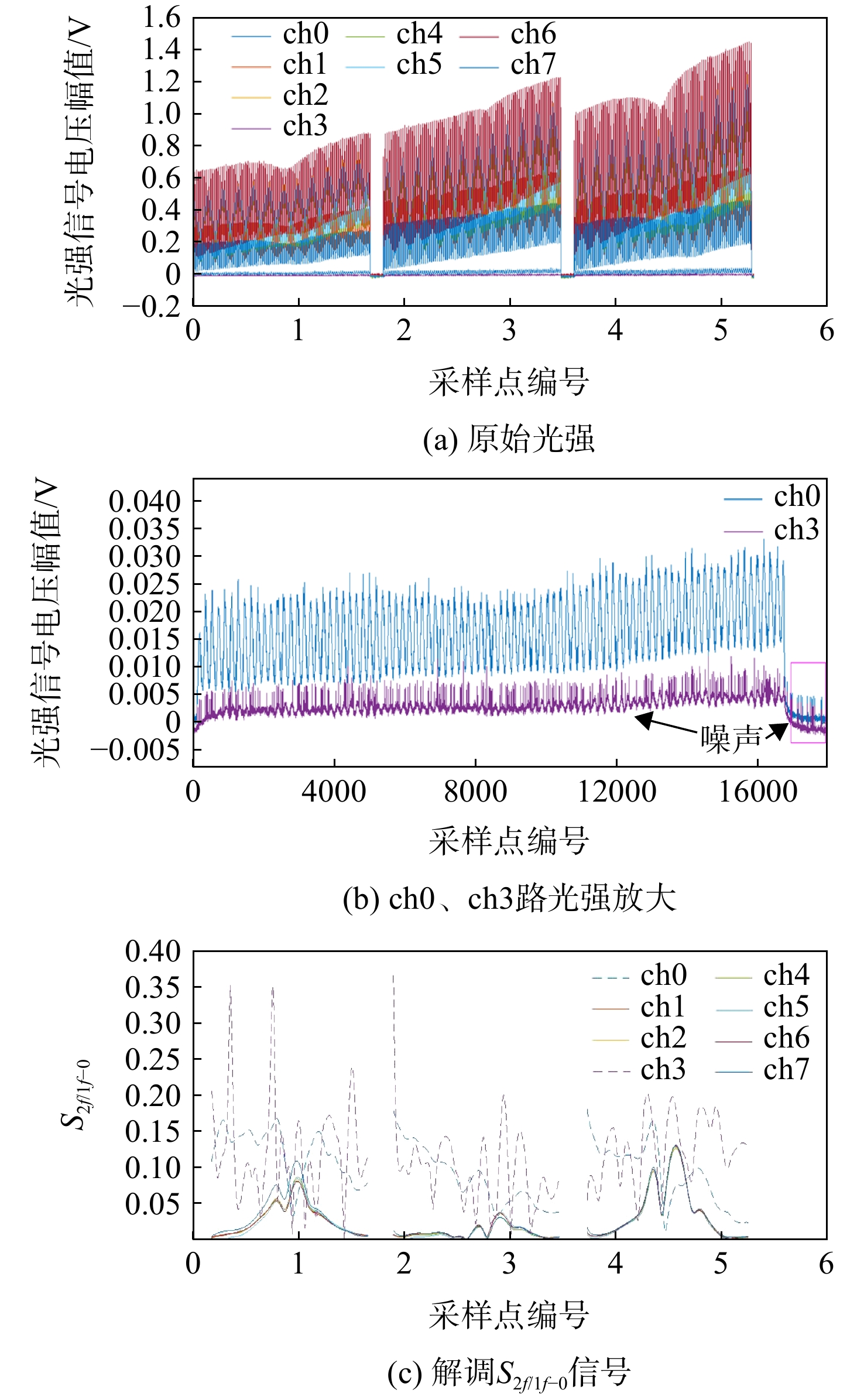

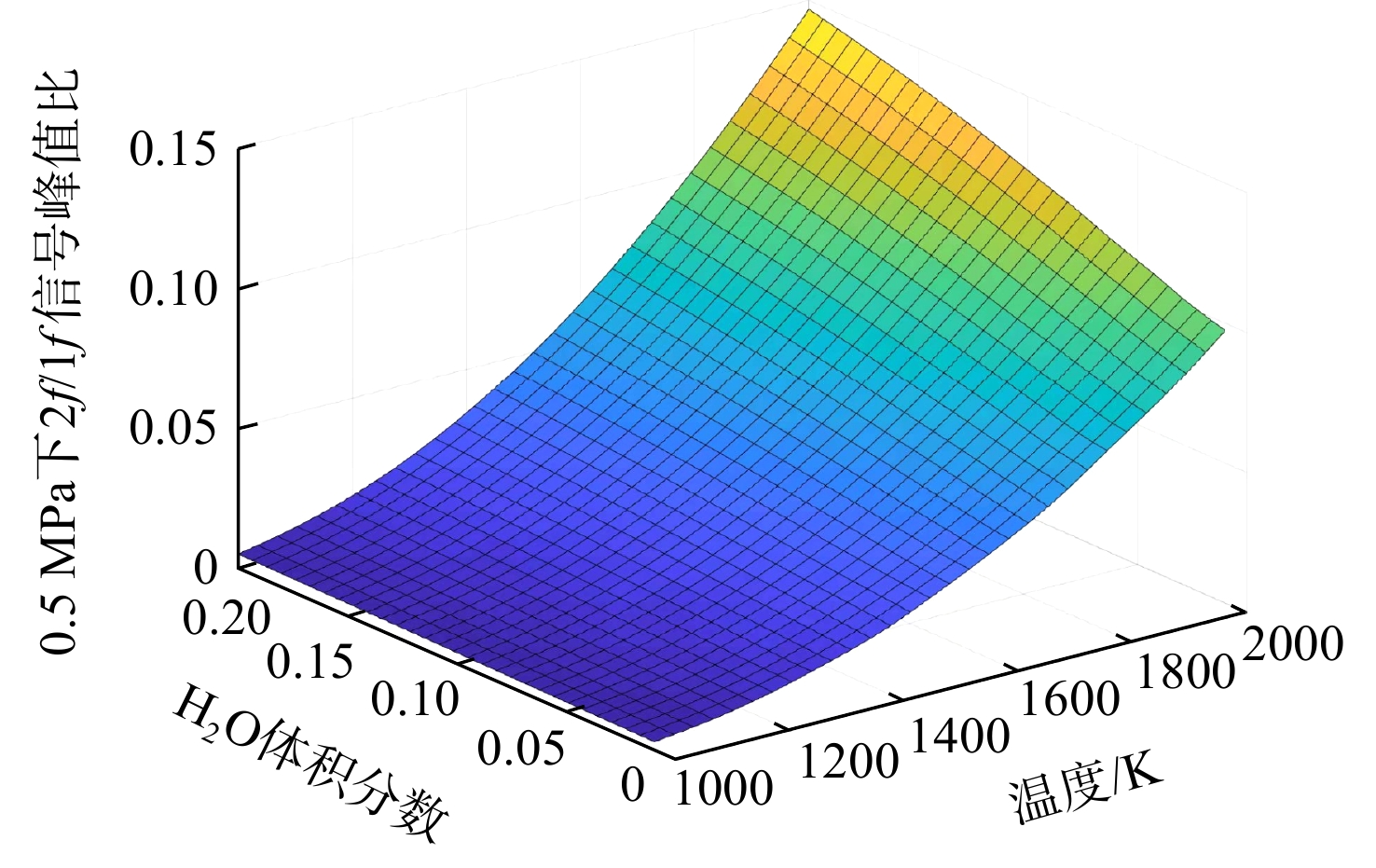

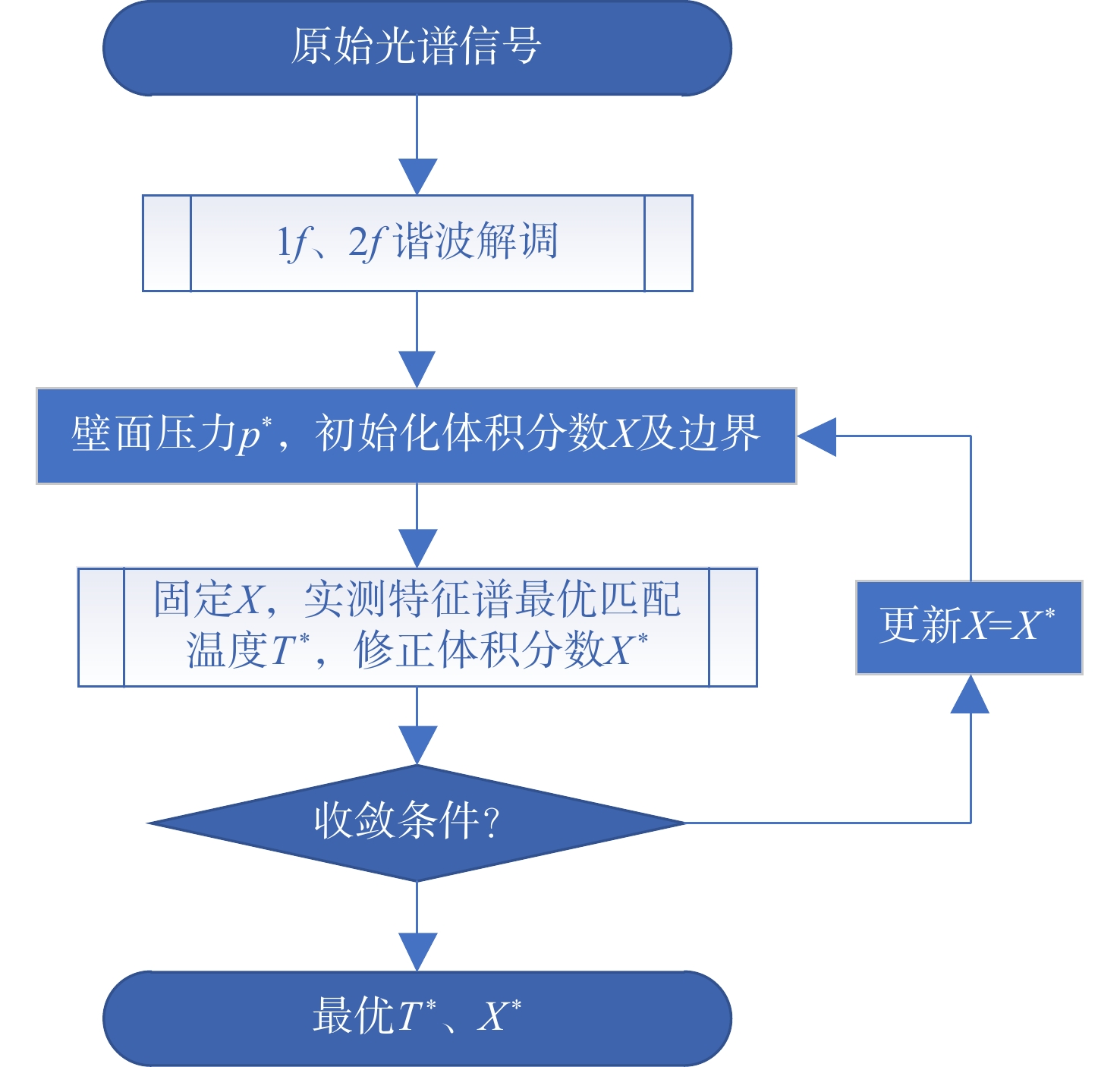

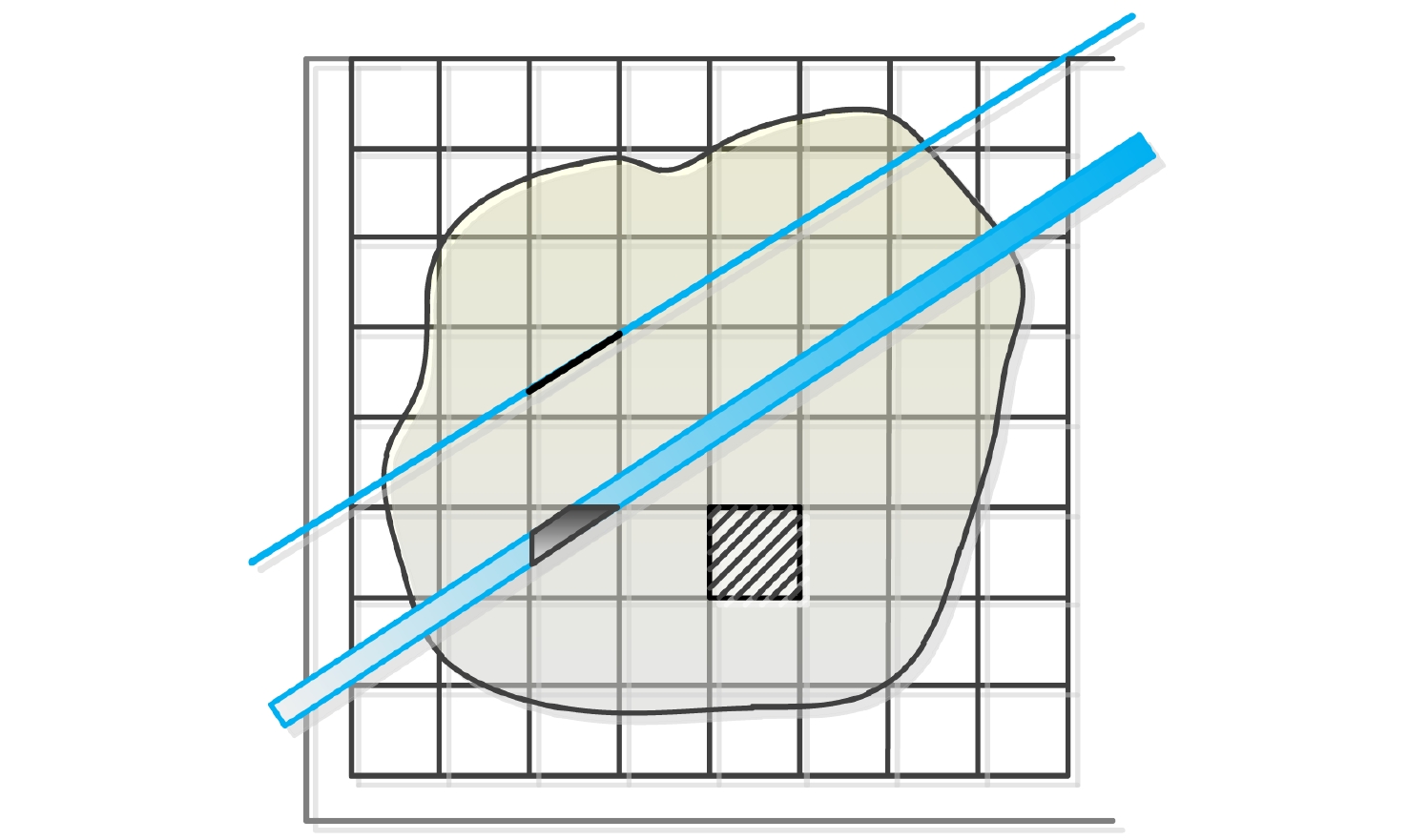

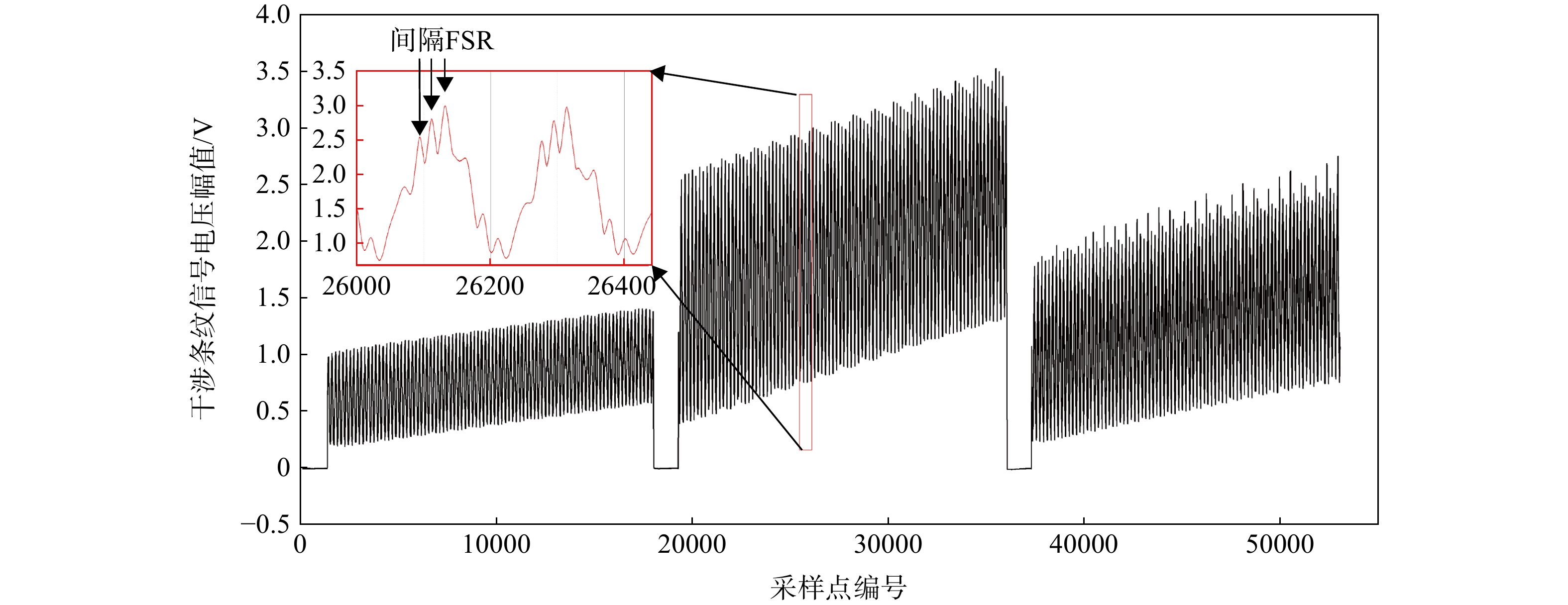

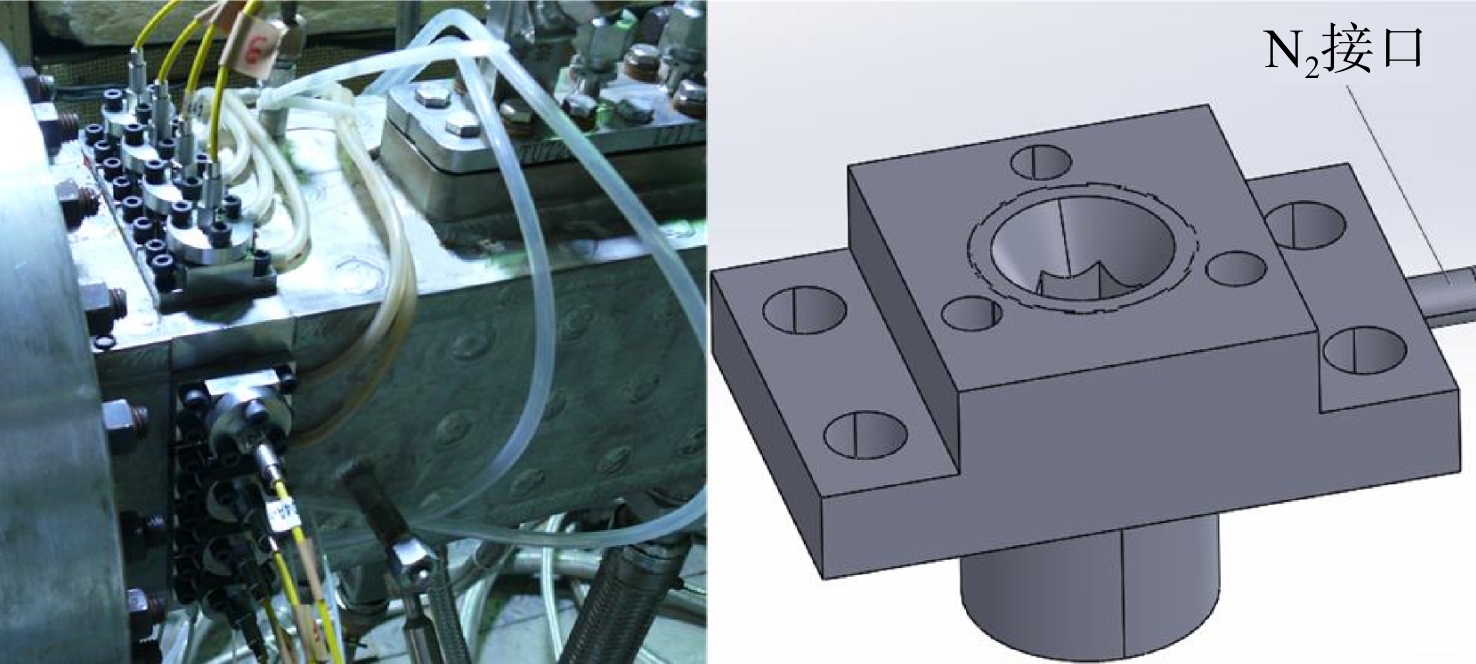

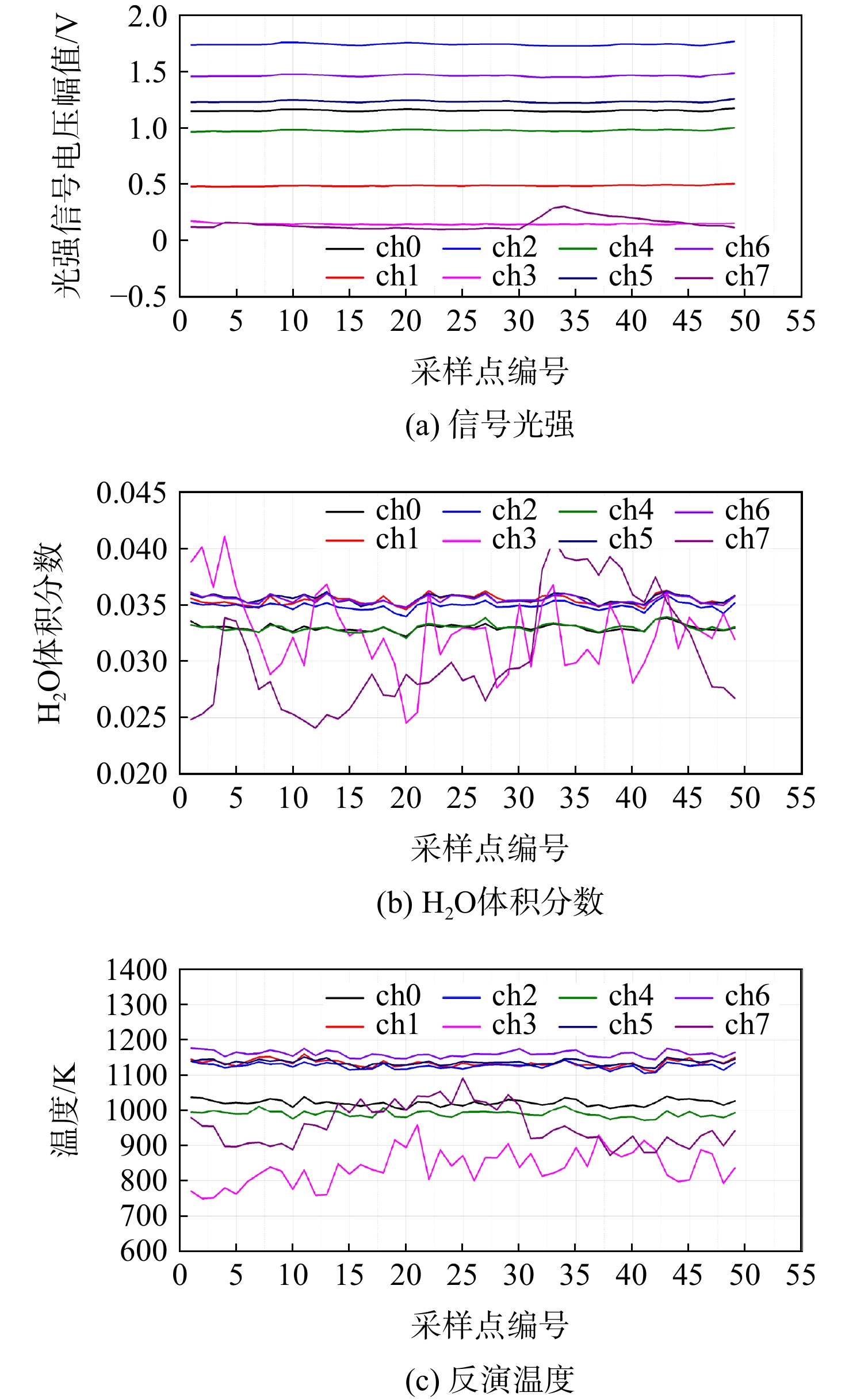

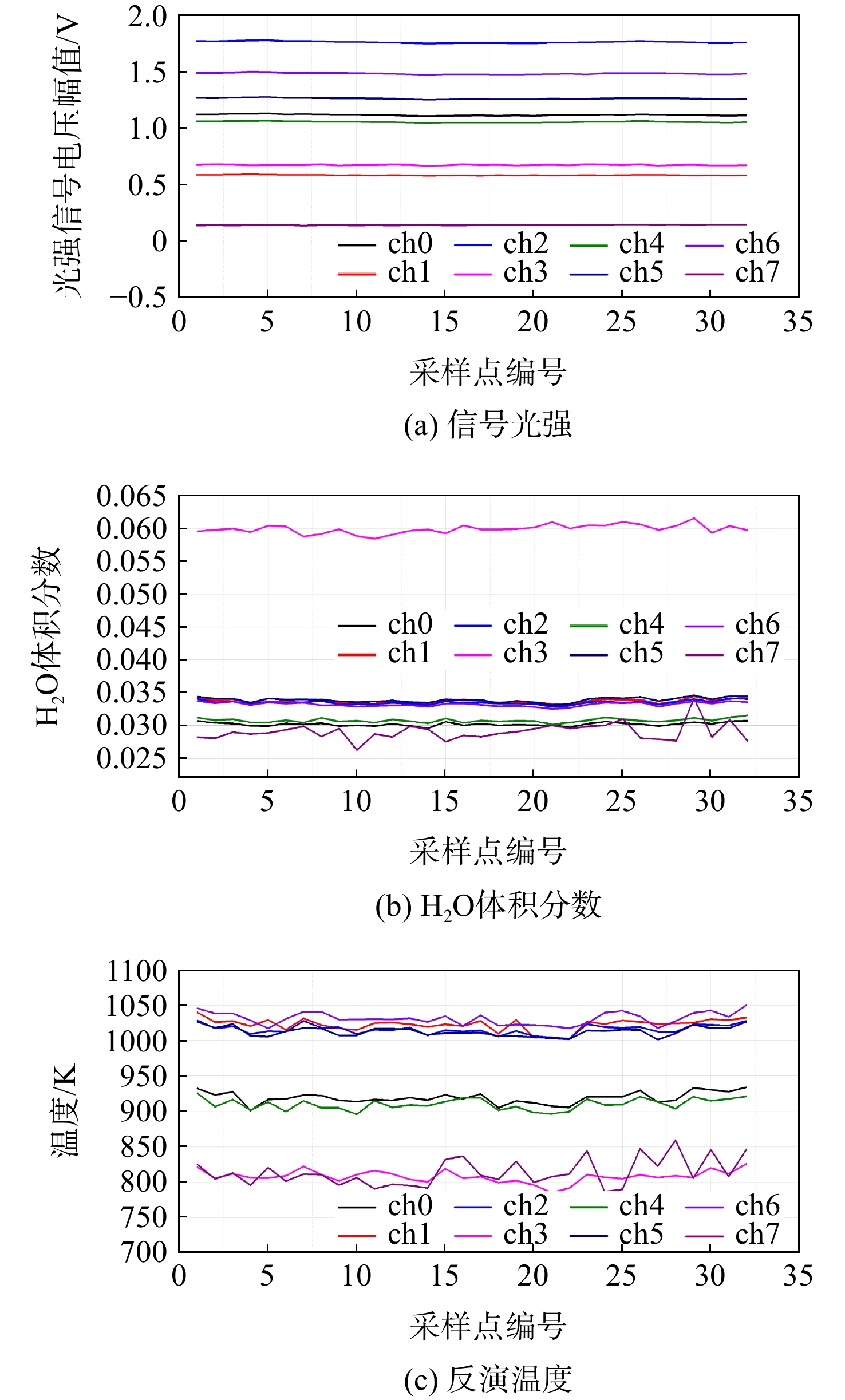

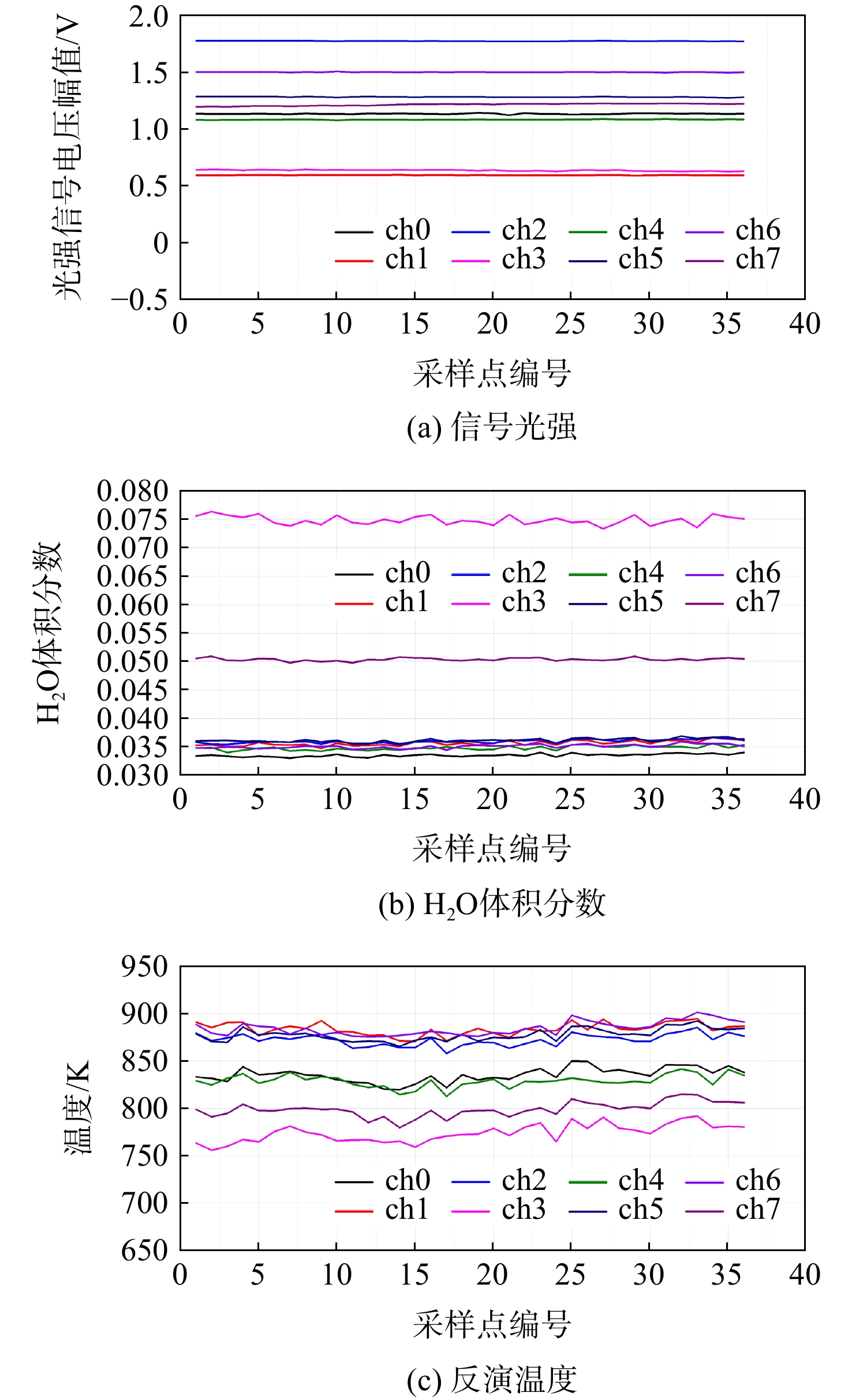

In order to make technical reserves for measurement of combustor outlet temperature profile of high thrust-weight ratio aero-engine in future, the computed tomography technology of tunable diode laser absorption tomography （TDLAT） technology was applied, and the engineering adaptability of measurement method based on wavelength modulation spectroscopy （WMS） technology was studied in a single can combustor under the pressure of 0.5−0.8 MPa condition. The results showed that the measurement of combustor outlet temperature profile could be achieved with time and spatial resolution applying the grid method of orthogonal intersection of multiple light path, using the normalized WMS model whose background was subtracted, the iterative inversion method of variables and the computed tomography （CT） technology; the trends and characteristics of gas temperature and H2O concentration distribution vs. the changes of inlet parameters could be better shown from the reconstruction results; the mean value of TDLAS temperature measurement were lower than that of thermocouple measurement, and the relative error was between 15% and 23%, which was ascribed to the non-uniform flow field, the inaccuracy of spectral model and spectrum parameter calibration, and the imperfections of inversion and reconstruction algorithm, etc, there was still a certain gap between the accuracy of measurement data and the requirements of engineering application.
| [1] |
彭云晖,林宇震,刘高恩. 三旋流器燃烧室出口温度分布的初步试验研究[J]. 航空动力学报,2007,22(4): 554-558. doi: 10.3969/j.issn.1000-8055.2007.04.006
PENG Yunhui,LIN Yuzhen,LIU Gaoen. A preliminary experimental study of pattern factor for a triple swirler combustor[J]. Journal of Aerospace Power,2007,22(4): 554-558. (in Chinese) doi: 10.3969/j.issn.1000-8055.2007.04.006
|
| [2] |
吴超,徐让书,蒲宁,等. 某型航空发动机燃烧室出口温度场数值模拟[J]. 沈阳航空工业学院学报,2009,26(2): 1-4.
WU Chao,XU Rangshu,PU Ning,et al. Numerical simulation of an Aero-engine combustor exit temperature field[J]. Journal of Shenyang Institute of Aeronautical Engineering,2009,26(2): 1-4. (in Chinese)
|
| [3] |
韩冰,王明瑞,李亚娟,等. 燃气分析法在高温升全环燃烧室出口温度场试验中的应用[J]. 航空发动机,2017,43(5): 79-84. doi: 10.13477/j.cnki.aeroengine.2017.05.014
HAN Bing,WANG Mingrui,LI Yajuan,et al. Application of gas analysis method on high temperature rise full annular combustor outlet temperature field test[J]. Aeroengine,2017,43(5): 79-84. (in Chinese) doi: 10.13477/j.cnki.aeroengine.2017.05.014
|
| [4] |
王明瑞,王振华,韩冰,等. 航空发动机主燃烧室高温测试技术[J]. 航空发动机,2016,42(5): 87-93. doi: 10.13477/j.cnki.aeroengine.2016.05.015
WANG Mingrui,WANG Zhenhua,HAN Bing,et al. High temperature measurement technology for main combustion chamber of aeroengine[J]. Aeroengine,2016,42(5): 87-93. (in Chinese) doi: 10.13477/j.cnki.aeroengine.2016.05.015
|
| [5] |
赵俭,杨永军,秦存民,等. 瞬态超高温气流温度测量技术初探[J]. 计测技术,2008,28(增刊1): 26-35. doi: 10.3969/j.issn.1674-5795.2008.z1.010
ZHAO Jian,YANG Yongjun,QIN Cunmin,et al. Tentative study on transient superhigh gas temperature measurement technology[J]. Metrology and Measurement Technology,2008,28(Suppl.1): 26-35. (in Chinese) doi: 10.3969/j.issn.1674-5795.2008.z1.010
|
| [6] |
赵俭. 高温气流温度测量与校准技术[J]. 计测技术,2018,38(6): 42-47. doi: 10.11823/j.issn.1674-5795.2018.06.10
ZHAO Jian. High gas temperature and calibration technology[J]. Metrology and Measurement Technology,2018,38(6): 42-47. (in Chinese) doi: 10.11823/j.issn.1674-5795.2018.06.10
|
| [7] |
阚瑞峰,夏晖晖,许振宇,等. 激光吸收光谱流场诊断技术应用研究与进展[J]. 中国激光,2018,45(9): 61-76.
KAN Ruifeng,XIA Huihui,XU Zhenyu,et al. Research and progress of flow field diagnosis based on laser absorption spectroscopy[J]. Chinese Journal of Lasers,2018,45(9): 61-76. (in Chinese)
|
| [8] |
祝仰坤. 波长调制吸收光谱的关键技术研究[D]. 南京: 东南大学, 2019.
ZHU Yangkun. Research on key technology of wavelength modulation spectroscopy[D]. Nanjing: Southeast University, 2019. (in Chinese)
|
| [9] |
戴斌,阮俊,许振宇,等. 基于TDLAS技术的燃烧室出口温度场测量[J]. 燃气涡轮试验与研究,2015,28(4): 49-56. doi: 10.3969/j.issn.1672-2620.2015.04.012
DAI Bin,RUAN Jun,XU Zhenyu,et al. Measurement of combustor exit temperature field based on tunable diode laser absorption spectroscopy technology[J]. Gas Turbine Experiment and Research,2015,28(4): 49-56. (in Chinese) doi: 10.3969/j.issn.1672-2620.2015.04.012
|
| [10] |
CAI W W,KAMINSKI C F. Tomographic absorption spectroscopy for the study of gas dynamics and reactive flows[J]. Progress in Energy and Combustion Science,2017,59: 1-31. doi: 10.1016/j.pecs.2016.11.002
|
| [11] |
RIEKER G B, JEFFRIES J B, HANSON R K, et al. Diode laser-based detection of combustor instabilities with application to a scramjet engine[R]. Proceedings of the Combustion Institute, 2009, 32(1): 831-838.
|
| [12] |
张步强. 高温高压流场温度激光光谱测量方法研究[D]. 北京: 中国科学技术大学, 2019.
ZHANG Buqiang. Research on the method of measuring the temperature of high temperature and high pressure flow field by laser spectroscopy[D]. Beijing: University of Science and Technology of China, 2019. (in Chinese)
|
| [13] |
EMMERMAN P J,GOULARD R,SANTORO R J,et al. Multi-angular absorption diagnostics of a turbulent argon-methane jet[J]. Journal of Energy,1980,4(2): 70-77. doi: 10.2514/3.62462
|
| [14] |
洪延姬,宋俊玲,饶伟,等. 激光吸收光谱断层诊断技术测量燃烧流场研究进展[J]. 实验流体力学,2018,32(1): 43-54. doi: 10.11729/syltlx20160177
HONG Yanji,SONG Junling,RAO Wei,et al. Progress on tunable diode laser absorption tomography technique for combustion diagnostics[J]. Journal of Experiments in Fluid Mechanics,2018,32(1): 43-54. (in Chinese) doi: 10.11729/syltlx20160177
|
| [15] |
黄安,许振宇,夏晖晖,等. 波长调制吸收光谱技术的燃气轮机燃烧室温度组分二维分布测量方法[J]. 光谱学与光谱分析,2021,41(4): 1144-1150.
HUANG An,XU Zhenyu,XIA Huiihui,et al. Measurement method of two-dimensional distribution of temperature and components in gas turbine combustor based on wavelength modulated absorption spectroscopy[J]. Spectroscopy and Spectral Analysis,2021,41(4): 1144-1150. (in Chinese)
|
| [16] |
RIEKER G B,JEFFRIES J B,HANSON R K. Calibration-free wavelength modulation spectroscopy for measurements of gas temperature and concentration in harsh environments[J]. Applied Optics,2009,48(29): 5546-5560. doi: 10.1364/AO.48.005546
|
| [17] |
屈东胜,洪延姬,王广宇,等. 基于波长调制光谱技术的气体温度和组分浓度场二维重建测量方法研究[J]. 中国激光,2018,45(1): 275-284.
QU Dongsheng,HONG Yanji,WANG Guangyu,et al. Two dimensional reconstruction measurement method of gas temperature and component concentration fields based on wavelength modulation spectroscopy[J]. Chinese Journal of Lasers,2018,45(1): 275-284. (in Chinese)
|
| [18] |
王兴平,彭冬,李佳胜,等. 基于波长调制吸收光谱的燃烧流场二维重建[J]. 中国激光,2021,48(7): 196-206.
WANG Xingping,PENG Dong,LI Jiasheng,et al. Two dimensional reconstruction of combustion flow field using wavelength-modulation absorption spectra[J]. Chinese Journal of Lasers,2021,48(7): 196-206. (in Chinese)
|
| [19] |
GUHA A,SCHOEG I M. Tomographic imaging of flames: assessment of reconstruction error based on simulated results[J]. Journal of Propulsion and Power,2014,30(2): 350-390. doi: 10.2514/1.B34831
|
| [20] |
洪延姬,宋俊玲,王广宇,等. 激光吸收光谱测量非均匀燃烧流场研究进展[J]. 航空学报,2015,36(3): 724-736.
HONG Yanji,SONG Junling,WANG Guangyu,et al. Review on research of non-uniform combustion field measurement using laser absorption tomography technique[J]. Acta Aeronautica et Astronautica Sinica,2015,36(3): 724-736. (in Chinese)
|
| [21] |
彭冬,金熠,翟超. 基于TDLAS的二维温度场重建算法[J]. 中国激光,2016,43(11): 1111002.1-1111002.9.
PENG Dong,JIN Yi,ZHAI Chao. Reconstruction algorithms for 2D temperature field based on TDLAS[J]. Chinese Journal of Laser,2016,43(11): 1111002.1-1111002.9. (in Chinese)
|
