| Citation: | SHI Duoqi, LIU Changqi, CHENG Zhen, et al. Structural design and static strength evaluation of SiC/SiC-composite turbine blade[J]. Journal of Aerospace Power, 2023, 38（1）：1-12 doi: 10.13224/j.cnki.jasp.20210531
|

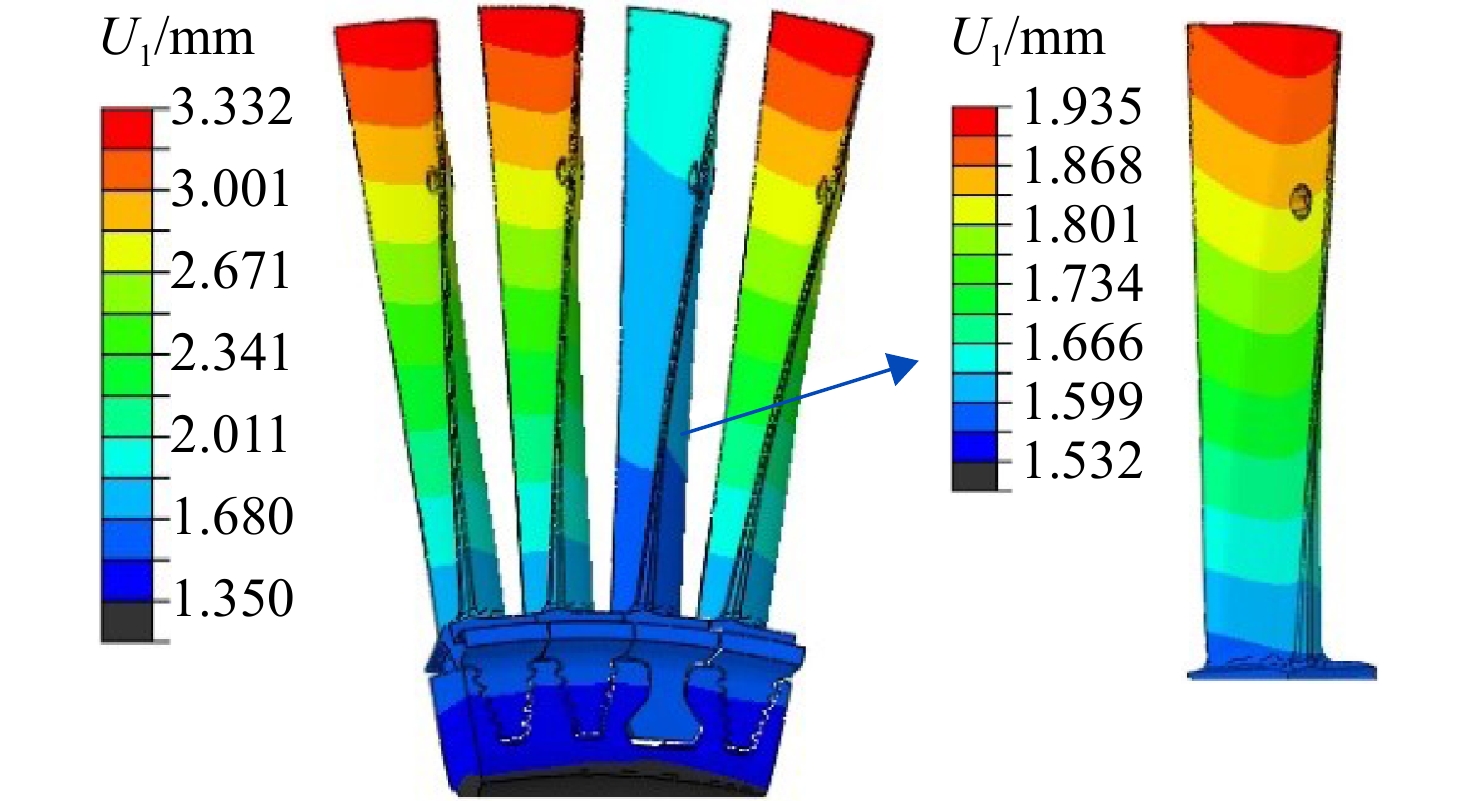

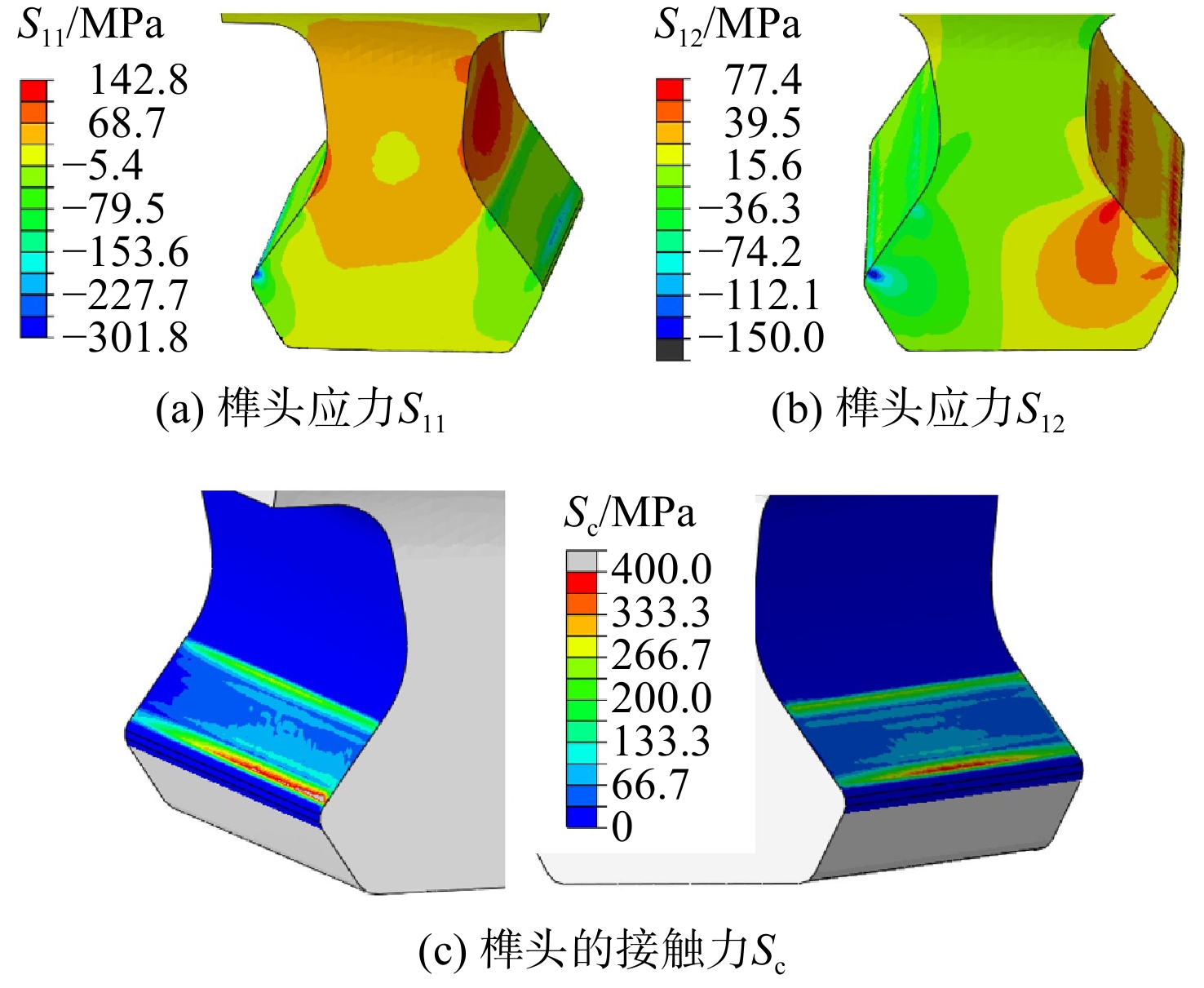

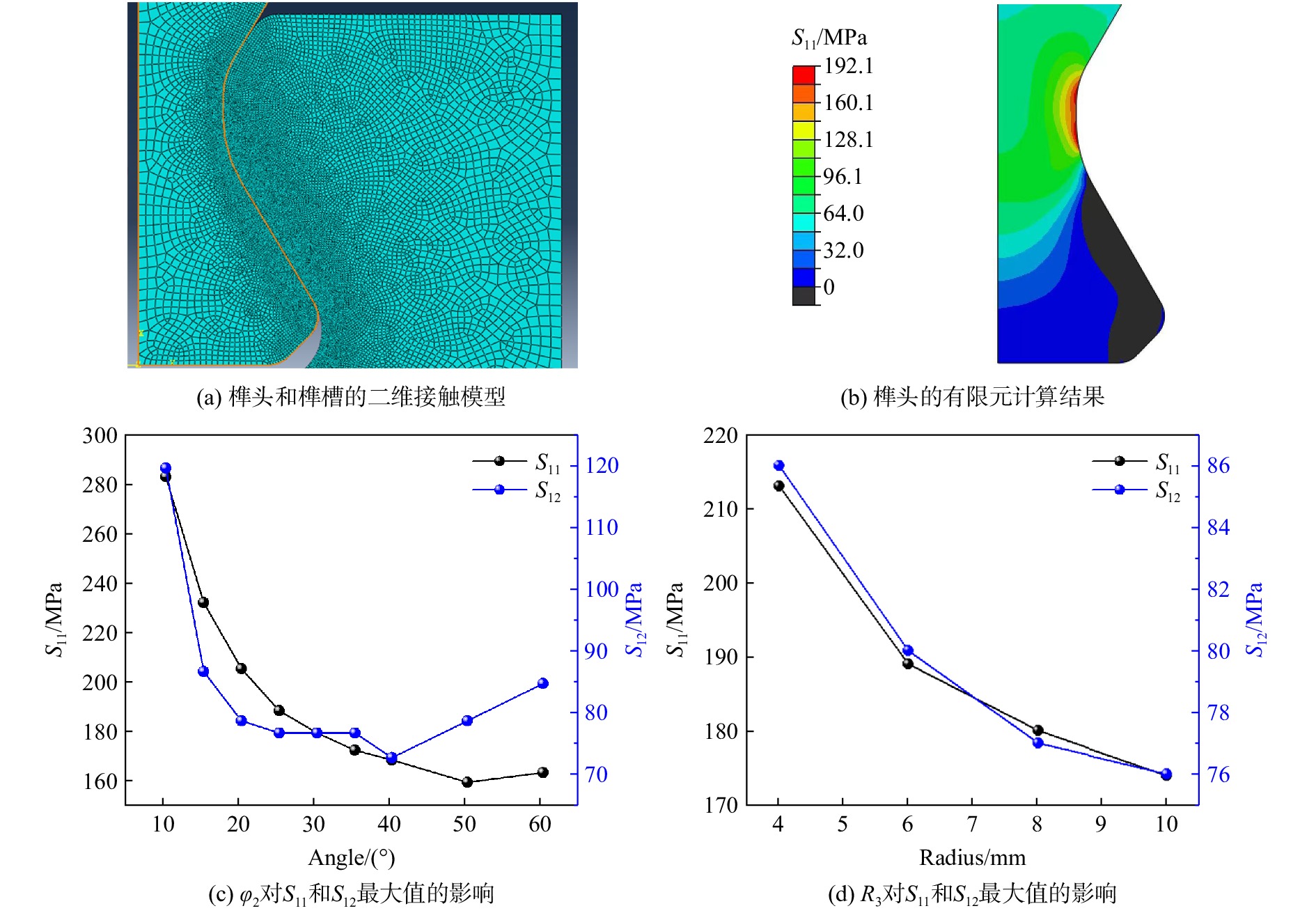

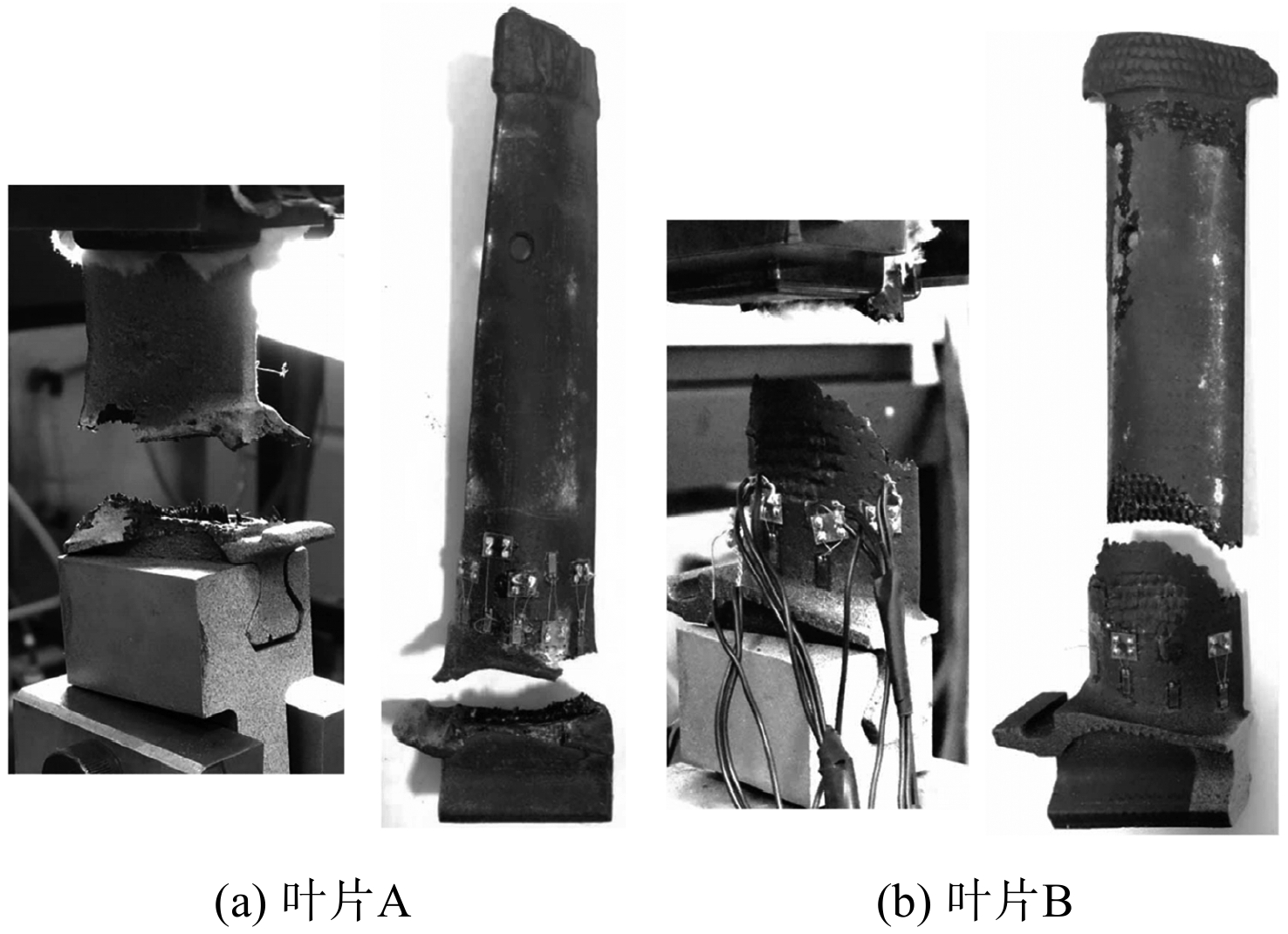

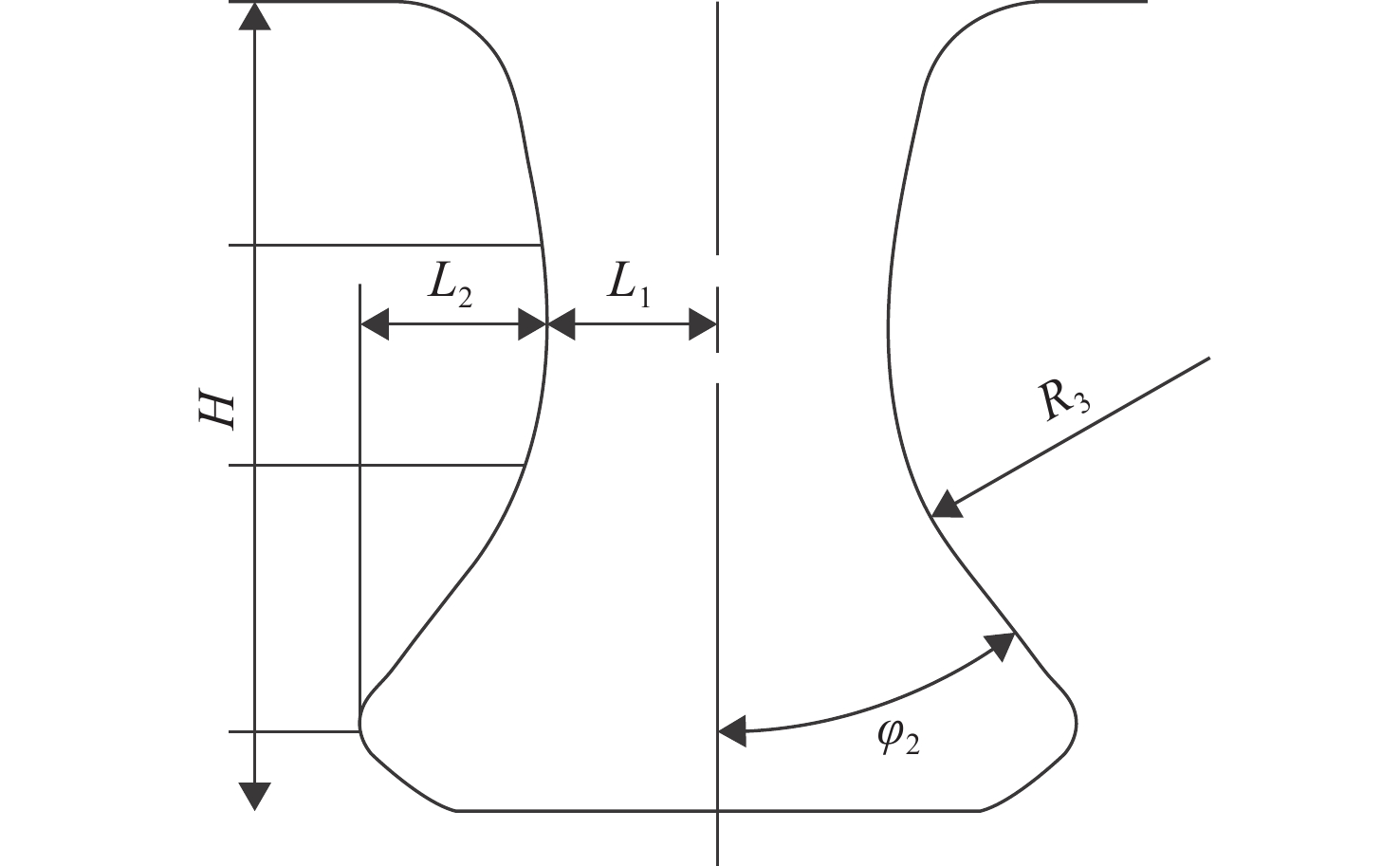

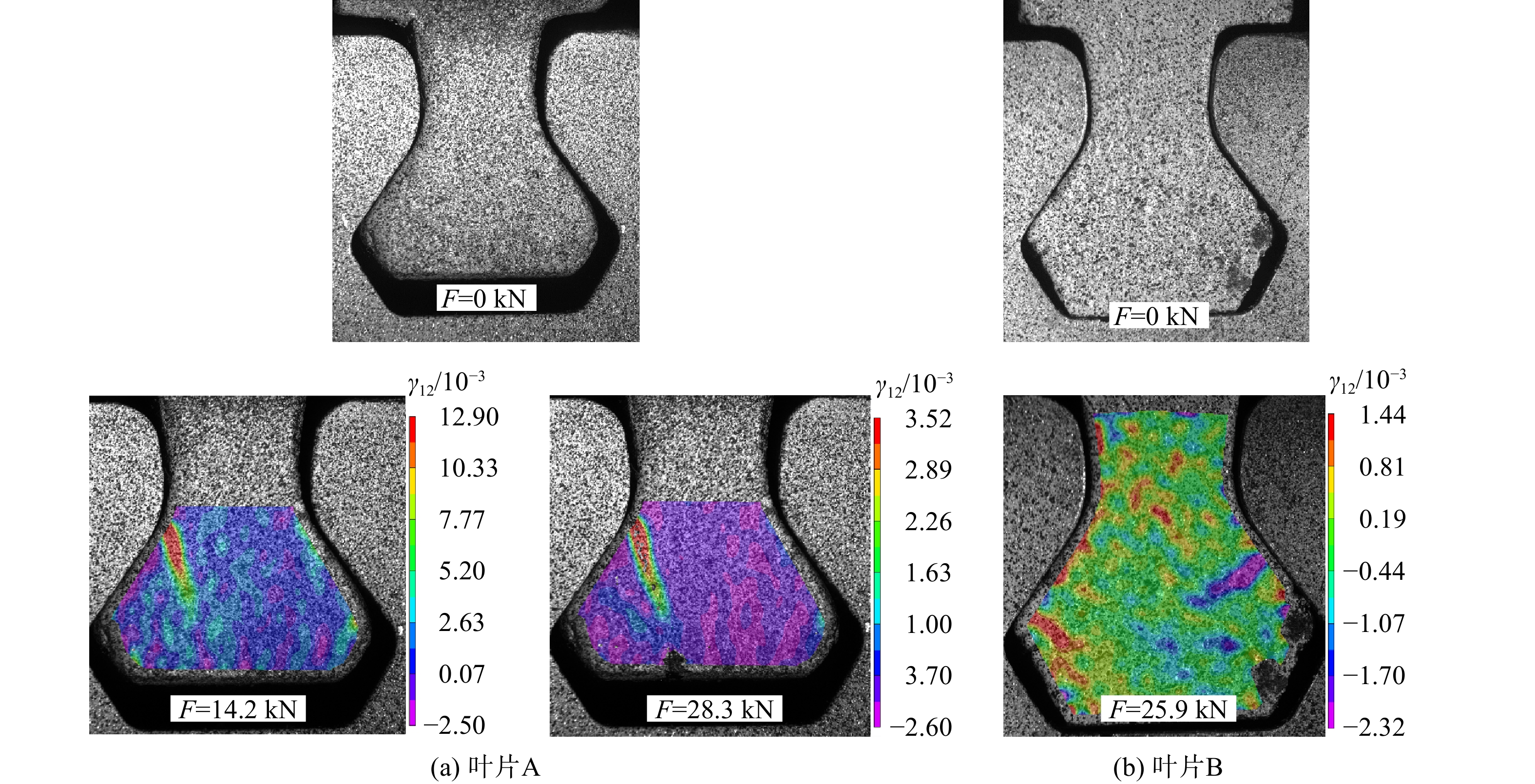

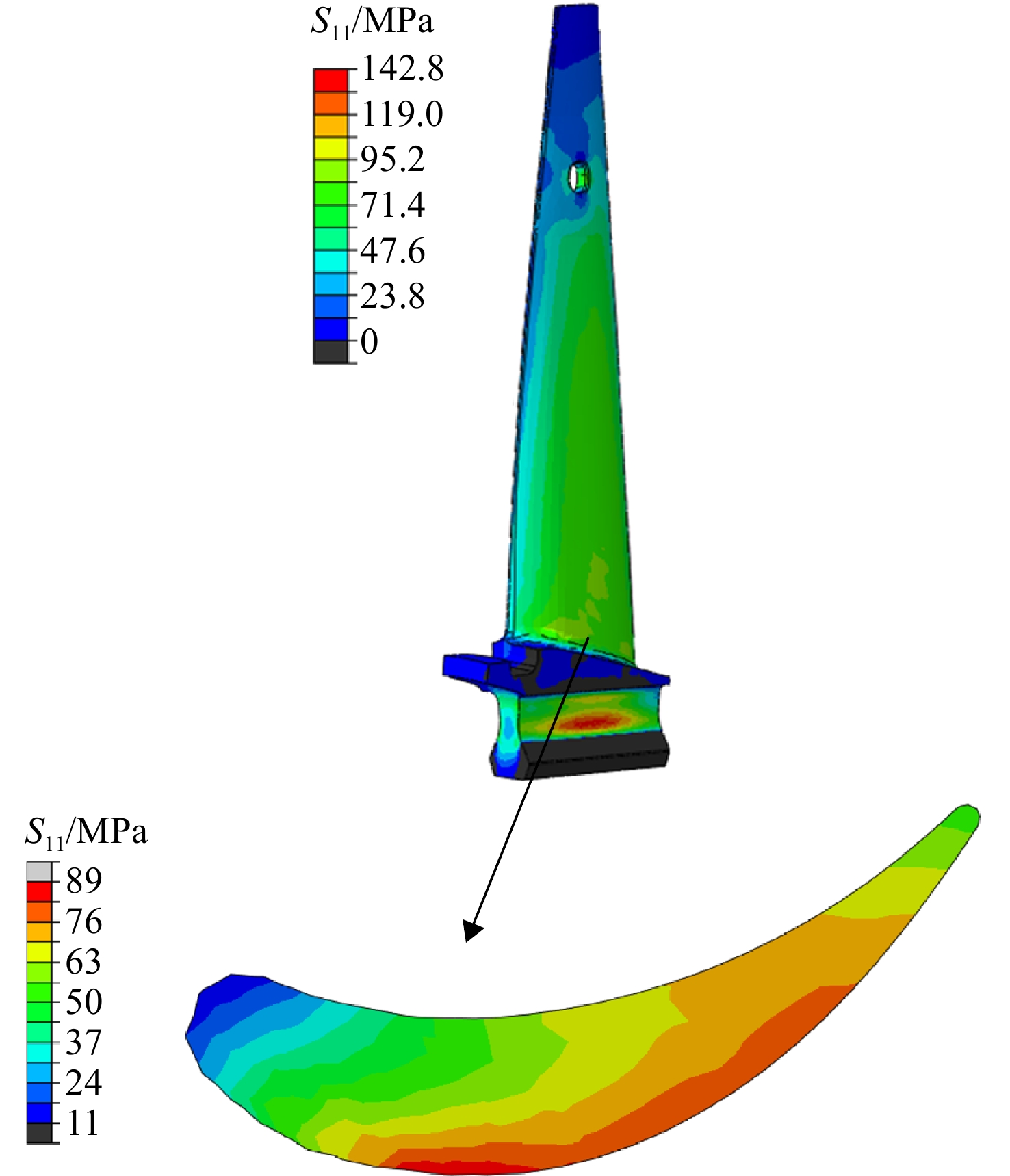

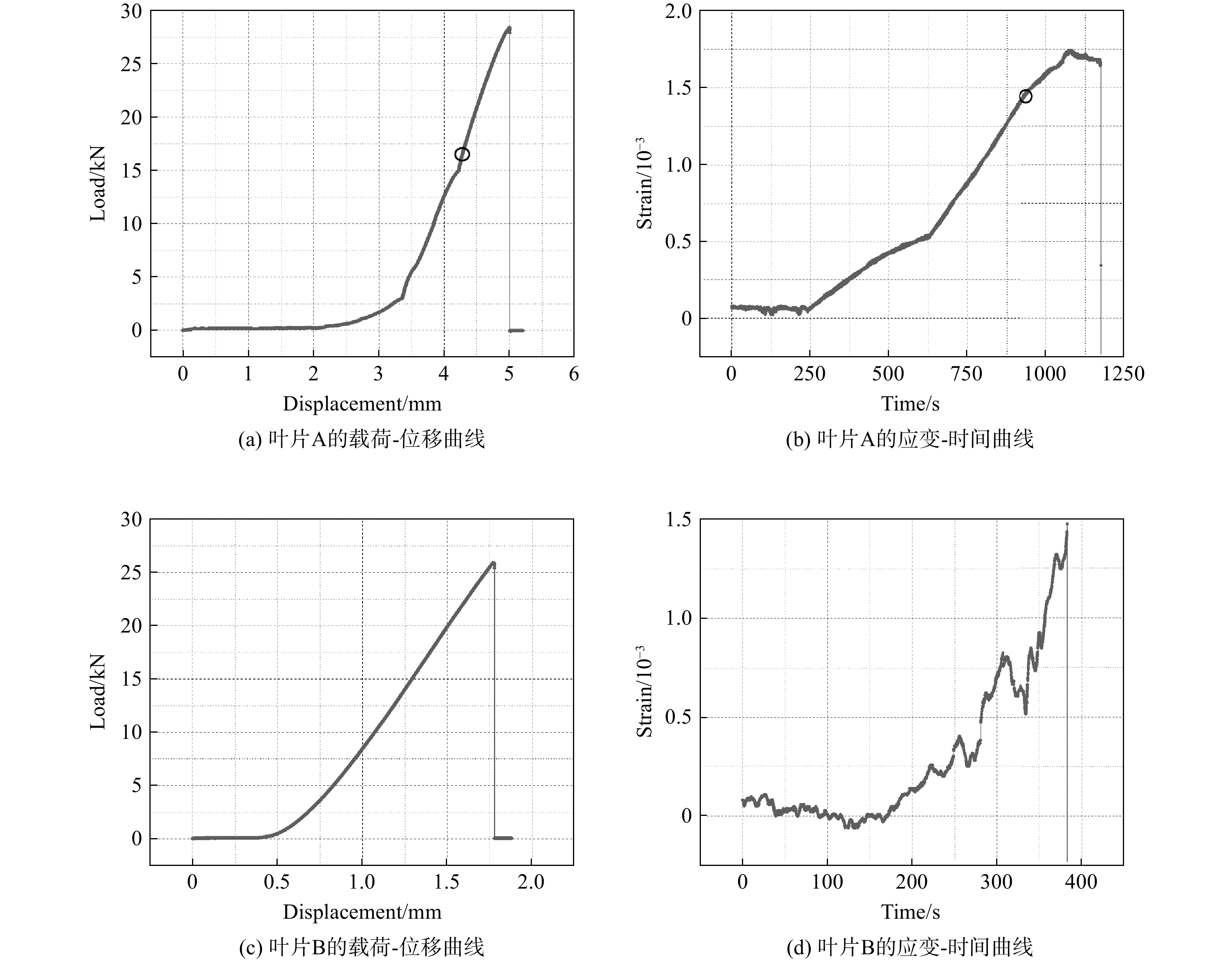

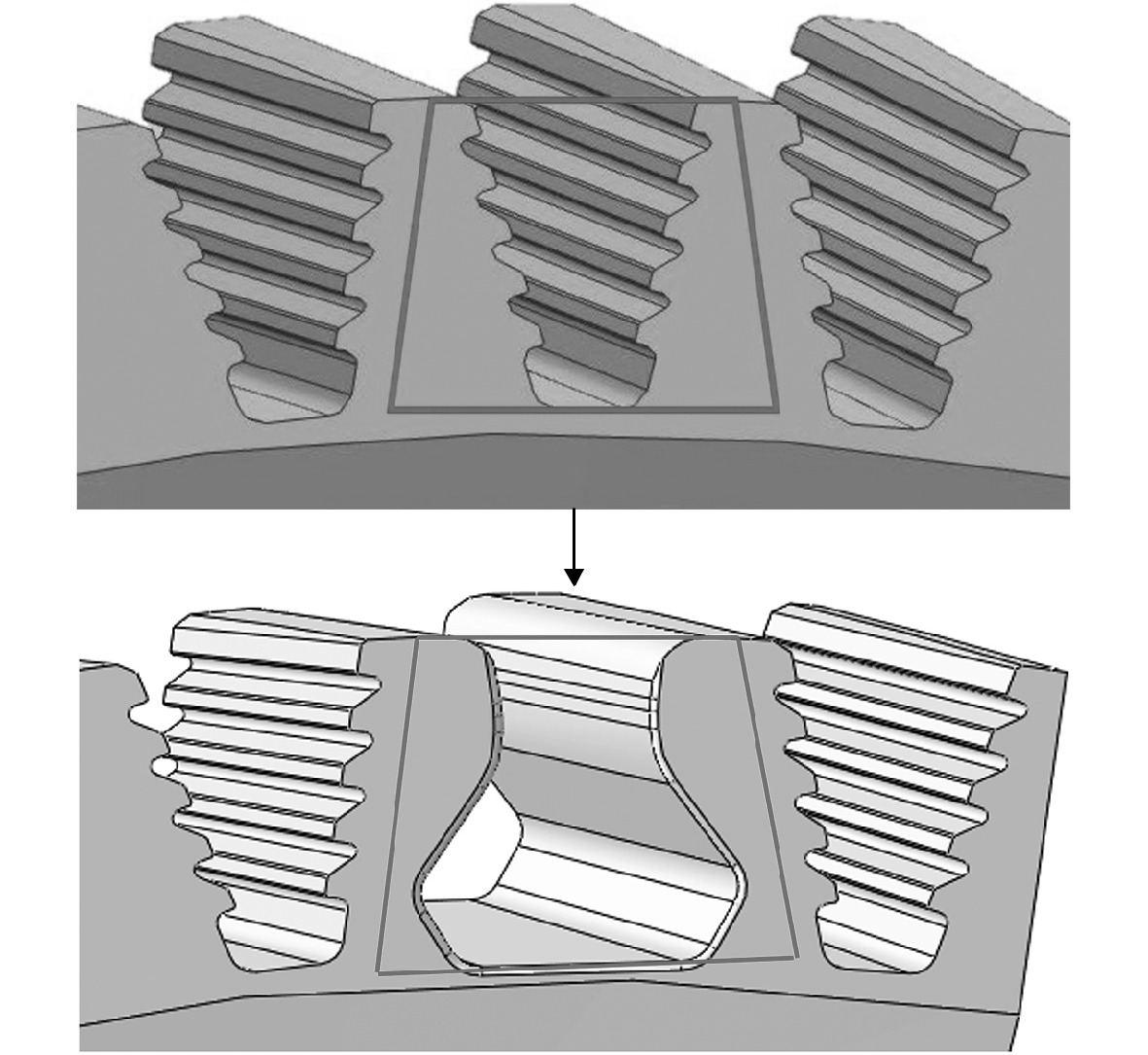

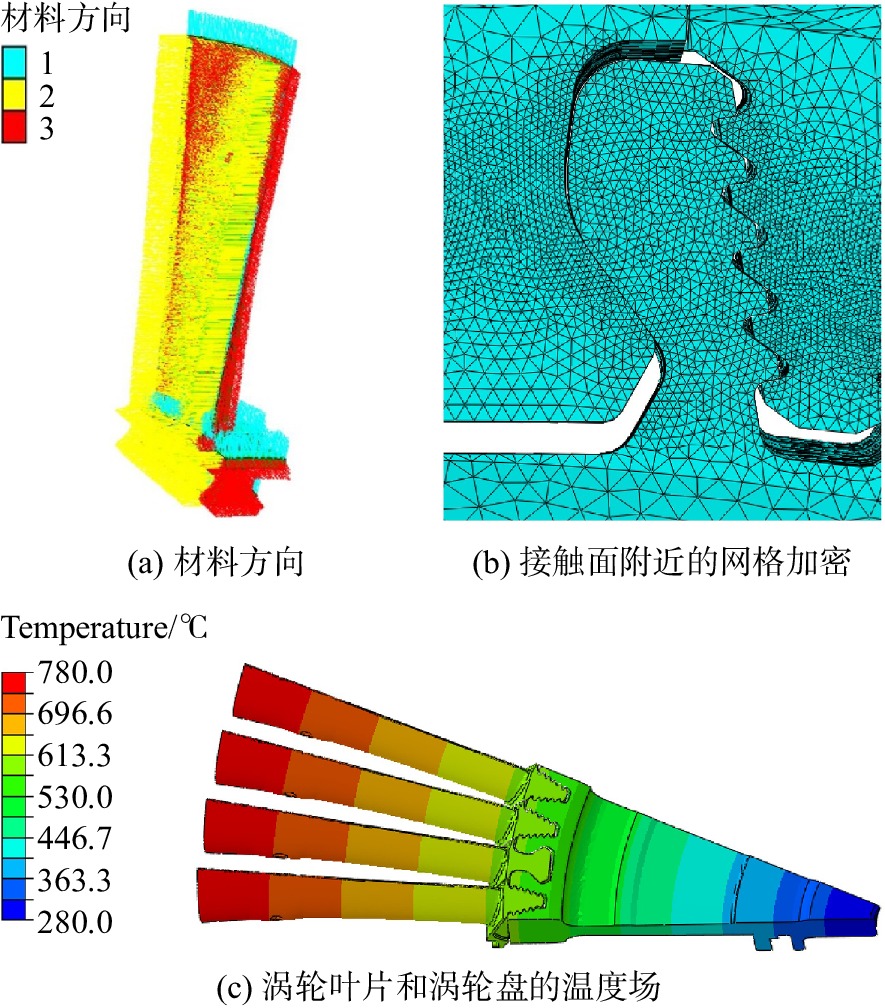

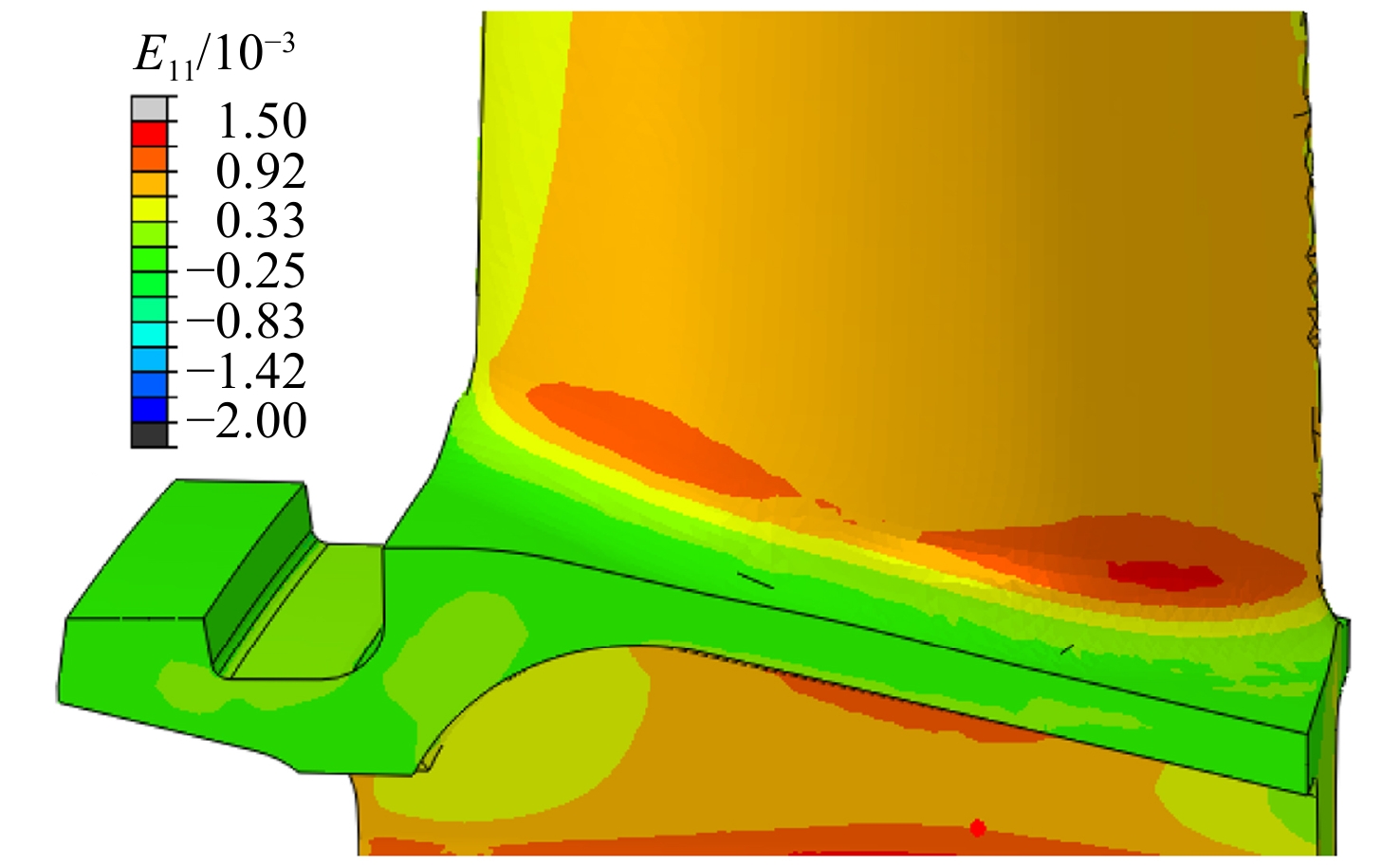

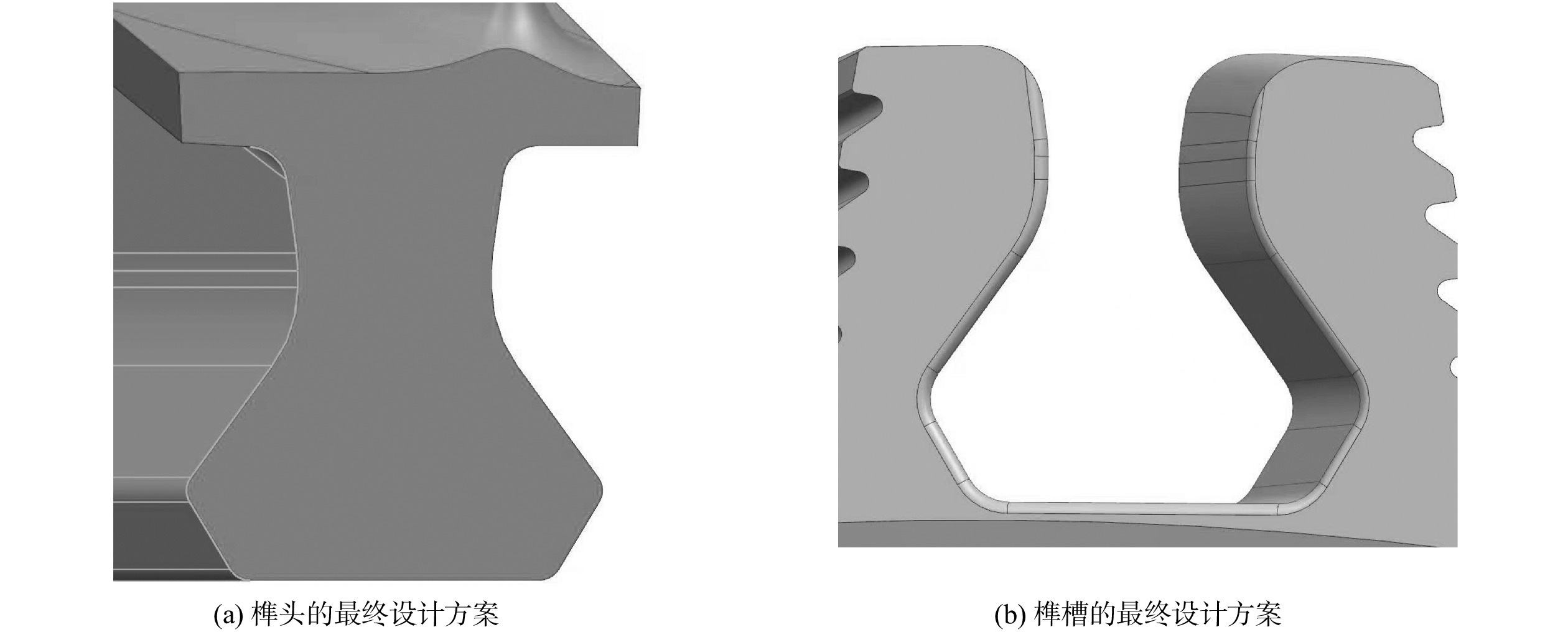

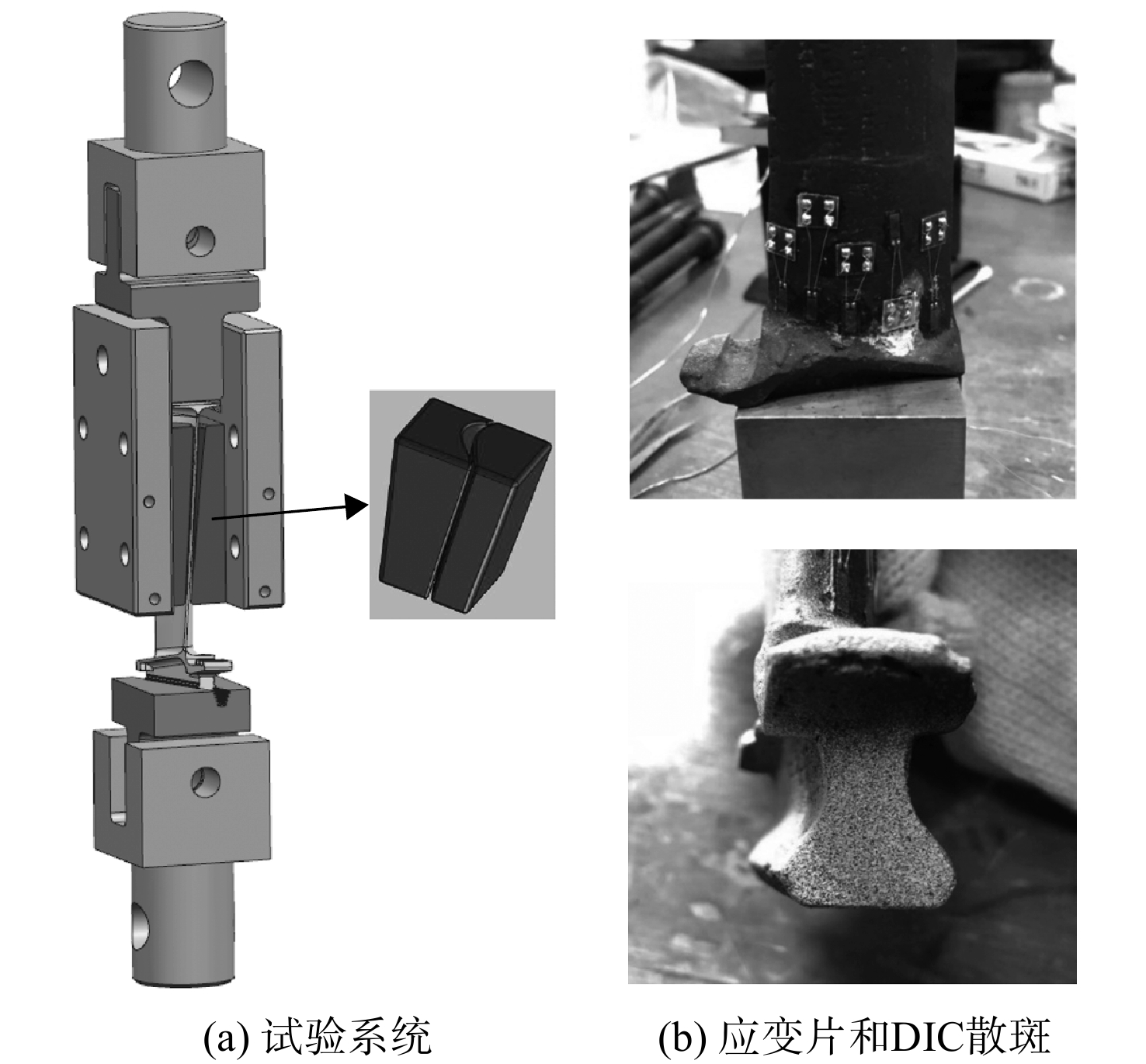

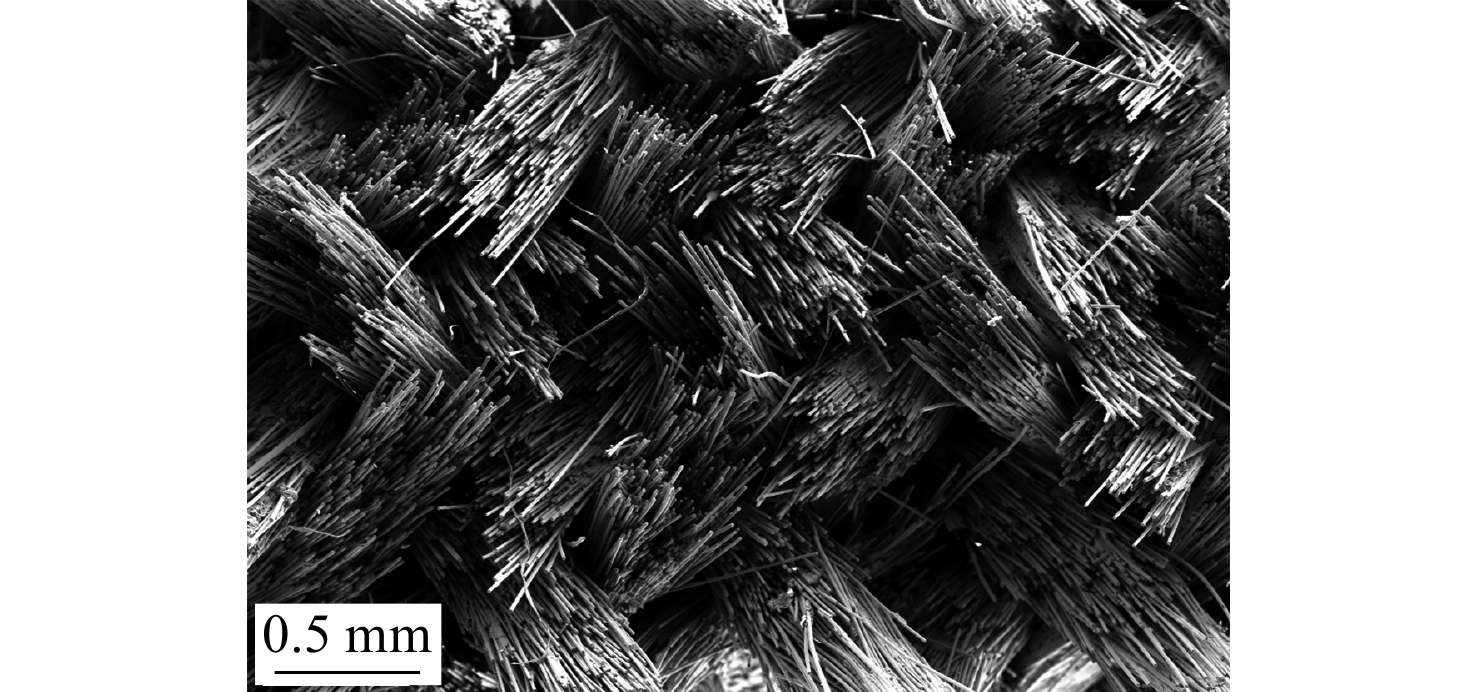

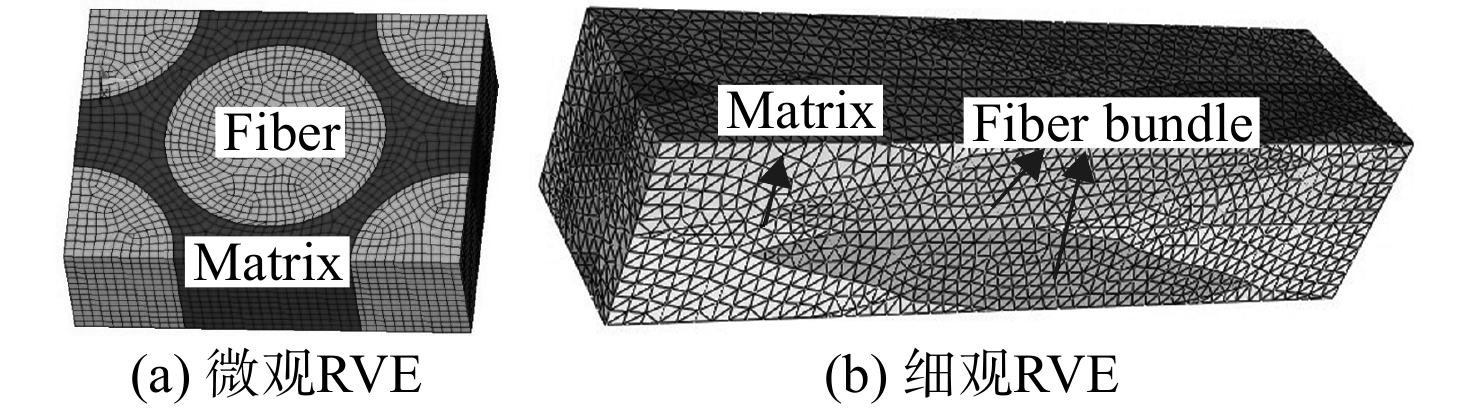

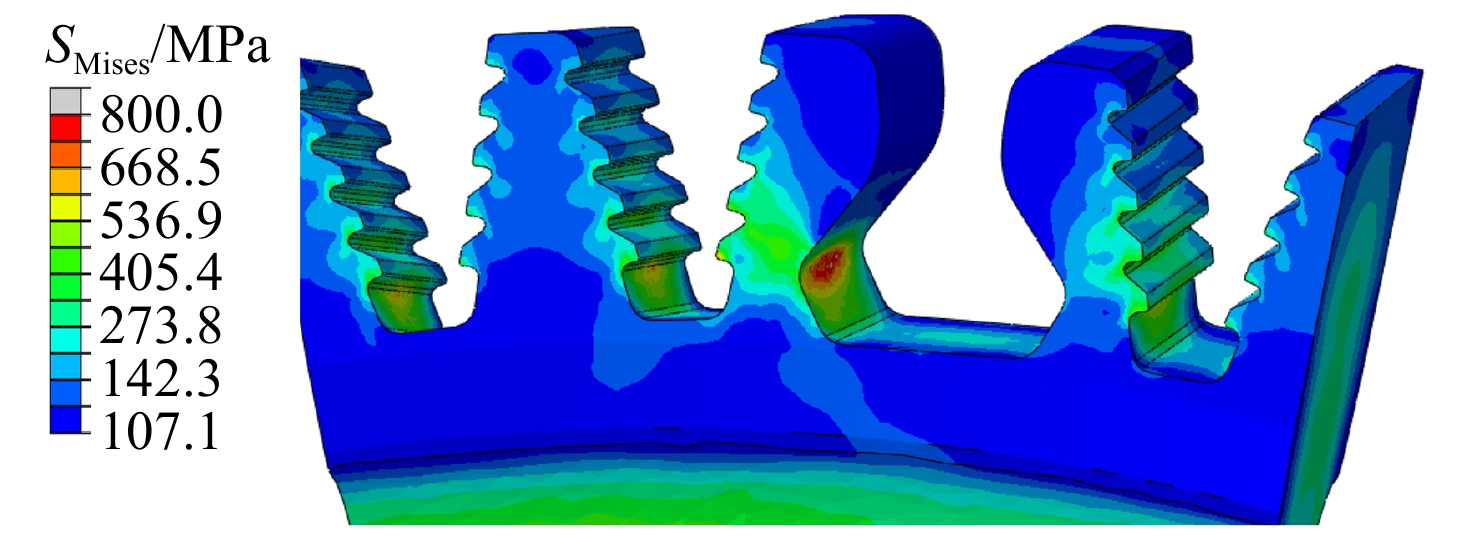

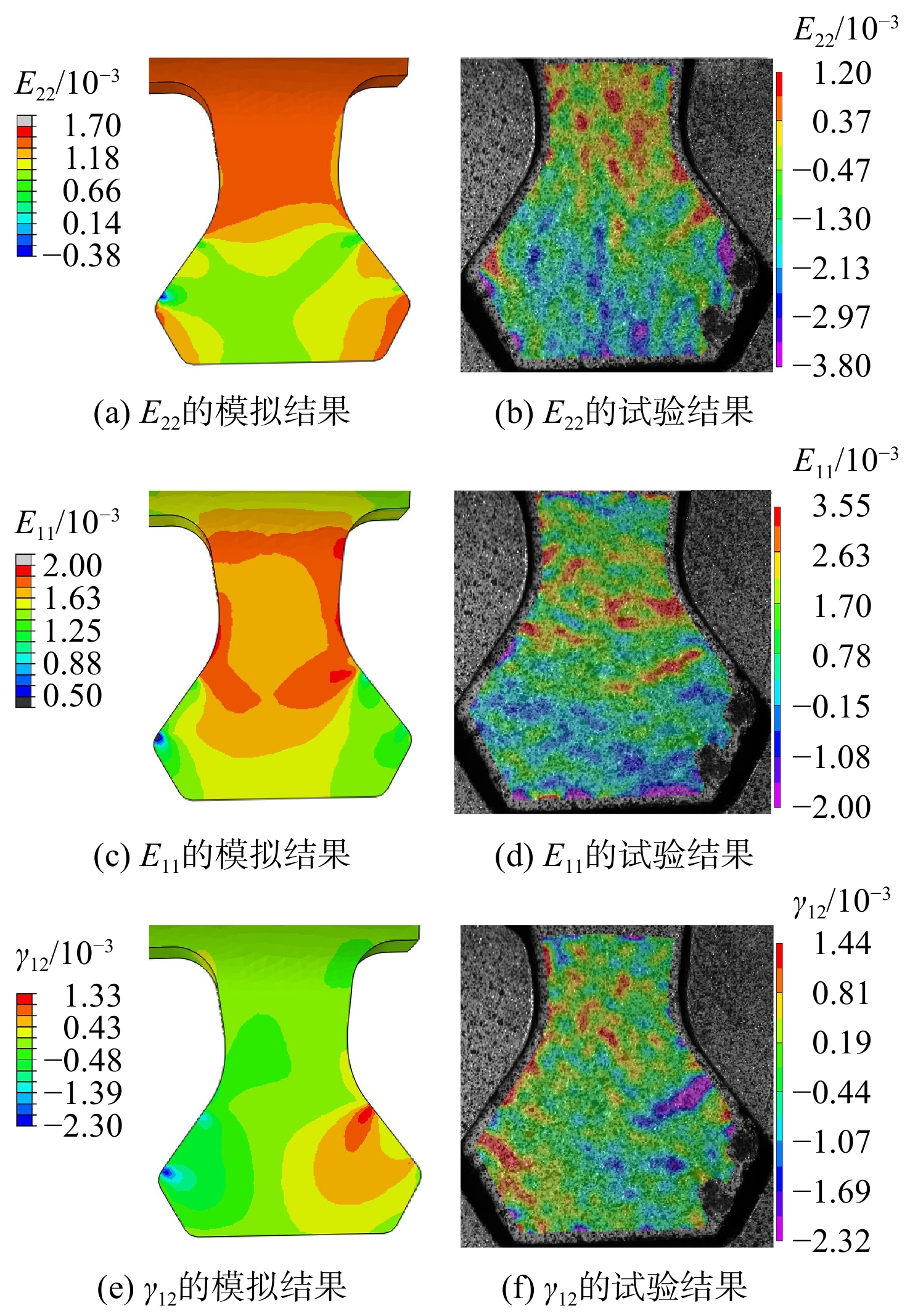

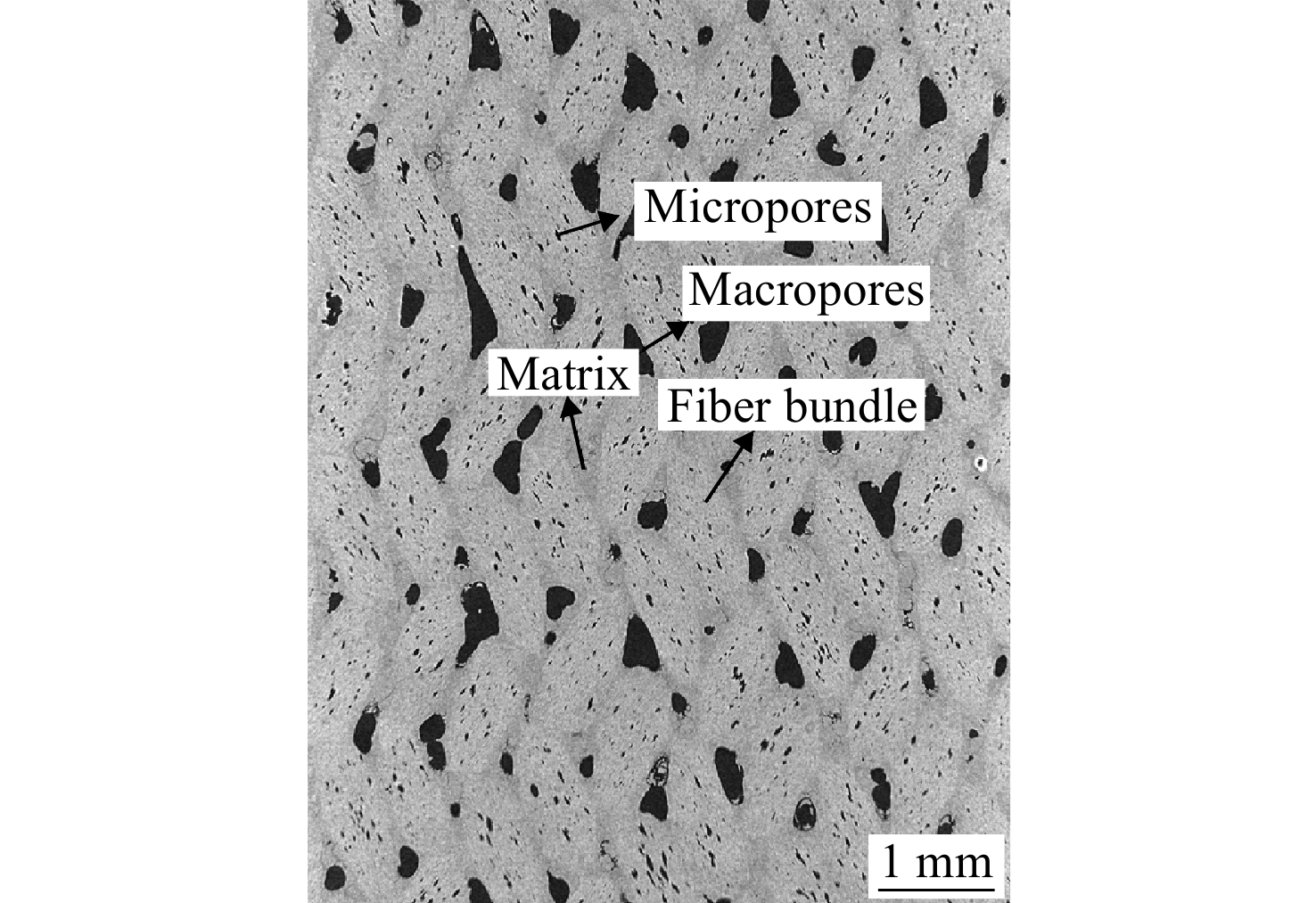

A superalloy low-pressure turbine blade was taken as a reference, and the feasibility of SiC/SiC composites for the structural design of this type of turbine blade was studied. The macro design, dovetail design and detail design of the blade were successively conducted. The deformation and stress characteristics of the metal and composite turbine blades were calculated. Tensile tests of the turbine blades prepared according to the above design were carried out, and the deformation of blade body and dovetail was monitored during the tests. The calculation results showed that the elongation of the SiC/SiC-composite blade was lower than that of original metal blades under rated condition. The stress level at the transition between blade root and listrium was relatively high, but lower than the ultimate tensile strength of the SiC/SiC composites. There was a risk of local shear failure at the neck of the dovetail. The results of the experiments indicated that the eventual failure of the blades distinctly exhibited a tensile failure mode, and the coefficient of the margin of strength calculated by the rotate speed at fracture was about 1.3. This structural design method adopted proved feasible, and the SiC/SiC-composite blades successfully passed the static strength tests under the laboratory condition.
| [1] |
焦健,陈明伟. 新一代发动机高温材料−陶瓷基复合材料的制备, 性能及应用[J]. 航空制造技术,2014,451(7): 62-69. doi: 10.3969/j.issn.1671-833X.2014.07.007
JIAO Jian,CHEN Mingwei. New generation of high-temperature material for engine-preparation, property and application of ceramic matrix composites[J]. Aeronautical Manufacturing Technology,2014,451(7): 62-69. (in Chinese) doi: 10.3969/j.issn.1671-833X.2014.07.007
|
| [2] |
NASLAIN R. Design, preparation and properties of non-oxide CMCs for application in engines and nuclear reactors: an overview[J]. Composites Science and Technology,2004,64(2): 155-170. doi: 10.1016/S0266-3538(03)00230-6
|
| [3] |
江和甫. 对涡轮盘材料的需求及展望[J]. 燃气涡轮试验与研究,2002,15(4): 1-6. doi: 10.3969/j.issn.1672-2620.2002.04.001
JIANG Hefu. Requirements and forecast of turbine disk materials[J]. Gas Turbine Experiment and Research,2002,15(4): 1-6. (in Chinese) doi: 10.3969/j.issn.1672-2620.2002.04.001
|
| [4] |
李专,肖鹏,熊翔. 连续纤维增强陶瓷基复合材料的研究进展[J]. 粉末冶金材料科学与工程,2007,12(1): 13-19. doi: 10.3969/j.issn.1673-0224.2007.01.003
LI Zhuan,XIAO Peng,XIONG Xiang. Progress in research work of continuous fiber reinforced ceramic matrix composite[J]. Materials Science and Engineering of Powder Metallurgy,2007,12(1): 13-19. (in Chinese) doi: 10.3969/j.issn.1673-0224.2007.01.003
|
| [5] |
ZOK F W. Ceramic-matrix composites enable revolutionary gains in turbine engine efficiency[J]. American Ceramic Society Bulletin,2016,95(5): 22-28.
|
| [6] |
胡海峰,张玉娣,邹世钦,等. SiC/SiC复合材料及其在航空发动机上的应用[J]. 航空制造技术,2010,6: 90-91. doi: 10.3969/j.issn.1671-833X.2010.06.021
HU Haifeng,ZHANG Yudi,ZOU Shiqin,et al. SiC/SiC composites and its application on aero-engine[J]. Aeronautical Manufacturing Technology,2010,6: 90-91. (in Chinese) doi: 10.3969/j.issn.1671-833X.2010.06.021
|
| [7] |
BANSAL N P, LAMON J. Ceramic matrix composites: materials, modeling and technology[M]. Hoboken, US: John Wiley and Sons, 2014.
|
| [8] |
KATOH Y,SNEAD L L,HENAGER C H,Jr,et al. Current status and recent research achievements in SiC/SiC composites[J]. Journal of Nuclear Materials,2014,455(1/2/3): 387-397.
|
| [9] |
ZHANG Chao,CURIEL J L,BUI T Q. Meso-scale progressive damage modeling and life prediction of 3D braided composites under fatigue tension loading[J]. Composite Structures,2018,201: 62-71. doi: 10.1016/j.compstruct.2018.06.021
|
| [10] |
DENG Chao,JIANG Jianjun,FANG Liangchao. Algorithm design of four-step three-dimensional braided composite structures in Matlab environment[J]. Applied Mechanics and Materials,2013,365/366: 1144-1147.
|
| [11] |
HAO Wenfeng,YUAN Yanan,YAO Xuefeng,et al. Computational analysis of fatigue behavior of 3D 4-directional braided composites based on unit cell approach[J]. Advances in Engineering Software,2015,82: 38-52. doi: 10.1016/j.advengsoft.2014.12.007
|
| [12] |
LIU Changqi,CHEN Yang,SHI Duoqi,et al. In ditu investigation of failure in 3D braided SiC/SiC composites under flexural loading[J]. Composite Structures,2021,270: 114067.1-114067.14. doi: 10.1016/j.compstruct.2021.114067
|
| [13] |
KISER J D, GRADY J E, BHATT R T, et al. Overview of CMC (ceramic matrix composite) research at the NASA Glenn Research Center[R]. Cleveland, US: Ceramics Expo, 2016.
|
| [14] |
ALAIN L, PATRICK S, ALAIN A, et al. Ceramic matrix composites to make breakthroughs in aircraft engine performance[R]. AIAA 2009-2675, 2009.
|
| [15] |
王鸣,董志国,张晓越,等. 连续纤维增强碳化硅陶瓷基复合材料在航空发动机上的应用[J]. 航空制造技术,2014,450(6): 10-13. doi: 10.3969/j.issn.1671-833X.2014.06.001
WANG Ming,DONG Zhiguo,ZHANG Xiaoyue,et al. Application of continuous fiber reinforced ceramic matrix composites in aeroengine[J]. Aeronautical Manufacturing Technology,2014,450(6): 10-13. (in Chinese) doi: 10.3969/j.issn.1671-833X.2014.06.001
|
| [16] |
TAKESHI N,TAKASHI O,KUNIYUKI I,et al. Development of CMC turbine parts for aero engines[J]. IHI (Ishikawajima-Harima Heavy Industries) Engineering Review,2014,47(1): 29-32.
|
| [17] |
WATANABE F, NAKAMURA T, SHINOHARA K I. The application of ceramic matrix composite to low pressure turbine blade[R]. ASME Paper GT2016-56614, 2016.
|
| [18] |
BOYLE R J, PARIKH A H, NAGPAL V K. Design considerations for ceramic matrix composite high pressure turbine blades[R]. ASME Paper GT2019-91787, 2019.
|
| [19] |
BOYLE R J, AGRICOLA L M, PARIKH A H, et al. Shrouded CMC rotor blades for high pressure turbine applications[R]. ASME Paper GT2018-76827, 2018.
|
| [20] |
鲁中良, 李涤尘, 陆峰, 等. 一种SiCf/SiC陶瓷基复合材料涡轮叶片的制备方法: CN103113123A [P]. 2013-05-22.
|
| [21] |
罗潇,徐友良,郭小军,等. 涡轮发动机用陶瓷基复合材料涡轮转子研究进展[J]. 推进技术,2021,42(1): 230-240. doi: 10.13675/j.cnki.tjjs.200156
LUO Xiao,XU Youliang,GUO Xiaojun,et al. Research progress of ceramic matric composites turbine rotors for turbine engines[J]. Journal of Propulsion Technology,2021,42(1): 230-240. (in Chinese) doi: 10.13675/j.cnki.tjjs.200156
|
| [22] |
王赛. 陶瓷基复合材料涡轮转子叶片的宏细观结构设计[D]. 南京: 南京航空航天大学, 2019.
WANG Sai. Macroscopic and microscopic structural design of ceramic matrix composite turbine rotor blade[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2019. (in Chinese)
|
| [23] |
程震,石多奇,景鑫,等. 三维四向编织陶瓷基复合材料改进模型及刚度预报[J]. 复合材料学报,2016,33(6): 1287-1296. doi: 10.13801/j.cnki.fhclxb.20160328.009
CHENG Zhen,SHI Duoqi,JING Xin,et al. Improved model and stiffness prediction of 3D four directional braided ceramic-matrix composites[J]. Acta Materiae Compositae Sinica,2016,33(6): 1287-1296. (in Chinese) doi: 10.13801/j.cnki.fhclxb.20160328.009
|
| [24] |
程震. 连续纤维增强陶瓷基复合材料 强度与结构设计[D]. 北京: 北京航空航天大学, 2021.
CHENG Zhen. Continuous fiber reinforced ceramic matrix composite strength and structure design[D]. Beijing: Beijing University of Aeronautics and Astronautics, 2021. (in Chinese)
|
| [25] |
SCHAPERY R A. Thermal expansion coefficients of composite materials based on energy principles[J]. Journal of Composite Materials,1968,2(3): 380-404. doi: 10.1177/002199836800200308
|
| [26] |
SHI Duoqi,LI Zhenlei,YANG Xiaoguang,et al. Accelerated LCF-creep experimental methodology for durability life evaluation of turbine blade[J]. Fatigue and Fracture of Engineering Materials and Structures,2018,41(5): 1196-1207.
|
