| Citation: | KONG Xiaozhi, HUANG Tianshuo, LIU Yuxin, et al. Influences of the cavity leakage flow on shrouded stator performance at different inlet boundary layer thicknesses[J]. Journal of Aerospace Power, 2023, 38（1）：184-196 doi: 10.13224/j.cnki.jasp.20220445
|

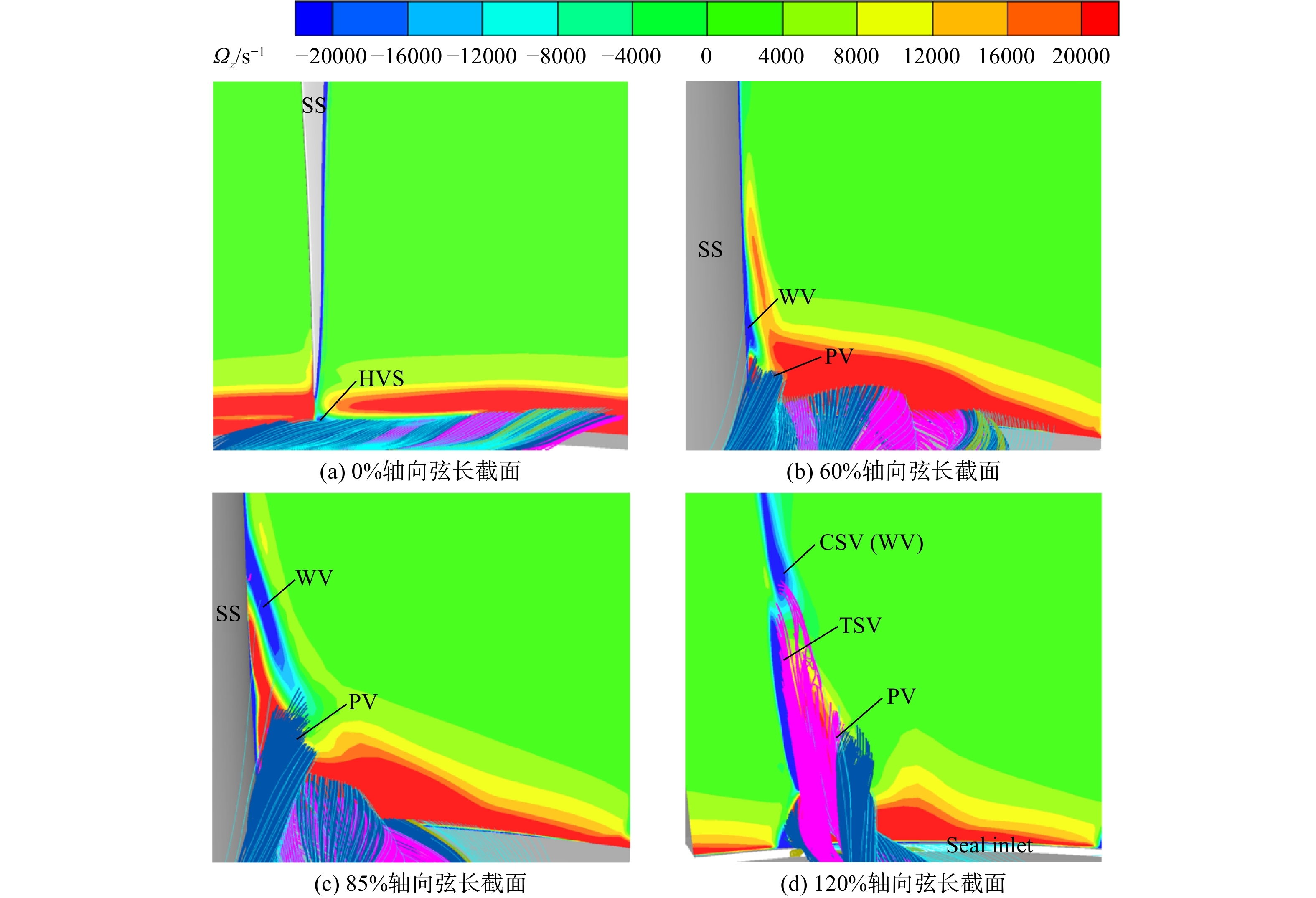

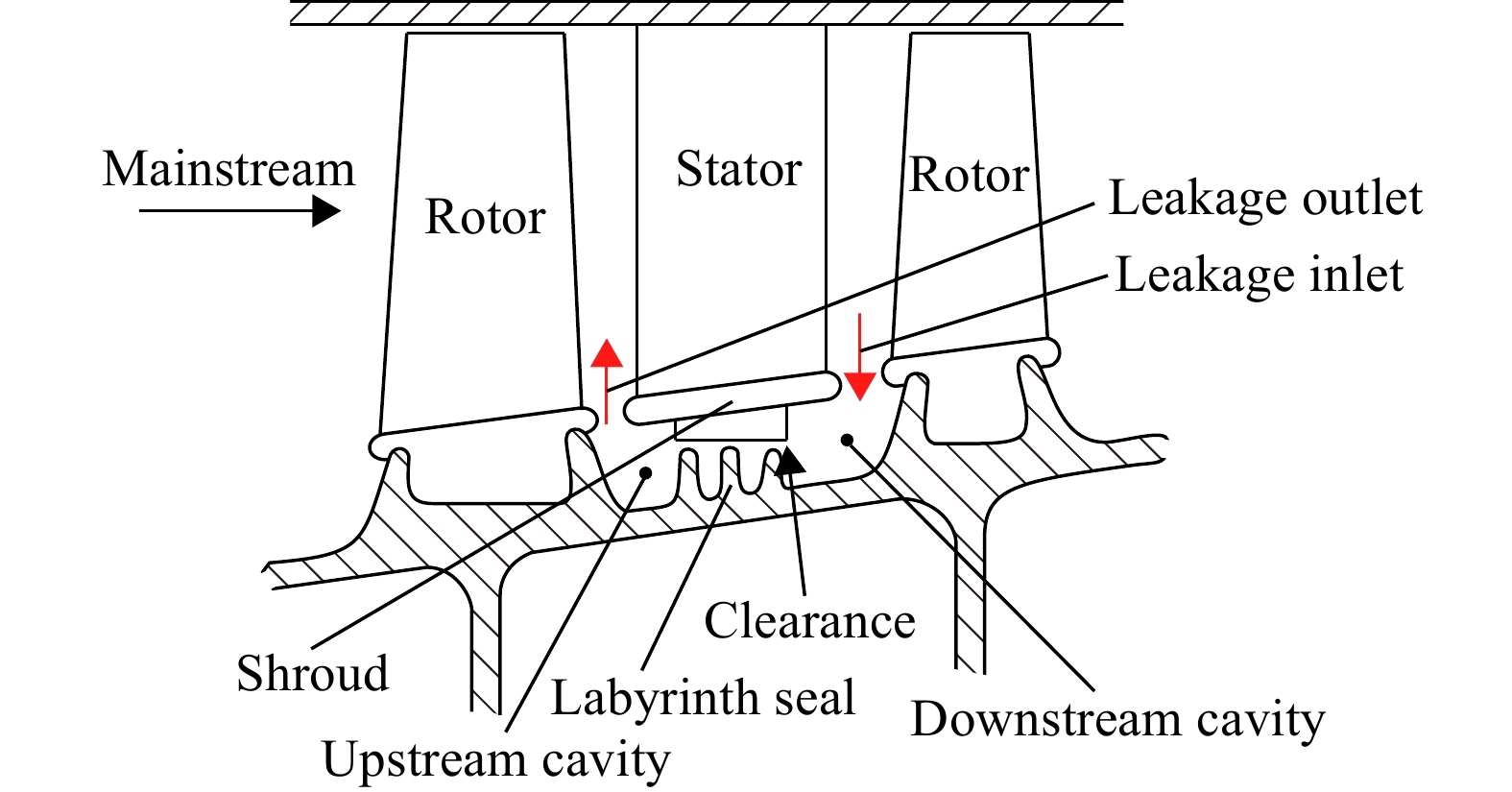

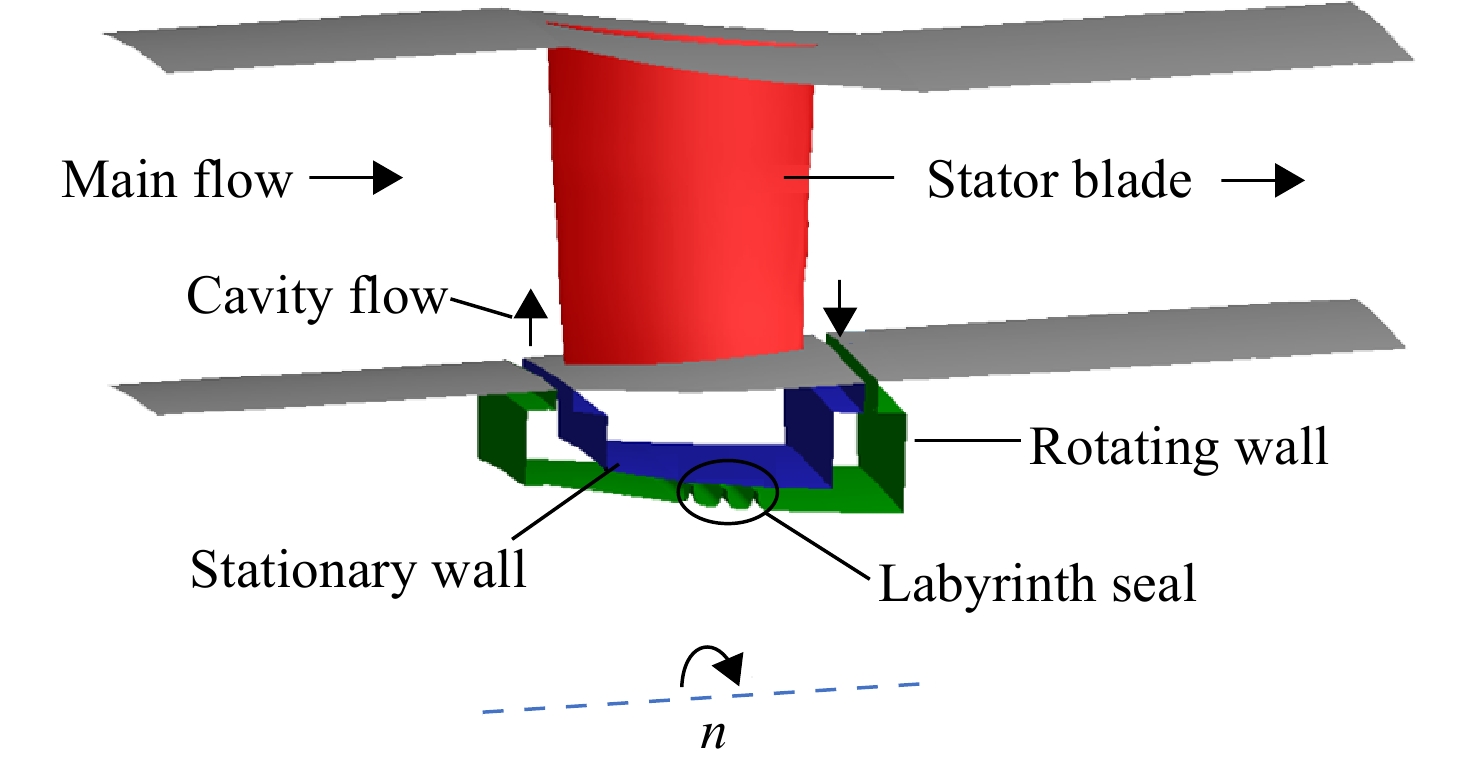

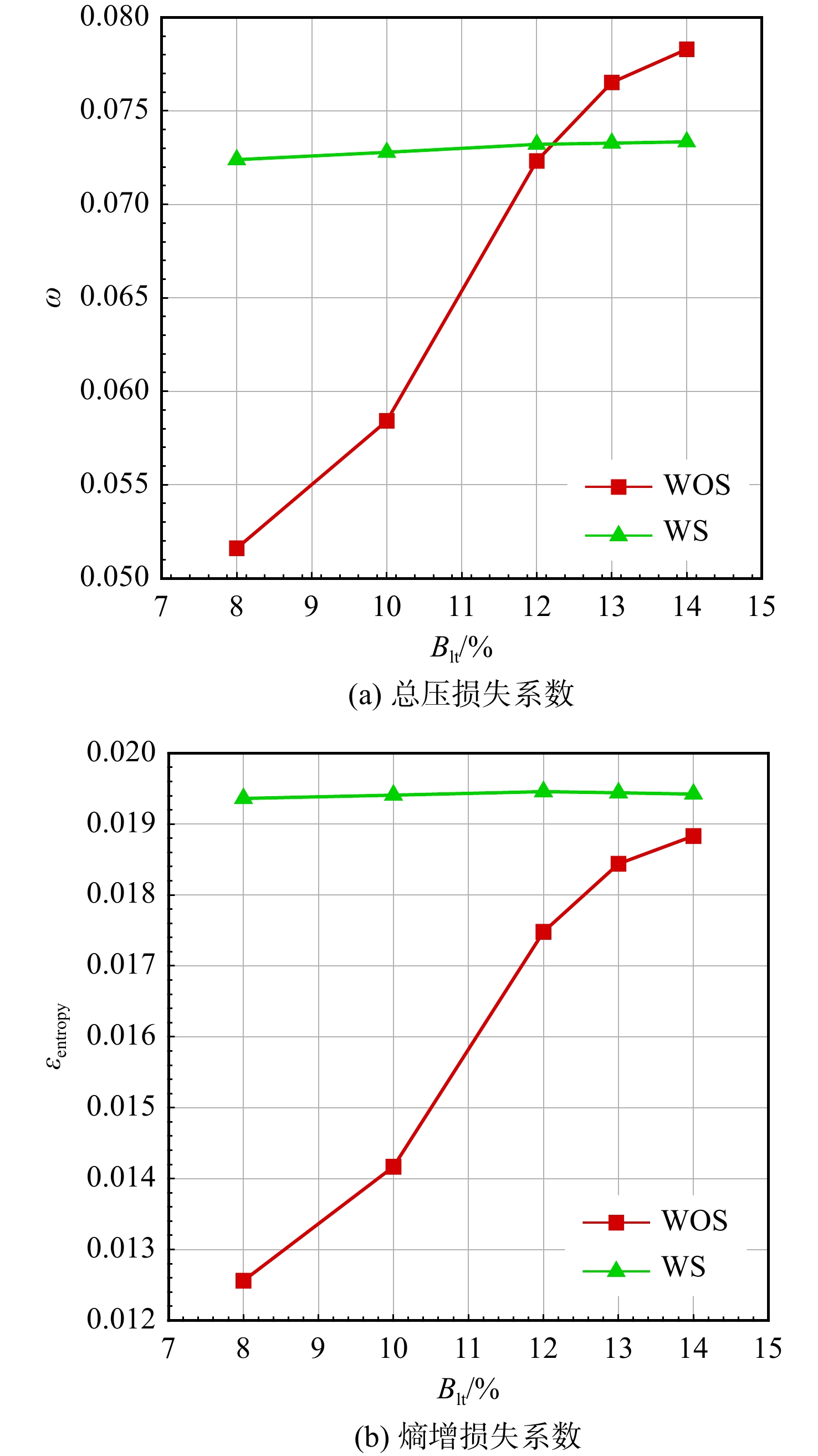

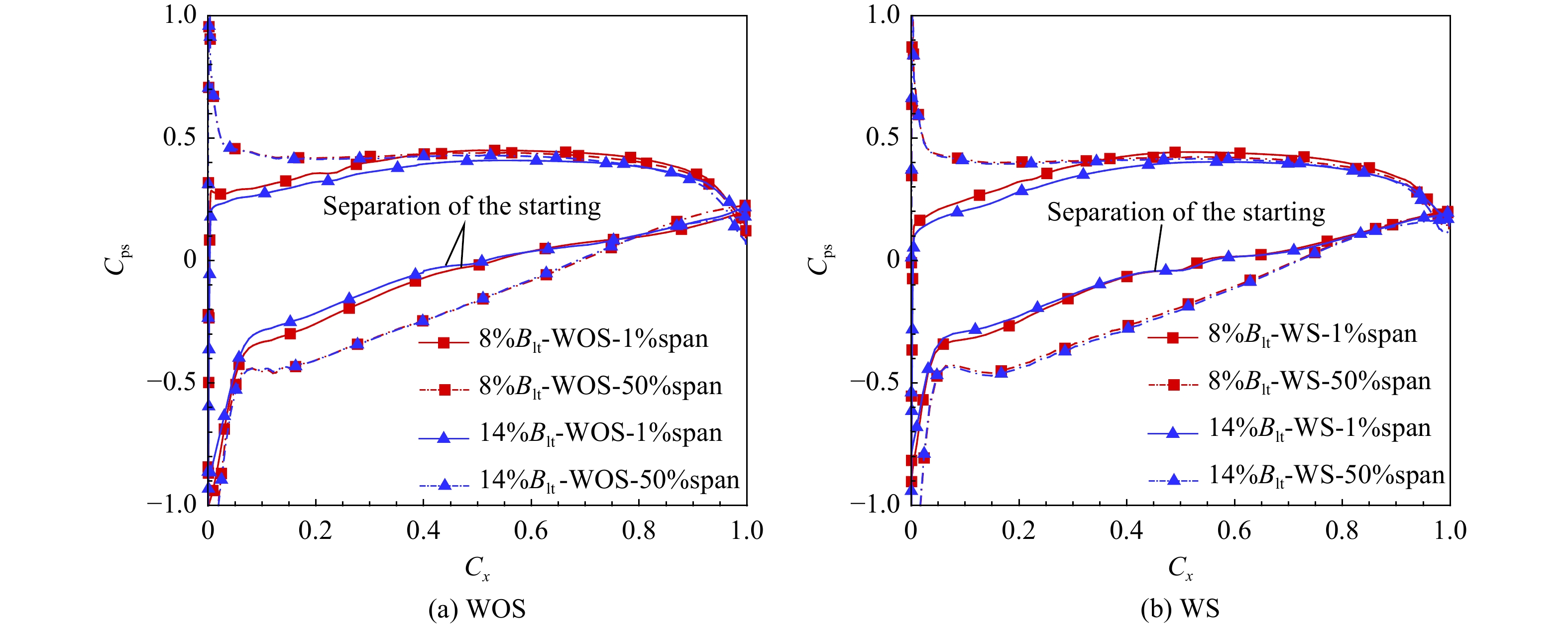

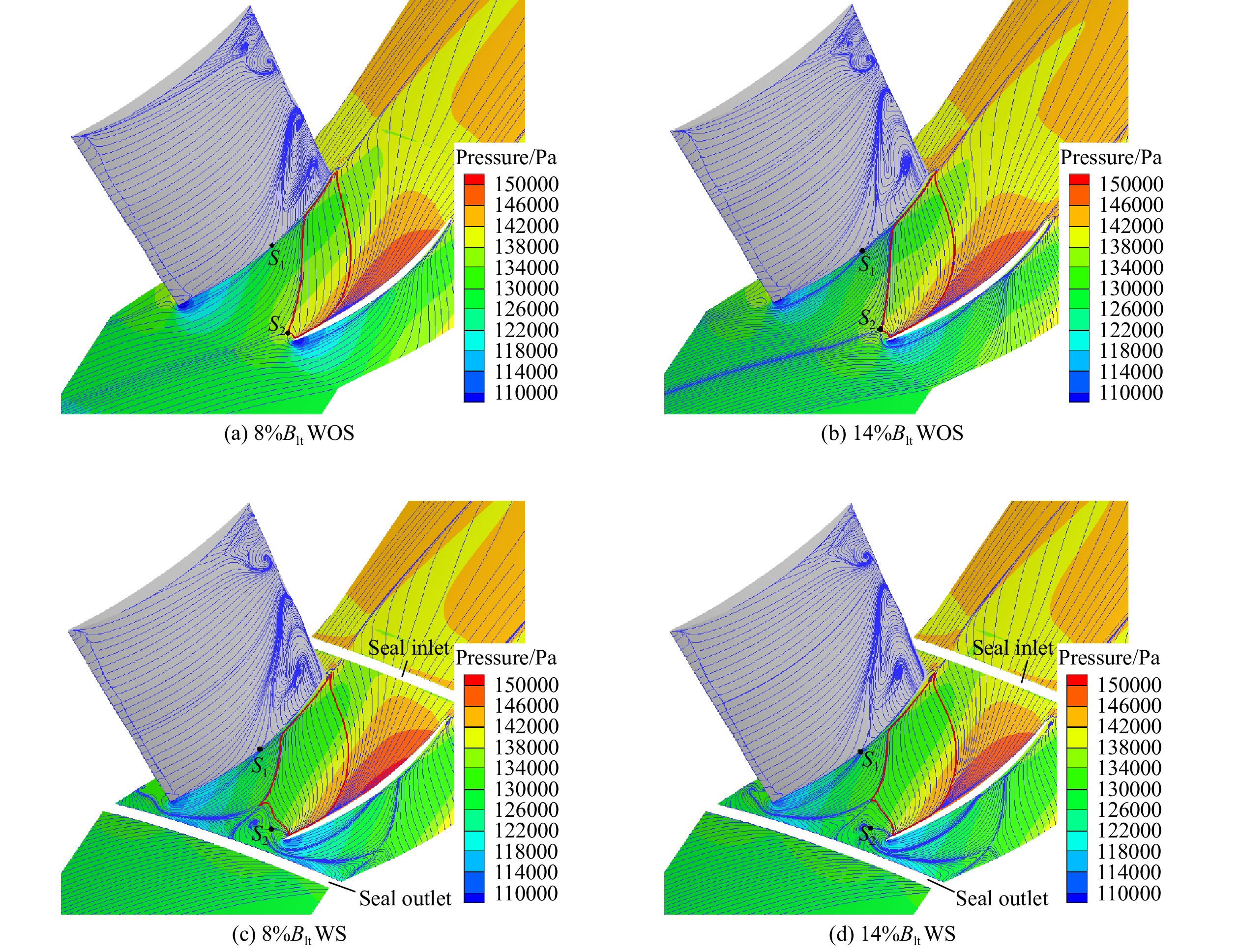

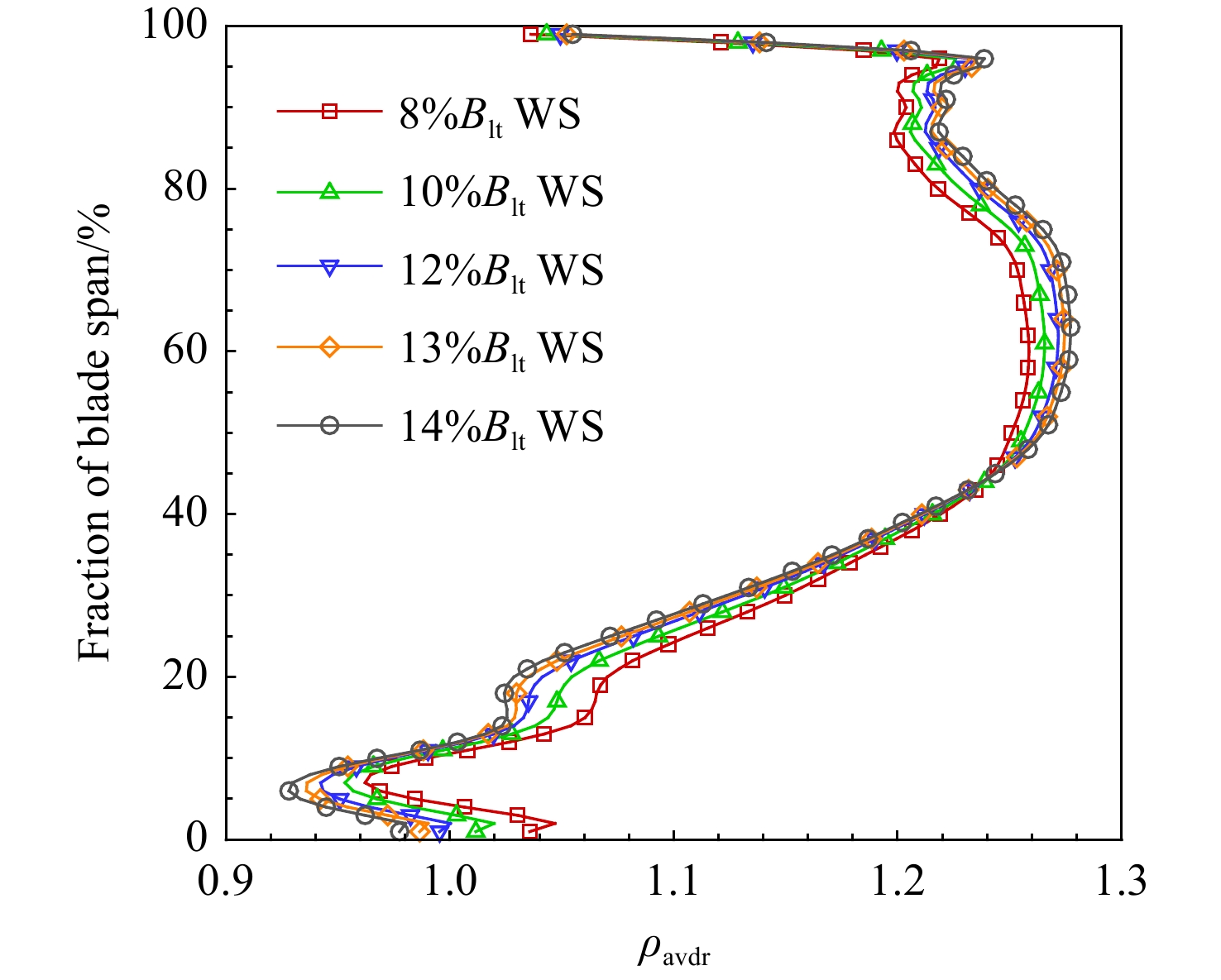

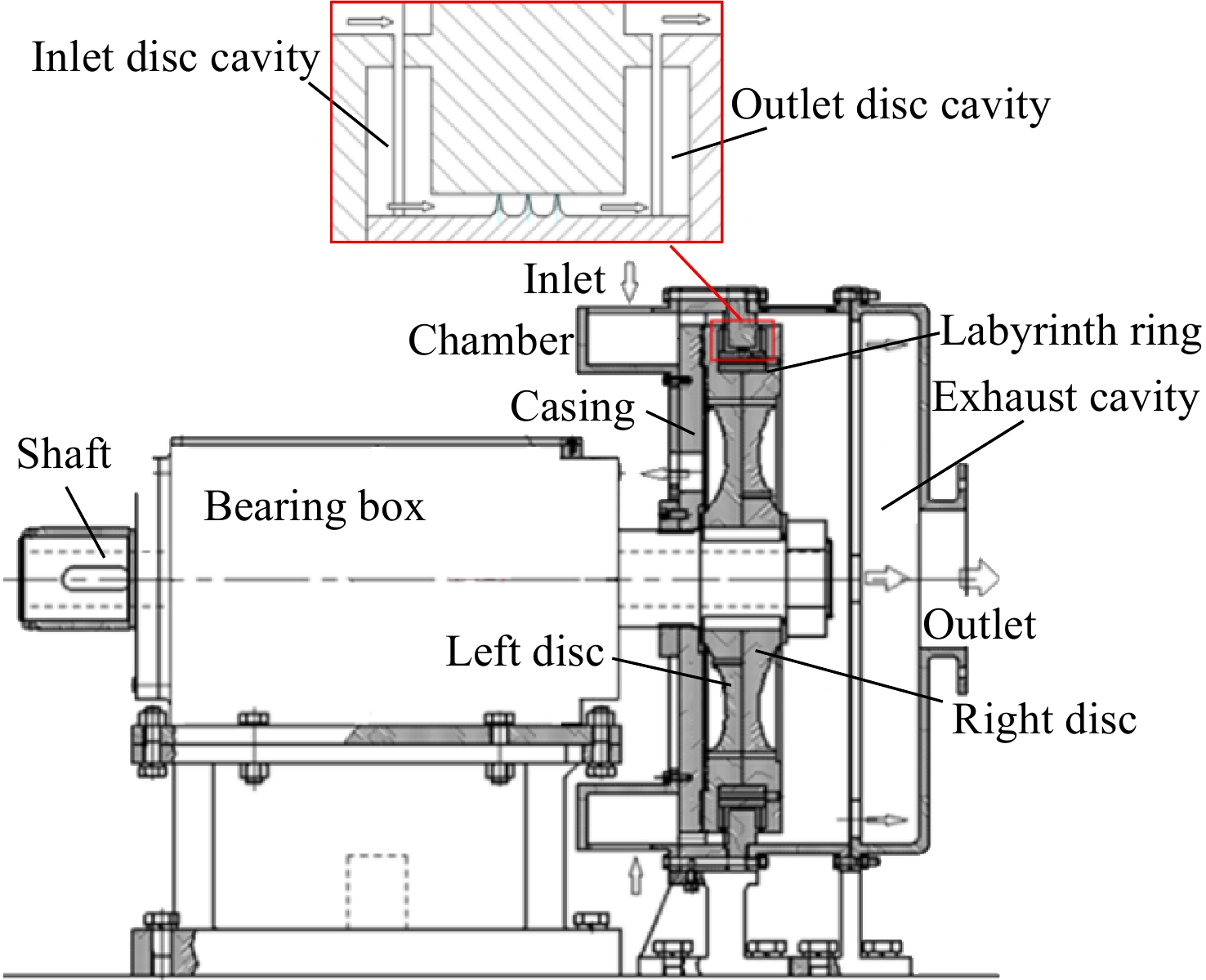

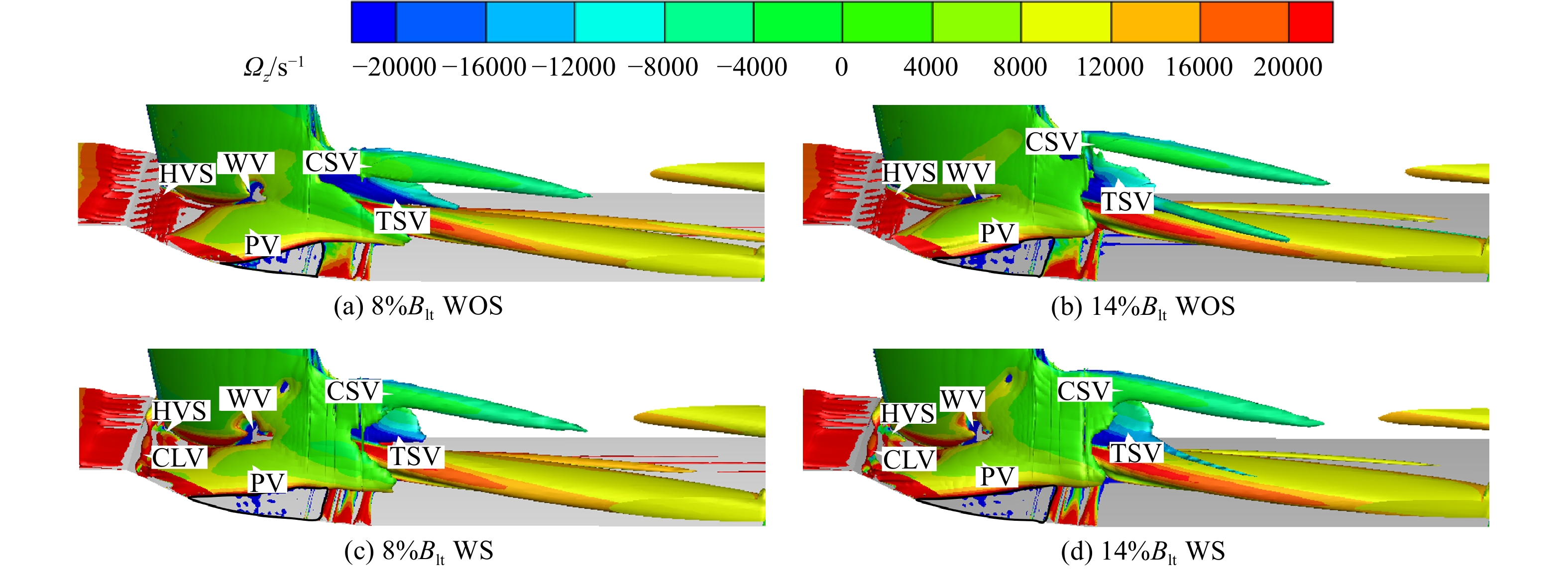

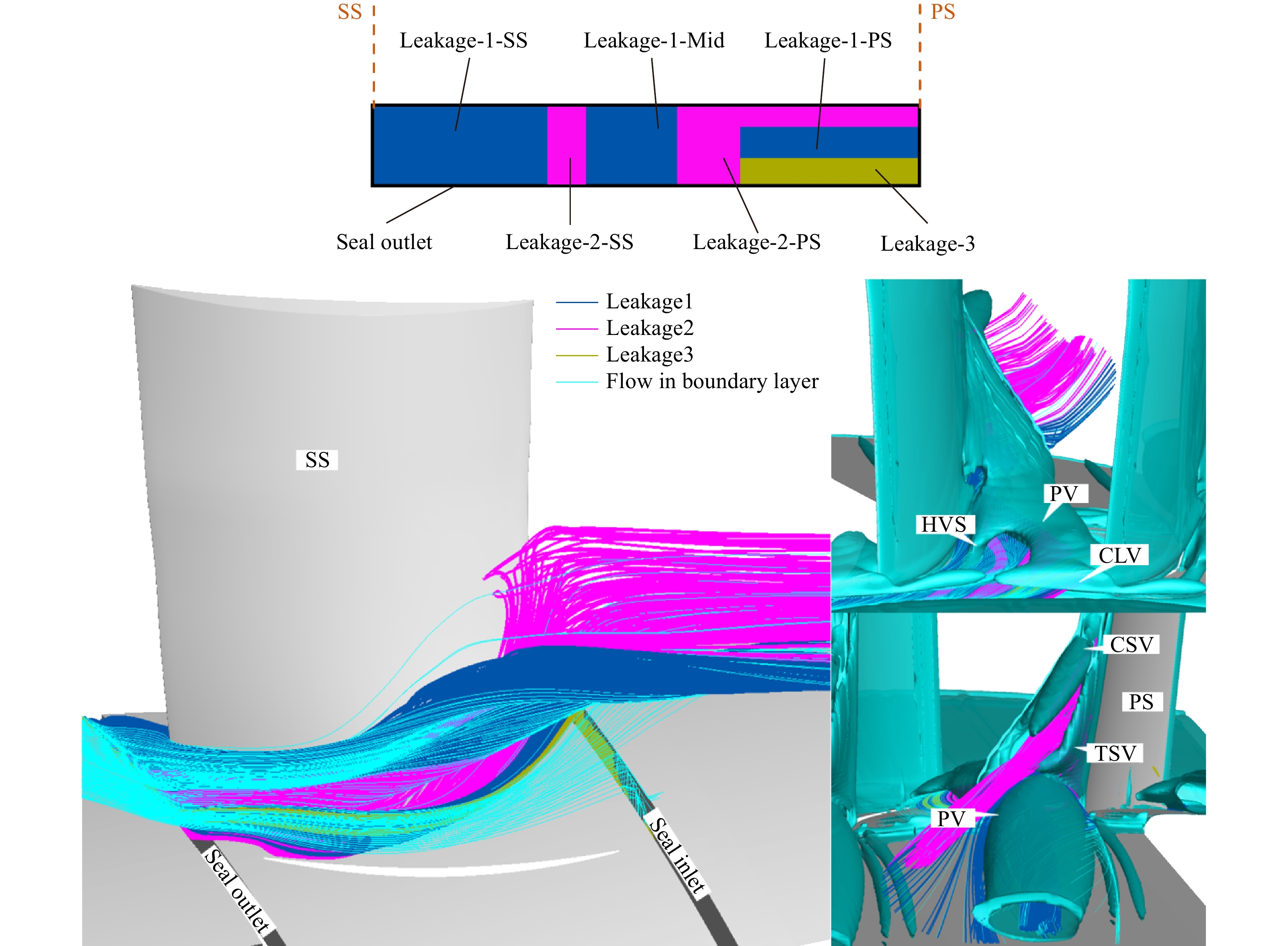

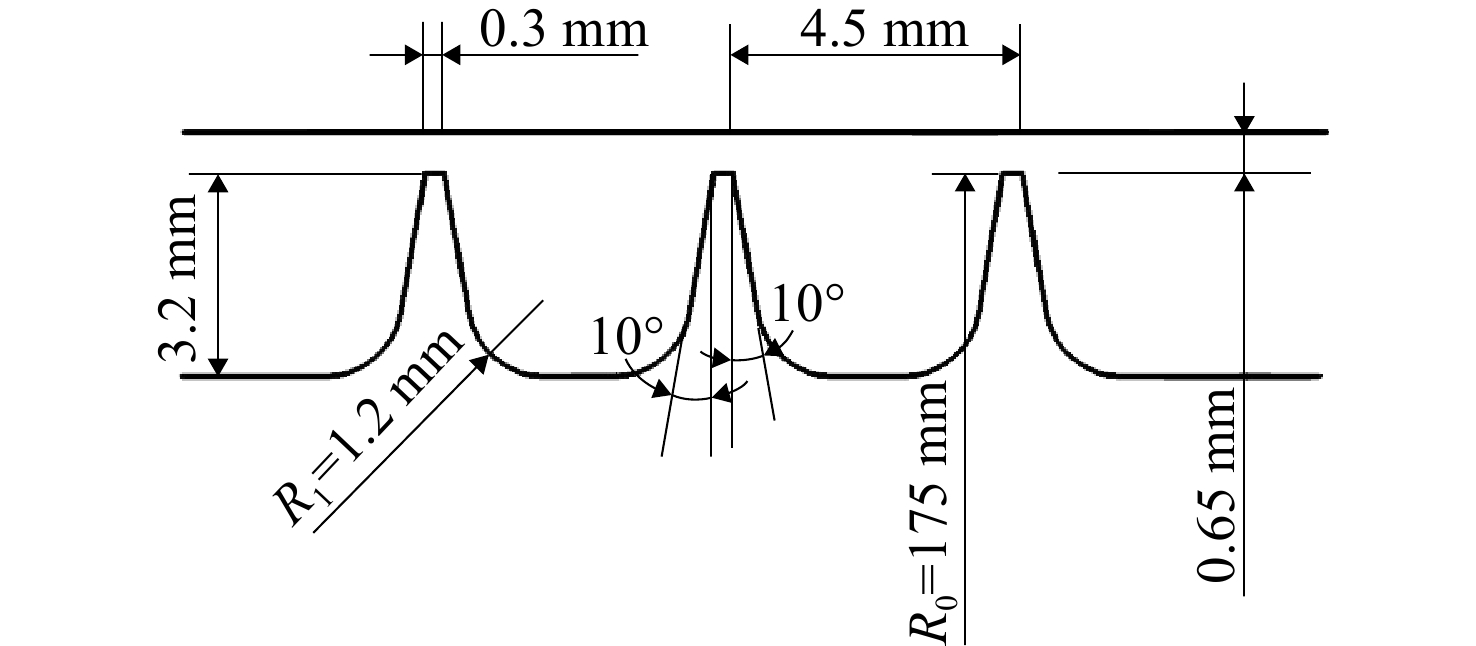

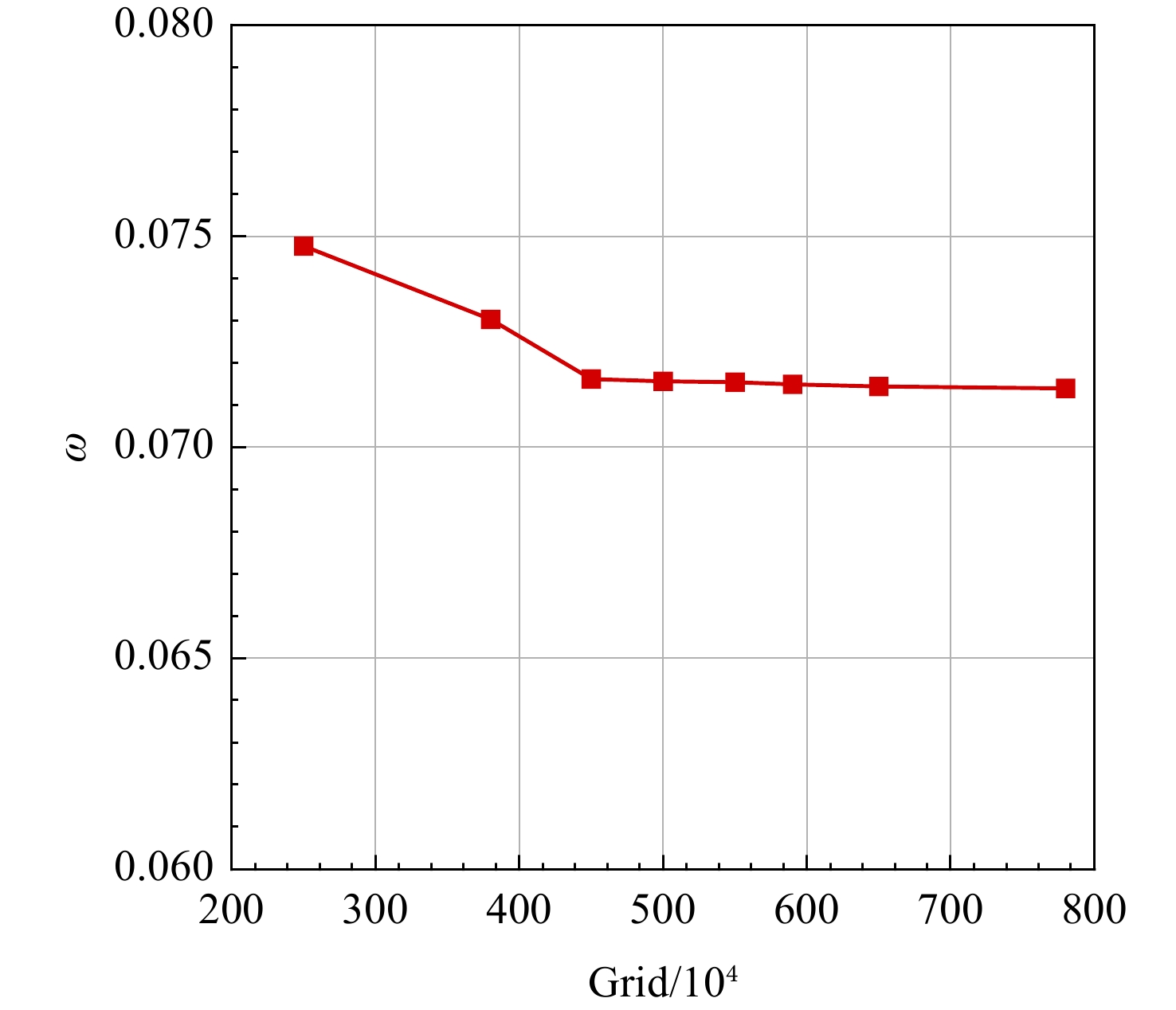

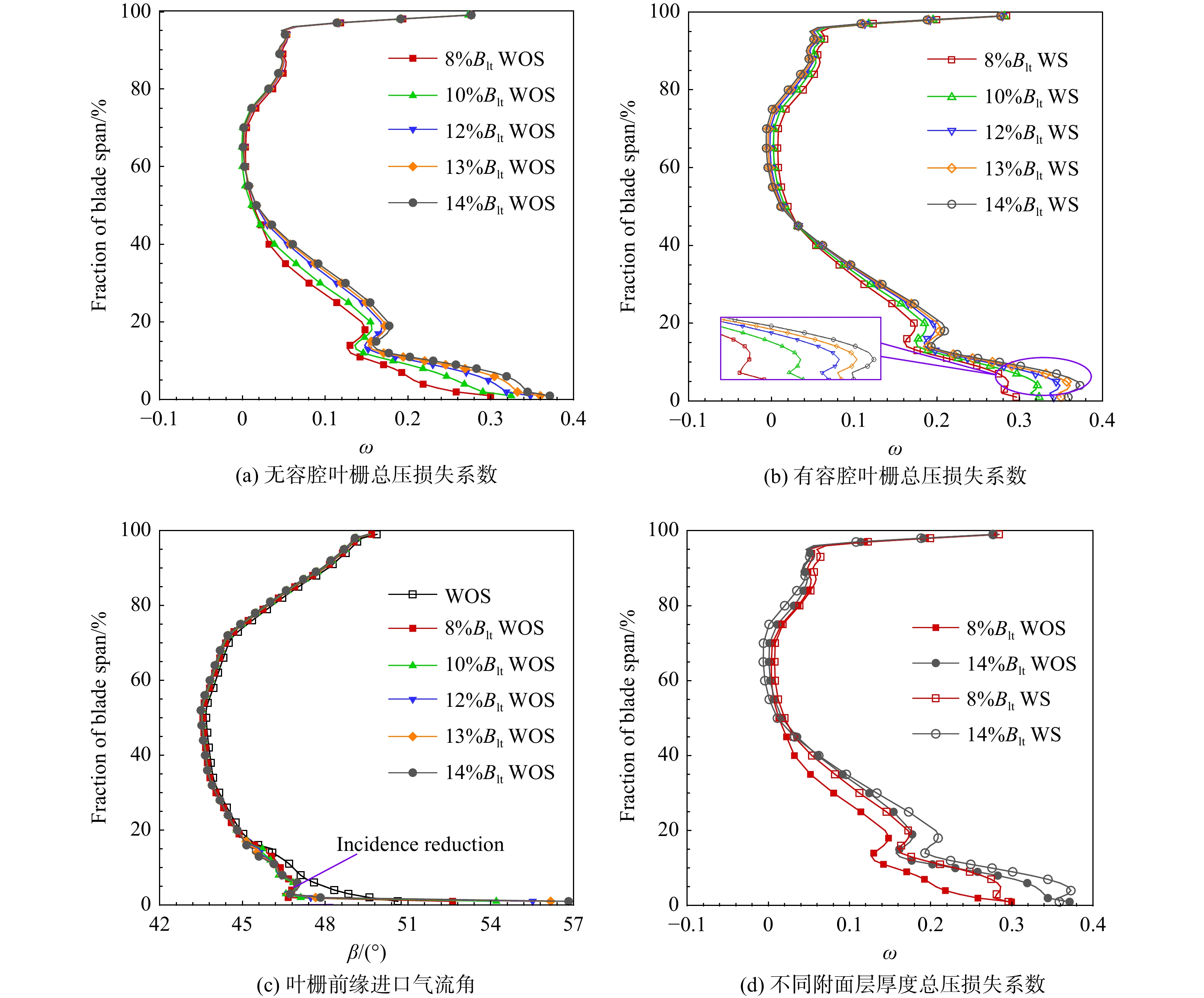

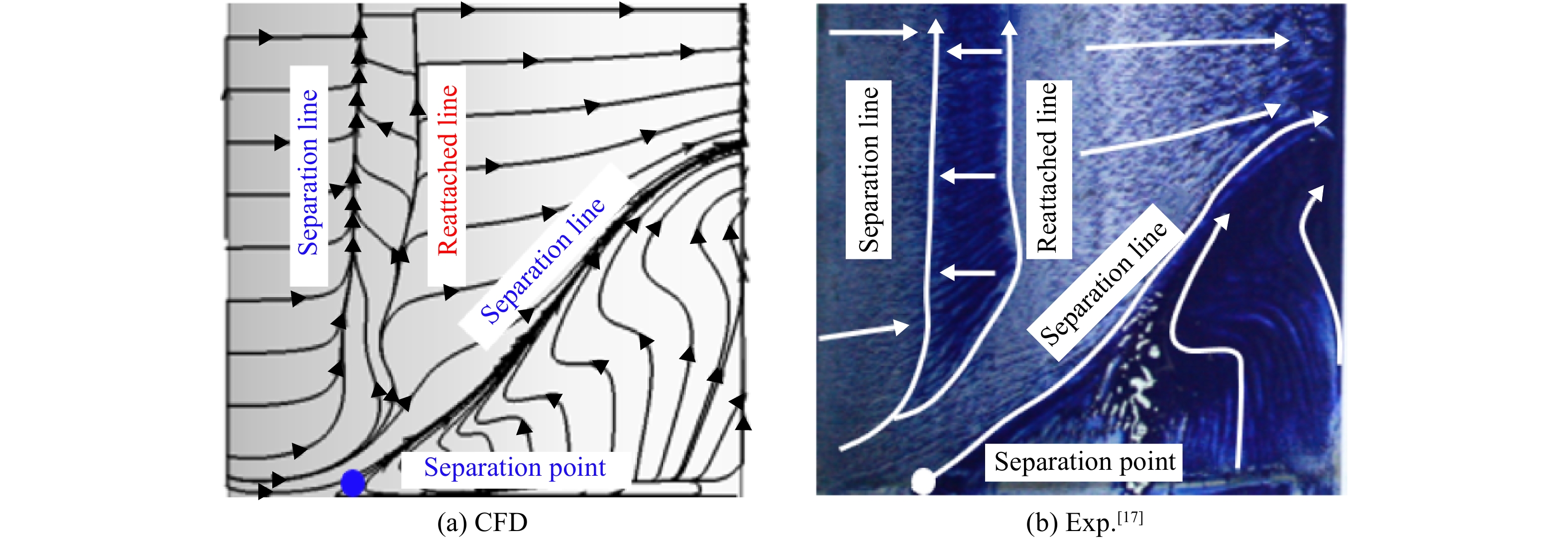

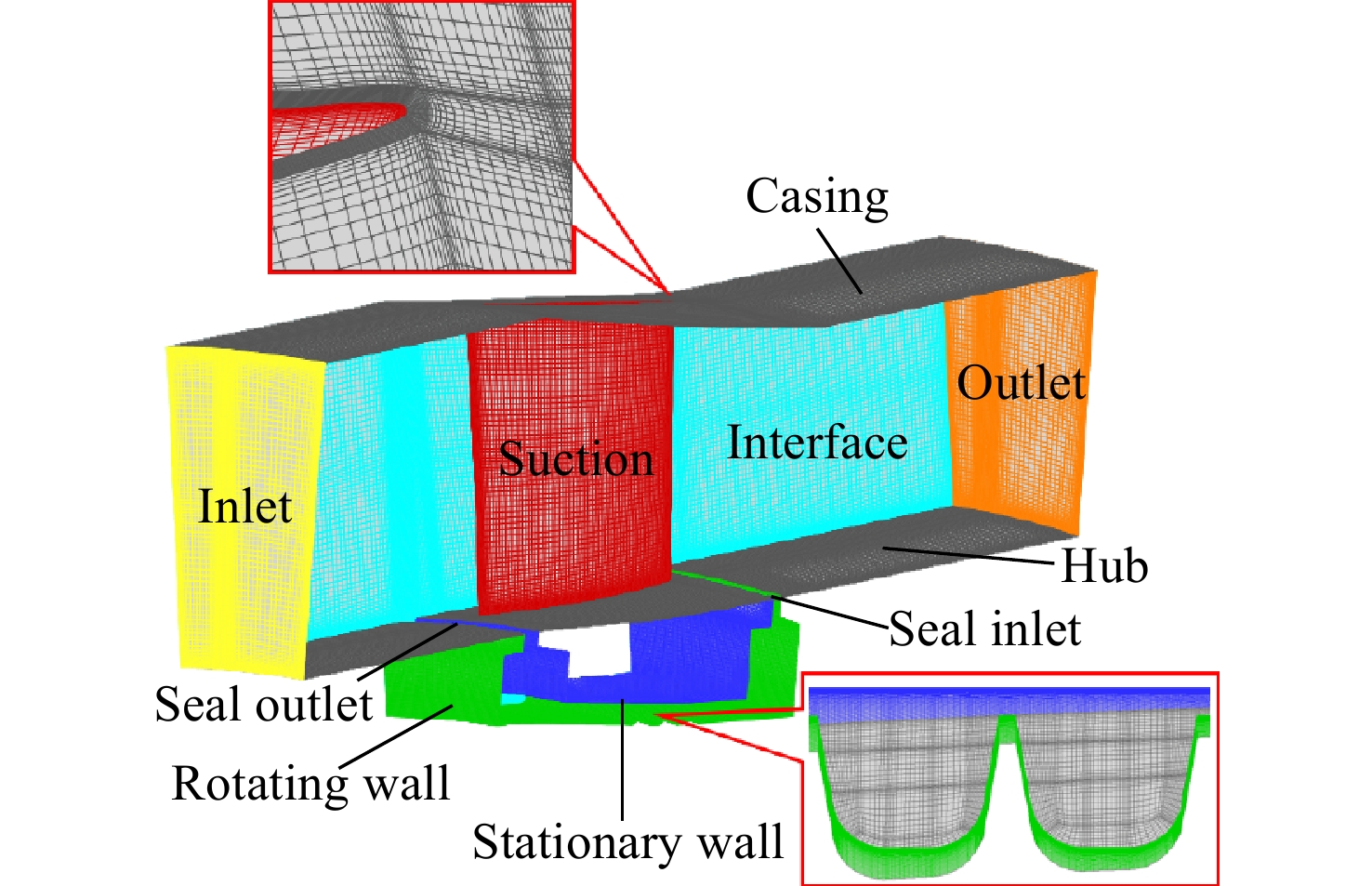

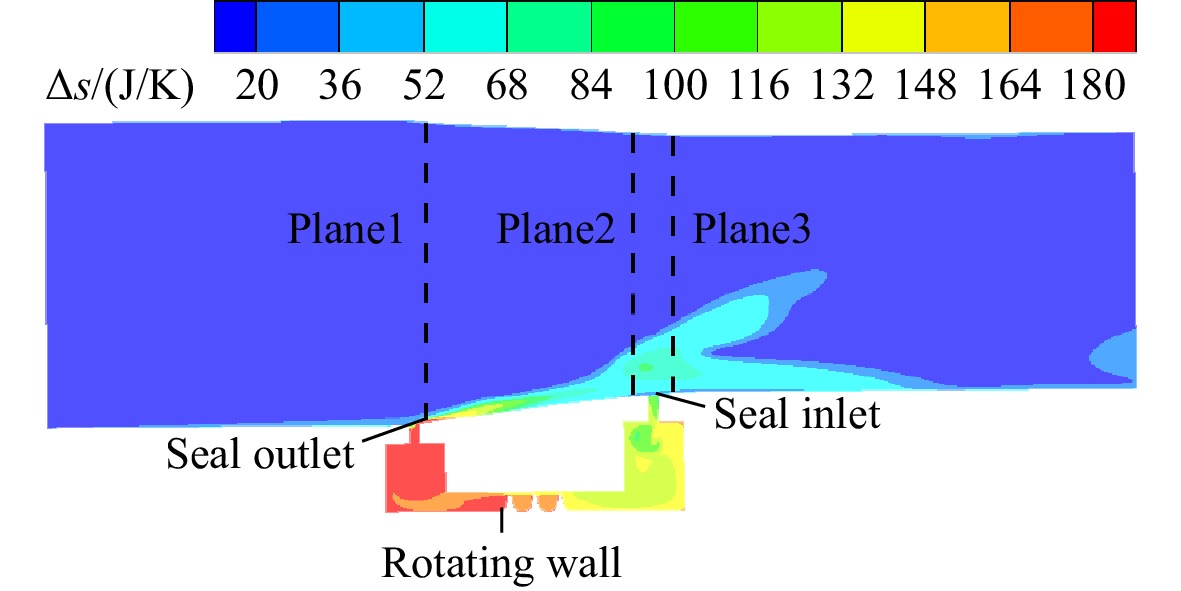

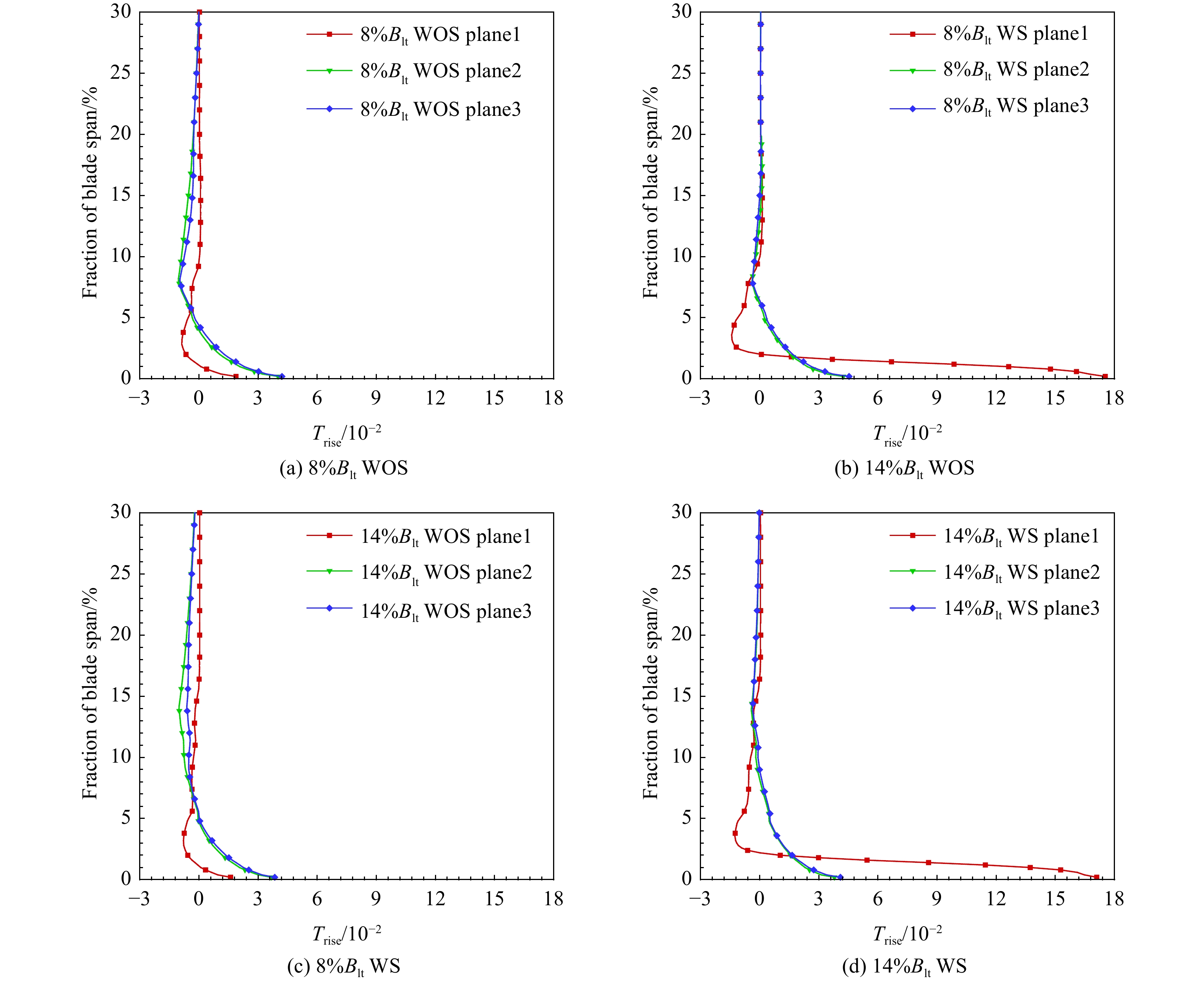

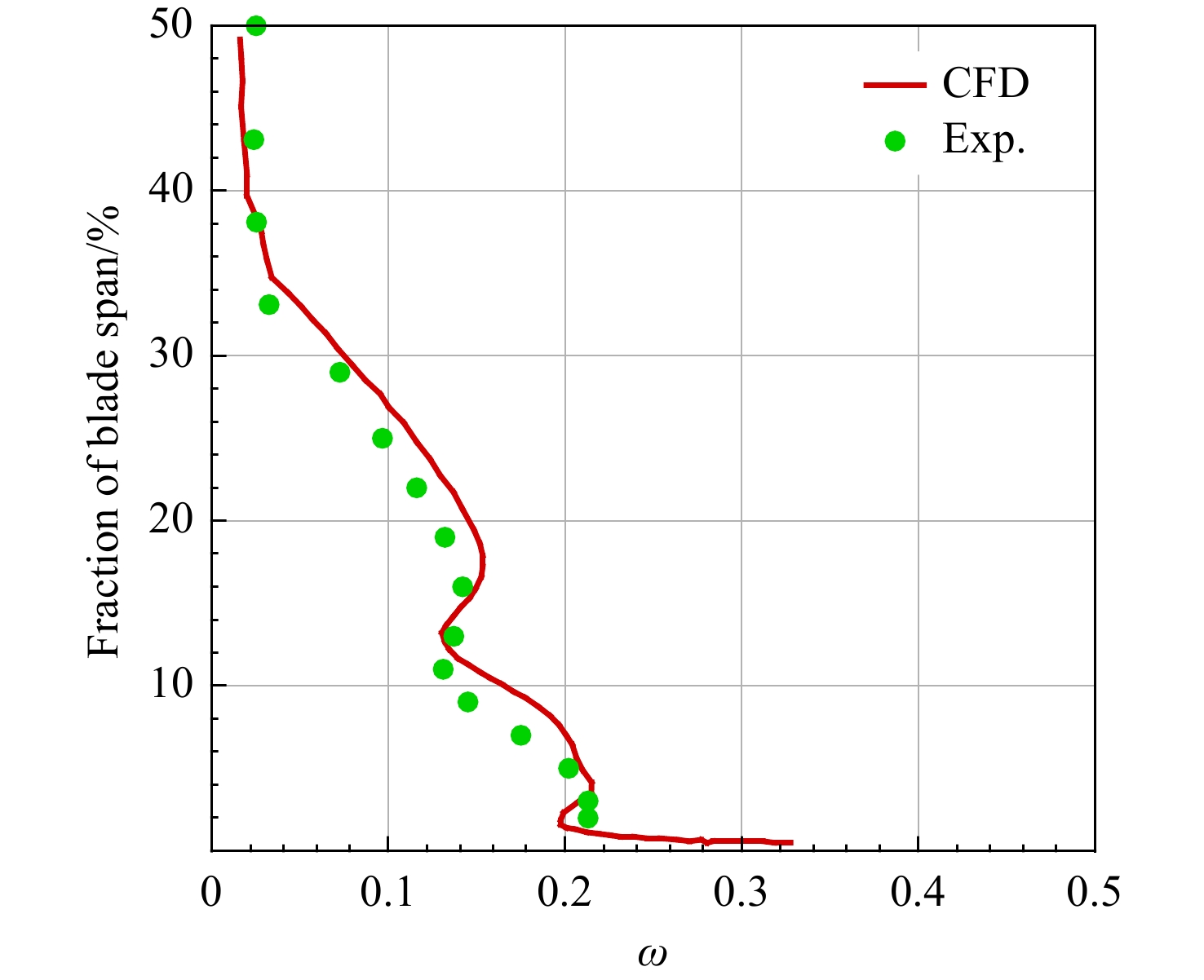

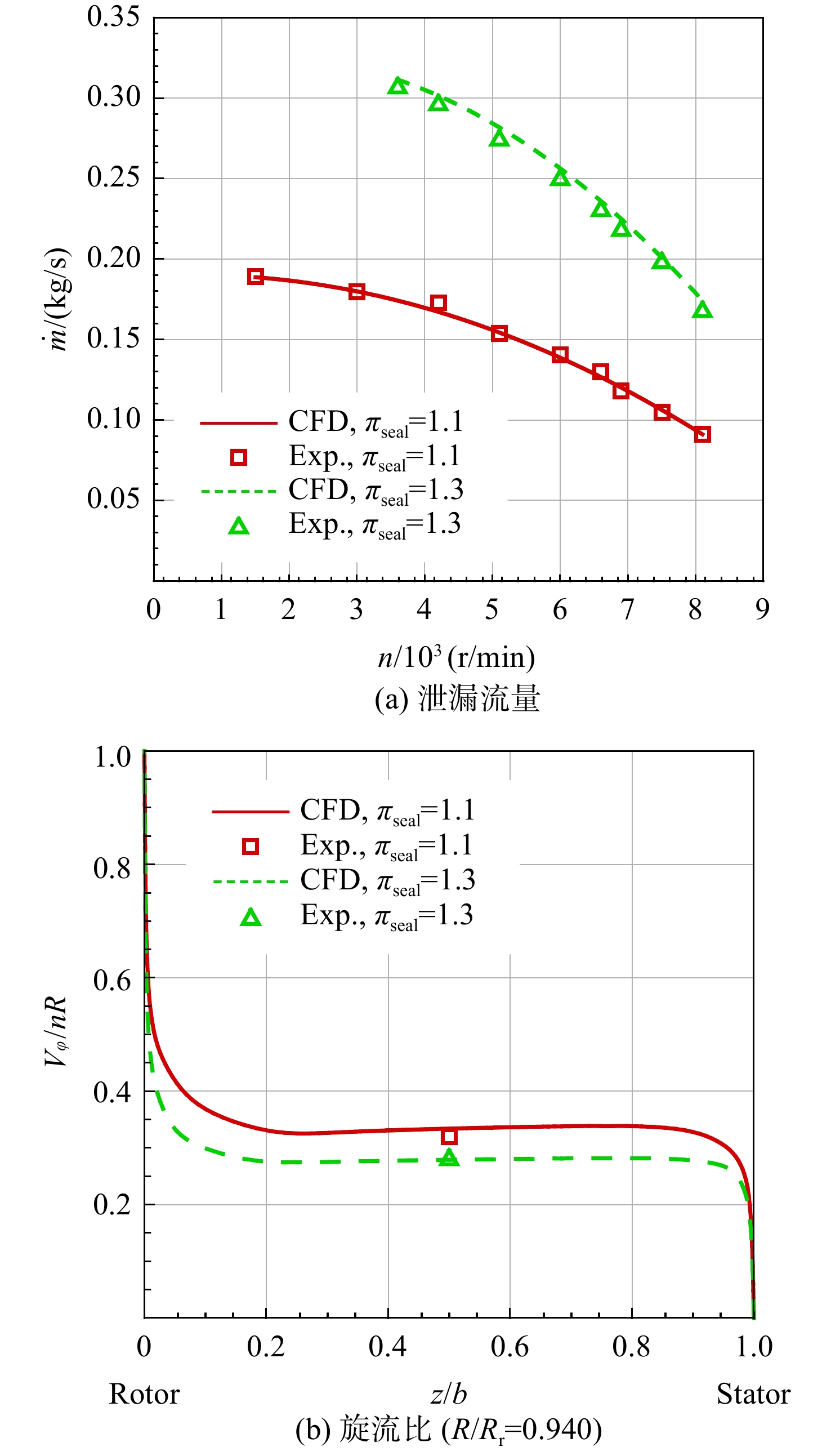

The impacts of the cavity leakage flow on the shrouded stator aerodynamic performance were investigated by modelling of the annular cascade mainstream with the seal cavity flow path based on the validated numerical method. Meanwhile, the interactions between the cavity leakage and the mainstream were also determined in the current study. The developments of hub corner separation under the action of leakage were discussed, while the total pressure loss coefficient and the entropy-based loss coefficient were employed to evaluate the performance changes at different boundary layer thicknesses. The results showed that the thickening of the boundary layer increased the total pressure loss coefficient and the entropy-based loss coefficient of diffuser cascade without cavity. The cavity leakage flow induced a new vortex near the blade leading edge, and had effect on the development of passage vortex and the size of concentrated shedding vortex. At the same time, the leakage flow strengthened the three-dimensional flow effect in the cascade passage and weakened the cross-passage deflection of the fluid near end-wall. As the boundary layer thickened, the variations of total pressure loss coefficient and entropy increase loss coefficient of diffuser cascade with cavity were not obvious.
| [1] |
CAO Z,ZHANG X,ZHANG F,et al. Tip leakage vortex and its breakdown mechanism in aspirated compressor cascades designed with conventional method and curvature induced pressure recovery concept[J]. Aerospace Science and Technology,2021,113(6): 106692.1-106692.16.
|
| [2] |
BAYLEY F J, CHILDS P. Air temperature rises in compressor and turbine stator wells[R]. ASME Paper 94-GT-185, 1994.
|
| [3] |
KIM S,KIM K,SON C. Three-dimensional unsteady simulation of a multistage axial compressor with labyrinth seals and its effects on overall performance and flow characteristics[J]. Aerospace Science and Technology,2019,86(3): 683-693.
|
| [4] |
KATO D, YAMAGAMI M, TSUCHIYA N, et al. The influence of shrouded stator cavity flows on the aerodynamic performance of a high-speed multistage axial-flow compressor[R]. ASME Paper GT2011-46300, 2011.
|
| [5] |
GBADEBO S A,CUMPSTY N A,HYNES T P. Three-dimensional separations in axial compressors[J]. Journal of Turbomachinery,2005,127(2): 331-339. doi: 10.1115/1.1811093
|
| [6] |
ZHANG Y, MAHALLATI A, BENNER M. Experimental and numerical investigation of corner stall in a highly-loaded compressor cascade[R]. ASME Paper GT2014-27204, 2014.
|
| [7] |
王子楠,耿少娟,张宏武. 来流边界层对压气机平面叶栅角区流动的影响[J]. 推进技术,2017,38(1): 54-60. doi: 10.13675/j.cnki.tjjs.2017.01.008
WANG Zinan,GENG Shaojuan,ZHANG Hongwu. Effects of inlet boundary layer on corner flow in a linear compressor cascade[J]. Journal of Propulsion Technology,2017,38(1): 54-60. (in Chinese) doi: 10.13675/j.cnki.tjjs.2017.01.008
|
| [8] |
ZHENG X,YANG H. End-wall boundary layers and blockages of multistage axial compressors under different conditions[J]. Journal of Propulsion and Power,2017,33(4): 908-916. doi: 10.2514/1.B36251
|
| [9] |
MA Y,TENG J,ZHU M,et al. Influence of the inlet boundary layer on non-axisymmetric endwall contouring effects in a linear compressor cascade[J]. Mechanical Engineering Science,2022,236(12): 6530-6542. doi: 10.1177/09544062211067859
|
| [10] |
WELLBORN S R,OKIISHI T H. The influence of shrouded stator cavity flows on multistage compressor performance[J]. Journal of Turbomachinery,1999,121(7): 486-497.
|
| [11] |
陈美宁,谢伟亮,王红涛. 静子容腔泄漏对某压气机性能影响的数值研究[J]. 航空动力学报,2014,29(11): 2543-2549. doi: 10.13224/j.cnki.jasp.2014.11.003
CHEN Meining,XIE Weiliang,WANG Hongtao. Numerical investigation of stator cavity leakage influence to a compressor performance[J]. Journal of Aerospace Power,2014,29(11): 2543-2549. (in Chinese) doi: 10.13224/j.cnki.jasp.2014.11.003
|
| [12] |
孟德君,邢雷,李坚. 篦齿封严流动及其对压气机静子性能的影响[J]. 航空发动机,2013,39(6): 31-42. doi: 10.3969/j.issn.1672-3147.2013.06.006
MENG Dejun,XING Lei,LI Jian. Influence of shrouded stator cavity flow on compressor stator performance[J]. Aeroengine,2013,39(6): 31-42. (in Chinese) doi: 10.3969/j.issn.1672-3147.2013.06.006
|
| [13] |
DEMARGNE A A J, LONGLEY J P. The aerodynamic interaction of stator shroud leakage and mainstream flows in compressors[R]. ASME Paper 2000-GT-570, 2000.
|
| [14] |
SOHN D W, KIM T, SONG S J. Influence of the leakage flow tangential velocity on the loss generation and leakage flow kinematics in shrouded axial compressor cascades[R]. ASME Paper GT2006-90979, 2006.
|
| [15] |
KIM J W, LEE J S, SONG S J, et al. The impact of leakage flow tangential velocity on secondary losses in a shrouded compressor cascade[R]. ASME Paper GT2012-69217, 2012.
|
| [16] |
YOON S,SELMEIER R,CARGILL P,et al. Effects of the stator hub configuration and stage design parameters on aerodynamic loss in axial compressors[J]. Journal of Turbomachinery,2015,137(9): 091001.1-091001.10.
|
| [17] |
LU H,YANG Y,GUO S,et al. Control of corner separation via dimpled surface for a highly loaded compressor cascade under different inlet mach number[J]. Aerospace Science and Technology,2019,85(2): 48-60.
|
| [18] |
KONG X,LIU Y,LU H,et al. Performance analysis of inter-stage leakage flows at rotating conditions in an axial compressor[J]. Journal of Thermal Science,2020,29(6): 1558-1568. doi: 10.1007/s11630-020-1378-z
|
