| Citation: | ZHANG Qing, YUAN Wenhao, ZHENG Yan, et al. Experimental on chilldown performance of 60 m3 horizontal storage tank with liquid nitrogen[J]. Journal of Aerospace Power, 2023, 38（1）：86-93 doi: 10.13224/j.cnki.jasp.20220542
|

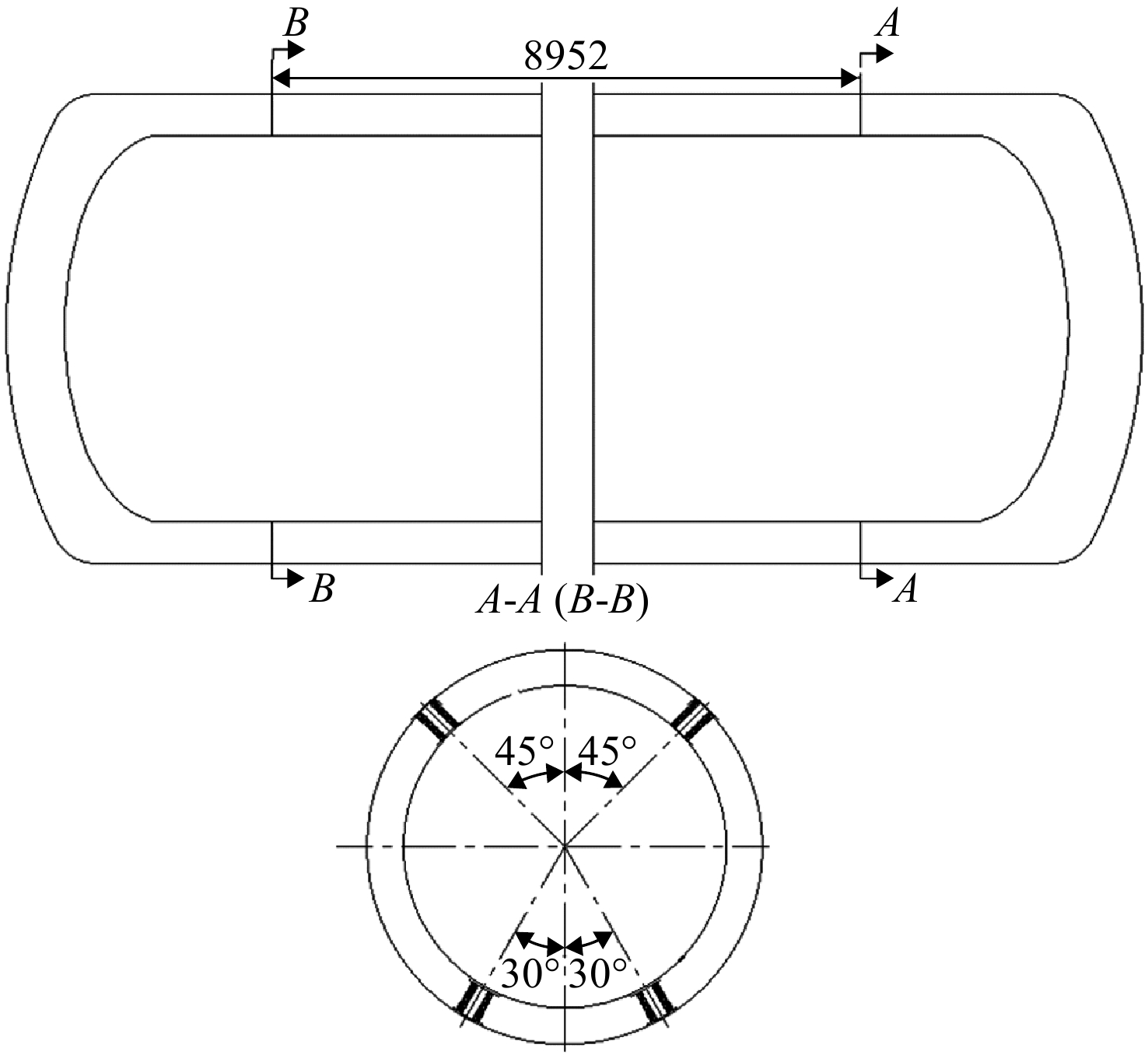

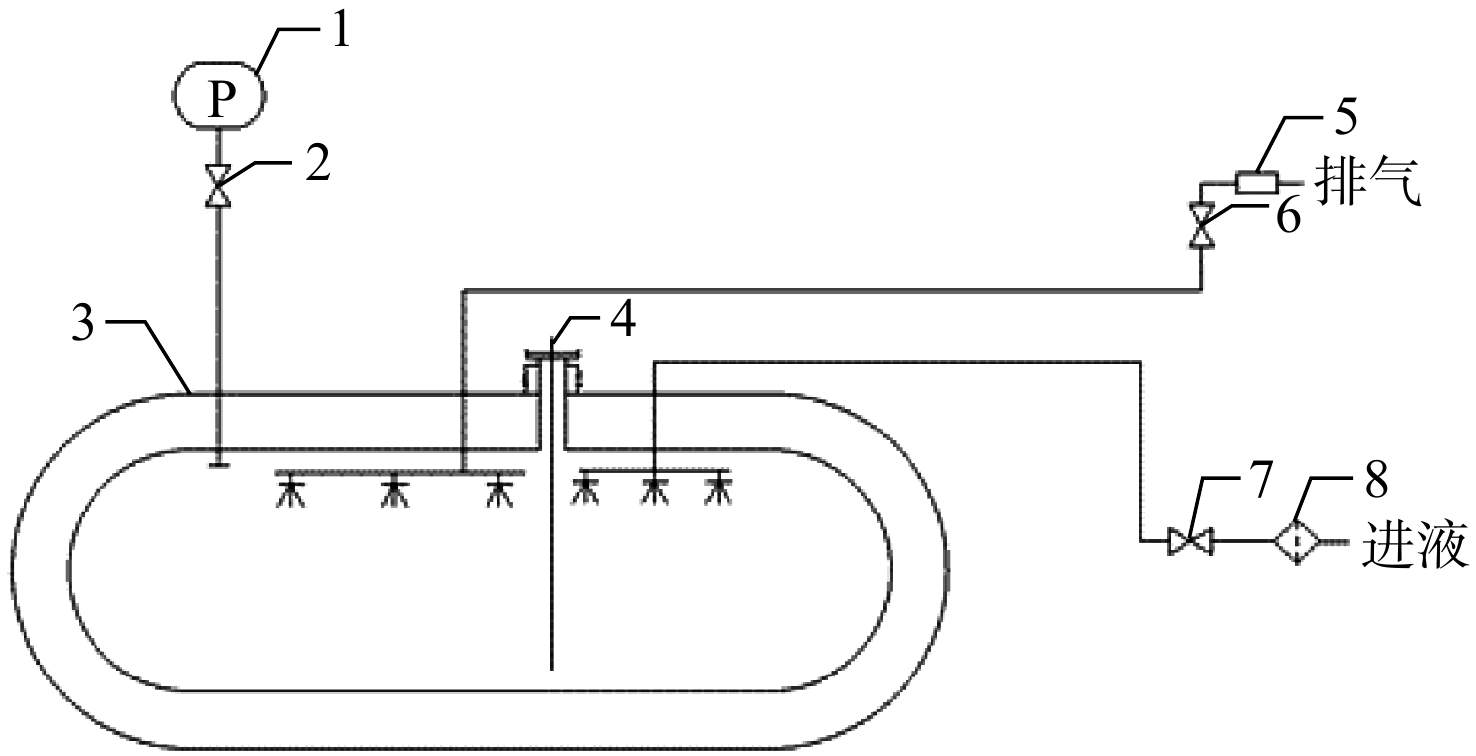

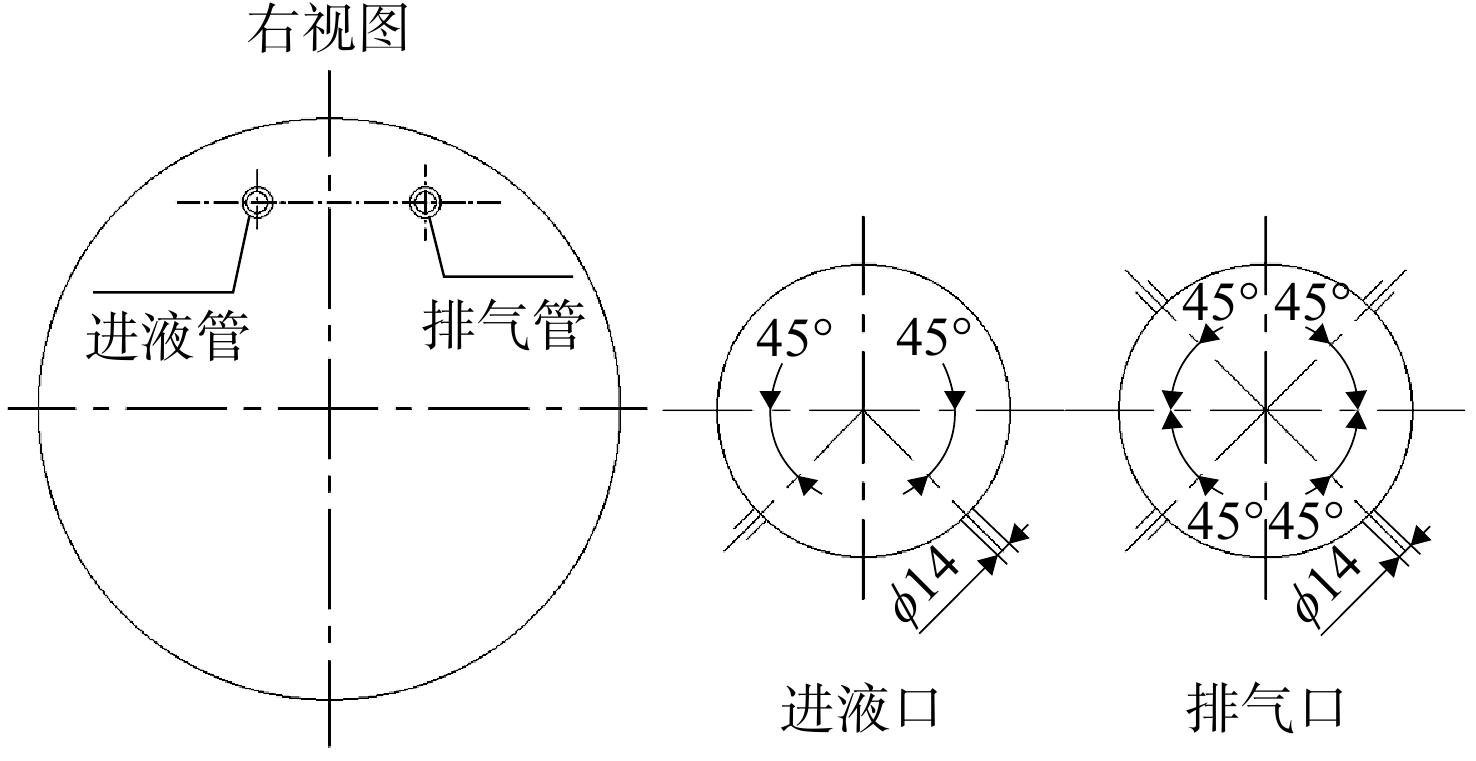

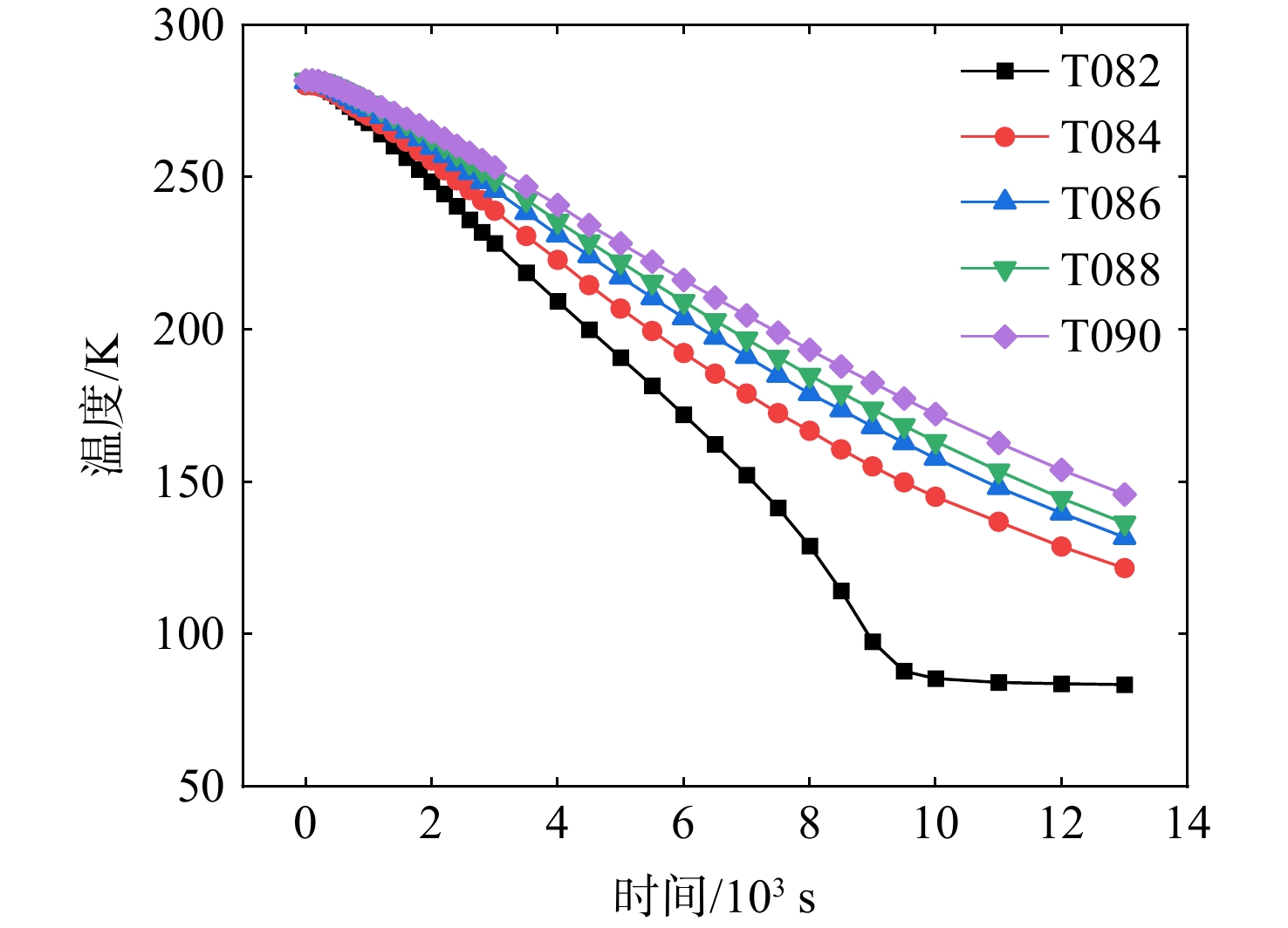

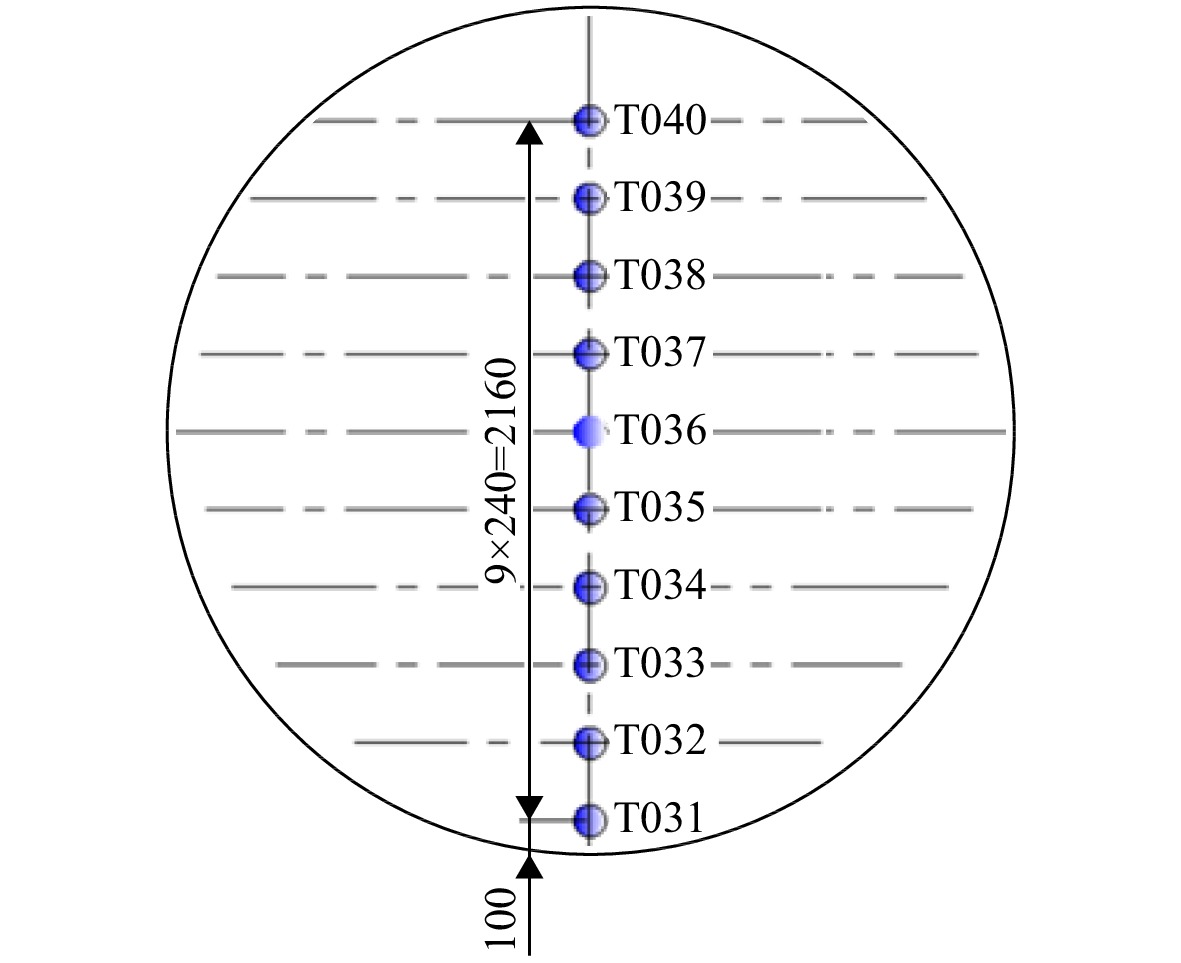

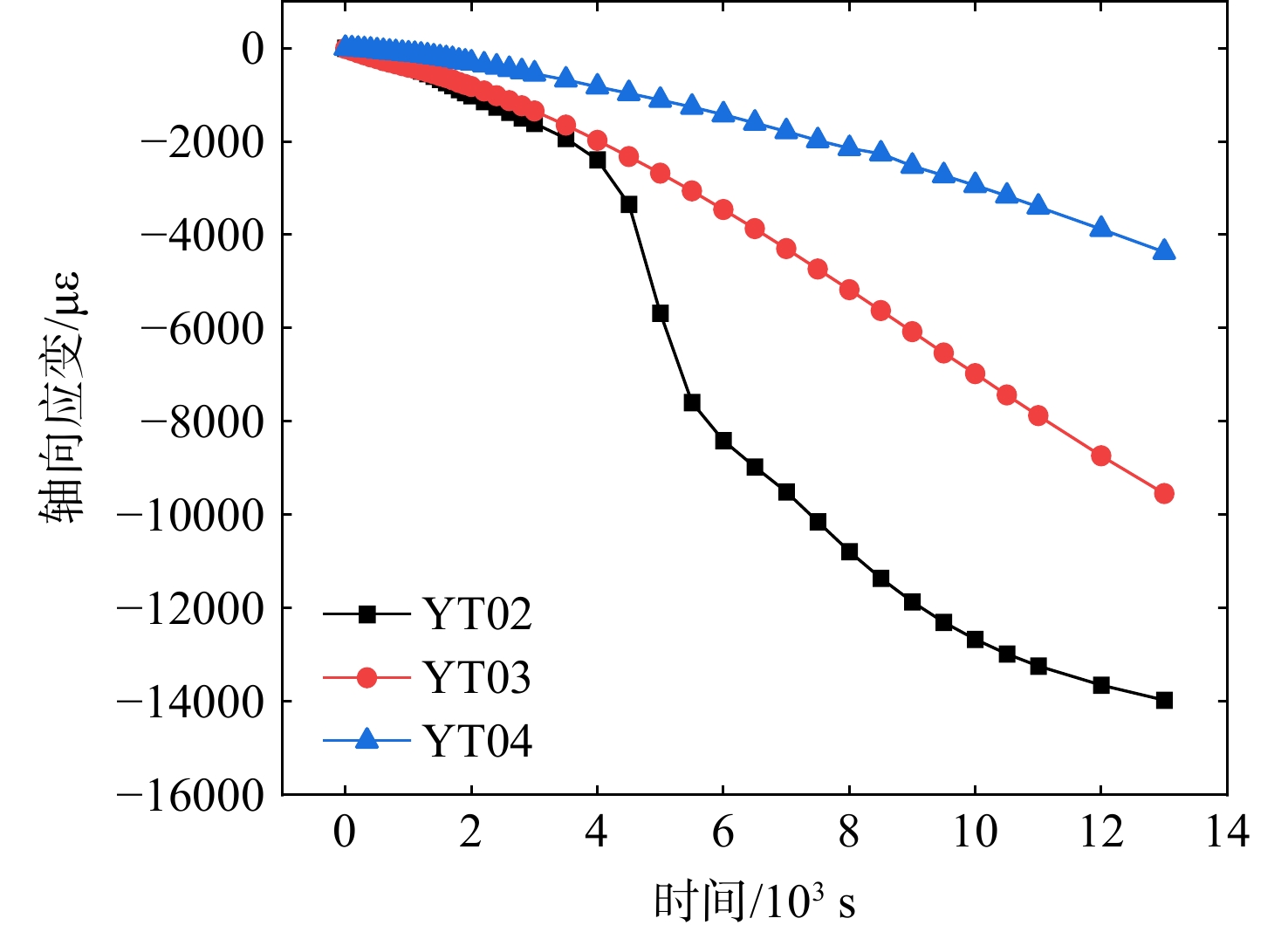

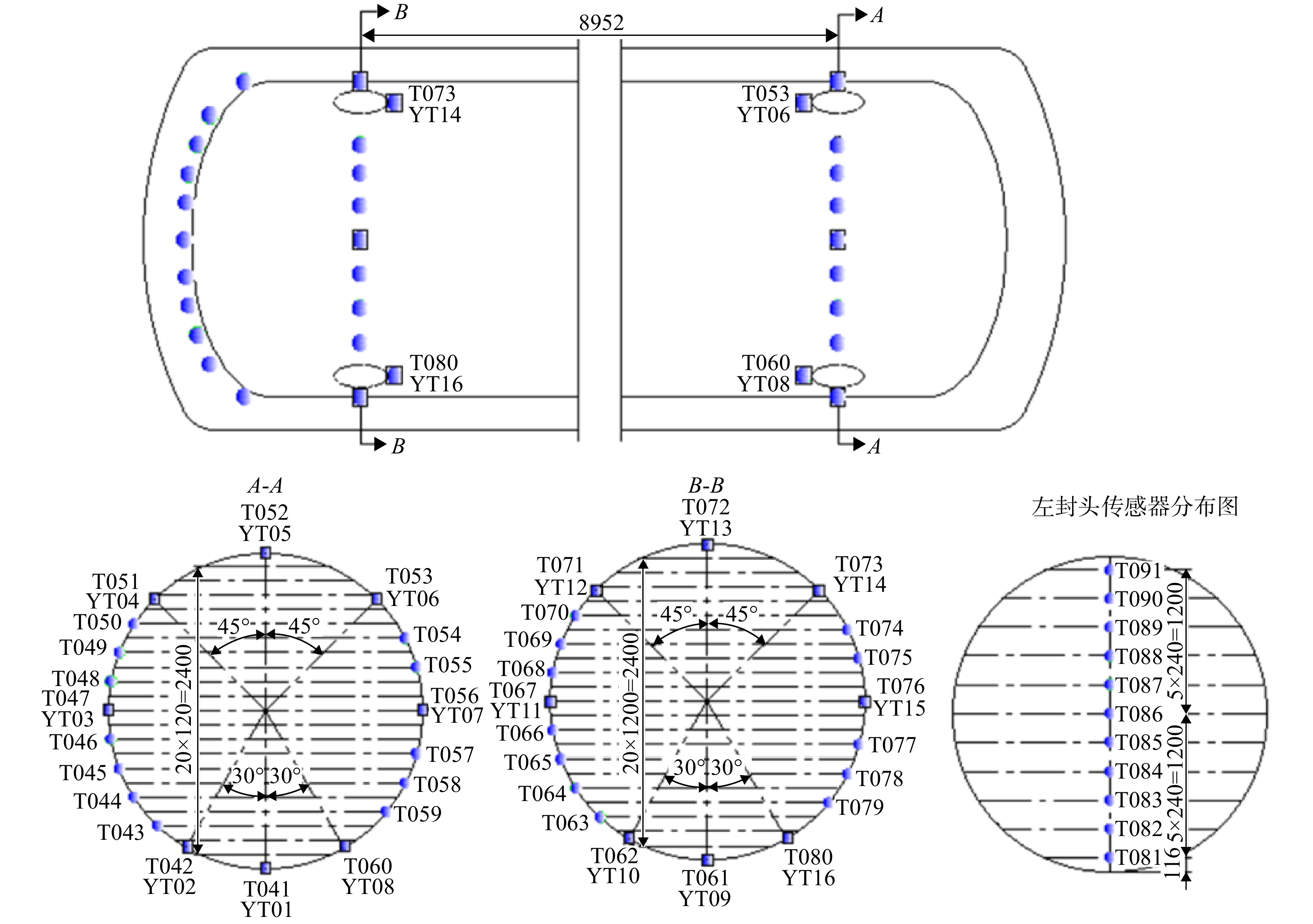

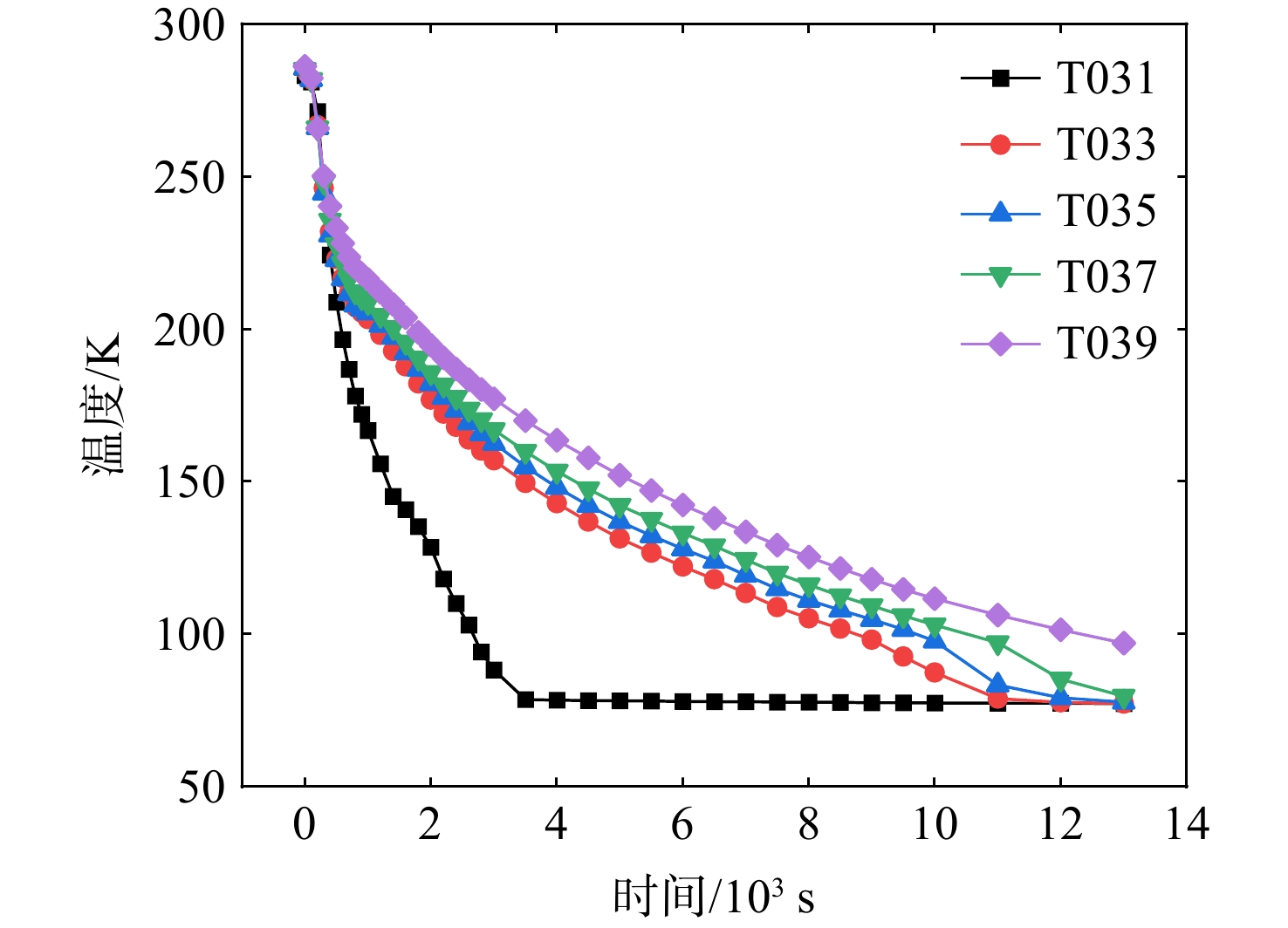

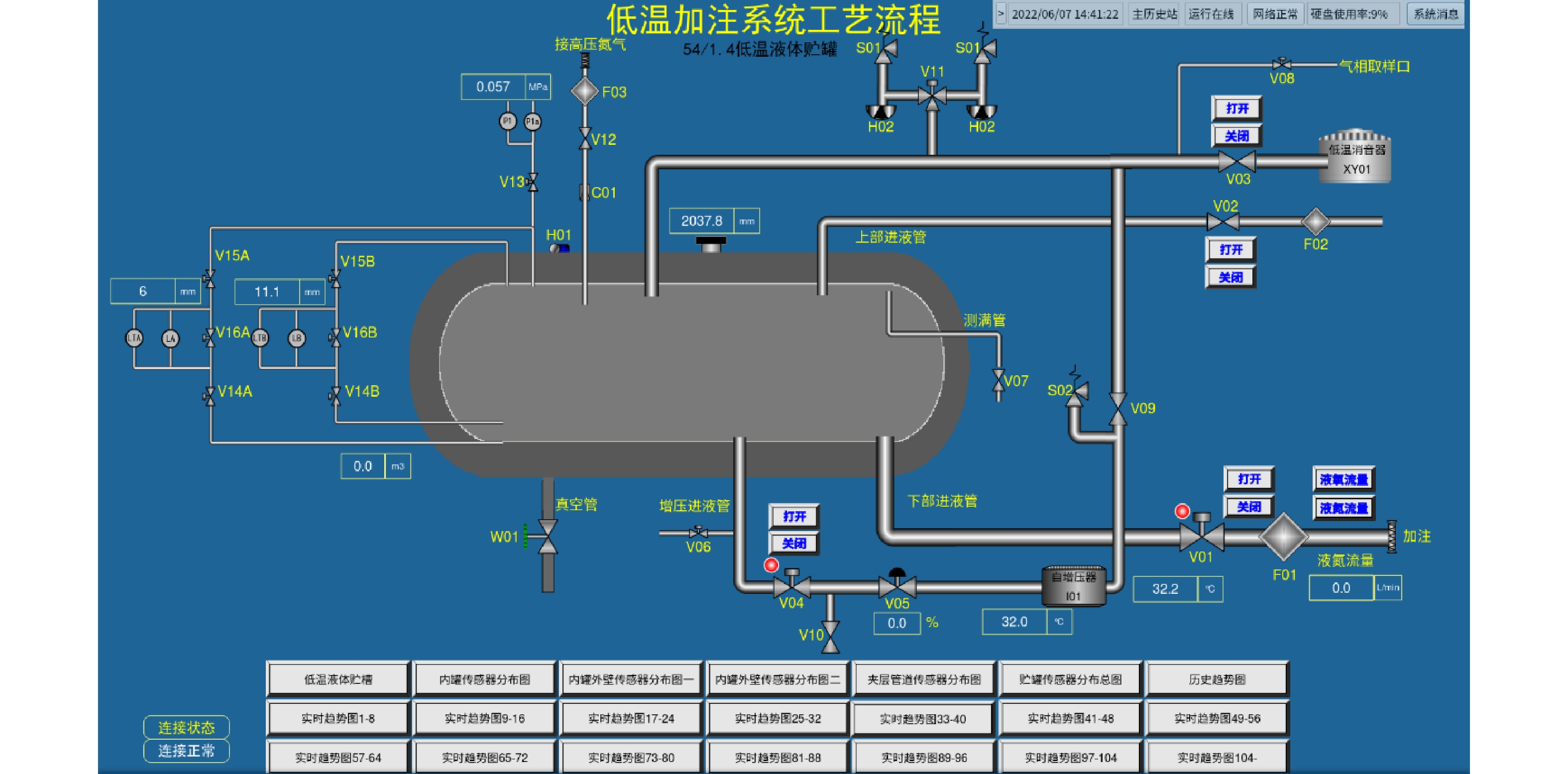

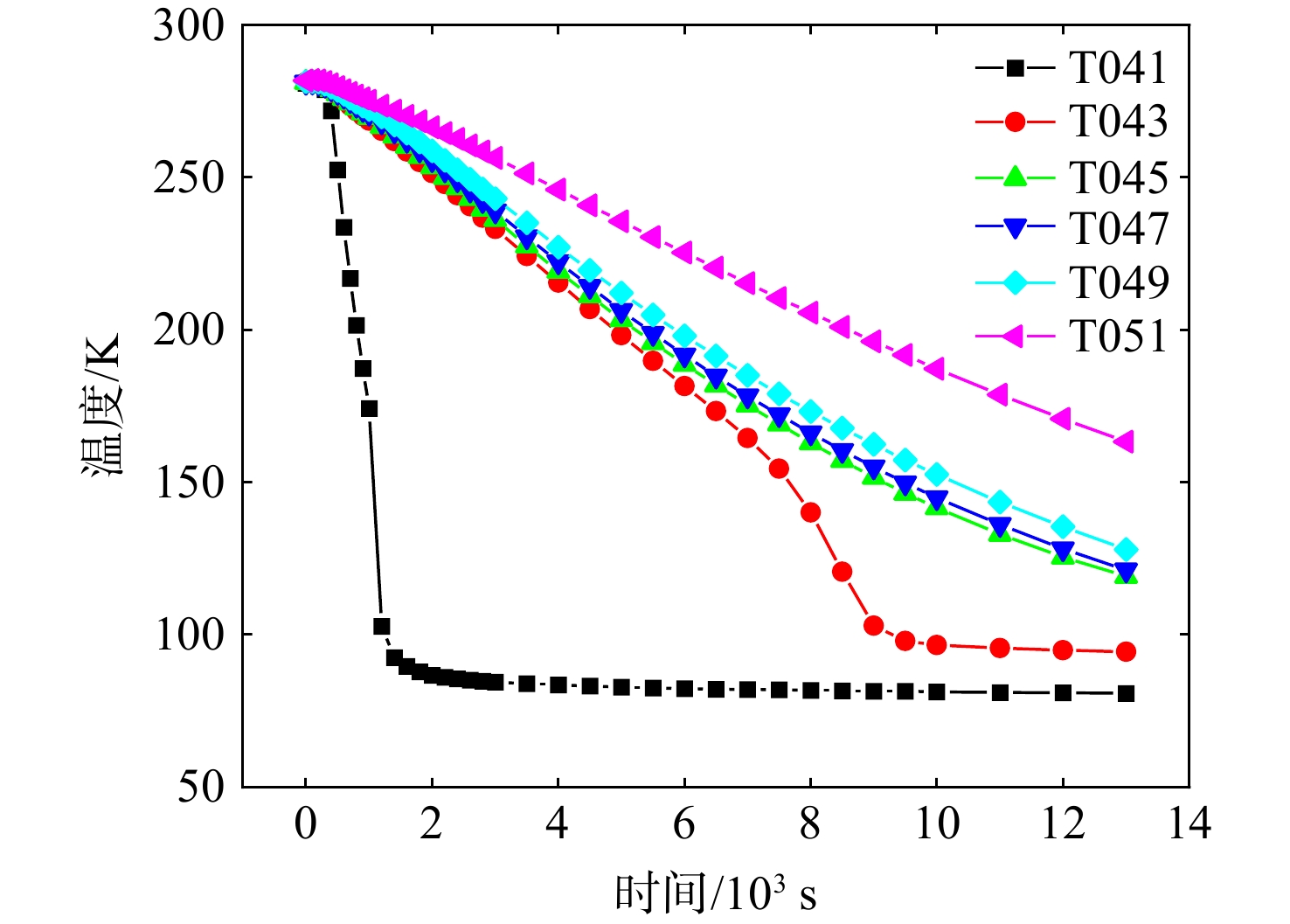

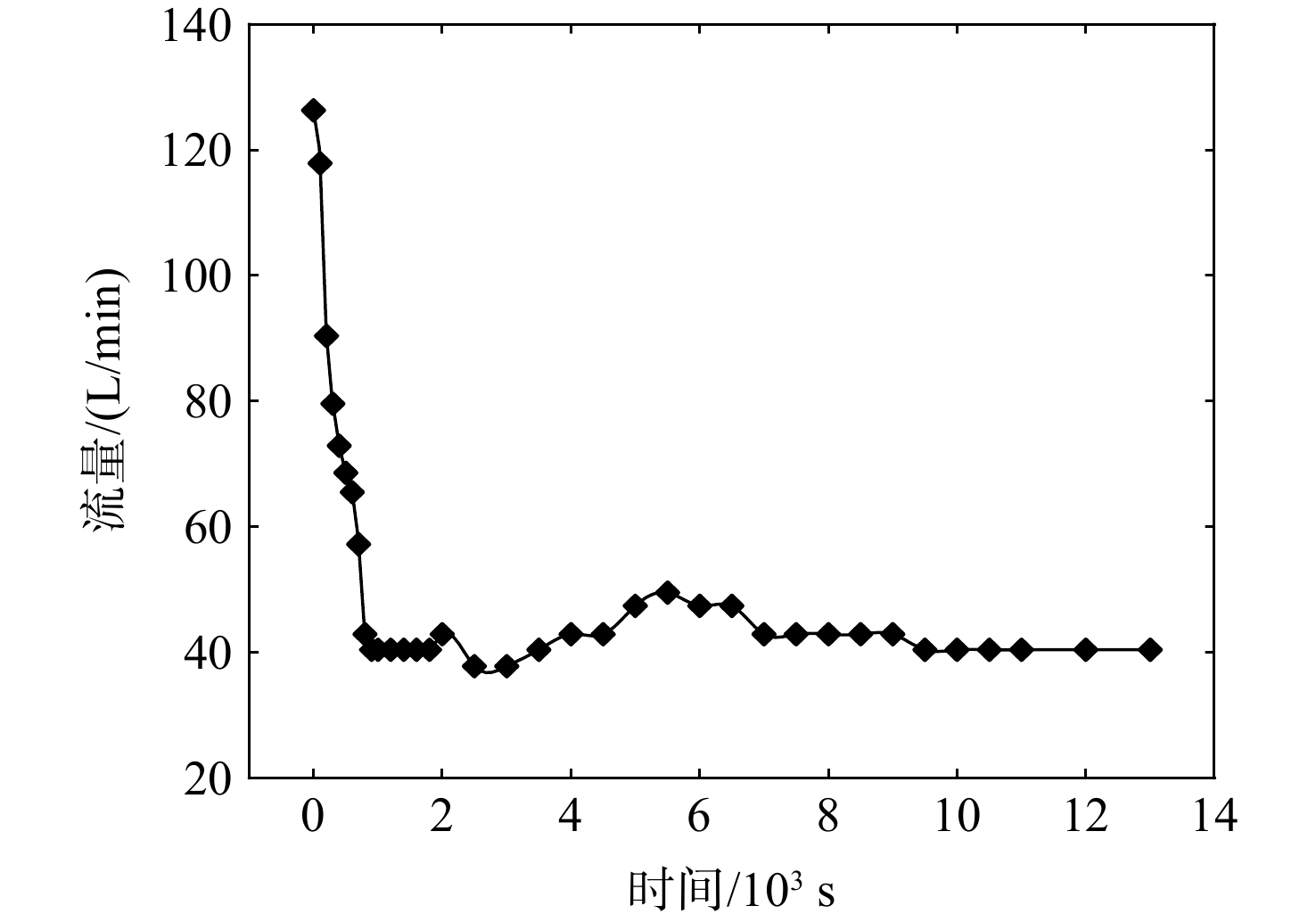

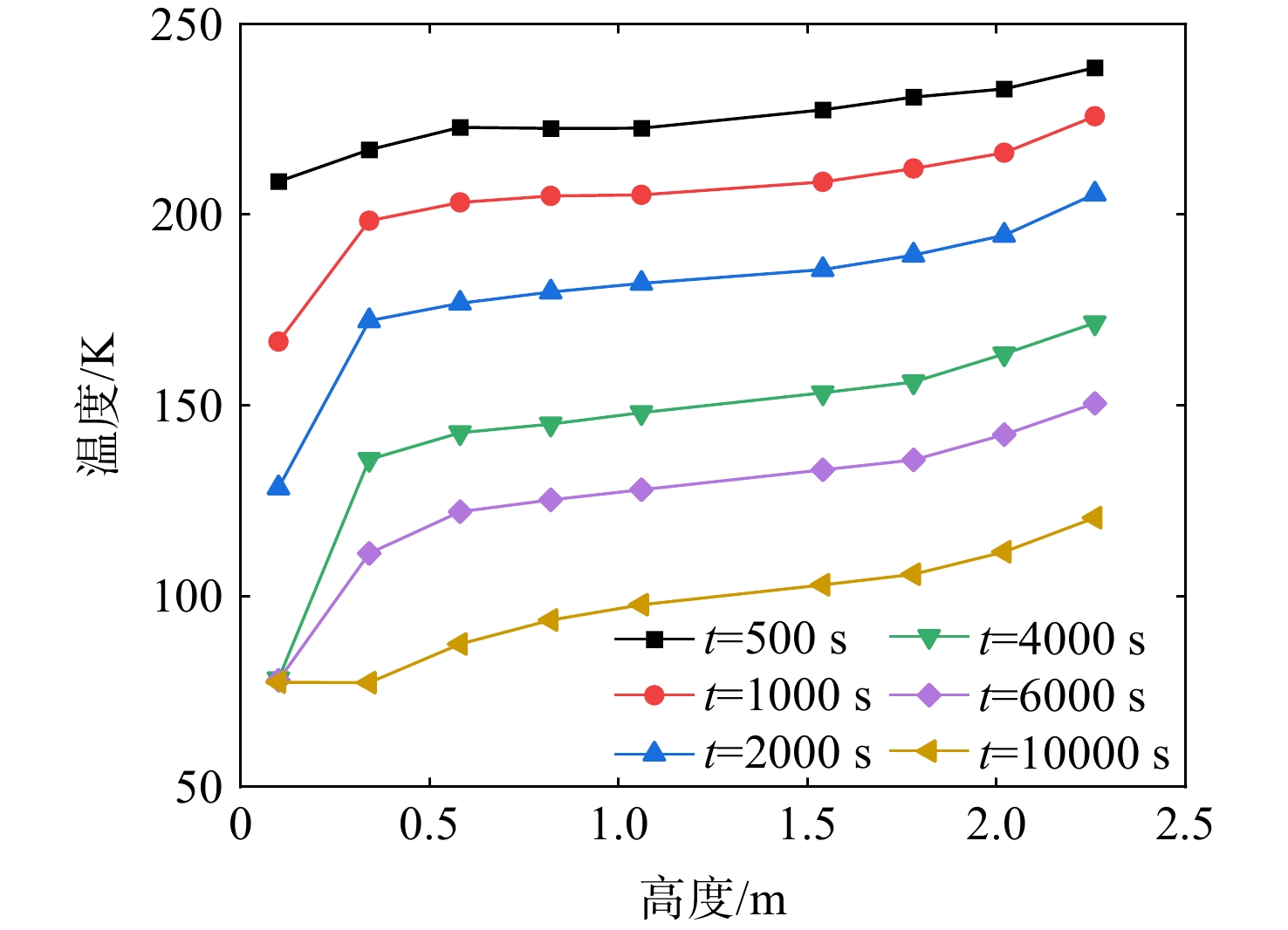

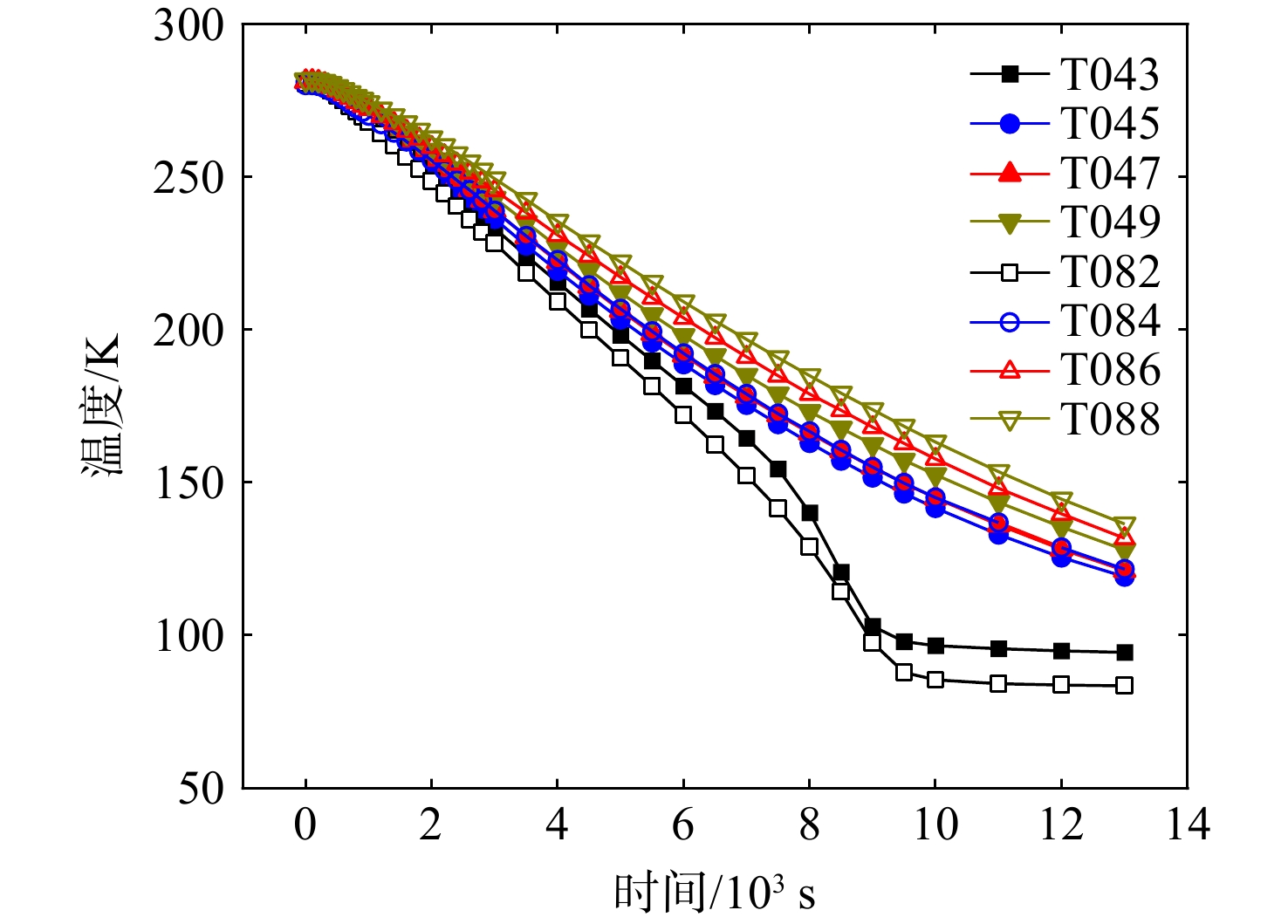

In order to further understand the pre-cooling process of large horizontal storage tanks, an experimental setup was built to investigate the chilldown performance of 60 m3 horizontal storage tank with liquid nitrogen. Accordingly, the cooling and strain features during the chilldown process were studied. The results showed that the vapor temperature experienced overall sharp reduction and subsequent slow reduction. Moreover, thermal stratification occurred in the tank. In the preliminary stage, liquid nitrogen accumulated rarely in the bottom tank. The precooling process of the bottom tank wall could be classified into three stages, namely the mild decline of wall temperature by the cryogenic nitrogen vapor, sharp drop of wall temperature by the boiling heat transfer with liquid nitrogen when the liquid accumulated in the bottom, and the final unchanged temperature with the finish of chilldown. Meanwhile, the upper tank wall kept the mild precooling rate. Besides, the axial strain of tank wall increased with the ongoing pre-cooling. Moreover, a rapid increase of axial strain occurred at the wall in contact with liquid nitrogen. The success of this experiment strongly supplemented the blank of precooling data of large horizontal storage tanks in China and provided data support for related researches such as reliability and life prediction of cryogenic tanks.
| [1] |
张伟,高荣,张双喜,等. 0.3 m低温风洞液氮供给系统研制[J]. 航空动力学报,2020,35(5): 1009-1017.
ZHANG Wei,GAO Rong,ZHANG Shuangxi,et al. Development of liquid nitrogen supplying system of 0.3 m cryogenic wind tunnel[J]. Journal of Aerospace Power,2020,35(5): 1009-1017. (in Chinese)
|
| [2] |
毕龙生. 低温容器应用进展及发展前景(二)[J]. 真空与低温,1999,5(4): 187-192.
BI Longsheng. Progress and development prospect of cryogenic vessels application[J]. Vacuum and Cryogenics,1999,5(4): 187-192. (in Chinese)
|
| [3] |
谢福寿,厉彦忠,王磊,等. 低温推进剂过冷技术研究[J]. 航空动力学报,2017,32(3): 762-768. doi: 10.13224/j.cnki.jasp.2017.03.031
XIE Fushou,LI Yanzhong,WANG Lei,et al. Study on subcooled technology for cryogenic propellants[J]. Journal of Aerospace Power,2017,32(3): 762-768. (in Chinese) doi: 10.13224/j.cnki.jasp.2017.03.031
|
| [4] |
LIAO Jun. Modeling two-phase transport during cryogenic chilldown in a pipeline[D]. Gainesville, Florida, US: Mechanical Engineering University of Florida, 2005.
|
| [5] |
DRESAR N, SIEGWARTH J D. Cryogenic transfer line chilldown[C] // AIP Conference Proceedings. Cleveland Ohio, US: AIP, 2004: 308-315.
|
| [6] |
JOHNSON J,SHINE S R. Transient cryogenic chill down process in horizontal and inclined pipes[J]. Cryogenics,2015,71: 7-17. doi: 10.1016/j.cryogenics.2015.05.003
|
| [7] |
HU H,CHUNG J N,AMBER S H. An experimental study on flow patterns and heat transfer characteristics during cryogenic chilldown in a vertical pipe[J]. Cryogenics,2012,52(4/5/6): 268-277.
|
| [8] |
VELAT C, JACKSON J, KLAUSNER J F, et al. Cryogenic two-phase flow during chilldown[C] // Proceedings of the ASME 2004 Heat Transfer/Fluids Engineering Summer Conference. Charlotte, North Carolina, US: ASME, 2004: 717-722.
|
| [9] |
RAME E, HARTWIG J W. Flow visualization of liquid hydrogen line chilldown tests[C]// 52nd Aerospace Sciences Meeting. Cleveland, Ohio, US: AIAA, 2014: 1-11.
|
| [10] |
DARR S R,HU H,GLIKIN N,et al. An experimental study on terrestrial cryogenic tube chilldown: Ⅱ effect of flow direction with respect to gravity and new correlation set[J]. International Journal of Heat and Mass Transfer,2016,103: 1243-1260. doi: 10.1016/j.ijheatmasstransfer.2016.08.044
|
| [11] |
LIAO J,MEI R,KLAUSNER J F. A film boiling model for cryogenic chilldown at low mass flux inside a horizontal pipeline[J]. Heat and Mass Transfer,2006,42(10): 891-900. doi: 10.1007/s00231-006-0143-5
|
| [12] |
LIEBENBERG D H, STOKES R L, EDESKUTY F J. Chilldown and storage losses of large liquid hydrogen storage dewars[R]. Boston, US: Springer US, 1965: 554-560.
|
| [13] |
CHEN Jianye,ZENG Ruirui,CHEN Hong,et al. Effects of wall superheat and mass flux on flow film boiling in cryogenic chilldown process[J]. AIP Advances,2020,10(1): 15123.1-15123.9.
|
| [14] |
CHEN Jianye,ZENG Ruirui,ZHANG Xiaobin,et al. Numerical modeling of flow film boiling in cryogenic chilldown process using the AIAD framework[J]. International Journal of Heat and Mass Transfer,2018,124: 269-278. doi: 10.1016/j.ijheatmasstransfer.2018.03.087
|
| [15] |
周霞,刘丽,邱利民,等. 低温储罐预冷过程预测[J]. 低温工程,2017(5): 35-41. doi: 10.3969/j.issn.1000-6516.2017.05.007
ZHOU Xia,LIU Li,QIU Limin,et al. Estimation of pre-cooling process of cryogen tank[J]. Cryogenics,2017(5): 35-41. (in Chinese) doi: 10.3969/j.issn.1000-6516.2017.05.007
|
| [16] |
周霞,刘丽,厉劲风,等. 低温液氧储罐预冷过程数值模拟[J]. 低温工程,2018(3): 35-40. doi: 10.3969/j.issn.1000-6516.2018.03.008
ZHOU Xia,LIU Li,LI Jinfeng,et al. Numerical study on precooling process of cryogenic liquid oxygen tank[J]. Cryogenics,2018(3): 35-40. (in Chinese) doi: 10.3969/j.issn.1000-6516.2018.03.008
|
| [17] |
ZHU Kang,LI Yanzhong,MA Yuan,et al. Experimental study on cool down characteristics and thermal stress of cryogenic tank during LN2 filling process[J]. Applied Thermal Engineering,2018,130: 951-961. doi: 10.1016/j.applthermaleng.2017.11.079
|
| [18] |
ZHU Kang,LI Yanzhong,MA Yuan,et al. Influence of filling methods on the cool down performance and induced thermal stress distribution in cryogenic tank[J]. Applied Thermal Engineering,2018,141: 1009-1019. doi: 10.1016/j.applthermaleng.2018.06.030
|
| [19] |
马原,朱康,厉彦忠. 薄壁低温容器加注过程降温及热应力特性研究[J]. 低温工程,2020(3): 31-36. doi: 10.3969/j.issn.1000-6516.2020.03.006
MA Yuan,ZHU Kang,LI Yanzhong. Study on cool-down and thermal stress characteristics of thin-walled cryogenic containers during filling process[J]. Cryogenics,2020(3): 31-36. (in Chinese) doi: 10.3969/j.issn.1000-6516.2020.03.006
|
| [20] |
江城伟. 低温液化气体储罐温度和热应力瞬态特性研究 [D]. 杭州: 浙江大学, 2018.
JIANG Chengwei. Research on temperature and thermalstress transient characteristics of cryogenic liquefied gas storage tanks[D]. Hangzhou: Zhejiang University, 2018. (in Chinese)
|
| [21] |
WANG Lei,SHI Shangguan,WANG Jiaojiao,et al. Experimental study on fast quenching of cryogenic LN2 flow through interior micro-fin tube[J]. International Journal of Heat and Mass Transfer,2022,182: 121978.1-121978.15.
|
| [22] |
贺明. 低温高压氢制备及其储运系统关键技术研究[D]. 北京: 中国科学院大学, 2021.
HE Ming. Research on key technologies of preparation, storage and transportation system of cryo-compressed hydrogen[D]. Bejing: University of Chinese Academy of Sciences, 2021. (in Chinese)
|
