| Citation: | DING Jing, DENG Yuanhao, SHAN Yong, et al. Experimental and numerical investigation of core and bypass flow mixing characteristics in variable-bypass-ratio afterburner/ram combustor[J]. Journal of Aerospace Power, 2025, 41（X）：20250343 doi: 10.13224/j.cnki.jasp.20250343
|

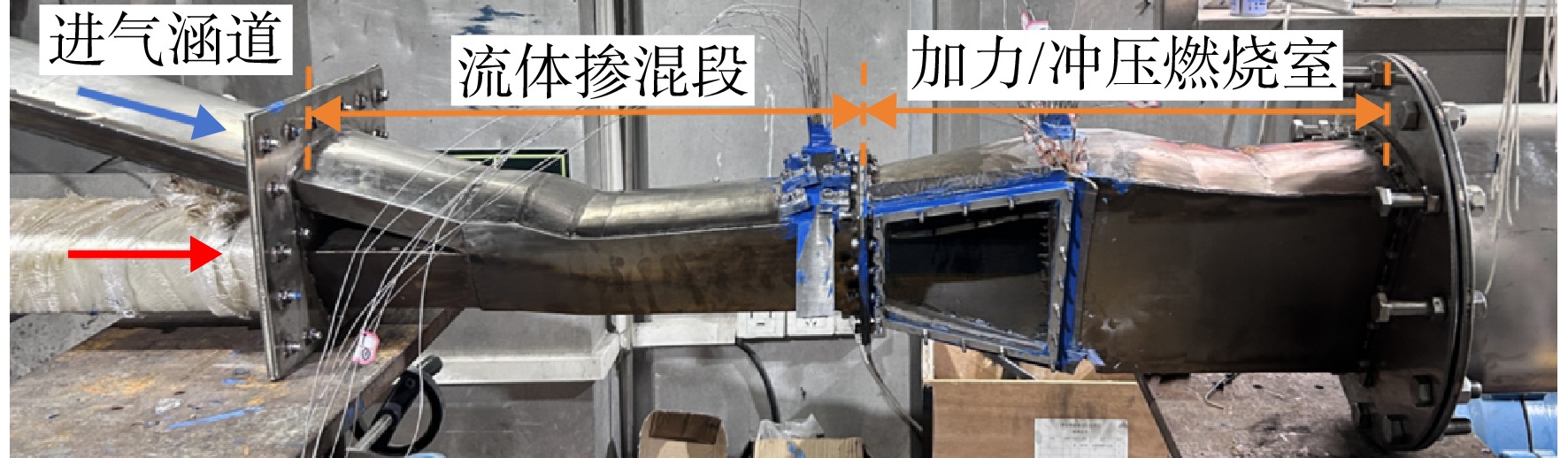

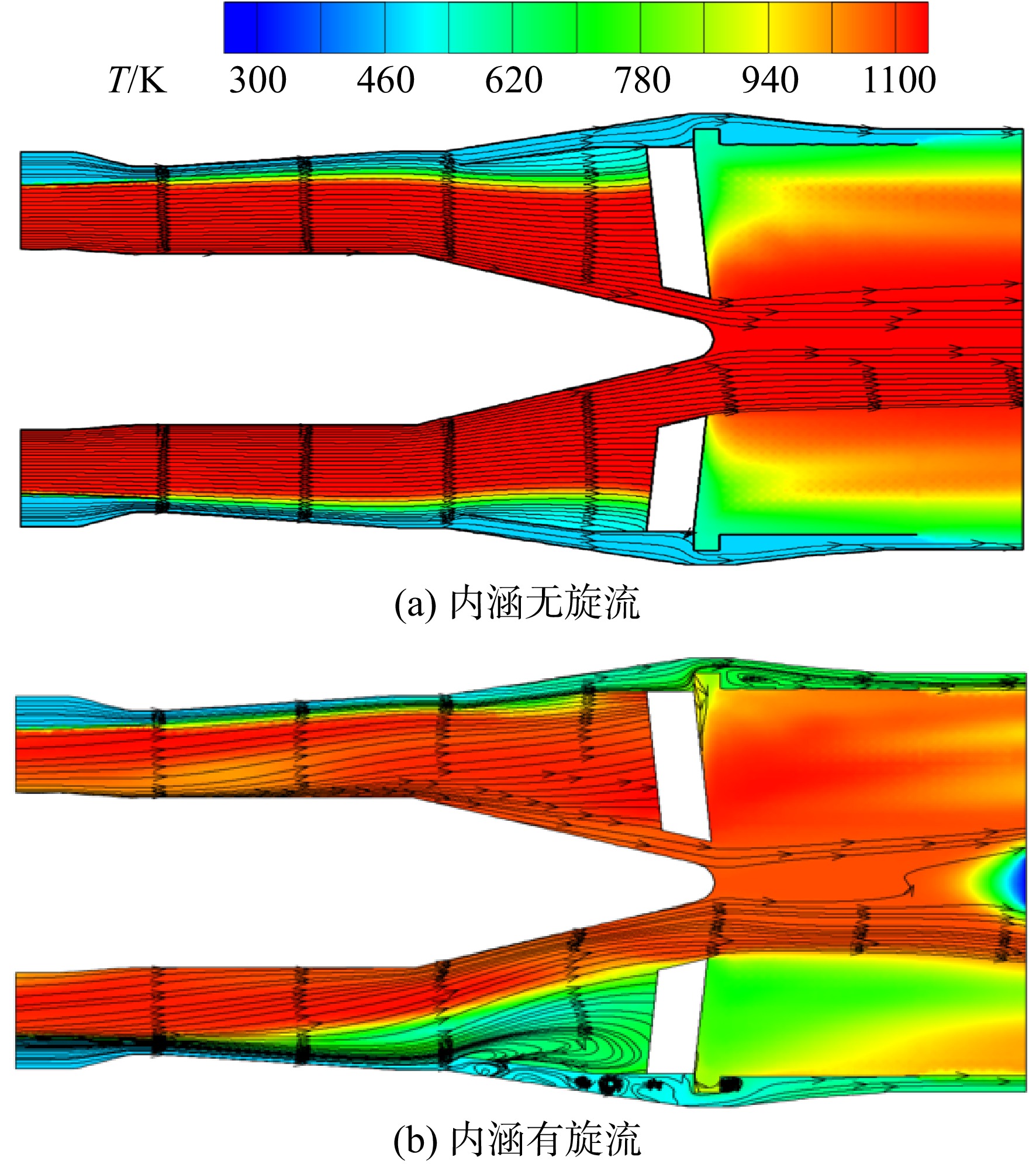

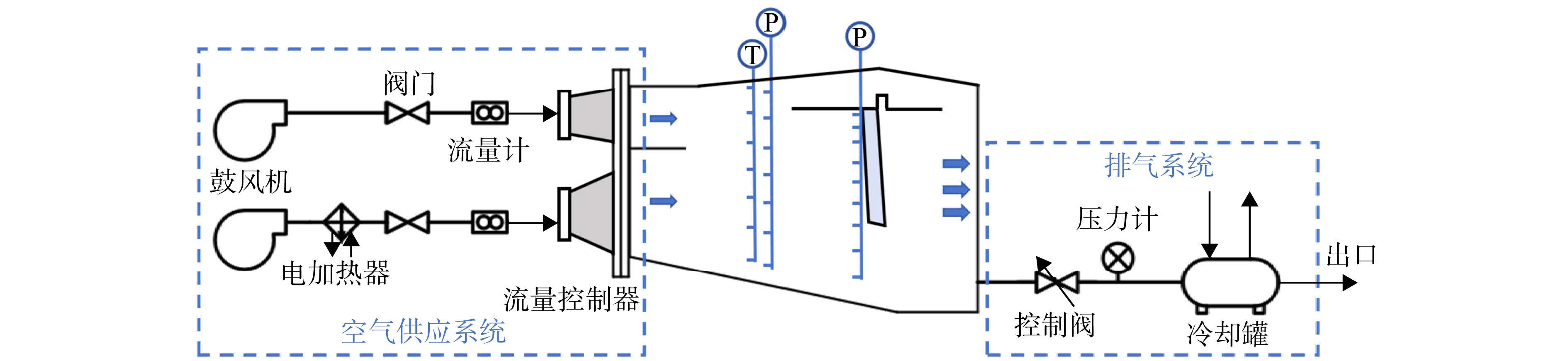

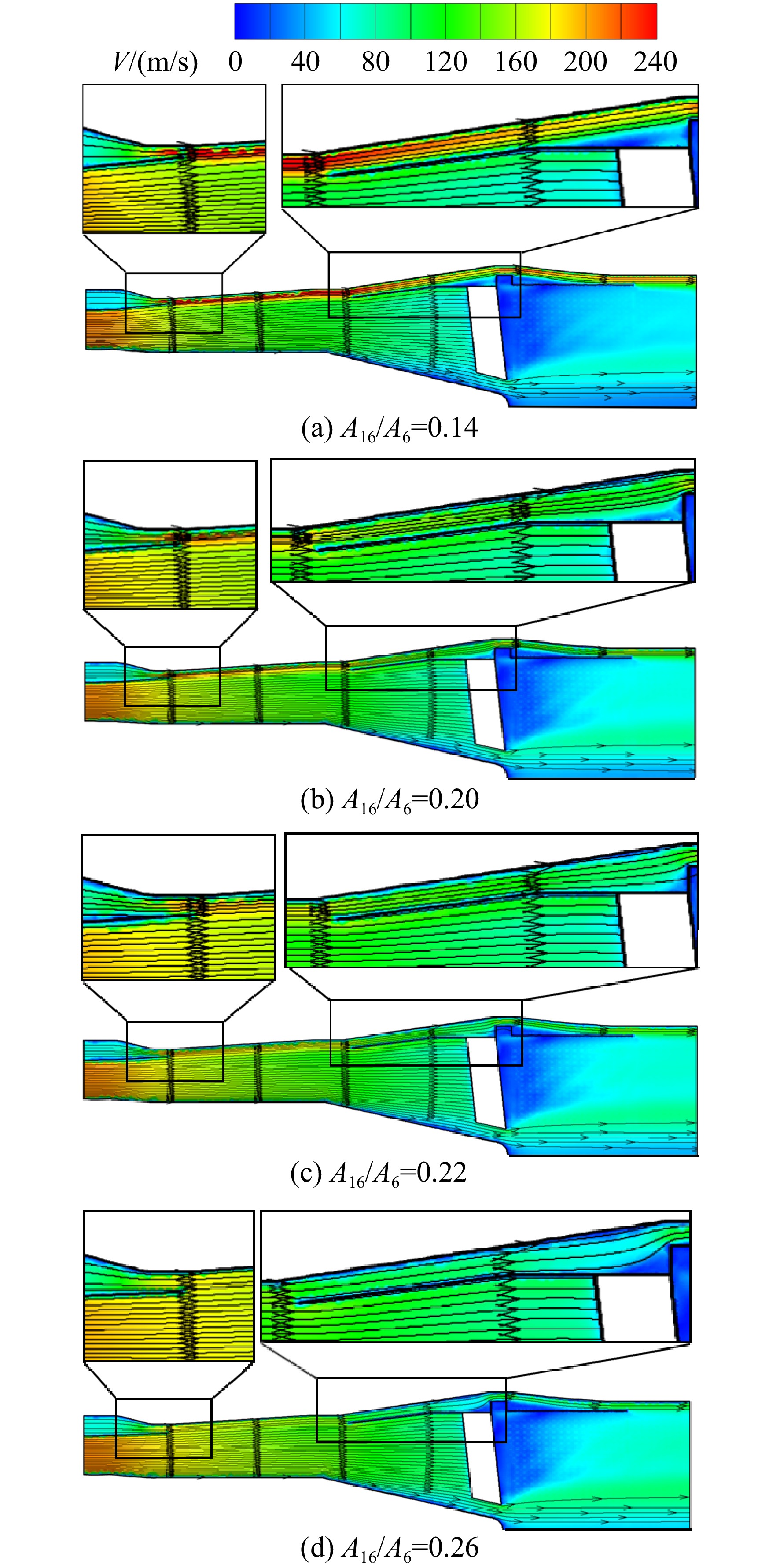

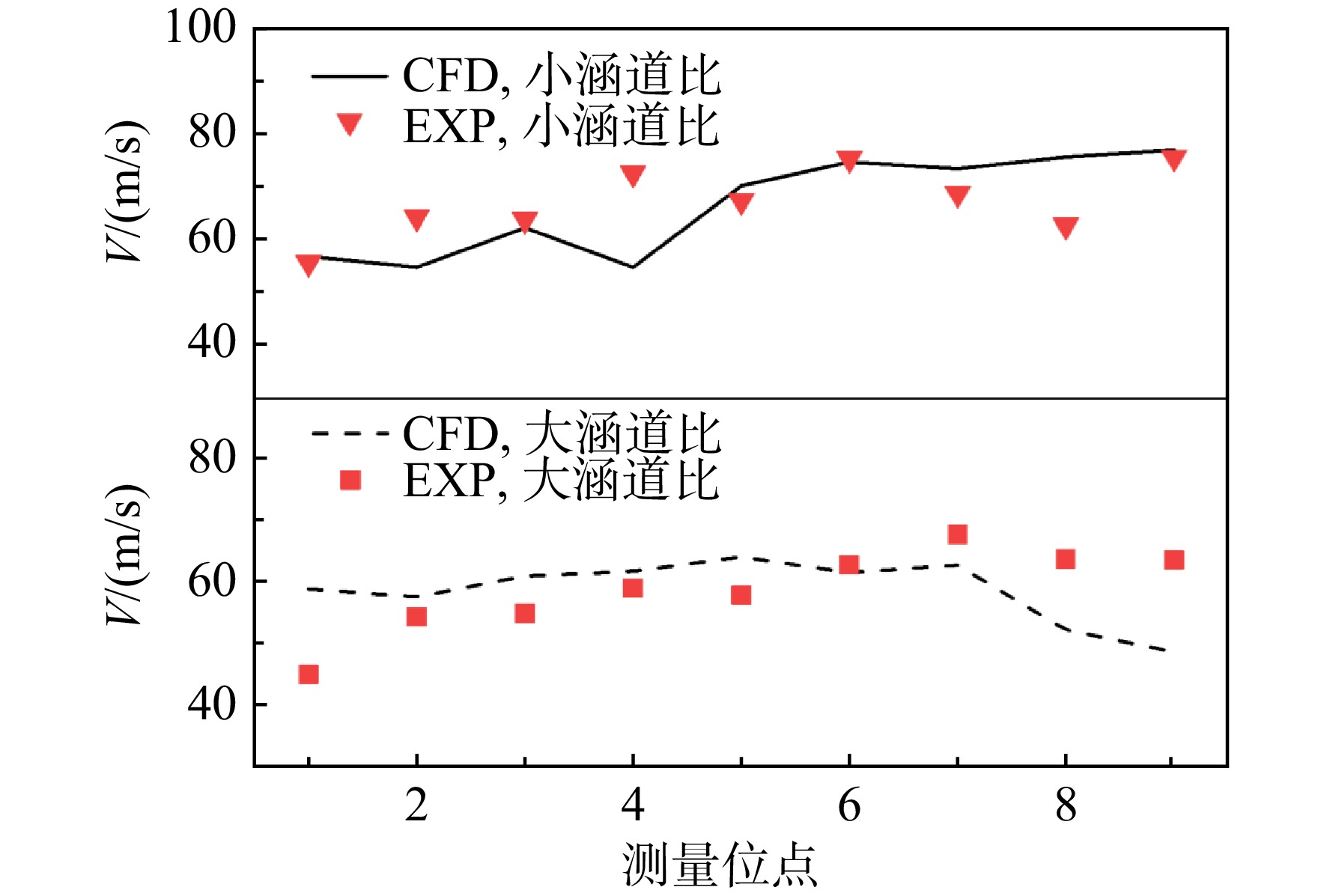

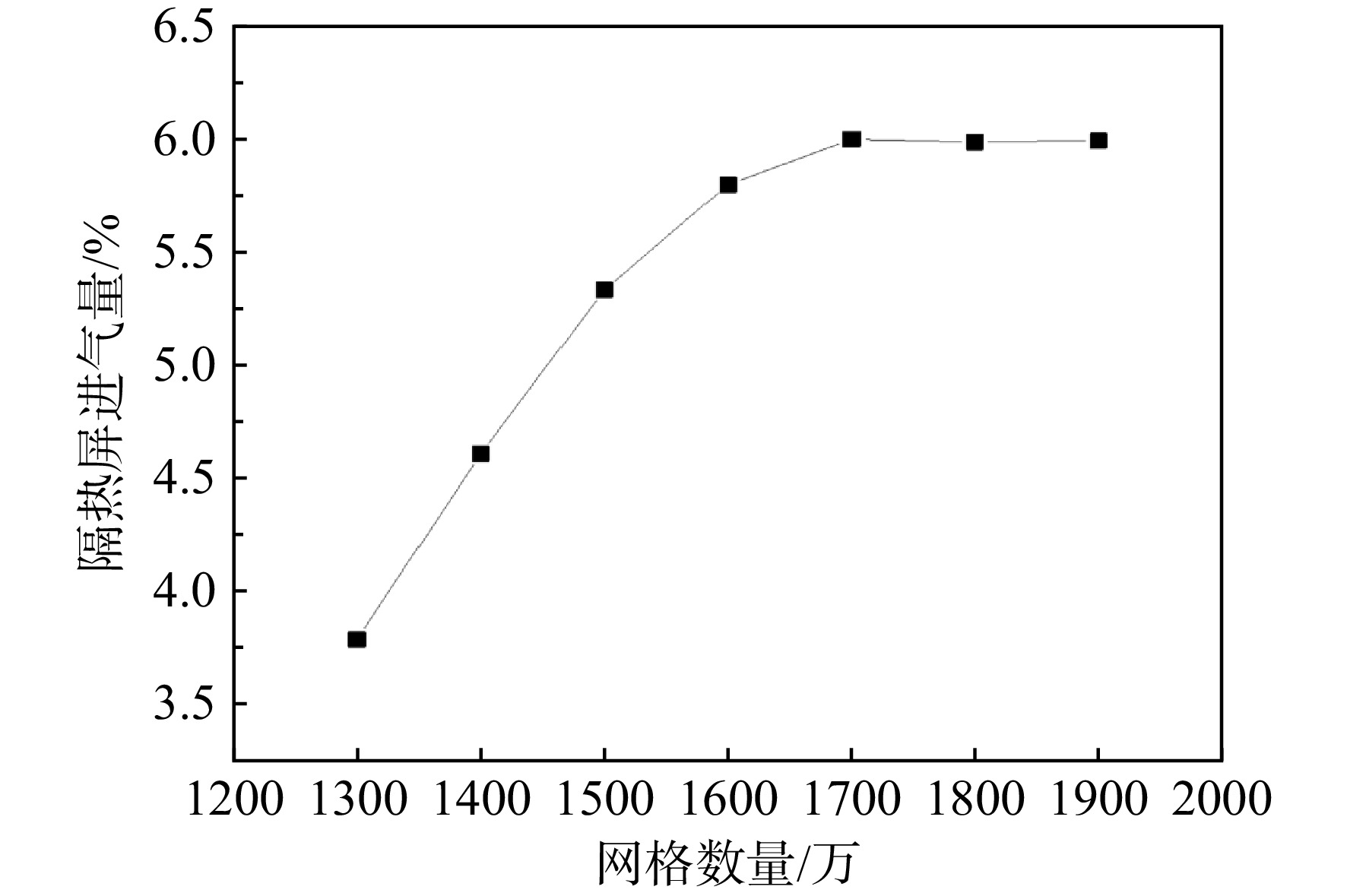

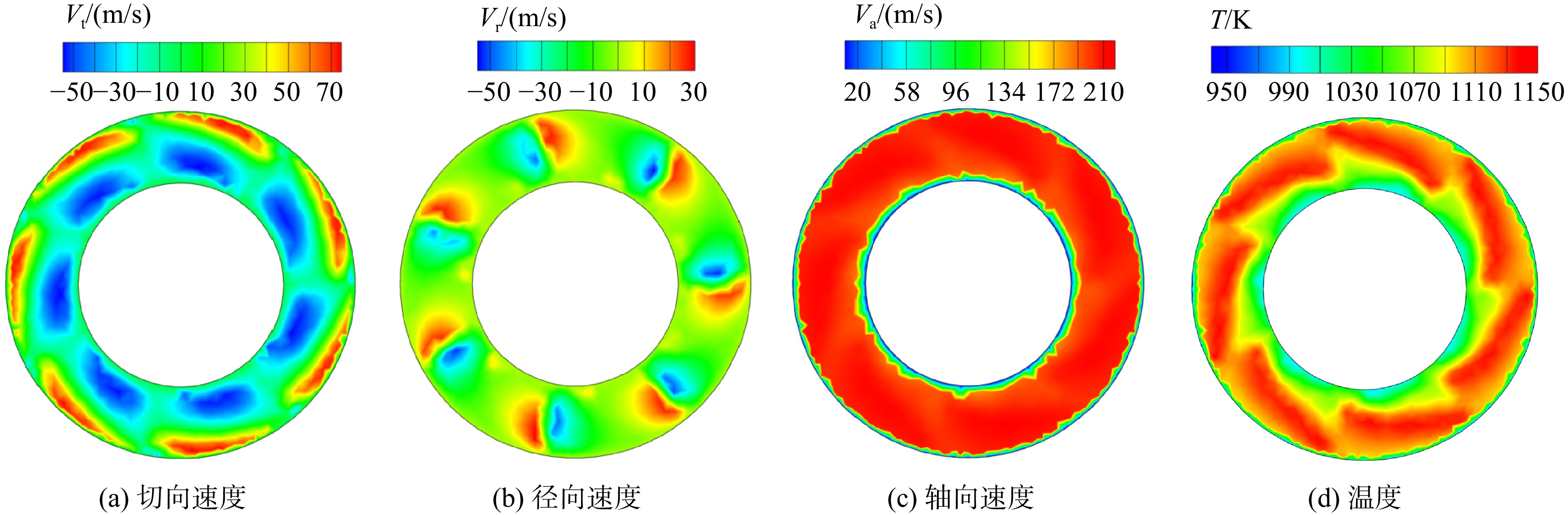

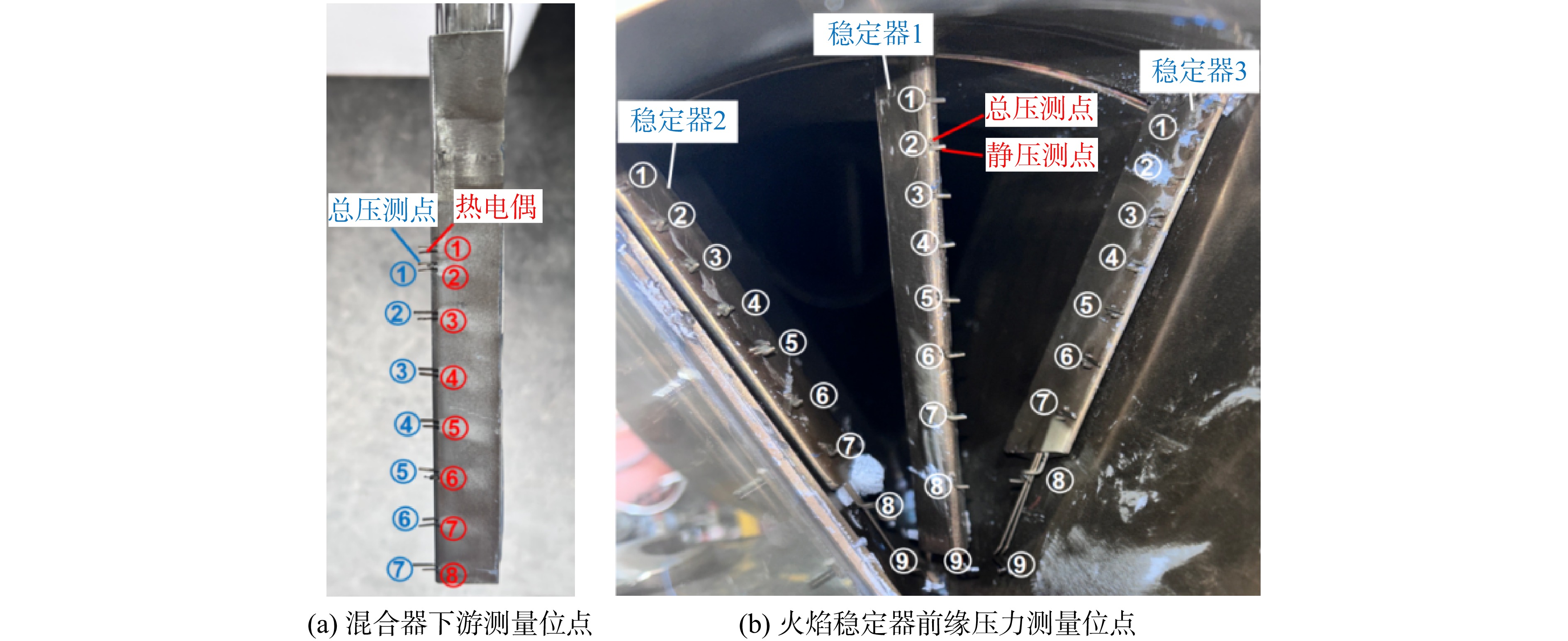

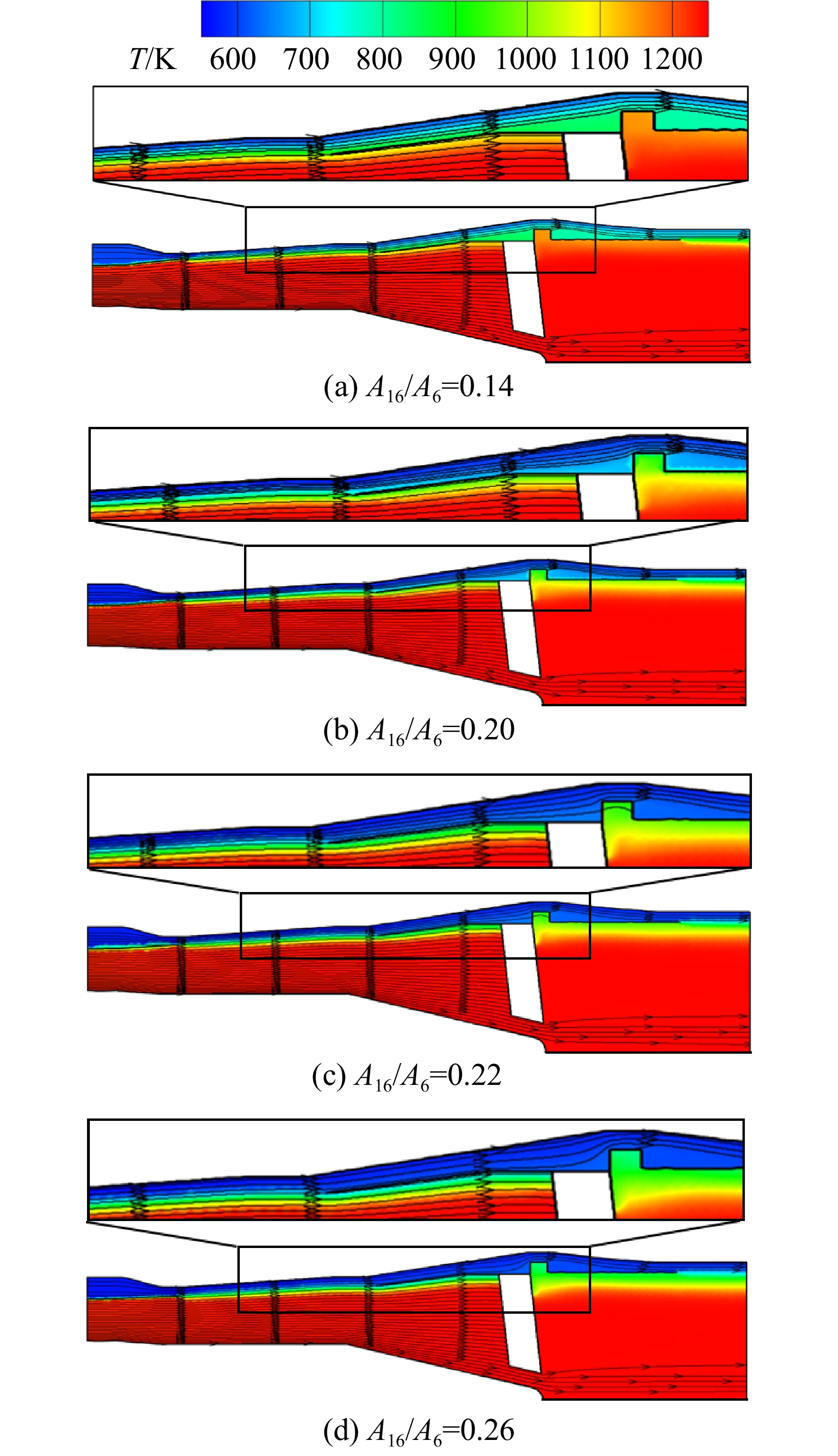

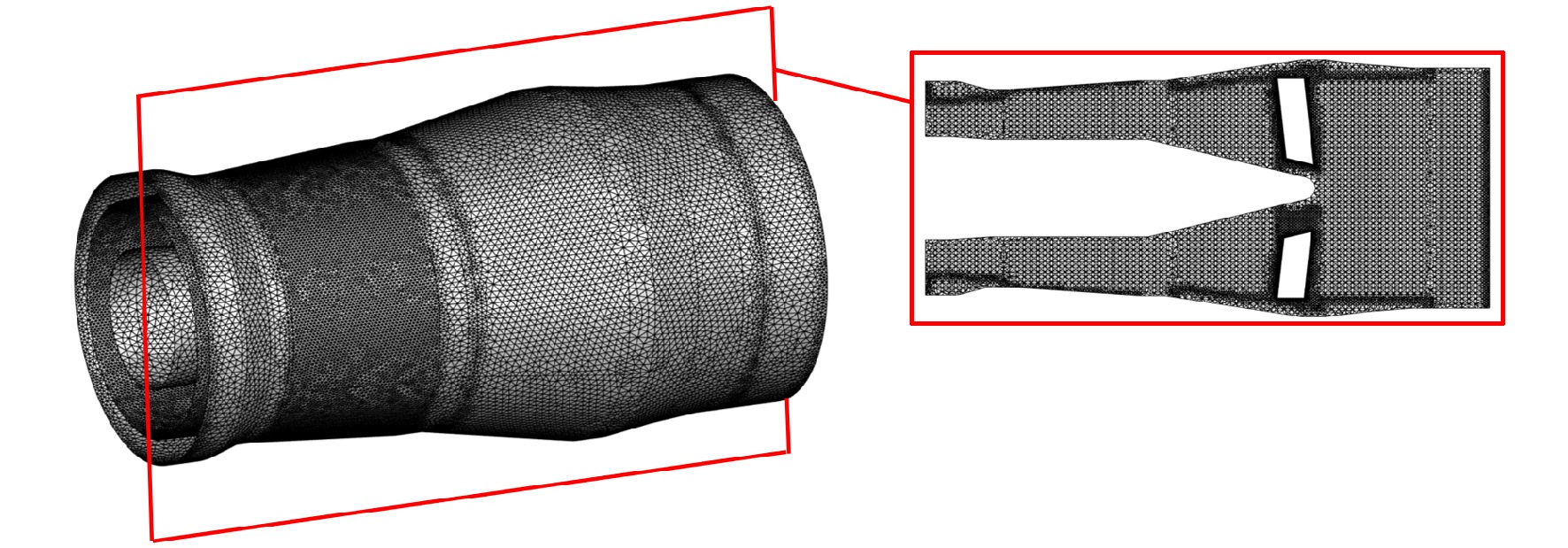

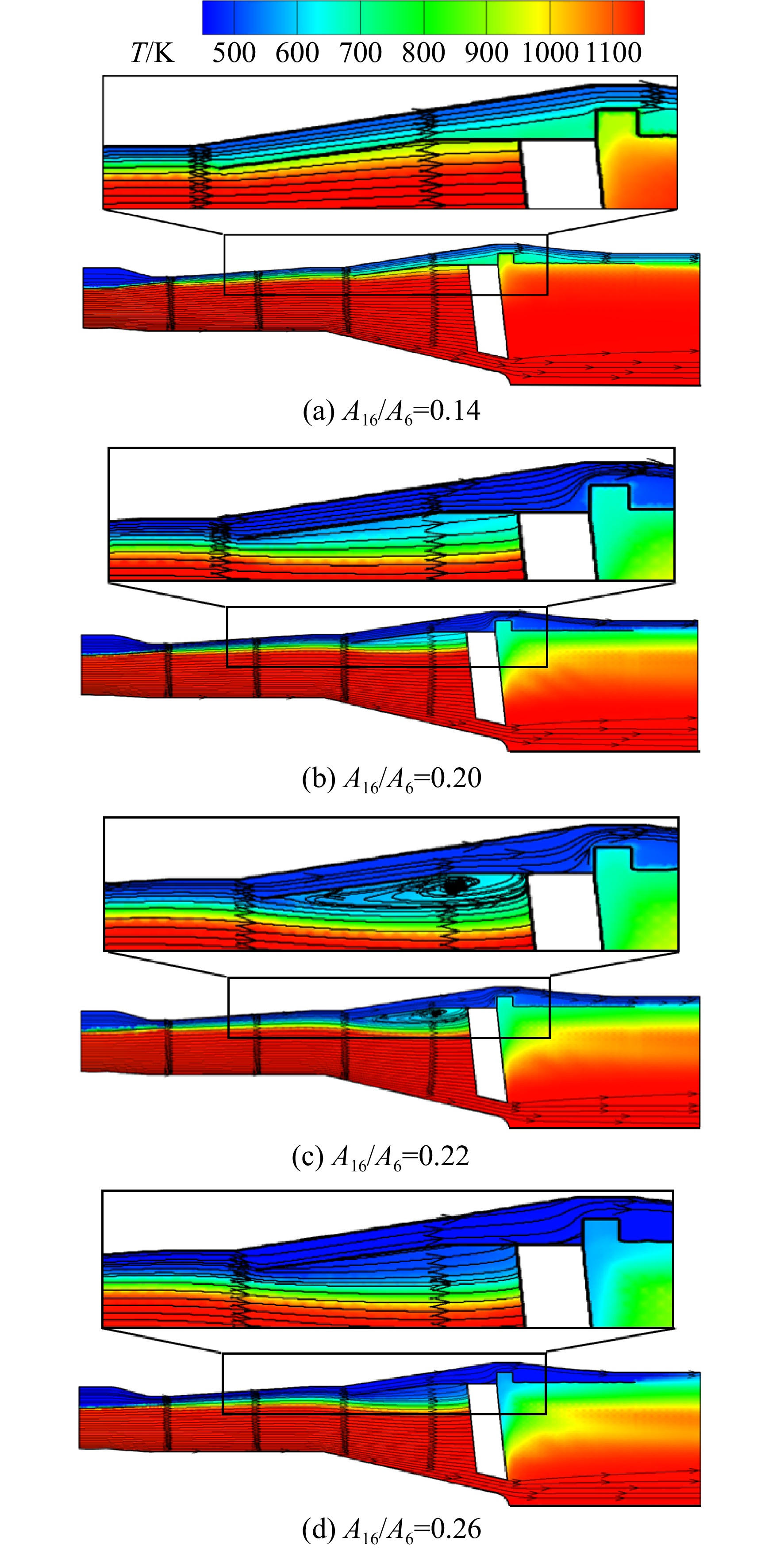

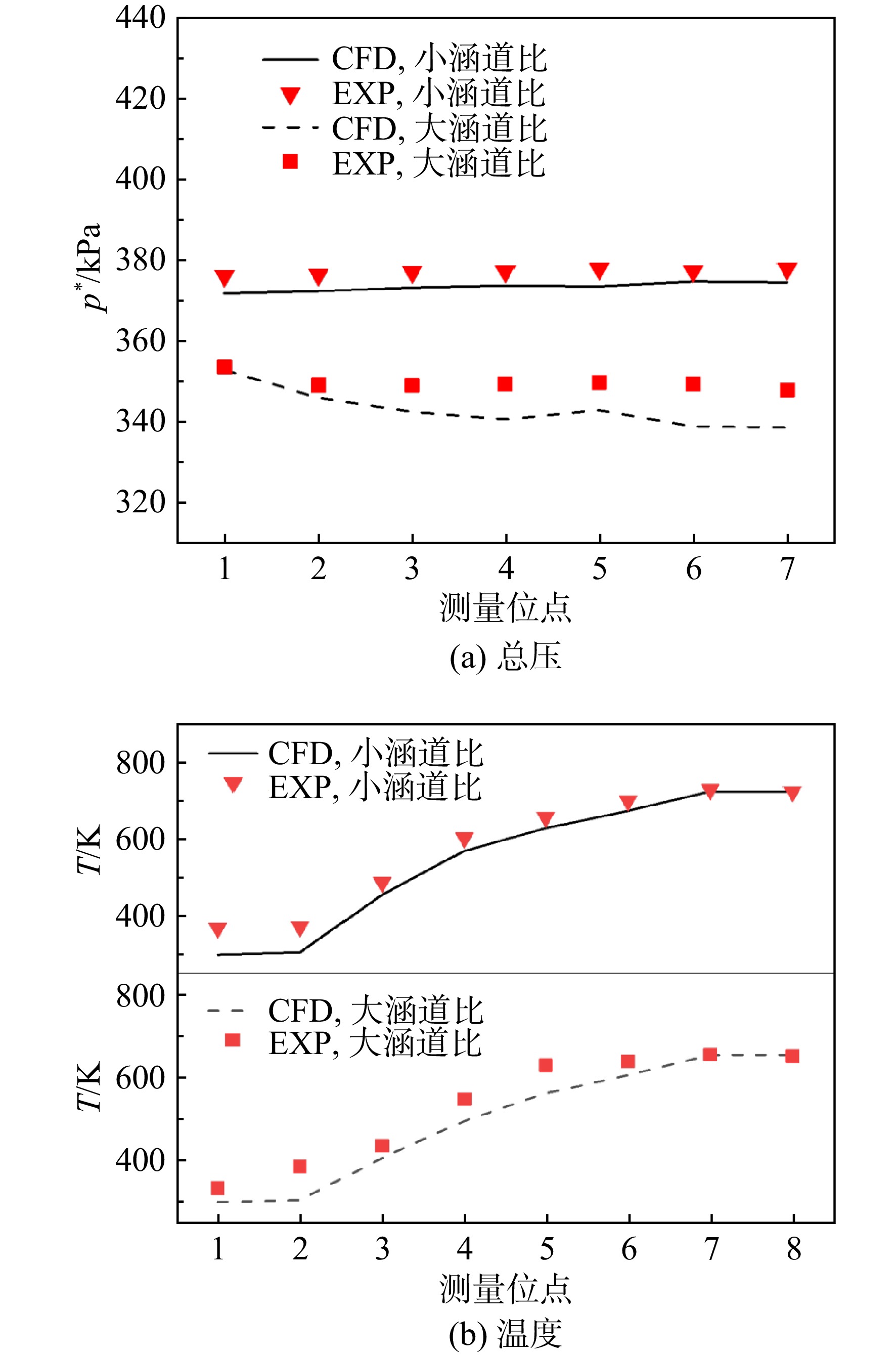

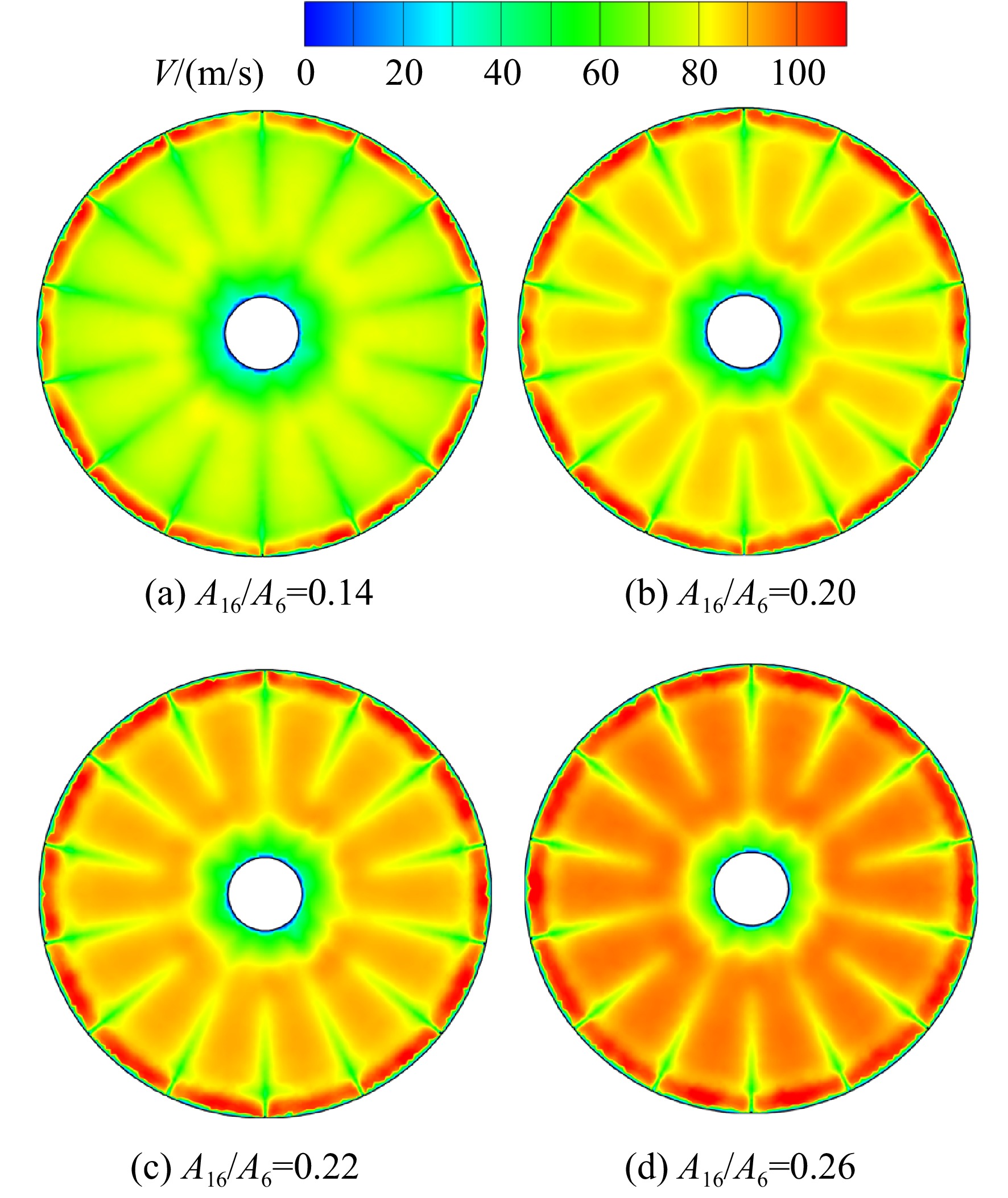

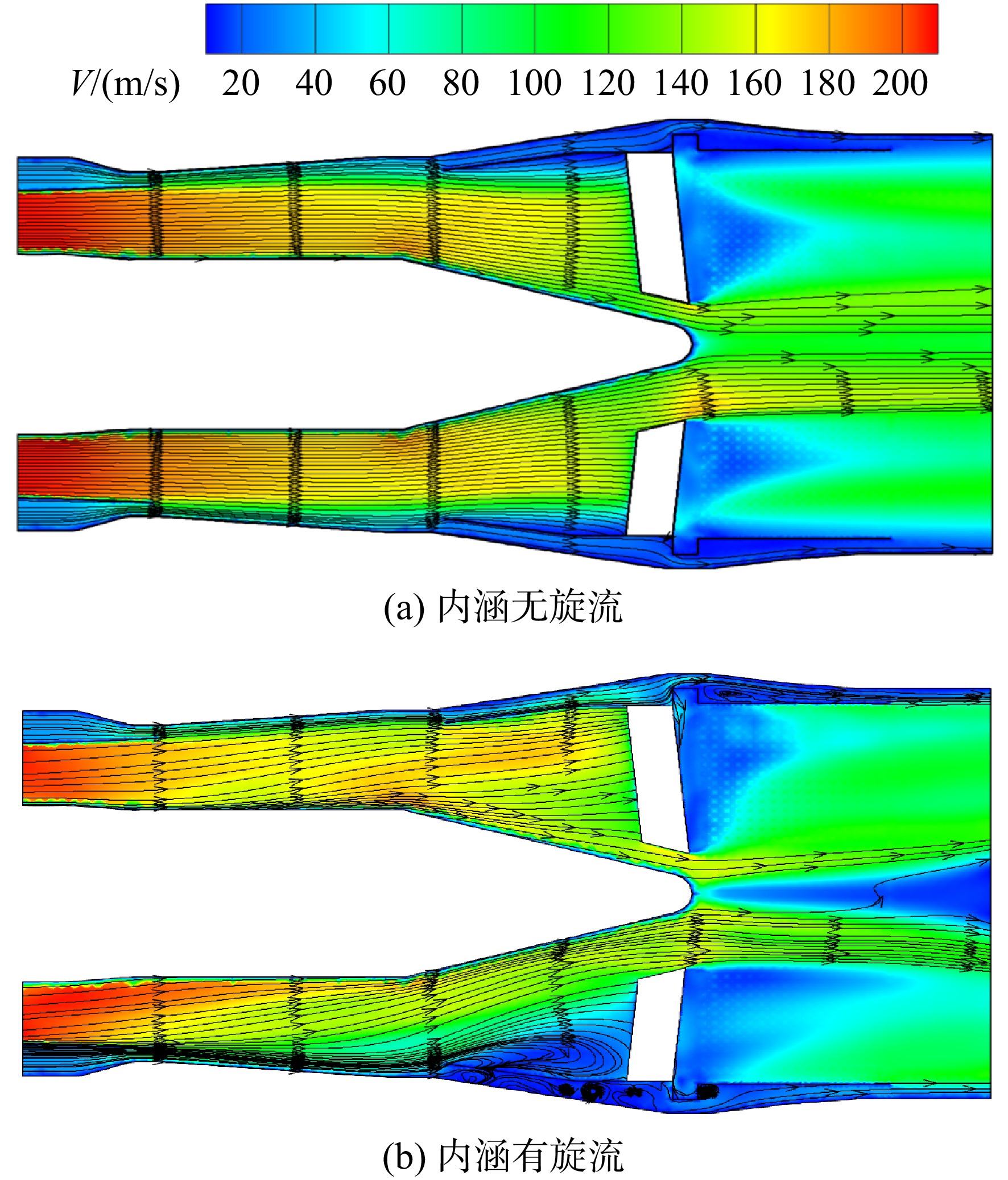

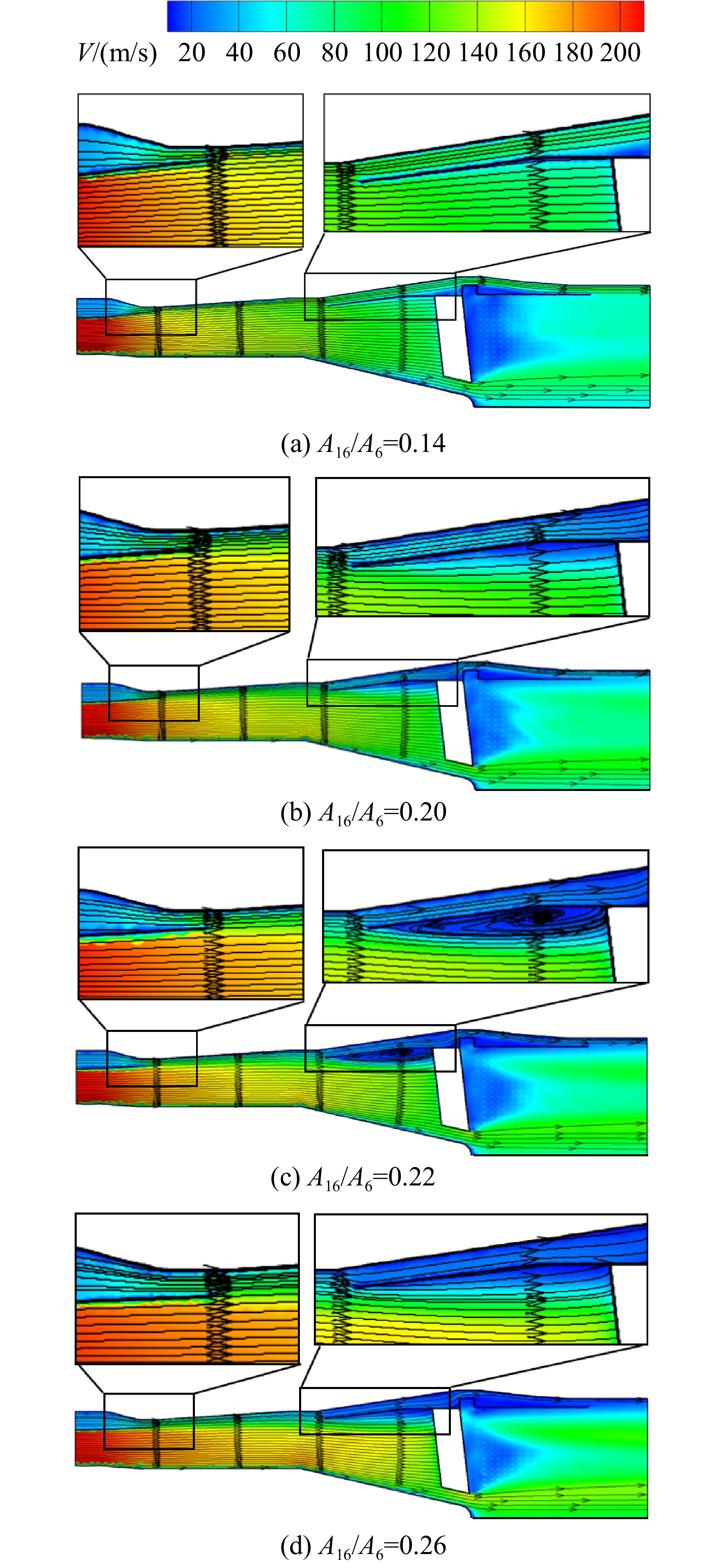

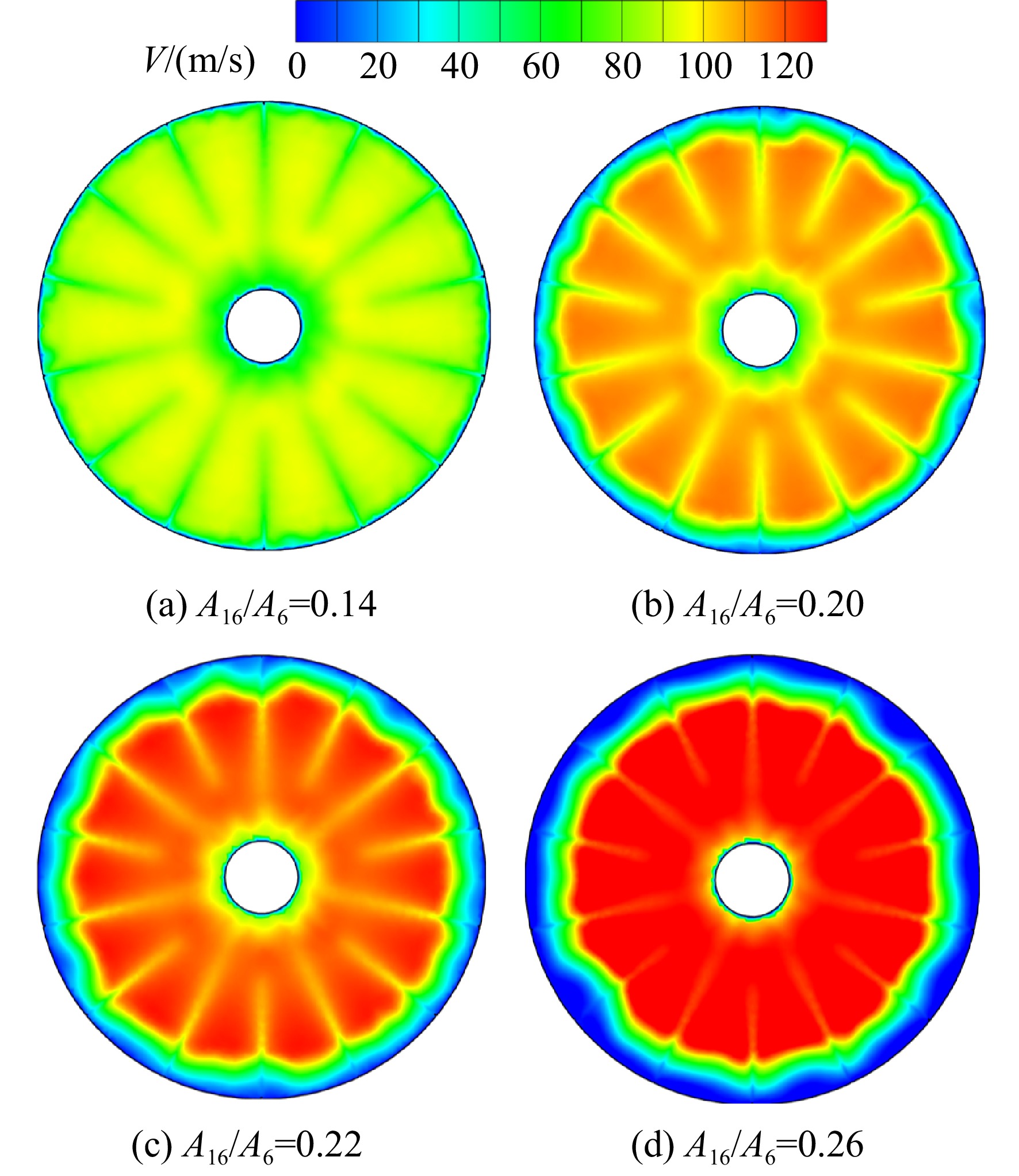

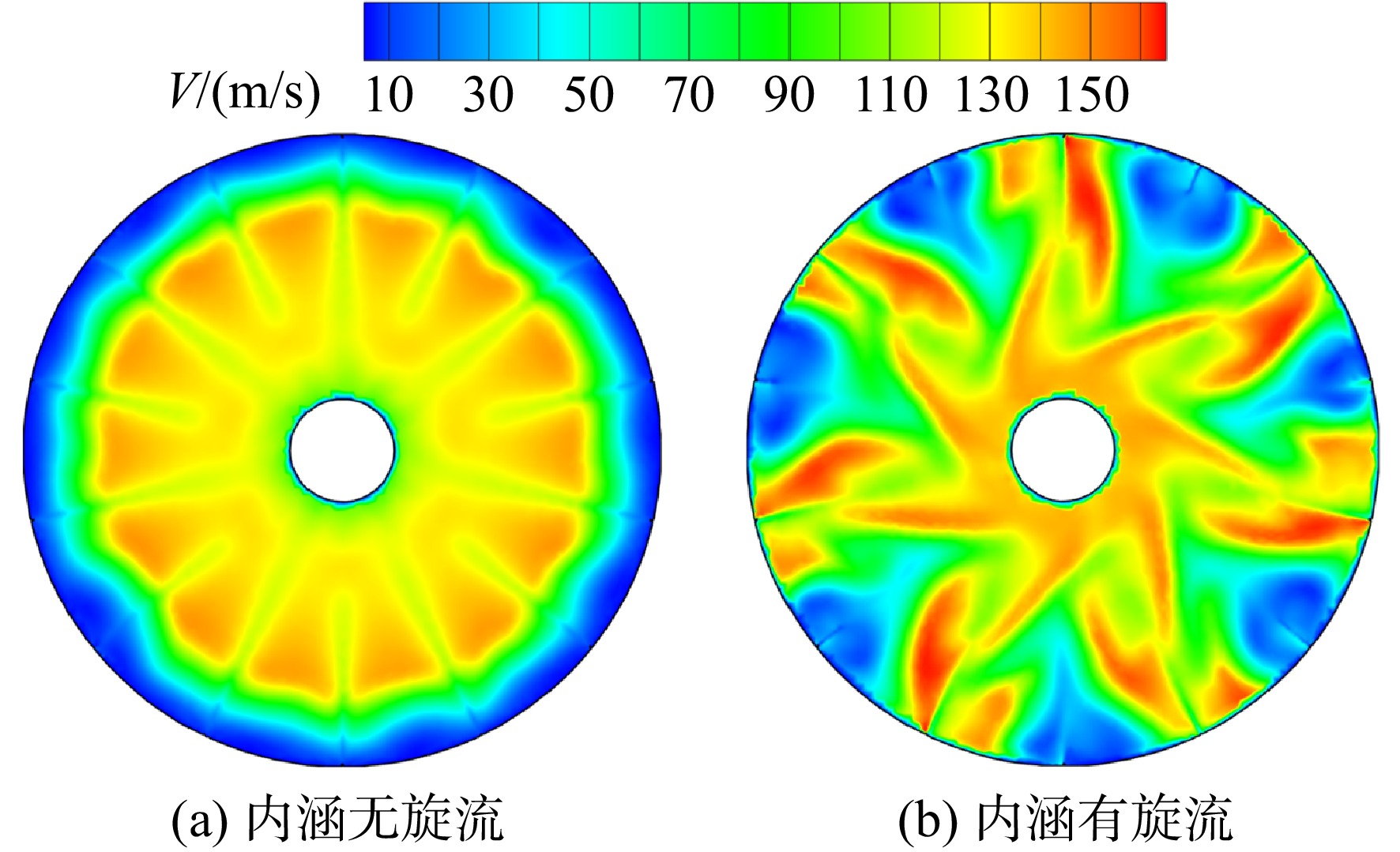

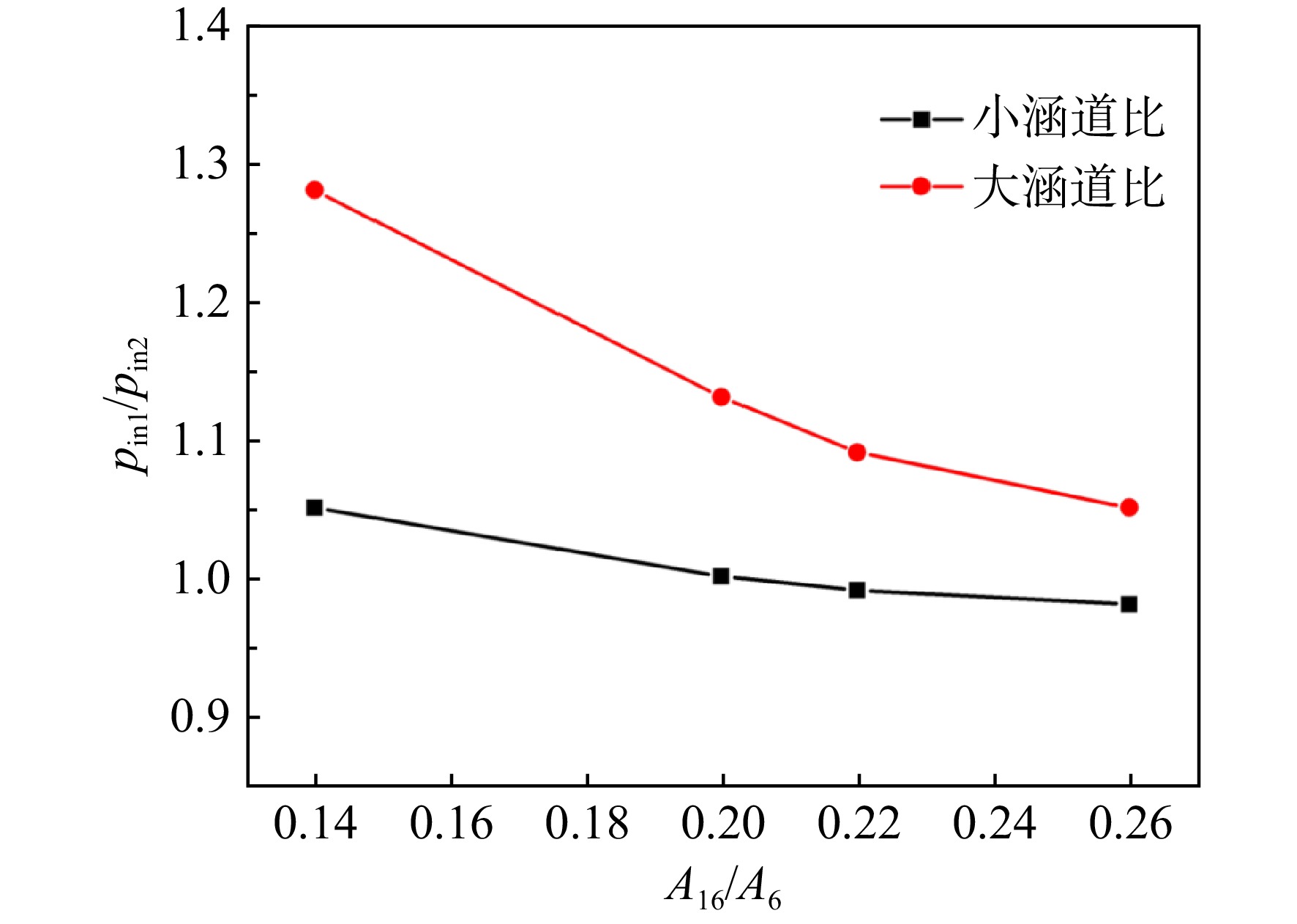

The variable-bypass-ratio afterburner/ram combustor of a variable cycle engine was investigated through scaled-model flow experiments and full-scale three-dimensional numerical simulations. The purpose of the research was to reveal the internal flow characteristics under different bypass ratios (BPR) and parallel mixer exit area ratios, while quantitatively evaluating key parameters including velocity non-uniformity, mixing loss, and peak outer casing temperature of the heat shield cooling channel. The results showed that, compared with the uniform flow at the core flow inlet, the introduction of swirl enhanced shear mixing between the rotating core flow and the bypass stream. Under severe conditions, this caused partial ingress of high-temperature core fluid into the heat shield cooling channel, resulting in localized temperatures as high as 812.97 K on the outer casing. The use of a parallel mixer effectively controlled the total pressure loss in the afterburner/ram combustor, maintaining it within 3.5%. The bypass-to-core exit area ratio served as a critical parameter. An appropriate area allocation ensured sufficient bypass airflow entered the cooling passage while providing adequate momentum to suppress flow separation at the inner side of the heat shield inlet. Under small bypass ratio conditions, increasing the bypass-to-core exit area ratio reduced the cooling flow rate by approximately 20%, which can impair the cooling effectiveness of the heat shield. Additionally, the low-momentum bypass flow struggled to overcome the adverse pressure gradient, leading to the formation of a recirculation zone on the inner side of the heat shield and worsening the radial velocity non-uniformity upstream the flame holder to a range of 0.10—1.20, adversely affecting afterburner performance. In contrast, under large bypass ratio conditions, an excessively small bypass-to-core exit area ratio increased the mixing loss to 3.16%. As the bypass-to-core exit area ratio increased, the matching between the core and bypass flows improved, and the velocity non-uniformity narrowed to a range of 0.85—1.07, demonstrating superior overall performance.
| [1] |
CHEN Haoying, ZHANG Haibo, WANG Yong, et al. Installation characteristics of variable cycle engine based on inlet flow matching[J]. International Journal of Turbo & Jet-Engines, 2021, 38(3): 319-329.
|
| [2] |
AYGUN H, CILGIN M E, EKMEKCI I, et al. Energy and performance optimization of an adaptive cycle engine for next generation combat aircraft[J]. Energy, 2020, 209: 118261. doi: 10.1016/j.energy.2020.118261
|
| [3] |
刘治呈. 变循环发动机发展综述[J]. 现代制造技术与装备, 2019, 55(1): 177-179. LIU Zhicheng. Summary of the development of variable cycle engines[J]. Modern Manufacturing Technology and Equipment, 2019, 55(1): 177-179. (in Chinese
LIU Zhicheng. Summary of the development of variable cycle engines[J]. Modern Manufacturing Technology and Equipment, 2019, 55(1): 177-179. (in Chinese)
|
| [4] |
方昌德. 变循环发动机[J]. 燃气涡轮试验与研究, 2004, 17(3): 1-5. FANG Changde. Variable cycle engines[J]. Gas Turbine Experiment and Research, 2004, 17(3): 1-5. (in Chinese
FANG Changde. Variable cycle engines[J]. Gas Turbine Experiment and Research, 2004, 17(3): 1-5. (in Chinese)
|
| [5] |
吴涛, 骆广琦, 胡砷纛, 等. 配装变循环/常规发动机的飞机航程比较研究[J]. 计算机仿真, 2015, 32(10): 89-93. WU Tao, LUO Guangqi, HU Shendao, et al. Comparison of range of aircraft equipped with variable cycle engine versus turbofan engine[J]. Computer Simulation, 2015, 32(10): 89-93. (in Chinese
WU Tao, LUO Guangqi, HU Shendao, et al. Comparison of range of aircraft equipped with variable cycle engine versus turbofan engine[J]. Computer Simulation, 2015, 32(10): 89-93. (in Chinese)
|
| [6] |
OBAID Y, MARK V A, RICHARD M M, et al. Military jet engine acquisition: technology basis and cost-estimating methodology[M]. Santa Monica, US: RAND Corporation, 2002.
|
| [7] |
周红, 王占学, 刘增文, 等. 可变面积涵道引射器对变循环发动机性能影响[J]. 航空动力学报, 2016, 31(12): 2842-2850. ZHOU Hong, WANG Zhanxue, LIU Zengwen, et al. Impact of variable area bypass injector on variable cycle engine performance[J]. Journal of Aerospace Power, 2016, 31(12): 2842-2850. (in Chinese
ZHOU Hong, WANG Zhanxue, LIU Zengwen, et al. Impact of variable area bypass injector on variable cycle engine performance[J]. Journal of Aerospace Power, 2016, 31(12): 2842-2850. (in Chinese)
|
| [8] |
YAN Wei, HU Jun, ZHANG Huan, et al. Effects of complicated rotating inlet distortion on compressor aerodynamic stability: AIAA2014-3732 [R]. Reston, US: AIAA, 2014.
|
| [9] |
李浪浪. 航空发动机加力燃烧室性能数值研究[D]. 哈尔滨: 哈尔滨工程大学, 2023. LI Langlang. Numerical study of afterburner performance of aero engine[D]. Harbin: Harbin Engineering University, 2023. (in Chinese
LI Langlang. Numerical study of afterburner performance of aero engine[D]. Harbin: Harbin Engineering University, 2023. (in Chinese)
|
| [10] |
武渊, 田维平, 乐发仁, 等. 双模态冲压发动机燃烧室流场数值模拟研究[J]. 固体火箭技术, 2003, 26(4): 41-44. WU Yuan, TIAN Weiping, LE Faren, et al. Study on numerical simulation of the dual-mode scramjet combustor[J]. Journal of Solid Rocket Technology, 2003, 26(4): 41-44. (in Chinese
WU Yuan, TIAN Weiping, LE Faren, et al. Study on numerical simulation of the dual-mode scramjet combustor[J]. Journal of Solid Rocket Technology, 2003, 26(4): 41-44. (in Chinese)
|
| [11] |
窦健. 变循环发动机后涵道引射器设计与气动性能研究[D]. 南京: 南京航空航天大学, 2019. DOU Jian. Research on design and aerodynamic performance for variable cycle engine rear bypass injector[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2019. (in Chinese
DOU Jian. Research on design and aerodynamic performance for variable cycle engine rear bypass injector[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2019. (in Chinese)
|
| [12] |
黄光辉. 变循环发动机前涵道引射器设计与气动性能研究[D]. 南京: 南京航空航天大学, 2020. HUANG Guanghui. Design and aerodynamic performance research of front variable area bypass injector of variable cycle engine[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2020. (in Chinese
HUANG Guanghui. Design and aerodynamic performance research of front variable area bypass injector of variable cycle engine[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2020. (in Chinese)
|
| [13] |
山旭. 一种基于TBCC多模态工作条件的掺混器性能研究[D]. 南京: 南京航空航天大学, 2022. SHAN Xu. Research on performance of a mixer based on multi-modal working conditions of TBCC[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2022. (in Chinese
SHAN Xu. Research on performance of a mixer based on multi-modal working conditions of TBCC[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2022. (in Chinese)
|
| [14] |
AOKI S, LEE J, MASUYA G, et al. Aerodynamic experiment on an ejector-jet[J]. Journal of Propulsion and Power, 2005, 21(3): 496-503. doi: 10.2514/1.6736
|
| [15] |
HUANG Yakun, HE Xiaomin, JIN Yi, et al. Effect of non-uniform inlet profile on the combustion performance of an afterburner with bluff body[J]. Energy, 2021, 216: 119142. doi: 10.1016/j.energy.2020.119142
|
| [16] |
FADILAH P A, ERAWAN D F. Effect of applying screen and honeycomb to the flow characteristic in wind tunnel based on CFD simulation[J]. Journal of Physics: Conference Series, 2018, 1130: 012008. doi: 10.1088/1742-6596/1130/1/012008
|
| [17] |
BARTOSIEWICZ Y, AIDOUN Z, DESEVAUX P, et al. Numerical and experimental investigations on supersonic ejectors[J]. International Journal of Heat and Fluid Flow, 2004, 26(1): 56-70.
|
| [18] |
黄兴, 陈玉春, 王晓东, 等. 超燃冲压发动机流量匹配机理[J]. 航空动力学报, 2014, 29(4): 852-857. HUANG Xing, CHEN Yuchun, WANG Xiaodong, et al. Mechanism of mass flow matching in scramjet[J]. Journal of Aerospace Power, 2014, 29(4): 852-857. (in Chinese
HUANG Xing, CHEN Yuchun, WANG Xiaodong, et al. Mechanism of mass flow matching in scramjet[J]. Journal of Aerospace Power, 2014, 29(4): 852-857. (in Chinese)
|
| [19] |
陈玉春, 刘小勇, 黄兴, 等. 基于集总参数方程的超燃冲压发动机性能计算模型[J]. 推进技术, 2012, 33(6): 840-846. CHEN Yuchun, LIU Xiaoyong, HUANG Xing, et al. A model based on lumped parameter method for scramjet performance computation[J]. Journal of Propulsion Technology, 2012, 33(6): 840-846. (in Chinese
CHEN Yuchun, LIU Xiaoyong, HUANG Xing, et al. A model based on lumped parameter method for scramjet performance computation[J]. Journal of Propulsion Technology, 2012, 33(6): 840-846. (in Chinese)
|
| [20] |
黄兴, 陈玉春, 李洁, 等. 双模态超燃冲压发动机流量匹配的临界面积法[J]. 航空动力学报, 2013, 28(6): 1305-1312. HUANG Xing, CHEN Yuchun, LI Jie, et al. Critical area method for mass flow matching of dual-mode scramjet[J]. Journal of Aerospace Power, 2013, 28(6): 1305-1312. (in Chinese
HUANG Xing, CHEN Yuchun, LI Jie, et al. Critical area method for mass flow matching of dual-mode scramjet[J]. Journal of Aerospace Power, 2013, 28(6): 1305-1312. (in Chinese)
|
| [21] |
张荣, 叶志锋, 薛益春. 变循环发动机模式转换调节计划仿真研究[J]. 测控技术, 2011, 30(2): 47-50. ZHANG Rong, YE Zhifeng, XUE Yichun. Simulation research on adjustment plan to mode transition of variable cycle engine[J]. Measurement & Control Technology, 2011, 30(2): 47-50. (in Chinese
ZHANG Rong, YE Zhifeng, XUE Yichun. Simulation research on adjustment plan to mode transition of variable cycle engine[J]. Measurement & Control Technology, 2011, 30(2): 47-50. (in Chinese)
|
| [22] |
刘润富, 黄玥, 李臻曜, 等. 波瓣结构后可变面积涵道引射器掺混特性[J]. 航空动力学报, 2024, 39(8): 20220594. LIU Runfu, HUANG Yue, LI Zhenyao, et al. Numerical simulation of mixing characteristic of rear variable area bypass injector with lobed structure[J]. Journal of Aerospace Power, 2024, 39(8): 20220594. (in Chinese
LIU Runfu, HUANG Yue, LI Zhenyao, et al. Numerical simulation of mixing characteristic of rear variable area bypass injector with lobed structure[J]. Journal of Aerospace Power, 2024, 39(8): 20220594. (in Chinese)
|
| [23] |
王靖宇, 张怀宝, 黄国平, 等. 采用射流掺混增强的前可调面积涵道引射器数值模拟[J]. 国防科技大学学报, 2019, 41(2): 69-74, 81. WANG Jingyu, ZHANG Huaibao, HUANG Guoping, et al. Numerical investigation of front variable area bypass injector with jet mixing enhancement[J]. Journal of National University of Defense Technology, 2019, 41(2): 69-74, 81. (in Chinese
WANG Jingyu, ZHANG Huaibao, HUANG Guoping, et al. Numerical investigation of front variable area bypass injector with jet mixing enhancement[J]. Journal of National University of Defense Technology, 2019, 41(2): 69-74, 81. (in Chinese)
|
| [24] |
陈佳, 胡文兵, 陈晓文, 等. 前可变面积涵道引射器特性的试验与数值模拟[J]. 航空动力学报, 2020, 35(2): 263-271. CHEN Jia, HU Wenbing, CHEN Xiaowen, et al. Experiment and numerical simulation on characteristic of front variable area bypass injector[J]. Journal of Aerospace Power, 2020, 35(2): 263-271. (in Chinese
CHEN Jia, HU Wenbing, CHEN Xiaowen, et al. Experiment and numerical simulation on characteristic of front variable area bypass injector[J]. Journal of Aerospace Power, 2020, 35(2): 263-271. (in Chinese)
|
| [25] |
雷晗. 带旁路引气的混合扩压器气动特性研究[D]. 南京: 南京航空航天大学, 2019. LEI Han. Study on aerodynamic characteristics of mixer-diffuser with bypass flow[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2019. (in Chinese
LEI Han. Study on aerodynamic characteristics of mixer-diffuser with bypass flow[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2019. (in Chinese)
|
