| Citation: | Xu Zhaoke, Wang Haoyi, Sun Xiaozhe, et al. Study on mechanism of ice separation flow control of unmanned aerial vehicle wing profiles based on off-surface cylinders[J]. Journal of Aerospace Power, 2027, 42（1）：20250374 doi: 10.13224/j.cnki.jasp.20250374
|

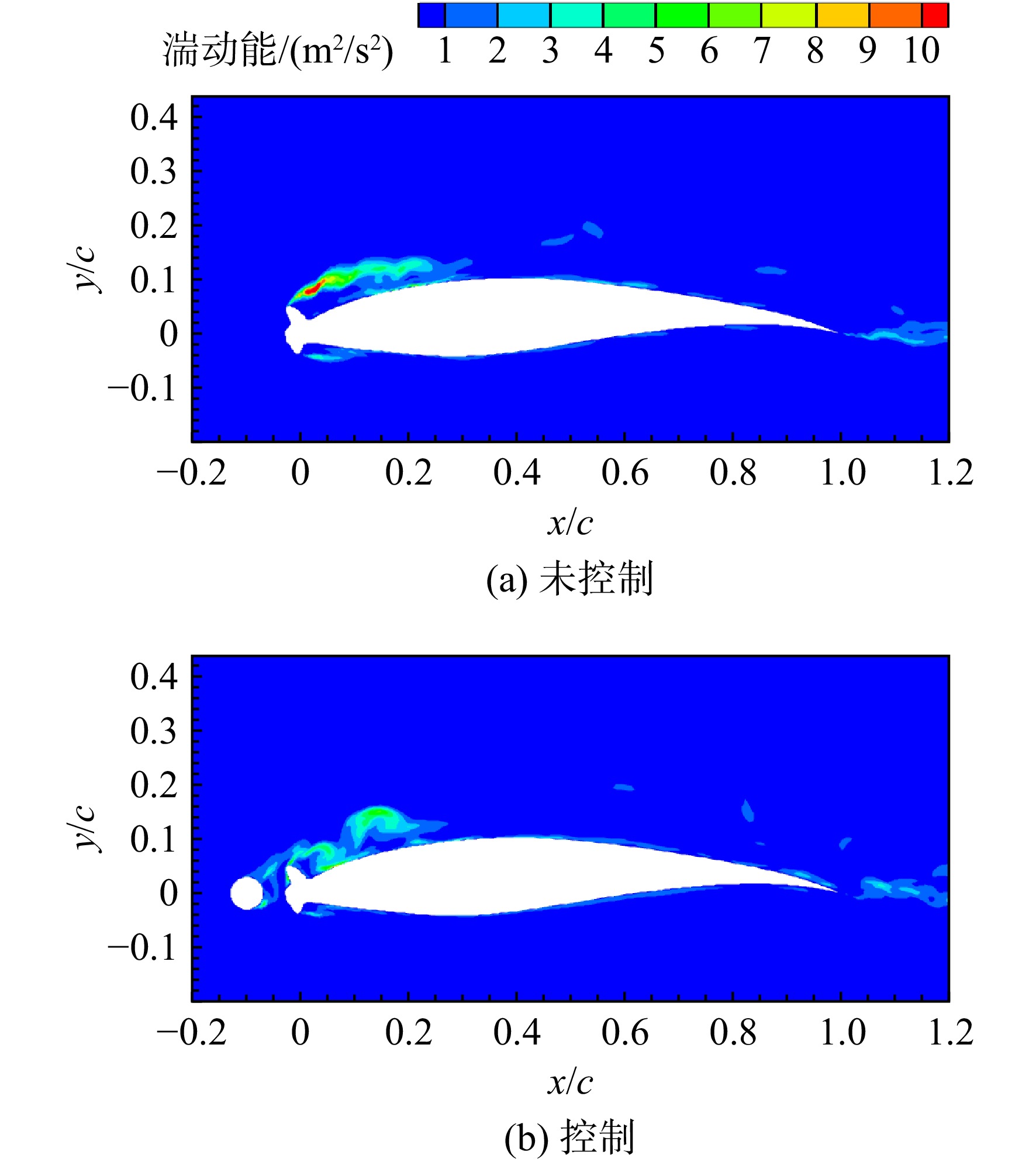

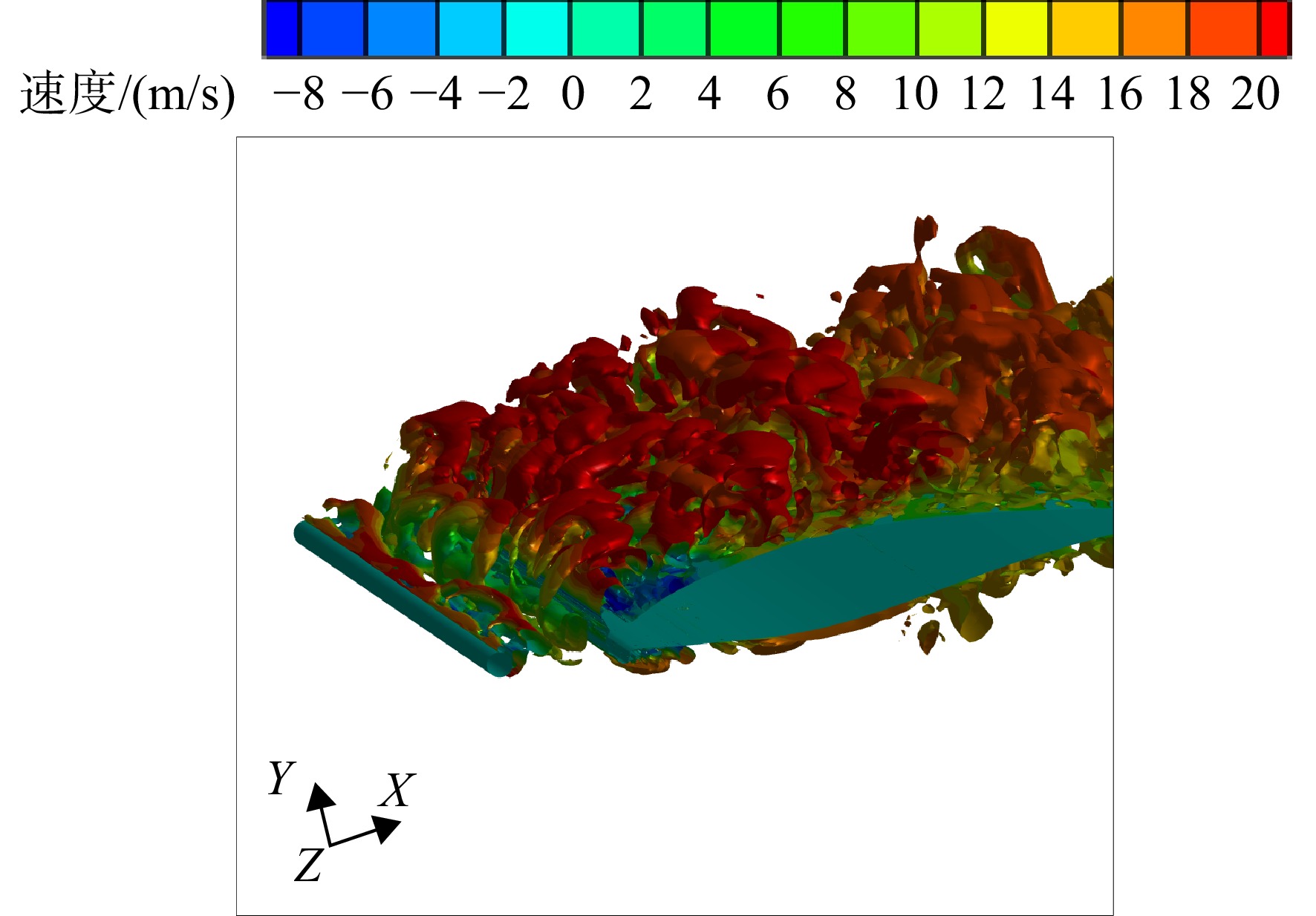

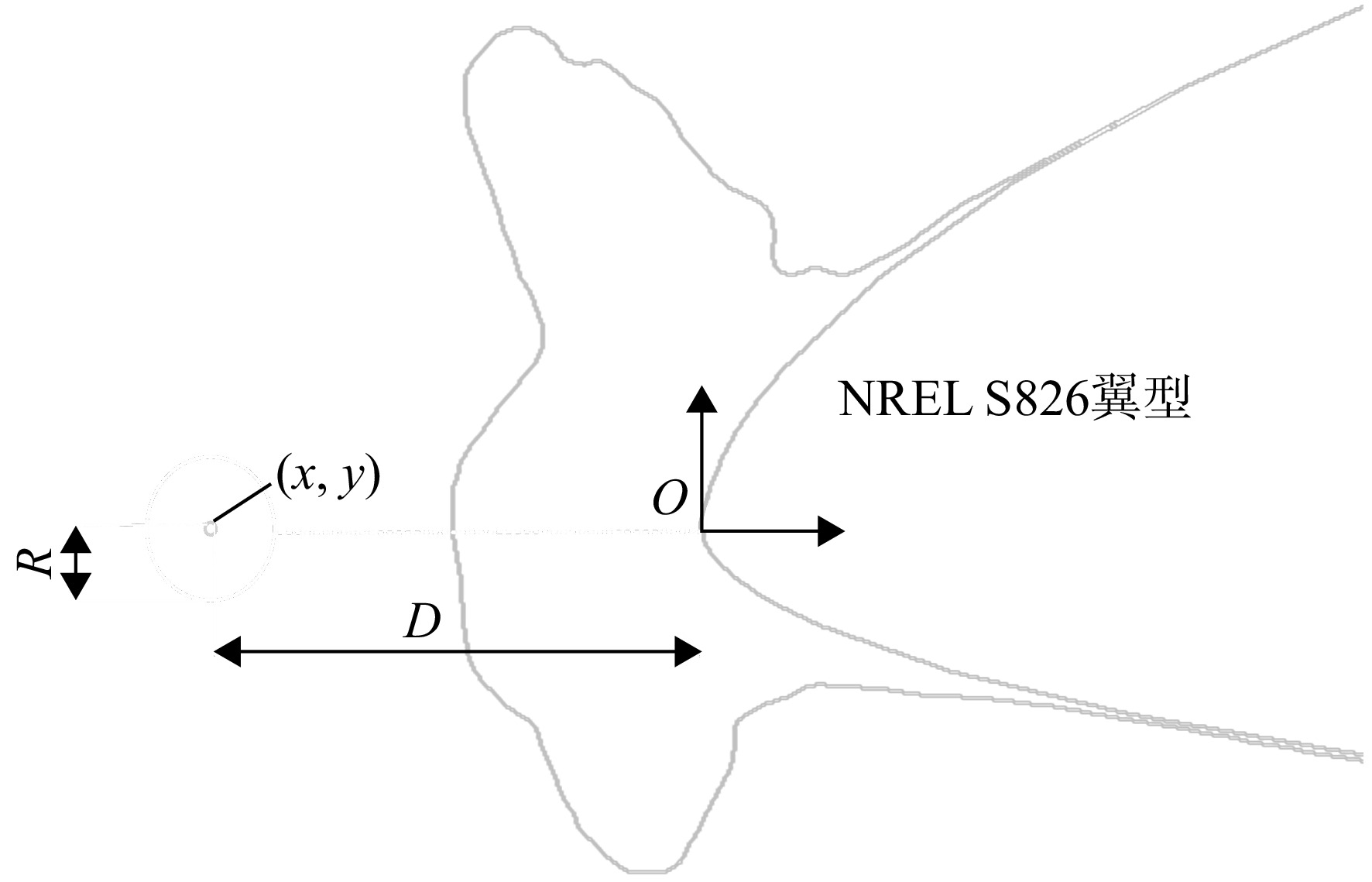

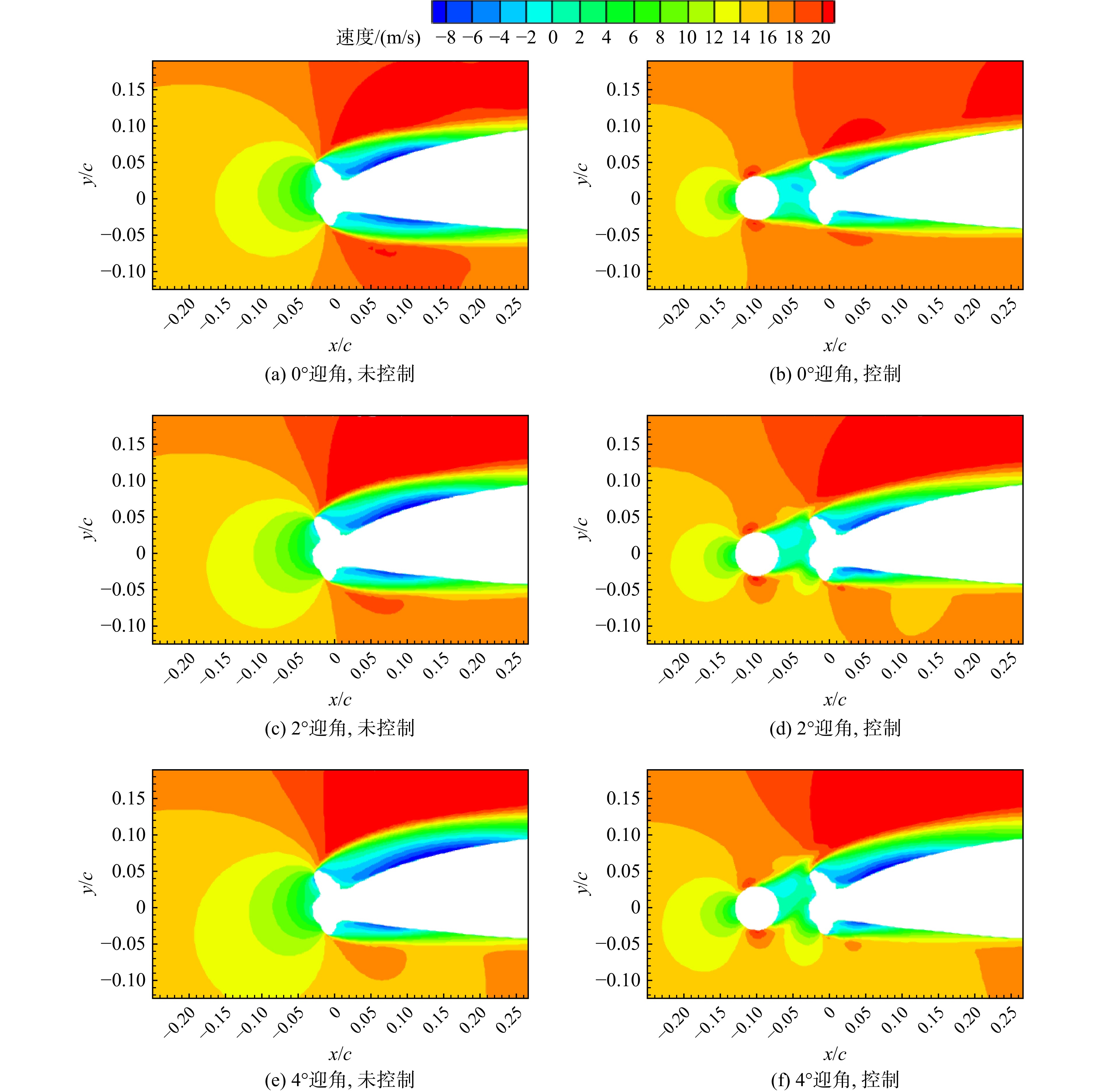

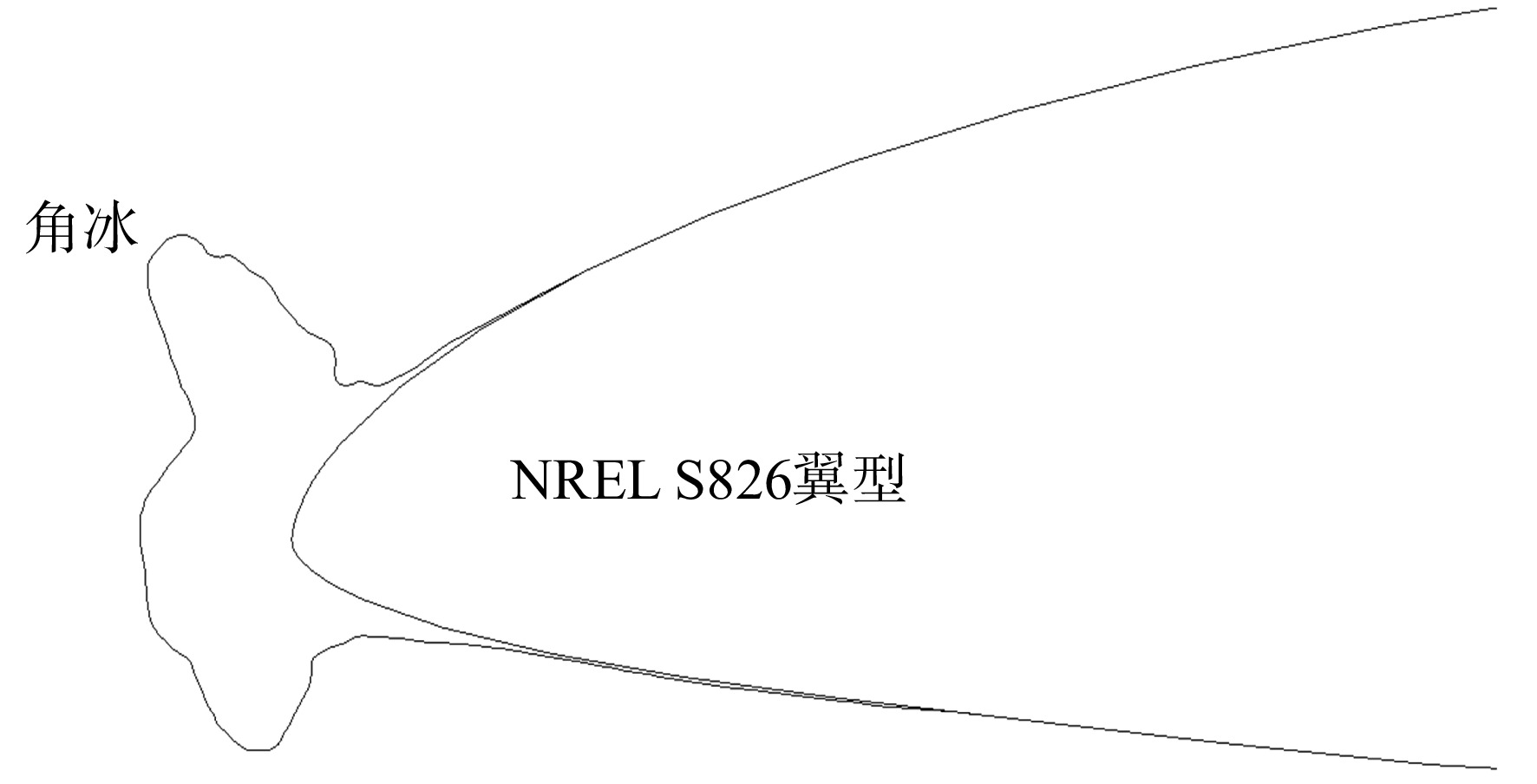

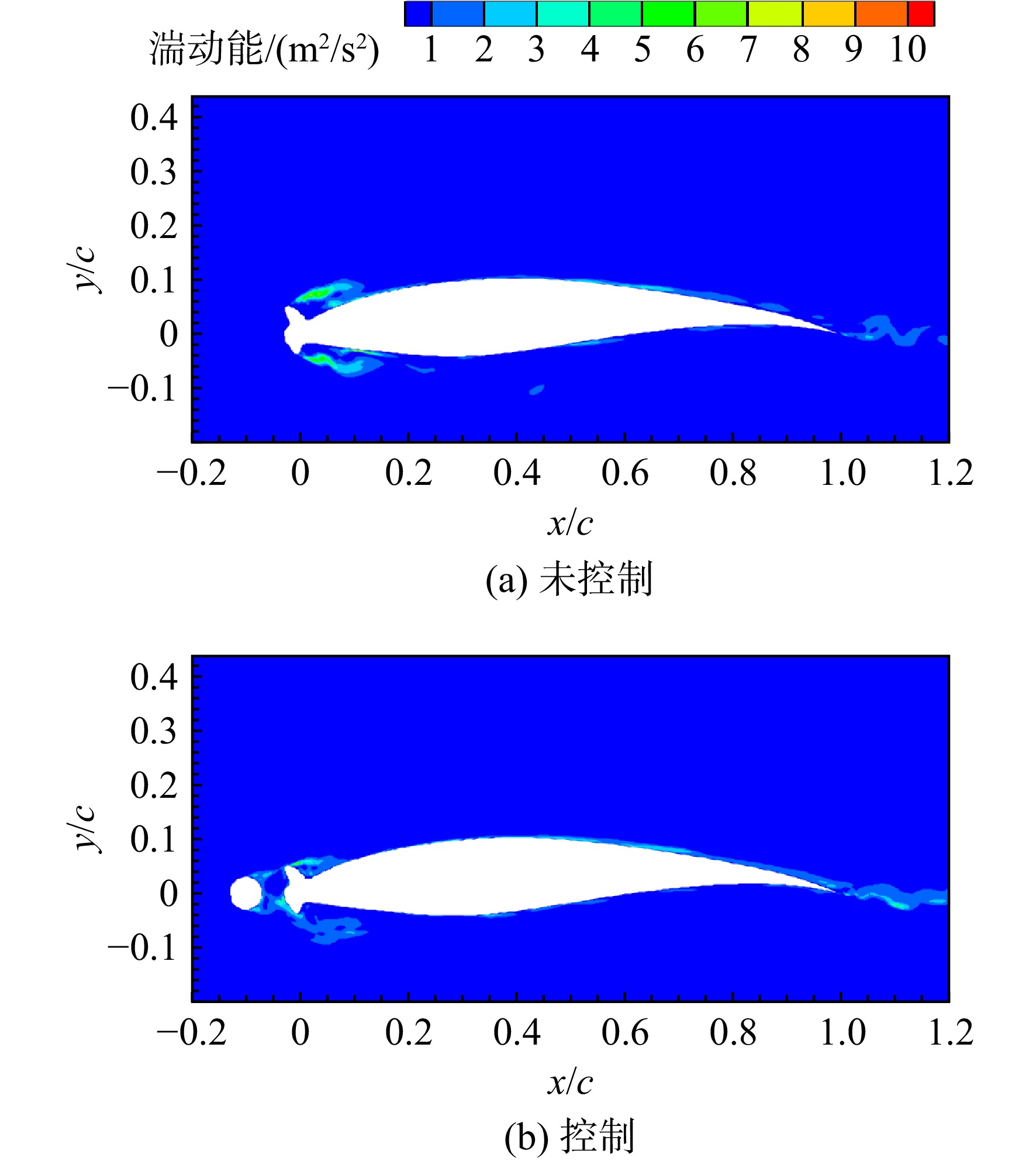

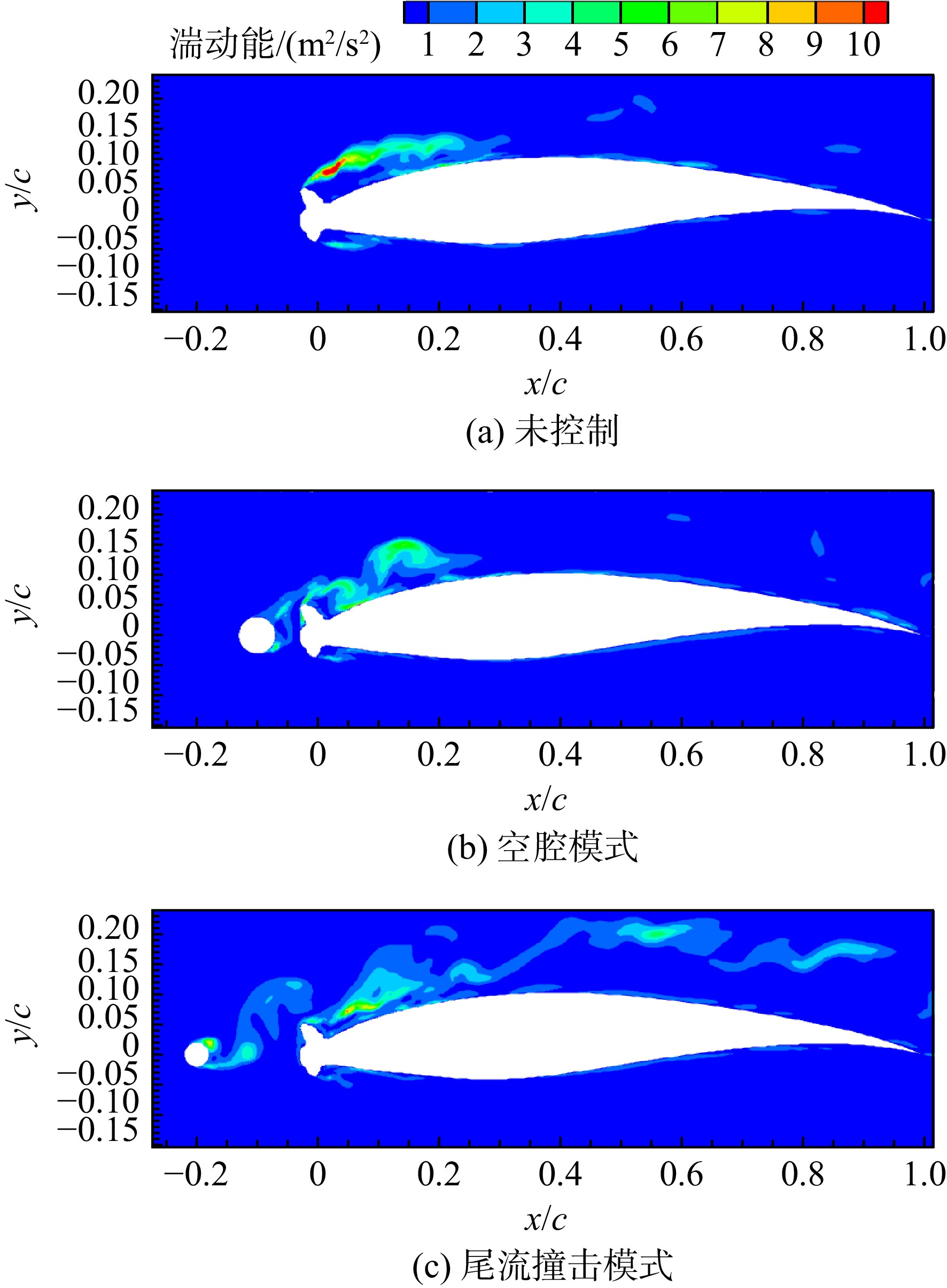

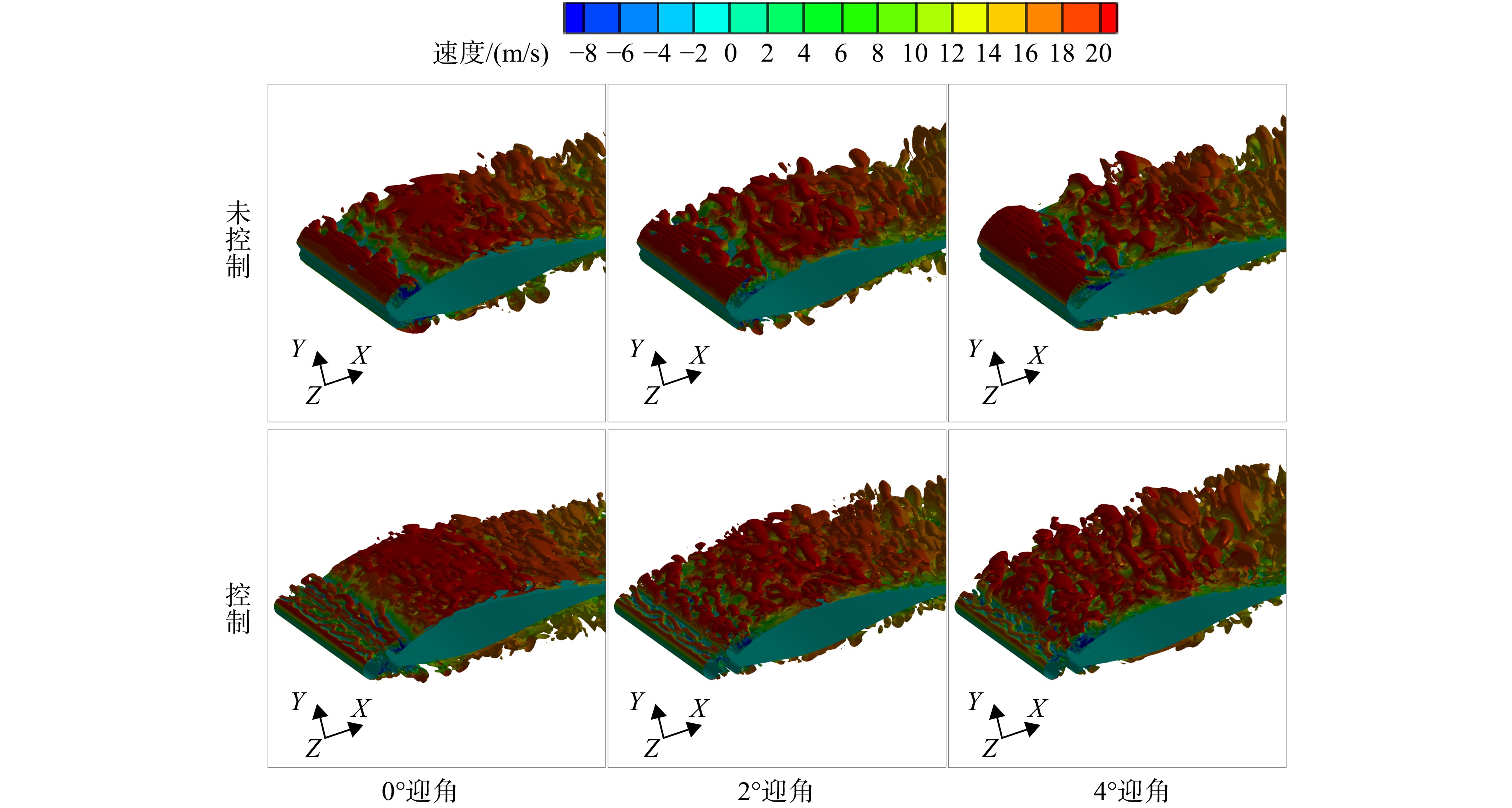

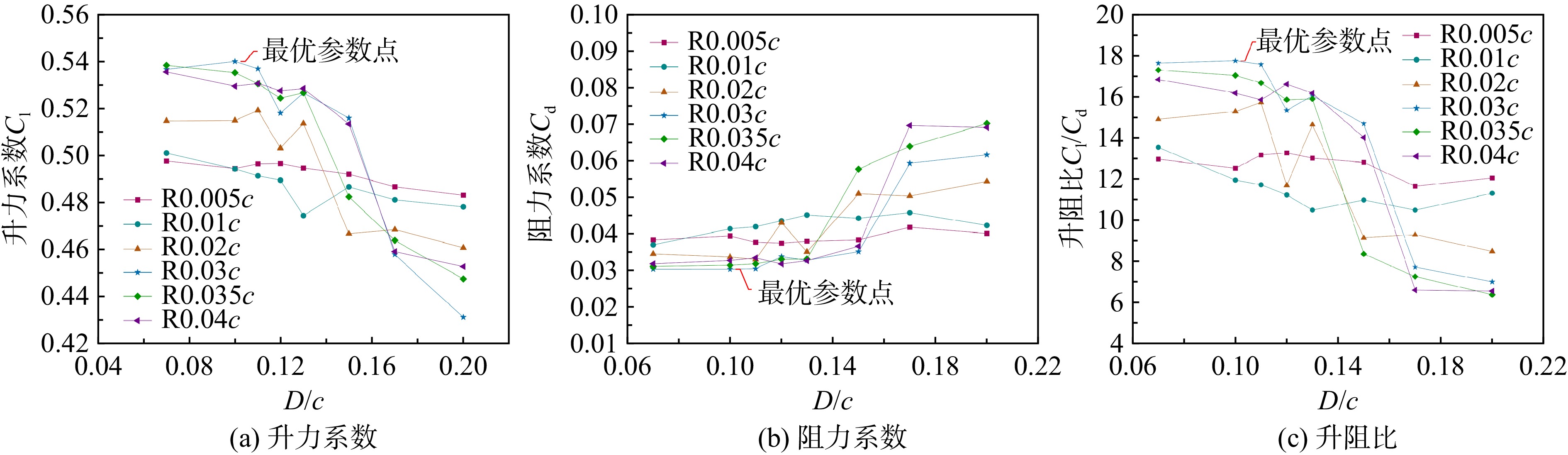

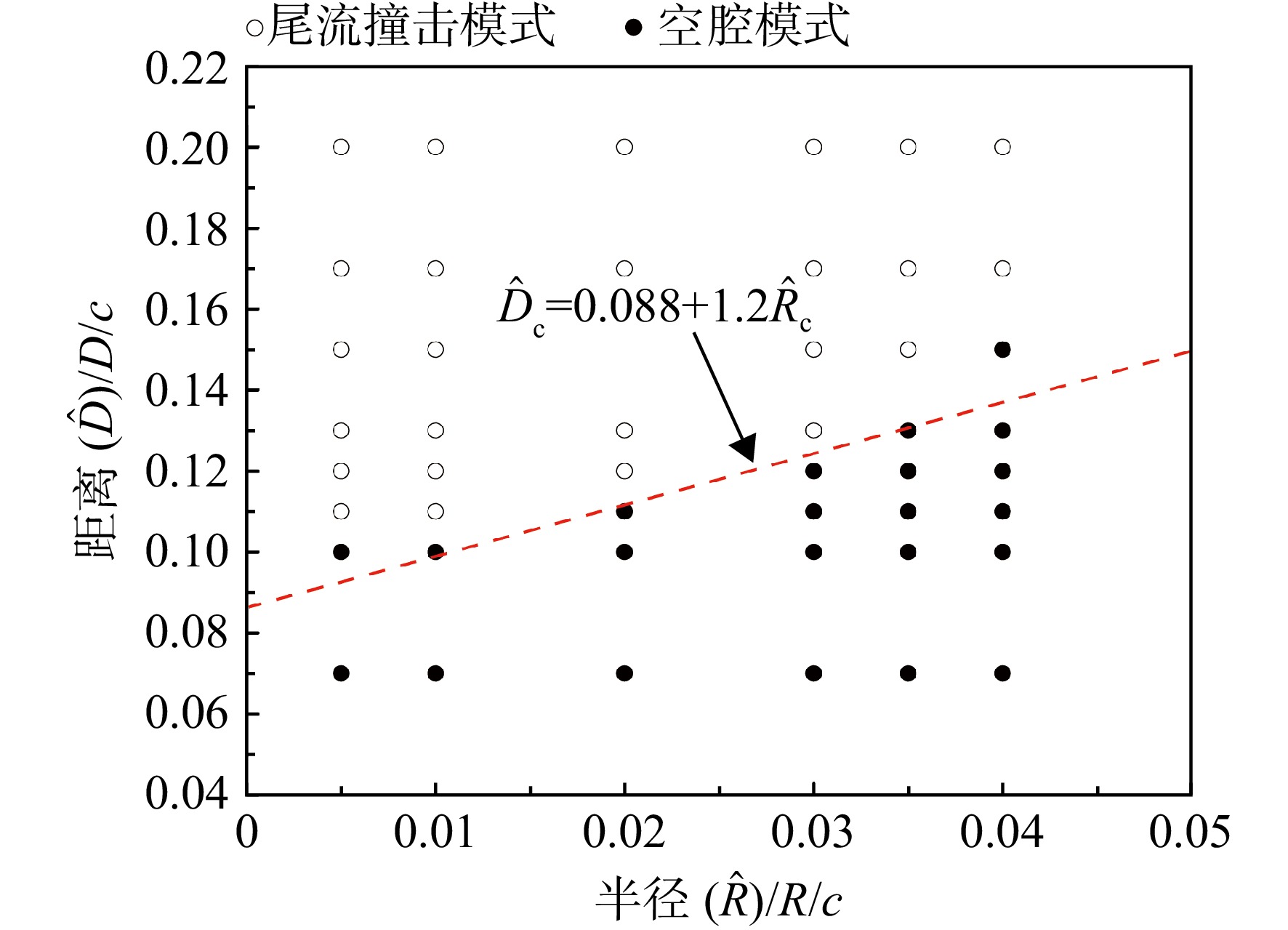

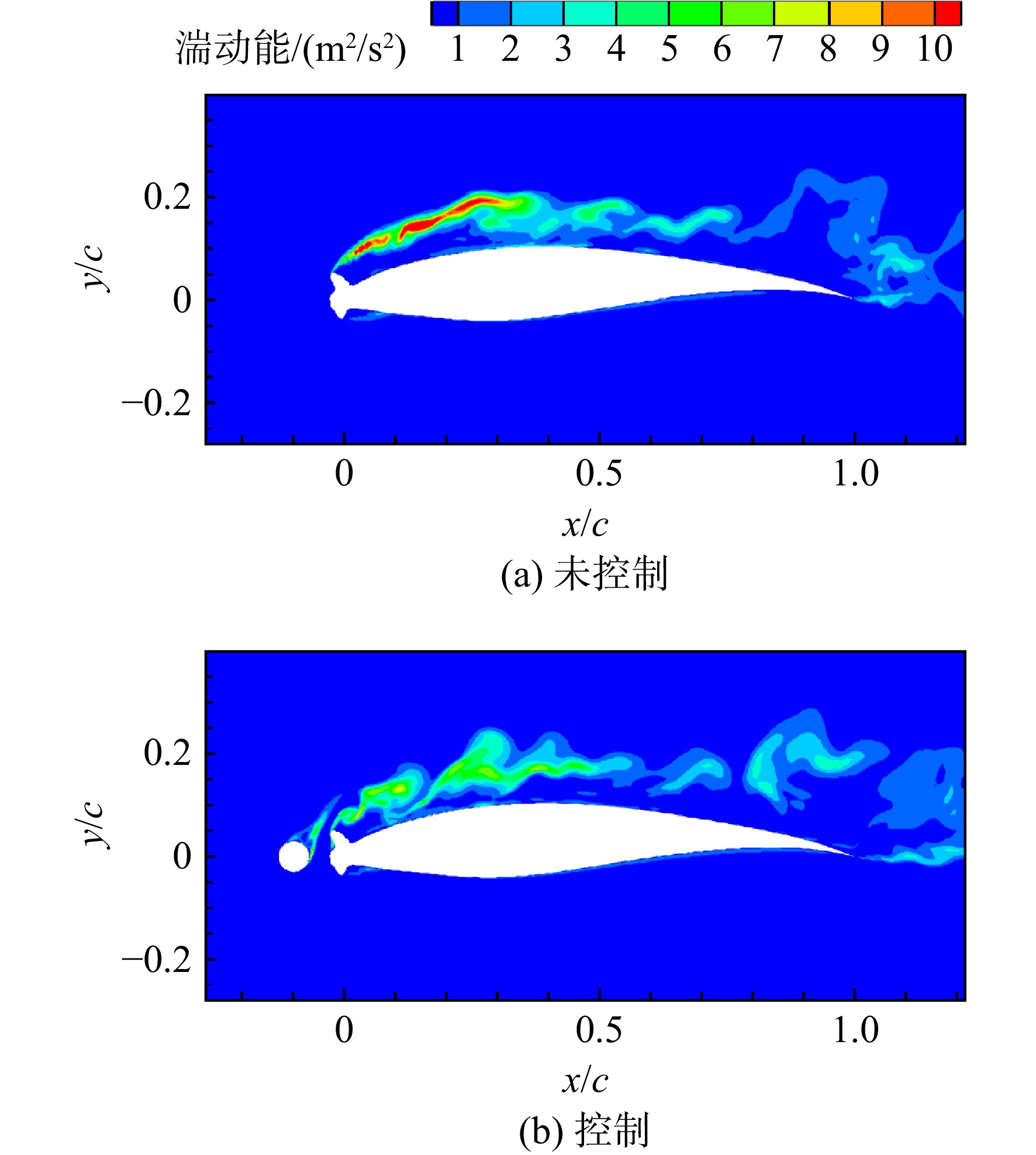

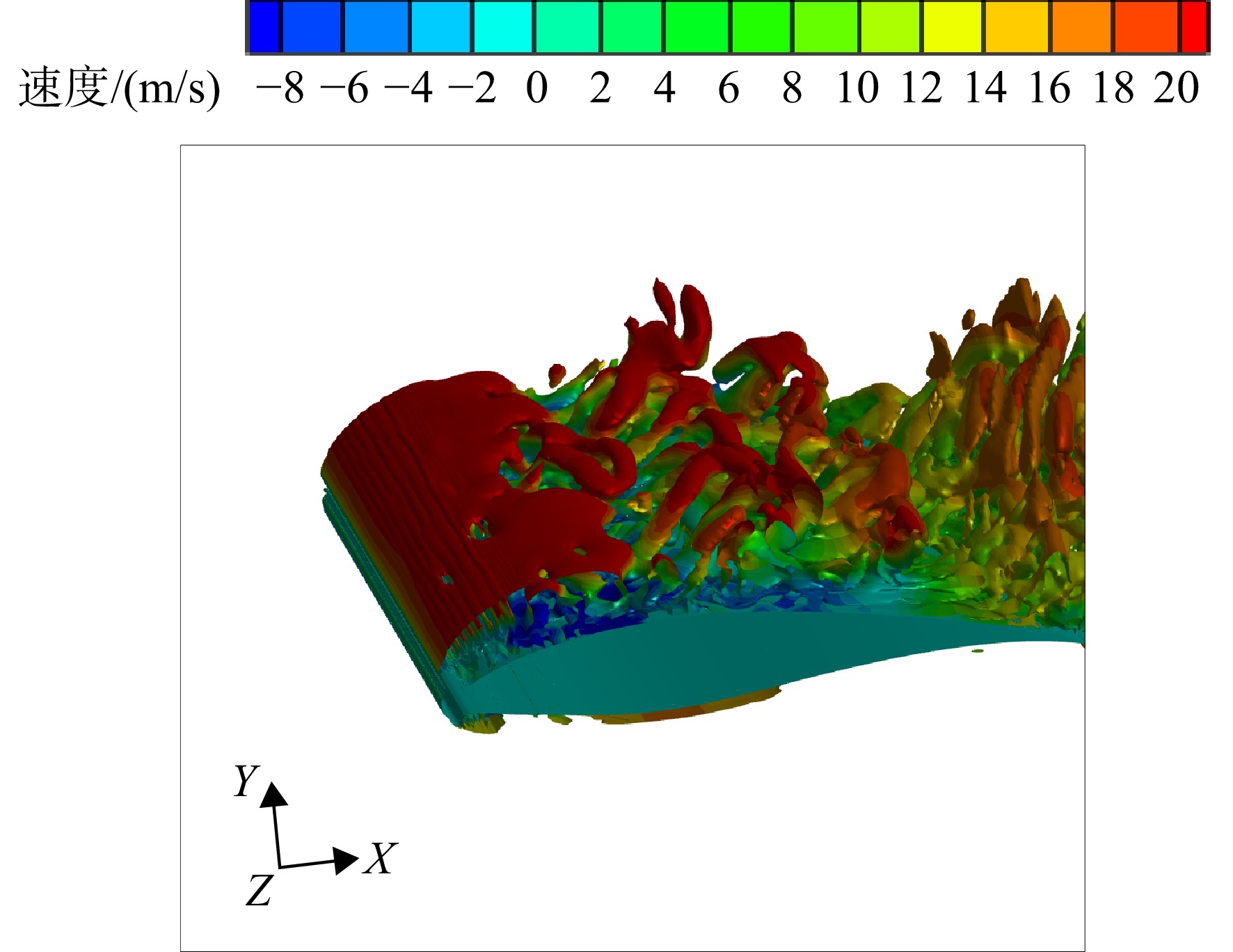

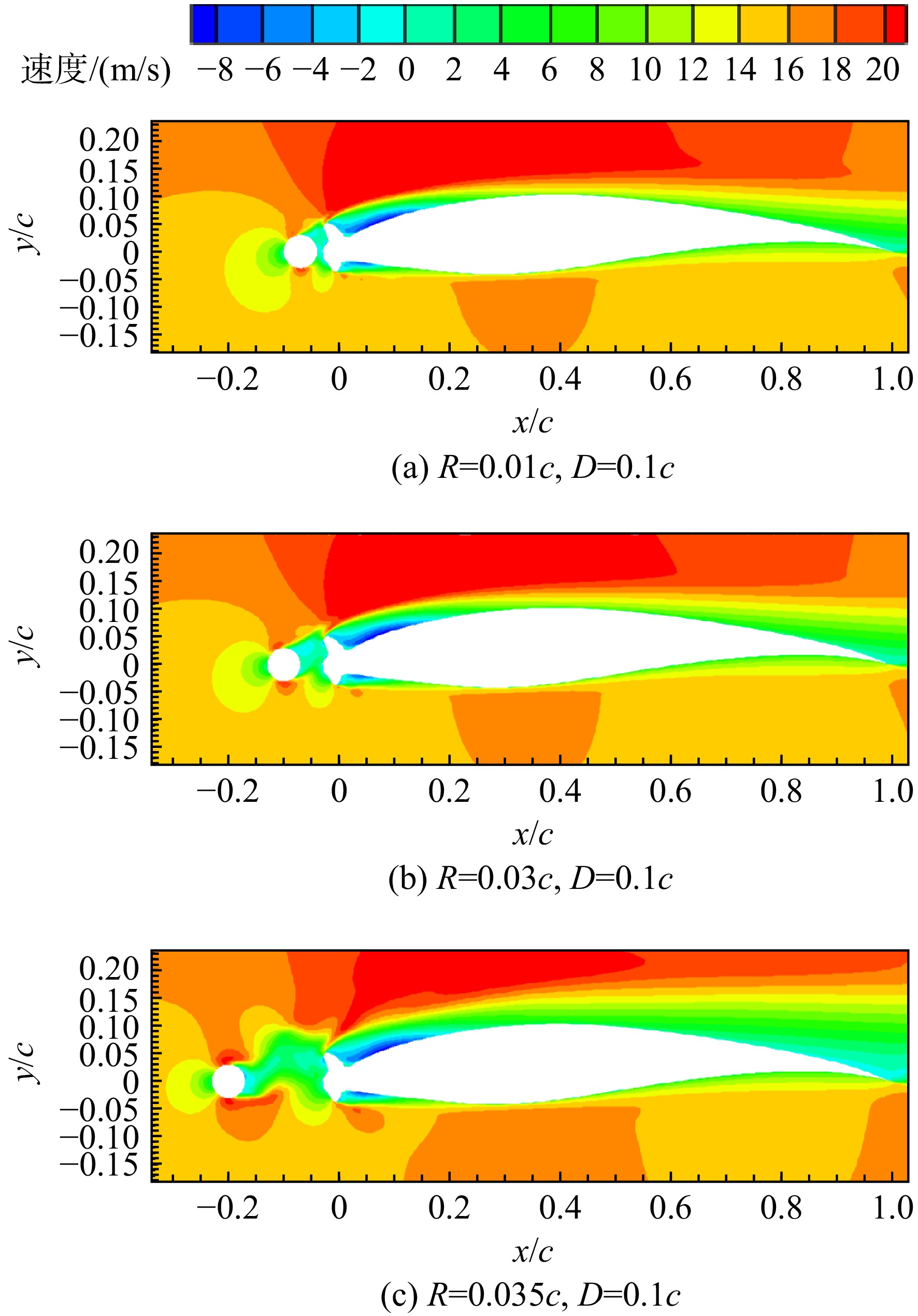

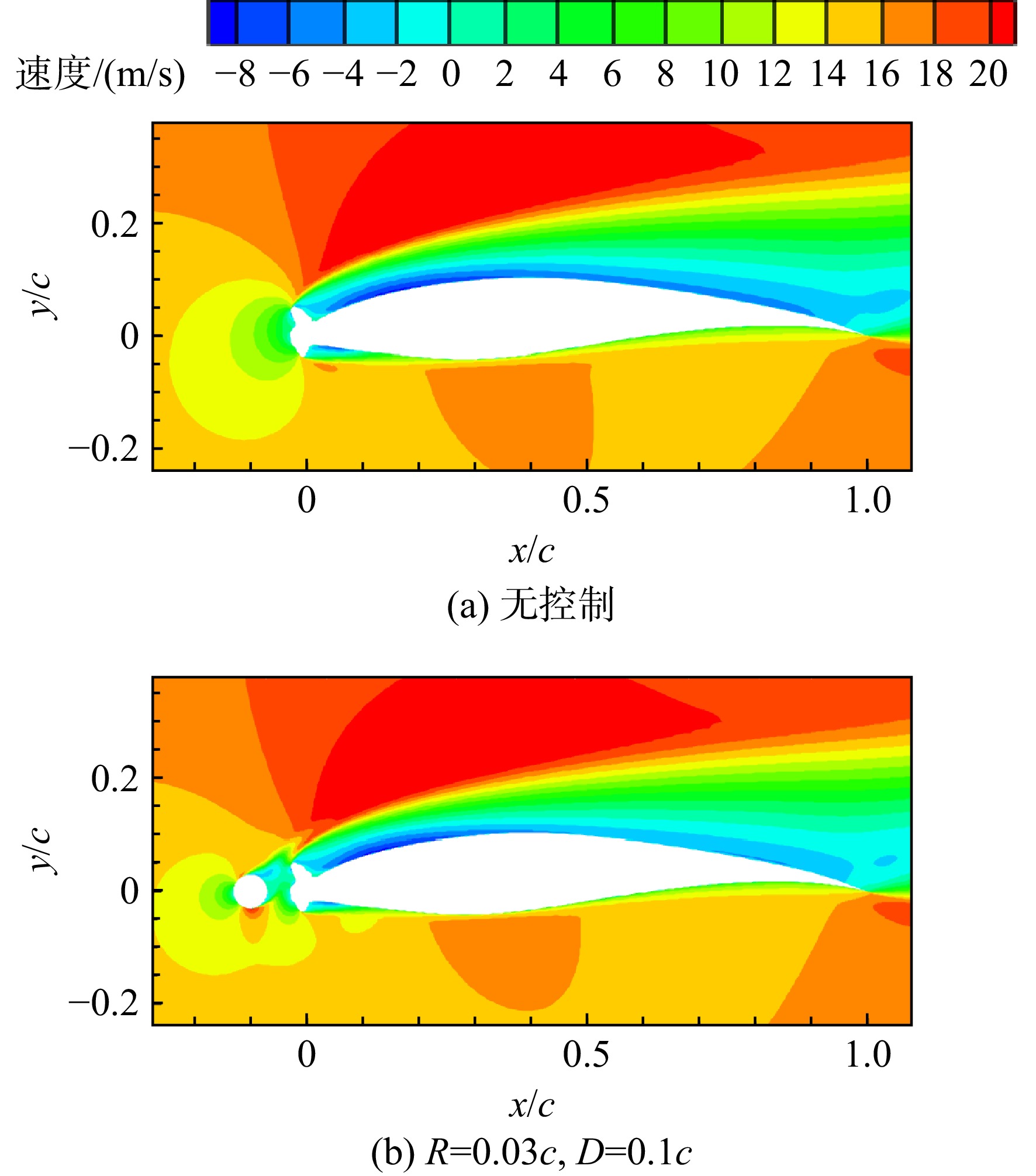

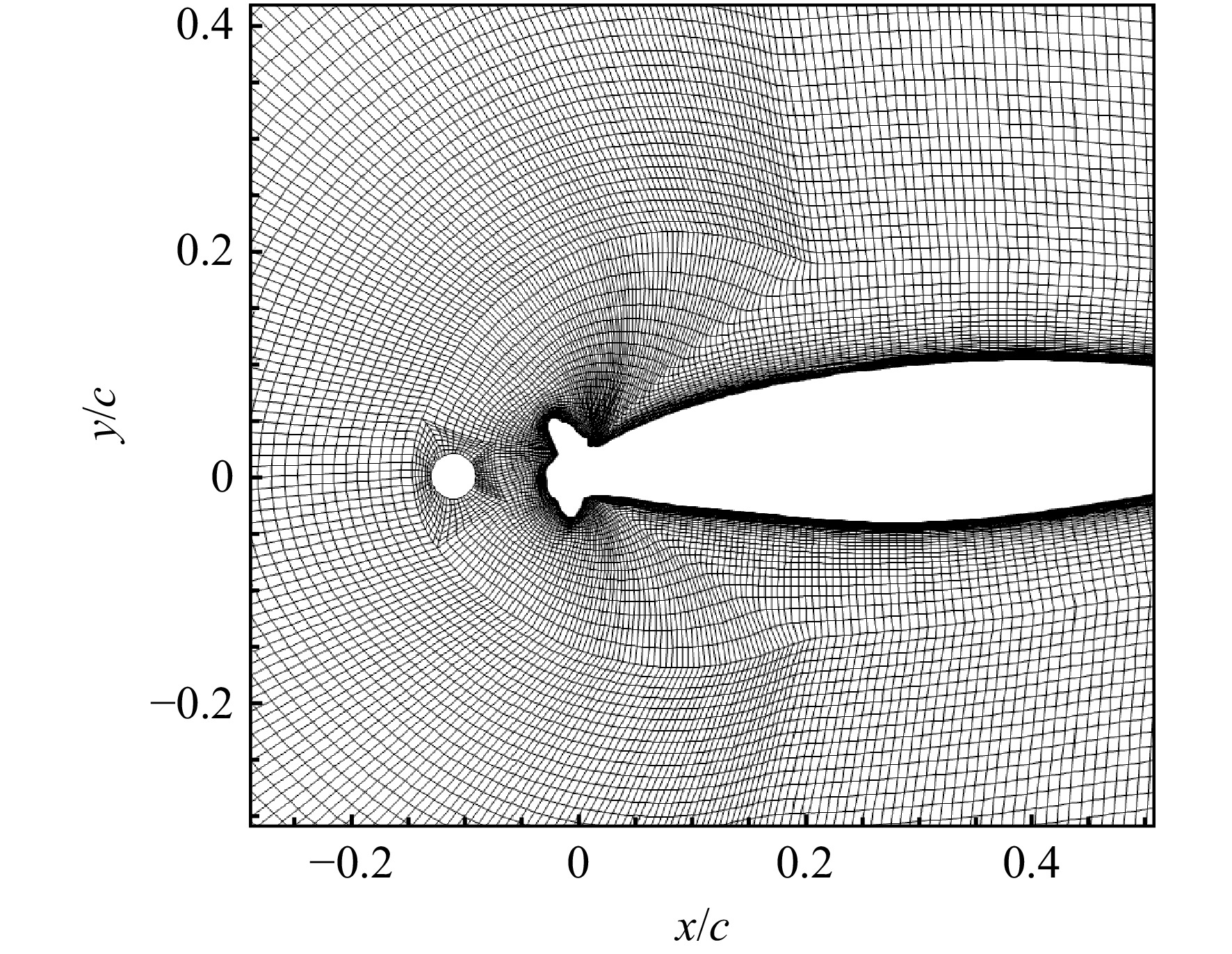

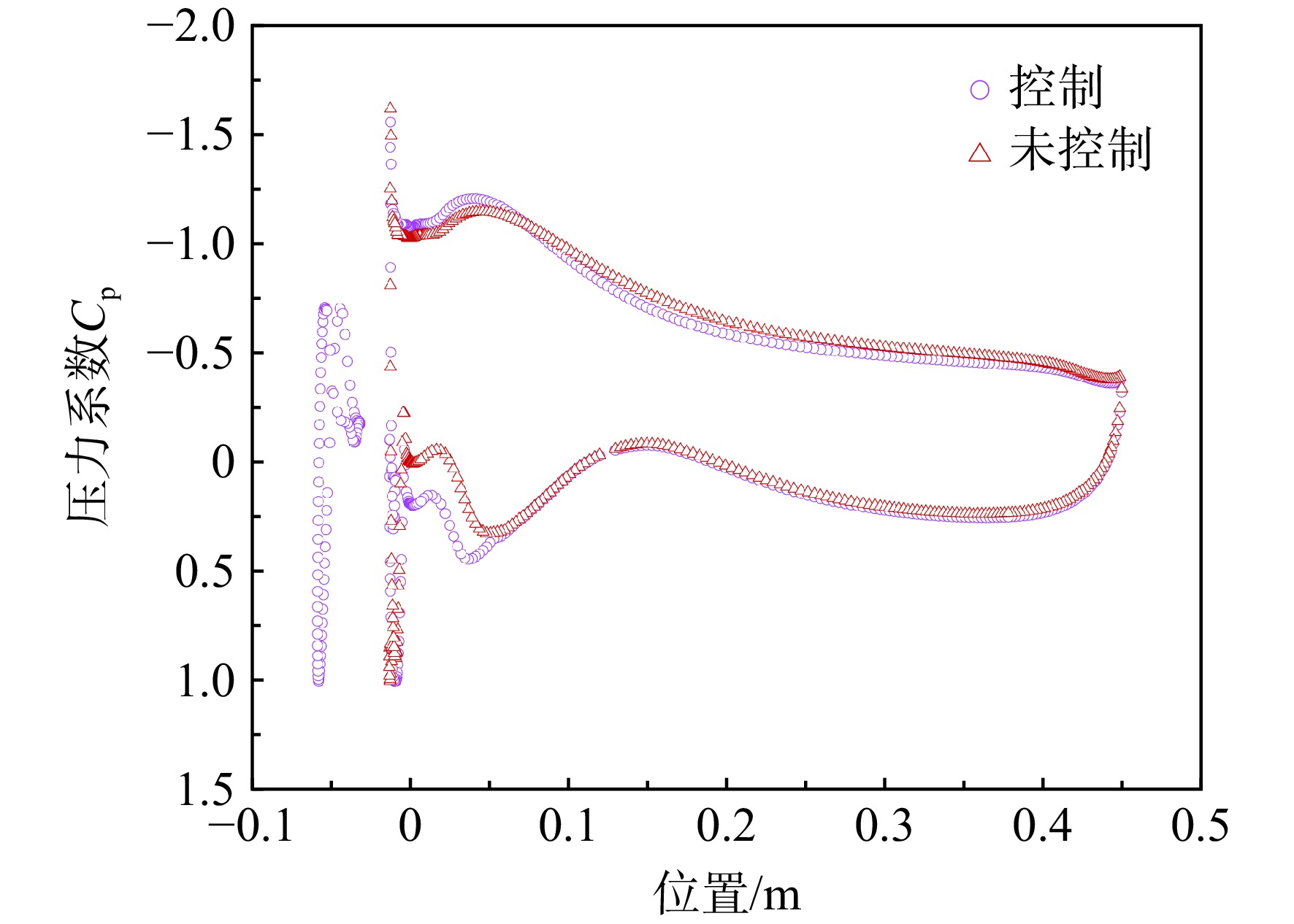

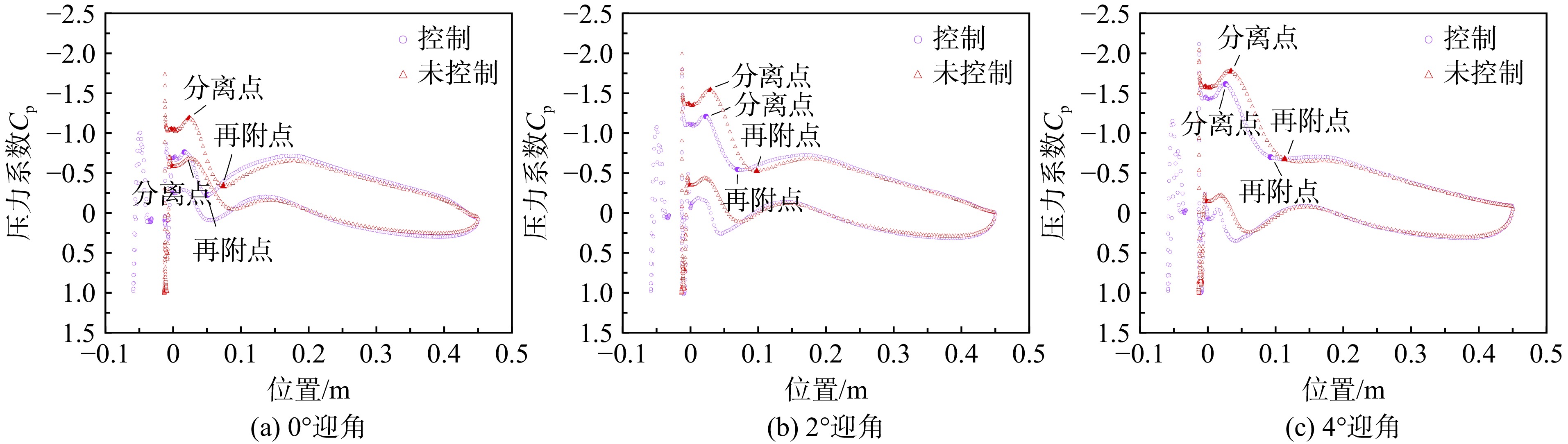

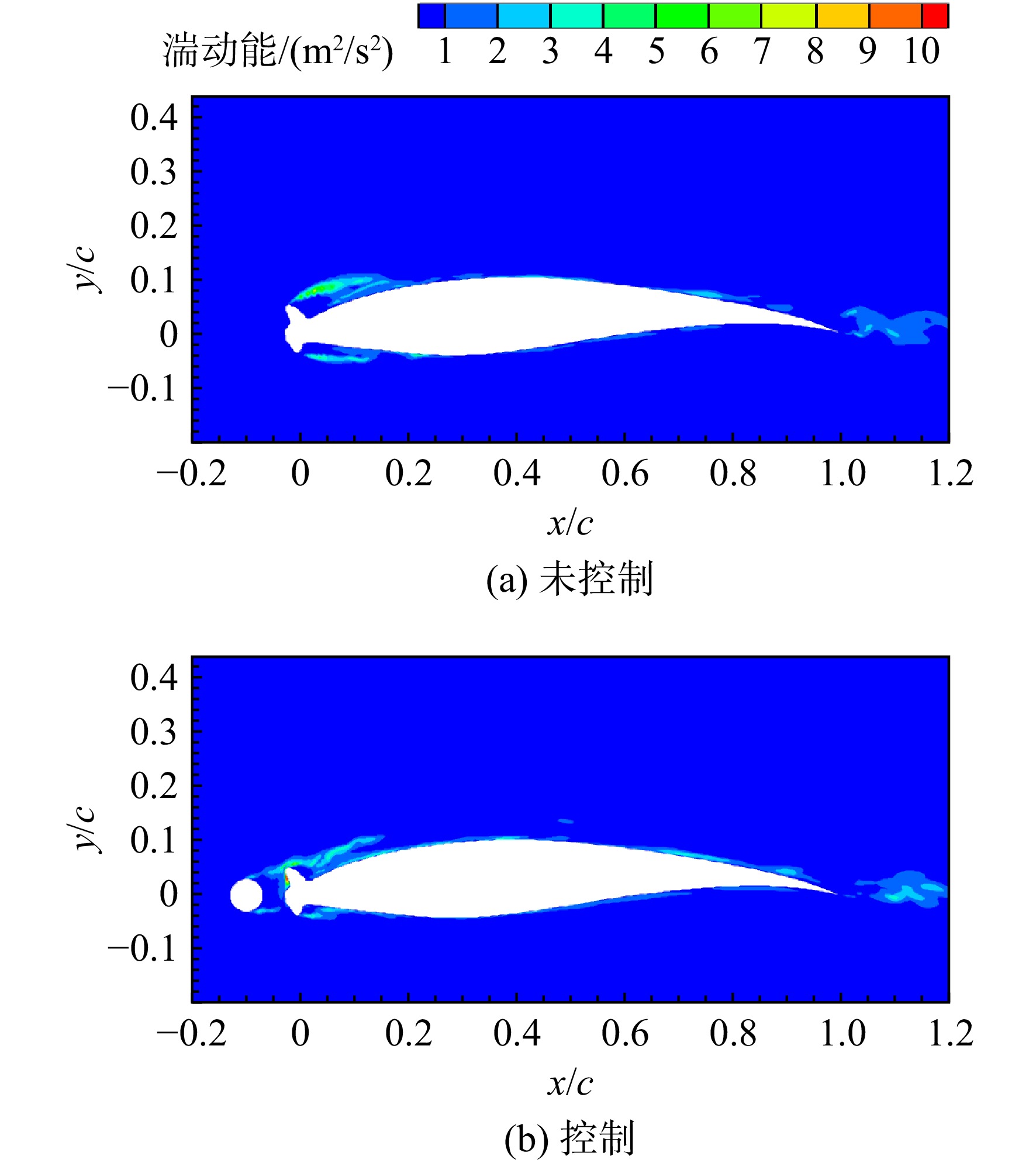

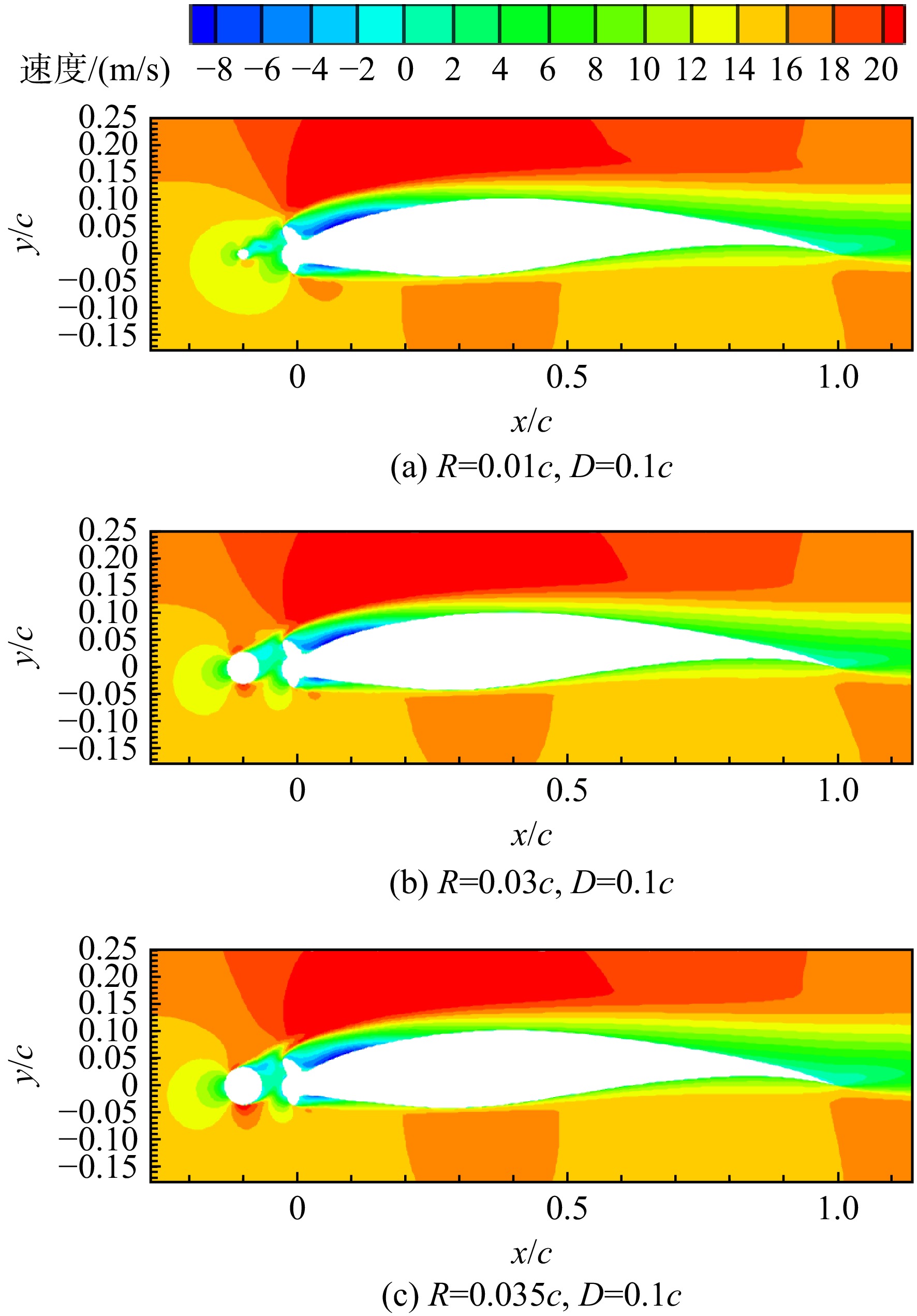

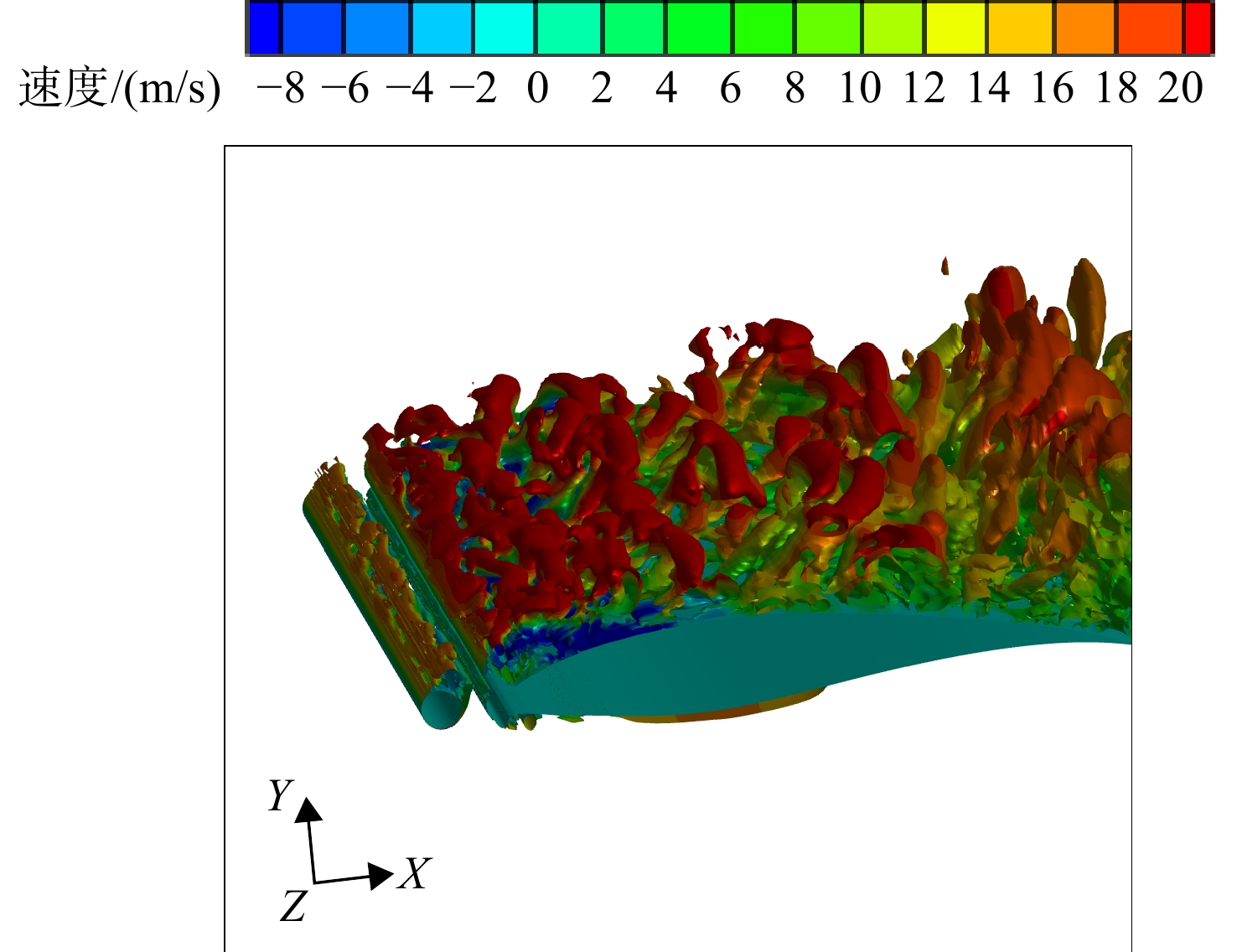

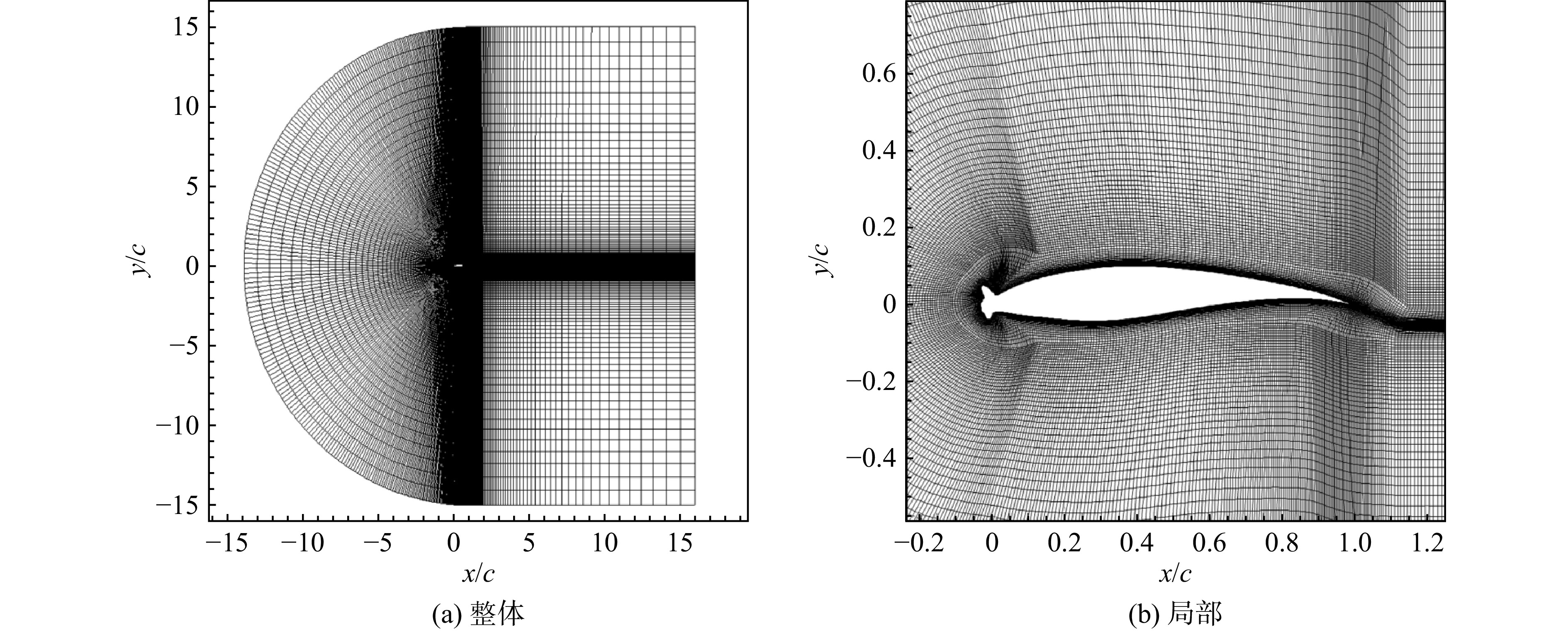

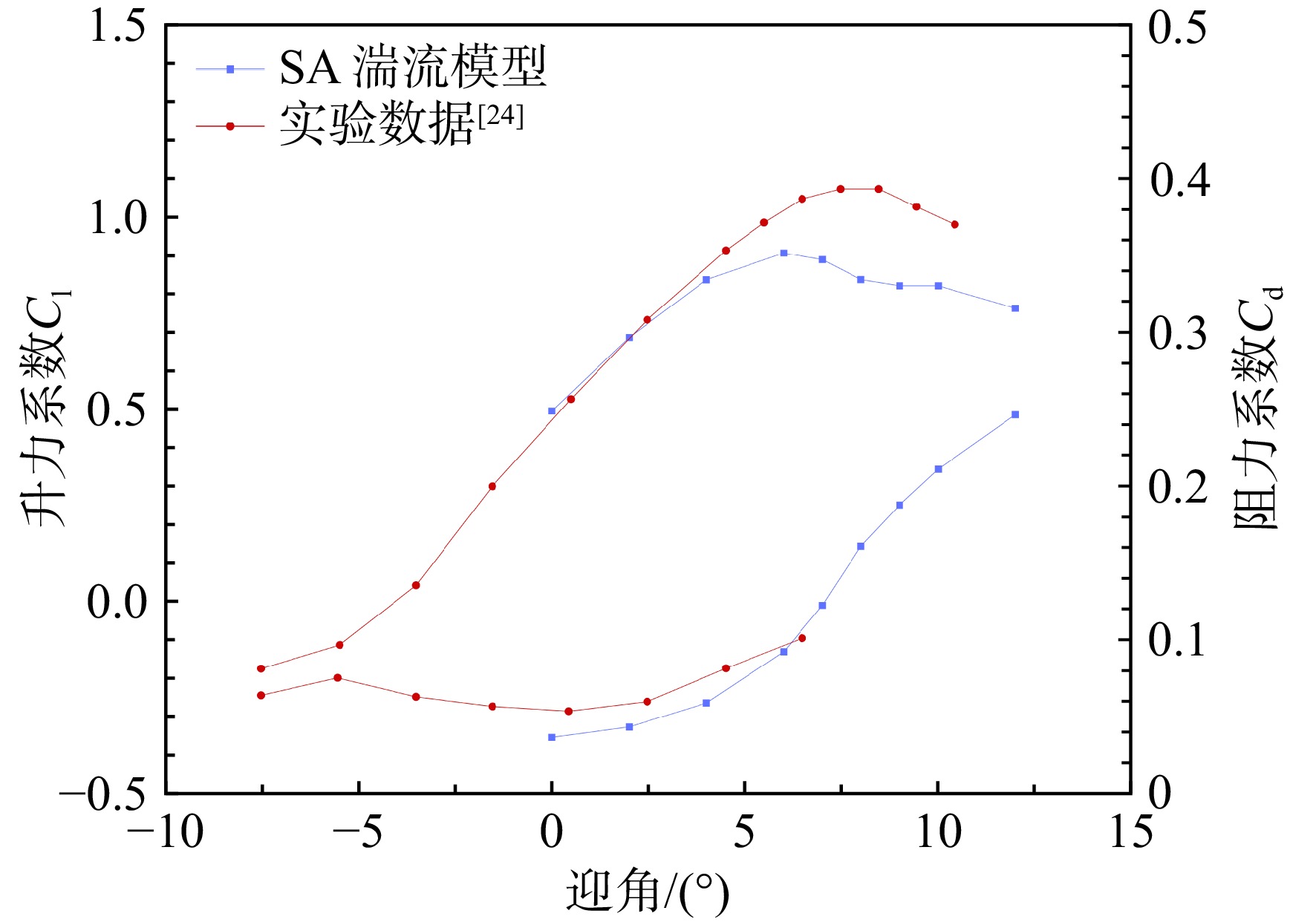

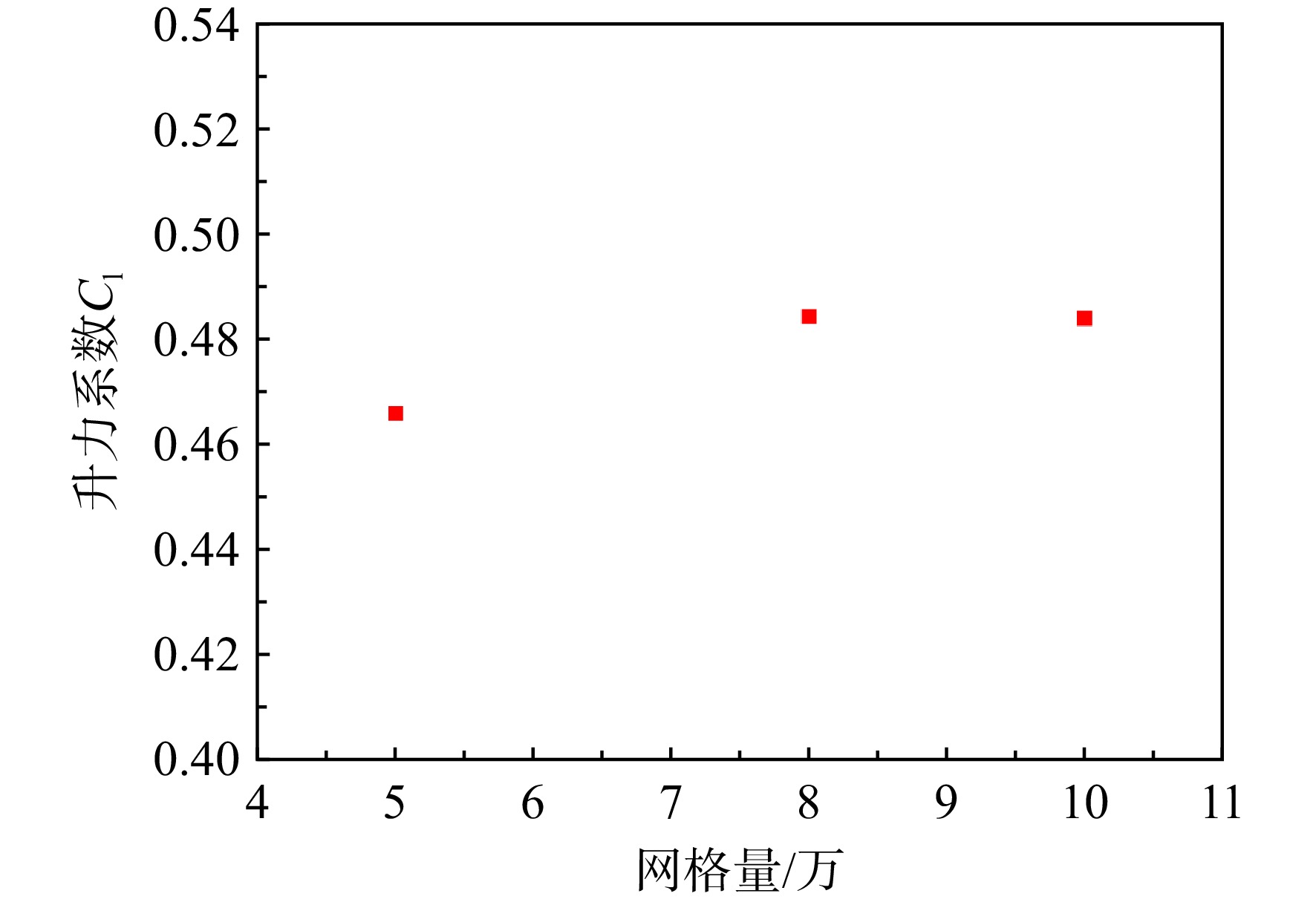

Due to the energy storage and weight requirements of drones, existing active and passive anti-icing technologies are difficult to be applied to them. Therefore, based on the concept of passive flow control around a cylinder, a method was proposed to effectively mitigate flow separation caused by ice accumulation. An analysis of the ice accumulation flow field before and after passive control of the off-surface cylinder was conducted using the SA (Spalart-Allmaras) and IDDES (improved delayed detached eddy simulation) methods, targeting the typical ice accumulation separation bubble state of the NREL S826 icing airfoil. The effectiveness of the passive control of the off-surface cylinder flow field was highly dependent on the cylinder radius and the distance between the cylinder and the airfoil. Through parametric analysis, the effects of radius and distance on control effectiveness were investigated to determine the optimal control parameters. During the parametric analysis, it was found that the control of the detached cylinder exhibited two distinct control states: cavity mode and wake impingement mode, and proximity functions for both modes were established. From the aerodynamic results under different operating conditions, it was observed that the installation of the detached cylinder control primarily resulted in the restoration of lift characteristics and a significant reduction in drag. The primary cause of this phenomenon was the influence of the wake region behind the off-surface cylinder on the free flow structure in front of the airfoil. Analysis of the flow field characteristics under the control of the off-surface cylinder revealed that the recirculation region behind the ice block decreased, the separation and reattachment process of the flow occurred earlier, and the geometric dimensions of the ice separation bubbles shrunk, causing the original large-scale separation vortices to evolve into more numerous smaller vortex structures.
| [1] |
Bragg M, Perkins W, Sarter N, et al. An interdisciplinary approach to inflight aircraft icing safety[R]. AIAA-1998-0095, 1998.
|
| [2] |
Zhang Heng, Li Jie, Zhao Binbin. Improvement mechanism of ice-tolerance capacity for iced airfoil with variable camber of drooping leading edge[J]. Acta Aeronautica et Astronautica Sinica, 2023, 44(1): 627114.
|
| [3] |
Weick F E, Shortal J A. The effect of multiple fixed slots and a trailing-edge flap on the lift and drag of a Clark Y airfoil[R]. Washington DC: National Advisory Committee for Aeronautics, 1933.
|
| [4] |
Larabi A, Pereira M, Ravelet F, et al. Numerical study on the effect of an off-surface micro-rod vortex generator placed upstream NACA0012 aerofoil[J]. E3S Web of Conferences, 2021, 321: 01011. doi: 10.1051/e3sconf/202132101011
|
| [5] |
Larabi A, Pereira M, Ravelet F, et al. Experimental and numerical study on aerodynamics of aerofoils at low Reynolds number controlled by off-surface micro-vortex generators[R]. Nantes, France: 25th Congrès Français de Mécanique, 2022.
|
| [6] |
Lin J C. Review of research on low-profile vortex generators to control boundary-layer separation[J]. Progress in Aerospace Sciences, 2002, 38(4/5): 389-420. doi: 10.1016/s0376-0421(02)00010-6
|
| [7] |
Veldhuis L, Van der Steen M. Flow separation control by off surface elements[R]. AIAA-2010-4684, 2010.
|
| [8] |
Taneda S. Experimental investigation of vortex streets[J]. Journal of the Physical Society of Japan, 1965, 20(9): 1714-1721. doi: 10.1143/jpsj.20.1714
|
| [9] |
Luo Dahai, Huang Diangui, Sun Xiaojing. Passive flow control of a stalled airfoil using a microcylinder[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2017, 170: 256-273. doi: 10.1016/j.jweia.2017.08.020
|
| [10] |
Luo Dahai, Lu Bingxiao, Geng Haichao, et al. Dynamic stall control of an offshore wind turbine airfoil using a leading-edge microcylinder[J]. Ocean Engineering, 2024, 313: 119695. doi: 10.1016/j.oceaneng.2024.119695
|
| [11] |
Lee S J, Lee S I, Park C W. Reducing the drag on a circular cylinder by upstream installation of a small control rod[J]. Fluid Dynamics Research, 2004, 34(4): 233-250. doi: 10.1016/j.fluiddyn.2004.01.001
|
| [12] |
Price S J, Sumner D, Smith J G, et al. Flow visualization around a circular cylinder near to a plane wall[J]. Journal of Fluids and Structures, 2002, 16(2): 175-191. doi: 10.1006/jfls.2001.0413
|
| [13] |
曹君尧. 基于辅助圆柱的圆柱绕流场被动控制研究[D]. 哈尔滨: 哈尔滨工业大学, 2022. Cao Junyao. Research on passive control of flow field around cylinder based on auxiliary cyclinder[D]. Harbin: Harbin Institute of Technology, 2022. (in Chinese
Cao Junyao. Research on passive control of flow field around cylinder based on auxiliary cyclinder[D]. Harbin: Harbin Institute of Technology, 2022. (in Chinese)
|
| [14] |
王志忠. 圆柱绕流被动控制数值研究[D]. 湘潭: 湘潭大学, 2020. Wang Zhizhong. Numerical study on passive control of flow past circular cylinder[D]. Xiangtan: Xiangtan University, 2020. (in Chinese
Wang Zhizhong. Numerical study on passive control of flow past circular cylinder[D]. Xiangtan: Xiangtan University, 2020. (in Chinese)
|
| [15] |
Bragg M B, Khodadoust A, Spring S A. Measurements in a leading-edge separation bubble due to a simulated airfoil ice accretion[J]. AIAA Journal, 1992, 30(6): 1462-1467. doi: 10.2514/3.11087
|
| [16] |
Two- and three-dimensional iced airfoil separation bubble measurements by particle image velocimetry[R]. AIAA-2007-88, 2007.
|
| [17] |
Zhang Heng, Li Jie, Jiang Youxu, et al. Analysis of the expanding process of turbulent separation bubble on an iced airfoil under stall conditions[J]. Aerospace Science and Technology, 2021, 114: 106755. doi: 10.1016/j.ast.2021.106755
|
| [18] |
Spalart P R, Jou W H, Strelets M, et al. Comments on the feasibility of LES for wings and on the hybrid RANS/LES approach[C]//Advances in DNS/LES: Proceedings of the First AFOSR International Conference on DNS/LES. Ruston: Greyden Press, 1997: 137-147.
|
| [19] |
Spalart P R, Deck S, Shur M L, et al. A new version of detached-eddy simulation, resistant to ambiguous grid densities[J]. Theoretical and Computational Fluid Dynamics, 2006, 20(3): 181-195. doi: 10.1007/s00162-006-0015-0
|
| [20] |
Spalart P R. Detached-eddy simulation[J]. Annual Review of Fluid Mechanics, 2009, 41: 181-202. doi: 10.1146/annurev.fluid.010908.165130
|
| [21] |
Shur M L, Spalart P R, Strelets M K, et al. A hybrid RANS-LES approach with delayed-DES and wall-modelled LES capabilities[J]. International Journal of Heat and Fluid Flow, 2008, 29(6): 1638-1649. doi: 10.1016/j.ijheatfluidflow.2008.07.001
|
| [22] |
Gritskevich M S, Garbaruk A V, Schütze J, et al. Development of DDES and IDDES formulations for the k-ω shear stress transport model[J]. Flow, Turbulence and Combustion, 2012, 88(3): 431-449. doi: 10.1007/s10494-011-9378-4
|
| [23] |
Hann R, Hearst R J, Sætran L R, et al. Experimental and numerical icing penalties of an S826 airfoil at low Reynolds numbers[J]. Aerospace, 2020, 7(4): 46. doi: 10.3390/aerospace7040046
|
| [24] |
Oo N L, Richards P J, Sharma R N. Ice-induced separation bubble on RG-15 airfoil at low Reynolds number[J]. AIAA Journal, 2020, 58(12): 5156-5167. doi: 10.2514/1.J059257
|
