S型泡沫金属管翅式换热器的设计与实验研究

赵红柳; 孙明瑞; 姜楠; 刘卫国; 闫广涵; 宋永臣; 赵佳飞

doi:10.13224/j.cnki.jasp.20210219

S型泡沫金属管翅式换热器的设计与实验研究

doi: 10.13224/j.cnki.jasp.20210219

1.
大连理工大学能源与动力学院，辽宁大连 116024
2.
中国航发沈阳发动机研究所，沈阳 110015

基金项目: 国家自然科学基金（51622603，51806028，51806027，U19B2005）；国家科技重大专项（2017-Ⅲ-0005-0029）；2020年度南京航空航天大学重点实验室开发课题（CEPE2020016）

详细信息

作者简介:
赵红柳（1997-），女，硕士生，主要从事航空发动机换热器研究

通讯作者:
赵佳飞（1980-），男，教授、博士生导师，博士，从事多孔介质强化换热基础理论与应用技术研究。E-mail: jfzhao@dlut.edu.cn

中图分类号: V231.1
计量
- 文章访问数: 261
- HTML浏览量: 59
- PDF量: 89
- 被引次数: 0
出版历程
- 收稿日期: 2021-05-08
- 网络出版日期: 2023-02-28

Design and experimental study of S-type foam metal tube-fin heat exchanger

1.
School of Energy and Power Engineering， Dalian University of Technology，Dalian Liaoning 116024，China
2.
Shenyang Engine Research Institute， Aero Engine Corporation of China，Shenyang 110015，China

摘要

摘要:
为解决航空发动机部件热防护以及热管理问题，针对CCA（cooled cooling air）技术，采用高孔隙率泡沫金属替代传统管翅式换热器金属翅片，设计一种轻质、高效、紧凑的小尺寸S型泡沫金属管翅式换热器。换热器芯体为3D打印的钛合金制作，重129 g，由S型管束以及泡沫金属翅片组成，翅片安装在管束直管段处。流动传热实验模拟航空发动机机匣外部的空-油换热器，冷侧为水，热侧为高温空气，测定两侧流体的流量、进出口温度及压力。结果表明：泡沫金属作为换热器的翅片，传热系数增大43.94%、换热量提升21.7%、综合换热性能增加25.43%，功重比平均提升17.26%，可达14.61 kW/kg。这说明泡沫金属能够提升换热器的整体性能，可用于未来航空发动机相似结构换热器的设计。
- 航空发动机热管理 /
- 管翅式换热器 /
- 泡沫金属 /
- 流动传热 /
- 换热性能
Abstract:
In order to solve the problem of thermal protection and thermal management of aero-engine components, for CCA (cooled cooling air) technology, high-porosity foam metal was used to replace the metal fins of traditional tube-fin heat exchangers, and a lightweight, efficient, and small size S-type foam metal tube-fin heat exchanger was designed. The heat exchanger core made of 3D printed titanium alloy, with weight of 129 g, was composed of S-shaped tube bundles and foamed metal fins. The fins were installed at the straight pipe section of the tube bundle. The flow heat transfer experiment simulated the air-oil heat exchanger outside the casing of an aero engine, with water on the cold side and high temperature air on the hot side. The flow rate, inlet and outlet temperature and pressure of the fluid on both sides were measured. The results showed that: for the fin of the heat exchanger, the heat transfer coefficient increased by 43.94%, the heat transfer increased by 21.7%, the comprehensive heat transfer performance increased by 25.43%, and the power-to-weight ratio increased by 17.26% on average, reaching 14.61 kW/kg. This showed that the metal foam can improve the overall performance of the heat exchanger and can be used in the design of heat exchangers with similar structures for future aero-engines.
- aero-engine thermal management /
- tube-fin heat exchanger /
- foam metal /
- flow heat transfer /
- heat transfer performance

HTML

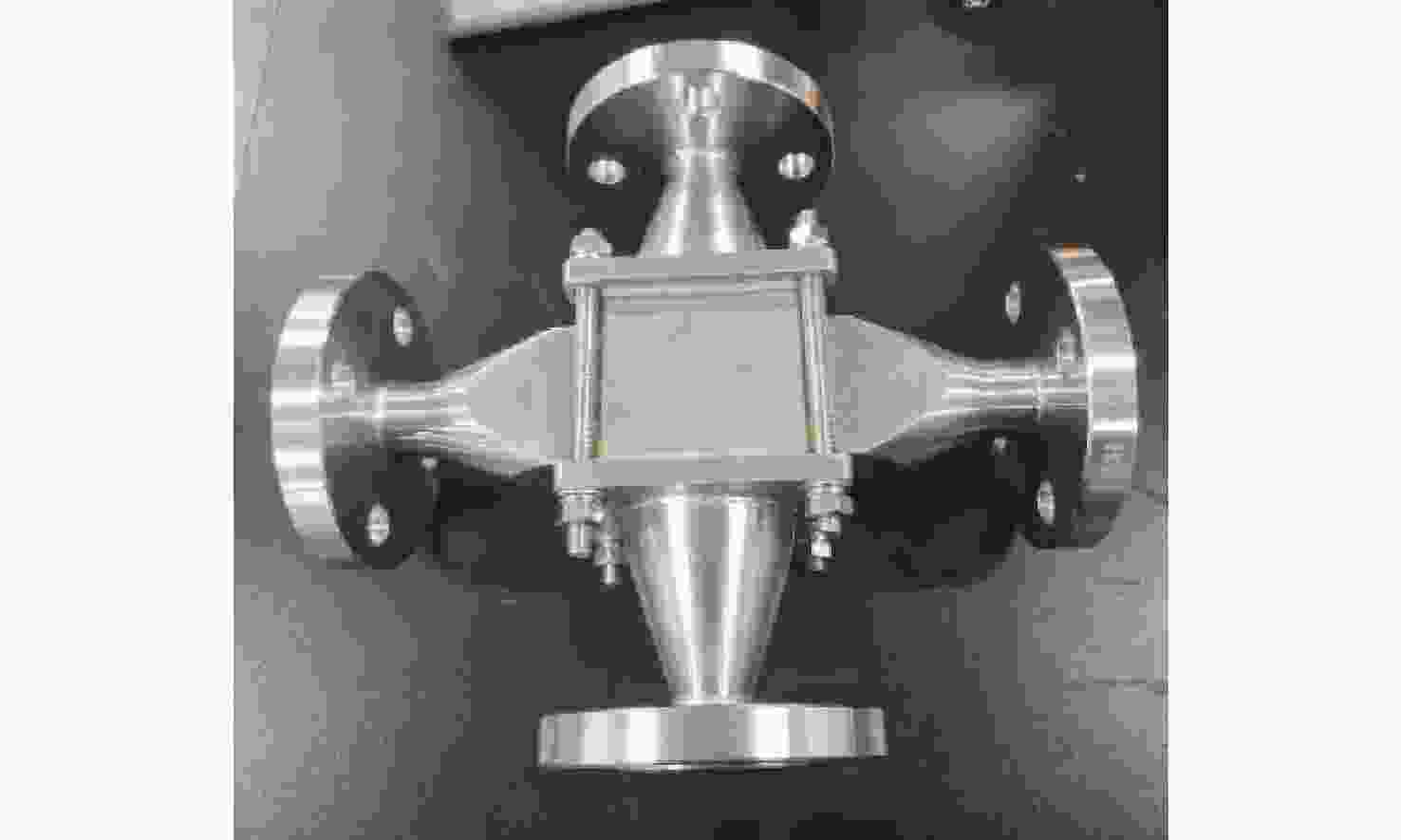

图 1 封装后的换热器

Figure 1. Packaged heat exchanger

下载: 全尺寸图片幻灯片

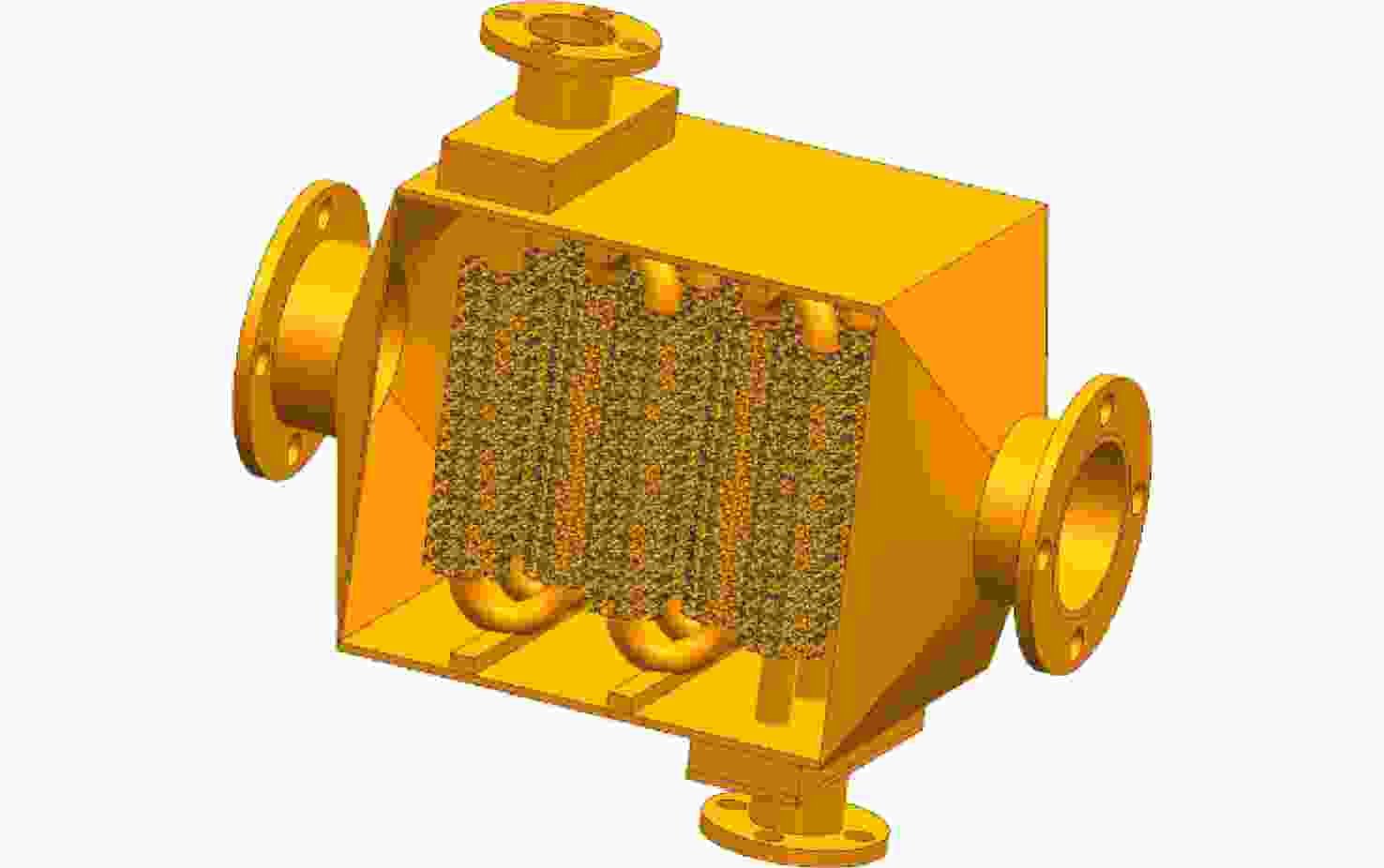

图 2 S型泡沫金属管壳式换热器结构

Figure 2. S-type foam metal shell and tube heat exchanger structure

下载: 全尺寸图片幻灯片

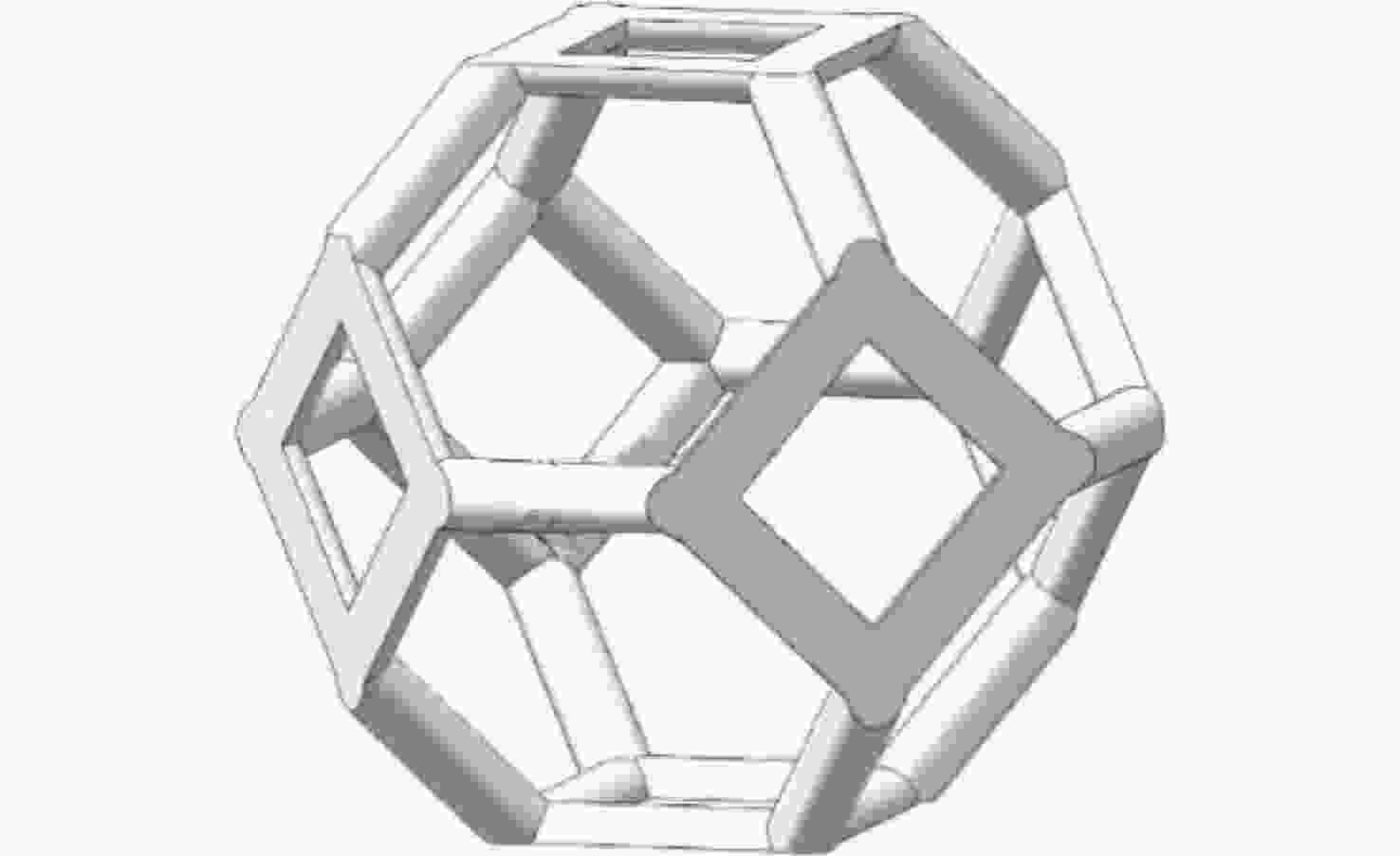

图 3 开尔文胞体多孔介质结构^{[10, 12]}

Figure 3. The Kelvin cell porous media structure^{[10, 12]}

下载: 全尺寸图片幻灯片

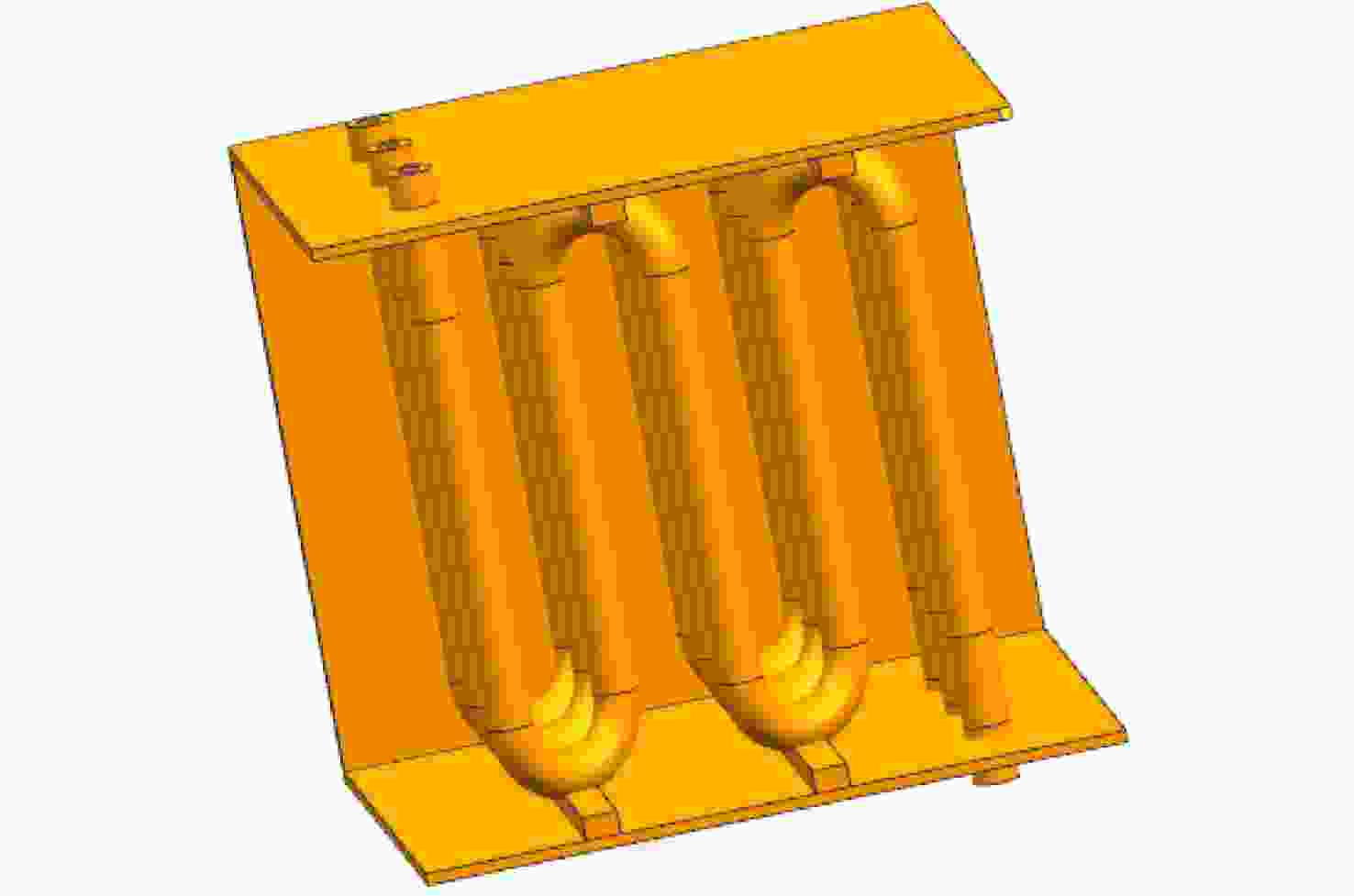

图 4 S型管束管壳式换热器结构

Figure 4. S-type shell and tube heat exchanger structure

下载: 全尺寸图片幻灯片

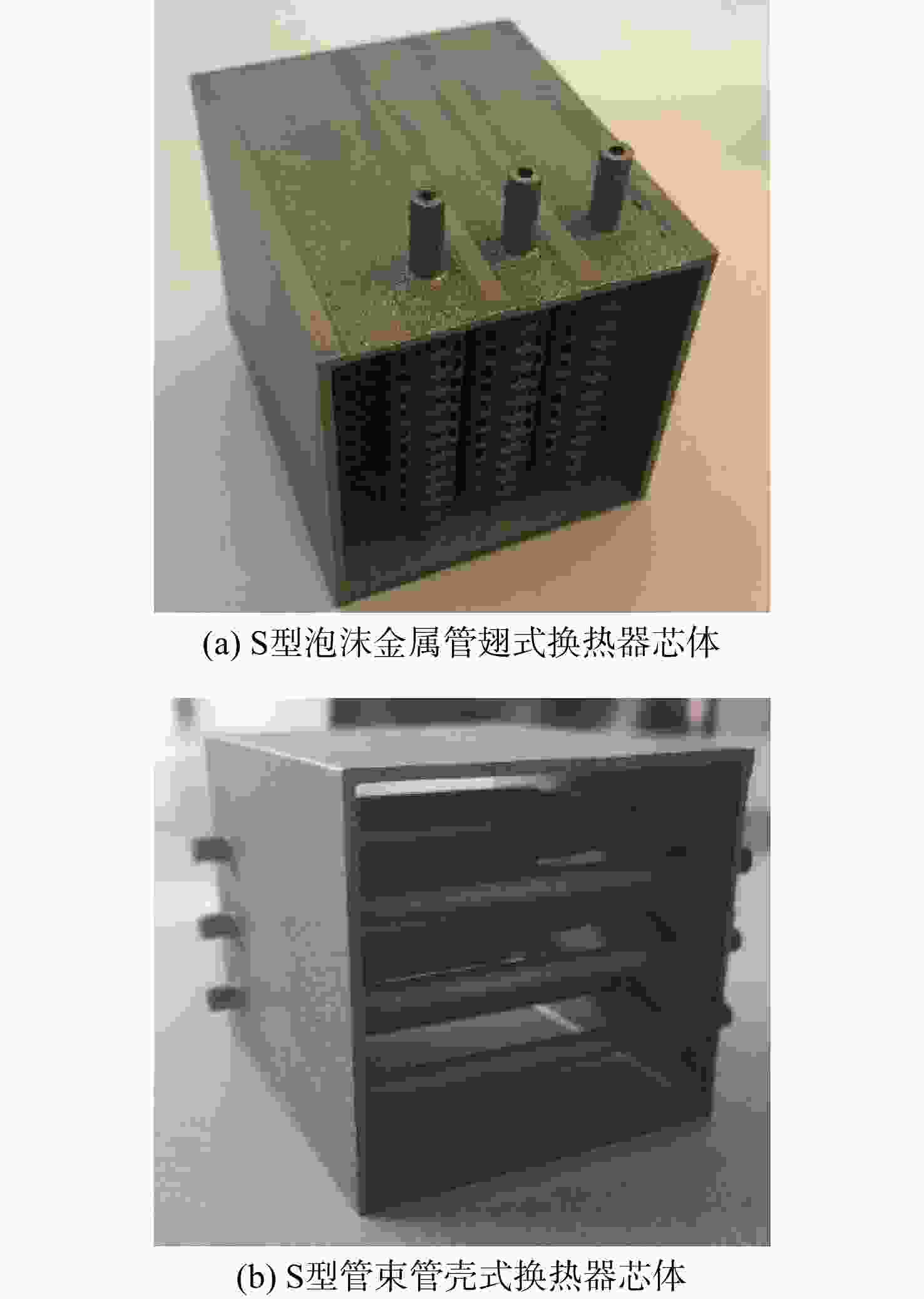

图 5 两种管壳式换热器芯体

Figure 5. Two shell and tube heat exchanger cores

下载: 全尺寸图片幻灯片

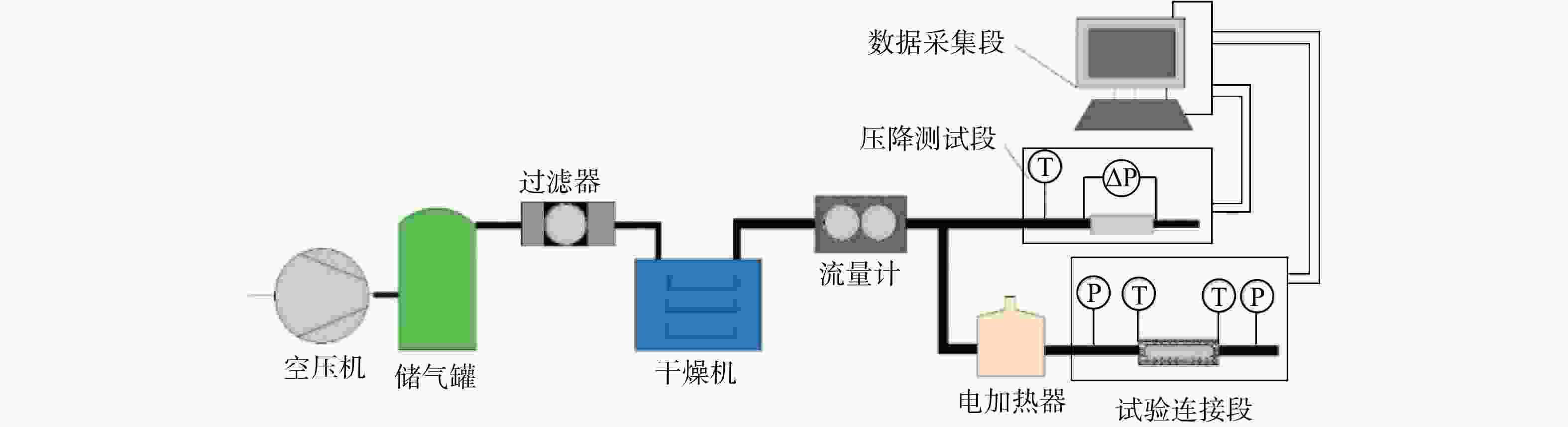

图 6 空气路实验装置

Figure 6. Air circuit experimental device

下载: 全尺寸图片幻灯片

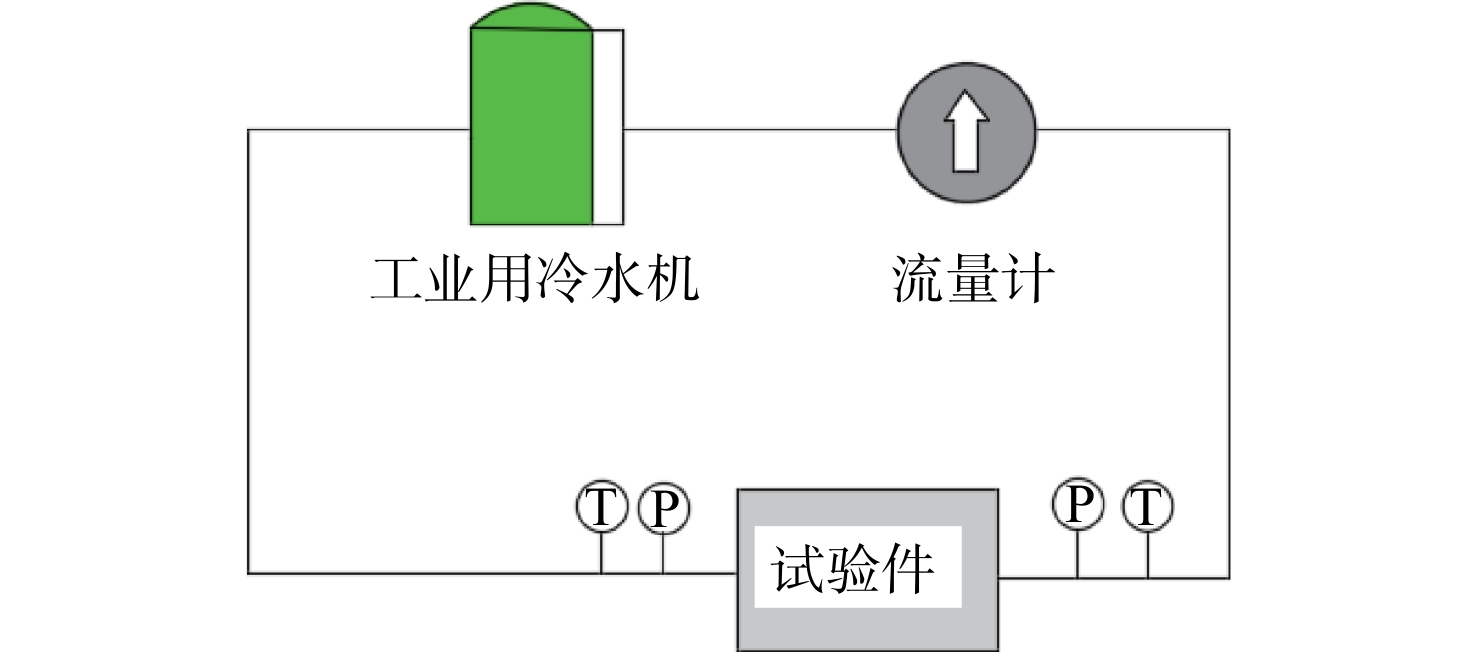

图 7 简易水路系统装置

Figure 7. Simple waterway system device

下载: 全尺寸图片幻灯片

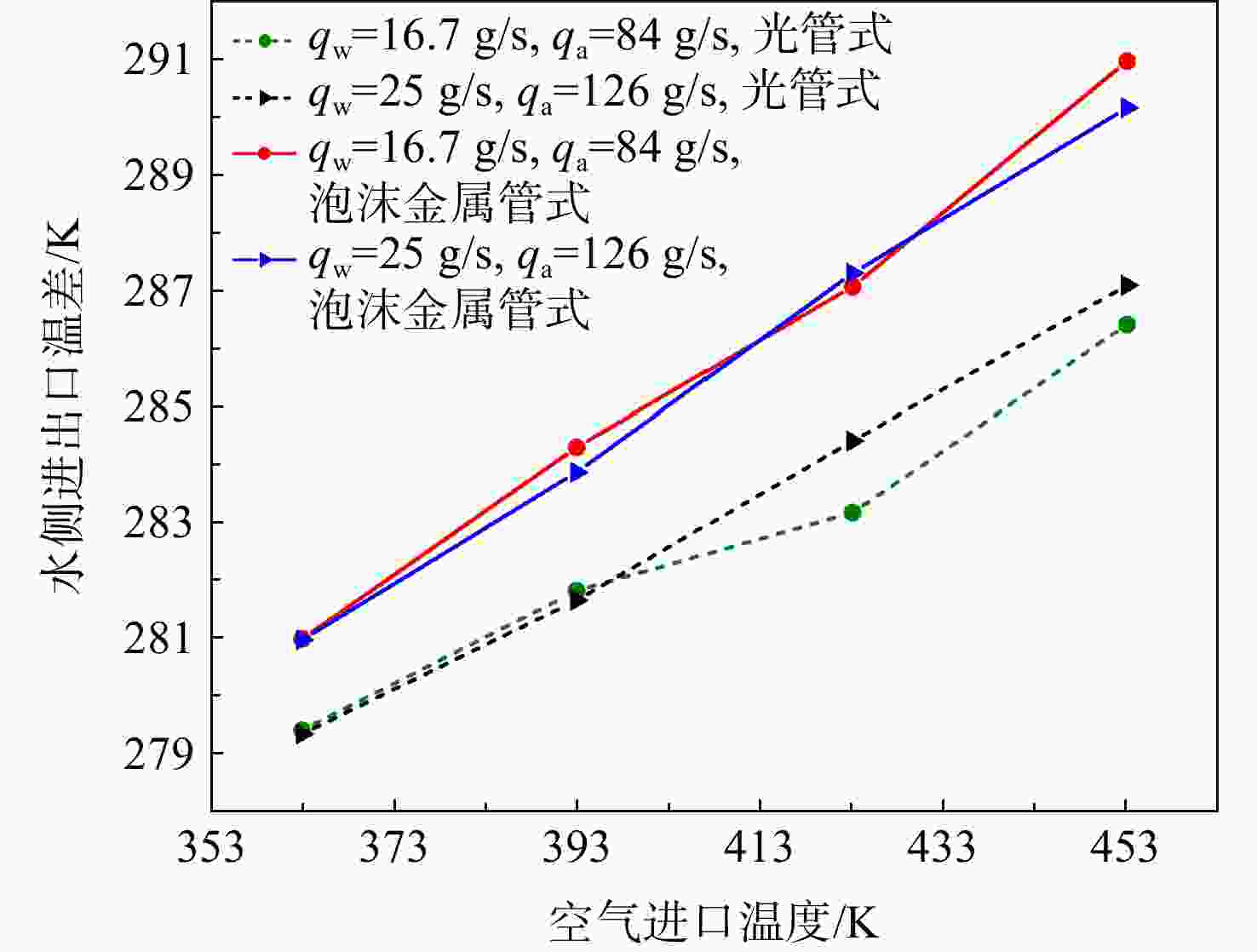

图 8 水侧进出口温差随空气进口温度的变化

Figure 8. Temperature difference between the inlet and outlet of the water side changes with the temperature of the air inlet

下载: 全尺寸图片幻灯片

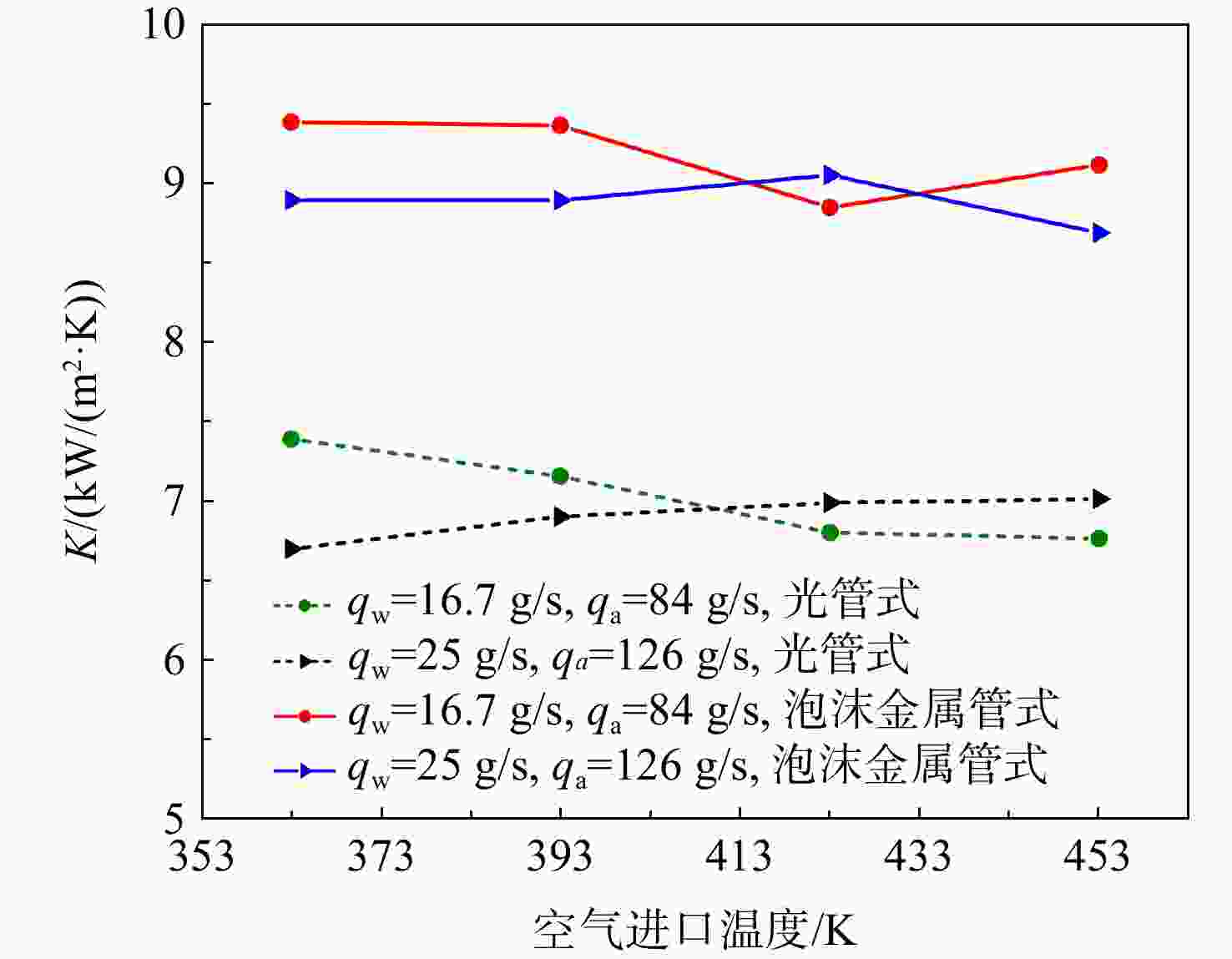

图 9 换热器传热系数随空气进口温度的变化

Figure 9. Heat transfer coefficient changes with the air inlet temperature

下载: 全尺寸图片幻灯片

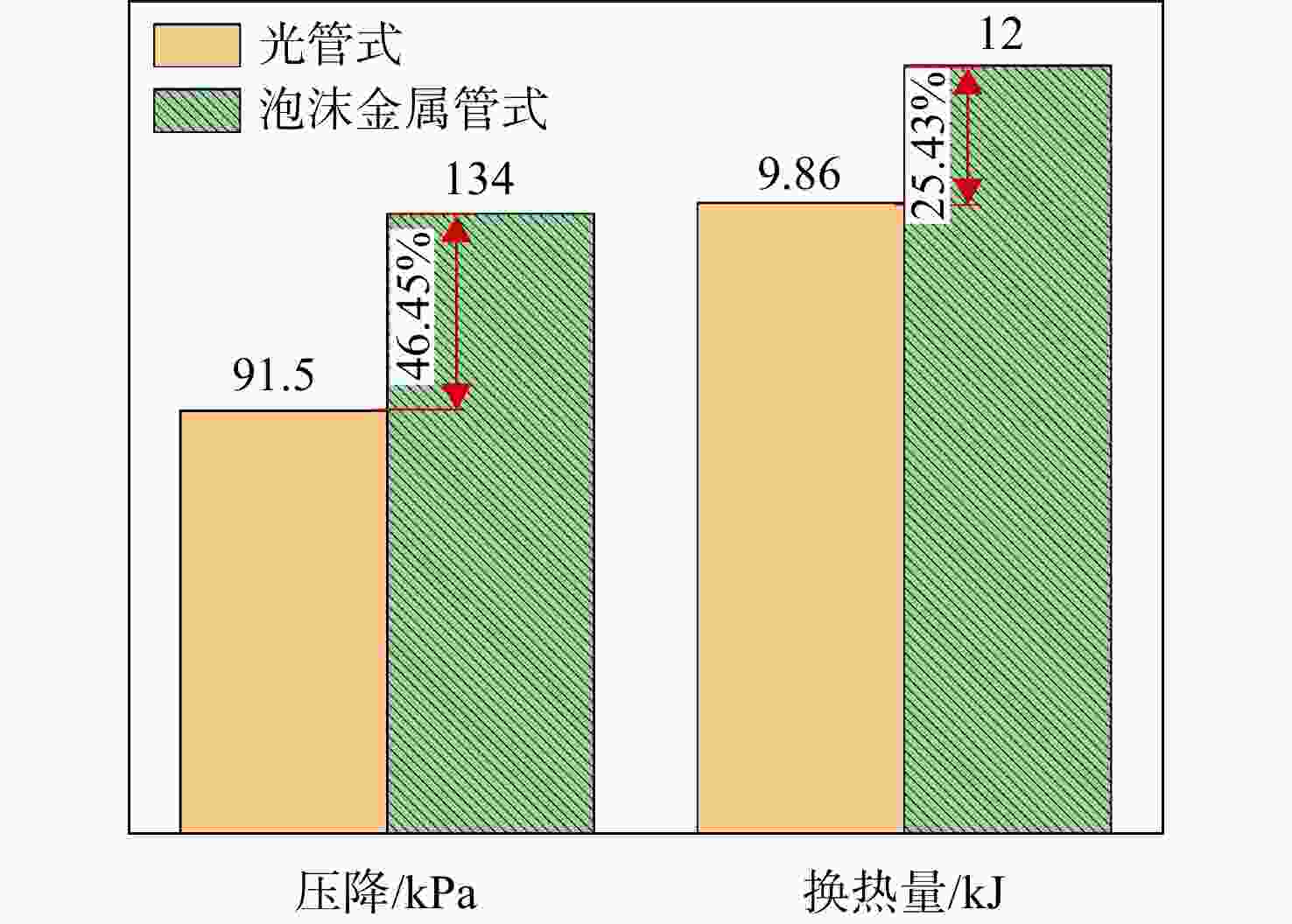

图 10 空气进口温度为453 K，q_w=25 g/s，q_a=126 g/s，两种管式换热器的压降与换热量的变化规律

Figure 10. Air inlet temperature is 453 K, q_w=25 g/s，q_a=126 g/s，the pressure drop and heat exchange rate changes of the two tube heat exchangers

下载: 全尺寸图片幻灯片

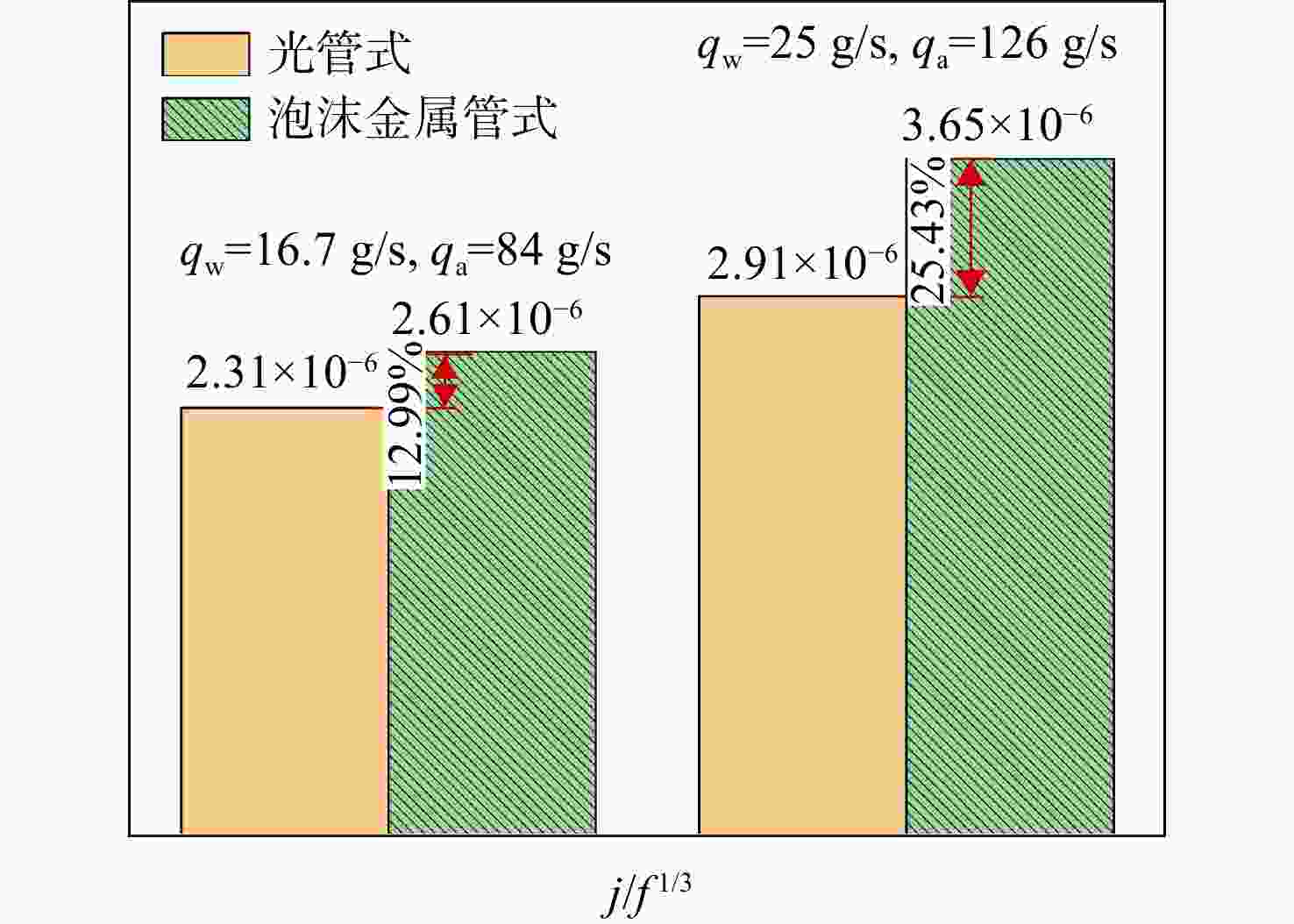

图 11 不同换热器等泵功下综合换热性能对比

Figure 11. Comparison of comprehensive heat transfer performance under different heat exchangers and other pump power

下载: 全尺寸图片幻灯片

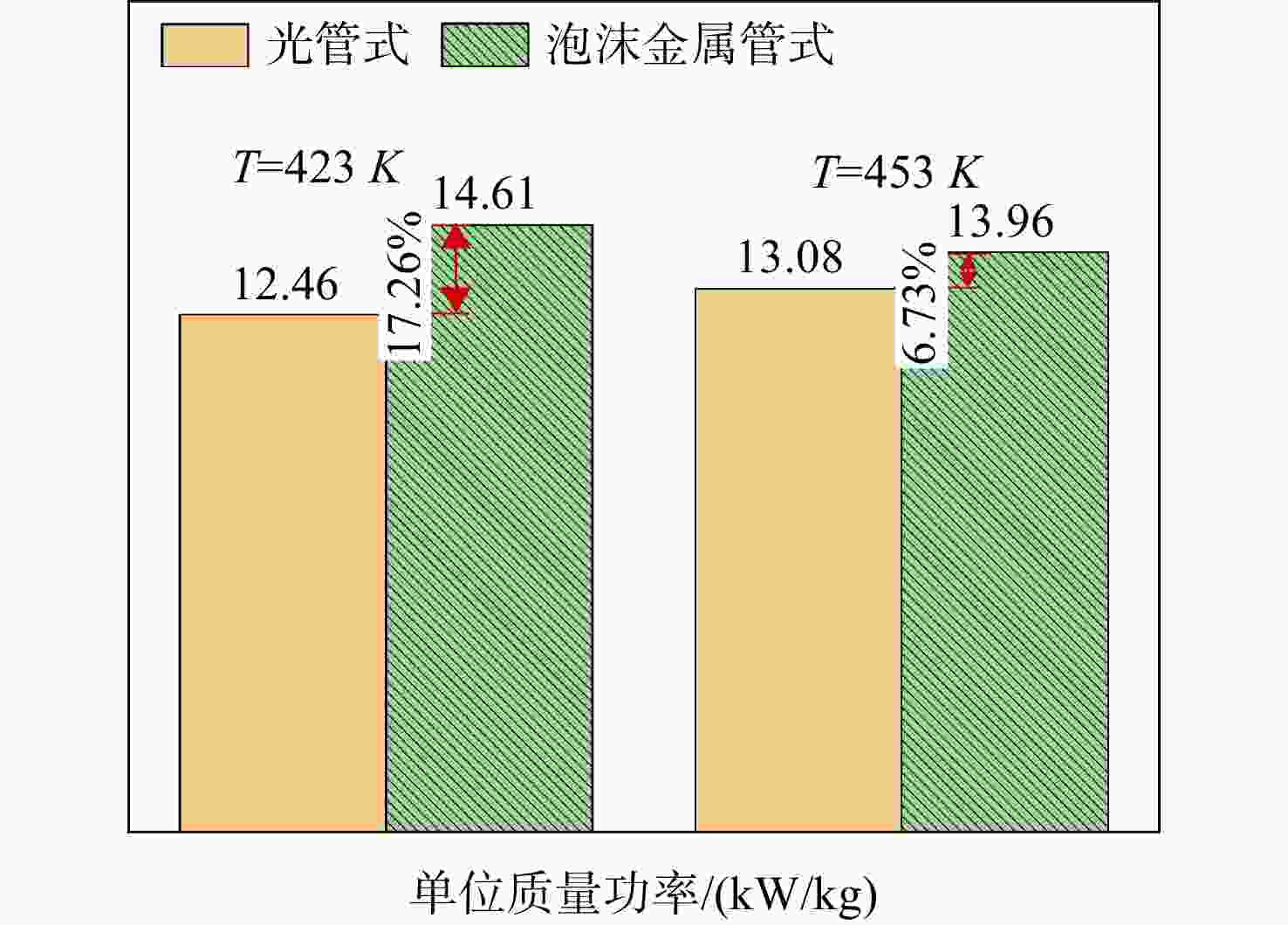

图 12 不同换热器单位质量功率对比

Figure 12. Comparison of unit mass power of different heat exchangers

下载: 全尺寸图片幻灯片

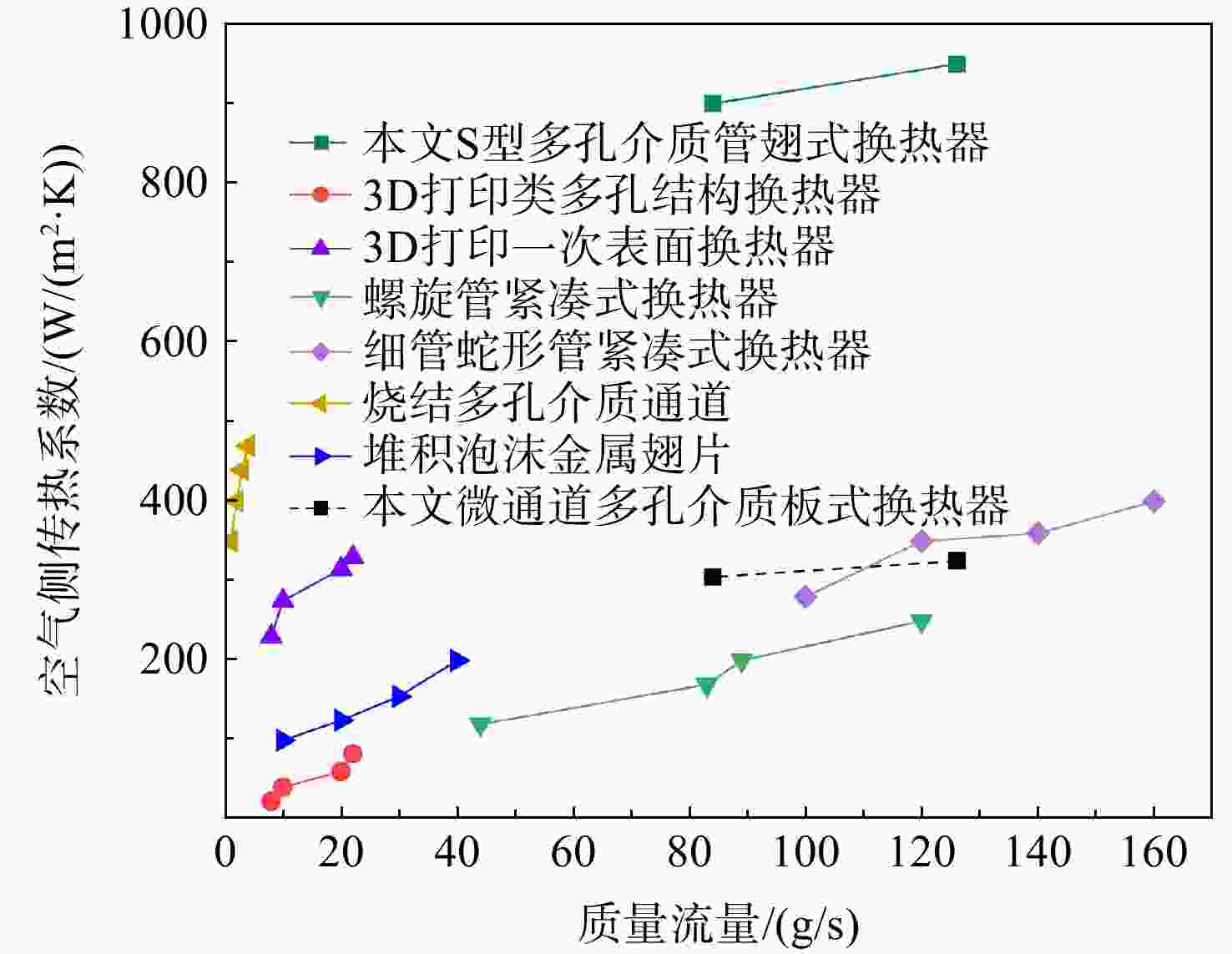

图 13 相似质量流量条件，不同换热器空气侧传热系数

Figure 13. Different heat exchangers air-side heat transfer coefficients under similar mass flow condition

下载: 全尺寸图片幻灯片

表 1 实验参数

Table 1. Experimental parameters

质量流量/（g/s）	水侧温度/K	空气侧温度/K
水质量流量为16.7，空气质量流量为84	289	363
		393
		423
		453
水质量流量为25，空气质量流量为126	289	363
		393
		423
		453

下载: 导出CSV

表 2 测量装置

Table 2. Measuring device

测量装置	品牌	型号	测量范围	精度
压力传感器	OMEGA	PX409- 150AUSBH	0～1.03 MPa	±0.08%
流量计	美国 SIERRA	640S-NAA-L06- M0-EN2-P2-V4- DD-CRWE-0- SFC15.0525X		±0.5%
热电偶	沃施莱格	Ⅰ级精度的 K型热电偶	273～1573 K	±273.5 K
数据采集仪	安捷伦	34972A

下载: 导出CSV

表 3 各类换热器极限工作环境

Table 3. Limit operating condition of different heat exchangers

换热器类型	最大压力/MPa	最大温度/K	效率/%
板式	4	673	>85
板翅式	12	923	>90
螺旋式	3	673	>90
管翅式	20	473	>90
管式（正常）	3.1	1023	>85
管式（微翅）	10	1003	>95
微通道式	50	1273	>97

下载: 导出CSV

表 4 各类换热器所需设计特性

Table 4. Design requirements of different heat exchangers

特性	回热器	间冷器	CCA
传热系数	很高	很高	高
质量流量	很高	很高	高
传热效率	很高	中	低
操作压力	高	中	非常高
工作温度	高	中	非常高
传热温差	高	中	低
适合形式	管式、一次表面	管翅式、一次表面	管式

下载: 导出CSV

表 5 各类航发换热器工况及换热性能对比

Table 5. Comparison of working conditions and heat tasfer performance of various aviation heat exchangers

换热器类型	体积参数/ mm	冷-热侧介质	热侧进口温度/K	热侧进口压力/MPa	热侧质量流量/ （kg/s）	热侧进出口温差/K	表面传热系数/（W/（m²·K））	换热性能评价指标
3D打印S型泡沫金属管壳换热器	59×52×51	水-空气	363～453	0.3	0.126	286~300	950	功率质量比 14.61 kW/kg
3D打印类多孔换热器	460×400×500	水-空气	343	0.1	20 m/s	303	500～800	换热量 200～500 kW
3D打印一次表面换热器	74×54×100	空气-空气	333～373	0.34～1.4	0.008～0.02	363	200～550	换热能效0.5～0.8
螺旋管紧凑式换热器	370×276×138	空气-空气	833	0.24	0.05	461	122～336	功率质量比 4.9 kW/kg
细管蛇形管紧凑式换热器	291×60×80	燃油-空气	433	1	0.10～0.18	588.42	360	功率质量比 15.48 kW/kg
堆积泡沫金属翅片	101×18×5	水-空气	273～333	5×10⁻⁴	0.0005～0.002	288～323	300～500
填充多孔介质环形冷却通道	40×1×50	冷却剂-空气	<473	0.14～1.68	30～150	283～319	20

下载: 导出CSV
