涡轴发动机整机吞砂试验及性能退化评估

刘伟 张赟

刘伟, 张赟. 涡轴发动机整机吞砂试验及性能退化评估[J]. 航空动力学报, 2023, 38(1):127-133 doi: 10.13224/j.cnki.jasp.20210283
引用本文: 刘伟, 张赟. 涡轴发动机整机吞砂试验及性能退化评估[J]. 航空动力学报, 2023, 38(1):127-133 doi: 10.13224/j.cnki.jasp.20210283
LIU Wei, ZHANG Yun. Sand ingestion test and performance degradation evaluation of turboshaft engine[J]. Journal of Aerospace Power, 2023, 38(1):127-133 doi: 10.13224/j.cnki.jasp.20210283
Citation: LIU Wei, ZHANG Yun. Sand ingestion test and performance degradation evaluation of turboshaft engine[J]. Journal of Aerospace Power, 2023, 38(1):127-133 doi: 10.13224/j.cnki.jasp.20210283

涡轴发动机整机吞砂试验及性能退化评估

doi: 10.13224/j.cnki.jasp.20210283
基金项目: 山东省自然科学基金(ZR2020ME125)
详细信息
    作者简介:

    刘伟(1987-),男,高级工程师,硕士,主要从事航空发动机总体设计及试验研究

    通讯作者:

    张赟(1983-),男,教授,博士,主要从事航空发动机故障诊断及试验研究。E-mail:hjhy_zy@126.com

  • 中图分类号: V235.1

Sand ingestion test and performance degradation evaluation of turboshaft engine

  • 摘要:

    为系统掌握砂尘侵蚀对涡轴发动机整机和零部件的影响,分析了国内外整机吞砂试验条款的差异及适用性,开展了某涡轴发动机整机吞砂试验研究。依据气动热力过程约束方程和发动机整机匹配约束条件,建立了涡轴发动机试验数据快速评估模型,完成了整机及各部件性能退化评估,并利用公开文献数据进行了对比分析。结果表明:功率和耗油率随吞砂时间呈二次函数规律退化,吞砂10 h功率损失10.2%,耗油率升高3.2%;吞砂造成压气机一级叶片弦长变短0.7%~3.4%、厚度减薄1.0%~3.0%,压气机流量下降4.1%、效率下降3.1%、增压比下降4.5%;燃气涡轮冷却气膜孔存在轻微堵塞和表面烧蚀,冷气量减少1.5%,效率下降0.5%;而动力涡轮效率因叶片表面光洁度提高有小幅提升。

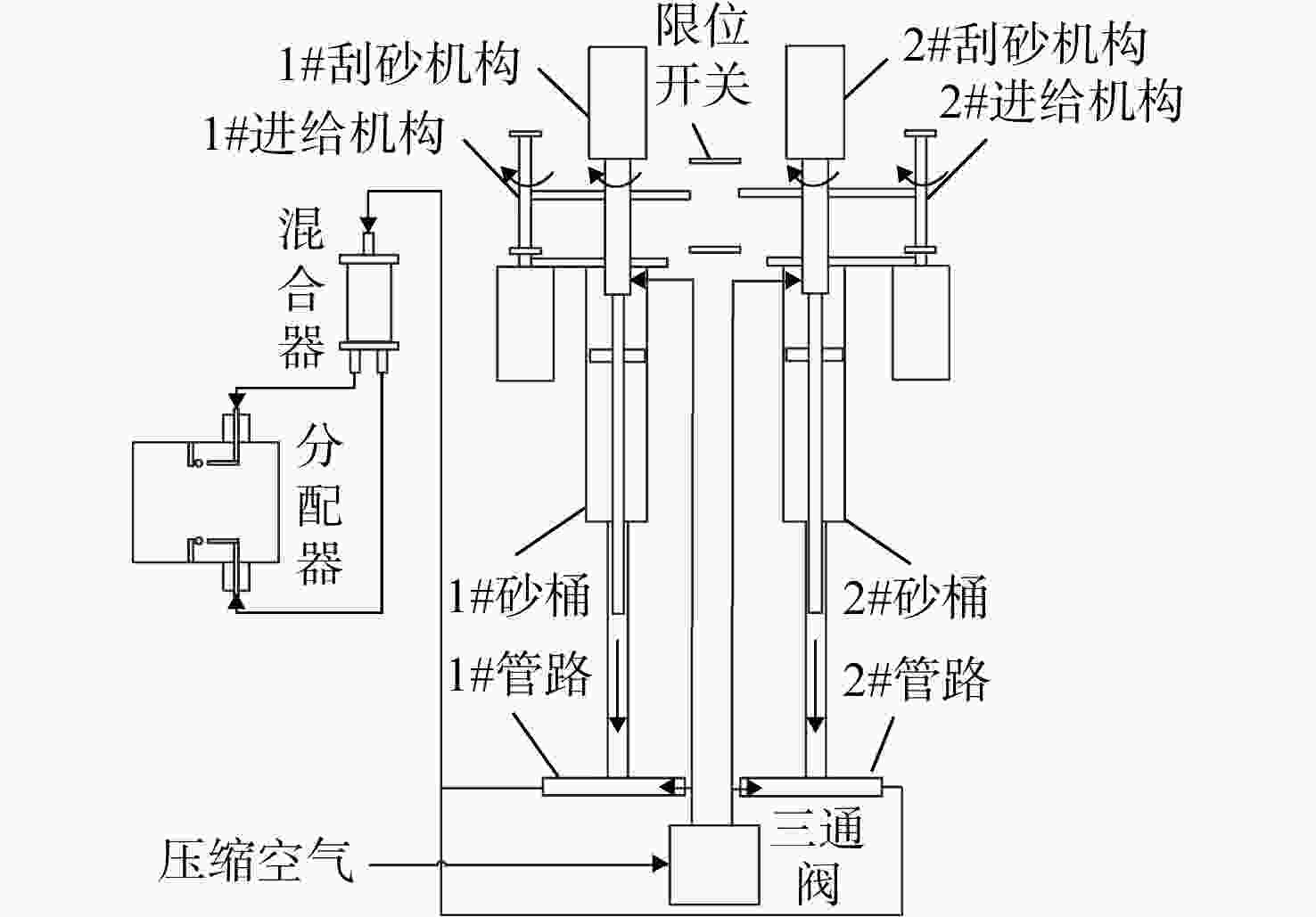

  • 图 1  吞砂试验装置原理图[19]

    Figure 1.  Schematic of sand ingestion test device[19]

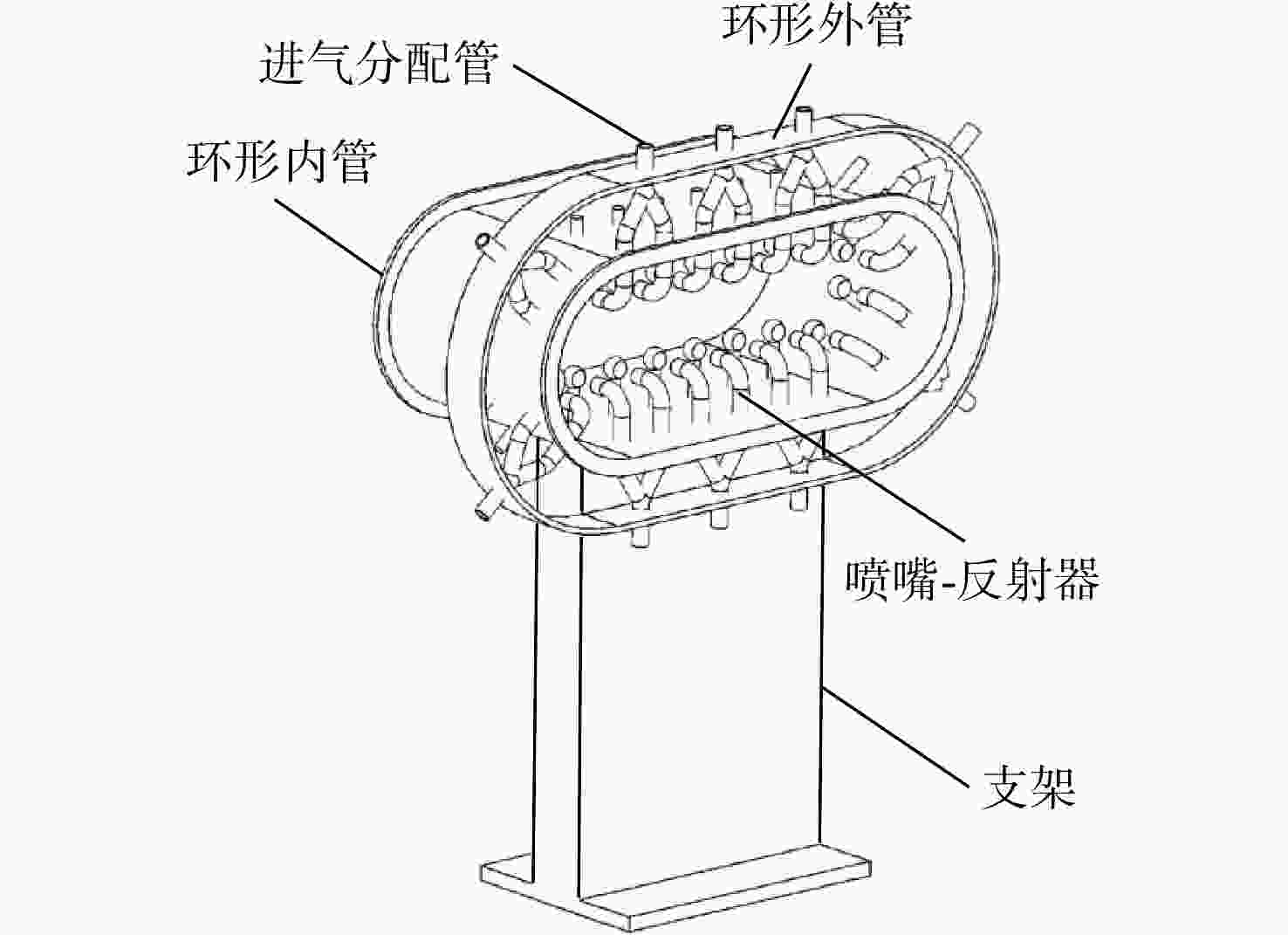

    图 2  分配器结构示意图[19]

    Figure 2.  Schematic structure of distributor[19]

    图 3  吞砂试验程序

    Figure 3.  Test procedure of sand ingestion

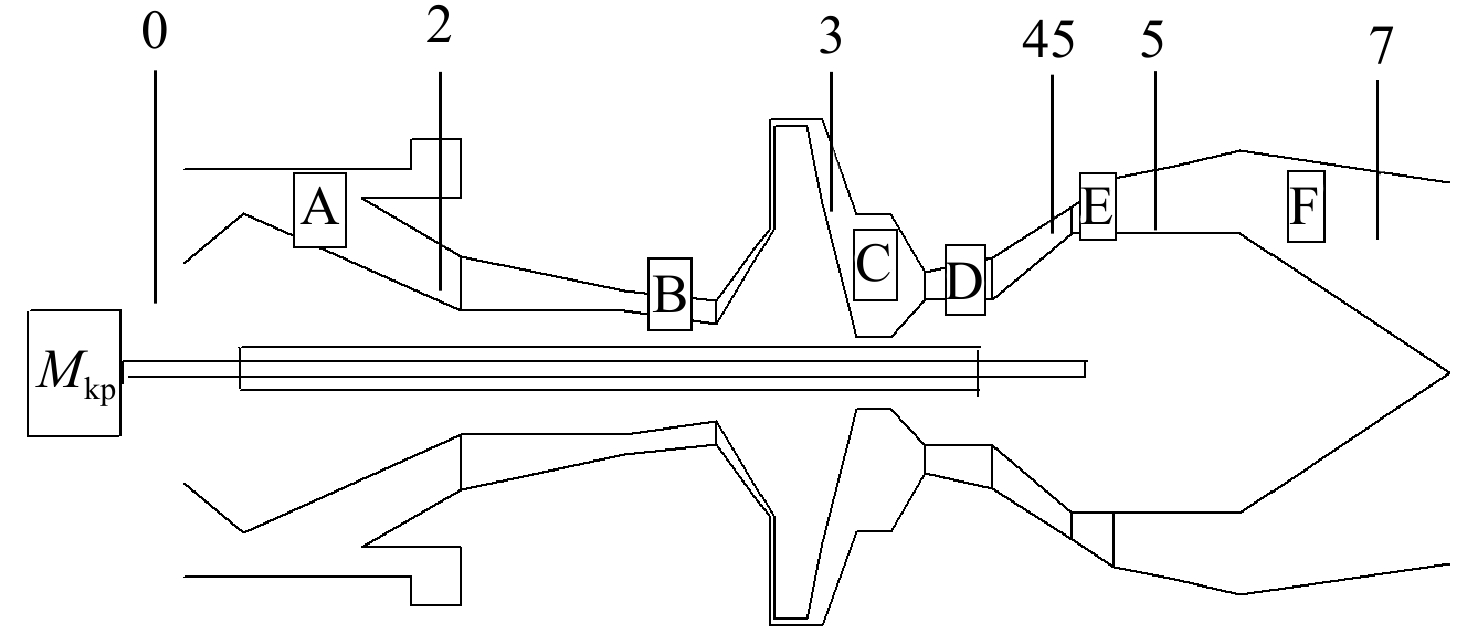

    图 4  试验发动机结构原理图

    A 进气道(含粒子分离器);B 压气机;C 燃烧室;D 燃气涡轮;E 动力涡轮;F 尾喷管。

    Figure 4.  Schematic diagram of the test engine

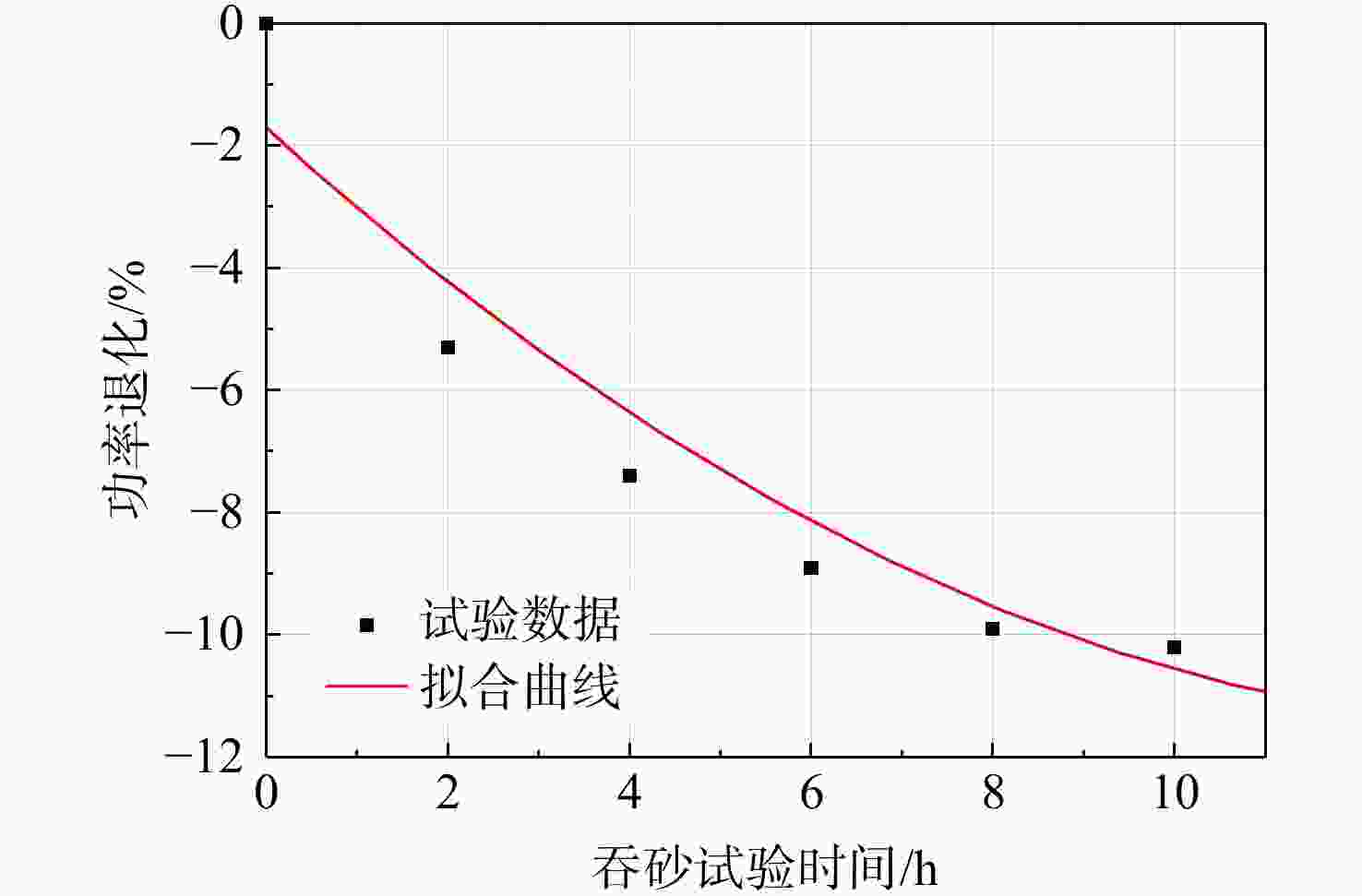

    图 5  轴功率衰减规律

    Figure 5.  Degradation trend of shaft power

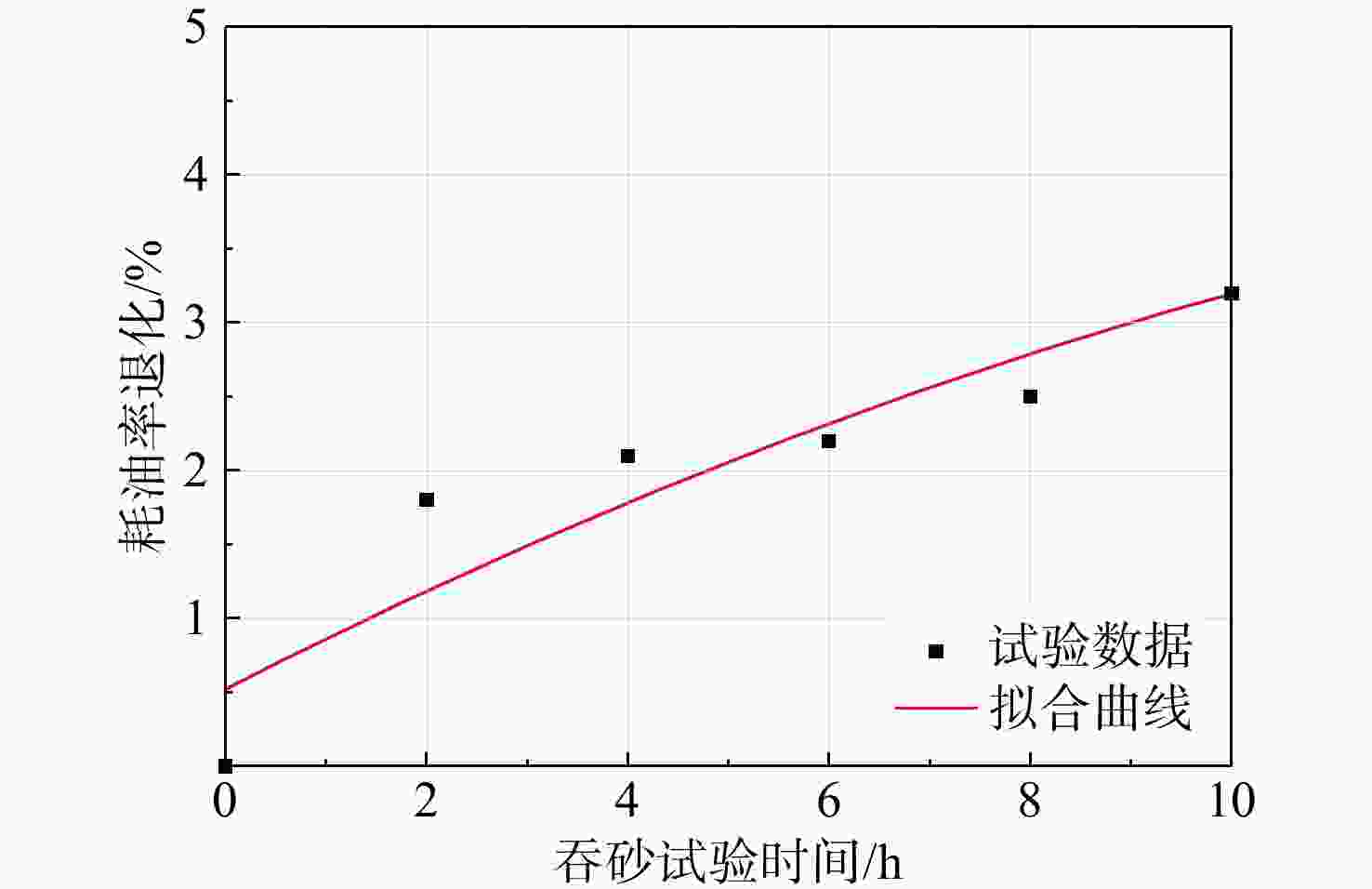

    图 6  耗油率衰减规律

    Figure 6.  Degradation trend of specific fuel consumption

    图 7  压气机一级转子叶片磨蚀[21]

    Figure 7.  Compressor first rotor blade abrasion[21]

    图 8  燃气涡轮一级导向器熔砂黏附[21]

    Figure 8.  Molten sand adhered to first gas turbine guide blade[21]

    表  1  吞砂试验要求

    Table  1.   Test requirements of sand ingestion

    参数数值
    固定翼机旋翼机
    质量浓度/(mg/m35353
    吞粗砂时间/h0.550
    吞细砂时间/h1.554
    功率损失/%510
    耗油率增加/%510
    下载: 导出CSV

    表  2  砂尘颗粒尺寸和质量百分比

    Table  2.   Sand particle diameter and proportion distribution

    颗粒尺寸/μm质量百分比/%
    0~755
    75~12515
    125~20028
    200~40036
    400~60011
    600~9003.5
    900~10001.5
    下载: 导出CSV

    表  3  试验数据迭代模型

    Table  3.   Iteration model for test data analysis

    控制变量自变量残差方程
    m2t45σimcΔm2,Δt45
    下载: 导出CSV

    表  4  部件性能退化评估结果

    Table  4.   Component performance degradation evaluation results

    时间/hΔσi/%Δma2/%Δπc/%Δηc/%Δηb/%Δσb/%Δηgt/%Δηpt/%Δmb/%
    0000000000
    2−0.3−2.8−2.5−1.3−0.50.7−0.50.1−0.2
    4−0.5−3.2−3.2−1.8−0.81.2−0.40.2−0.5
    6−0.9−3.5−3.1−2.1−1.11.3−0.50.3−1.1
    8−1.2−3.9−3.5−2.5−1.31.5−0.50.3−1.3
    10−1.3−4.1−3.6−3.1−1.51.7−0.40.1−1.5
    下载: 导出CSV
