Calcultion of optimum inner flow velocity of sitereference high temperature gas sensor
-
摘要:

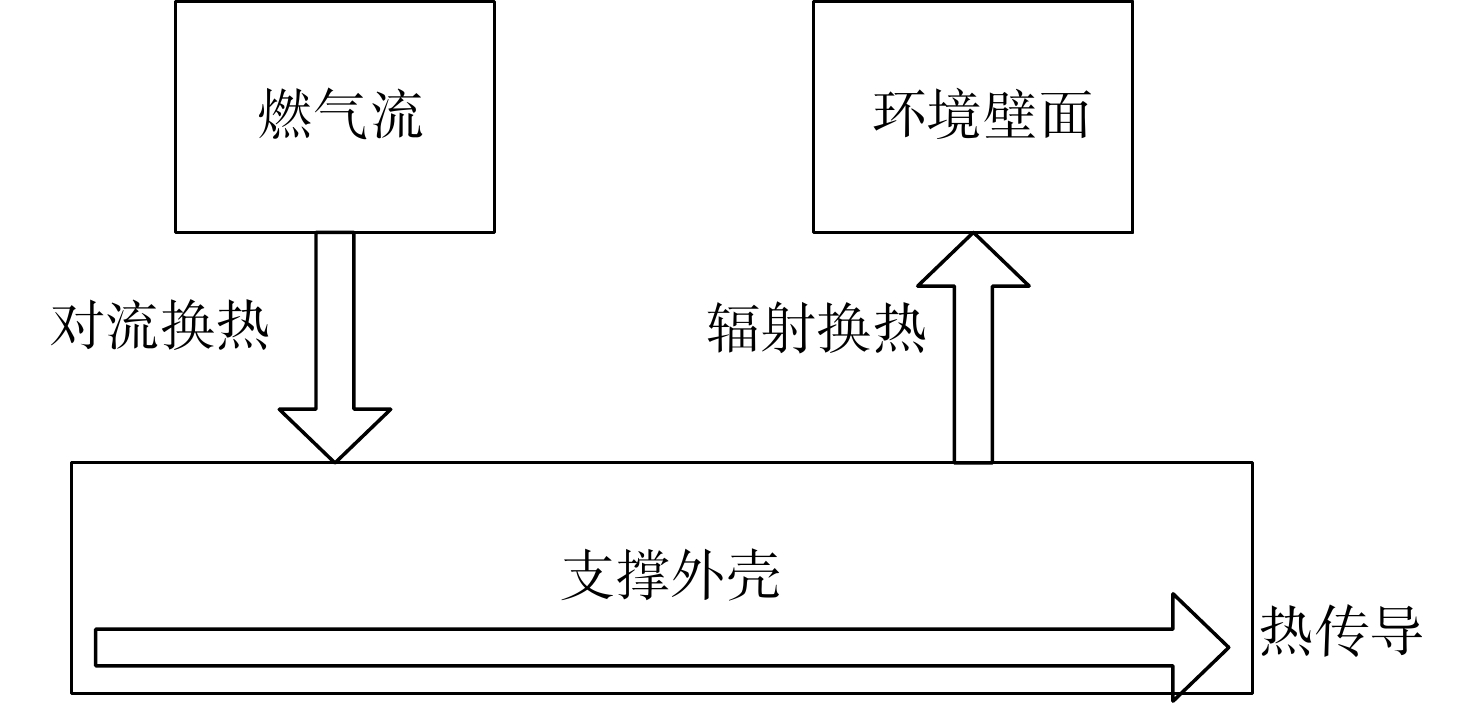

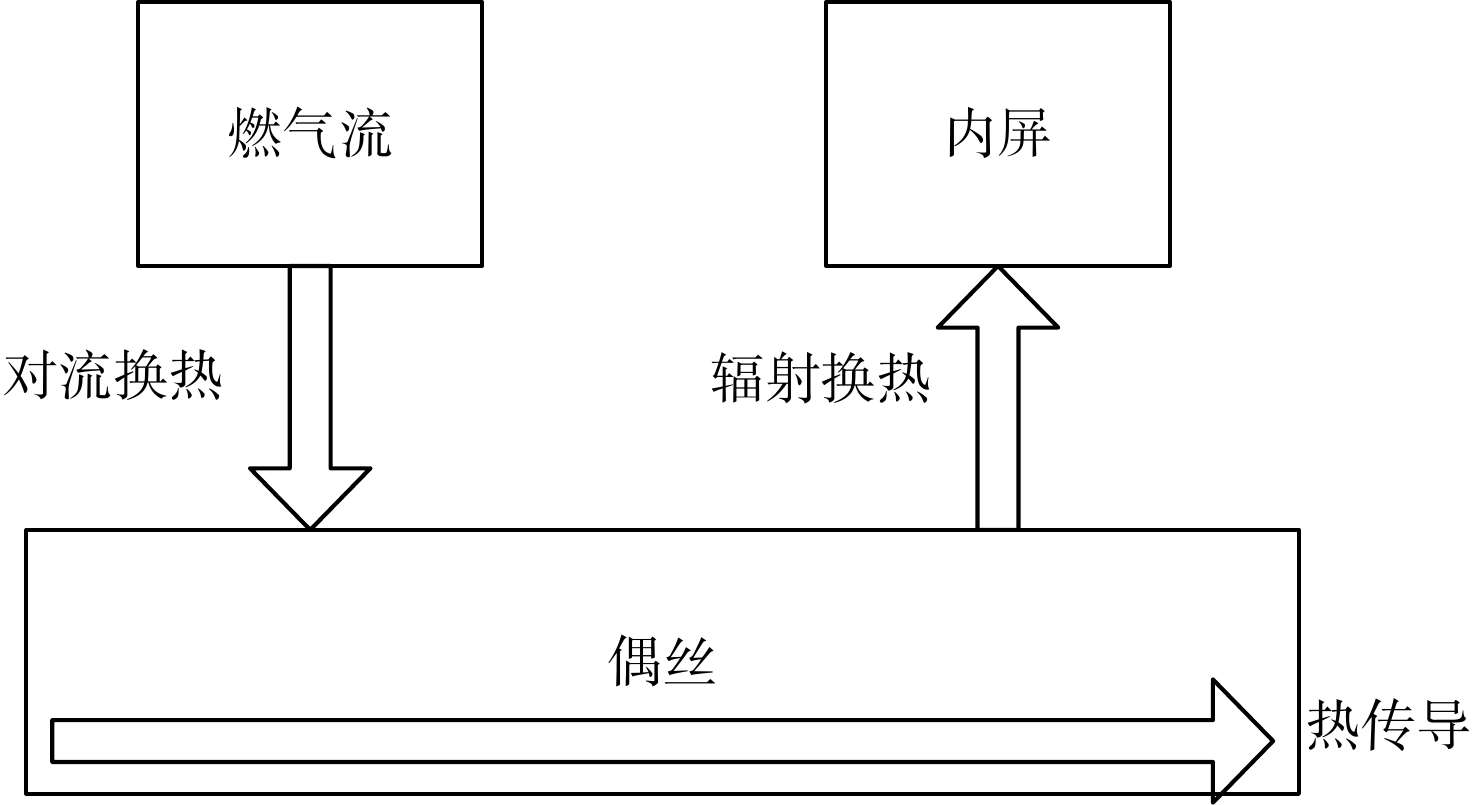

为得到现场参考气流高温传感器的高准确设计结果，从支撑外壳温度、外屏温度、内屏温度、偶丝温度的模型与求解入手，通过关键参数预设与迭代，研究了传感器最佳内流速度计算方法，提出差商偏差判定法，解决了计算中边界条件不充分的问题。结果表明：在来流总温1717.5 K、来流静压0.5 MPa的条件下，双屏蔽L型现场参考气流高温传感器的最佳内屏内流速度和最佳环道内流速度分别为146.1、544.9 m/s。研究结果可为双屏蔽式、单屏蔽式等类型气流高温传感器的优化设计、理论分析等提供必要的支撑。
Abstract:In order to obtain high accuracy design result of site reference high temperature gas sensor, starting from the model and solution of temperatures of support housing, outer shield, inner shield and thermocouple wire, the computing method of optimum internal flow velocity of the sensor was studied through predetermination and iteration of key parameters. Difference quotient deviation judgment method was put forward, which solved the problem of insufficient boundary conditions during calculation. The result showed that optimum internal flow velocities of inner shield and annular channel of double shield L type site reference high temperature gas sensor were 146.1 m/s and 544.9 m/s, respectively, under the working condition of 1717.5 K total temperature and 0.5 MPa static pressure. The study results can provide necessary support for optimal design, theoretical analysis of high temperature gas sensors of double shield type, and single shield type, etc.
-

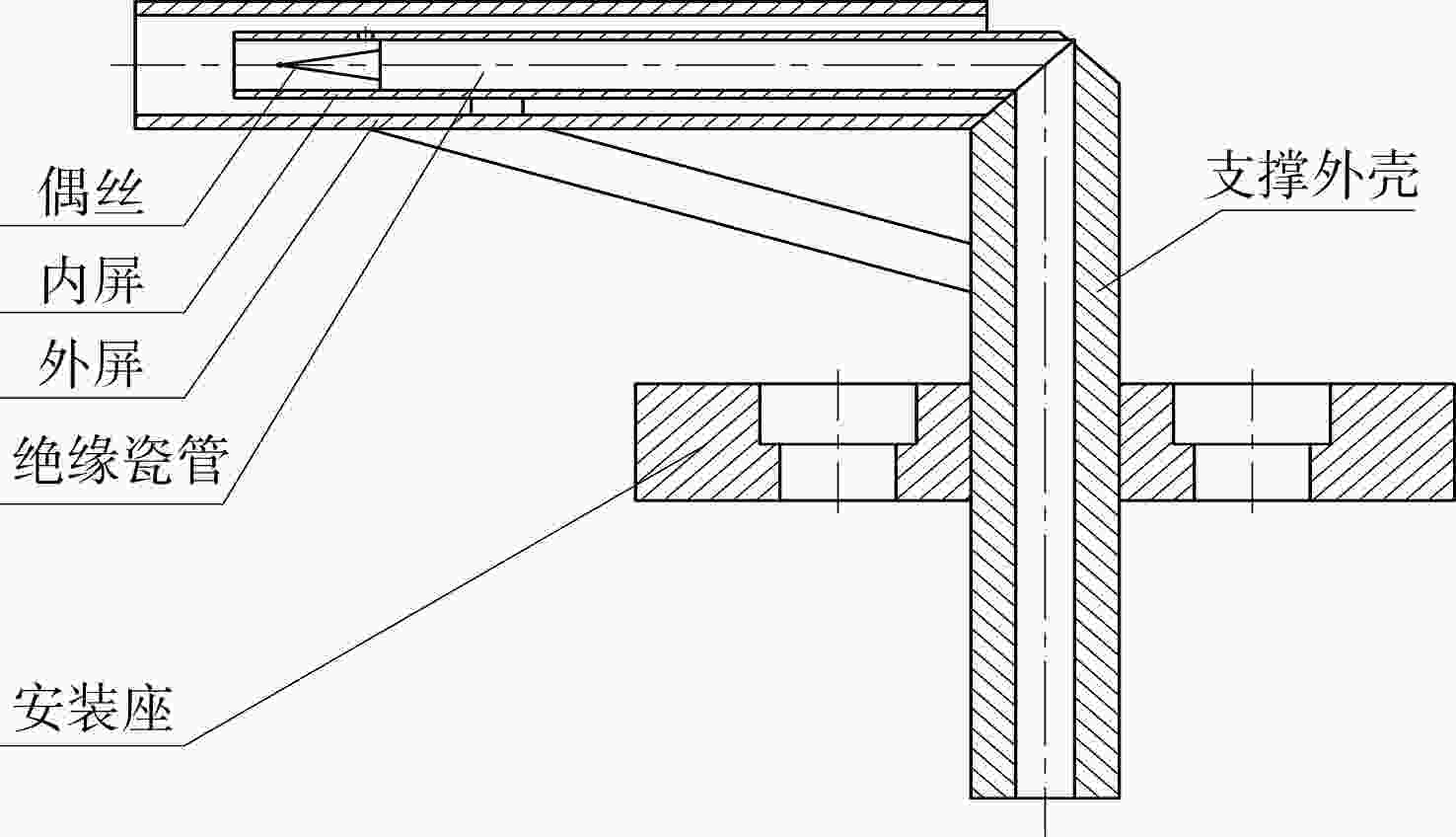

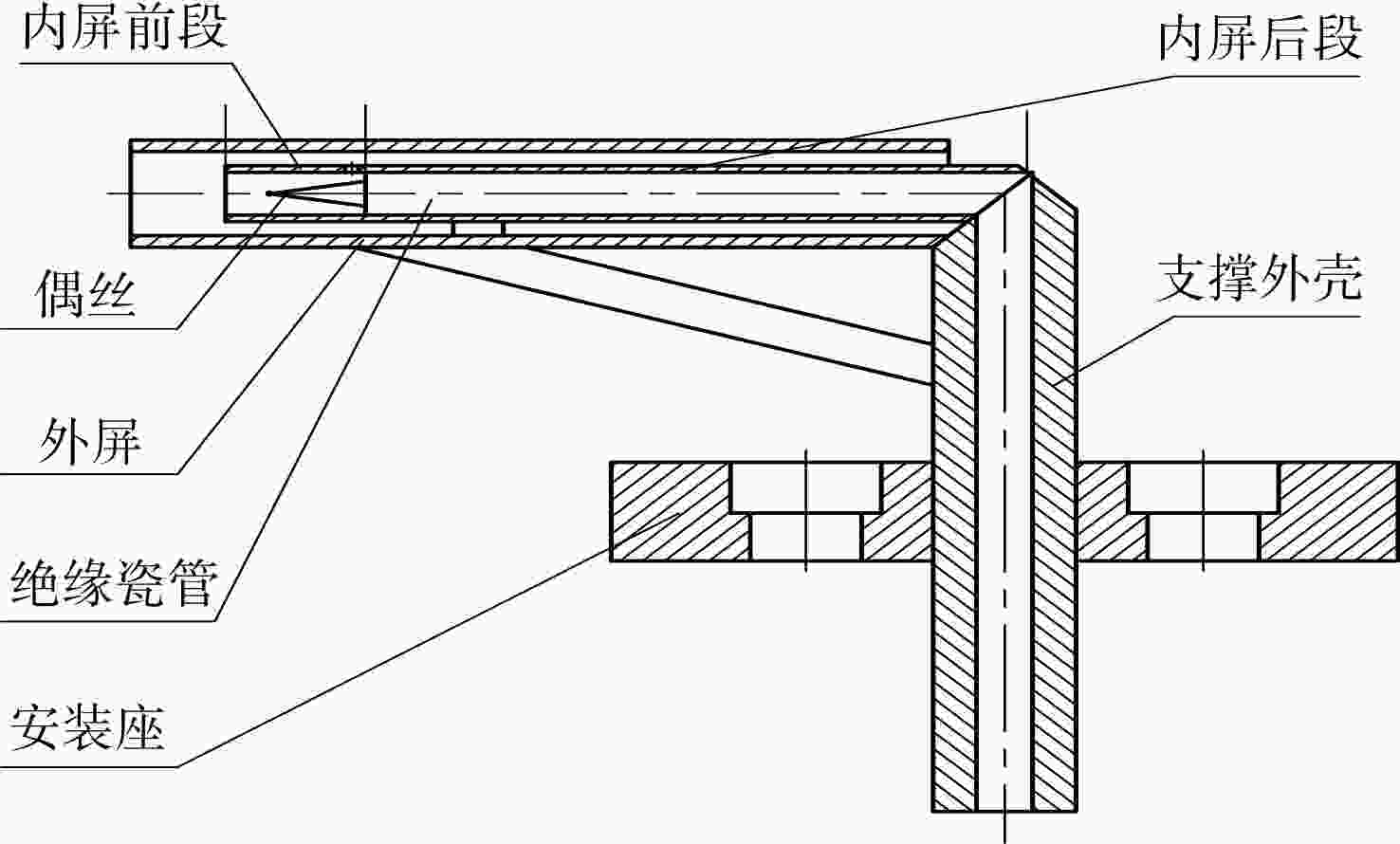

图 1 现场参考气流高温传感器结构示意图
Figure 1. Structure diagram of site reference high gas temperature sensor

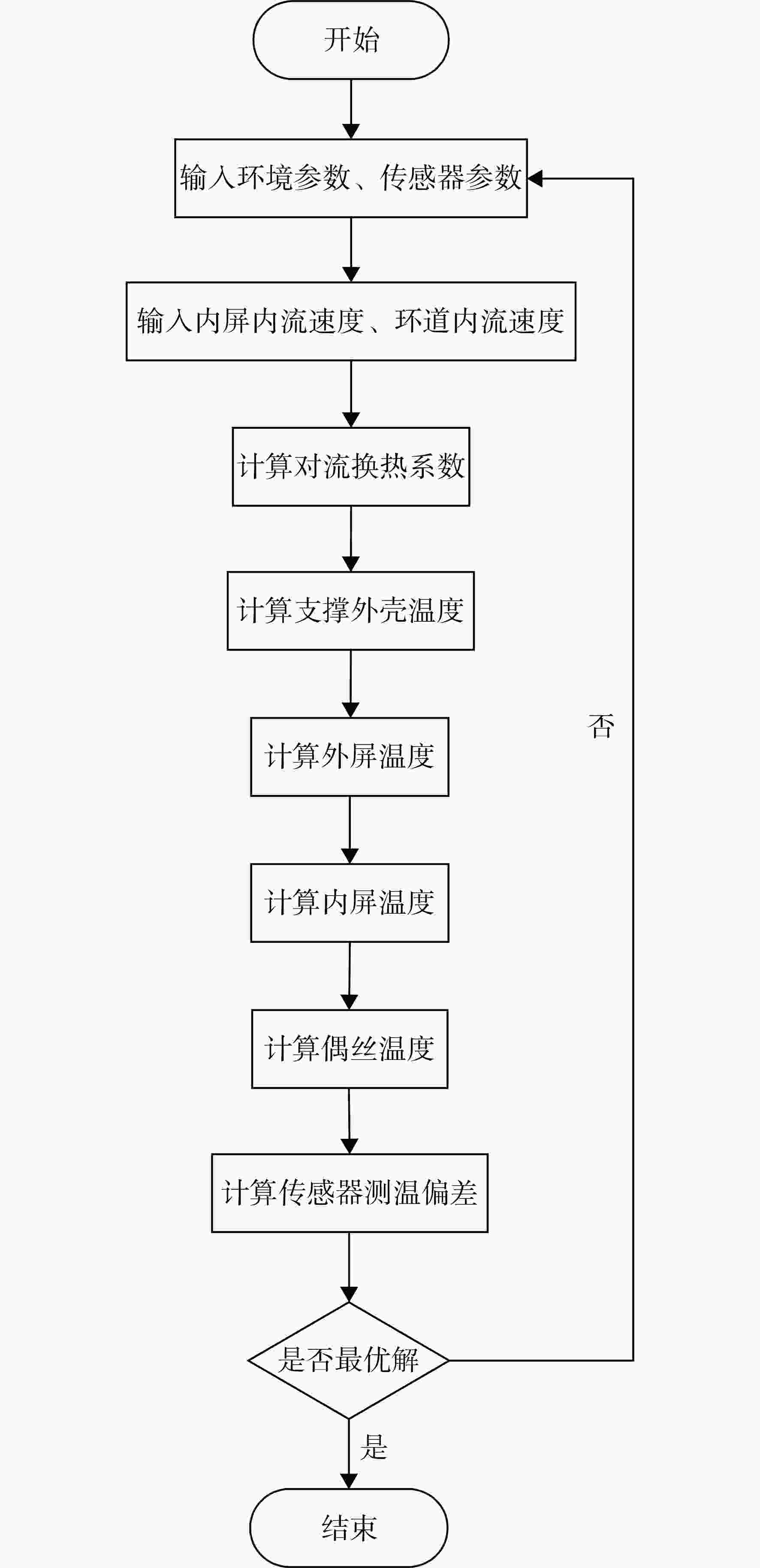

图 2 现场参考气流高温传感器结构设计流程图
Figure 2. Flow diagram of structure design of site reference high gas temperature sensor

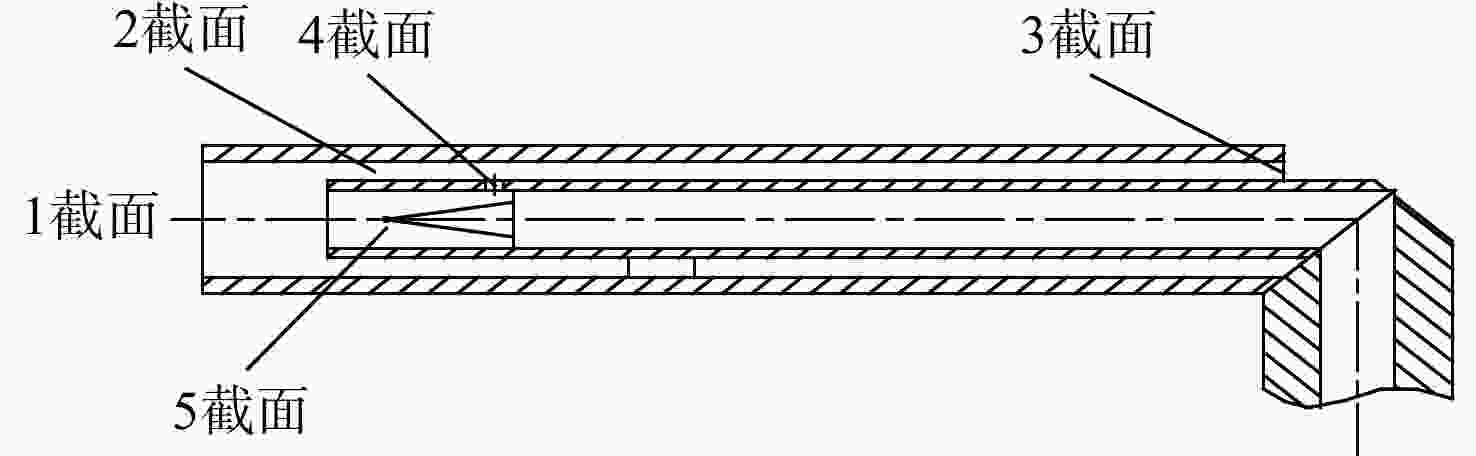

图 3 现场参考气流高温传感器头部结构示意图
Figure 3. Diagram of head structure of site reference high gas temperature sensor

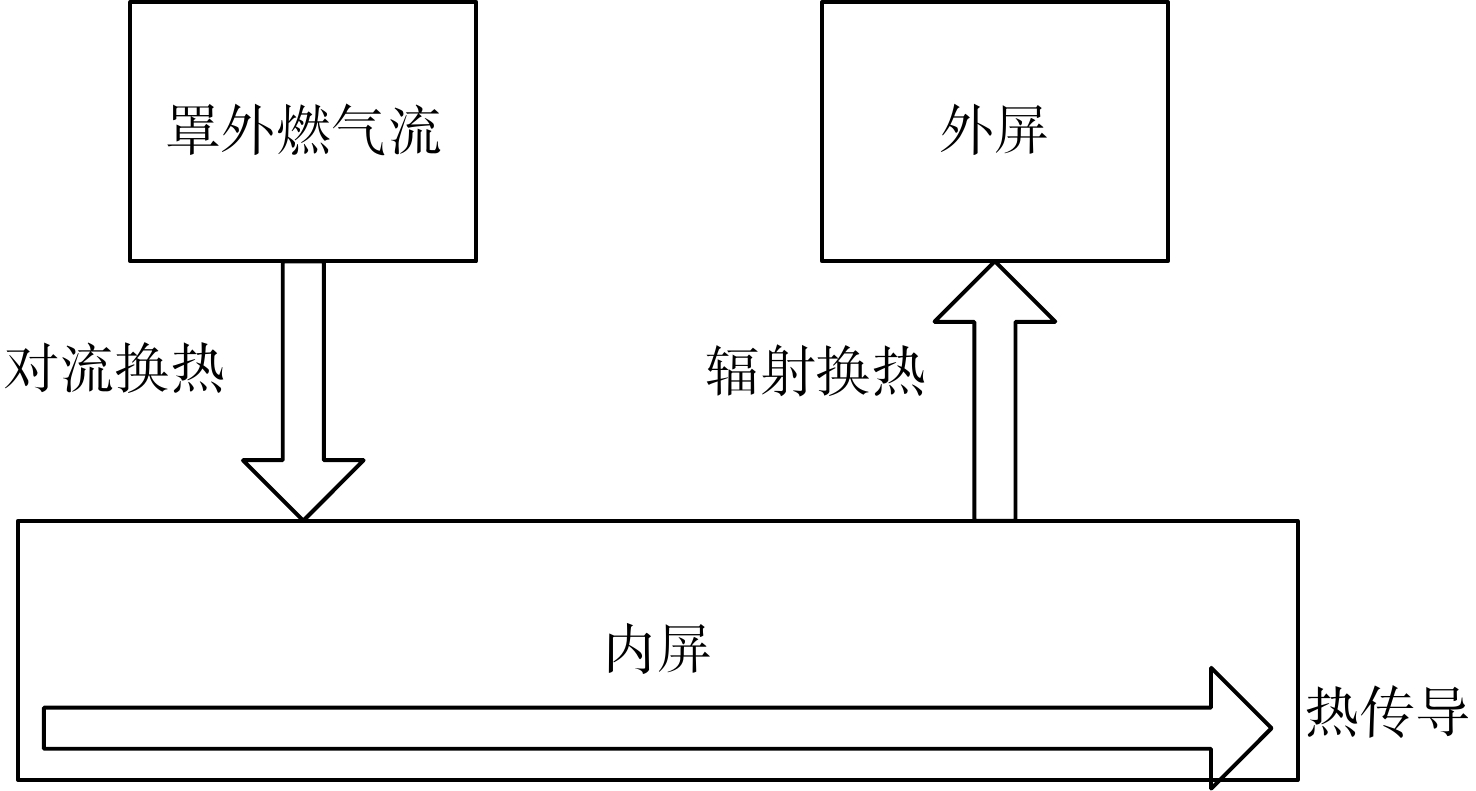

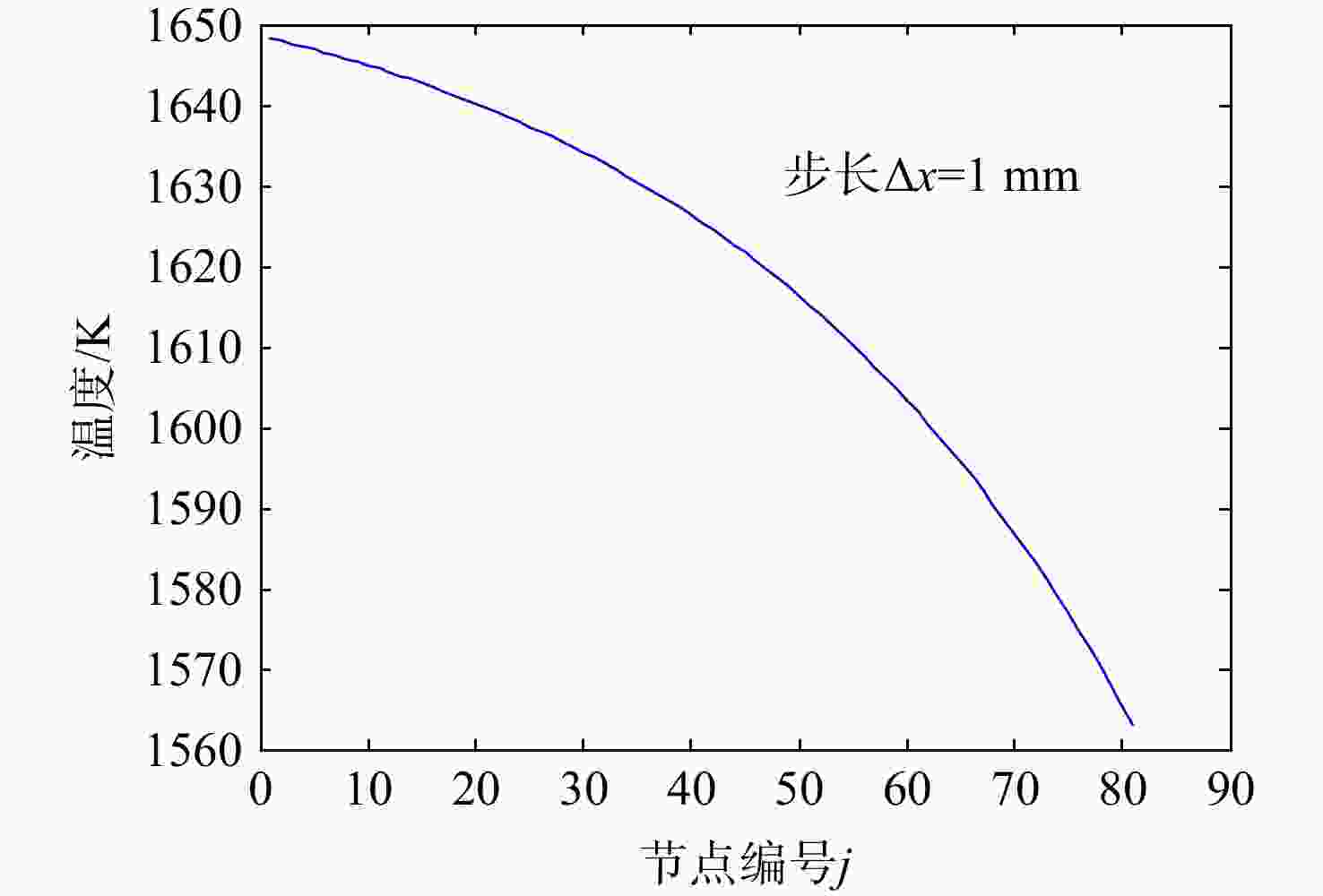

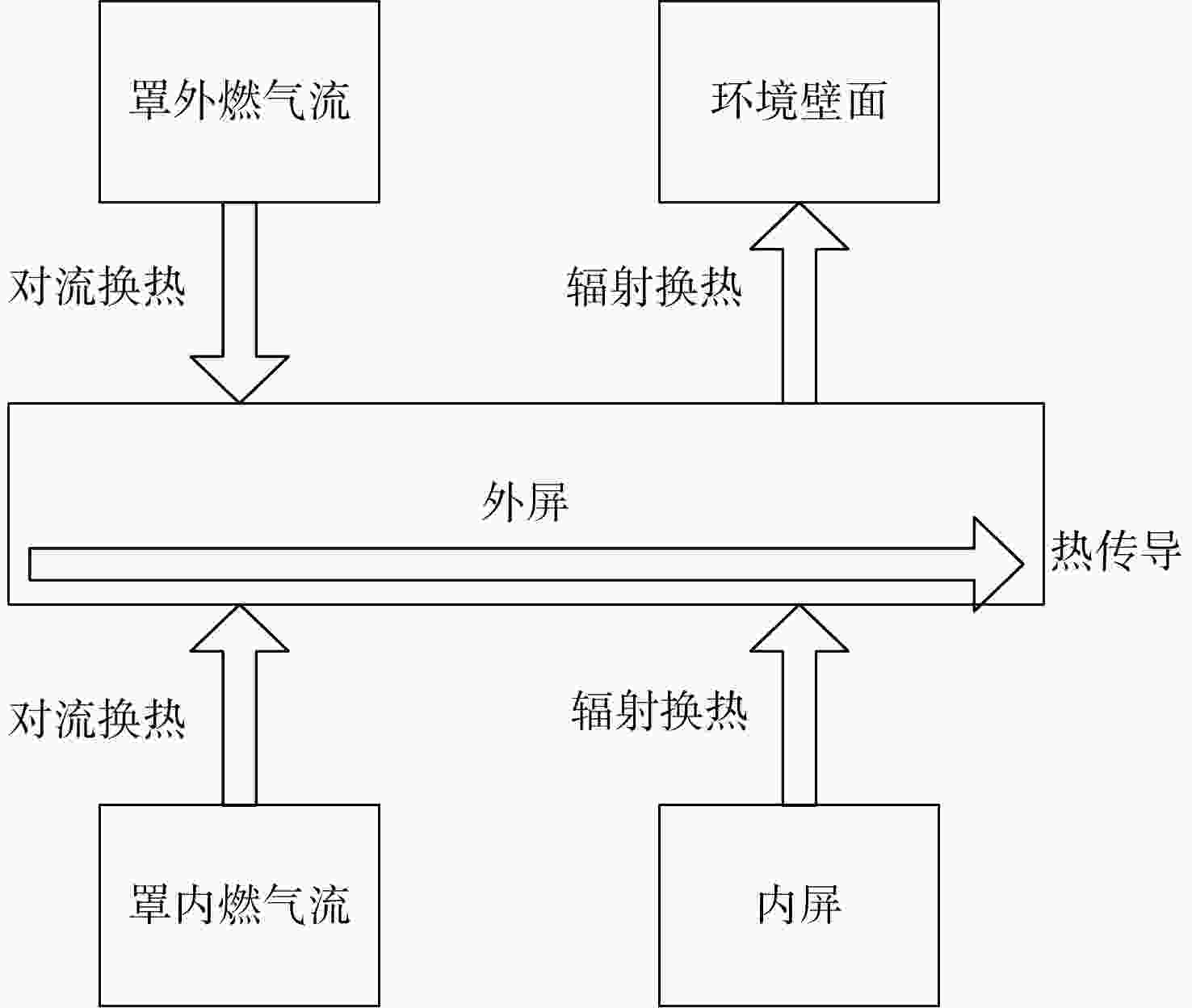

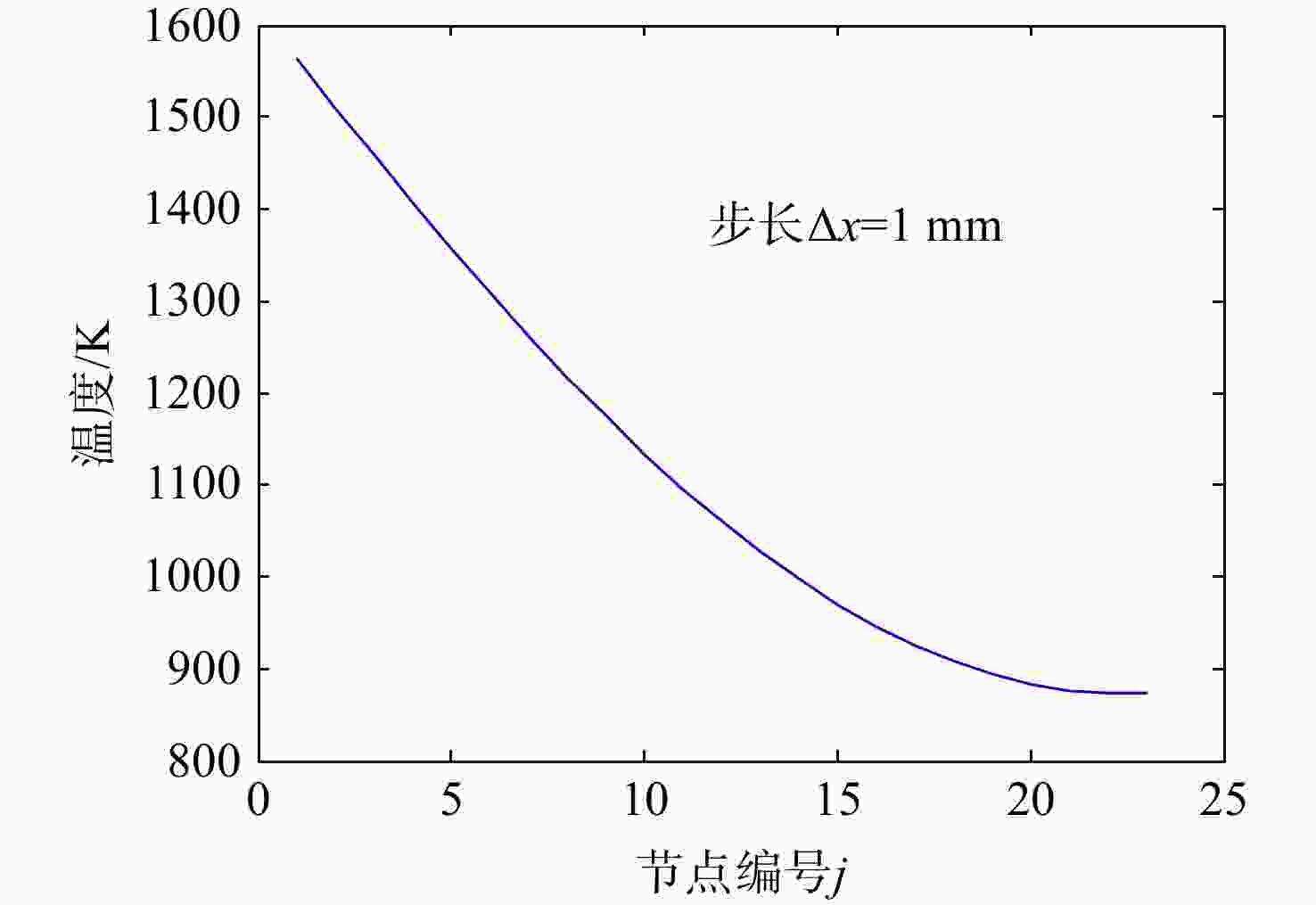

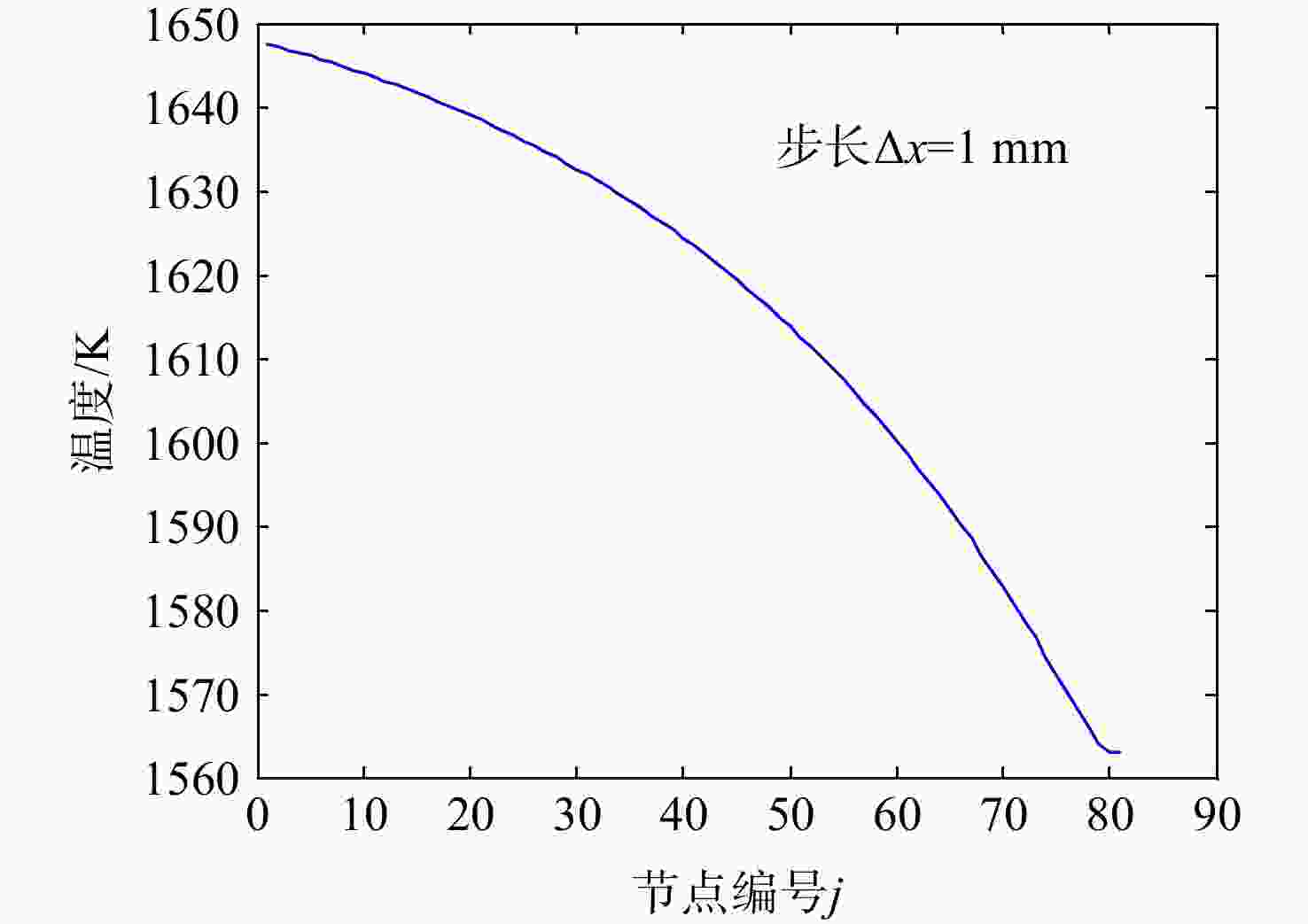

图 12 内屏后段温度初步求解结果
Figure 12. Preliminary solution result of back section temperature of inner shield

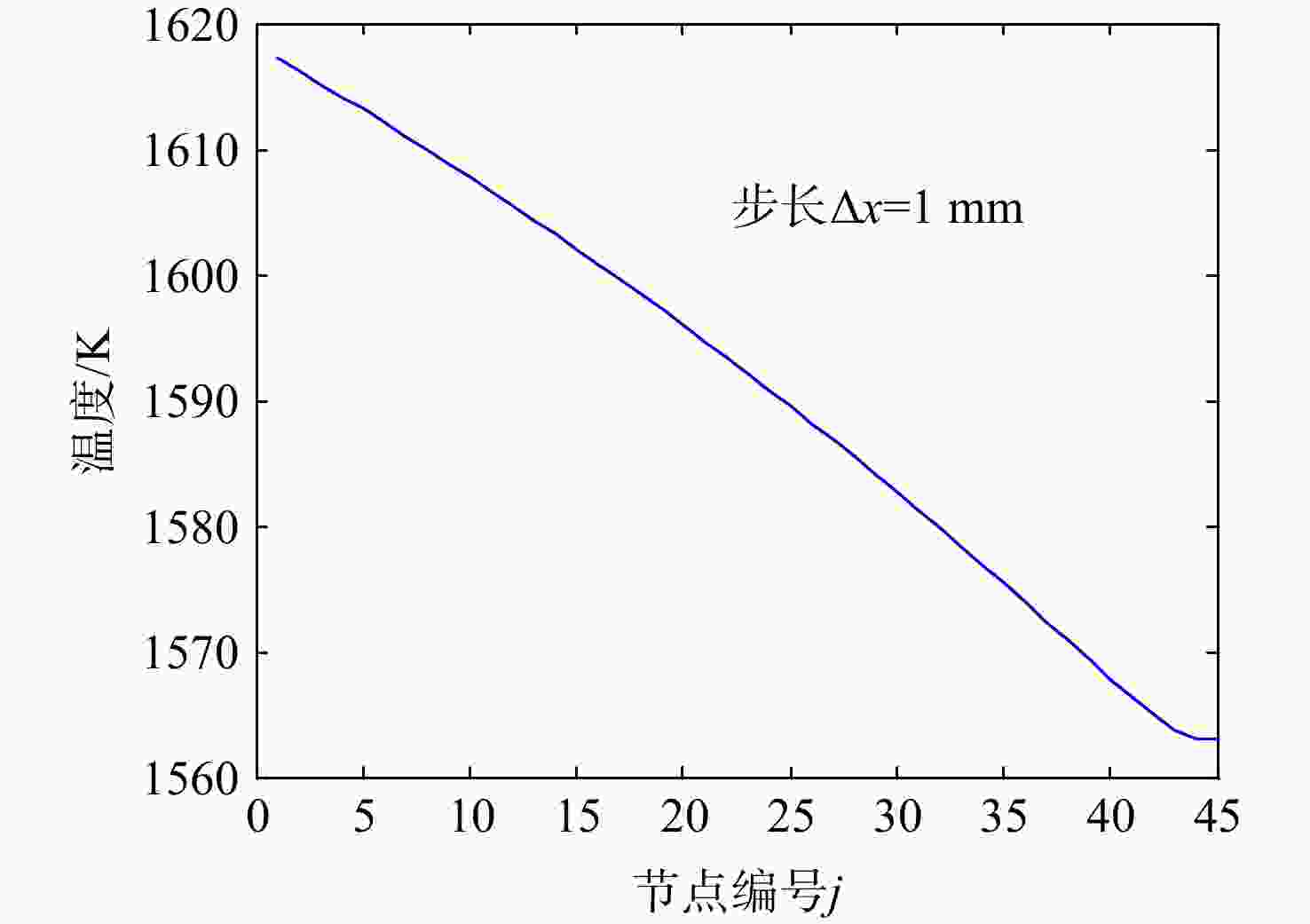

图 13 内屏后段温度最终求解结果
Figure 13. Fianl solution result of back section temperature of inner shield

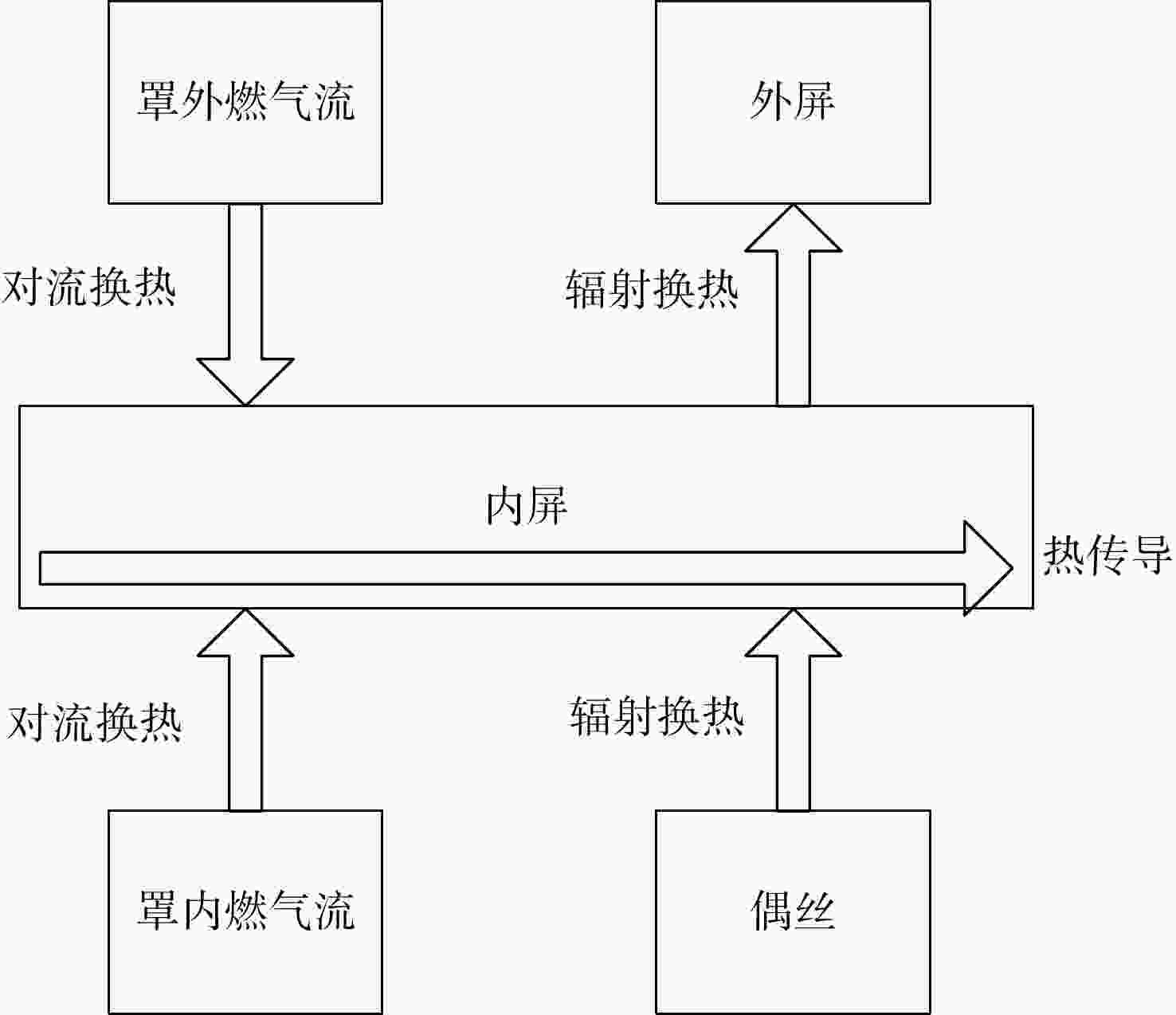

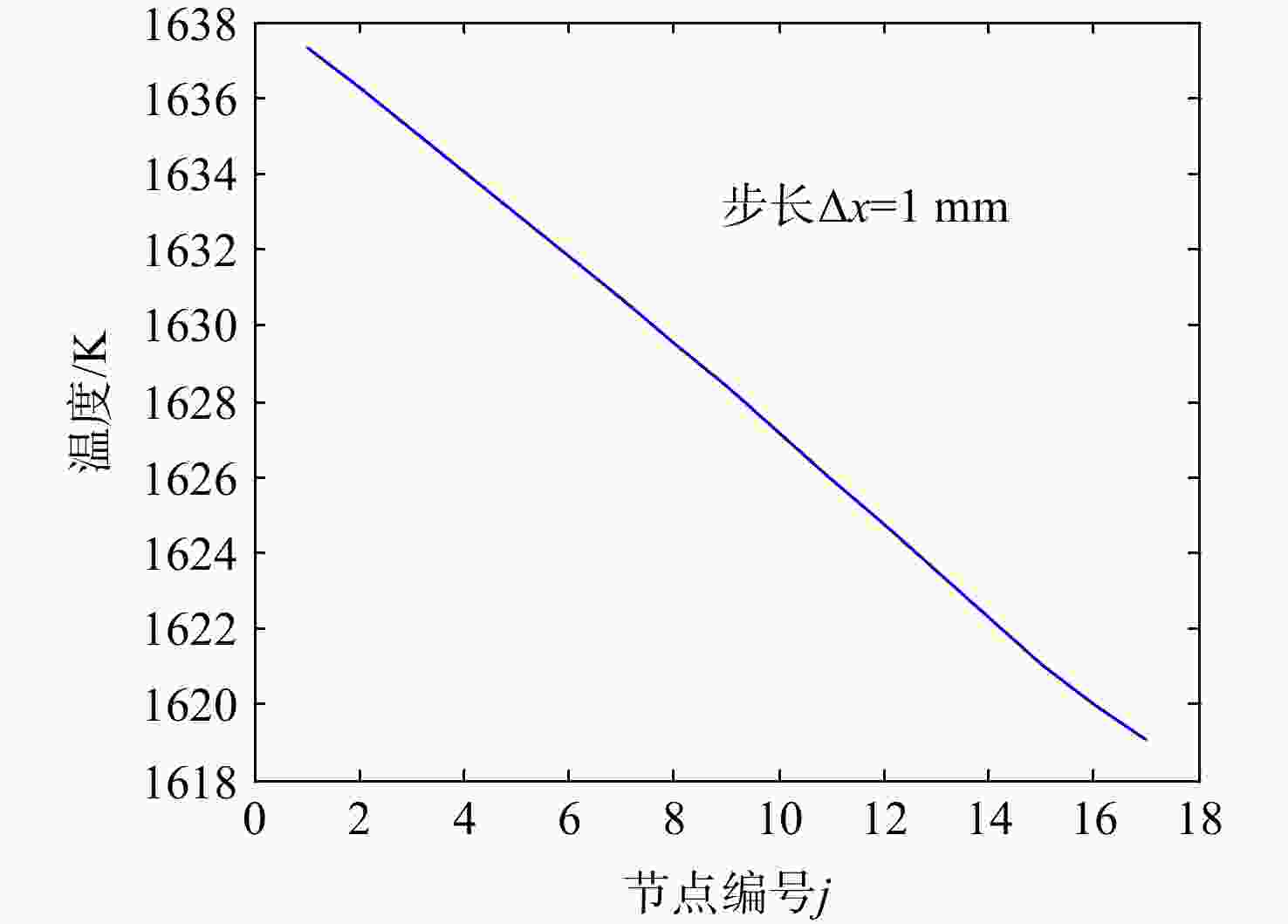

图 14 内屏前段温度求解结果
Figure 14. Solution result of front section temperature of inner shield

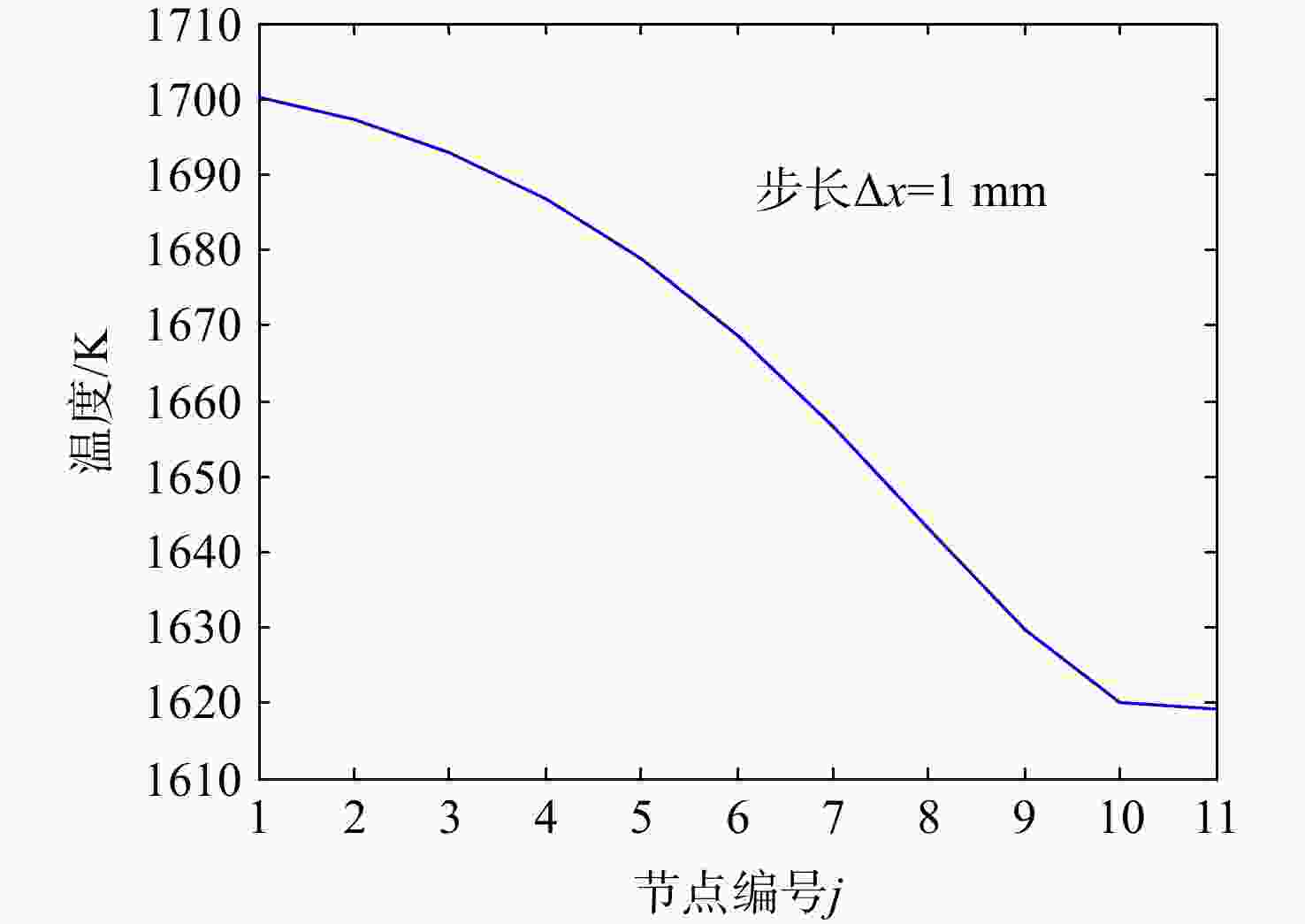

图 16 偶丝温度初步求解结果
Figure 16. Preliminary solution result of thermocouple wire temperature

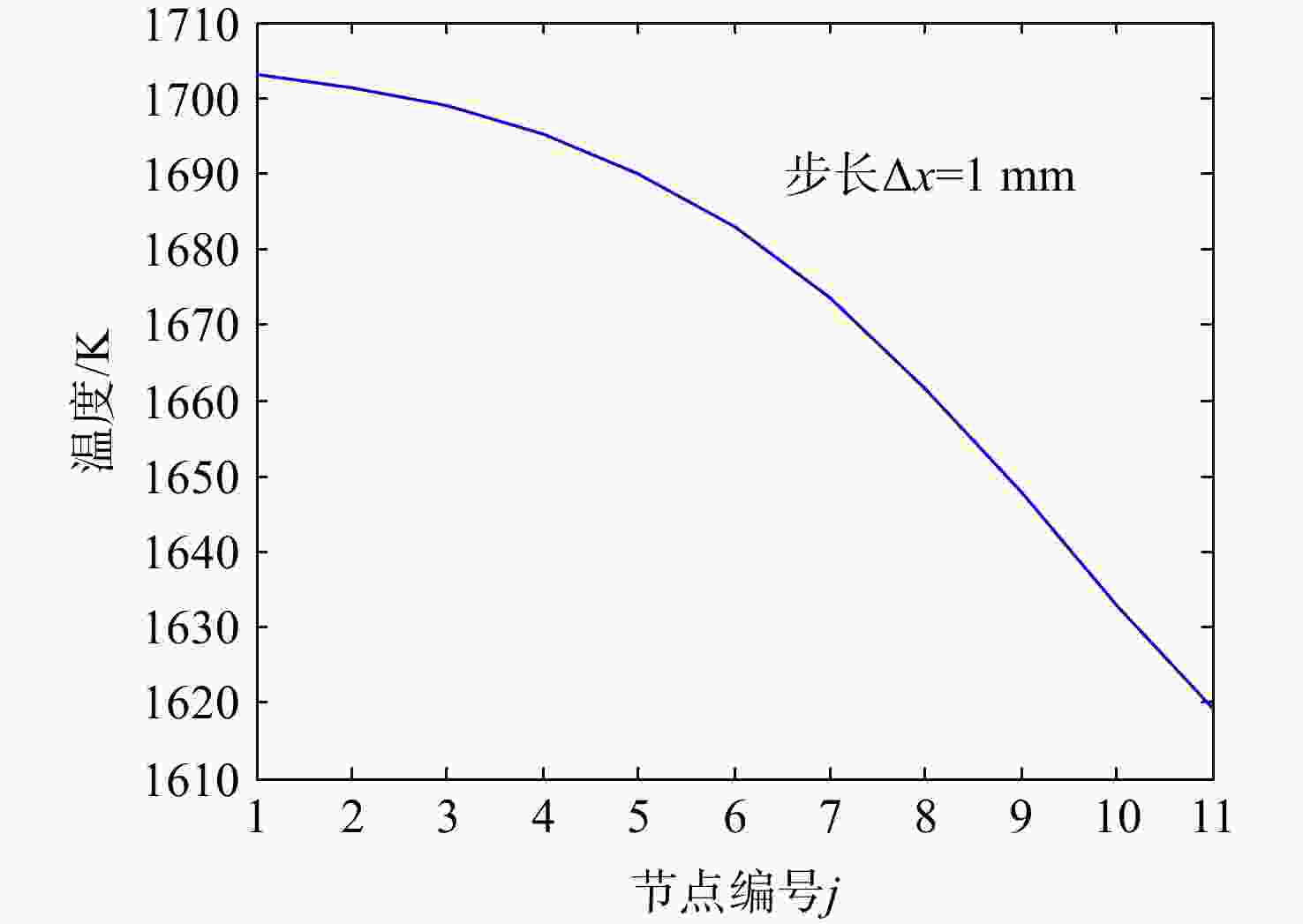

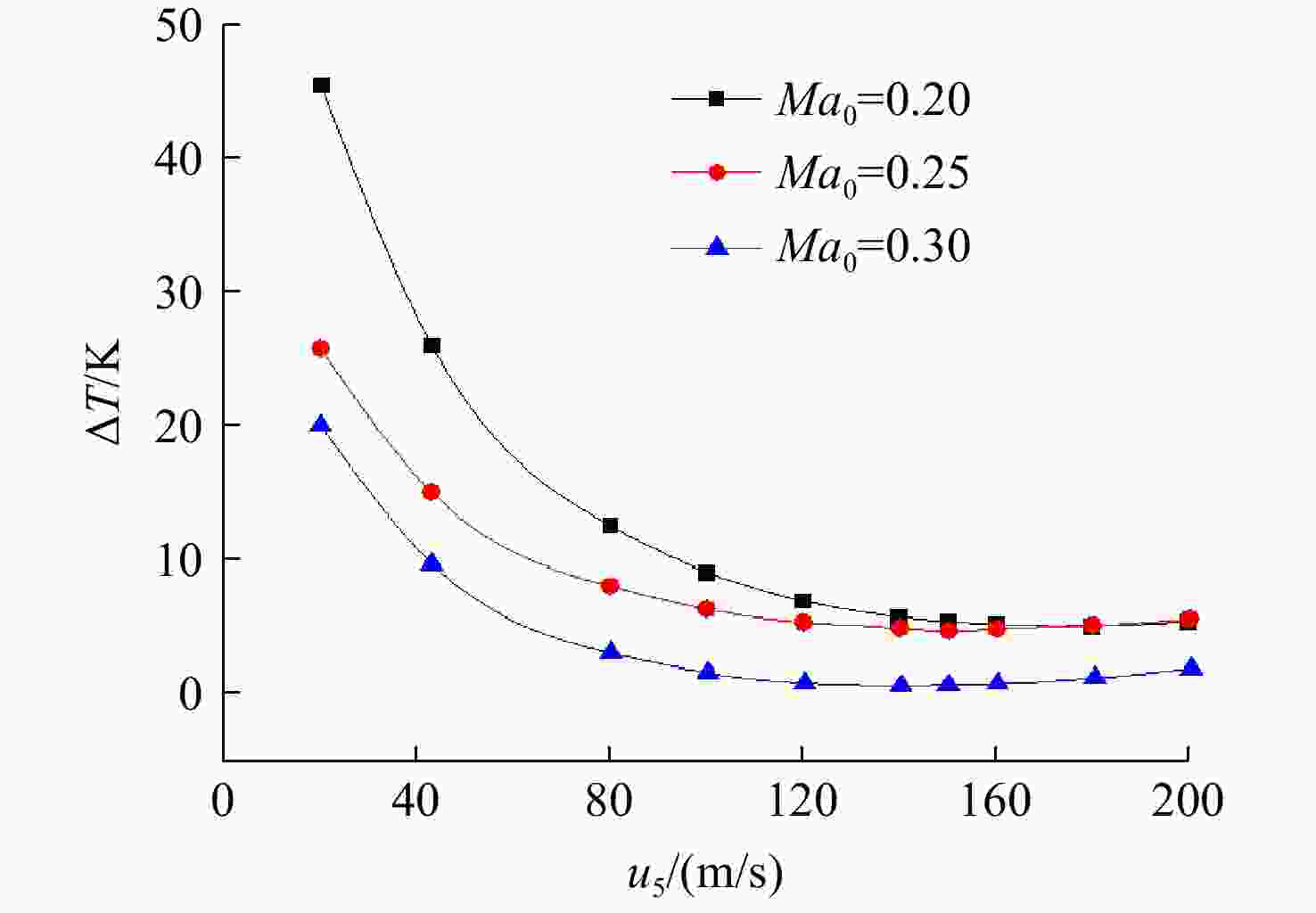

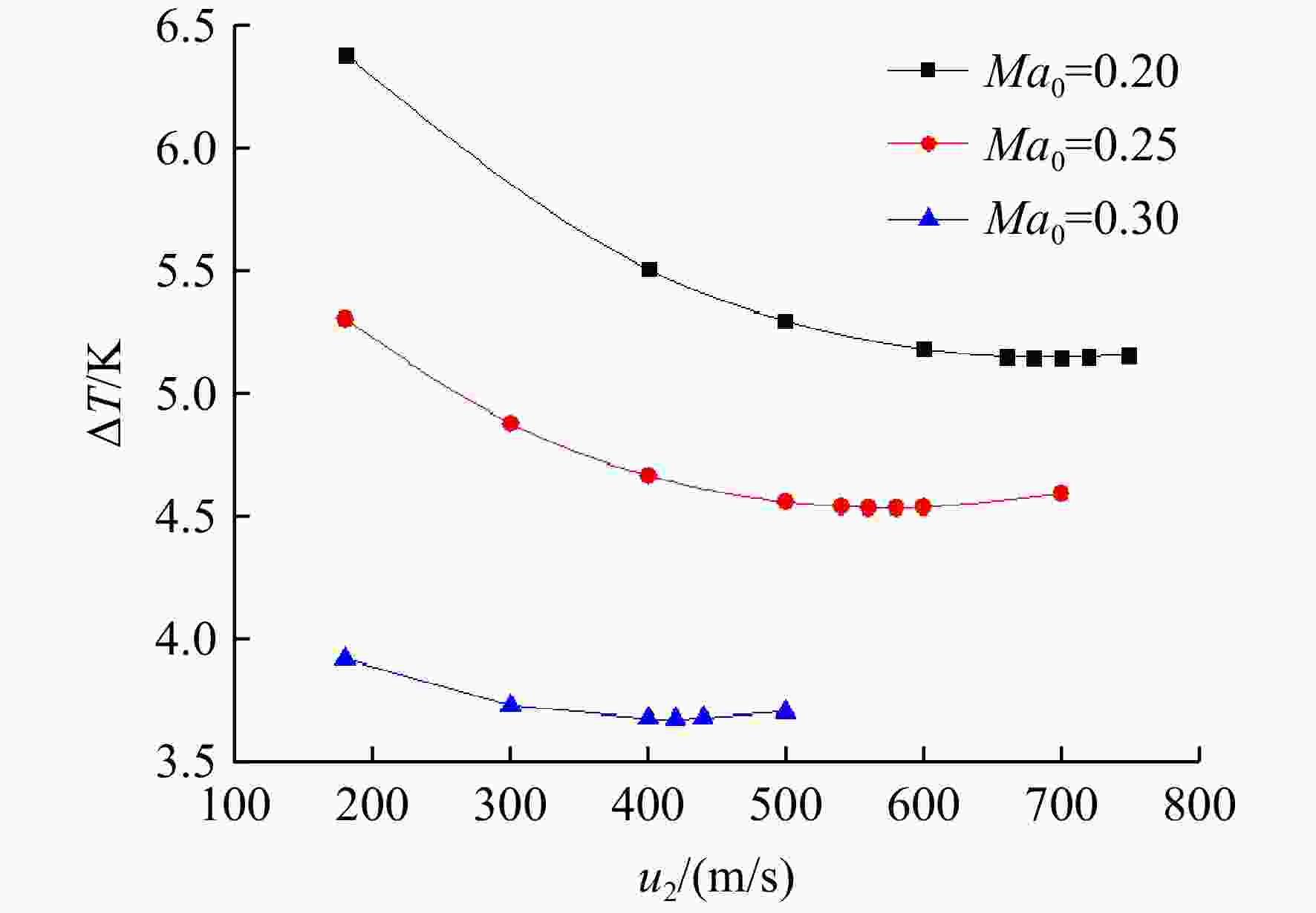

图 18 不同来流马赫数下内屏内流速度对测温偏差的影响
Figure 18. Influence of internal flow velocity of inner shield on temperature measurement deviation under different Mach numbers
-
[1] 廖理. 热学计量[M]. 北京: 原子能出版社, 2002. [2] 赵俭, 杨永军. 气流温度测量技术[M]. 北京: 中国质检出版社, 2017. [3] 赵时安. 温度传感器辐射修正校准的准确性研究[J]. 航空计测技术,2006,26(5): 44-46.ZHAO Shian. Research on the accuracy of the temperature sensor's radiation correction calibration[J]. Aviation Metrology & Measurement Technology,2006,26(5): 44-46. (in Chinese) [4] 赵俭, 杨永军, 王鹏, 等. 燃烧室出口气流温度传感器校准技术研究[C]//第十届发动机试验与测试技术学术交流会论文集. 西安: 中国航空学会发动机试验技术专业委员会, 2010: 217-222. [5] 赵俭, 杨永军, 王毅, 等. 高温双屏蔽式温度传感器的优化设计[C]//第九届发动机试验与测试技术学术交流会论文集. 北京: 中国航空学会发动机试验技术专业委员会, 2008: 92-96. [6] 赵俭,荆卓寅,李亚晋. 高温气流温度传感器测温偏差关键影响因素分析[J]. 航空发动机,2017,43(3): 78-82.ZHAO Jian,JING Zhuoyin,LI Yajin. Analysis of key influencing factors on temperature measurementdeviation of high temperaturegas sensors[J]. Aeroengine,2017,43(3): 78-82. (in Chinese) [7] GEORGE E G. A high-temperature combination sonic aspirated thermocouple and total-pressure probe[R]. Cleveland: AIAA, 1981. [8] ROBERT R, TREVOR M. Numerical model of an aspirated temperature probe [C]//49th AIAA Aerospace Sciences Meeting. Orlando: AIAA, 2011: 5-8. [9] TREVOR M M, ROBERT R, GREGG R B, et al. Prediction and experimental measurement of total temperature in an afterburning turbojet exhaust[C]//50th AIAA Aerospace Sciences Meeting including the New Horizons Forum and Aerospace Exposition. Nashville: AIAA, 2012: 78-82. [10] LAHOUCINE C O,KHELLAF A P. Correction for thermocouple and simultaneous estimation of thermal conductivity and thermal diffusivity[J]. Review of Scientific Instruments,2004,75(7): 132-135. [11] 张天飞,叶巍,陆德雨,等. 某型涡扇发动机进口温度畸变的稳定性评定试验技术研究[J]. 航空动力学报,2003,18(6): 783-787. doi: 10.3969/j.issn.1000-8055.2003.06.014ZHANG Tianfei,YE Wei,LU Deyu,et al. Stability assessment test technology of a turbofan engine inlet temperature distortion[J]. Journal of Aerospace Power,2003,18(6): 783-787. (in Chinese) doi: 10.3969/j.issn.1000-8055.2003.06.014 [12] RAO Yu,LI Bo,FENG Yan. Heat transfer of turbulent flow over surfaces with spherical dimples and teardrop dimples[J]. Experimental Thermal and Fluid Science,2015,61: 201-209. doi: 10.1016/j.expthermflusci.2014.10.030 [13] 荆卓寅,赵俭. 基于双屏吹气偶的现场K型参考温度传感器设计[J]. 航空计测技术,2009,29(1): 24-27.JING Zhuoyin,ZHAO Jian. Design of in-situ K-type standard temperature sensor based on two-shielded blowing thermocouple[J]. Aviation Metrology & Measurement Technology,2009,29(1): 24-27. (in Chinese) [14] YUTAKA I, TAKAYUKI G, TAKAO N. Effect of airflow on heat transfer of air-to-refrigerant airfoil heat exchanger[C]//53rd AIAA Aerospace Sciences Meeting. Kissimmee: AIAA, 2015: 16-17. [15] 李亚晋,赵俭,王建军. 几种典型燃烧室高温气流温度传感器的设计[J]. 计测技术,2014,34(3): 36-39.LI Yajin,ZHAO Jian,WANG Jianjun. Design of some kinds of combustor airflow high temperature sensors[J]. Metrology & Measurement Technology,2014,34(3): 36-39. (in Chinese) [16] 葛绍岩, 那鸿悦. 热辐射性质及其测量[M]. 北京: 科学出版社, 1989. [17] 赵镇南. 传热学[M]. 北京: 高等教育出版社, 2002. [18] 佟显义,徐微,郑全,等. 燃气总温传感器的设计[J]. 传感技术学报,2016,29(2): 301-305. doi: 10.3969/j.issn.1004-1699.2016.02.025TONG Xianyi,XU Wei,ZHENG Quan,et al. Design of the gas total temperature sensor[J]. Chinese Journal of Sensors and Actuators,2016,29(2): 301-305. (in Chinese) doi: 10.3969/j.issn.1004-1699.2016.02.025 [19] 吴颖,田金光,赵宇. 某重型燃机用排气总温热电偶的设计与研究[J]. 测控技术,2011,6(9): 312-315.WU Ying,TIAN Jinguang,ZHAO Yu. Design and research of a thermocouple measuring total exhaust temperature in heavy turbine[J]. Measurement & Control Technology,2011,6(9): 312-315. (in Chinese) [20] 赵俭,杨永军,王毅. 一种新型无冷却式气流高温传感器[J]. 计量学报,2015, 36(6A): 79-82.ZHAO Jian,YANG Yongjun,WANG Yi. A new-typed non-cooled high gas temperature sensor[J]. ACTA Metrologica Sinica,2015, 36(6A): 79-82. (in Chinese) -
