进口导叶角对叶根失稳压气机流动失稳的影响

陈晓松 武文倩 潘天宇 李秋实

陈晓松, 武文倩, 潘天宇, 等. 进口导叶角对叶根失稳压气机流动失稳的影响[J]. 航空动力学报, 2023, 38(1):215-222 doi: 10.13224/j.cnki.jasp.20210355
引用本文: 陈晓松, 武文倩, 潘天宇, 等. 进口导叶角对叶根失稳压气机流动失稳的影响[J]. 航空动力学报, 2023, 38(1):215-222 doi: 10.13224/j.cnki.jasp.20210355
CHEN Xiaosong, WU Wenqian, PAN Tianyu, et al. Influence of inlet guide vane angle on flow instability of hub instability compressor[J]. Journal of Aerospace Power, 2023, 38(1):215-222 doi: 10.13224/j.cnki.jasp.20210355
Citation: CHEN Xiaosong, WU Wenqian, PAN Tianyu, et al. Influence of inlet guide vane angle on flow instability of hub instability compressor[J]. Journal of Aerospace Power, 2023, 38(1):215-222 doi: 10.13224/j.cnki.jasp.20210355

进口导叶角对叶根失稳压气机流动失稳的影响

doi: 10.13224/j.cnki.jasp.20210355
基金项目: 国家自然科学基金(51636001, 51976005); 国家科技重大专项(2017-Ⅱ-0005-0018)
详细信息
    作者简介:

    陈晓松(1996-),女,硕士生,主要从事叶轮机械流动不稳定性研究

    通讯作者:

    潘天宇(1989-),男,副教授,博士,主要从事叶轮机械流动不稳定性研究。E-mail: pantianyu@buaa.edu.cn

  • 中图分类号: V231.3

Influence of inlet guide vane angle on flow instability of hub instability compressor

  • 摘要:

    以一台航空高速压气机为研究对象,通过加装进口导叶调整压气机进气预旋角,采集失稳过程中的动态压力信号,观察不同导叶角度、流动失稳演化过程。结果表明:在负导叶角情况下,压气机由转子叶尖突尖波引起失稳;在零导叶角及较小的正导叶角情况下,由静子叶根区域的局部喘振诱发失稳;在较大的正导叶角情况下,静子叶根在节流过程中首先出现局部失稳,进一步节流导致叶尖旋转失速团出现,压气机完全失稳。分析认为,导叶角的增加通过降低反力度,调整了转静间的负荷分配,从而引起了失速初始扰动发生上述“转子突尖波-静子局部喘振-静子局部失稳”的转变。

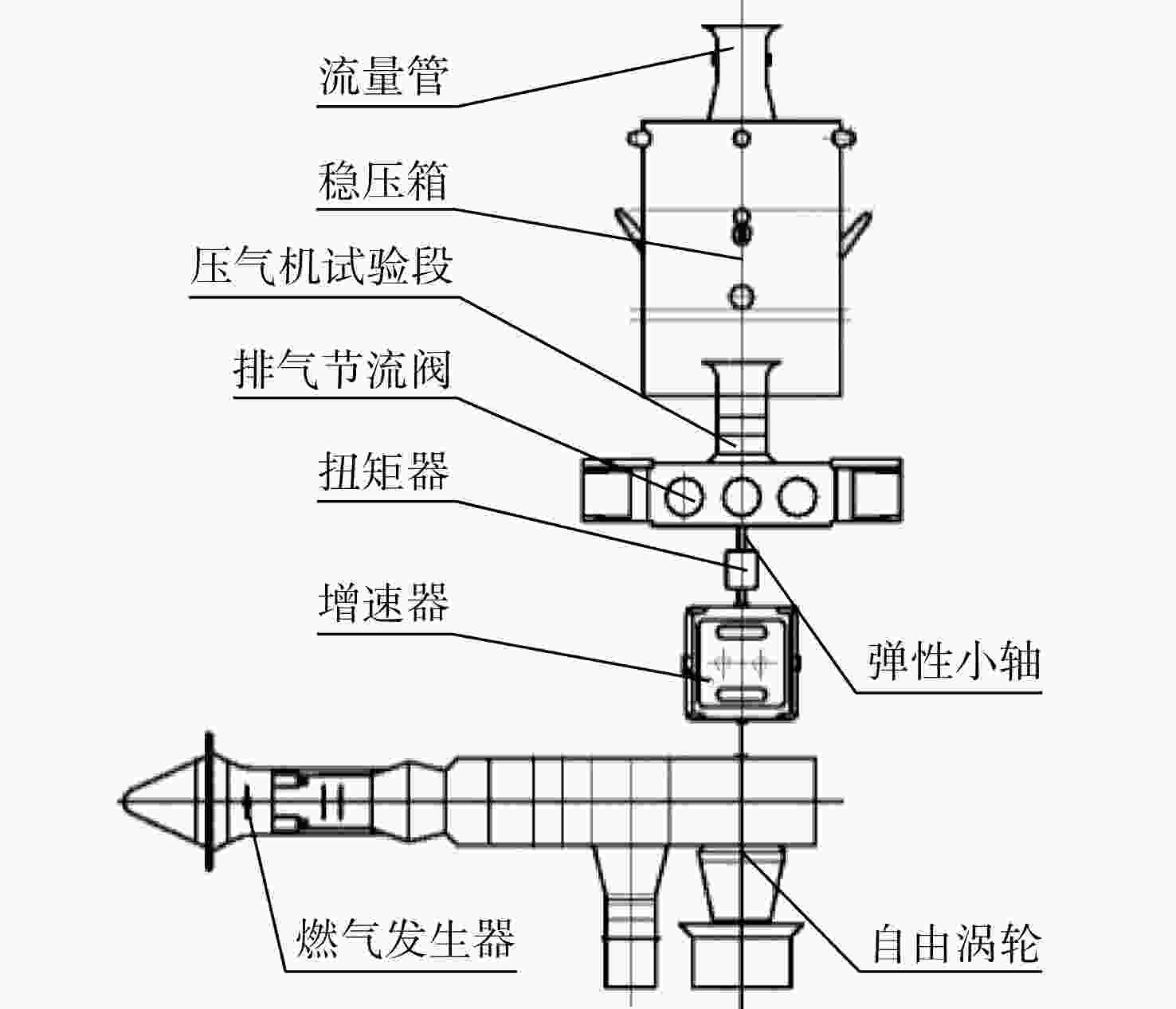

  • 图 1  压气机实验台

    Figure 1.  Compressor test rig

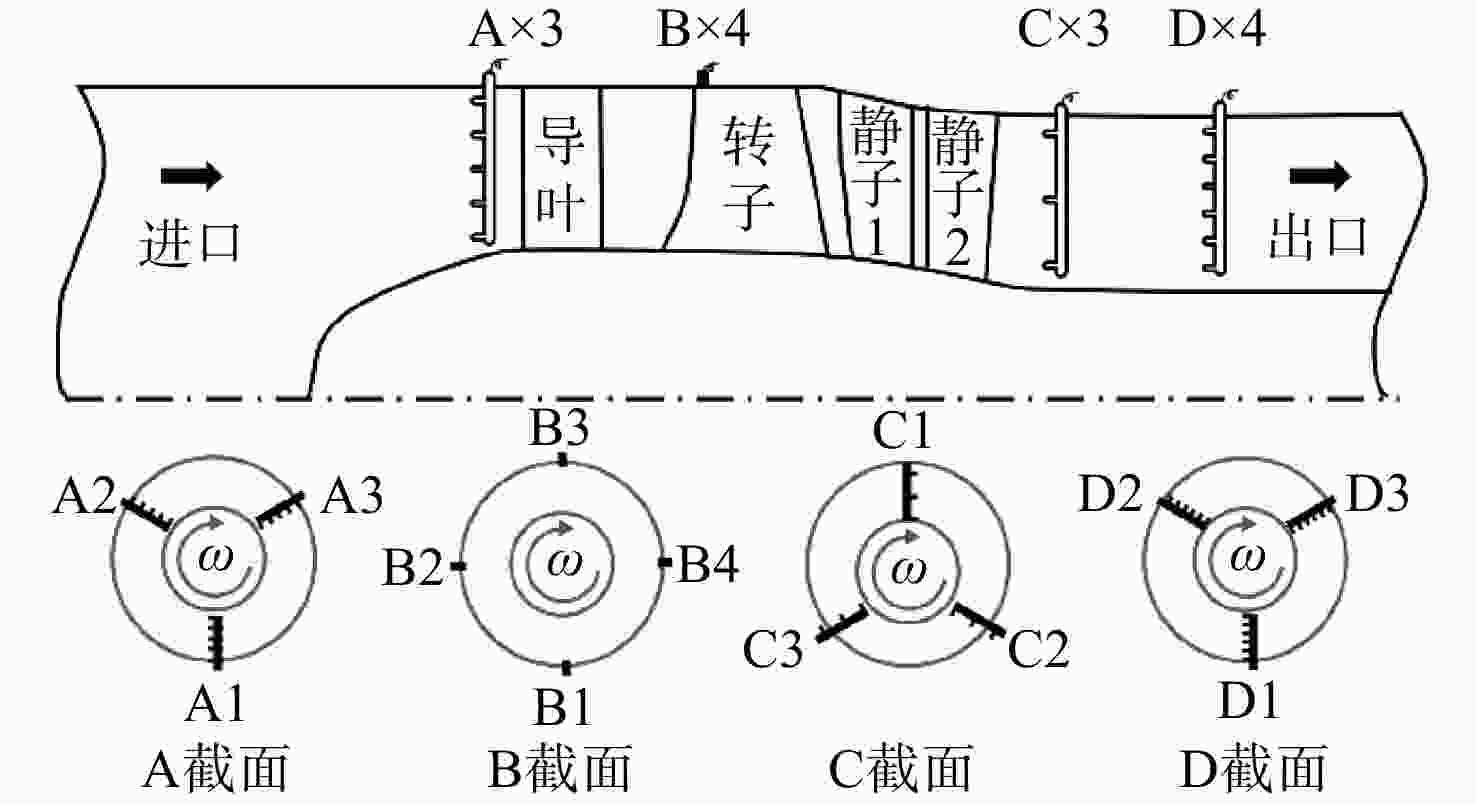

    图 2  实验台测点布置图

    Figure 2.  Layout of measuring transducers of test rig

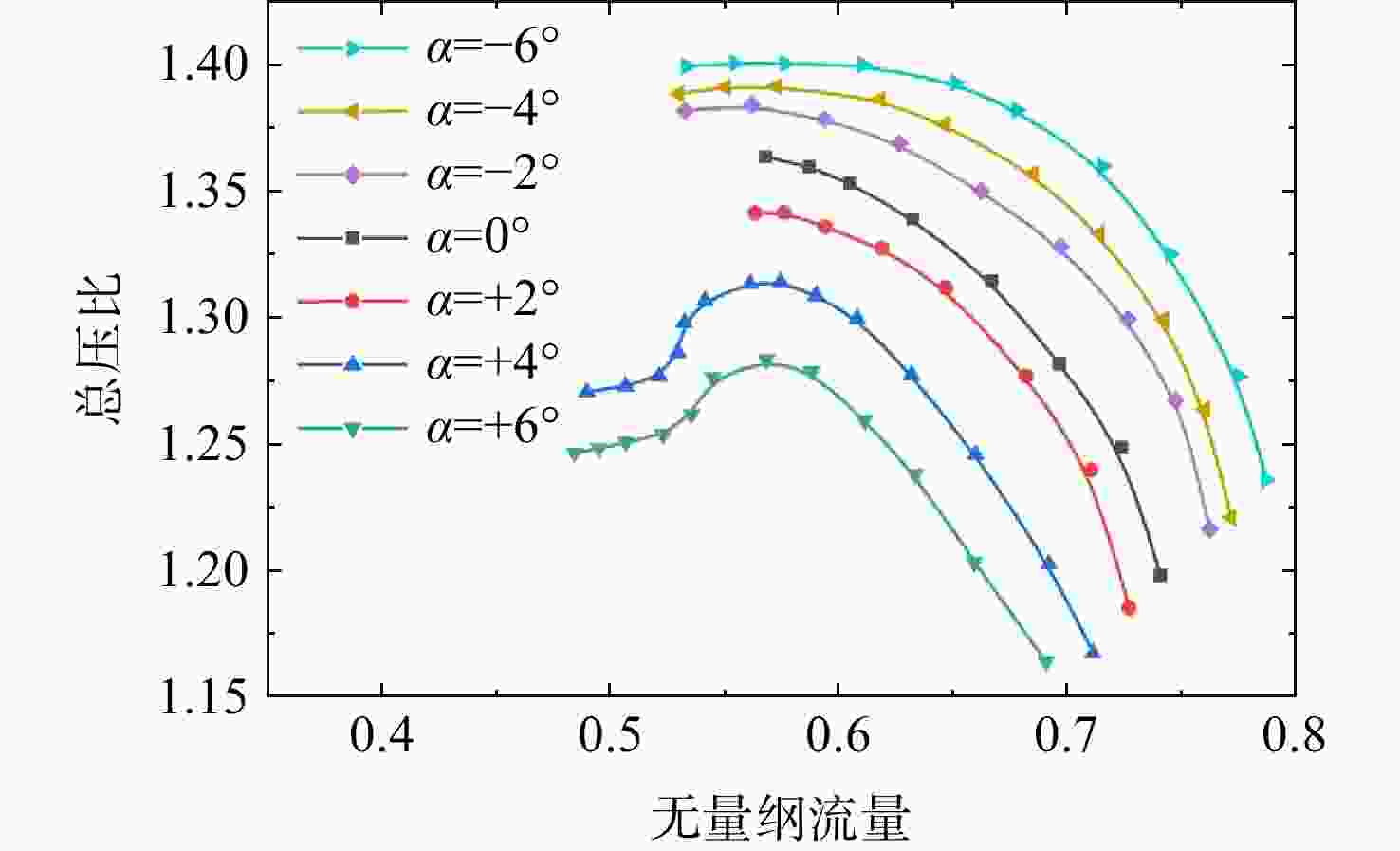

    图 3  78%设计转速总压比-无量纲流量特性图

    Figure 3.  Total pressure ratio-non-dimensional mass flow rate performance map of 78% design speed

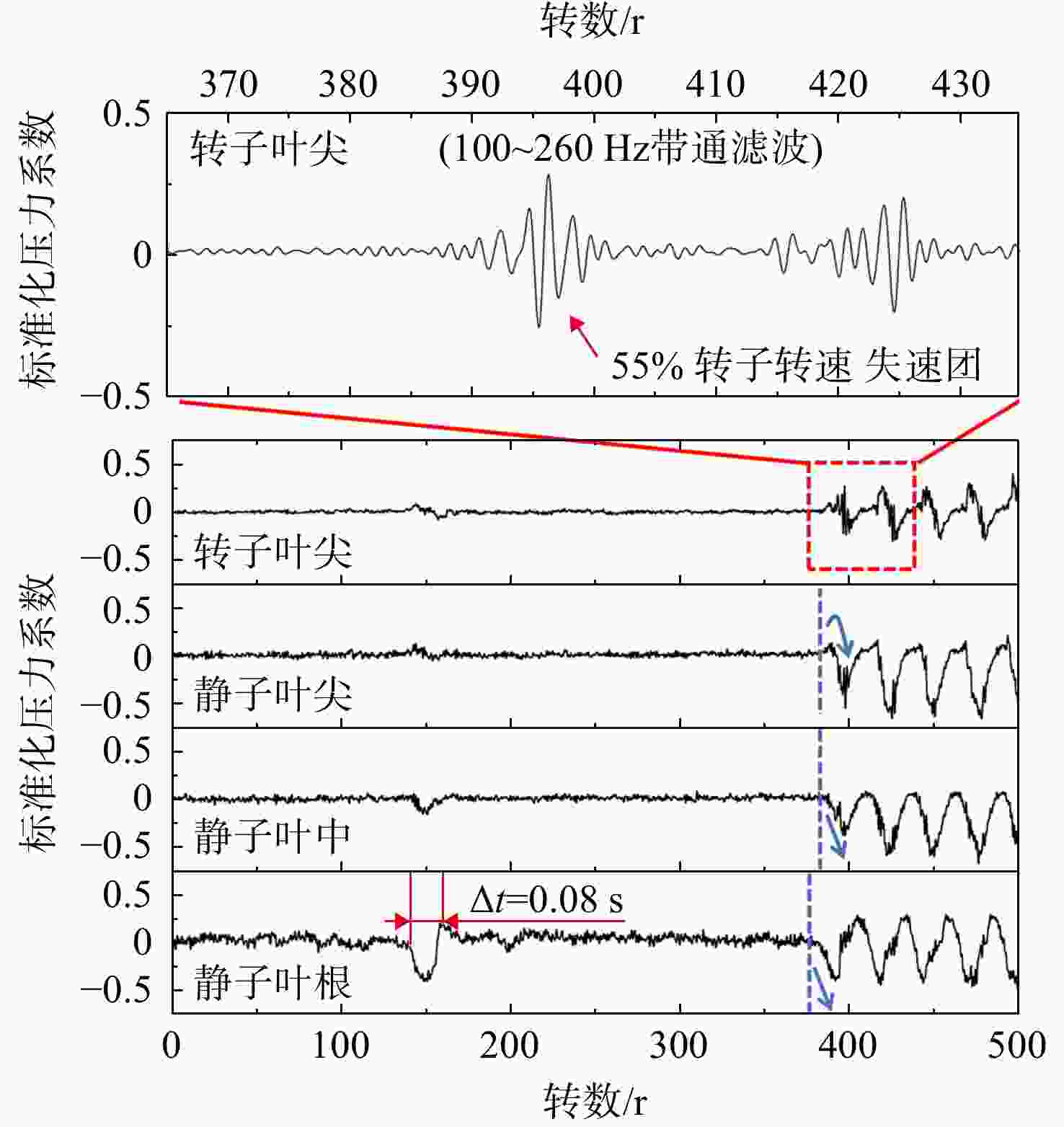

    图 4  0°进口导叶角失稳过程

    Figure 4.  Instability evolution at 0° inlet guide vane angle

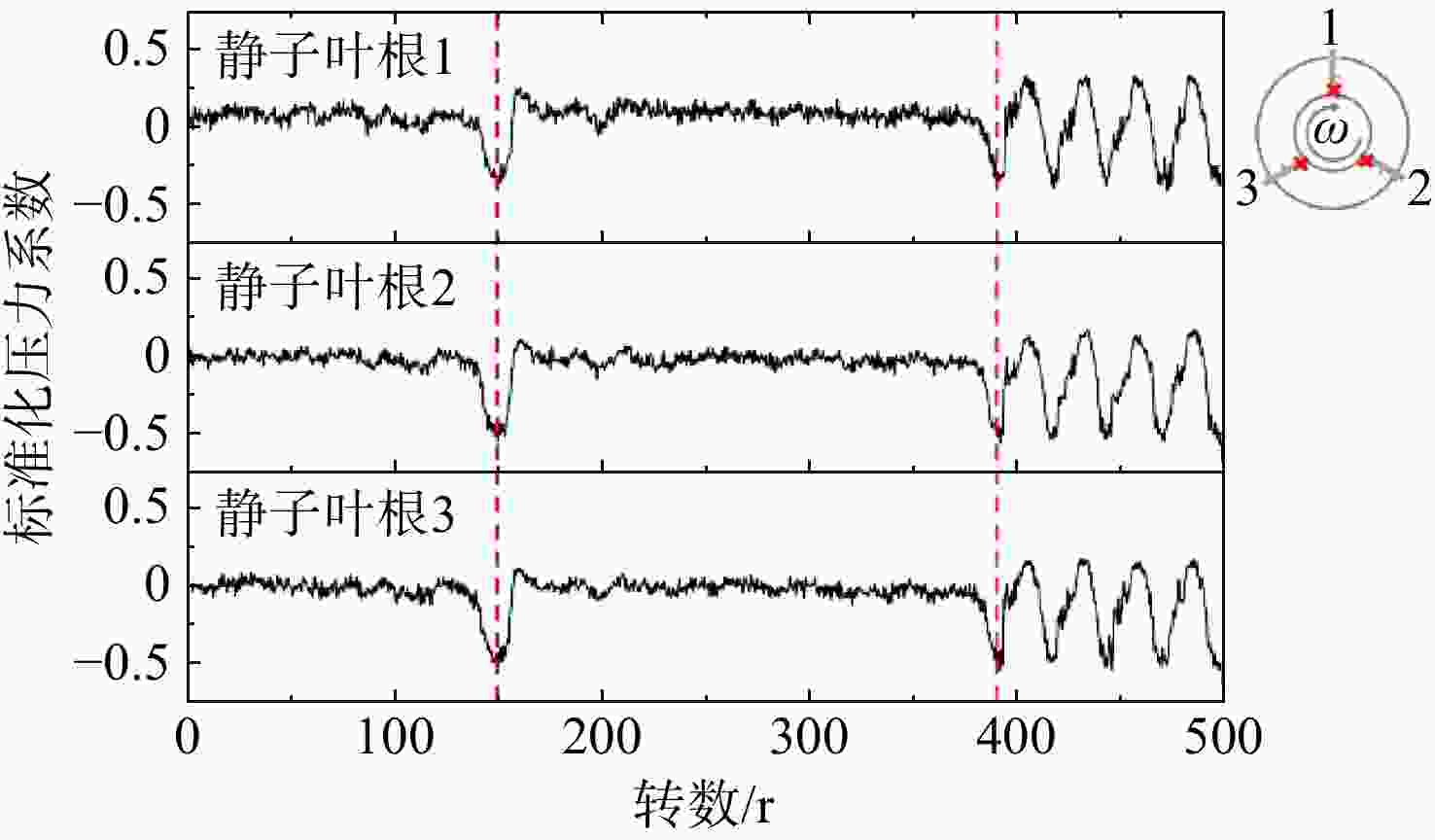

    图 5  0°进口导叶角静子叶根局部喘振现象

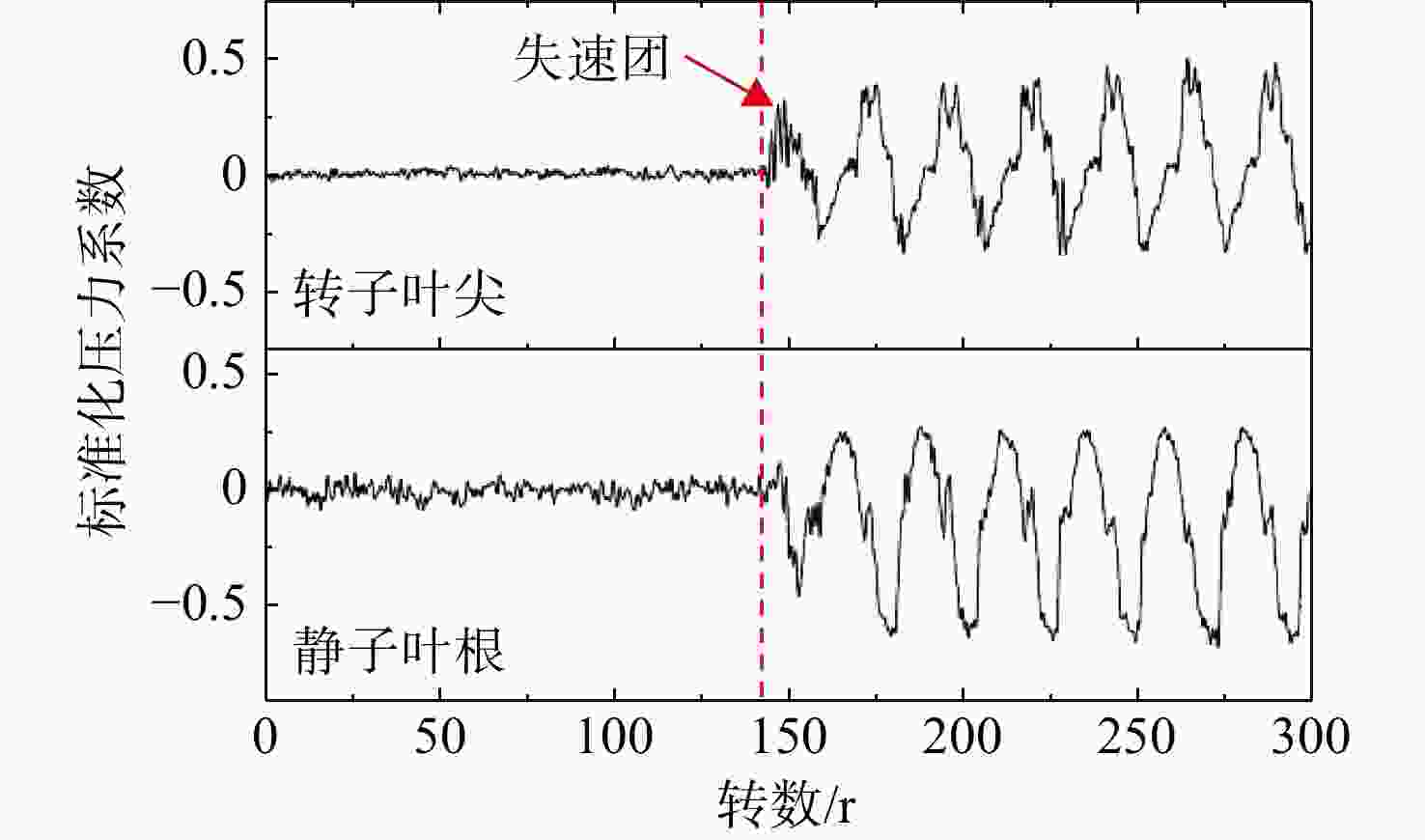

    Figure 5.  Partial surge at 0° inlet guide vane angle at stator hub region

    图 6  −2°进口导叶角失稳过程

    Figure 6.  Instability evolution at −2° inlet guide vane angle

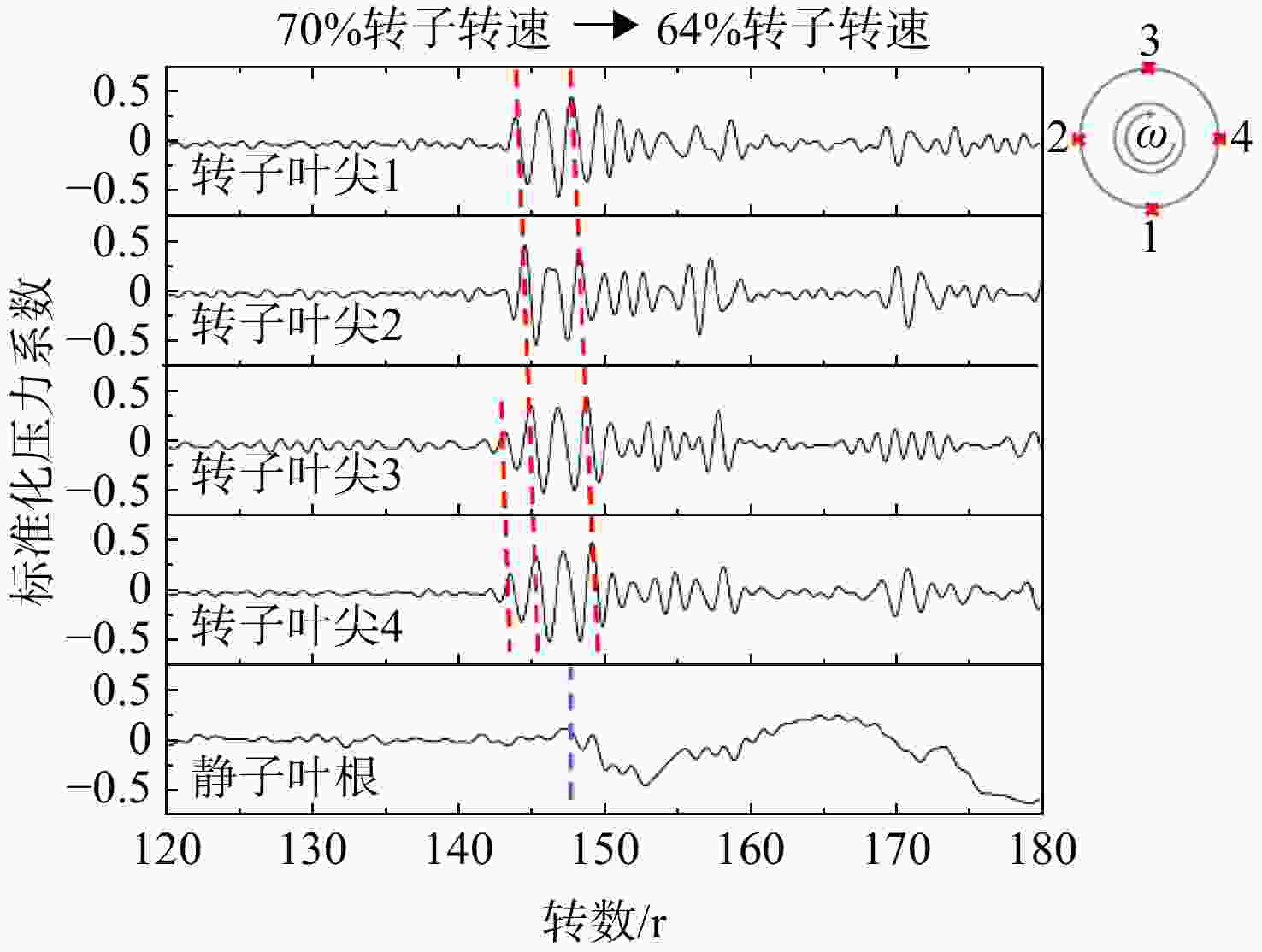

    图 7  −2°进口导叶角转子叶尖旋转失速团

    Figure 7.  Rotating stall process at −2° inlet guide vane angle at rotor tip region

    图 8  −4°进口导叶角失稳过程

    Figure 8.  Instability evolution at −4° inlet guide vane angle

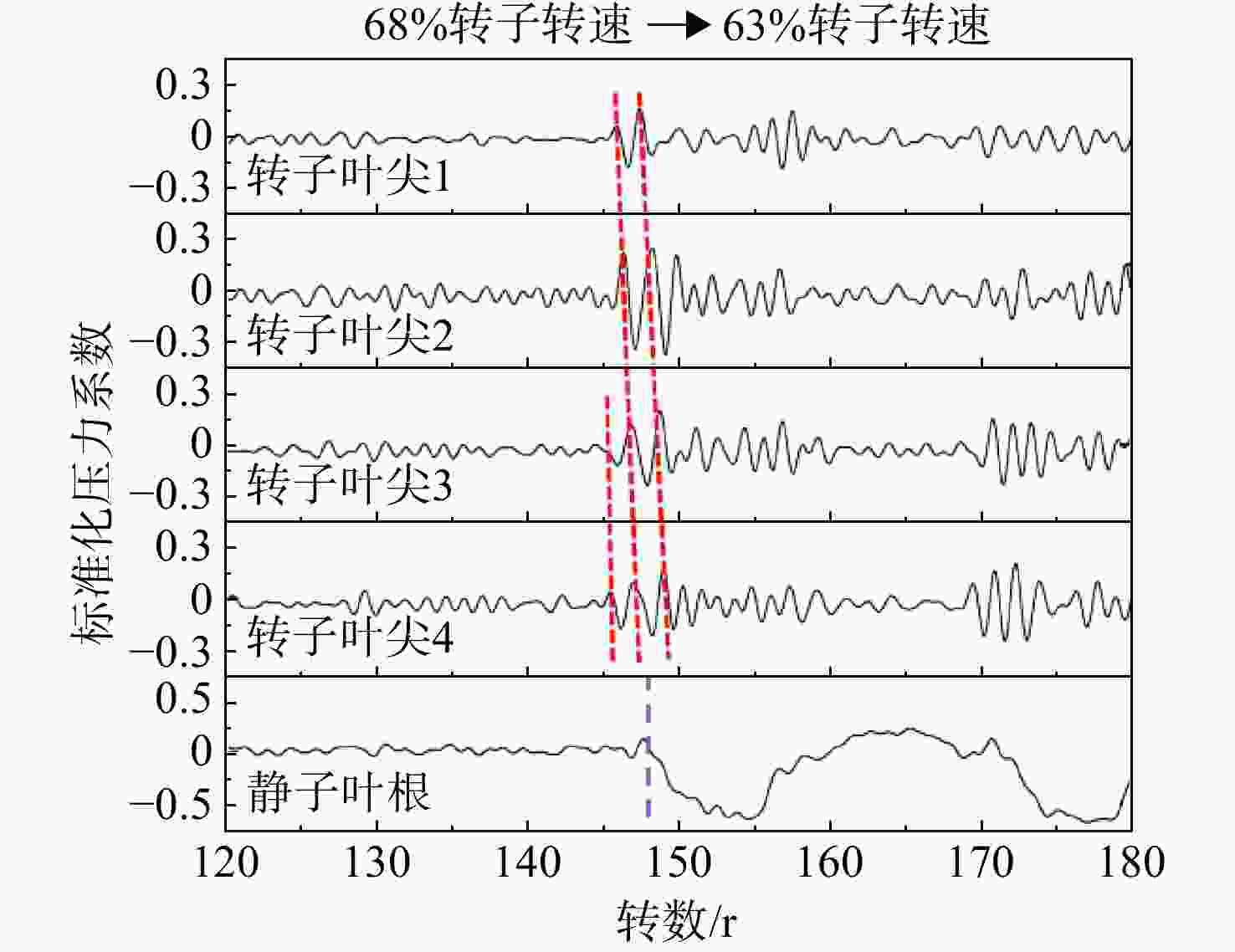

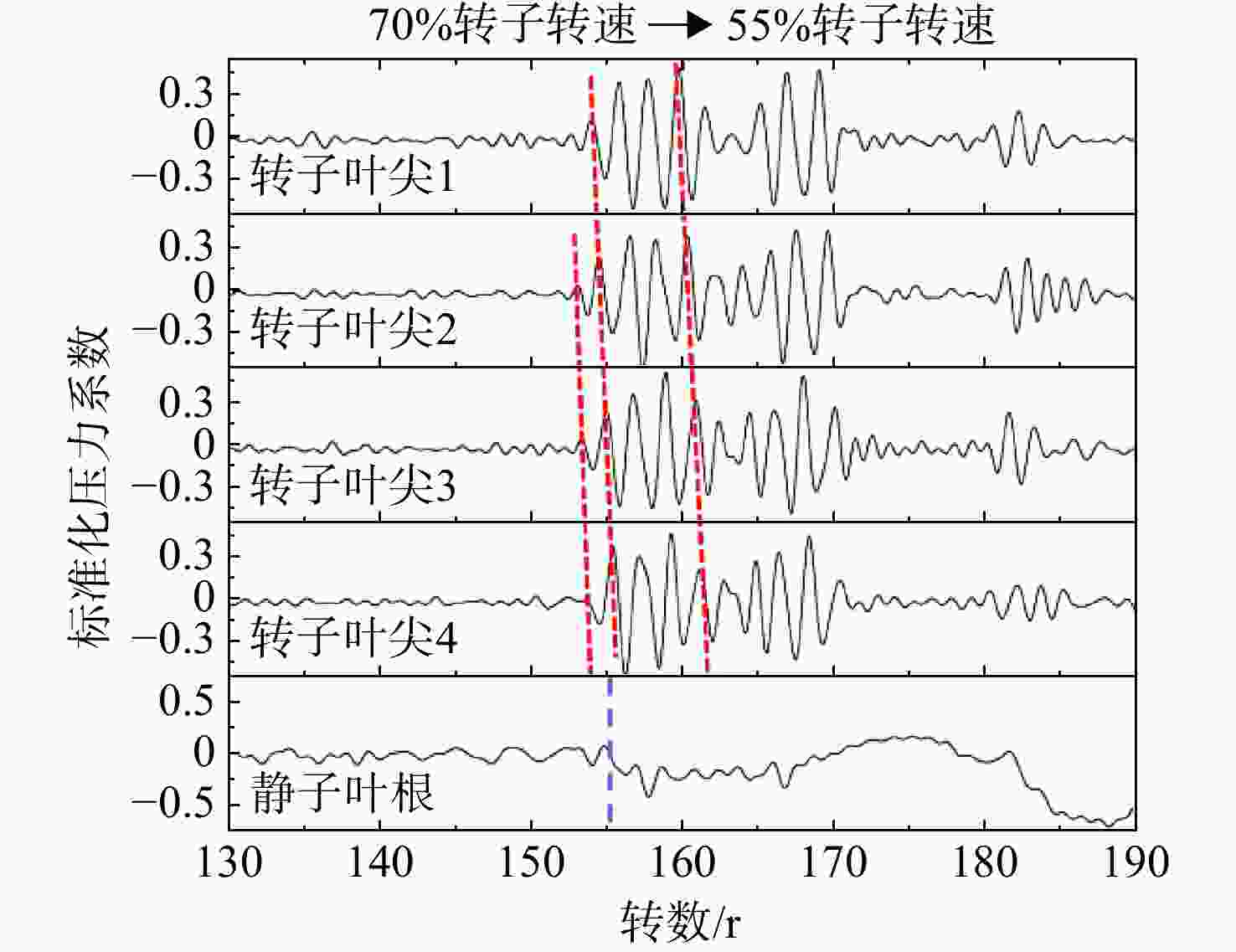

    图 9  −4°进口导叶角转子叶尖旋转失速团

    Figure 9.  Rotating stall process at −4° inlet guide vane angle at rotor tip region

    图 10  −6°进口导叶角失稳过程

    Figure 10.  Instability evolution at −6° inlet guide vane angle

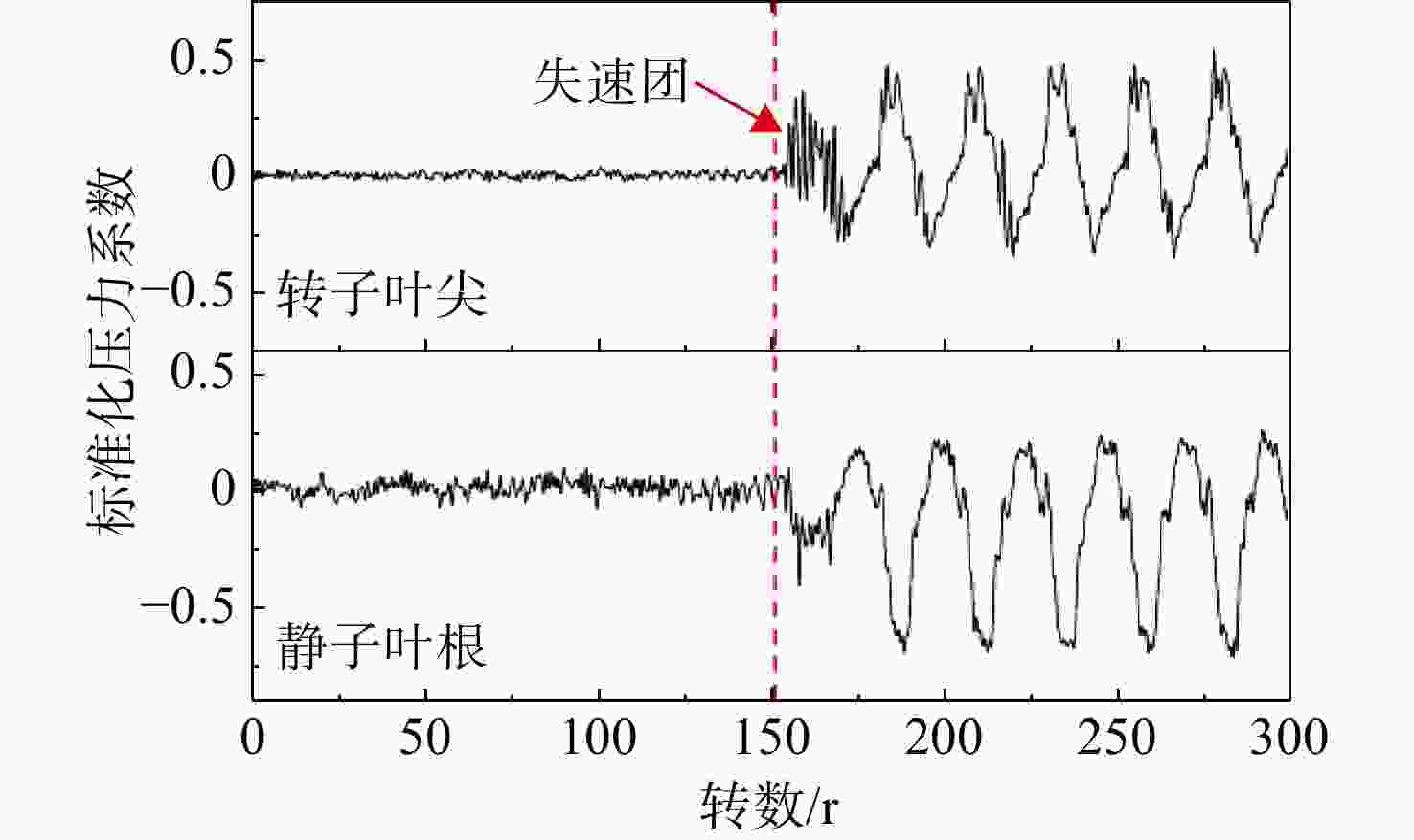

    图 11  −6°进口导叶角转子叶尖旋转失速团

    Figure 11.  Rotating stall process at −6° inlet guide vane angle at rotor tip region

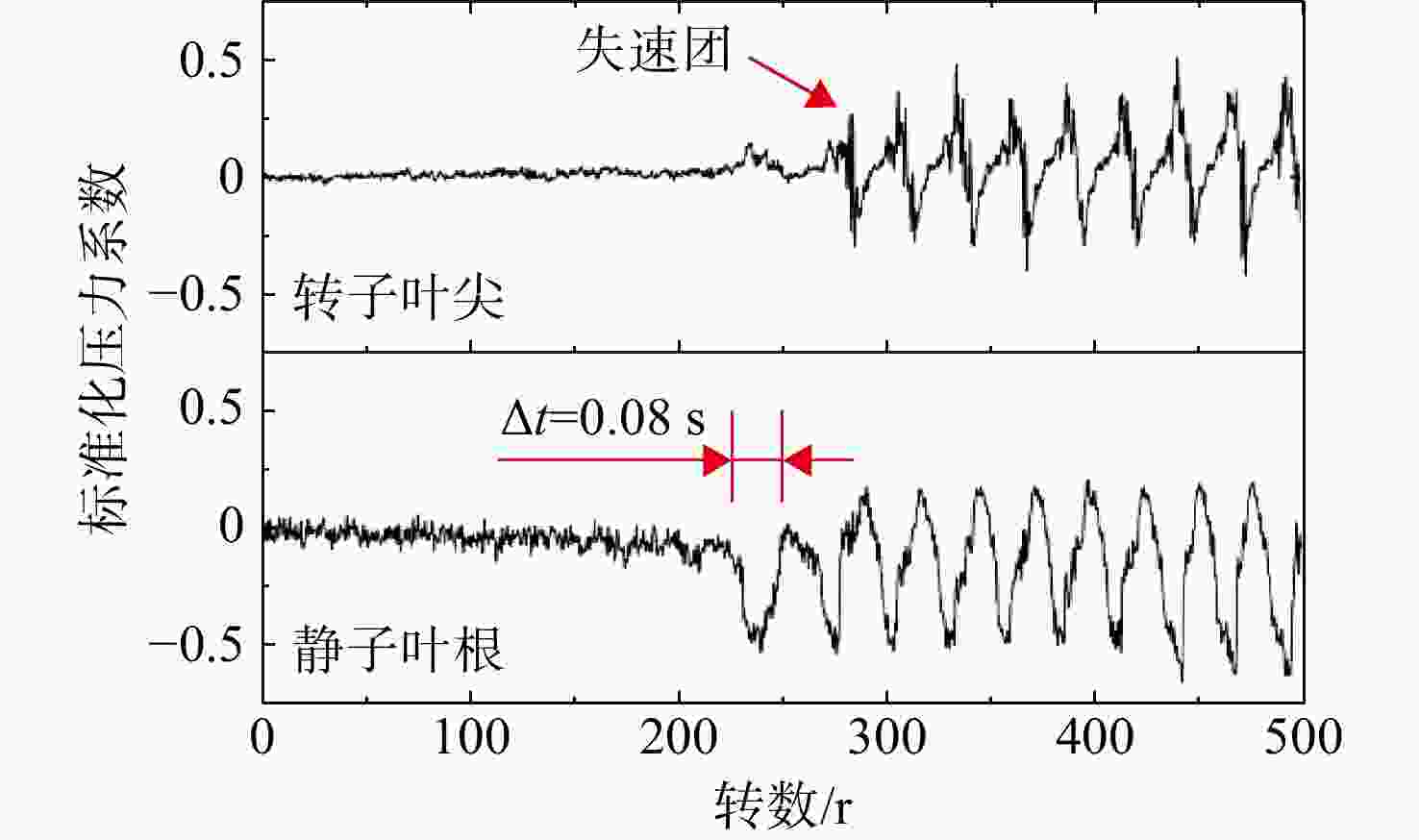

    图 12  +2°进口导叶角失稳过程

    Figure 12.  Instability evolution at +2° inlet guide vane angle

    图 13  +4°进口导叶角失稳过程

    Figure 13.  Instability evolution at +4° inlet guide vane angle

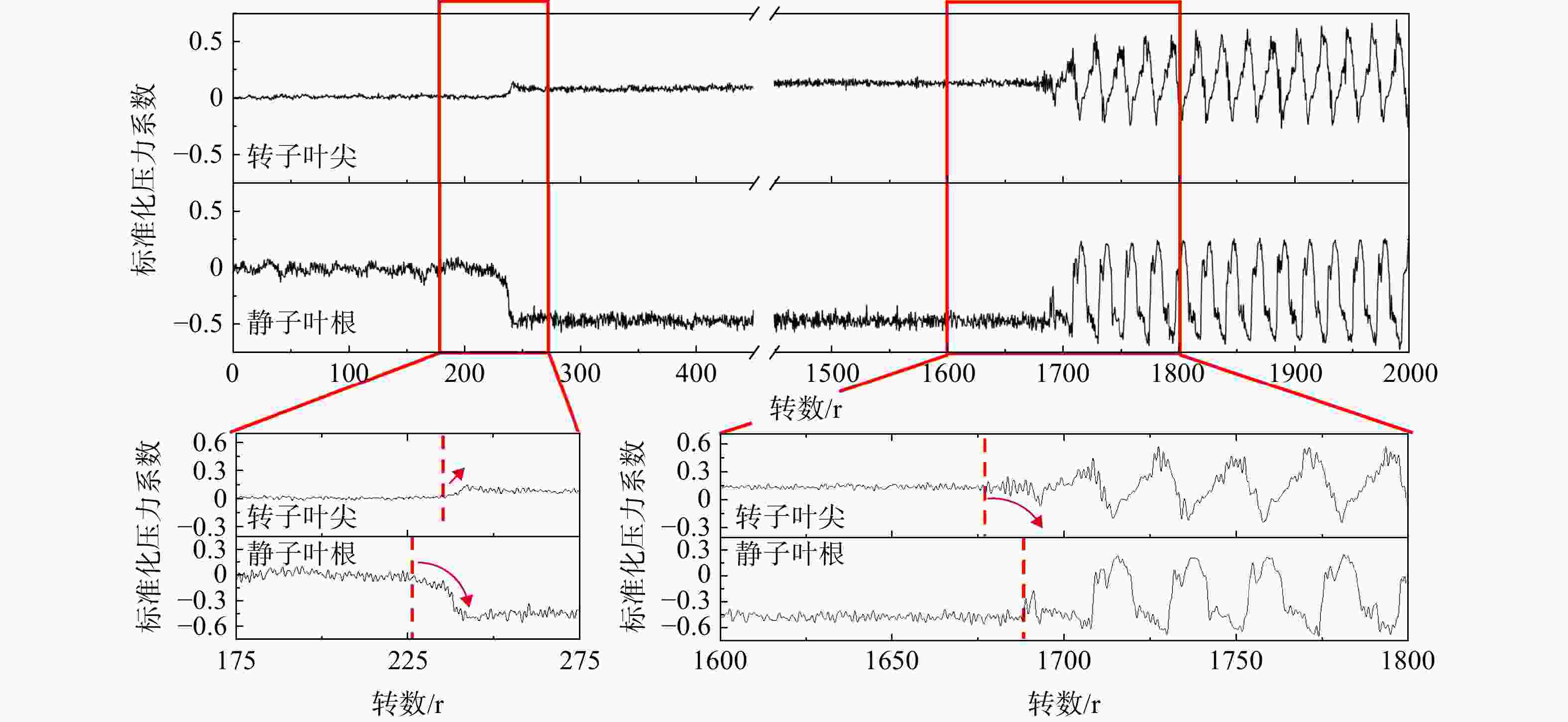

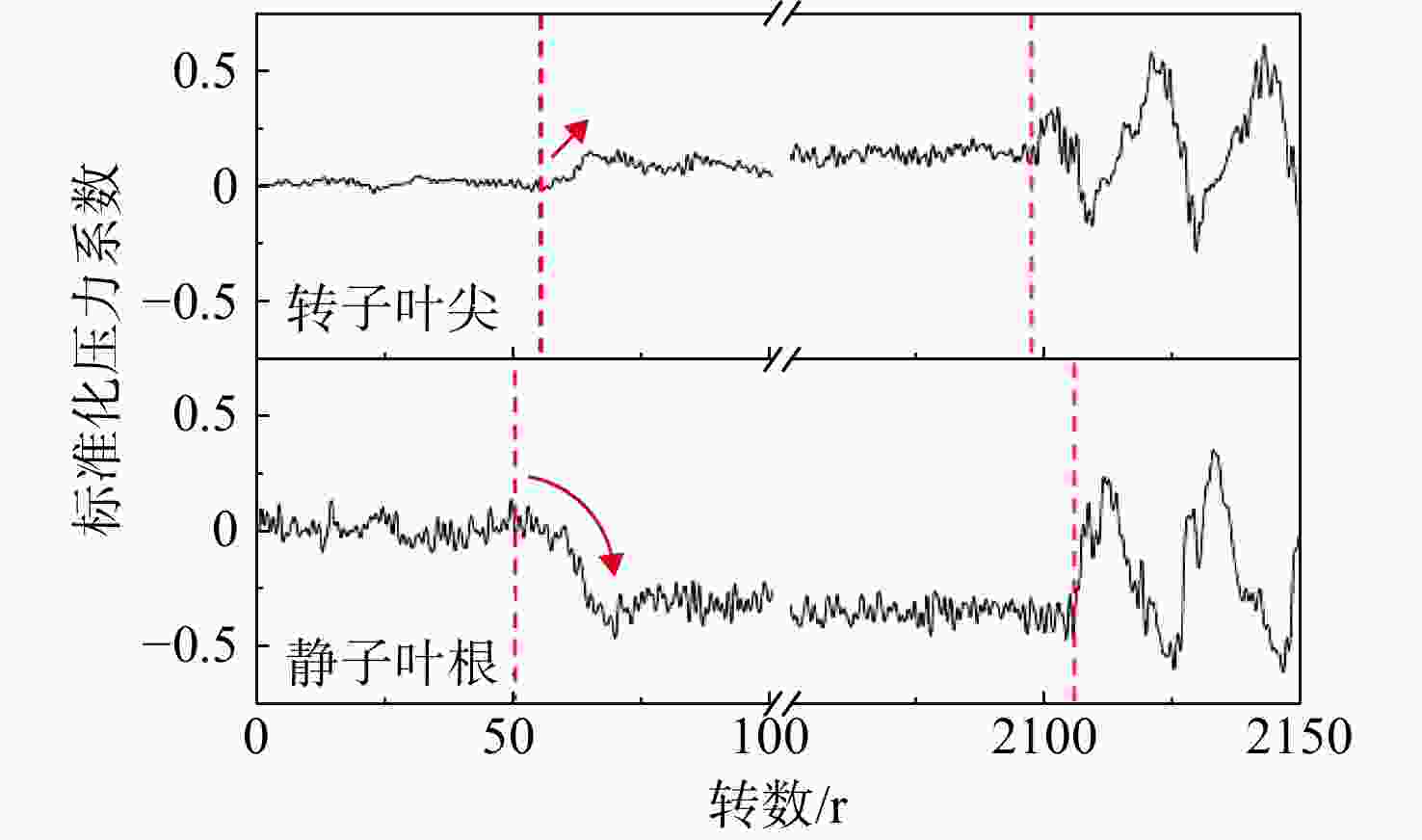

    图 14  +6°进口导叶角失稳过程

    Figure 14.  Instability evolution at +6° inlet guide vane angle

    表  1  跨声速轴流压气机主要设计参数

    Table  1.   Main design parameters of the transonic axial compressor

    设计参数数值
    转速/(r/min)22000
    压比1.6
    绝热效率0.84
    质量流量/(kg/s)13.5
    转子叶片数17
    转子叶尖马赫数1.21
    轮毂比0.565
    展弦比0.956
    第1排静子叶片数29
    第2排静子叶片数29
    下载: 导出CSV
  • [1] EMMONS H W,PEARSON C E,GRANT H P. Compressor surge and stall propagation[J]. Transactions of the ASME,1955,77(4): 455-469.
    [2] DAY I J. Stall inception in axial flow compressors[J]. Journal of Turbomachinery,1993,115(1): 1-9. doi: 10.1115/1.2929209
    [3] DAY I J,FREEMAN C. The unstable behavior of low and high-speed compressors[J]. Journal of Turbomachinery,1994,116(2): 194-201. doi: 10.1115/1.2928353
    [4] MAILACH R,SAUER H,VOGELER K.The periodical interaction of the tip clearance flow in the blade rows of axial compressors[R].ASME Paper 2001-GT-0299,2001.
    [5] RICK D,AHMET S,PHILIP K,et al. Prediction of surge in a turbocharger compression system vs.measurements[J]. International Journal of Engines,2011,4(2): 2181-2192.
    [6] CAMP T R,DAY I J. A study of spike and modal stall phenomena in a low-speed axial compressor[J]. Journal of Turbomachinery,1998,120(3): 393-401. doi: 10.1115/1.2841730
    [7] HAH C,SCHULZE R,WAGNER S,et al.Numerical and experimental study for short wavelength stall inception in a low-speed axial compressor[R].Florence,Italy:the 14th International Symposium on Air Breathing Engines,1999.
    [8] PULLAN G,YOUNG A M,DAY I J,et al. Origins and structure of spike-type rotating stall[J]. Journal of Turbomachinery,2015,137(5): 051007.1-051007.11.
    [9] WEICHERT S,DAY I J. Detailed measurements of spike formation in an axial compressor[J]. Journal of Turbomachinery,2014,136(5): 051006.1-051006.9.
    [10] MAILACH R,LEHMAN I,VOGELER KAND. Rotating instabilities in an axial compressor originating from the fluctuating blade tip vortex[J]. Journal of Turbomachinery,2001,123(3): 453-460. doi: 10.1115/1.1370160
    [11] DODDS J,VAHDATI M. Rotating stall observations in a high speed compressor: Part ⅱ numerical study[J]. Journal of Turbomachinery,2015,137(5): 1-10.
    [12] LI Q S,PAN T Y,SUN T L,et al. Experimental investigations on instability evolution in a transonic compressor at different rotor speeds[J]. Journal of Mechanical Engineering Science,2015,229(18): 3378-3391. doi: 10.1177/0954406215573779
    [13] 潘天宇,贺雷,王正鹤,等.局部喘振频率特性及估算方法[J].航空动力学报, 2015,30(11):2666-2672.

    PAN Tianyu,HE Lei,WANG Zhenghe,et al. Study on the frequency of partial surge and a frequency prediction method[J].Journal of Areospace Power,2015,30(11):2666-2672.(in Chinese)
    [14] 潘天宇,孙太璐,李志平,等. 局部喘振的发生机理[J]. 航空动力学报,2016,31(4): 877-885. doi: 10.13224/j.cnki.jasp.2016.04.014

    PAN Tianyu,SUN Tailu,LI Zhiping,et al. Occurrence mechanism of partial surge[J]. Journal of Areospace Power,2016,31(4): 877-885. (in Chinese) doi: 10.13224/j.cnki.jasp.2016.04.014
    [15] PAN T Y,LI Q S,LI Z P,et al. Effects of radial loading distribution on partial-surge-initiated instability in a transonic axial flow compressor[J]. Journal of Turbomachinery,2017,139(10): 101010.1-101010.13.
    [16] DAY I J. Axial compressor performance during surge[J]. Journal of Propulsion and Power,1994,10(3): 329-336. doi: 10.2514/3.23760
    [17] NIE C Q,An experimental investigation on different radial loading distribution and patterns of stall inception in a single-stage low-speed axial compressor[R].ASME Paper GT2003-38090,2003.
