Analysis on heat transfer performance of honeycomb sandwich structure with side wall openings
-
摘要:

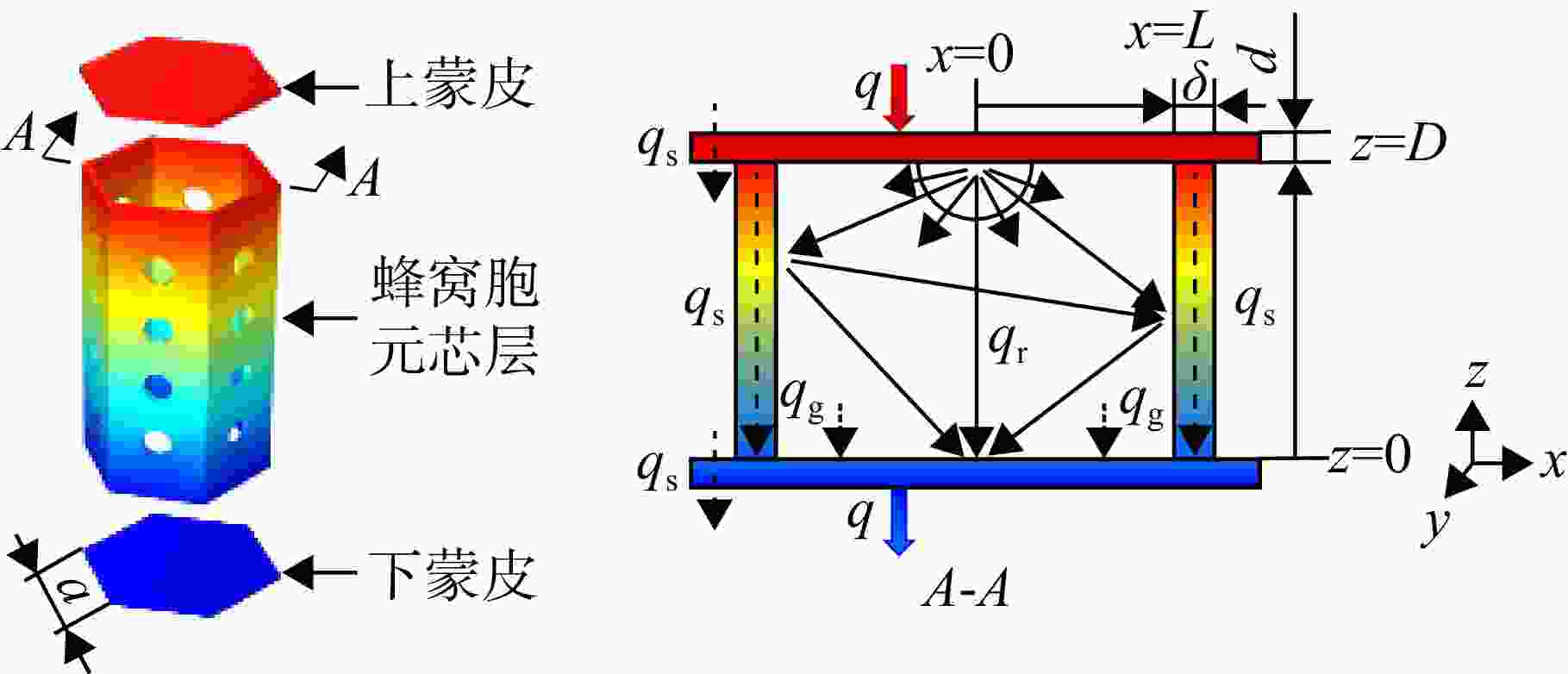

针对侧壁开孔蜂窝夹芯结构，建立了蜂窝单元高温辐射-导热耦合传热模型，采用有限元方法分析了内部传热机制，获得了其高温等效导热系数。讨论了开孔形状、开孔参数、孔排布形式等结构参数对等效导热系数的影响，拟合得到了等效导热系数的计算关联式。研究表明：开孔形状对蜂窝单元等效导热系数几乎无影响；等效导热系数随孔隙率增大而减小，受开孔数影响较小。并联开孔相对于串联开孔时等效导热系数更低，孔隙率14%、孔数为4时等效导热系数比串联时小8.4%，相较于未开孔时降低16.1%。
Abstract:Targeting the new honeycomb sandwich structure with holes on the sidewall, the coupled heat transfer model of high temperature radiation-heat conduction of honeycomb unit was established. The internal heat transfer mechanism was analyzed by using the finite element method, and the high temperature equivalent thermal conductivity was obtained. The effects of structural parameters, such as hole shape, hole parameters and hole arrangement on equivalent thermal conductivity were discussed, and the calculation correlation of equivalent thermal conductivity was obtained by fitting. Studies showed that the hole shape had little effect on the equivalent thermal conductivity of honeycomb cells. The equivalent thermal conductivity decreased with the increase of porosity, which was less affected by the number of holes. The equivalent thermal conductivity of parallel holes was lower than that of series holes. When the porosity was 14% and the number of holes was 4, the equivalent thermal conductivity was 8.4% smaller than that of series holes, 16.1% lower than that without holes.
-

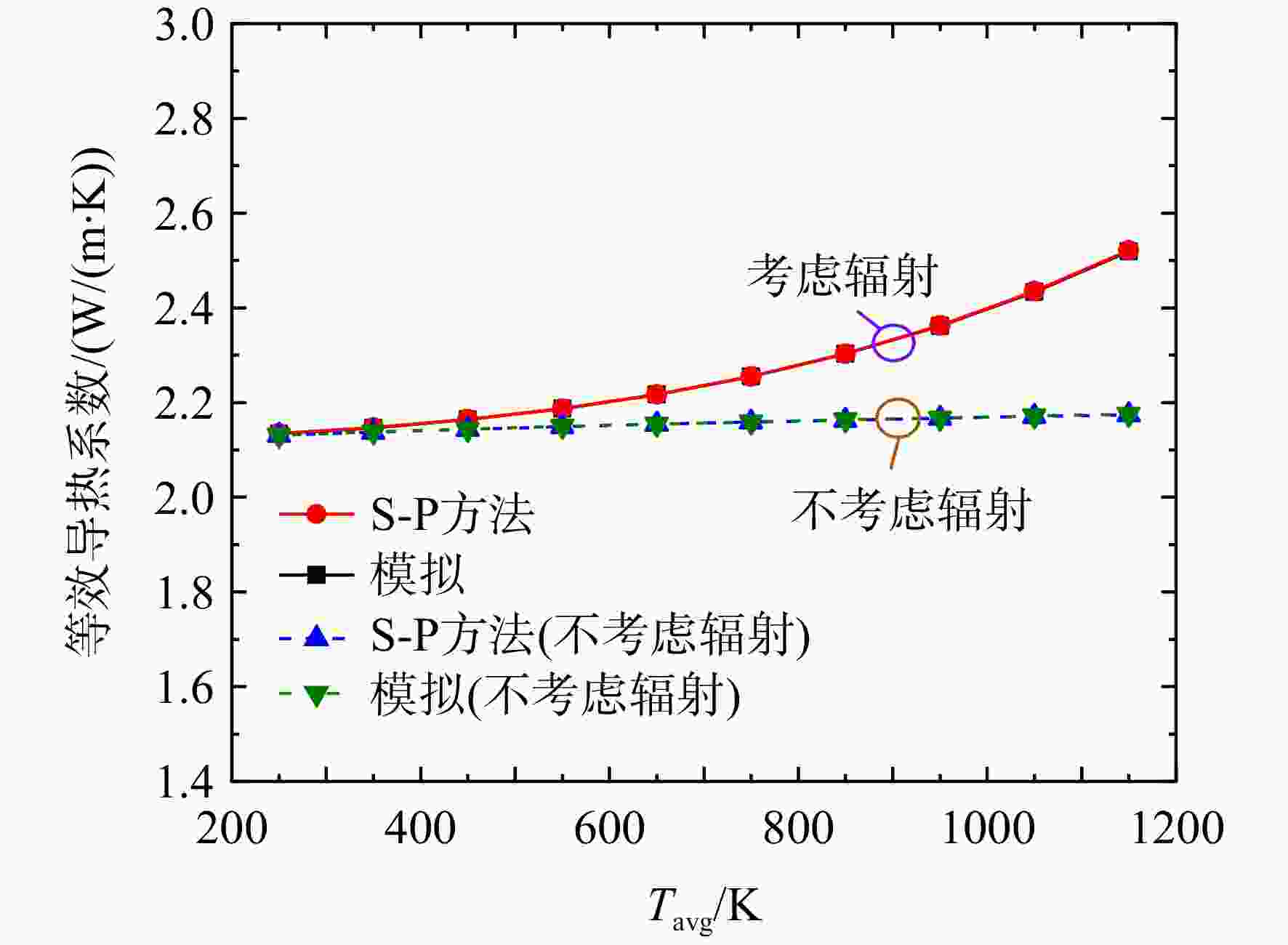

图 2 蜂窝单元等效导热系数随上表面温度变化曲线
Figure 2. Variation of the equivalent thermal conductivity of the honeycomb cell with the temperature of the upper surface

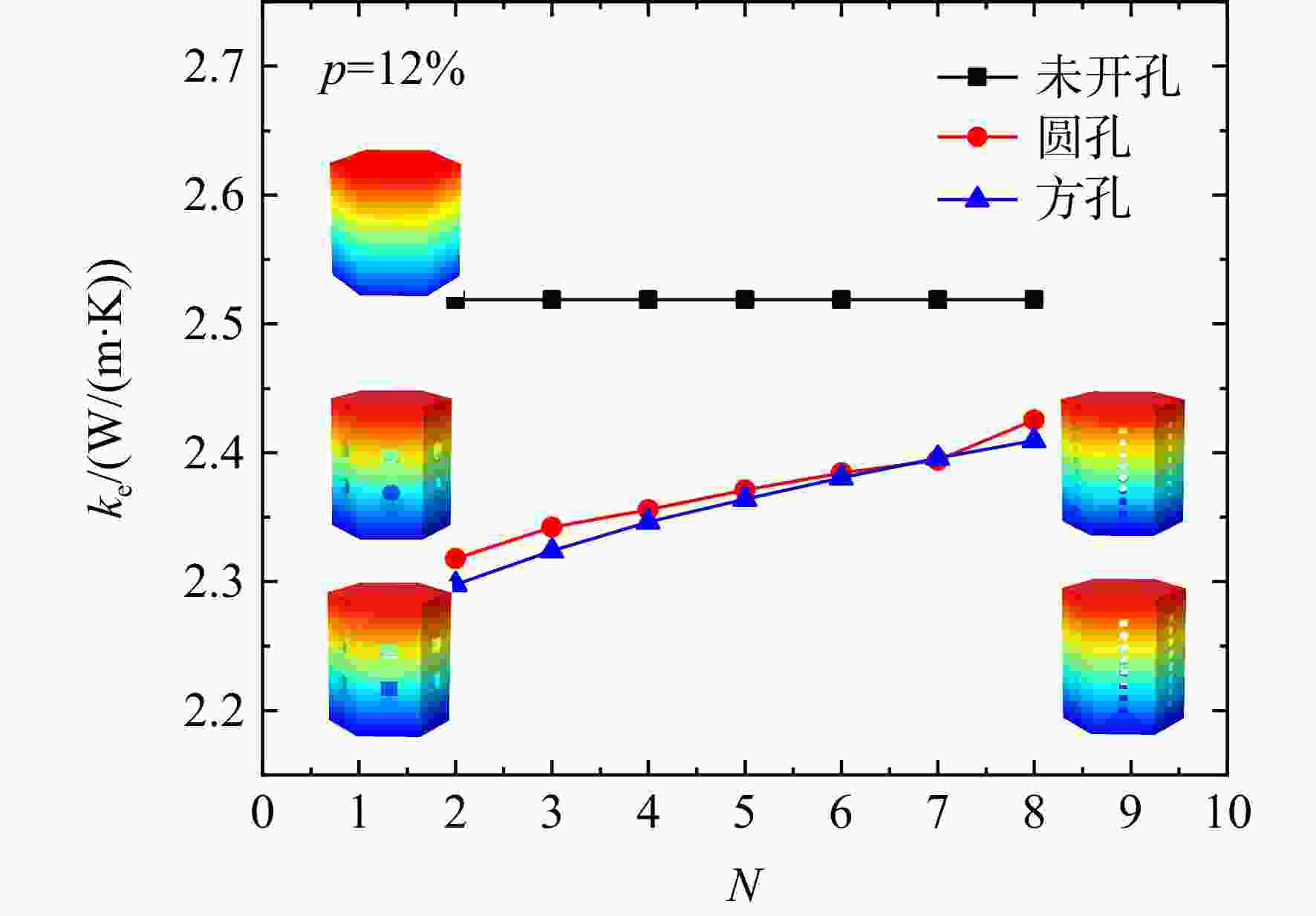

图 3 开孔形状对蜂窝单元等效导热系数的影响
Figure 3. Effect of hole shape on equivalent thermal conductivity of honeycomb unit
图 4 孔隙率与开孔数对等效导热系数的影响
Figure 4. Effect of porosity and number of openings on equivalent thermal conductivity

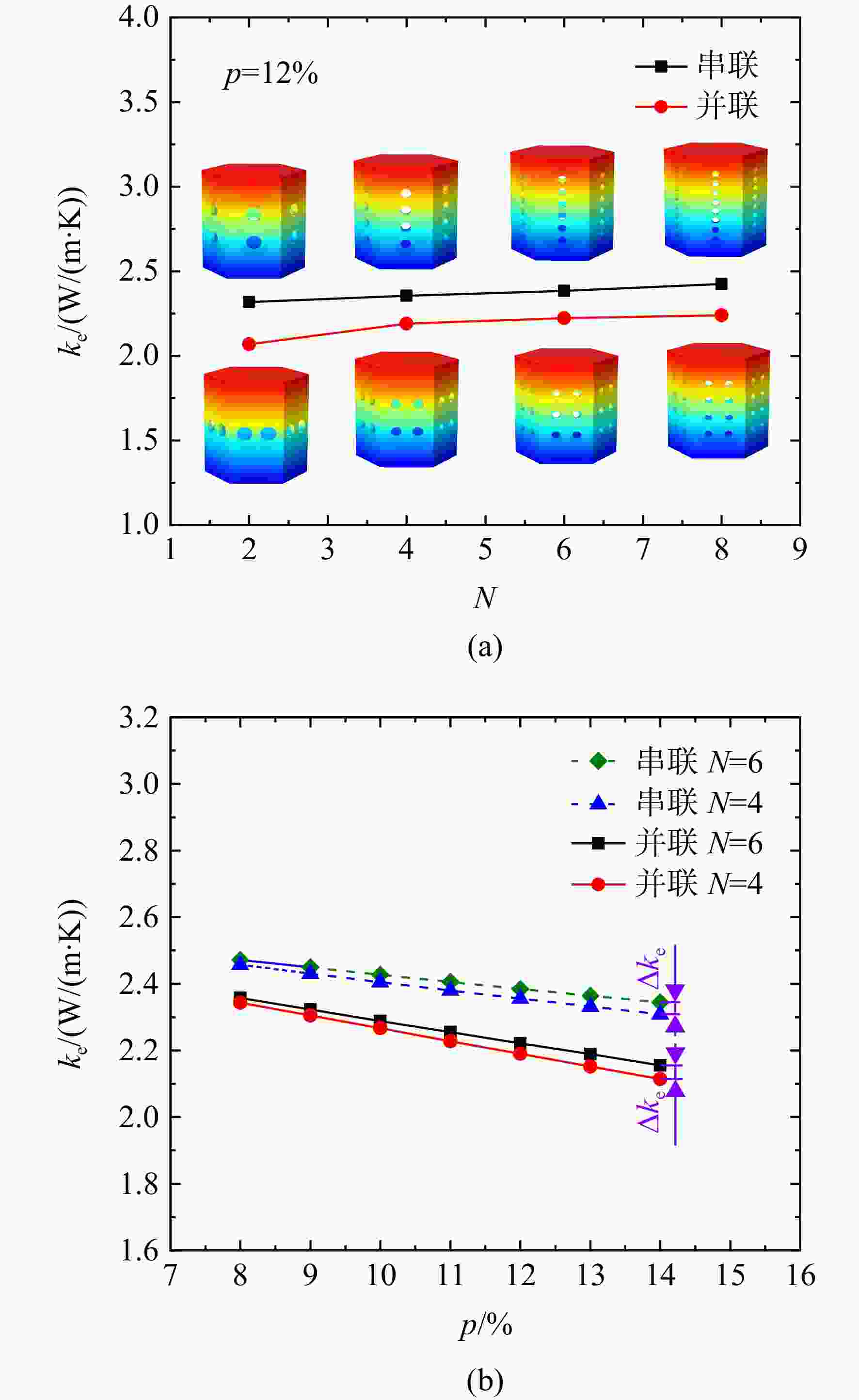

图 5 孔排布形式对等效导热系数的影响
Figure 5. Effect of hole arrangement on equivalent thermal conductivity

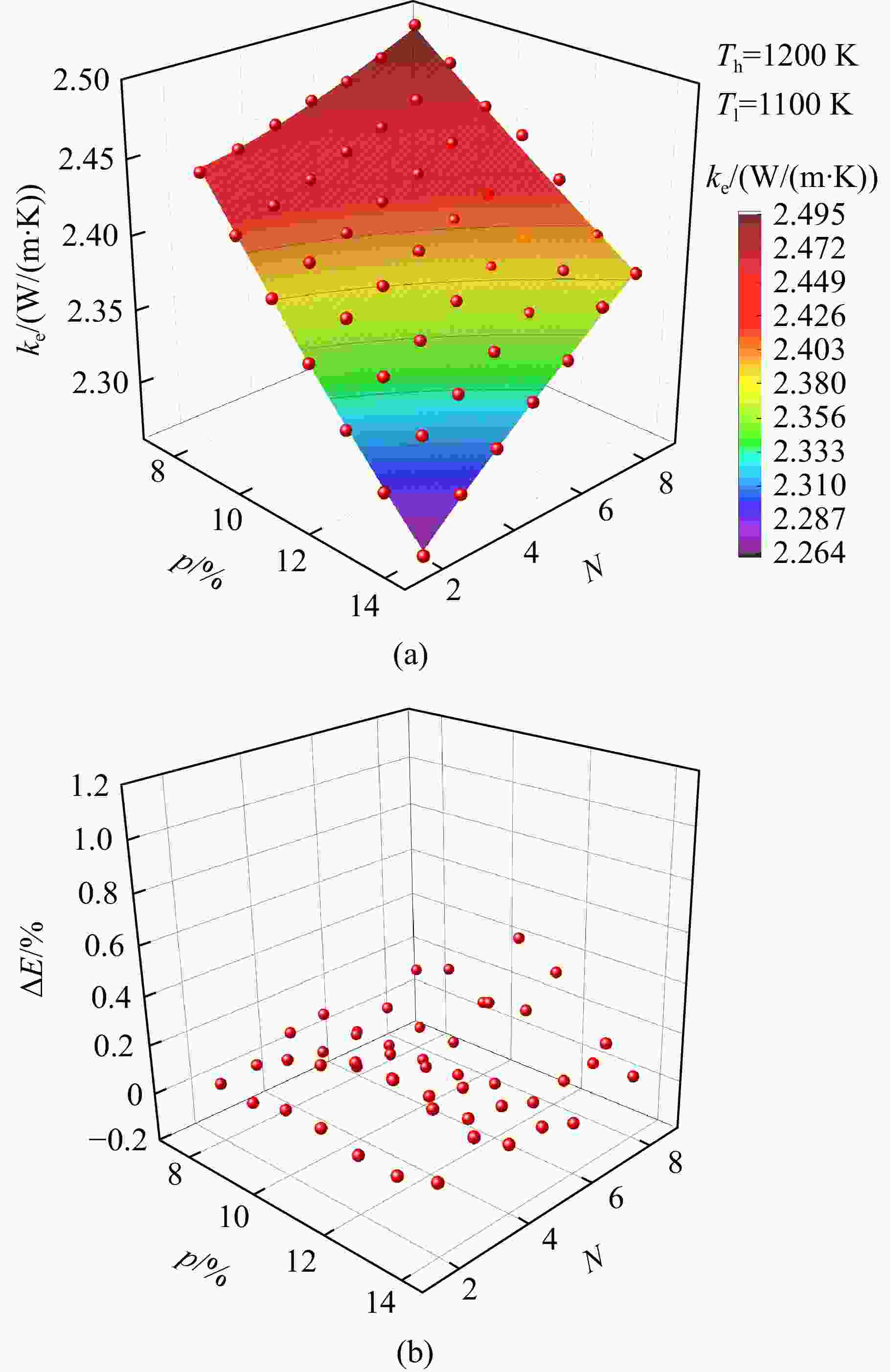

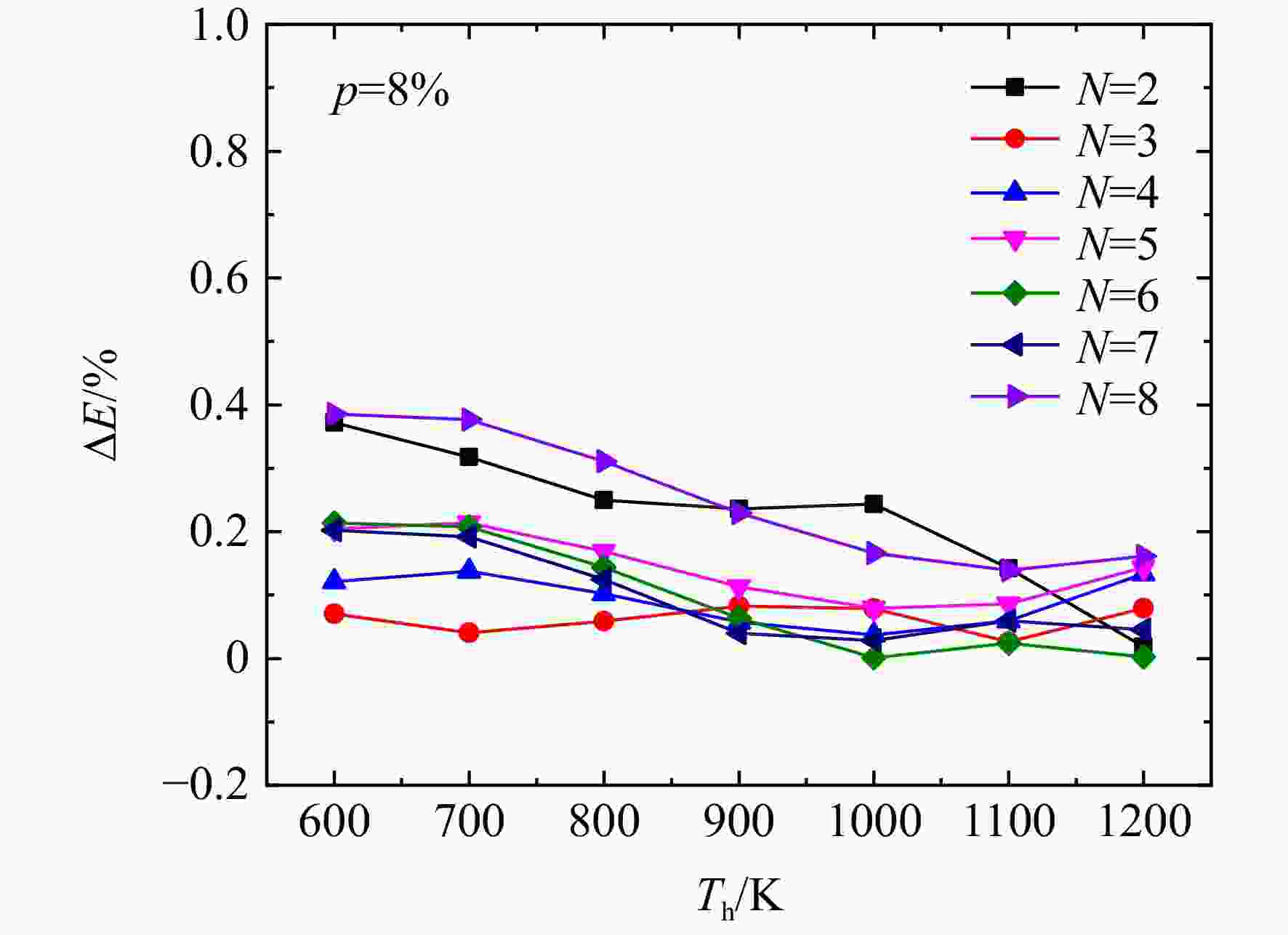

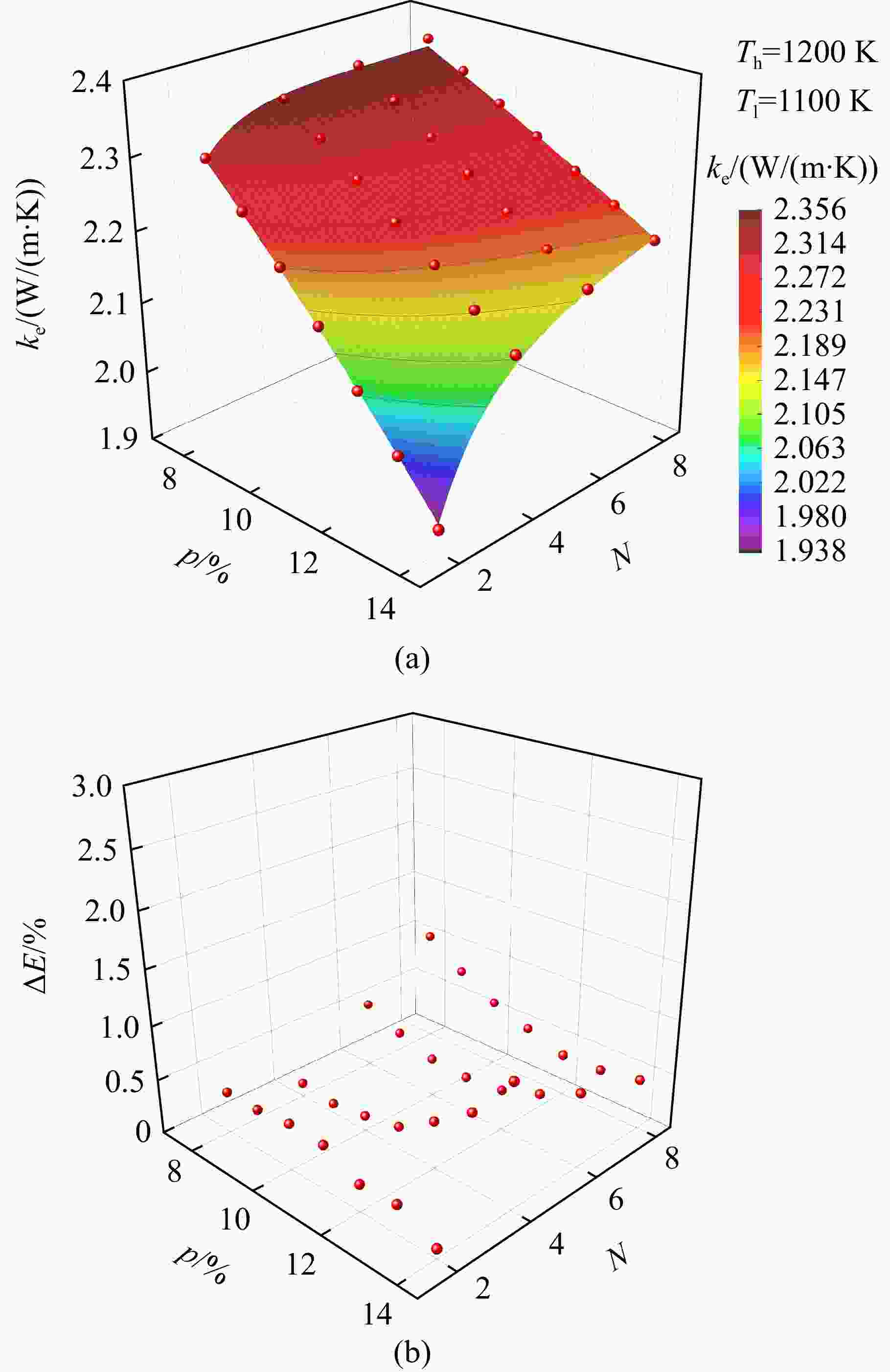

图 6 侧壁串联开孔蜂窝结构等效导热系数拟合示意图
Figure 6. Schematic of the fitted equivalent thermal conductivity of the honeycomb structure with tandem openings in the side walls
-
[1] 刘双,张博明,解维华. 可重复使用航天器金属热防护系统的结构优化进展[J]. 航天制造技术,2007(3): 43-48.LIU Shuang,ZHANG Boming,XIE Weihua. Progress in structural optimization of metal thermal protection system for reusable spacecraft[J]. Aerospace Manufacturing Technology,2007(3): 43-48. (in Chinese) [2] 付宇,刘正东,王利伟. 蜂窝结构与平板太阳集热器[J]. 科协论坛(下半月),2011(9): 27-28.FU Yu,LIU Zhengdong,WANG Liwei. Honeycomb structure and flat solar collector[J]. Science & Technology Association Forum,2011(9): 27-28. (in Chinese) [3] 李浩. 卫星蜂窝夹层板隔热及热变形研究[D]. 长春: 吉林大学, 2018.LI Hao. Research on thermal insulation and thermal deformation of a satellite honeycomb sandwich plate[D]. Changchun: Jilin University, 2018. (in Chinese) [4] SWANN R, PITTMAN C. Analysis of effective thermal conductivities of honeycomb-core and corrugated-core sandwich panels[R]. NASA Technical Note D-714, 1961. [5] 马忠辉. 可重复使用运载器热防护系统性能分析研究[D]. 西安: 西北工业大学, 2004.MA Zhonghui. Reusable launch vehicle thermal protection system performance study[D]. Xi’an: Northwestern Polytechnical University, 2004. (in Chinese) [6] LIU Donghuan,JIN Lei,SHANG Xinchun. Comparisons of equivalent and detailed models of metallic honeycomb core structures with in-plane thermal conductivities[J]. Procedia Engineering,2012,31: 967-972. doi: 10.1016/j.proeng.2012.01.1128 [7] DARYABEIGI K. Heat transfer in adhesively bonded honeycomb core panels[J]. Journal of Thermophysics and Heat Transfer,2002,16(2): 217-221. doi: 10.2514/2.6687 [8] 解维华,张博明,杜善义. 金属蜂窝结构有效热导率的预报与实验研究[J]. 哈尔滨工业大学学报,2007,39(5): 787-789. doi: 10.3321/j.issn:0367-6234.2007.05.027XIE Weihua,ZHANG Boming,DU Shanyi. Numerical prediction and measurement of effective thermal conductivity of honeycomb sandwich panel[J]. Journal of Harbin Institute of Technology,2007,39(5): 787-789. (in Chinese) doi: 10.3321/j.issn:0367-6234.2007.05.027 [9] 解维华,张博明,杜善义. 重复使用飞行器金属热防护系统的有限元分析与设计[J]. 航空学报,2006,27(4): 650-656.XIE Weihua,ZHANG Boming,DU Shanyi. Analysis and design of metallic thermal protection systems for reusable launch vehicle[J]. Acta Aeronautica et Astronautica Sinica,2006,27(4): 650-656. (in Chinese) [10] ZHENG Liming,WU Dafang,PAN Bing,et al. Experimental investigation and numerical simulation of heat-transfer properties of metallic honeycomb core structure up to 900 ℃[J]. Applied Thermal Engineering,2013,60(1/2): 379-386. [11] 李义强,聂玉峰,魏杰. 金属蜂窝夹芯面板有效导热系数的数值计算[J]. 航空计算技术,2010,40(2): 5-8. doi: 10.3969/j.issn.1671-654X.2010.02.002LI Yiqiang,NIE Yufeng,WEI Jie. Numerical simulation of effective thermal conductivity of metal honeycomb core sandwich panel[J]. Aeronautical Computing Technique,2010,40(2): 5-8. (in Chinese) doi: 10.3969/j.issn.1671-654X.2010.02.002 [12] 吴一昊,王天舒. 考虑辐射效应金属蜂窝夹芯板传热性能的数值模拟分析[J]. 材料导报,2016,30(增刊1): 164-167.WU Yihao,WANG Tianshu. The simulation of heat transfer performance of metal honeycomb sandwich panel taking into account radiative effects[J]. Materials Review,2016,30(Suppl.1): 164-167. (in Chinese) [13] 李东辉,夏新林. 金属蜂窝结构的稳态热性能[J]. 工程热物理学报,2008,29(12): 2094-2096. doi: 10.3321/j.issn:0253-231X.2008.12.031LI Donghui,XIA Xinlin. Steady thermal performance of metallic honeycomb panels[J]. Journal of Engineering Thermophysics,2008,29(12): 2094-2096. (in Chinese) doi: 10.3321/j.issn:0253-231X.2008.12.031 [14] 景丽,王广飞,唐绍锋,等. 金属蜂窝夹芯板辐射导热耦合问题[J]. 哈尔滨工业大学学报,2010,42(5): 827-831. doi: 10.11918/j.issn.0367-6234.2010.05.035JING Li,WANG Guangfei,TANG Shaofeng,et al. Radiation and conduction coupling problems of honeycomb sandwich panel[J]. Journal of Harbin Institute of Technology,2010,42(5): 827-831. (in Chinese) doi: 10.11918/j.issn.0367-6234.2010.05.035 [15] ASHIKHMINA E,PROSUNTSOV P. Numerical simulation and experimental validation of effective thermal conductivity coefficient of hexagonal aramid honeycomb used in wing skin of tourist class reusable spaceplane[J]. Materials Today: Proceedings,2021,38: 2025-2030. doi: 10.1016/j.matpr.2020.10.033 [16] GUO Zhensheng,SONG Yiheng,CHEN Jinxiang,et al. Relation between the geometric parameters and the composite heat transfer of paper honeycomb plates under cold-above/hot-below conditions and the corresponding influence mechanism[J]. Journal of Building Engineering,2021,43: 102582. doi: 10.1016/j.jobe.2021.102582 [17] CHANDA S,BALAJI C,VENKATESHAN S P,et al. Estimation of principal thermal conductivities of layered honeycomb composites using ANN-GA based inverse technique[J]. International Journal of Thermal Sciences,2017,111: 423-436. doi: 10.1016/j.ijthermalsci.2016.09.011 [18] 梁伟,张立春,吴大方,等. 金属蜂窝夹芯板瞬态热性能的计算与试验分析[J]. 航空学报,2009,30(4): 672-677. doi: 10.3321/j.issn:1000-6893.2009.04.016LIANG Wei,ZHANG Lichun,WU Dafang,et al. Computation and analysis of transient thermal performance of metal honeycomb sandwich panels[J]. Acta Aeronautica et Astronautica Sinica,2009,30(4): 672-677. (in Chinese) doi: 10.3321/j.issn:1000-6893.2009.04.016 -
