Automatic shape evaluation method of aeroengine blade inlet and exhaust edges
-
摘要:
针对目前对航空发动机叶片进排气边缘形状的评价主要依赖人工目测，主观性强、效率低等问题。提出一种叶片进排气边缘形状自动评价方法，通过非均匀有理B样条（NURBS）曲线拟合、最小二乘椭圆拟合、等半径法等算法拟合叶型并提取相关型面参数，针对5类叶片进排气边缘不合格形状给出了定性的定义，根据叶片进排气边缘在不同形状时的曲率特征以及偏差值变化特征对其形状做出评价。通过实例验证表明：该方法能够实现对尖头、钝头、歪头、缩颈及大小大/小大小（LSL/SLS）5类叶片进排气边缘形状的自动判读，对于不同叶片型号和验收标准的应用场景具有较好的通用性，有效提高了叶片进排气边缘形状评价的效率。

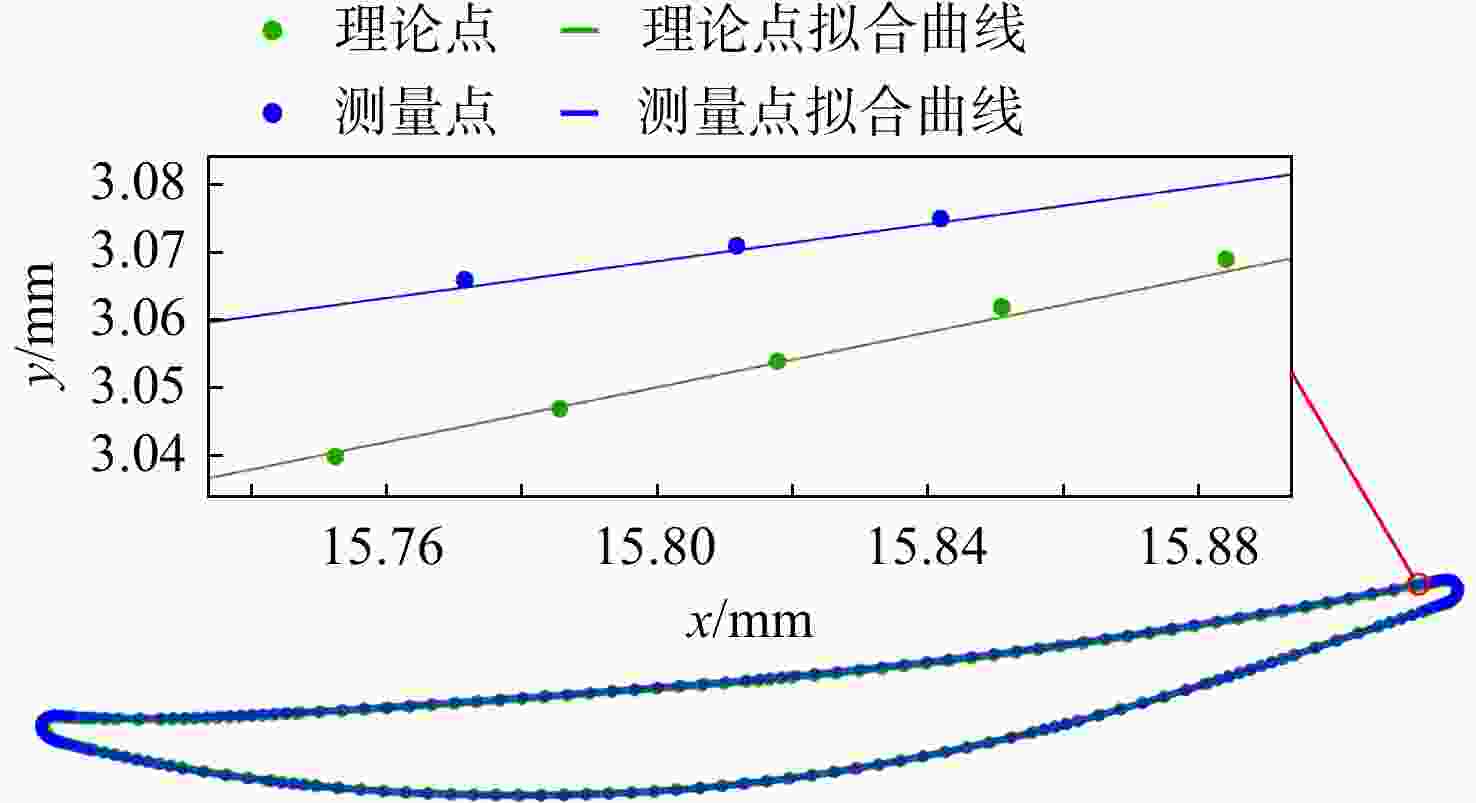

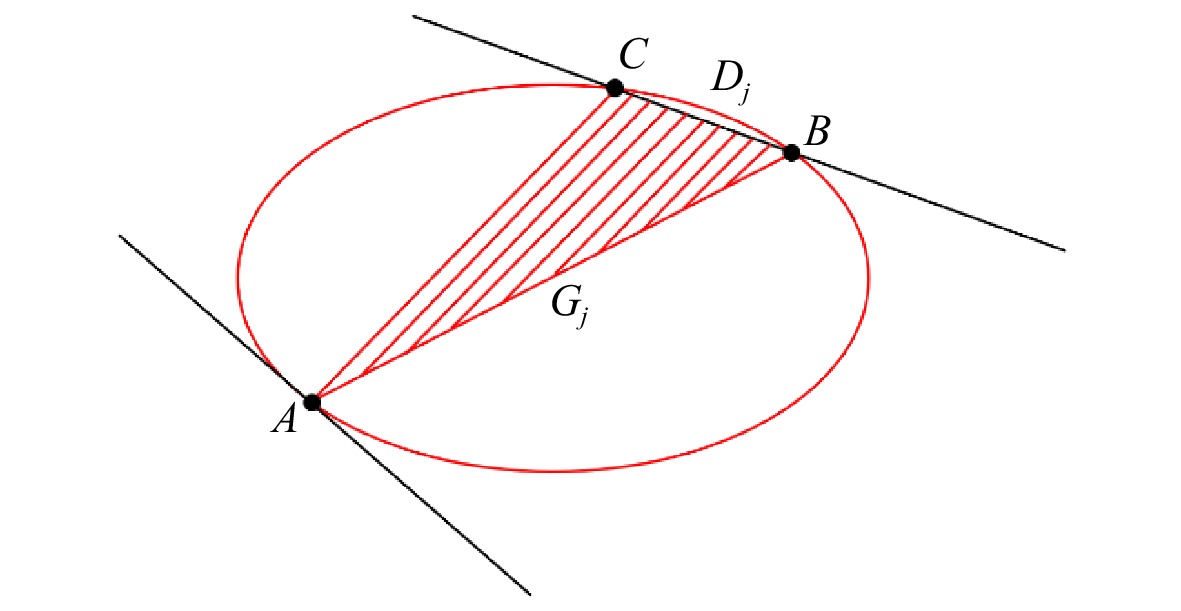

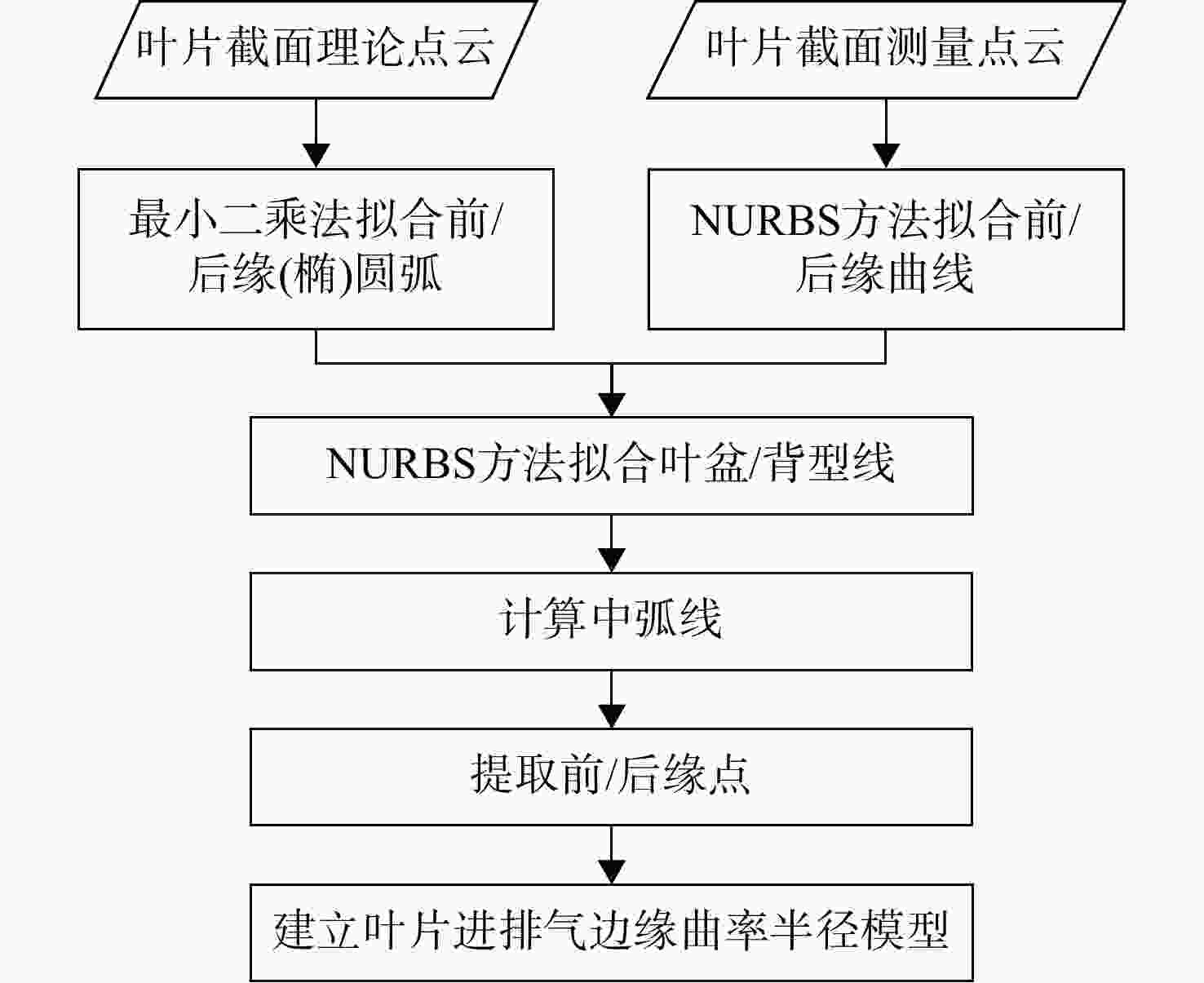

Abstract:At present, the evaluation of blade inlet and exhaust edge shape mainly relies on manual visual inspection, which has the problems of strong subjectivity and low detection efficiency. An automatic evaluation method of blade inlet and exhaust edge shape was proposed. The blade profile was fitted and the relevant profile parameters were extracted by non-uniform rational B-splines （NURBS） curve fitting, least square elliptic fitting and equal radius method. A qualitative definition was given for the unqualified shapes of five types of blade inlet and exhaust edge. The shape of the blade was evaluated according to the curvature characteristics of the blade inlet and exhaust edges in different shapes and the variation characteristics of deviation values. Experiments showed that the proposed method can realize the automatic evaluation of five edge shapes: cusp, blunt, inclined, necking and large small large/small large small （LSL/SLS）. The method has strong versatility for different blade types and acceptance standards, thereby improving the efficiency of the shape evaluation of blade inlet and exhaust edges.
-
图 1 叶片前/后缘的5种不合格工艺形状
Figure 1. Five nonconforming process shapes at the front/back edge of the blade

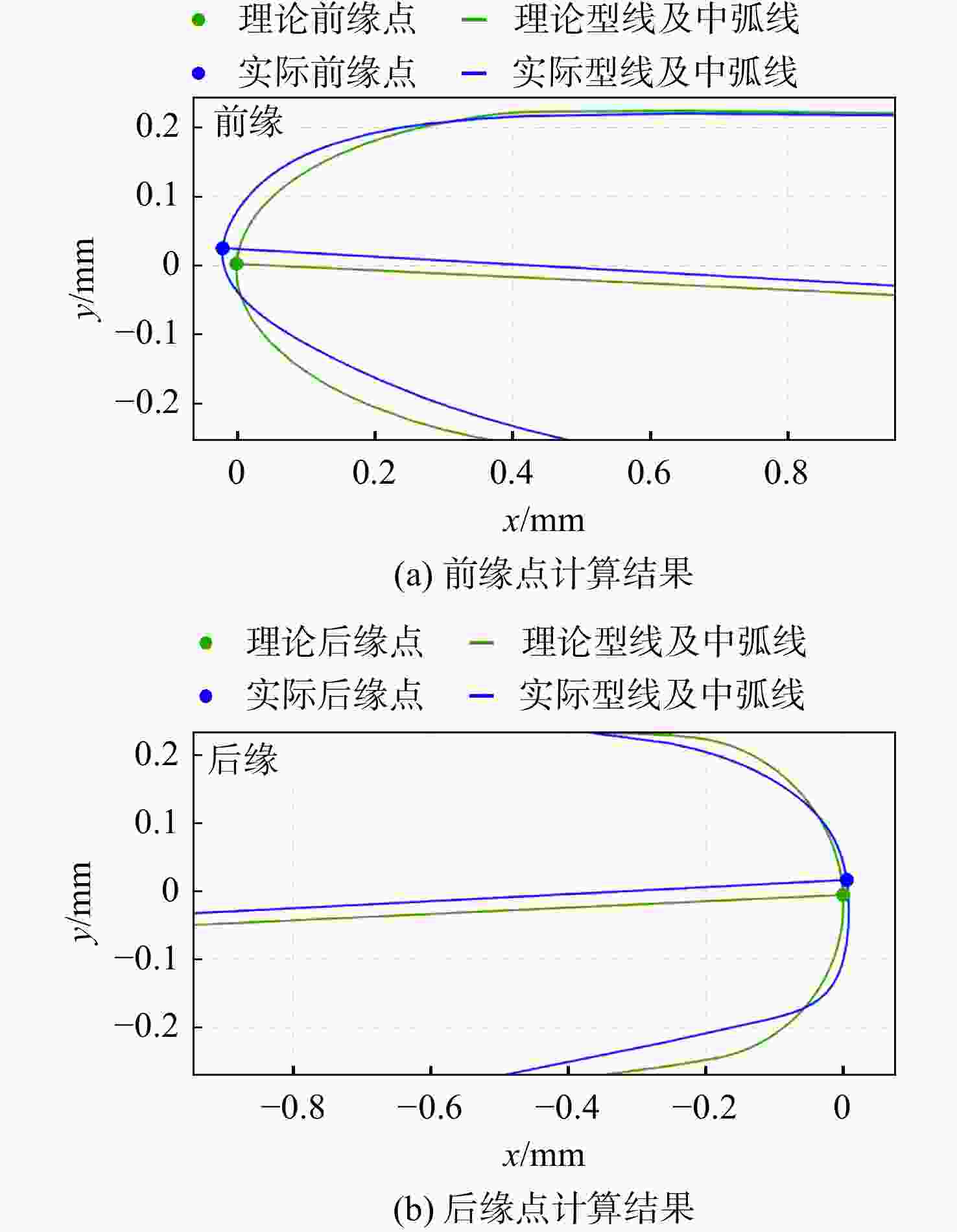

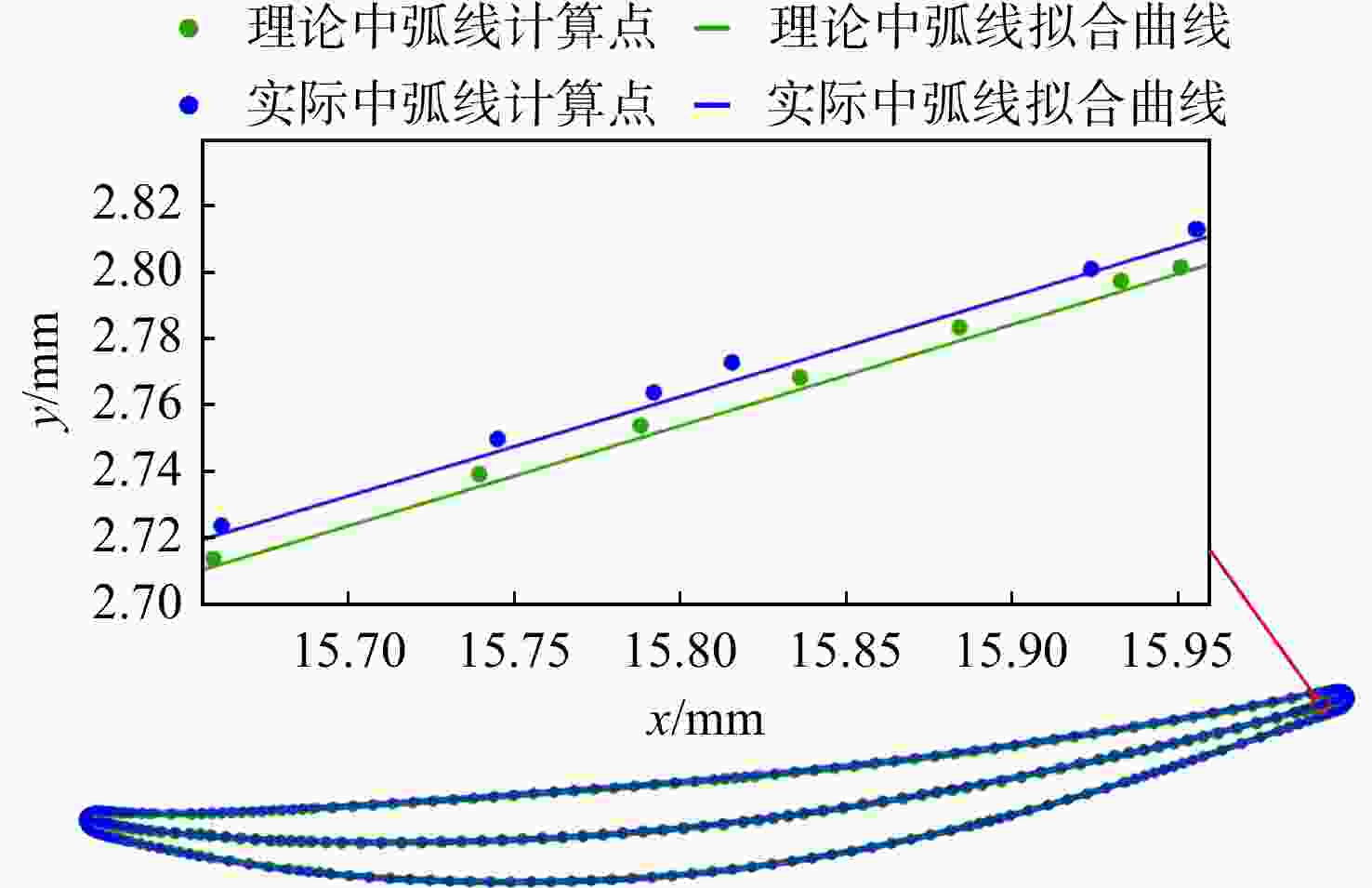

图 6 叶型前/后缘点计算结果
Figure 6. Calculation results of the front/trailing edge points of blade profile

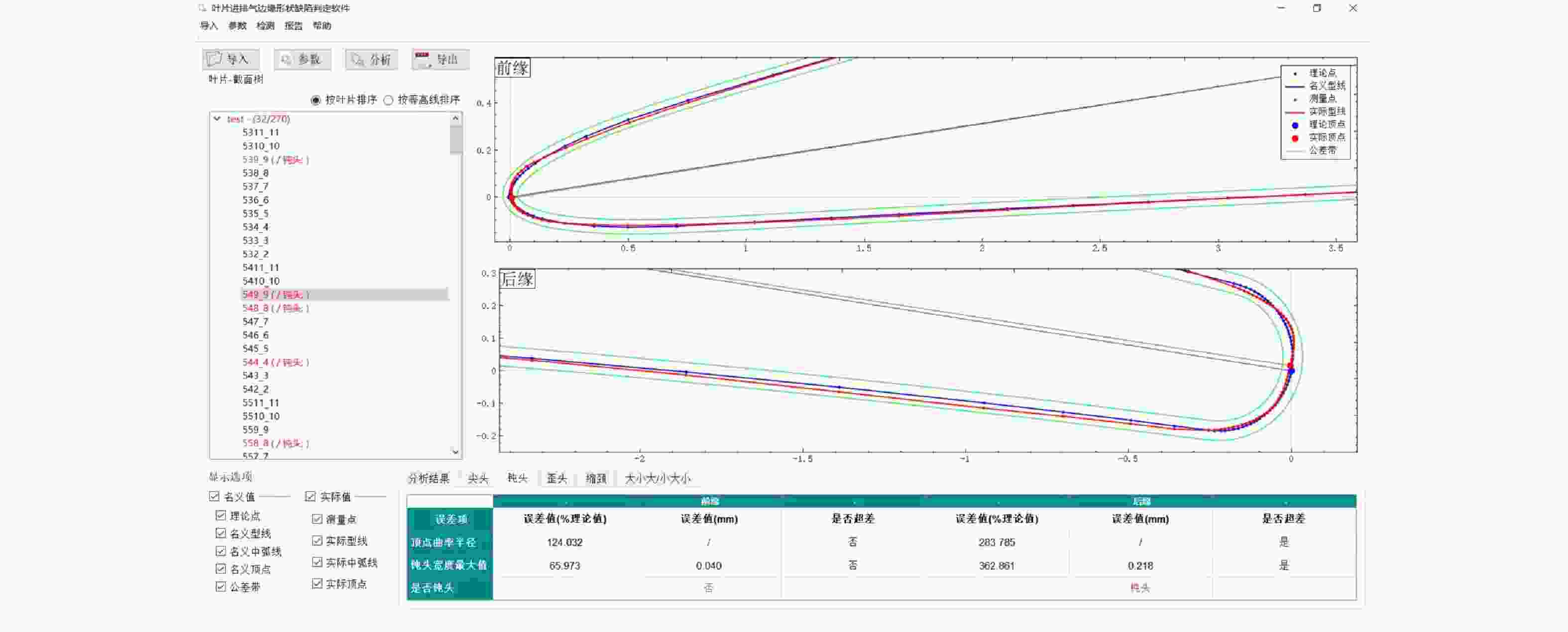

图 12 航空发动机叶片进排气边缘评价软件界面
Figure 12. Aeroengine blade inlet and exhaust edge evaluation software interface

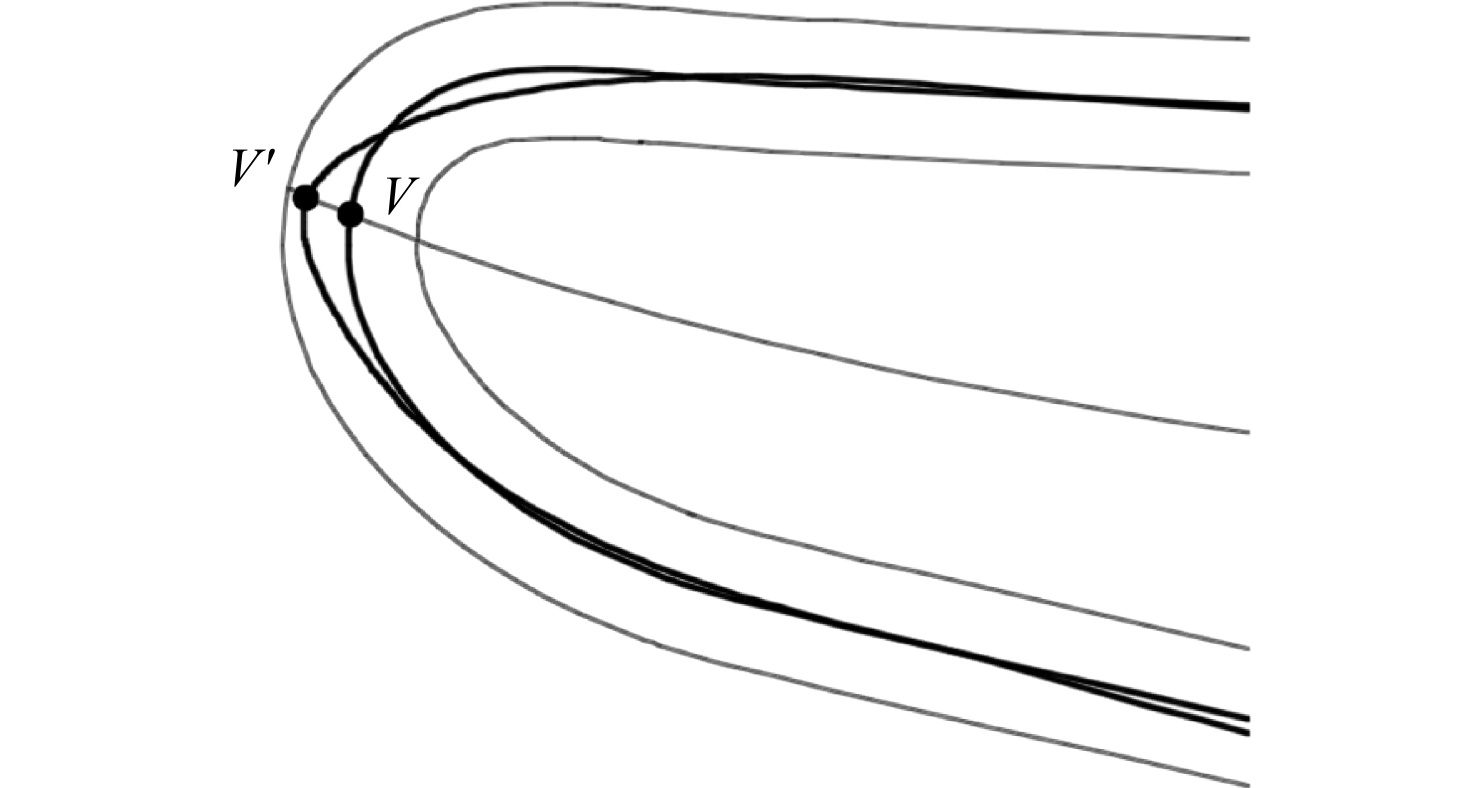

表 1 尖头叶缘评价结果
Table 1. Evaluation results of cusp edges
特征值及评价结果 叶缘1 叶缘2 叶缘3 阈值 ${\,\rho （V'） }/{ {\rho （V） } }$ 0.62 0.67 0.66 0.7 本文方法评价结果 尖头 尖头 尖头
下载: 导出CSV

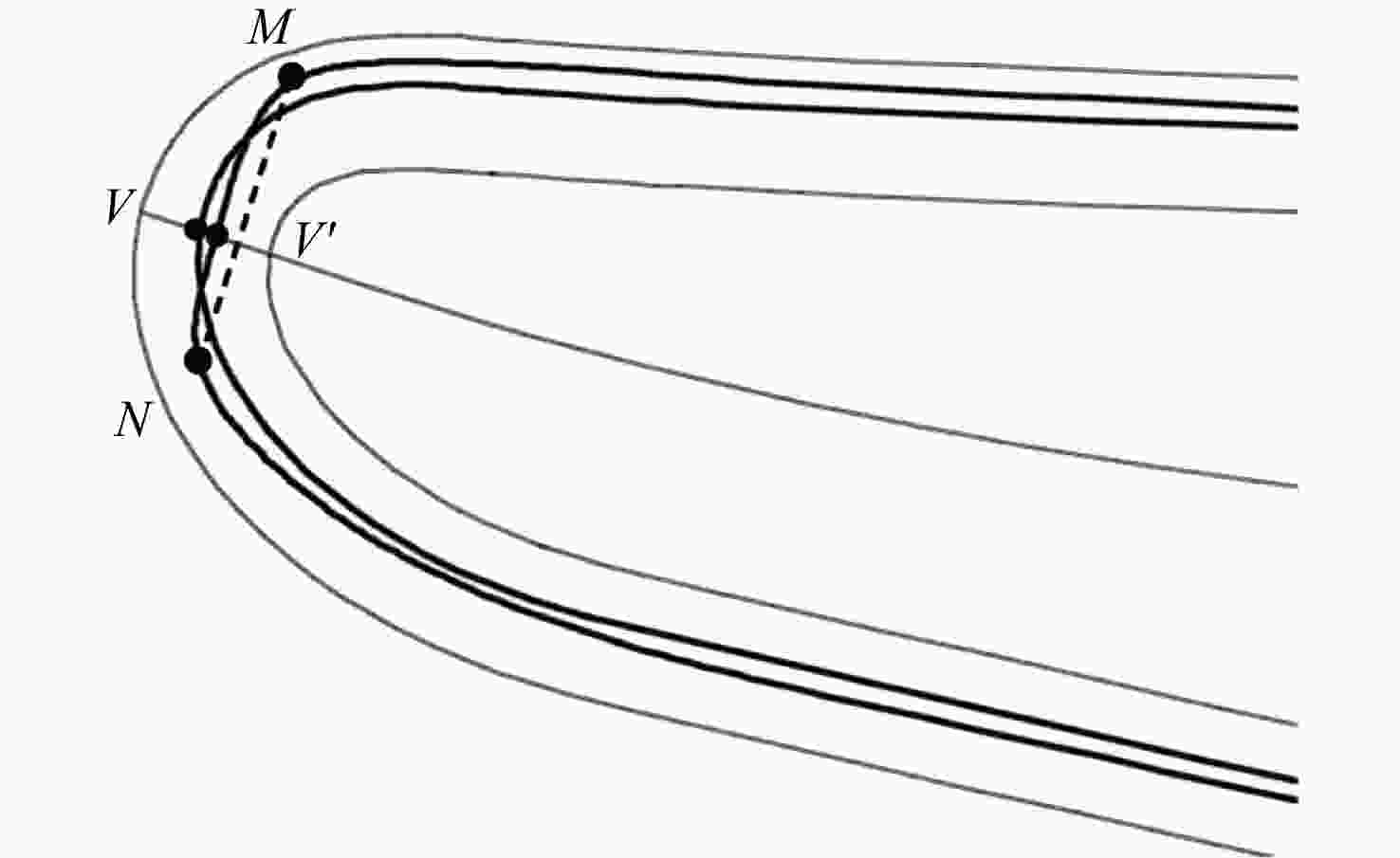

表 2 钝头叶缘评价结果
Table 2. Evaluation results of blunt edges
特征值及评价结果 叶缘1 叶缘2 叶缘3 阈值 ${\,\rho （V'） }/{ {\rho （V）} }$ 2.03 2.08 1.95 1.8 $（{d_{ {\text{blunt} } } }/{ {T} }） /\text{%}$ 362.86 346.91 331.86 300.0 本文方法评价结果 钝头 钝头 钝头
下载: 导出CSV
表 3 歪头叶缘评价结果
Table 3. Evaluation results of inclined edges
特征值及评价结果 叶缘1 叶缘1 叶缘1 阈值 $（{d_{\text{v} } } /{ {T} }） /\text{%}$ 47.77 55.32 46.37 40.0 $[ （{e_A} + |{e_B}|） /{ {T} }]/\text{%}$ 54.53 61.64 59.01 50.0 本文方法评价结果 歪头 歪头 歪头
下载: 导出CSV

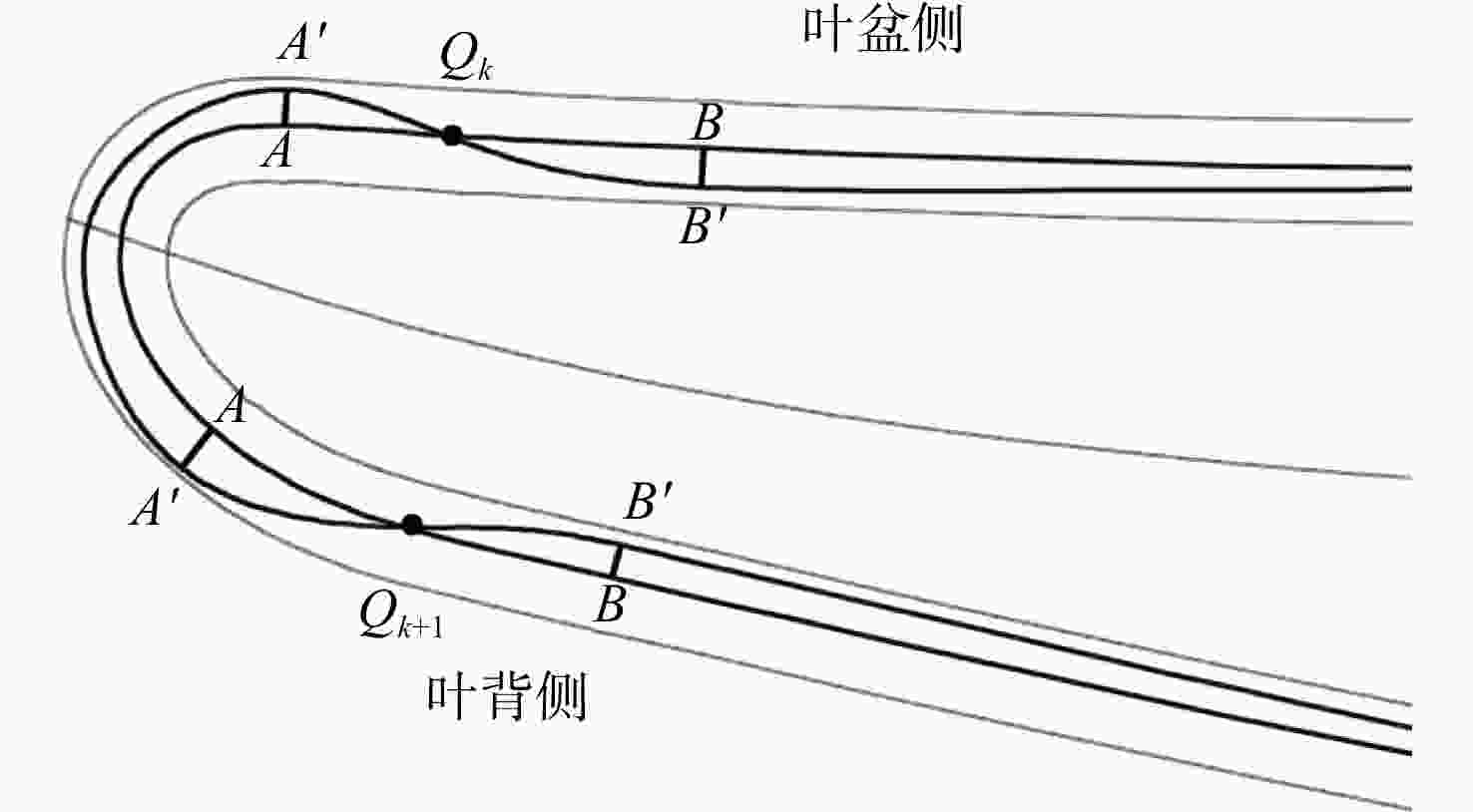

表 4 缩颈叶缘评价结果
Table 4. Evaluation results of necking edges
特征值及评价结果 叶缘1 叶缘2 叶缘3 阈值 ${[ （{e_A} + |{e_B}|） _{ {\text{cc} } } }/{ {T} }]/\text{%}$ 56.51 61.18 58.82 50.0 ${[ （{e_A} + |{e_B}|） _{ {\text{cv} } } }/{ {T} }]/\text{%}$ 58.60 61.29 57.46 50.0 本文方法评价结果 缩颈 缩颈 缩颈
下载: 导出CSV
表 5 大小大/小大小叶缘评价结果
Table 5. Evaluation results of LSL/SLS edges
特征值及评价结果 叶缘1 叶缘2 叶缘3 阈值 $（|{e_A}|/{ {T} }） /\text{%}$ 50.83 |−31.59| 41.21 30.0 $（|{e_B}|/{ {T} }） /\text{%}$ |−35.55| 37.53 |−41.56| 30.0 $（|{e_C}|/{ {T} }） /\text{%}$ 47.82 |−46.28| 48.29 30.0 本文方法评价结果 大小大 小大小 大小大 注：表中的正值代表正偏差，负值代表负偏差。
下载: 导出CSV
表 6 合格叶缘评价结果
Table 6. Evaluation results of qualified edges
特征值及评价结果 叶缘1 叶缘2 叶缘3 ${\,\rho （V'） }/{ {\rho （V）} }$ 1.09 1.14 1.29 $（{d_{ {\text{blunt} } } }/{ {T} }） /\text{%}$ $（{d_{\text{v} } } /{ {T} }） /\text{%}$ 0.29 9.28 6.07 ${[ （{e_A} + |{e_B}|） _{ {\text{cc} } } }/{ {T} }]/\text{%}$ ${[ （{e_A} + |{e_B}|） _{ {\text{cv} } } }/{ {T} }]/\text{%}$ 28.16 $（|{e_A}|/{ {T} }） /\text{%}$ 10.85 23.72 |−13.32| $（|{e_B}|/{ {T} }） /\text{%}$ |−8.83| |−6.28| 8.64 $（|{e_C}|/{ {T} }） /\text{%}$ 12.87 14.21 |−20.23| 本文方法评价结果 合格 合格 合格 注：各项特征值的单位和阈值同表1～表5。
下载: 导出CSV
-
[1] 史小强,吴宝海,张定华. 航空发动机叶片加工质量检测技术发展现状与趋势[J]. 航空制造技术,2015(12): 80-84. doi: 10.16080/j.issn1671-833x.2015.12.080SHI Xiaoqiang,WU Baohai,ZHANG Dinghua. Development tendency of inspecting technology for aeroengine blade[J]. Development Tendency of Inspecting Technology for Aeroengine Blade,2015(12): 80-84. (in Chinese) doi: 10.16080/j.issn1671-833x.2015.12.080 [2] HUANG J, ZHAO W, GAO J, et al. Overview on the profile measurement of turbine blade and its development[R]. Dalian, Liaoning: the 5th International Symposium on Advanced Optical Manufacturing and Testing Technologies, 2010. [3] 李萍. 叶片加工误差及数据传递对压气机气动性能的影响[D]. 西安: 西北工业大学, 2015.LI Ping. Effect of blade machining error and data transfer on compressor aerodynamic performance[D]. Xi’an: Northwestern Polytechnical University, 2015. (in Chinese) [4] 曹传军, 邱毅, 李斌. 亚声叶型前缘形状对压气机气动性能的影响[J]. 燃气涡轮试验与研究, 2018, 31(6): 1-7.CAO Chuanjun, QIU Yi, LI Bin. Influence of leading edge shape of subsonic airfoil on compressor aerodynamic performance[J].Gas Turbine Experiment and Research, 2018, 31(6): 1-7. (in Chinese) [5] 高丽敏,蔡宇桐,曾瑞慧,等. 叶片加工误差对压气机叶栅气动性能的影响[J]. 推进技术,2017,38(3): 525-531. doi: 10.13675/j.cnki.tjjs.2017.03.007GAO Limin,CAI Yutong,ZENG Ruihui,et al. Effects of blade machining error on compressor cascade aerodynamic performance[J]. Journal of Propulsion Technology,2017,38(3): 525-531. (in Chinese) doi: 10.13675/j.cnki.tjjs.2017.03.007 [6] 中国航空工业总公司. 叶片叶型的标注、公差与叶身表面粗糙度: HB 5647-1998[S]. 北京: 航空工业出版社, 1998: 1-47. [7] 曹斌,何小妹,王一璋,等. 一种叶片前后缘削边形状计算方法[J]. 计测技术,2019,39(2): 9-13.CAO Bin,HE Xiaomei,WANG Yizhang,et al. Method for calculating cutting shape of leading and trailing edges of blade[J]. Metrology and Measurement Technology,2019,39(2): 9-13. (in Chinese) [8] LEI H,YAO Y,LIU H,et al. Accurate phase extraction algorithm based on Gram-Schmidt orthonormalization and least square ellipse fitting method[J]. Journal of Modern Optics,2018,65(10): 1199-1209. doi: 10.1080/09500340.2018.1429681 [9] LI Z,GE X,TAN J. Least square geometric iterative fitting method for generalized B-spline curves with two different kinds of weights[J]. The Visual Computer,2016,32(9): 1109-1120. doi: 10.1007/s00371-015-1170-3 [10] 姜珍珠. 扭曲自由曲面散乱测量点NURBS曲面重构[D]. 天津: 天津大学, 2014.JIANG Zhenzhu. NURBS surface reconstruction of distorted free-form surface with scattered measurement points[D]. Tianjin: Tianjin University, 2014. (in Chinese) [11] IGLESIAS A,GALVEZ A,AVILA A. Immunological approach for full NURBS reconstruction of outline curves from noisy data points in medical imaging[J]. IEEE/ACM Transactions on Computational Biology and Bioinformatics,2018,15(6): 1929-1942. doi: 10.1109/TCBB.2017.2688444 [12] ABBAS A M,NASRI A H. On the interpolation of non-iso-parametric curves[J]. Computer-Aided Design and Applications,2015,13(2): 246-252. [13] 彭志光. 基于改进凸包算法的叶片型面检测[D]. 武汉: 华中科技大学, 2012.PENG Zhiguang. Blade profile detection based on improved convex hull algorithm[D]. Wuhan: Huazhong University of Science and Technology, 2012. (in Chinese) [14] 白瑀,张定华,任军学,等. 叶片高质量造型方法研究[J]. 机械科学与技术,2003,22(3): 107-109.BAI Yu,ZHANG Dinghua,REN Junxue,et al. High quality geometric modeling of blade[J]. Mechanical Science and Technology,2003,22(3): 107-109. (in Chinese) [15] 方志阳,骆天舒,徐少杰,等. 叶片中弧线的一种混合算法研究[J]. 机电工程,2018,35(7): 61-64.FANG Zhiyang,LUO Tianshu,XU Shaojie,et al. Hybrid numerical approach for extraction camber curve of turbine blades[J]. Mechanical and Electrical Engineering Magazine,2018,35(7): 61-64. (in Chinese) [16] 刘书桂,毛晨丽,张海涛. 基于无序点云的叶片截面特征参数提取[J]. 航空动力学报,2016,31(9): 2226-2232. doi: 10.13224/j.cnki.jasp.2016.09.023LIU Shugui,MAO Chengli,ZHANG Haitao. Cross-sectional feature parameters extraction of blade based on unorganized point cloud[J]. Journal of Aerospace Power,2016,31(9): 2226-2232. (in Chinese) doi: 10.13224/j.cnki.jasp.2016.09.023 [17] 施法中. 计算机辅助几何设计与非均匀有理B样条[M]. 北京: 高等教育出版社, 2001. [18] 何小妹, 曹斌, 徐永, 等. 一种航空发动机叶片前后缘形状数字化评价方法: CN110276138A[P]. 2019-09-24. -
