Correction method for the effect of tube on the measurements of fluctuation total pressures in inlet
-
摘要:
进气道实验需要测量进气道出口截面的动态总压，当动态压力传感器与测点之间存在管道时，动态总压测量值与真值之间存在较大误差，进而会影响进气道出口截面湍流度的测量精度。通过在中国空气动力研究与发展中心涡轮动力模拟器校准箱的实验，系统地研究了管道对动态总压和湍流度测量的影响。实验结果表明：管道对动态总压和湍流度测量的影响非常严重，动态总压脉动量频域值可被放大10倍以上，湍流度可以放大2.8倍以上。基于修正耗散模型，通过实验结果对修正耗散模型进行了标定，并提出了动态总压管道影响修正方法，修正方法能够有效减小管道所引起的测量误差。
Abstract:The fluctuation total pressures in aerodynamic interface plane need be measured in inlet experiments. The tube between the pulsating pressure sensor and the measurement point may lead to larger error between the measurement value and the truth value, and also generate larger effect on the measurement of the turbulence. The experiments in Turbine Power Simulation calibration tank of China Aerodynamics Research and Development Center were performed to research the effect of tube on the measurement of fluctuation total pressure and the turbulence. Experiment results showed that the effect of tube seriously affected the measurement of the fluctuating total pressure and the turbulence. The value of fluctuating total pressure in frequency can be magnified more than 10 times and that of turbulence can be magnified more than 2.8 times. A correction method based on the improved dissipation model was proposed and calibrated, which can effectively reduce the measuring error brought by the tube.
-
Key words:
- wind tunnel experiments /
- fluctuation total pressure /
- turbulence /
- effect of tube /
- correction method
-
图 2 TPS校准箱示意图和实物图
Figure 2. Schematic diagram and real picture of TPS calibration tank

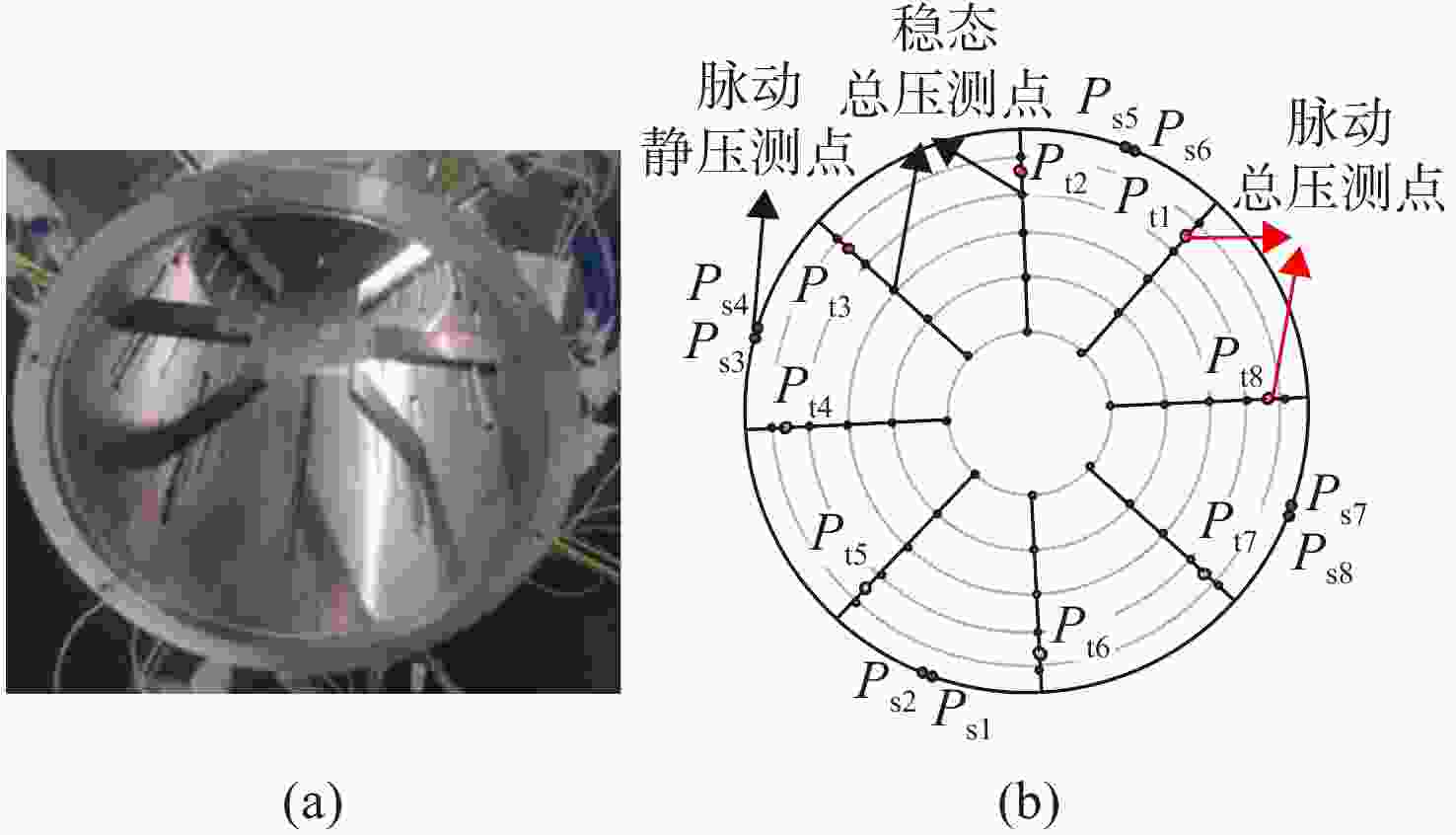

图 3 Test A与Test B实验传感器安装示意图
Figure 3. Schematic diagram of installation site of sensor for Test A and Test B
图 4 测量截面流量与马赫数的重复性
Figure 4. Repeatability of Mach number and rate of flow in the measurement plane
图 5 Ma=0.72时的总压恢复系数分布重复性
Figure 5. Repeatability of total pressure recovery coefficient at Ma=0.72

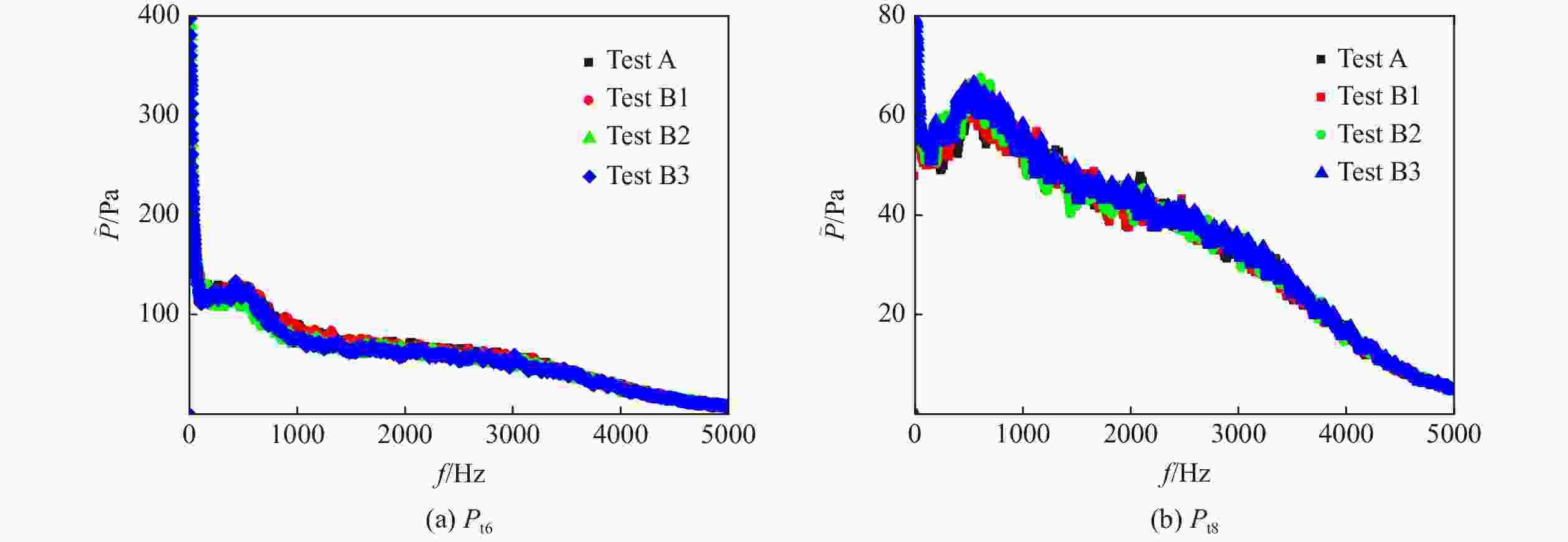

图 6 脉动压力频域值的重复性(Ma=0.72)
Figure 6. Repeatability of fluctuating pressure in frequency (Ma=0.72)
图 7 不同长度下管道的FRF （Ma=0.32，d=1.8 mm）
Figure 7. FRF of tube at different length （Ma=0.32，d=1.8 mm）

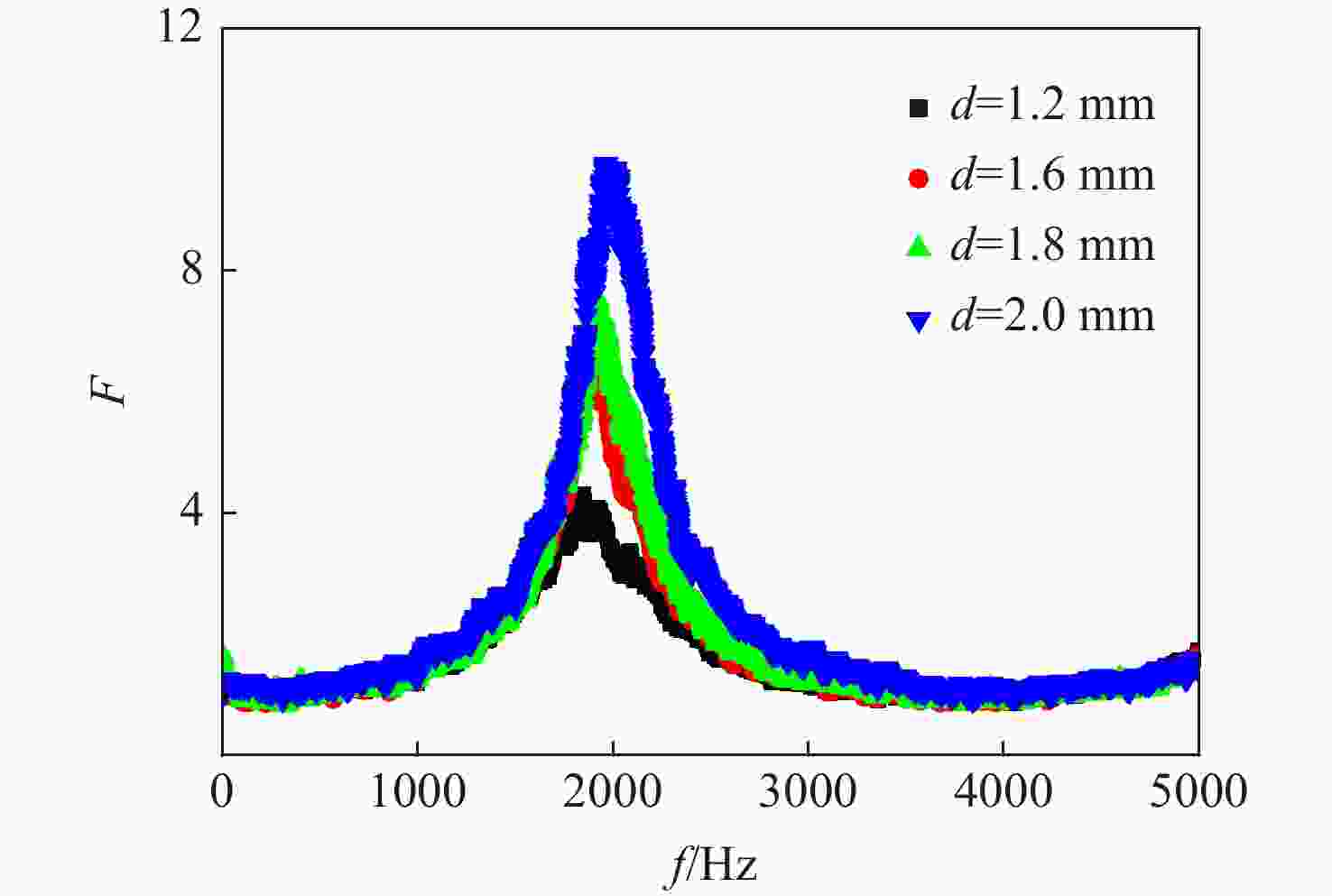

图 8 不同管道内径下的FRF （Ma=0.72，l0=40 mm）
Figure 8. FRF of tube at different inner diameter （Ma=0.72，l0=40 mm）
图 9 不同Ma下管道的FRF （l0=40 mm，d=1.8 mm）
Figure 9. FRF of tube at different Ma （l0=40 mm，d=1.8 mm）

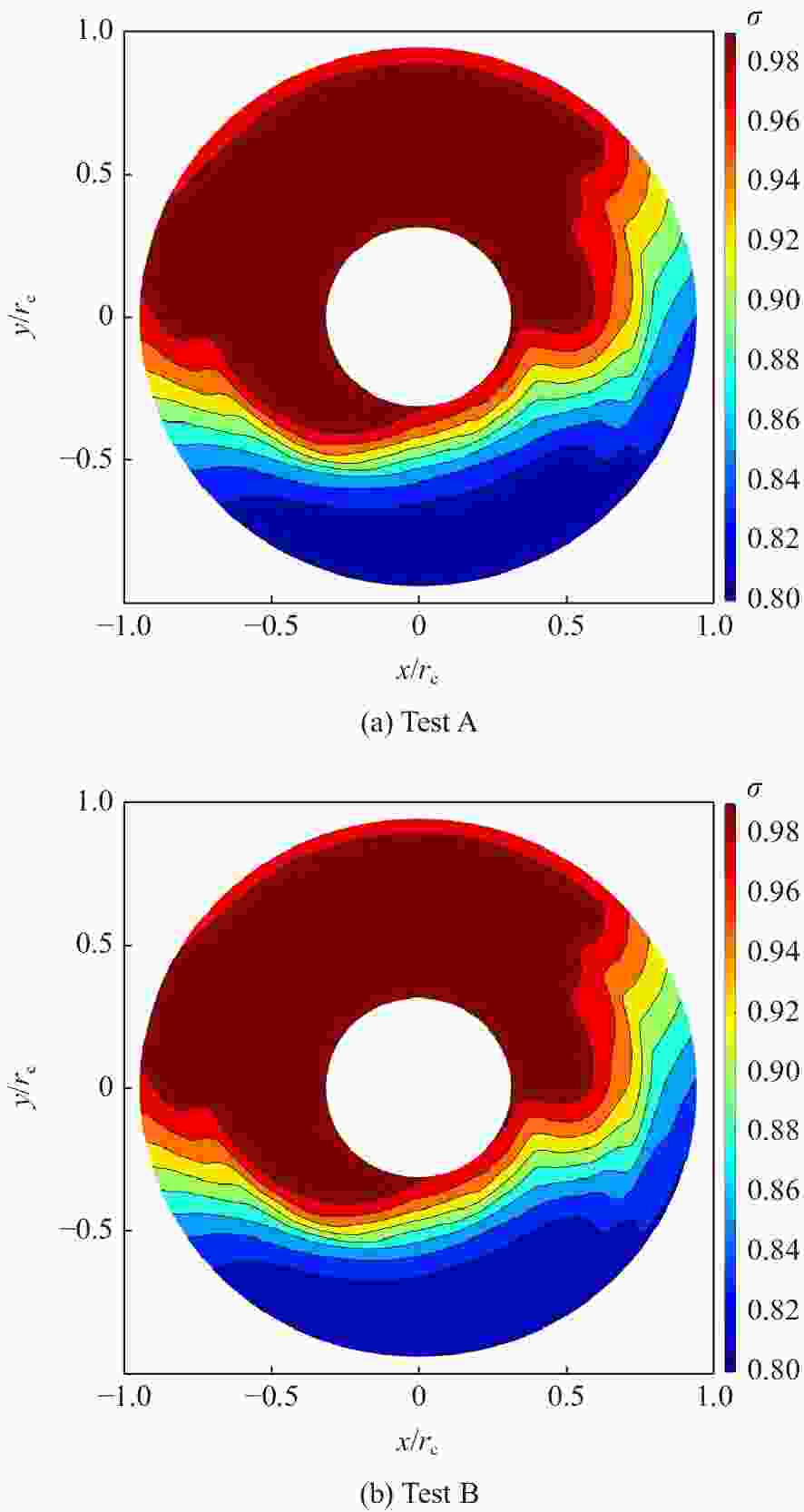

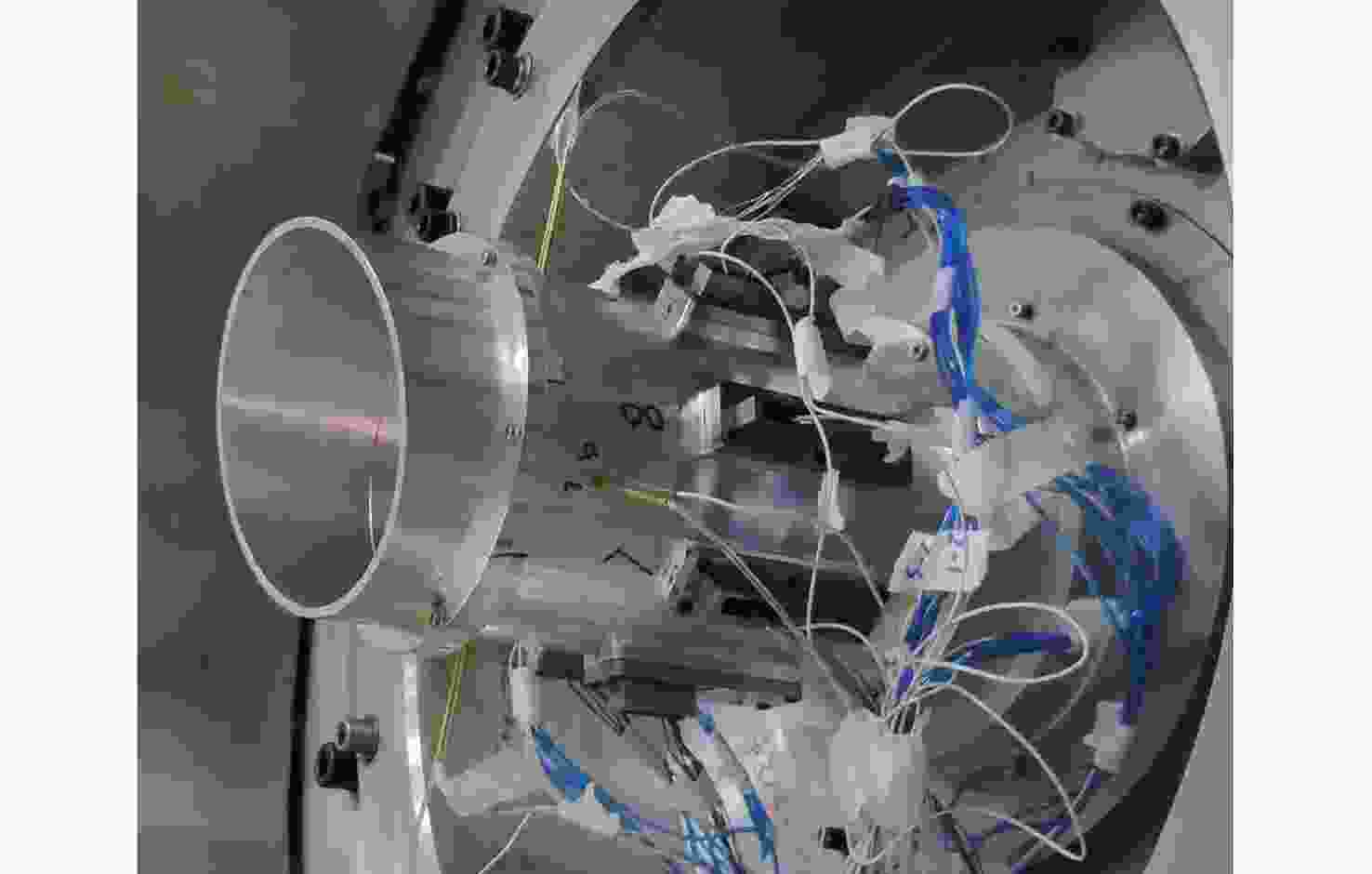

图 11 验证实验Ma=0.47时总压恢复系数
$ \sigma $ 分布重复性Figure 11. Repeatability of total pressure recovery coefficient
$ \sigma $ of measurement section at Ma=0.47 for verification experiments

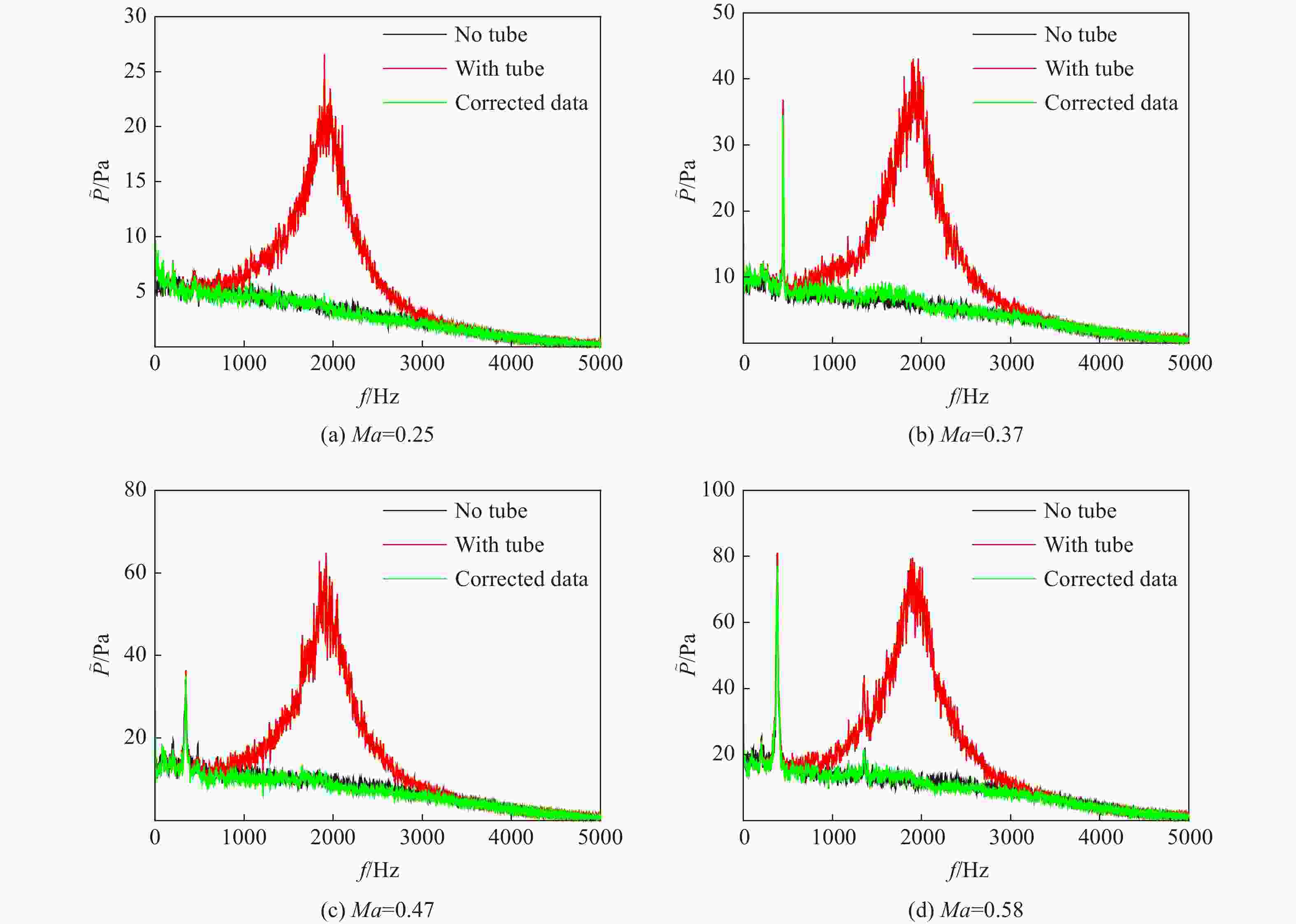

图 12 动态总压频域修正效果
Figure 12. Correction effectivity for the frequency domain values of pulsating total pressure
表 1 实验内容表
Table 1. Contests of experiment
项目 管道尺寸 Pt1 Pt2 Pt3 Pt4 Pt5 Pt6 Pt7 Pt8 Test B l0/mm 40 30 20 10 5 0 24 0 d/mm 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8
下载: 导出CSV
表 2 无管道与有管道湍流度对比
Table 2. Comparison of turbulence with tube and without tube
马赫数 d/mm l0/mm 无管道TuA 带管道TuB TuB/TuA 0.32 1.8 40 0.004 0.011 2.8 0.72 1.8 40 0.005 0.012 2.4 0.32 1.6 40 0.004 0.008 2.0 0.72 1.6 40 0.005 0.011 2.2 0.32 1.2 40 0.004 0.006 1.5 0.72 1.2 40 0.005 0.009 1.8 0.32 1.8 30 0.013 0.030 2.2 0.72 1.8 30 0.033 0.071 2.2 0.32 1.6 30 0.013 0.031 2.4 0.72 1.6 30 0.033 0.069 2.1 0.32 1.2 30 0.013 0.028 2.1 0.72 1.2 25 0.033 0.060 1.8 0.32 1.8 25 0.015 0.033 2.2 0.72 1.8 25 0.039 0.076 2.0 0.32 1.6 25 0.015 0.031 2.1 0.72 1.6 25 0.039 0.078 2.0
下载: 导出CSV
表 3 无管道和有管道修正后湍流度值
Table 3. Turbulence with tube effect and the corrected turbulence
马赫数 d/mm l0/mm 无管道TuA 有管道TuB 修正值$T^*_{\rm{u}} $ TuB /TuA $T^*_{\rm{u}} $‒TuA 0.47 1.2 40 0.0119 0.0261 0.0112 2.19 −0.0007 0.58 1.2 40 0.0166 0.0360 0.0163 2.17 −0.0003 0.58 1.8 40 0.0166 0.0394 0.0171 2.37 0.0005 0.58 1.6 40 0.0166 0.0360 0.0163 2.17 −0.0003 0.58 1.2 40 0.0166 0.0296 0.0157 1.78 −0.0009 0.58 1.6 30 0.0201 0.0489 0.0193 2.43 −0.0007
下载: 导出CSV
-
[1] 李周复. 风洞特种实验技术[M]. 北京: 航空工业出版社, 2010: 23-37. [2] 徐彬彬,巫朝君,王学. 管道效应对进气道湍流度测量的影响研究[J]. 实验流体力学,2020,34(6): 52-58. XU Binbin,WU Chaojun,WANG Xue. Research on the effect of tubing on turbulence in inlet wind tunnel test[J]. Journal of Experiments in Fluid Mechanics,2020,34(6): 52-58. (in Chinese doi: 10.11729/syltlx20190118 [3] BERGH H, TIJDEMAN H. Theoretical and experimental results for the dynamic response of pressure measuring systems[R]. Amsterdam: National Aero and Astronautic Research Institute, 1965. [4] IRWIN H P, COOPER K R, GIRARD R. Correction of distortion effects caused by tubing systems in measurements of fluctuating pressures[J] . Journal of Wind Engineering and Industrial Aerodynamics, 1979(5): 93-107. [5] TIJDEMAN H. and BERGH H. The influence of the main flow on the transfer function of tube-transducer systems used for unsteady pressure measurements[R]. NLR-MP-72023-U, 1972. [6] GUMLEY S J. Tubing systems for pneumatic averaging of fluctuating pressures[J]. Journal of Wind Engineering and Industrial Aerodynamics,1983(12): 189-228. [7] GUMLEY S J. A detailed design method for pneumatic tubing systems[J]. Journal of Wind Engineering and Industrial Aerodynamics,1983(13): 441-452. [8] HOLMES J D,LEWIS R E. Optimization of dynamic pressure measurement systems: Ⅰ single point measurements[J]. Journal of Wind Engineering and Industrial Aerodynamics,1987(25): 249-273. [9] HOLMES J D,LEWIS R E. Optimization of dynamic pressure measurement systems: Ⅱ parallel tube manifold systems[J]. Journal of Wind Engineering and Industrial Aerodynamics,1987(25): 275-290. [10] HOLMES J D. Effect of frequency response on peak pressure measurements[J]. Journal of Wind Engineering and Industrial Aerodynamics,1984(17): 1-9. [11] GERSTOFT P. A new tubing system for the measurement of fluctuating pressure[J]. Journal of Wind Engineering and Industrial Aerodynamics,1984,25(3): 335-354. [12] YOSHIDA A,KONDO K,SUZUKI M. Fluctuating wind pressure measured with tubing system[J]. Journal of Wind Engineering and Industrial Aerodynamics,1992,42: 987-998. doi: 10.1016/0167-6105(92)90105-J [13] YOSHIDA A,TAMURA Y,KURITA T. Effects of bends in a tubing system for pressure measurement[J]. Journal of Wind Engineering and Industrial Aerodynamics,2001(89): 1701-1716. [14] 苏尔皇. 管道动态分析及液流数值计算方法[M]. 哈尔滨: 哈尔滨工业大学出版社, 1985: 56-61. [15] 蔡亦钢. 流体传输管道动力学[M]. 杭州: 浙江大学出版社, 1990: 16-43. [16] 谢壮宁, 倪振华, 石碧青. 动态风压测压管路系统的动态特性分析[J]. 应用力学学报, 2002, 19(1): 5-9.XIE Zhuangning, NI Zhenhua, SHI Biqing. Dynamic characteristics of tubing systems for fluctuating wind pressure measurements [J]. Chinese Journal of Applied Mechanics, 2002, 19(1): 5-9. (in Chinese) [17] 谢壮宁,顾明,倪振华. 复杂测压管路系统动态特性的通用分析程序[J]. 同济大学学报,2003,31(6): 702-708. XIE Zhuangning,GU Ming,NI Zhenghua. Optimal design for simultaneous wind pressure measurements[J]. Journal of Tongji Unicersity,2003,31(6): 702-708. (in Chinese [18] 周晅毅,顾明. 单通道测压管路系统的优化设计[J]. 同济大学学报,2003,31(7): 798-802. ZHOU Xuanyi,GU Ming. Optimization of dynamic pressure measurement of single channel tubing systems[J]. Journal of Tongji University,2003,31(7): 798-802. (in Chinese [19] 马文勇,刘庆宽,刘小兵,等. 风洞试验中测压管路信号畸变及修正研究[J]. 实验流体力学,2013,27(4): 71-76. MA Wenyong,LIU Qingkuan,LIU Xiaobing,et al. Study on correction and distortion effects caused by tubing systems of pressure measurements in wind tunnel[J]. Journal of Experiments in Fluid Mechanics,2013,27(4): 71-76. (in Chinese doi: 10.3969/j.issn.1672-9897.2013.04.013 [20] WANG Xue,WANG Xunnian,REN Xiaobo,et al. Effect of tube system and data correction for fluctuation pressure test in wind tunnel[J]. Chinese Journal of Aeronautics,2018,31(4): 698-710. doi: 10.1016/j.cja.2018.02.001 [21] 徐彬彬,王学,巫朝君,等. 管道内流动力学修正耗散模型[J]. 航空动力学报,2021,36(1): 78-87. XU Binbin,WANG Xue,WU Chaojun,et al. Improved dissipative model of hydrodynamic in tube[J]. Journal of Aerospace Power,2021,36(1): 78-87. (in Chinese doi: 10.13224/j.cnki.jasp.2021.01.010 [22] 章荣平,王勋年,黄勇. 低速风洞全模TPS试验空气桥的设计与优化[J]. 实验流体力学,2012,26(6): 48-52. ZHANG Rongping,WANG Xunnian,HUANG Yong. Design and optimization of the air bridge for low speed full-span TPS test[J]. Journal of Experiments in Fluid Mechanics,2012,26(6): 48-52. (in Chinese doi: 10.3969/j.issn.1672-9897.2012.06.011 [23] 章荣平,王勋年,黄勇. 发动机动力模拟风洞试验中的空气桥技术[J]. 航空动力学报,2015,30(4): 910-915. ZHANG Rongping,WANG Xunnian,HUANG Yong. Air bridge technology for engine power simulation test in wind tunnel[J]. Journal of Aerospace Power,2015,30(4): 910-915. (in Chinese doi: 10.13224/j.cnki.jasp.2015.04.018 [24] 胡卜元,巫朝君,吴福章,等. 基于校准箱的低速风洞一体式喷流试验技术[J]. 航空动力学报,2021,36(6): 1137-1144. HU Buyuan,WU Chaojun,WU Fuzhang,et al. Integrated jet-effects testing technique based on calibration tank in low-speed wind tunnel[J]. Journal of Aerospace Power,2021,36(6): 1137-1144. (in Chinese doi: 10.13224/j.cnki.jasp.2021.06.002 -
