Numerical simulation of liquid film converge characteristics of bipropellant pressure swirl injector
-
摘要:
为研究双组元离心喷嘴液膜的吸合特性，采用流体体积法（VOF）耦合Level Set方法对不同工况下双组元离心喷嘴进行数值计算，分析了喷嘴的流动特性，揭示了内外喷嘴锥形液膜之间的相互影响规律。研究结果表明：当外喷嘴的进出口压差大于1.6 MPa时出现吸合现象，过程表现为内外液膜逐渐重叠、相互吸合；吸合后喷嘴出口下游液雾速度相对减小；推力室室压的增加导致吸合时机缩短，而压差对吸合时机的影响相对较小，随着压差的增加其规律表现为先减小后增加。
Abstract:To study the convergence characteristics of the liquid film of a bipropellant pressure-swirl injector, numerical investigation of bipropellant pressure swirl injector was conducted based on the volume of fluid (VOF) coupled Level Set methods under different thruster chamber pressures and pressure drops. The atomization characteristics of the injector were analyzed, and the law of mutual influence between the inner and outer nozzle liquid films was revealed. The results showed that when the pressure drop of outer nozzle was greater than 1.6 MPa, the convergence phenomenon occurred, and the inner and outer spray films were gradually overlapped and converged with each other in the process. After convergence, the downstream speed of the injector outlet relatively decreased. The increase of the thrust chamber pressure led to the shortening of the convergence time, while the influence of the pressure drop on the convergence time was relatively small. With the increase of the pressure drop, the convergence time decreased at first and then increased.
-

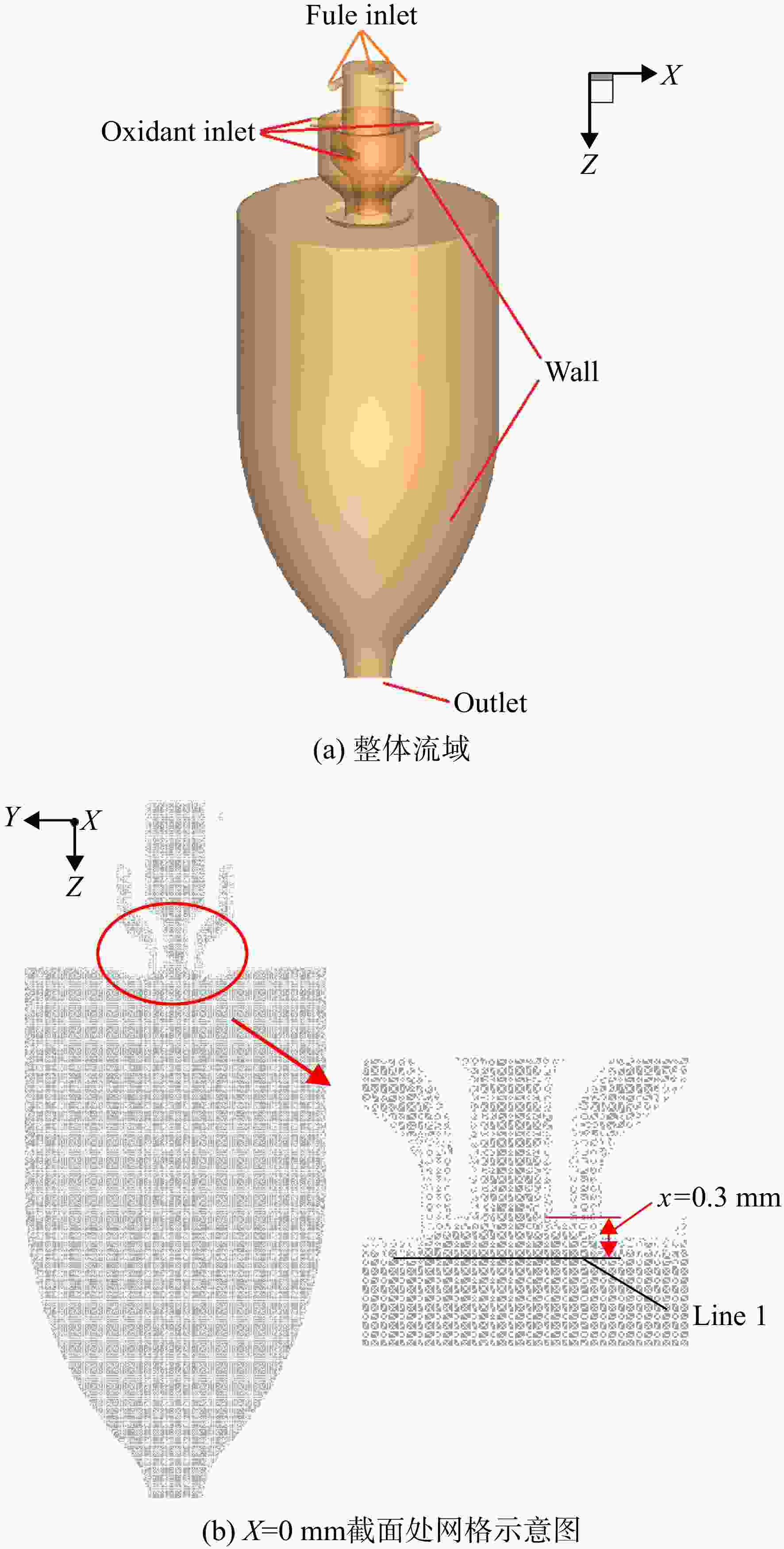

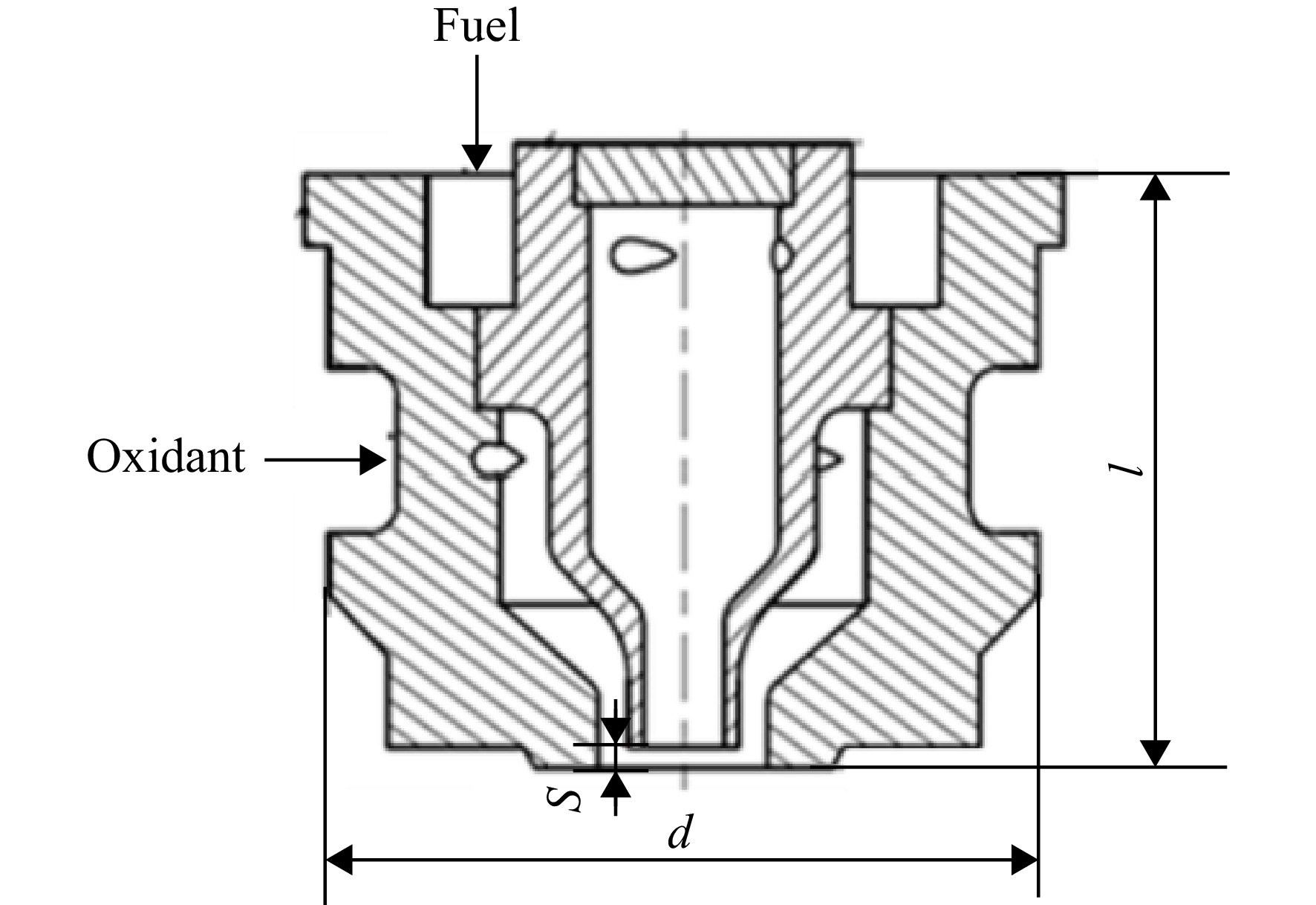

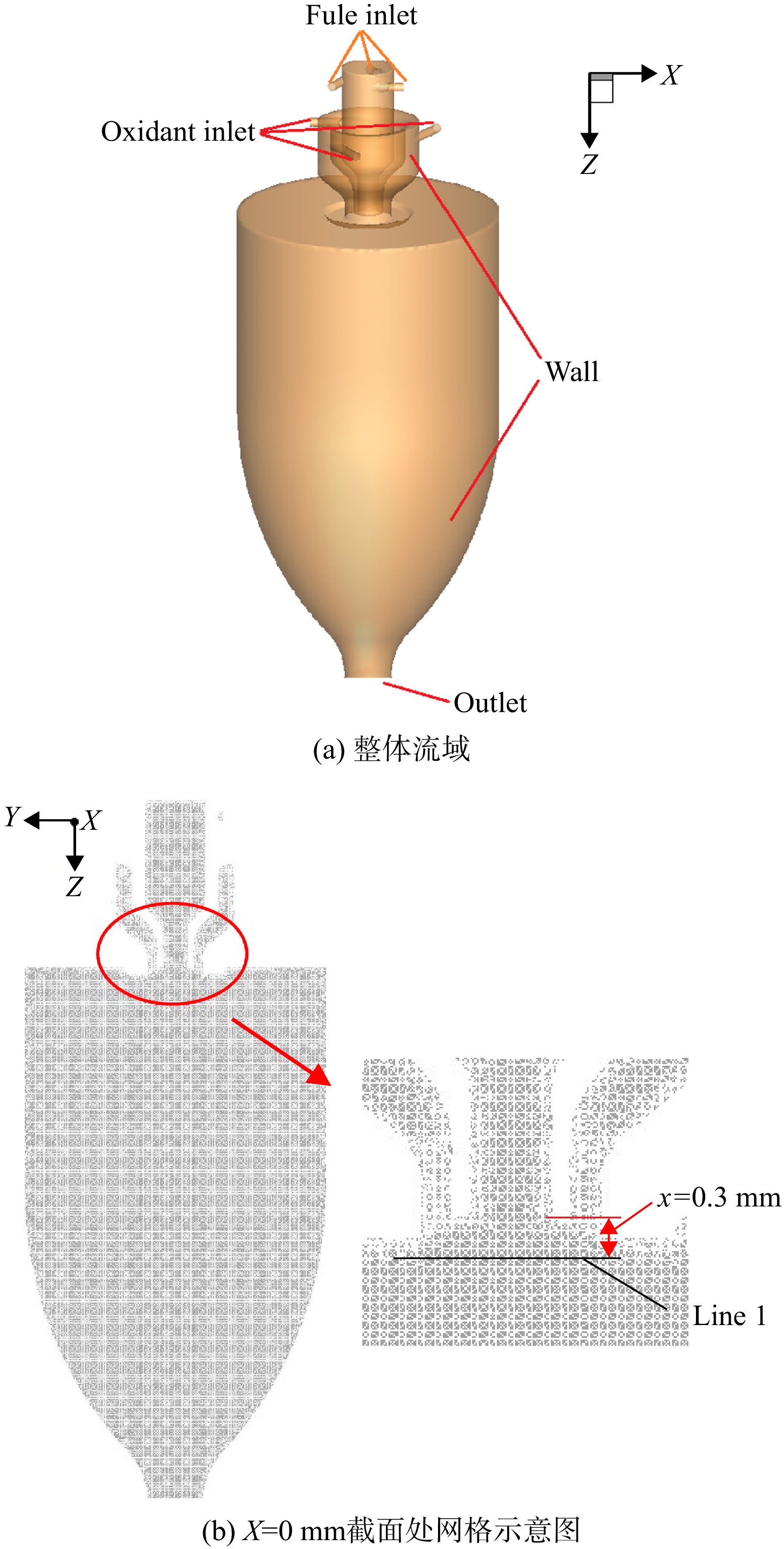

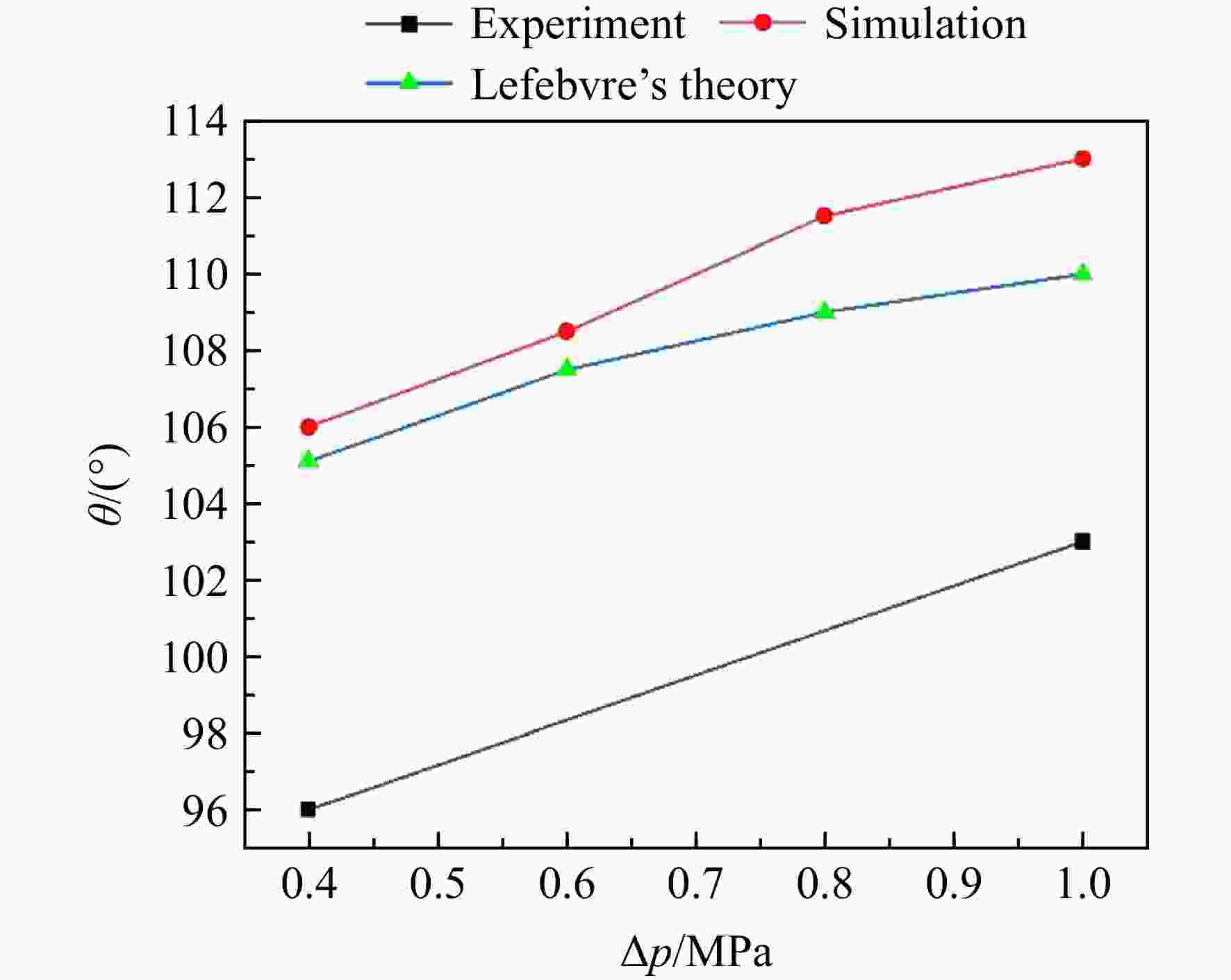

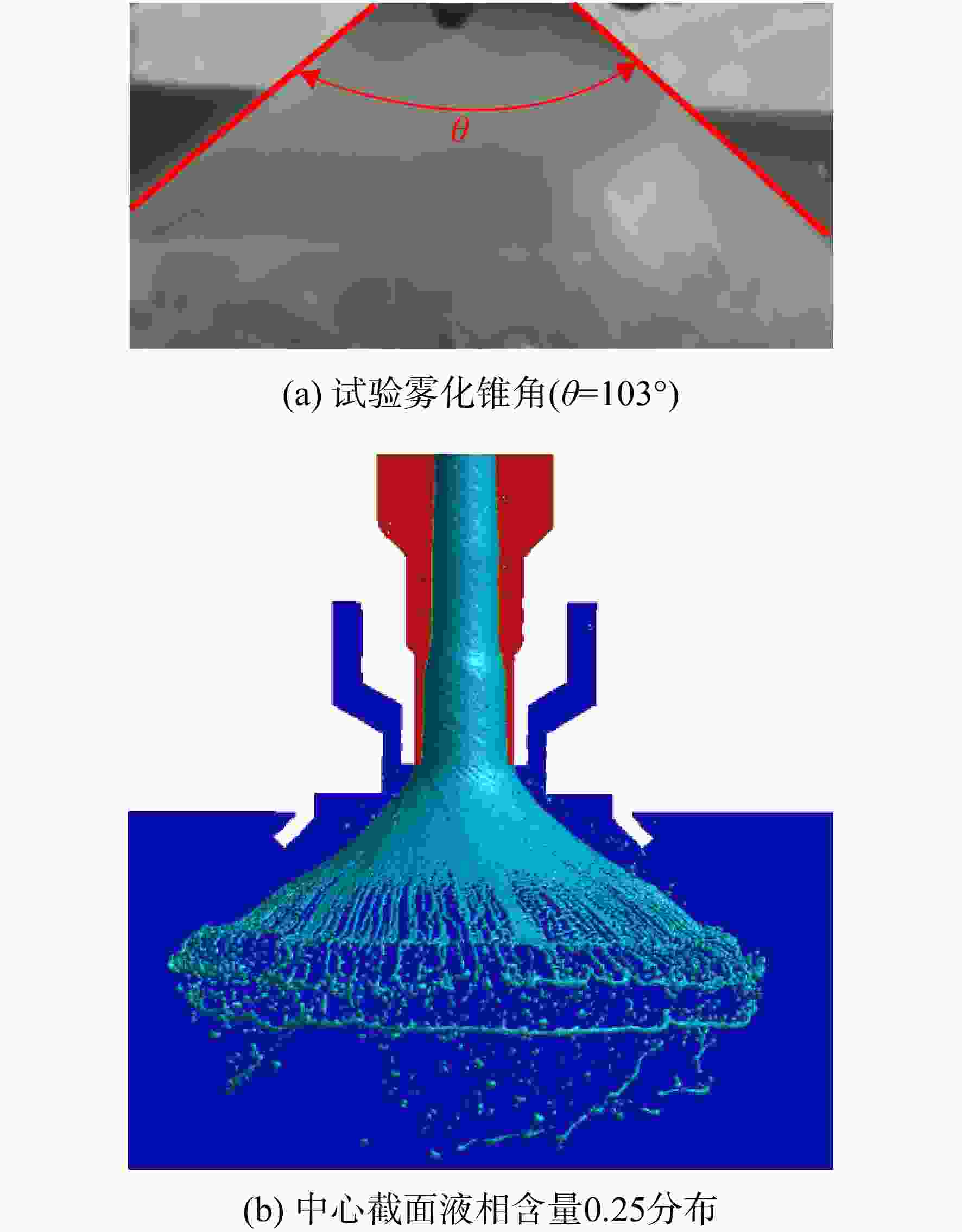

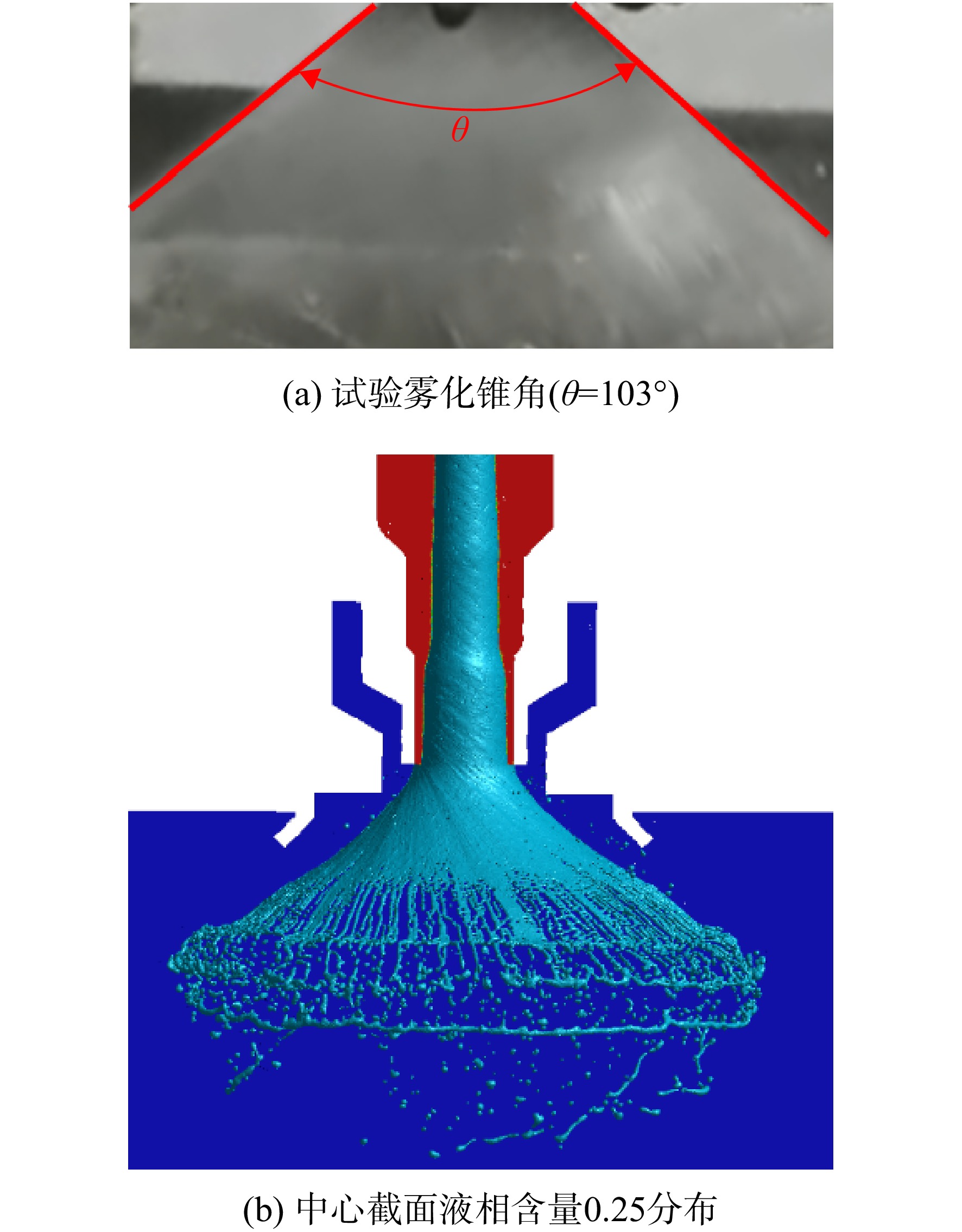

图 3 验证对象试验及仿真结果（Δp=1 MPa）
Figure 3. Experiment and simulation results of verification object （Δp=1 MPa）

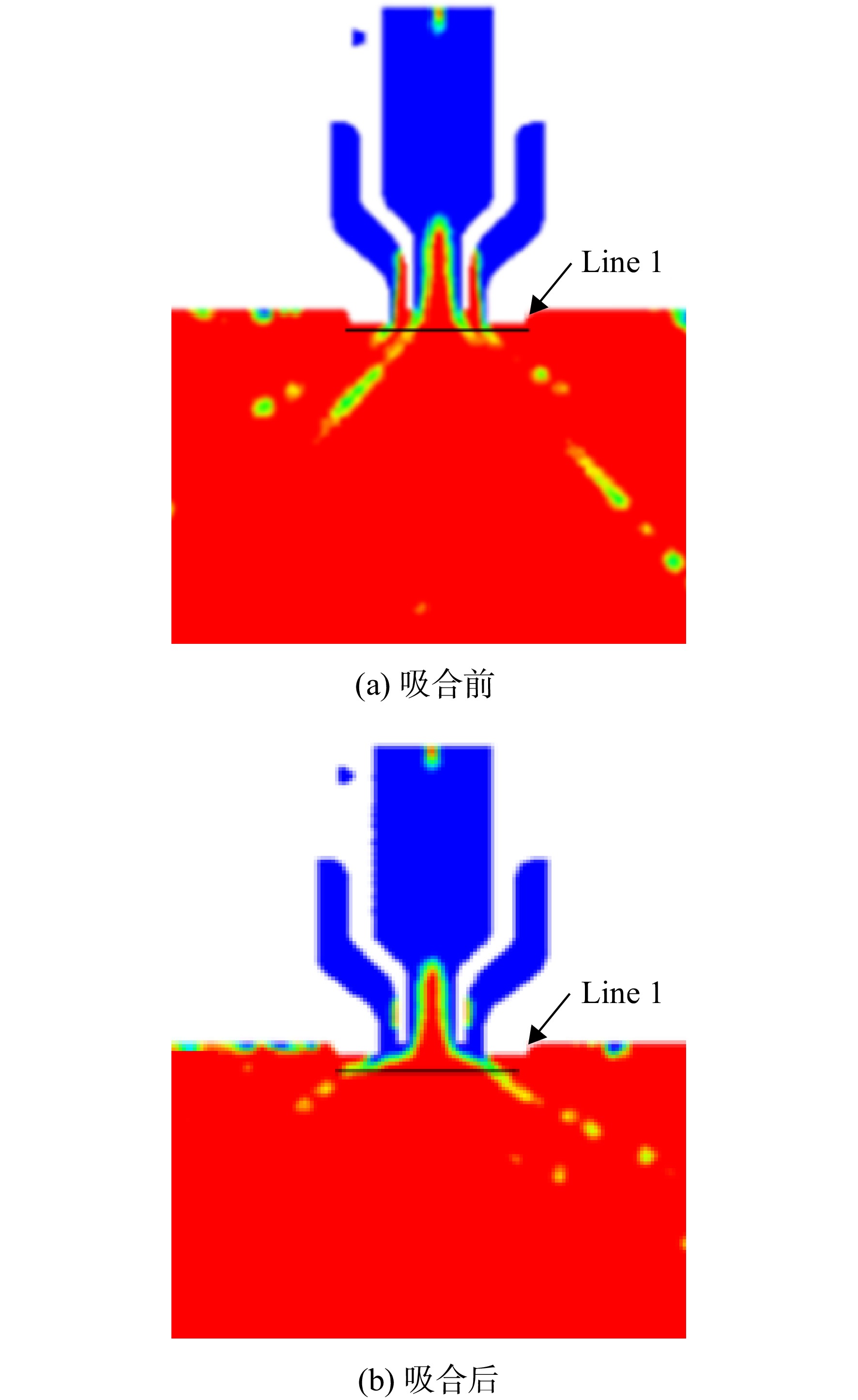

图 5 气液两相分布（X=0 mm截面，ΔpMMH=1.5 MPa，ΔpNTO=1.7 MPa，pc=5.5 MPa）
Figure 5. Gas-liquid two-phase distribution （X =0 mm section，ΔpMMH=1.5 MPa，ΔpNTO=1.7 MPa，pc=5.5 MPa）

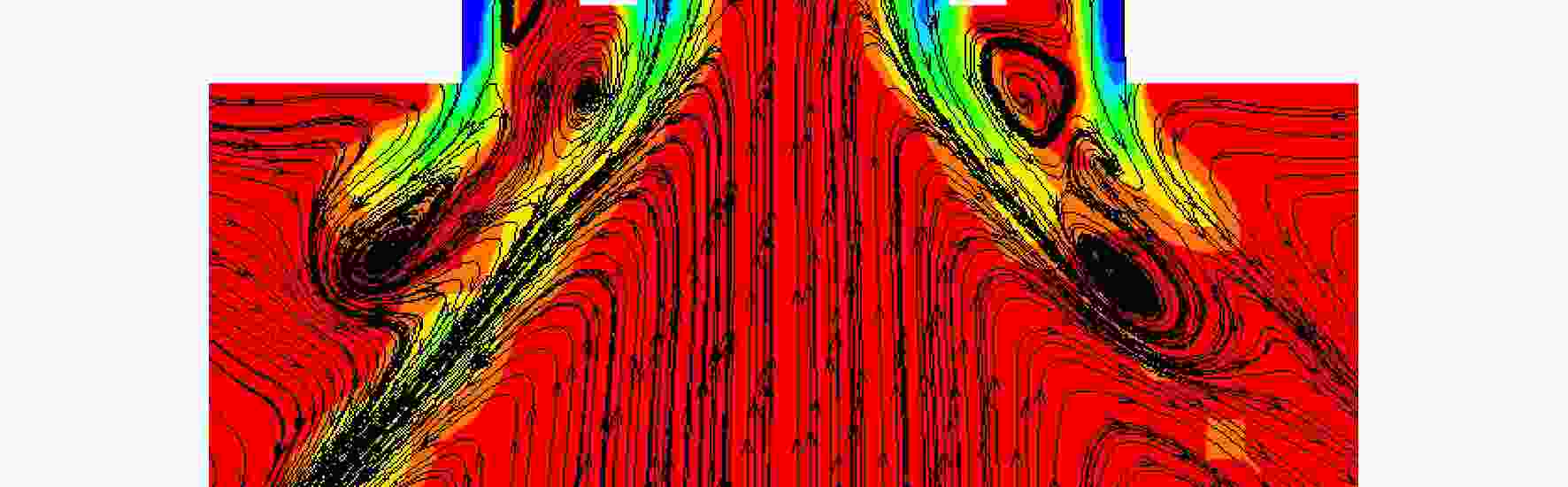

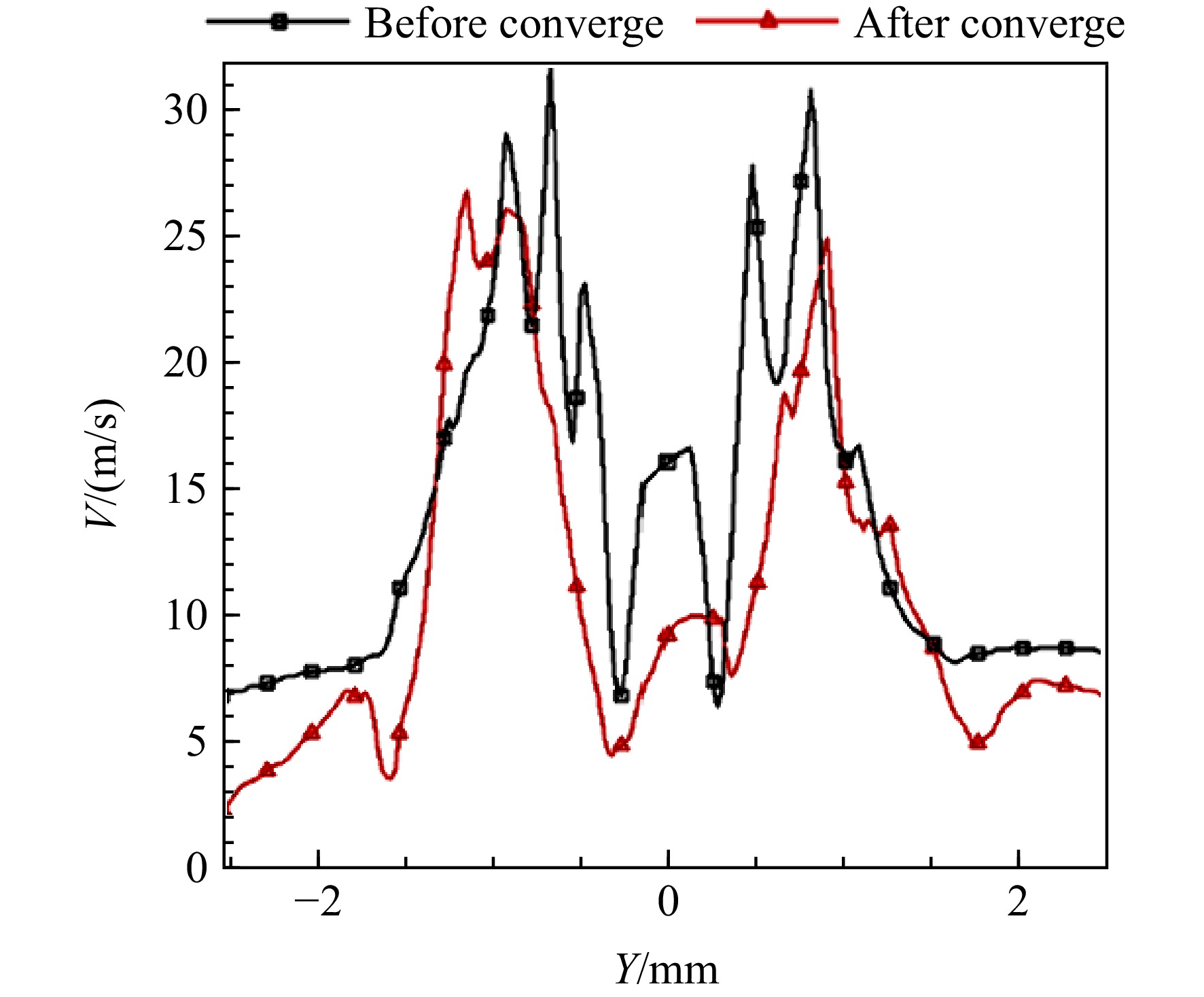

图 7 速度分布沿径向变化（line 1, ΔpMMH=1.5 MPa，ΔpNTO=1.7 MPa，pc=5.5 MPa）
Figure 7. Velocity distribution along the radial direction （line 1, ΔpMMH=1.5 MPa，ΔpNTO=1.7 MPa，pc=5.5 MPa）

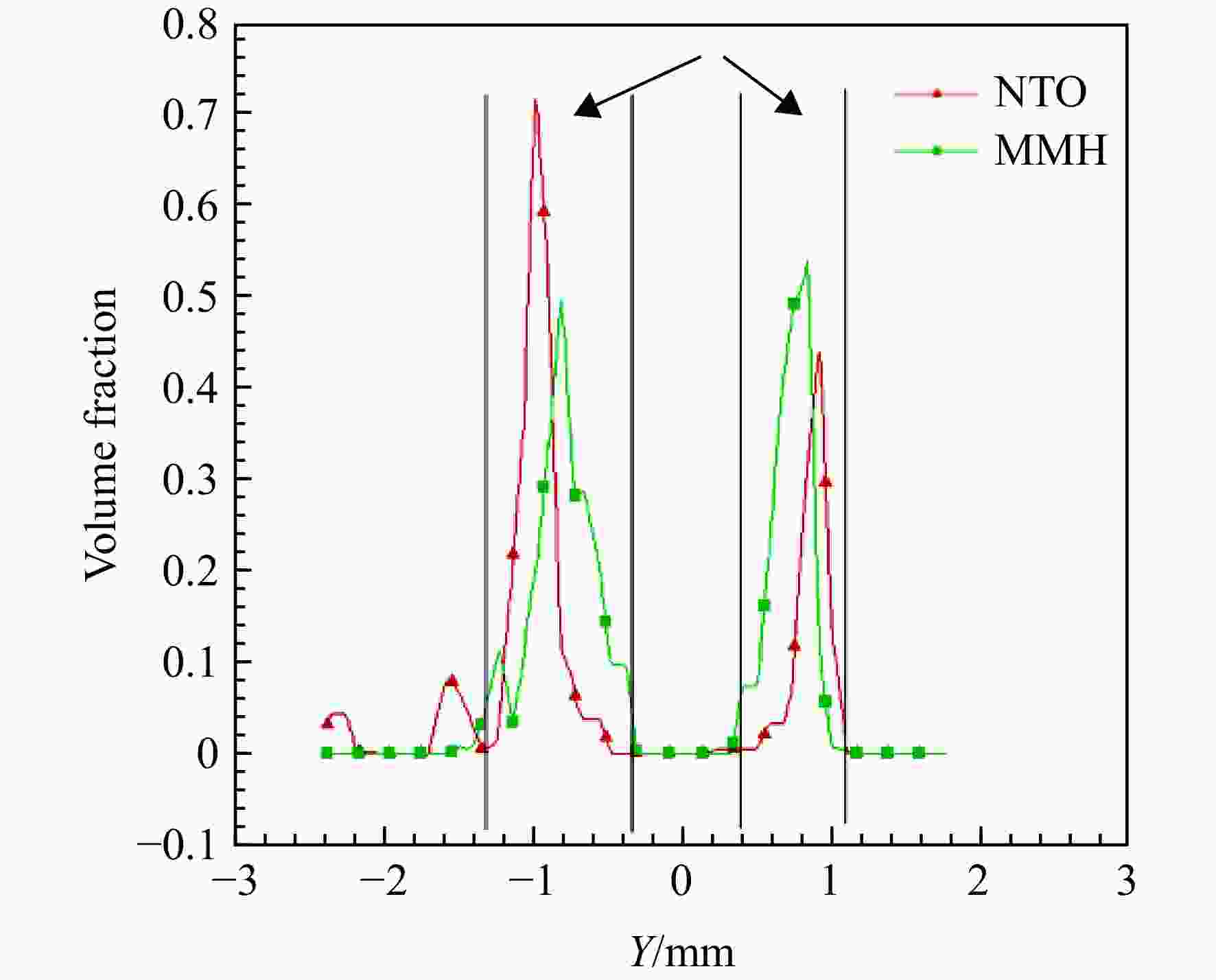

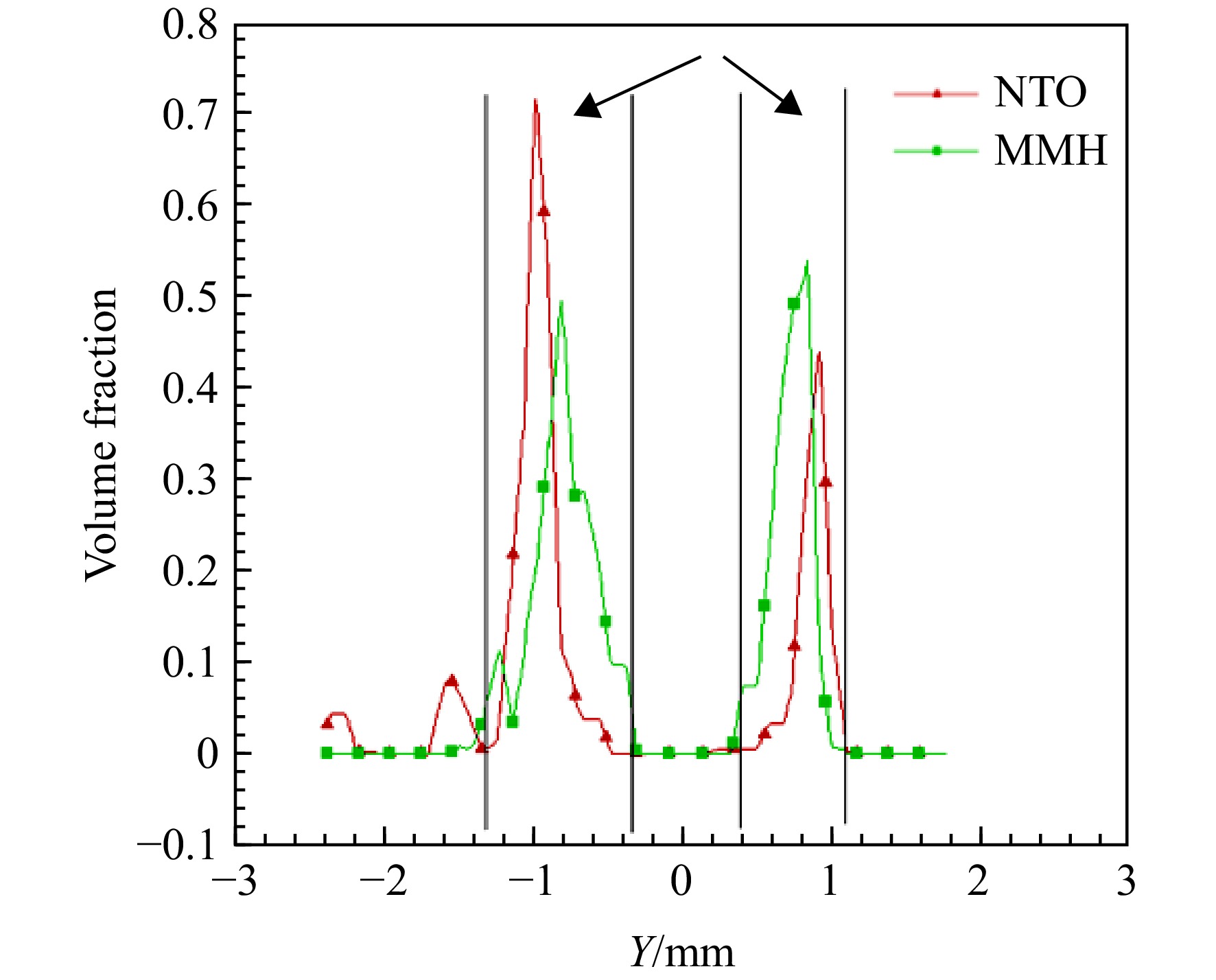

图 8 液相体积分数沿径向变化（line 1）
Figure 8. Liquid phase volume fraction changes along the radial direction （line 1）

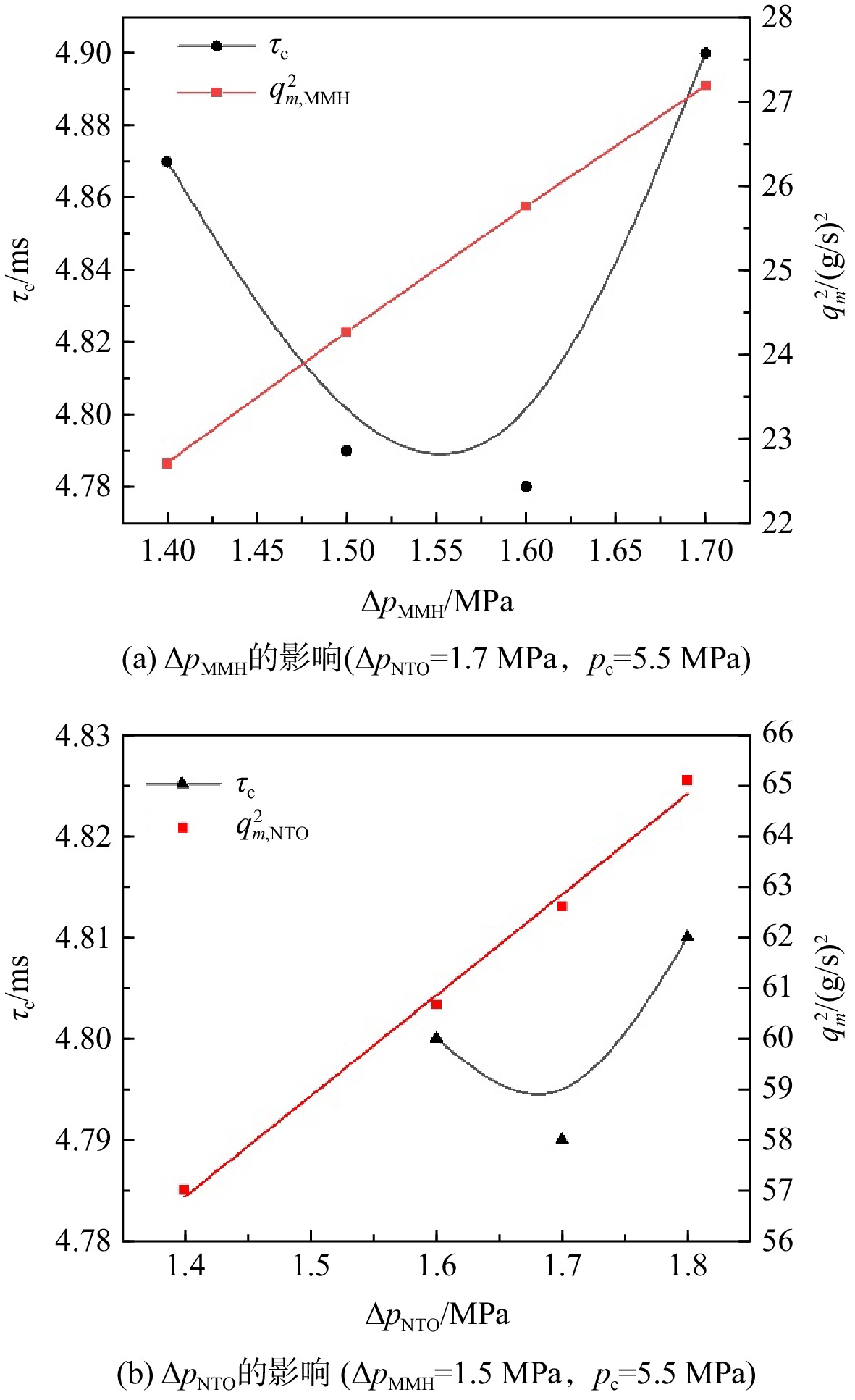

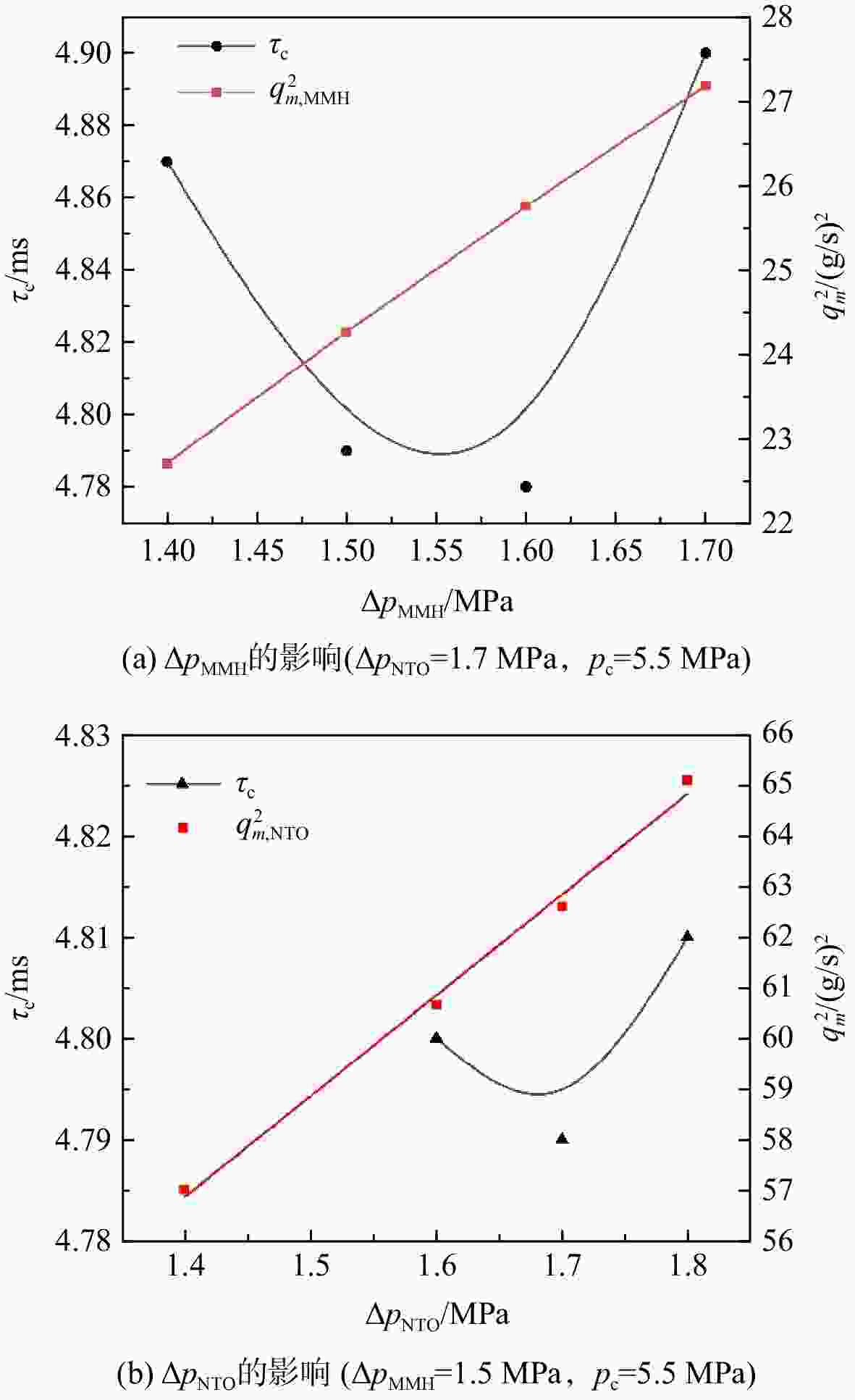

图 9 压差对吸合时机以及质量流量的影响
Figure 9. Influence of pressure drop on converge time and mass flow rate

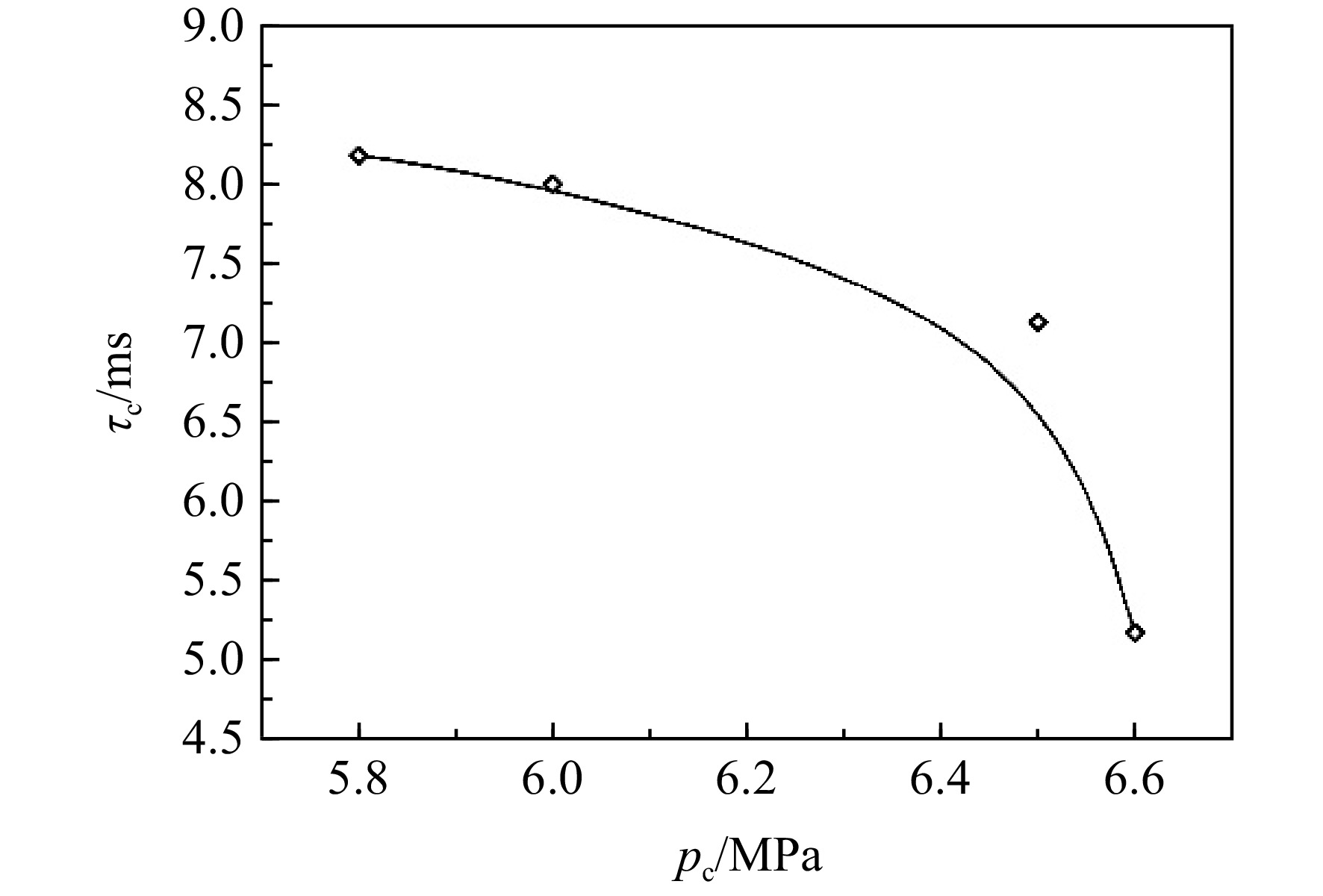

图 10 推力室室压对吸合时机的影响（ΔpNTO=1.7 MPa，ΔpMMH=1.5 MPa）
Figure 10. Influence of thruster chamber pressure on converge time （ΔpNTO=1.7 MPa，ΔpMMH=1.5 MPa）
表 1 物性参数表
Table 1. Property parameter table
物性参数 MMH NTO ρ/（kg/m3） 878 1450 μ/（Pa·s） 0.00085 0.00042 σ/（N·m） 0.034 0.0266
下载: 导出CSV
表 2 不同计算工况
Table 2. Different calculation conditions
MPa 工况 ΔpMMH ΔpNTO pc 1 1.5 1.7 5.5, 5.8, 6.0, 6.5, 6.6 2 1.4～1.7 1.7 5.5 3 1.5 1.4, 1.6～1.8 5.5
下载: 导出CSV
-
