Investigation on trajectory and penetration of liquid jet in non-uniform velocity crossflow
-
摘要:
实验研究了横流速度分布不均匀时液体射流的轨迹和穿透。利用多孔板实现速度分布不均匀，射流液体为水，用激光片光照相结合相位多普勒粒子分析仪进行研究。主要关注平均射流动量比、局部韦伯数和横流速度分布不均匀度等参数。不均匀横流对射流的影响主要体现为破碎模式沿射流流向的转变。提出表征射流受横流影响范围的无量纲数

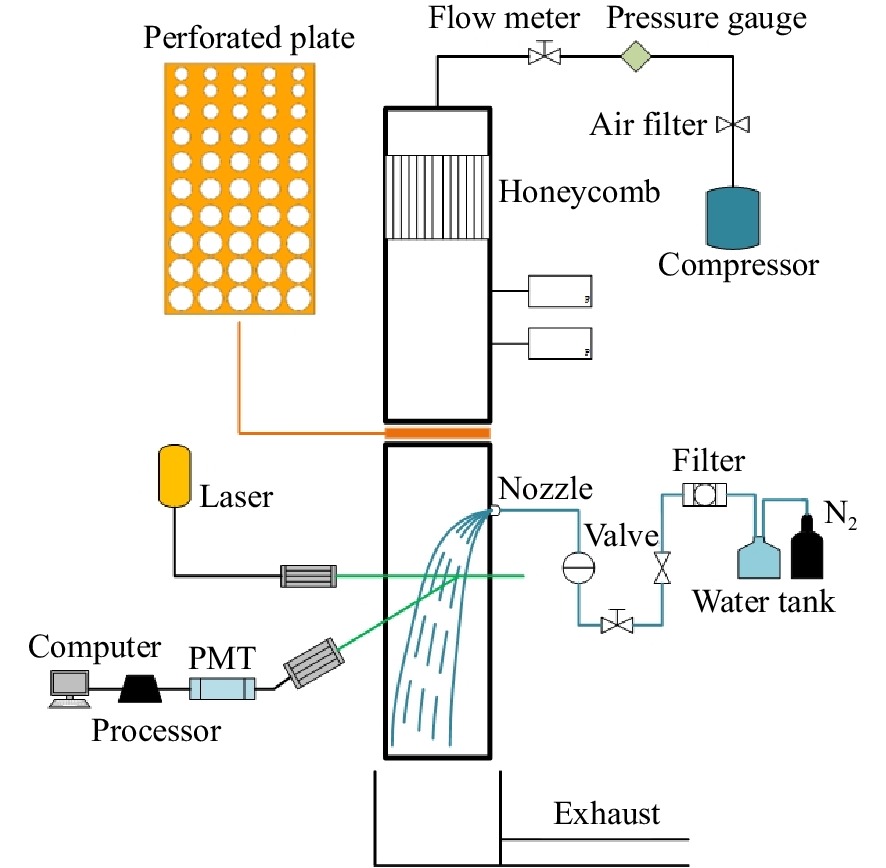

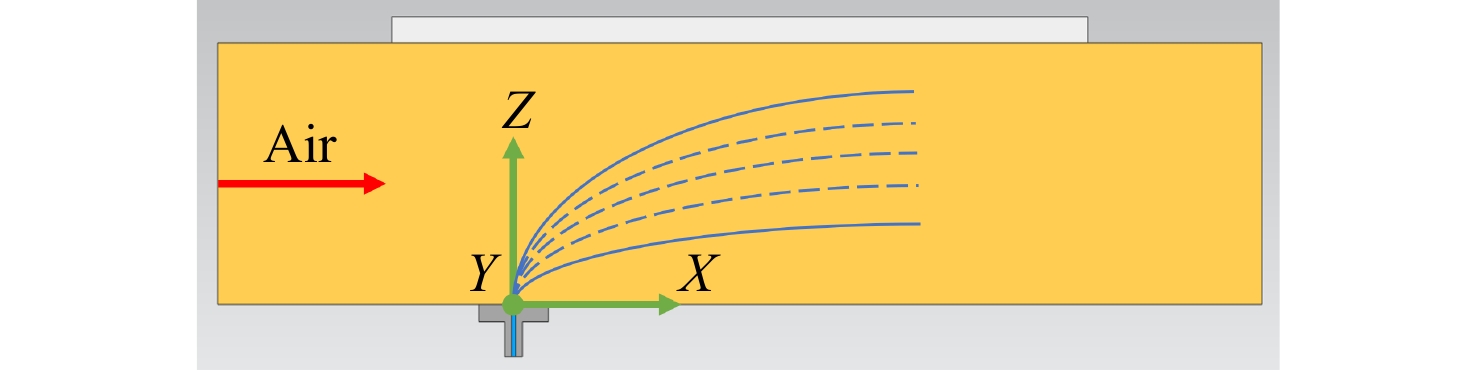

L ，并构造常温常压下适用于不均匀度为−2～2且射流动量比为10～40的射流轨迹经验公式。以是否存在“初级抬升段”作为判定是否进行分段拟合的准则。对于不均匀度小于1，结合经验公式与不均匀度和L 的线性函数图对射流轨迹进行预测；对于不均匀度大于1，以射流首次发展为复合式破碎的位置作为“抬升段”和“偏转段”的分界点对射流轨迹进行分段拟合。Abstract:The trajectory and penetration of liquid jet in crossflow with non-uniform velocity distribution were studied experimentally. Using specifically designed perforated plates to realize several non-uniform velocity distributions, water was used as the jet liquid, and the research was carried out by laser sheet combined with phase doppler particle Analyzer. The main concerns involved the average jet momentum flux ratio, the local Weber number and non-uniformity of the transverse velocity distribution. The influence of the crossflow with non-uniform velocity distribution on the liquid jet was mainly reflected in the transformation of the breakup mode along the liquid flow direction. A dimensionless parameter
L characterizing the influence range of liquid jet by cross flow was proposed, and an empirical formula suitable for jet trajectory with non-uniformity of −2—2 and jet momentum flux ratio of 10—40 at normal temperature and pressure was constructed. The existence of “primary uplift section” was taken as the criterion to determine whether the subsection fitting was carried out. For non-uniformity less than 1, the jet trajectory was predicted by combining the empirical formula with the linear function diagram of nonuniformity andL . For non-uniformity greater than 1, the location where the liquid jet first developed into composite breakup was taken as the dividing point of “uplift section” and “deflection section”, and the jet trajectory was fitted by segments. -

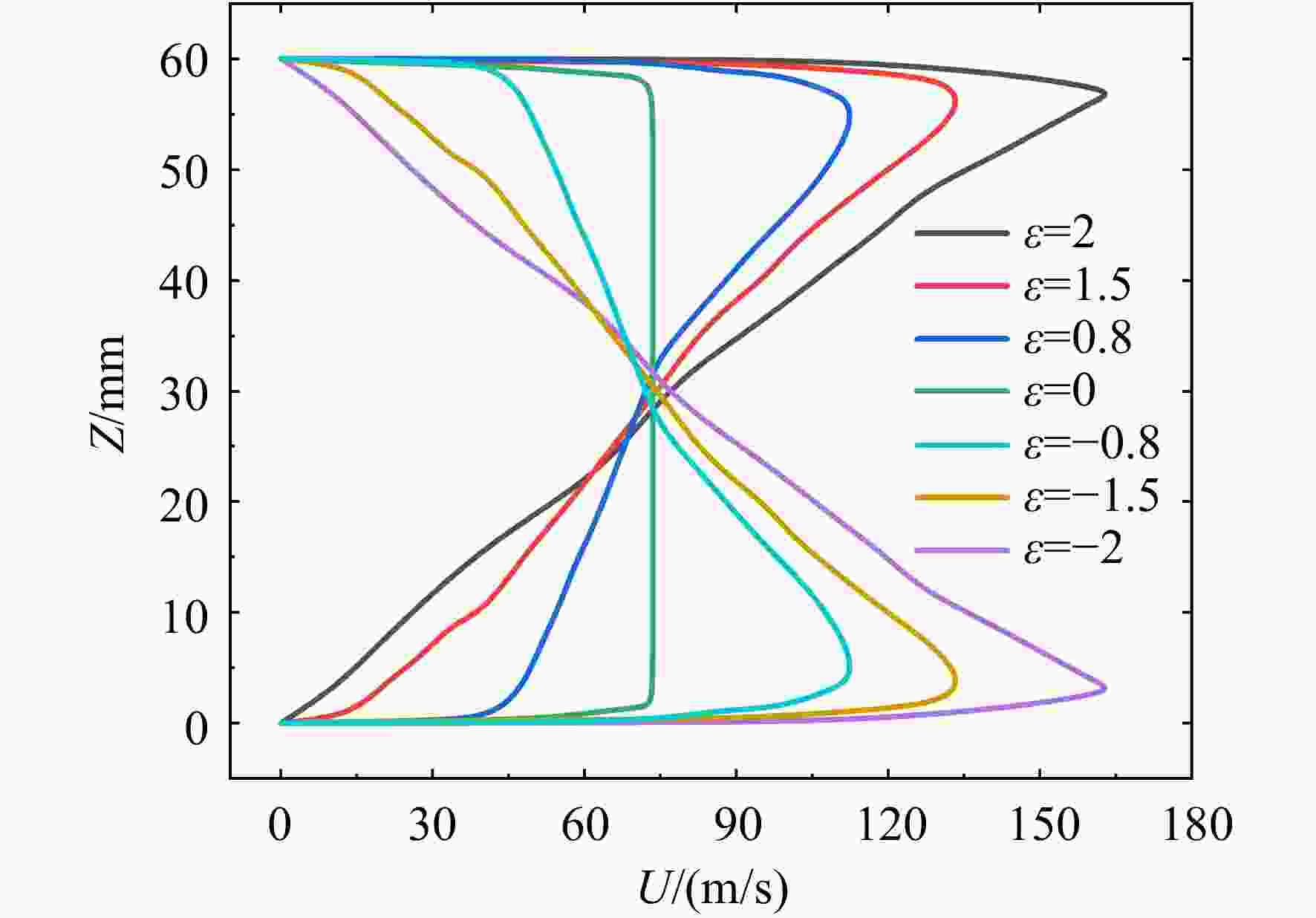

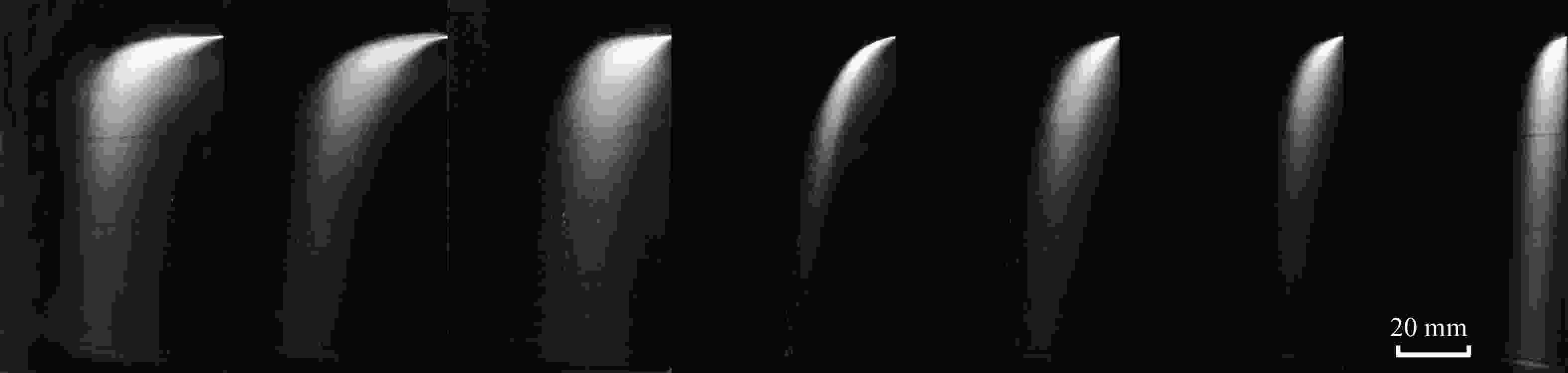

图 4 ε=−2至ε=2（从右至左）的喷雾图像（q20）
Figure 4. ε=−2 to ε=2 （from right to left） spray image （q20）

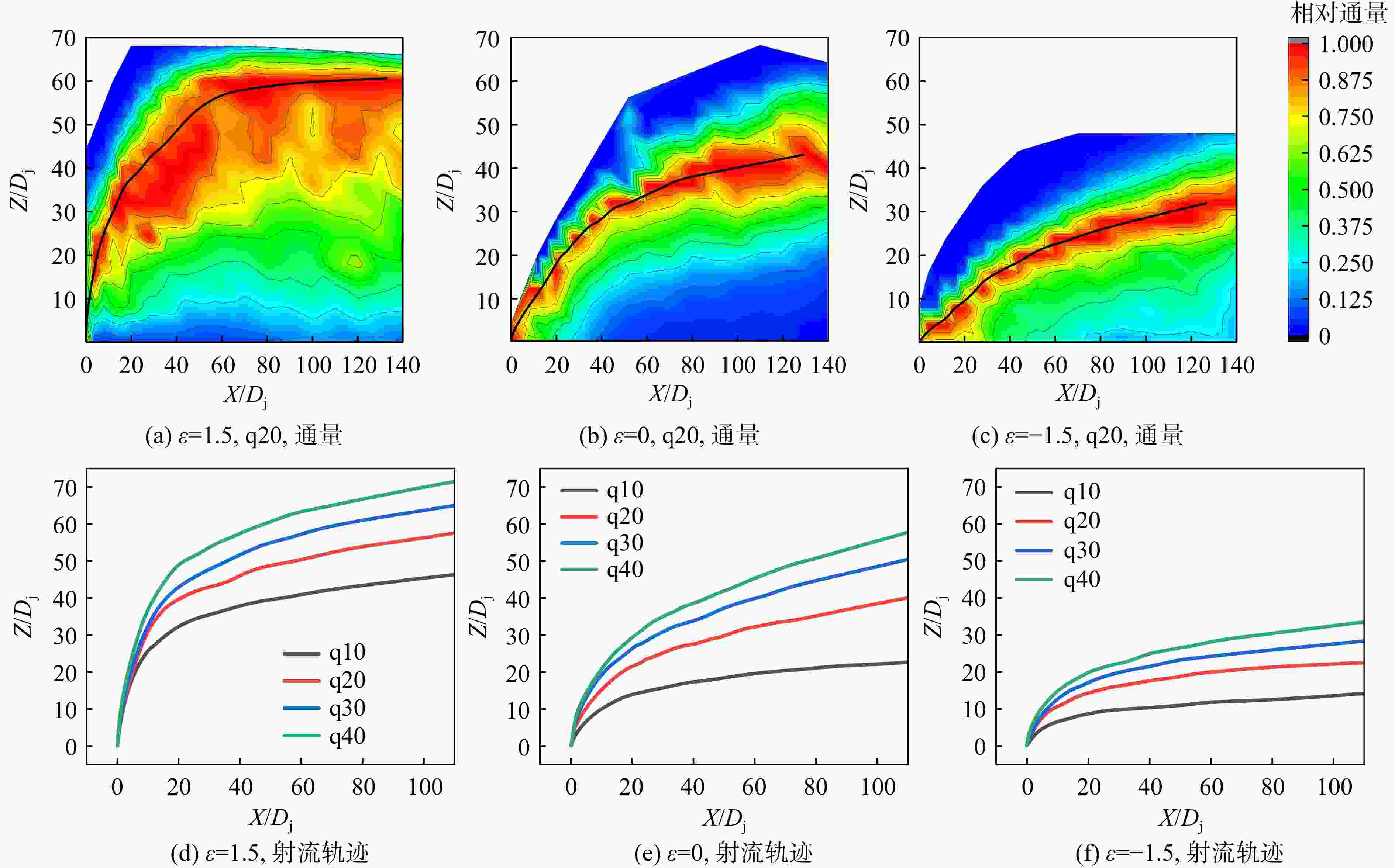

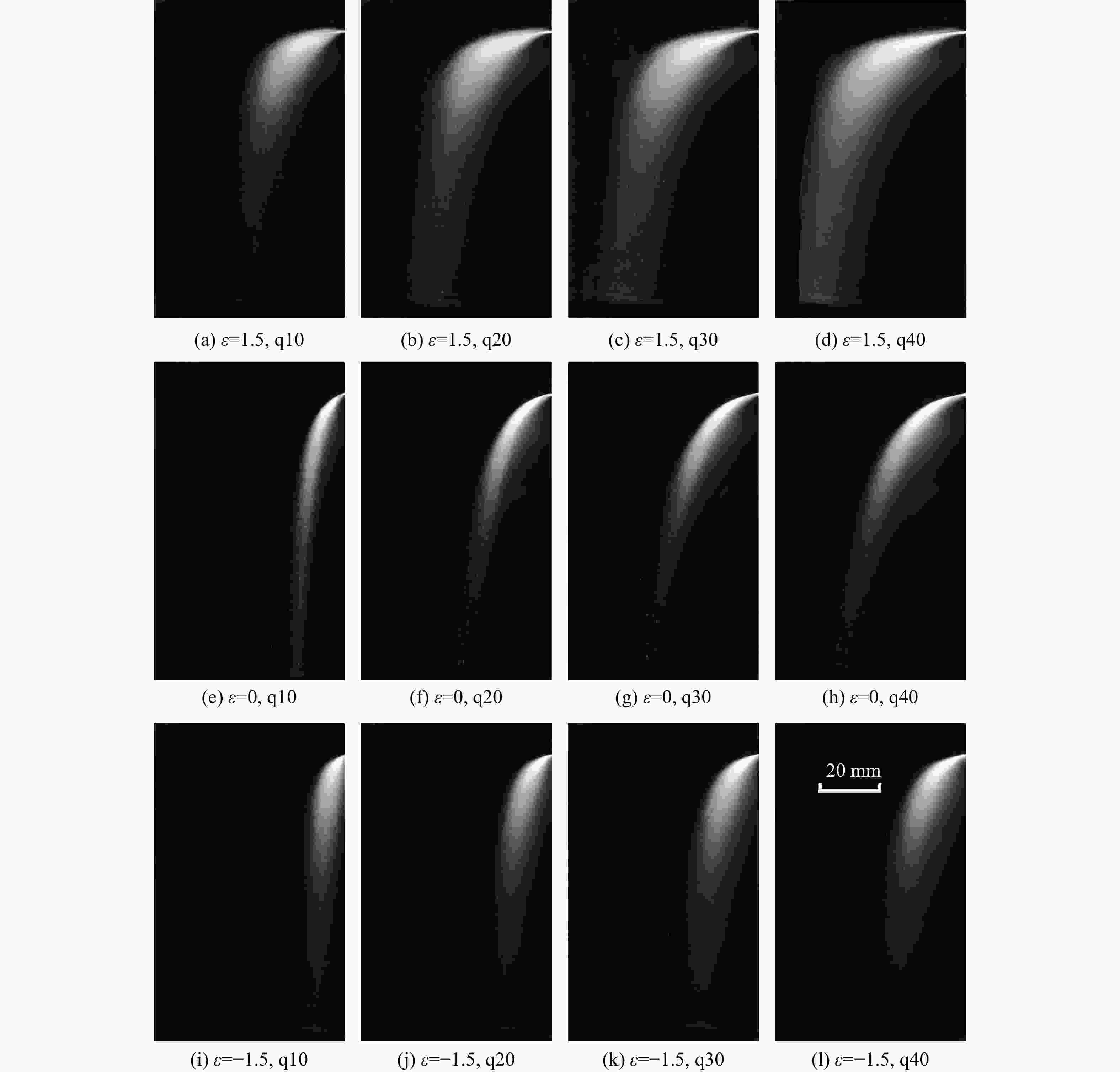

图 6 3种不同速度分布的喷雾通量和射流轨迹
Figure 6. Spray fluxes and jet trajectory of three different velocity distributions

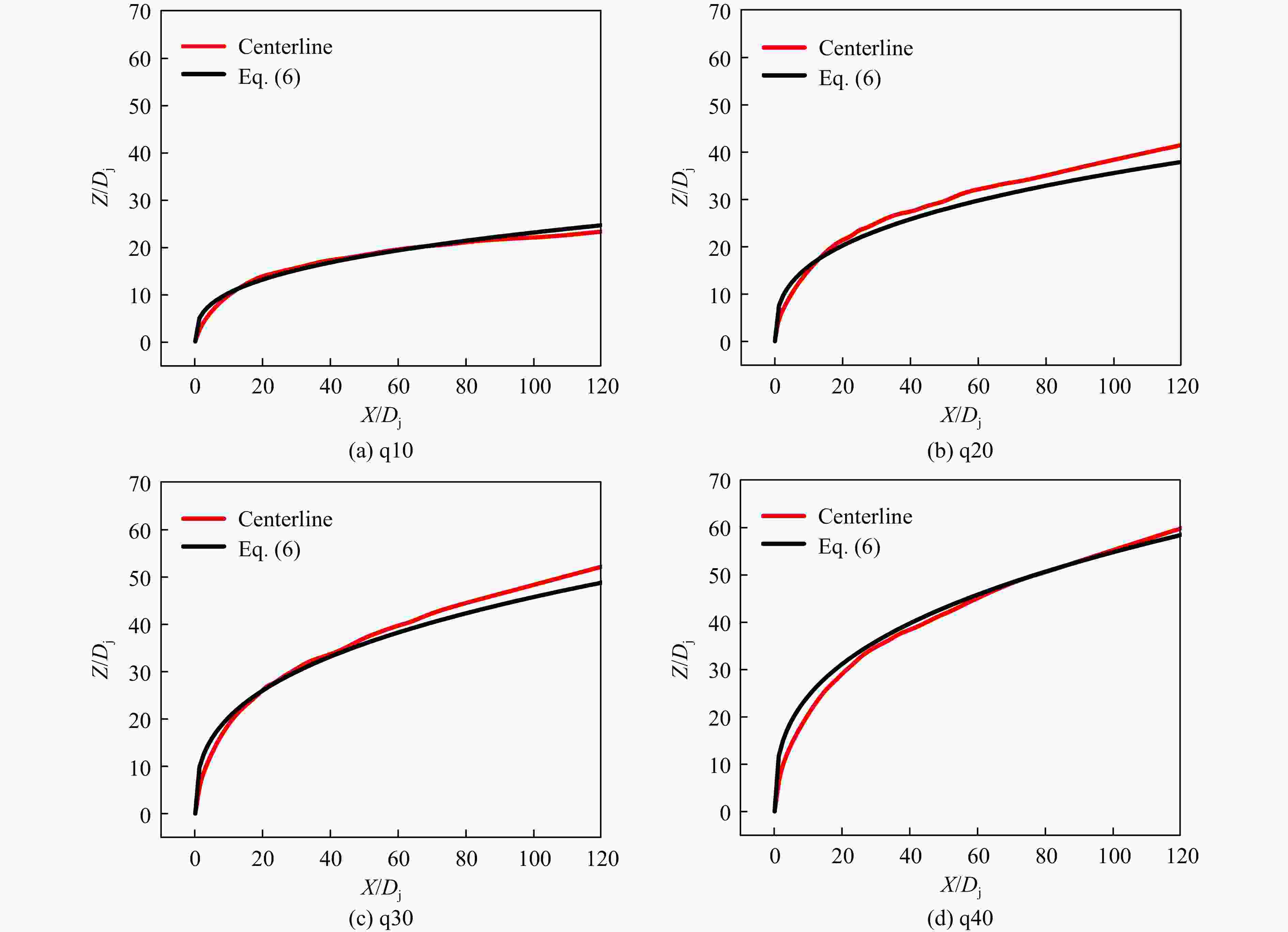

图 7 4种工况的ε=0射流轨迹和经验公式曲线
Figure 7. Jet trajectory at ε=0 and empirical formula curve under four operating conditions

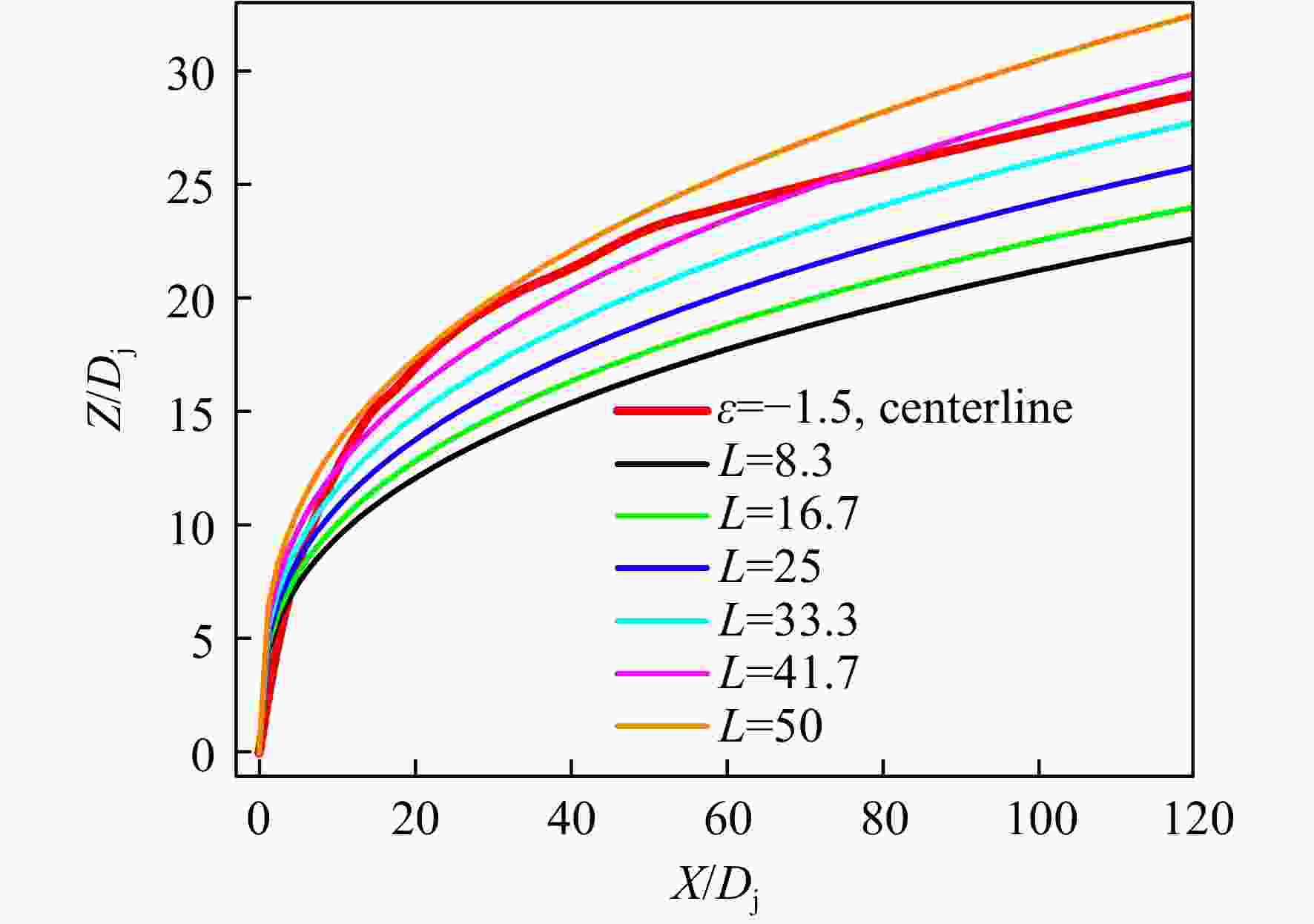

图 8 ε=−1.5射流轨迹和不同L对应的经验公式曲线（q30）
Figure 8. Jet trajectory at ε=−1.5 and empirical formula curve corresponding to different L （q30）

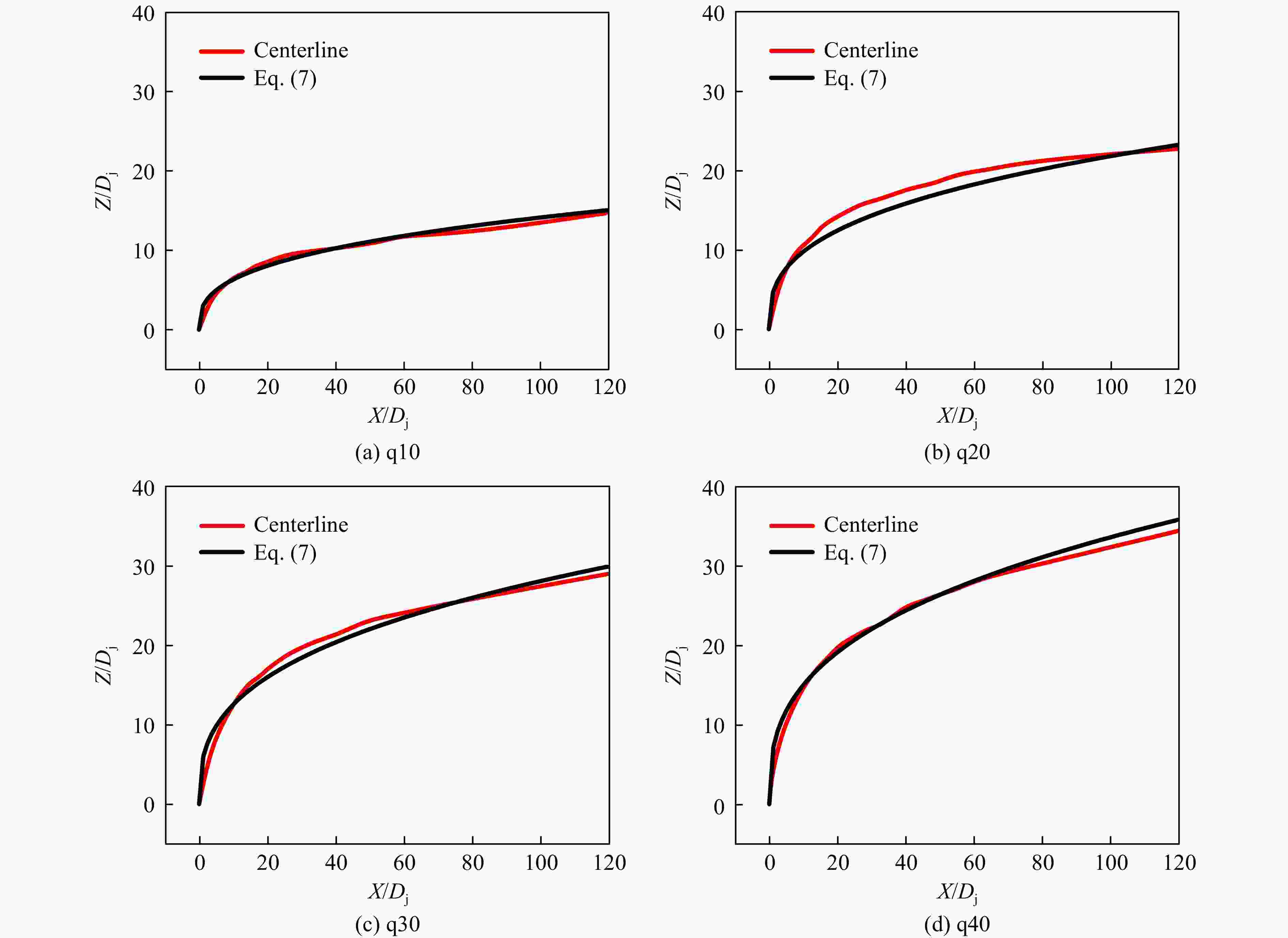

图 9 4种工况的ε=−1.5射流轨迹和L=41.7时的经验公式曲线
Figure 9. Jet trajectory at ε=−1.5 and empirical formula curve with L=41.7 under four operating conditions

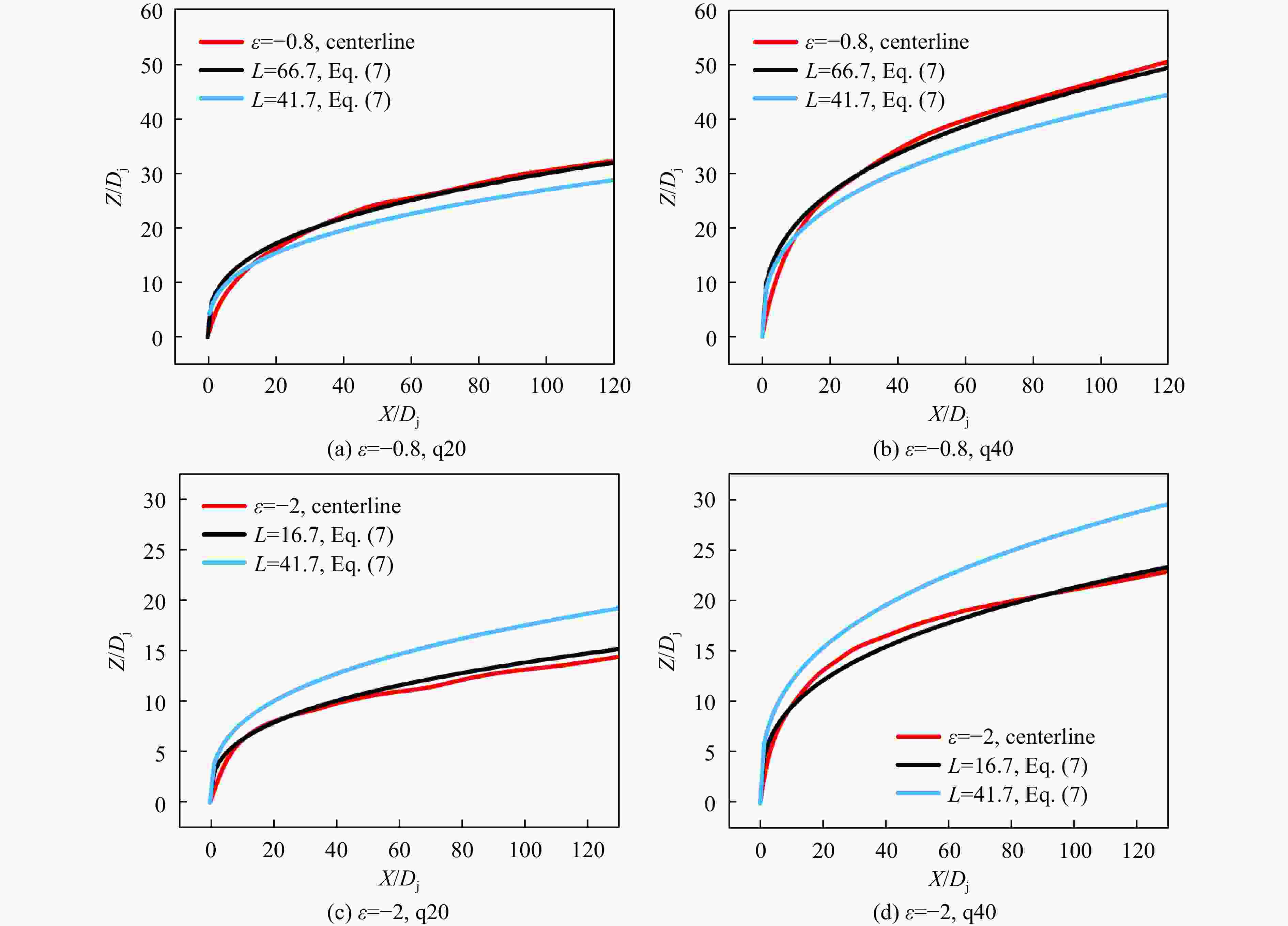

图 10 ε=−0.8和ε=−2射流轨迹和不同L对应的经验公式曲线（q20、q40）
Figure 10. Jet trajectory at ε=−0.8 and ε=−2 and the empirical formula curves corresponding to different L（q20，q40）

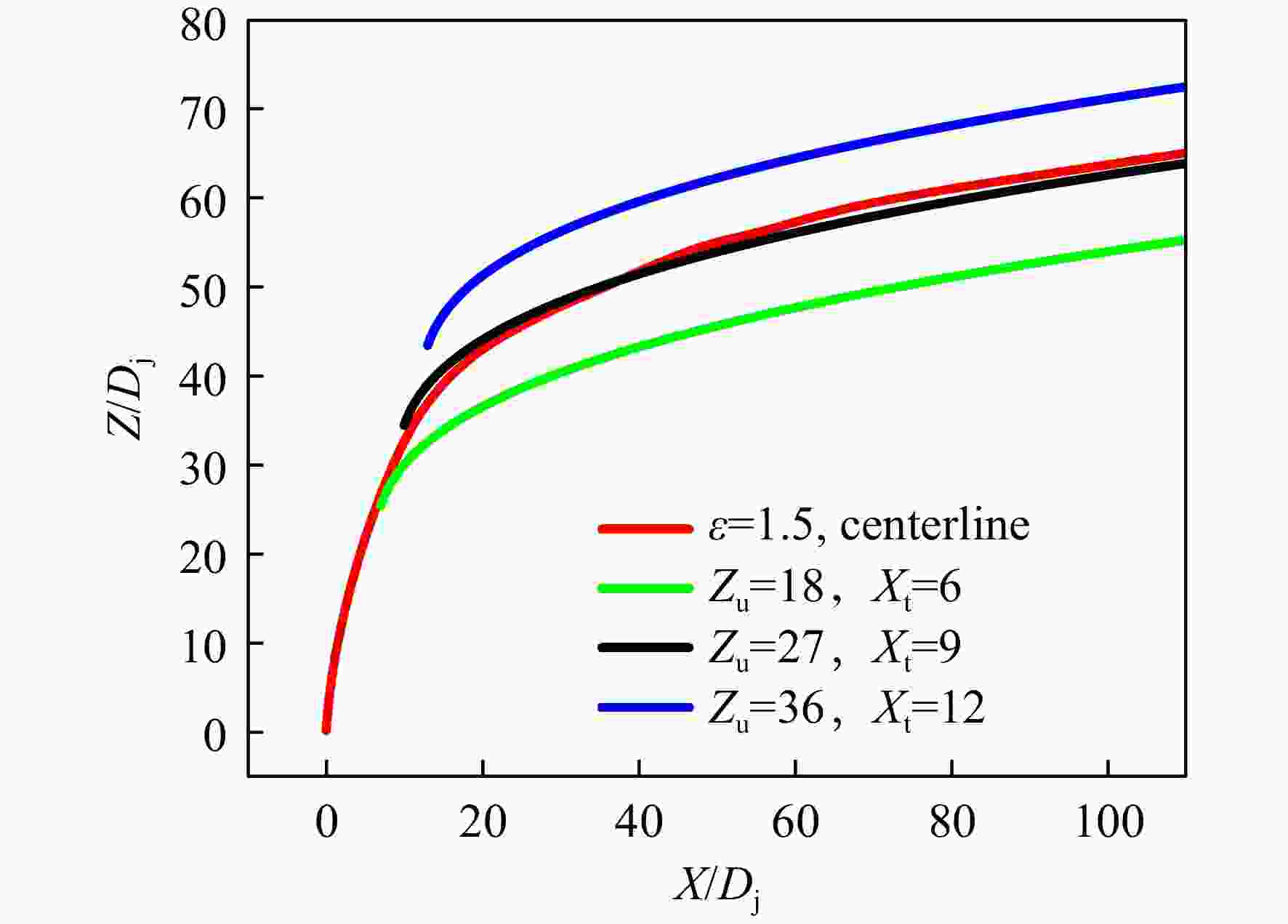

图 11 ε=1.5射流轨迹和不同“抬升和平移”对应的经验公式曲线（q30）
Figure 11. Jet trajectory at ε=1.5 and empirical formula curve corresponding to different values of “uplift and translation”（q30）

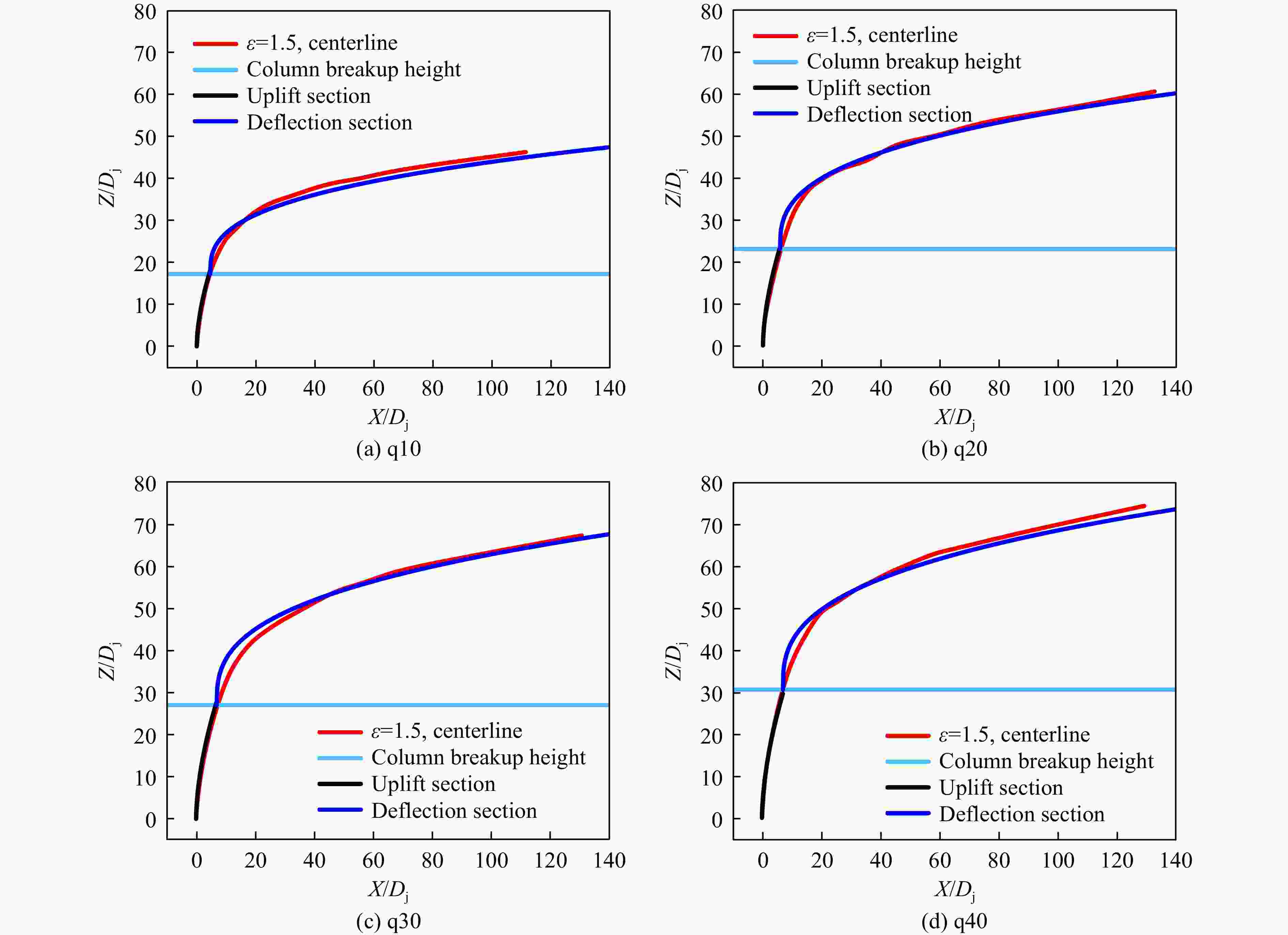

图 12 4种工况ε=1.5的“抬升段”和“偏转段”射流轨迹和经验公式曲线
Figure 12. Jet trajectory at ε=1.5 and empirical formula curve of “uplift section” and “deflection section” under four operating conditions

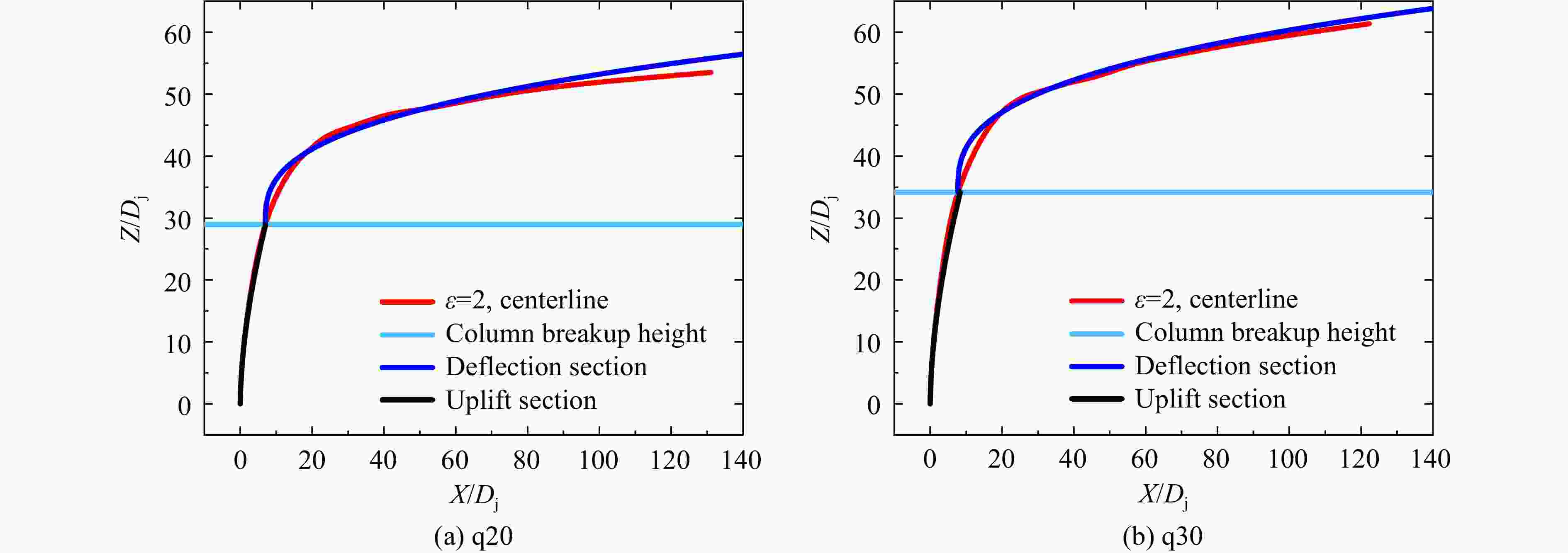

图 13 ε=2射流轨迹和分段经验公式曲线（q20、q30）
Figure 13. Jet trajectory at ε=2 and piecewise empirical formula curve （q20，q30）

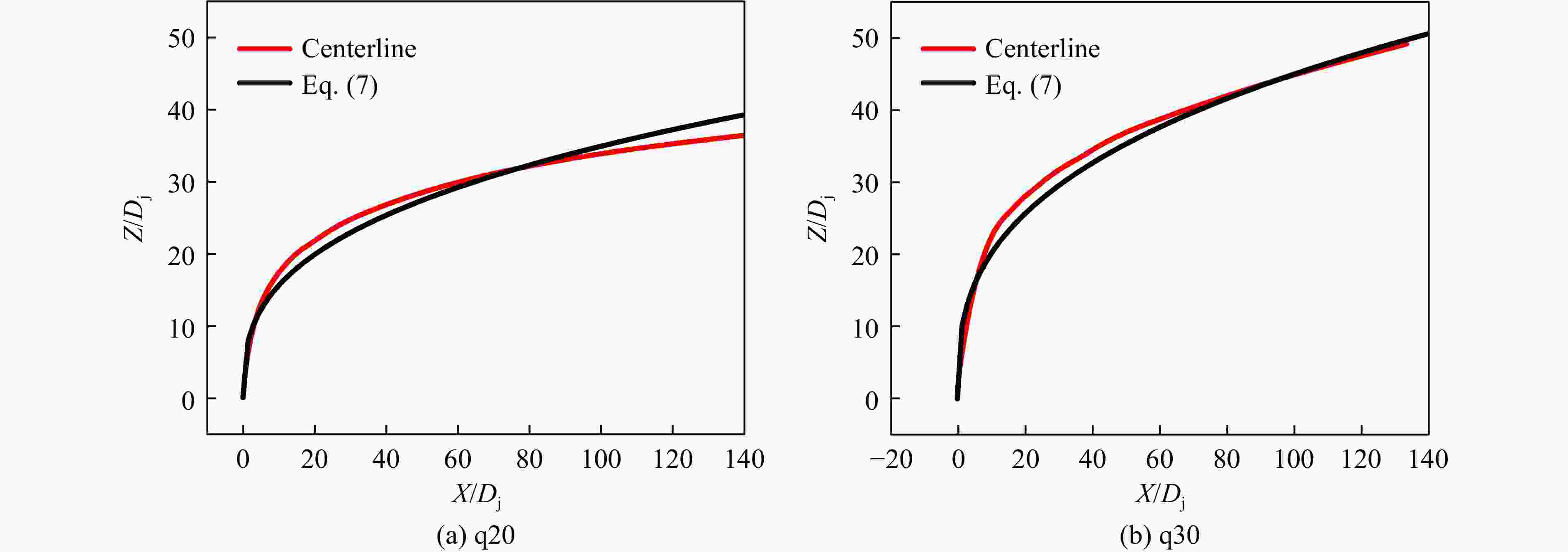

图 14 ε=0.8射流轨迹和经验公式曲线（q20、q30）
Figure 14. Jet trajectory at ε=0.8 and empirical formula curve （q20，q30）

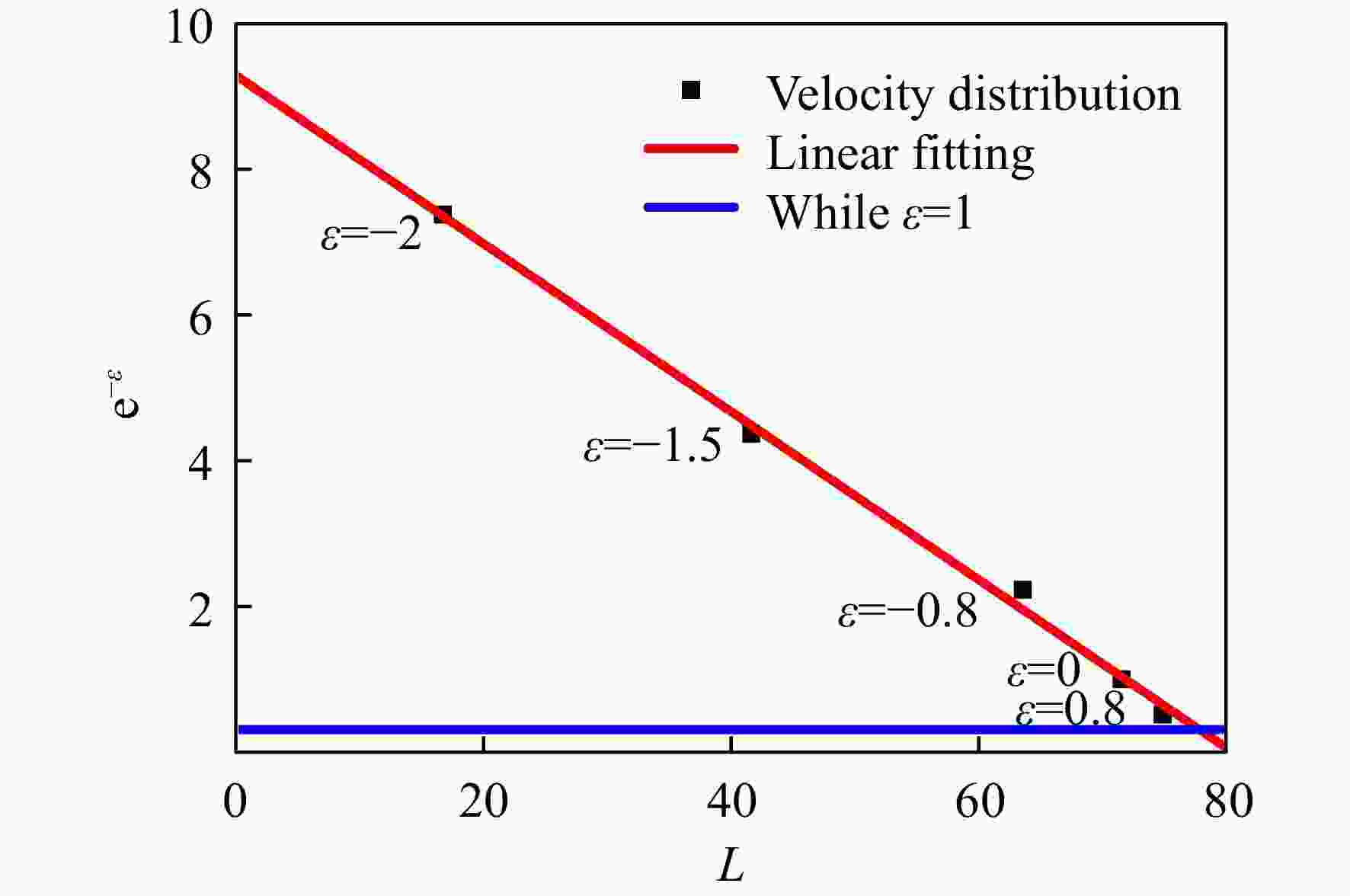

图 15 从ε=−2到ε=0.8的不均匀度和L之间的关系图
Figure 15. Relationship between the relative gradient of ε=−2 to ε=0.8 and L
表 1 实验工况
Table 1. Experimental operating conditions
工况代号 $\overline {U}_{\mathrm{g} }$/（m/s） Uj/（m/s） $\overline{q}$ q10 70 9.01 10.1 q20 70 12.75 20 q30 70 15.61 30.1 q40 70 18.03 40.1
下载: 导出CSV
-
[1] AALBURG C,LEER B V,FAETH G M,et al. Properties of nonturbulent round liquid jets in uniform gaseous cross flows[J]. Atomization and Sprays,2005,15(3): 271-294. doi: 10.1615/AtomizSpr.v15.i3.20 [2] BECKER J,HASSA C. Breakup and atomization of a kerosene jet in crossflow at elevated pressure[J]. Atomization and Sprays,2002,12(2002): 49-68. [3] INAMURA T. Disintegration phenomena of metalized slurry fuel jets in high speed air stream[C]//Proceedings of the 5th International Conference on Liquid Atomization and Spray Systems. Baltimore, US: International Atomic Energy Agency, 1991: 839-846. [4] LEFEBVRE A H, WHITELAW J H. Gas turbine combustion[M]. Washington, US: Hemisphere, 1983. [5] TAMBE S. Liquid jets in subsonic crossflow[R]. Reno, US: the 43rd AIAA Aerospace Sciences Meeting and Exhibit, 2005. [6] TAMBE S. Liquid jets in subsonic crossflow[D]. Cincinnati, US: University of Cincinnati, 2004. [7] BROUMAND M,BIROUK M. Liquid jet in a subsonic gaseous crossflow: recent progress and remaining challenges[J]. Progress in Energy and Combustion Science,2016,57(11): 1-29. [8] WU P K,KIRKENDALL K A,FULLER R P,et al. Breakup processes of liquid jets in subsonic crossflows[J]. Journal of Propulsion and Power,1997,13(1): 64-73. doi: 10.2514/2.5151 [9] BIROUK M,AZZOPARDI B,STBLER T. Primary break-up of a viscous liquid jet in a cross airflow[J]. Particle and Particle Systems Characterization,2003,20(4): 283-289. doi: 10.1002/ppsc.200390034 [10] WANG M,BROUMAND M,BIROUK M. Liquid jet trajectory in a subsonic gaseous cross-flow: an analysis of published correlations[J]. Atomization and Sprays,2016,26(11): 1083-1110. doi: 10.1615/AtomizSpr.2016013485 [11] BIROUK M,BROUMAND M. A model for predicting the trajectory of a liquid jet in a subsonic gaseous crossflow[J]. Atomization and Sprays,2015,25(10): 871-893. doi: 10.1615/AtomizSpr.2015011881 [12] AHN K,KIM J,YOON Y. Effects of orifice internal flow on transverse injection into subsonic crossflows: cavitation and hydraulic flip[J]. Atomization and Sprays,2006,16(1): 15-34. doi: 10.1615/AtomizSpr.v16.i1.20 [13] BIROUK M,IYOGUN C,POPPLEWELL N. Role of viscosity on trajectory of liquid jets in a cross-airflow[J]. Atomization and Sprays,2007,17(3): 267-287. doi: 10.1615/AtomizSpr.v17.i3.30 [14] NG C,SANKARAKRISHNAN R,SALLAM K. Bag breakup of nonturbulent liquid jets in crossflow[J]. International Journal of Multiphase Flow,2007,34(3): 241-259. [15] FARVARDIN E,JOHNSON M,ALAEE H,et al. Comparative study of biodiesel and diesel jets in gaseous crossflow[J]. Journal of Propulsion and Power,2013,29(6): 1292-1302. doi: 10.2514/1.B34743 [16] ESLAMIAN M,AMIGHI A,ASHGRIZ N. Atomization of liquid jet in high-pressure and high-temperature subsonic crossflow[J]. AIAA Journal,2014,52(7): 1374-1385. doi: 10.2514/1.J052548 [17] STENZLER J N,LEE J G,SANTAVICCA D A,et al. Penetration of liquid jets in a crossflow[J]. Atomization and Sprays,2013,16(8): 887-906. [18] AMIGHI A, ASHGRIZ N. Trajectory of a liquid jet in a high temperature and pressure gaseous cross flow[EB/OL]. [2021-06-01]. https://asmedigitalcollection.asme.org/gasturbinespower/article-abstract/141/6/061019/368354. [19] PATIL S, SAHU S. Liquid jet core characterization in a model crossflow airblast atomizer[EB/OL]. [2021-06-19]. https://linkinghub.elsevier.com/retrieve/pii/S0301932221001361. [20] JENG S M, TAMBE S, ELSHAMY O M. Liquid jets injected transversely into a shear layer[R]. Reno, US: the 45th AIAA Aerospace Science Meeting and Exhibit, 2007. [21] JENG S M, TAMBE S, ELSHAMY O M. Spray properties of liquid jets injected transversely into a shear layer[R]. Cincinnati, US: the 43rd AIAA/ASME/SAE/ASEE Joint Propulsion Conference and Exhibit, 2007. [22] HAMILTON L. 应用STATA做统计分析[M]. 郭志刚, 译. 重庆: 重庆大学出版社, 2008. -
