轴流状态对转螺旋桨气动性能高效预测方法

原昕; 招启军; 赵国庆

doi:10.13224/j.cnki.jasp.20210567

轴流状态对转螺旋桨气动性能高效预测方法

doi: 10.13224/j.cnki.jasp.20210567

南京航空航天大学航空学院直升机旋翼动力学国家级重点实验室，南京 210016

基金项目: 国家自然科学基金（12032012，11872211）

详细信息

作者简介:
原昕（1994-），女，博士生，主要从事共轴旋翼/对转螺旋桨气动研究

中图分类号: V211
计量
- 文章访问数: 117
- HTML浏览量: 61
- PDF量: 60
- 被引次数: 0
出版历程
- 收稿日期: 2021-10-09
- 网络出版日期: 2023-12-08

Efficient aerodynamic prediction method of contra-rotating propellers in axial flight

National Key Laboratory of Helicopter Aeromechanics， College of Aerospace Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China

摘要

摘要:
提出了一套适用于共轴对转螺旋桨轴流状态的高效气动性能预测方法。为消除大入流角状态下小角度假设引入的误差，应用了精确的气动力分解模型与Prandtl桨尖损失函数；根据对转系统的桨尖涡演化规律，发展了轴流状态的尾迹叠加模型，构建了考虑前后桨之间轴向相互气动干扰和前桨对后桨的周向诱导的干扰模式；进而建立起了基于入流角求解的共轴对转螺旋桨的气动性能预测方法。使用该方法计算了对转螺旋桨在不同前飞速度下气动性能随前进比的变化，结果表明非失速段的拉力和功率消耗的预测结果与试验值一致性良好，整体推进效率与试验值吻合。通过对孤立高速螺旋桨、共轴双旋翼以及对转螺旋桨气动性能的评估，表明与采用小角度假设、忽略双桨间的部分干扰并基于入流比求解的常规气动模型相比，该方法对共轴对转螺旋桨的拉力、功率消耗和推进效率的预测更可靠。
- 对转螺旋桨 /
- 气动性能 /
- 动量—叶素理论（BEMT） /
- 尾迹叠加 /
- 气动干扰
Abstract:
An efficient aerodynamic prediction method applicable for contra-rotating propellers in axial flight was developed based on Blade Element Momentum Theory. Firstly, the accurate decomposition of aerodynamic forces and Prandtl tip loss were employed to eliminate errors introduced by the small angle assumptions at high inflow angles. Secondly, based on the helical tip vortex evolution of the contra-rotating system, a wake superposition model was developed, and the interaction pattern was built, which took into account the axial aerodynamic interactions and circumferential aerodynamic interference that the front propeller exerted on the rear propeller. Finally, the aerodynamic model of contra-rotating propellers in axial flight was established based on inflow angle solutions. The method was applied to predict the aerodynamic performance variation with advance ratio for a contra-rotating propeller under different flight speeds. The calculated thrust and power in non-stall conditions were consistent with the measurements, and the whole propulsive efficiency agreed well with measurements. Aerodynamic prediction comparisons of the single propeller, the coaxial rotor and the contra-rotating propeller revealed that the established model can provide more reasonable performance predictions including thrusts, powers and efficiencies for contra-rotating propellers compared with conventional BEMT models, which assume small angles, neglect some of the interactions in contra-rotating system and rely on inflow velocity solutions.
- contra-rotating propeller /
- aerodynamic performance /
- blade element momentum theory (BEMT) /
- wake superposition /
- aerodynamic interference

HTML

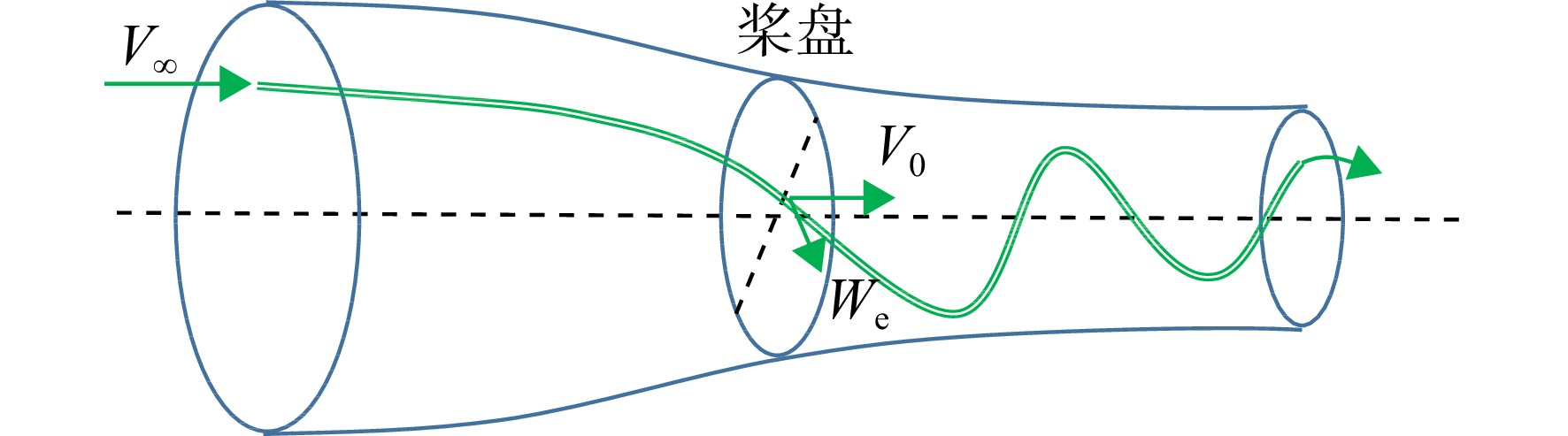

图 1 孤立螺旋桨流管^[17]

Figure 1. Streamtube of a single propeller^[17]

下载: 全尺寸图片幻灯片

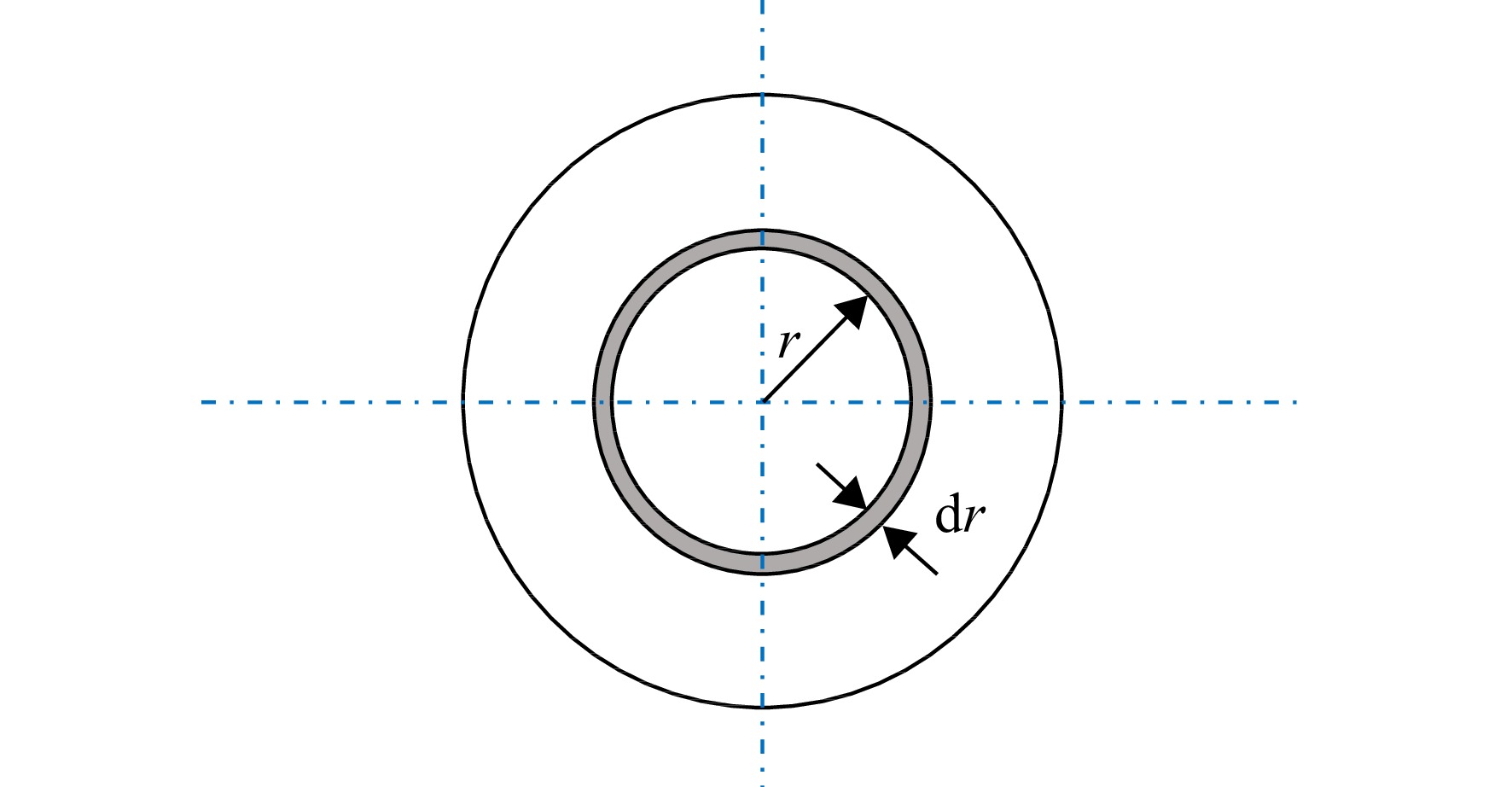

图 2 作动盘上圆环的划分

Figure 2. Annulus on the actuator disc

下载: 全尺寸图片幻灯片

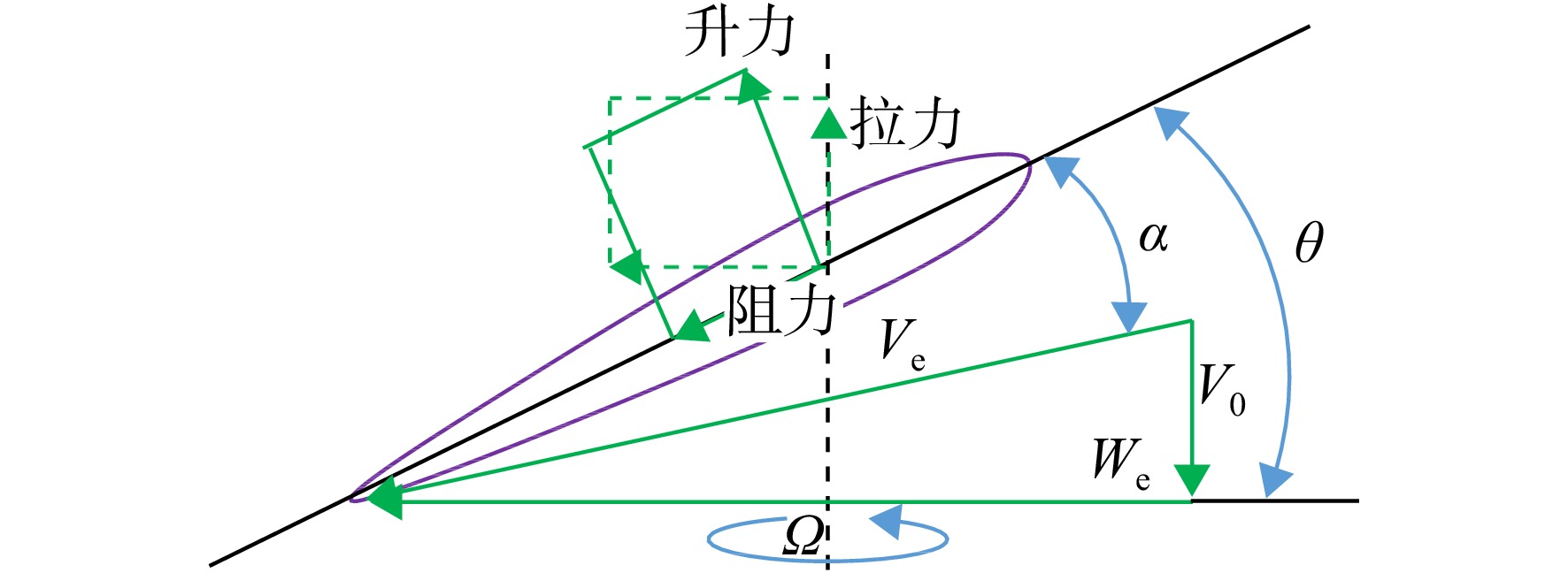

图 3 叶素剖面来流和受力示意图

Figure 3. Flow and force directions on a blade element

下载: 全尺寸图片幻灯片

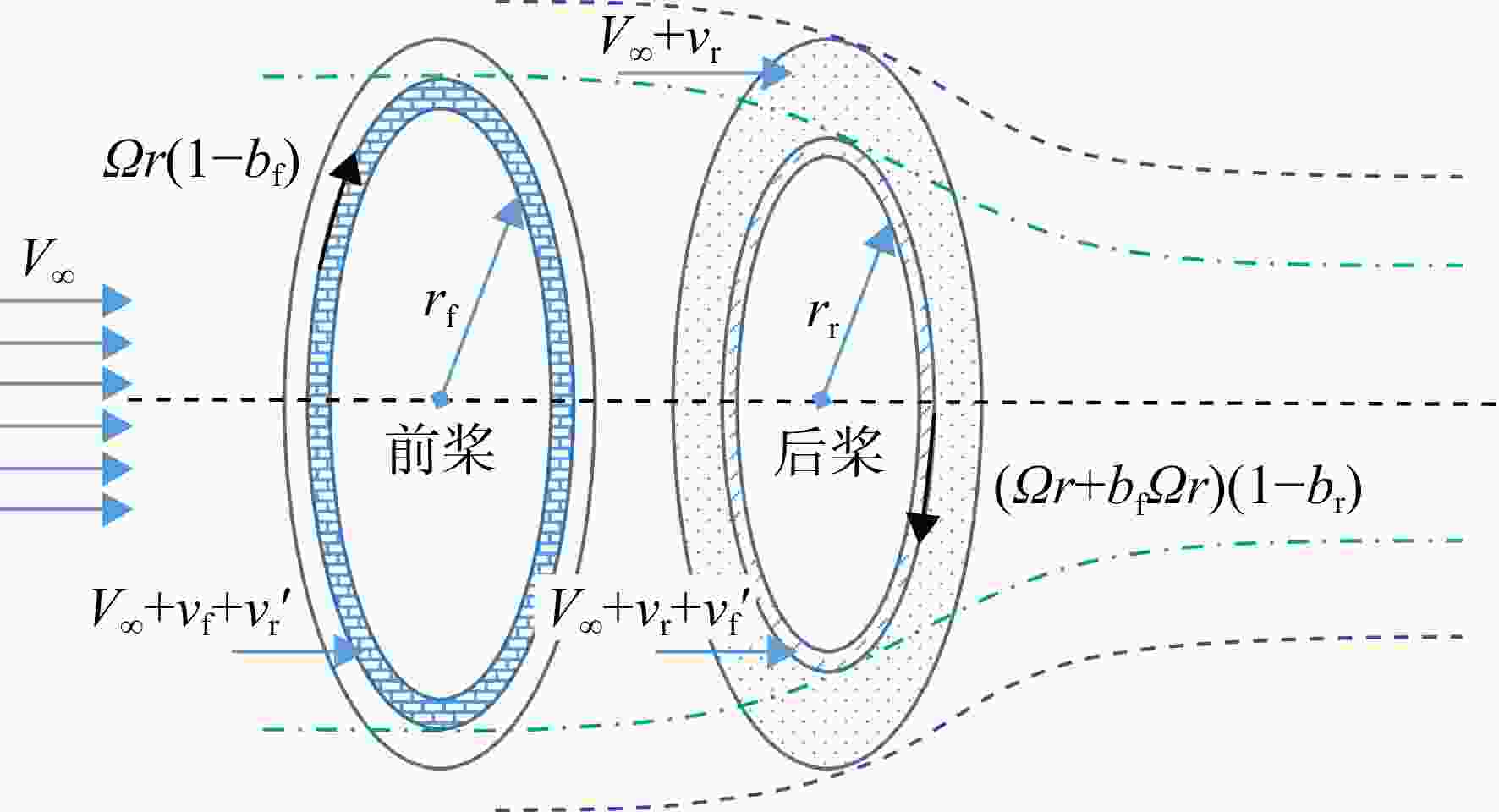

图 4 轴流状态尾迹叠加示意图

Figure 4. Wake superposition in axial flight

下载: 全尺寸图片幻灯片

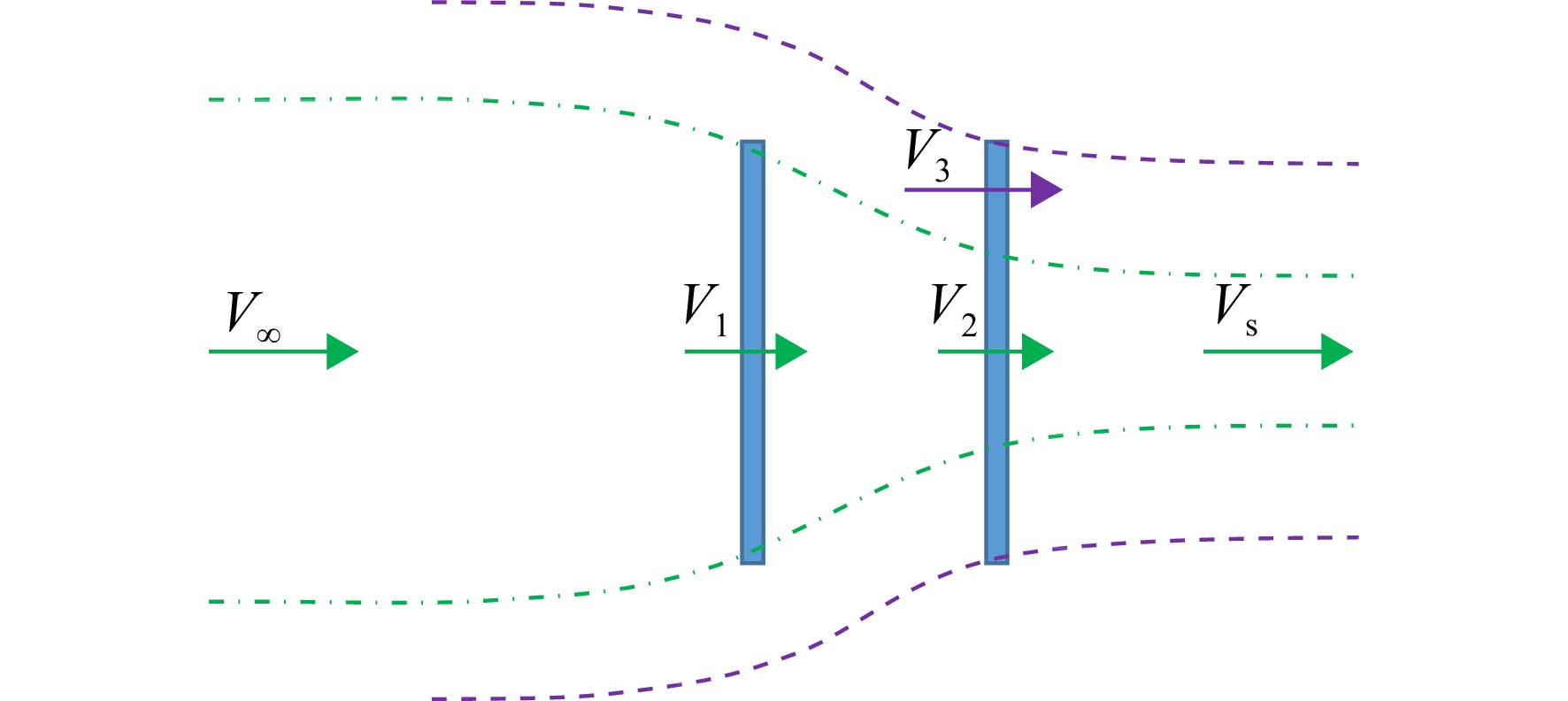

图 5 共轴对转螺旋桨轴向速度分布

Figure 5. Axial velocity distribution of a contra-rotating propeller

下载: 全尺寸图片幻灯片

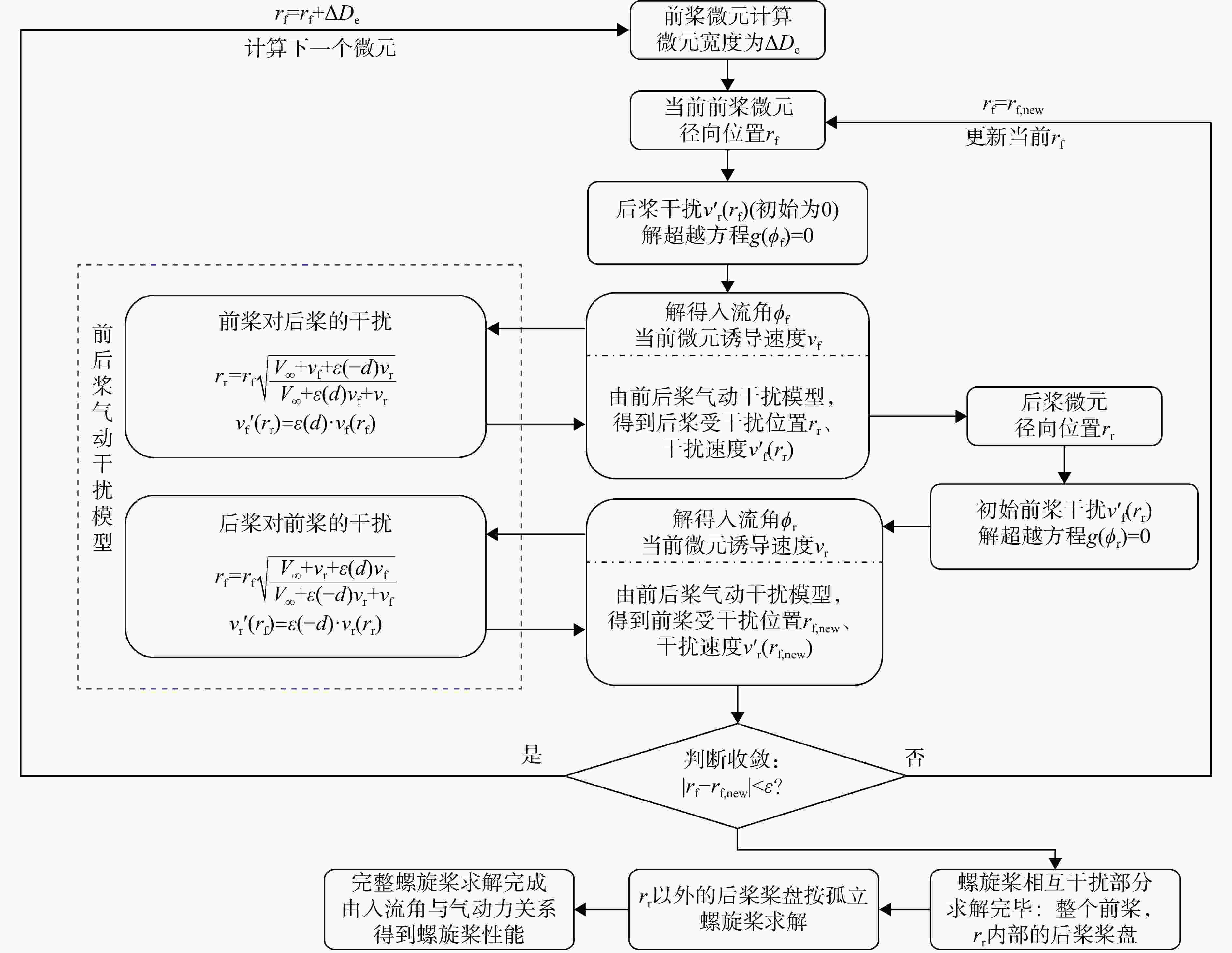

图 6 共轴对转螺旋桨求解流程图

Figure 6. Calculation flow chart of a contra-rotating propeller

下载: 全尺寸图片幻灯片

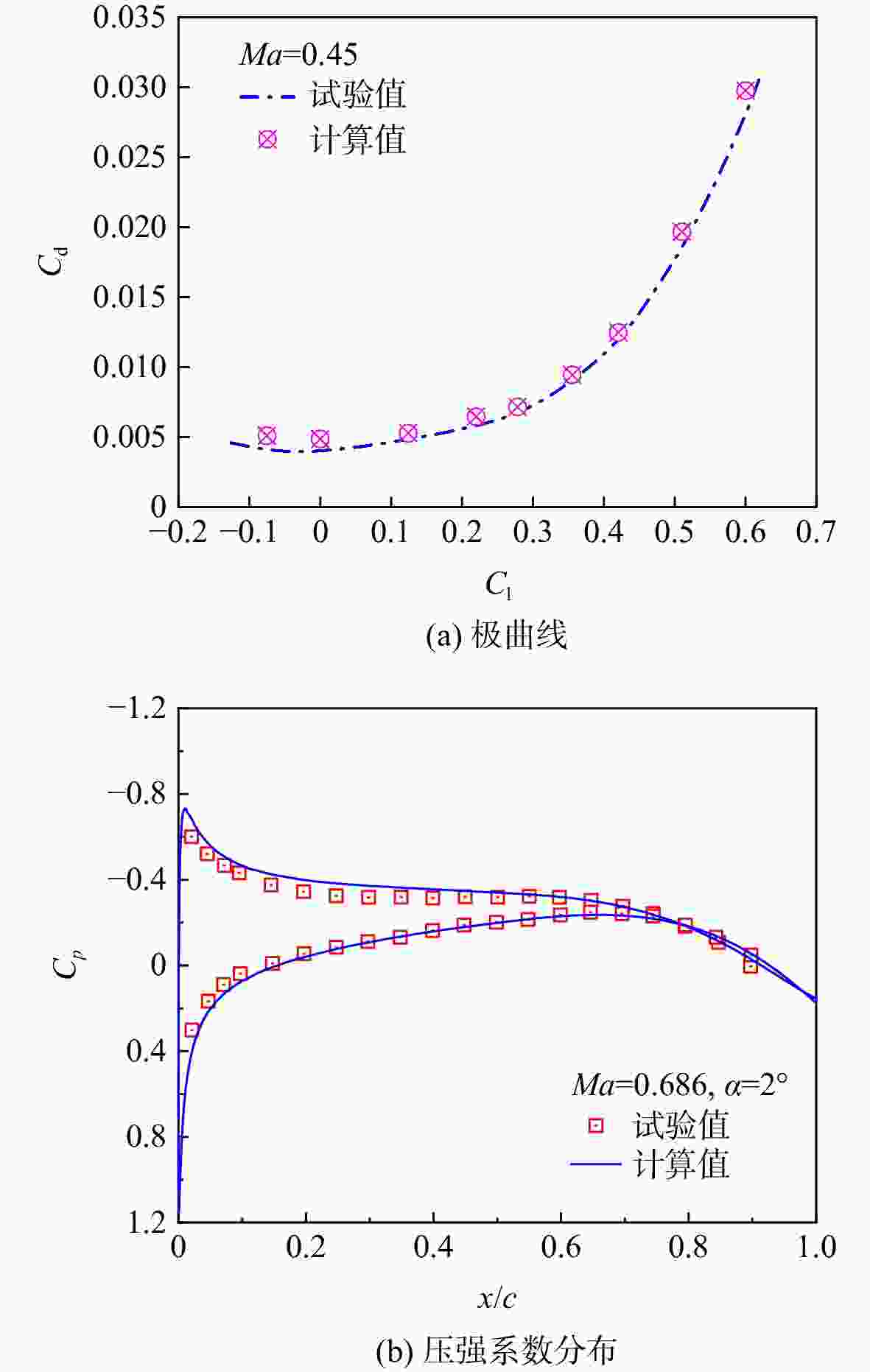

图 7 NACA 16-009翼型气动力计算结果与试验对比

Figure 7. Comparison of calculated and measured aerodynamic characteristics of NACA 16-009 airfoil

下载: 全尺寸图片幻灯片

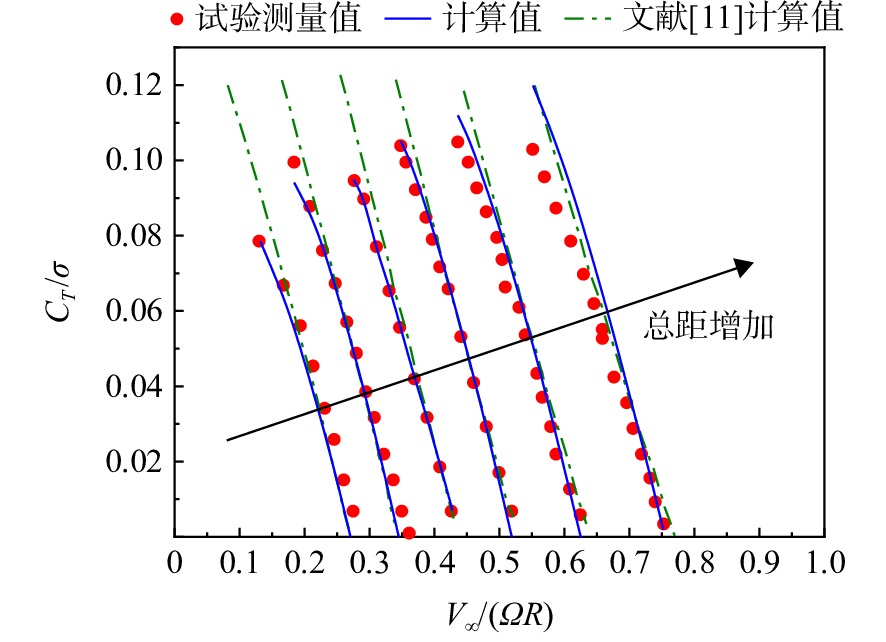

图 8 螺旋桨拉力随前飞速度变化曲线

Figure 8. Thrust coefficient of the propeller as a function of forward speed ratio

下载: 全尺寸图片幻灯片

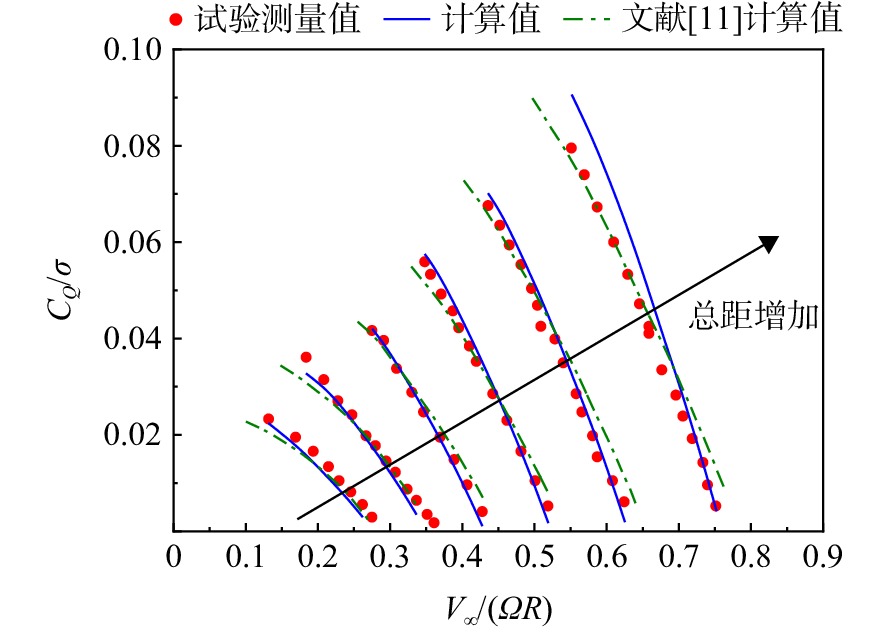

图 9 螺旋桨功率系数随前飞速度变化曲线

Figure 9. Power coefficient of the propeller as a function of forward speed ratio

下载: 全尺寸图片幻灯片

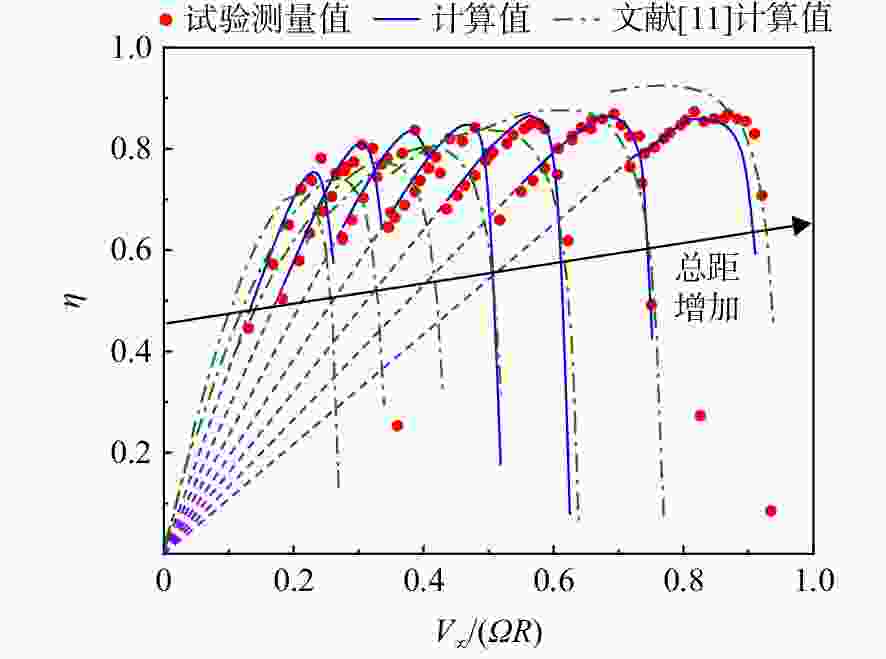

图 10 螺旋桨推进效率随前飞速度变化曲线

Figure 10. Propulsive efficiency of the propeller as a function of forward speed ratio

下载: 全尺寸图片幻灯片

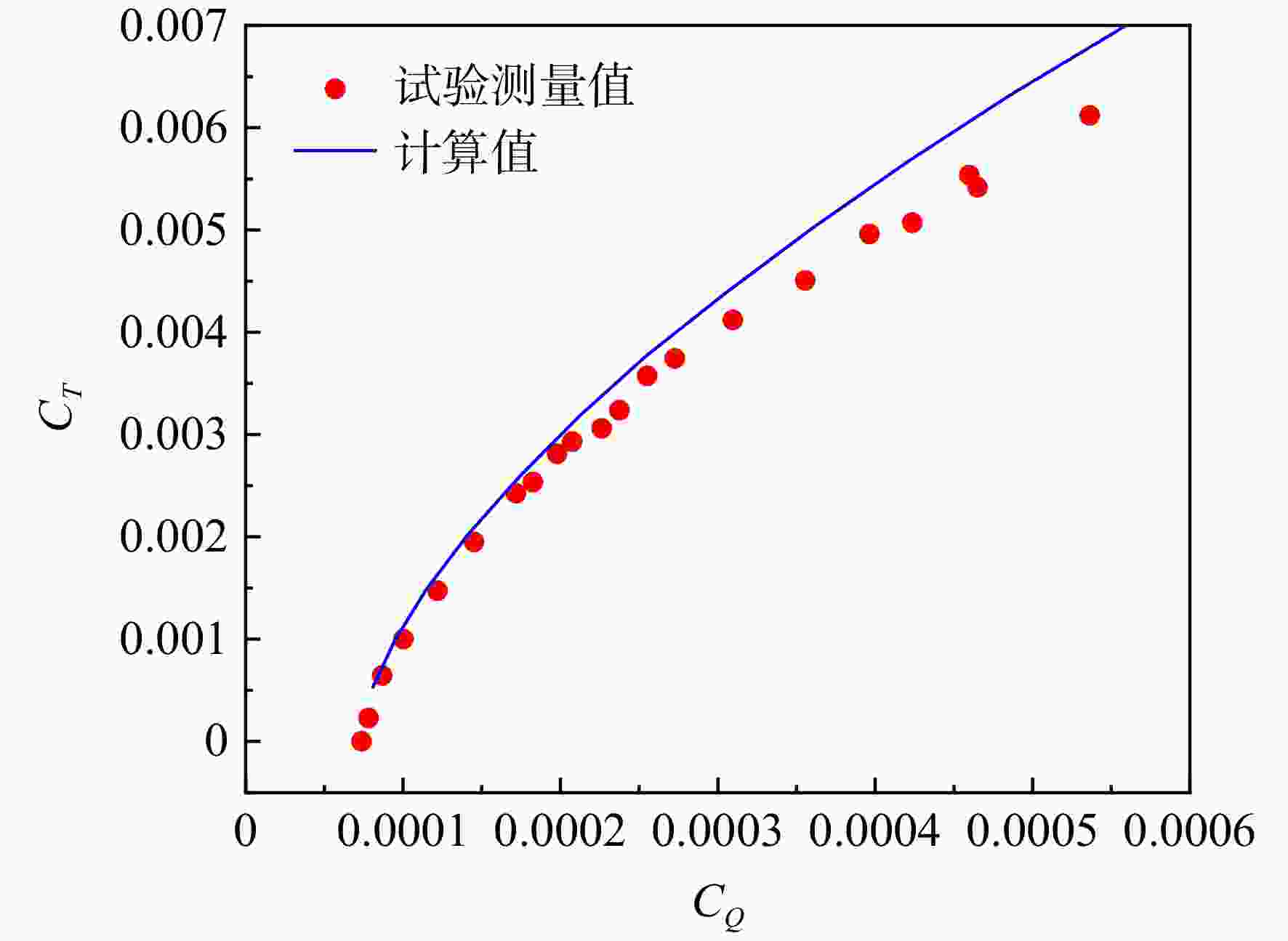

图 11 HC1悬停状态气动性能计算值与试验值对比

Figure 11. Comparison of calculated results with measurements of HC1 in hover

下载: 全尺寸图片幻灯片

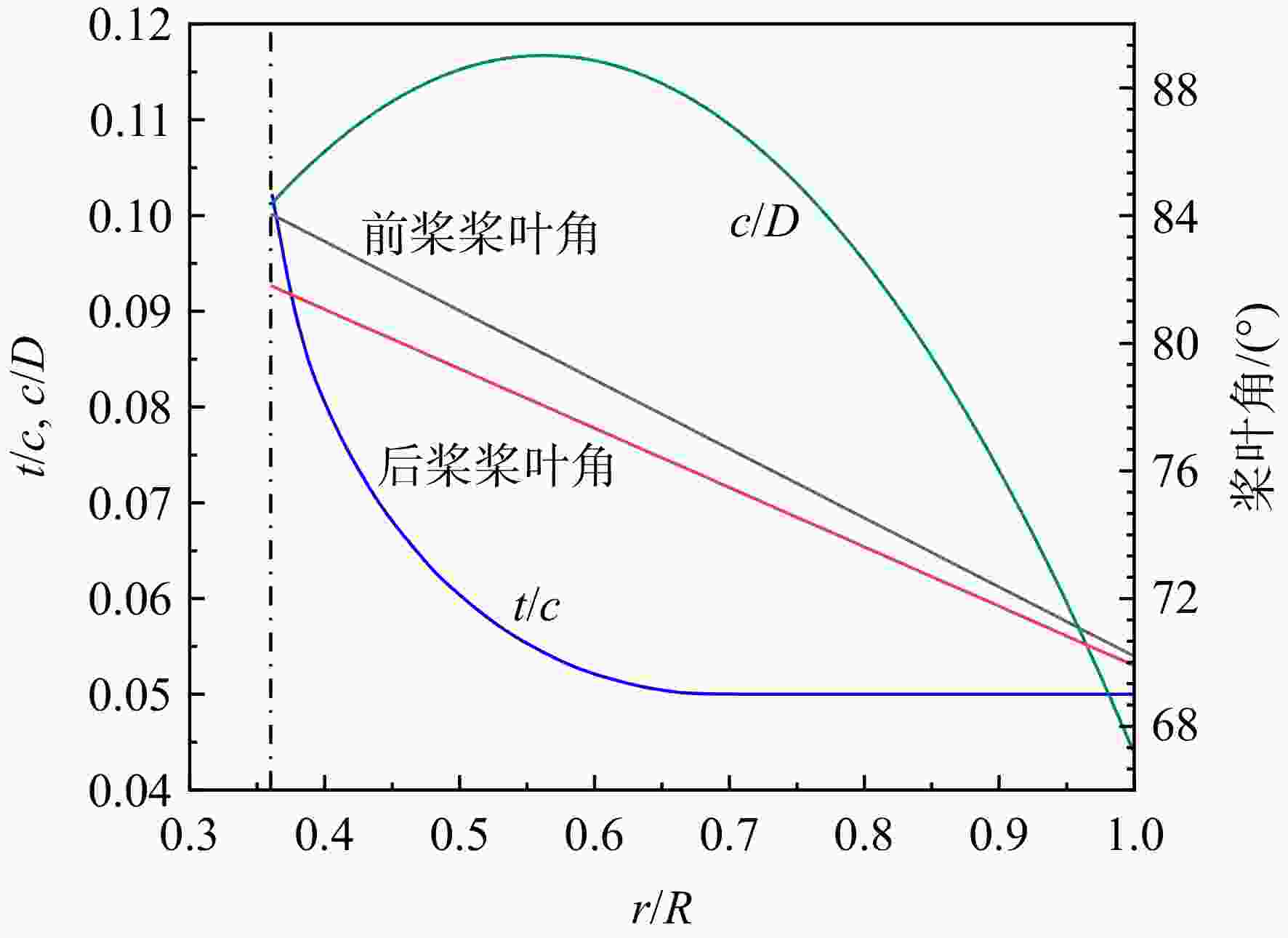

图 12 NACA 3-（3）（05）-05对转螺旋桨外形曲线

Figure 12. Blade-form curves for NACA 3-（3）（05）-05 dual propeller

下载: 全尺寸图片幻灯片

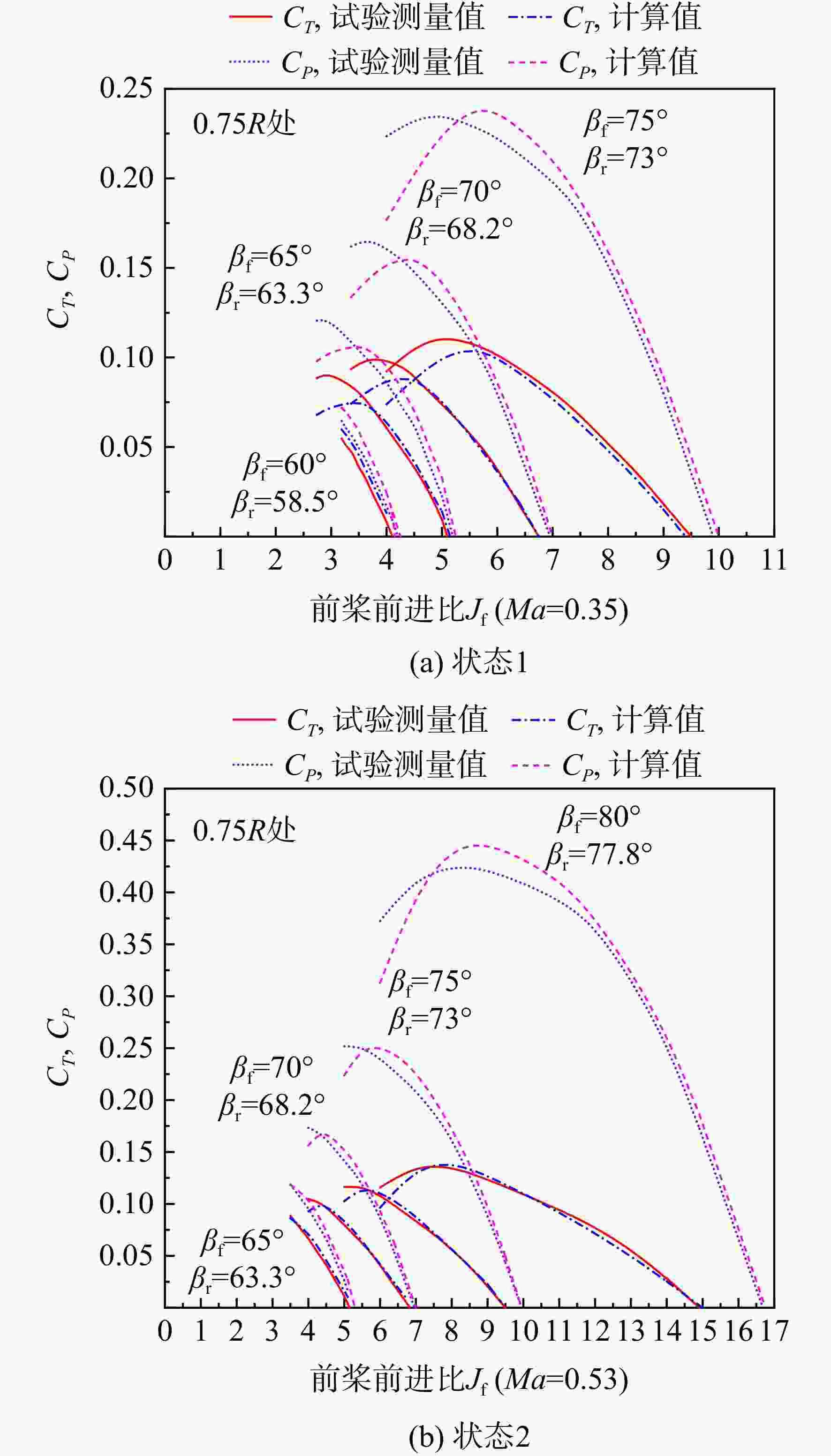

图 13 对转螺旋拉力系数和功率系数随前进比变化

Figure 13. Thrust and power coefficients of the contra-rotating propeller as a function of advance ratio

下载: 全尺寸图片幻灯片

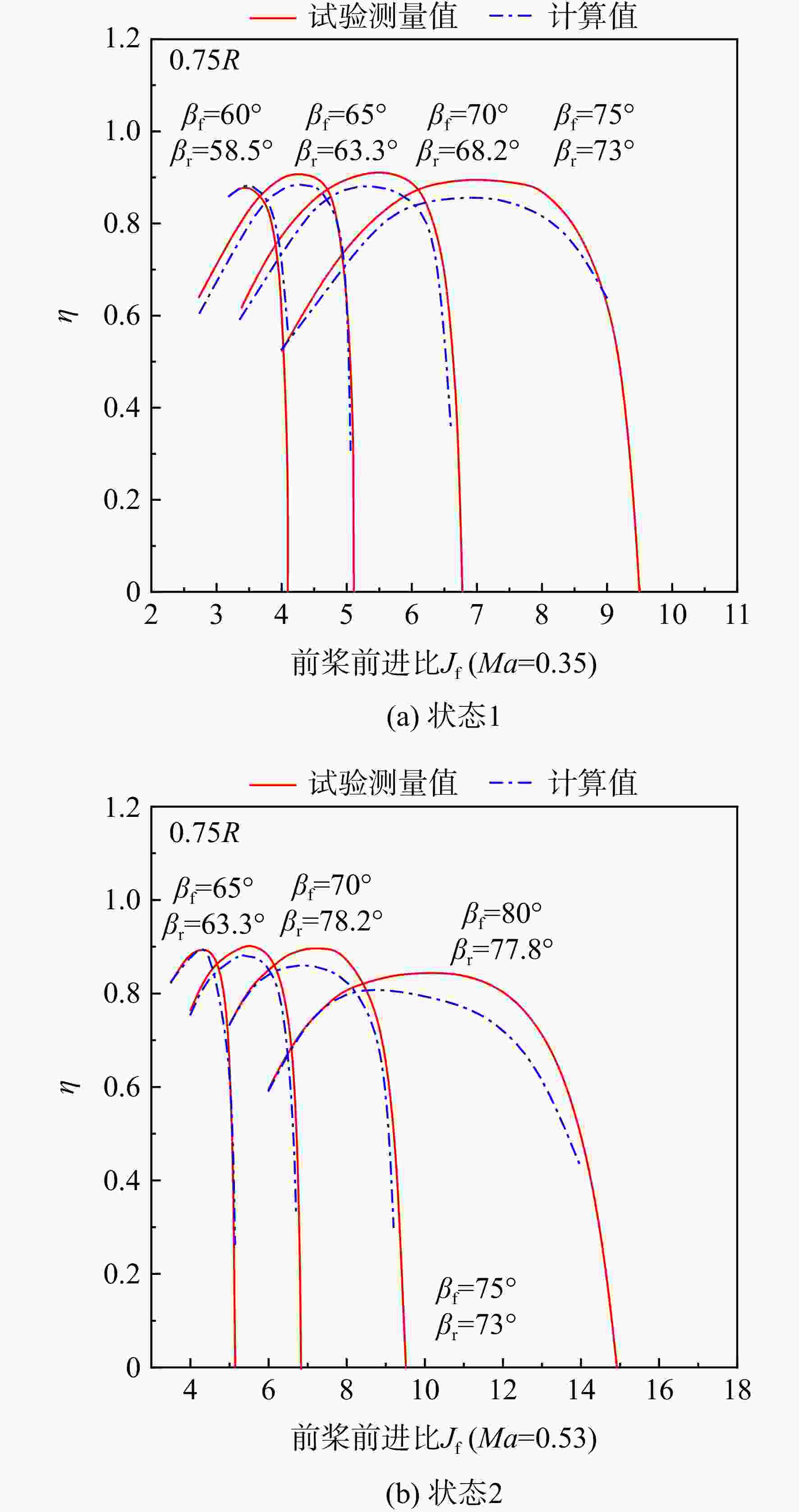

图 14 对转螺旋效率随前进比变化

Figure 14. Propulsive efficiencies of the contra-rotating propeller as a function of advance ratio

下载: 全尺寸图片幻灯片

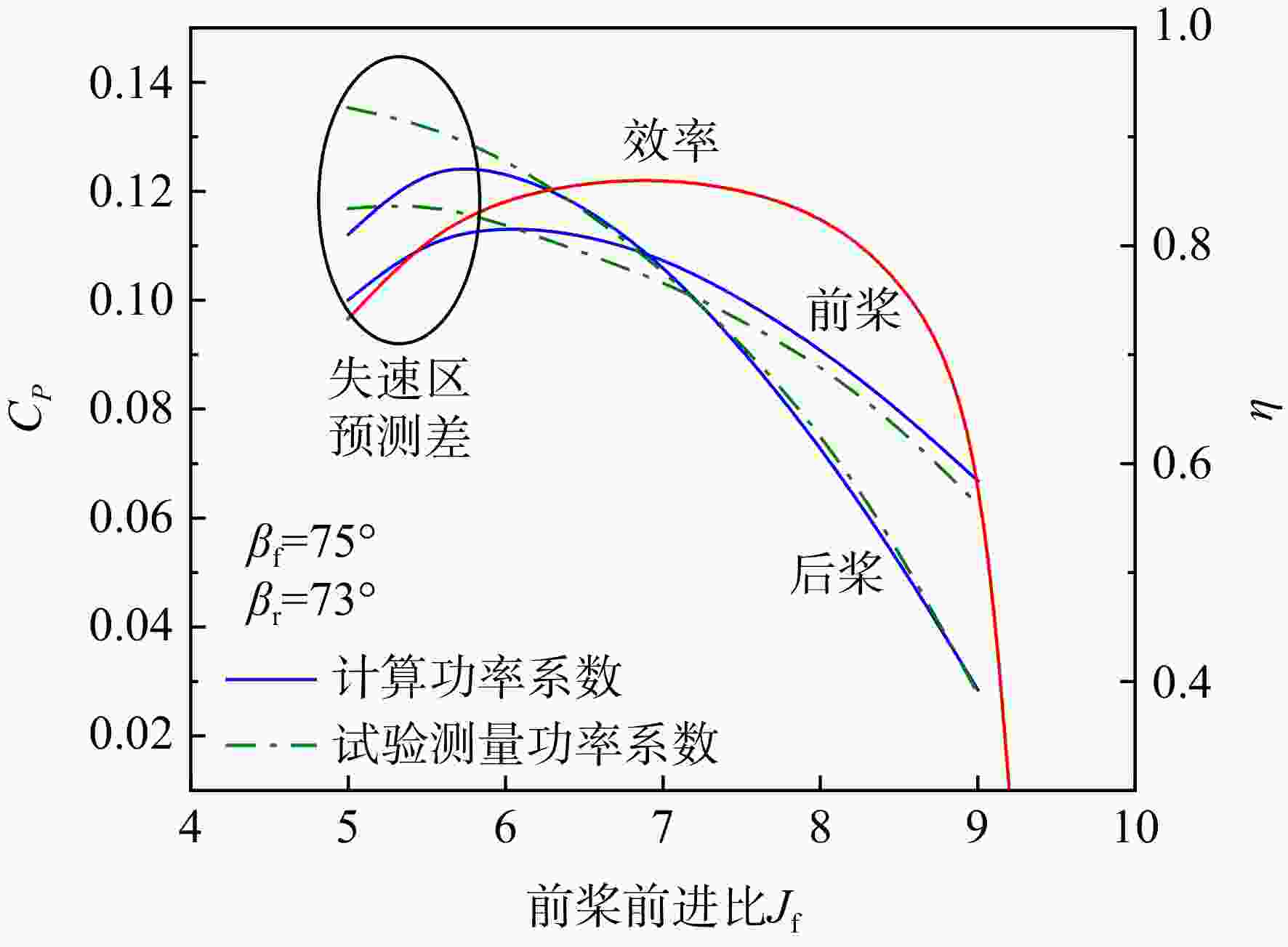

图 15 给定状态下前后桨功率系数随前进比变化曲线

Figure 15. Variations of the front and rear propellers with advance ratio under fixed conditions

下载: 全尺寸图片幻灯片

表 1 有无应用小角度假设下的叶素项对比

Table 1. Comparison of blade element terms with and without small angle assumptions

性能	大角度假设（真实情况）	小角度假设	30°入流角示例误差/%
$ {\mathrm{d}}T $	$ {\mathrm{d}}L\cos\; {\phi} - {\mathrm{d}}D\sin \;{\phi} $	$ {\mathrm{d}}L $	16.0
$ {\mathrm{d}}Q $	$ （ {{\mathrm{d}}L\sin \;{\phi} + {\mathrm{d}}D\cos\; {\phi} }） r $	$ （ {{\phi} {\mathrm{d}}L + {\rm{d}}D} ） r $	4.9
$ {\phi} $	$ {\mathrm{arc}}{\tan} （ {{{{V_{\text{0}}}} / {{W_{\text{e}}}}}} ） $	$ {{{V_{\text{0}}}} \mathord{\left/ {\vphantom {{{V_{\text{0}}}} {{W_{\text{e}}}}}} \right. } {{W_{\text{e}}}}} $	10.3

下载: 导出CSV
