Probabilistic model of small crack simulation considering shot peening residual stress and inclusion influence
-
摘要:
提出考虑喷丸残余应力及内部夹杂影响的随机内部小裂纹形核扩展概率模型，实现构件内部疲劳裂纹萌生过程的仿真。针对高温合金X，在开展试验的数据基础上，识别模型所需的残余应力分布参数、“形核相关”夹杂尺寸分布参数、微观结构相关塑性本构参数及小裂纹形核扩展参数。模型成功预测喷丸等直棒两种主要的形核方式：残余拉应力平衡层夹杂形核及无残余应力区夹杂形核。与试验对比，模型预测内部裂纹萌生寿命及其分散精度高，残余拉应力平衡层预测萌生寿命中值误差为2%，−3
σ 寿命误差为37%，无残余应力区预测萌生寿命中值误差为3%，−3σ 寿命误差为3%；此外，模型仿真的内部裂纹形貌为“鱼眼形”，贴合试验件断口形貌。Abstract:A probabilistic model to simulate nucleation and propagation of internal small crack induced by shot peening residual stress and internal inclusion was proposed to realize the simulation of internal fatigue crack initiation process. For superalloy X, parameters of the residual stress distribution, the ‘nucleation-related’ inclusion size distribution, the microstructure-related plastic constitutive model and the small crack nucleation and propagation required by the model were identified based on the experimental data. Two main nucleation patterns of shot peening uniform-cross-section bar specimens were successfully predicted by the proposed model: the inclusion nucleation in residual tensile equilibrium zone and the inclusion nucleation in the zone without residual stress. Compared with the experiment, the proposed model had high accuracy in predicting the internal crack initiation life and its dispersion. The error of predicted median initiation life in residual tensile stress equilibrium zone was 2%, and the error of predicted
$ - 3\sigma $ initiation life was 37%. The error of predicted median initiation life in the zone without residual stress was 3%, and the error of predicted$ - 3\sigma $ initiation life was 3%. In addition, the internal crack morphology simulated by the present model was of ‘fisheye’ shape, which was consistent with the fracture appearance of the specimen.-
Key words:
- shot peening /
- residual stress /
- inclusion /
- small crack nucleation and propagation /
- initiation life
-
图 1 内部裂纹在最大主应力梯度平面的投影及等效
Figure 1. Projection and equivalence of an inner crack on the maximum principal stress gradient plane

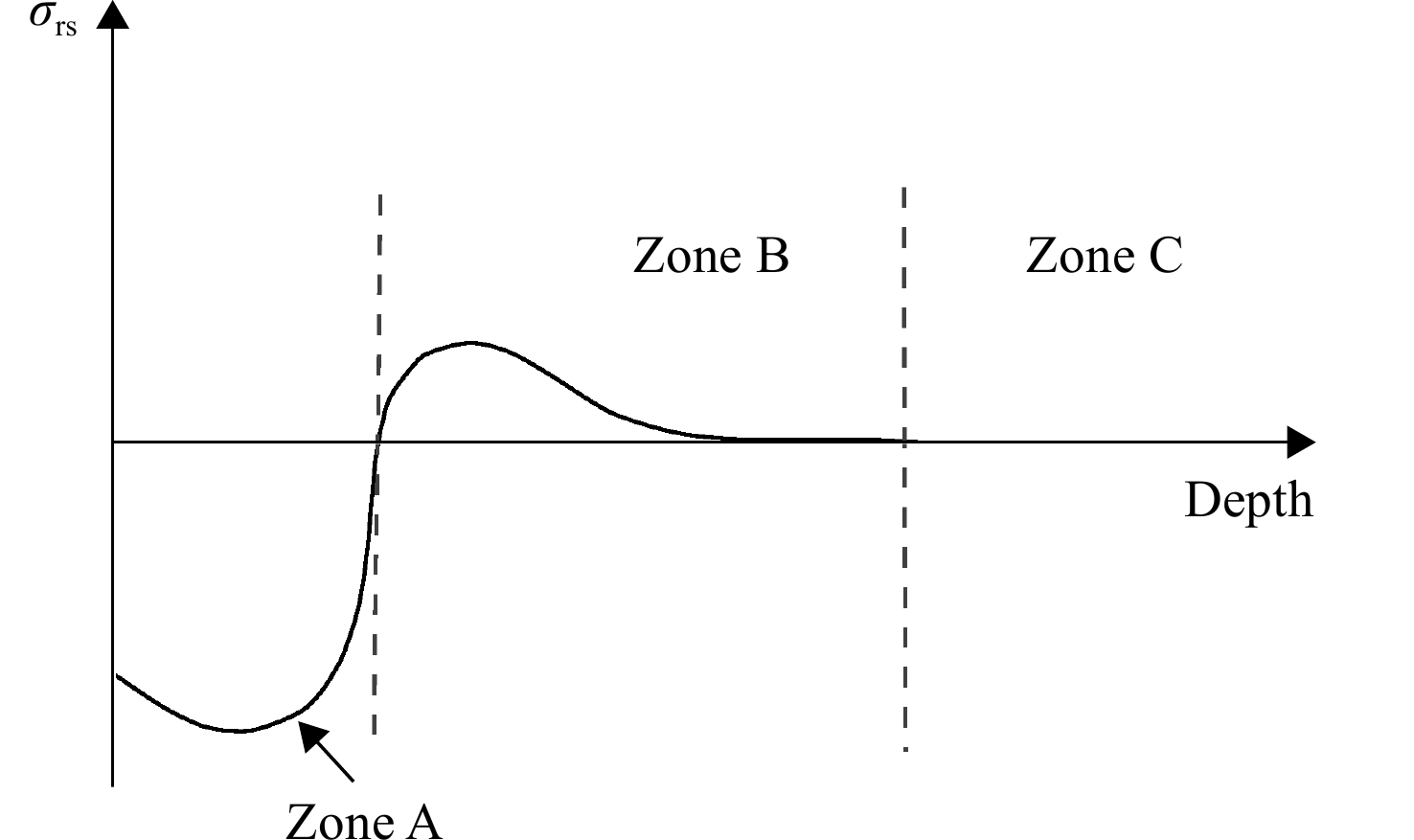

图 2 典型喷丸残余应力分布及分层
Figure 2. Typical distribution of shot peening residual stress and its stratification

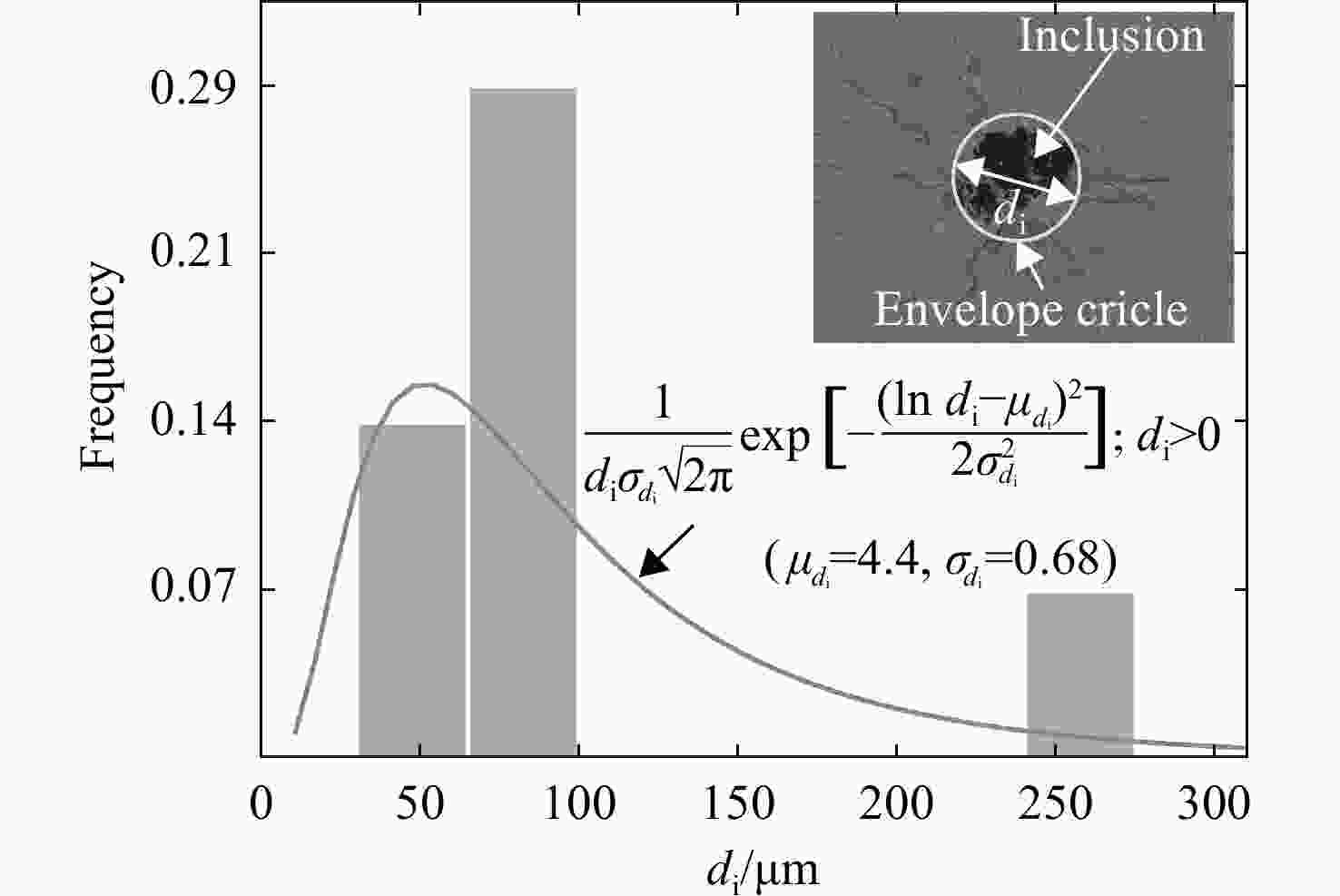

图 3 “形核相关”夹杂尺寸定义及统计
Figure 3. Definition and statistics of sizes of nucleation-related inclusions
图 4 喷丸等直棒试件残余应力沿深度分布
Figure 4. Residual stress distribution along depth of shot peening uniform-cross-section bar

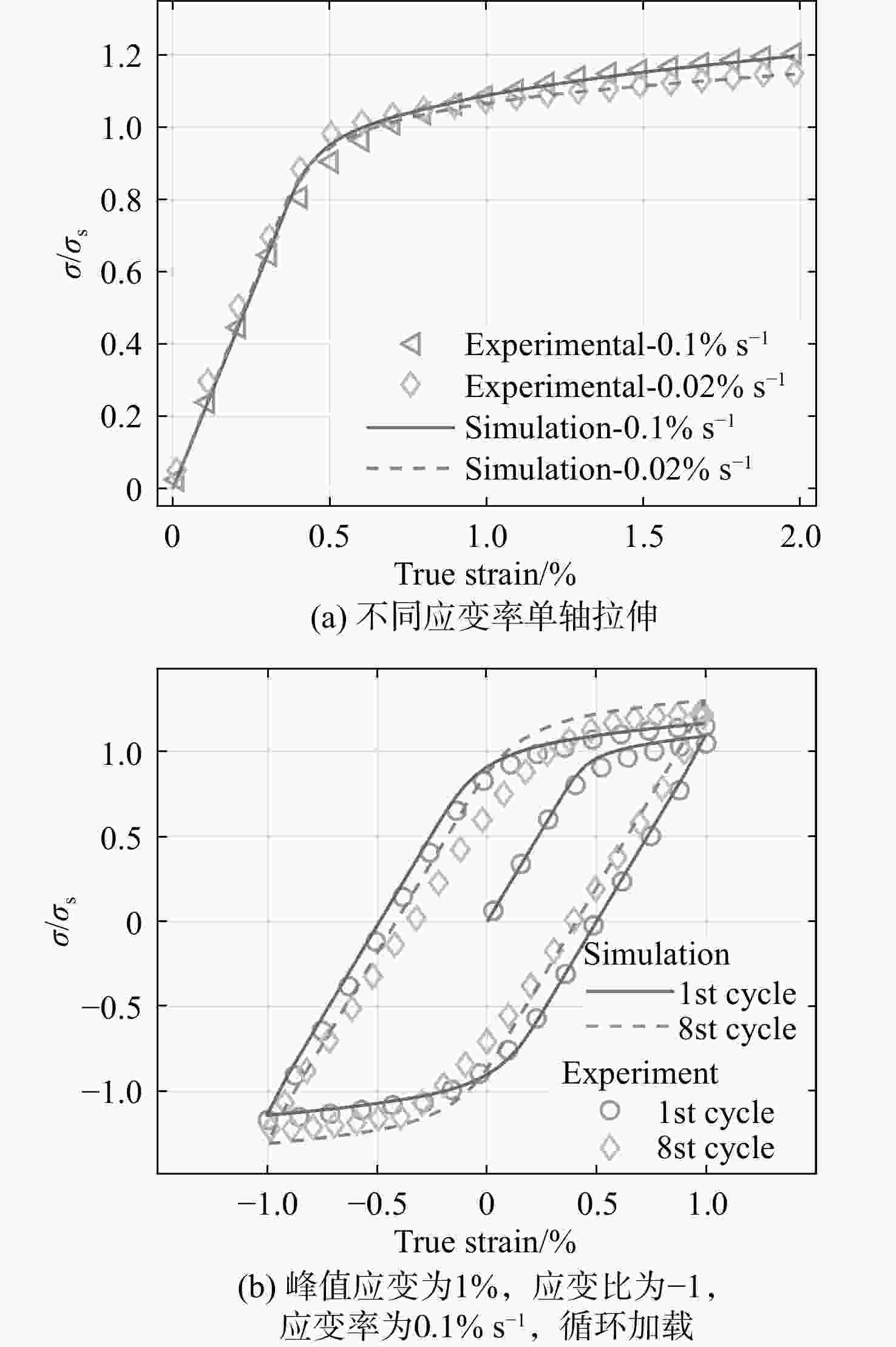

图 5 等直棒应变控制应力应变响应仿真与试验对比
Figure 5. Comparison between simulated and experimental stress-strain responses of the uniform-cross-section bar under the strain-controlled tests

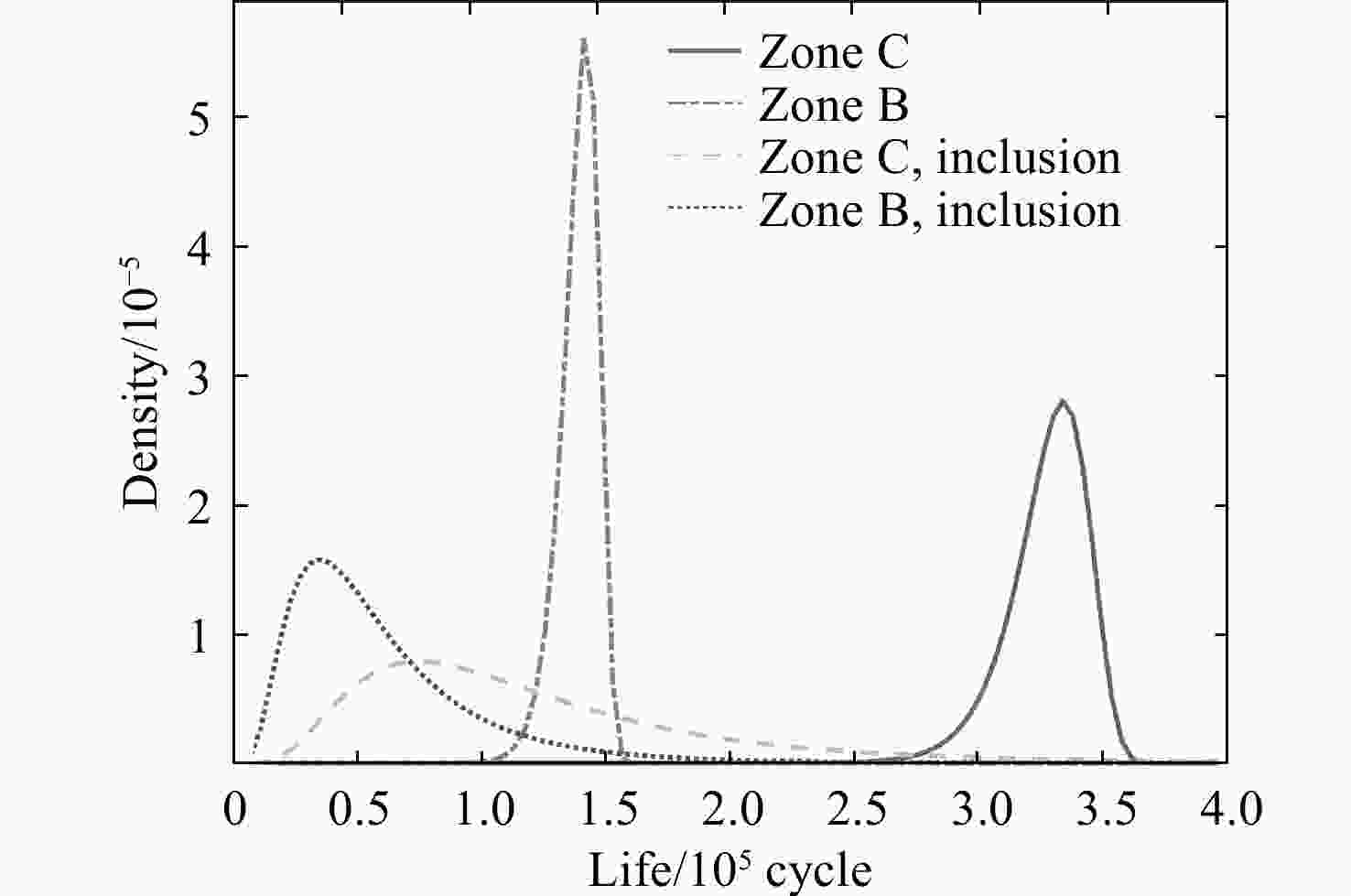

图 6 喷丸等直棒不同区域形核寿命分布仿真
Figure 6. Simulated nucleation life distributions in different zones of shot peening uniform-cross-section bar

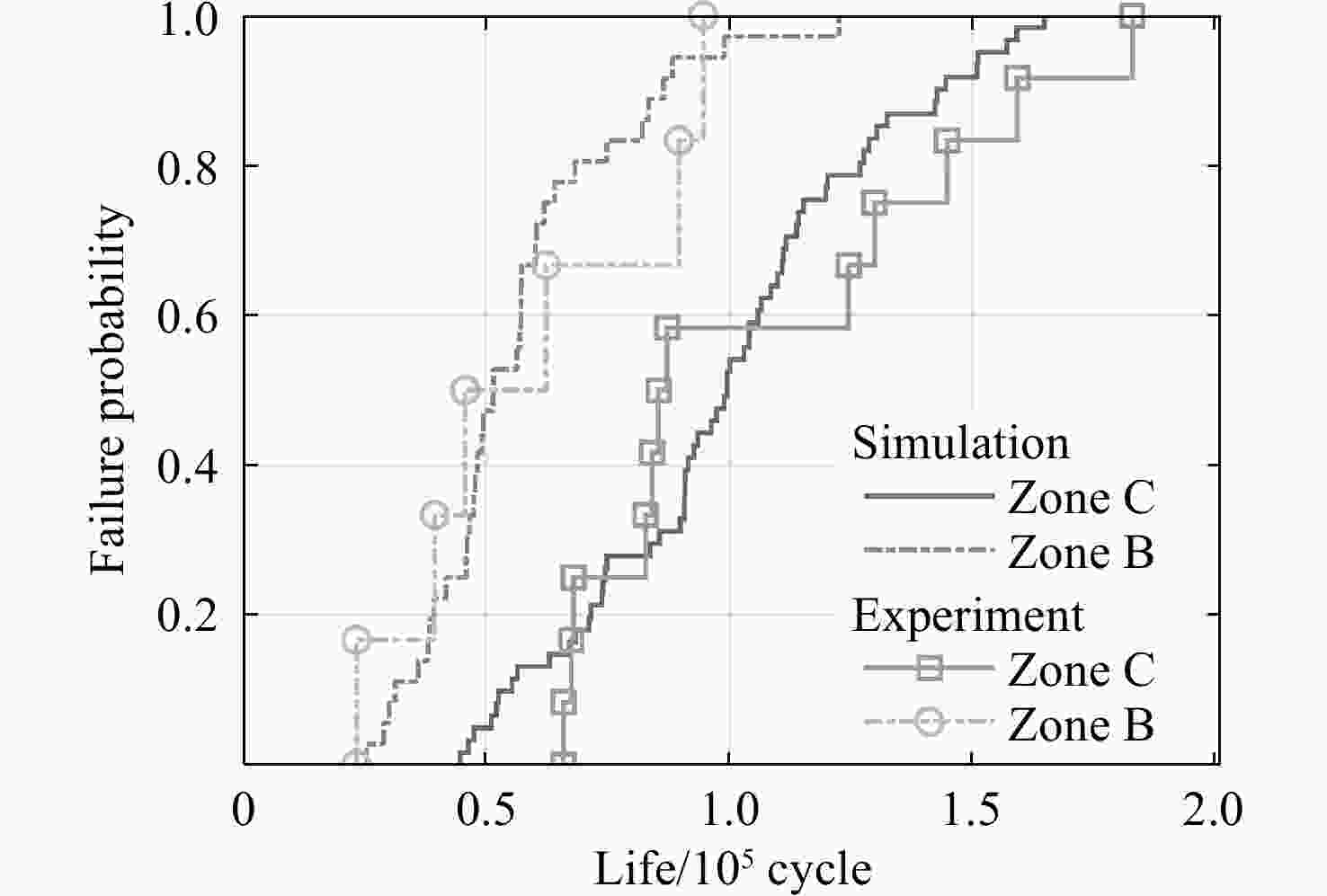

图 7 喷丸等直棒C区小裂纹扩展过程抽样
Figure 7. Sampling of small crack propagation in zone C of shot peening uniform-cross-section bar

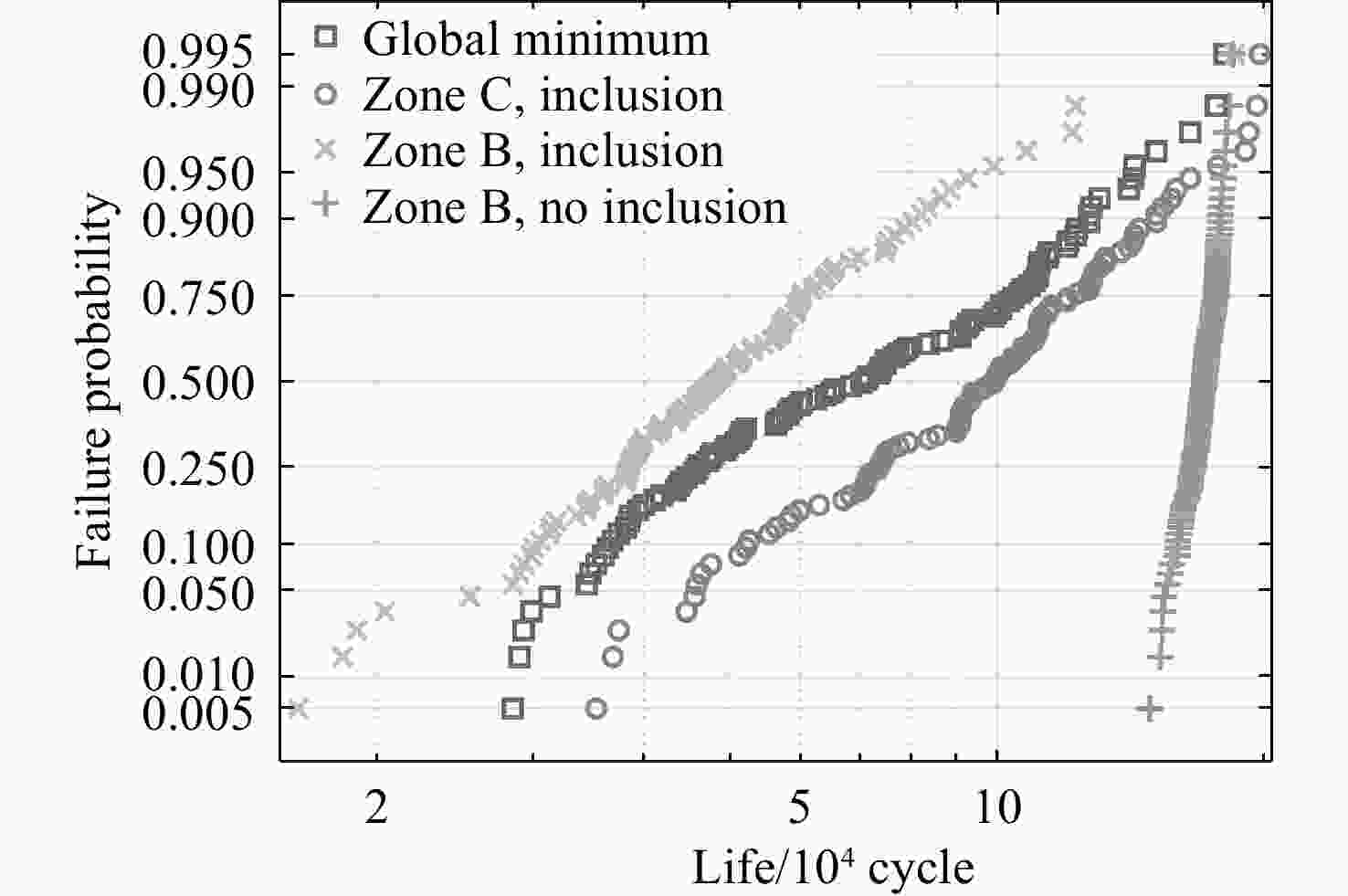

图 9 喷丸等直棒不同形核模式仿真宏观萌生寿命抽样分布
Figure 9. Sampling of initiation life distribution with different nucleation patterns of shot peening uniform-cross-section bars
-
