Optimization design and performance for multi-layer thermal protection structure at high temperature
-
摘要:
为解决高速飞行器飞行过程中剧烈的气动加热问题，以“高温防热层+隔热缓冲层+核心隔热层”顺序设计的一体化多层热防护结构的传热过程为研究对象，建立了高温环境下热防护结构内部一维非稳态导热-辐射耦合传热模型，通过数值模拟计算得到了高温环境下热防护结构各层的温度分布。利用不同热防护材料的隔热性能差异，针对构建的热防护结构，提出了在满足一定约束条件下，以轻质多层热防护结构总质量和总厚度为目标函数的优化设计方案，得到了多层结构的最优几何参数，并通过实验考核了优化后热防护结构的防隔热性能。实验表明：该结构可耐受1473 K的高温1800 s而背温不超过370 K。
Abstract:In consideration of the intense aerodynamic heating during the flight of the high speed vehicles, the heat transfer process of a multi-layer thermal protection structure designed in the sequence of “high-temperature thermal protection layer + thermal insulation buffer layer + core thermal insulation layer” was investigated, and a one-dimensional unsteady thermal conductivity-radiation coupled heat transfer model was established inside the thermal protection structure at high temperature environment. The temperature profile of each layer of the thermal protection structure at high-temperature environment was obtained by numerical simulation. Based on the difference of thermal insulation performance of various thermal protection materials, the optimal design scheme with the total mass and thickness of the lightweight multi-layer thermal protection structure as the objective function under certain constraints was proposed, the optimal geometric parameters of the multi-layer structure were obtained, and the anti-insulation performance of the optimized thermal protection structure was verified experimentally. The experimental results showed that the optimized thermal protection structure can withstand 1 473 K for 1 800 s while the back temperature was kept below 370 K.
-

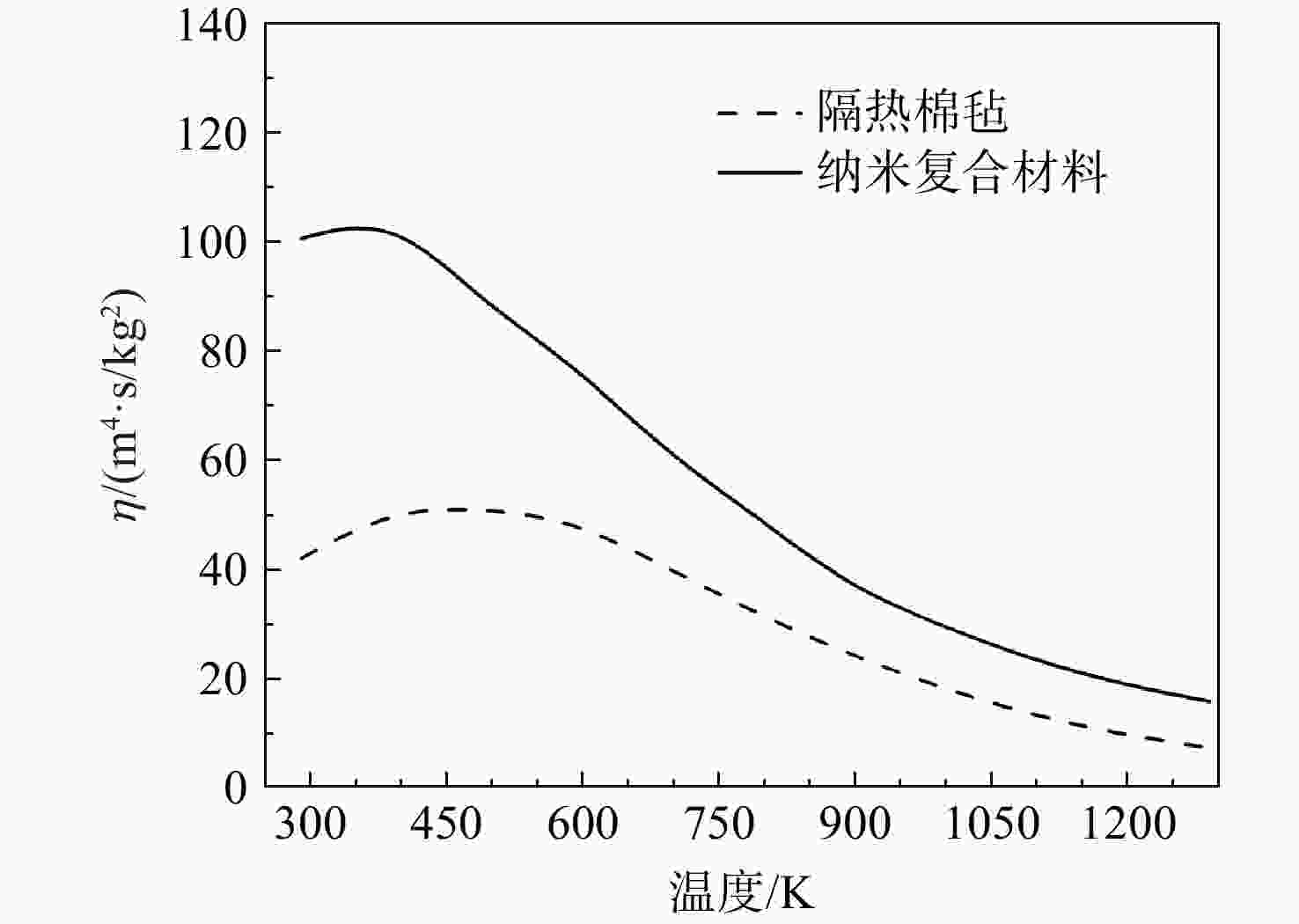

图 1 不同温度下材料隔热性能的表征值对比
Figure 1. Comparison of characteristic values of thermal insulation performance of materials at different temperatures

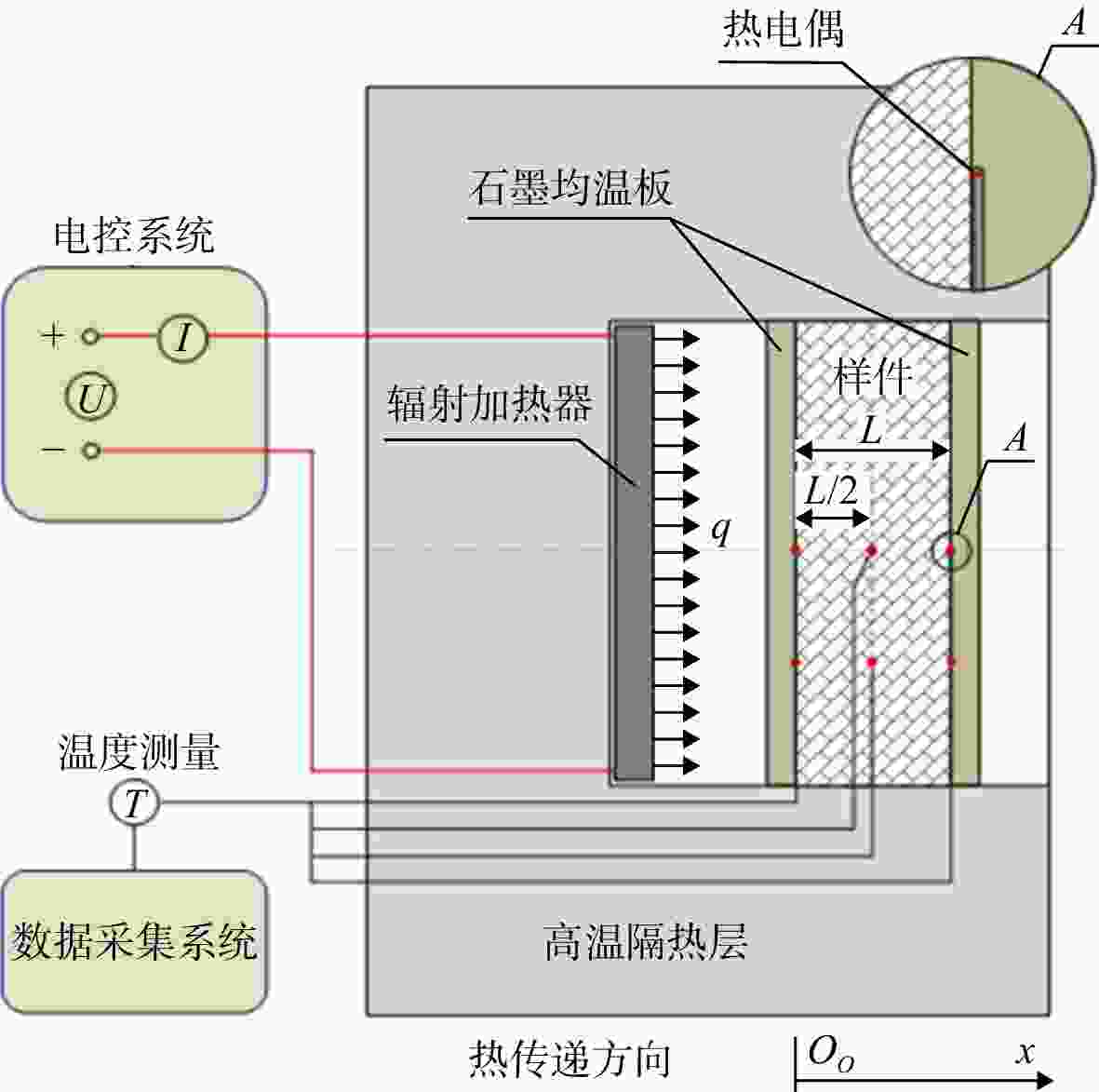

图 3 热防护结构一维简化模型
Figure 3. One-dimensional simplified model of thermal protection structure

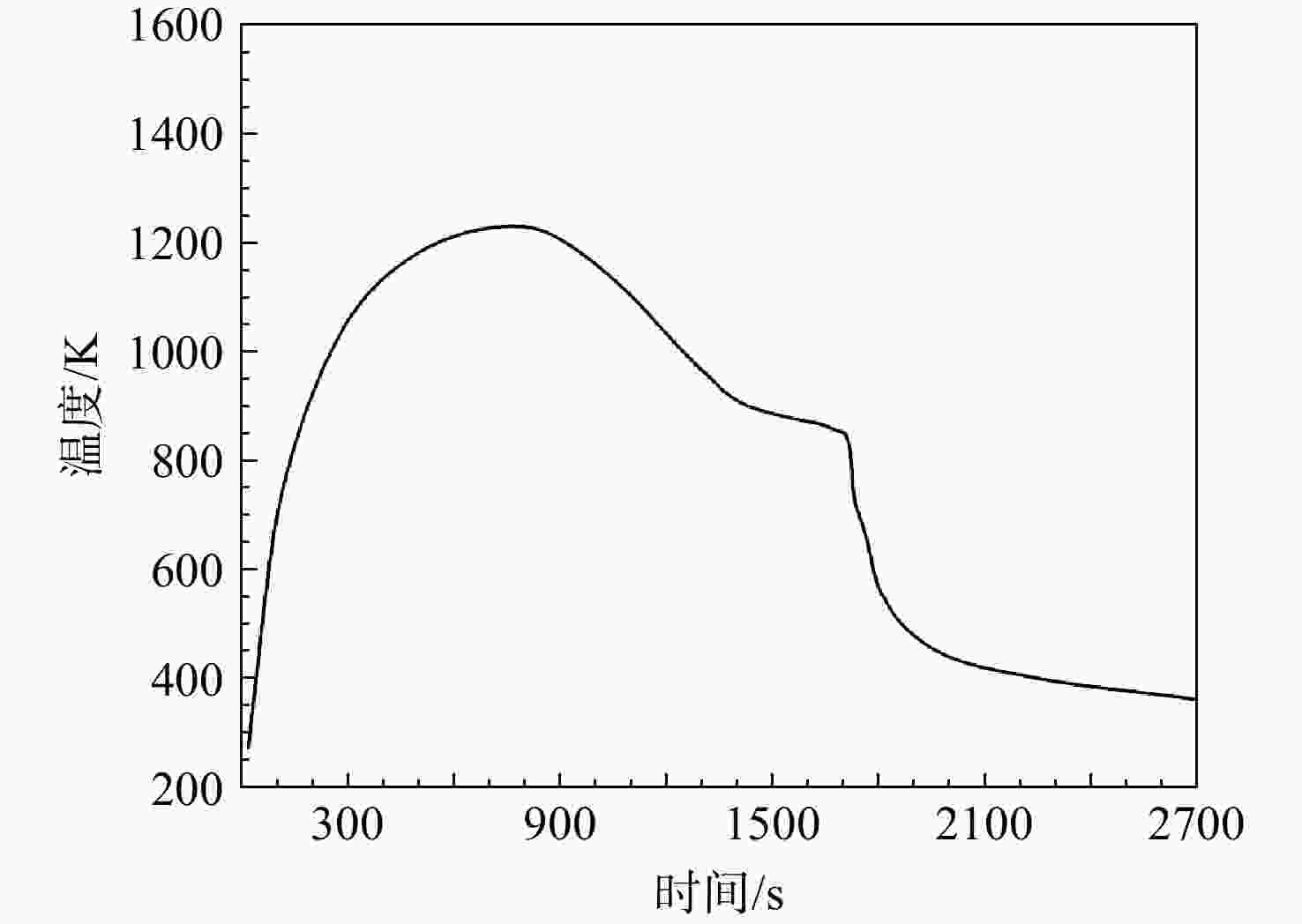

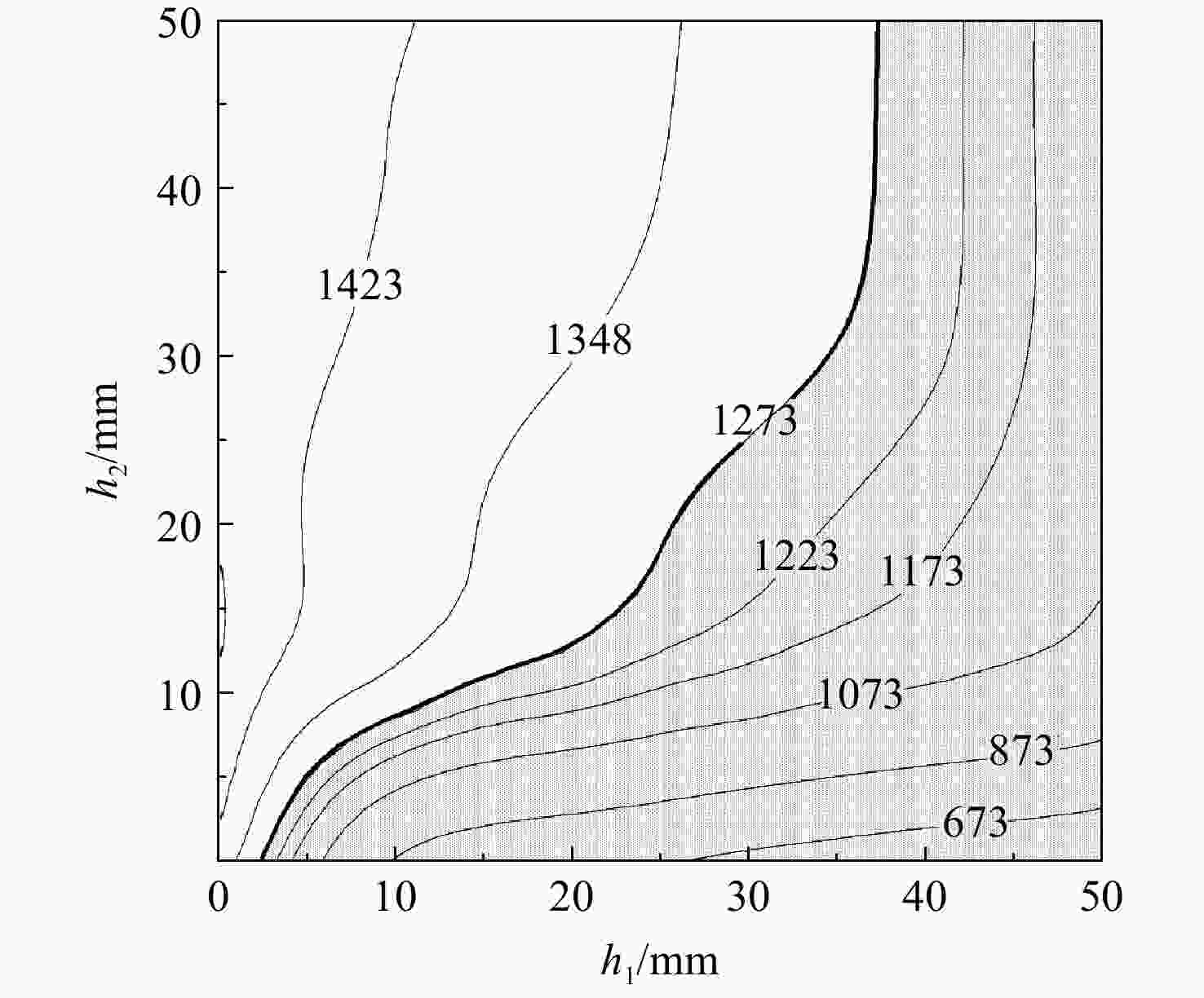

图 5
$T_{1 \max } （h_{1}, h_{2}） $ 曲面图的等温线投影（单位：K）Figure 5. Isotherm projection of
$T_{1 \max } （h_{1}, h_{2}） $ surface graph （unit：K）
图 6
$T_{2 \max } （h_{1}, h_{2}） $ 曲面图的等温线投影（单位：K）Figure 6. Isotherm projection of
$T_{2 \max } （h_{1}, h_{2}） $ surface graph （unit：K）
图 7 满足质量M最小的h1和h2最优组合投影
Figure 7. Optimal combination projection of h1 and h2 that satisfies the smallest quality M
图 8 满足厚度H最小的h1和h2最优组合投影
Figure 8. Optimal combination projection of h1 and h2 that satisfies the smallest thickness H

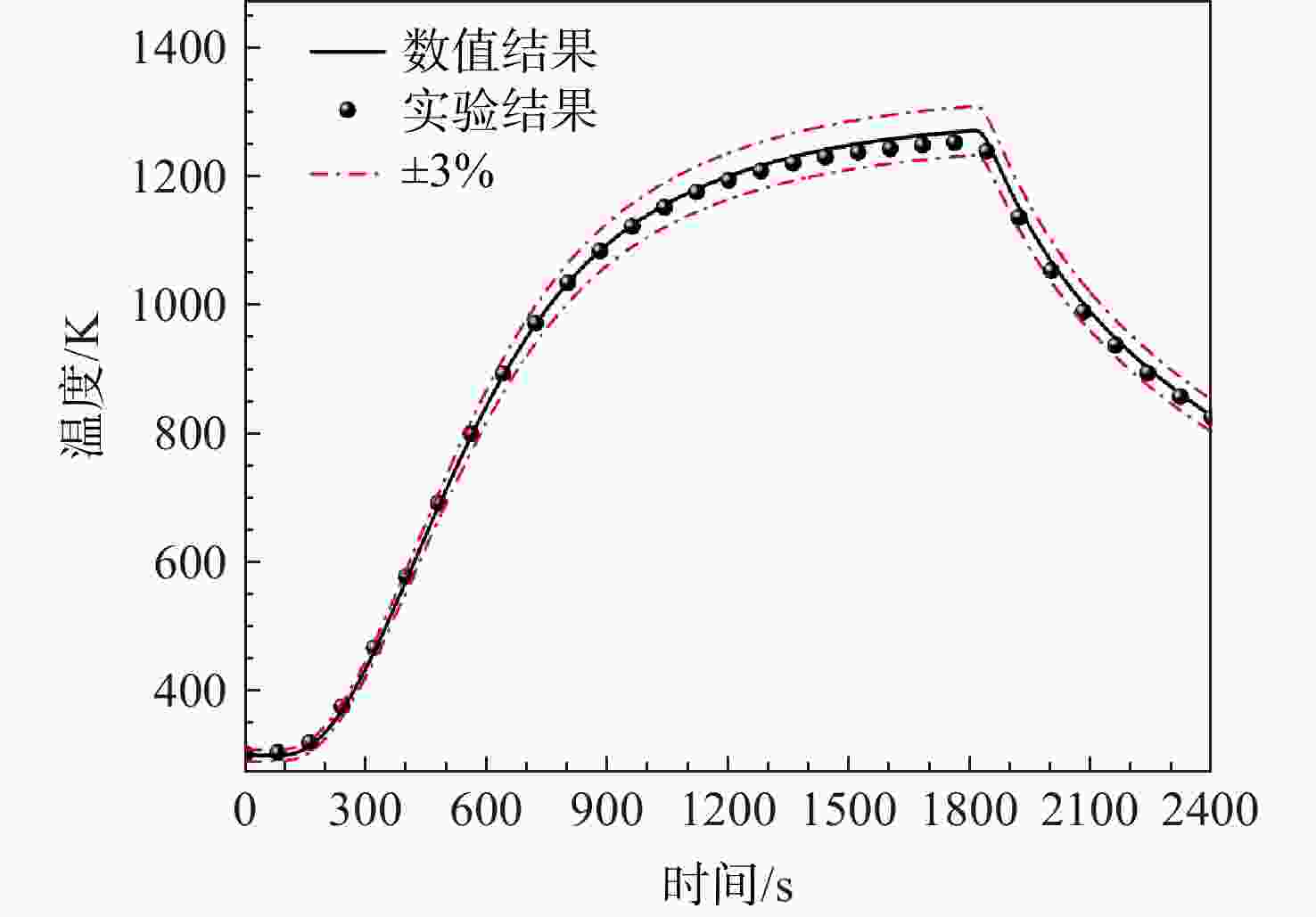

图 9 隔热棉毡和纳米复合材料接触界面温度变化过程
Figure 9. Temperature evolution at the contact interface of thermal insulation felts and nanocomposite material
图 10 优化后结构底部界面温度变化过程
Figure 10. Temperature evolution at the bottom interface of the structure after optimization

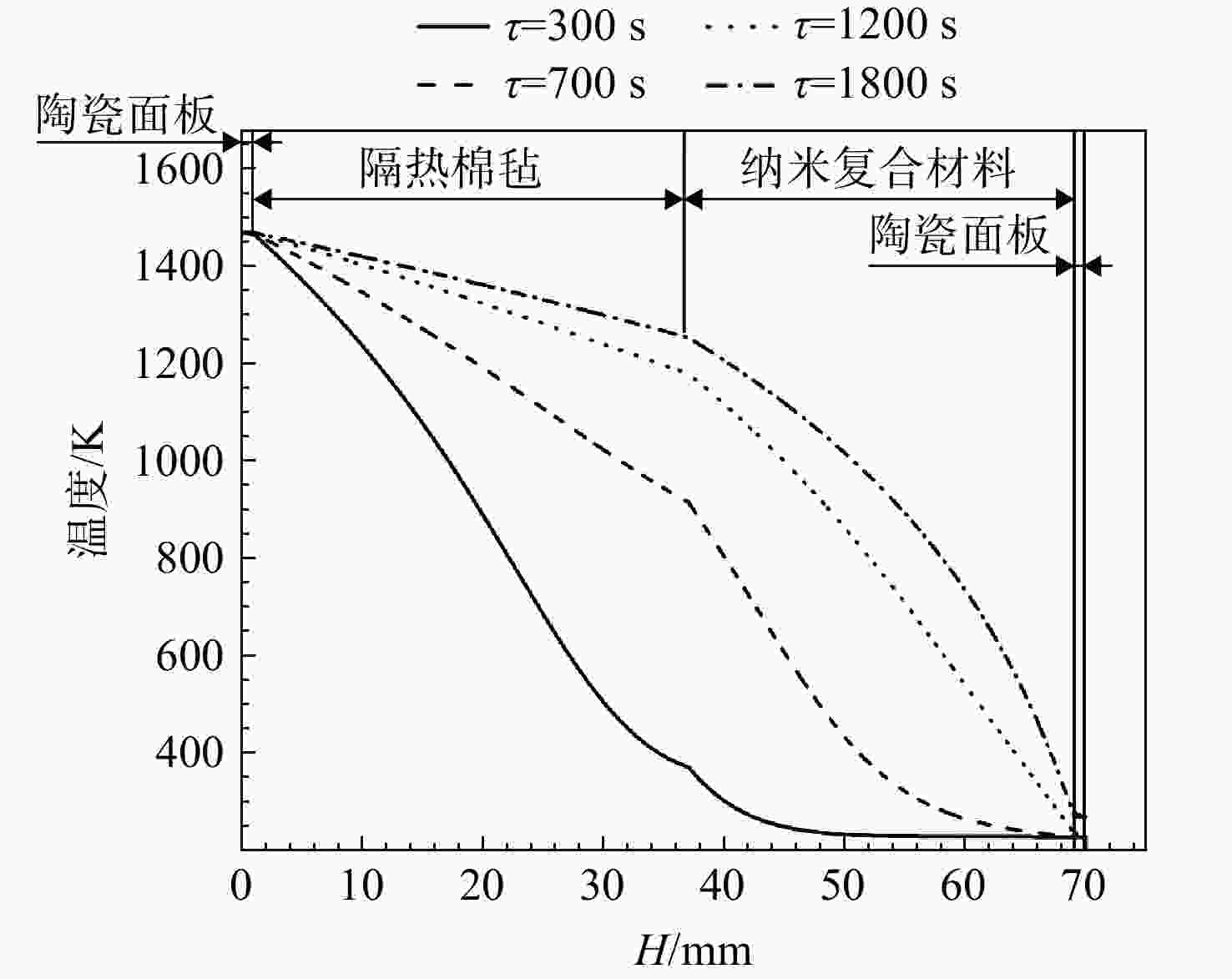

图 11 不同时间各层材料的温度分布
Figure 11. Temperature distribution of each layer of material at different times
表 1 热防护材料热物性参数
Table 1. Thermophysical parameters for different thermal protection materials
材料 ρ/（kg/m3） cp/（J/（kg·K）） λeff/（W/（m·K）） ε 隔热棉毡 260.0 851.1 λ1=a1T+b1 纳米复合材料 310.5 871.2 λ2=a2T+b2 陶瓷面板 1806.4 1115.3 λ3=a3T+b3 0.6
下载: 导出CSV
-
[1] 邢亚娟,孙波,高坤,等. 航天飞行器热防护系统及防热材料研究现状[J]. 宇航材料工艺,2018,48(4): 9-15. doi: 10.12044/j.issn.1007-2330.2018.04.002XING Yajuan,SUN Bo,GAO Kun,et al. Research status of therma protection system and thermal protection materials for aerospace vehicles[J]. Aerospace Materials and Technology,2018,48(4): 9-15. (in Chinese) doi: 10.12044/j.issn.1007-2330.2018.04.002 [2] 陈雄昕,刘卫华,罗智胜,等. 高超音速飞行器气动热研究进展[J]. 航空兵器,2014(6): 8-13. doi: 10.3969/j.issn.1673-5048.2014.06.002CHEN Xiongxin,LIU Weihua,LUO Zhisheng,et al. Research advances of aerodynamic heating for hypersonic aircraft[J]. Aero Weaponry,2014(6): 8-13. (in Chinese) doi: 10.3969/j.issn.1673-5048.2014.06.002 [3] 邱惠中. 美国空天飞机用先进材料最新进展[J]. 宇航材料工艺,1994,24(3): 5-9.QIU Huizhong. The latest development of advanced materials for U. S. aerospace aircraft[J]. Aerospace Materials and Technology,1994,24(3): 5-9. (in Chinese) [4] BUFFENOIR F,ZEPPA C,PICHON T,et al. Development and flight qualification of the C-SiC thermal protection systems for the IXV[J]. Acta Astronautica,2016,124(7/8): 85-89. [5] ALBANO M,MICHELI D,GRADONI G,et al. Electromagnetic shielding of thermal protection system for hypersonic vehicles[J]. Acta Astronautica,2013,87(6/7): 30-39. [6] 徐世南,吴催生. 高超声速飞行器热防护结构研究进展[J]. 飞航导弹,2019,412(4): 48-55. doi: 10.16338/j.issn.1009-1319.20180344XU Shinan,WU Cuisheng. Research progress of thermal protection structure of hypersonic vehicle[J]. Aerodynamic Missile Journal,2019,412(4): 48-55. (in Chinese) doi: 10.16338/j.issn.1009-1319.20180344 [7] HAIM Y,WEISS Y,LETAN R. Effect of spacers on the thermal performance of an annular multi-layer insulation[J]. Applied Thermal Engineering,2014,65(1/2): 418-421. doi: 10.1016/j.applthermaleng.2014.01.041 [8] 陈立明,戴政,谷宇,等. 轻质多层热防护结构的一体化优化设计研究[J]. 力学学报,2011,43(2): 289-295. doi: 10.6052/0459-1879-2011-2-lxxb2009-500CHEN Liming,DAI Zheng,GU Yu,et al. Integrated optimization design of light-weight multi-layer protection structures[J]. Chinese Journal of Theoretical and Applied Mechanics,2011,43(2): 289-295. (in Chinese) doi: 10.6052/0459-1879-2011-2-lxxb2009-500 [9] WHITE D M,WICKLEIN M,CLEGG R A,et al. Multi-layer insulation material models suitable for hypervelocity impact simulations[J]. International Journal of Impact Engineering,2008,35(12): 1853-1860. doi: 10.1016/j.ijimpeng.2008.07.017 [10] GIEGERICH M J. Thermal protection systems for all-weather reusable launch vehicles[C]//Space Transportation Materials and Structures Technology Workshop. Hampton, US: NASA Langley Research Center, 1993: 363-367. [11] 王璐,王友利. 高超声速飞行器热防护技术研究进展和趋势分析[J]. 宇航材料工艺,2016,46(1): 1-6. doi: 10.3969/j.issn.1007-2330.2016.01.001WANG Lu,WANG Youli. Research progress and trend analysis of hypersonic vehicle thermal protection technology[J]. Aerospace Materials and Technology,2016,46(1): 1-6. (in Chinese) doi: 10.3969/j.issn.1007-2330.2016.01.001 [12] 解维华,张博明,杜善义. 金属热防护系统设计的有限元分析[J]. 航空学报,2006,27(2): 897-902.XIE Weihua,ZHANG Boming,DU Shanyi. Finite element analysis of metallic thermal protection systems design[J]. Acta Aeronautica et Astronautica Sinica,2006,27(2): 897-902. (in Chinese) [13] 赵剑,谢宗蕻,张磊. 高温合金热防护系统设计与分析[J]. 宇航学报,2008,29(5): 217-223. doi: 10.3873/j.issn.1000-1328.2008.05.041ZHAO Jian,XIE Zonghong,ZHANG Lei. Design and analysis of super alloy metallic thermal protection system[J]. Journal of Astronautics,2008,29(5): 217-223. (in Chinese) doi: 10.3873/j.issn.1000-1328.2008.05.041 [14] 李健,张凡,张丽娟,等. 一种耐高温多层热防护组件结构设计与性能研究[J]. 北京理工大学学报,2019,39(10): 1051-1056. doi: 10.15918/j.tbit1001-0645.2019.10.010LI Jian,ZHANG Fan,ZHANG Lijuan,et al. Structure design and performance study of a multi-layer thermal protection component with high temperature endurance[J]. Transactions of Beijing Institute of Technology,2019,39(10): 1051-1056. (in Chinese) doi: 10.15918/j.tbit1001-0645.2019.10.010 [15] ALIFANOV O M,BUDNIK S A,NENAROKOMOV A V,et al. Design of thermal protection based on open cell carbon foam structure optimization[J]. Applied Thermal Engineering,2020,173: 115252.1-115252.10. [16] XIE Dan,DONG Bin,JING Xingjian. Effect of thermal protection system size on aerothermoelastic stability of the hypersonic panel[J]. Aerospace Science and Technology,2020,106: 106170.1-106170.16. [17] LIU Dong,LI Jiapeng,ZHANG Ping,et al. Multilayered epoxy composites by a macroscopic anisotropic design strategy with excellent thermal protection[J]. Journal of Materials Science,2020,55(30): 14798-14806. doi: 10.1007/s10853-020-05047-x [18] DOU Lüye,CHENG Xiaota,ZHANG Xinxin,et al. Temperature-invariant super elastic, fatigue resistant, and binary-network structured silica nanofibrous aerogels for thermal superinsulation[J]. Journal of Materials Chemistry A,2020,8(16): 7775-7783. doi: 10.1039/D0TA01092H [19] SHI Shenbo,CHEN Yong,DAI Cunxi,et al. Modeling the high temperature behavior of all-composite, corrugated-core sandwich panels undergoing ablation[J]. Thin-Walled Structures,2021,164: 107742.1-107742.10. doi: 10.1016/j.tws.2021.107742 [20] 刘华. 纳米复合隔热材料高温耦合传热实验测量及物性参数辨识[D]. 哈尔滨: 哈尔滨工业大学, 2017.LIU Hua. Experiment on coupled heat transfer and thermal property identification of nanocomposite insulation at high temperature[D]. Harbin: Harbin Institute of Technology, 2017. (in Chinese) [21] LIU Hua,XIA Xinlin,XIE Xiangqian,et al. Experiment and identification of thermal conductivity and extinction coefficient of silica aerogel composite[J]. International Journal of Thermal Sciences,2017,121: 192-203. doi: 10.1016/j.ijthermalsci.2017.07.014 [22] 钱炜祺,蔡金狮. 再入航天飞机表面热流密度辨识[J]. 宇航学报,2000,21(4): 1-6. doi: 10.3321/j.issn:1000-1328.2000.04.001QIAN Weiqi,CAI Jinshi. Surface heat flux identification of reentry space shuttle[J]. Journal of Astronautics,2000,21(4): 1-6. (in Chinese) doi: 10.3321/j.issn:1000-1328.2000.04.001 -
