Experiment on propagation characteristics of rotating detonation waves in different oxidizer inlet slots
-
摘要:

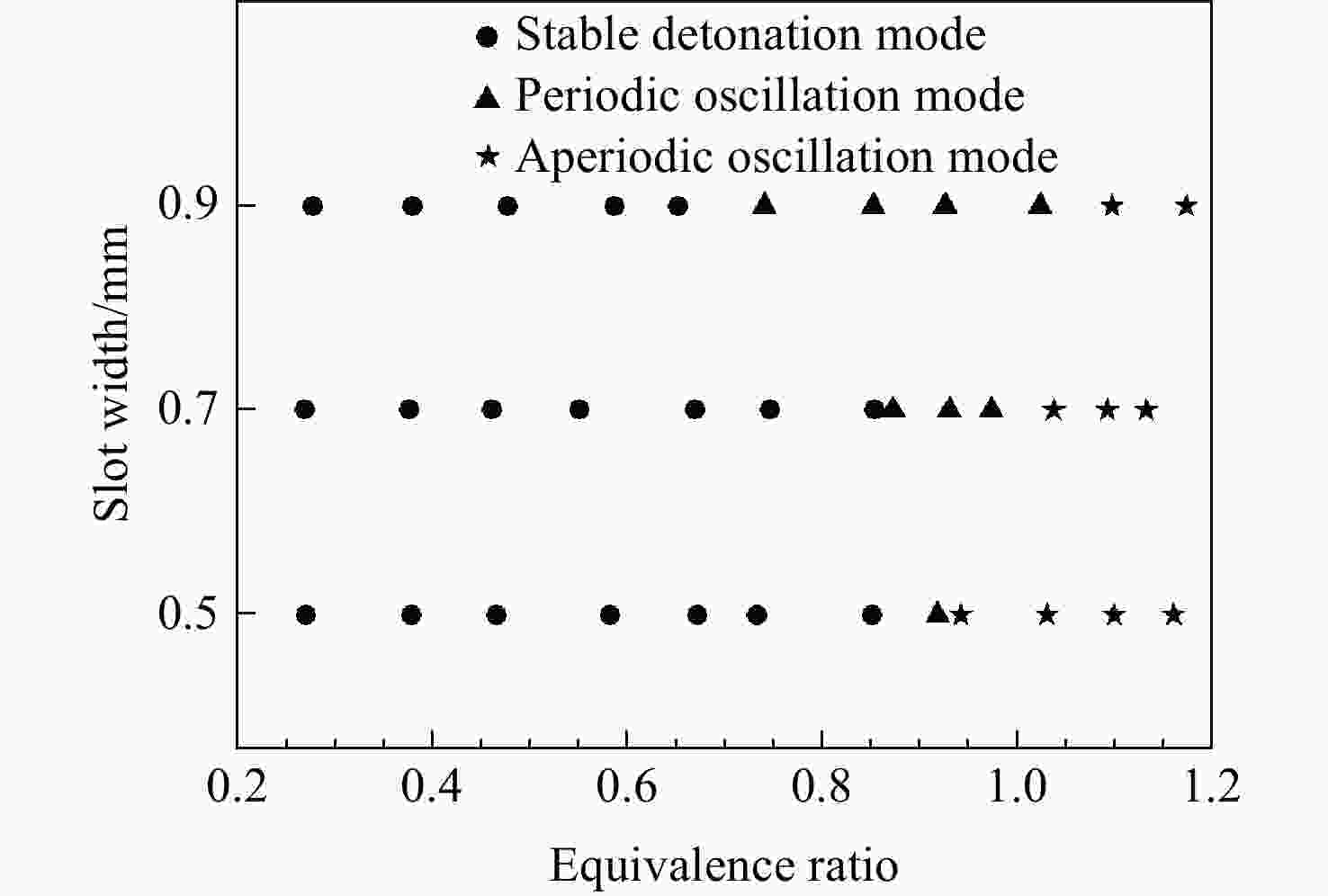

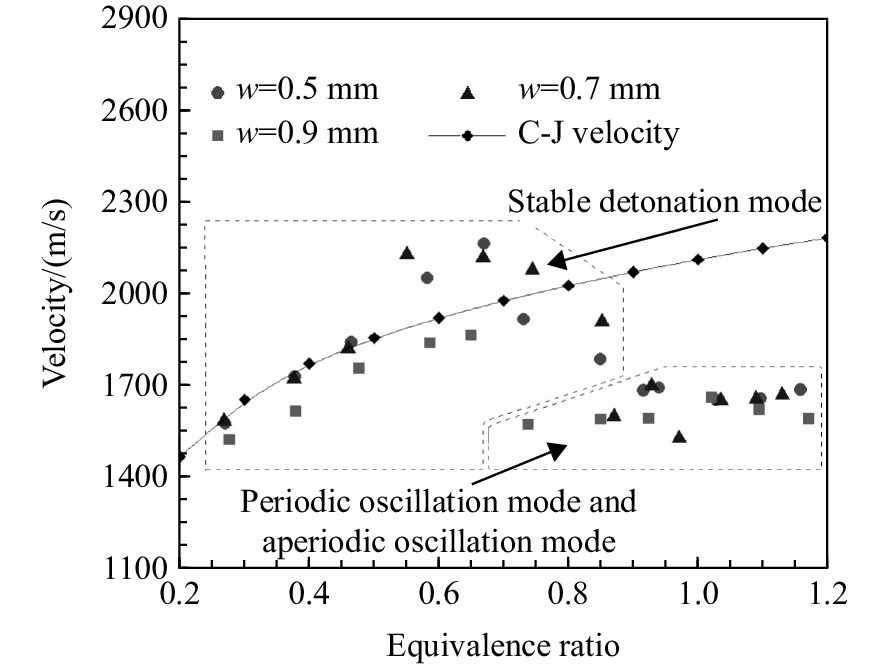

为了揭示氧化剂环缝宽度对旋转爆震波传播特性的影响，在凹腔形旋转爆震燃烧室中，采用环缝-喷孔式喷注器，燃料和氧化剂分别为乙烯和氧气体积分数为50%的富氧空气，实验研究了氧化剂环缝宽度对旋转爆震波传播模态及传播特性的影响。结果表明：在不同氧化剂环缝宽度下，均成功实现了旋转爆震波的稳定传播，并观察到稳定爆震、周期性振荡和非周期性振荡3种模态；周期性振荡模态的当量比范围随着氧化剂环缝宽度的增加而扩大，且每个振荡周期包括爆震波解耦、缓燃波加速和爆震波形成3个过程；与稳定爆震模态相比，在两种振荡模态中，燃烧波的平均传播速度大幅降低且存在较大的速度波动。
Abstract:To investigate the propagation characteristics of rotating detonation waves in different oxidizer inlet slots, experimental study was performed in a cavity-based annular combustor. The slot-orifice impinging injection scheme was utilized. Ethylene and oxygen-enriched air with an oxygen volume fraction of 50% were used as fuel and oxidizer, respectively. The propagation modes and characteristics of the rotating detonation wave were discussed. Experimental results indicated that the rotating detonation waves can propagate steadily, and three propagation modes, i.e., stable detonation mode, periodic oscillation mode, and aperiodic oscillation mode, were observed in different oxidizer inlet slots. The equivalence ratio range of the periodic oscillation mode was expanded as the width of the oxidizer inlet slot increased, and each oscillation cycle included three processes, i.e., decoupling of detonation waves, acceleration of deflagration waves, and regeneration of detonation waves. The average velocity of the combustion waves in the two oscillation modes was significantly lower than that in the stable detonation mode, and there existed significant velocity variations.
-
Key words:
- rotating detonation /
- oxidizer inlet slot width /
- propagation mode /
- propagation velocity /
- ethylene
-

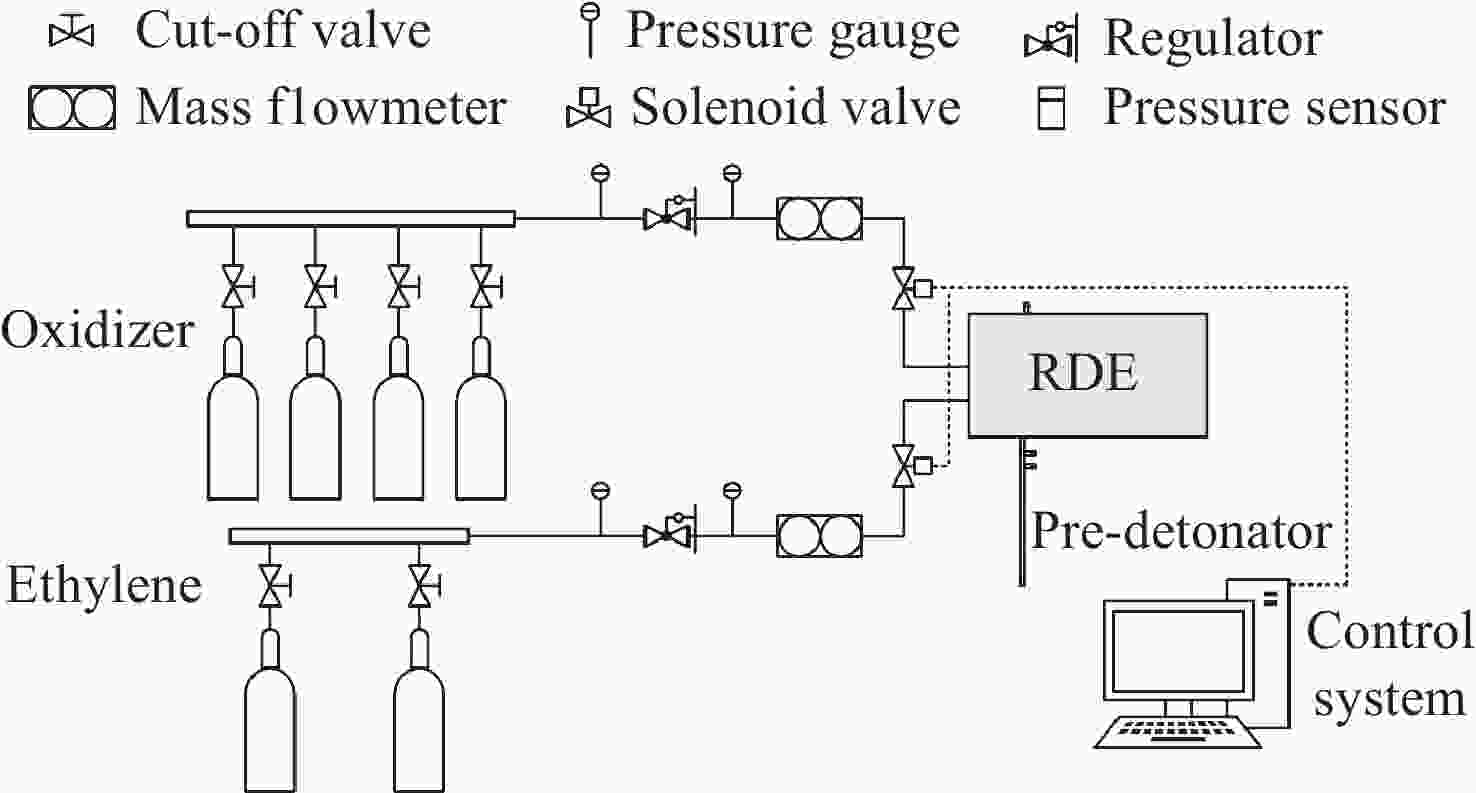

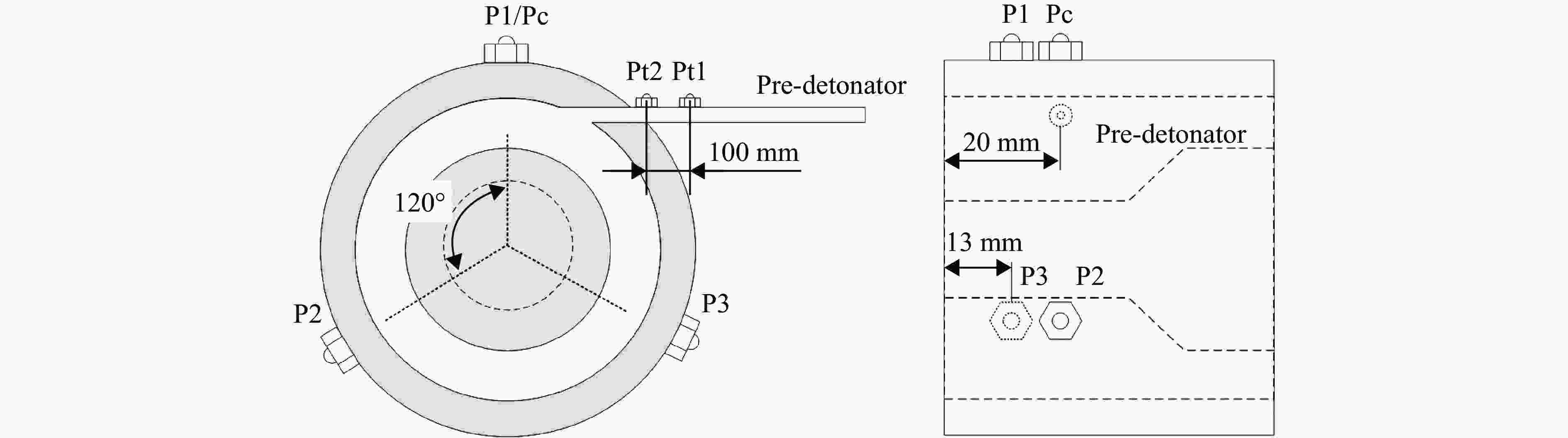

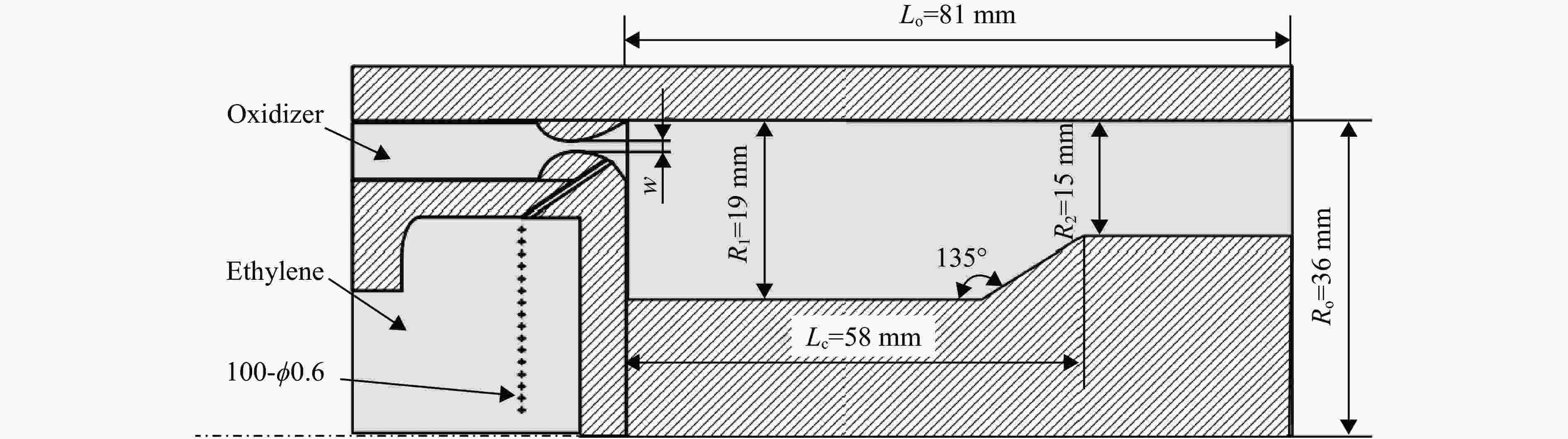

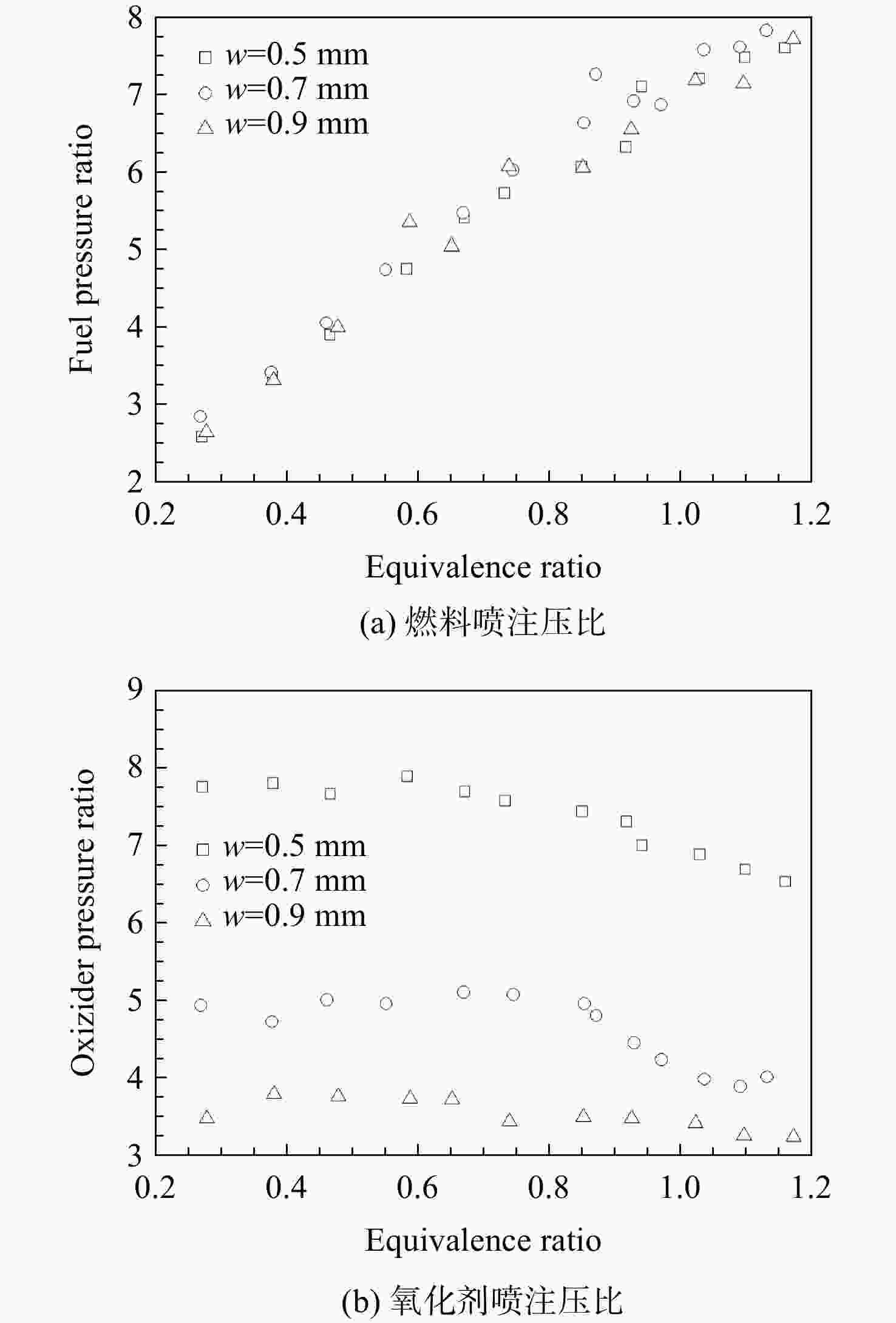

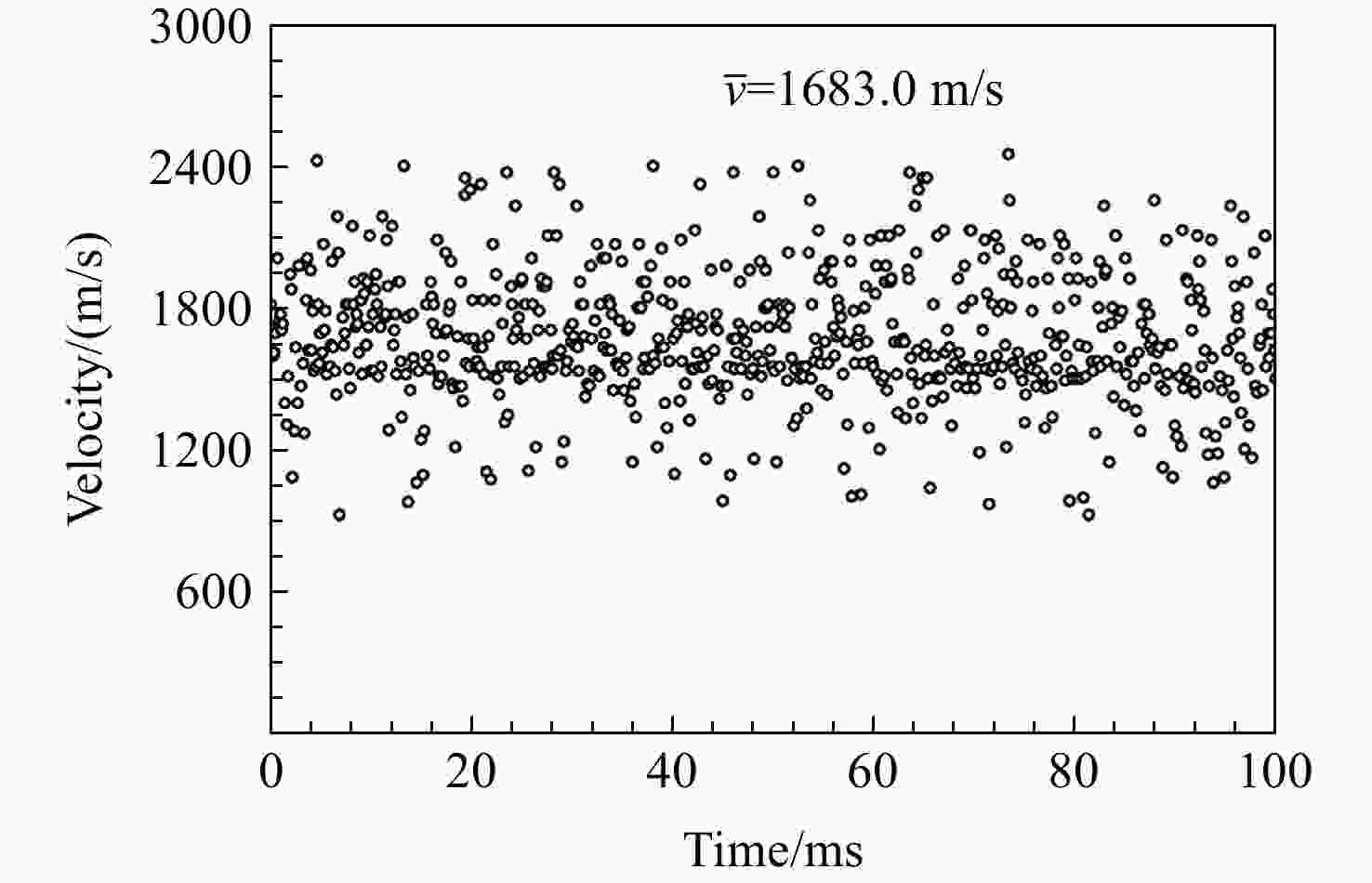

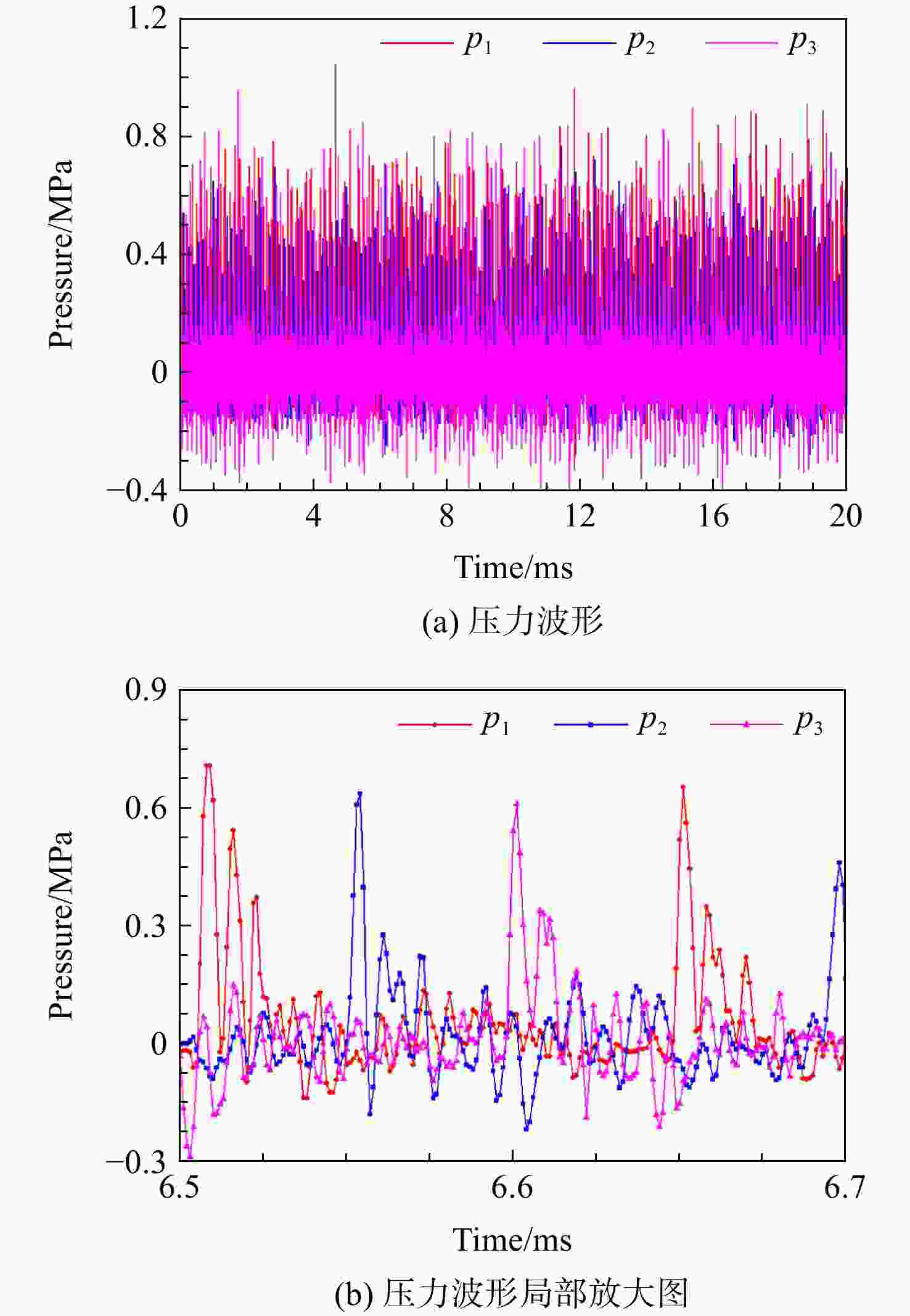

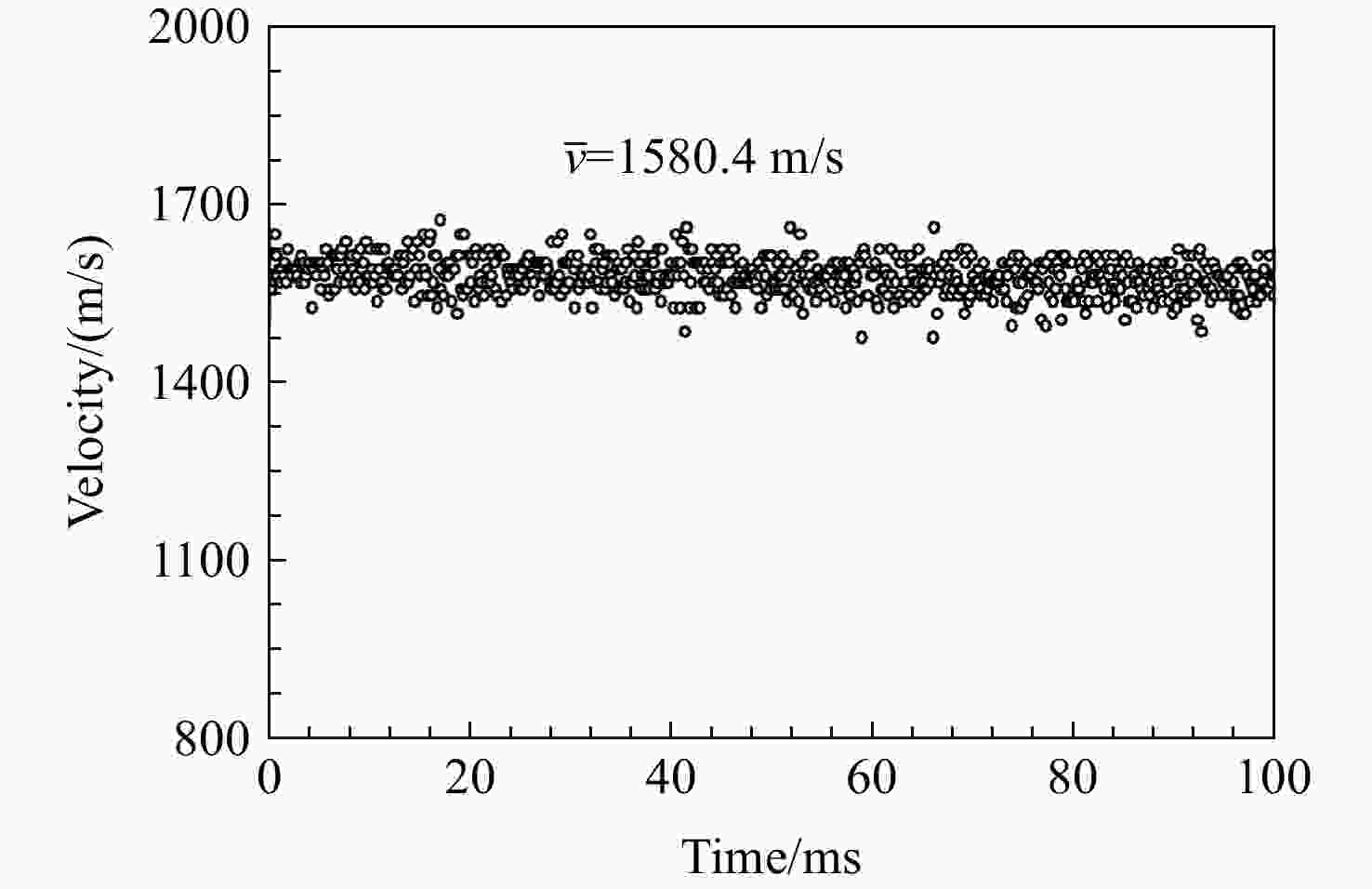

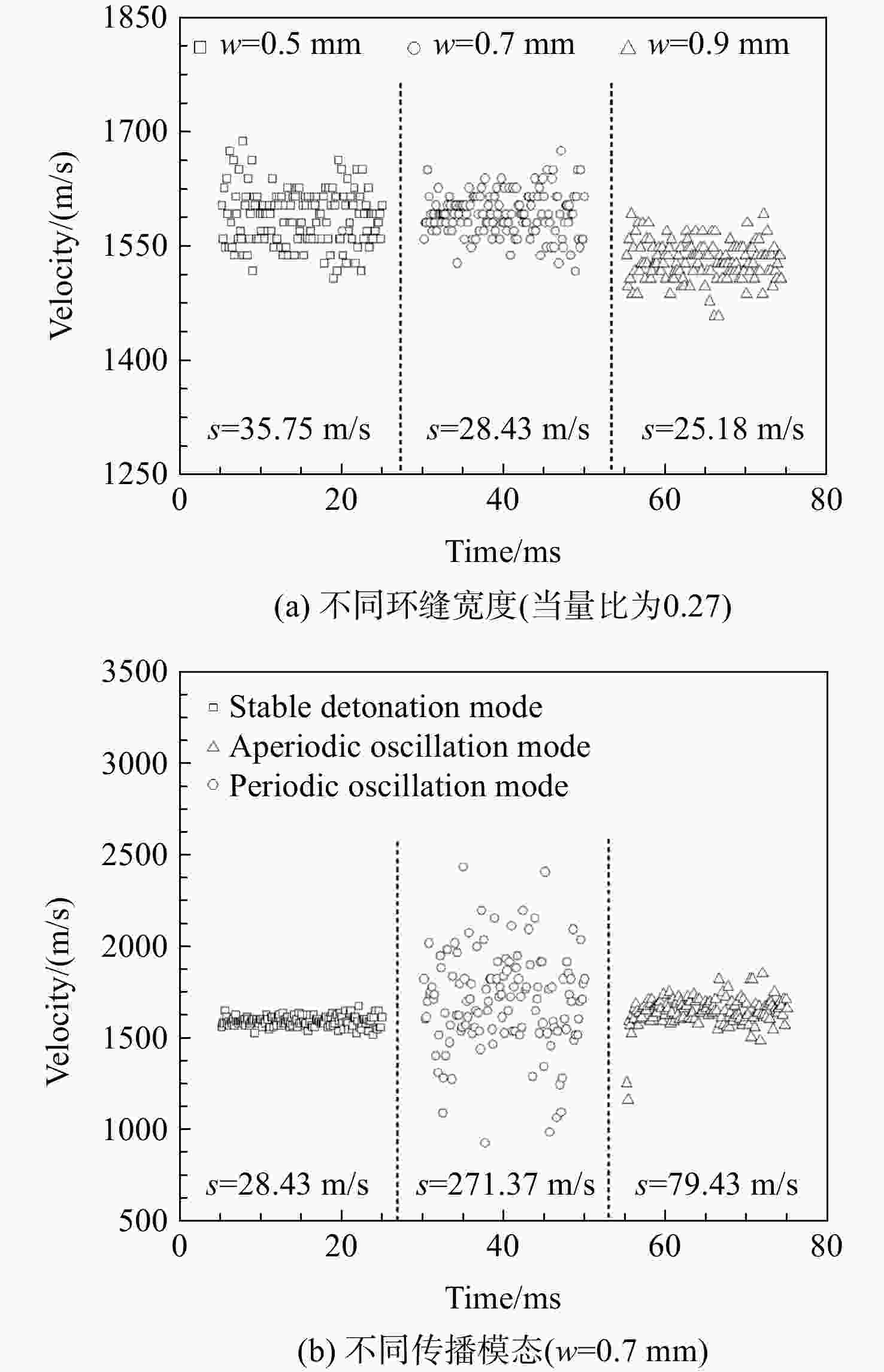

图 5 稳定爆震模态的传播速度分布
Figure 5. Propagation velocities distribution of the stable detonation mode

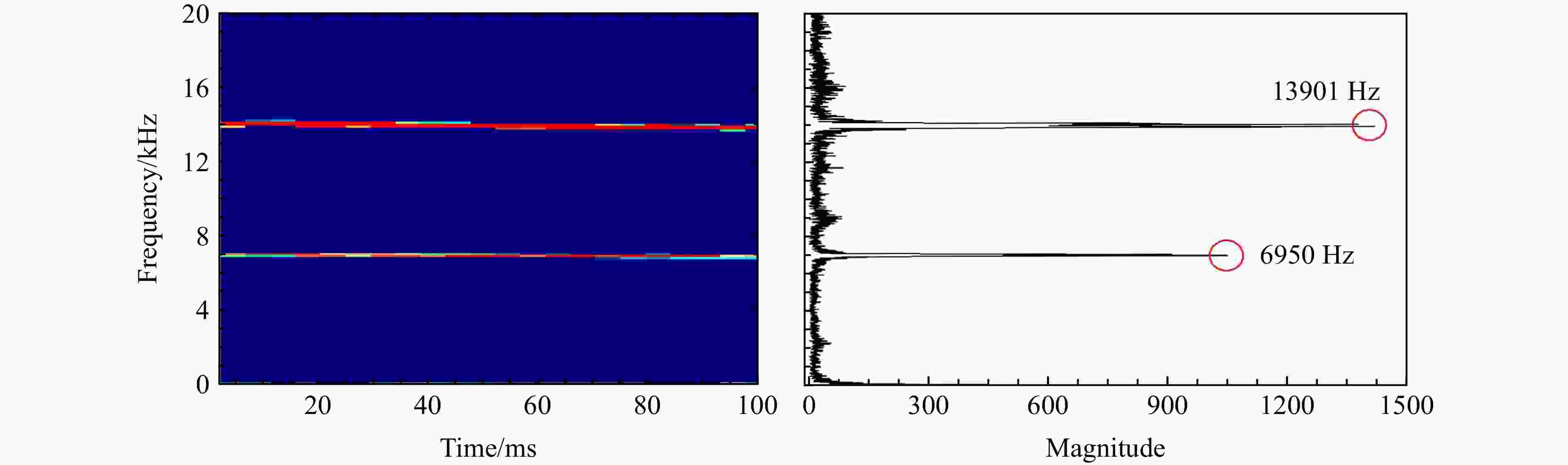

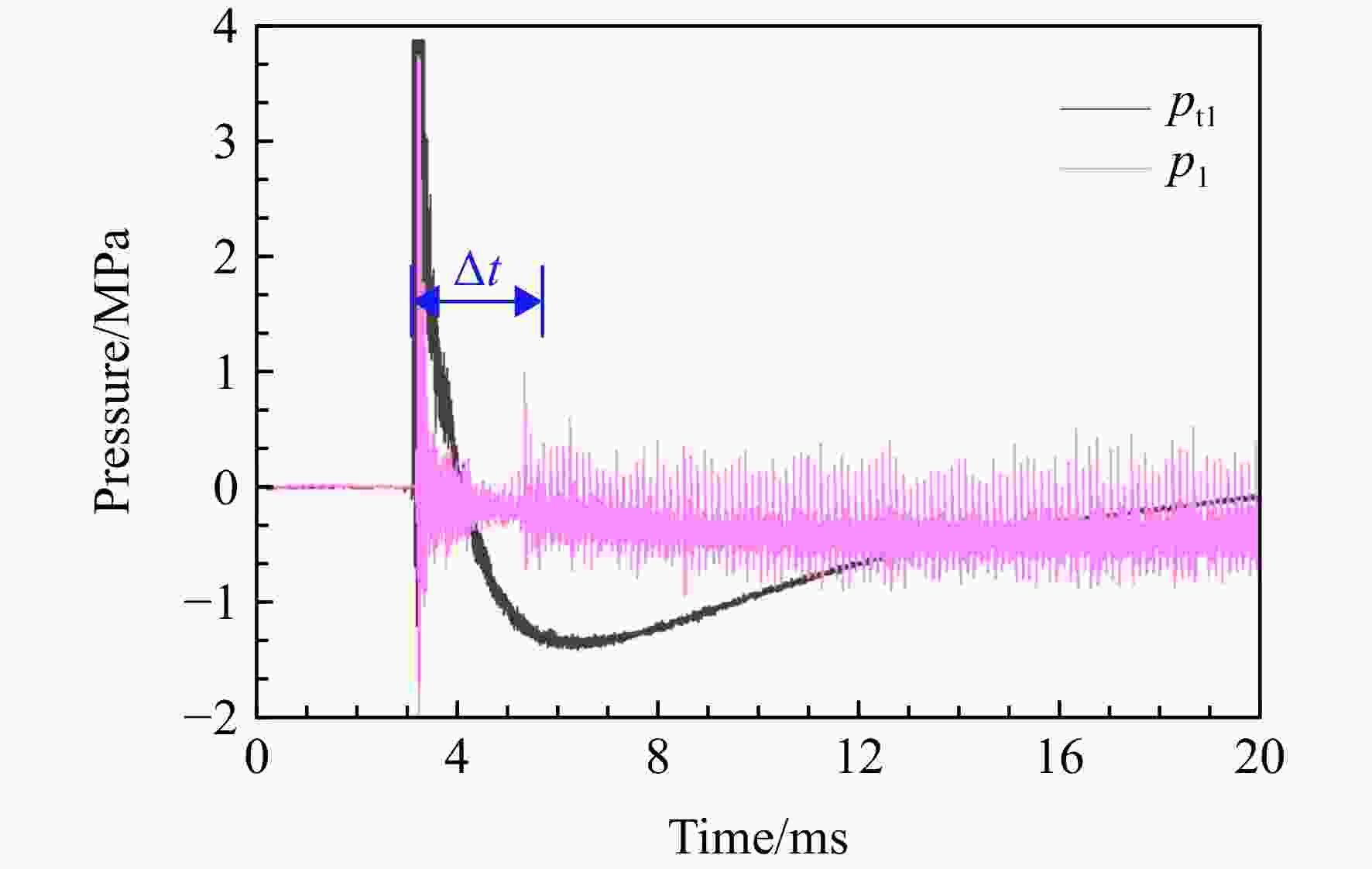

图 7 稳定爆震模态的起始过程压力波形
Figure 7. Pressure profiles of the initiation process measured at the stable detonation mode

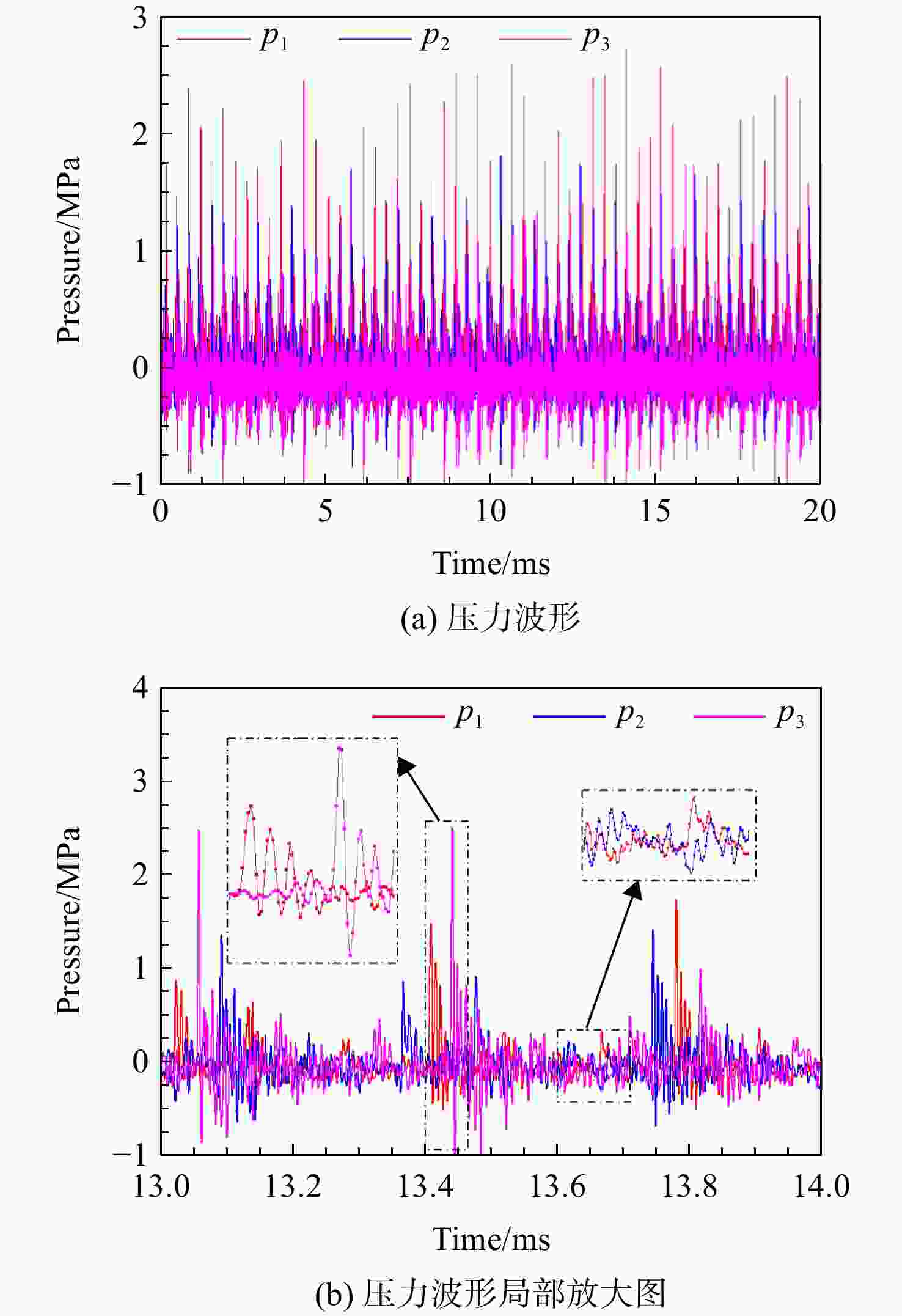

图 8 周期性振荡模态的压力波形
Figure 8. Pressure profiles measured at the periodic oscillation mode
图 9 周期性振荡模态的传播速度分布
Figure 9. Propagation velocities distribution of the periodic oscillation mode
图 10 周期性振荡模态的STFT和FFT结果
Figure 10. STFT and FFT results of the periodic oscillation mode

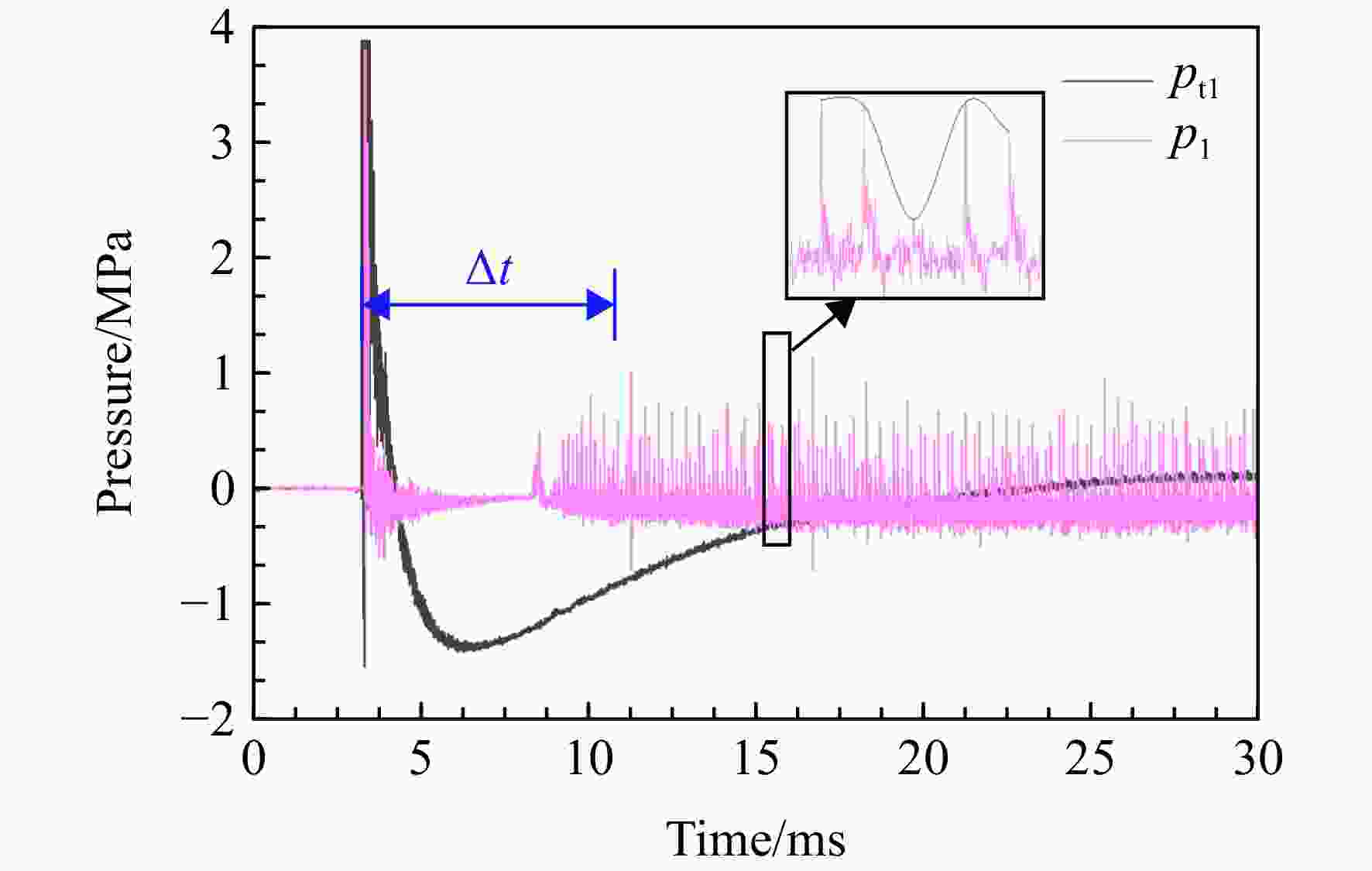

图 11 周期性振荡模态的起始过程压力波形
Figure 11. Pressure profiles of the initiation process measured at the periodic oscillation mode

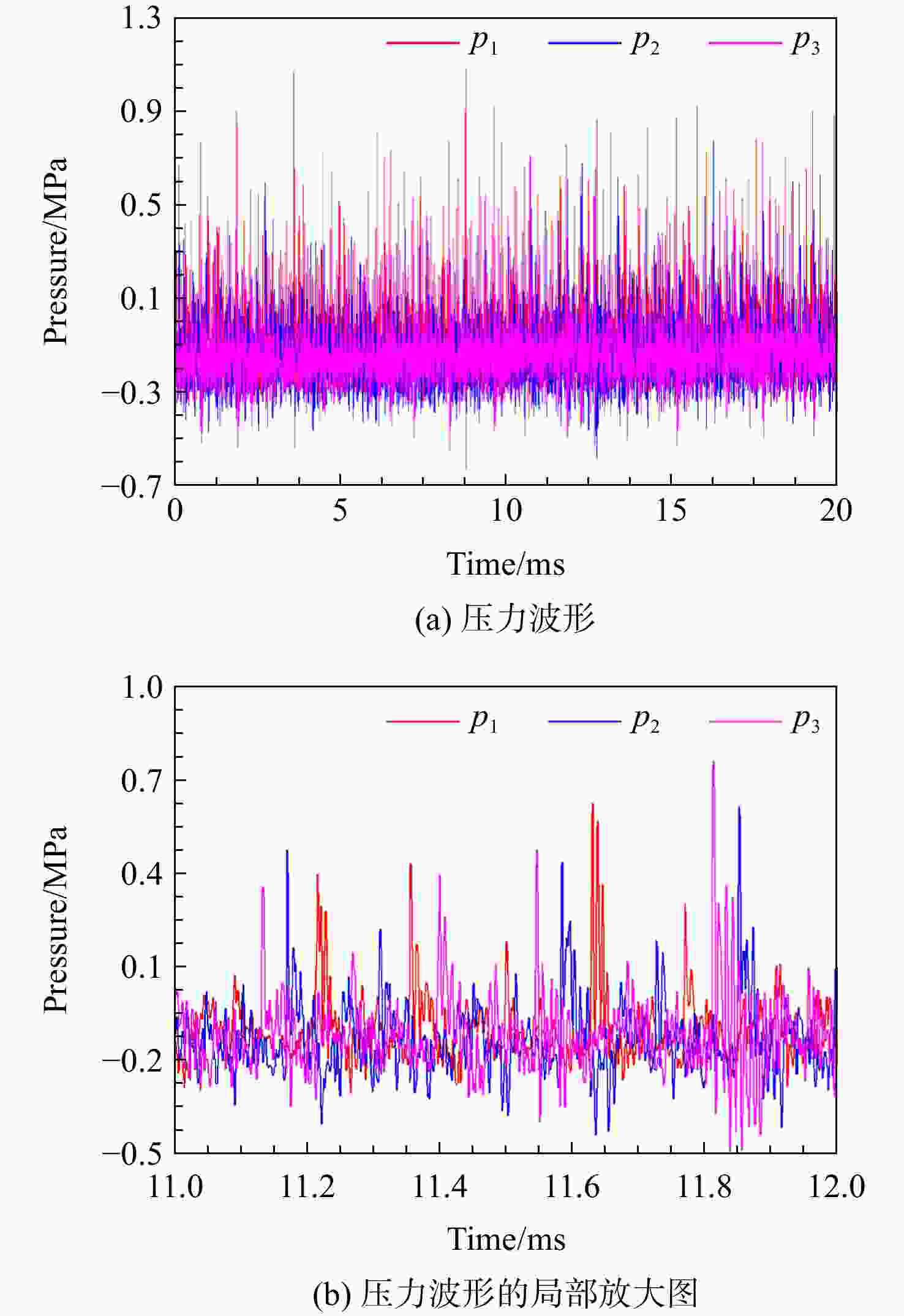

图 12 非周期性振荡模态的压力波形
Figure 12. Pressure profiles measured at the aperiodic oscillation mode

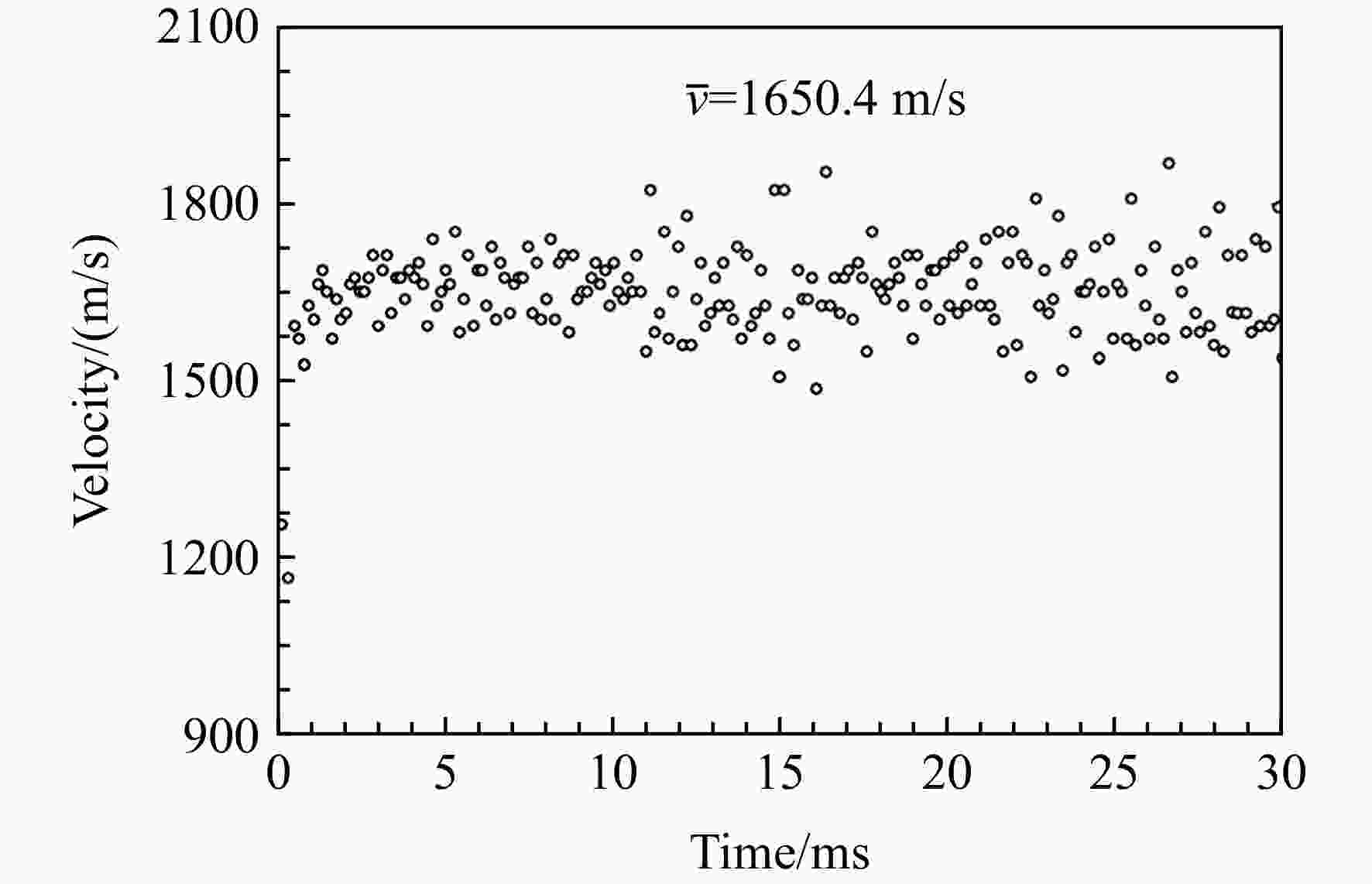

图 13 非周期性振荡模态的传播速度分布
Figure 13. Propagation velocities distribution of the aperiodic oscillation mode

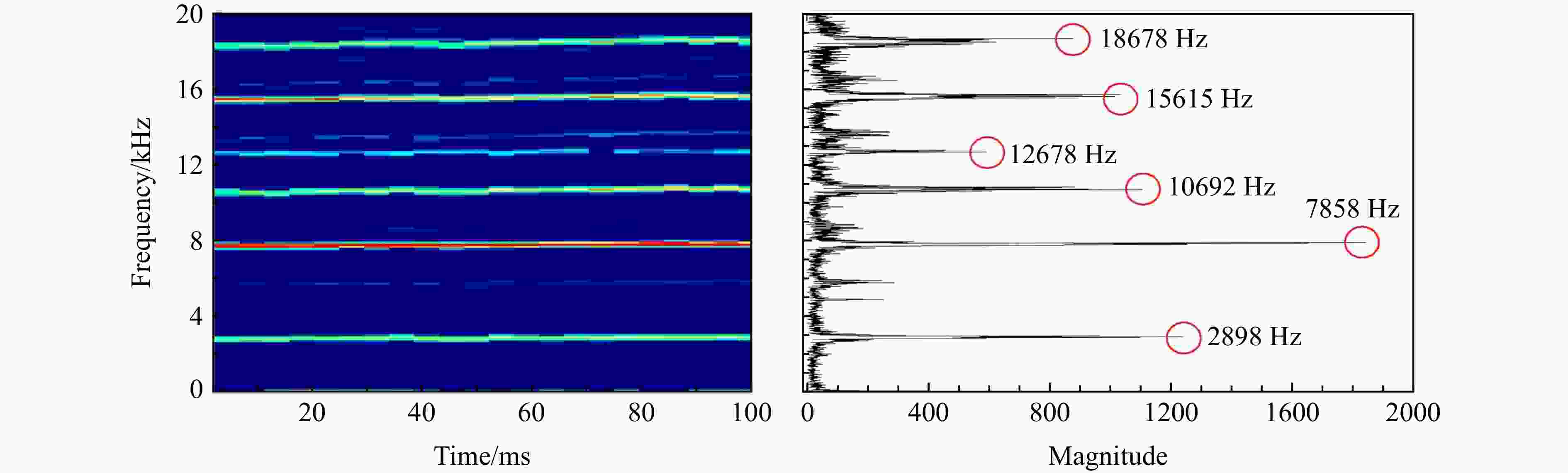

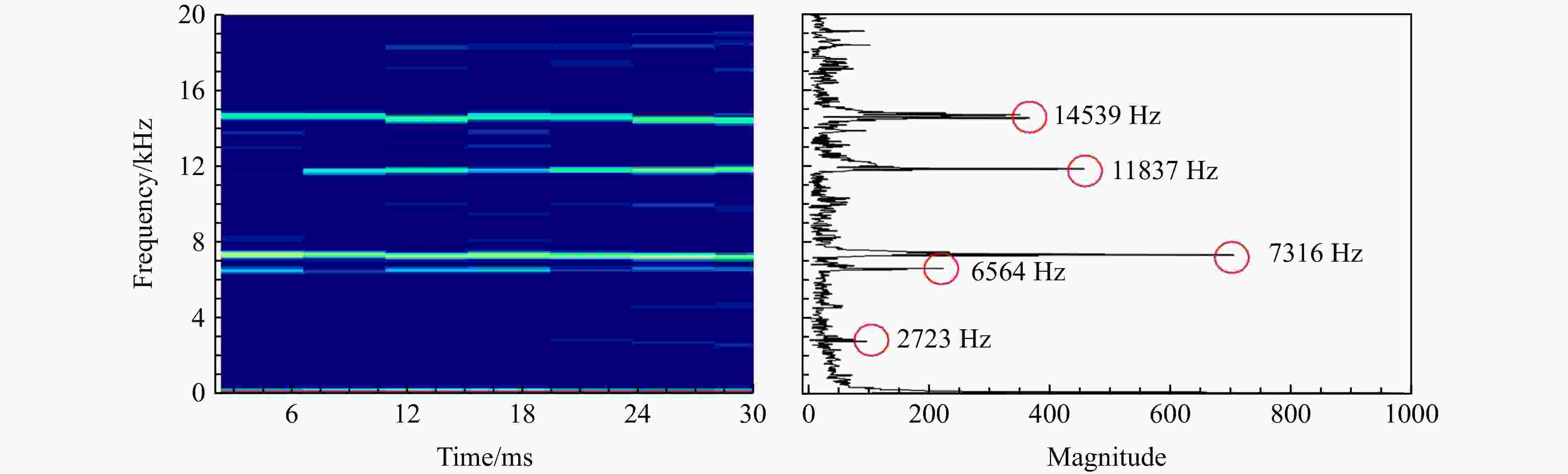

图 14 非周期性振荡模态的STFT和FFT结果
Figure 14. STFT and FFT results of the aperiodic oscillation mode

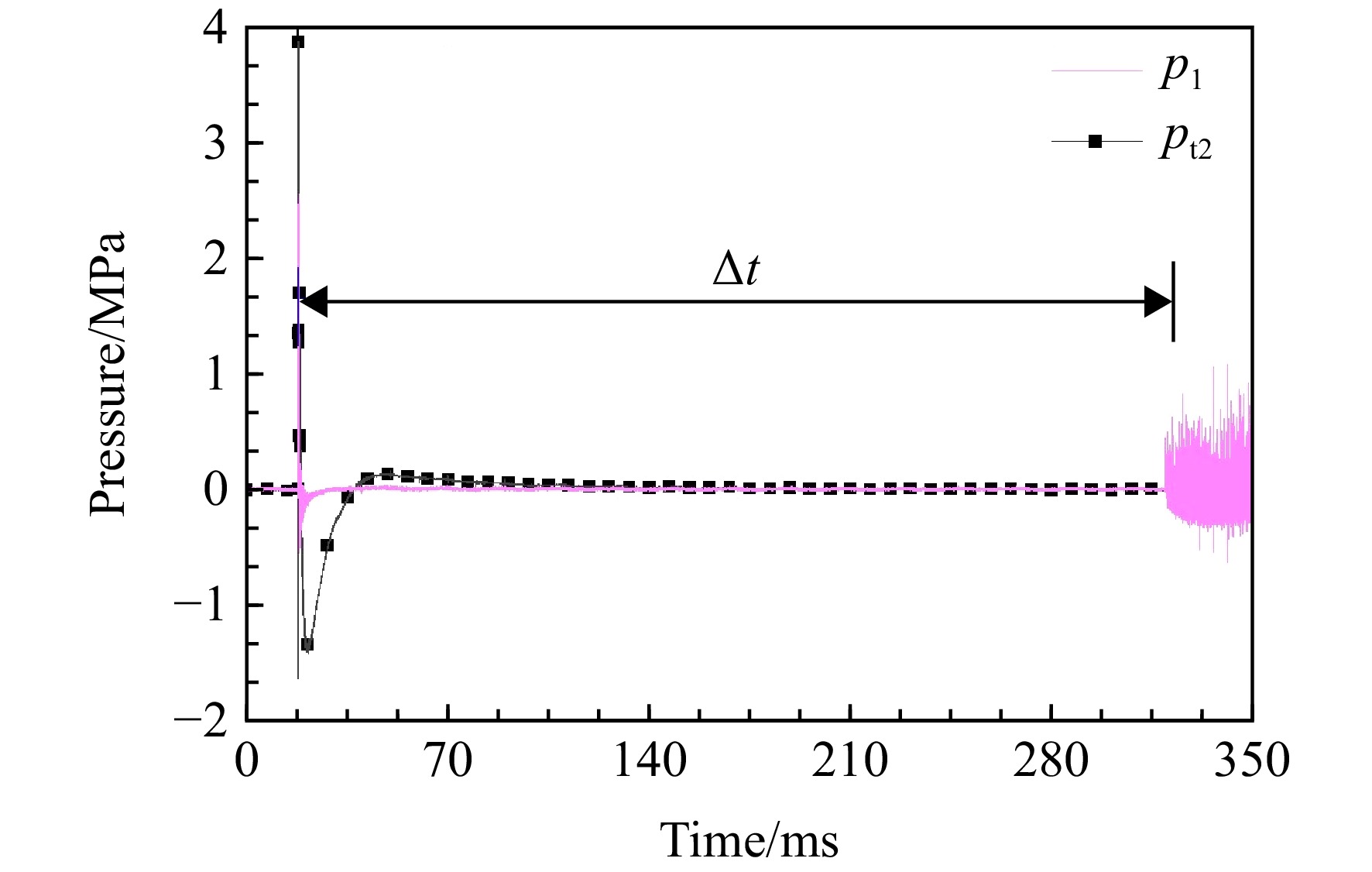

图 15 非周期性振荡模态的起始过程压力波形
Figure 15. Pressure profiles of the initiation process measured at the aperiodic oscillation mode
-
[1] 刘世杰. 连续旋转爆震波结构、传播模态及自持机理研究[D]. 长沙: 国防科技大学, 2012.LIU Shijie. Investigations on the structure, rotating mode and lasting mechanism of continuous rotating detonation wave[D]. Changsha: National University of Defense Technology, 2012. (in Chinese) [2] 王健平, 姚松柏. 连续爆轰发动机原理与技术[M]. 北京: 科学出版社, 2018. [3] ANDRUS I Q,POLANKA M D,KING P I,et al. Experimentation of premixed rotating detonation engine using variable slot feed plenum[J]. Journal of Propulsion and Power,2017,33(6): 1448-1458. doi: 10.2514/1.B36261 [4] ZHONG Yepan,WU Yun,JIN Di,et al. Effect of channel and oxidizer injection slot width on the rotating detonation fueled by pre-combustion cracked kerosene[J]. Acta Astronautica,2019,165: 365-372. doi: 10.1016/j.actaastro.2019.09.034 [5] ZHOU Shengbing,MA Hu,LI Shuai,et al. Experimental study of a hydrogen-air rotating detonation engine with variable air-inlet slot[J]. International Journal of Hydrogen Energy,2018,43(24): 11253-11262. doi: 10.1016/j.ijhydene.2018.05.033 [6] FOTIA M, HOKE J, SCHAUER F. Experimental ignition characteristics of a rotating detonation engine under backpressured conditions[R]. AIAA 2015-0632, 2015. [7] MA Zhuang,ZHANG Shujie,LUAN Mingyi,et al. Experimental research on ignition, quenching, reinitiation and the stabilization process in rotating detonation engine[J]. International Journal of Hydrogen Energy,2018,43(39): 18521-18529. doi: 10.1016/j.ijhydene.2018.08.064 [8] PENG Lei,WANG Dong,WU Xiaosong,et al. Ignition experiment with automotive spark on rotating detonation engine[J]. International Journal of Hydrogen Energy,2015,40(26): 8465-8474. doi: 10.1016/j.ijhydene.2015.04.126 [9] LIN Wei,ZHOU Jin,LIU Shijie,et al. An experimental study on CH4/O2 continuously rotating detonation wave in a hollow combustion chamber[J]. Experimental Thermal and Fluid Science,2015,62: 122-130. doi: 10.1016/j.expthermflusci.2014.11.017 [10] TANG Xinmeng,WANG Jianping,SHAO Yetao. Three-dimensional numerical investigations of the rotating detonation engine with a hollow combustor[J]. Combustion and Flame,2015,162(4): 997-1008. doi: 10.1016/j.combustflame.2014.09.023 [11] 李宝星,许桂阳,舒慧明,等. 燃烧室轴向和周向长度对气液两相旋转爆轰特性的影响[J]. 航空动力学报,2020,35(8): 1601-1611. doi: 10.13224/j.cnki.jasp.2020.08.005LI Baoxing,XU Guiyang,SHU Huiming,et al. Influence of axial and circumferential lengths of combustion chamber on gas-liquid two-phase rotating detonation characteristics[J]. Journal of Aerospace Power,2020,35(8): 1601-1611. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.08.005 [12] PENG Haoyang,LIU Weidong,LIU Shijie,et al. The effect of cavity on ethylene-air continuous rotating detonation in the annular combustor[J]. International Journal of Hydrogen Energy,2019,44(26): 14032-14043. doi: 10.1016/j.ijhydene.2019.04.017 [13] SCHWER D A, BROPHY C M, KELSO R H. Pressure characteristics of an aerospike nozzle in a rotating detonation engine[R]. AIAA 2018-4968, 2018. [14] SHAO Yetao,LIU Meng,WANG Jianping. Continuous detonation engine and effects of different types of nozzle on its propulsion performance[J]. Chinese Journal of Aeronautics,2010,23(6): 647-652. doi: 10.1016/S1000-9361(09)60266-1 [15] ZHU Yiyuan,WANG Ke,WANG Zhicheng,et al. Study on the performance of a rotating detonation chamber with different aerospike nozzles[J]. Aerospace Science and Technology,2020,107: 106338.1-106338.10. [16] WANG Yuhui,LE Jialing. Rotating detonation engines with two fuel orifice schemes[J]. Acta Astronautica,2019,161: 262-275. doi: 10.1016/j.actaastro.2019.05.035 [17] FROLOV S M,AKSENOV V S,IVANOV V S,et al. Large-scale hydrogen-air continuous detonation combustor[J]. International Journal of Hydrogen Energy,2015,40(3): 1616-1623. doi: 10.1016/j.ijhydene.2014.11.112 [18] BLUEMNER R, BOHON M D, NGUYEN H Q, et al. Influence of reactant injection parameters on RDC mode of operation[R]. Reston, US: AIAA Scitech Forum, 2019. [19] RANKIN B A,CODONI J R,CHO K Y,et al. Investigation of the structure of detonation waves in a non-premixed hydrogen-air rotating detonation engine using mid-infrared imaging[J]. Proceedings of the Combustion Institute,2019,37(3): 3479-3486. doi: 10.1016/j.proci.2018.09.036 [20] RANKIN B A,RICHARDSON D R,CASWELL A W,et al. Chemiluminescence imaging of an optically accessible non-premixed rotating detonation engine[J]. Combustion and Flame,2017,176: 12-22. doi: 10.1016/j.combustflame.2016.09.020 [21] BYKOVSKII F A,MITROFANOV V V. Detonation combustion of a gas mixture in a cylindrical chamber[J]. Combustion Explosion and Shock Waves,1980,16(5): 570-578. [22] LIU Shijie,PENG Haoyang,LIU Weidong,et al. Effects of cavity depth on the ethylene-air continuous rotating detonation[J]. Acta Astronautica,2020,166: 1-10. doi: 10.1016/j.actaastro.2019.09.038 [23] PENG Haoyang,LIU Shijie,LIU Weidong,et al. Enhancement of ethylene-air continuous rotating detonation in the cavity-based annular combustor[J]. Aerospace Science and Technology,2021,115: 106842.1-106842.10. [24] ZHANG Hailong,LIU Weidong,LIU Shijie. Experimental investigations on H2/air rotating detonation wave in the hollow chamber with Laval nozzle[J]. International Journal of Hydrogen Energy,2017,42(5): 3363-3370. doi: 10.1016/j.ijhydene.2016.12.038 [25] 赵明皓,王可,王致程,等. 点火方式对空桶型旋转爆震燃烧室起爆特性的影响[J]. 航空学报,2022,43(1): 124870.1-124870.12.ZHAO Minghao,WANG Ke,WANG Zhicheng,et al. Effects of ignition on initiation characteristics of hollow rotating detonation combustor[J]. Acta Aeronautica et Astronautica Sinica,2022,43(1): 124870.1-124870.12. (in Chinese) -
