分级旋流燃烧室流动及碳烟排放特性研究

胡阁; 李建中; 张靖周; 金武

doi:10.13224/j.cnki.jasp.20210695

分级旋流燃烧室流动及碳烟排放特性研究

doi: 10.13224/j.cnki.jasp.20210695

南京航空航天大学能源与动力学院，南京 210016

基金项目: 国家科技重大专项（2017-Ⅲ-0002-0026，2019-Ⅲ-0014-0058）

详细信息

作者简介:
胡阁（1993-），男，博士生，主要从事航空发动机燃烧室性能研究

通讯作者:
李建中（1979-），男，教授、博士生导师，博士，主要从事航空发动机燃烧技术研究。E-mail：ljzh0629@nuaa.edu.cn

中图分类号: V231.2
计量
- 文章访问数: 37
- HTML浏览量: 9
- PDF量: 8
- 被引次数: 0
出版历程
- 收稿日期: 2021-12-06
- 网络出版日期: 2024-01-16

Flow field and soot emission characteristics of staged swirling combustor

College of Energy and Power Engineering，Nanjing University of Aeronautics and Astronautics，Nanjing 210016，China

摘要

摘要:
为了探究某分级旋流燃烧室流动及碳烟排放特性，结合试验和数值仿真方法对流动特性进行研究，揭示了主、副模分级旋流燃烧室的流动发展过程。通过大涡模拟（LES）非定常流动计算，结果表明：副模出口附近速度存在着1820 Hz的周期性振荡，而主模出口流动未见明显脉动，同时钝体下游存在进动涡核（PVC）结构；对分级旋流燃烧室碳烟排放的数值研究，结果表明：中心回流区附近是碳烟主要生成区域，在贫油燃烧时，随着油气比增大，碳烟浓度显著增大，碳烟质量浓度随沿程轴向距离增加均呈现先上升后减小趋势，且其峰值对应轴向位置逐渐后移，最终导致燃烧室出口冒烟排放的差异。
- 燃烧室 /
- 分级旋流 /
- 流场 /
- 非定常 /
- 碳烟
Abstract:
In order to investigate the flow field and soot emission characteristics of staged combustor, the flow field characteristics were studied by experimental and numerical simulation methods, and the flow development process was revealed. The results of large eddy simulation (LES) showed that there was a 1820 Hz periodic velocity oscillation at the outlet of the pilot stage, but without obvious flow pulsation at the outlet of the main mode, and there was a precession vortex core (PVC) downstream the swirler. Numerical studies of soot emission characteristics showed that soot was abundant in primary recirculation zone. The soot concentration increased significantly with the increase of ratio of fuel and air in the lean combustion state. Along axial direction, the mass concentration of soot all showed a trend of decrease after rising first, and the peak corresponding to the axial position gradually moved back, ultimately resulting in a difference in soot emission from the combustor exit.
- combustor /
- staged swirl /
- flow field /
- unsteady /
- soot

HTML

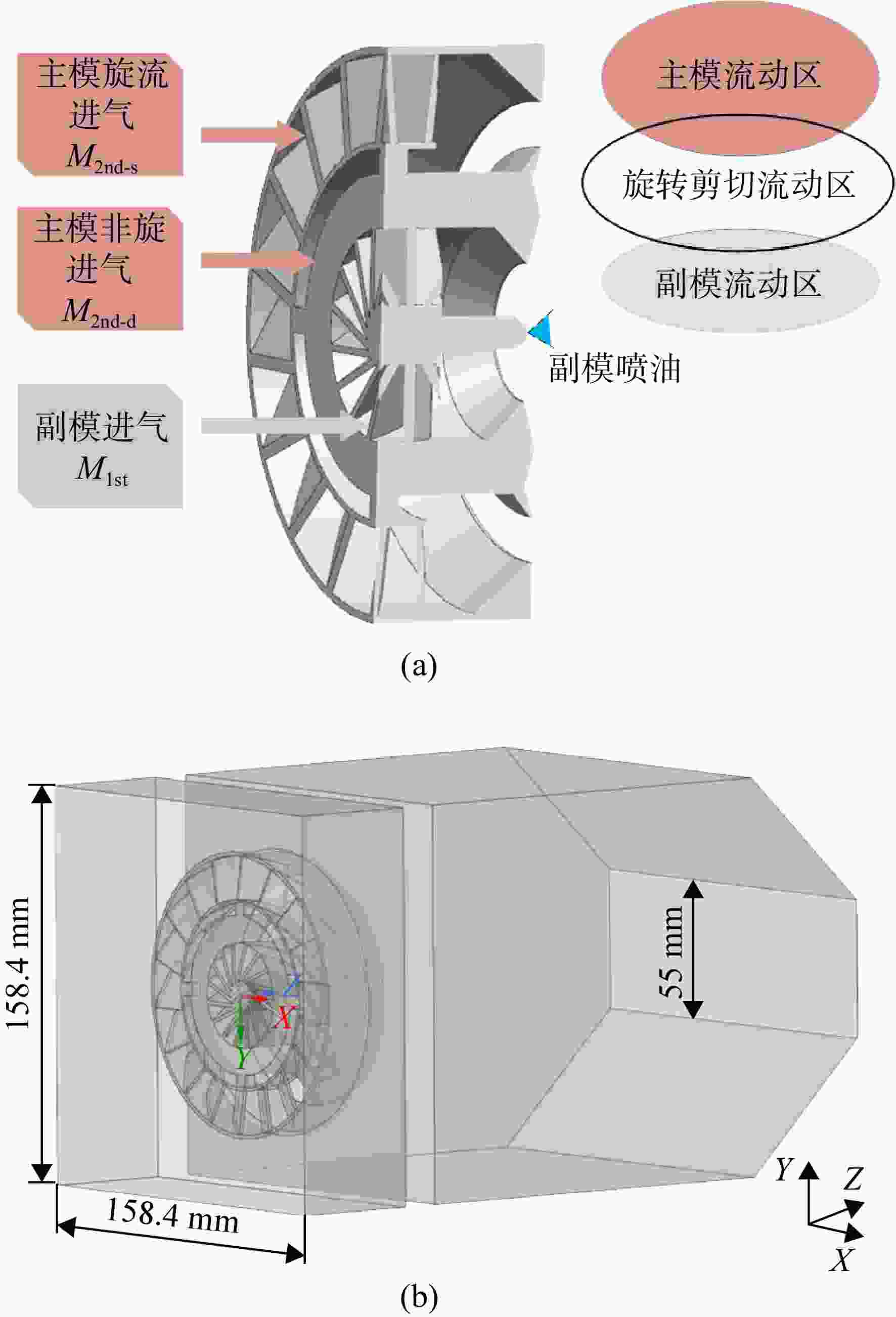

图 1 燃烧室结构示意图

Figure 1. Diagram of combustor structure

下载: 全尺寸图片幻灯片

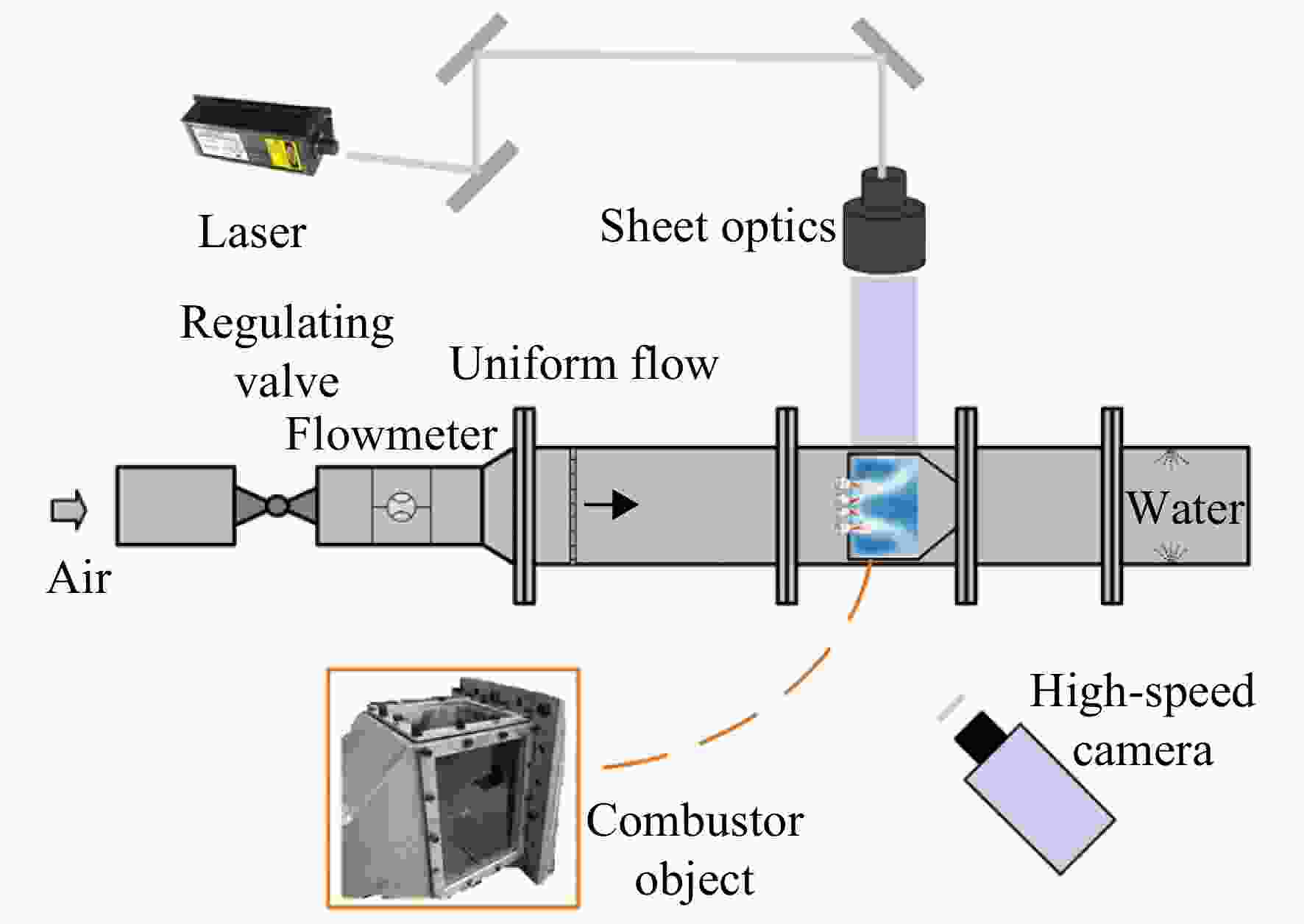

图 2 PIV流场试验系统图

Figure 2. Schematic of PIV experiment system

下载: 全尺寸图片幻灯片

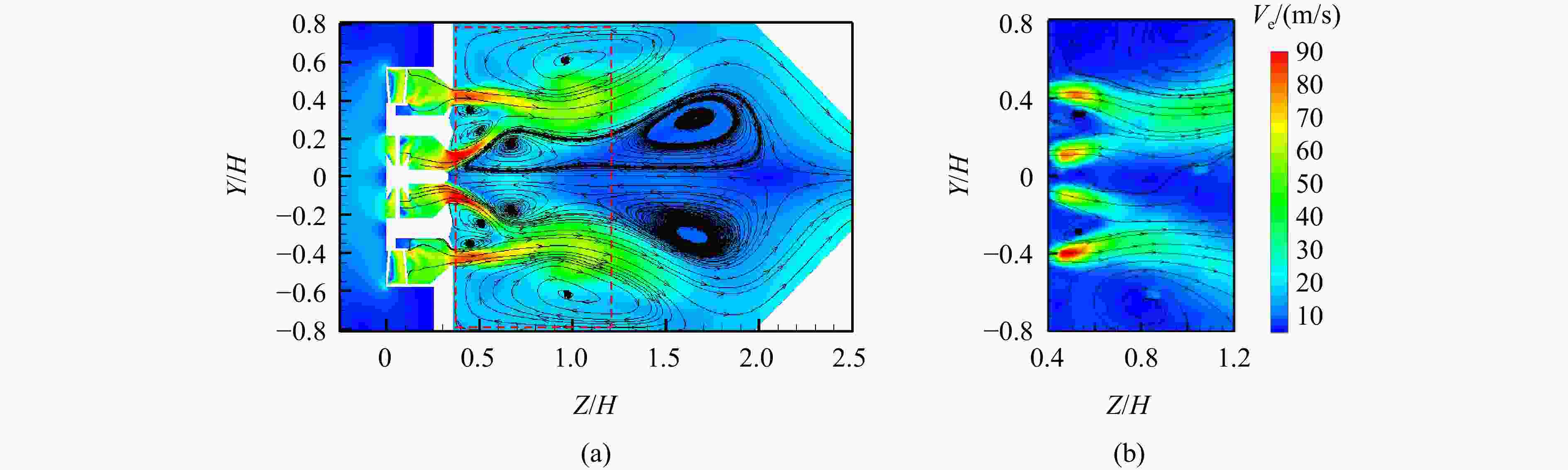

图 3 YOZ截面流场结构

Figure 3. Flow field on central section YOZ

下载: 全尺寸图片幻灯片

图 4 轴向速度频谱

Figure 4. Axial velocity spectrum

下载: 全尺寸图片幻灯片

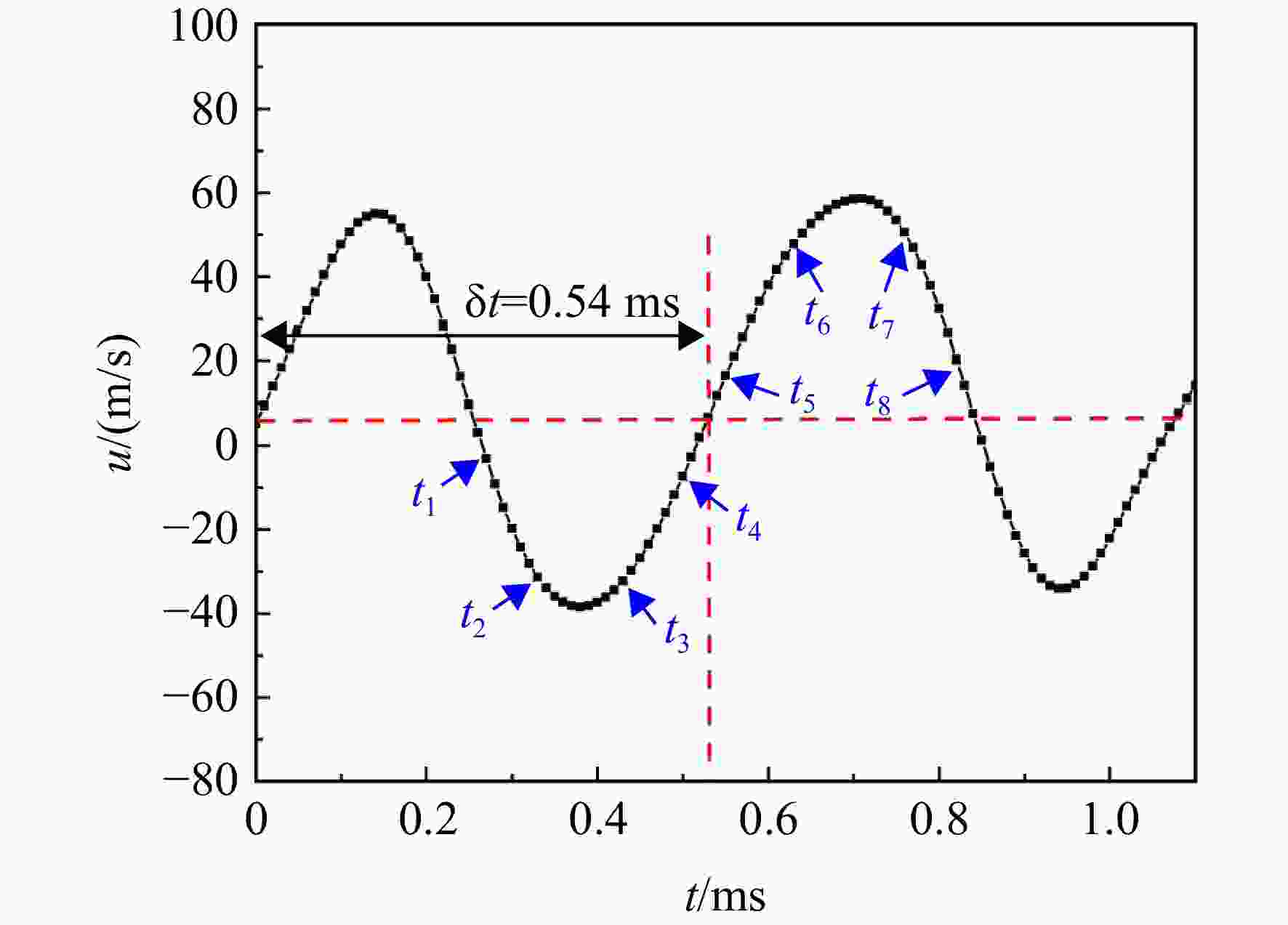

图 5 点P轴向速度时间演变分布

Figure 5. Axial velocity time evolution distribution of point P

下载: 全尺寸图片幻灯片

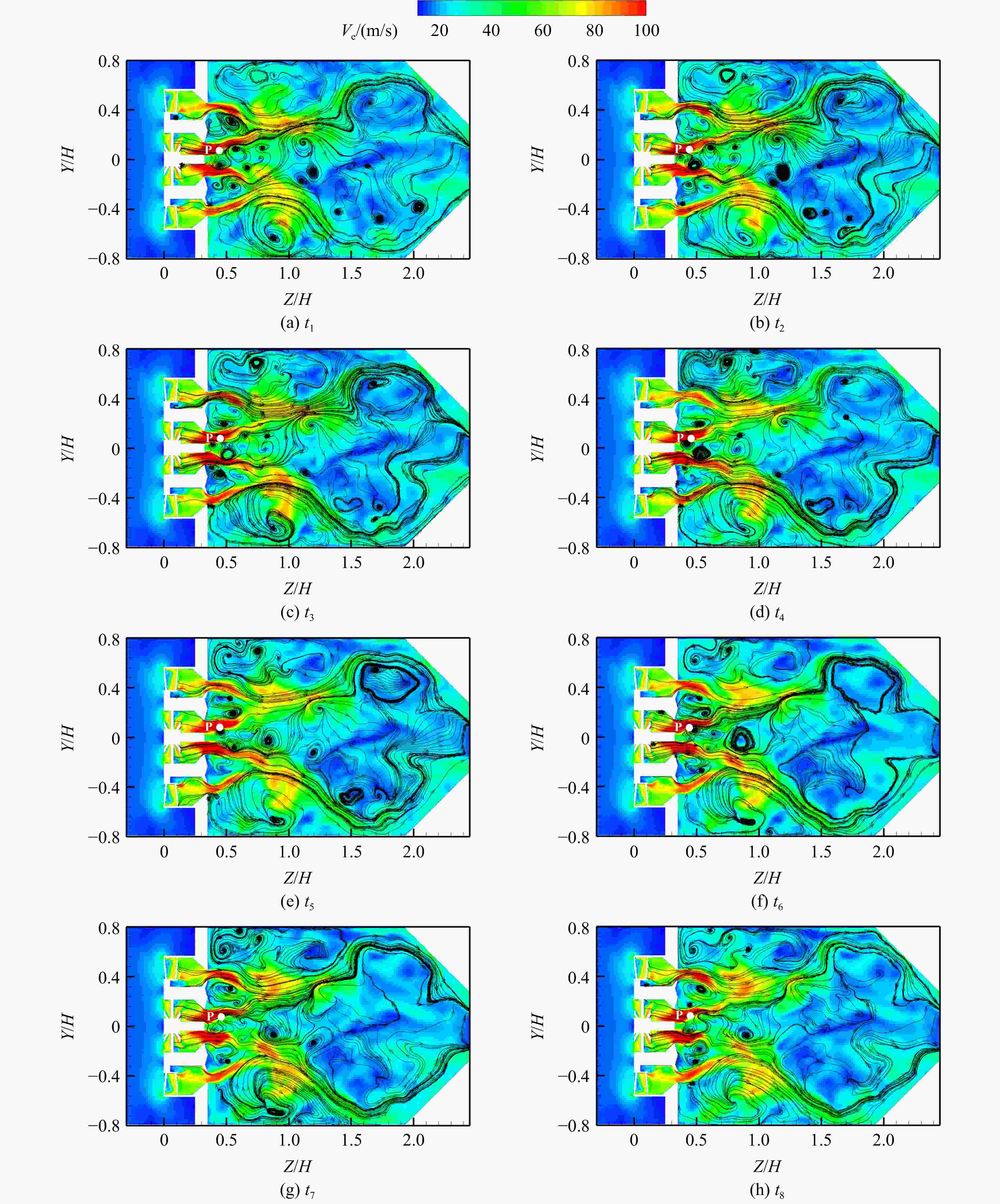

图 6 一个周期内不同时刻的流场分布

Figure 6. Flow field at different times in a period

下载: 全尺寸图片幻灯片

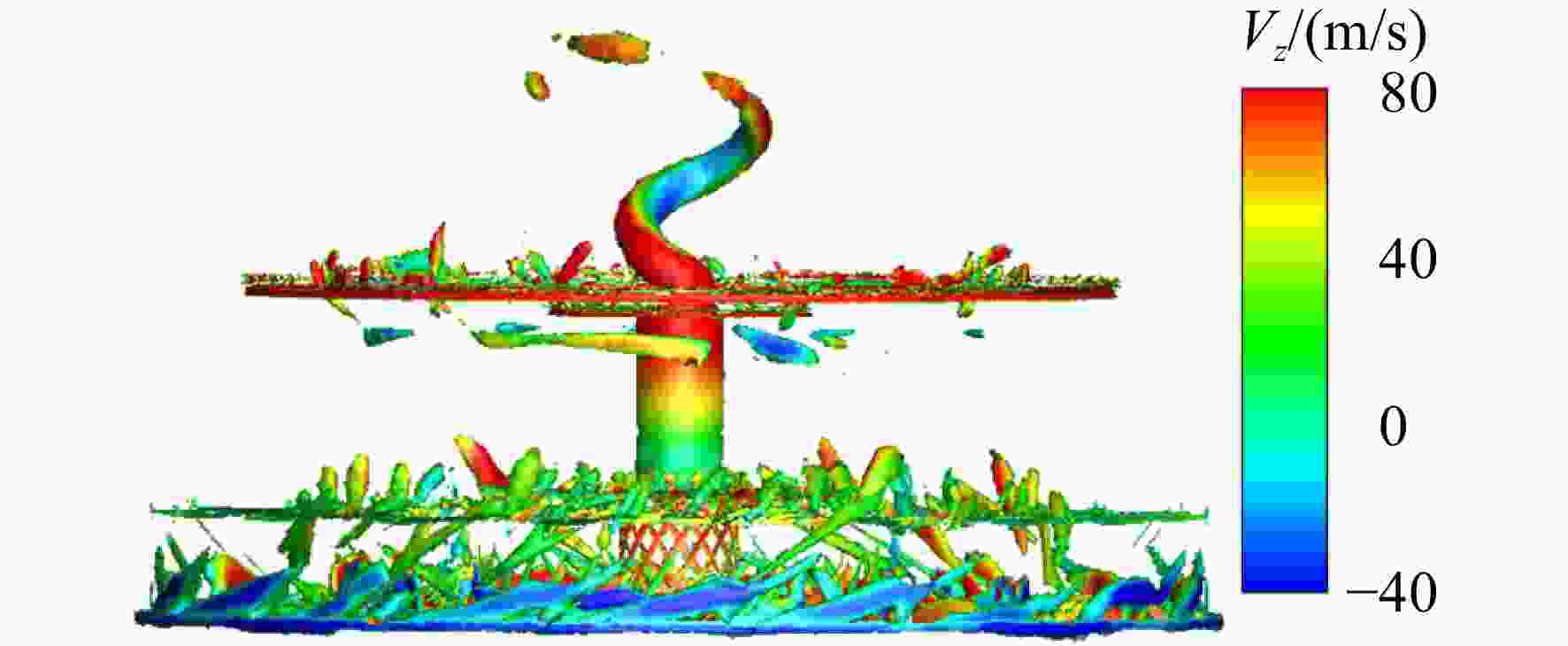

图 7 瞬时流场结构特征

Figure 7. Instantaneous flow field structure

下载: 全尺寸图片幻灯片

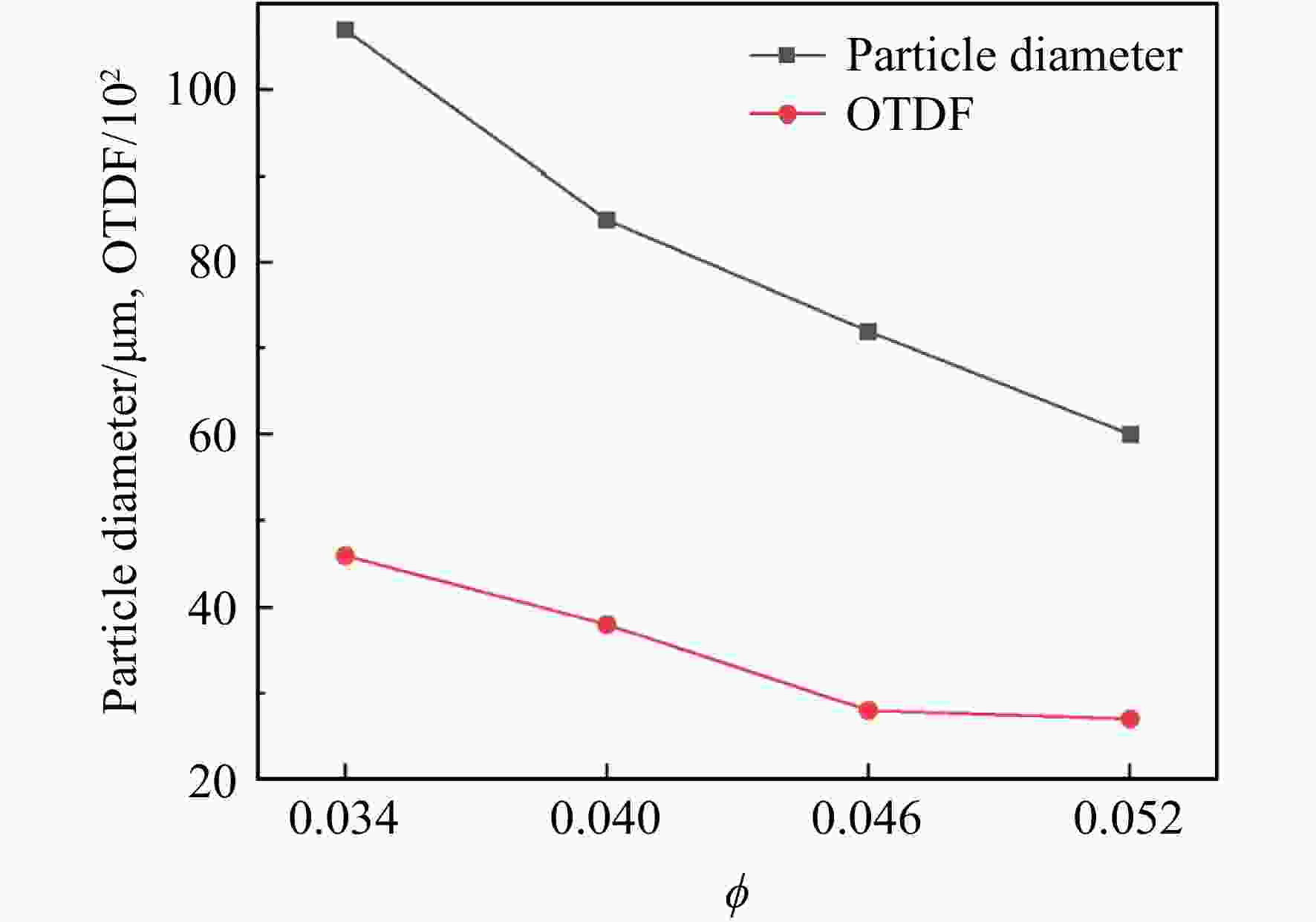

图 8 OTDF及燃油雾化特性

Figure 8. OTDF and fuel atomization characteristics

下载: 全尺寸图片幻灯片

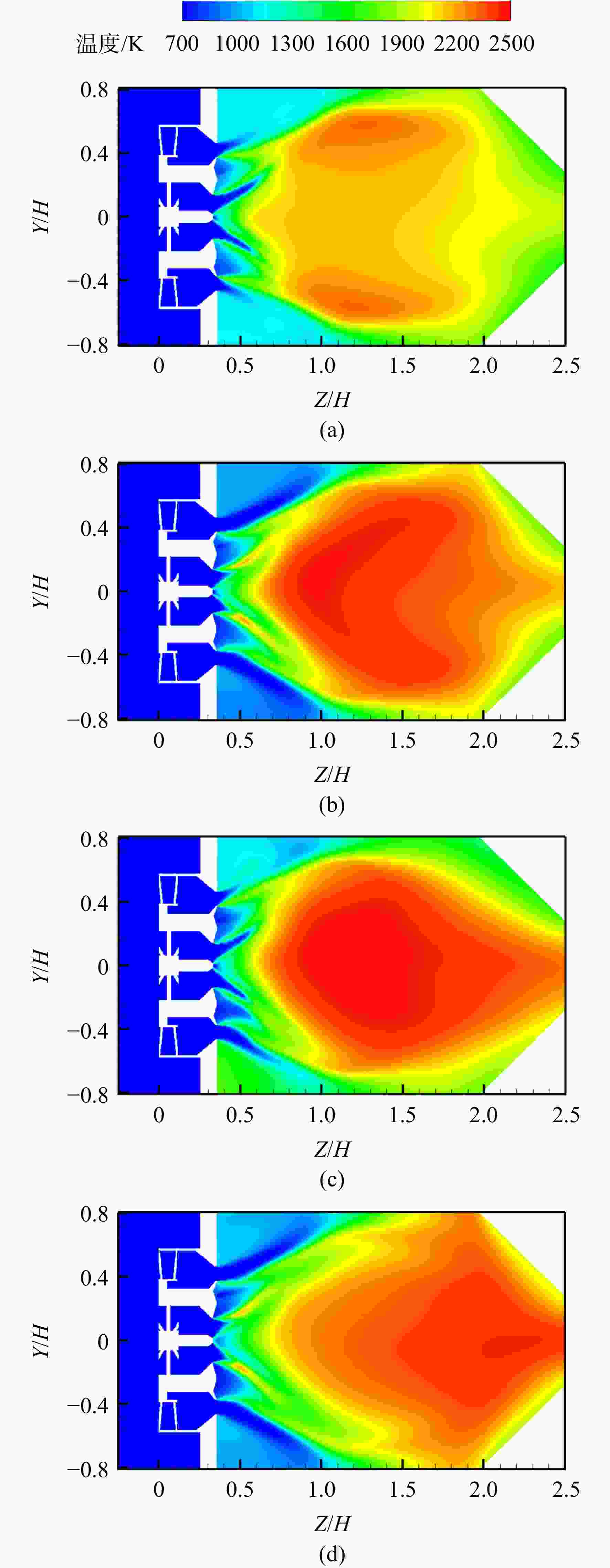

图 9 燃烧室YOZ截面温度分布云图

Figure 9. Temperature distribution on section YOZ

下载: 全尺寸图片幻灯片

图 10 不同ϕ时碳烟质量浓度沿轴向的分布

Figure 10. Distribution of soot mass concentration along axial direction under different ϕ

下载: 全尺寸图片幻灯片

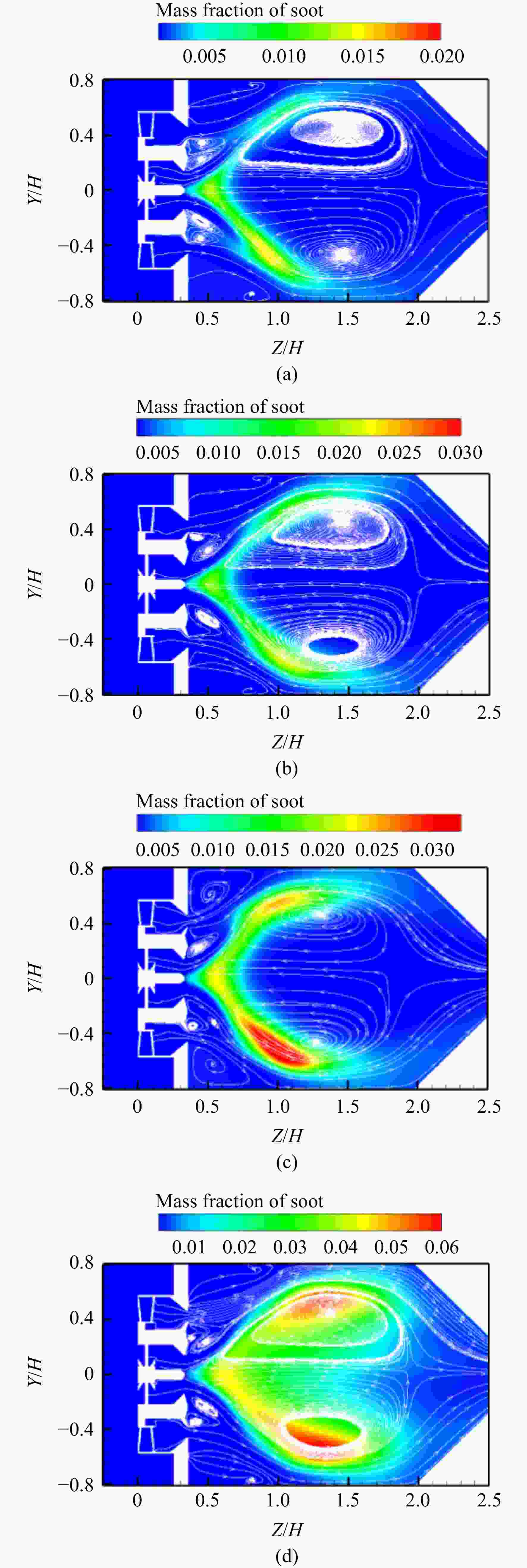

图 11 燃烧室YOZ截面Soot质量分数及流线图

Figure 11. Mass fraction and streamline diagram of Soot on combustion chamber section YOZ

下载: 全尺寸图片幻灯片

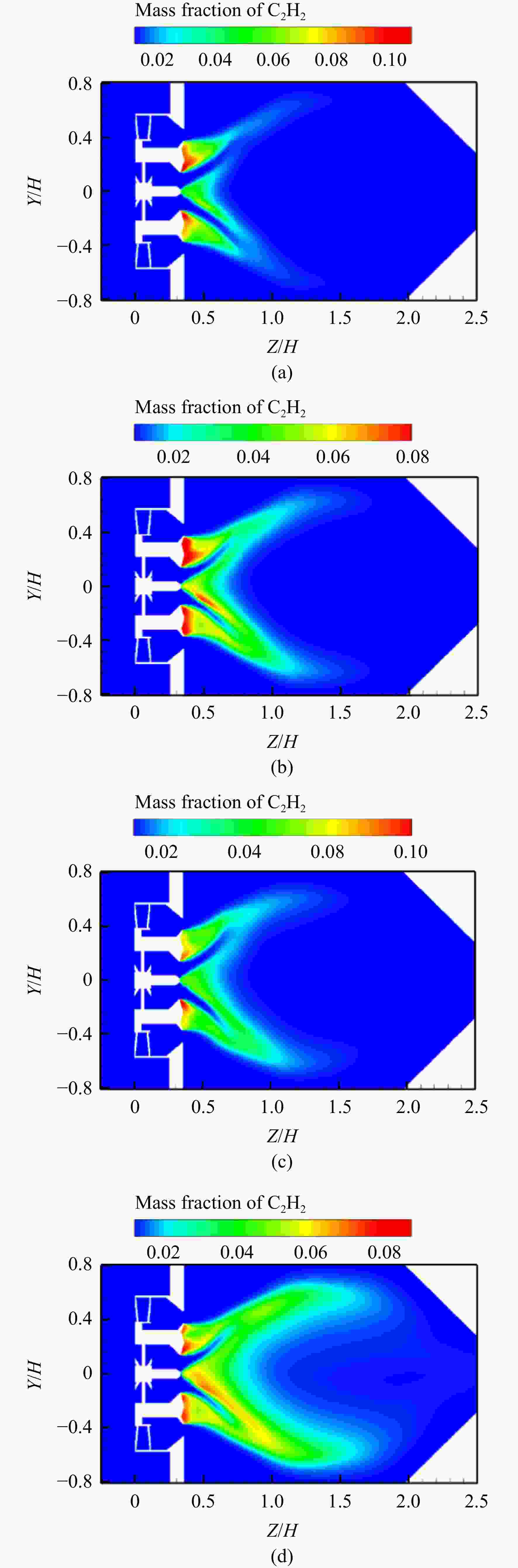

图 12 燃烧室YOZ截面C₂H₂质量分数分布

Figure 12. Mass fraction of C₂H₂ on combustion chamber section YOZ

下载: 全尺寸图片幻灯片

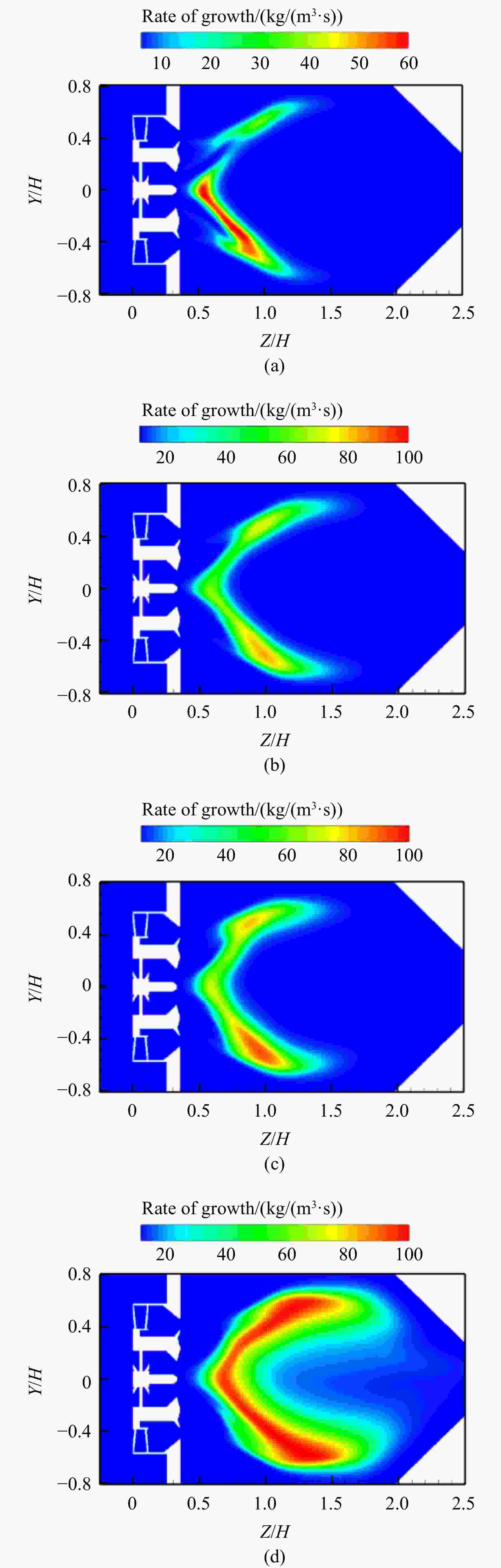

图 13 燃烧室YOZ截面碳烟表面增长速率

Figure 13. Soot growth rate on combustion chamber section YOZ

下载: 全尺寸图片幻灯片

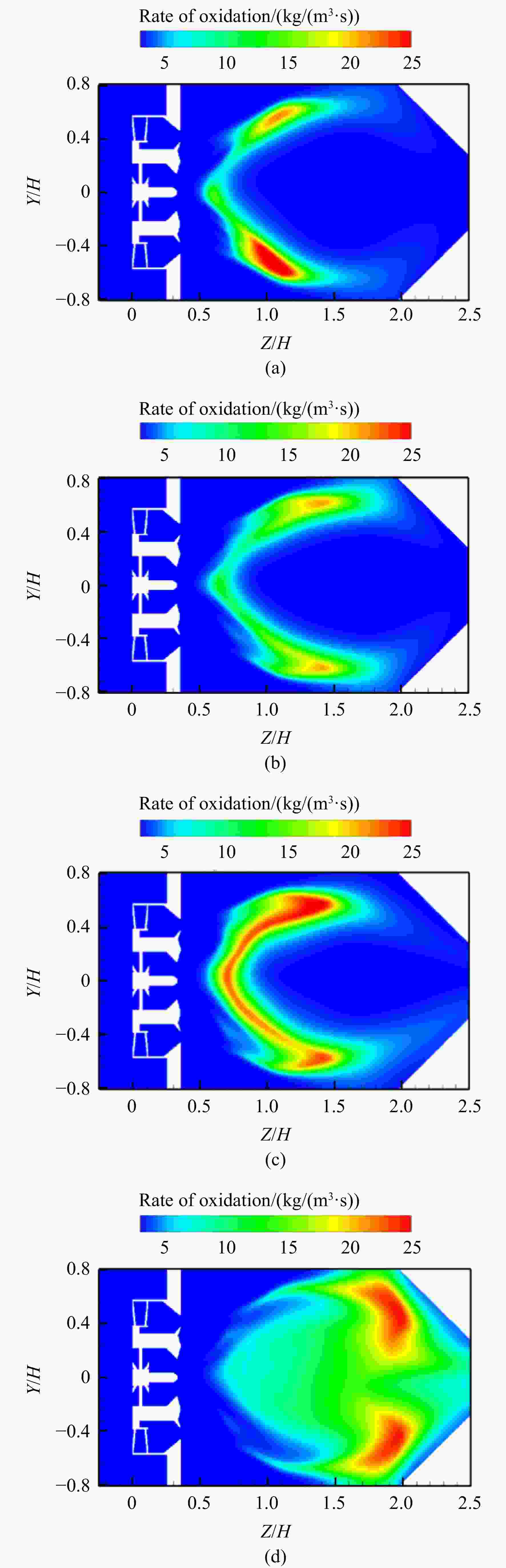

图 14 不同ϕ时燃烧室YOZ截面碳烟氧化速率
