受限空间内压电风扇气动阻力的预测方法

李娜; 刘洋; 高吉刚; 黄再兴; 李恒超

doi:10.13224/j.cnki.jasp.20210715

受限空间内压电风扇气动阻力的预测方法

doi: 10.13224/j.cnki.jasp.20210715

1.
南京工业大学能源科学与工程学院，南京 211800
2.
南京航空航天大学航空学院，南京 210016

基金项目: 机械结构力学及控制国家重点实验室开放课题（MCMS-E-0220G01）

详细信息

作者简介:
李娜（1980-），女，副教授，博士，主要从事能源领域流动与传热方向的研究工作。E-mail：linanjut@njtech.edu.cn

中图分类号: V211.3
计量
- 文章访问数: 170
- HTML浏览量: 76
- PDF量: 177
- 被引次数: 0
出版历程
- 收稿日期: 2021-12-17
- 网络出版日期: 2022-12-20

Prediction for aerodynamic drag of piezoelectric fan in confined space

1.
School of Energy Science and Engineering，Nanjing Tech University，Nanjing 211800，China
2.
College of Aerospace Engineering，Nanjing University of Aeronautics and astronautics，Nanjing 210016，China

摘要

摘要:
围绕受限空间压电风扇的气动阻力、振幅响应及其与非定常流场的内在关联机制和规律这一核心问题开展深入的理论分析和数值模拟研究，分别基于牛顿内摩擦定律和附加流体质量力作用机制，建立了四周空间受限的压电风扇振动薄片一阶弯曲响应瞬时气动阻力的理论模型，并进一步建立了其振幅响应的预测方法。经过验证，预测模型的预测结果与试验获得规律基本一致。当空间受限间隙小于5 mm时的振幅将随间隙的减小而急剧减小，当间隙大于20 mm时的空间受限效应基本可以忽略。
- 压电风扇 /
- 气动阻力 /
- 振动响应 /
- 流固耦合 /
- 非定常流场
Abstract:
The study focused on the correlation mechanisms and laws between the aerodynamic drag, resonance response, and the unsteady flow field of the piezoelectric fans in confined space by theoretical analysis and numerical simulation. Based on Newton’s law and added-mass mechanism of viscous fluid, the model and prediction method were established for transient aerodynamic drag and 1st order bending amplitude response of piezoelectric fan in the confined space around. The developed predictive models were validated, and the results showed that there was a good agreement with the experimental results. The amplitude response decreased sharply when the gap was smaller than 5 mm. The space-limited effects can be ignored when the gap was about 20 mm.
- piezoelectric fan /
- aerodynamic drag /
- vibration response /
- flow structure interaction /
- unsteady flow

HTML

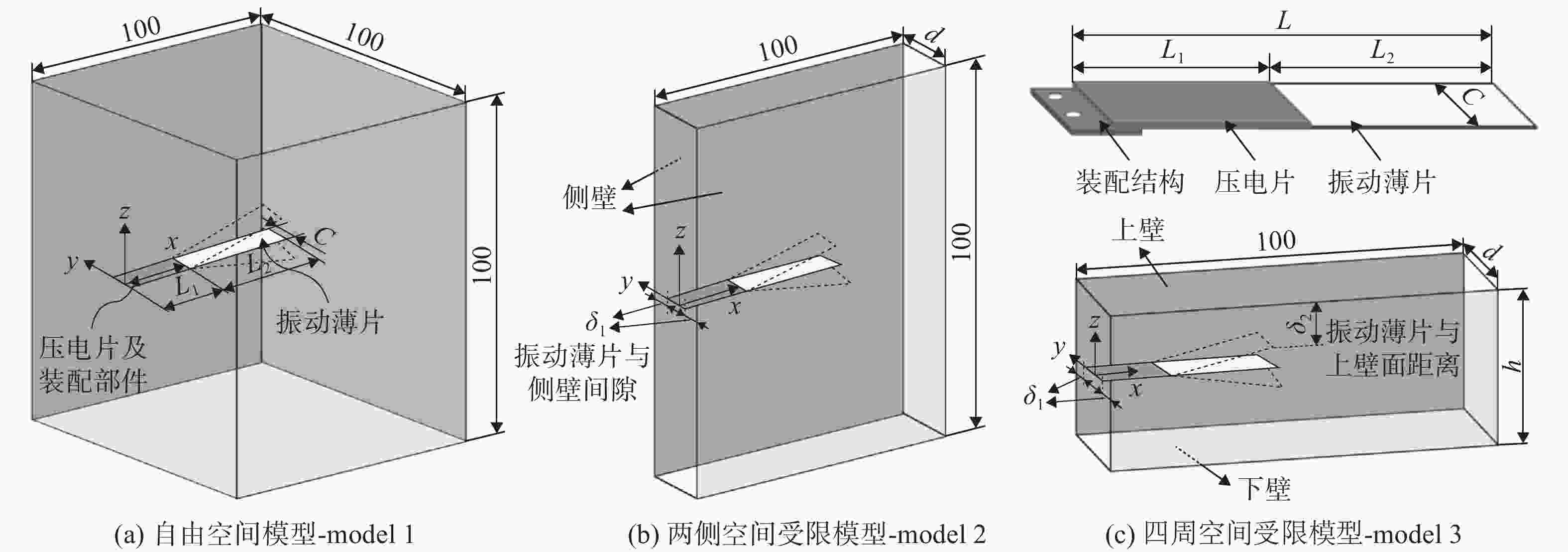

图 1 压电风扇几何模型示意图（单位：mm）

Figure 1. Schematic diagram of the piezoelectric fan geometric model （unit: mm）

下载: 全尺寸图片幻灯片

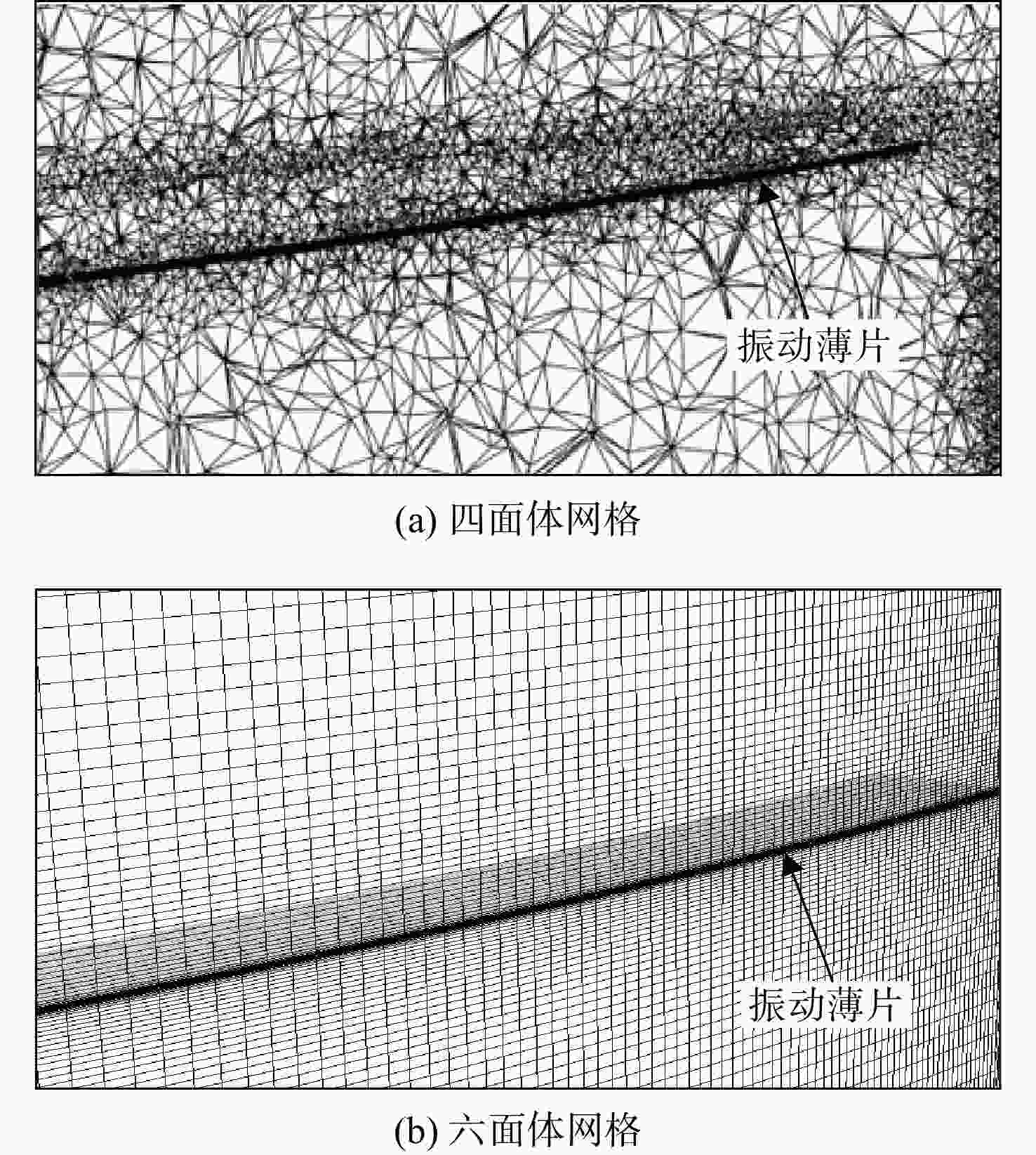

图 2 网格模型示意图（向上至最大位移处）

Figure 2. Meshed model （up-most stroke）

下载: 全尺寸图片幻灯片

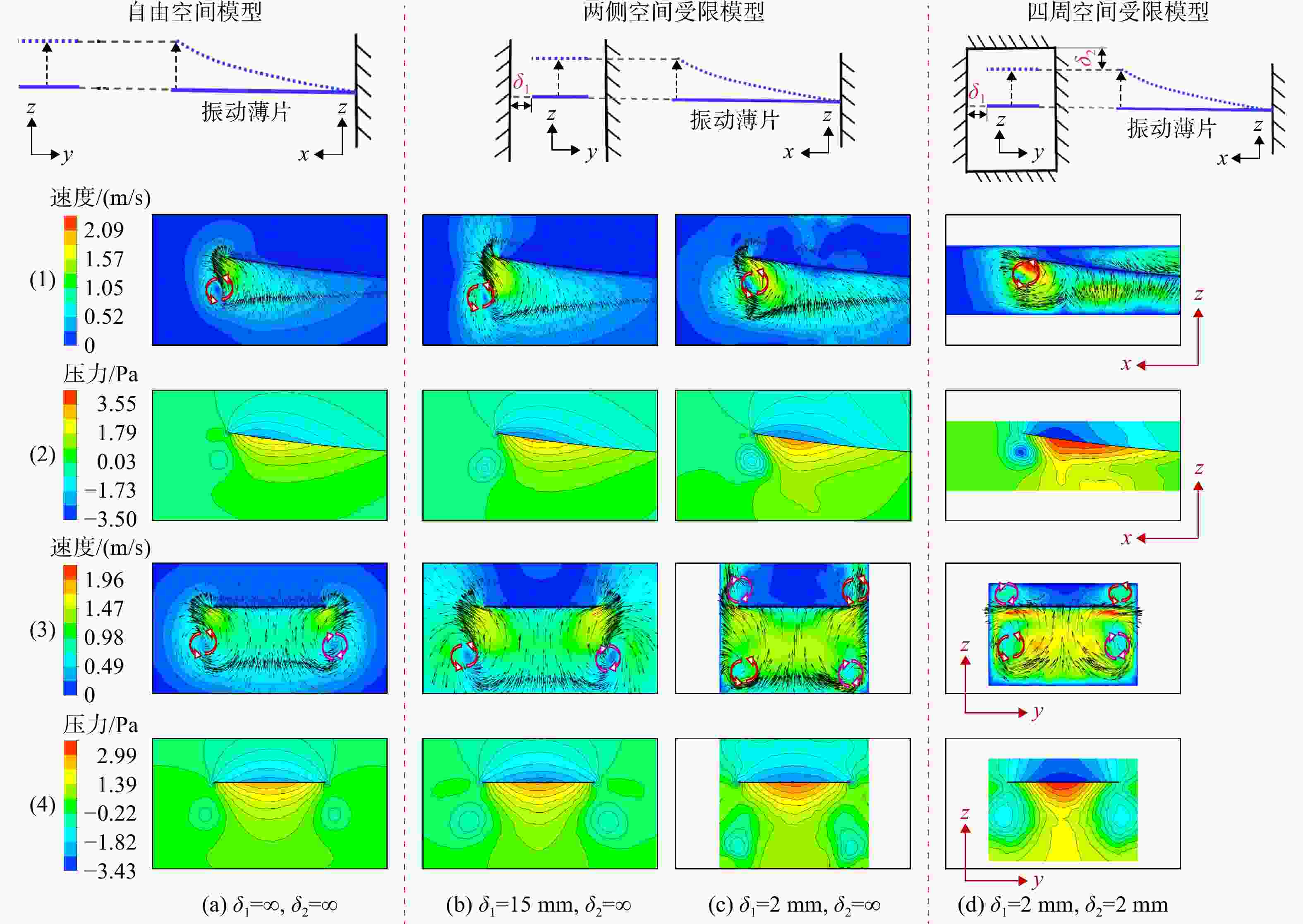

图 3 速度及压力分布图（自由空间及不同受限空间内压电风扇所激励的空气流场）

Figure 3. Velocity and pressure distribution （flow field induced by piezoelectric fan in free space and confined space）

下载: 全尺寸图片幻灯片

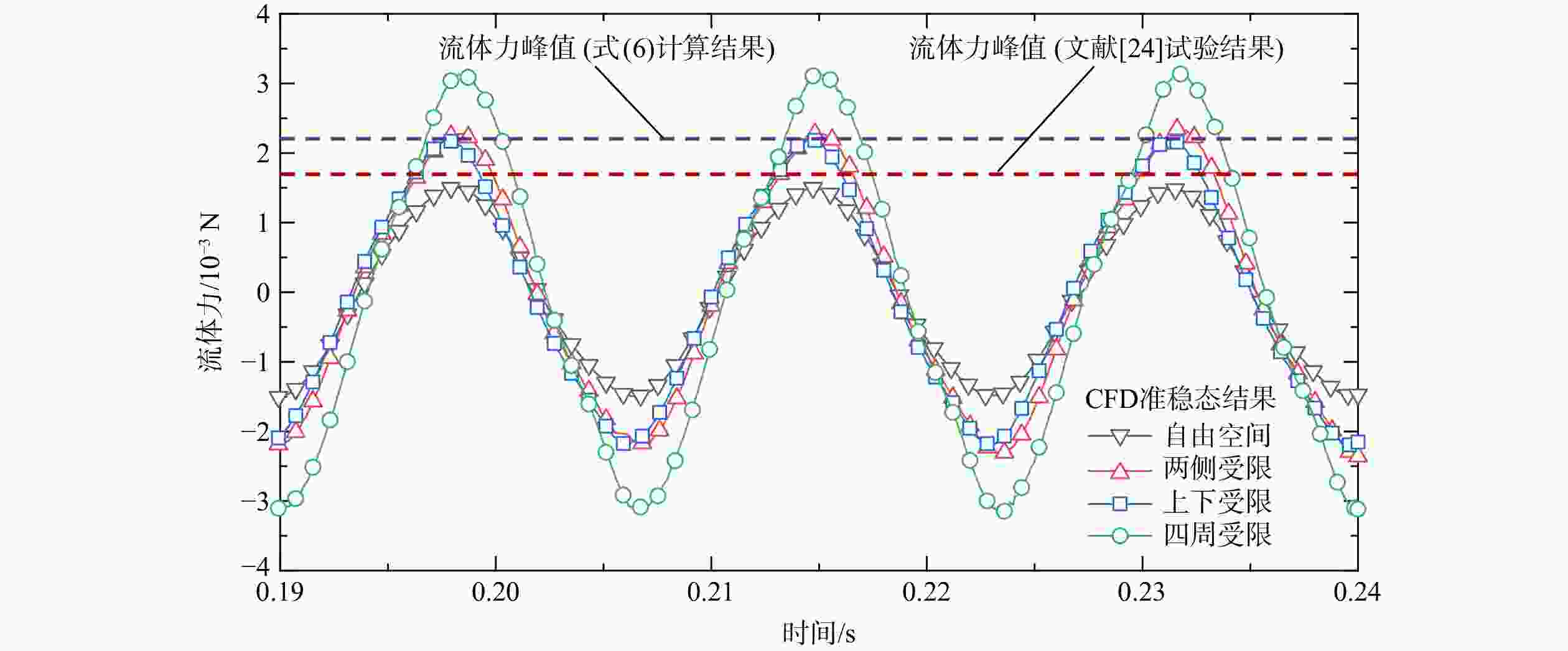

图 4 准稳态发展阶段自由空间与不同受限空间情况下振动薄片所受流体力的对比情况

Figure 4. Comparison of the fluid force on the cantilever in free space and confined spaces at the quasi-steady stage of development

下载: 全尺寸图片幻灯片

图 5 压电风扇模型坐标系统示意图

Figure 5. Coordinate description of piezoelectric fan

下载: 全尺寸图片幻灯片

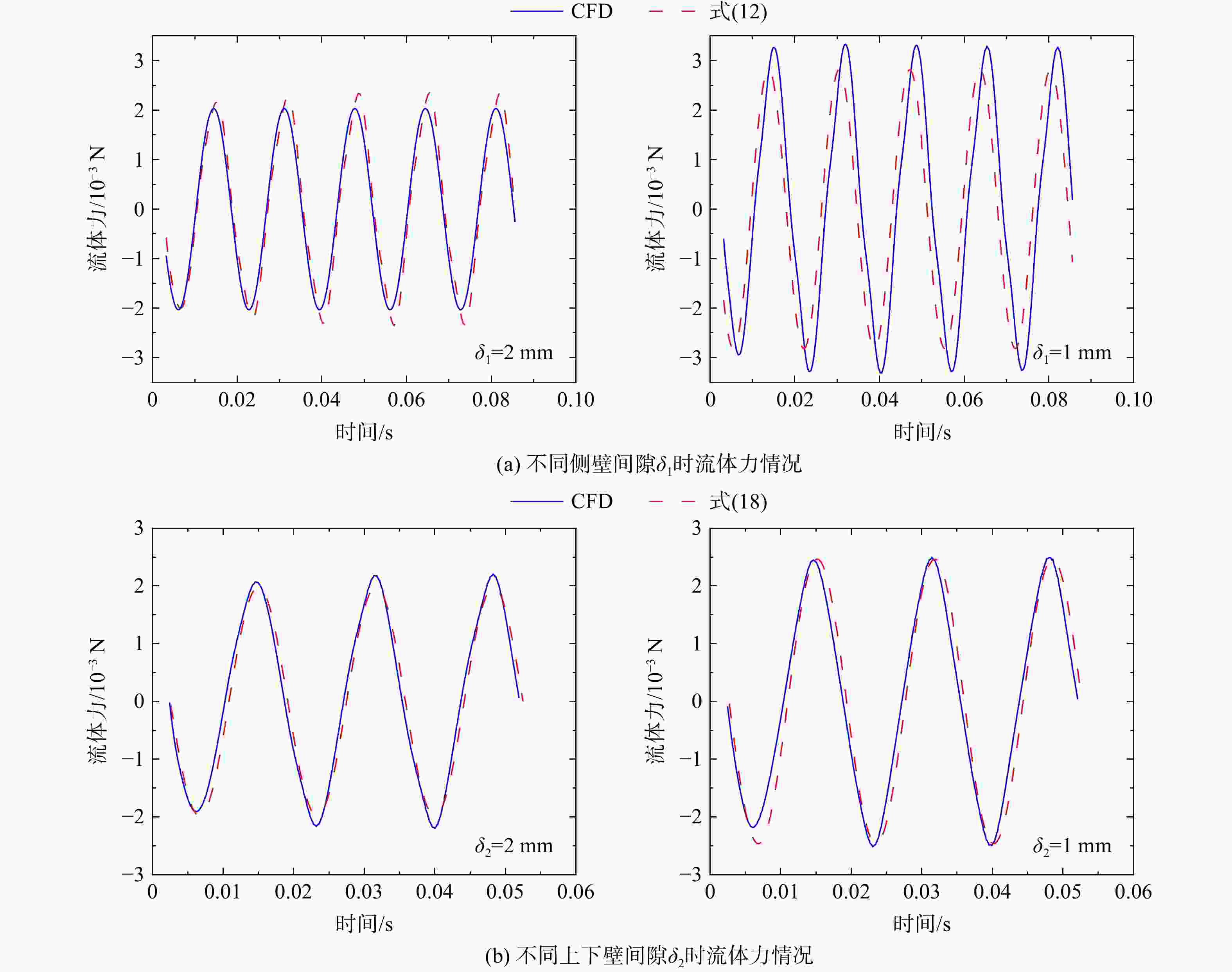

图 6 不同受限形式下流体力的预测与CFD结果对比

Figure 6. Comparison between prediction results and CFD results of fluid force in different confined spaces

下载: 全尺寸图片幻灯片

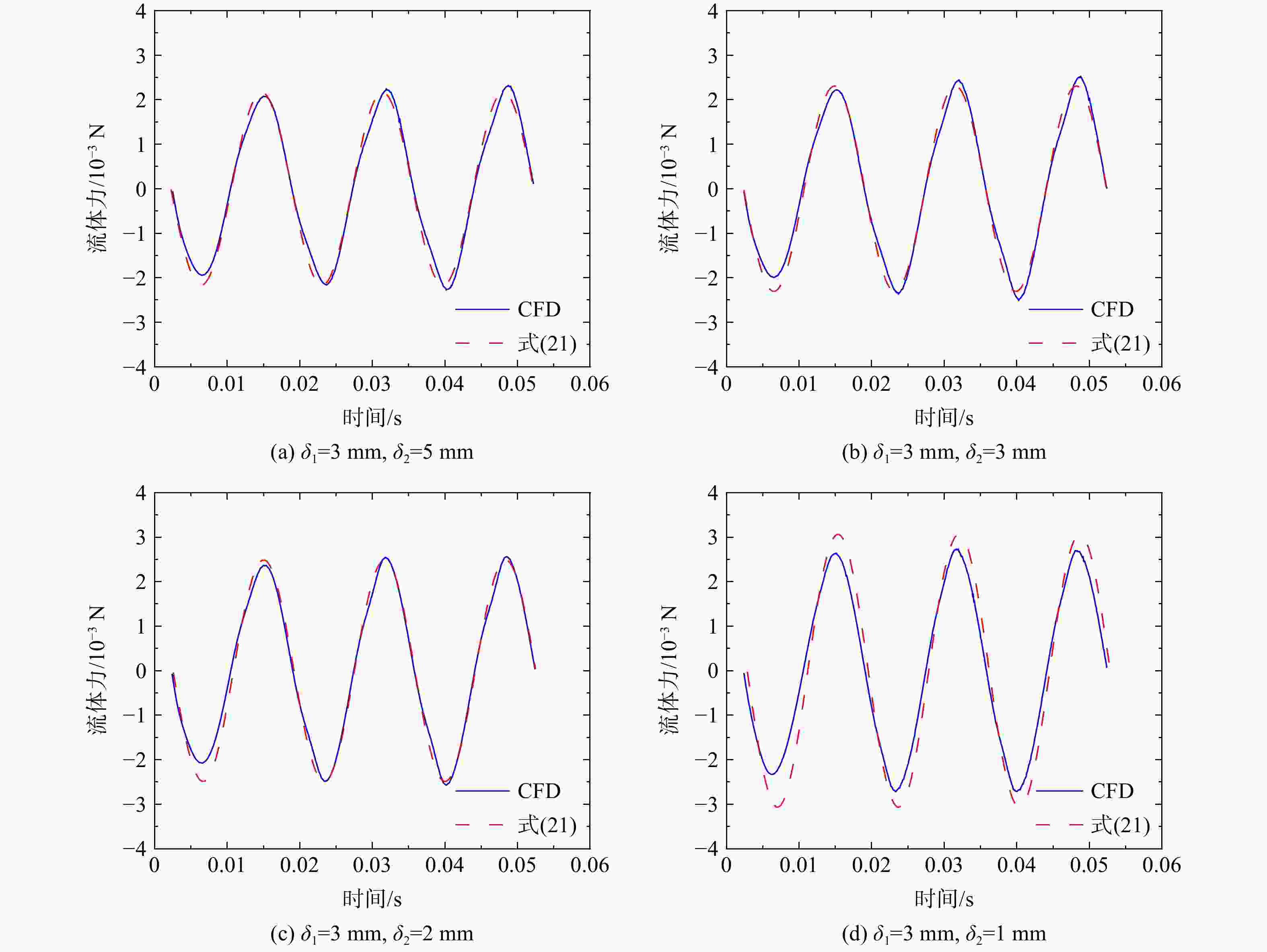

图 7 不同壁面间隙时流体力情况

Figure 7. Fluid force with each gap sizes

下载: 全尺寸图片幻灯片

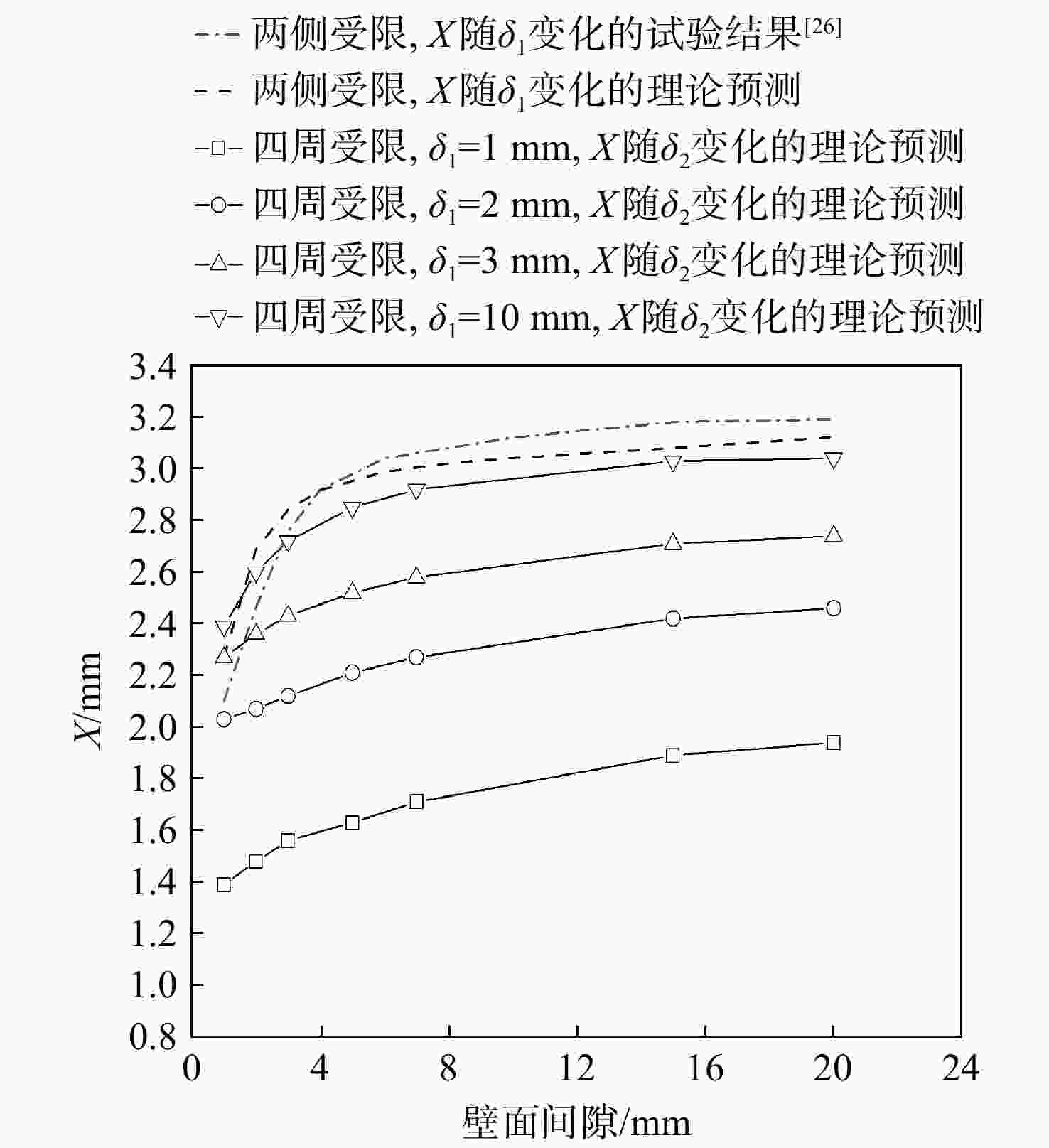

图 8 振幅随受限空间壁面间隙的变化规律

Figure 8. Amplitude relation with the gap size

下载: 全尺寸图片幻灯片
