Fretting wear characteristics of fixed joint surface under thermal and mechanical coupling
-
摘要:

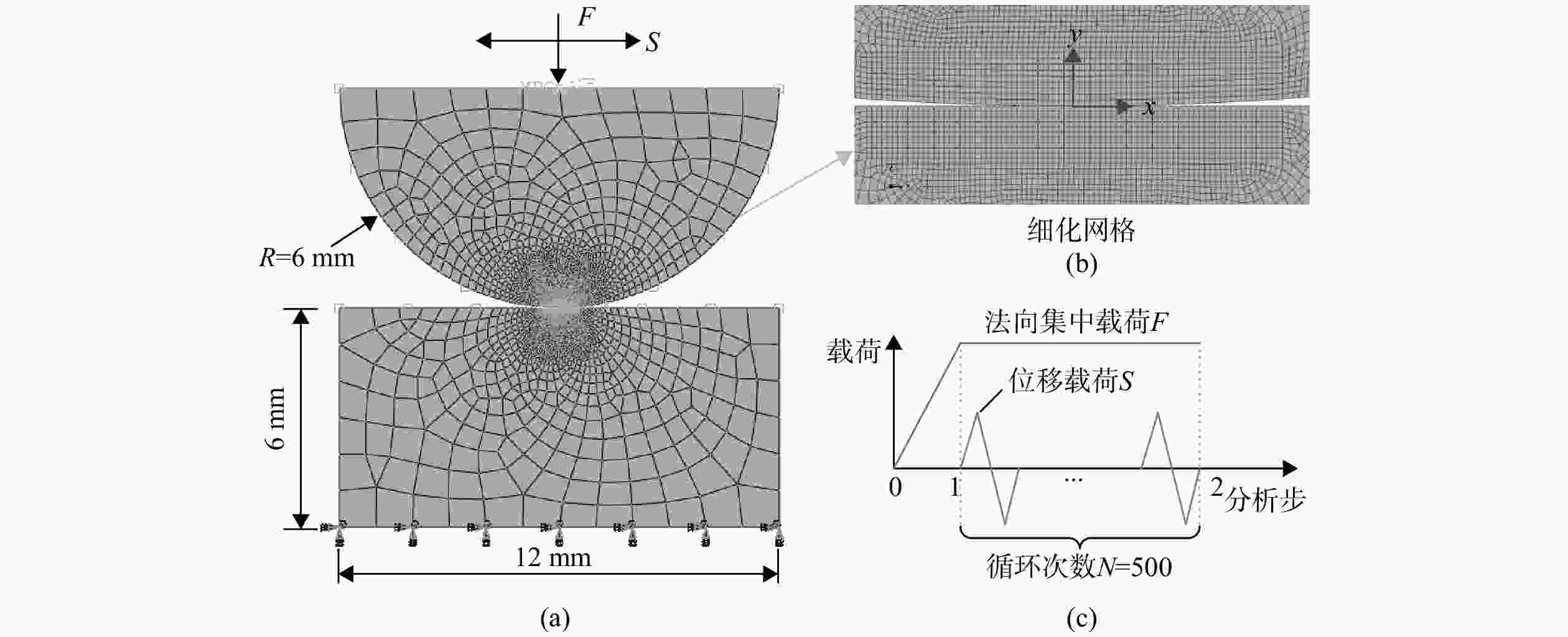

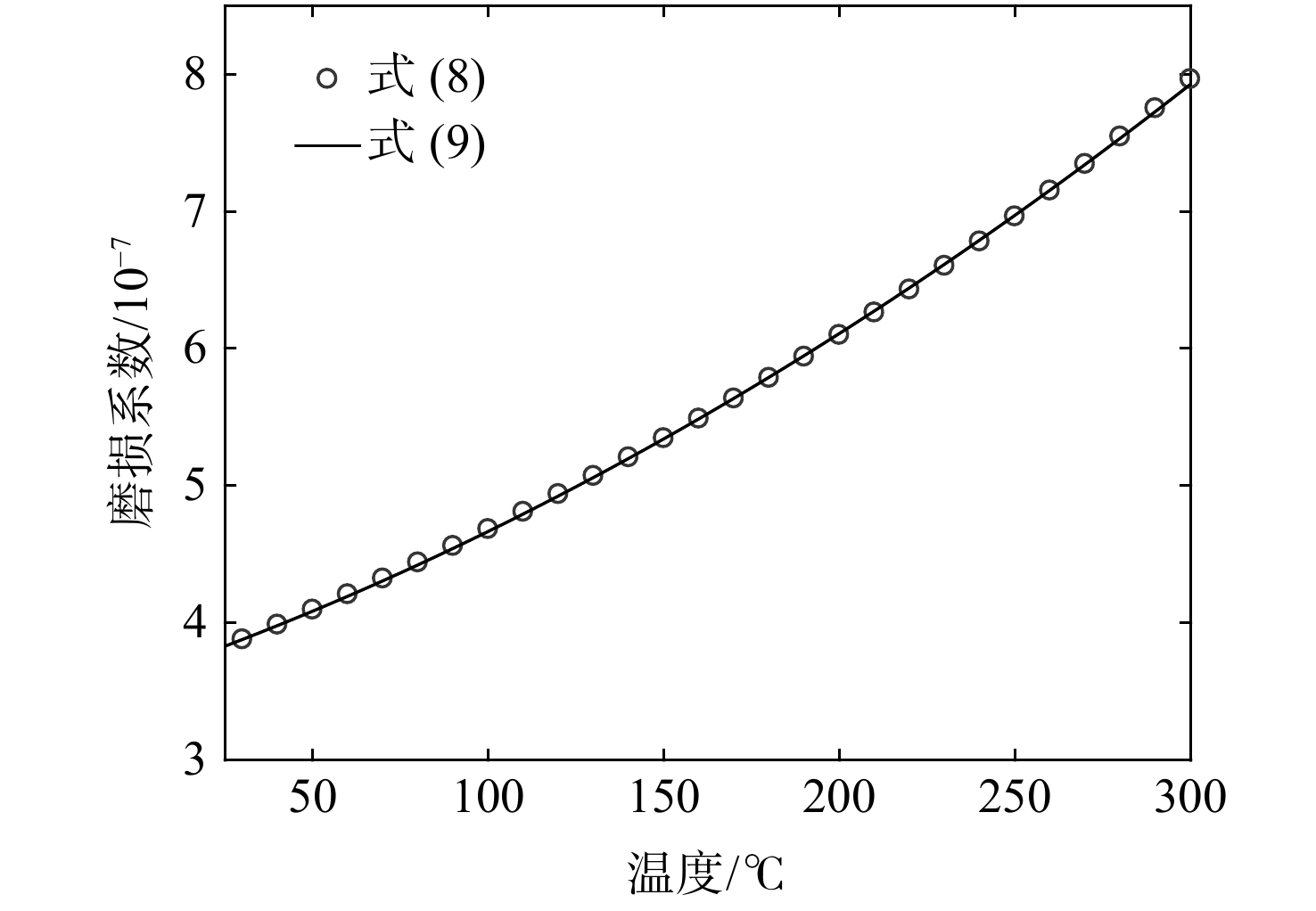

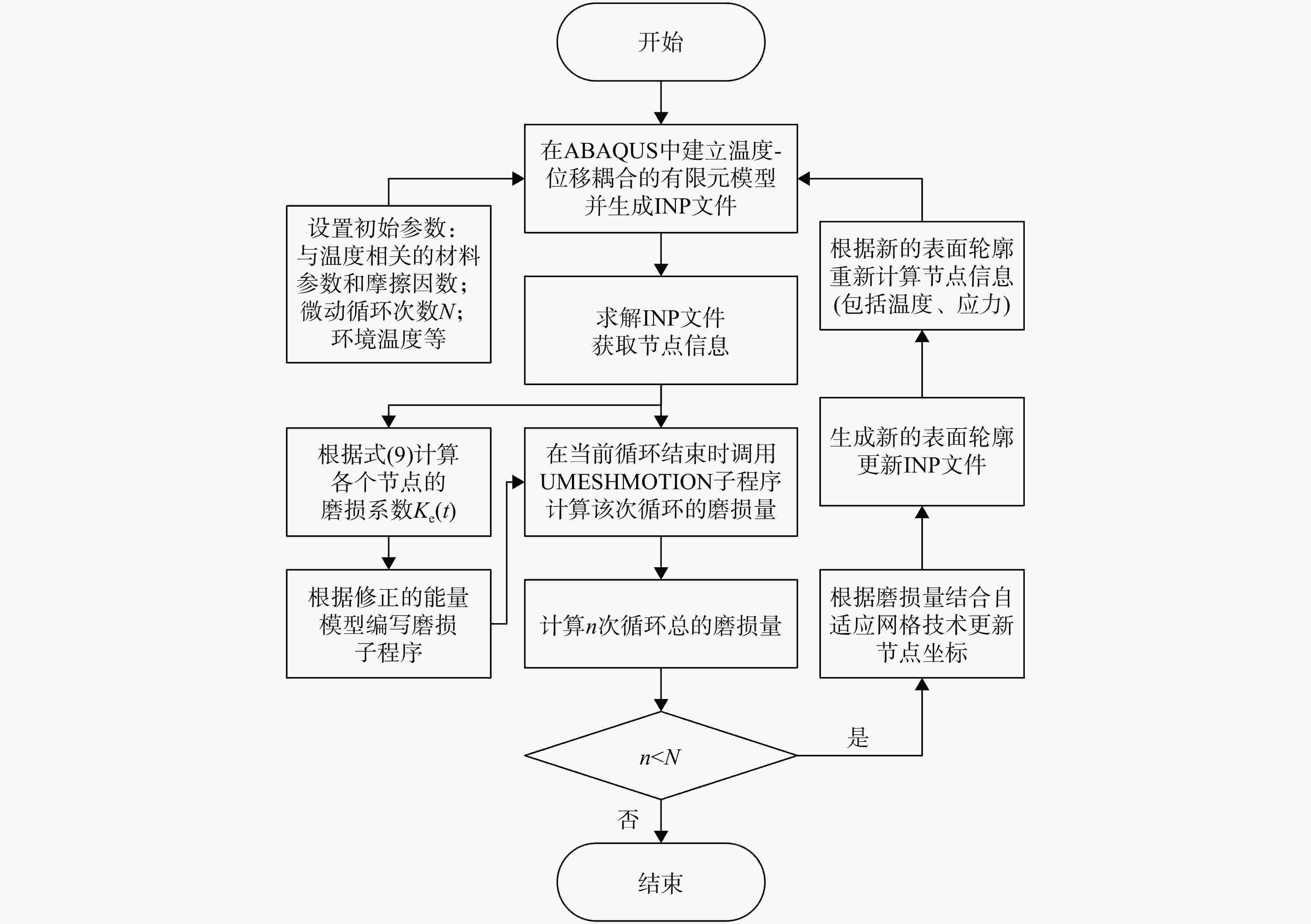

为提高微动磨损预测的准确性，考虑实际工况中温升的影响，通过引入随温度变化的磨损系数来修正能量耗散磨损模型并编写UMESHMOTION子程序，基于柱面/平面微动试验建立微动磨损的温度-位移耦合有限元模型。模型考虑了温度、应力和磨损之间的相互作用以及温度对摩擦因数的影响，通过与Archard模型进行对比来验证模型的正确性，探究材料塑性、温度和微动循环次数对接触表面磨损和温升的影响。仿真试验表明：修正的能量耗散磨损模型的磨损深度略小于Archard模型的磨损深度，且随着温度的升高两种模型之间的差距增大；不考虑材料塑性和温度的磨损深度偏小，考虑材料塑性的磨损轮廓不再是光滑的赫兹形状；随着循环次数的增加，接触表面的温度升高，温升峰值水平位置随着圆柱试件移动，磨损深度的增长速率由于温度的升高而变小，磨损轮廓突变点与磨损中心的深度差越来越小。

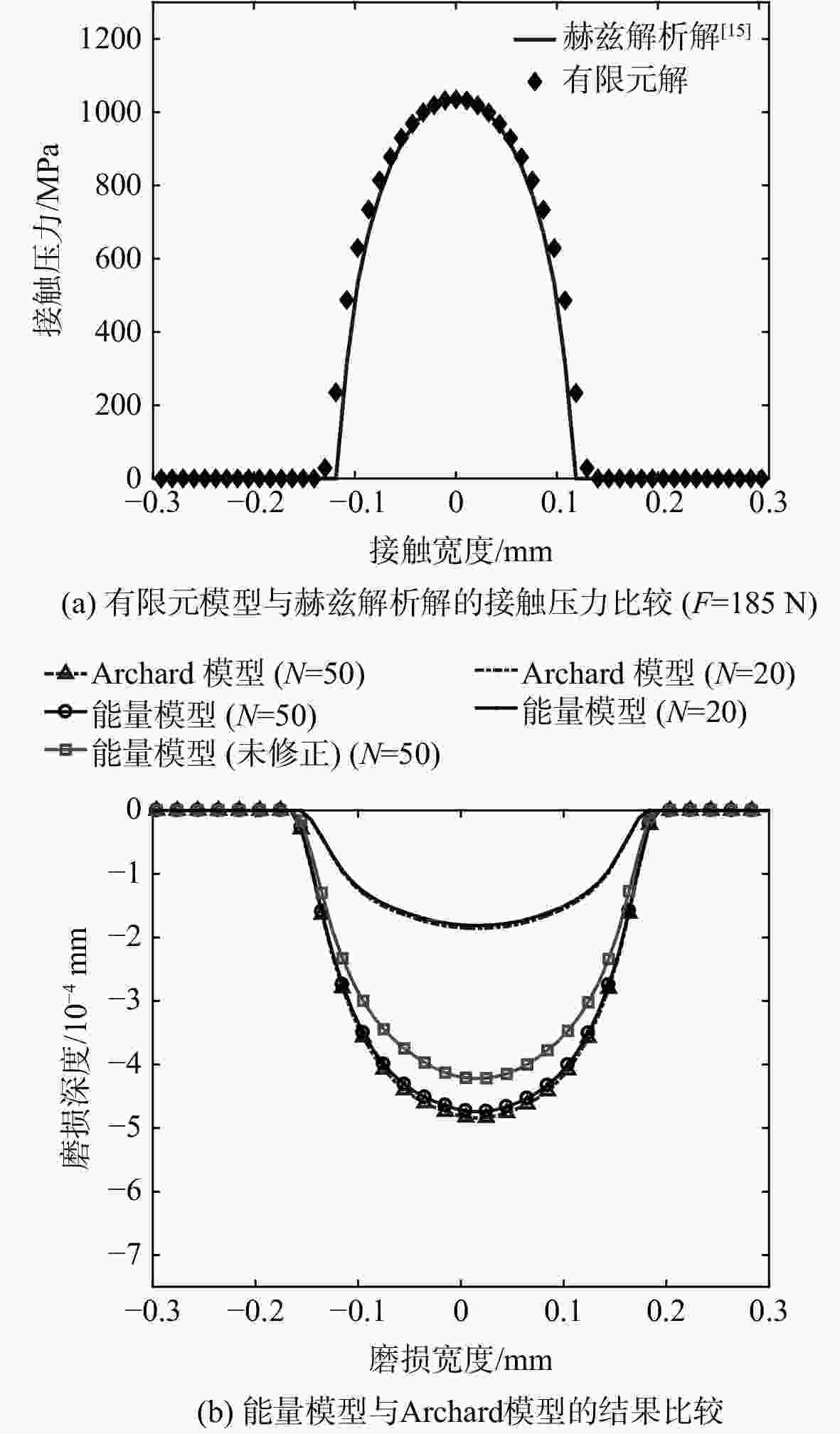

Abstract:In order to consider the effect of temperature rise on the accuracy of fretting wear prediction in actual working conditions, the energy dissipation wear model was modified by introducing a temperature-dependent wear coefficient. And the UMESHMOTION subroutine was compiled, while the temperature-displacement coupled finite element model of fretting wear was established based on the cylinder/plane fretting test. The model considered the interaction between temperature, stress and wear, as well as the effect of temperature on the coefficient of friction. The plausibility of the model was verified by comparison with the Archard model. The effects of material plasticity, temperature and number of fretting cycles on the wear and temperature rise of the contact surface were explored. Simulation experiments showed that the wear depth of the modified energy model was slightly smaller than that of the Archard model, and the gap between the two models increased with the temperature rise. The wear depth without considering plasticity and temperature was relatively small. The wear profile taking into account the plasticity of the material was no longer of a smooth Hertz shape. As the number of cycles increased, the temperature of the contact surface increased and the horizontal position of the temperature rise peak moved with the cylindrical specimen. Meanwhile, the growth rate of the wear depth decreased due to the increase in temperature. The depth difference between the abrupt change point of the wear profile and the wear center was getting smaller and smaller.
-
Key words:
- fretting wear /
- plasticity /
- temperature /
- number of cycles /
- energy dissipation wear model
-
图 5 材料塑性特性对接触压力和磨损深度的影响
Figure 5. Effect of material plastic properties on contact pressure and wear depth

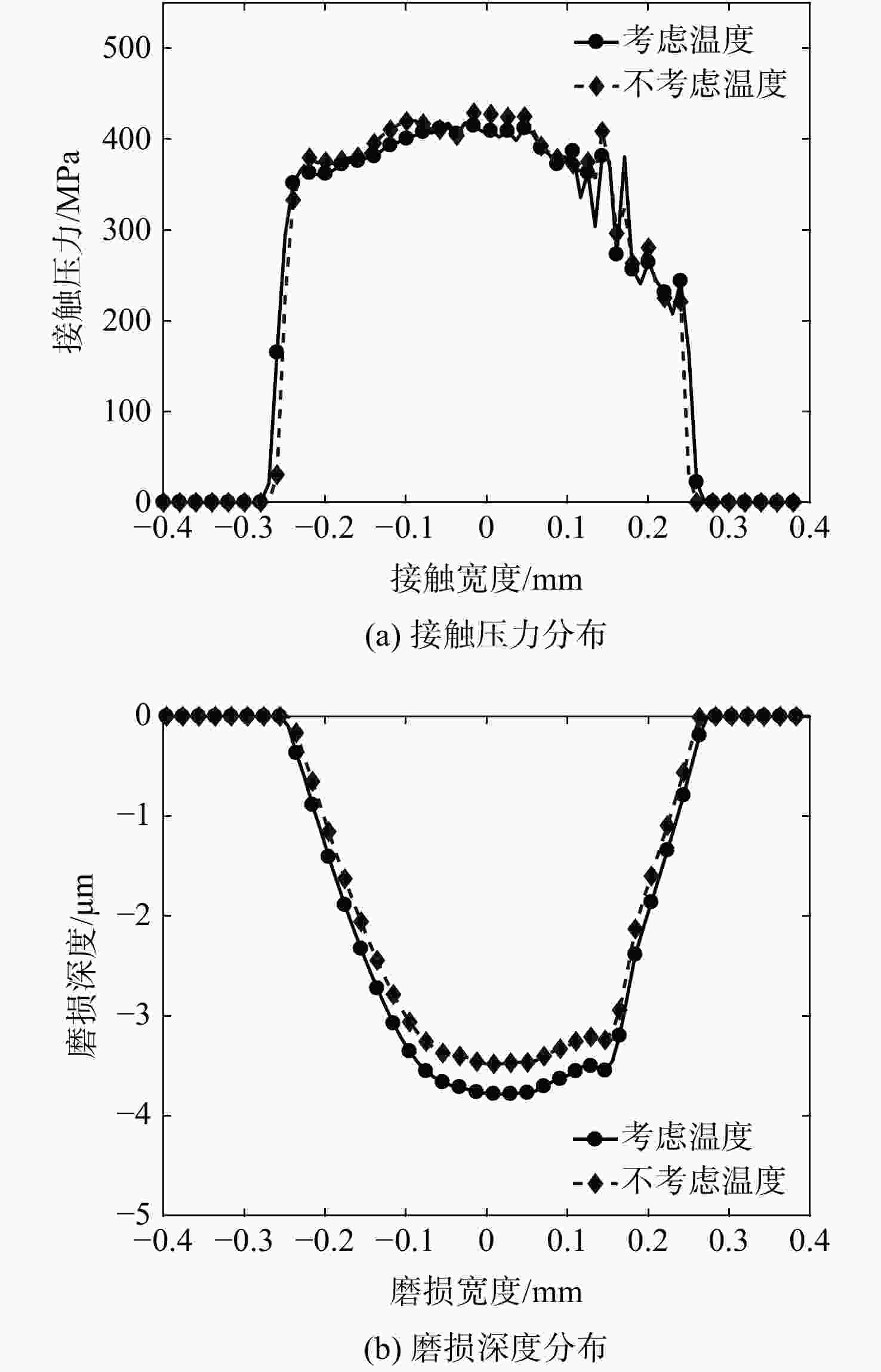

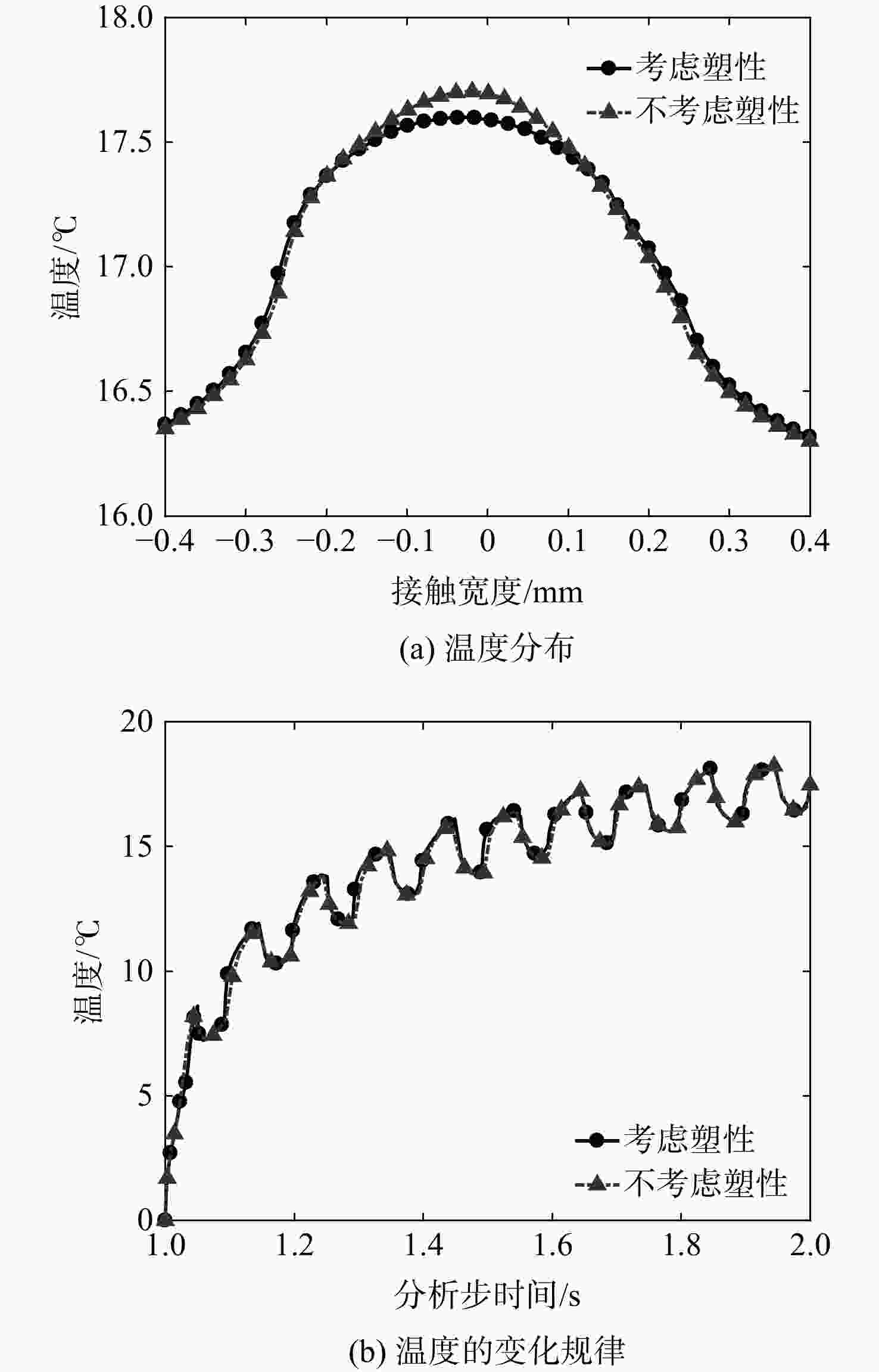

图 7 温度特性对接触压力和磨损深度的影响
Figure 7. Effect of temperature on contact pressure and wear depth

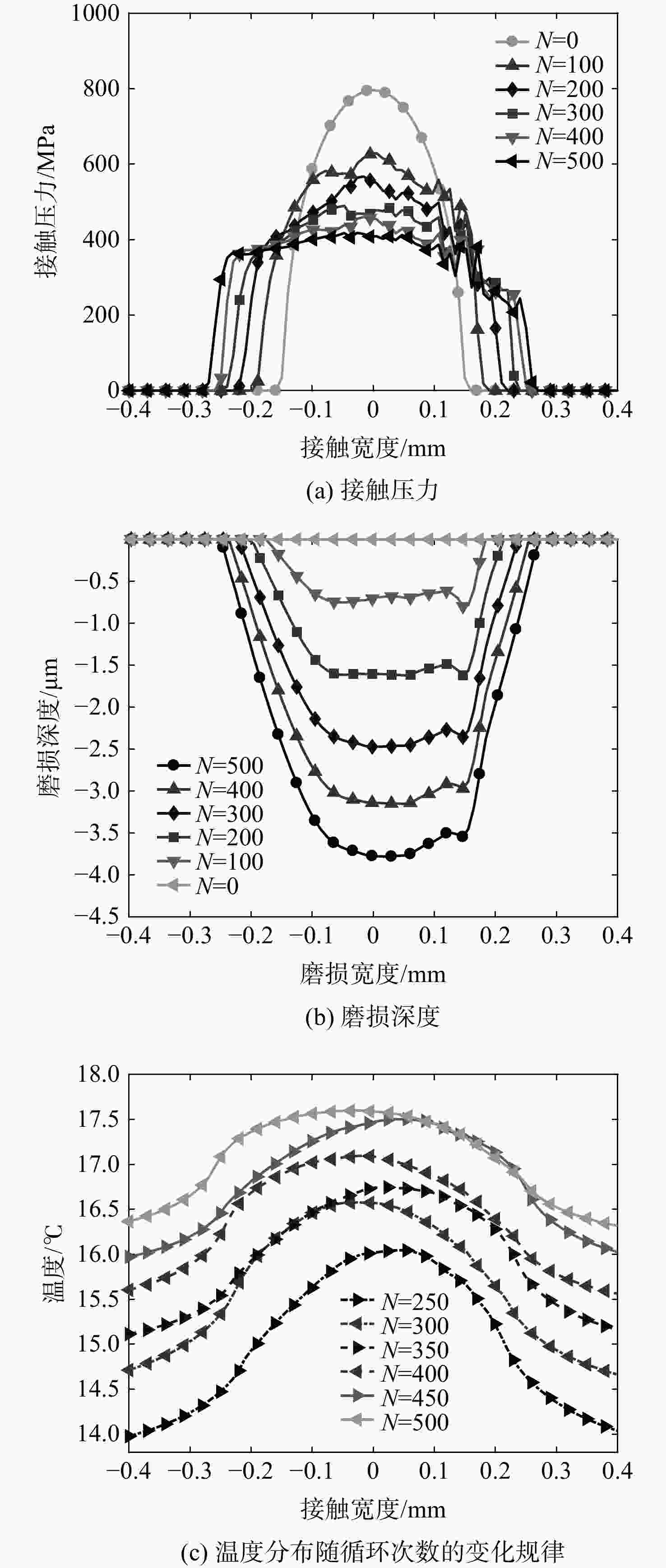

图 8 接触压力、磨损深度和温度随循环次数的变化规律
Figure 8. Change law of contact pressure, wear depth and temperature with the number of cycles
E0/
MPaEs/
（MPa/℃）σy0/
MPaσys/
（MPa/℃）ν t0/℃ 114582 −97.6 927.3 −0.908 0.34 25
下载: 导出CSV
-
[1] 杨利花,王振发,谢坤. 考虑离心力与热应力非连续界面的微动磨损[J]. 航空动力学报,2020,35(3): 552-559. doi: 10.13224/j.cnki.jasp.2020.03.011YANG Lihua,WANG Zhenfa,XIE Kun. Fretting wear of discontinuous interface considering centrifugal force and thermal stress[J]. Journal of Aerospace Power,2020,35(3): 552-559. (in Chinese) doi: 10.13224/j.cnki.jasp.2020.03.011 [2] WATERHOUSE R. Fretting wear[J]. Wear,1984,100(1/2/3): 107-118. [3] PINTO A L,ARAÚJO J A,TALEMI R. Effects of fretting wear process on fatigue crack propagation and life assessment[J]. Tribology International,2021,156: 106787.1-106787.15. [4] JIN X,SHIPWAY P H,SUN W. The role of frictional power dissipation (as a function of frequency) and test temperature on contact temperature and the subsequent wear behaviour in a stainless steel contact in fretting[J]. Wear,2015,330/331: 103-111. doi: 10.1016/j.wear.2015.02.022 [5] JIN X,SUN W,SHIPWAY P H. The role of geometry changes and debris formation associated with wear on the temperature field in fretting contacts[J]. Tribology International,2016,102: 392-406. doi: 10.1016/j.triboint.2016.05.043 [6] 牛宇生,郝秀清,孙鹏程,等. 温度对表面摩擦磨损性能影响的研究进展[J]. 中国表面工程,2020,33(6): 1-22. doi: 10.11933/j.issn.1007-9289.20201014001NIU Yusheng,HAO Xiuqing,SUN Pengcheng,et al. Perspective of influence of temperature on friction and wear behavior[J]. China Surface Engineering,2020,33(6): 1-22. (in Chinese) doi: 10.11933/j.issn.1007-9289.20201014001 [7] ARCHARD J F. Contact and rubbing of flat surfaces[J]. Journal of Applied Physics,1953,24(8): 981-988. doi: 10.1063/1.1721448 [8] FOUVRY S,KAPSA P,VINCENT L. Quantification of fretting damage[J]. Wear,1996,200(1/2): 186-205. [9] MCCOLL I R,DING J,LEEN S B. Finite element simulation and experimental validation of fretting wear[J]. Wear,2004,256(11): 1114-1127. [10] 尹家宝,卢纯,全鑫,等. 列车制动块磨损行为动态演变数值分析[J]. 机械工程学报,2021,57(18): 1-22.YIN Jiabao,LU Chun,QUAN Xin,et al. Analysis of wear behavior dynamic evolution on railway brake pad[J]. Journal of Mechanical Engineering,2021,57(18): 1-22. (in Chinese) [11] AHMADI A,SADEGHI F. A novel three-dimensional finite element model to simulate third body effects on fretting wear of hertzian point contact in partial slip[J]. Journal of Tribology,2021,143(4): 041502.1-041502.14. [12] GONG W,CHEN Y,LI M,et al. Coupling fractal model for adhesive and three-body abrasive wear of AISI 1045 carbon steel spool valves[J]. Wear,2019,418/419: 75-85. doi: 10.1016/j.wear.2018.10.019 [13] WANG Y, LIANG G, LIU S, et al. Coupling fractal model for fretting wear on rough contact surfaces[J]. Journal of Tribology, 2020, 143(9): 091701.1-091701.13. [14] 肖立,徐颖强,陈智勇,等. 直升机浮动渐开线花键微动磨损影响因素分析[J]. 航空动力学报,2021,36(4): 751-766. doi: 10.13224/j.cnki.jasp.2021.04.008XIAO Li,XU Yingqiang,CHEN Zhiyong,et al. Analysis of influencing factors of fretting wear with helicopter floating involute spline[J]. Journal of Aerospace Power,2021,36(4): 751-766. (in Chinese) doi: 10.13224/j.cnki.jasp.2021.04.008 [15] NING P,LI Y,FENG Z Q. A newton-like algorithm to solve contact and wear problems with pressure-dependent friction coefficients[J]. Communications in Nonlinear Science and Numerical Simulation,2020,85: 105216.1-105216.22. [16] JIANG X,PAN F,SHAO G,et al. Prediction of electrical contact endurance subject to micro-slip wear using friction energy dissipation approach[J]. Friction,2019,7(6): 537-550. doi: 10.1007/s40544-018-0230-x [17] LI L,WEI Z,MA S,et al. Numerical analysis of fretting wear in lateral contact of sphere/sphere[J]. Proceedings of the Institution of Mechanical Engineers Part J: Journal of Engineering Tribology,2021,235(10): 2073-2085. doi: 10.1177/1350650120983677 [18] PEARSON S R,SHIPWAY P H,ABERE J O,et al. The effect of temperature on wear and friction of a high strength steel in fretting[J]. Wear,2013,303(1/2): 622-631. [19] QIN W,JIN X,KIRK A,et al. Effects of surface roughness on local friction and temperature distributions in a steel-on-steel fretting contact[J]. Tribology International,2018,120: 350-357. doi: 10.1016/j.triboint.2018.01.016 [20] SHEN F,ZHOU K. Investigation on thermal response in fretting sliding with the consideration of plastic dissipation, surface roughness and wear[J]. International Journal of Mechanical Sciences,2018,148: 94-102. doi: 10.1016/j.ijmecsci.2018.08.004 [21] HAGER C H,SANDERS J,SHARMA S,et al. The effect of temperature on gross slip fretting wear of cold-sprayed nickel coatings on Ti6Al4V interfaces[J]. Tribology International,2009,42(3): 491-502. doi: 10.1016/j.triboint.2008.08.009 [22] HAGER C H,SANDERS J H,SHARMA S. Unlubricated gross slip fretting wear of metallic plasma-sprayed coatings for Ti6Al4V surfaces[J]. Wear,2008,265(3/4): 439-451. [23] WANG L,ZHANG Q Y,LI X X,et al. Severe-to-mild wear transition of titanium alloys as a function of temperature[J]. Tribology Letters,2014,53(3): 511-520. doi: 10.1007/s11249-013-0289-5 [24] PEREIRA K,YUE T,WAHAB M A. Multiscale analysis of the effect of roughness on fretting wear[J]. Tribology International,2017,110: 222-231. doi: 10.1016/j.triboint.2017.02.024 [25] YUE T,WAHAB M A. Finite element analysis of fretting wear under variable coefficient of friction and different contact regimes[J]. Tribology International,2017,107: 274-282. doi: 10.1016/j.triboint.2016.11.044 [26] BASSEVILLE S,MISSOUM D,CAILILLETAUD G. 3D finite element study of the fatigue damage of Ti-6Al-4V in presence of fretting wear[J]. Computational Mechanics,2019,64(3): 663-683. doi: 10.1007/s00466-019-01675-6 [27] HOLMAN J P. Heat transfer[M]. Beijing: Mechanical Industry Press, 2005. [28] HANDBOOK M. MIL-HDBK-5H: metallic materials and elements for aerospace vehicle structures[M]. Washington DC: US Department of Defense, 1998. [29] YANG J,SUN S,BRANDT M,et al. Experimental investigation and 3D finite element prediction of the heat affected zone during laser assisted machining of Ti6Al4V alloy[J]. Journal of Materials Processing Technology,2010,210(15): 2215-2222. doi: 10.1016/j.jmatprotec.2010.08.007 [30] SHEN F,HU W,MENG Q. A damage mechanics approach to fretting fatigue life prediction with consideration of elastic-plastic damage model and wear[J]. Tribology International,2015,82: 176-190. doi: 10.1016/j.triboint.2014.10.017 -
