基于改进的SENet航空发动机振动预测

夏存江 詹于游

夏存江, 詹于游. 基于改进的SENet航空发动机振动预测[J]. 航空动力学报, 2022, 37(12):2807-2817 doi: 10.13224/j.cnki.jasp.20220110
引用本文: 夏存江, 詹于游. 基于改进的SENet航空发动机振动预测[J]. 航空动力学报, 2022, 37(12):2807-2817 doi: 10.13224/j.cnki.jasp.20220110
XIA Cunjiang, ZHAN Yuyou. Vibration prediction of aeroengines based on enhanced SENet model[J]. Journal of Aerospace Power, 2022, 37(12):2807-2817 doi: 10.13224/j.cnki.jasp.20220110
Citation: XIA Cunjiang, ZHAN Yuyou. Vibration prediction of aeroengines based on enhanced SENet model[J]. Journal of Aerospace Power, 2022, 37(12):2807-2817 doi: 10.13224/j.cnki.jasp.20220110

基于改进的SENet航空发动机振动预测

doi: 10.13224/j.cnki.jasp.20220110
基金项目: 四川省科技基金(2022YFG0356); 西藏科技厅重点研发计(XZ202101ZY0017G); 民航局教育培训项目(0252001);中央高校基本科研业务费基金项目(J2022-014)
详细信息
    作者简介:

    夏存江(1971-),男,教授、硕士生导师,硕士,研究方向为航空发动机控制与维修技术。E-mail:xia-cunjiang@aemtc.com

    通讯作者:

    詹于游(1997-),男,硕士生,研究方向为航空宇航推进理论与工程。E-mail:zyyskma@163.com

  • 中图分类号: V239

Vibration prediction of aeroengines based on enhanced SENet model

  • 摘要:

    为实时监测和预警航空发动机振动状态,基于气路及振动参数,提出一种使用改进的SENet(squeeze-and-excitation network)模型,对航空发动机近未来的振动进行预测。该研究相比以往采用的实验室模拟数据和仿真数据,使用了真实的QAR(quick access recorder)数据并进行随机采样,以求更能表征发动机振动和工作参数之间的关系。同时,不仅使用其他振动信号进行验证,还在其他型号的发动机上进行测试。结果表明:针对航空发动机的振动进行预测是可行的,SENet模型可以有效并实时追踪振动的突变和波动。此外,该方法对于其他振动信号和不同类型的发动机具有一定的适用性。而且相较于以往采用的其他经典的深度模型,SENet模型在振动的预测中能得到更小的误差。实验证明,相较于以往只使用振动这个单参数进行预测,并行使用与振动相关的多参数融合进行研究更能提高预测的准确性。

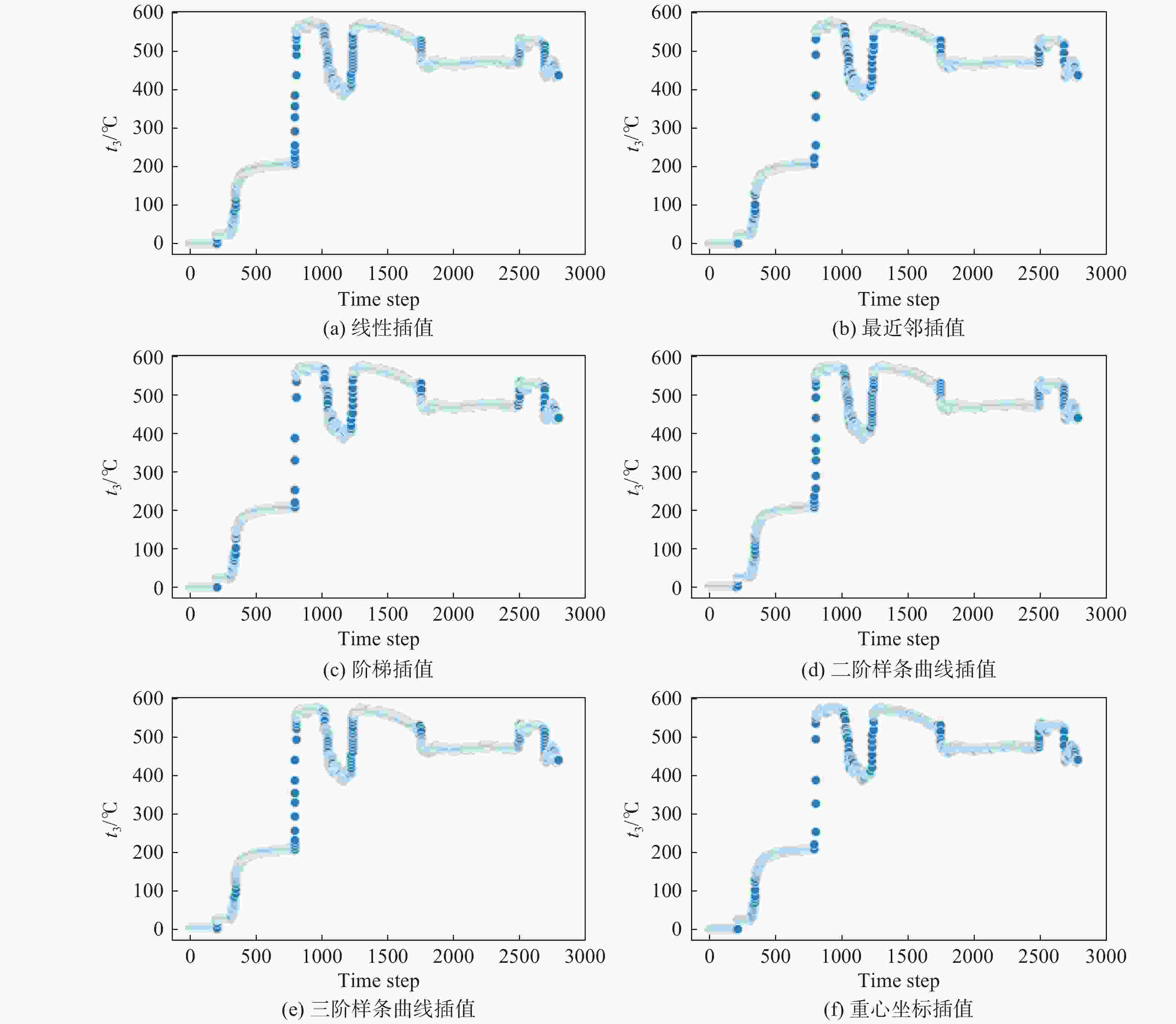

  • 图 1  各插值法对比

    Figure 1.  Comparison results of interpolation methods

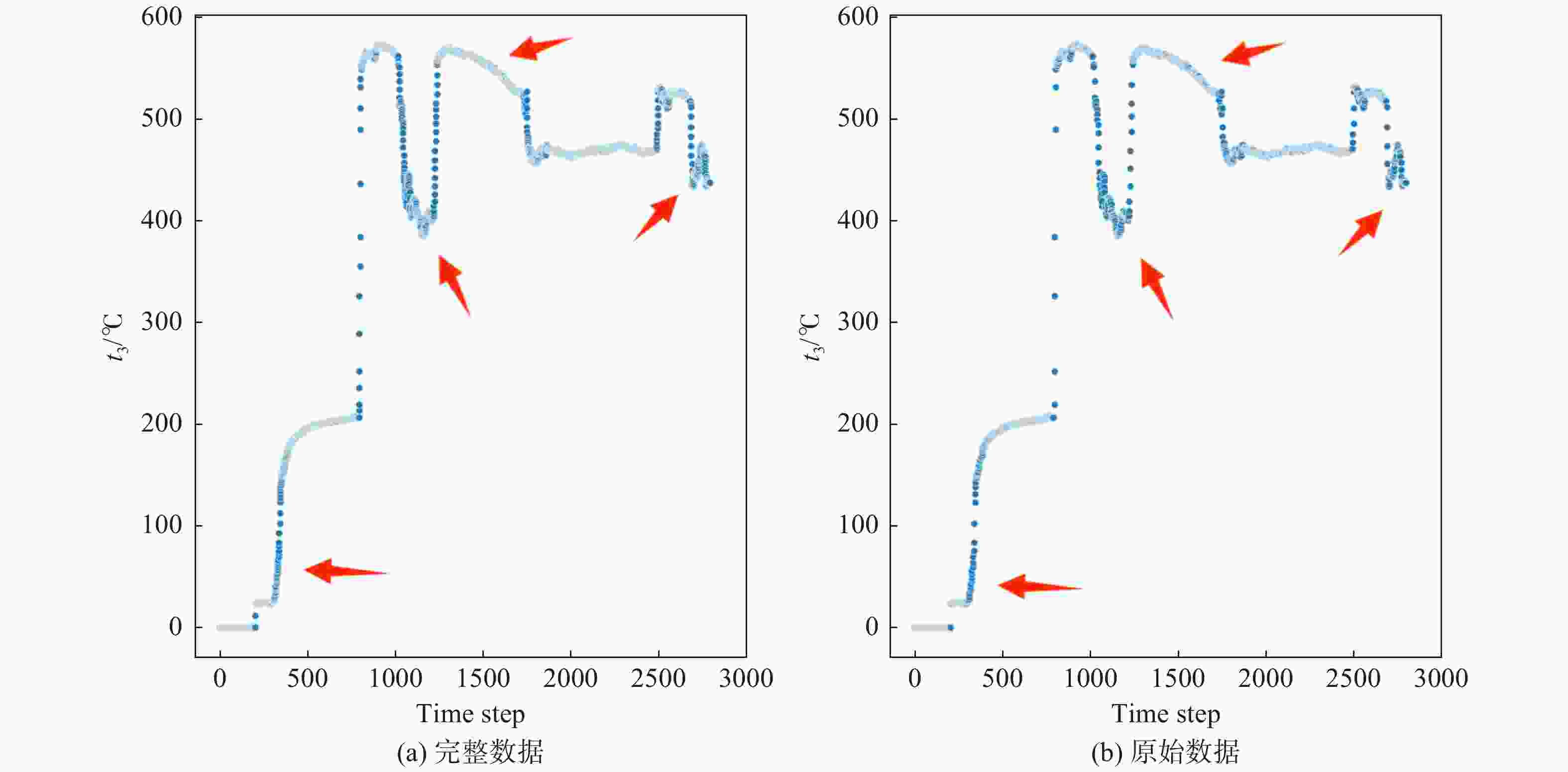

    图 2  缺失值补全前后对比图

    Figure 2.  Comparison results of complete data and missing data

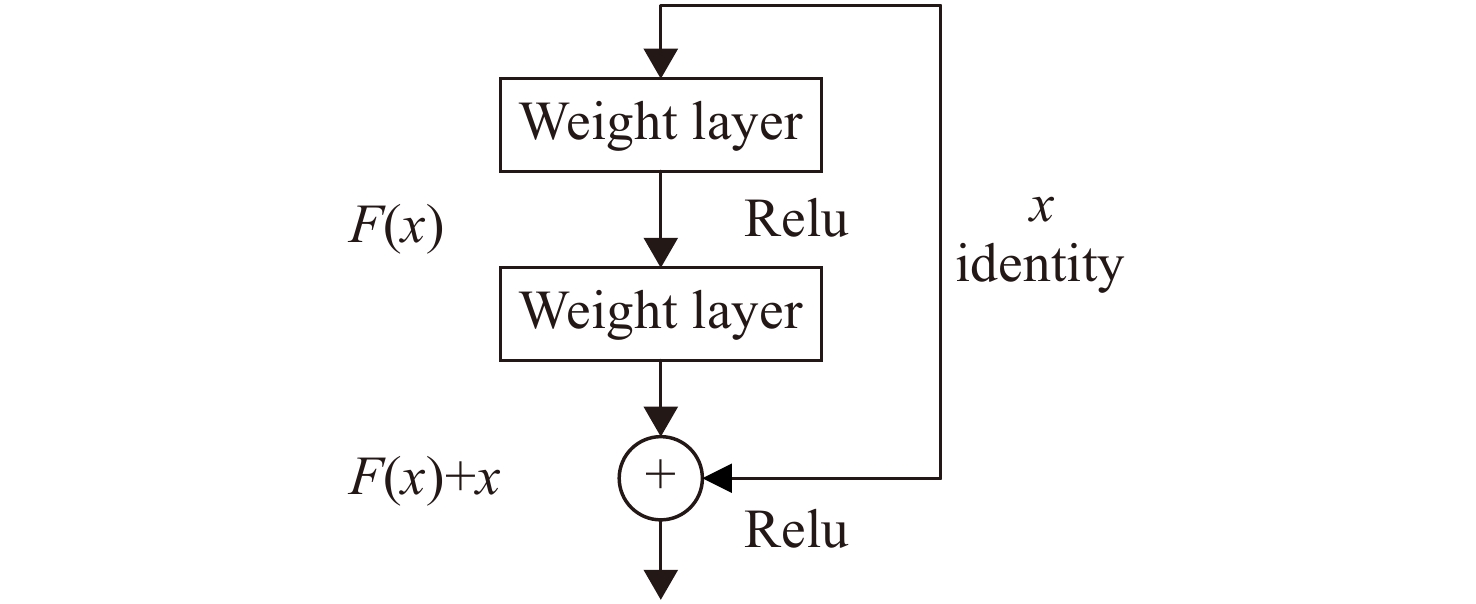

    图 3  残差学习:构建残差块

    Figure 3.  Residual learning: a building block

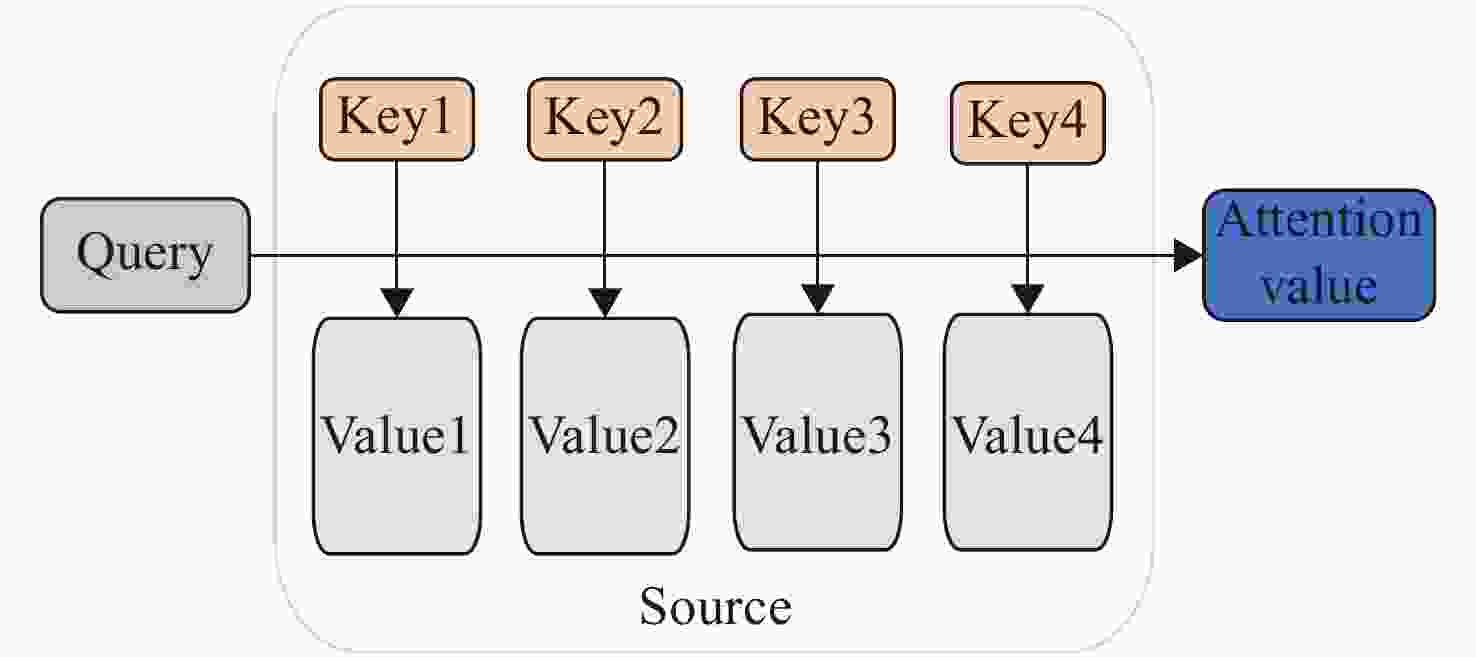

    图 4  注意力机制

    Figure 4.  Attention mechanism

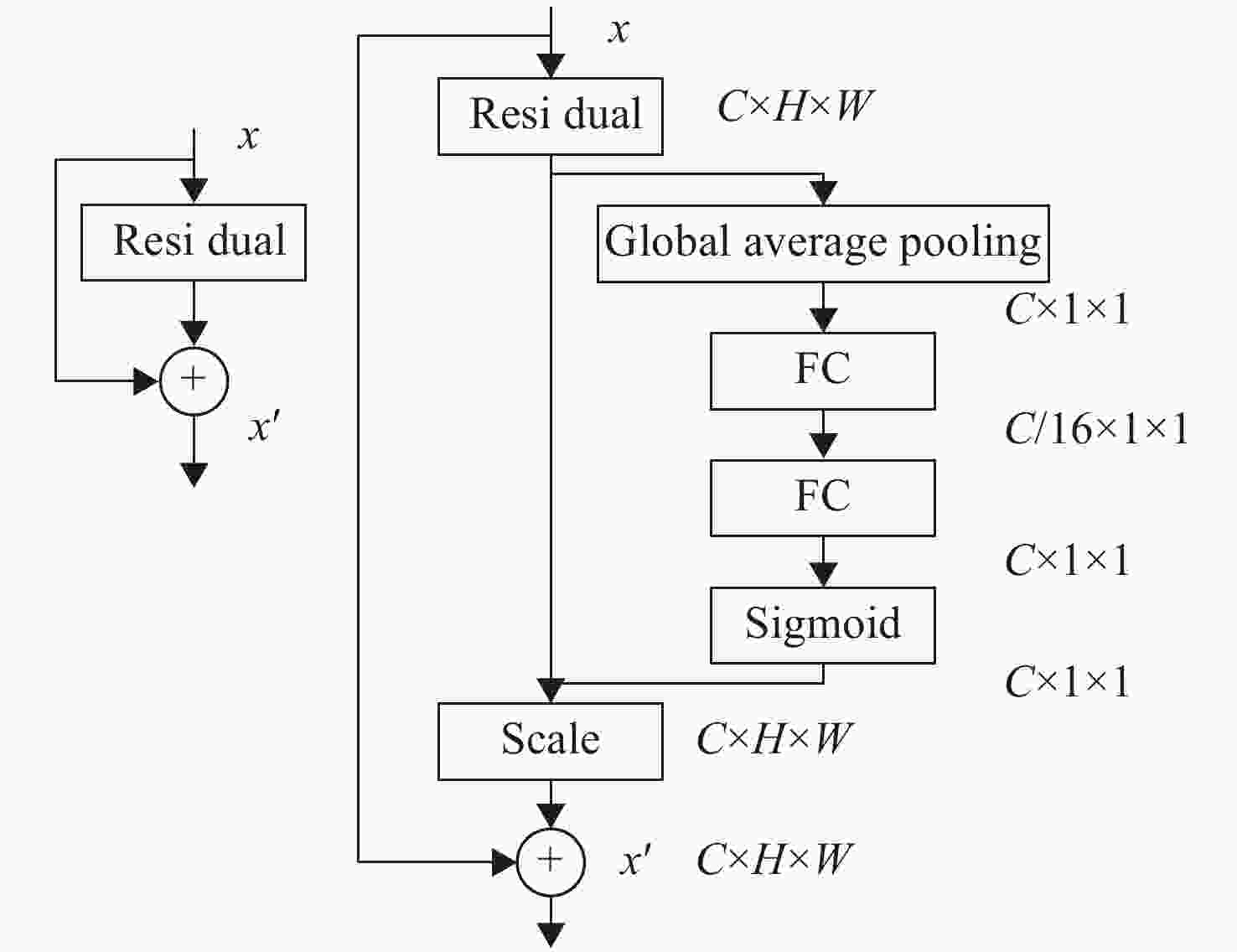

    图 5  SE-ResNet 模块

    Figure 5.  SE-ResNet module

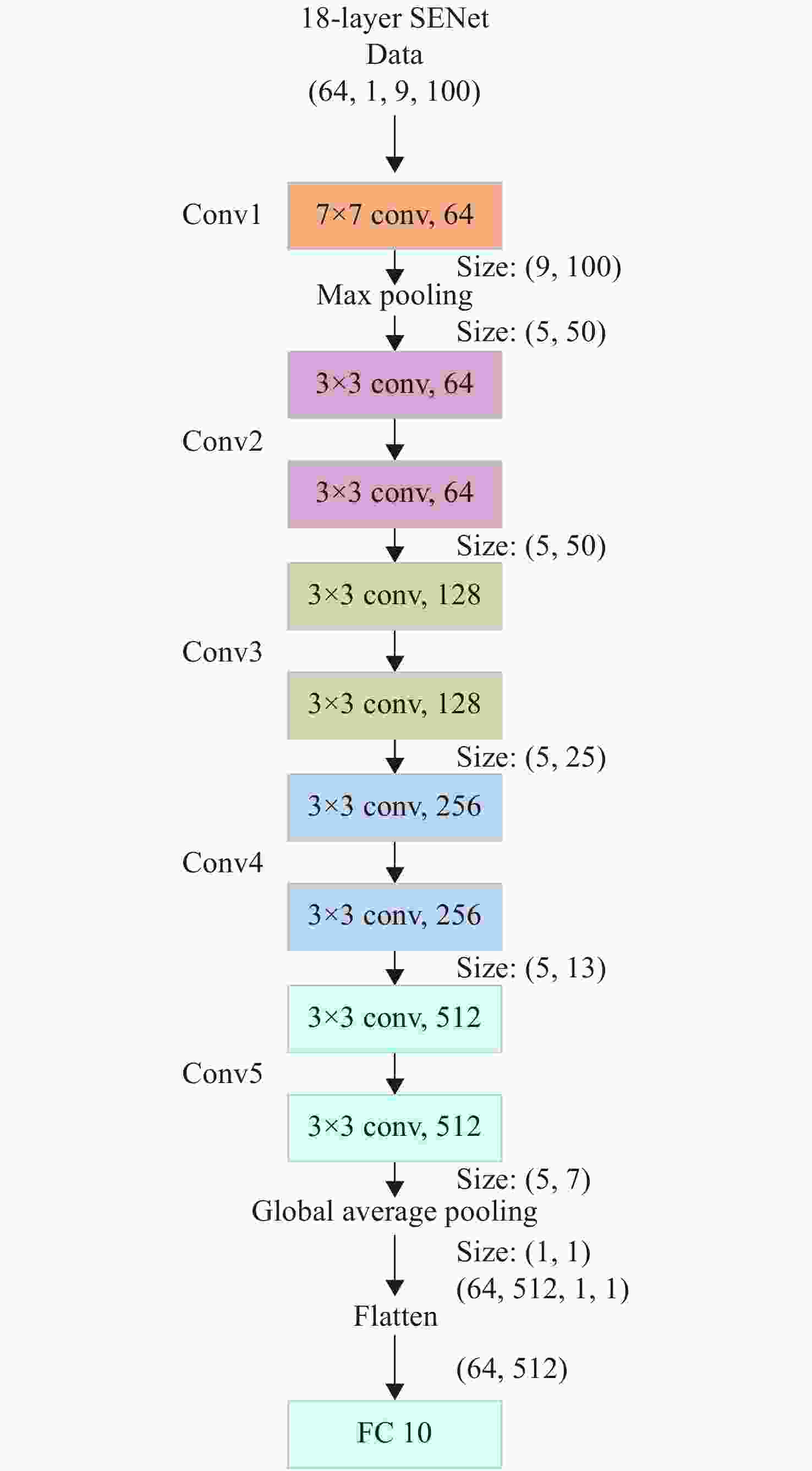

    图 6  网络架构示例

    Figure 6.  Example network architectures

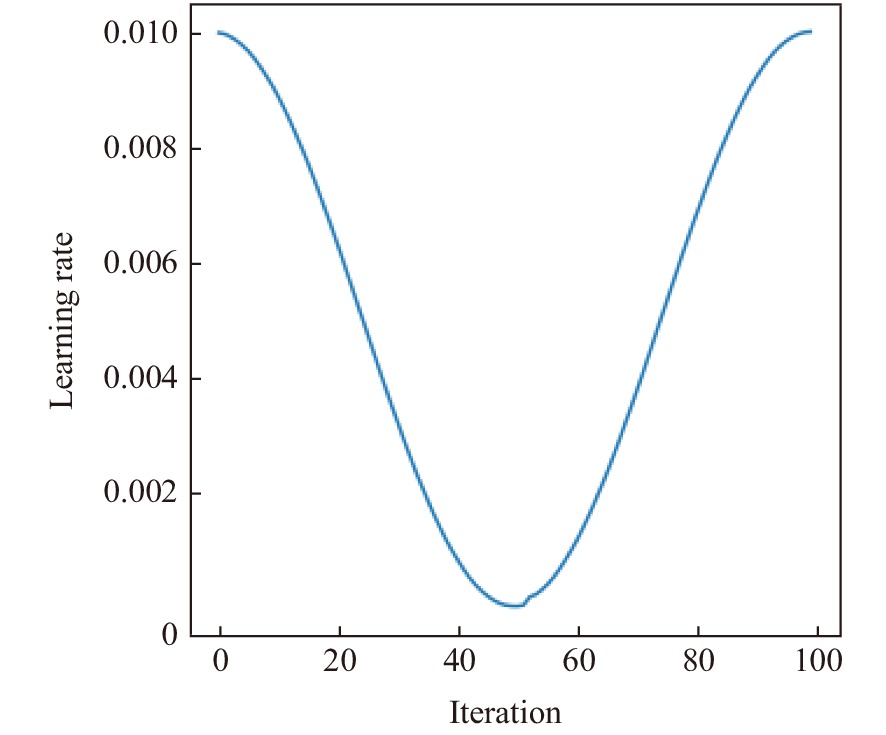

    图 7  余弦退火学习率

    Figure 7.  Cosine annealing learning rate

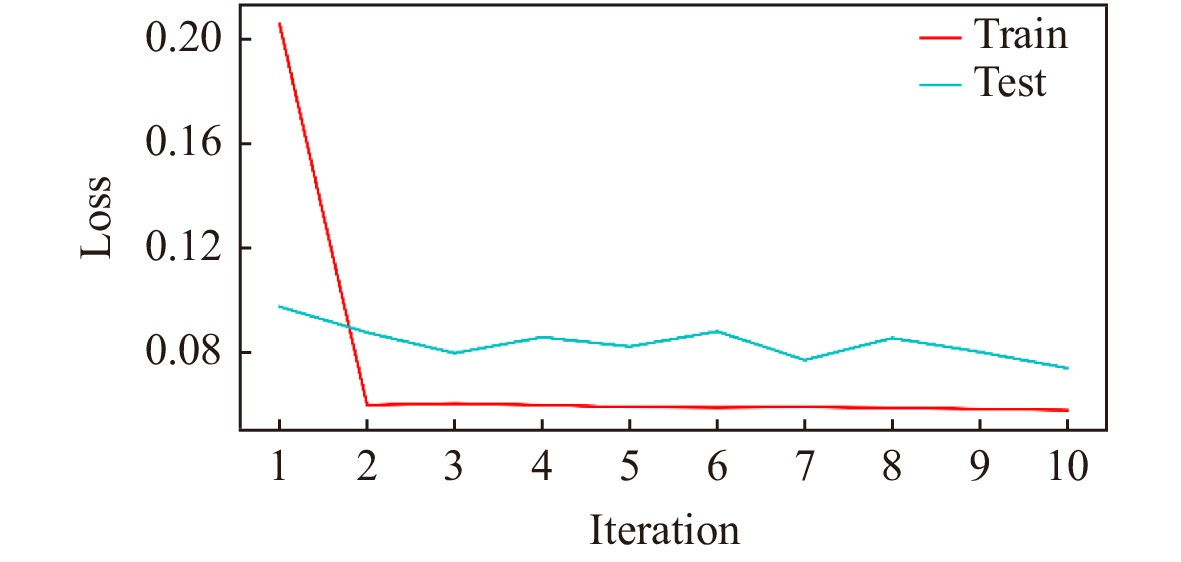

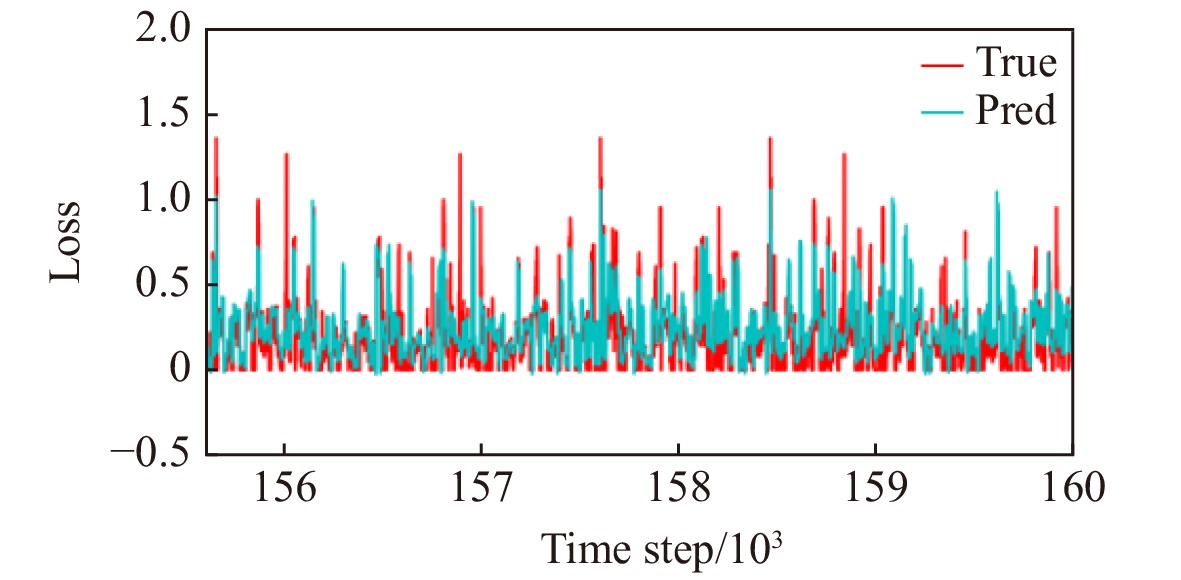

    图 8  SENet训练效果

    Figure 8.  Training effect of SENet

    图 9  总体预测结果

    Figure 9.  Overall prediction results

    图 10  局部预测效果 (1)

    Figure 10.  Partial prediction results (1)

    图 11  局部预测结果 (2)

    Figure 11.  Partial prediction results (2)

    图 12  1号轴承支撑振动传感器N1的预测误差分布(同一类型发动机)

    Figure 12.  Prediction error distribution of bearing No.1 support vibration sensor N1 (same type of aeroengine )

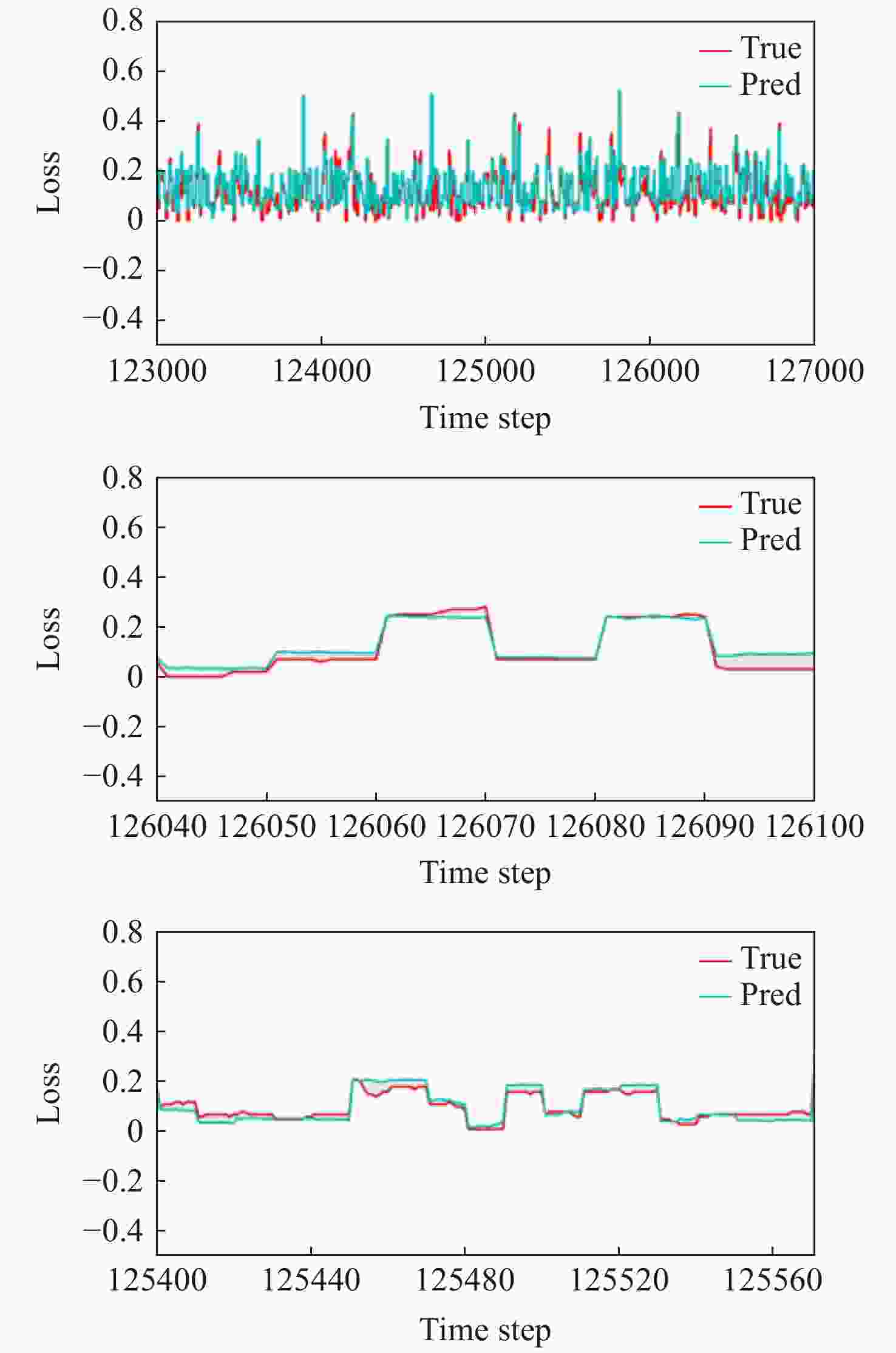

    图 13  其他振动参数预测结果

    Figure 13.  Prediction of the other vibration parameters

    图 14  1号轴承支撑振动传感器高压转子预测误差分布(同一类型发动机)

    Figure 14.  Prediction error distribution of bearing No.1 support vibration sensor for high pressure rotor (same type of aeroengine )

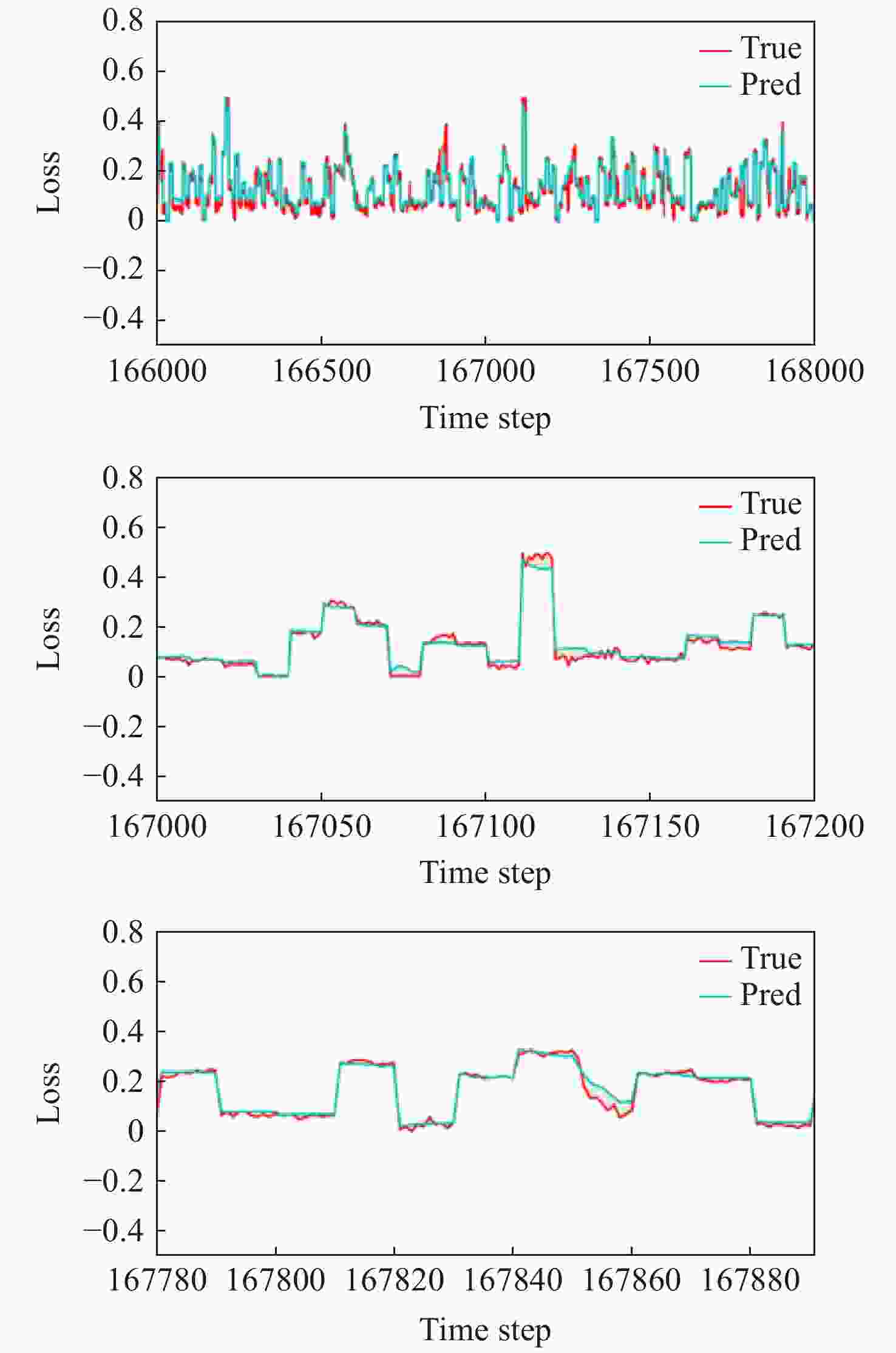

    图 15  不同类型发动机预测结果

    Figure 15.  Prediction results of different types of aeroengine

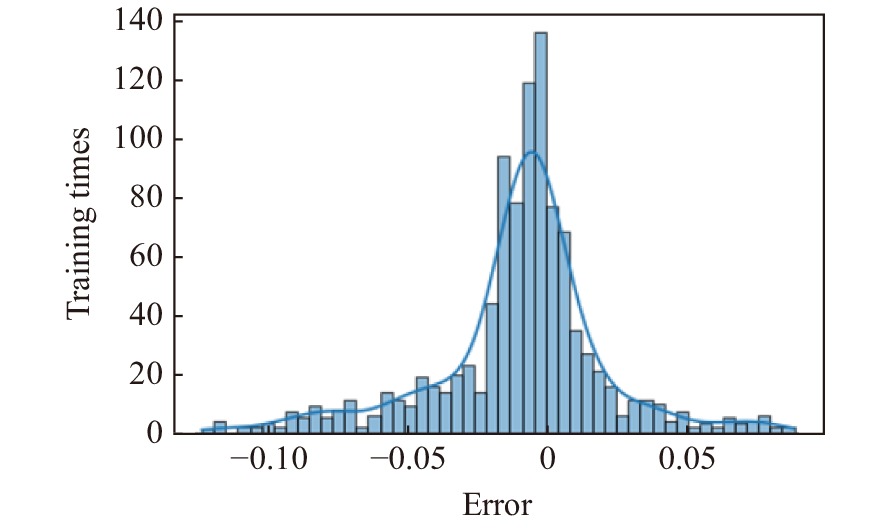

    图 16  1号轴承支撑振动传感器N1的预测误差分布(不同类型发动机)

    Figure 16.  Prediction error distribution of bearing No.1 support vibration sensor N1 (different types of aeroengine)

    图 17  未来15步的预测结果

    Figure 17.  Prediction results for the next 15 steps

    图 18  未来20步的预测结果

    Figure 18.  Prediction results for the next 20 steps

    表  1  神经网络模型参数

    Table  1.   Parameters of neural network model

    层号参数其他
    17×7,64步幅:1,
    填充:3
    3×3,Max pool步幅:2,
    填充:1
    2$ \left( \begin{gathered} 3 \times 3,64 \\ 3 \times 3,64 \\ \end{gathered} \right) \times 2 $所有卷积层:
    步幅:1,
    填充:1
    3$ \left( \begin{gathered} 3 \times 3,128 \\ 3 \times 3,128 \\ \end{gathered} \right) \times 2 $第1个卷积层:
    步幅:(1, 2),
    填充:1
    4$ \left( \begin{gathered} 3 \times 3,256 \\ 3 \times 3,256 \\ \end{gathered} \right) \times 2 $第1个卷积层:
    步幅:(1, 2),
    填充:1
    5$ \left( \begin{gathered} 3 \times 3,512 \\ 3 \times 3,512 \\ \end{gathered} \right) \times 2 $第1个卷积层:
    步幅:(1, 2),
    填充:1
    6Global average pooling(1, 1)
    7FC512×10
    下载: 导出CSV

    表  2  多模型损失对比

    Table  2.   Comparison of multi model loss

    模型测试集损失
    SENet0.0203
    单参数SENet2.5070
    ResNet0.0210
    VggNet0.0261
    MLP0.0243
    下载: 导出CSV
  • [1] 李书明, 李世栋, 张莹. 航空发动机压气机性能衰退影响因子定量分析[J]. 科学技术与工程, 2015, 15(32): 74-78, 86.

    LI Shuming, LI Shidong, ZHANG Ying. Quantitative analysis of aircraft engine compressor performance deterioration impact factor[J]. Science Technology and Engineering, 2015, 15(32): 74-78, 86. (in Chinese)
    [2] 民航资源网. 2018年1-6月中国民航安全信息统计报告[EB/OL]. [2022-03-06]. http: //news.carnoc.com/list/461/461183.html.
    [3] WANG H. A survey of maintenance policies of deteriorating systems[J]. European Journal of Operational Research,2002,139(3): 469-489. doi: 10.1016/S0377-2217(01)00197-7
    [4] CHO D I,PARLAR M. A survey of maintenance models for multi-unit systems[J]. European Journal of Operational Research,1991,51(1): 1-23. doi: 10.1016/0377-2217(91)90141-H
    [5] WANG R,LIU M,MA Y. Fault estimation for aero-engine LPV systems based on LFT[J]. Asian Journal of Control,2021,23(1): 351-361. doi: 10.1002/asjc.2204
    [6] 谢晓龙. 航空发动机性能评价与衰退预测方法研究[D]. 哈尔滨: 哈尔滨工业大学, 2016.

    XIE Xiaolong. Research on aero engine performance evaluation and recession prediction method[D]. Harbin: Harbin Institute of technology, 2016. (in Chinese)
    [7] 曹惠玲,罗立霄,曲春刚,等. 基于LS-SVM的航空发动机喘振故障诊断研究[J]. 热能动力工程,2013,28(1): 23-27,107. CAO Huiling,LUO Lixiao,QU Chungang,et al. Aero engine surge fault diagnosis based on LS-SVM[J]. Thermal Power Engineering,2013,28(1): 23-27,107. (in Chinese
    [8] 付旭云,陕振勇,李臻,等. 时变模糊神经网络及其在航空发动机排气温度预测中的应用[J]. 计算机集成制造系统,2014,20(4): 919-925. FU Xuyun,SHAN Zhenyong,LI Zhen,et al. Time varying fuzzy neural network and its application in aeroengine exhaust temperature prediction[J]. Computer Integrated Manufacturing System,2014,20(4): 919-925. (in Chinese doi: 10.13196/j.cims.2014.04.fuxuyun.0919.7.20140423
    [9] 李书明,任沛,黄燕晓. 航空发动机基线方程的拟合[J]. 机械工程与自动化,2016,1(1): 153-154,157. LI Shuming,REN Pei,HUANG Yanxiao. Fitting of aero engine baseline equation[J]. Mechanical Engineering and Automation,2016,1(1): 153-154,157. (in Chinese doi: 10.3969/j.issn.1672-6413.2016.01.067
    [10] 雷亚国, 贾峰, 孔德同, 等. 大数据下机械智能故障诊断的机遇与挑战[J]. 机械工程学报, 2018, 54(5): 94-104.

    LEI Yaguo, JIA Feng, KONG Detong, et al. Opportunities and challenges of mechanical intelligent fault diagnosis under big data[J]. Journal of Mechanical Engineering, 2018, 54(5): 94-104. (in Chinese)
    [11] KOHONEN T. An introduction to neural computing[J]. Neural Networks,1988,1(1): 3-16. doi: 10.1016/0893-6080(88)90020-2
    [12] GREFF K,SRIVASTAVA R K,KOUTNÍK J,et al. LSTM: a search space odyssey[J]. IEEE Transactions on Neural Networks and Learning Systems,2016,28(10): 2222-2232.
    [13] FU R, ZHANG Z, LI L. Using LSTM and GRU neural network methods for traffic flow prediction[C]//2016 31st Youth Academic Annual Conference of Chinese Association of Automation (YAC). Wuhan: IEEE, 2016: 324-328.
    [14] ALBAWI S, MOHAMMED T A, AL-ZAWI S. Understanding of a convolutional neural network[C]//2017 International Conference on Engineering and Technology (ICET). Bali Island, Indonesia: IEEE, 2017: 1-6.
    [15] 杨洁,万安平,王景霖,等. 基于多传感器融合卷积神经网络的航空发动机轴承故障诊断[J]. 中国电机工程学报,2022,42(13): 4933-4942. YANG Jie,WANG Anping,WANG Jinglin,et al. Aeroengine bearing fault diagnosis based on convolutional neural network for multi-sensor information fusion[J]. Proceedings of the CSEE,2022,42(13): 4933-4942. (in Chinese doi: 10.13334/j.0258-8013.pcsee.211097
    [16] 董永峰, 孙跃华, 高立超, 等. 基于改进一维卷积和双向长短期记忆神经网络的故障诊断方法[J]. 计算机应用, 2022, 42(4): 1207-1215.

    DONG Yongfeng, SUN Yuehua, GAO Lichao, et al. Fault diagnosis method based on improved one-dimensional convolutional and bidirectional long short-term memory neural networks[J]. Journal of Computer Applications, 2022, 42(4): 1207-1215. (in Chinese)
    [17] 王奕惟, 莫李平, 王奕首, 等. 基于全航段QAR数据和卷积神经网络的航空发动机状态辨识[J]. 航空动力学报, 2021, 36(7): 1556-1563.

    WANG Yiwei, MO Liping, WANG Yishou, et al. Aero-engine status identification based on full-segment QAR data and convolutional neural network[J]. Journal of Aerospace Power, 2021, 36(7): 1556-1563. (in Chinese)
    [18] 莫仁鹏, 李天梅, 司小胜, 等. 采用残差网络与卷积注意力机制的设备剩余寿命预测方法[J]. 西安交通大学学报, 2022, 56(4): 1-9.

    MO Renpeng, LI Tianmei, SI Xiaosheng, et al. Remaining useful life prediction for equipment using residual network and convolutional attention mechanism[J]. Journal of Xi’an Jiaotong University, 2022, 56(4): 1-9. (in Chinese)
    [19] 杨永灿, 刘韬, 柳小勤, 等. 基于注意力机制的一维卷积神经网络行星齿轮箱故障诊断[J]. 机械与电子, 2021, 39(10): 3-8.

    YANG Yongcan, LIU Tao, LIU Xiaoqin, et al. Fault diagnosis of gearbox based on one-dimensional convolutional neural network with attention mechanism[J]. Machinery Electronics, 2021, 39(10): 3-8. (in Chinese)
    [20] XU J,XU L. Health management based on fusion prognostics for avionics systems[J]. Journal of Systems Engineering and Electronics,2011,22(3): 428-436. doi: 10.3969/j.issn.1004-4132.2011.03.010
    [21] JALIL N A, HWANG H J, DAWI N M. Machines learning trends, perspectives and prospects in education sector[R]. Nagoya, Japan: the 2019 3rd International Conference on Education and Multimedia Technology, 2019.
    [22] MITCHELL T. Key ideas in machine learning[M]. Pittsburgh, US: Carnegie Mellon University, 2017.
    [23] HE K, ZHANG X, REN S, et al. Deep residual learning for image recognition[C]// Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. New York: IEEE, 2016: 770-778.
    [24] HU J, SHEN L, SUN G. Squeeze-and-excitation networks[C]// Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. New York: IEEE, 2018: 7132-7141.
    [25] HE K, SUN J. Convolutional neural networks at constrained time cost[C]// Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. New York: IEEE, 2015: 5353-5360.
    [26] SRIVASTAVA R K, GREFF K, SCHMIDHUBER J. Highway networks[EB/OL]. (2015-11-03)[2022-03-01]. arxiv.org/abs/1505.00387
    [27] SZEGEDY C, LIU W, JIA Y, et al. Going deeper with convolutions[C]// Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. New York: IEEE, 2015: 1-9.
    [28] BELL S, ZITNICK C L, BALA K, et al. Inside-outside net: detecting objects in context with skip pooling and recurrent neural networks[C]// Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. New York: IEEE, 2016: 2874-2883.
    [29] LOSHCHILOV I, HUTTER F. Decoupled weight decay regularization[EB/OL]. (2019-01-04)[2022-03-01] arxiv.org/abs/1711.05101
