Improvement of flapping mechanism and measurement of aerodynamic force/moment of bionic dragonfly prototype
-
摘要:
为进一步提高扑翼微型飞行器的机动性能，对前期提出的可移动铰链曲柄滑块扑动机构进行了改进和小型化。该机构运动学表明：移动铰链后两侧翅膀扑动幅值差值从之前的21.3°增大到51.2°，同时平均扑动幅值降到0°。研制了可快速模块化组装的碳纤维板仿蜻蜓扑翼样机。样机测量和试飞实验表明，通过调节扑动频率可以明显改变样机的升力和推力，有效实现飞行器的快速爬升机动飞行。在较大扑动频率移动铰链可以产生足够的偏航力矩和滚转力矩用于转弯等机动飞行。
Abstract:For further improving the maneuverability of the flapping-wing micro air vehicle, the movable hinge crank slider flapping mechanism proposed earlier was improved and miniaturized. The kinematics of the flapping mechanism indicated that as the hinges moved, the difference of the bilateral flapping amplitudes increased from 21.3° to 51.2° and the bilateral mean flapping amplitudes decreased to 0°. And a modularized and carbon fiber plate bionic dragonfly prototype was designed. The measurement and flight test of the prototype showed that the lift and thrust of the prototype changed obviously by adjusting the flapping frequency, realizing rapid acceleration and climbing maneuvering flight. By moving the hinge, significant yaw moment and roll moment were generated for maneuvering turn at larger flapping frequency.
-

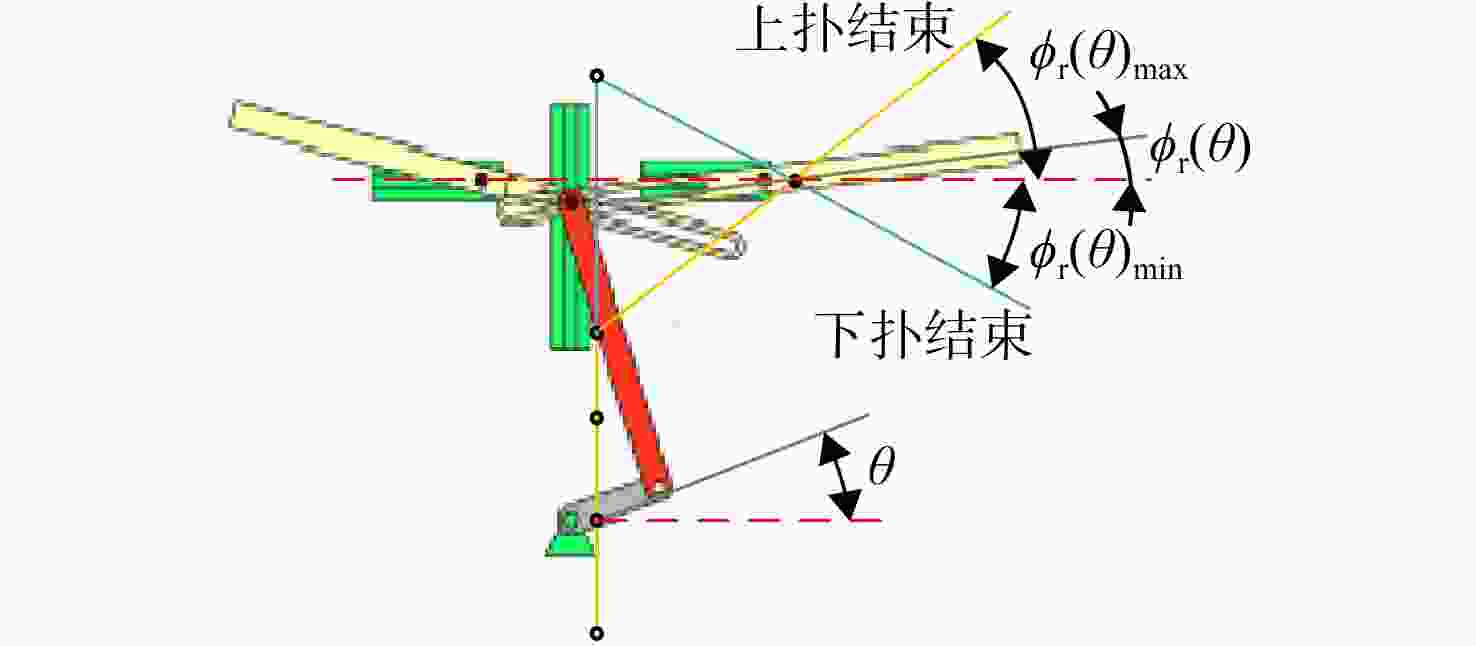

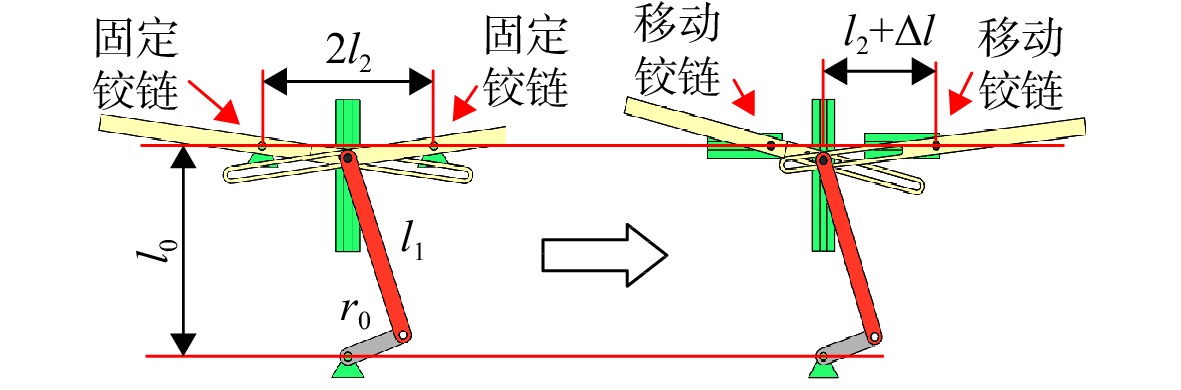

图 1 可移动铰链的曲柄滑块扑动机构示意图
Figure 1. Schematic diagram of movable hinged crank slider flapping mechanism

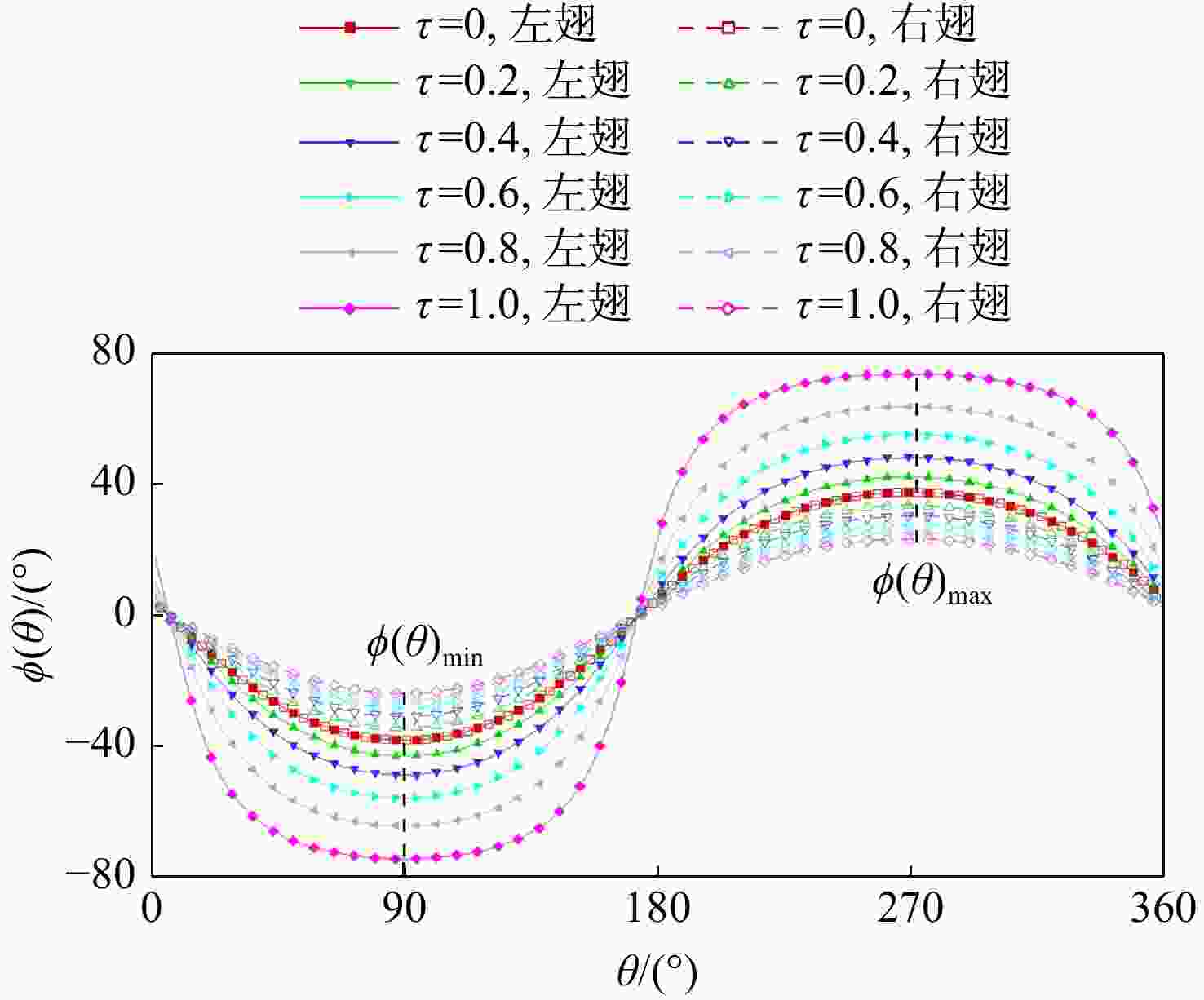

图 3 瞬时扑动角ϕ（θ）与曲柄转角θ的变化关系
Figure 3. Relationship between instantaneous flapping angle ϕ（θ） and crank angle θ

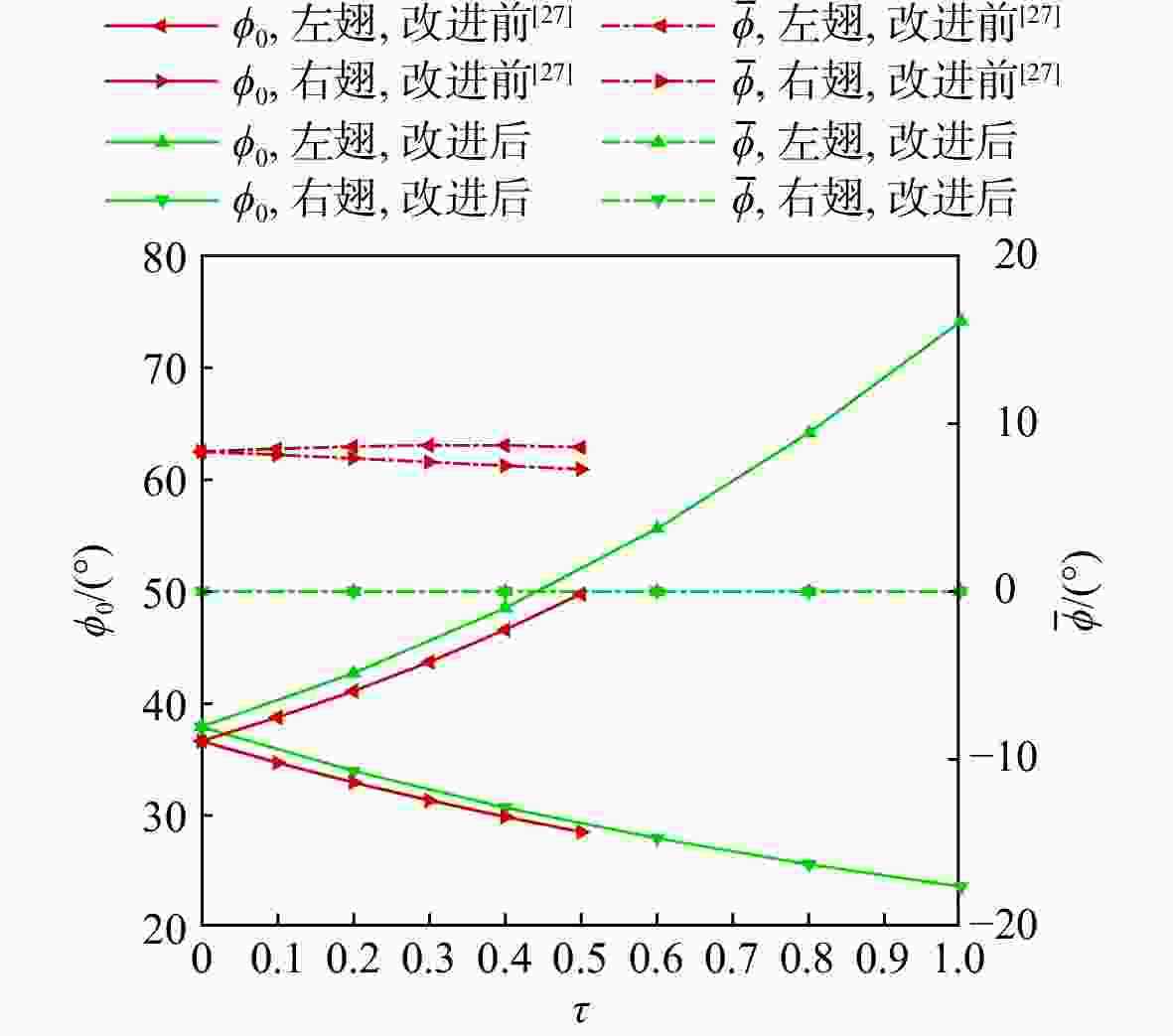

图 4 扑动角幅值ϕ0、平均扑动角
$\overline \phi$ 与τ的关系Figure 4. Relation between τ and flapping amplitudes ϕ0 and mean flapping angle
$\overline \phi$ 表 1 扑动机构几何参数
Table 1. Geometric parameters of flapping mechanism
参数 改进前[27] 改进后 r0/mm 10 4 l0/mm 31.3 16.6 l1/mm 28.3 16.6 l2/mm 13 5.1
下载: 导出CSV
表 2 扑翼样机设计参数
Table 2. Design parameters of prototype
参数 数值 质量/g 80 弦长/mm 40 翼展/mm 280 展弦比 7 功率/W 8 扑动频率/Hz 10
下载: 导出CSV
-
[1] ALTSHULER D L. Flight performance and competitive displacement of hummingbirds across elevational gradients[J]. The American Naturalist,2006,167(2): 216-229. doi: 10.1086/498622 [2] MOORE T Y,BIEWENER A A. Outrun or outmaneuver: predator-prey interactions as a model system for integrating biomechanical studies in a broader ecological, and evolutionary context[J]. Integrative and Comparative Biology,2015,55(6): 1188-1197. [3] CLARK C J. On hummingbird tail morphology as shaped by the interactions between flight-related functions, and sexual selection[D]. Berkeley, US: University of California, 2009. [4] LIU Hao,RAVI S,KOLOMENSKIY D,et al. Biomechanics and biomimetics in insect-inspired flight systems[J]. Philosophical Transactions of the Royal Society B: Biological Sciences,2016,371(1704): 20150390.1-20150390.11. [5] WANG Hao,ZENG Lijiang,LIU Hao,et al. Measuring wing kinematics, flight trajectory and body attitude during forward flight and turning maneuvers in dragonflies[J]. Journal of Experimental Biology,2003,206(4): 745-757. doi: 10.1242/jeb.00183 [6] MENG Xueguang,SUN Mao. Aerodynamics and vortical structures in hovering fruitflies[J]. Physics of Fluids,2015,27(3): 031901.1-031901.22. [7] FRY S N,SAYAMAN R,DICKINSON M H. The aerodynamics of free-flight maneuvers in drosophila[J]. Science,2003,300(5618): 495-498. doi: 10.1126/science.1081944 [8] RAMAMURTI R,SANDBERG W C. A computational investigation of the three-dimensional unsteady aerodynamics of drosophila hovering and maneuvering[J]. Journal of Experimental Biology,2007,210(5): 881-896. doi: 10.1242/jeb.02704 [9] ALEXANDER D E. Wind tunnel studies of turns by flying dragonflies[J]. Journal of Experimental Biology,1986,122(3): 81-98. [10] RISTROPH L,BERMAN G J,BERGOU A J,et al. Automated hull reconstruction motion tracking (HRMT) applied to sideways maneuvers of free-flying insects[J]. Journal of Experimental Biology,2009,212(9): 1324-1335. doi: 10.1242/jeb.025502 [11] TAYLOR G K. Mechanics and aerodynamics of insect flight control[J]. Biological Reviews of the Cambridge Philosophical Society,2001,76(4): 449-471. doi: 10.1017/S1464793101005759 [12] HORSMANN U,HEINZEL H G,WENDLER G. The phasic influence of self-generated air current modulations on the locust flight motor[J]. Journal of Comparative Physiology,1983,150(4): 427-438. doi: 10.1007/BF00609569 [13] LEHMANN F O,DICKINSON M H. The control of wing kinematics and flight forces in fruit flies (drosophila)[J]. Journal of Experimental Biology,1998,201(3): 385-401. doi: 10.1242/jeb.201.3.385 [14] CHENG Bin,FRY S N,HUANG Qi,et al. Aerodynamic damping during rapid flight maneuvers in the fruit fly drosophila[J]. Journal of Experimental Biology,2010,213(4): 602-612. doi: 10.1242/jeb.038778 [15] 薛栋,宋笔锋,宋文萍,等. 仿鸟型扑翼飞行器气动/结构/飞行力学耦合研究进展[J]. 空气动力学学报,2018,36(1): 88-97. XUE Dong,SONG Bifeng,SONG Wingping,et al. Advances in coupling aeroelasticity and flight dynamics of bird inspired FMAV[J]. Acta Aerodynamica Sinica,2018,36(1): 88-97. (in Chinese doi: 10.7638/kqdlxxb-2017.0153 [16] ONISHI M,ISHIHARA D. Partitioned method of insect flapping flight for maneuvering analysis[J]. Computer Modeling in Engineering and Sciences,2019,121(1): 145-175. doi: 10.32604/cmes.2019.06781 [17] KAJAK K M,KARÁSEK M,QI P C,et al. A minimal longitudinal dynamic model of a tailless flapping wing robot for control design[J]. Bioinspiration and Biomimetics,2019,14(4): 046008.1-046008.16. [18] 张锐,周超英,汪超,等. 蜻蜓非对称扑动时的气动特性[J]. 航空学报,2017,38(12): 101-113. ZHANG Rui,ZHOU Chaoying,WANG Chao,et al. Aerodynamic characteristics of dragonfly in asymmetric flapping[J]. Acta Aeronautica et Astronautica Sinica,2017,38(12): 101-113. (in Chinese [19] KEENNON M, KLINGEBIEL K, WON H. Development of the nano hummingbird: a tailless flapping wing micro air vehicle[R]. Nashville, US: 50th AIAA Aerospace Sciences Meeting Including the New Horizons Forum and Aerospace Exposition, 2012. [20] 杨茵,李栋,张振辉. 微型扑翼飞行器非定常运动对平尾的影响[J]. 航空学报,2012,33(10): 1827-1833. YANG Yin,LI Dong,ZHANG Zhenghui. Influences of flapping wing micro aerial vehicle unsteady motion on horizontal tail[J]. Acta Aeronautica et Astronautica Sinica,2012,33(10): 1827-1833. (in Chinese [21] 黄鸣阳,肖天航,昂海松. 多段柔性变体扑翼飞行器设计[J]. 航空动力学报,2016,31(8): 1838-1844. HUANG Mingyang,XIAO Tianhang,ANG Haisong. Design of an ornithopter with multisection flexible morphing wings[J]. Journal of Aerospace Power,2016,31(8): 1838-1844. (in Chinese doi: 10.13224/j.cnki.jasp.2016.08.006 [22] 齐津浩,张卫平. 仿生蝙蝠飞行器的设计制造[J]. 机械设计与研究,2020,36(5): 48-53. QI Jinhao,ZHANG Weiping. Design and manufacture of bionic bat aircraft[J]. Machine Design and Research,2020,36(5): 48-53. (in Chinese doi: 10.13952/j.cnki.jofmdr.2020.0188 [23] GAISSERT N, MUGRAUER R, JEBENS A, et al. Inventing a micro aerial vehicle inspired by the mechanics of dragonfly flight[R]. Esslingen, Germany: Conference Towards Autonomous Robotic Systems, 2014. [24] 冷烨,张卫平,周岁,等. 仿生蝴蝶飞行器设计分析[J]. 机械设计与研究,2019,35(4): 32-35. LENG Ye,ZHANG Weiping,ZHOU Sui,et al. Design and analysis of bionic butterfly aircraft[J]. Machine Design and Research,2019,35(4): 32-35. (in Chinese doi: 10.13952/j.cnki.jofmdr.2019.0226 [25] SUNADA S,WANG H,ZENG Lijiang,et al. Analysis of maneuvering flight of an insect[J]. Journal of Bionics Engineering,2004,1(2): 88-101. doi: 10.1007/BF03399459 [26] CHEN Y H,SKOTE M,ZHAO Y,et al. Dragonfly (sympetrum flaveolum) flight: kinematic measurement and modelling[J]. Journal of Fluids and Structures,2013,40(7): 115-126. [27] ZHANG Rui,ZHANG Haiyang,XU Lichao,et al. Mechanism and kinematics for flapping-wing micro air vehicles maneuvering based on bilateral wings[J]. International Journal of Aerospace Engineering,2022,2022: 5759343.1-5759343.10. -
