A TSHBM method and its application in response calculation of dry friction damped blades
-
摘要:
建立了以时间谱形式的谐波平衡法为核心的新型非线性强迫振动响应高效计算方法，并应用于含接触界面的干摩擦阻尼叶片结构响应分析。基于时间谱形式的谐波平衡法的原理和特点，建立非线性强迫振动响应通用求解方案；根据接触非线性的特性，提出了干摩擦力及解析雅可比矩阵计算的适应性处理方案，形成了含接触界面的叶片结构新型非线性振动响应高效预测方法。数值仿真结果表明：在带燕尾型榫根的叶片单扇区有限元模型中，分别保留1阶和3阶谐波阶次时，该方法的非线性振动响应计算时间消耗相较于传统的多谐波平衡法分别削减37%和46%，因此该方法在易用性、可推广性和计算效率方面具有独特的优势。
-
关键词:
- 响应预测 /
- 叶片结构 /
- 干摩擦阻尼 /
- 多谐波平衡法 /
- 时间谱形式的谐波平衡法
Abstract:A novel nonlinear forced vibration response calculation method based on the time-spectral form of harmonic balance method (TSHBM) was established and applied to the response analysis of dry friction damped blades structure with contact interfaces. A general framework for the nonlinear forced response computation was established based on the TSHBM, of which the principles and characteristics were emphasized. In order to appropriately account for the contact nonlinearity, the computational schemes for dry friction force and the construction of an analytic Jacobian matrix were proposed. The novel computational method for nonlinear forced responses of blades with contact interfaces was built. The numerical simulation results showed that for the FE model of a bladed disk sector with dovetail joint, when the 1st and 3rd harmonic orders were respectively reserved, the nonlinear vibration response calculation time of this method was reduced by 37% and 46%, respectively, compared with traditional multi-harmonic balance method. So this method has unique advantages in terms of ease of use, generalizability and computational efficiency.
-

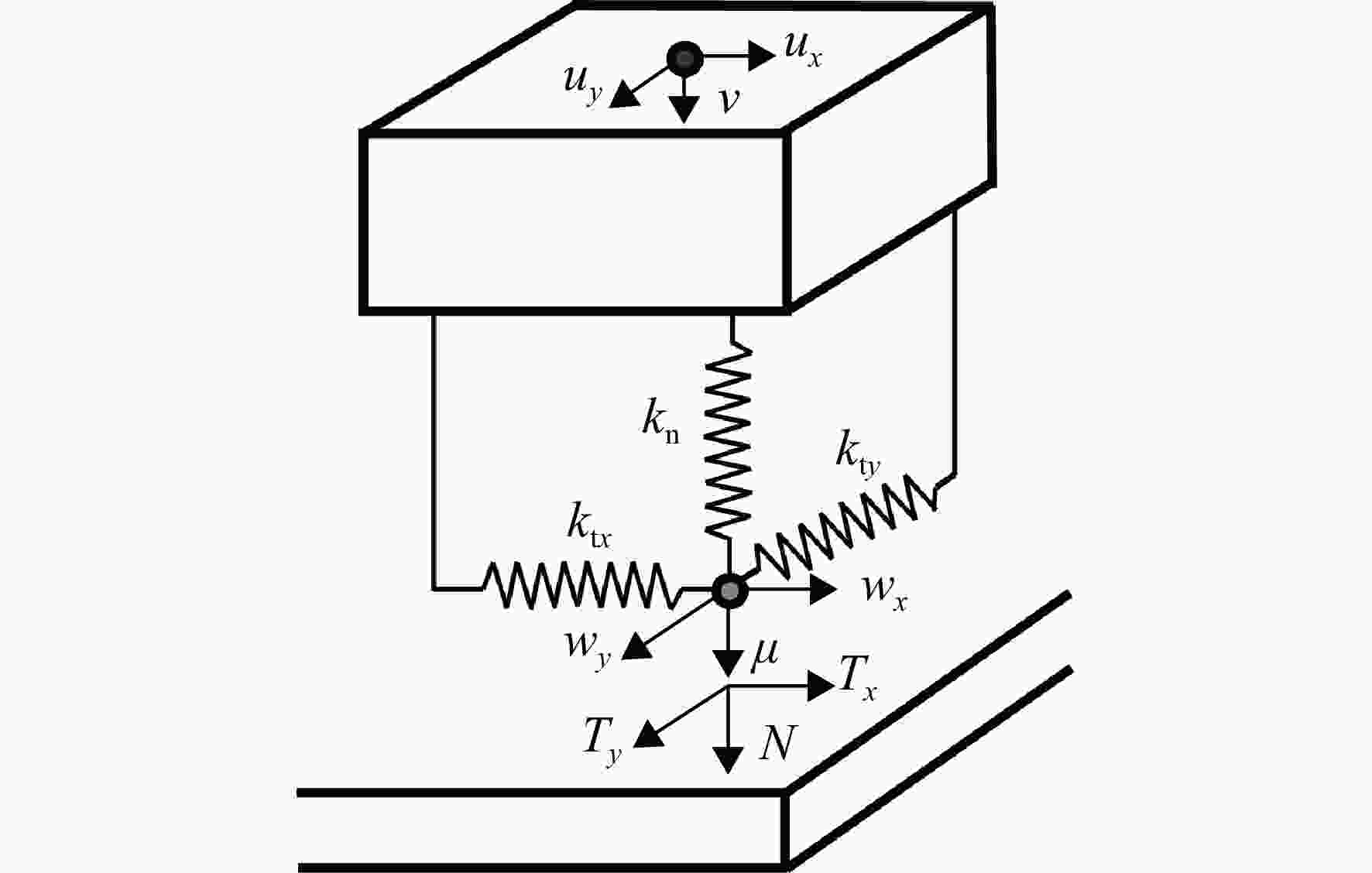

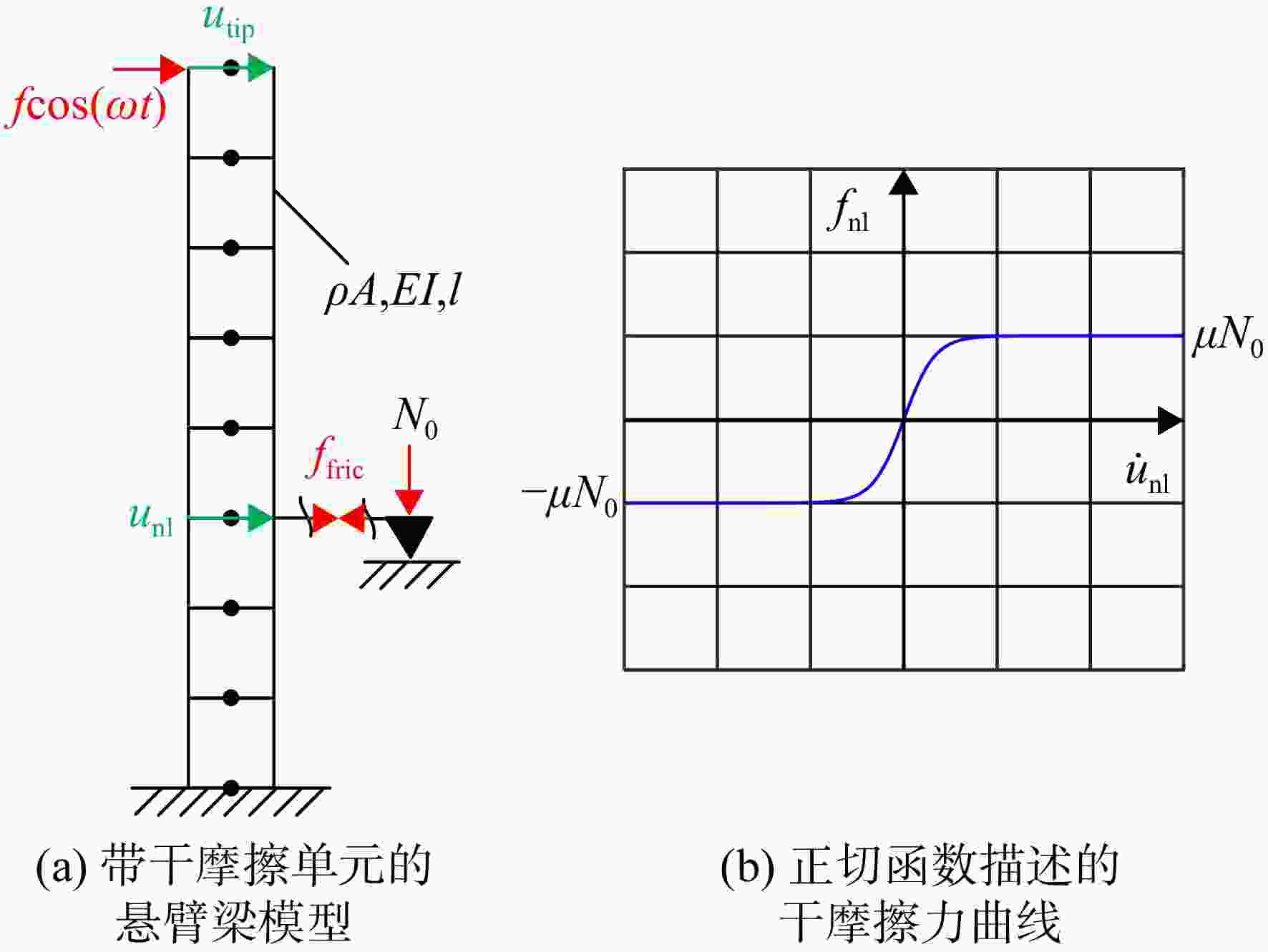

图 2 带干摩擦单元的悬臂梁模型及正切函数描述的干摩擦力曲线
Figure 2. Cantilever beam with dry friction element and dry friction force curve described by tangent function

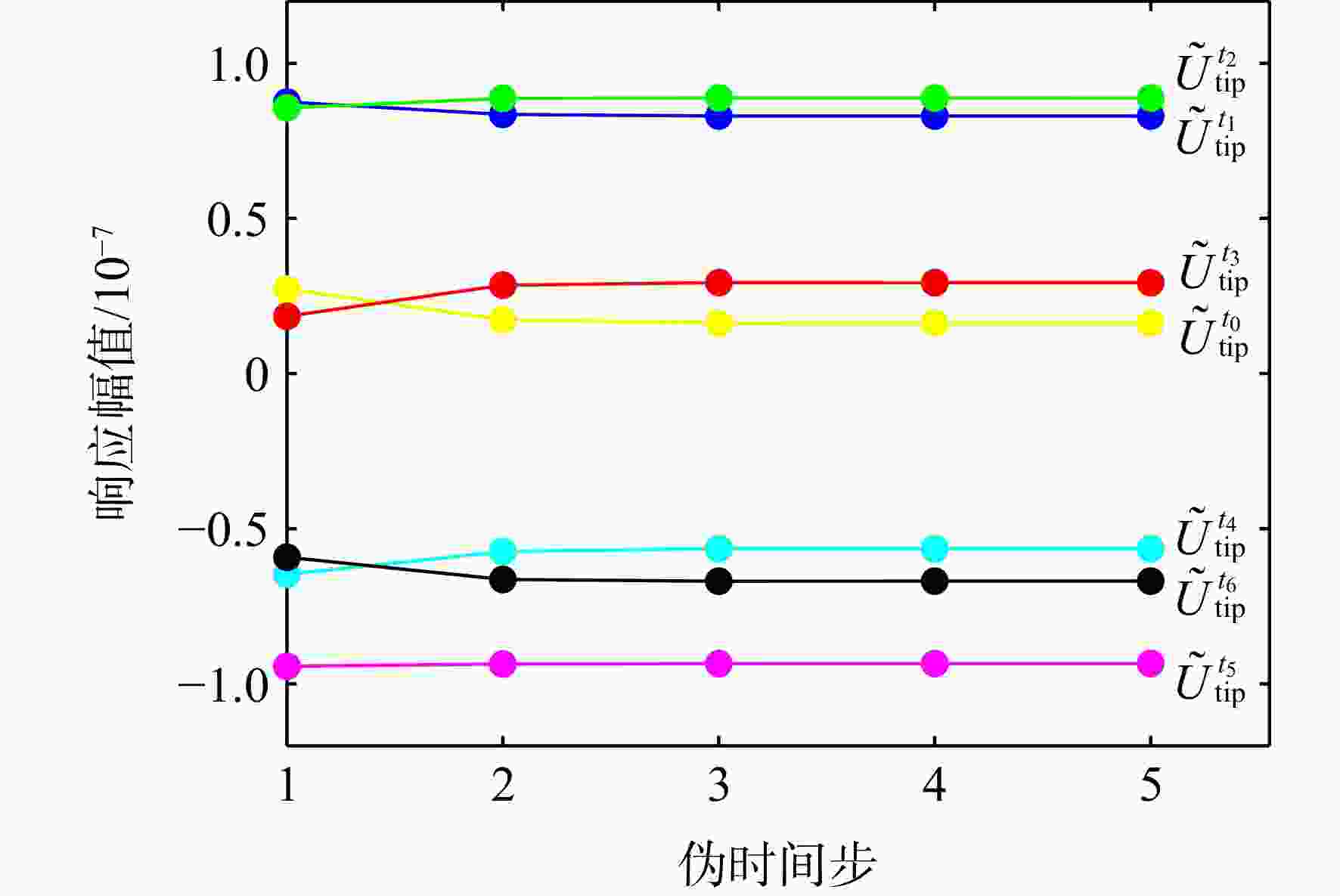

图 3
${\tilde {\boldsymbol{U}}_{{\mathrm{tip}}}}$ 的伪时间域历程曲线Figure 3. Pseudo-time history of
${\tilde {\boldsymbol{U}}_{{\mathrm{tip}}}}$

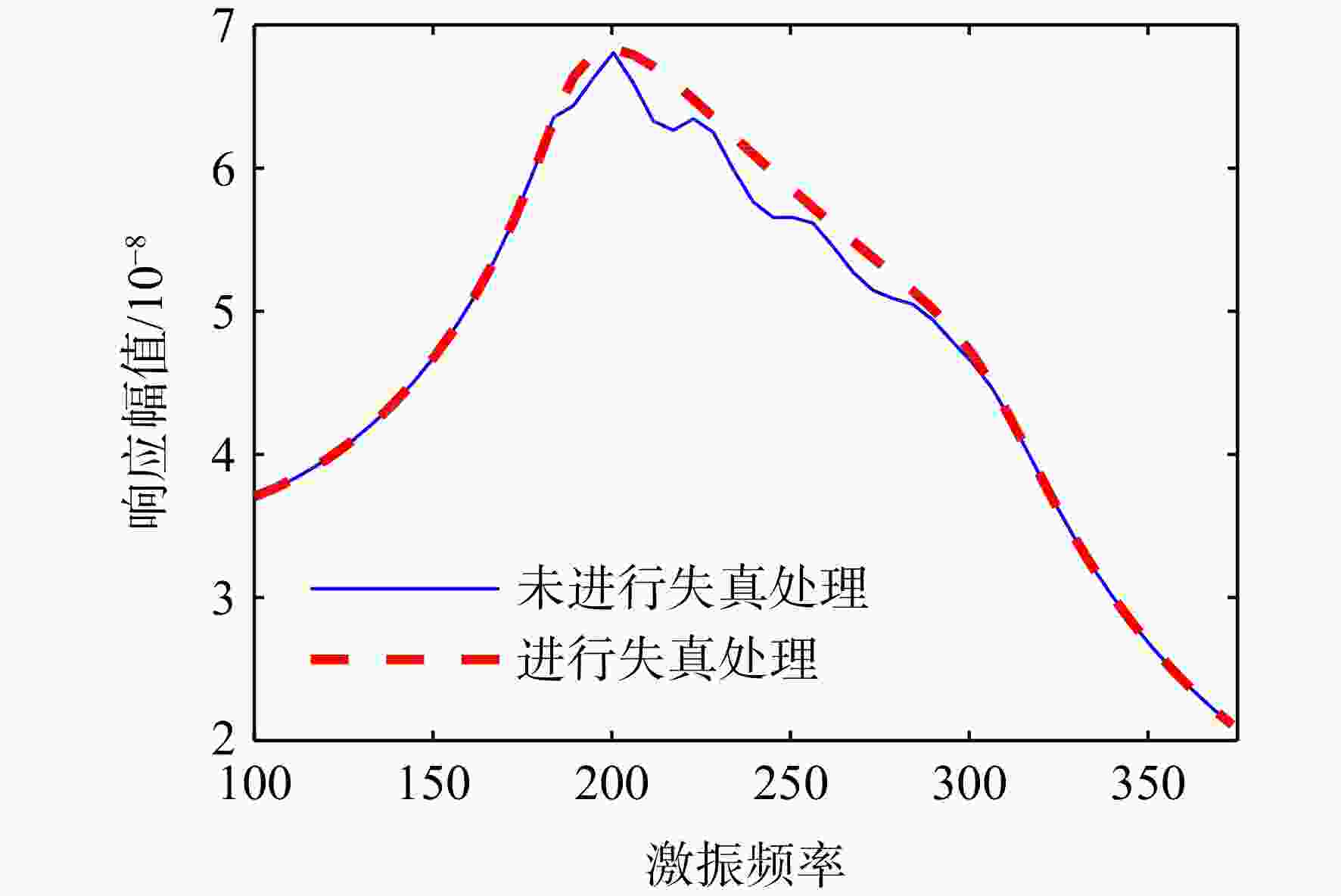

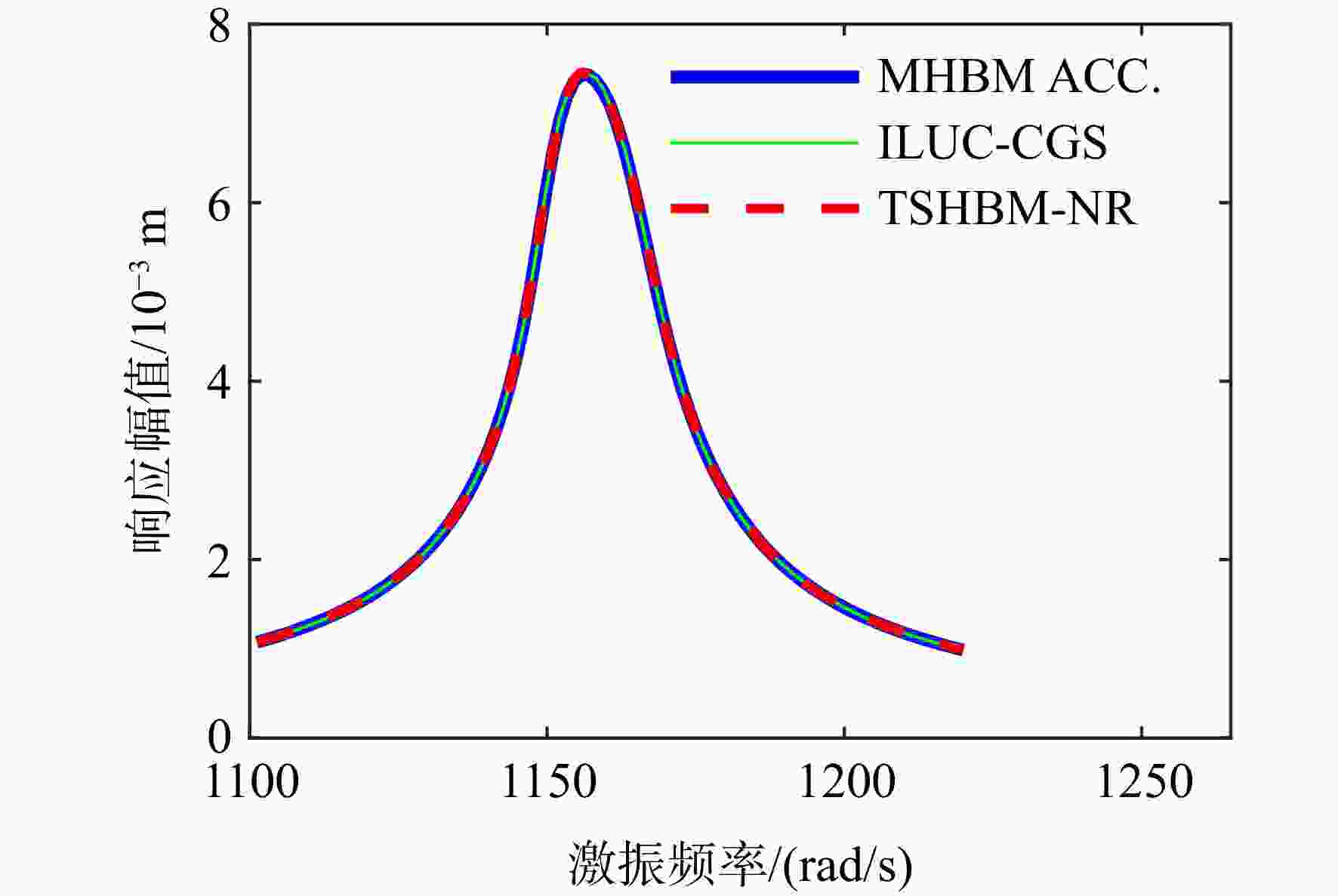

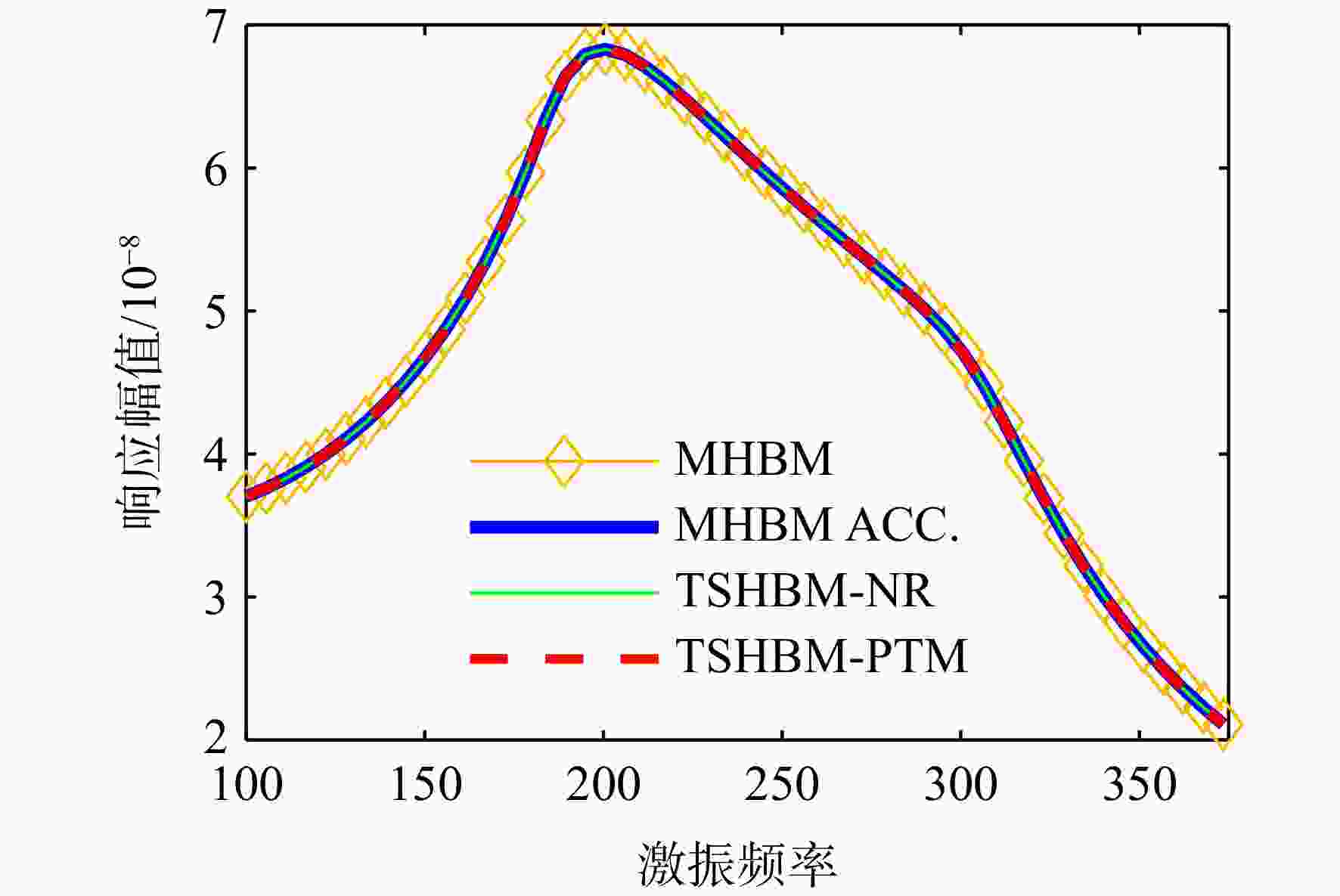

图 5 不同方法计算的带干摩擦单元的悬臂梁模型的幅频曲线
Figure 5. Amplitude-frequency curve of cantilever beam with dry friction element by different methods

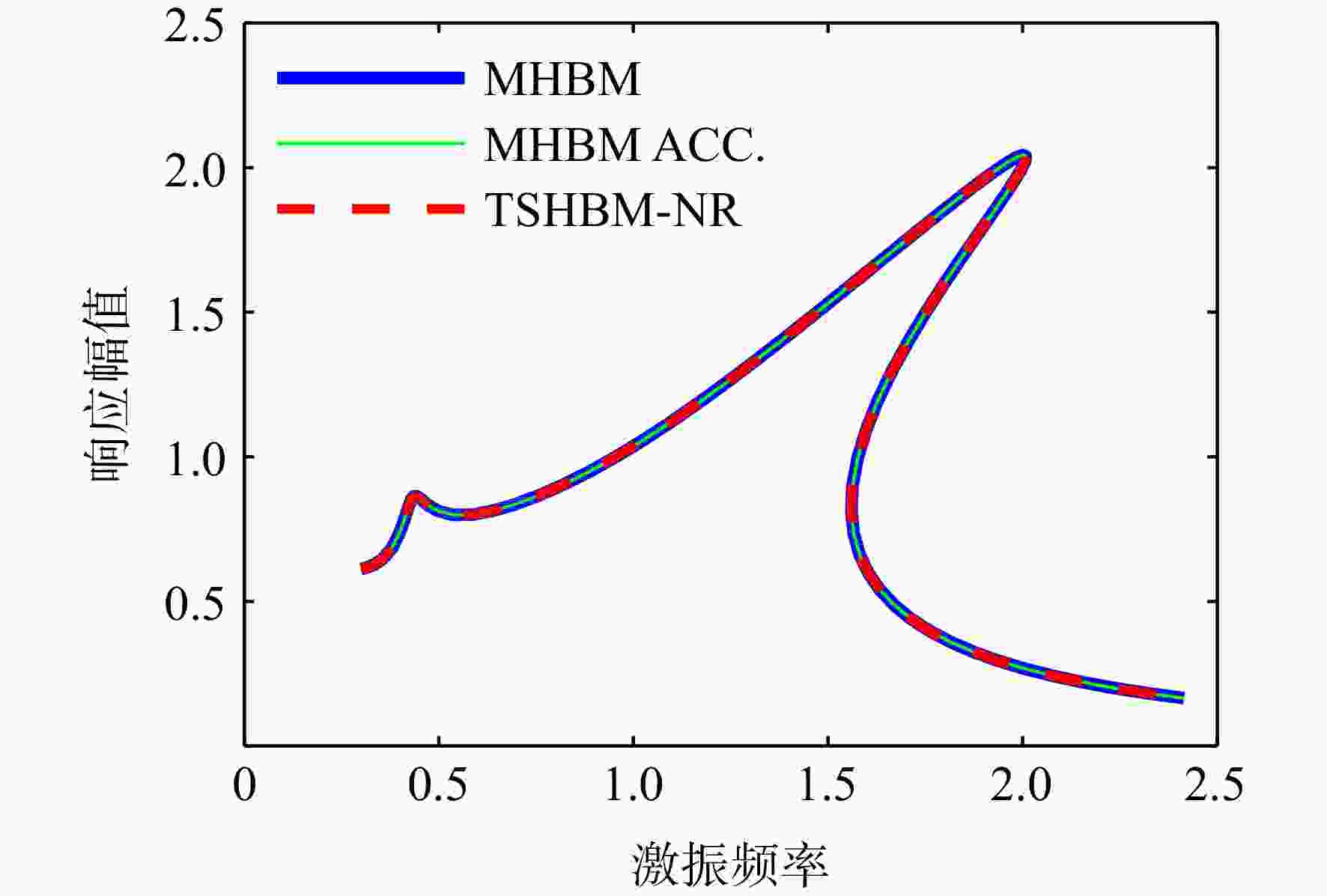

图 6 不同方法结合弧长延拓法计算的杜芬振子的幅频曲线
Figure 6. Amplitude-frequency curve of duffing oscillator by different methods with arc-length continuation

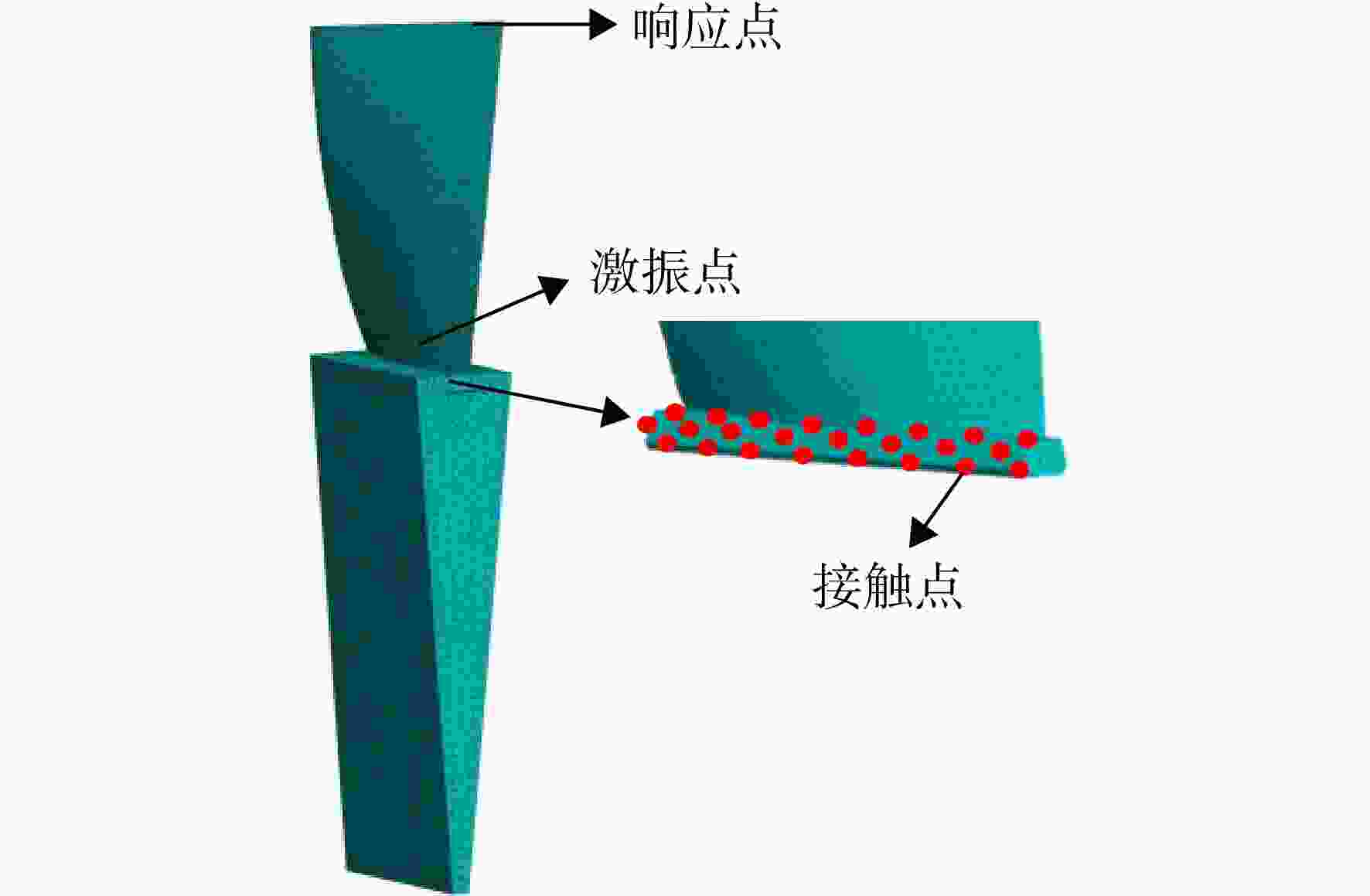

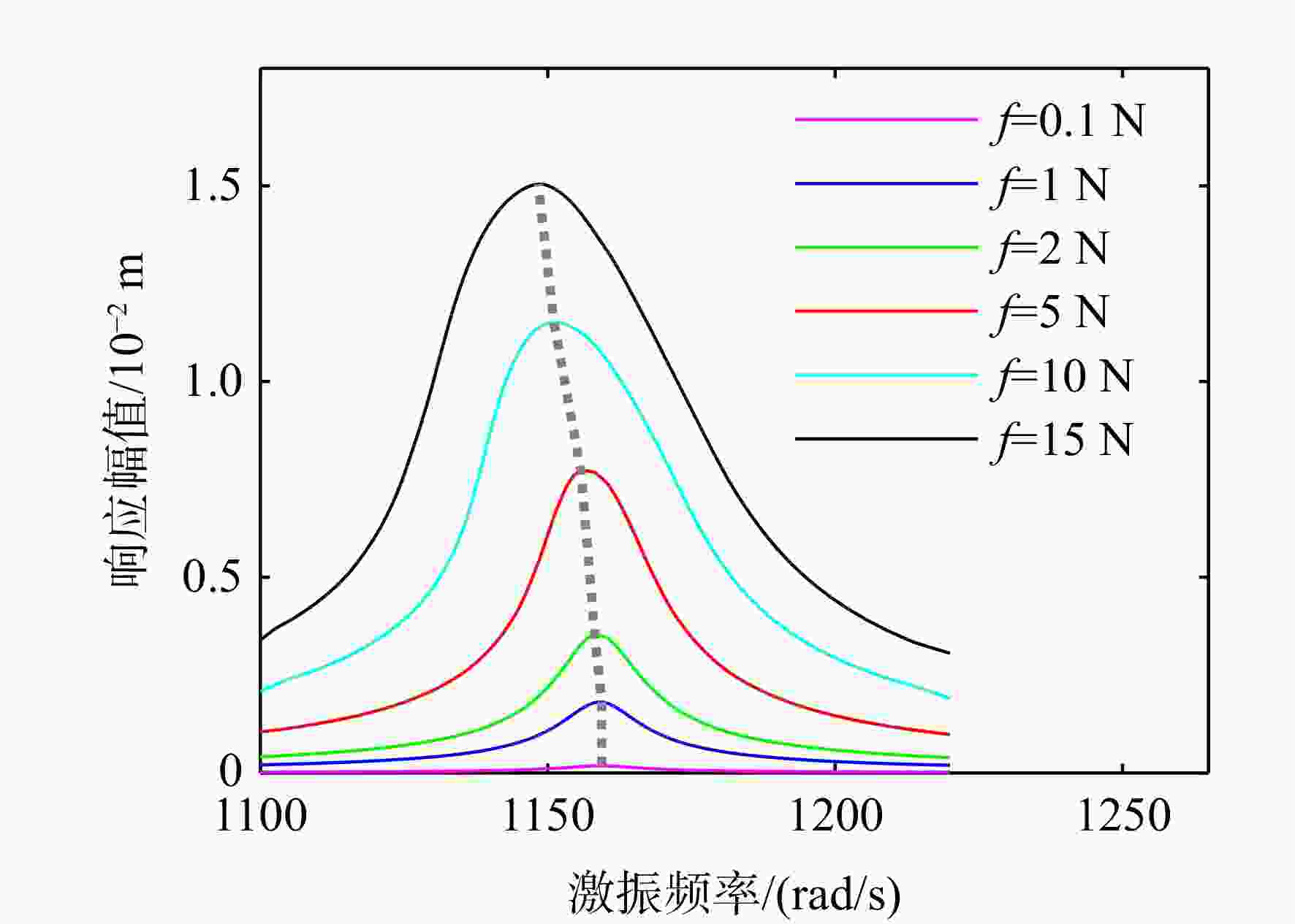

图 8 不同方法计算的带燕尾型榫根的叶片单扇区模型的幅频曲线
Figure 8. Amplitude-frequency curve of bladed disk sector with dovetail joint by different methods
表 1 带干摩擦单元的悬臂梁模型的幅频曲线的归一化计算时间
Table 1. Normalized computational time of amplitude-frequency curve of cantilever beam with dry friction element
计算方法 保留谐波阶次 ${N_{\rm{h}}} = 1$ ${N_{\rm{h}}} = 3$ ${N_{\rm{h}}} = 5$ ${N_{\rm{h}}} = 7$ MHBM 1.000 4.247 15.493 66.795 MHBM ACC. 0.139 0.371 0.746 1.559 TSHBM-NR 0.038 0.082 0.171 0.309 TSHBM-PTM 0.043 0.085 0.184 0.361
下载: 导出CSV
表 2 杜芬振子系统的幅频曲线的归一化计算时间
Table 2. Normalized computational time of amplitude-frequency curve of duffing oscillator
计算方法 保留谐波阶次 ${N_{\rm{h}}} = 1$ ${N_{\rm{h}}} = 3$ ${N_{\rm{h}}} = 5$ ${N_{\rm{h}}} = 7$ MHBM 1.000 1.713 2.631 4.233 MHBM ACC. 0.719 0.984 1.161 1.454 TSHBM-NR 0.539 0.650 0.681 0.779
下载: 导出CSV
表 3 主要模型参数
Table 3. Model parameters
参数 数值 弹性模量E/1011 Pa 2.1 泊松比μe 0.3 材料密度ρ/（kg/m3） 7980 β-阻尼系数/10−5 1 切向接触刚度kt/105 （N/m） 1 法向接触刚度kn/105 （N/m） 1 摩擦因数μ 0.3
下载: 导出CSV
表 4 带燕尾型榫根的叶片单扇区模型的幅频曲线的归一化计算时间
Table 4. Normalized computational time of amplitude-frequency curve of bladed disk sector with dovetail joint
计算方法 保留谐波阶次 ${N_{\rm{h}}} = 1$ ${N_{\rm{h}}} = 3$ MHBM ACC. 1.000 6.085 TSHBM-NR 0.926 5.404 TSHBM-PTM 0.628 3.304
下载: 导出CSV
-
[1] 李琳,高钱,吴亚光,等. 考虑参数关联的缘板阻尼器减振性能分析[J]. 航空动力学报,2021,36(8): 1657-1668. LI Lin,GAO Qian,WU Yaguang,et al. On the vibration reduction performance of underplatform dampers considering parameter correlation[J]. Journal of Aerospace Power,2021,36(8): 1657-1668. (in ChineseLI Lin, GAO Qian, WU Yaguang, et al. On the vibration reduction performance of underplatform dampers considering parameter correlation[J]. Journal of Aerospace Power, 2021, 36(8): 1657-1668. (in Chinese) [2] 阳刚,周标,臧朝平. 含接触界面的叶盘结构强迫振动响应快速预测方法[J]. 航空动力学报,2019,34(9): 1953-1961. YANG Gang,ZHOU Biao,ZANG Chaoping. Fast response prediction method for bladed disks with contact interfaces[J]. Journal of Aerospace Power,2019,34(9): 1953-1961. (in ChineseYANG Gang, ZHOU Biao, ZANG Chaoping. Fast response prediction method for bladed disks with contact interfaces[J]. Journal of Aerospace Power, 2019, 34(9): 1953-1961. (in Chinese) [3] ZUCCA S,EPUREANU B I. Bi-linear reduced-order models of structures with friction intermittent contacts[J]. Nonlinear Dynamics,2014,77(3): 1055-1067. doi: 10.1007/s11071-014-1363-8 [4] SIEWERT C,PANNING L,WALLASCHEK J,et al. Multiharmonic forced response analysis of a turbine blading coupled by nonlinear contact forces[J]. Journal of Engineering for Gas Turbines and Power,2010,132(8): 082501. doi: 10.1115/1.4000266 [5] LAXALDE D,THOUVEREZ F. Complex non-linear modal analysis for mechanical systems: application to turbomachinery bladings with friction interfaces[J]. Journal of Sound and Vibration,2009,322(4/5): 1009-1025. [6] PETROV E P,EWINS D J. Analytical formulation of friction interface elements for analysis of nonlinear multi-harmonic vibrations of bladed disks[J]. Journal of Turbomachinery,2003,125(2): 364-371. doi: 10.1115/1.1539868 [7] PETROV E P. Method for sensitivity analysis of resonance forced response of bladed disks with nonlinear contact interfaces[J]. Journal of Engineering for Gas Turbines and Power,2009,131(2): 022510. doi: 10.1115/1.2969094 [8] SALLES L,BLANC L,THOUVEREZ F,et al. Dual time stepping algorithms with the high order harmonic balance method for contact interfaces with fretting-wear[J]. Journal of Engineering for Gas Turbines and Power,2012,134(3): 1. [9] HALL K C,THOMAS J P,CLARK W S. Computation of unsteady nonlinear flows in cascades using a harmonic balance technique[J]. AIAA Journal,2002,40: 879-886. doi: 10.2514/2.1754 [10] LABRYER A,ATTAR P J. A harmonic balance approach for large-scale problems in nonlinear structural dynamics[J]. Computers & Structures,2010,88(17/18): 1002-1014. [11] MUNDIS N L,MAVRIPLIS D J. An efficient flexible GMRES solver for the fully-coupled time-spectral aeroelastic system: AIAA 2014-1427 [R]. Reston,US: AIAA,2014. [12] SICOT F,PUIGT G,MONTAGNAC M. Block-jacobi implicit algorithms for the time spectral method[J]. AIAA Journal,2008,46(12): 3080-3089. doi: 10.2514/1.36792 [13] WOODGATE M A,BADCOCK K J. Implicit harmonic balance solver for transonic flow with forced motions[J]. AIAA Journal,2009,47(4): 893-901. doi: 10.2514/1.36311 [14] SU X, YUAN X. Implicit solution of time spectral method for periodic unsteady flows[J]. International Journal for Numerical Methods in Fluids,2010,63(7): 860-876. [15] RAMEZANIAN D,MAVRIPLIS D,AHRABI B R. An order N log N parallel solver for time-spectral problems[J]. Journal of Computational Physics,2020,411: 109319. doi: 10.1016/j.jcp.2020.109319 [16] KRACK M,GROSS J. Harmonic balance for nonlinear vibration problems[M]. Cham: Springer International Publishing,2019. [17] 刘南,白俊强,华俊,等. 高阶谐波平衡方法中非物理解来源分析及改进方法研究[J]. 力学学报,2016,48(4): 897-906. LIU Nan,BAI Junqiang,HUA Jun,et al. Investigation of the source and improvement of non-physical solutions in high-order harmonic balance[J]. Chinese Journal of Theoretical and Applied Mechanics,2016,48(4): 897-906. (in ChineseLIU Nan, BAI Junqiang, HUA Jun, et al. Investigation of the source and improvement of non-physical solutions in high-order harmonic balance[J]. Chinese Journal of Theoretical and Applied Mechanics, 2016, 48(4): 897-906. (in Chinese) [18] LI Hang,EKICI K. Improved one-shot approach for modeling viscous transonic limit cycle oscillations[J]. AIAA Journal,2018,56(8): 3138-3152. [19] SAAD Y. Iterative methods for sparse linear systems [M]. Second Edition. Philadelphia,US: Society for Industrial and Applied Mathematics, 2003. -
