发动机高温结构腐蚀损伤检测与评估方法研究进展

胡剑辉; 齐红宇; 李少林; 石多奇; 杨晓光

doi:10.13224/j.cnki.jasp.20220198

发动机高温结构腐蚀损伤检测与评估方法研究进展

doi: 10.13224/j.cnki.jasp.20220198

胡剑辉^1,,
齐红宇^{1, 2},
李少林^{1, 2,*, ,},
石多奇^{1, 2},
杨晓光^{1, 2}

1.
北京航空航天大学能源与动力工程学院，北京 100191
2.
北京航空航天大学航空发动机结构强度北京市重点实验室，北京 100191

基金项目: 国家自然科学基金（51975027）

详细信息

作者简介:
胡剑辉（1998-），男，硕士生，主要从事航空发动机高温结构强度研究

通讯作者:
李少林（1983-），副教授，博士，主要从事航空发动机高温结构强度研究。E-mail：lishaolin@buaa.edu.cn

中图分类号: V263.5
计量
- 文章访问数: 697
- HTML浏览量: 284
- PDF量: 60
- 被引次数: 0
出版历程
- 收稿日期: 2022-04-09
- 网络出版日期: 2024-06-21

Review progress on corrosion damage detection and evaluation methods of high-temperature structures of the aero-engine

HU Jianhui^1
,,
QI Hongyu^{1, 2},
LI Shaolin^{1, 2,*
, ,},
SHI Duoqi^{1, 2},
YANG Xiaoguang^{1, 2}

1.
School of Energy and Power Engineering，Beihang University，Beijing 100191，China
2.
Beijing Key Laboratory of Aero-Engine Structure and Strength，Beihang University，Beijing 100191，China

摘要

摘要:
针对航空发动机高温结构无损检测问题，综述了其腐蚀损伤检测与评估方法研究进展。从检测机制、信号特征及技术的应用与研究等方面，重点介绍和比较了常用于Ⅰ型热腐蚀（均匀腐蚀）与Ⅱ型热腐蚀（点蚀）两种发动机高温结构中常见热腐蚀损伤的无损检测技术。归纳了已有的基于无损检测手段的强度评估方法。在对比几种检测技术的检测能力的基础上，阐述了无损检测应用于发动机高温结构腐蚀损伤检测的难点和未来发展方向。从现有研究现状来看，目前的无损检测技术难以对发动机高温结构腐蚀损伤的视情维护提供有力支撑。今后应重点在复杂结构的检测、更强检测能力的实现、多技术协调应用等方面开展研究，以提高对发动机高温结构腐蚀损伤的检测评估能力。
- 发动机高温结构 /
- 无损检测 /
- 强度评估 /
- 腐蚀损伤 /
- 检测能力
Abstract:
The research progress of corrosion damage detection and evaluation methods for aero-engine high-temperature structures was reviewed. The non-destructive testing technologies commonly applied to detect the type Ⅰ hot corrosion (uniform corrosion) and type Ⅱ hot corrosion (pitting corrosion) of high-temperature structures were mainly introduced, including the detection mechanism, signal characteristics, application and research. The advantages and limitations of these kinds of testing technologies were enumerated. The established strength evaluation methods based on non-destructive testing were also summarized. The detection capabilities of several testing techniques mentioned were compared, and the difficulties in applying non-destructive testing into corrosion damage detection of high-temperature structures were expounded. Results showed that the current non-destructive testing technologies could hardly provide favourable support for the condition-based maintenance of high-temperature structure corrosion damage of aero-engine. It is suggested to further investigate the detection technologies of complex structures, the realization of stronger detection capability and the coordinated application of multi-technology on structure corrosion of aero-engine.
- high-temperature structure of aero-engine /
- non-destructive testing /
- strength evaluation /
- corrosion damage /
- detection capability

HTML

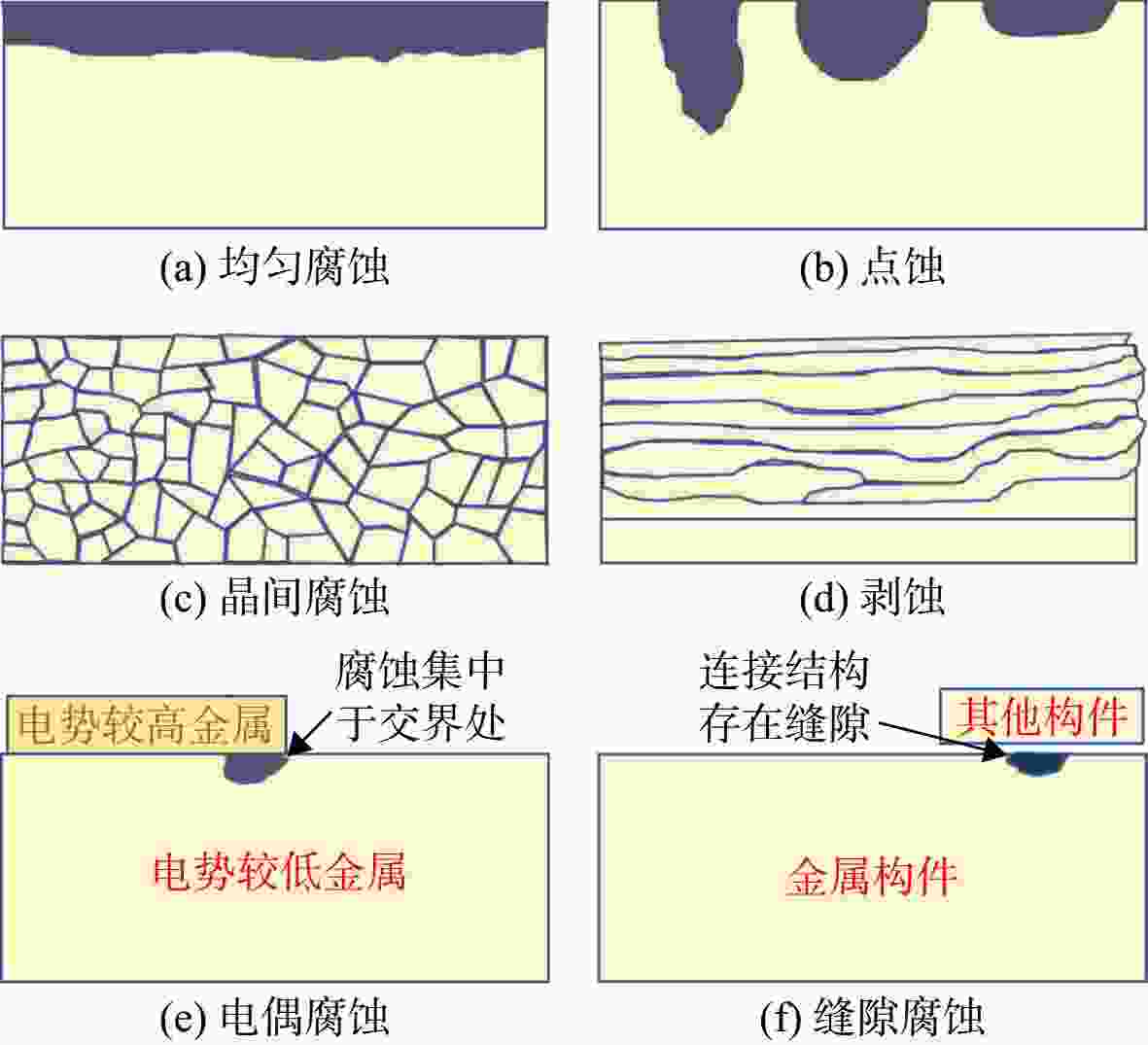

图 1 腐蚀形貌示意图^[10]

Figure 1. Corrosion morphology of corrosion^[10]

下载: 全尺寸图片幻灯片

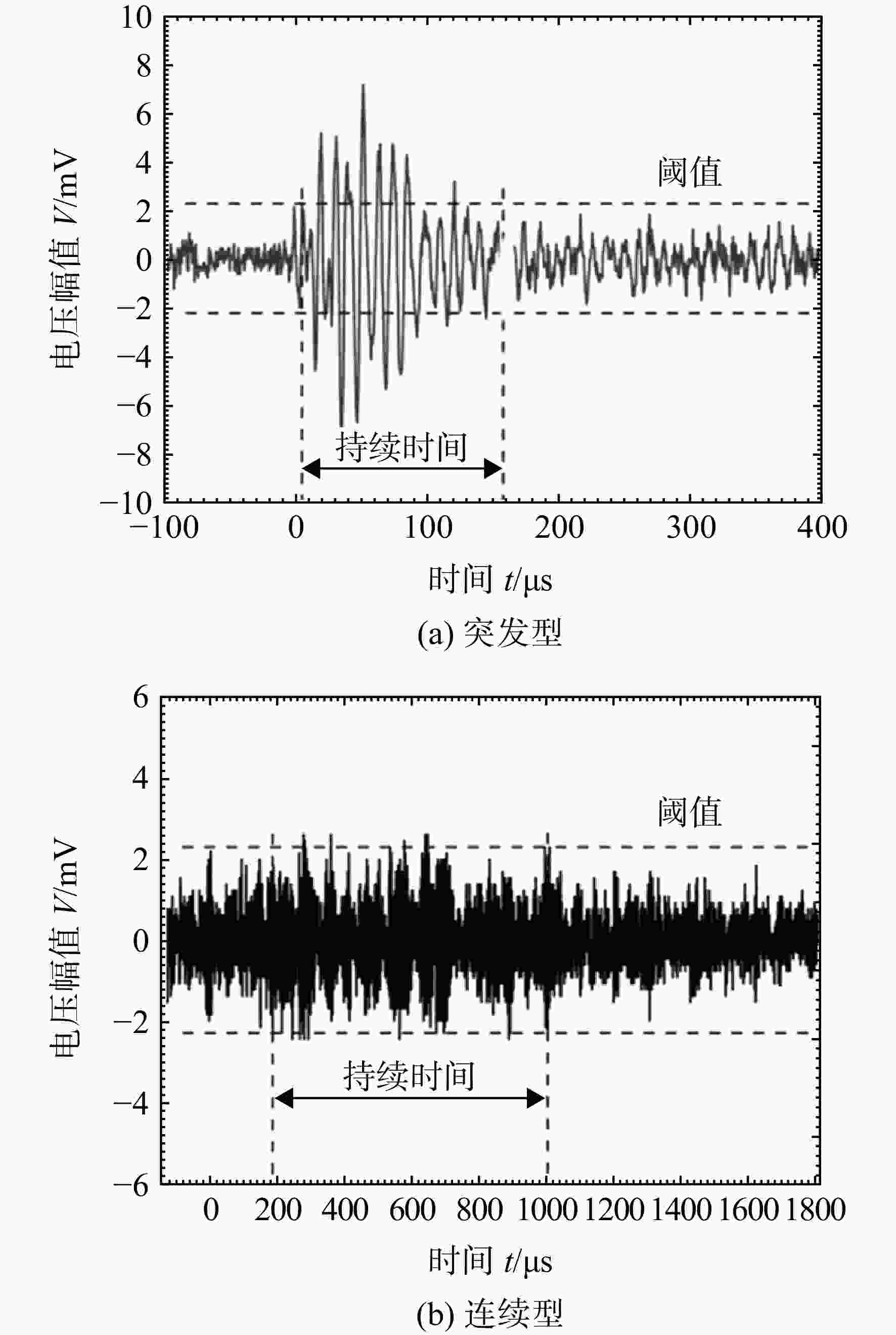

图 2 典型声发射信号^[31]

Figure 2. Typical acoustic emission signal^[31]

下载: 全尺寸图片幻灯片

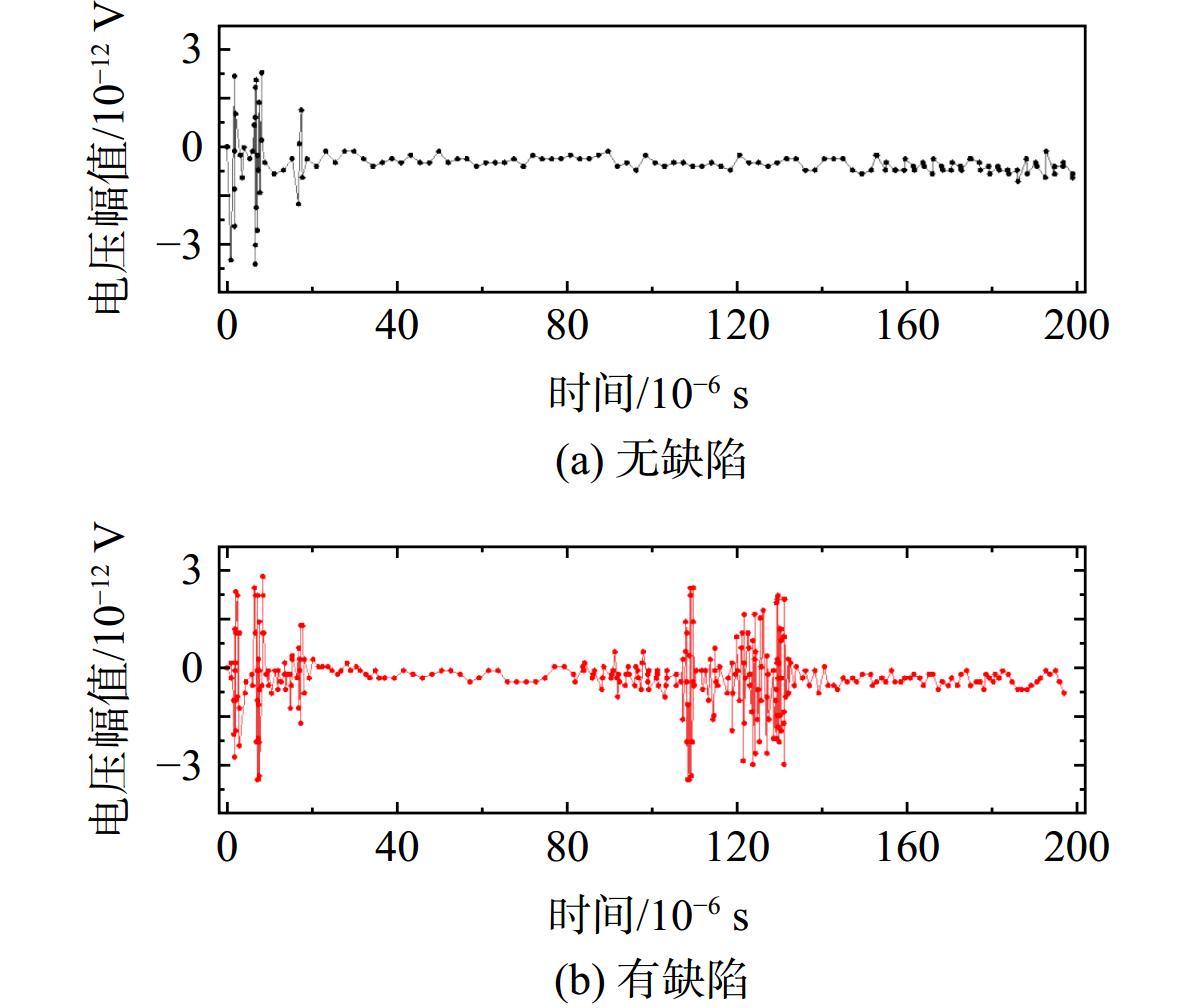

图 3 超声导波A型显示信号^[40]

Figure 3. Type-A signal of ultrasonic guided wave^[40]

下载: 全尺寸图片幻灯片

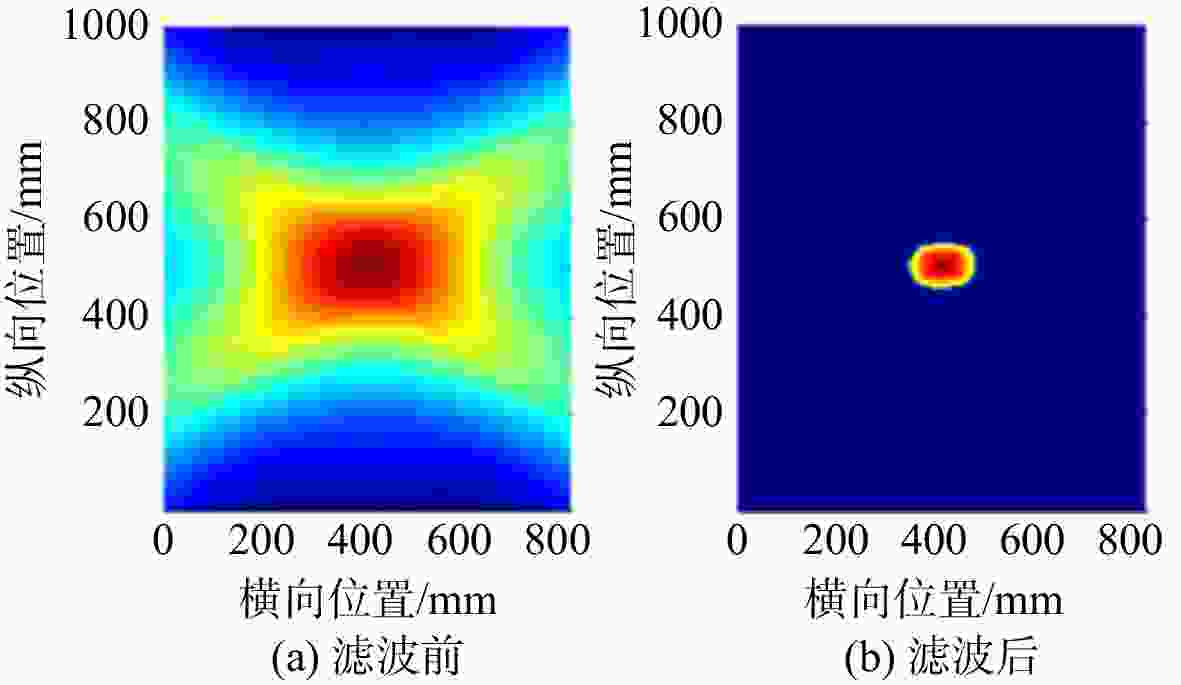

图 4 超声导波C型显示信号^[41]

Figure 4. Type-C signal of ultrasonic guided wave^[41]

下载: 全尺寸图片幻灯片

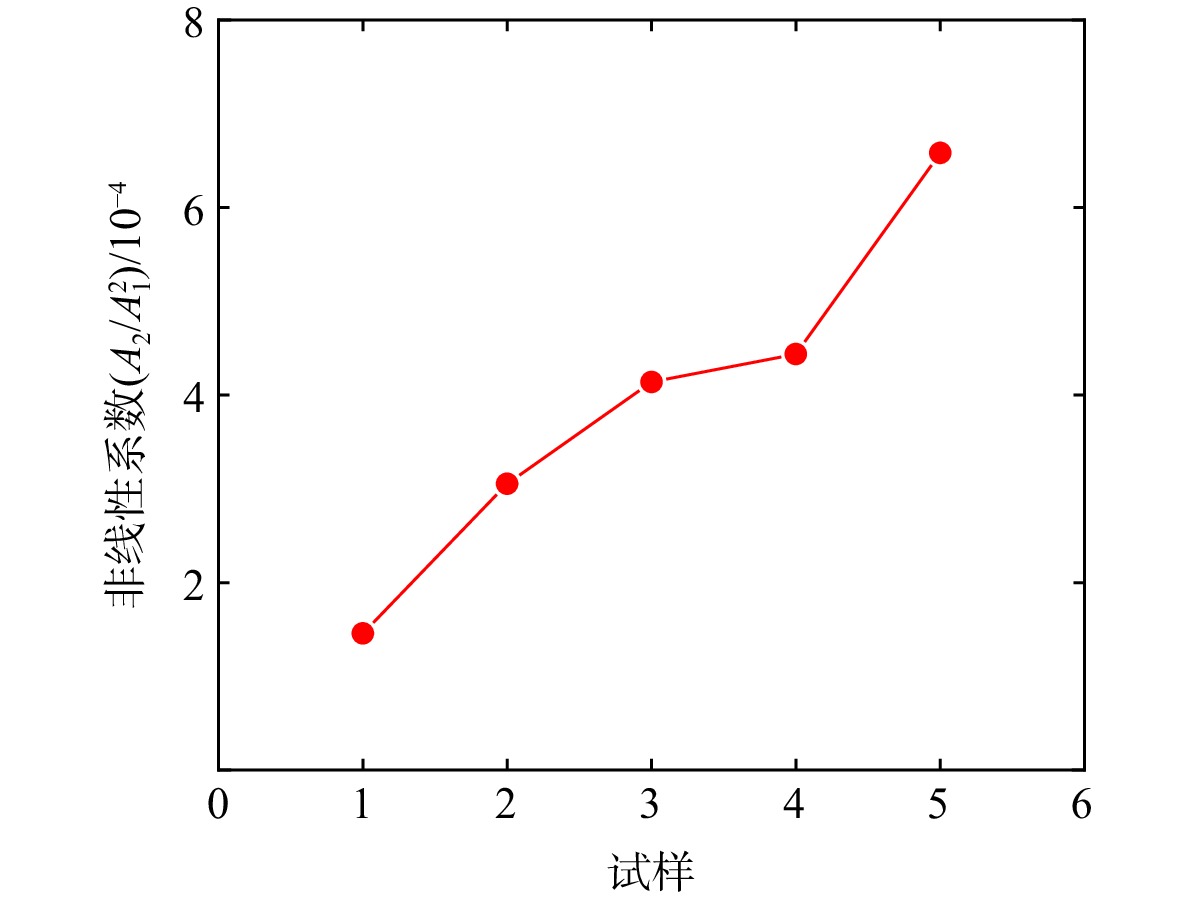

图 5 超声非线性系数^[42]

Figure 5. Ultrasonic non-linearity coefficient^[42]

下载: 全尺寸图片幻灯片

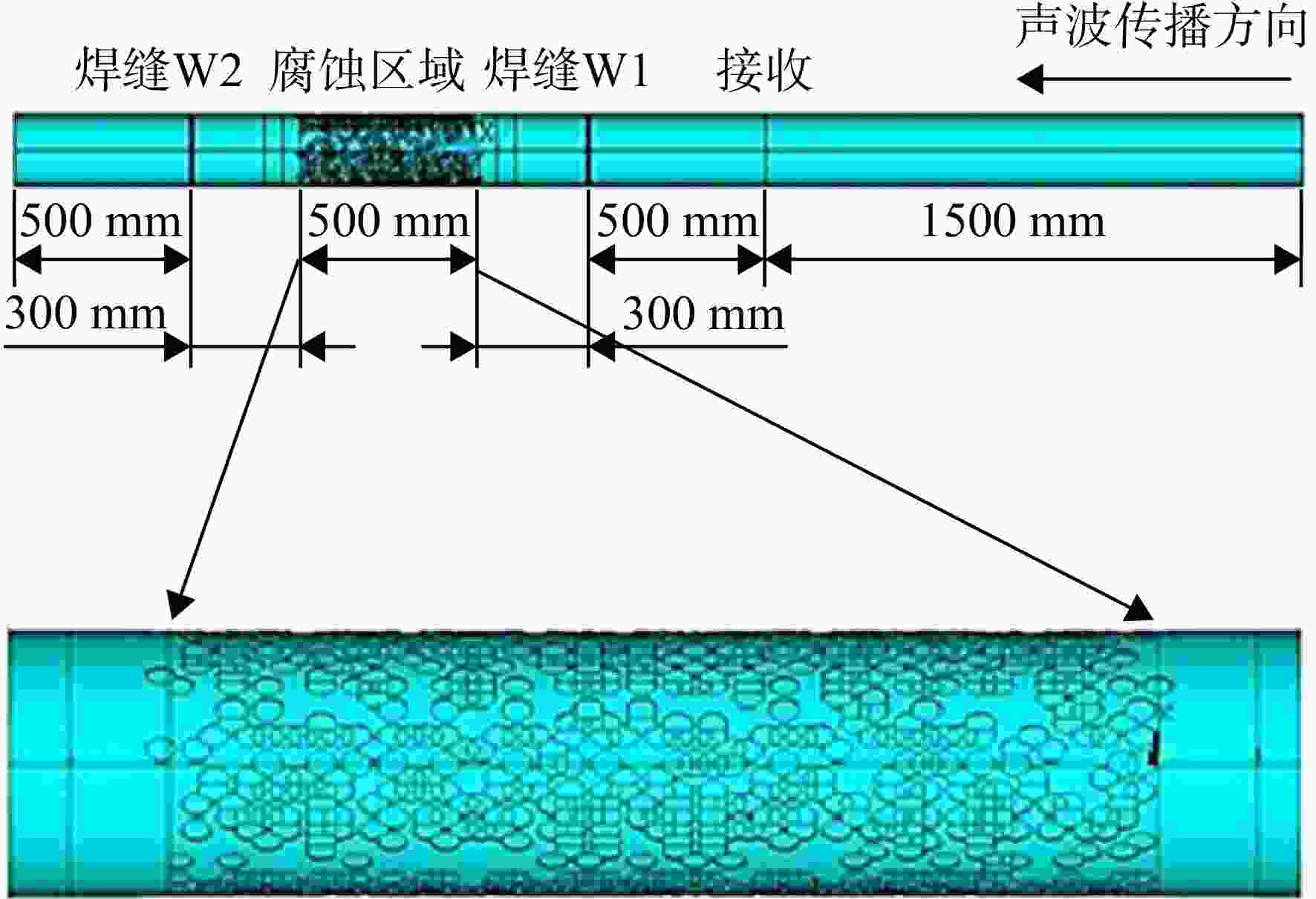

图 6 管道均匀腐蚀有限元模型^[49]

Figure 6. Finite element model for general corrosion of pipeline^[49]

下载: 全尺寸图片幻灯片

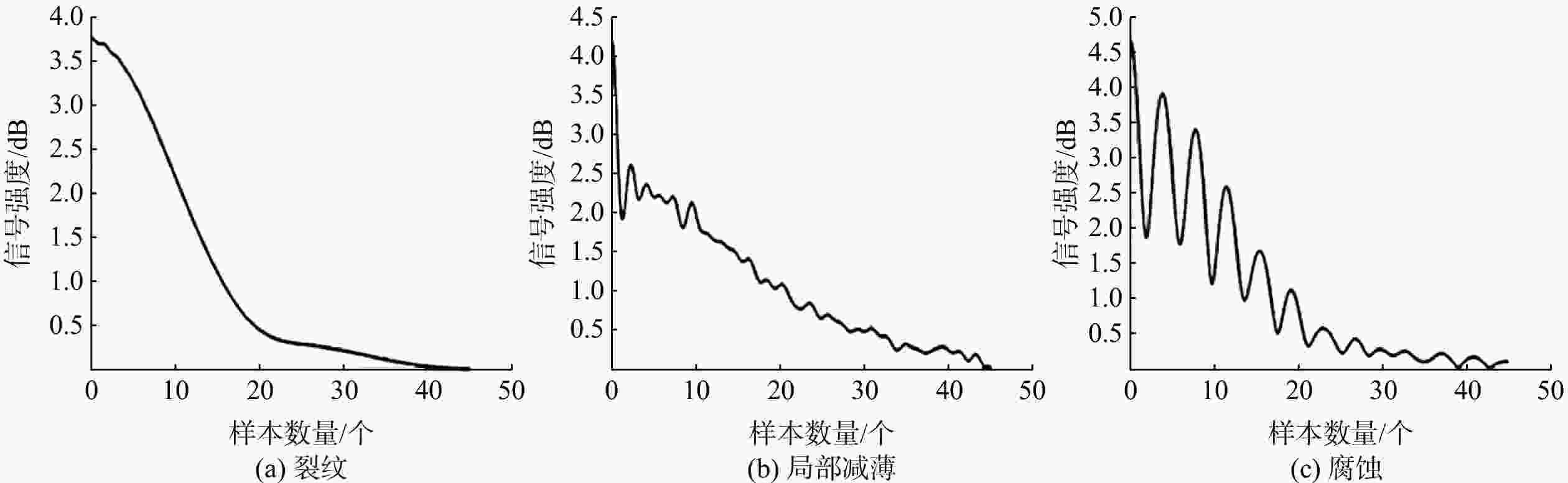

图 7 3种缺陷信号的FFT输出^[53]

Figure 7. Output of FFT for three defects^[53]

下载: 全尺寸图片幻灯片

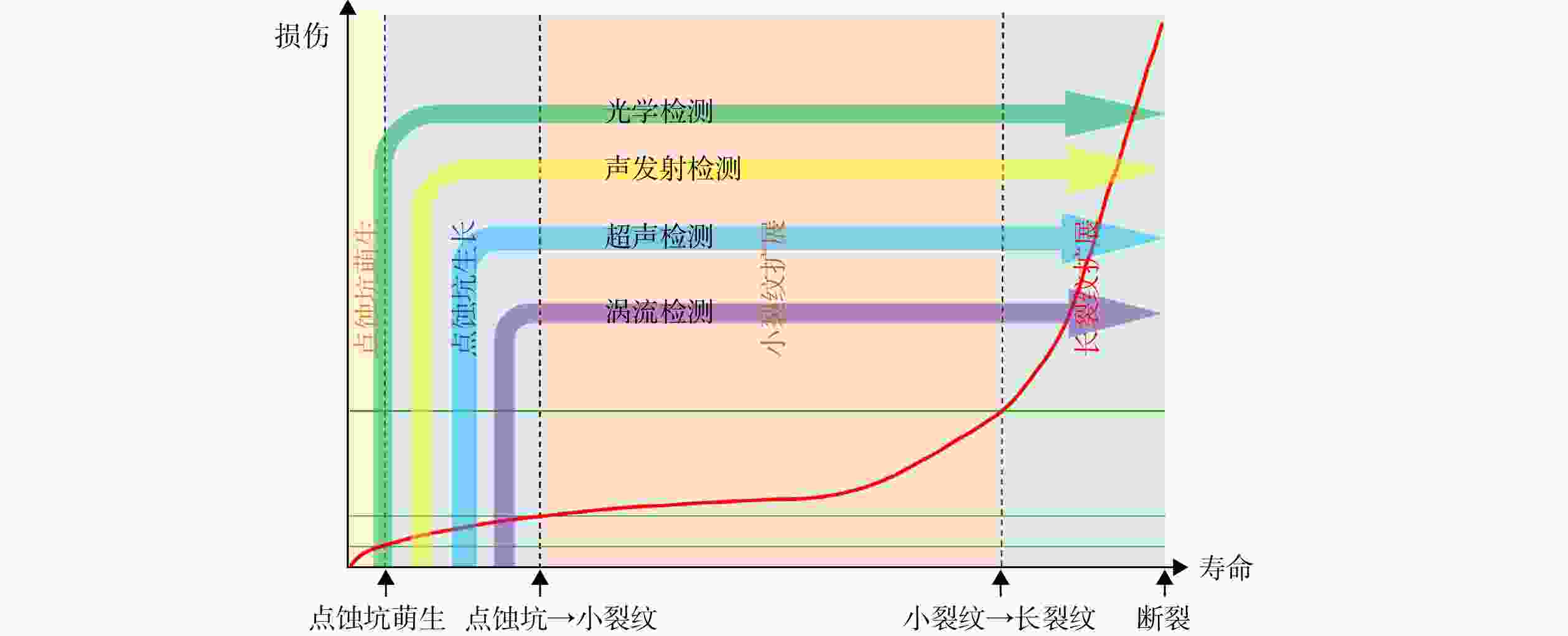

图 8 几种技术检测能力对比^{[32, 38, 44, 46, 77-78]}

Figure 8. Comparison of detection capability of several technologies^{[32, 38, 44, 46, 77-78]}

下载: 全尺寸图片幻灯片

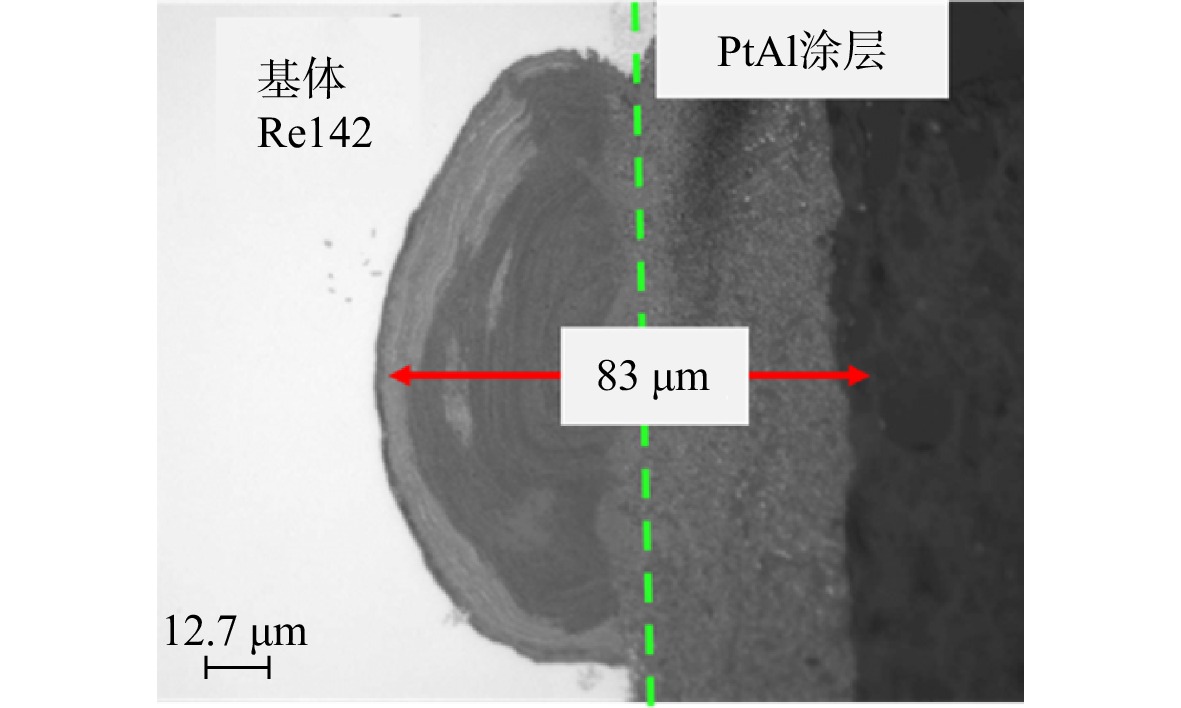

图 9 涡轮叶片点蚀坑形貌^[85]

Figure 9. Corrosion pit morphology of turbine blade^[85]

下载: 全尺寸图片幻灯片

表 1 几种技术腐蚀检测的优势与局限性

Table 1. Advantages and limitations of several techniques for corrosion detection

技术	不同方法	优势	局限
涡流检测	低频	无需耦合；有可用设备	仅限于导电材料	特殊深度
	多频	无需耦合；多深度		耗时
	脉冲	无需耦合；速度快、深度定位
超声检测	导波	覆盖区域大	需要耦合剂	低可再现性
	表面波	非常灵敏；简单		小区域；慢
	相控阵	可成像		复杂
光学检测	目视	覆盖区域大；简单快速；经济		不可靠
	孔探仪	覆盖区域大；尺寸精确		耗时
	增强目视	覆盖区域大；可提供图像		间接测量
声发射		灵敏度高	只适合溶液环境；可靠性低

下载: 导出CSV
