Combustion process and aluminum agglomeration characteristics of NEPE propellant
-
摘要:

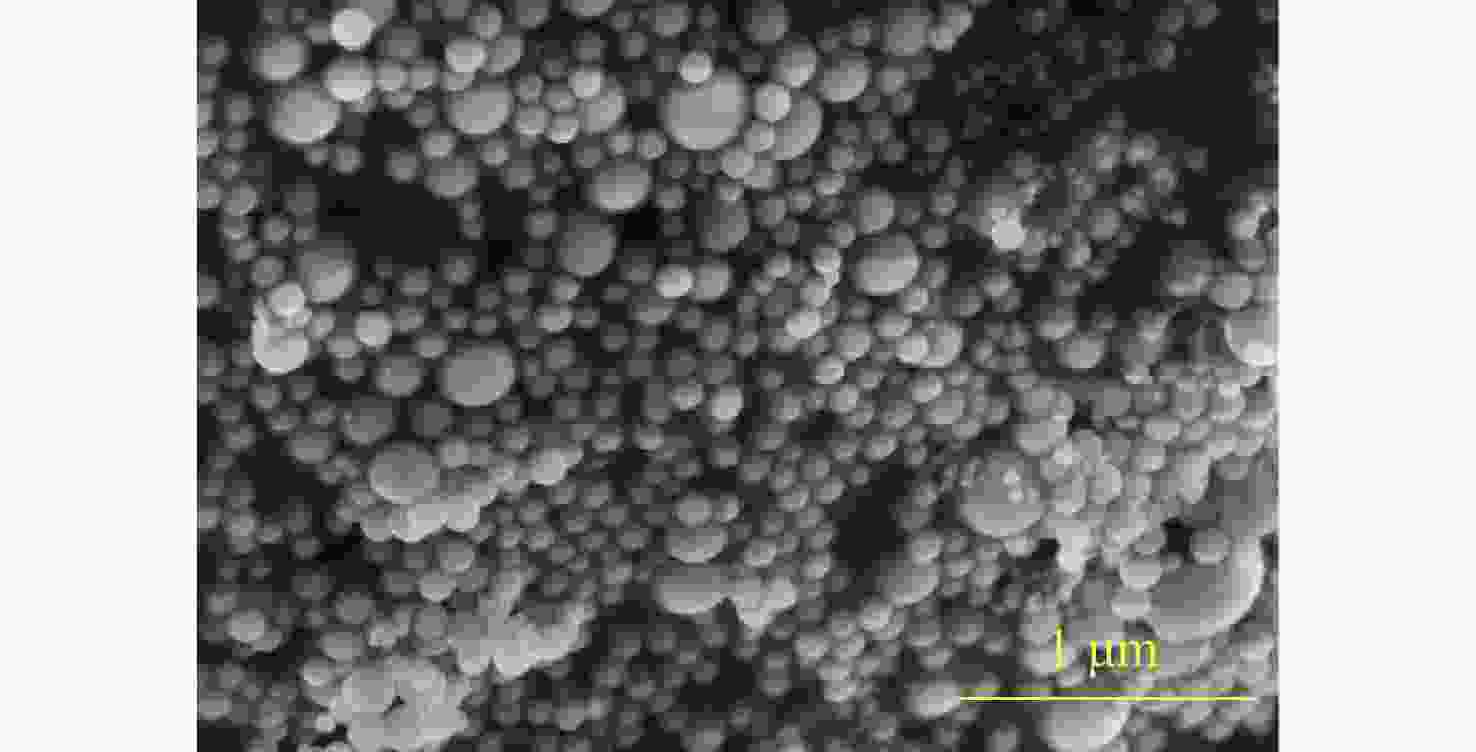

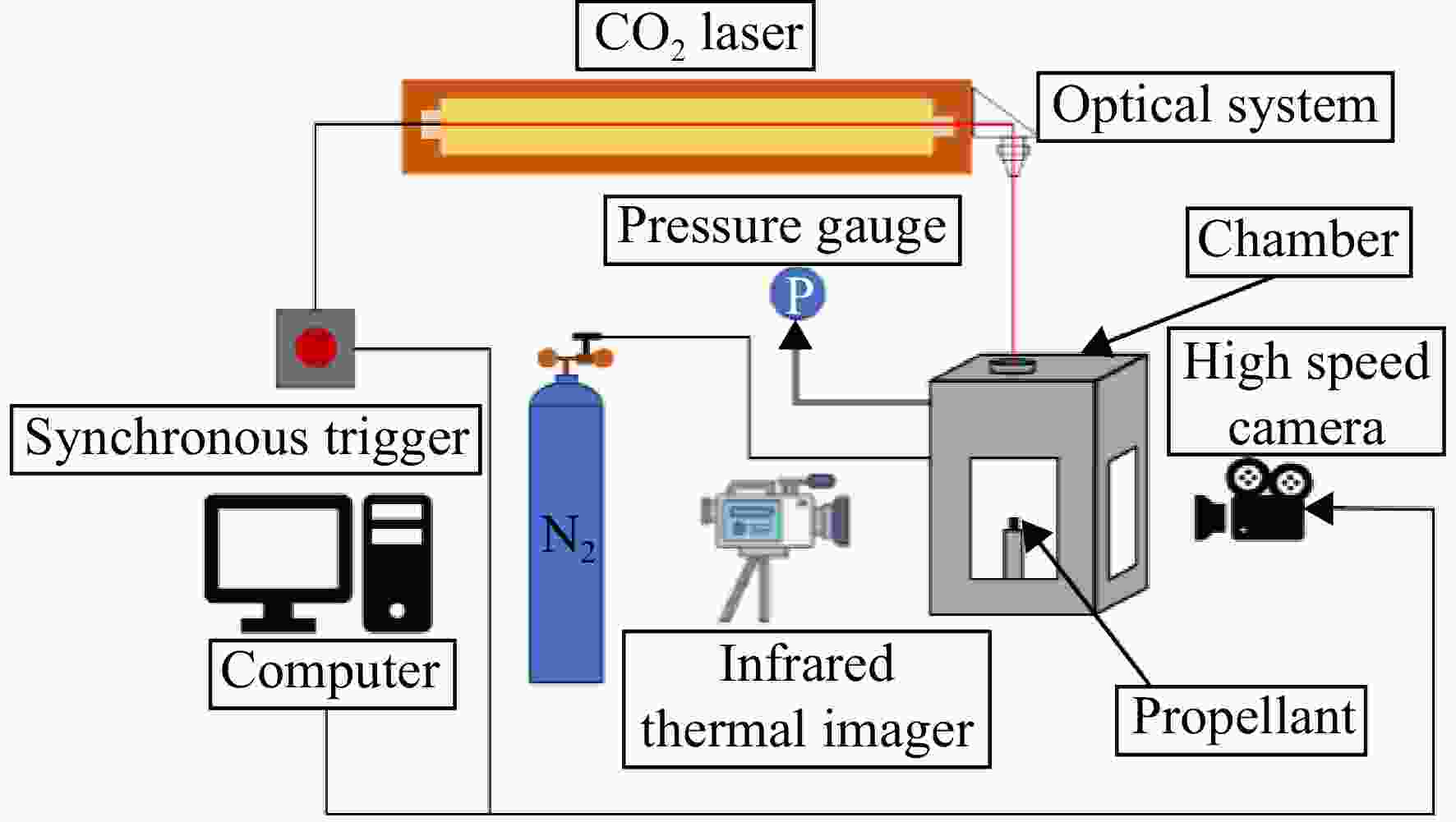

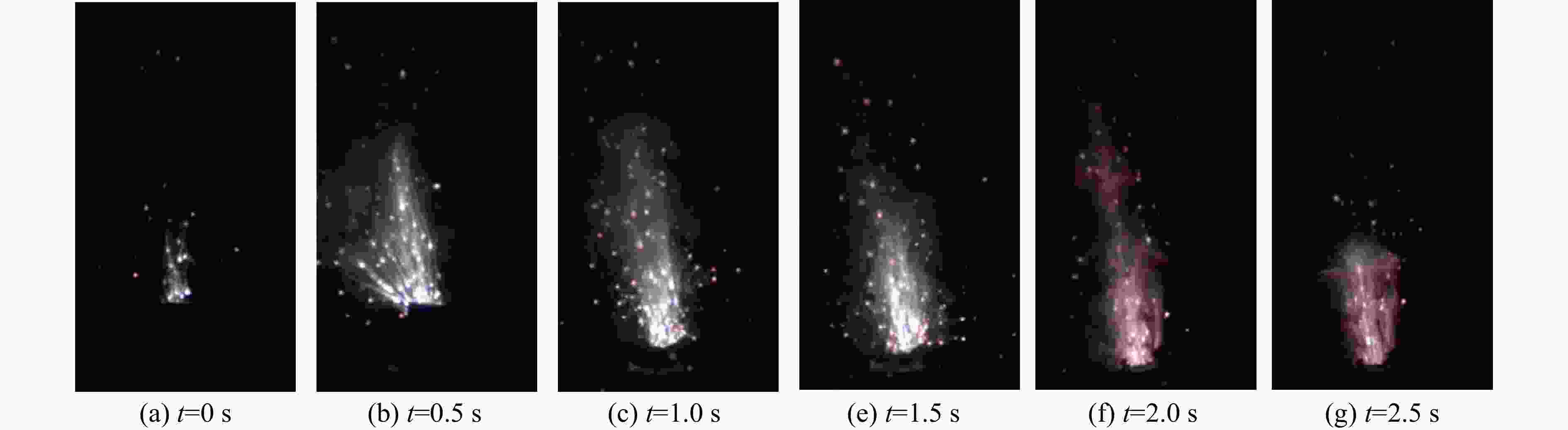

为了研究NEPE推进剂的燃烧过程以及铝颗粒团聚特性，通过高速相机与长焦显微镜头结合的光学拍摄方法记录推进剂的燃烧过程，使用红外热像仪记录燃烧过程中的燃烧波火焰温度，同时收集推进剂的燃烧产物，最后使用扫描电子显微镜（SEM）和激光粒度仪对燃烧产物进行了分析。结果表明，在推进剂燃烧的5个阶段：起始点火、火焰扩散、稳定燃烧、火焰衰减、火焰熄灭中均存在铝团聚物的飞溅现象。在0.5～2.0 MPa下，随着环境压强的增大，高温燃烧区域逐渐增大，燃面处铝团聚物的数量增多，但铝团聚物的粒径逐渐减小。推进剂的燃烧产物主要分为铝团聚物和氧化颗粒两类，铝团聚物粒径在50～600 μm之间，氧化铝颗粒的粒径通常不超过1 μm。
Abstract:In order to study the combustion process and aluminum agglomeration characteristics of NEPE propellant, the combustion process of NEPE propellant was recorded by the optical imaging method combined with a high-speed camera and a long distance microscope, the combustion wave flame was recorded by an infrared thermal imager, and the condensed combustion products of the propellant were collected to analyze by scanning electron microscope (SEM) and laser particle size analyzer. Results showed that the splash phenomenon of aluminum agglomerates existed in five combustion stages: initial ignition, flame diffusion, steady combustion, flame attenuation and flame extinction. At the pressure range of 0.5—2.0 MPa, with the increase of environmental pressure, the high temperature combustion region increased, the number of aluminum agglomeration at the burning surface increased, and the particle size of aluminum agglomeration gradually decreased. The condensed combustion products were mainly divided into aluminum agglomerates and oxide particles. The particle size of aluminum agglomerates was within the range of 50—600 μm, and the particle size of alumina particles usually less than 1 μm.
-

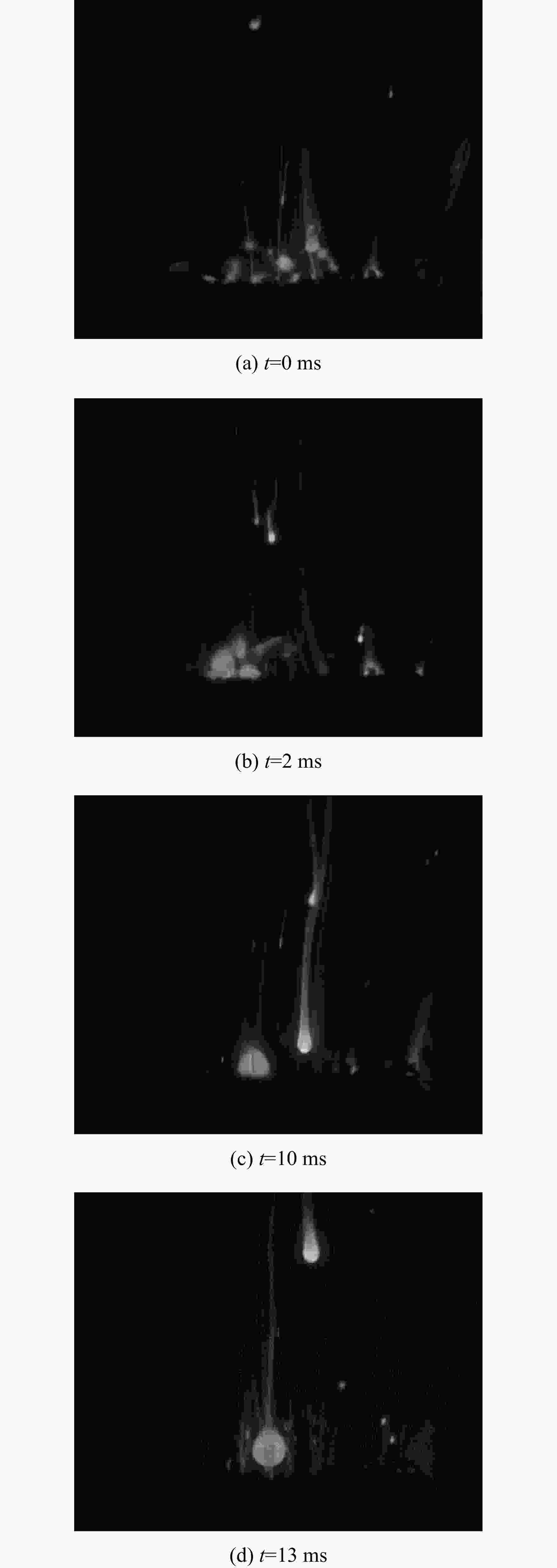

图 3 1 MPa下推进剂燃烧表面铝团聚物的形成过程
Figure 3. Formation process of aluminum aggregates on propellant combustion surface at 1 MPa

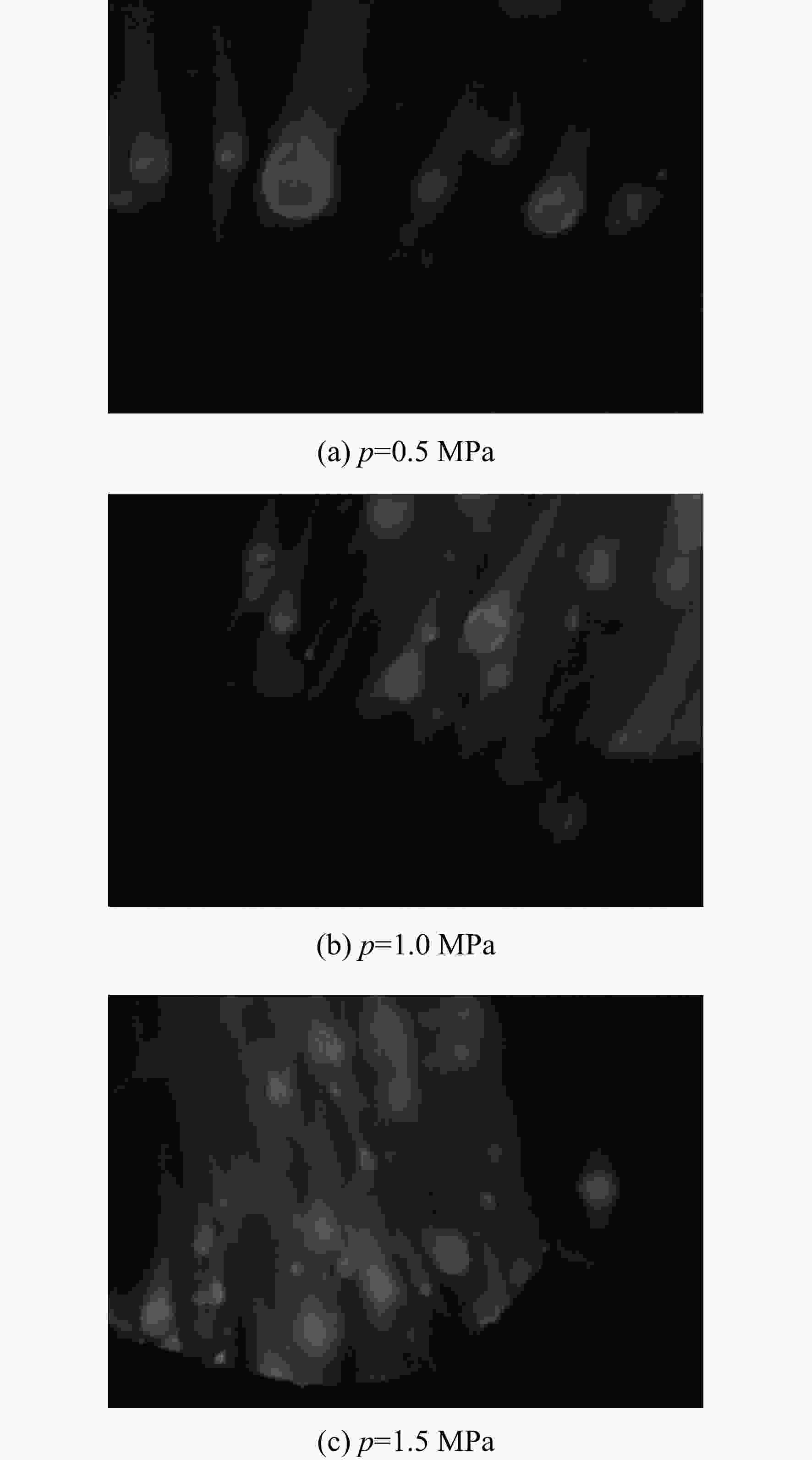

图 4 不同环境压强下NEPE推进剂燃面处铝团聚对比
Figure 4. Comparison of aluminum agglomerations on the burning surface of NEPE propellant under different ambient pressures

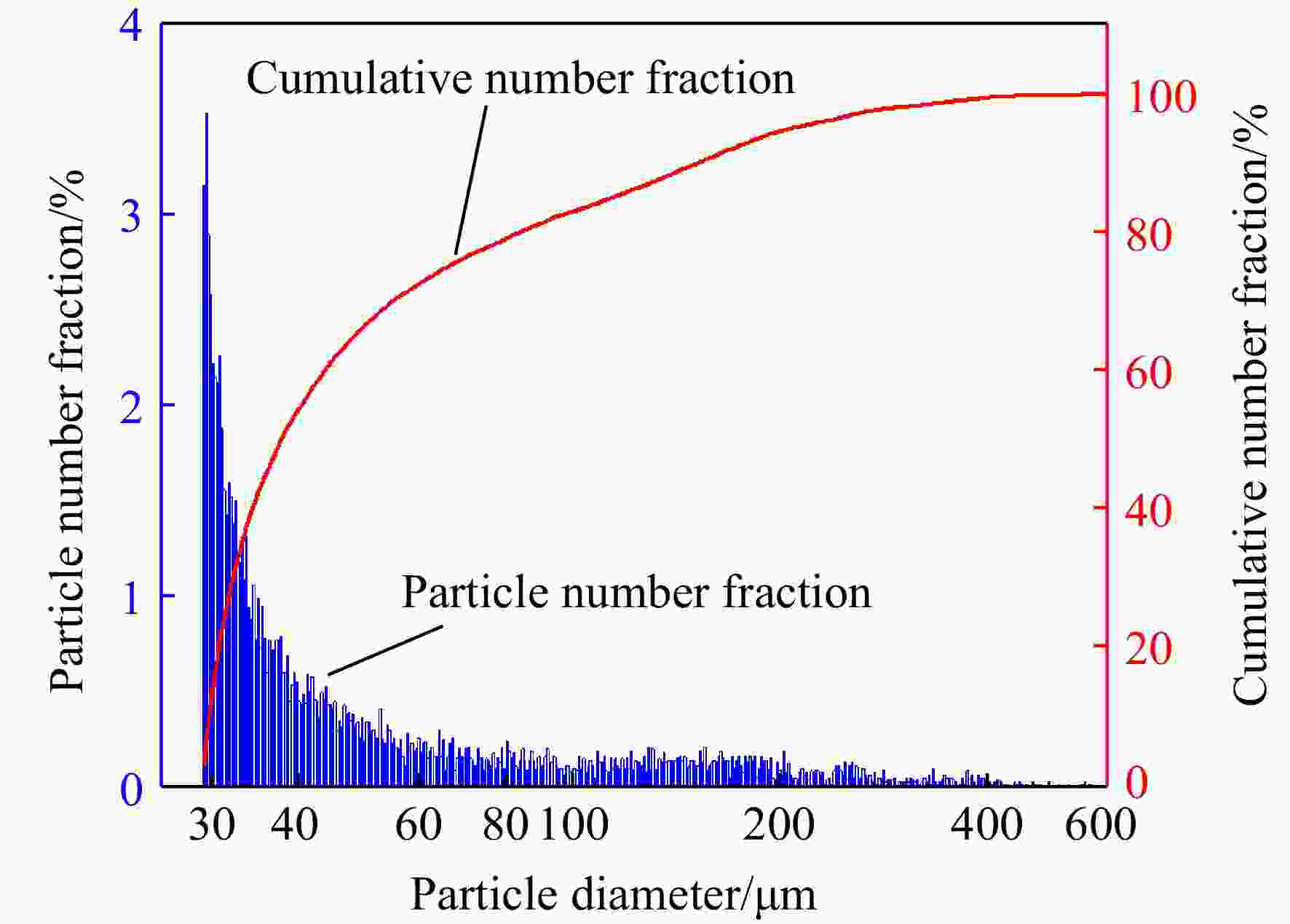

图 6 NEPE推进剂燃烧产物粒径分布
Figure 6. Condensed combustion products size distribution of NEPE propellant

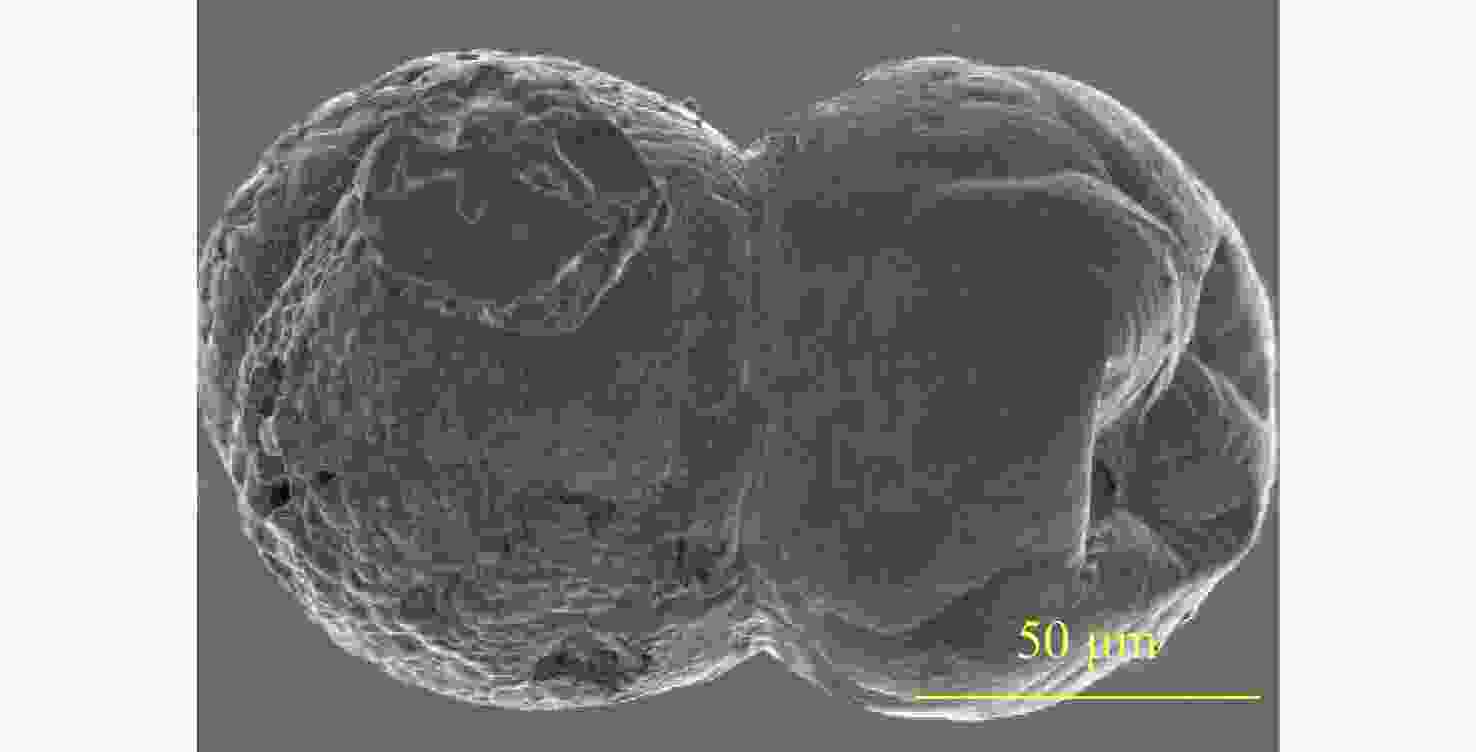

图 9 带有氧化帽结构团聚物的扫描电镜图像
Figure 9. SEM image of a agglomerate with oxidation cap structure

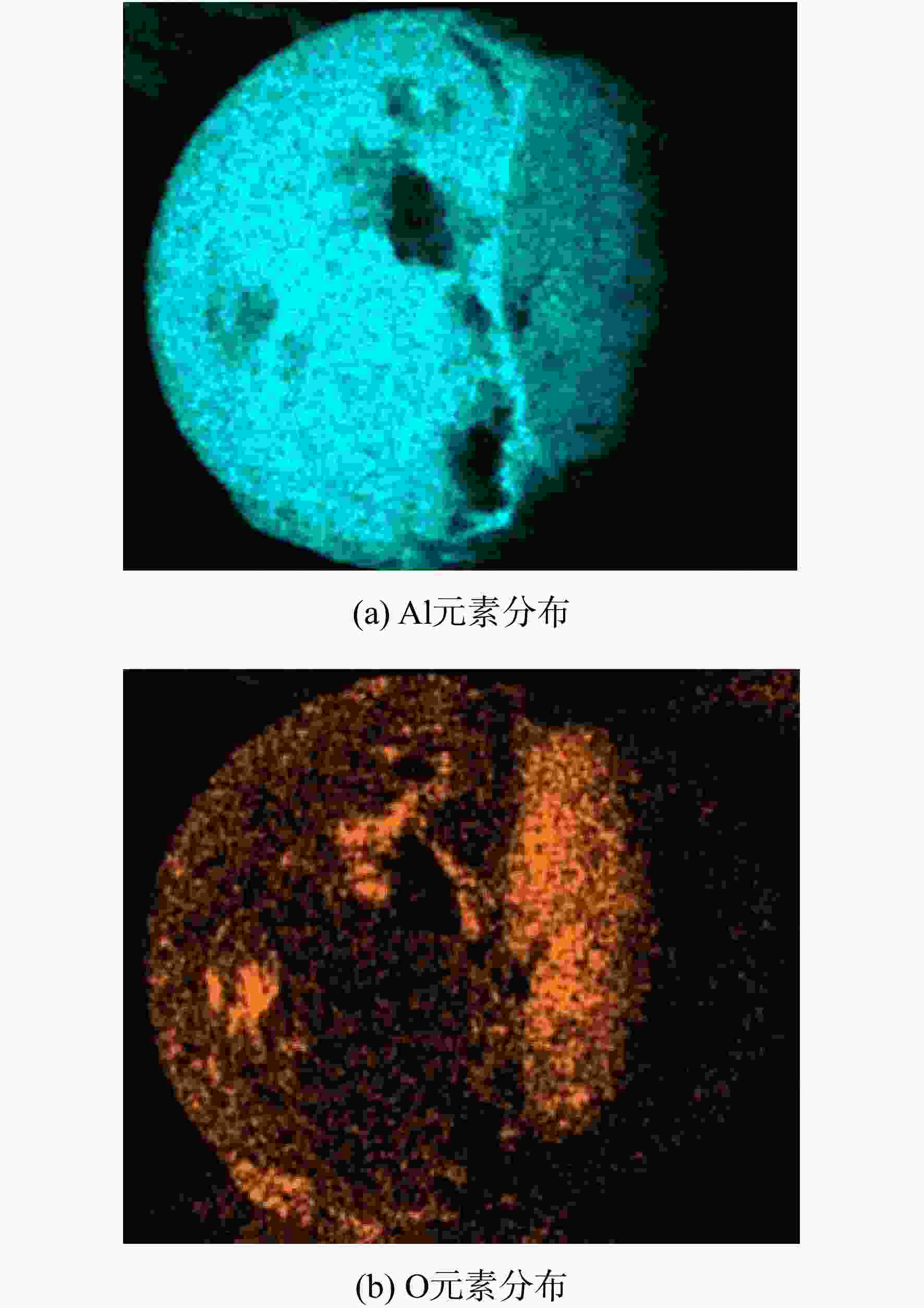

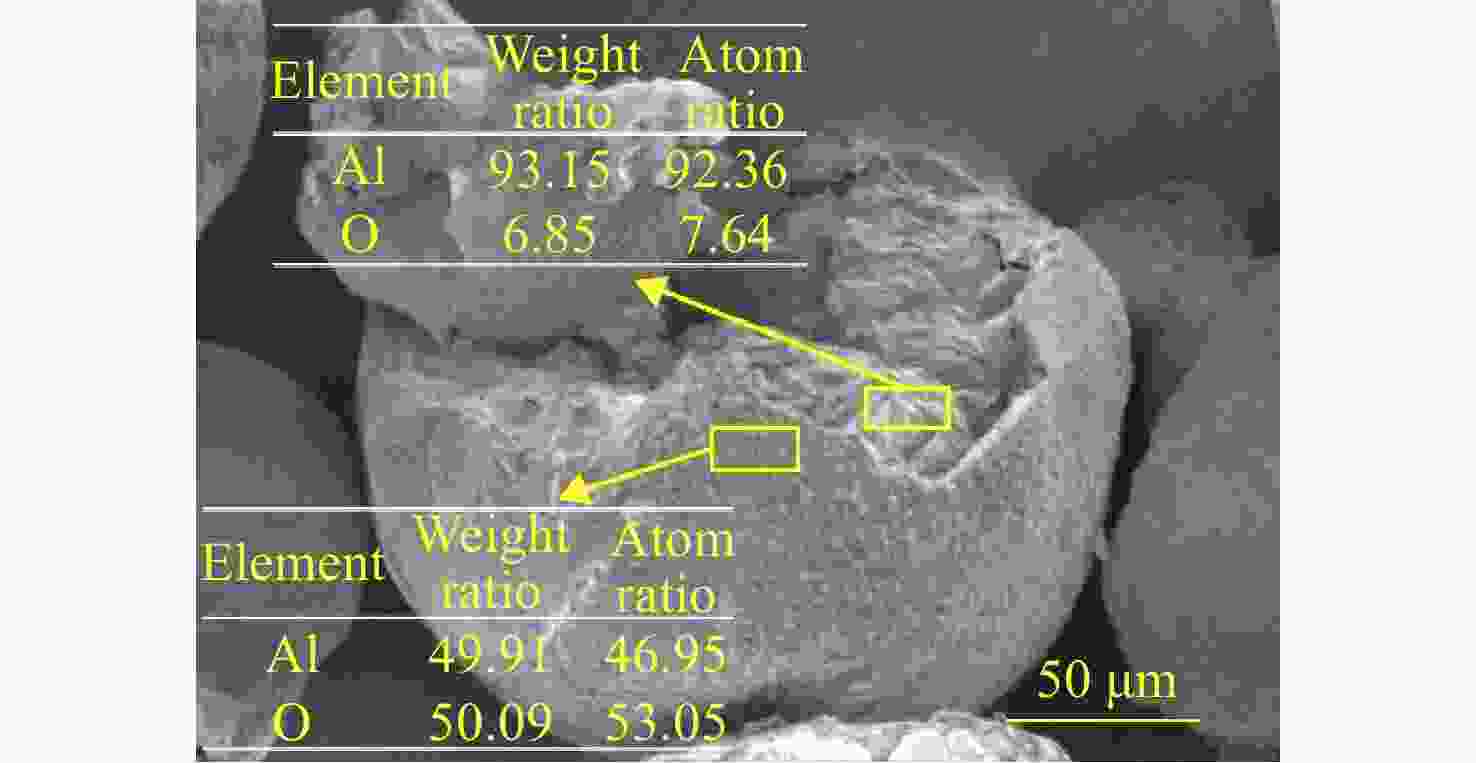

图 11 带有氧化帽结构团聚物的元素分布图像
Figure 11. Element distribution image of agglomerateoxidation cap structure
-
[1] 敖文,刘佩进. 固体推进剂铝团聚模型[J]. 航空动力学报,2017,32(5): 1224-1233. doi: 10.13224/j.cnki.jasp.2017.05.024AO Wen,LIU Peijin. Models of aluminum agglomeration in solid propellant[J]. Journal of Aerospace Power,2017,32(5): 1224-1233. (in Chinese) doi: 10.13224/j.cnki.jasp.2017.05.024 [2] 吴浩明,陈林泉,董新刚,等. Al和AP粒径对CL-20推进剂燃面团聚及凝相产物特性的影响[J]. 火炸药学报,2021,44(3): 367-371. doi: 10.14077/j.issn.1007-7812.202011011WU Haoming,CHEN Linquan,DONG Xingang,et al. Effects of particles size of AL and AP agglomeration and properties of condensed combustion products of CL-20 propellant[J]. Chinese Journal of Explosives and Propellants,2021,44(3): 367-371. (in Chinese) doi: 10.14077/j.issn.1007-7812.202011011 [3] 王宁飞. 固体推进剂燃烧不稳定性研究[J]. 火炸药学报,1995,18(1): 47-50. doi: 10.14077/j.issn.1007-7812.1995.01.013WANG Ningfei. Study on combustion instability of solid propellant[J]. Chinese Journal of Explosives & Propellants,1995,18(1): 47-50. (in Chinese) doi: 10.14077/j.issn.1007-7812.1995.01.013 [4] YUAN Jifei,LIU Jianzhong,ZHOU Yunan,et al. Aluminum agglomeration of AP/HTPB composite propellant[J]. Acta Astronautica,2019,156(5): 14-22. [5] LIU Taikang. Experimental and model study of agglomeration of burning aluminized propellants[J]. Journal of Propulsion and Power,2015,21(5): 797-806. [6] 李昌植. 喷管喉部沉积现象原因分析及解决途径[J]. 宇航材料工艺,1992,22(2): 47-52.LI Changzhi. Analyzation and solving methods of nozzle throat sedimentation phenomenon[J]. Aerospace Materials and Technology,1992,22(2): 47-52. (in Chinese) [7] 贾林祥. 含铝推进剂火箭发动机喷管沉积的实验与传热分析[J]. 推进技术,1985,6(1): 1-10.JIA Linxiang. Experimental and industrial thermics of nozzle sedimentation in aluminized propellants[J]. Journal of Propulsion Technology,1985,6(1): 1-10. (in Chinese) [8] 肖立群,樊学忠,王晗,等. 含铝固体推进剂燃烧过程中铝粉团聚现象研究进展[J]. 火炸药学报,2018,41(1): 7-15. doi: 10.14077/j.issn.1007-7812.2018.01.002XIAO Liqun,FAN Xuezhong,WANG Han,et al. Research process on the agglomeration phenomenon of aluminum power in the combustion of aluminized solid propellants[J]. Chinese Journal of Explosives & Propellants,2018,41(1): 7-15. (in Chinese) doi: 10.14077/j.issn.1007-7812.2018.01.002 [9] TAKAHASHI K,OIDE S,KUWAHARA T. Agglomeration characteristics of aluminum particles in AP/AN composite propellants[J]. Propellants, Explosives, Pyrotechnics,2013,38(4): 555-562. doi: 10.1002/prep.201200187 [10] AO Wen,LIU Xin,REZAIGUIA H,et al. Aluminum agglomeration involving the second mergence of agglomerates on the solid propellants burning surface: experiments and modeling[J]. Acta Astronautica,2017,136: 219-229. doi: 10.1016/j.actaastro.2017.03.013 [11] LIU Xin, AO Wen, LIU Huan, et al. Aluminum agglomeration on burning surface of NEPE propellants at 3−5 MPa[J]. Propellants, Explosives, Pyrotechnics, 2017, 42(3): 260-268. [12] SAMBAMURTHI J K, PRICE E W, SIGMAN R K. Aluminum agglomeration in solid-propellant combustion[J]. AIAA Journal, 1984, 22(8): 1132-1138. [13] SUZUKI S, CHIBA M. Combustion efficiency of aluminized propellant[R]. AIAA 1989-2309, 1989. [14] MAGGI F,DOSSI S,DELUCA L T. Combustion of metal agglomerates in a solid rocket core flow[J]. Acta Astronautica,2013,92(2): 163-171. doi: 10.1016/j.actaastro.2012.04.036 [15] PRICE E W. Combustion of metalized propellants[M]. New York: Progress in Aeronautics and Astronautics, 1984. [16] 刘鑫,刘佩进,金秉宁,等. 复合推进剂中铝燃烧实验研究[J]. 推进技术,2016,37(8): 1579-1585. doi: 10.13675/j.cnki.tjjs.2016.08.023LIU Xin,LIU Peijin,JING Bingning,et al. An experimental investigation of aluminum combustion in composite propellant[J]. Journal of Propulsion Technology,2016,37(8): 1579-1585. (in Chinese) doi: 10.13675/j.cnki.tjjs.2016.08.023 [17] 刘鑫,刘佩进,关昱,等. 复合推进剂中铝的燃烧实验研究方法[J]. 固体火箭技术,2015,38(6): 833-836.LIU Xin,LIU Peijin,GUAN Yu,et al. Experiment research method of the aluminum in the composite propellant[J]. Journal of Solid Rocket Technology,2015,38(6): 833-836. (in Chinese) [18] 敖文,刘佩进,吕翔,等. 固体推进剂燃烧过程铝团聚研究进展[J]. 宇航学报,2016,37(4): 371-380.AO Wen,LIU Peijin,LÜ Xiang,et al. Review of aluminum agglomeration during the combustion of solid propellant[J]. Journal of Astronautics,2016,37(4): 371-380. (in Chinese) [19] 肖立群,李吉祯,裴庆,等. 含铝HMX-CMDB推进剂燃烧残渣特征分析[J]. 火炸药学报,2021,44(3): 361-366. doi: 10.14077/j.issn.1007-7812.202003003XIAO Liqun,LI Jizhen,PEI Qing,et al. Combustion residues analysis of aluminized HMX-CMDB propellant[J]. Chinese Journal of Explosives & Propellants,2021,44(3): 361-366. (in Chinese) doi: 10.14077/j.issn.1007-7812.202003003 [20] YAN Xiaoting,XIA Zhixun,HUANG Liya,et al. Combustion of nitrate ester plasticized polyether propellants[J]. Journal of Zhejiang University Science A,2020,21(10): 834-847. doi: 10.1631/jzus.A1900668 [21] 涂乘崟,凌志刚,董龙龙,等. NEPE推进剂燃烧表面铝团聚物动态行为研究[J]. 推进技术,2023,44(3): 248-256. doi: 10.13675/j.cnki.tjjs.22010012TU Chengyin,LING Zhigang,DONG Longlong,et al. Dynamic behavior study of aluminum aggregates on the NEPE propellant combustion surface[J]. Journal of Propulsion Technology,2023,44(3): 248-256. (in Chinese) doi: 10.13675/j.cnki.tjjs.22010012 [22] 涂乘崟,陈雄,周长省,等. NEPE 推进剂在氮气/空气中的点火燃烧特性[J]. 含能材料,2022,30(8): 811-818. doi: 10.11943/CJEM2021326TU Chengyin,CHEN Xiong,ZHOU Changsheng,et al. Ignition and combustion characteristics of NEPE propellant in nitrogen/air[J]. Chinese Journal of Energetic Materials,2022,30(8): 811-818. (in Chinese) doi: 10.11943/CJEM2021326 [23] TU Chengyin, CHEN Xiong, LI Yingkun, et al. Experimental study of Al agglomeration on solid propellant burning surface and condensed combustion products[J/OL]. [2022-07-20].https: //doi.org/10.1016/j.dt.2022.05.016. [24] LI Lianbo,CHEN Xiong,ZHOU Changsheng S,et al. Experimental and model investigation on agglomeration of aluminized fuel-rich propellant in solid fuel ramjet[J]. Combustion and Flame,2020,219: 437-448. doi: 10.1016/j.combustflame.2020.06.019 [25] LEVITAS V I,PANTOYA M L,DIKICI B. Melt dispersion versus diffusive oxidation mechanism for aluminum nanoparticles: critical experiments and controlling parameters[J]. Applied Physics Letters,2008,92(1): 011921.1-011921.3. [26] DELUCA L T, GALFETTI L, MAGGI F, et al. Burning of metallized composite solid rocket propellants: towards nanometric fuel size[C]// ESA Space Propulsion 2008: 2nd International Symposium on Propulsion for Space Transportation. 2008. [27] WANG Junlong,WANG Ningfei,ZOU Xiangrui,et al. Modeling of micro aluminum particle combustion in multiple oxidizers[J]. Acta Astronautica,2021,189: 119-128. doi: 10.1016/j.actaastro.2021.08.047 [28] WANG Junlong,WANG Ningfei,ZOU Xiangrui,et al. Experimental and numerical study on slag deposition in solid rocket motor[J]. Aerospace Science and Technology,2022,122(5): 107404.1-107404-12. [29] BECKSTEAD M. A summary of aluminum combustion[R]. Provo, US: Brigham Young University, 2004. -
