多模型自校准扩展Kalman滤波方法

杨海峰; 王金娜; 王宇翔

doi:10.13224/j.cnki.jasp.20220245

多模型自校准扩展Kalman滤波方法

doi: 10.13224/j.cnki.jasp.20220245

1.
工业和信息化部高新技术司，北京 100804
2.
西安交通大学能源与动力工程学院，西安 710049
3.
华中科技大学机械科学与工程学院，武汉 430074

基金项目: 国家自然科学基金面上项目（61972021）

详细信息

作者简介:
杨海峰（1993-），男，博士，主要从事滤波算法、自主导航、深空探测等方面的研究。E-mail：halfyang@buaa.edu.cn

中图分类号: V448；O231
计量
- 文章访问数: 64
- HTML浏览量: 18
- PDF量: 18
- 被引次数: 0
出版历程
- 收稿日期: 2022-04-24
- 网络出版日期: 2023-09-19

Multiple-model self-calibration extended Kalman filter method

1.
High-tech Department， Ministry of Industry and Information Technology，Beijing 100804，China
2.
School of Energy and Power Engineering，Xi’an Jiaotong University，Xi’an 710049，China
3.
School of Mechanical Science and Engineering， Huazhong University of Science and Technology，Wuhan 430074，China

摘要

摘要:
基于扩展Kalman滤波方法（EKF）、自校准扩展Kalman滤波方法（SEKF）和多模型估计理论（MME），针对工程实际中非线性系统状态方程受未知输入（如突风、故障和未知系统误差等）影响的问题，提出了一种多模型自校准扩展Kalman滤波方法（MSEKF），将多模型自校准Kalman滤波方法（MSKF）的适用范围扩展到了非线性领域。该方法同时采用EKF与SEKF进行计算，根据贝叶斯定理实时分配两者先验估计值的权重，通过加权融合进而得到最终的状态估计。本文方法不仅解决了非线性系统状态方程受未知输入影响时EKF滤波发散的问题，而且在未知输入为零时的滤波精度与SEKF相比也更高，大量数值仿真结果表明该方法精度提升可达4%，具有更强的适应性和鲁棒性。
- 自校准滤波 /
- 多模型估计 /
- 扩展Kalman滤波 /
- 未知输入 /
- 故障诊断
Abstract:
Based on the extended Kalman filter (EKF), the self-calibration extended Kalman filter (SEKF) and the multiple-model estimation (MME), and considering the influence of unknown inputs (such as gusts, faults, unknown system errors, etc.) on the nonlinear system state equation in Engineering, the multiple-model self-calibration extended Kalman filter (MSEKF) was proposed to expand the application scope of the multiple-model self-calibration Kalman filter (MSKF). According to the Bayes’ theorem, this filtering method used the EKF and the SEKF whose weights were assigned automatically to obtain the final filtering result through weight-average way. The MSEKF can not only effectively compensate the effects of non-zero unknown inputs on the nonlinear system, but also improve the estimation accuracy compared with the SEKF when these effects were zero. A large number of simulation results using the proposed method showed that the accuracy can be improved by more than 4%, showing stronger adaptability and robustness.
- self-calibration filter /
- multiple-model estimation /
- extended Kalman filter /
- unknown input /
- fault diagnosis

HTML

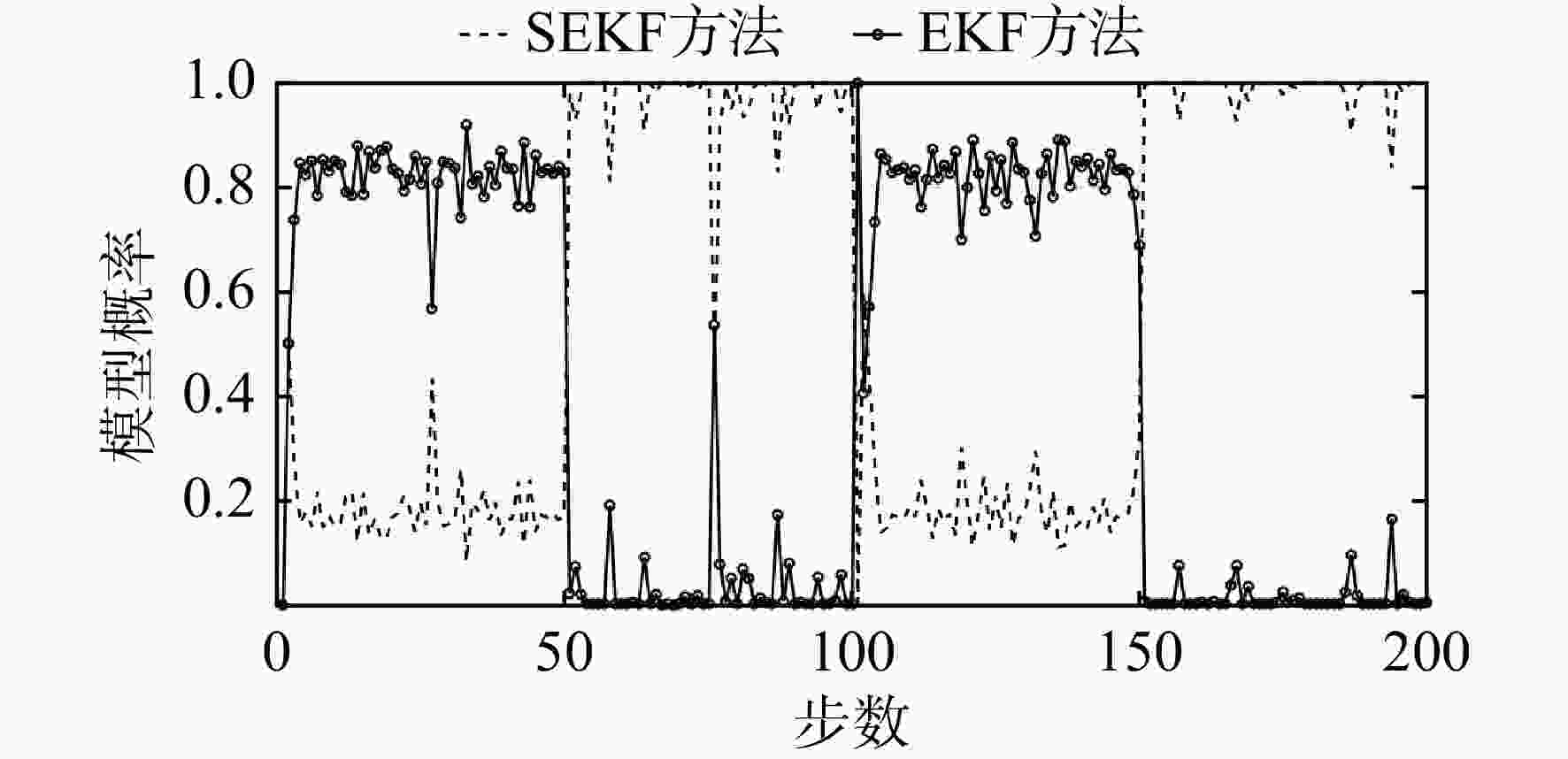

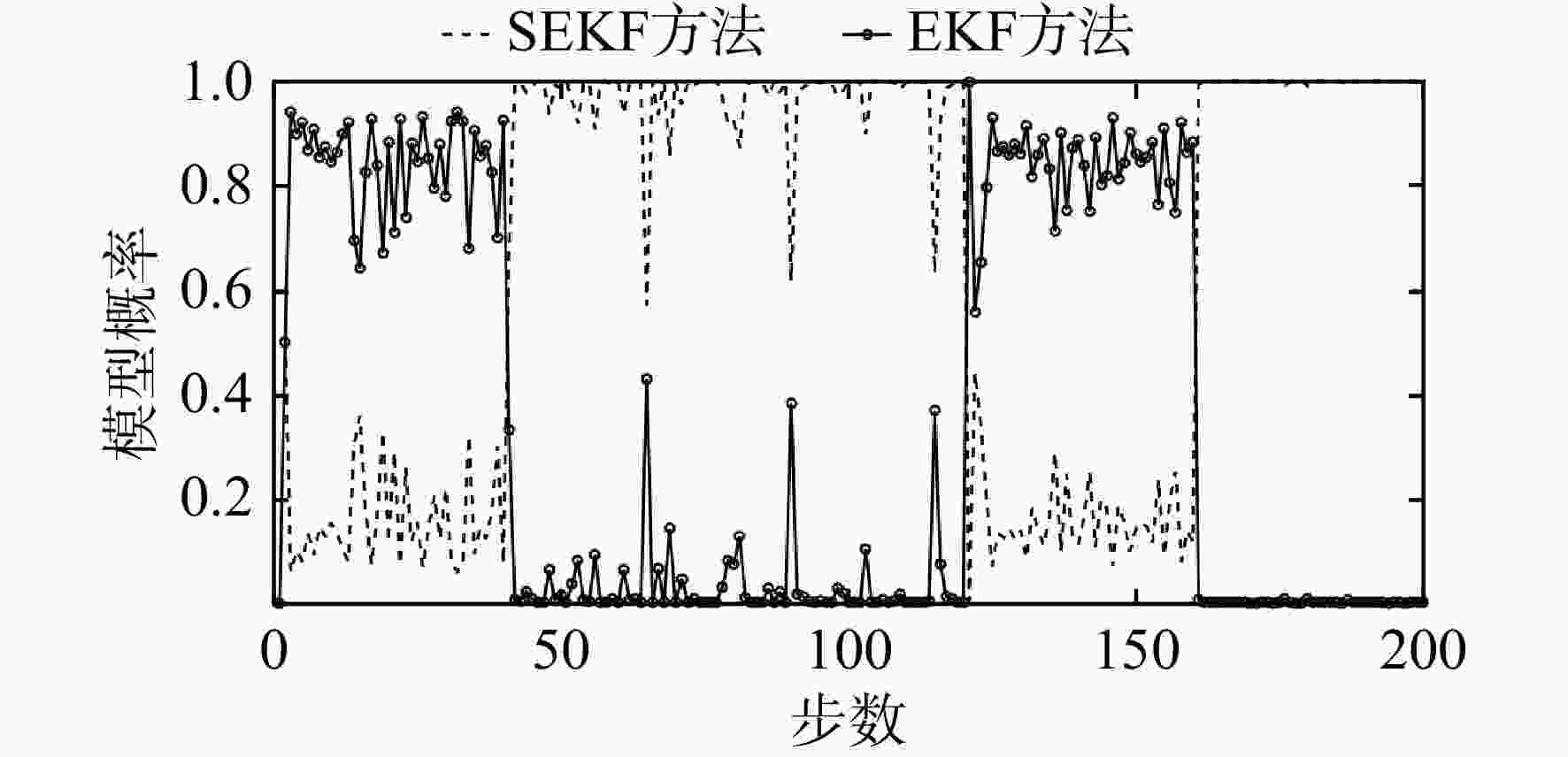

图 1 模型概率比较

Figure 1. Comparison of model probabilities

下载: 全尺寸图片幻灯片

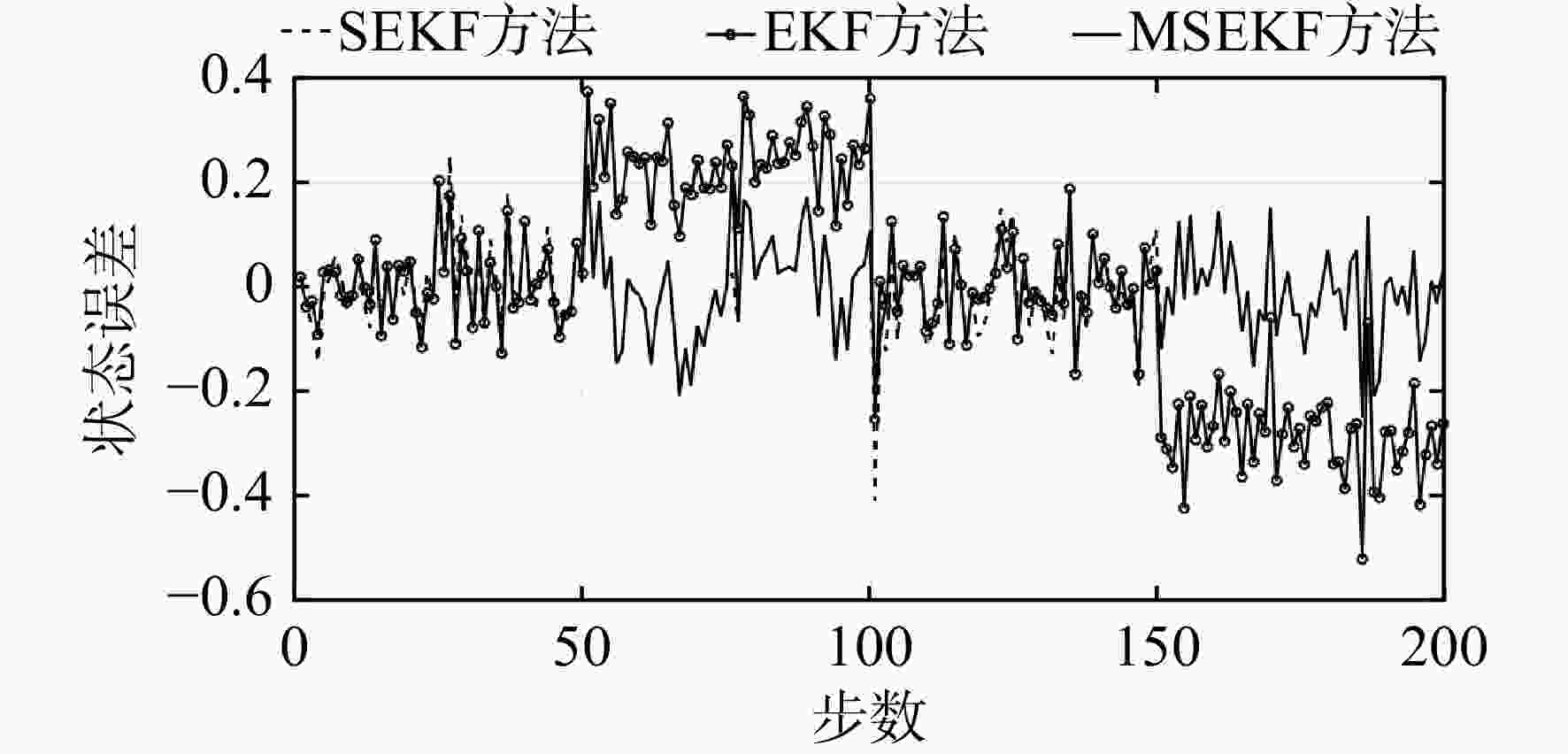

图 2 状态误差比较

Figure 2. Comparison of state errors

下载: 全尺寸图片幻灯片

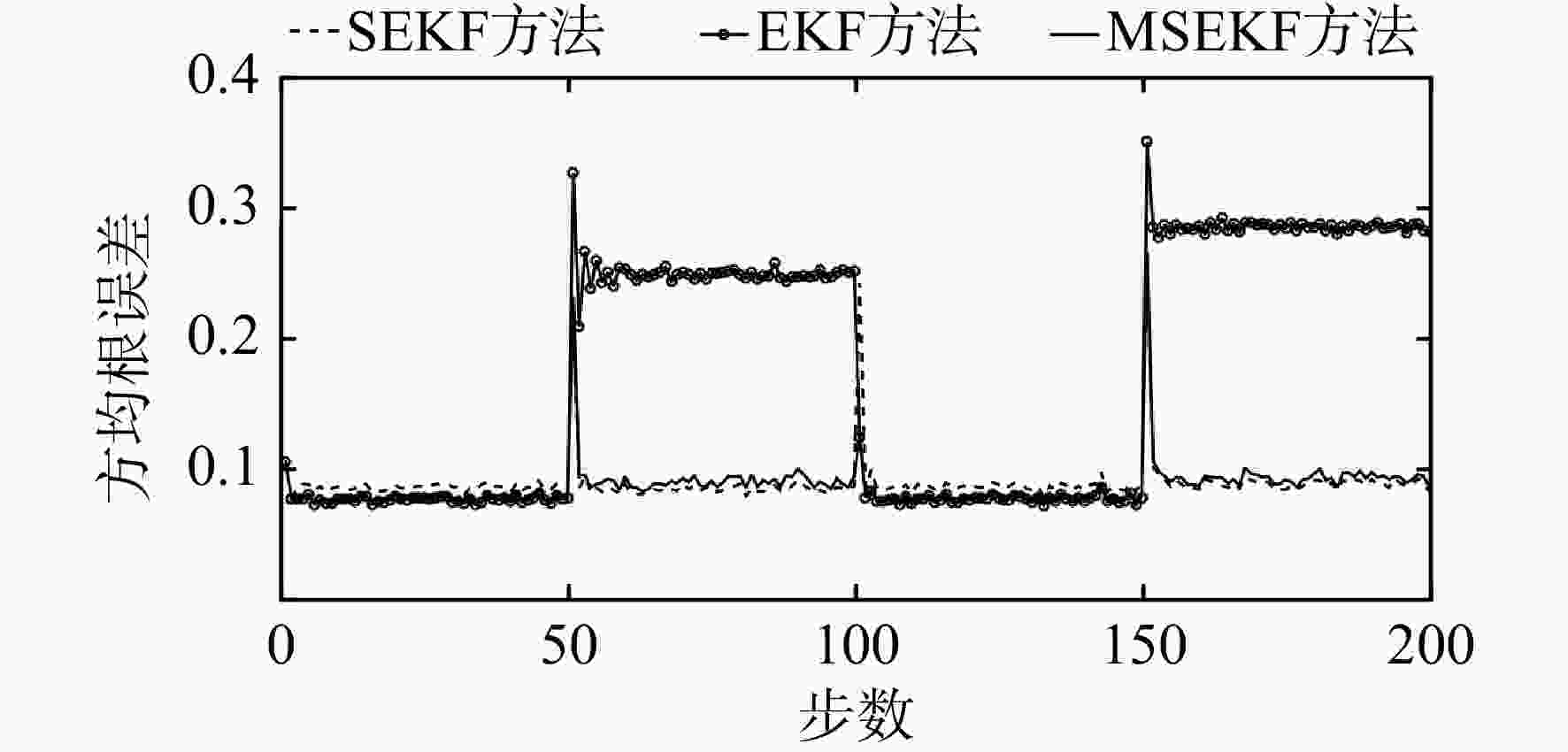

图 3 方均根误差比较

Figure 3. Comparison of RMSEs

下载: 全尺寸图片幻灯片

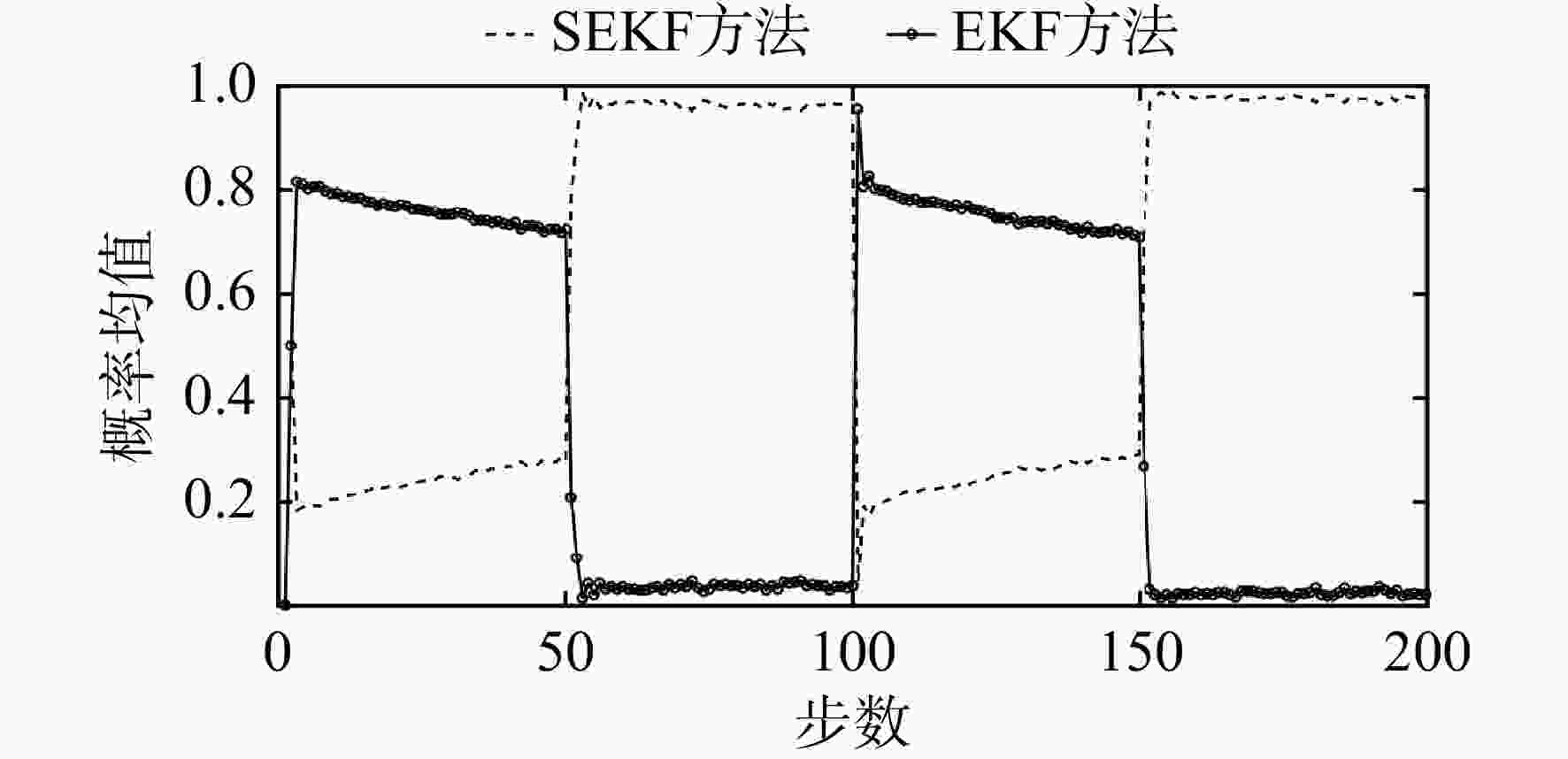

图 4 模型概率均值比较

Figure 4. Comparison of probability means

下载: 全尺寸图片幻灯片

图 5 多维模型概率比较

Figure 5. Comparison of multidimensional model probabilities

下载: 全尺寸图片幻灯片

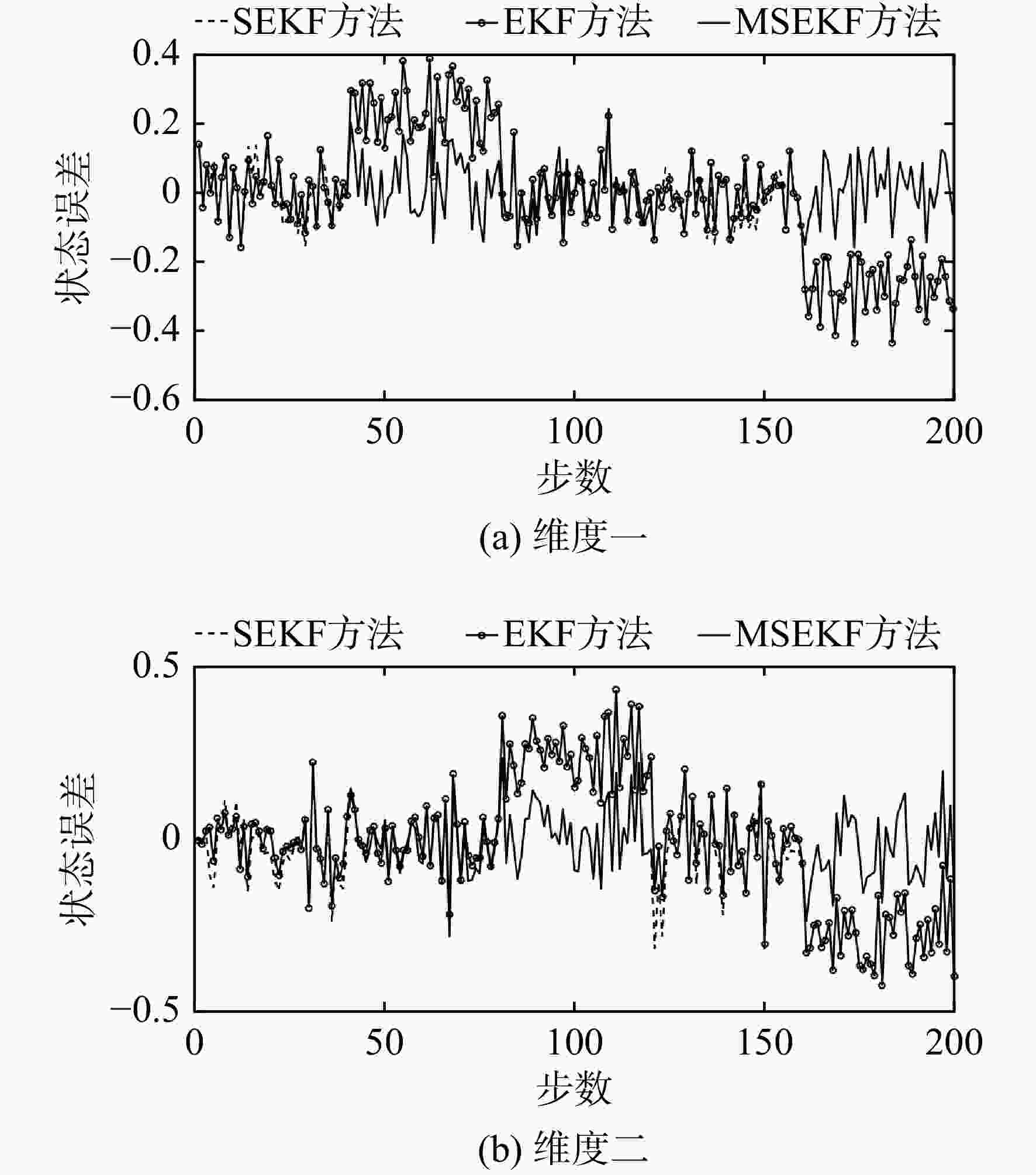

图 6 各维度状态误差比较

Figure 6. Comparison of state errors in two dimensions

下载: 全尺寸图片幻灯片

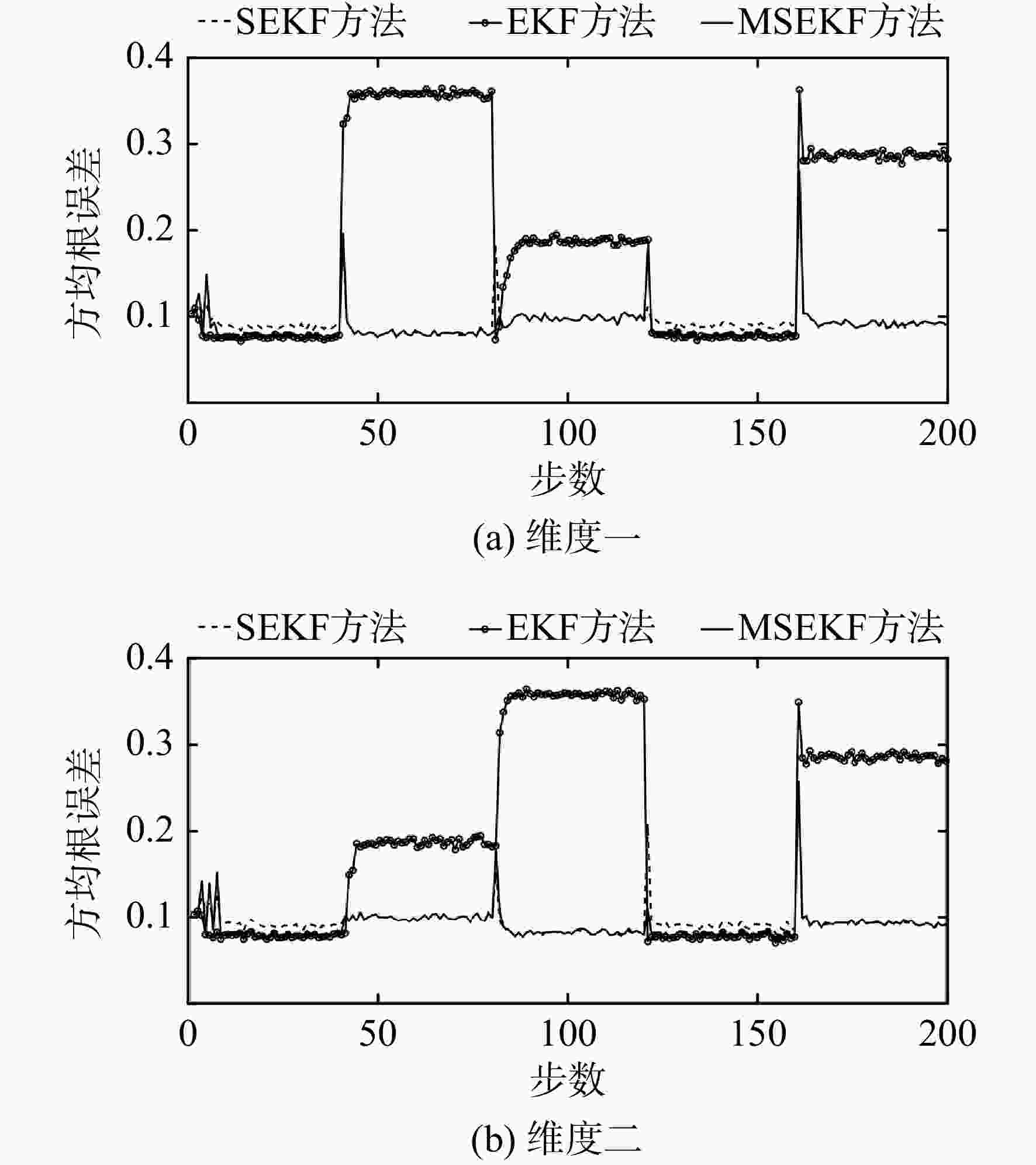

图 7 各维度方均根误差比较

Figure 7. Comparison of RMSEs in two dimensions

下载: 全尺寸图片幻灯片

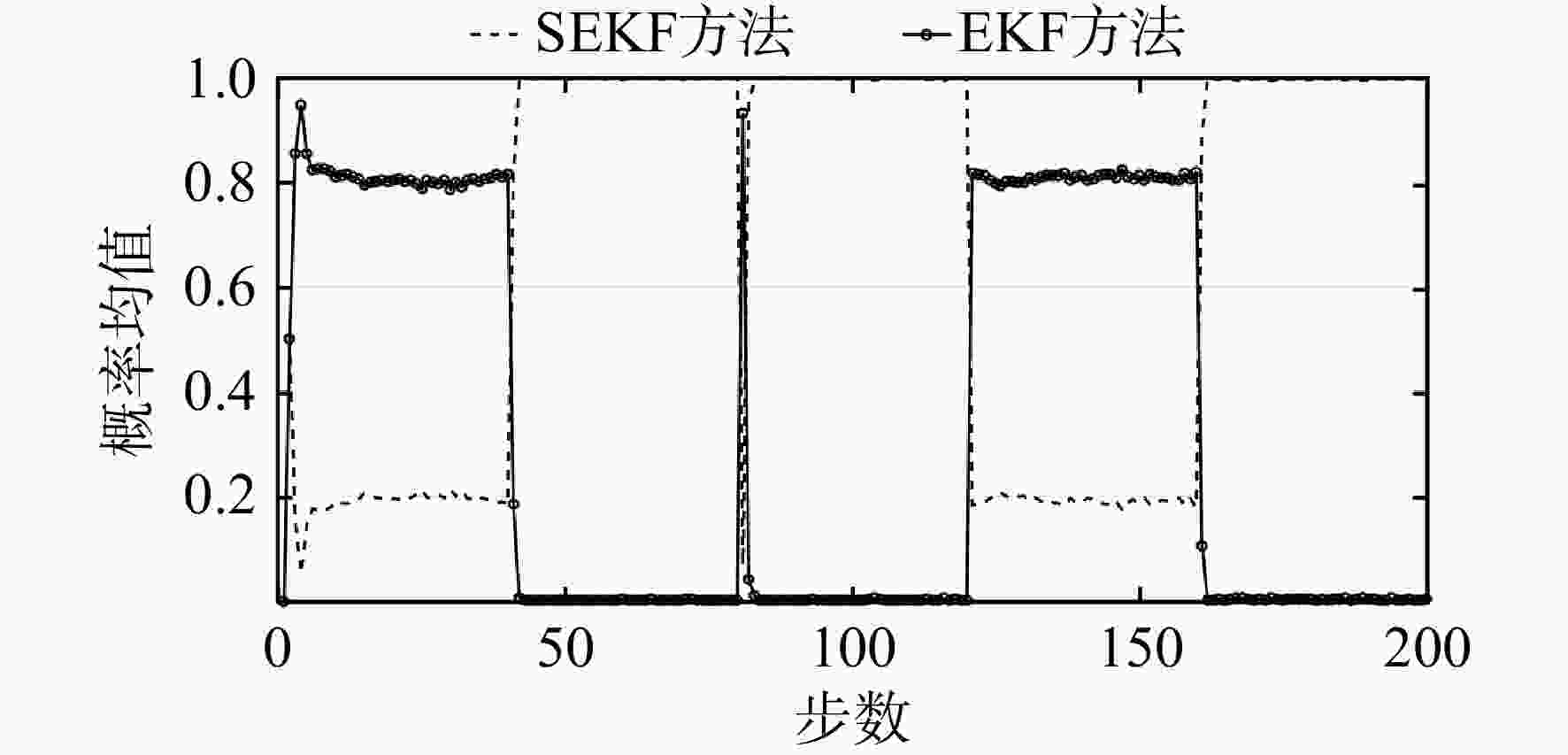

图 8 多维模型概率均值比较

Figure 8. Comparison of multidimensional model probability means

下载: 全尺寸图片幻灯片

表 1 方均根误差均值

Table 1. Mean of RMSEs

方法方均根误差均值

MSEKF 0.0863
SEKF 0.0885
EKF 0.1731

下载: 导出CSV

表 2 各维度方均根误差均值

Table 2. Mean of RMSEs in two dimensions

方法方均根误差均值
维度一维度二

MSEKF 0.0889 0.0889
SEKF 0.0923 0.0925
EKF 0.1963 0.1963

下载: 导出CSV
