Analysis on load sharing characteristic of two-stage star gear transmission based on function method
-
摘要:
为获取定轴多分支功率分汇流齿轮传动的真实均载情况，提出一种基于函数法的静力学均载特性分析方法，综合考虑系统构成功率流闭环的特点以及误差随机性的影响，系统地分析了两级定轴三分支（星型）齿轮传动的均载特性，并定量分析了其误差敏感性，最后通过与现有算例的对比分析，对上述方法的准确性进行了验证。研究结果表明：制造和安装误差随机性对系统载荷分配的影响不可忽略，尤以误差值随机性为甚；函数法计算均载系数时可有效避免截断误差，又因计入了误差随机性的影响，故更接近真实情况。
Abstract:In order to obtain the actual load sharing performance of fixed-axis multi-branch power-split gear transmission, a method based on function method for static load sharing characteristic analysis was proposed. Considering the power closed-loop and error randomness, the load sharing characteristics of two-stage fixed-axis three-branch (star) gear transmission were systematically analyzed, and its error sensitivity was quantitatively analyzed. Finally, the above method was verified to be correct compared with the existing examples. The results showed that the manufacturing and installation error randomness on the system load distribution cannot be ignored, especially the randomness of error values. Function method can effectively avoid truncation error when calculating the load sharing coefficient, which was closer to the actual situation when considering error randomness.
-

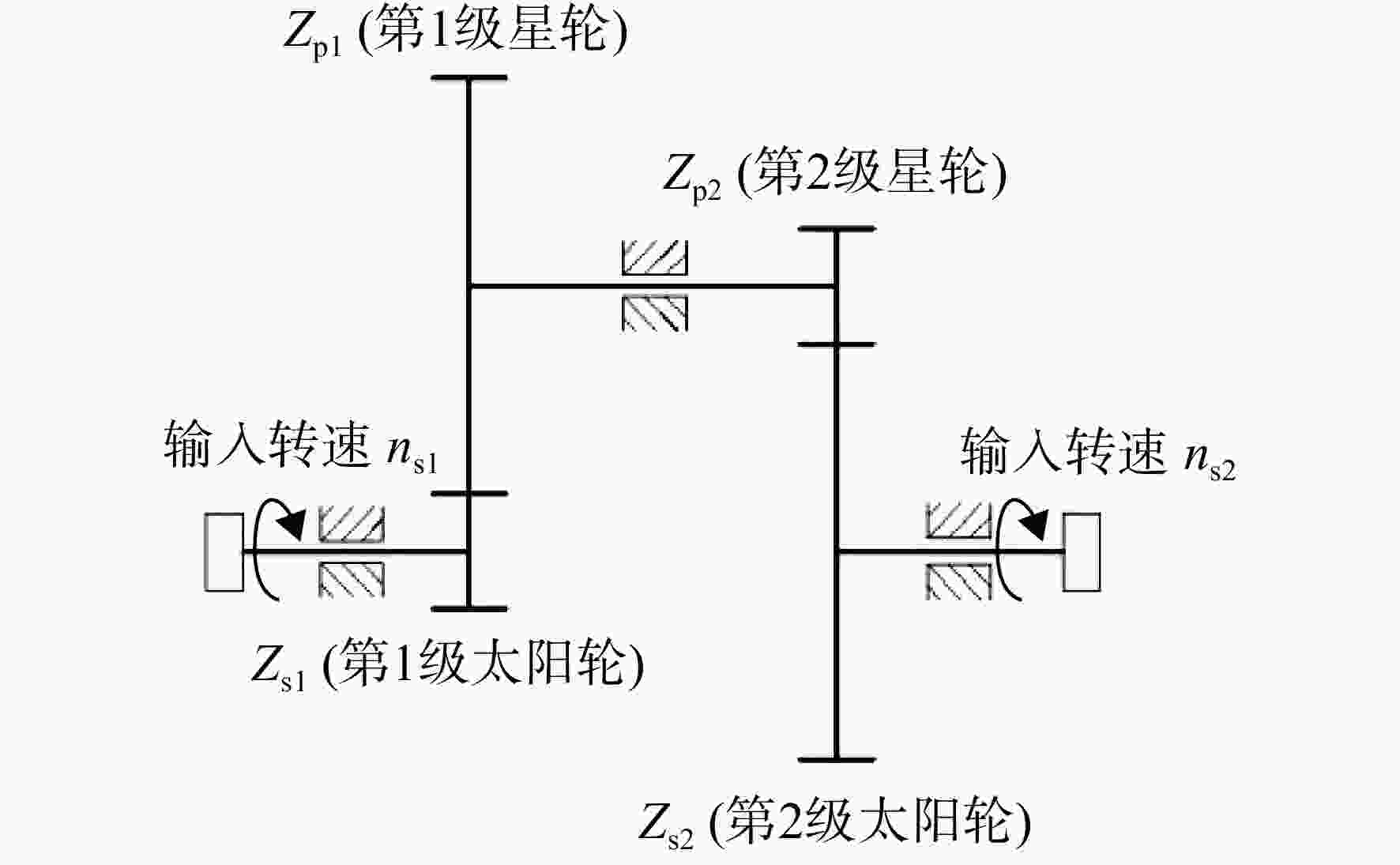

图 1 两级外啮合星型齿轮系统传动简图
Figure 1. Kinematic diagram of two-stage external meshing star gear system

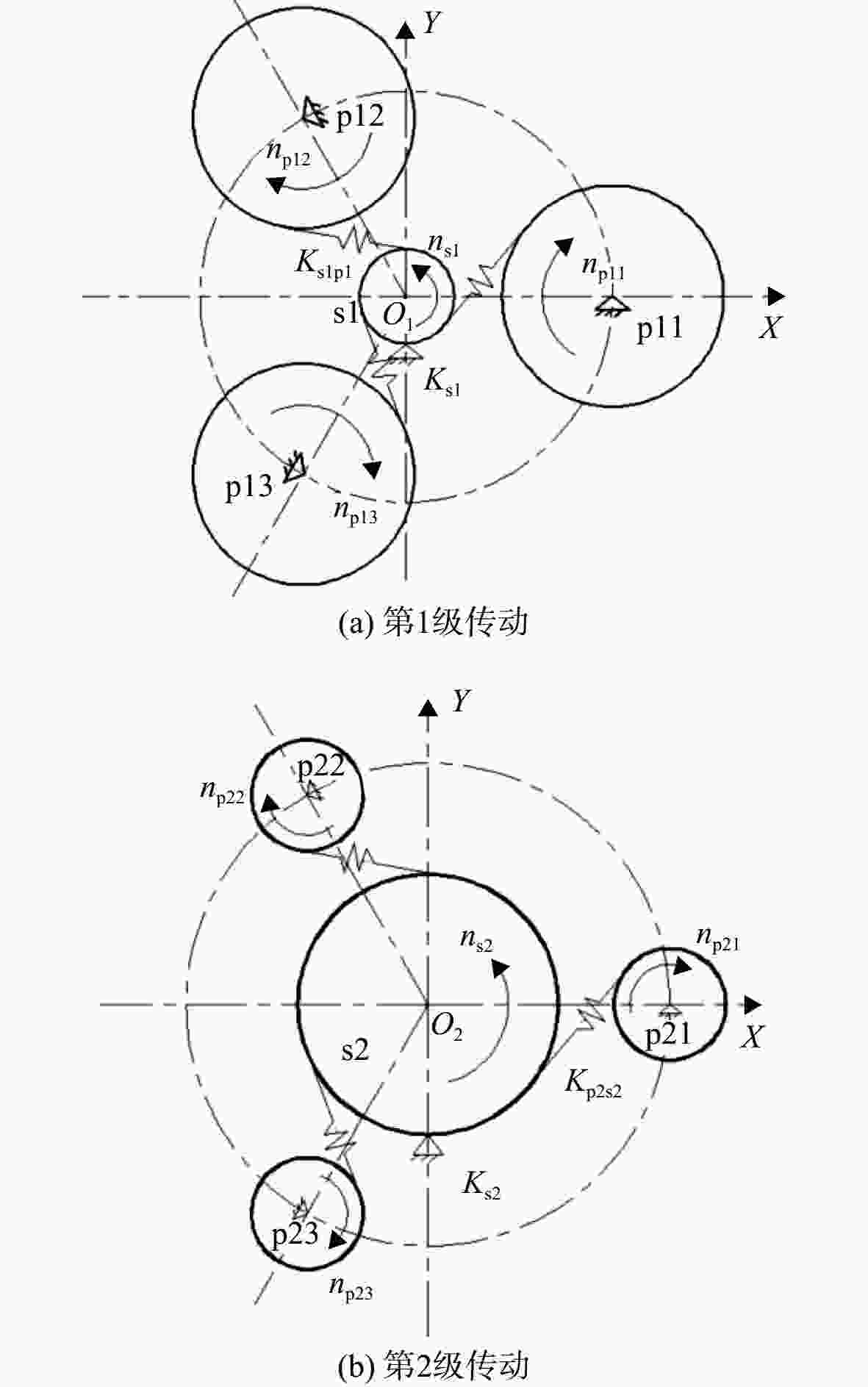

图 2 两级外啮合星型齿轮系统等效计算模型
Figure 2. Equivalent calculation model of two-stage external meshing star gear system

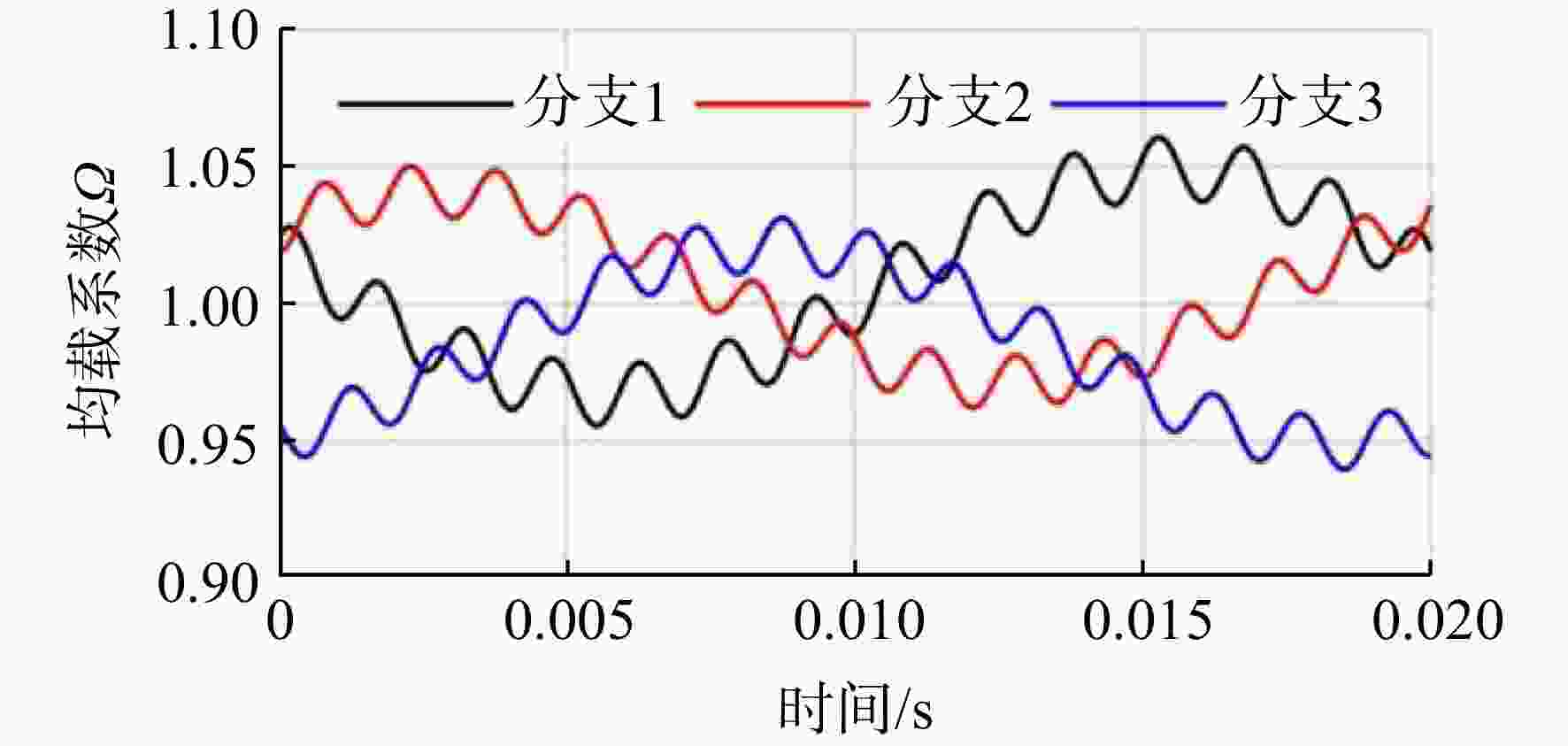

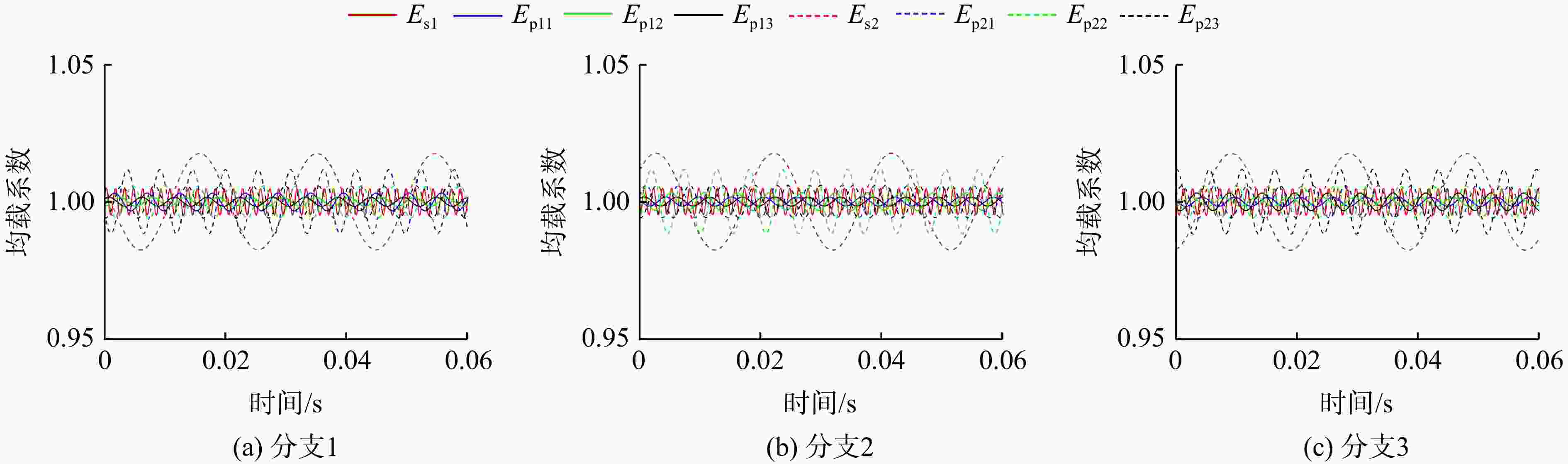

图 4 各制造误差单独作用时各分支均载系数曲线
Figure 4. Load sharing coefficient curve of each branch when each manufacturing error occurs alone

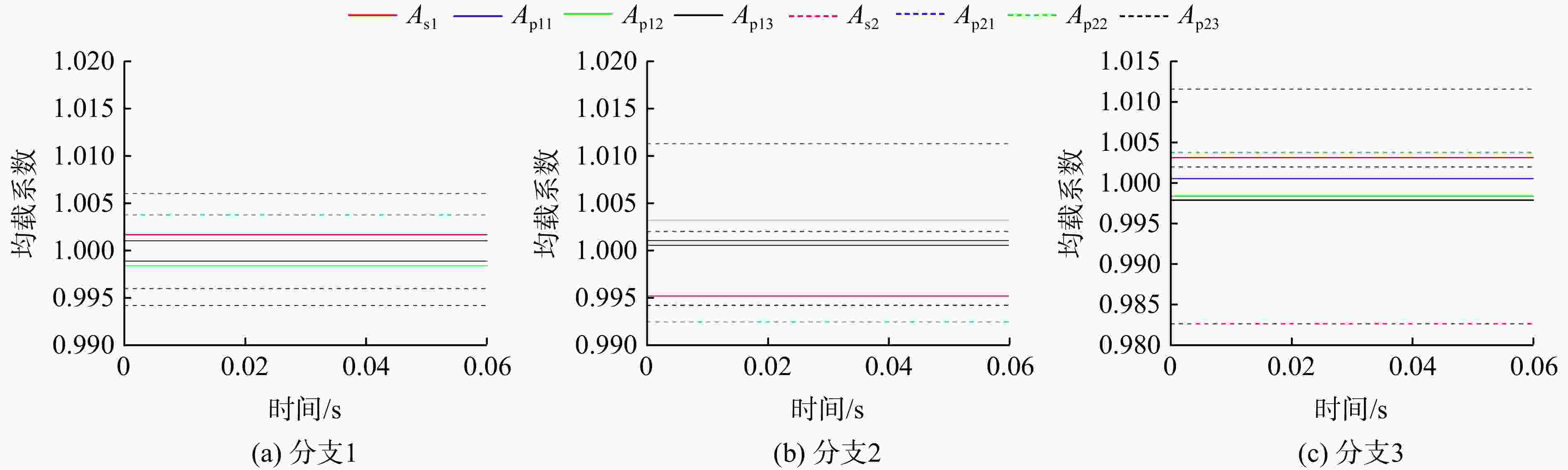

图 5 各安装误差单独作用时各分支均载系数曲线
Figure 5. Load sharing coefficient curve of each branch when each installation error occurs alone

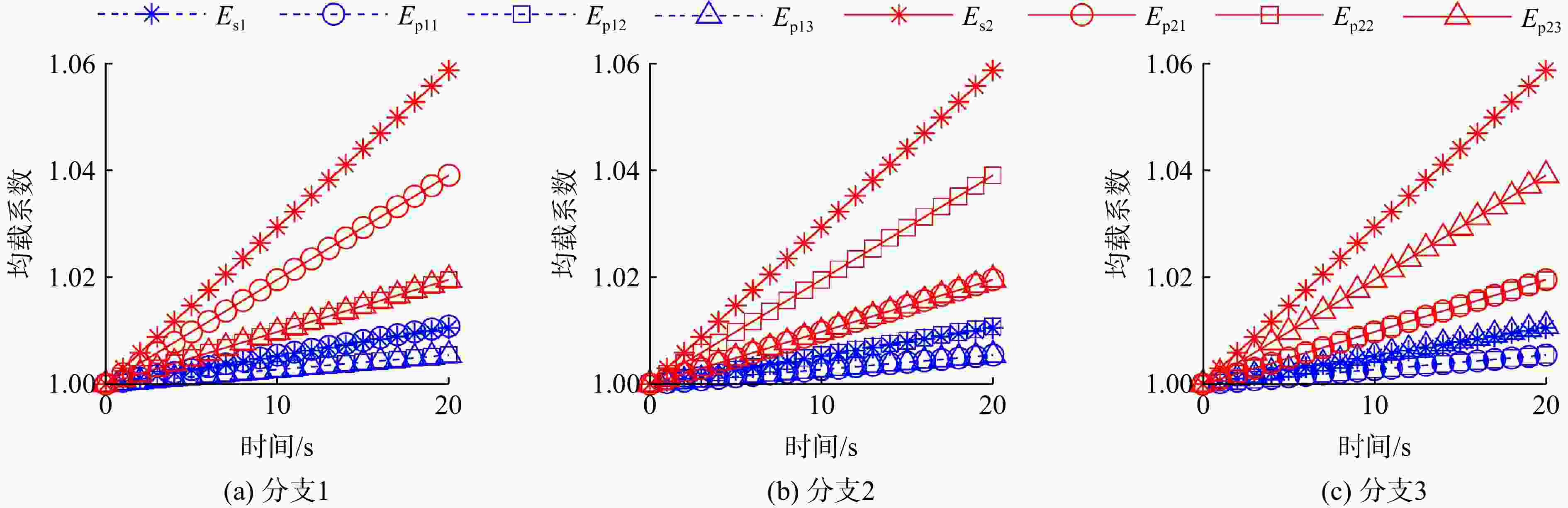

图 6 各制造误差单独变化时各分支均载系数变化
Figure 6. Load sharing coefficient variation of each branch when each manufacturing error changes alone

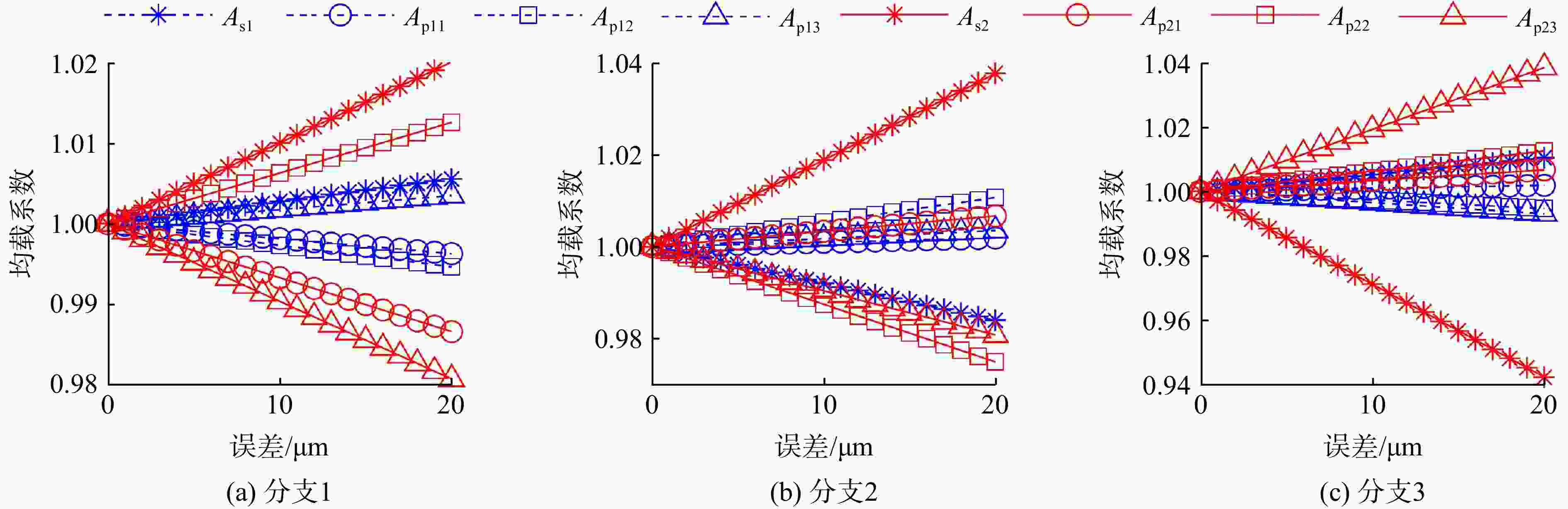

图 7 各安装误差单独变化时各分支均载系数变化
Figure 7. Load sharing coefficient variation of each branch when each installation error changes alone

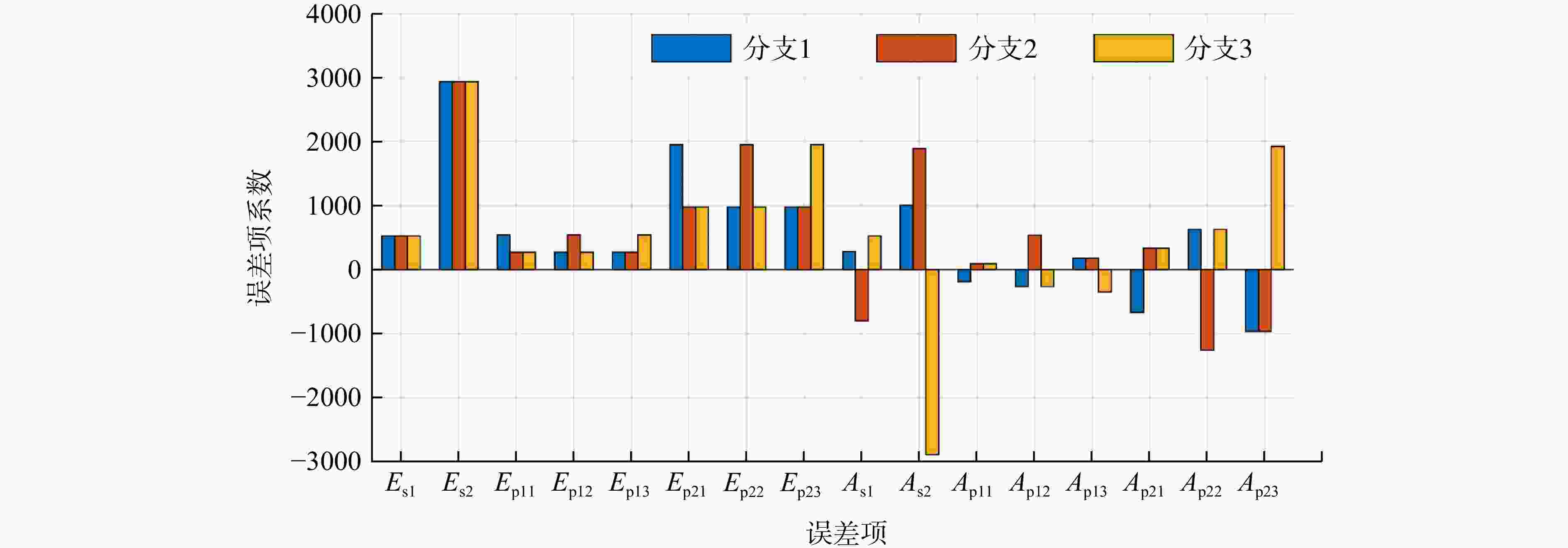

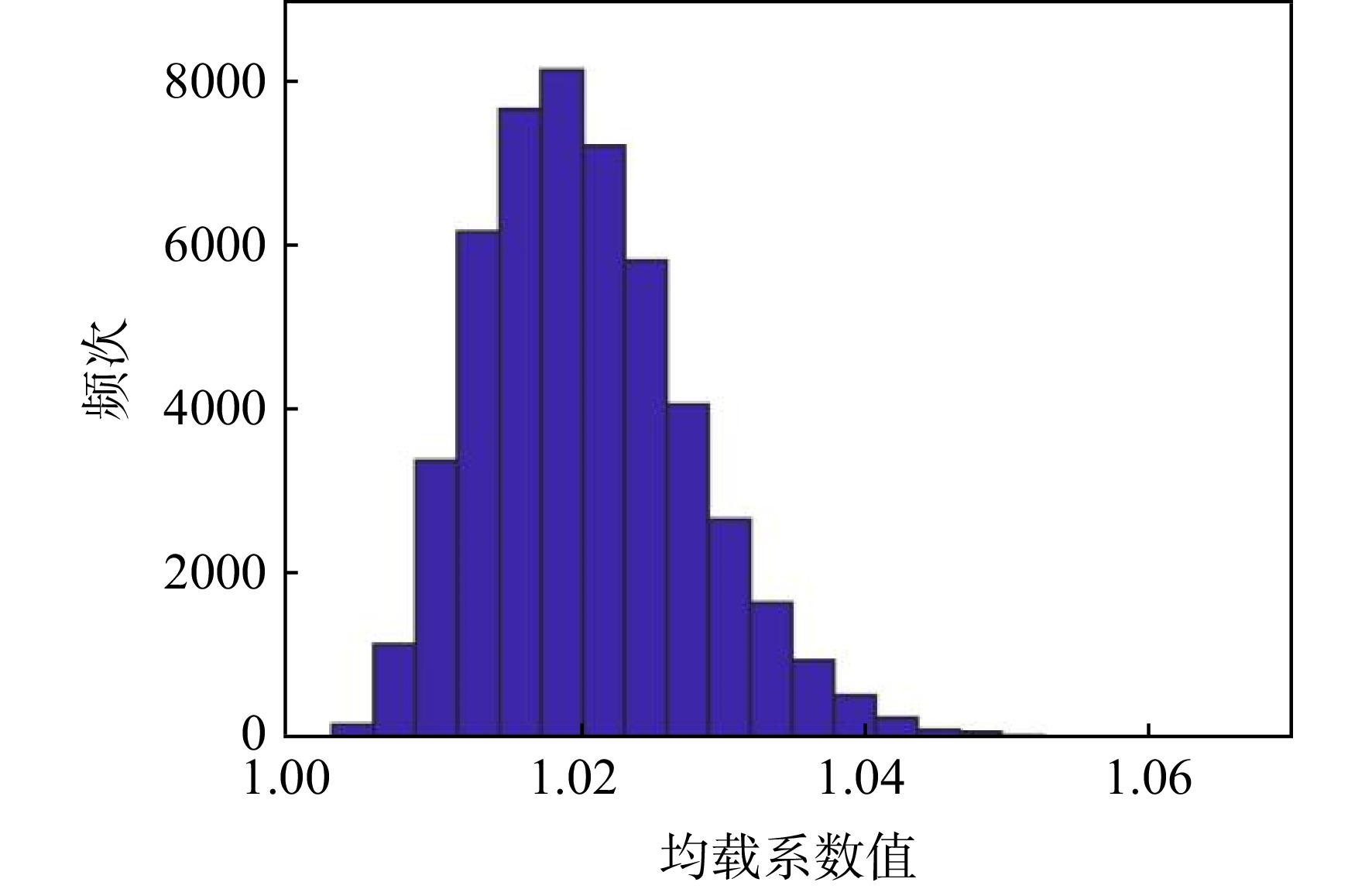

图 9 考虑随机误差性时系统均载系数分布
Figure 9. Load sharing coefficient distribution when considering error randomness

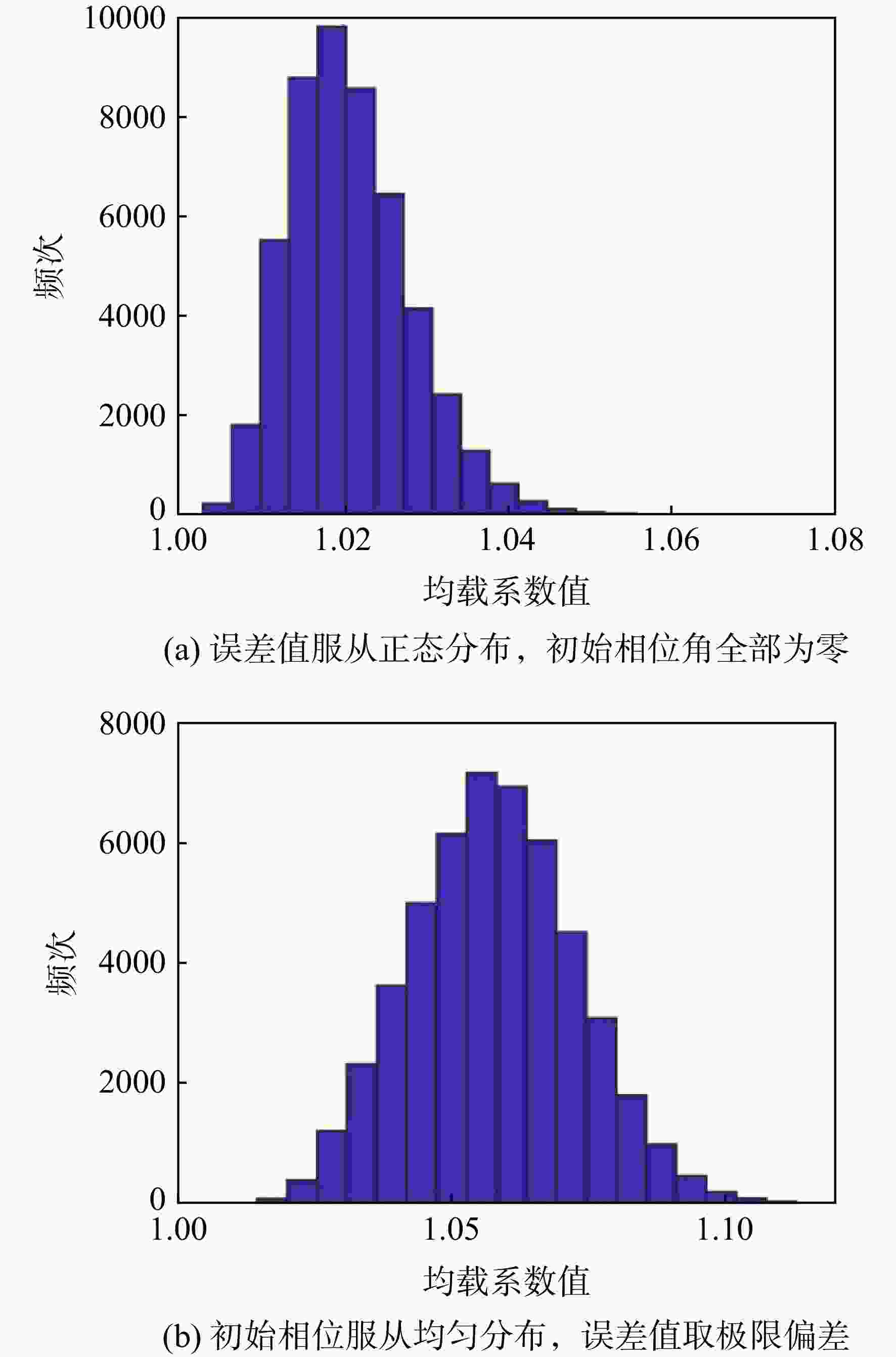

图 10 单独考虑误差值和初始相位的随机性时系统均载系数分布
Figure 10. Load sharing coefficient distribution when considering the random effects of error value and initial phase separately
表 1 星型齿轮系统参数
Table 1. Parameters of star gear system
构件 齿数 模数 输入功率/
kW输入轴转速/
（r/min）第1级太阳轮 15 1.5 100 40000 第1级星轮 54 1.5 第2级太阳轮 15 1.5 第2级星轮 54 1.5
下载: 导出CSV
-
