阀配流压力脉动扰动下的柱塞泵滑靴副润滑特性

赵凯平; 何涛; 王传礼; 陈强曼; 罗刚

doi:10.13224/j.cnki.jasp.20220441

阀配流压力脉动扰动下的柱塞泵滑靴副润滑特性

doi: 10.13224/j.cnki.jasp.20220441

赵凯平^{1, 2,},
何涛^{1, 2,*, ,},
王传礼^{1, 2},
陈强曼¹,
罗刚¹

1.
安徽理工大学机械工程学院，安徽淮南 232001
2.
安徽理工大学矿山智能装备与技术安徽省重点实验室，安徽淮南 232001

基金项目: 国家自然科学基金（52205041）；安徽省高校优秀青年人才支持计划（gxyq2022017）；矿山智能装备与技术安徽省重点实验室开放基金（ZKSYS202101）；安徽省矿山智能技术与装备科研创新团队（2022AH010052）

详细信息

作者简介:
赵凯平（1997-），男，博士生，主要从事流体传动与控制技术研究。E-mail：zkp52262@163.com

通讯作者:
何涛（1987-），男，副教授，博士，主要从事流体传动与控制及矿山机电工程技术研究。E-mail：taoheaust@163.com

中图分类号: V228；TH137.5
计量
- 文章访问数: 759
- HTML浏览量: 309
- PDF量: 66
- 被引次数: 0
出版历程
- 收稿日期: 2022-06-20
- 网络出版日期: 2023-05-16

Lubrication characteristics of slipper pair of piston pump under the disturbance of valve distribution pressure pulsation

ZHAO Kaiping^{1, 2
,},
HE Tao^{1, 2,*
, ,},
WANG Chuanli^{1, 2},
CHEN Qiangman¹,
LUO Gang¹

1.
School of Mechanical Engineering， Anhui University of Science and Technology，Huainan Anhui 232001，China
2.
Anhui Key Laboratory of Mine Intelligent Equipment and Technology， Anhui University of Science and Technology，Huainan Anhui 232001，China

摘要

摘要:
阀配流轴向柱塞泵滑靴受力状态及油膜动态边界值与端面配流泵不同，为研究其润滑特性，建立一种应用于阀配流轴向柱塞泵的滑靴副工况模拟和数值解析耦合求解模型，分析柱塞运动频率、系统负载及不同分级定流量对滑靴副润滑特性的影响。结果表明：阀配流滑靴副主要在摩擦力矩作用方向发生倾覆，高压区到低压区的过渡期及低压区更易发生偏磨磨损；柱塞运动频率增大会降低滑靴发生倾覆偏磨的危险性，但也会降低滑靴副稳定性；系统负载增大会使油膜厚度减小，且高压区滑靴倾覆角减小，而低压区滑靴倾覆角增大；不同分级定流量下，当柱塞数大于3时，奇数柱塞组合时滑靴不易发生倾覆，而偶数柱塞组合时滑靴易发生倾覆磨损且高低压区压力变化幅度增大。
- 阀配流 /
- 压力脉动 /
- 轴向柱塞泵 /
- 滑靴副 /
- 润滑油膜
Abstract:
The stress state and oil film dynamic boundary value of slipper of valve distribution axial piston pump are different from those of end face distribution pump. In order to study its lubrication characteristics, a coupling model for slipper pair working condition simulation and numerical analysis applied to valve distribution axial piston pump was established to analyze the effects of plunger motion frequency, system load and different graded constant flows on the lubrication characteristics of slipper pair. The results showed that the sliding shoe pair of valve distribution overturned mainly in the direction of friction torque, and eccentric wear was more likely to occur in the transition period from high pressure zone to low pressure zone and in the low pressure zone; the increase of the plunger movement frequency could reduce the risk of overturning and eccentric wear of the slipper, but it may also reduce the stability of the slipper pair; with the increase of the system load, the oil film thickness decreased, and the overturning angle of the slipper in the high pressure area decreased, while the overturning angle of the slipper in the low pressure area increased; under different grading and constant flow rates, when the number of plungers was greater than 3, the slippers were not easy to overturn when the odd number of plungers were combined, while the slippers were easy to overturn and wear when the even number of plungers were combined, and the pressure change range in the high and low pressure zones increased.
- valve distribution /
- pressure pulsation /
- axial piston pump /
- slipper pair /
- lubricating oil film

HTML

图 1 阀配流轴向柱塞泵及配流阀结构示意图

Figure 1. Structure diagram of valve distribution axial piston pump and distribution valve

下载: 全尺寸图片幻灯片

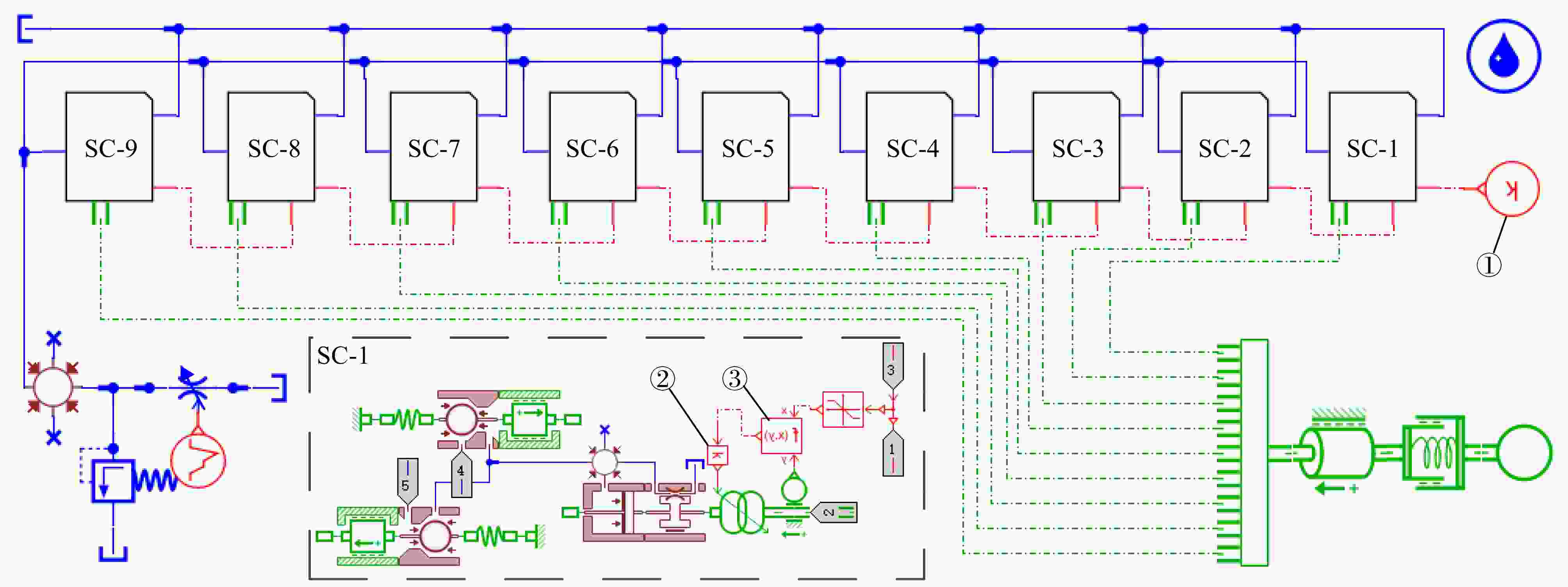

图 2 阀配流轴向柱塞泵工况模拟仿真模型

Figure 2. Working condition simulation model of axial piston pump with valve distribution

下载: 全尺寸图片幻灯片

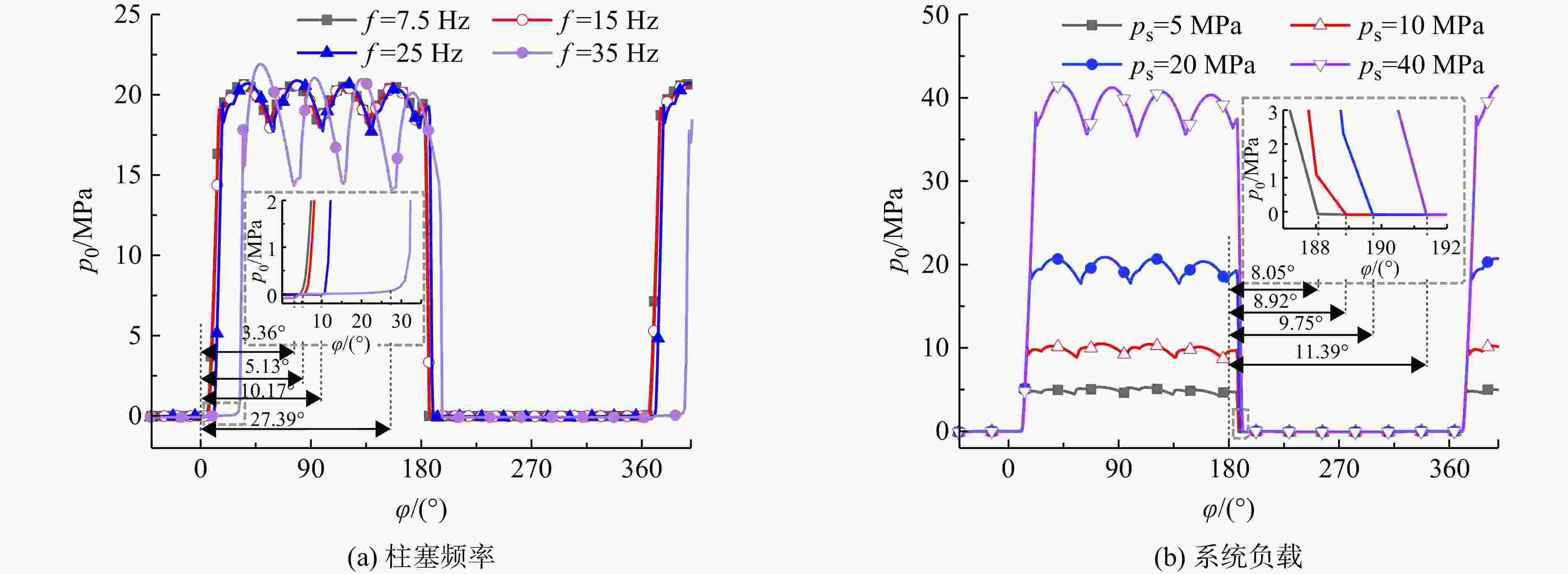

图 3 不同柱塞频率及系统负载下的柱塞腔压力

Figure 3. Piston cavity pressure under different piston frequencies and system loads

下载: 全尺寸图片幻灯片

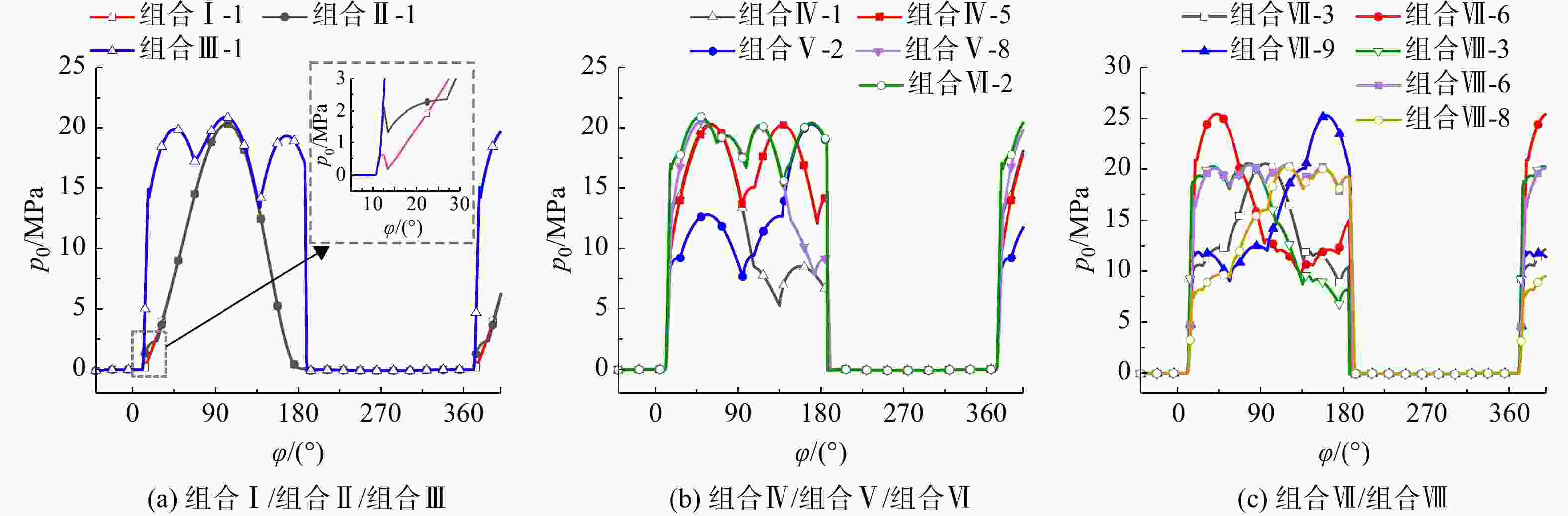

图 4 不同柱塞组合供流下的柱塞腔压力

Figure 4. Piston chamber pressure under different piston combination supply

下载: 全尺寸图片幻灯片

图 5 滑靴副受力及油膜厚度场模型

Figure 5. Force and oil film thickness field model of slipper pair

下载: 全尺寸图片幻灯片

图 6 滑靴副相对运动及油膜密封带数值离散示意图

Figure 6. Schematic diagram of relative motion of slipper pair and numerical dispersion of oil film sealing belt

下载: 全尺寸图片幻灯片

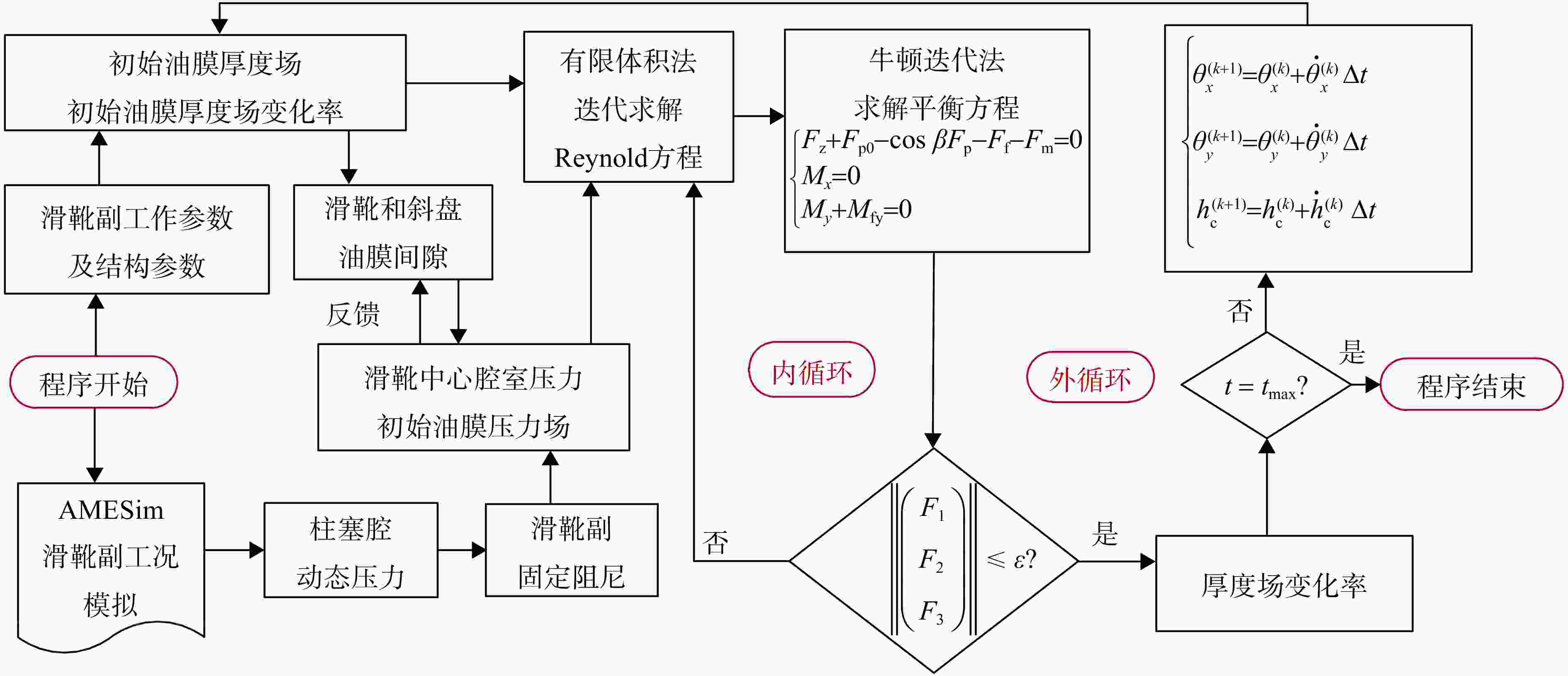

图 7 阀配流轴向柱塞泵滑靴副润滑油膜耦合求解流程

Figure 7. Solution flow of lubricating oil film coupling of slipper pair of axial piston pump with valve distribution

下载: 全尺寸图片幻灯片

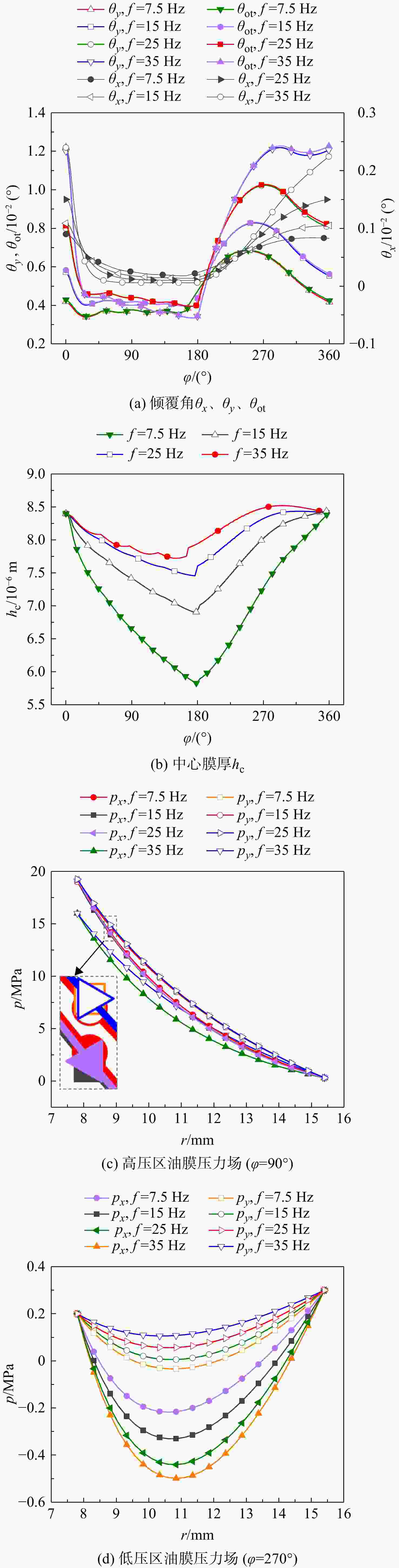

图 8 不同柱塞运动频率下的滑靴副油膜特性

Figure 8. Oil film characteristics of slipper pair under different piston motion frequencies

下载: 全尺寸图片幻灯片

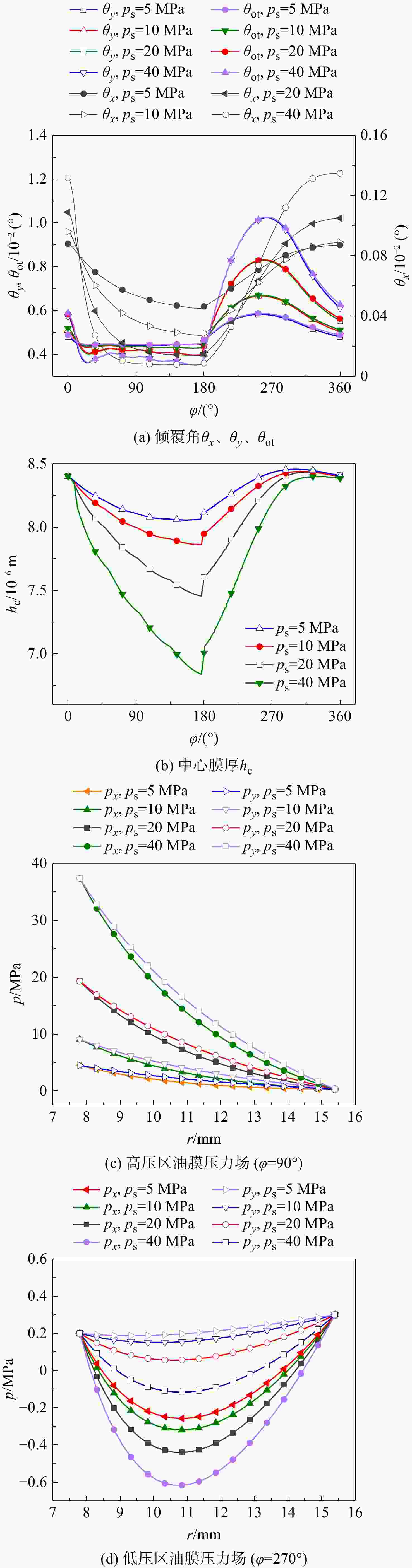

图 9 不同系统负载下的滑靴副油膜特性

Figure 9. Oil film characteristics of slipper pair under different system loads

下载: 全尺寸图片幻灯片

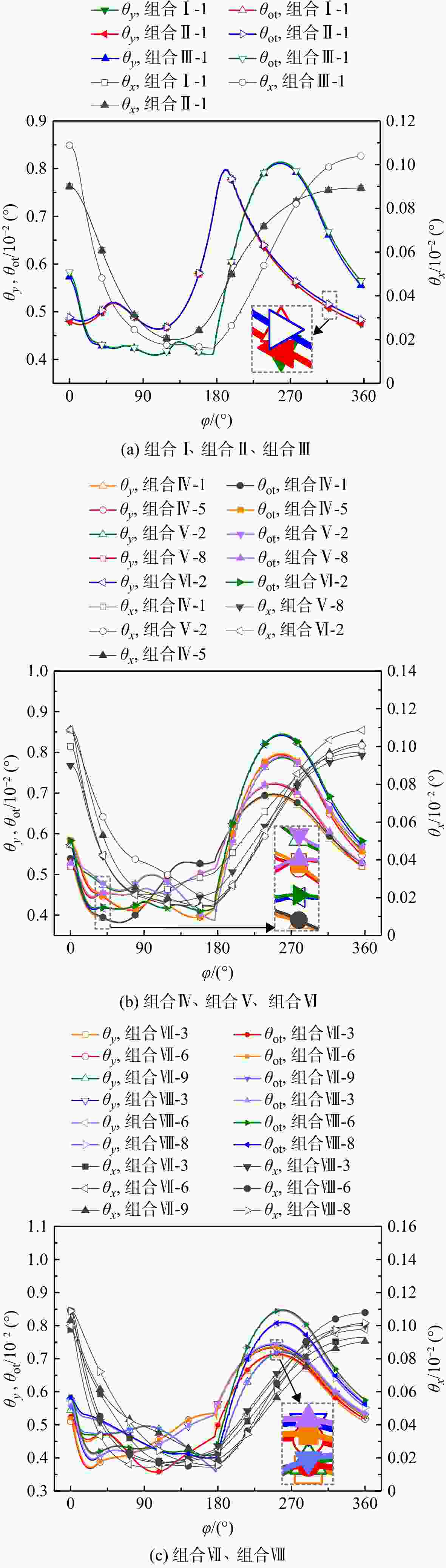

图 10 不同柱塞组合供流下的滑靴副倾覆角θ_x、θ_y、θ_ot

Figure 10. Overturning angle of slipper pair under different piston combination supply θ_x，θ_y，θ_ot

下载: 全尺寸图片幻灯片

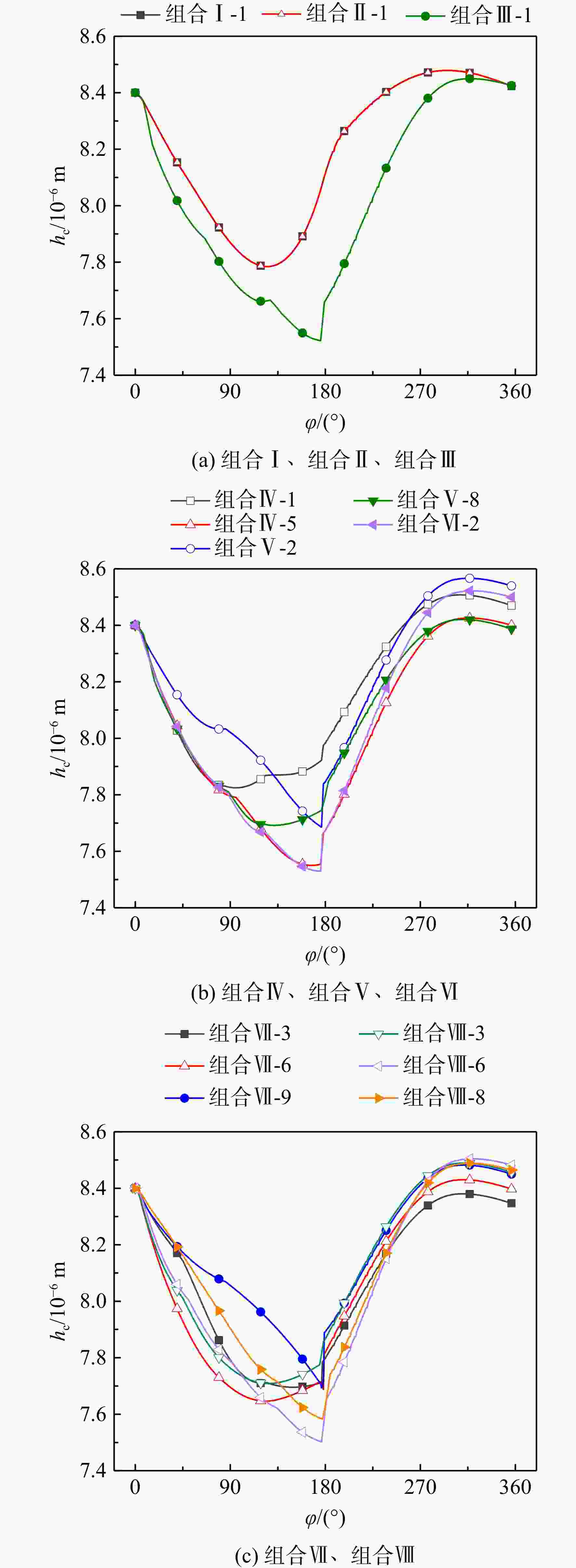

图 11 不同柱塞组合供流下的油膜中心膜厚

Figure 11. Central film thickness of oil film under different piston combination supply

下载: 全尺寸图片幻灯片

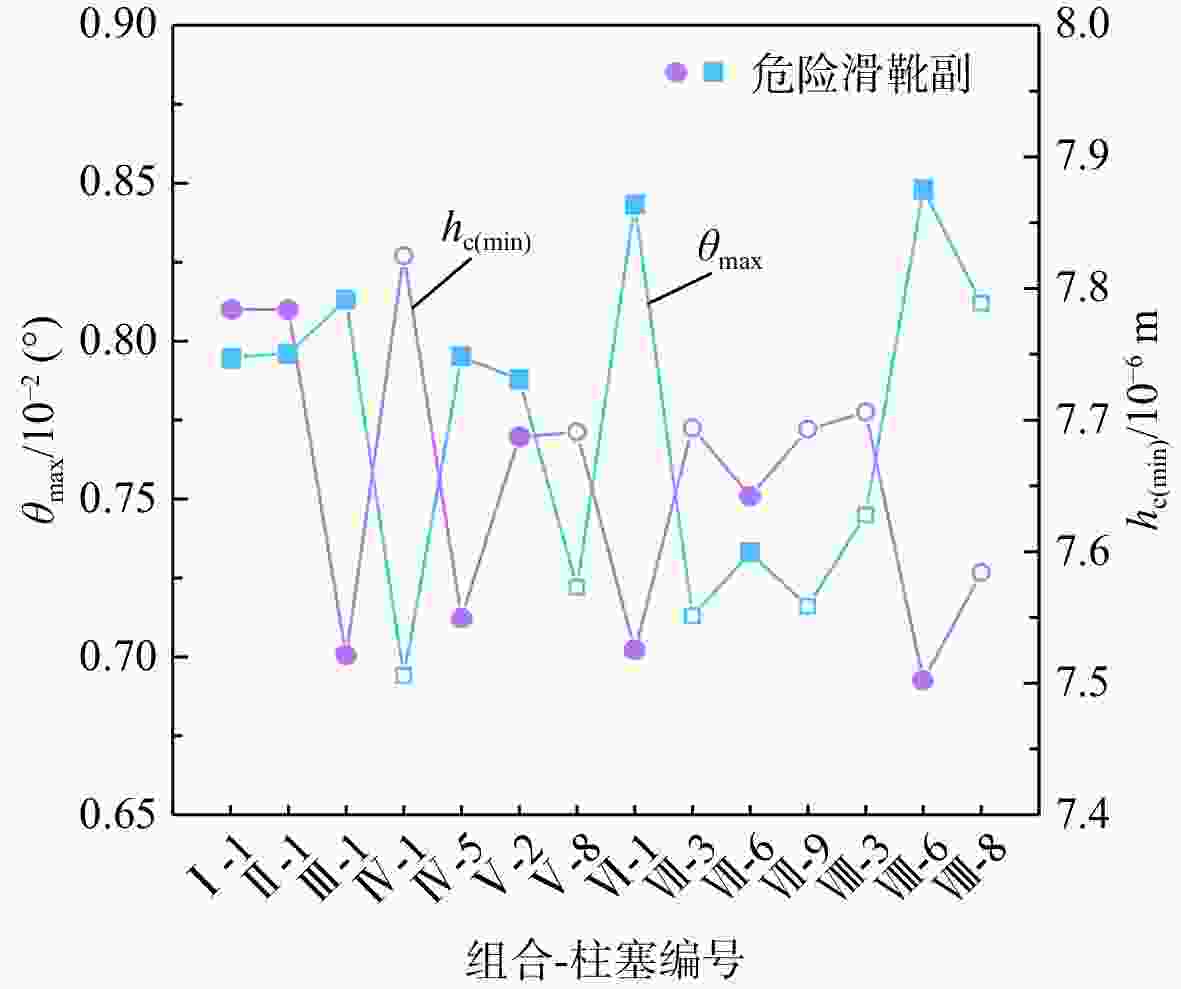

图 12 低压区θ_max和h_c（min）

Figure 12. θ_max and h_c（min） in low pressure area

下载: 全尺寸图片幻灯片

图 13 不同柱塞组合供流下的高压区油膜压力场（φ=90°）

Figure 13. Oil film pressure field in high pressure zone under different piston combination supply （φ=90°）

下载: 全尺寸图片幻灯片

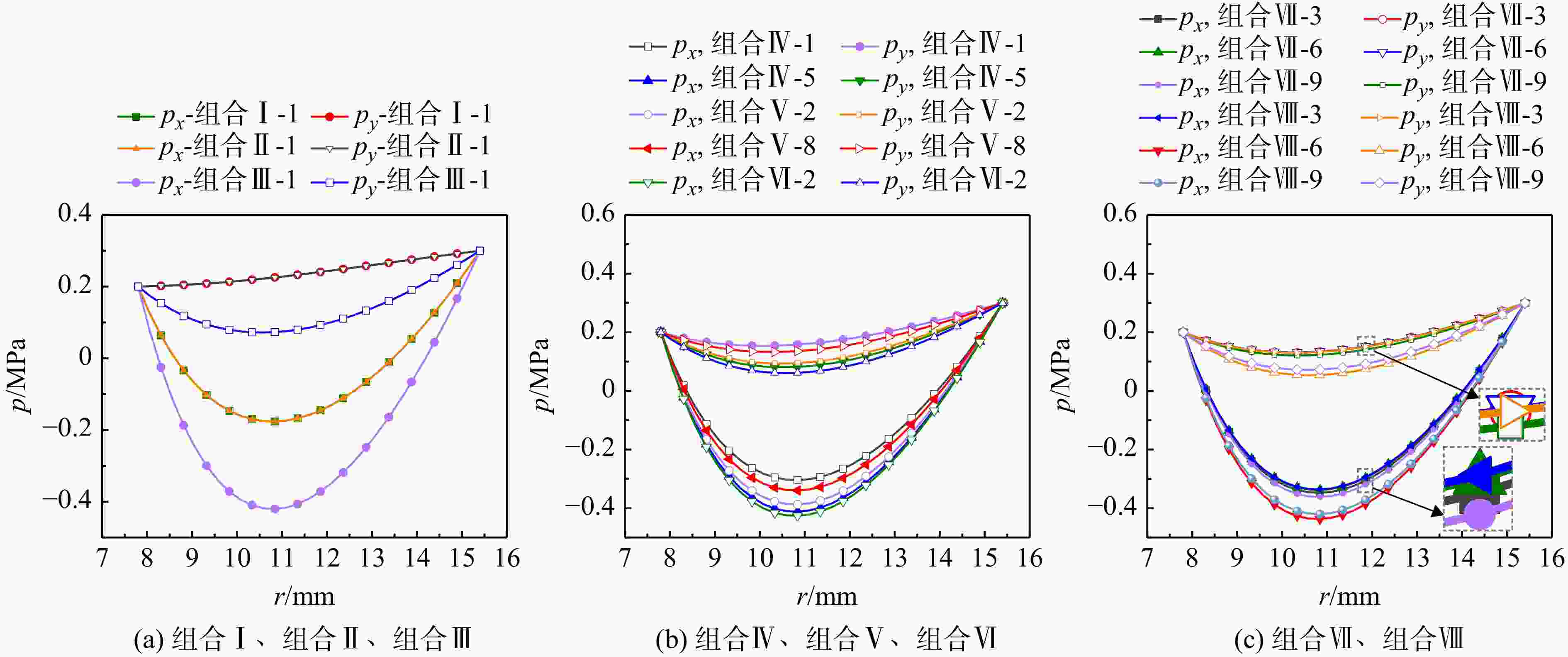

图 14 不同柱塞组合供流下的低压区油膜压力场（φ=270°）

Figure 14. Oil film pressure field in low pressure zone under different piston combination supply（φ=270°）

下载: 全尺寸图片幻灯片

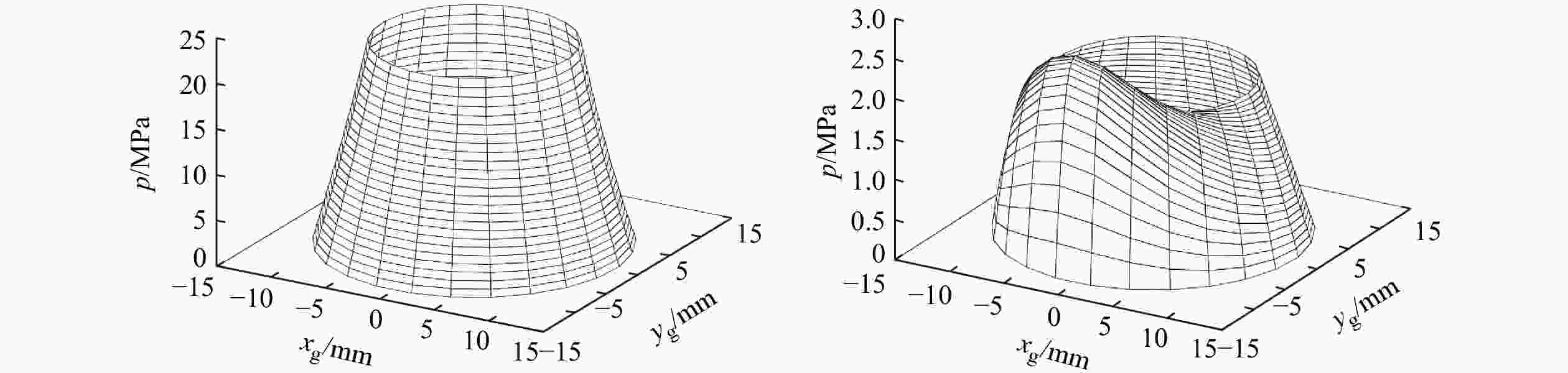

图 15 Ivantysynova团队油膜压力场分布

Figure 15. Distribution of oil film pressure field of Ivantysynova team

下载: 全尺寸图片幻灯片

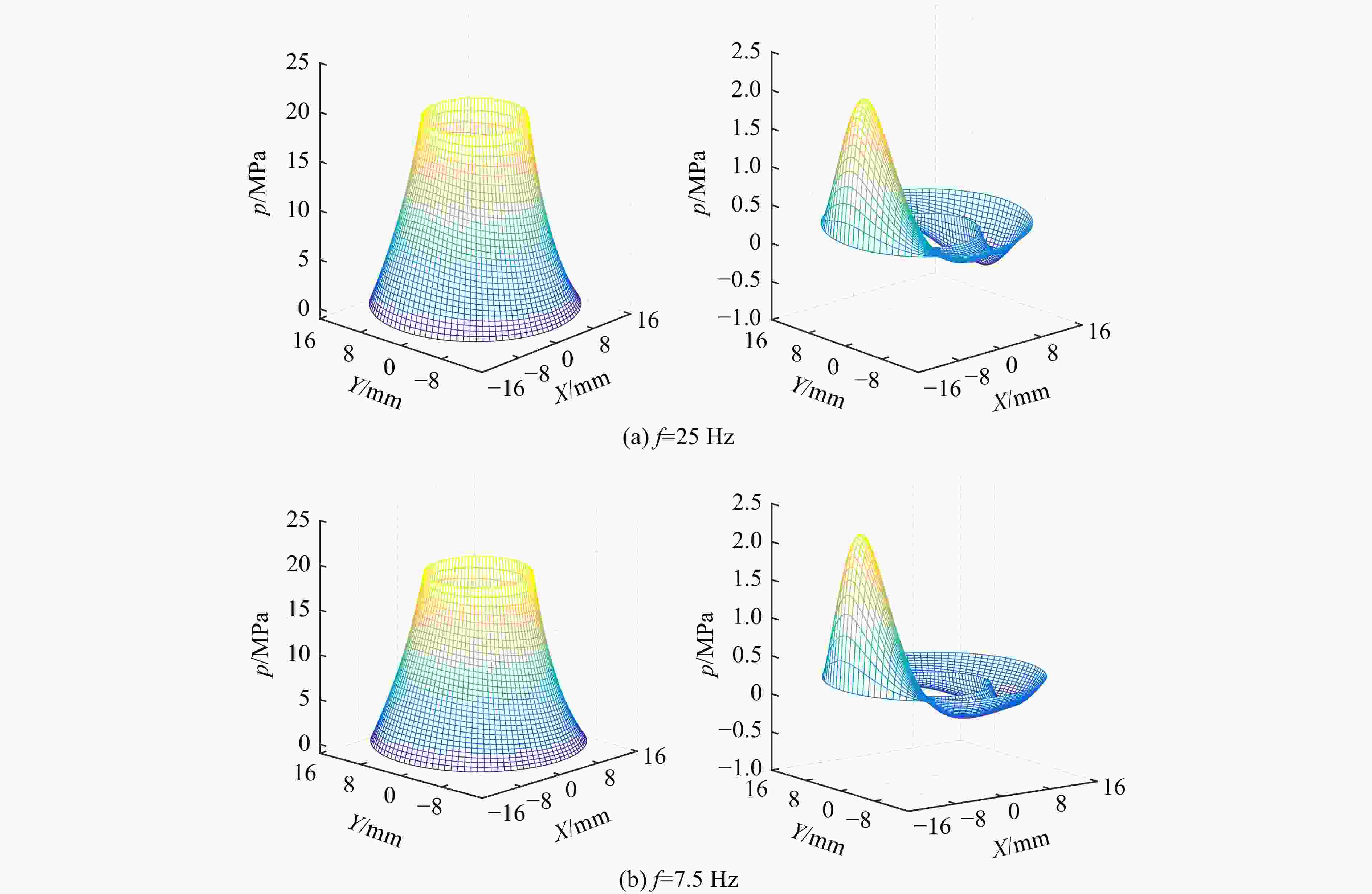

图 16 本文计算所得油膜压力场分布

Figure 16. Distribution of oil film pressure field calculated in this paper

下载: 全尺寸图片幻灯片

表 1 配流阀关键参数

Table 1. Key parameters of distribution valve

参数	排液阀	吸液阀
阀口直径D_v/m	0.0055	0.009
阀芯直径d_v/m	0.013	0.015
阀芯质量m_v/kg	0.003	0.004
阀座半角γ_v/（°）	45	45
弹簧刚度k_sv/（N/m）	4000	3000
阀芯液动力F_v/N	3	2

下载: 导出CSV

表 2 仿真与计算参数

Table 2. Simulation and calculation parameters

参数	数值
斜盘倾角/（°）	15
柱塞数S_n	9
柱塞直径d/m	0.022
单柱塞质量m_s/kg	0.045
柱塞质量m_p/kg	0.070
油液密度ρ/（kg/m³）	870
系统负载p_s/MPa	20
电动机转速/（r/min）	1500
阻尼孔长度l/m	0.0007
油膜密封带内半径r_in/m	0.0078
油膜密封带外半径r_out/m	0.0154
油液动力黏度μ /（N·S/m²）	0.02784
中心压紧弹簧刚度k/（N/m）	32500
中心弹簧压缩量Δx/m	0.0366

下载: 导出CSV

参考文献(25)

[1]	ZHAO Kaiping,HE Tao,WANG Chuanli,et al. Lubrication characteristics analysis of slipper pair of digital valve distribution axial piston pump[J]. Advances in Mechanical Engineering,2022,14(3): 2049-2063.
[2]	GUO Tong,ZHAO Shengdun,YU Yanghuiwen,et al. Design and theoretical analysis of a sliding valve distribution radial piston pump[J]. Journal of Mechanical Science and Technology,2016,30(1): 327-335. doi: 10.1007/s12206-015-1236-1
[3]	吴小锋,何亚峰,黄志荣,等. 轴向柱塞泵多学科融合建模与集成优化[J]. 航空动力学报,2018,33(5): 1245-1255. doi: 10.13224/j.cnki.jasp.2018.05.027 WU Xiaofeng,HE Yafeng,HUANG Zhirong,et al. Multidisciplinary modeling and integrated optimization of axial piston pump[J]. Journal of Aerospace Power,2018,33(5): 1245-1255. (in Chinese) doi: 10.13224/j.cnki.jasp.2018.05.027
[4]	闻德生, 吕世君, 闻佳. 新型液压传动[M]. 北京: 化学工业出版社, 2016.
[5]	江辉军,张军禹,周小锴,等. 航空液压泵脉动压力的解析表达与级数展开[J]. 航空动力学报,2023,38(1): 197-205. doi: 10.13224/j.cnki.jasp.20220288 JIANG Huijun,ZHANG Junyu,ZHOU Xiaokai,et al. Analytic expression and series expansion of pulsation pressures of aviation hydraulic pumps[J]. Journal of Aerospace Power,2023,38(1): 197-205. (in Chinese) doi: 10.13224/j.cnki.jasp.20220288
[6]	QIAN Pengcheng,JI Zengqi,ZHU Bihai. Research on the dynamics and variable characteristics of a double-swash-plate hydraulic axial piston pump with port valves[J]. Journal of Dynamic Systems, Measurement, and Control,2019,141(1): 1-18.
[7]	王倩囡. 轴向柱塞泵滑靴副油膜特性的基础研究[D]. 杭州: 浙江大学, 2018. WANG Qiannan. Research on oil film characteristicsof slipper pair in axial piston pump[D]. Hangzhou: Zhejiang University, 2018. (in Chinese)
[8]	何必海,孙健国,叶志锋. 燃油柱塞泵滑靴副和配流副油膜计算研究[J]. 航空动力学报,2010,25(6): 1437-1442. doi: 10.13224/j.cnki.jasp.2010.06.035 HE Bihai,SUN Jianguo,YE Zhifeng. Calculation and analysis of film thickness for slipper pair and valve plate pair in fuel piston pump[J]. Journal of Aerospace Power,2010,25(6): 1437-1442. (in Chinese) doi: 10.13224/j.cnki.jasp.2010.06.035
[9]	CHEN Juan,MA Jiming,LI Jia,et al. Performance optimization of grooved slippers for aero hydraulic pumps[J]. Chinese Journal of Aeronautics,2016,29(3): 814-823. doi: 10.1016/j.cja.2015.12.021
[10]	徐佩佩,叶志锋,王彬. 航空燃油柱塞泵滑靴油膜的多目标优化设计[J]. 航空动力学报,2014,29(8): 1981-1986. doi: 10.13224/j.cnki.jasp.2014.08.028 XU Peipei,YE Zhifeng,WANG Bin. Multi-objective optimization design of slipper film in aero-engine fuel piston pump[J]. Journal of Aerospace Power,2014,29(8): 1981-1986. (in Chinese) doi: 10.13224/j.cnki.jasp.2014.08.028
[11]	SCHENK A,IVANTYSYNOVA M. A transient thermoelastohydrodynamic lubrication model for the slipper/swashplate in axial piston machines[J]. Journal of Tribology,2015,137(3): 031701.1-031701.10.
[12]	SCHENK A. Predicting lubrication performance between the slipper and swashplate in axial piston hydraulic machines[D]. West Lafayette: Purdue University, 2014.
[13]	SPENCER N A. Design and development of a novel test method to measure the slipper/swashplate interface fluid film in a positive displacement machine[D]. West Lafayette: Purdue University, 2014.
[14]	TOSHIHARU K. Thermohydrodynamic lubrication model applicable to a slipper of swashplate type axial piston pumps and motors (effects of operating conditions)[J]. Tribology Online,2010,5(5): 250-254. doi: 10.2474/trol.5.250
[15]	BERGADA J M,KUMAR S,DAVIES D L,et al. A complete analysis of xial piston pump leakage and output flow ripples[J]. Applied Mathematical Modelling,2012,36(4): 1731-1751. doi: 10.1016/j.apm.2011.09.016
[16]	BERGADA J M,HAYNES J M,WATTON J. Leakage and groove pressure of an axial piston pump slipper with multiple lands[J]. Tribology Transactions,2008,51(4): 469-482. doi: 10.1080/10402000802044332
[17]	RICHARDSON D,SADEGHI F,RICHARD G R,et al. Surface modification effects on lubricant temperature andfloating valve plate motion in an axial piston pump[J]. Proceedings of the Institution of Mechanical Engineers: Part J Journal of Engineering Tribology,2020,234(1): 3-17. doi: 10.1177/1350650119841184
[18]	HARRIS R M,EDGE K A,TILLEY D G. Predicting the behavior of slipperpads in swashplate-type axial piston pumps[J]. Journal of Dynamic Systems Measurement and Control,1996,118(1): 41-47. doi: 10.1115/1.2801149
[19]	XU Bing,WANG Qiannan,ZHANG Junhui. Effect of case drain pressure on slipper/swashplate pair within axial piston pump[J]. Journal of Zhejiang University-Science A:Applied Physics & Engineering,2015,16(12): 1001-1014.
[20]	徐兵,李迎兵,张斌,等. 轴向柱塞泵滑靴副倾覆现象数值分析[J]. 机械工程学报,2010,46(20): 161-168. doi: 10.3901/JME.2010.20.161 XU Bing,LI Yingbing,ZHANG Bin,et al. Numerical simulation of overturning phenomenon of axial piston pump slipper pair[J]. Journal of Mechanical Engineering,2010,46(20): 161-168. (in Chinese) doi: 10.3901/JME.2010.20.161
[21]	胡纪滨,赵红梅,荆崇波. 轴向柱塞泵滑靴副动压承载特性研究[J]. 北京理工大学学报,2018,38(3): 229-234. doi: 10.15918/j.tbit1001-0645.2018.03.002 HU Jibin,ZHAO Hongmei,JING Chongbo. Hydrodynamic lubrication characteristics of slipper/swash plate pair in axial piston pumps-theory and experiment[J]. Transactions of Beijing Institute of Technology,2018,38(3): 229-234. (in Chinese) doi: 10.15918/j.tbit1001-0645.2018.03.002
[22]	汤何胜,訚耀保,李晶. 轴向柱塞泵滑靴副的热结构耦合特性[J]. 航空动力学报,2016,31(8): 1913-1920. doi: 10.13224/j.cnki.jasp.2016.08.016 TANG Hesheng,YIN Yaobao,LI Jing. Thermal-structural coupling characteristics of axial piston pump slipper pair[J]. Journal of Aerospace Power,2016,31(8): 1913-1920. (in Chinese) doi: 10.13224/j.cnki.jasp.2016.08.016
[23]	TANG Hesheng,REN Yan,XIANG Jiawei. Fully-coupled thermomechanical analysis for sliding contact between textured slipper and swashplate in axial piston pump[J]. International Journal of Heat and Mass Transfer,2020,163(12): 120521.1-120521.15.
[24]	WIECZOREK U,IVANTYSYNOVA M. Computer aided optimization of bearing and sealing gaps in hydrostatic machines-the simulation tool CASPAR[J]. International Journal of Fluid Power,2014,3(1): 7-20.
[25]	ZECCHI M. A novel fluid structure interaction and thermal model to predict the cylinder block/valve plate interface performance in swash plate type axial piston machines[D]. West Lafayette: Purdue University, 2013.
