Dynamic modeling and response analysis of the loose supports in rotor systems
-
摘要:
针对转子系统轴承支承件的松动问题，基于松动支承件的几何特征建立了轴承碰撞过程的数学表征，通过Lankarani-Nikaravesh模型对松动端轴承力进行计算。利用牛顿定律建立了转子系统轴承支承件松动的动力学模型，采用Runge-Kutta法对系统动力学方程进行求解，分析了松动程度、工作转速和系统阻尼对转子系统输出特性的影响。研究结果表明：支承件松动的转子系统在其频谱图上会出现
f s、3f s和5f s等奇数倍频信号；支承件松动会在增大轴承力幅值和增大载荷交变次数这两个方面显著降低轴承的使用寿命；转子系统会随着松动程度的加剧、运行转速升高以及系统阻尼减小而越不稳定。研究结果为轴承支承件松动故障影响分析工作提供了参考，也可以作为轴承座松动故障诊断的依据。Abstract:In view of the looseness of bearing supports in rotor systems, the mathematical representation of bearing impact process was established based on the geometric characteristics of loose supports. The bearing force of the loose end was calculated by Lankarani-Nikaravesh model. By using Newton's law, the dynamic model of the rotor system with bearing support looseness was established. The Runge-Kutta method was adopted to solve the dynamic equations. The influences of the factors, such as looseness degree, and working speed and damping, on the dynamic performance of the rotor system with bearing support looseness were studied. The results showed that: when the support of the rotor system was loose, the odd frequencies, such as
f s, 3f s and 5f s etc., could show up on its spectrum. Besides, the service life of the bearing could be significantly reduced by the increase of the bearing force and the frequency of load alternation caused by the looseness of the support. With the looseness being heavier, the accuracy of the rotor system in the looseness direction decreased gradually. The rotor system might become more unstable as the degree of looseness increased, the operating speed increased, and the system damping decreased. The research results can provide a reference for the fault analysis of the bearing support looseness. It also can be applied into the looseness diagnosis of bearing pedestal.-
Key words:
- looseness /
- rub and impact /
- roller bearing /
- rotor system /
- bearing /
- accuracy /
- bearing pedestal
-

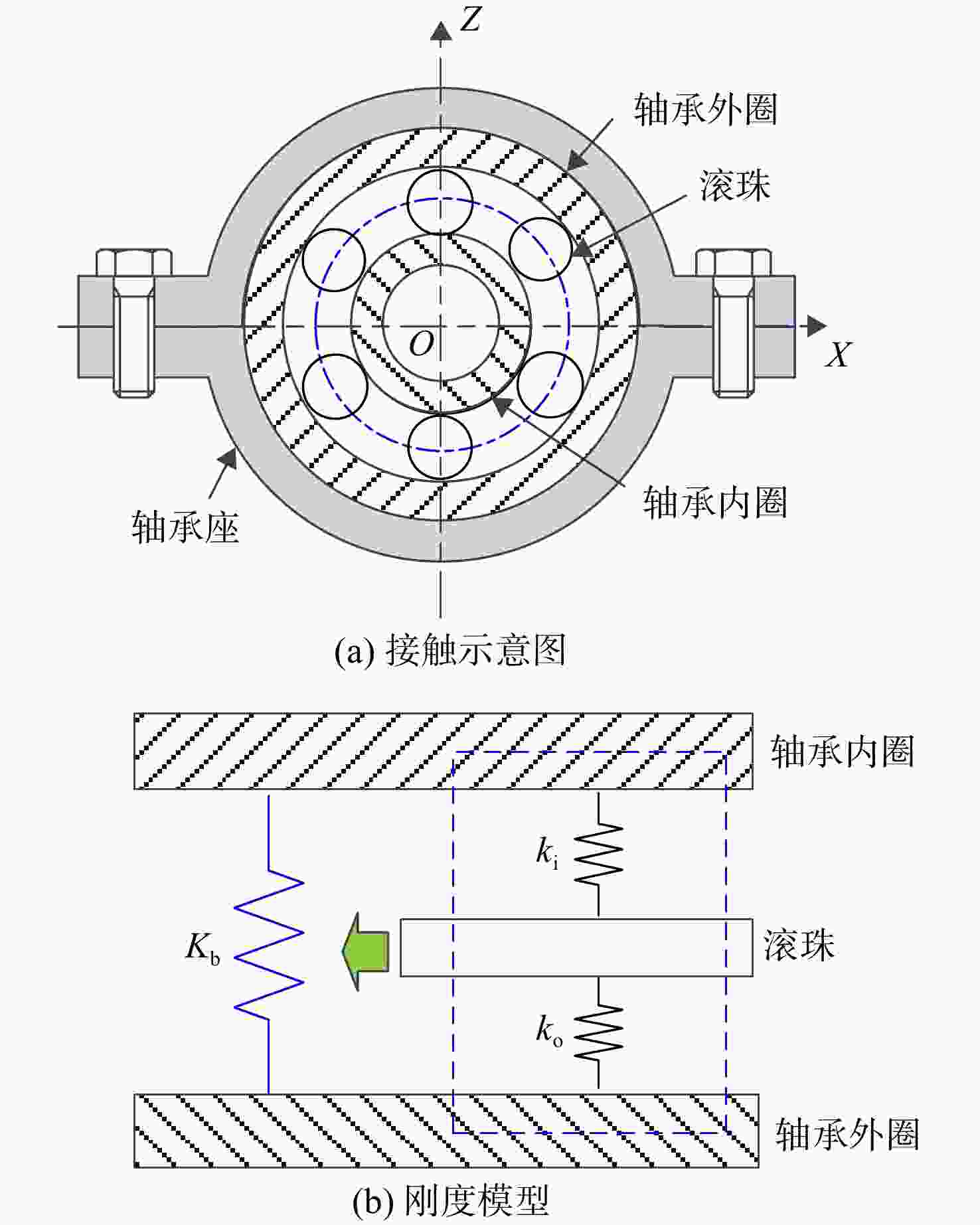

图 2 正常端轴承与轴承座接触模型
Figure 2. Contact model of bearing and bearing pedestal at normal end

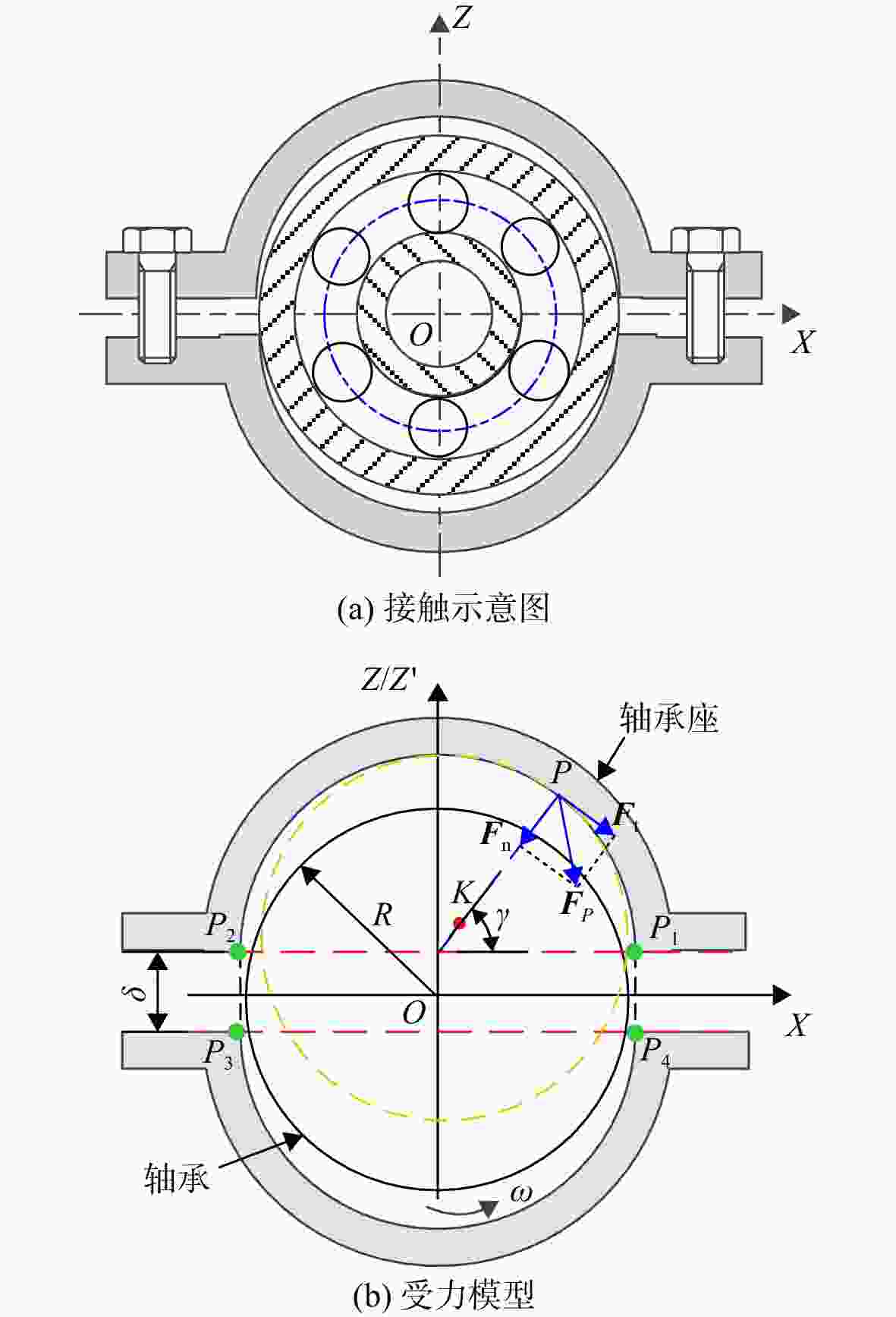

图 4 松动端轴承与轴承座接触模型
Figure 4. Contact model of bearing and bearing pedestal at loose end
图 5 $ \overset{\frown} {{P}_{\text{1}}{P}_{\text{2}}} $段几何关系
Figure 5. Geometric relation of $ \overset{\frown} {{P}_{\text{1}}{P}_{\text{2}}} $

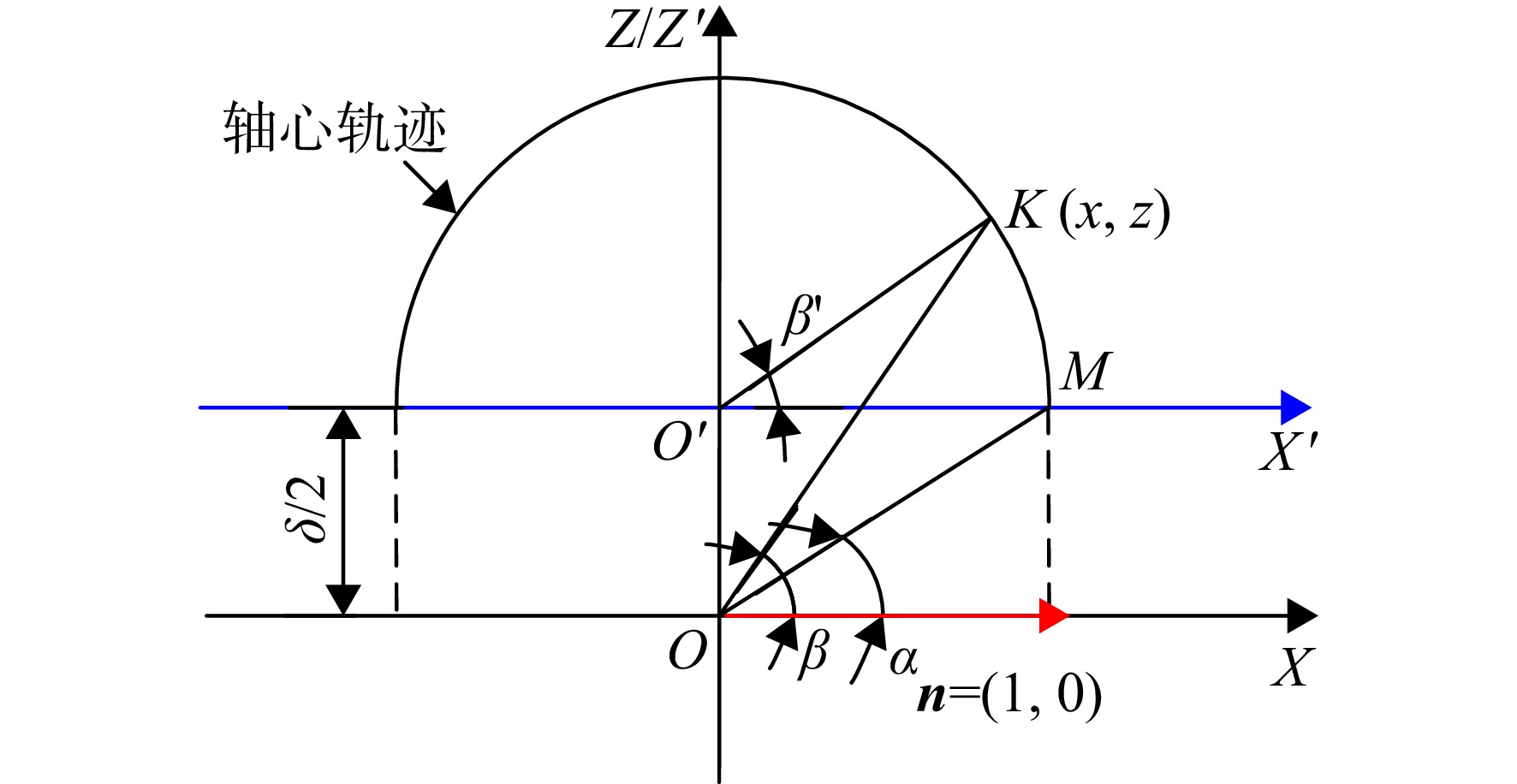

图 6 $ \overset{\frown} {{P}_{\text{4}}{P}_{1}} $段几何分析
Figure 6. Geometric analysis of $ \overset{\frown} {{P}_{\text{4}}{P}_{1}} $
图 8 不同松动程度下松动端轴承力
Figure 8. Bearing force at loose end under different looseness clearances

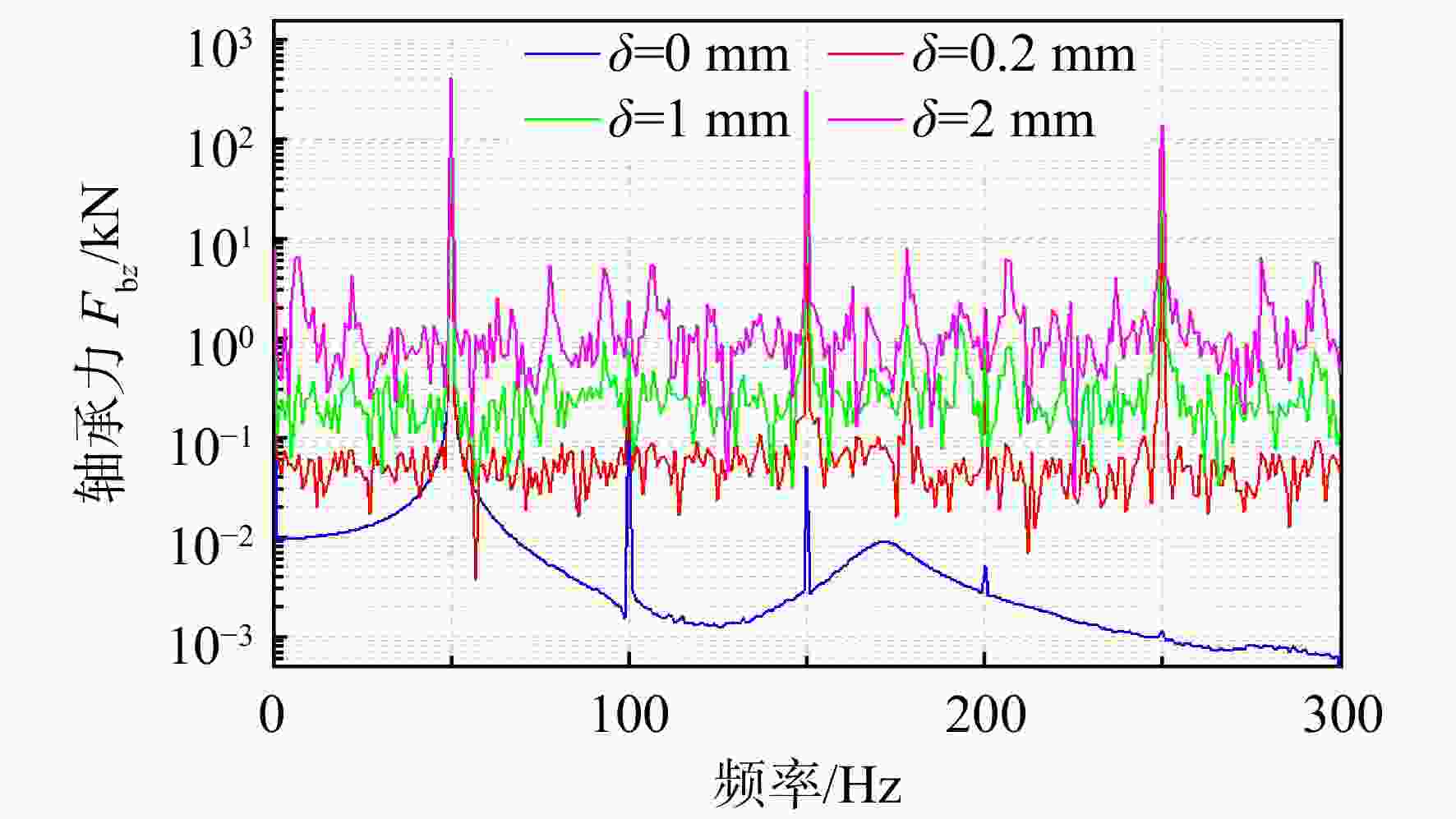

图 9 不同松动程度下松动端轴承力频谱
Figure 9. Bearing force frequency spectrum at loose end under different looseness clearances

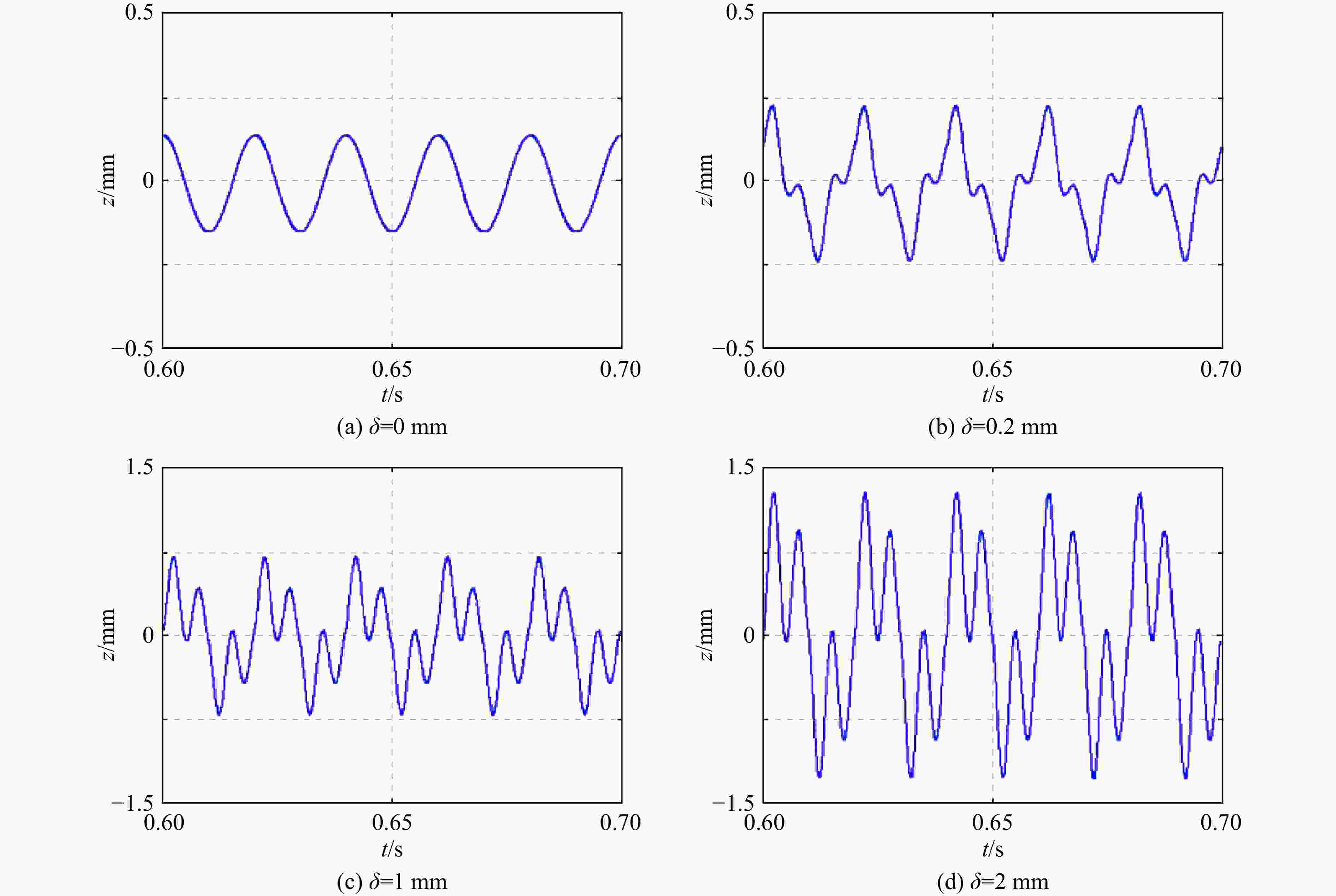

图 10 不同松动程度下转盘Z向振动波形
Figure 10. Z-direction vibration waveform of the disc under different looseness clearances

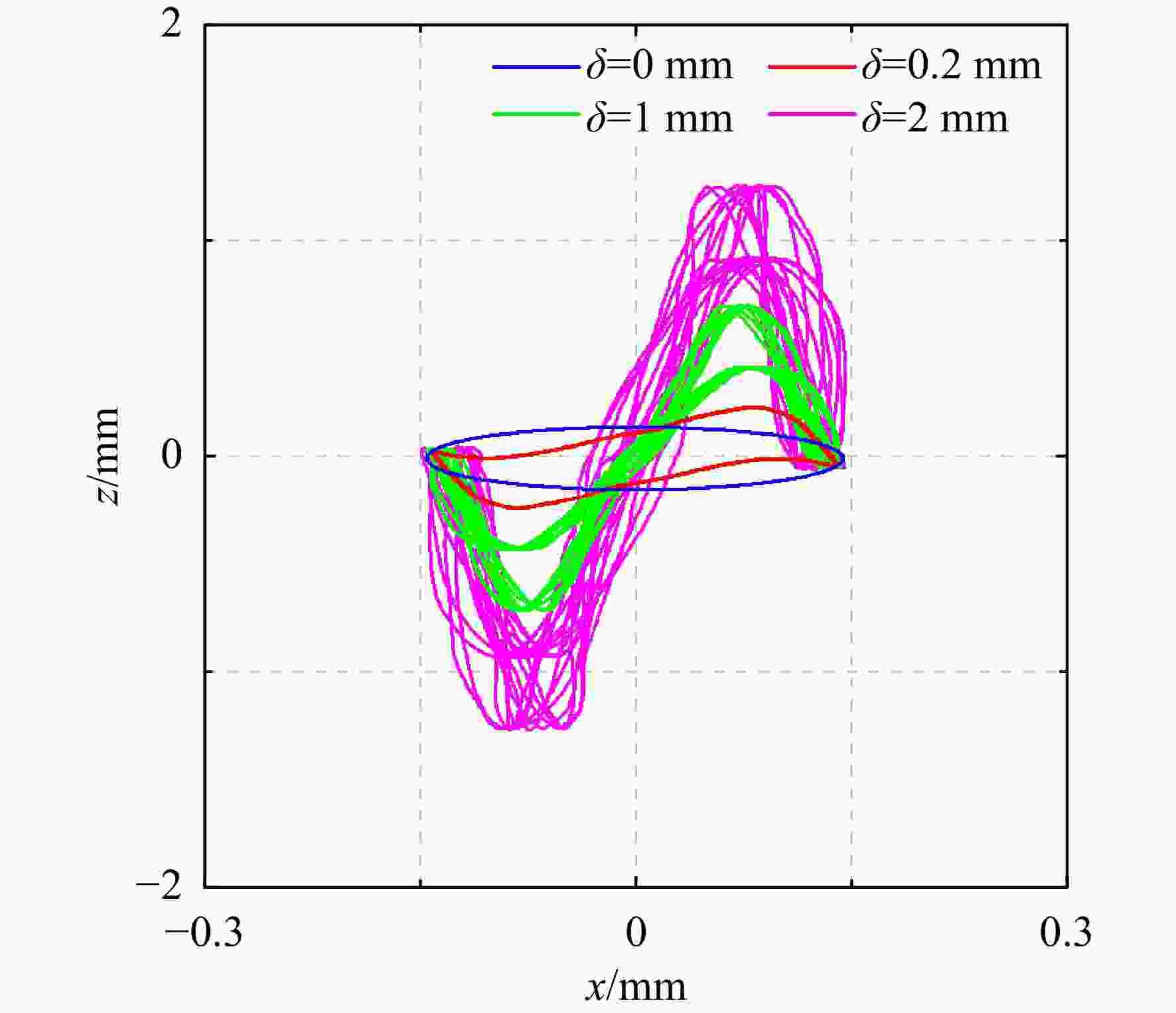

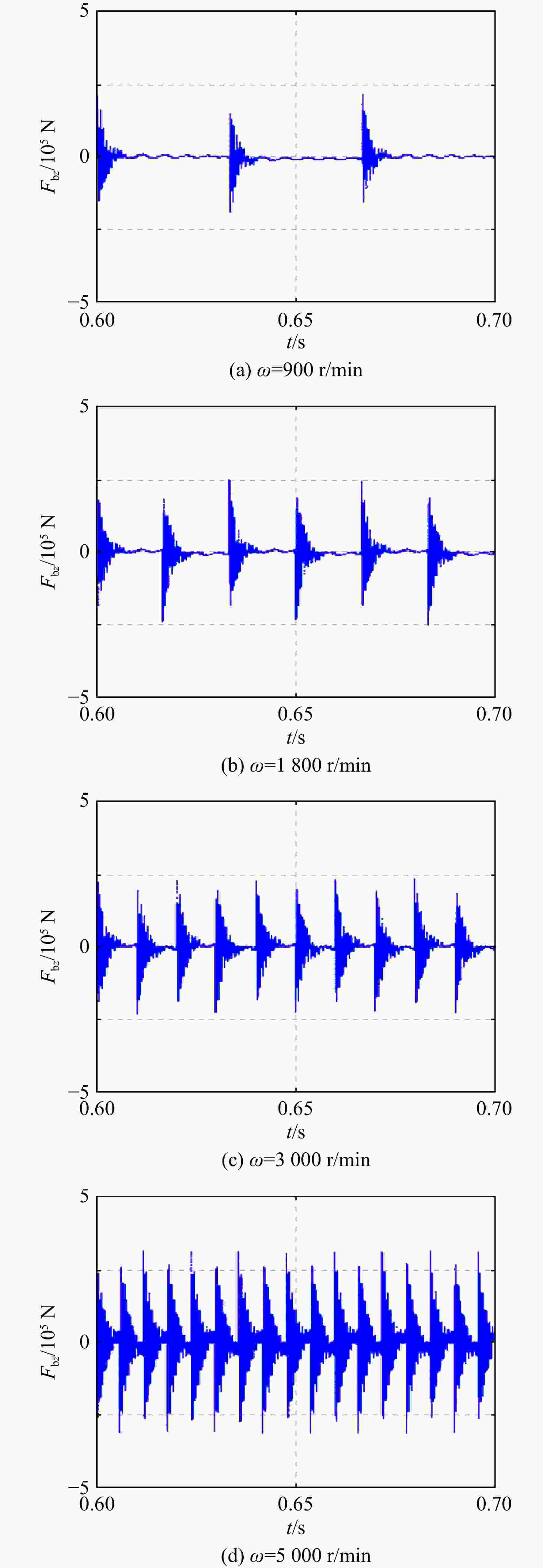

图 12 不同工作转速下松动端轴承力
Figure 12. Bearing force at loose end under different working speeds

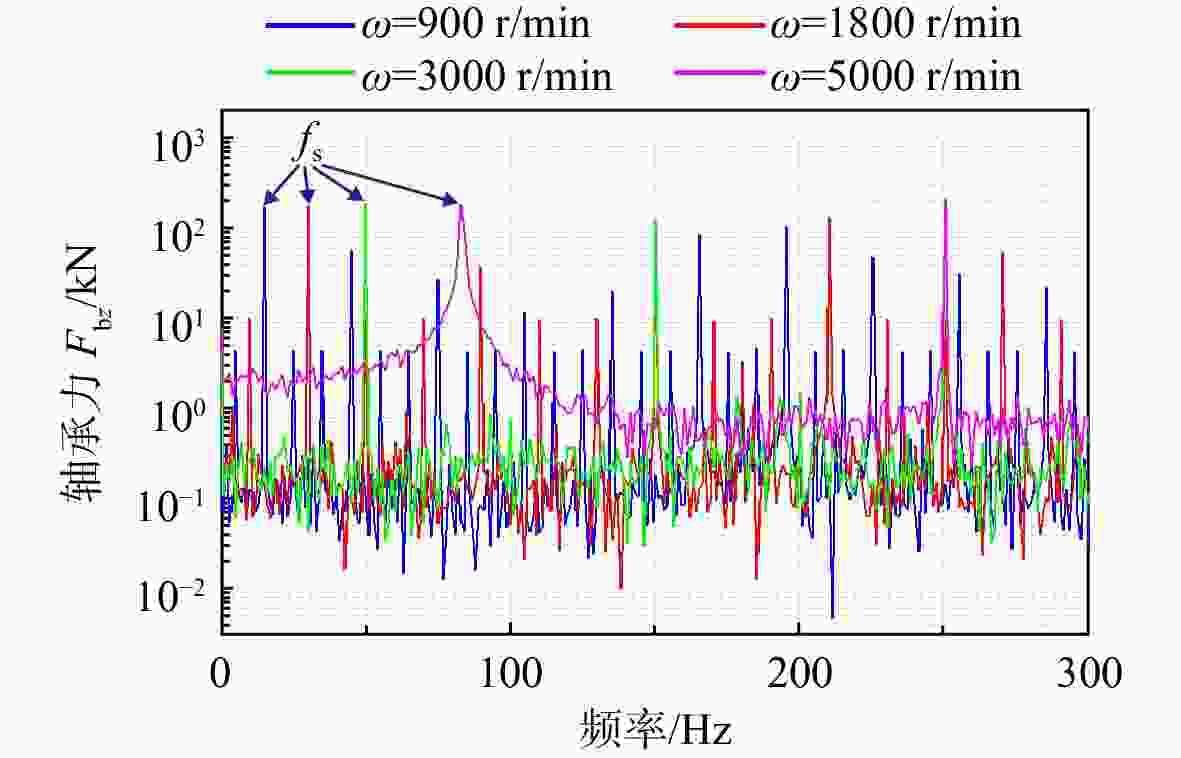

图 13 不同工作转速下松动端轴承力频谱
Figure 13. Bearing force frequency spectrum at loose end under different working speeds

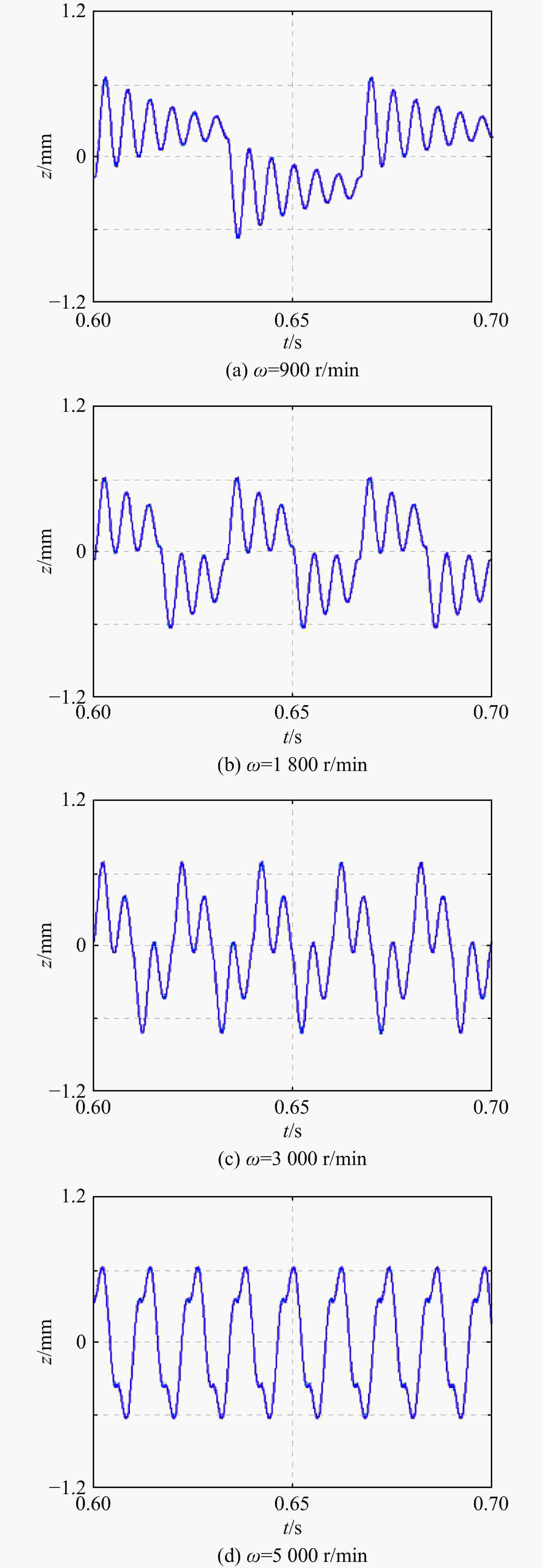

图 14 不同工作转速下转盘Z向振动波形
Figure 14. Z-direction vibration waveform of the disc under different working speeds

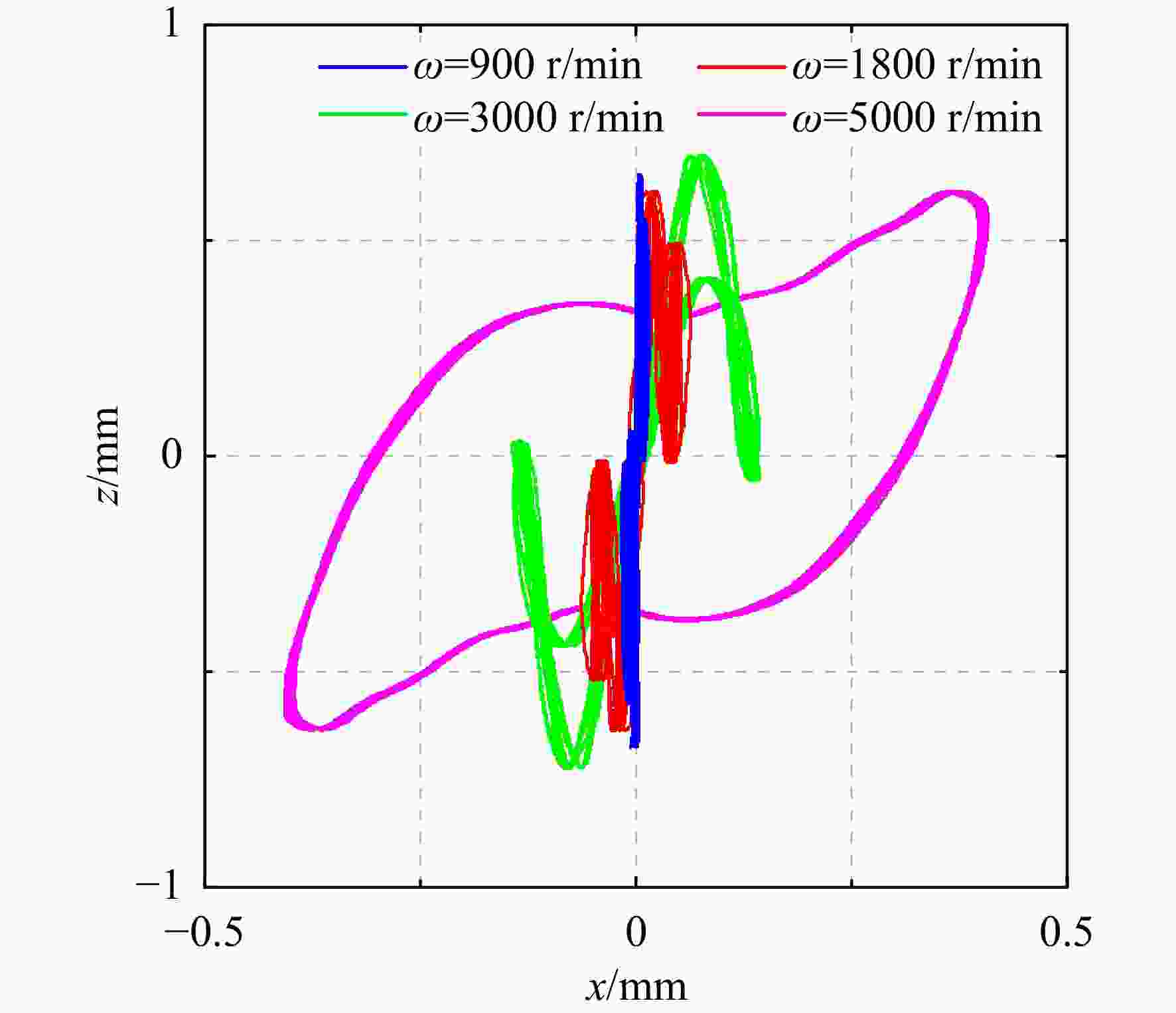

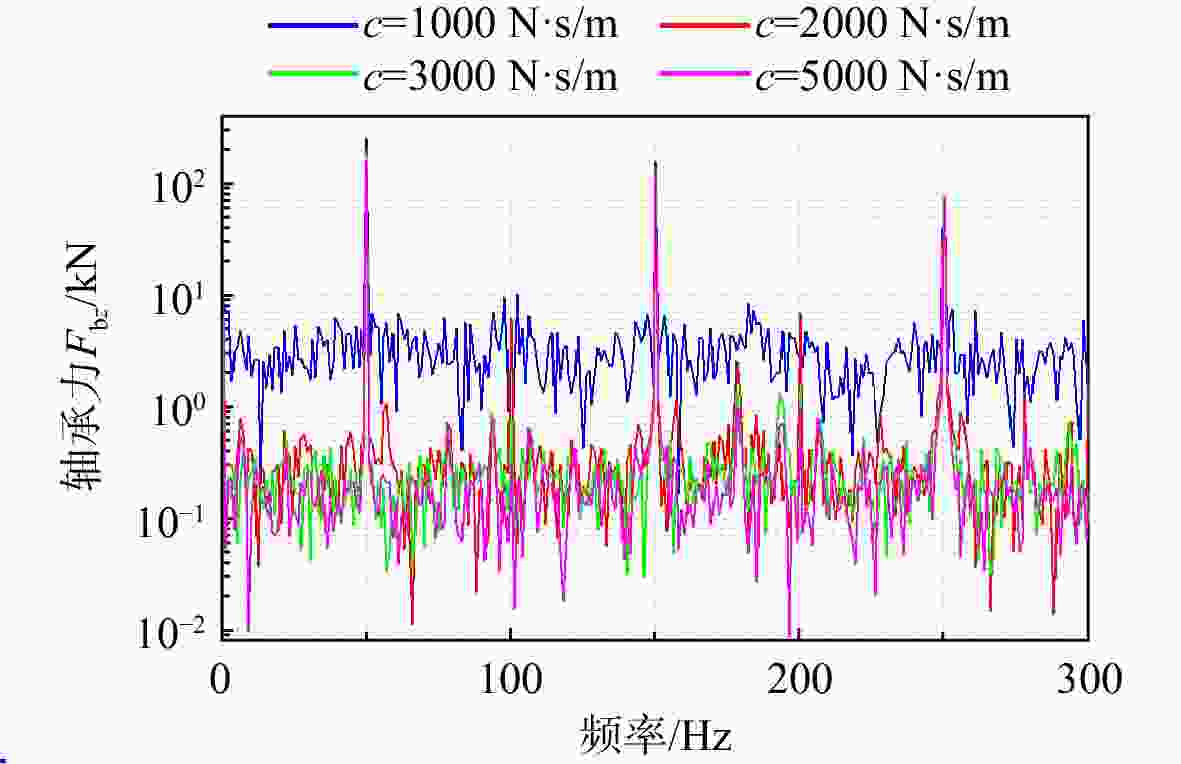

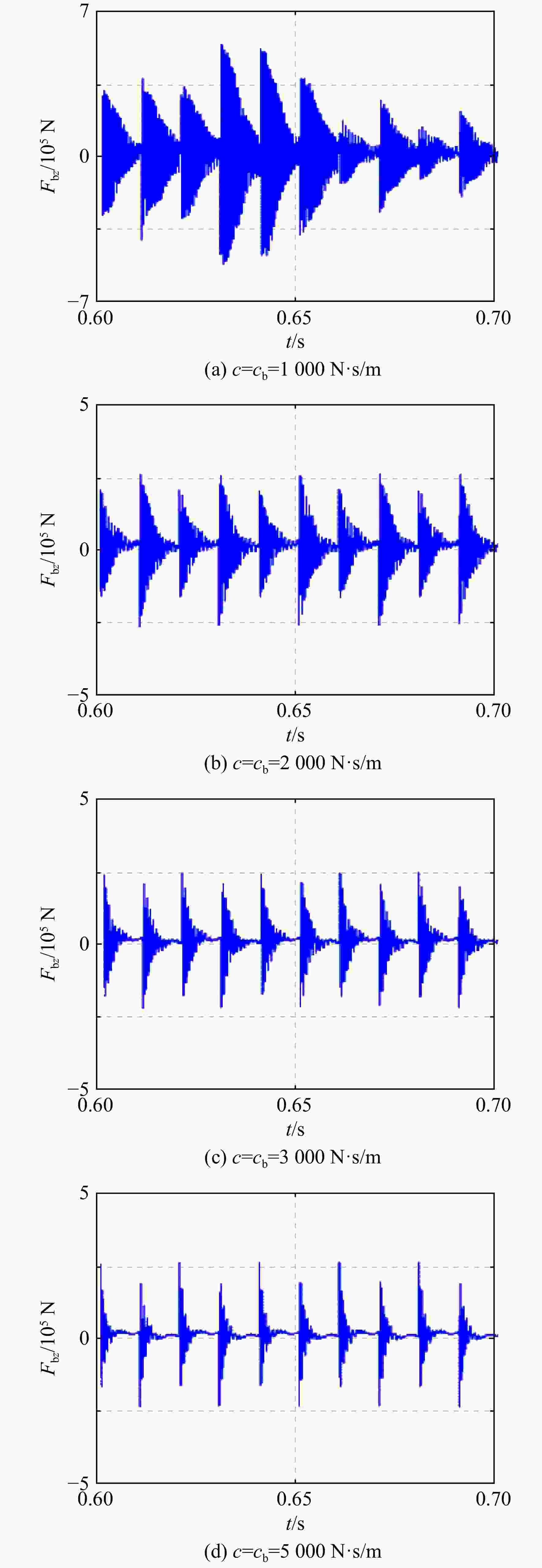

图 17 不同阻尼环境下松动端轴承力频谱
Figure 17. Bearing force frequency spectrum at loose end under different damping

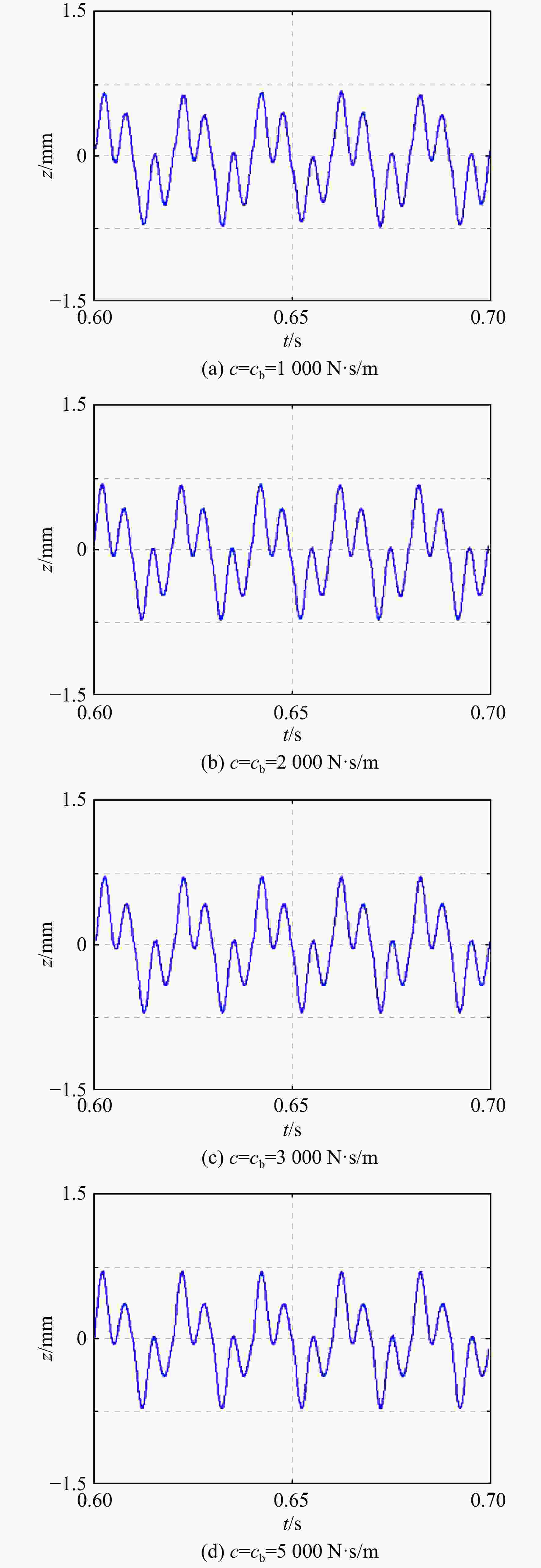

图 18 不同阻尼环境下转盘Z向振动波形
Figure 18. Z-direction vibration waveform of the disc under different damping

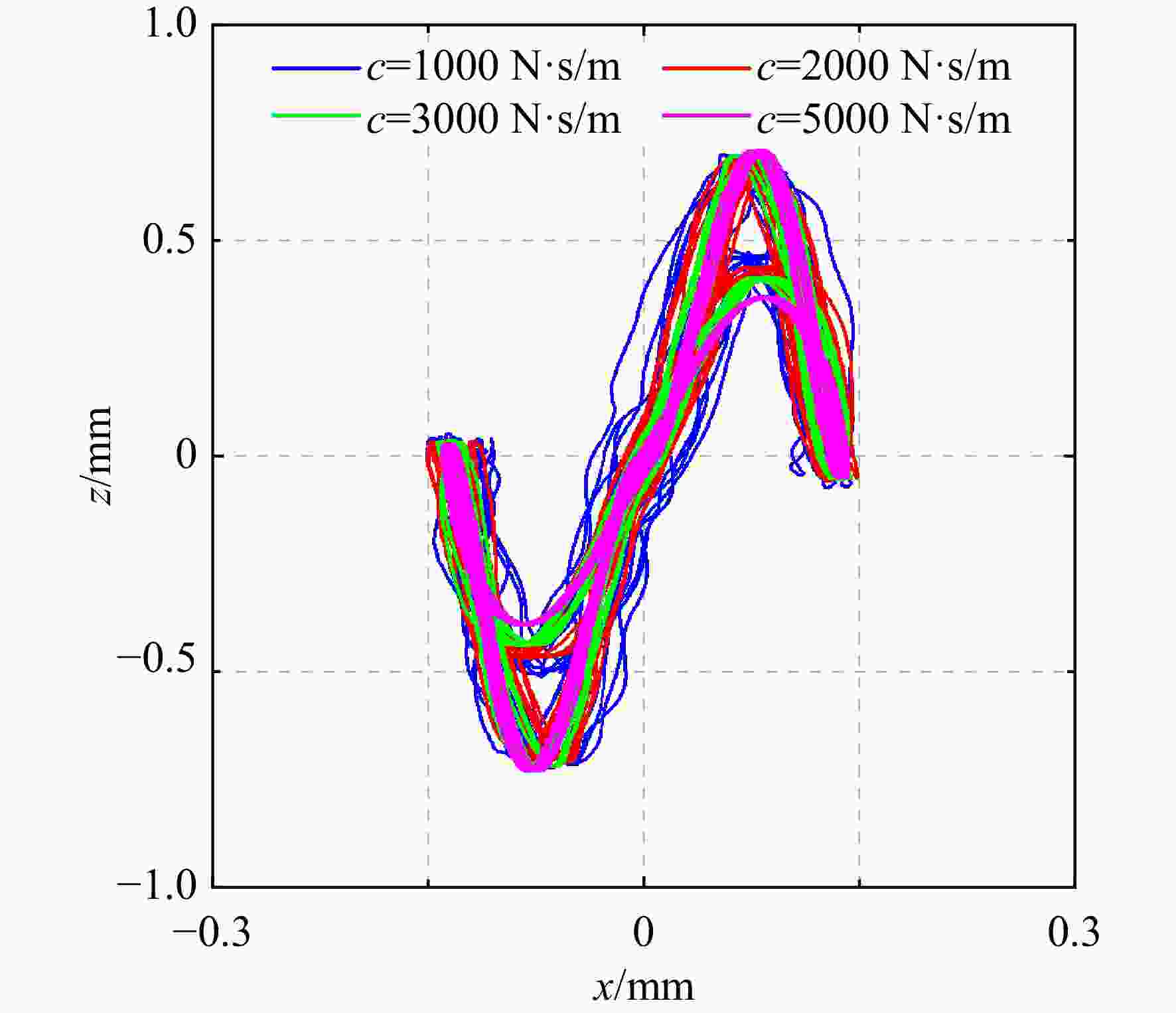

表 1 SKF6205-2RS轴承参数
Table 1. Bearing parameters of SKF6205-2RS
参数 数值 轴承内滚道半径ri/mm 15.25 轴承外滚道半径ro/mm 23.25 轴承外圈半径R/mm 26 滚珠数量Nb 9 弹性模量E/105 MPa 2.06 泊松比υ 0.3
下载: 导出CSV

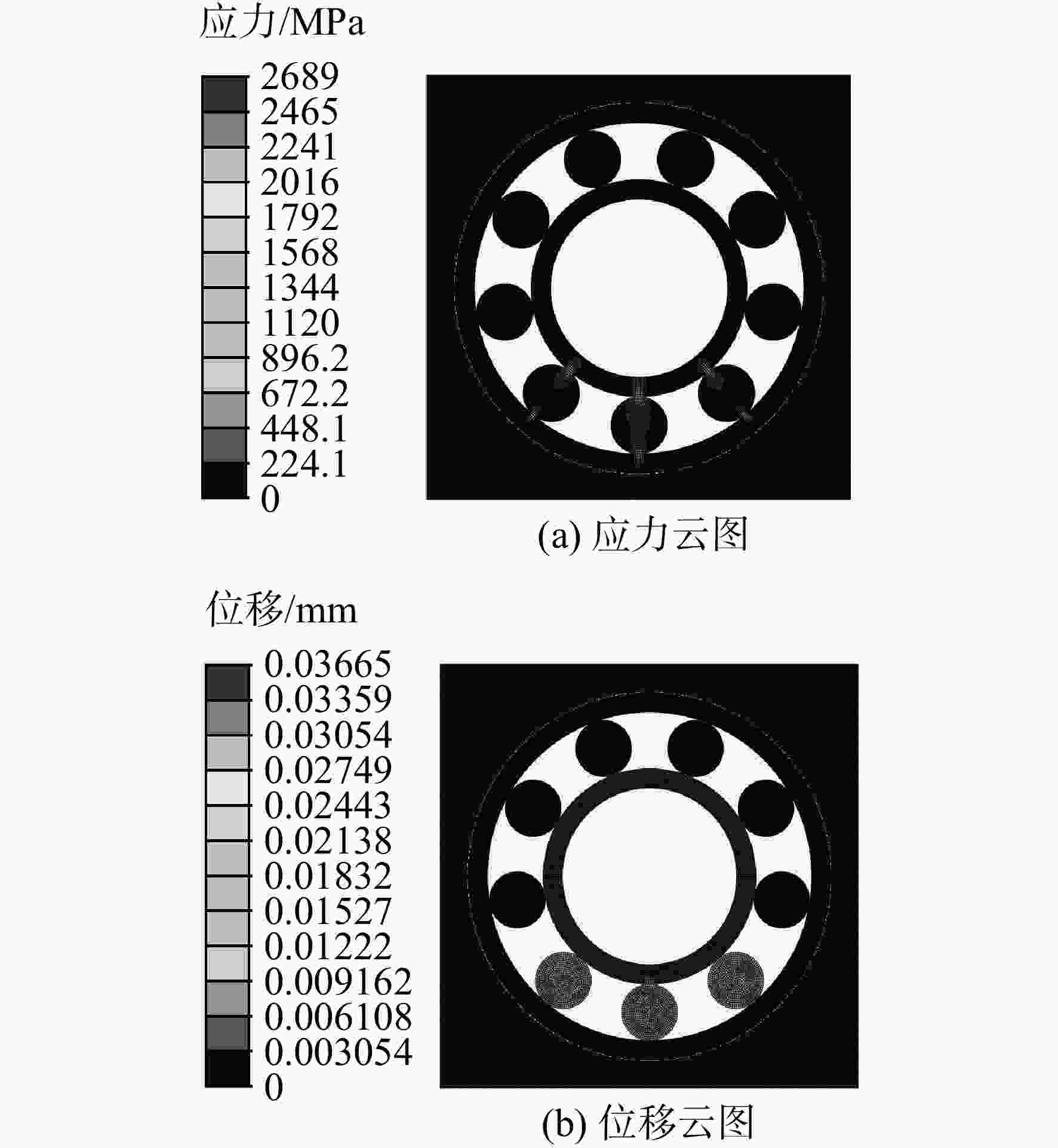

表 2 本文模型结果与有限元结果对比
Table 2. Comparisons of the proposed model and finite element analysis
载荷/N 位移/mm 相对误差/% 本模型 有限元法 500 0.0143 0.0138 3.62 2000 0.0370 0.0367 0.82
下载: 导出CSV
表 3 转子系统参数
Table 3. Parameters of rotor system
参数 数值 转盘质量m/kg 32.1 转盘偏心距e/mm 1.5 转轴刚度k/107 （N/m） 2.5 轴承质量mb/kg 4 恢复系数ce 0.9
下载: 导出CSV
-
[1] 马辉,张志,太兴宇,等. 不同载荷下基座松动转子系统动力学特性分析[J]. 中国电机工程学报,2012,32(26): 132-137. MA Hui,ZHANG Zhi,TAI Xingyu,et al. Dynamic characteristic analysis of a rotor system with pedestal looseness under two load cases[J]. Proceedings of the CSEE,2012,32(26): 132-137. (in ChineseMA Hui, ZHANG Zhi, TAI Xingyu, et al. Dynamic characteristic analysis of a rotor system with pedestal looseness under two load cases[J]. Proceedings of the CSEE, 2012, 32(26): 132-137. (in Chinese) [2] CHU F,TANG Y. Stability and non-linear responses of a rotor-bearing system with pedestal looseness[J]. Journal of Sound and Vibration,2001,241(5): 879-893. doi: 10.1006/jsvi.2000.3341 [3] 李振平,罗跃纲,姚红良,等. 转子系统支承松动的非线性动力学及故障特征[J]. 东北大学学报(自然科学版),2002,23(11): 1048-1051. LI Zhenping,LUO Yuegang,YAO Hongliang,et al. Dynamics and fault characteristics of rotor-bearing system with pedestal looseness[J]. Journal of Northeastern University (Natural Science),2002,23(11): 1048-1051. (in Chinese doi: 10.3321/j.issn:1005-3026.2002.11.008LI Zhenping, LUO Yuegang, YAO Hongliang, et al. Dynamics and fault characteristics of rotor-bearing system with pedestal looseness[J]. Journal of Northeastern University (Natural Science), 2002, 23(11): 1048-1051. (in Chinese) doi: 10.3321/j.issn:1005-3026.2002.11.008 [4] 刘献栋,何田,李其汉. 支承松动的转子系统动力学模型及其故障诊断方法[J]. 航空动力学报,2005,20(1): 54-59. LIU Xiandong,HE Tian,LI Qihan. Dynamic model of rotor system with support loosening and its diagnosis method[J]. Journal of Aerospace Power,2005,20(1): 54-59. (in Chinese doi: 10.3969/j.issn.1000-8055.2005.01.011LIU Xiandong, HE Tian, LI Qihan. Dynamic model of rotor system with support loosening and its diagnosis method[J]. Journal of Aerospace Power, 2005, 20(1): 54-59. (in Chinese) doi: 10.3969/j.issn.1000-8055.2005.01.011 [5] LU Kuan,JIN Yulin,CHEN Yushu,et al. Stability analysis of reduced rotor pedestal looseness fault model[J]. Nonlinear Dynamics,2015,82(4): 1611-1622. doi: 10.1007/s11071-015-2264-1 [6] WANG H F,CHEN G,SONG P P. Asynchronous vibration response characteristics of connectors with looseness fault and its verification[J]. Journal of Vibroengineering,2015,17(7): 3551-3560. [7] WANG H F,CHEN G,SONG P P. Asynchronous vibration response characteristics of aero-engine with support looseness fault[J]. Journal of Computational and Nonlinear Dynamics,2016,11(3): 031013. doi: 10.1115/1.4031245 [8] MA Hui,ZHAO Xueyan,TENG Yunnan,et al. Analysis of dynamic characteristics for a rotor system with pedestal looseness[J]. Shock and Vibration,2011,18(1/2): 13-27. [9] MA Hui,HUANG Jing,ZHANG Suyan,et al. Nonlinear vibration characteristics of a rotor system with pedestal looseness fault under different loading conditions[J]. Journal of Vibroengineering,2013,15: 406-418. [10] 马辉,孙伟,王学军,等. 转子系统松动故障特征分析[J]. 东北大学学报(自然科学版),2009,30(3): 400-404. MA Hui,SUN Wei,WANG Xuejun,et al. Characteristic analysis of looseness fault in rotor system[J]. Journal of Northeastern University (Natural Science),2009,30(3): 400-404. (in Chinese doi: 10.3321/j.issn:1005-3026.2009.03.025MA Hui, SUN Wei, WANG Xuejun, et al. Characteristic analysis of looseness fault in rotor system[J]. Journal of Northeastern University (Natural Science), 2009, 30(3): 400-404. (in Chinese) doi: 10.3321/j.issn:1005-3026.2009.03.025 [11] WANG Nanfei,XU Hongzhi,JIANG Dongxiang. Dynamic model and fault feature research of dual-rotor system with bearing pedestal looseness[J]. Mathematical Problems in Engineering,2016,2016: 3817405. [12] LIU Yang,XUE Zengyuan,JIA Lei,et al. Response characteristics of looseness-rubbing coupling fault in rotor-sliding bearing system[J]. Mathematical Problems in Engineering,2017,2017: 8742468. doi: 10.1155/2017/8742468 [13] AN Xueli,ZHANG Fei. Pedestal looseness fault diagnosis in a rotating machine based on variational mode decomposition[J]. Proceedings of the Institution of Mechanical Engineers,Part C: Journal of Mechanical Engineering Science,2017,231(13): 2493-2502. doi: 10.1177/0954406216637378 [14] JIANG Mian,WU Jigang,PENG Xinsheng,et al. Nonlinearity measure based assessment method for pedestal looseness of bearing-rotor systems[J]. Journal of Sound and Vibration,2017,411: 232-246. doi: 10.1016/j.jsv.2017.09.002 [15] JIANG Mian,WU Jigang,LIU Shuangqi. The influence of slowly varying mass on severity of dynamics nonlinearity of bearing-rotor systems with pedestal looseness[J]. Shock and Vibration,2018,2018: 3795848. doi: 10.1155/2018/3795848 [16] JIANG Mian,KUANG Yingwei,WU Jigang,et al. Rub-impact detection in rotor systems with pedestal looseness using a nonlinearity evaluation[J]. Shock and Vibration,2018,2018: 7928164. doi: 10.1155/2018/7928164 [17] 蒋勉,伍济钢,彭鑫胜,等. 转子-滑动轴承系统支承松动-碰摩故障动力学行为及评估方法[J]. 动力学与控制学报,2017,15(6): 550-557. JIANG Mian,WU Jigang,PENG Xinsheng,et al. Dynamic behaviors and assessment of loose-rubbing faults in rotor-sliding bearing system[J]. Journal of Dynamics and Control,2017,15(6): 550-557. (in Chinese doi: 10.6052/1672-6553-2017-38JIANG Mian, WU Jigang, PENG Xinsheng, et al. Dynamic behaviors and assessment of loose-rubbing faults in rotor-sliding bearing system[J]. Journal of Dynamics and Control, 2017, 15(6): 550-557. (in Chinese) doi: 10.6052/1672-6553-2017-38 [18] 马辉,太兴宇,汪博,等. 松动—碰摩耦合故障转子系统动力学特性分析[J]. 机械工程学报,2012,48(19): 80-86. MA Hui,TAI Xingyu,WANG Bo,et al. Dynamic characteristic analysis of a rotor system with pedestal looseness coupled rub-impact fault[J]. Journal of Mechanical Engineering,2012,48(19): 80-86. (in Chinese doi: 10.3901/JME.2012.19.080MA Hui, TAI Xingyu, WANG Bo, et al. Dynamic characteristic analysis of a rotor system with pedestal looseness coupled rub-impact fault[J]. Journal of Mechanical Engineering, 2012, 48(19): 80-86. (in Chinese) doi: 10.3901/JME.2012.19.080 [19] YANG Yang,XU Yuqian,YANG Yiren,et al. Dynamics characteristics of a rotor-casing system subjected to axial load and radial rub[J]. International Journal of Non-Linear Mechanics,2018,99: 59-68. doi: 10.1016/j.ijnonlinmec.2017.10.023 [20] 刘元峰,赵玫,朱厚军. 转子有碰摩和支承松动故障时的混沌特性研究[J]. 振动与冲击,2002,21(4): 36-38,21. LIU Yuanfeng,ZHAO Mei,ZHU Houjun. Chaotic behavior of a rotor under rub and iooseness[J]. Journal of Vibration and Shock,2002,21(4): 36-38,21. (in ChineseLIU Yuanfeng, ZHAO Mei, ZHU Houjun. Chaotic behavior of a rotor under rub and iooseness[J]. Journal of Vibration and Shock, 2002, 21(4): 36-38, 21. (in Chinese) [21] 罗跃纲,曾海泉,李振平,等. 基础松动-碰摩转子系统的混沌特性研究[J]. 振动工程学报,2003,16(2): 184-188. LUO Yuegang,ZENG Haiquan,LI Zhenping,et al. Study on chaos behaviors of rotor systems with local rubbing and pedestal looseness faults[J]. Journal of Vibration Engineering,2003,16(2): 184-188. (in Chinese doi: 10.3969/j.issn.1004-4523.2003.02.011LUO Yuegang, ZENG Haiquan, LI Zhenping, et al. Study on chaos behaviors of rotor systems with local rubbing and pedestal looseness faults[J]. Journal of Vibration Engineering, 2003, 16(2): 184-188. (in Chinese) doi: 10.3969/j.issn.1004-4523.2003.02.011 [22] MUSZYNSKA A,GOLDMAN P. Chaotic responses of unbalanced rotor/bearing/stator systems with looseness or rubs[J]. Chaos,Solitons & Fractals,1995,5(9): 1683-1704. [23] 陈果. 含不平衡-碰摩-基础松动耦合故障的转子-滚动轴承系统非线性动力响应分析[J]. 振动与冲击,2008,27(9): 100-104. CHEN Guo. Nonlinear dynamic response analysis of rotor-ball bearing system including unbalance-rubbing-looseness coupled faults[J]. Journal of Vibration and Shock,2008,27(9): 100-104. (in Chinese doi: 10.3969/j.issn.1000-3835.2008.09.025CHEN Guo. Nonlinear dynamic response analysis of rotor-ball bearing system including unbalance-rubbing-looseness coupled faults[J]. Journal of Vibration and Shock, 2008, 27(9): 100-104. (in Chinese) doi: 10.3969/j.issn.1000-3835.2008.09.025 [24] 陈果. 带碰摩耦合故障的转子-滚动轴承-机匣耦合动力学模型[J]. 振动工程学报,2007,20(4): 361-368. CHEN Guo. Rotor-ball bearing-stator coupling dynamic model including rubbing coupling faults[J]. Journal of Vibration Engineering,2007,20(4): 361-368. (in Chinese doi: 10.3969/j.issn.1004-4523.2007.04.008CHEN Guo. Rotor-ball bearing-stator coupling dynamic model including rubbing coupling faults[J]. Journal of Vibration Engineering, 2007, 20(4): 361-368. (in Chinese) doi: 10.3969/j.issn.1004-4523.2007.04.008 [25] 陈果. 转子一滚动轴承一机匣祸合系统的不平衡/松动棍合故障非线性动力学[J]. 机械工程学报,2008,44(3): 82-88. CHEN Guo. Nonlinear dynamics of unbalance-looseness coupling faults of rotor-ball bearing-stator coupling system[J]. Journal of Mechanical Engineering,2008,44(3): 82-88. (in Chinese doi: 10.3321/j.issn:0577-6686.2008.03.014CHEN Guo. Nonlinear dynamics of unbalance-looseness coupling faults of rotor-ball bearing-stator coupling system[J]. Journal of Mechanical Engineering, 2008, 44(3): 82-88. (in Chinese) doi: 10.3321/j.issn:0577-6686.2008.03.014 [26] 曲秀秀,陈果,乔保栋. 不平衡-碰摩-松动耦合故障的转子动力学建模与盲分离研究[J]. 振动与冲击,2011,30(6): 74-77. QU Xiuxiu,CHEN Guo,QIAO Baodong. Signal separation technology for dynamic model of rotor with unbalance-rubbing-looseness coupled faults[J]. Journal of Vibration and Shock,2011,30(6): 74-77. (in Chinese doi: 10.3969/j.issn.1000-3835.2011.06.016QU Xiuxiu, CHEN Guo, QIAO Baodong. Signal separation technology for dynamic model of rotor with unbalance-rubbing-looseness coupled faults[J]. Journal of Vibration and Shock, 2011, 30(6): 74-77. (in Chinese) doi: 10.3969/j.issn.1000-3835.2011.06.016 [27] YANG Yang,YANG Yiren,CAO Dengqing,et al. Response evaluation of imbalance-rub-pedestal looseness coupling fault on a geometrically nonlinear rotor system[J]. Mechanical Systems and Signal Processing,2019,118: 423-442. doi: 10.1016/j.ymssp.2018.08.063 [28] LI Hongguang,LI Ming,LI Cheng,et al. Multi-faults decoupling on turbo-expander using differential-based ensemble empirical mode decomposition[J]. Mechanical Systems and Signal Processing,2017,93: 267-280. doi: 10.1016/j.ymssp.2017.02.015 [29] YU Hui,ZHANG Genbao,ZHOU Wei. Effects of fastener failure at different parts on rotor systems outputs[J]. IEEE Access,2019,7: 108521-108529. doi: 10.1109/ACCESS.2019.2932265 [30] QIN Zhaoye,HAN Qinkai,CHU Fulei. Bolt loosening at rotating joint interface and its influence on rotor dynamics[J]. Engineering Failure Analysis,2016,59: 456-466. doi: 10.1016/j.engfailanal.2015.11.002 [31] LIU Jing,SHAO Yimin. Dynamic modeling for rigid rotor bearing systems with a localized defect considering additional deformations at the sharp edges[J]. Journal of Sound and Vibration,2017,398: 84-102. doi: 10.1016/j.jsv.2017.03.007 [32] 李梦奇,庾辉,李冬英,等. 面向结构参数的滚珠丝杠副动态接触角建模[J]. 农业工程学报,2016,32(4): 98-104. LI Mengqi,YU Hui,LI Dongying,et al. Modeling for dynamic contact angle of ball screw mechanism aimed to structural parameters[J]. Transactions of the Chinese Society of Agricultural Engineering,2016,32(4): 98-104. (in Chinese doi: 10.11975/j.issn.1002-6819.2016.04.014LI Mengqi, YU Hui, LI Dongying, et al. Modeling for dynamic contact angle of ball screw mechanism aimed to structural parameters[J]. Transactions of the Chinese Society of Agricultural Engineering, 2016, 32(4): 98-104. (in Chinese) doi: 10.11975/j.issn.1002-6819.2016.04.014 [33] 邓四二,贾群义,薛进学. 滚动轴承设计原理[M]. 2版. 北京: 中国标准出版社,2014. DENG Sier,JIA Qunyi,XUE Jinxue. Design principle of rolling bearing[M]. 2nd ed. Beijing: Standards Press of China,2014. (in ChineseDENG Sier, JIA Qunyi, XUE Jinxue. Design principle of rolling bearing[M]. 2nd ed. Beijing: Standards Press of China, 2014. (in Chinese) -
