Experiment and mechanism analysis on the effect of waves on the performance of high-subsonic profile
-
摘要:

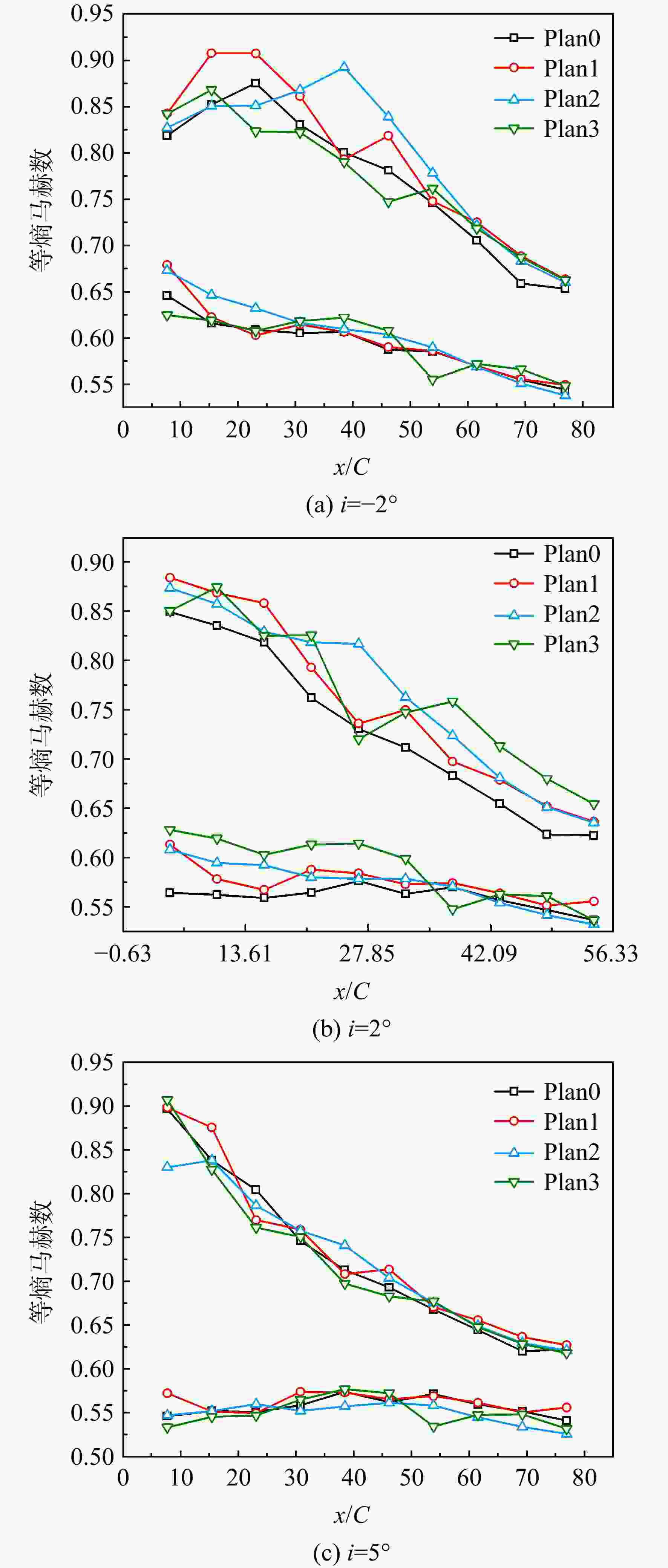

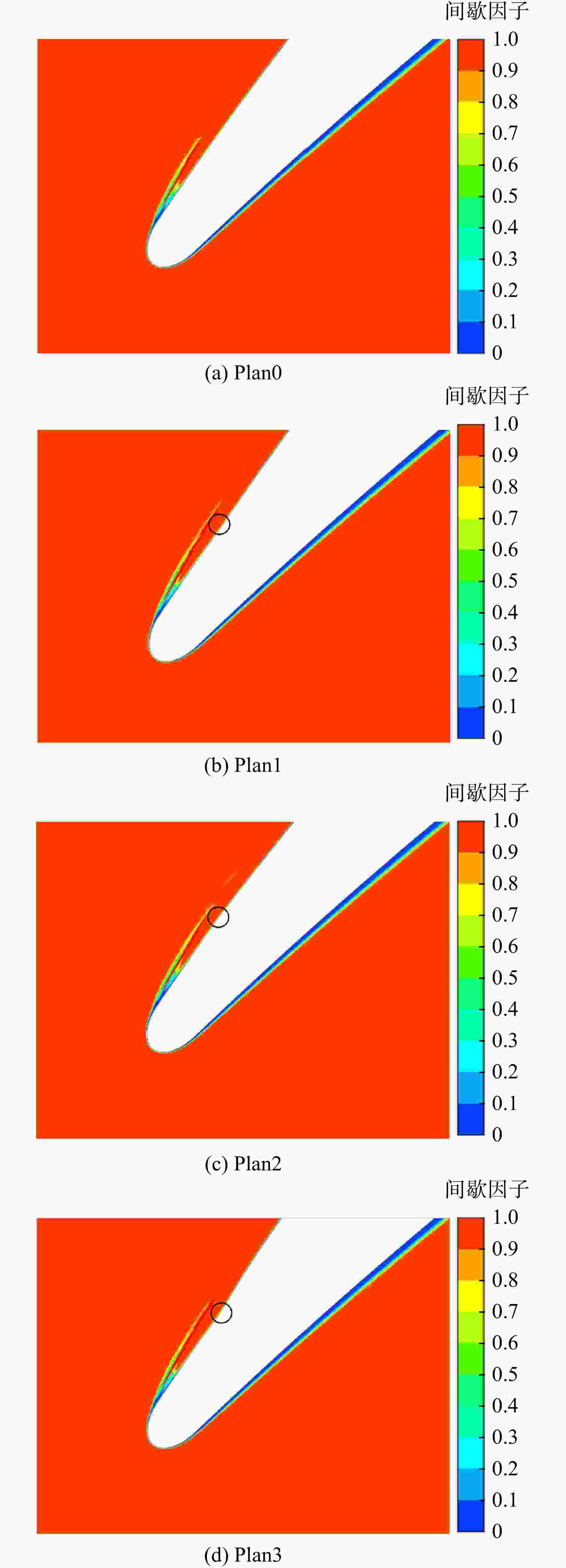

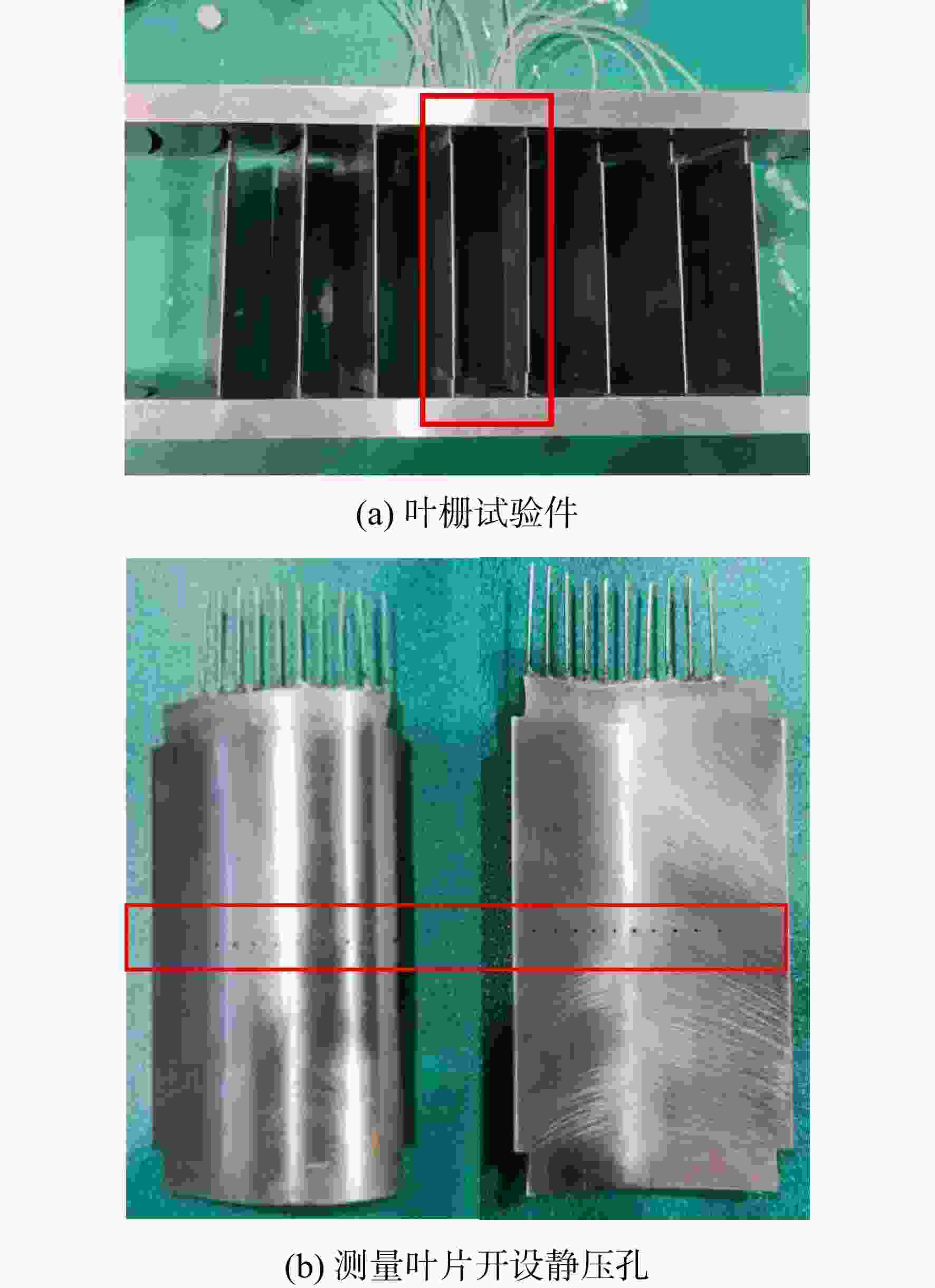

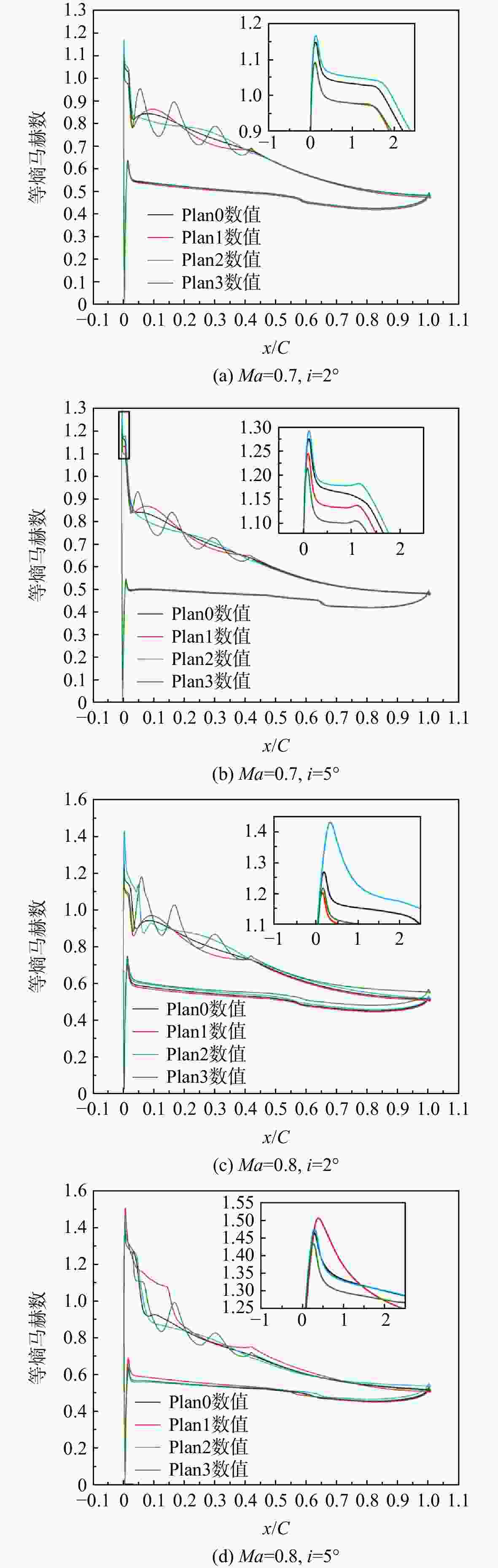

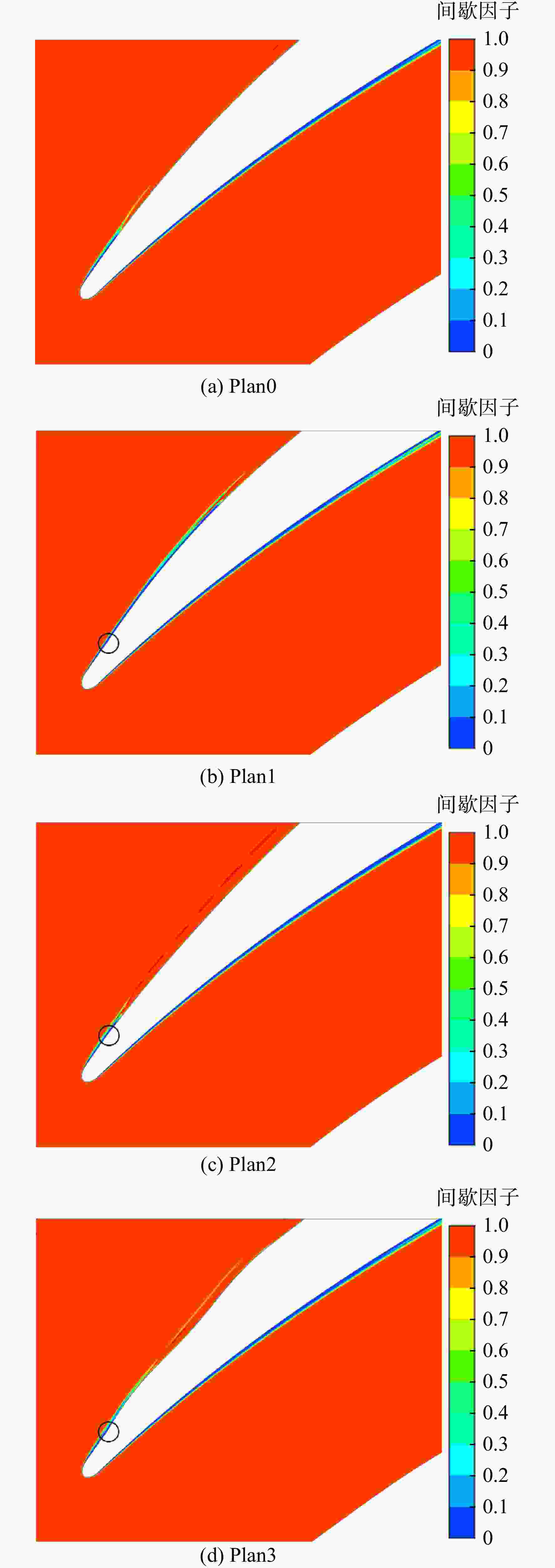

基于压气机叶片加工过程中出现的波纹现象,加工出4种波纹形式叶栅试验件并开展平面叶栅吹风试验,得到波纹对叶型性能及表面负荷的影响规律并进行机理分析。结果表明:叶背波纹现象整体上增加叶型损失。负攻角下,叶背波纹对流场的影响会传播至叶背下游和叶盆,整体改变叶型表面压力分布。气流在波纹出现位置产生“加速-减速”的周期性更迭,波纹宽度直接决定了更迭的频次,不同的波纹初始相位影响叶背前缘区域加速趋势。叶背波纹会改变前缘“吸力峰”强度,波纹对叶型前缘转捩位置的作用机制与叶型自身特性有关,当波纹起始位置在原始叶型转捩位置前,吸力峰强度的变化会改变前缘转捩位置。

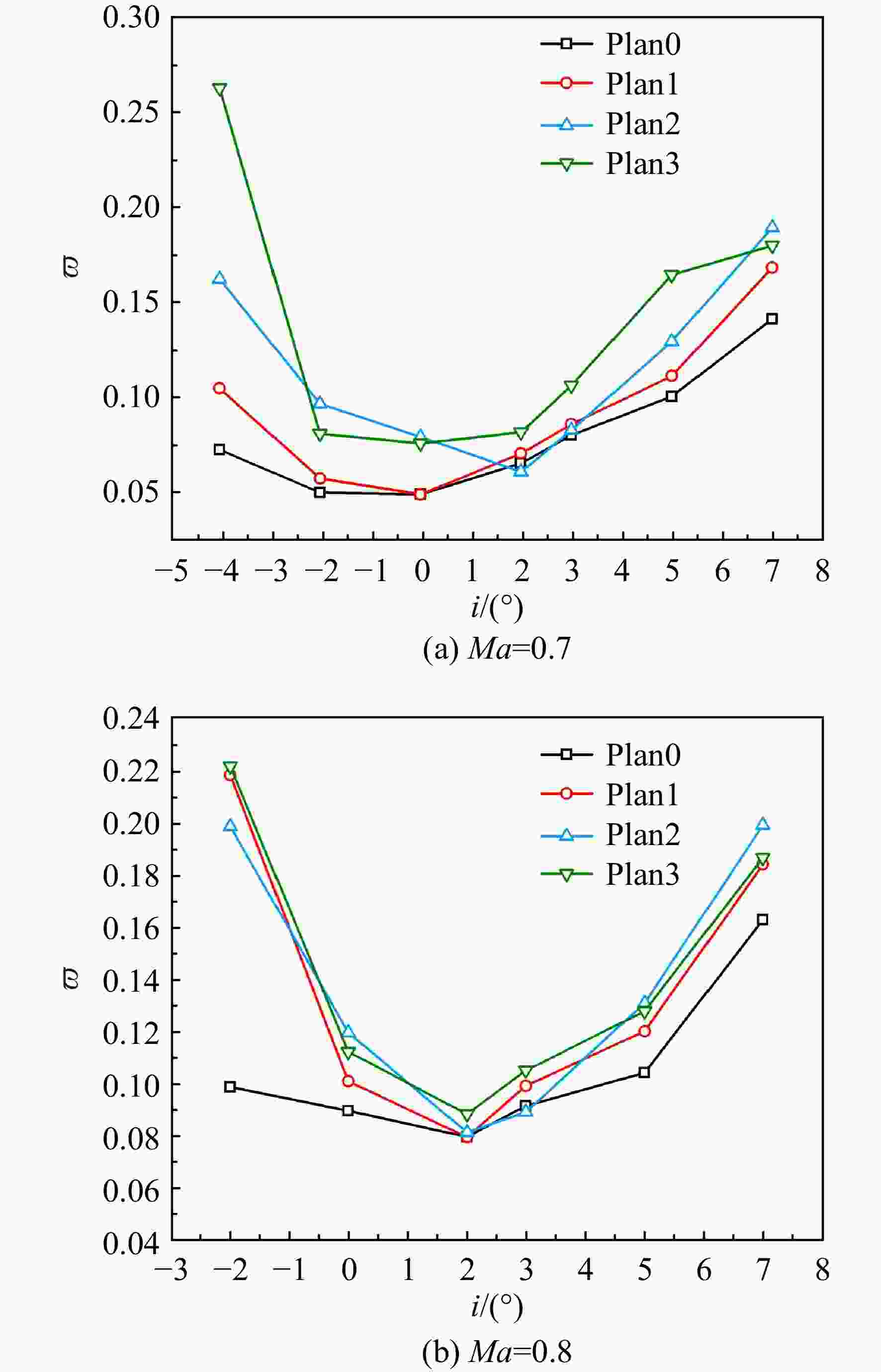

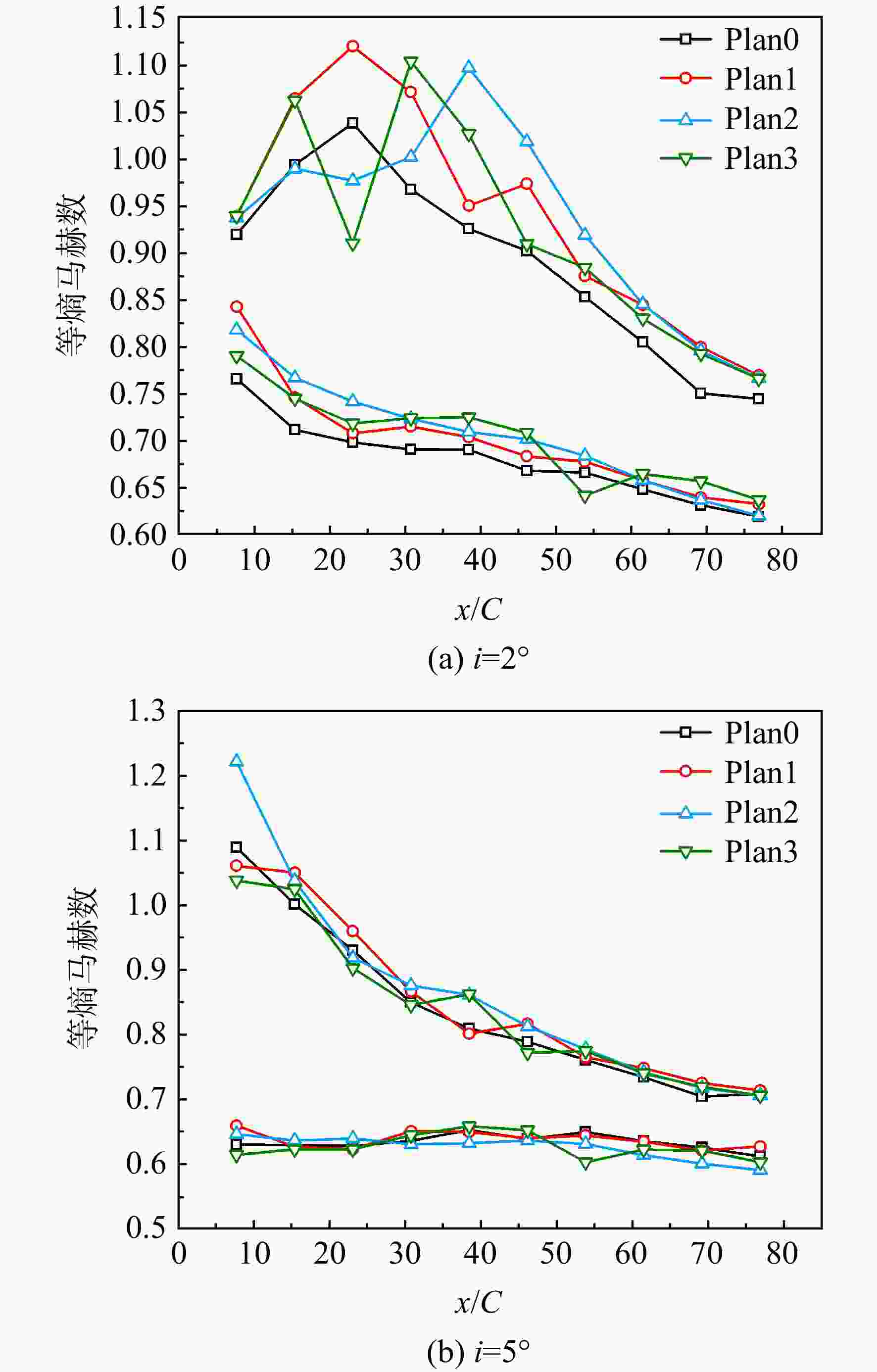

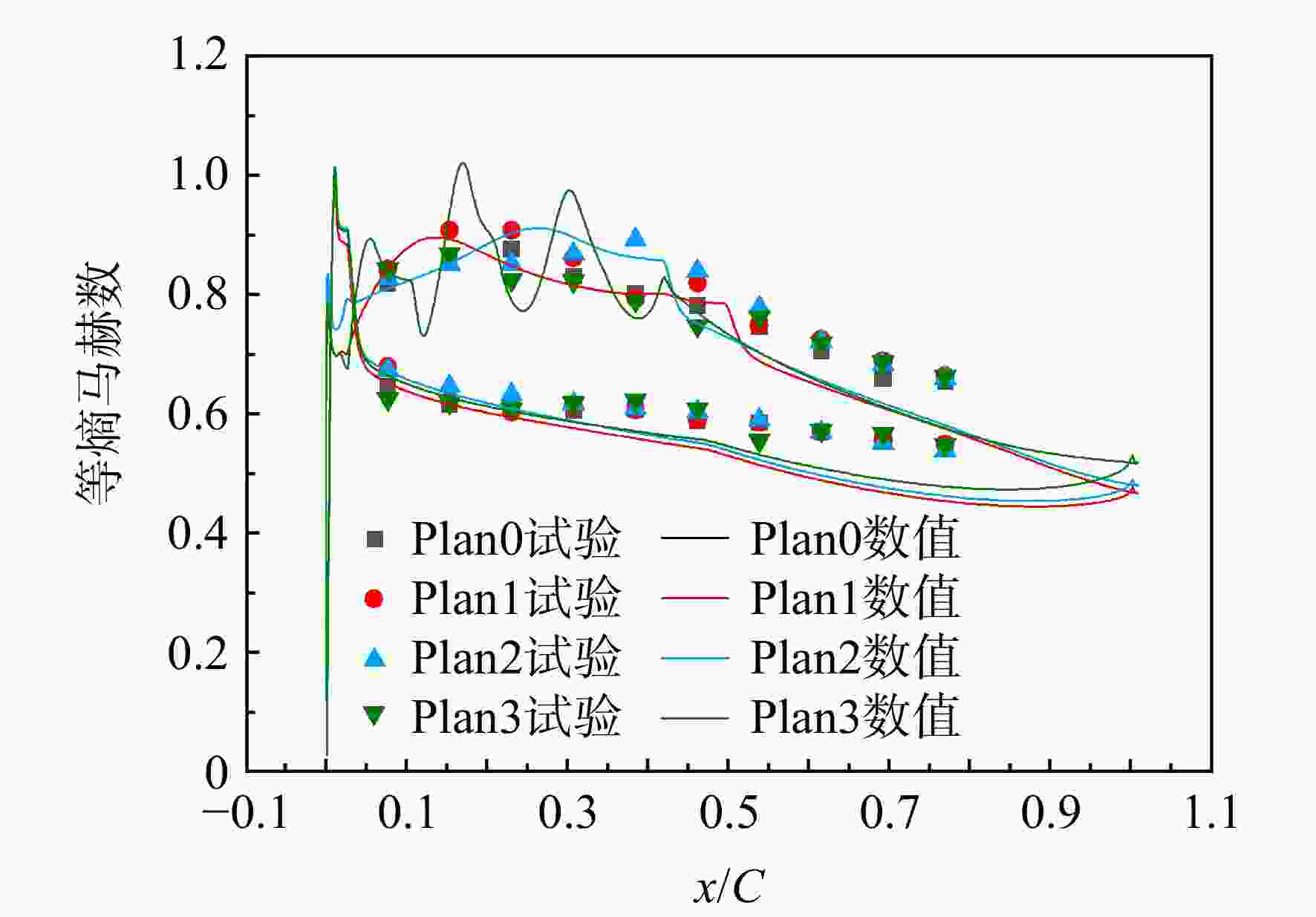

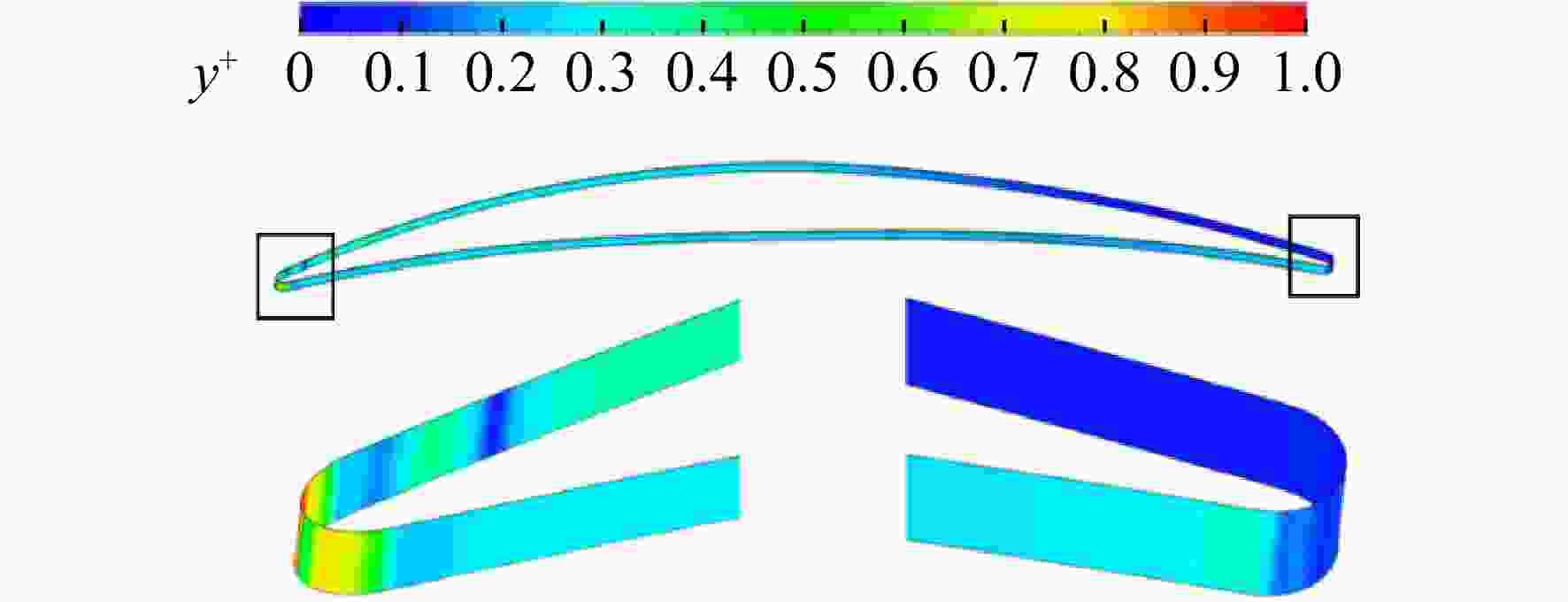

Abstract:Based on the appearance of waves in the compressor blade processing, cascades with four kinds of waves were processed, and the plane cascade experiment was carried out, then the influences of aerodynamic performance and pressure distribution were obtained and the mechanism was analyzed. Results showed that the loss of those profiles with waves was overall larger than that of original profile. Under negative attack of angle, the influence of wave spread to the downstream and pressure side and changed the pressure distribution of profile. Moreover, the flow experienced repeated acceleration-deceleration changes on suction side of the blade where waves appeared. The width of the wave directly determined the frequency of acceleration-deceleration changes, and different initial phases of waves affected the acceleration circumstances of leading edge. The wave on suction side could change the “spike” close to the leading edge, the action mechanism for waves changing transition position was related to the characteristics of the airfoil itself; when waves occurred before the location of transition, the variation of “spike” could change the location of transition.
-
Key words:
- compressor /
- waviness /
- plane cascade experiment /
- aerodynamic performance /
- leading edge transition
-
表 1 原始叶型参数
Table 1. Original profile parameters
参数 数值 进口几何构造角/(°) 49 出口几何构造角/(°) 7.2980 安装角/(°) 28.4594 最大相对厚度Dmax/C 0.0800 最大相对厚度位置xmax/C 0.4800 弦长C/mm 71.1760 栅距T/mm 35.7660 表 2 4种简化波纹模型参数

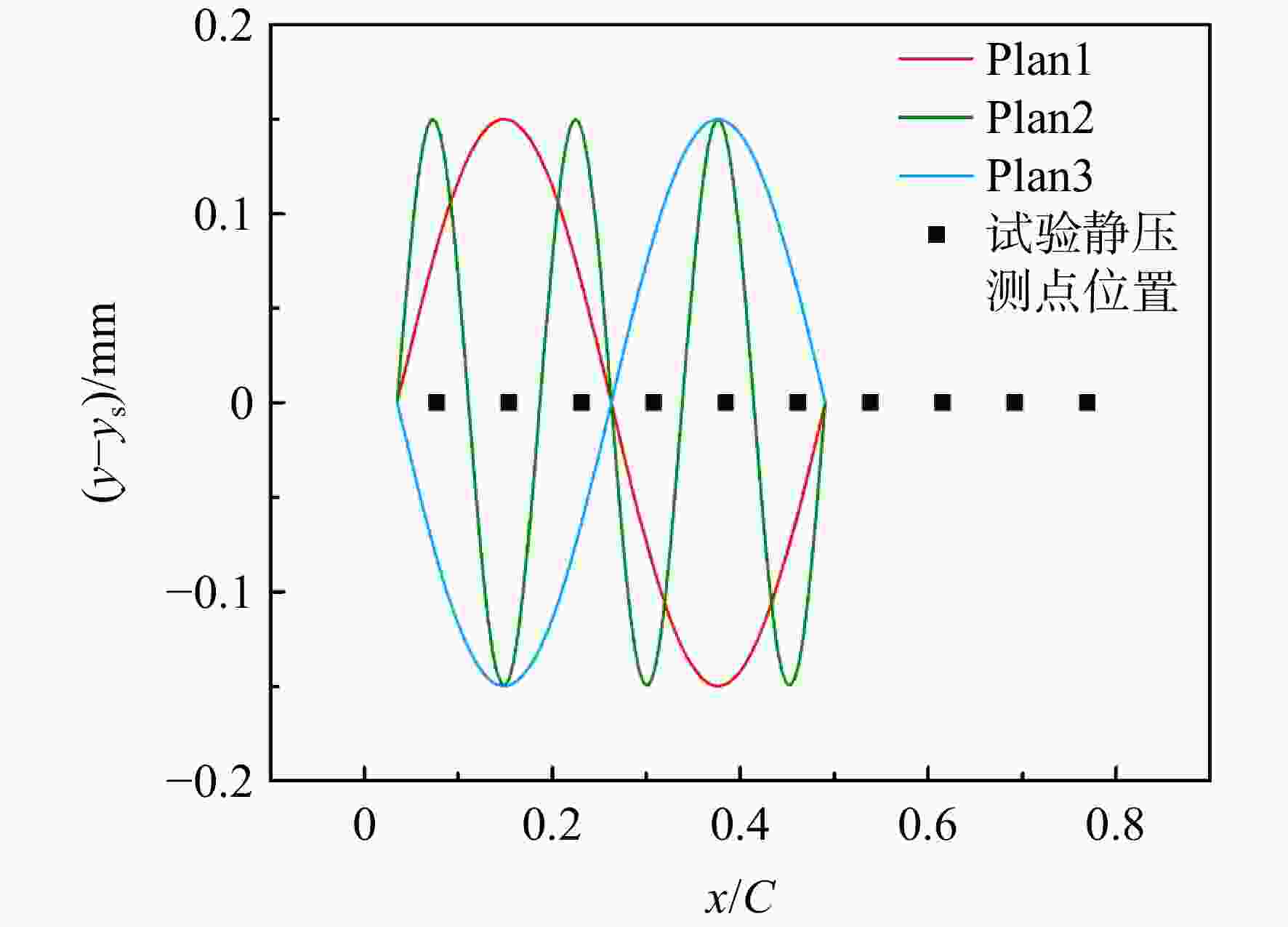

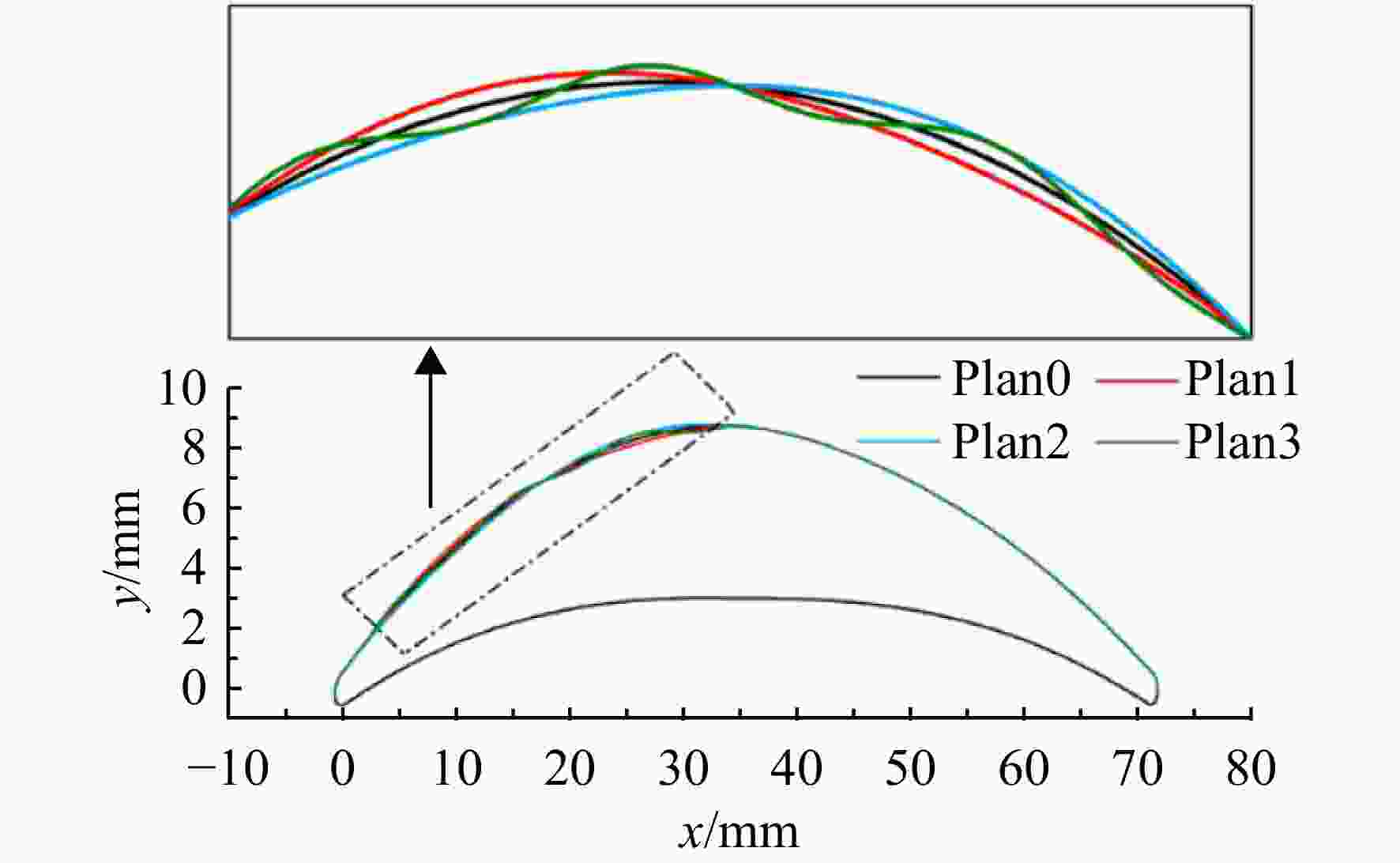

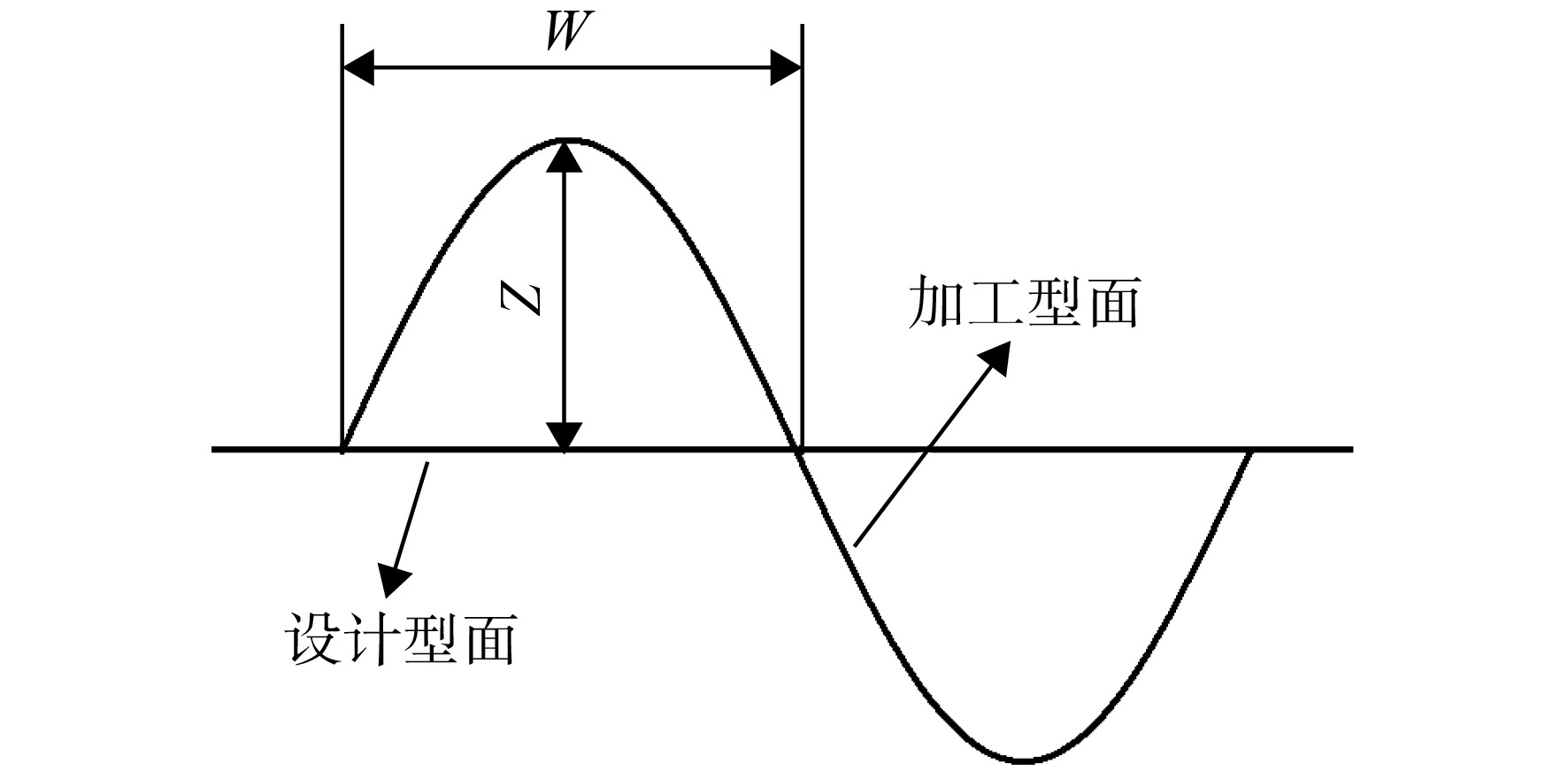

Table 2. Parameters of four simplified waves
方案 Z/mm W/mm ${\varphi} $/rad Plan0 0 0 Plan1 0.15 33 0 Plan2 0.15 33 ${\text{π}}$ Plan3 0.15 11 0 表 3 试验工况

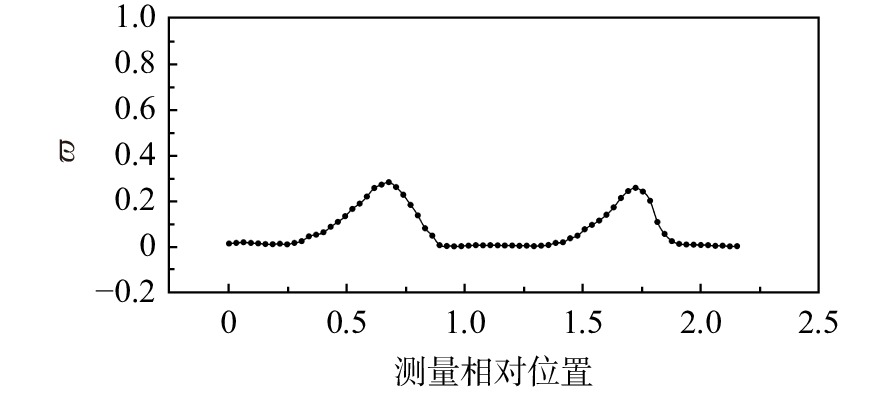

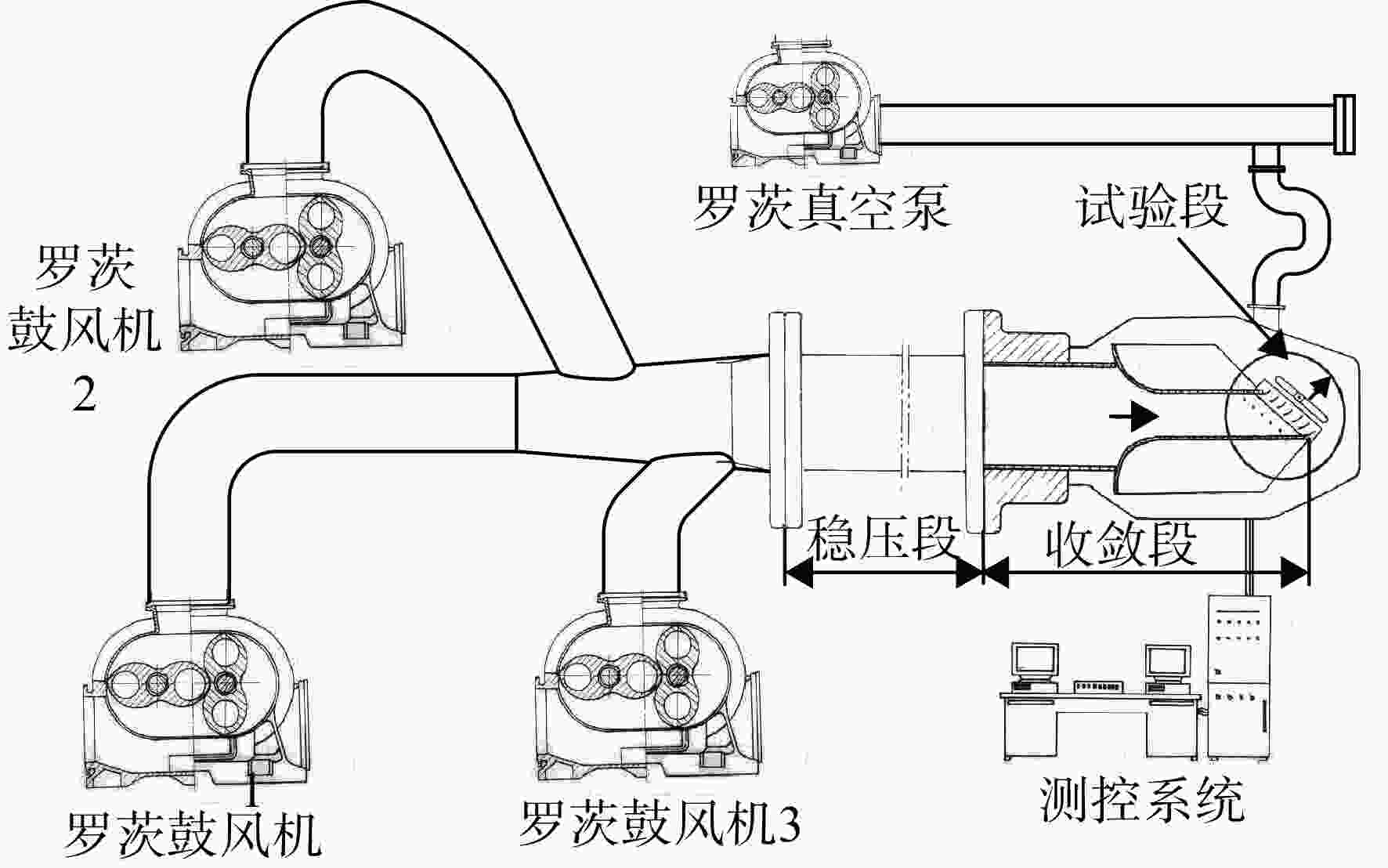

Table 3. Work conditions
攻角i/(°) −2 0 2 3 5 7 周期性检查 Plan0, 1, 2, 3 Ma=0.7 Plan0, 1, 2, 3 Plan0, 1, 2, 3 Plan0, 1, 2, 3 Plan0, 1, 2, 3 Plan0, 1, 2, 3 Plan0, 1, 2, 3 Ma=0.8 Plan0,1,3 Plan0, 1, 2, 3 Plan0, 1, 2, 3 Plan0, 1, 2, 3 Plan0, 1, 2, 3 Plan0, 1, 2, 3 -
