基于QPSO的非壅塞固体冲压发动机一体化优化

王昭; 田小涛; 汤祥; 黄萌; 张博; 陈俊屹

doi:10.13224/j.cnki.jasp.20220520

基于QPSO的非壅塞固体冲压发动机一体化优化

doi: 10.13224/j.cnki.jasp.20220520

王昭^{1, 2},
田小涛^{1, 2},
汤祥^{1, 2},
黄萌^{1, 2,*, ,},
张博^{1, 2},
陈俊屹^{1, 2}

1.
中国兵器工业集团有限公司西安现代控制技术研究所，西安 710065
2.
中国兵器工业集团有限公司现代控制技术重点实验室，西安 710065

详细信息

作者简介:
王昭（1992-），男，高级工程师，博士，主要从事人工智能在发动机中的应用研究

通讯作者:
黄萌（1985-），男，高级工程师，博士，主要从事冲压发动机方面的研究。E-mail：hotmoon2000@qq.com

中图分类号: V435.5
计量
- 文章访问数: 497
- HTML浏览量: 214
- PDF量: 50
- 被引次数: 0
出版历程
- 收稿日期: 2022-07-20
- 网络出版日期: 2023-06-20

Integrated optimization of unchoked solid ramjet based on QPSO

WANG Zhao^{1, 2},
TIAN Xiaotao^{1, 2},
TANG Xiang^{1, 2},
HUANG Meng^{1, 2,*
, ,},
ZHANG Bo^{1, 2},
CHEN Junyi^{1, 2}

1.
Xi’an Modern Control Technology Research Institute， China North Industries Group Corporation Limited，Xi’an 710065，China
2.
Key Laboratory for Modern Control Technology， China North Industries Group Corporation Limited，Xi’an 710065，China

摘要

摘要:
为了对非壅塞固体冲压发动机性能进行充分优化，建立了相应的内外弹道一体化优化设计数学模型。首先构造了新的非壅塞固体冲压发动机性能预示框架。而后在此基础上，采用量子粒子群优化方法（quantum particle swarm optimization, QPSO），以巡航段和无动力下降段的总射程为优化目标，在满足推力约束的前提下，对冲压发动机的喷管喉径、进气道入口和喉部面积以及飞行攻角进行一体化优化。仿真结果表明：采用QPSO方法优化后的弹道射程较仅优化飞行攻角的方案提升18.65%，证明了一体化优化的有效性，为非壅塞固体冲压发动机的设计提供了理论基础。
- 非壅塞固体冲压发动机 /
- 一体化优化 /
- 弹道射程 /
- 量子粒子群 /
- 推力约束
Abstract:
In order to fully optimize the performance of unchoked solid ramjet, the mathematical model of integrated optimization design of interior and exterior ballistics was established. Firstly, a new frame for performance prediction of unchoked solid ramjet was constructed. On this basis, quantum particle swarm optimization (QPSO) with the total range of cruise and unpowered descent stages taken as optimization targets was adopted to optimize the nozzle throat diameter, inlet area and inlet throat area, as well as the flight angle of attack of the ramjet under premise of satisfying the thrust constraint. The simulation results showed that the ballistic range optimized by QPSO method was 18.65% higher than that of the scheme merely optimizing the flight angle of attack, so the superiority of the integrated optimization was proved, providing a theoretical basis for the design of unchoked solid ramjet.
- unchoked solid ramjet /
- integrated optimization /
- ballistic range /
- quantum particle swarm /
- thrust constraint

HTML

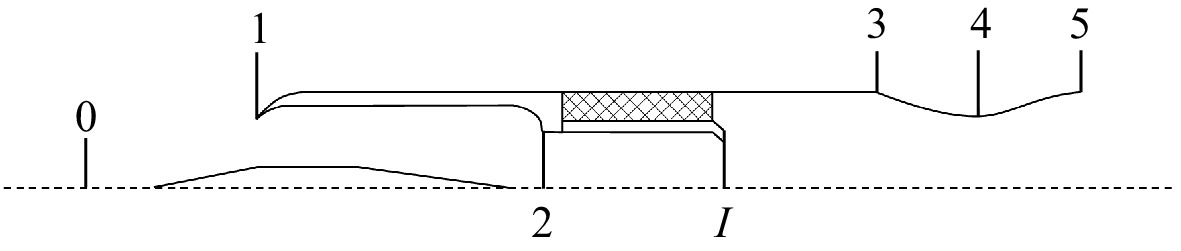

图 1 非壅塞固体冲压发动机截面示意图

Figure 1. Section diagram of unchoked solid ramjet

下载: 全尺寸图片幻灯片

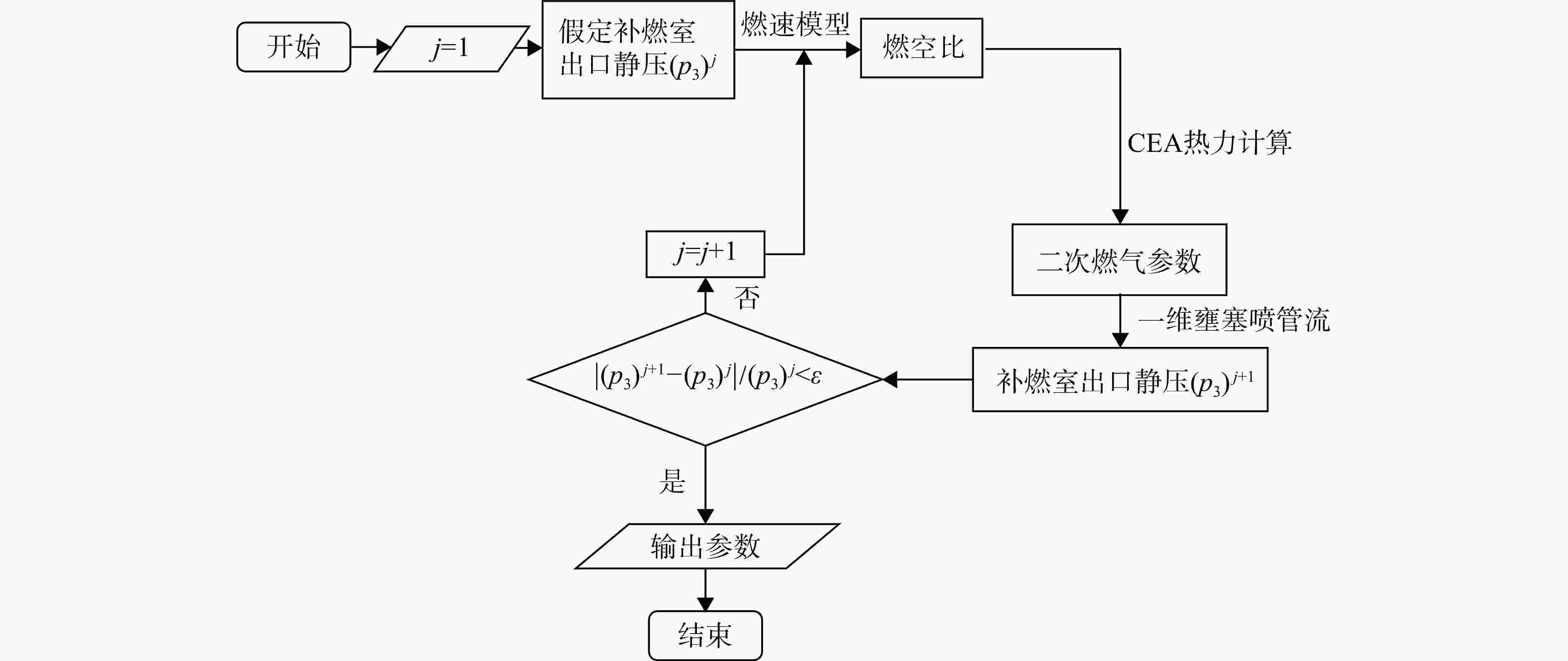

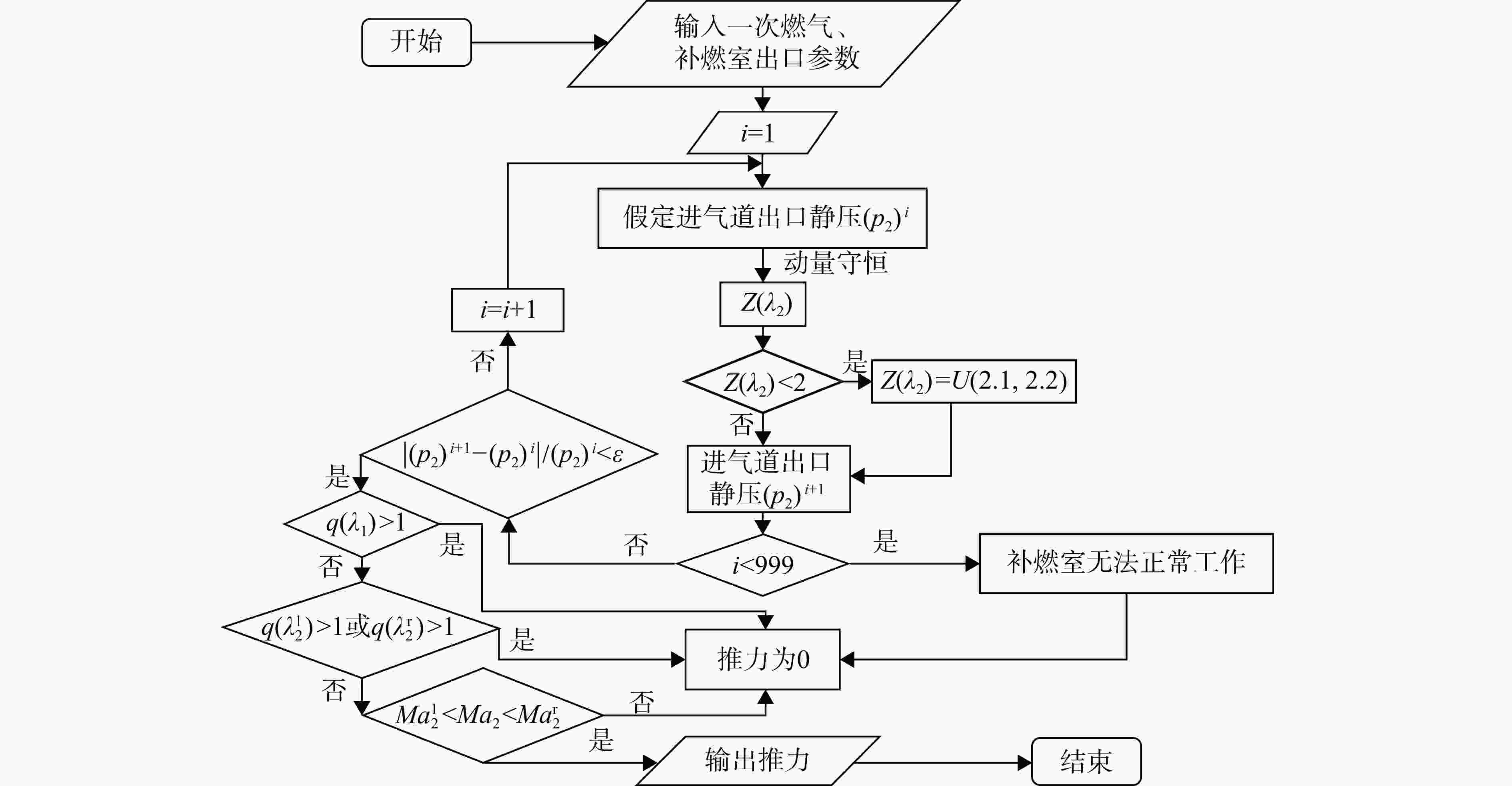

图 2 补燃室出口参数求取流程图

Figure 2. Flow chart for calculating outlet parameters of supplementary combustion chamber

下载: 全尺寸图片幻灯片

图 3 性能预示流程图

Figure 3. Flow chart of performance prediction

下载: 全尺寸图片幻灯片

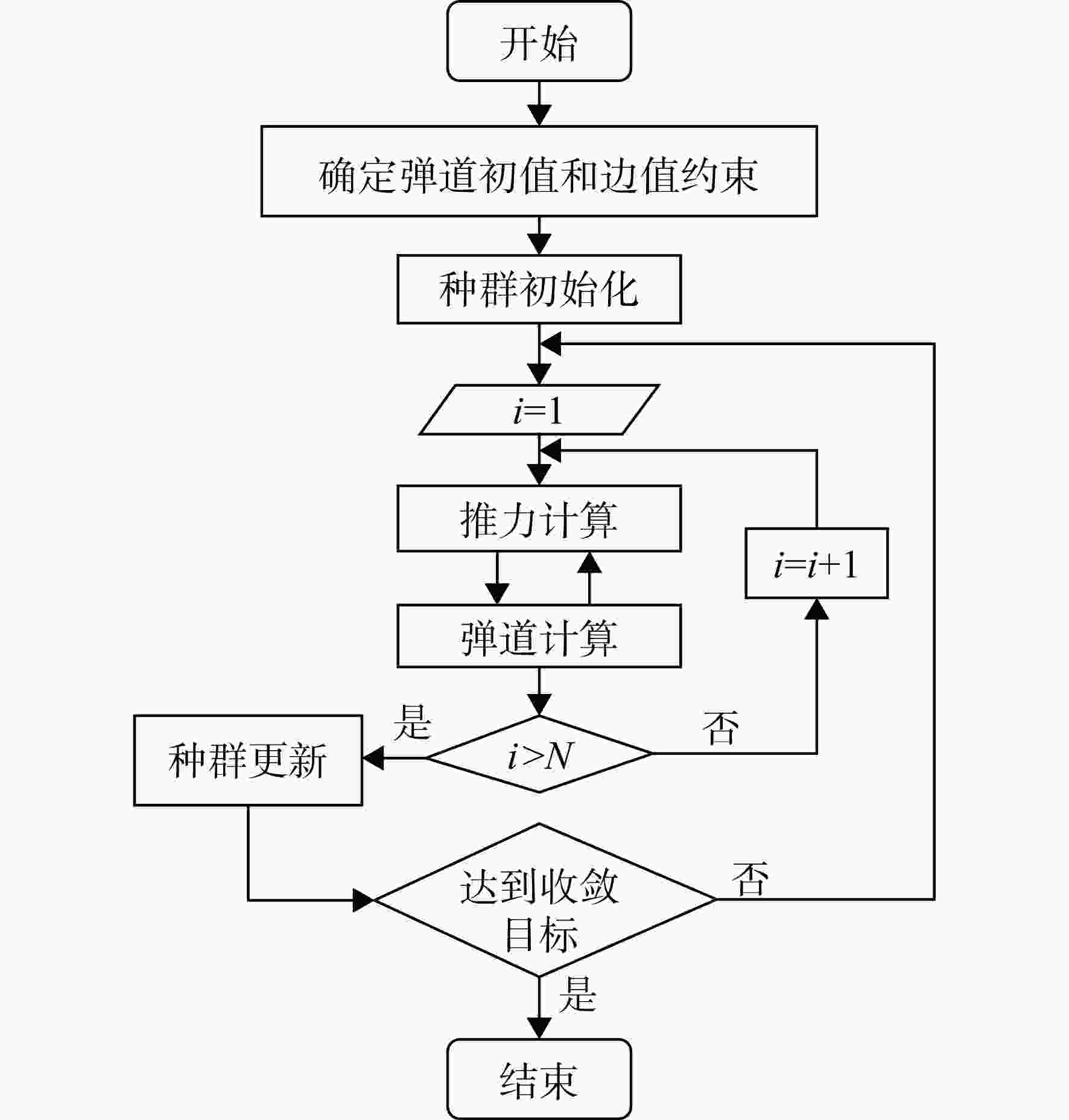

图 4 一体化优化流程图

Figure 4. Flow chart of integrated optimization

下载: 全尺寸图片幻灯片

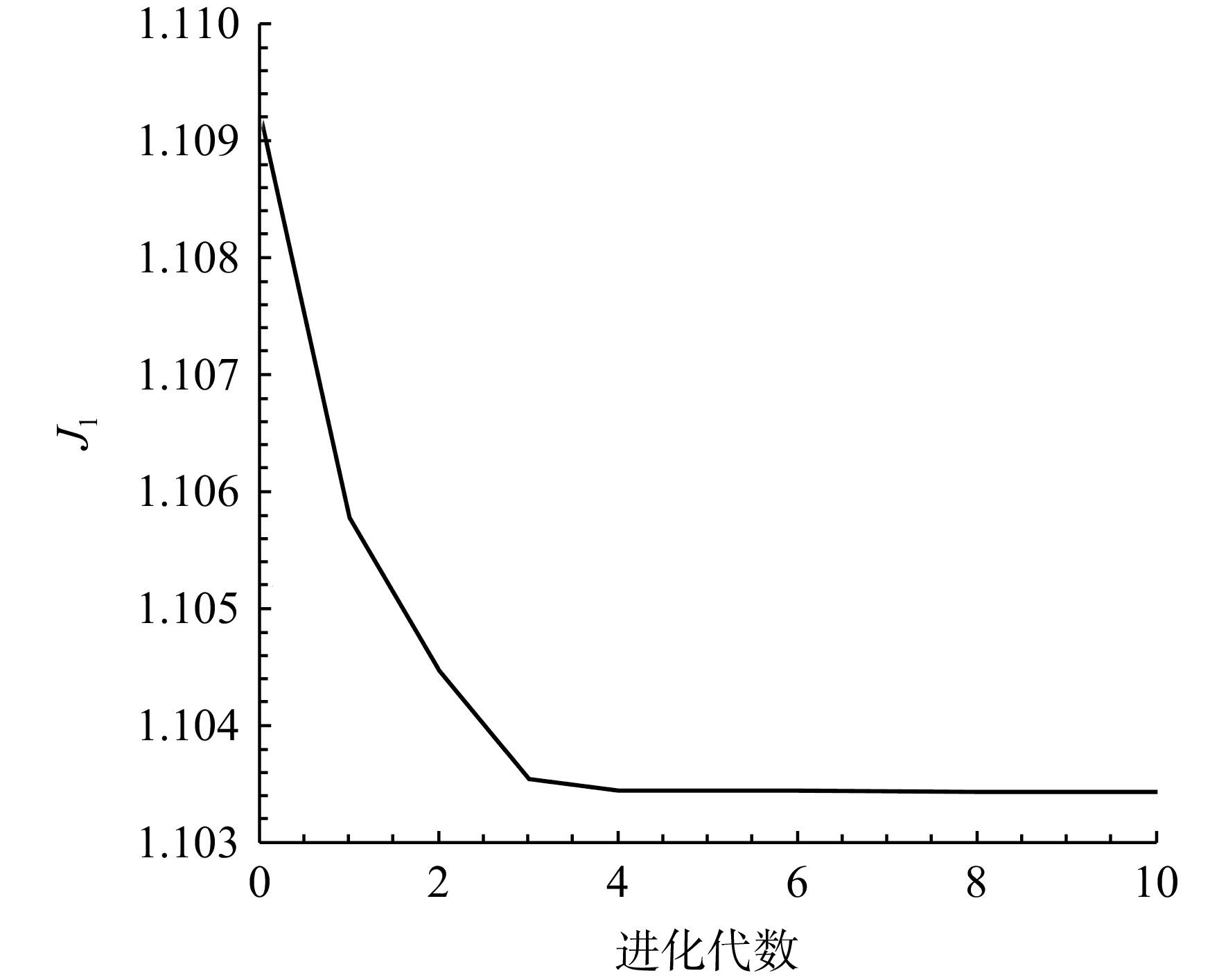

图 5 求解收敛过程

Figure 5. Solution convergence process

下载: 全尺寸图片幻灯片

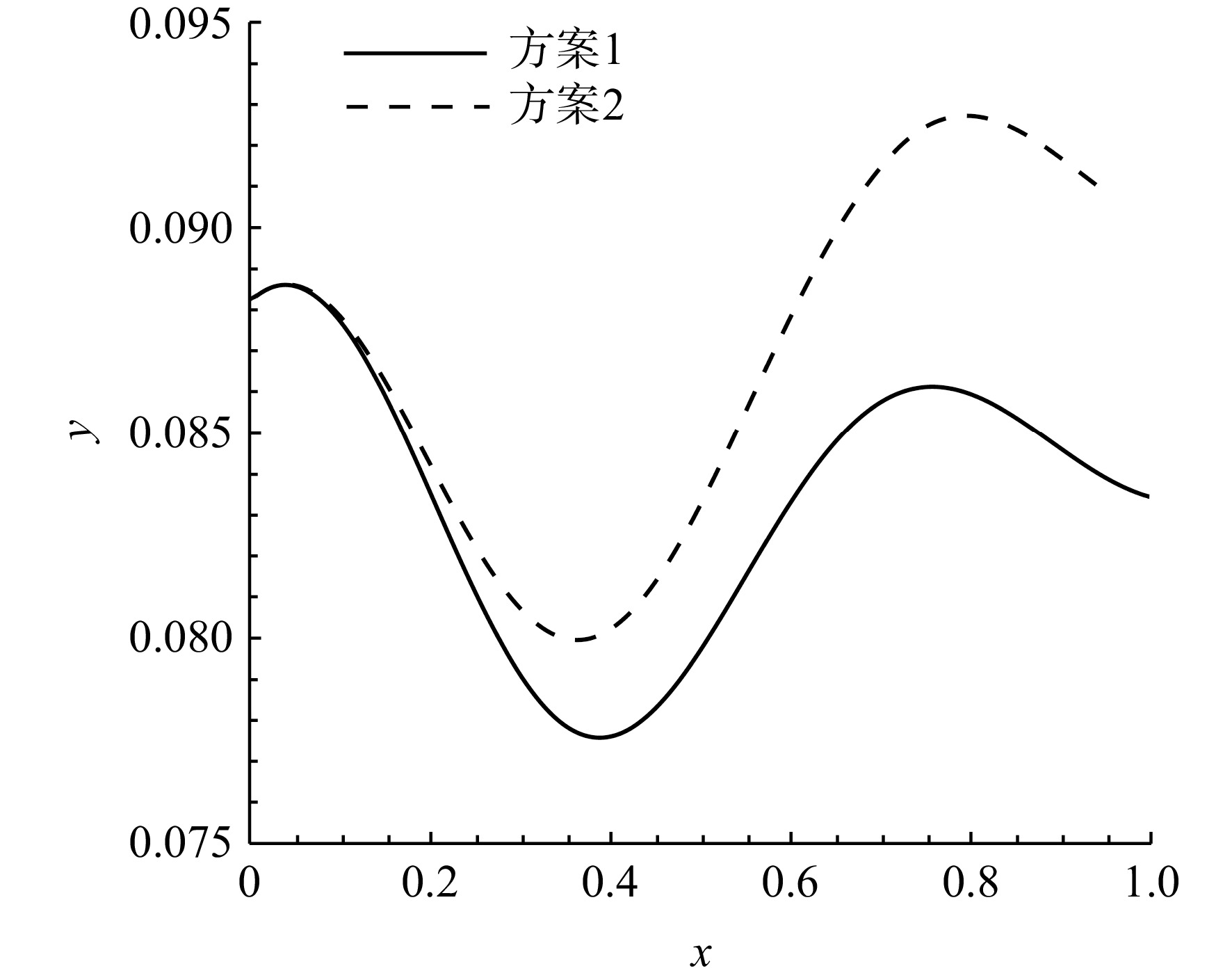

图 6 方案1和2所对应的弹道曲线

Figure 6. The corresponding ballistic curve of scheme 1 and 2

下载: 全尺寸图片幻灯片

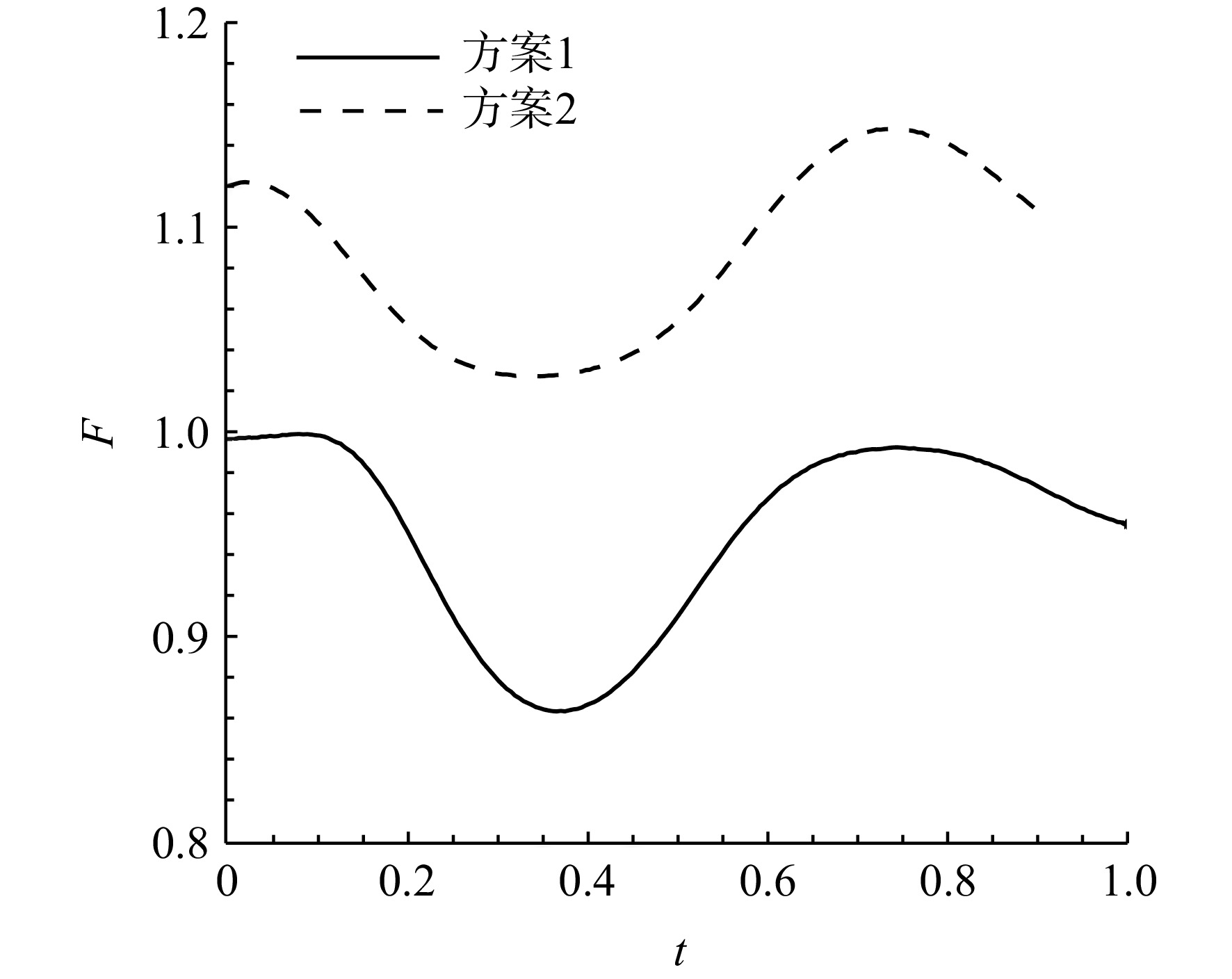

图 7 方案1和2所对应的推力随时间变化曲线

Figure 7. The corresponding variation of thrust with time of scheme 1 and 2

下载: 全尺寸图片幻灯片

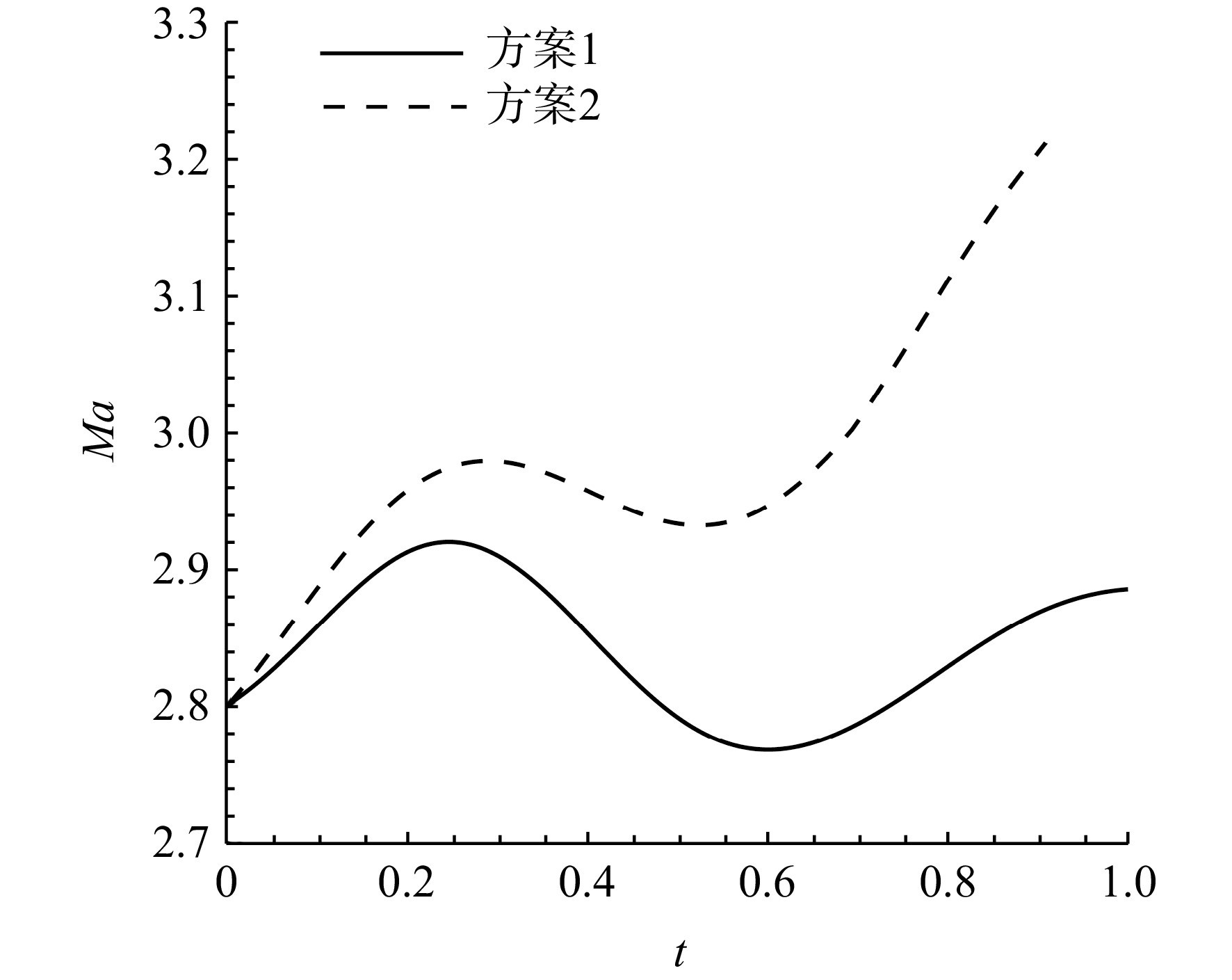

图 8 方案1和2所对应的飞行马赫数随时间变化曲线

Figure 8. The corresponding variation of flight Mach number with time of scheme 1 and 2

下载: 全尺寸图片幻灯片

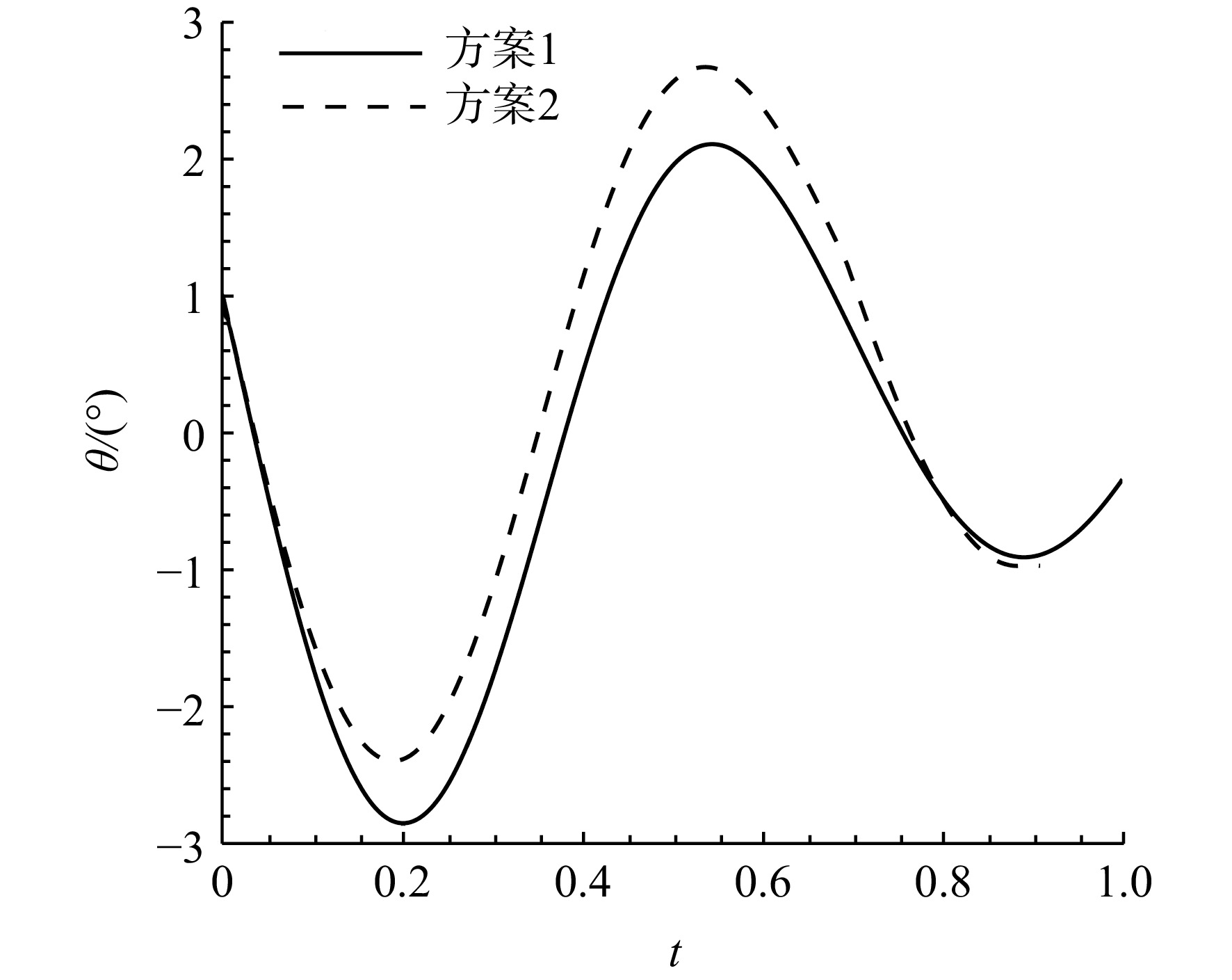

图 9 方案1和2所对应的弹道倾角随时间变化曲线

Figure 9. The corresponding variation of flight path angle with time of scheme 1 and 2

下载: 全尺寸图片幻灯片

图 10 方案3和4所对应的弹道曲线

Figure 10. The corresponding ballistic curve of scheme 3 and 4

下载: 全尺寸图片幻灯片

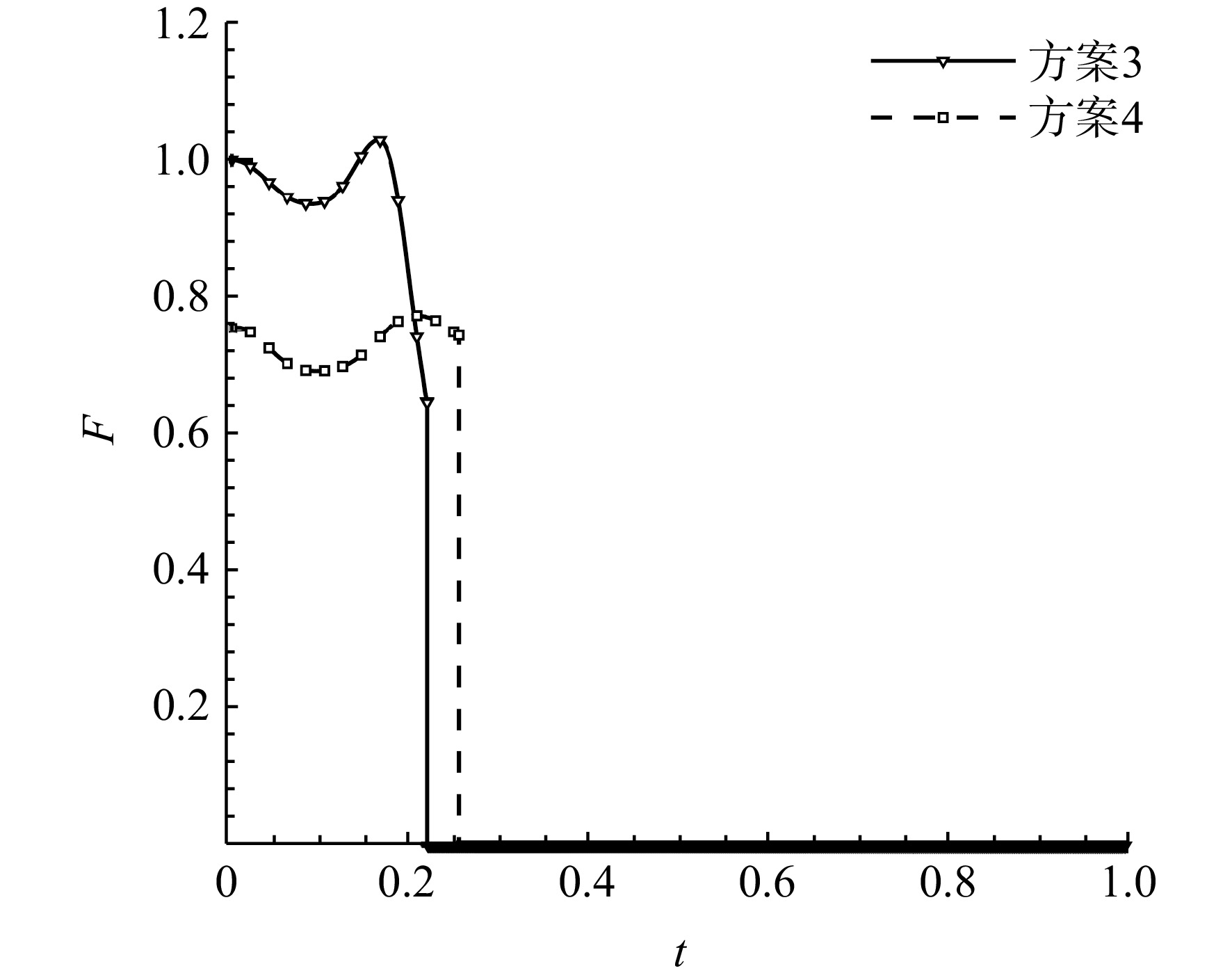

图 11 方案3和4所对应的推力随时间变化曲线

Figure 11. The corresponding variation of thrust with time of scheme 3 and 4

下载: 全尺寸图片幻灯片

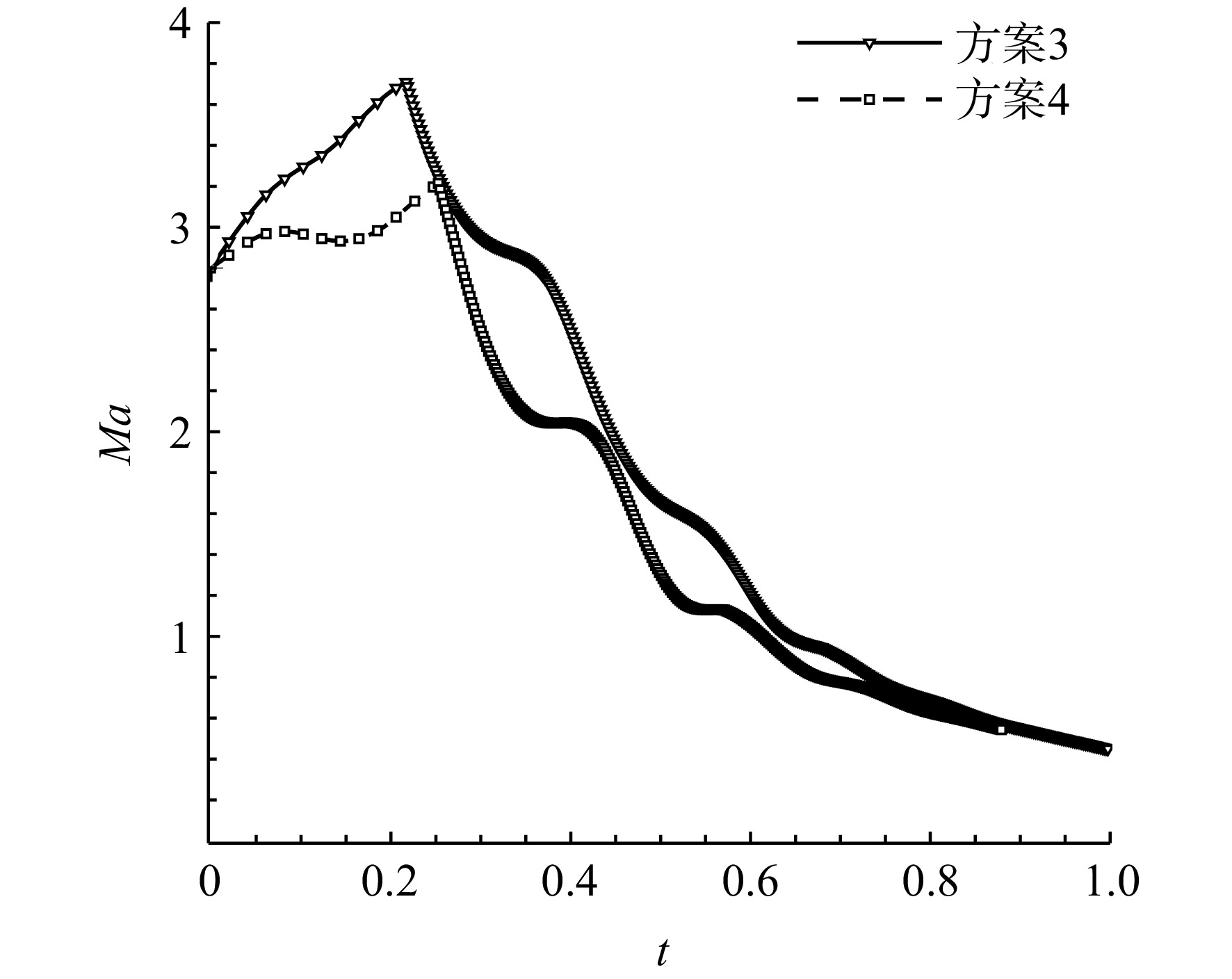

图 12 方案3和4所对应的飞行马赫数随时间变化曲线

Figure 12. The corresponding variation of flight Mach number with time of scheme 3 and 4

下载: 全尺寸图片幻灯片

表 1 方案1和2优化结果对比

Table 1. Comparison of optimization results between scheme 1 and 2

参数	数值
参数	方案1	方案2
飞行攻角/（^o）	6	6
喷管喉径	1.56	1.50
进气道入口面积	0.88	1.17
进气道喉部面积	0.68	0.65
飞行时间	1.0	0.9085
射程	1.0	0.9519
终端高度	0.0834	0.0909
终端马赫数	2.88	3.21

下载: 导出CSV

表 2 方案3和4优化结果对比

Table 2. Comparison of optimization results between scheme 3 and 4

参数	数值
参数	方案1	方案2
巡航段飞行攻角/（^o）	6.0	6.0
无动力下降段飞行攻角/（^o）	12.0	8.86
喷管喉径	1.33	1.50
进气道入口面积	1.33	1.17
进气道喉部面积	0.54	0.65
飞行时间	1.0	0.8810
射程	1.0	0.8428
终端马赫数	0.46	0.55
巡航段工作时间	0.2182	0.2543
巡航段结束射程	0.3763	0.3957
巡航段结束高度	0.0502	0.0378
巡航段结束马赫数	3.71	3.21

下载: 导出CSV
